Volvo BM L330C 60001-60187
303 pages · 255 diagrams
- L330C
- Wheel Loaders Volvo BM, Attach. Buckets, Attach. Misc.

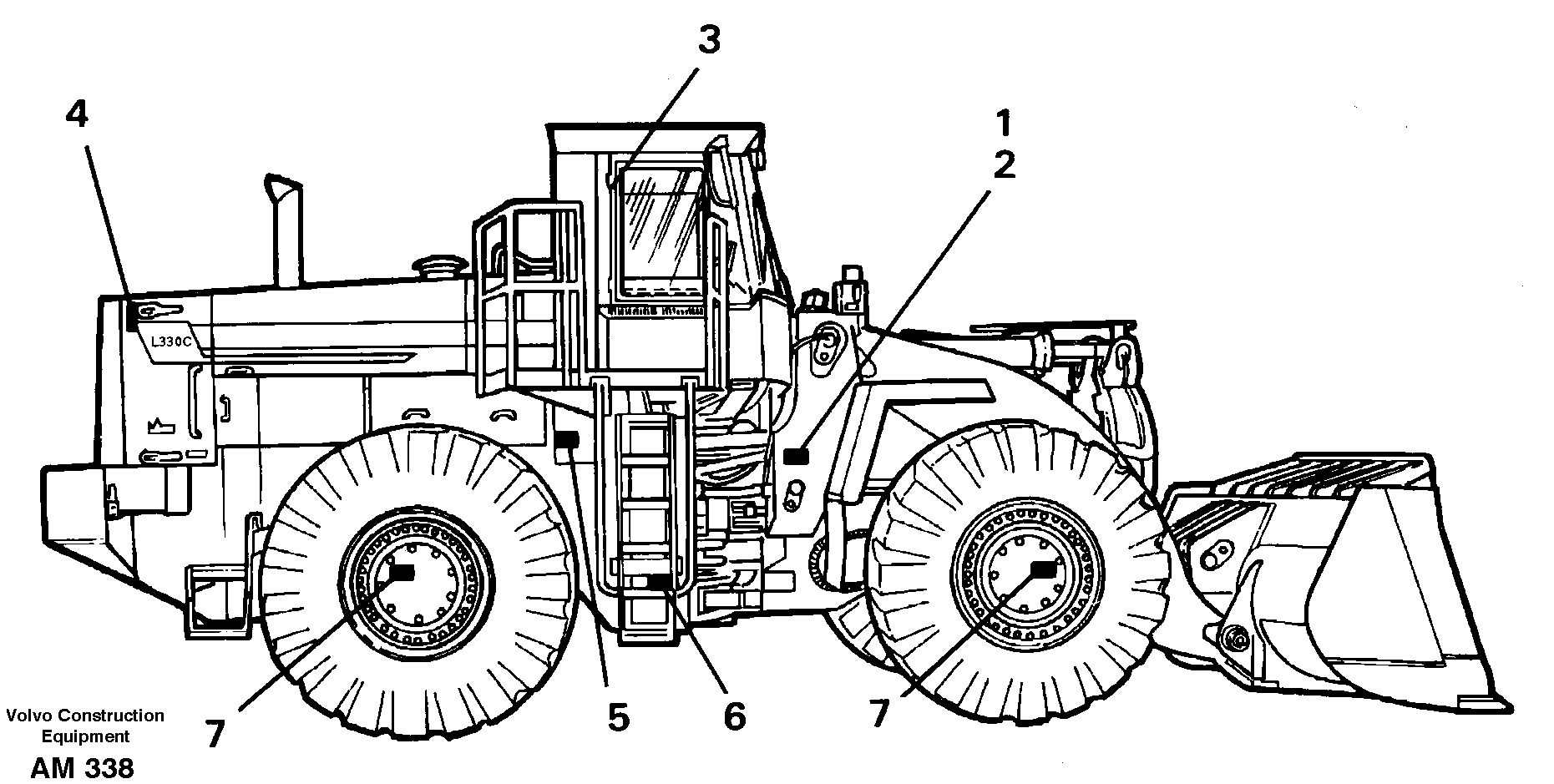

General

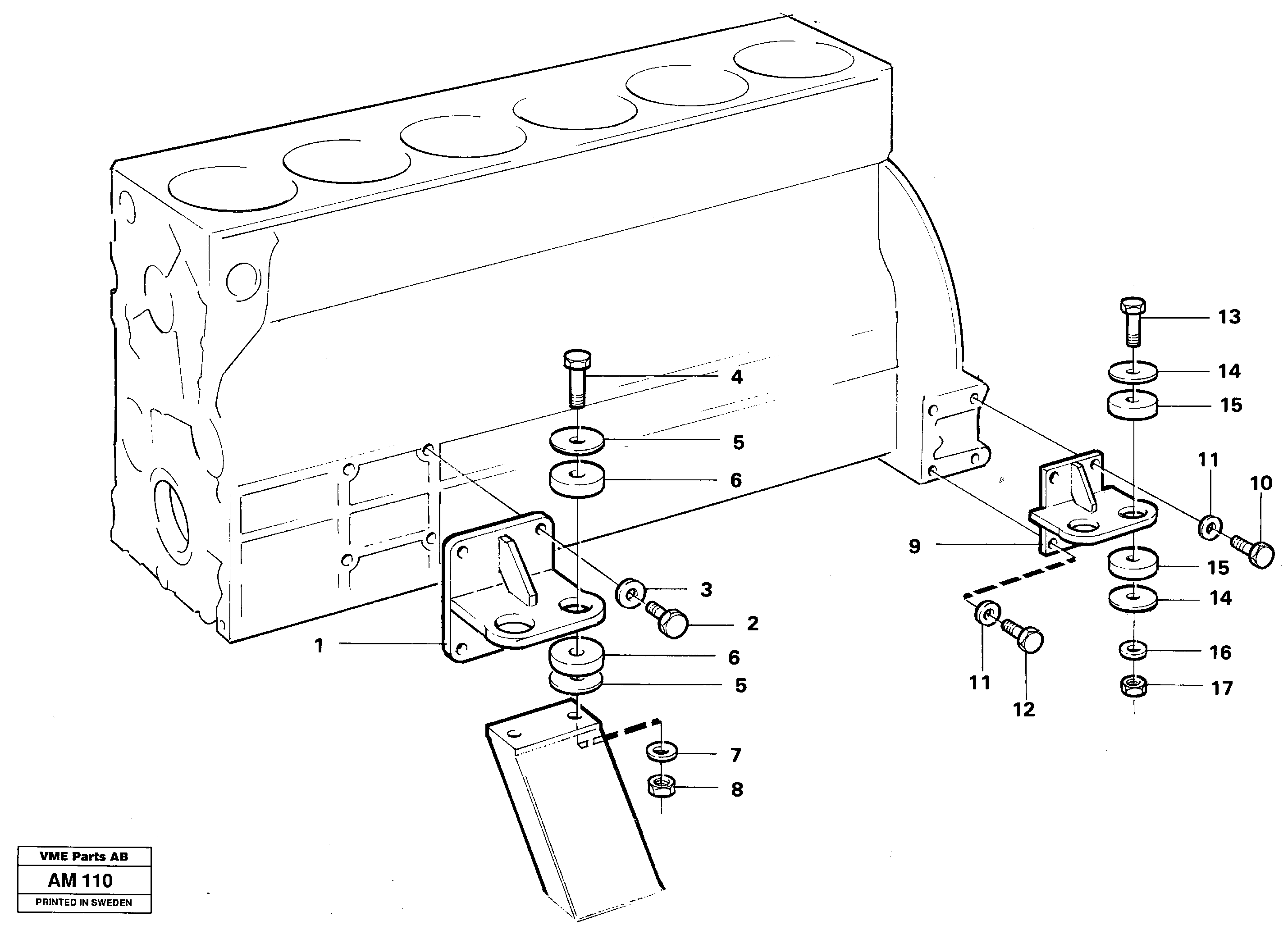

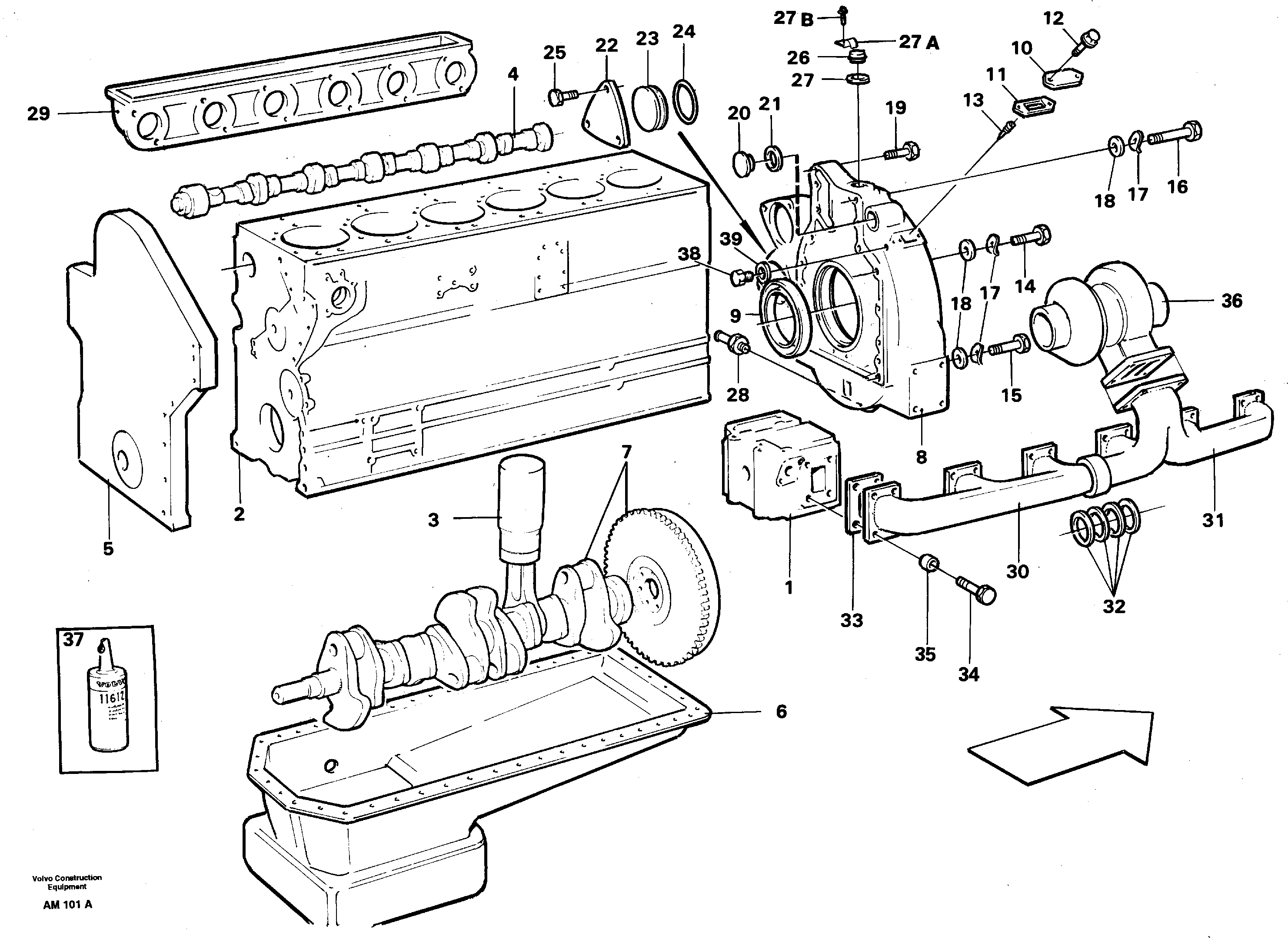

Engine with mounting and equipment

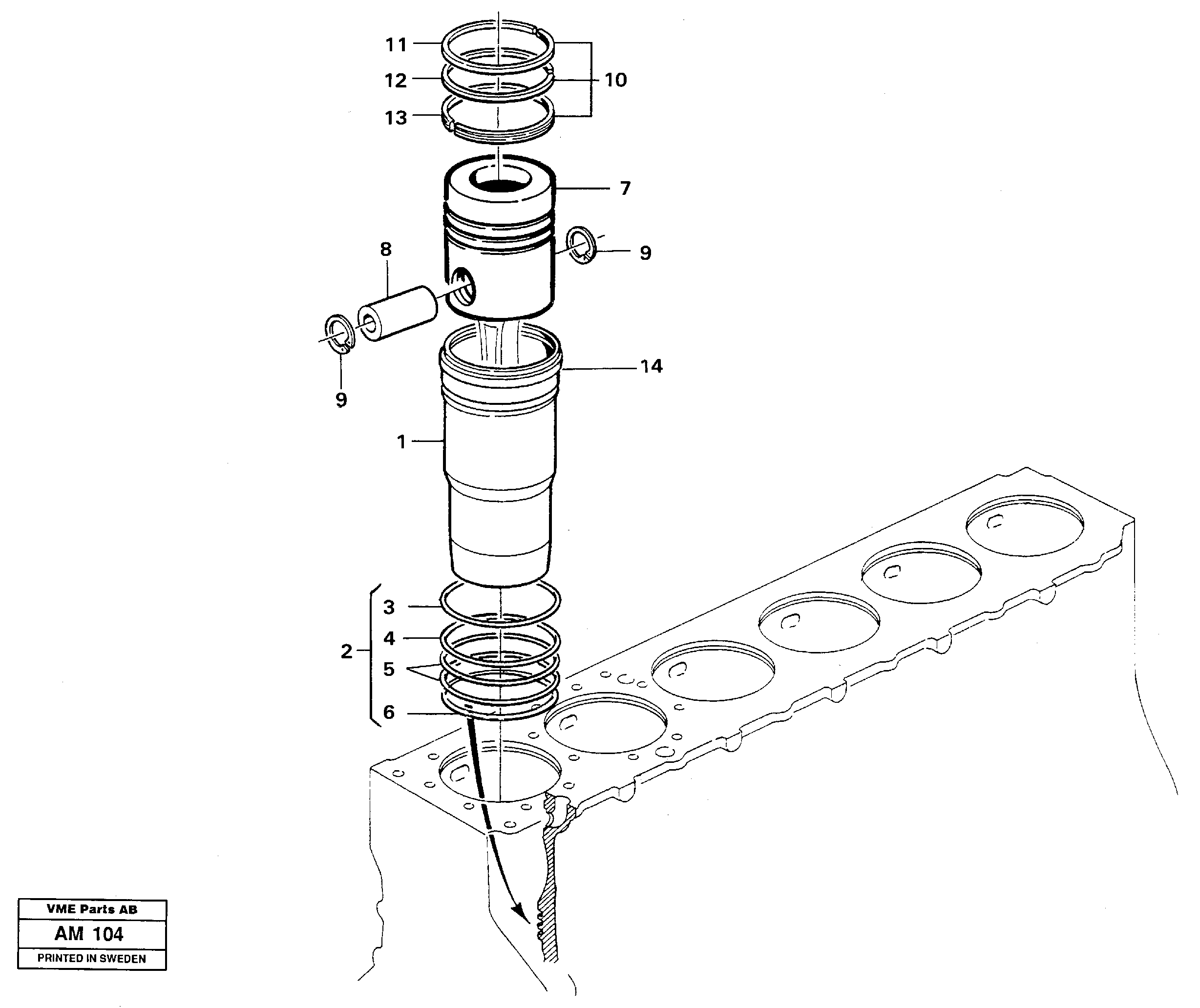

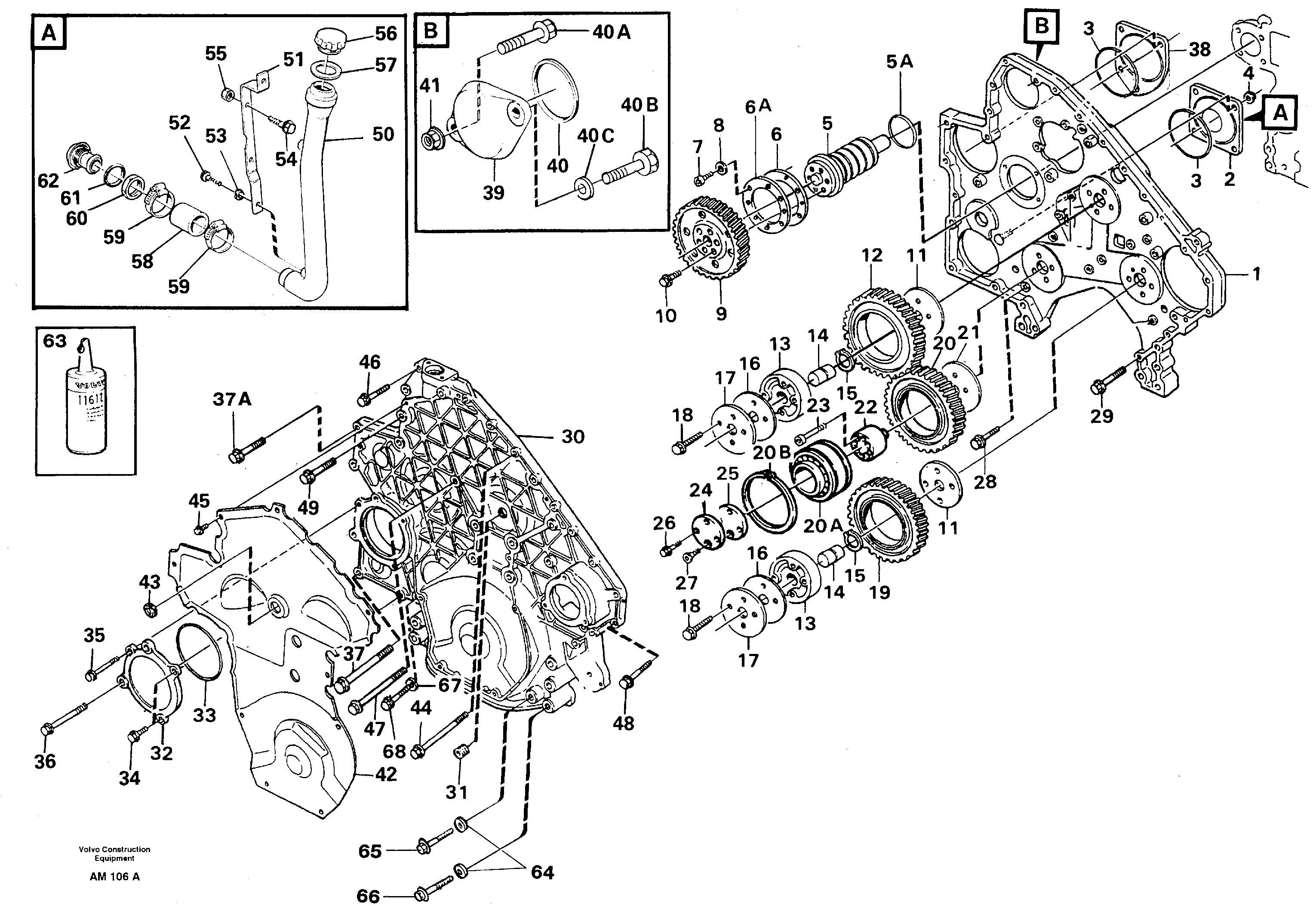

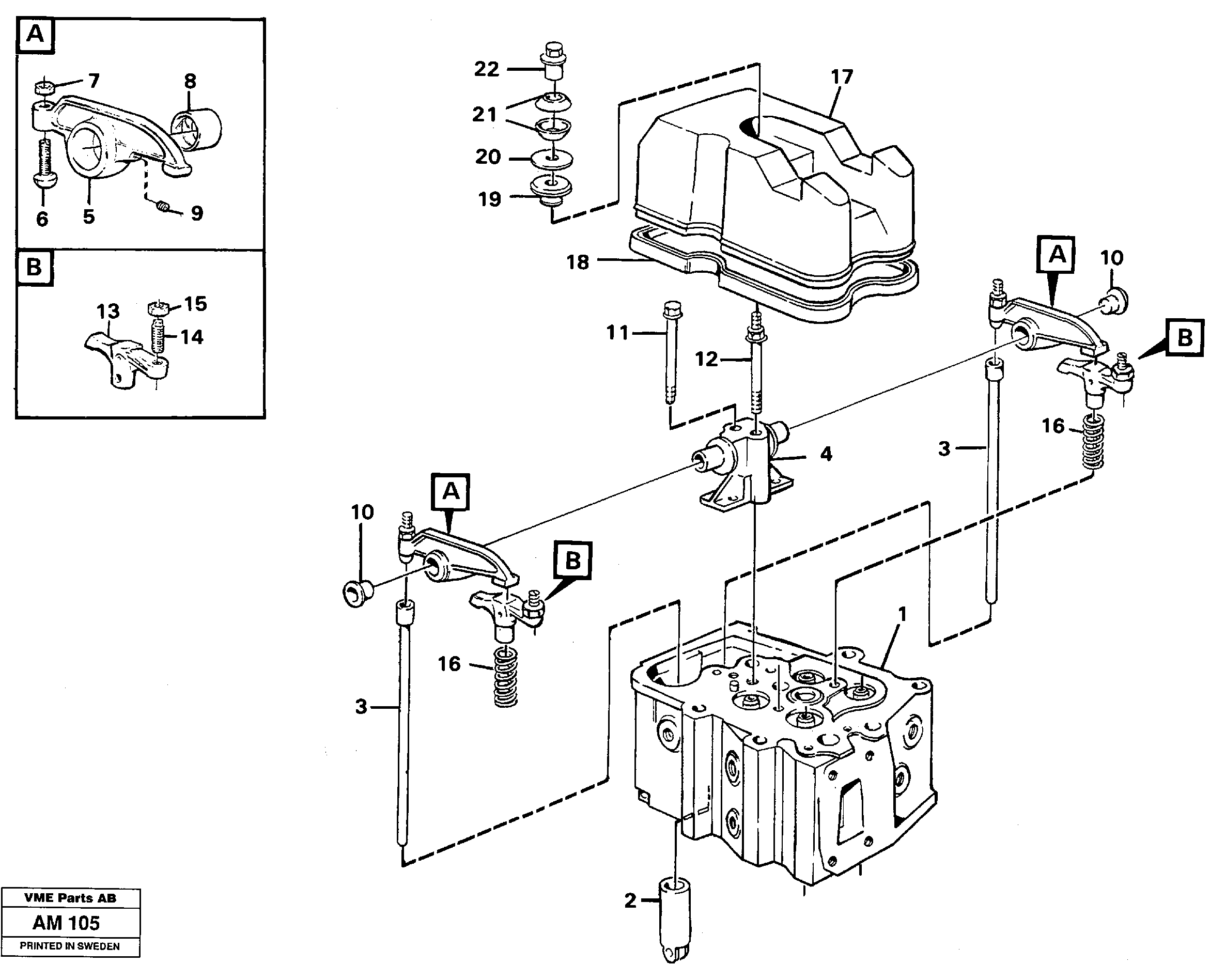

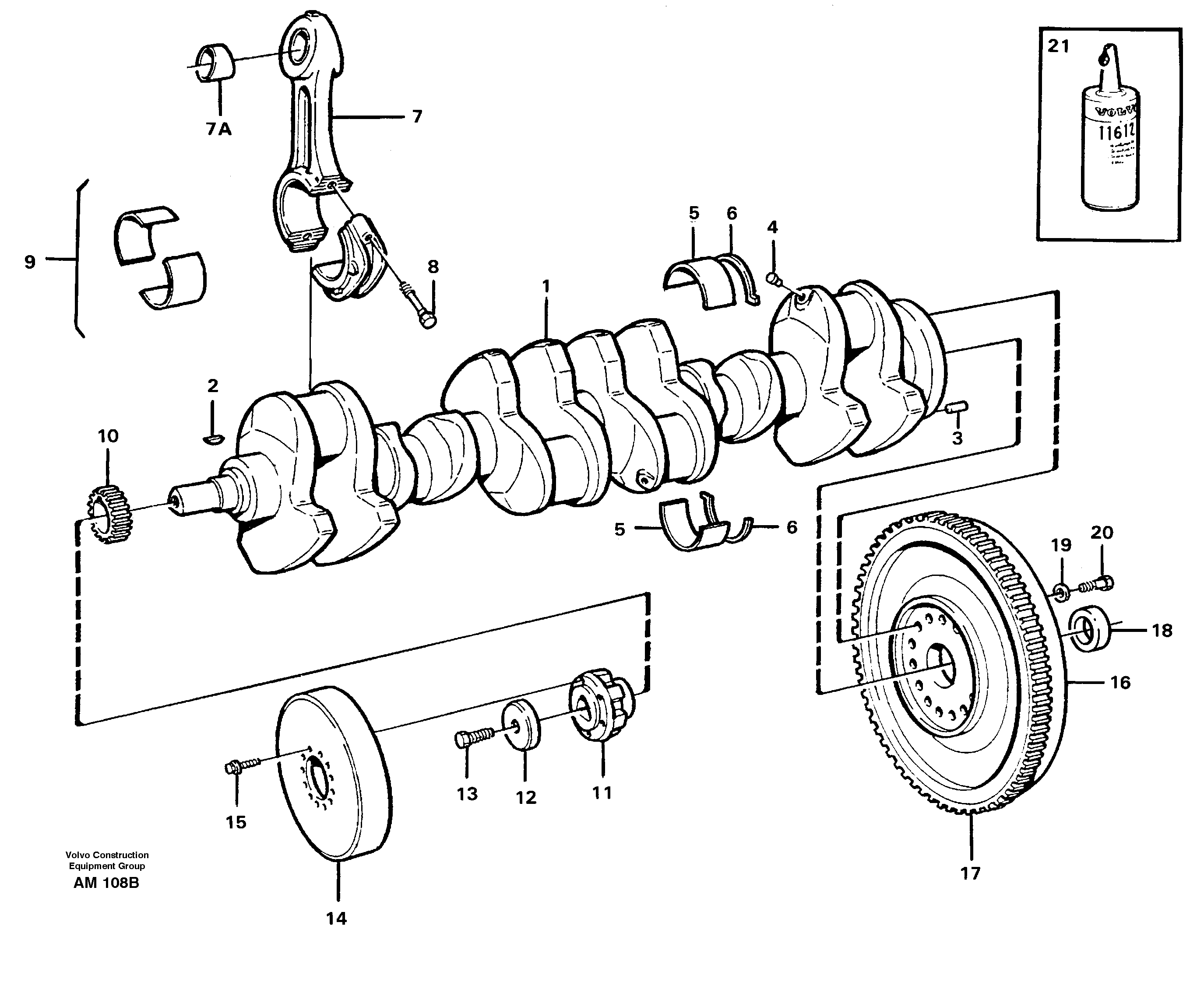

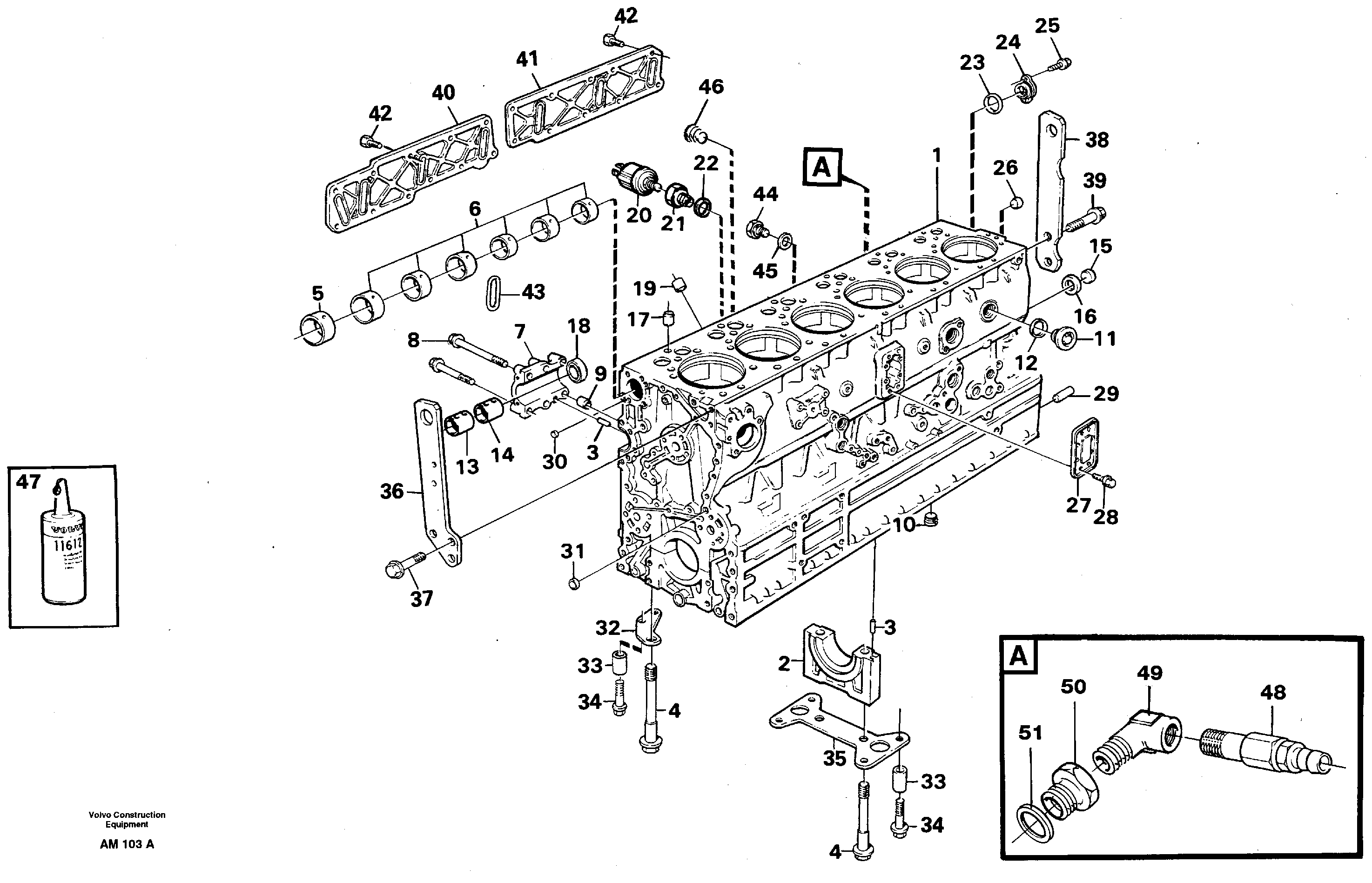

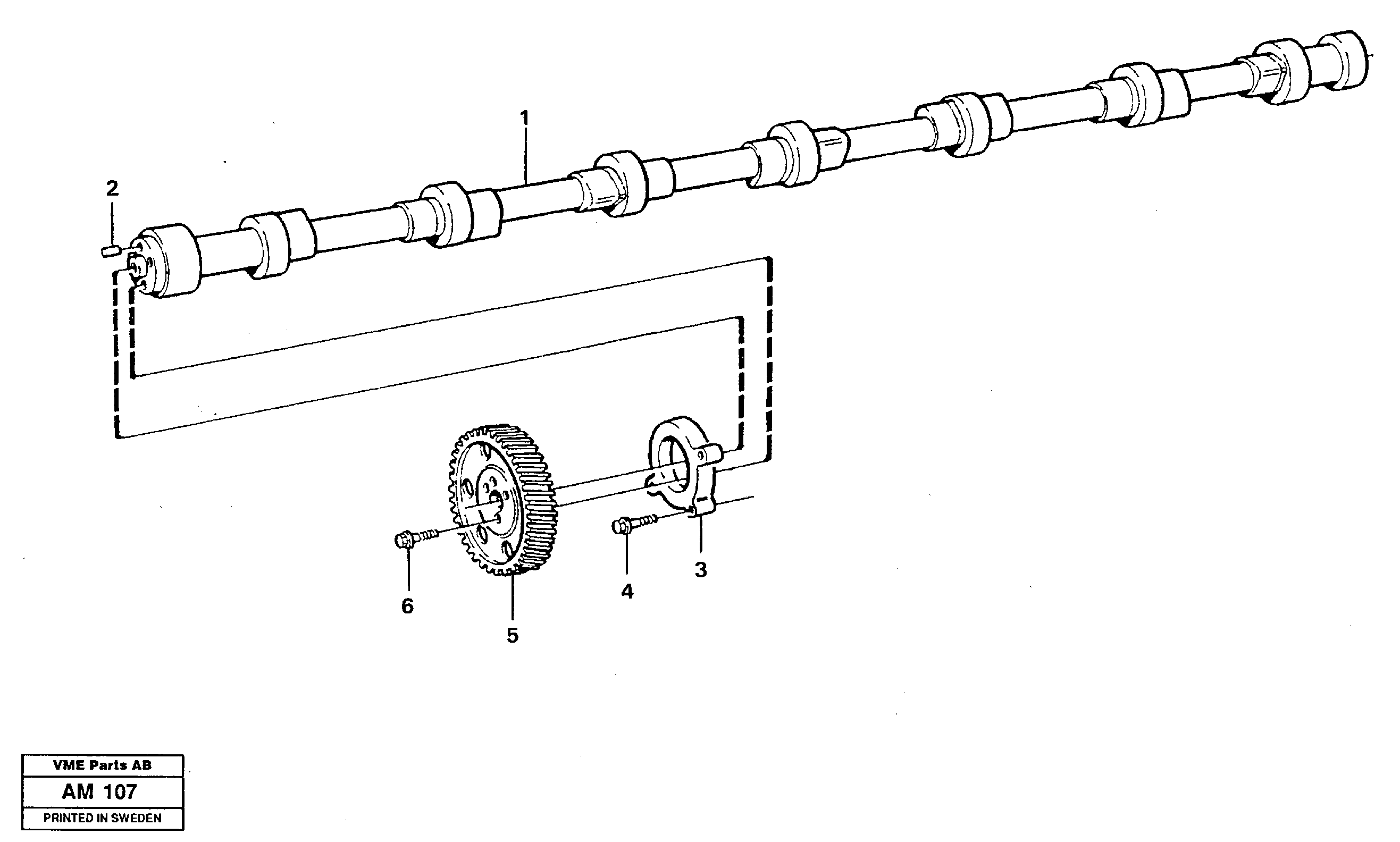

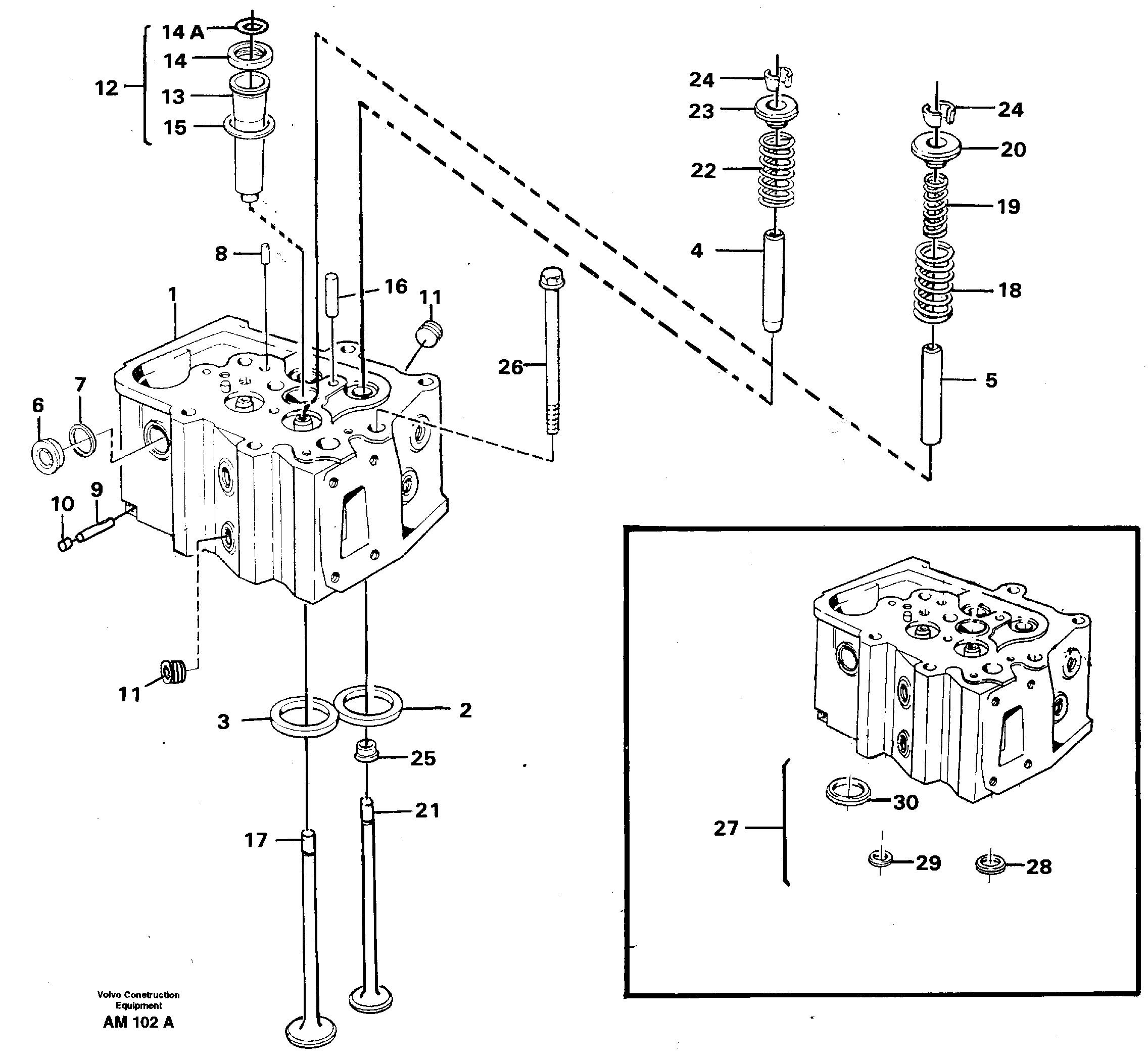

Engine

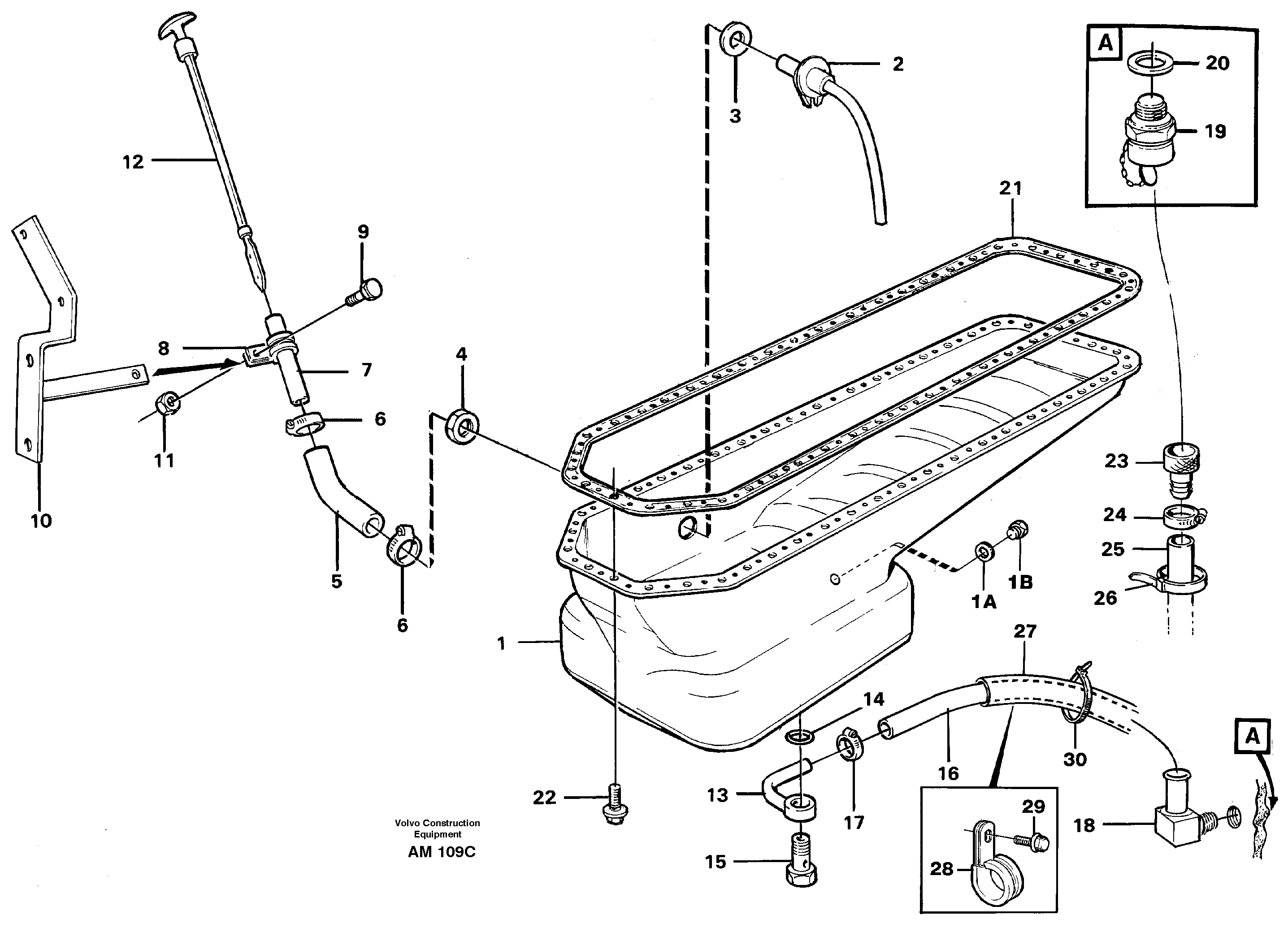

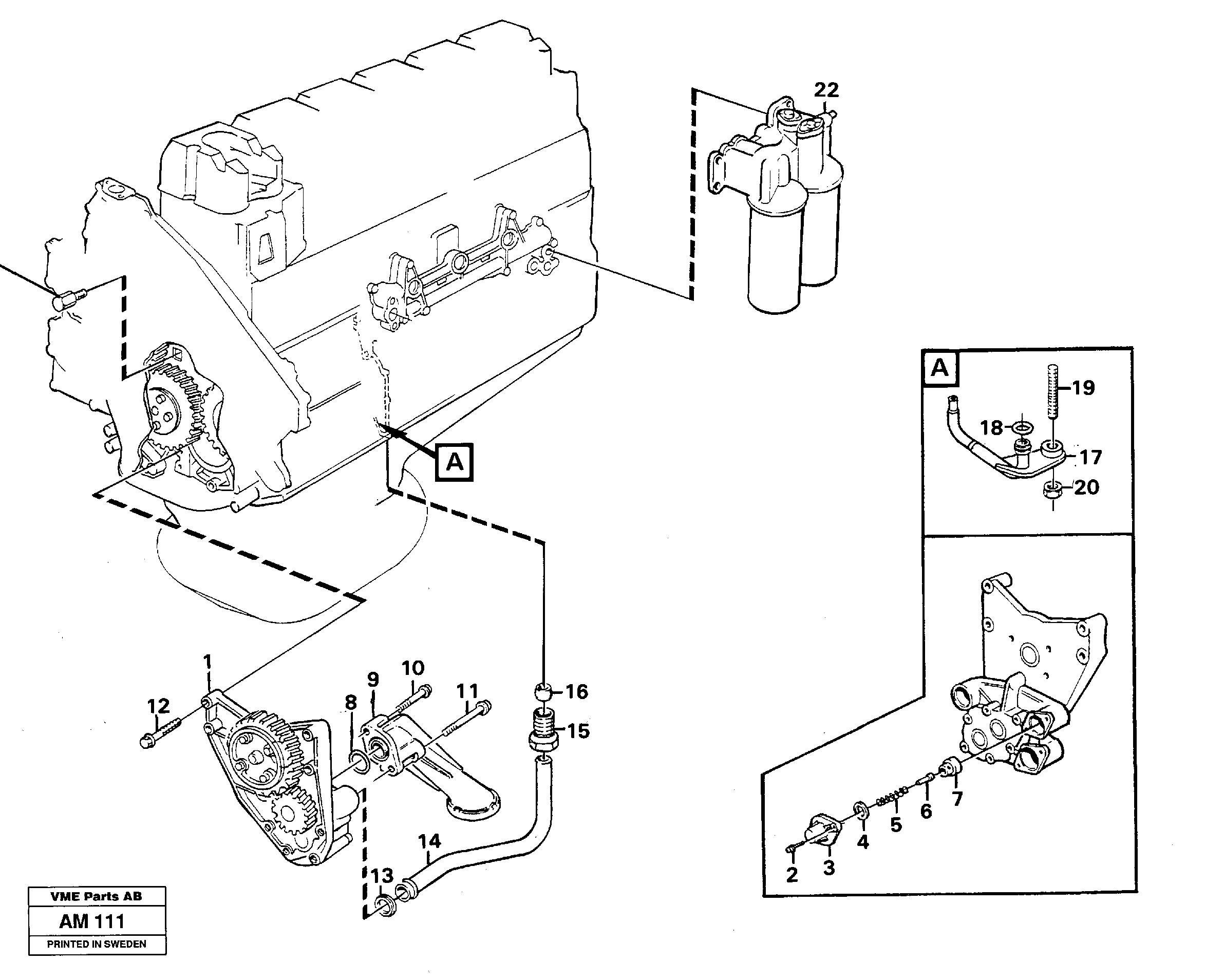

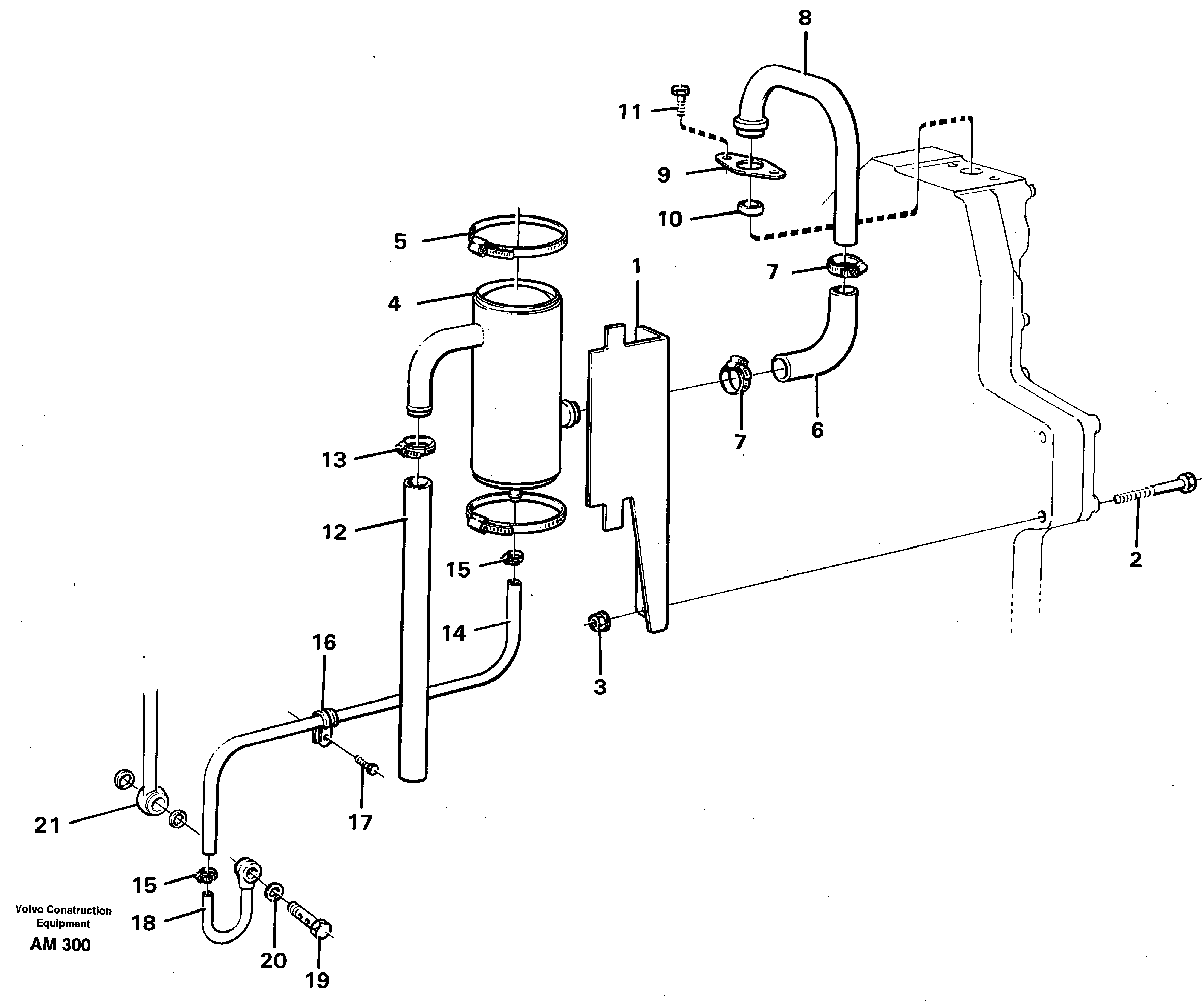

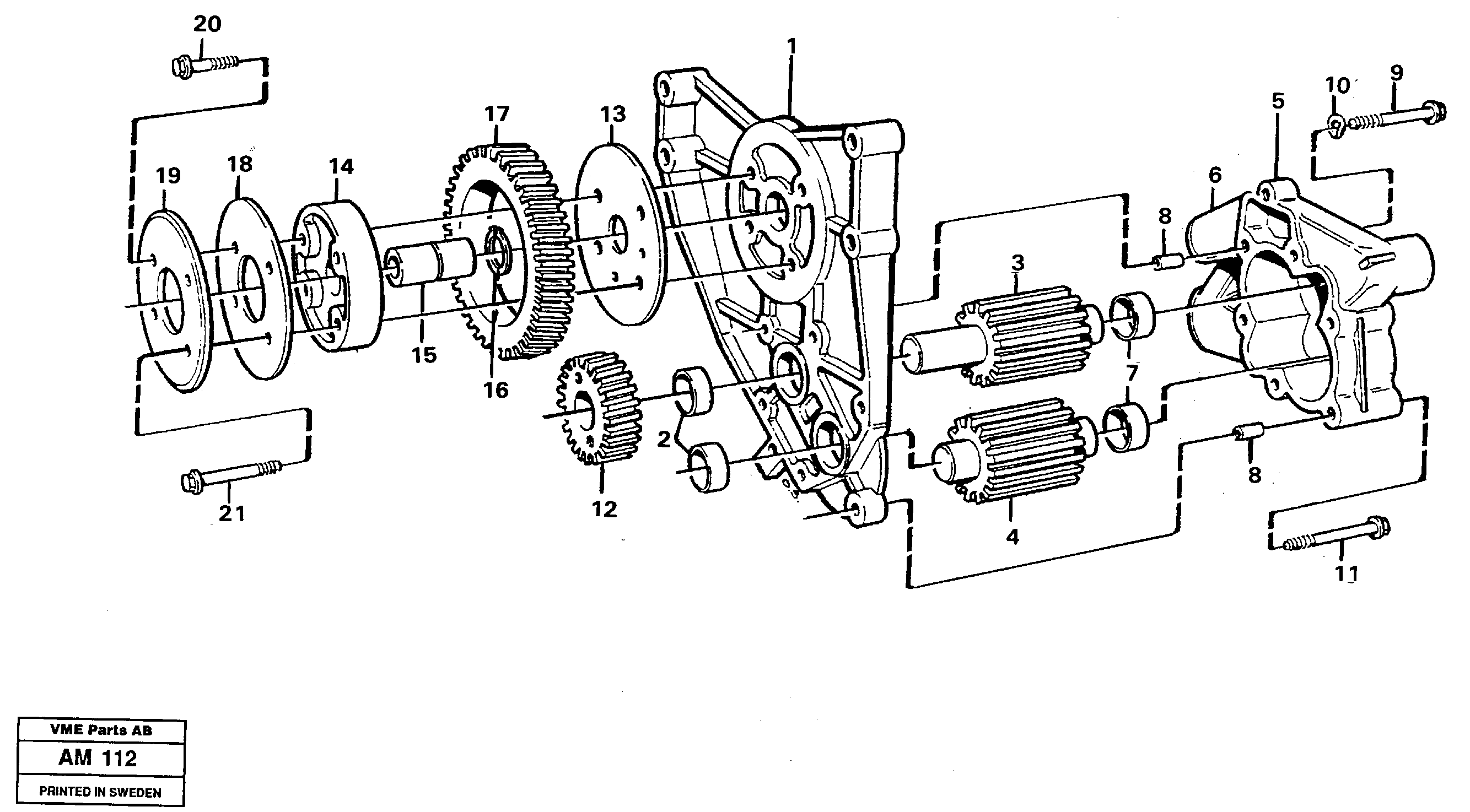

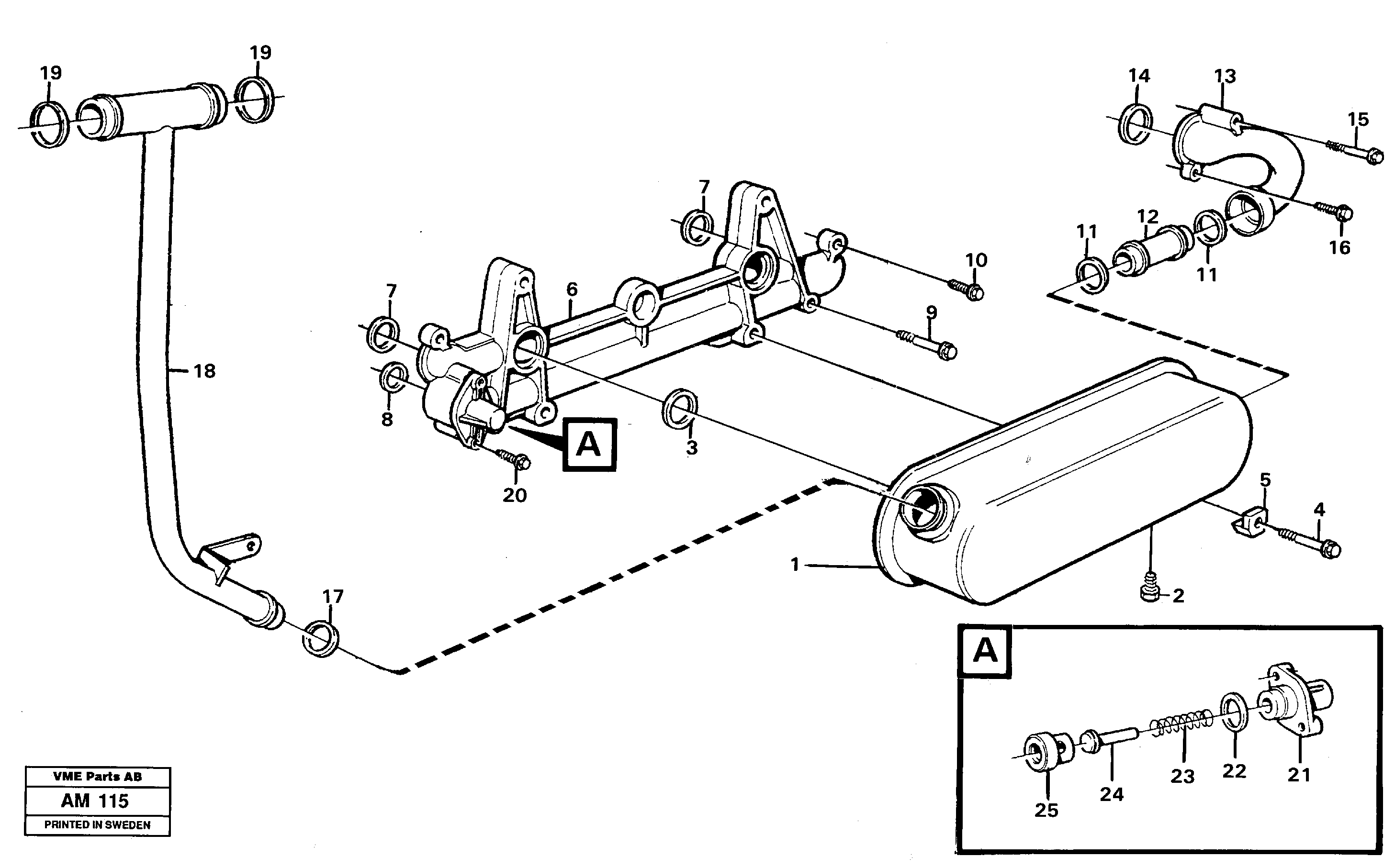

Lubricating system

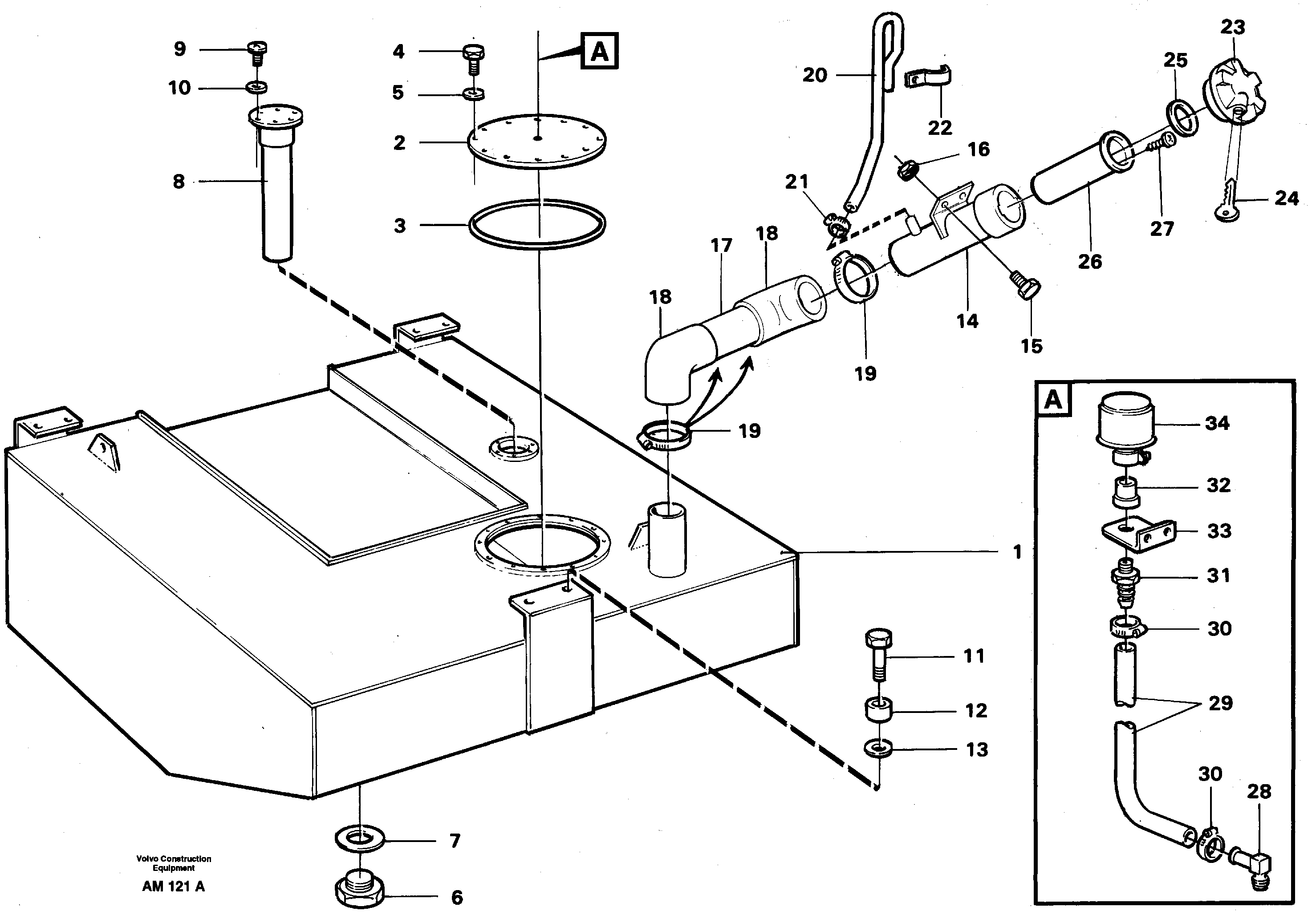

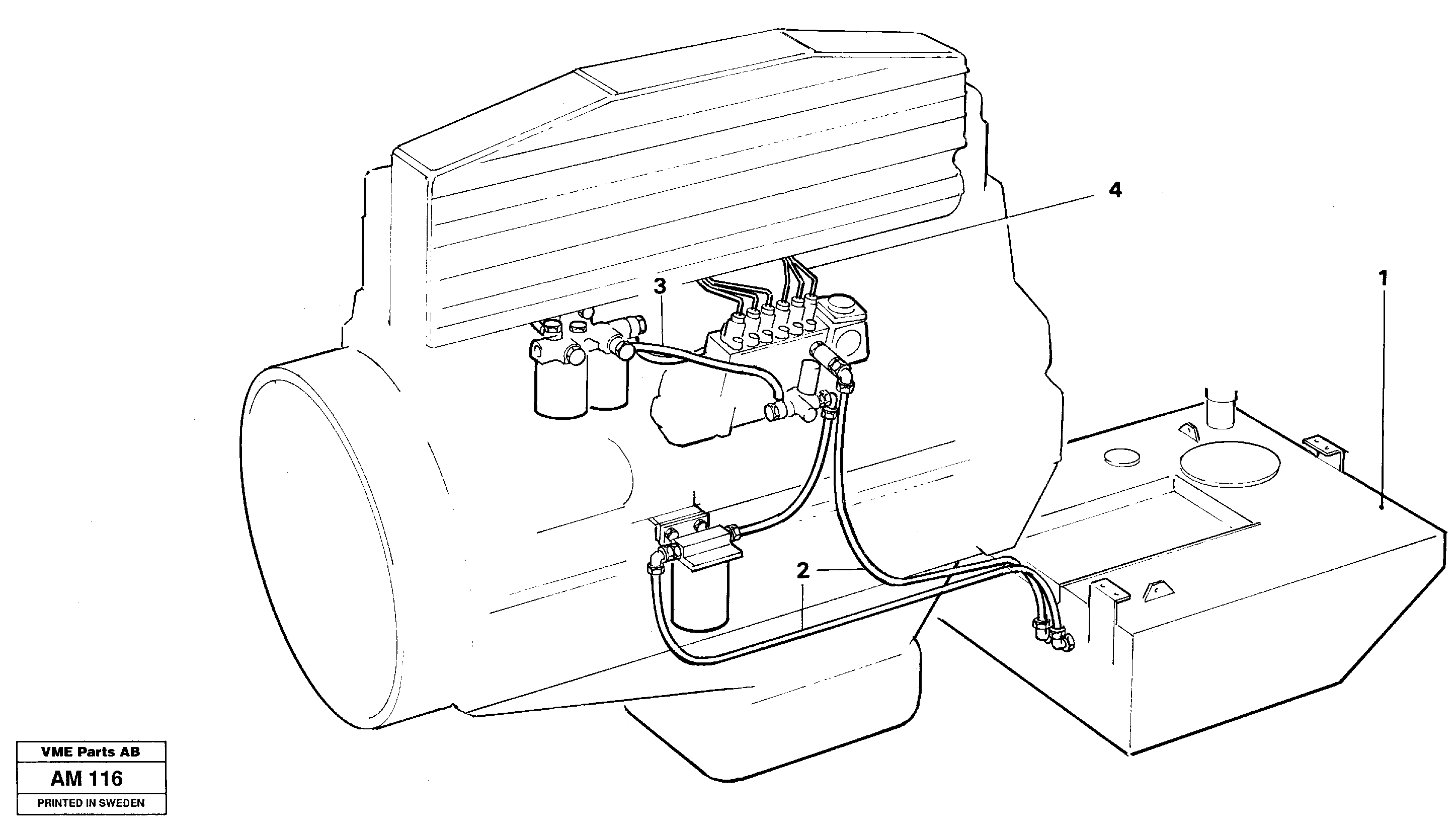

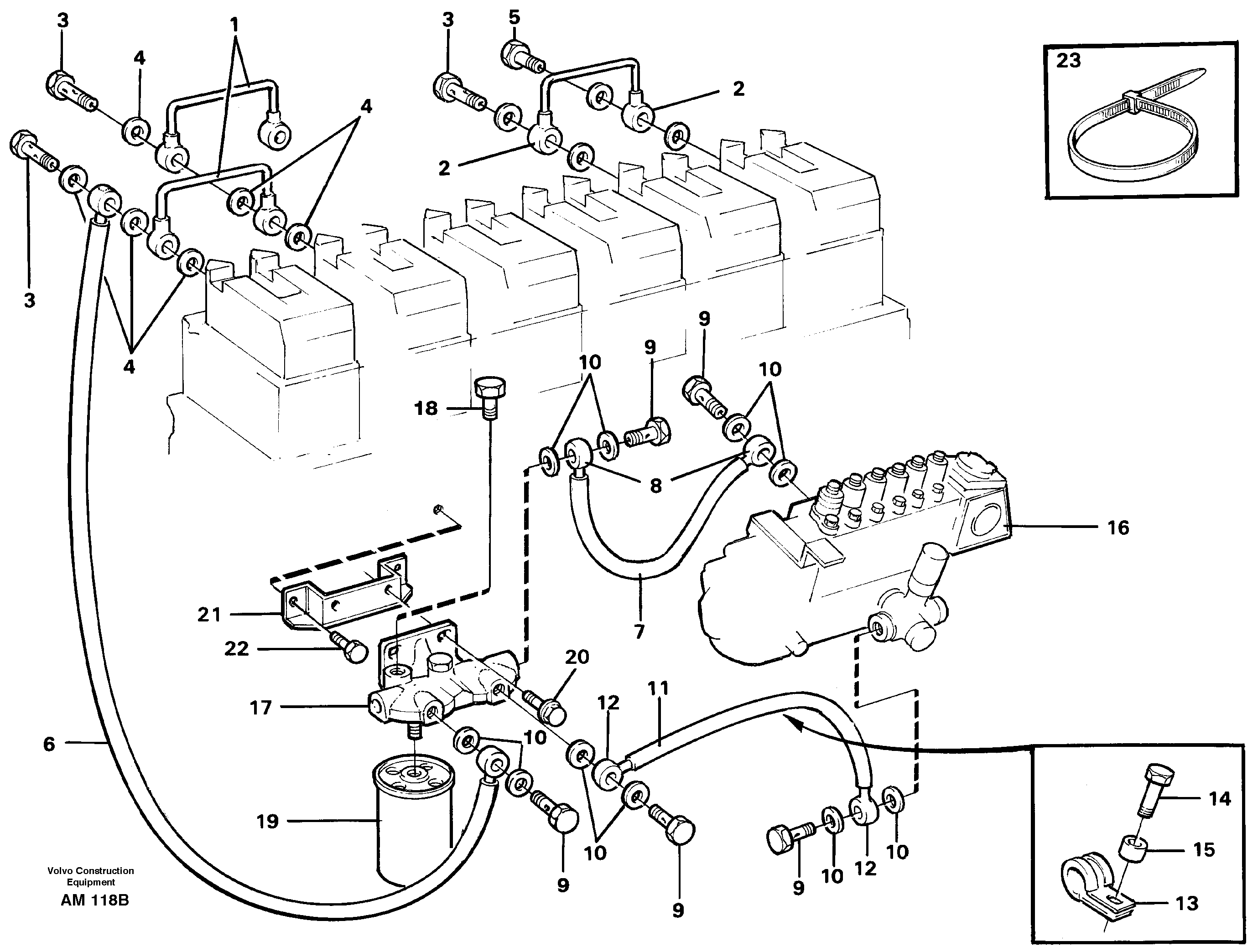

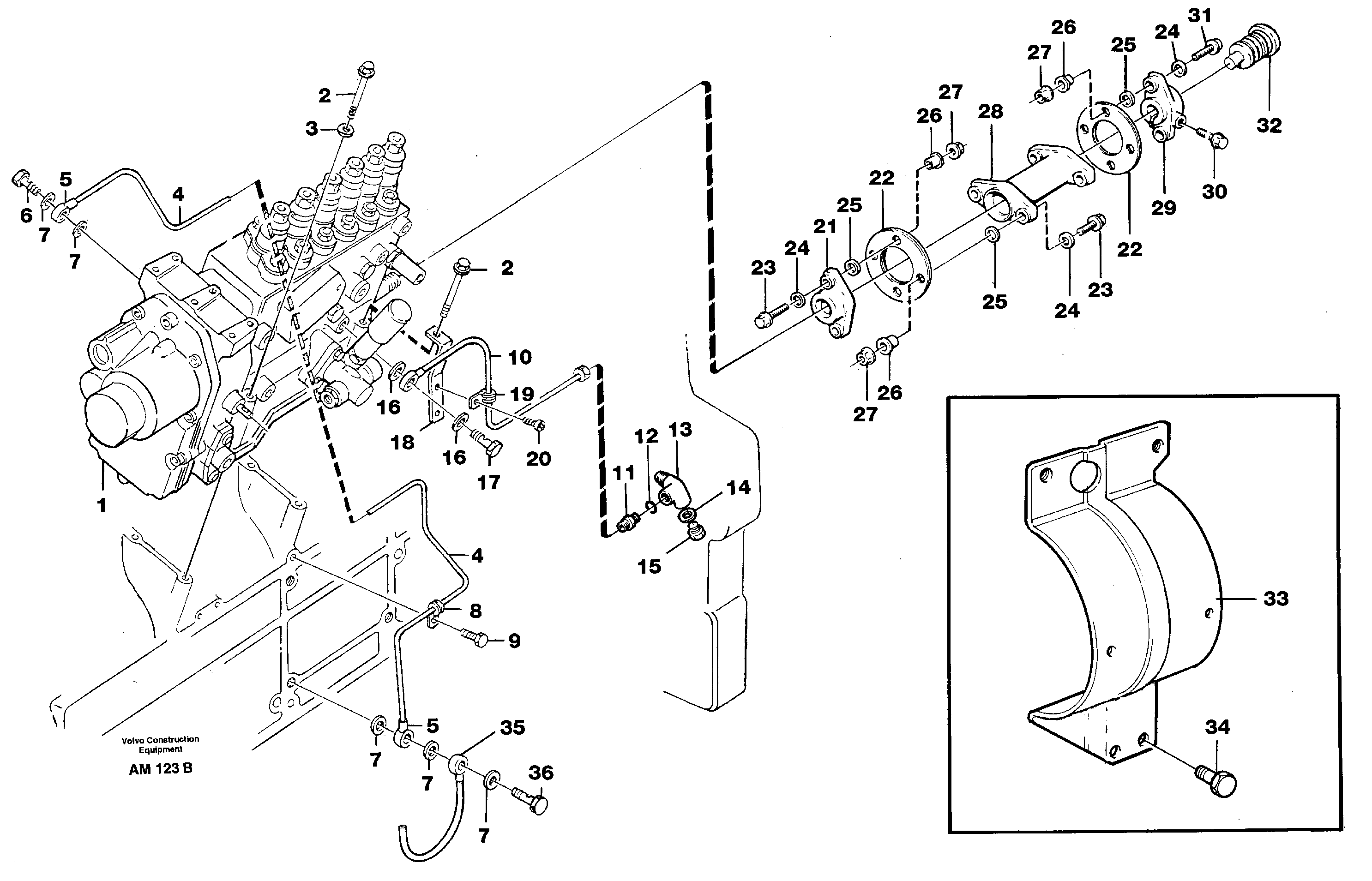

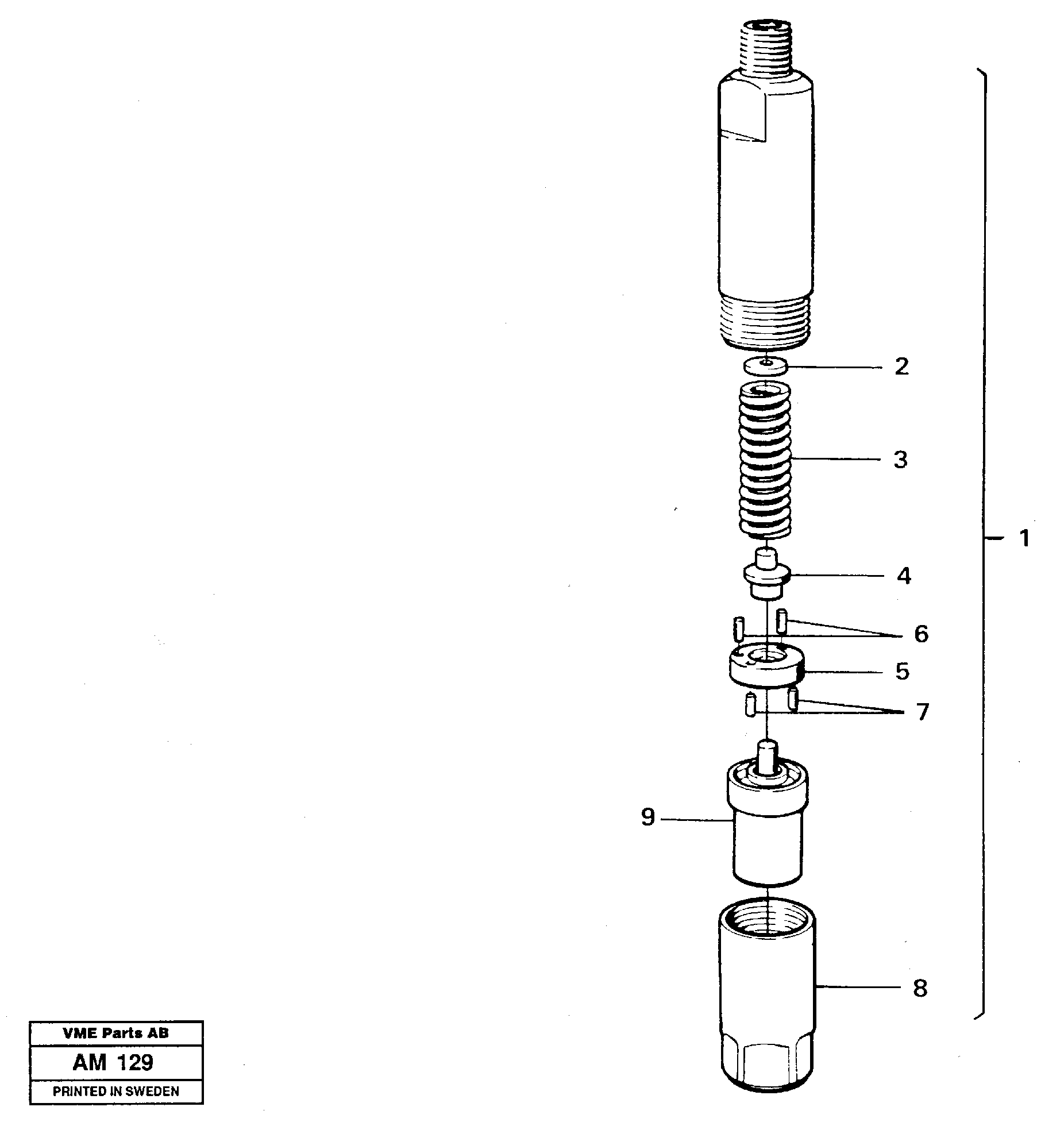

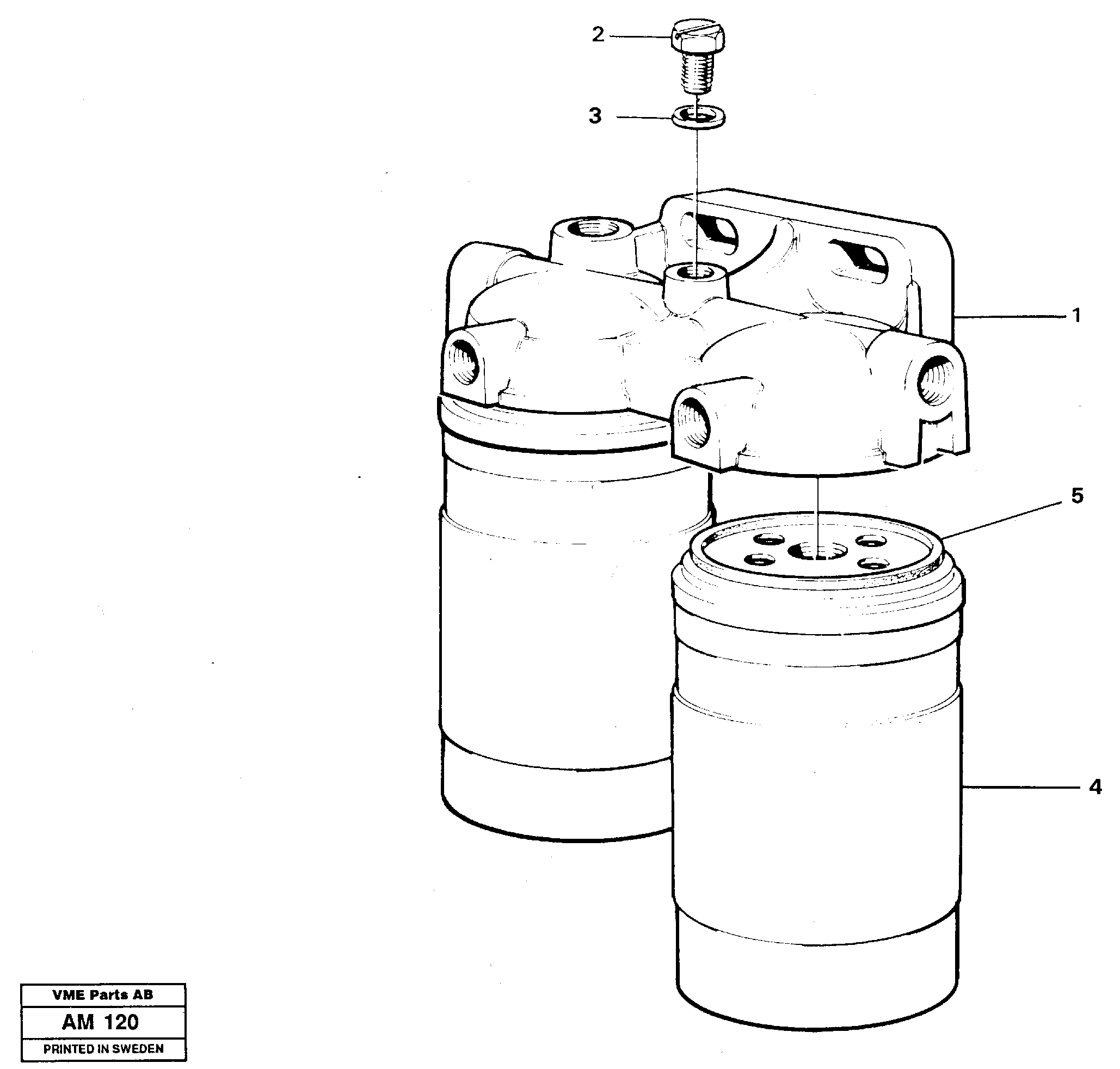

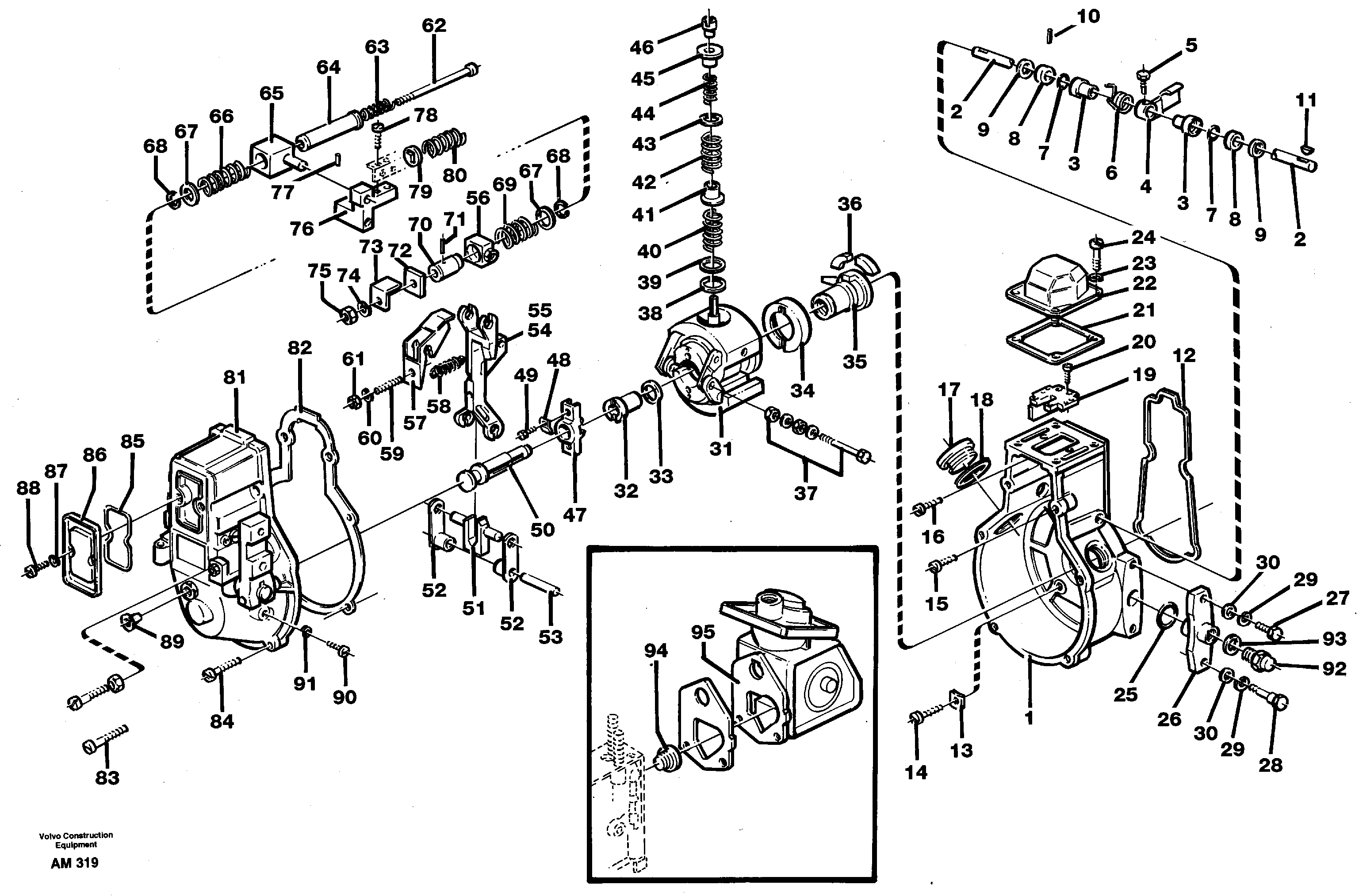

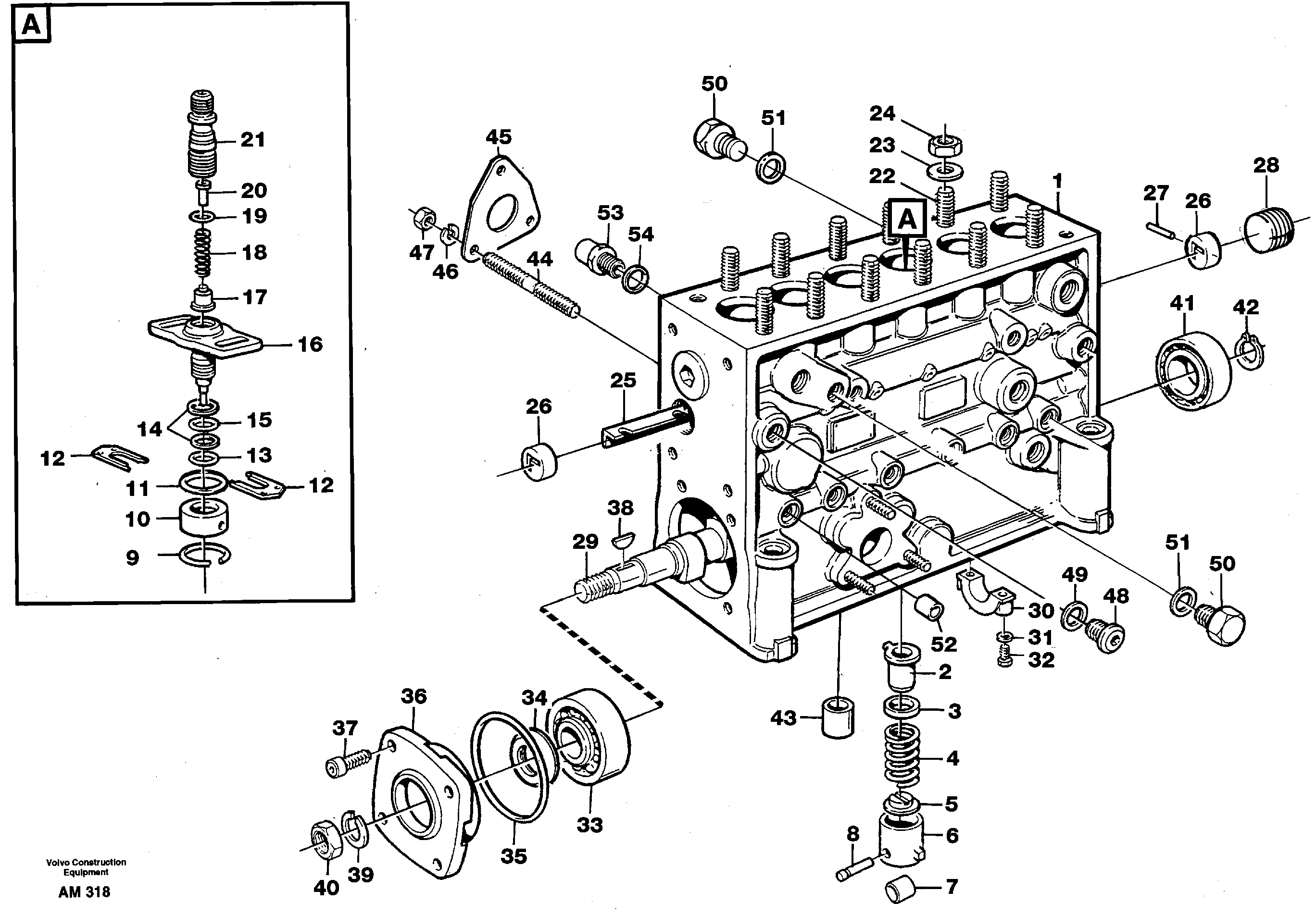

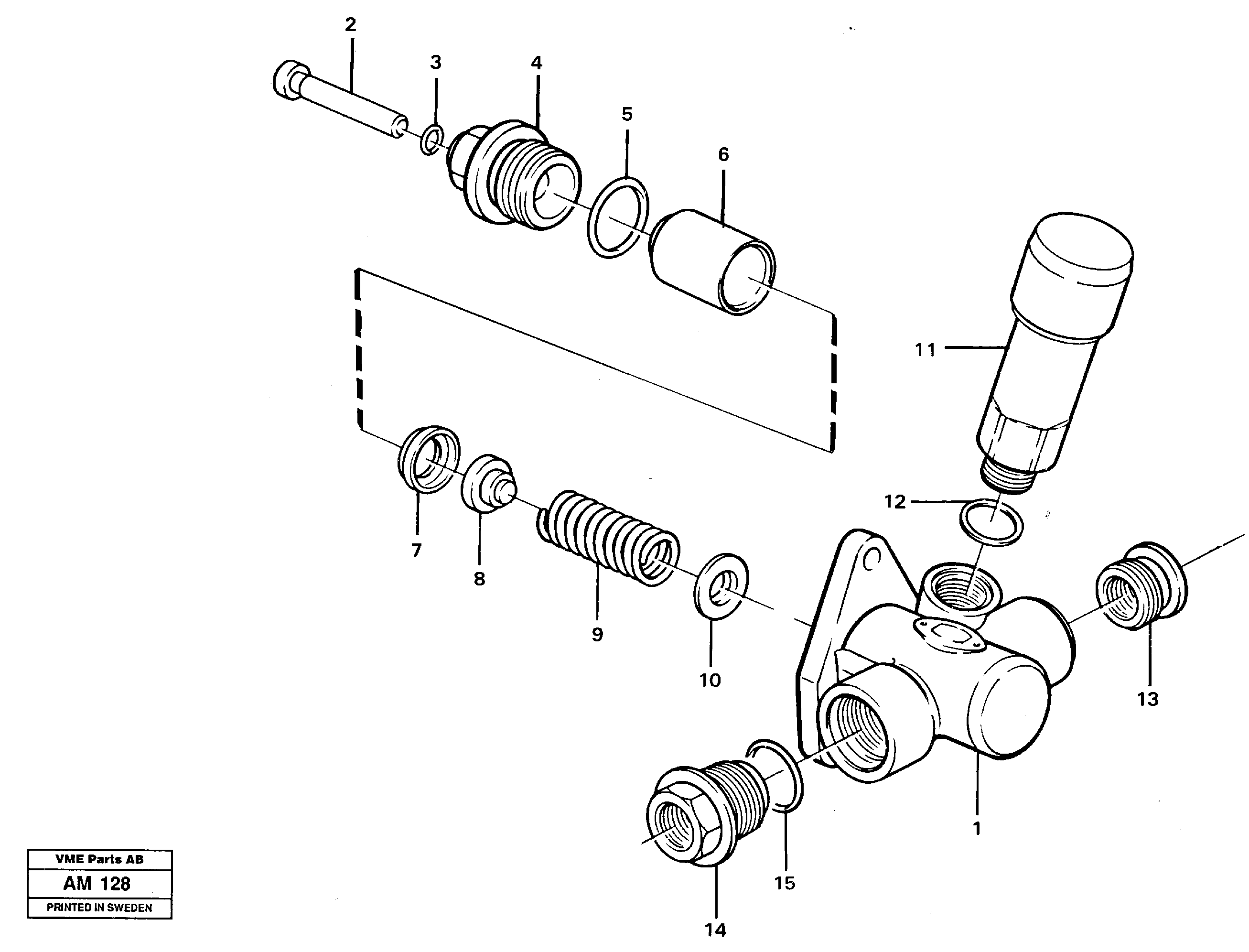

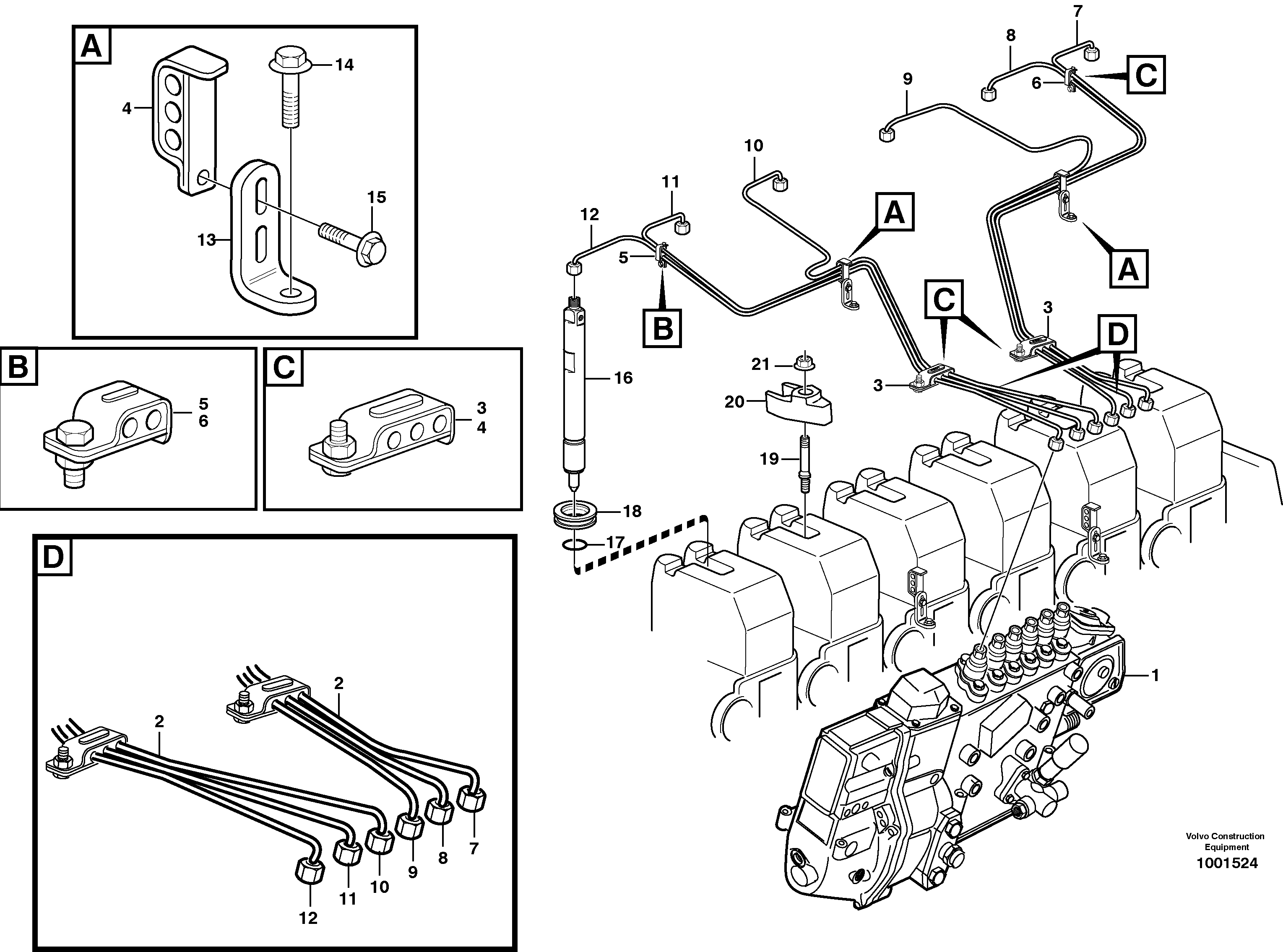

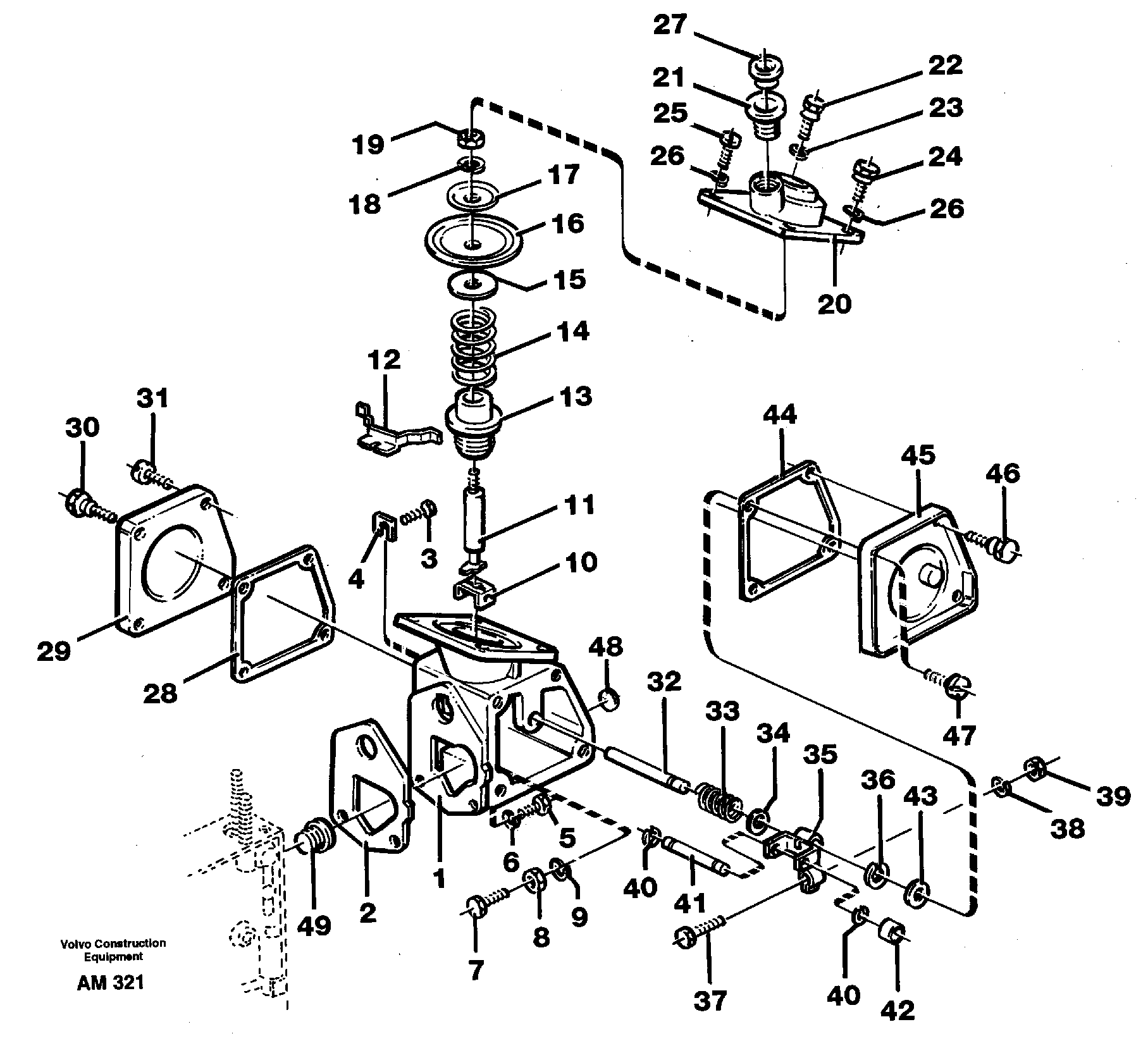

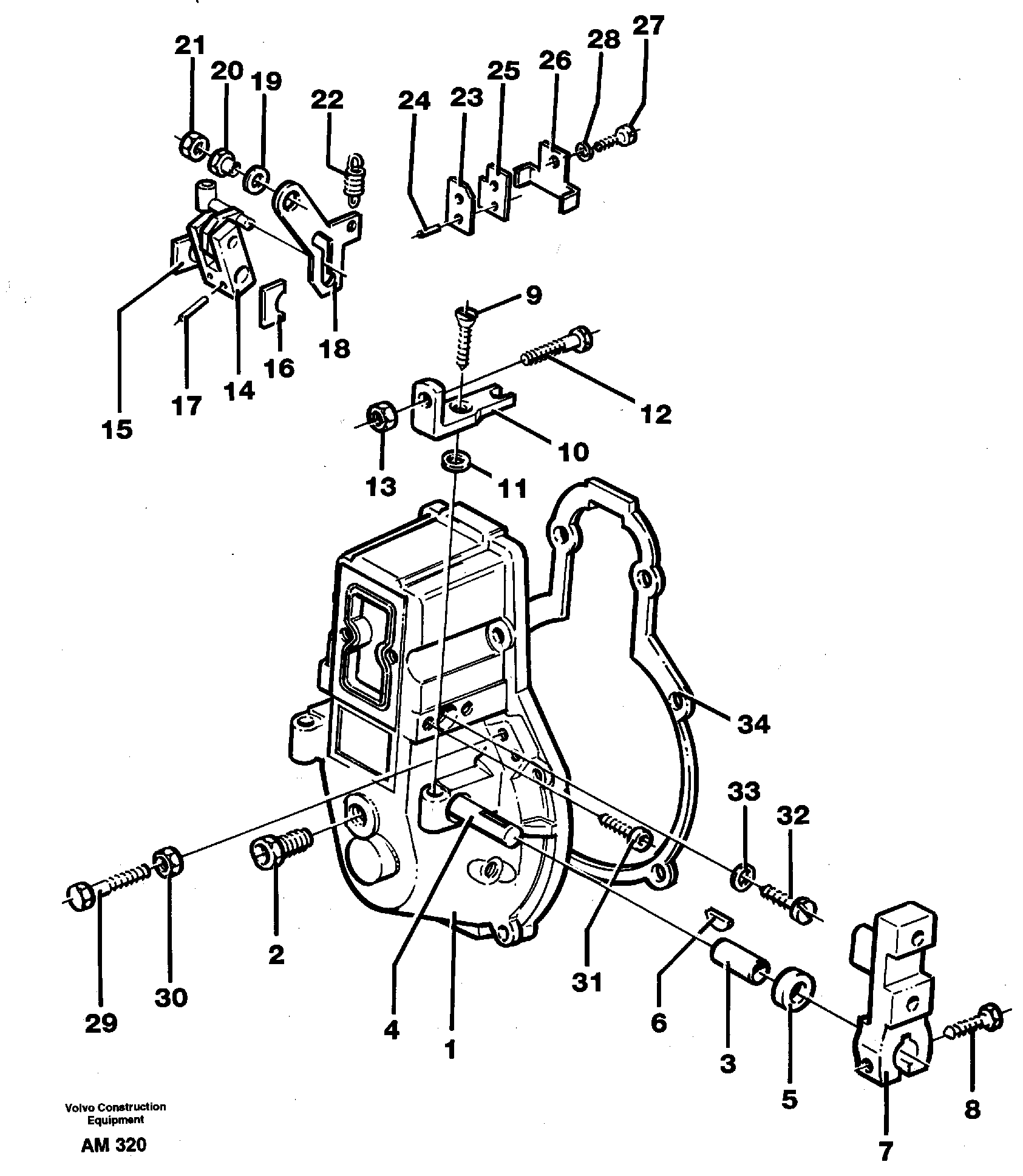

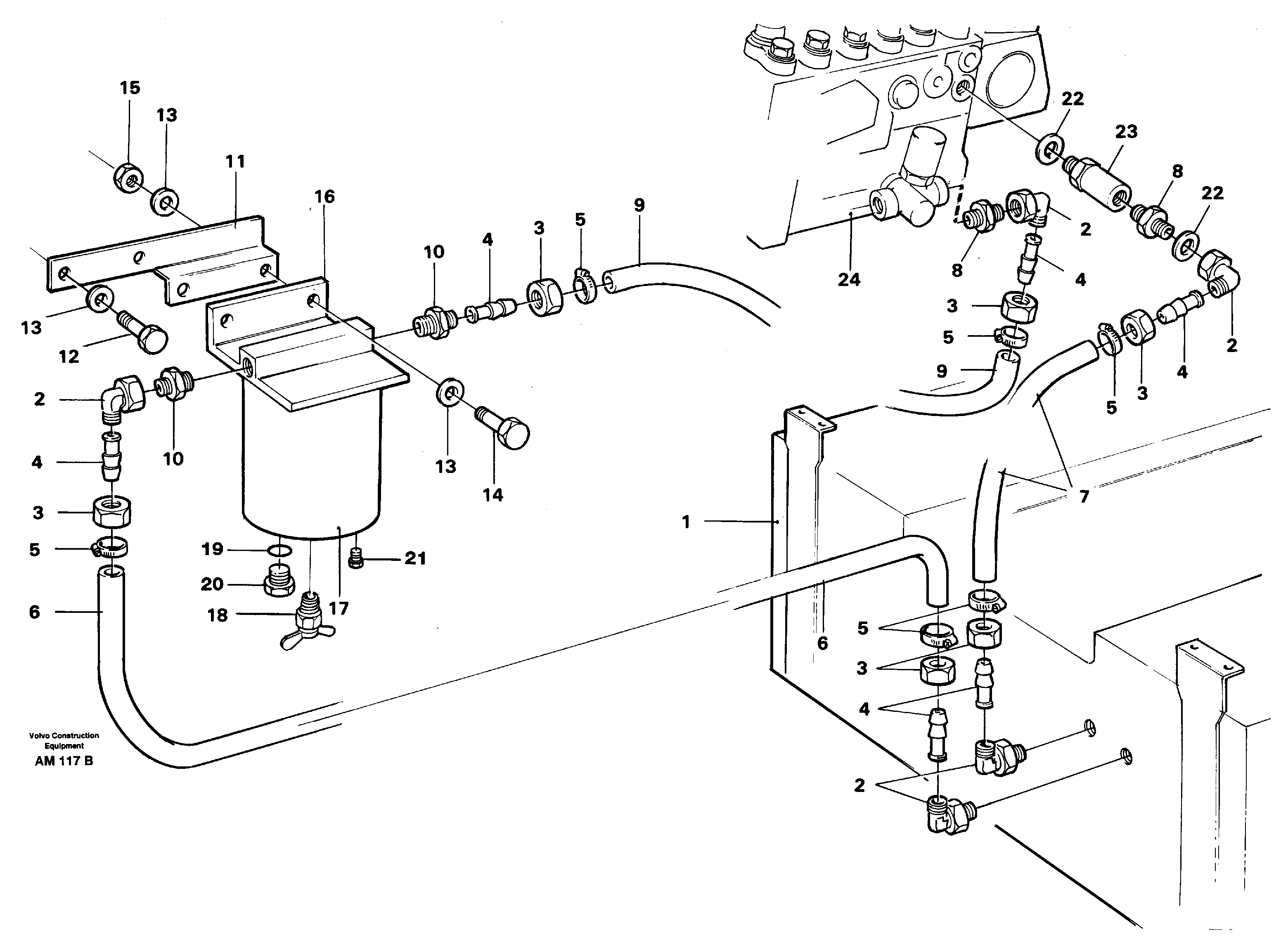

Fuel system

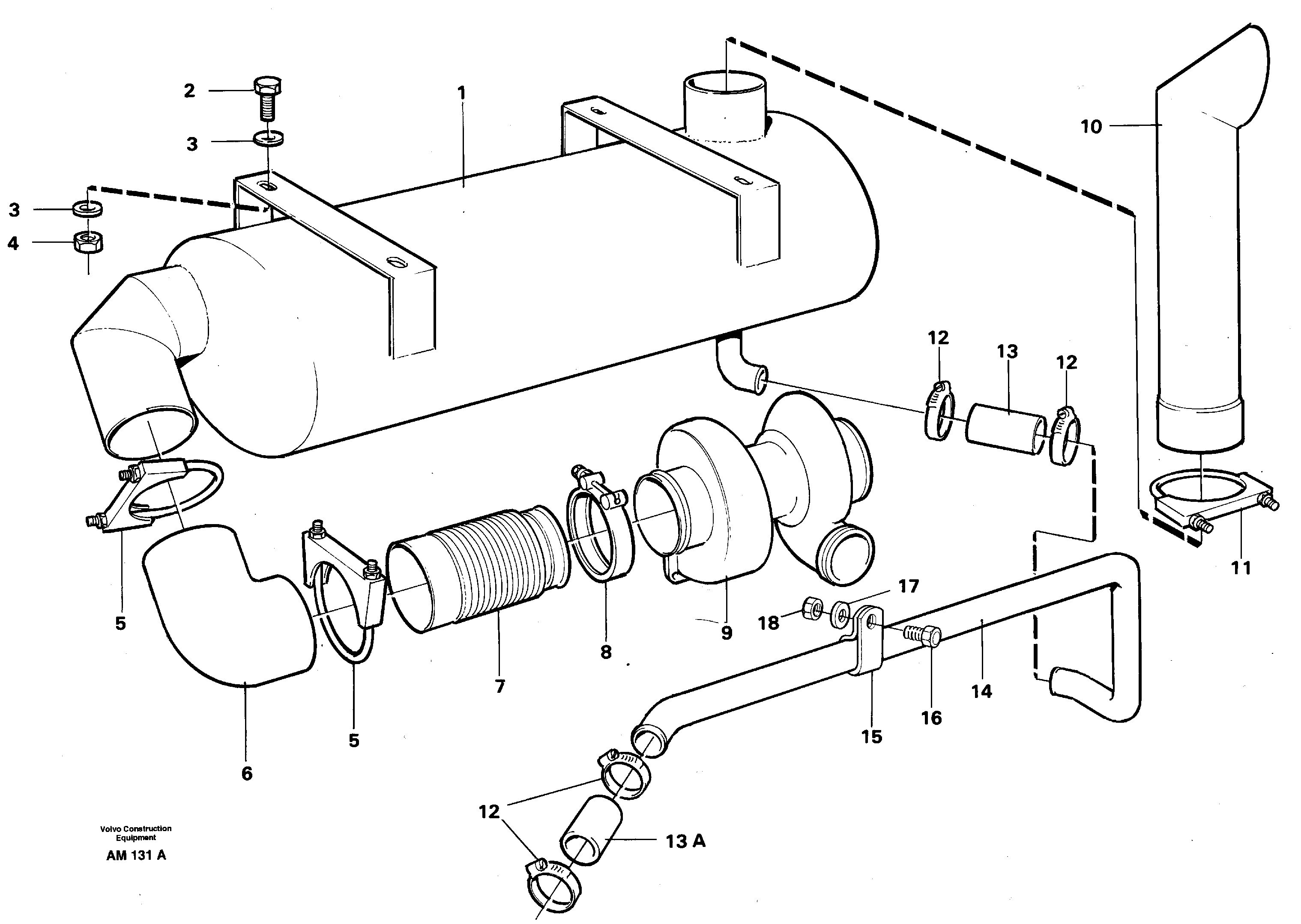

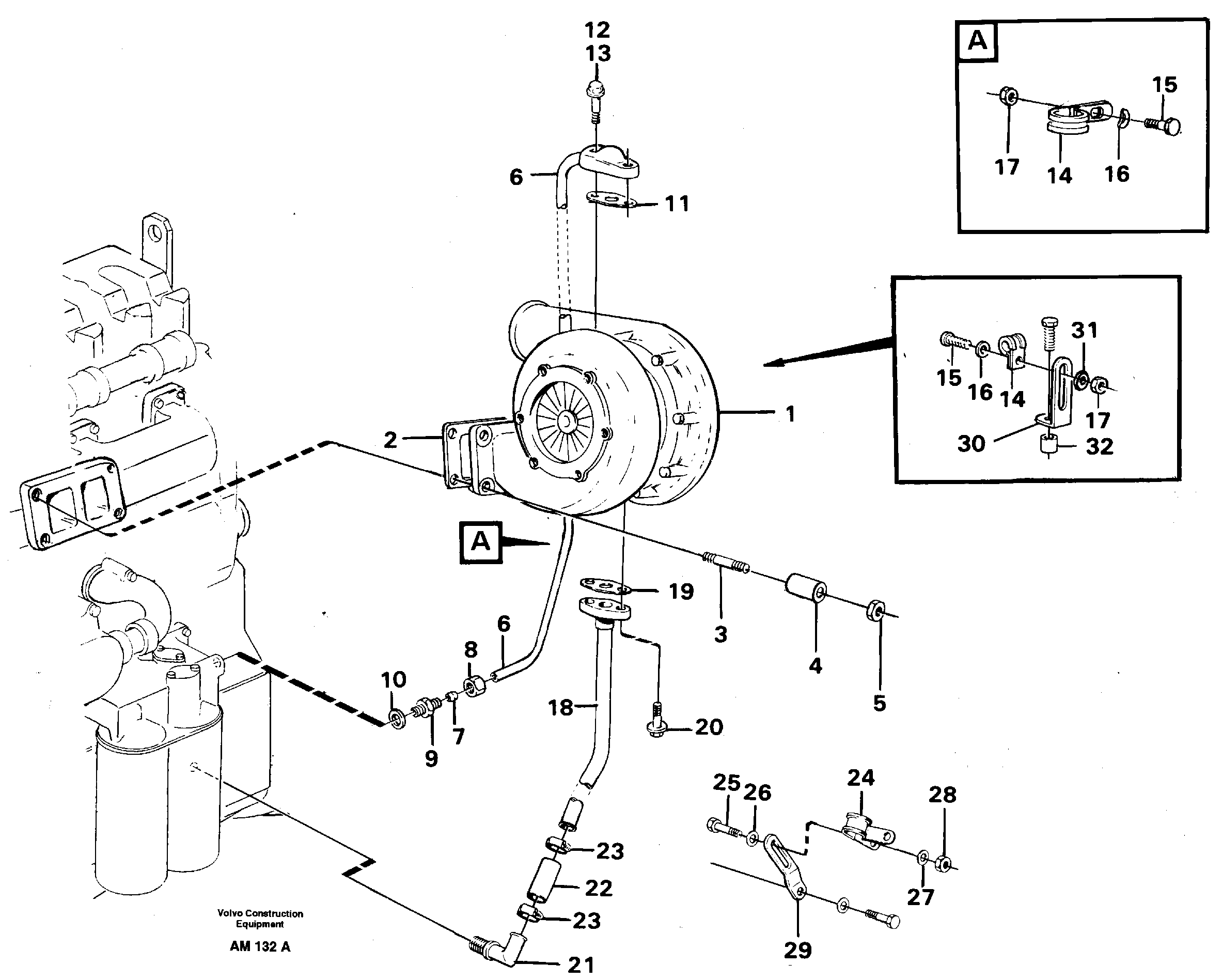

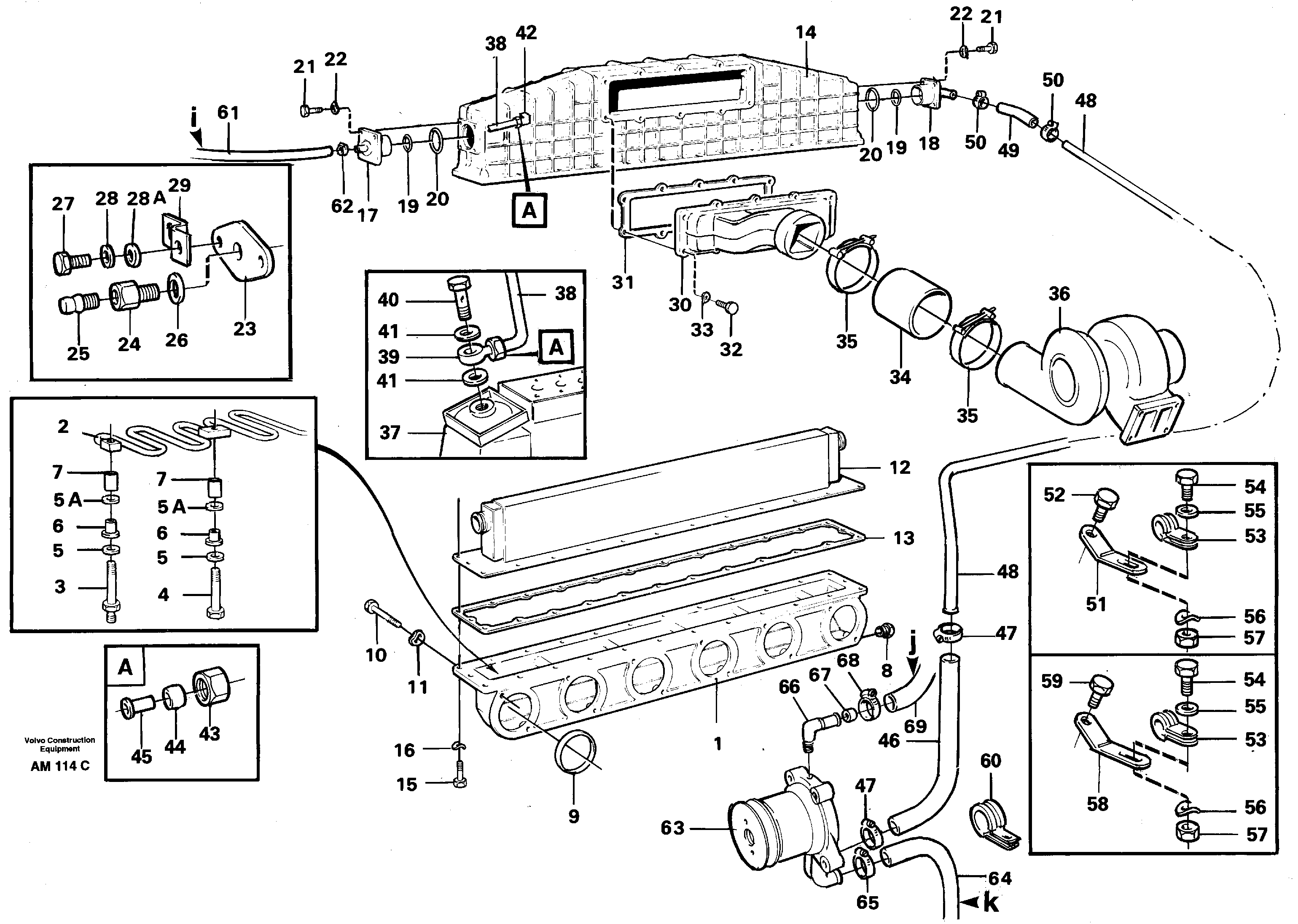

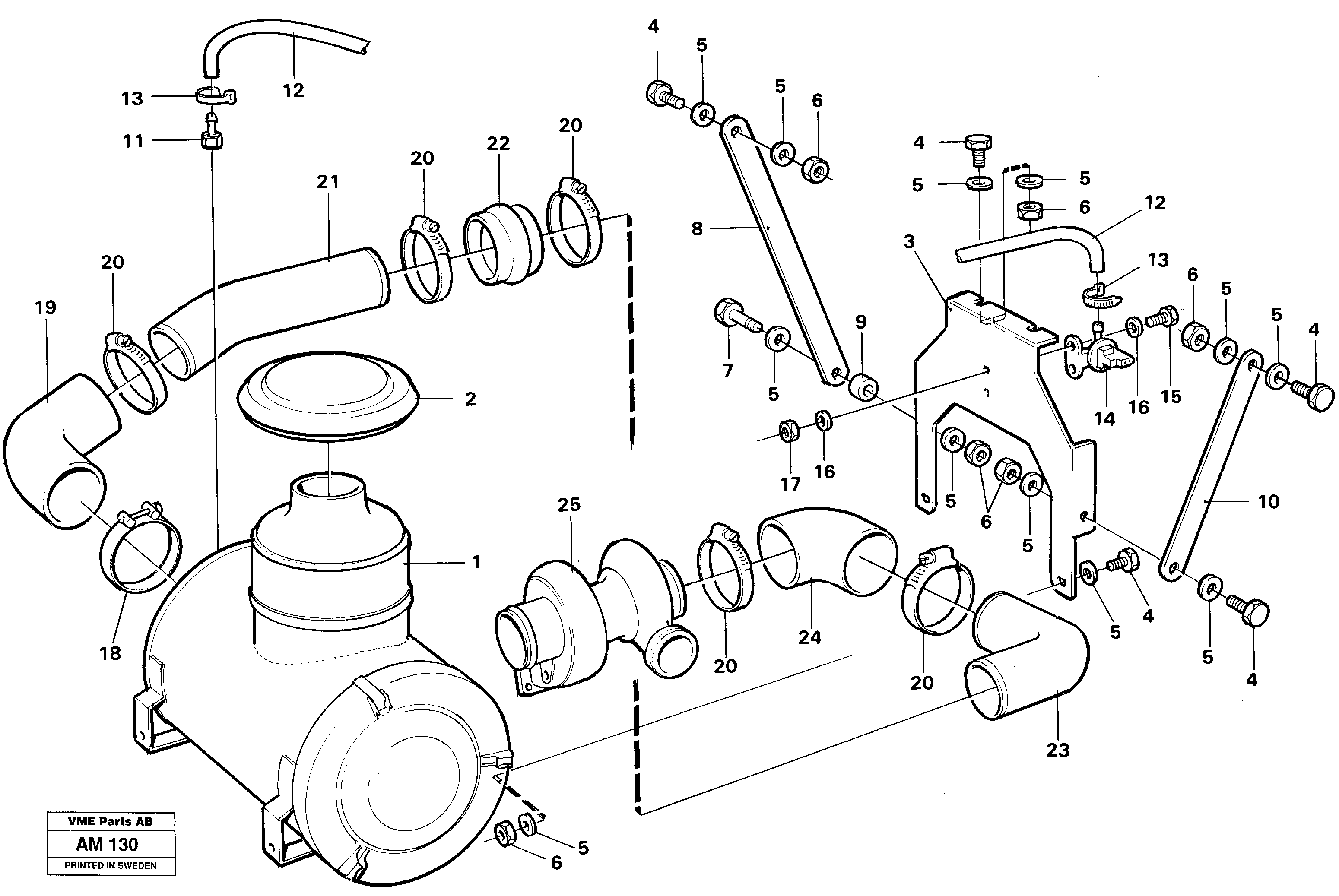

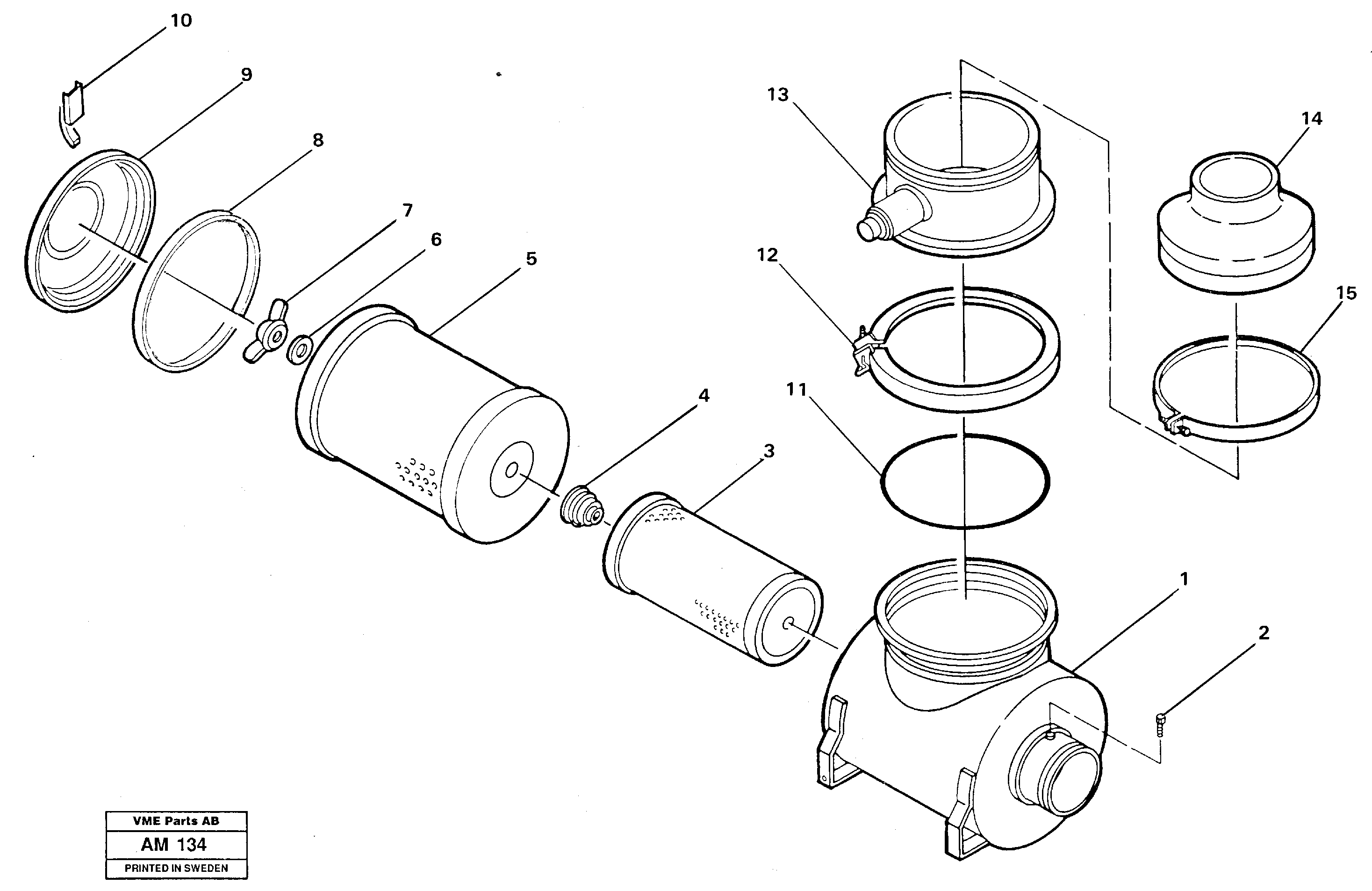

Inlet and exhaust systems
Cooling system

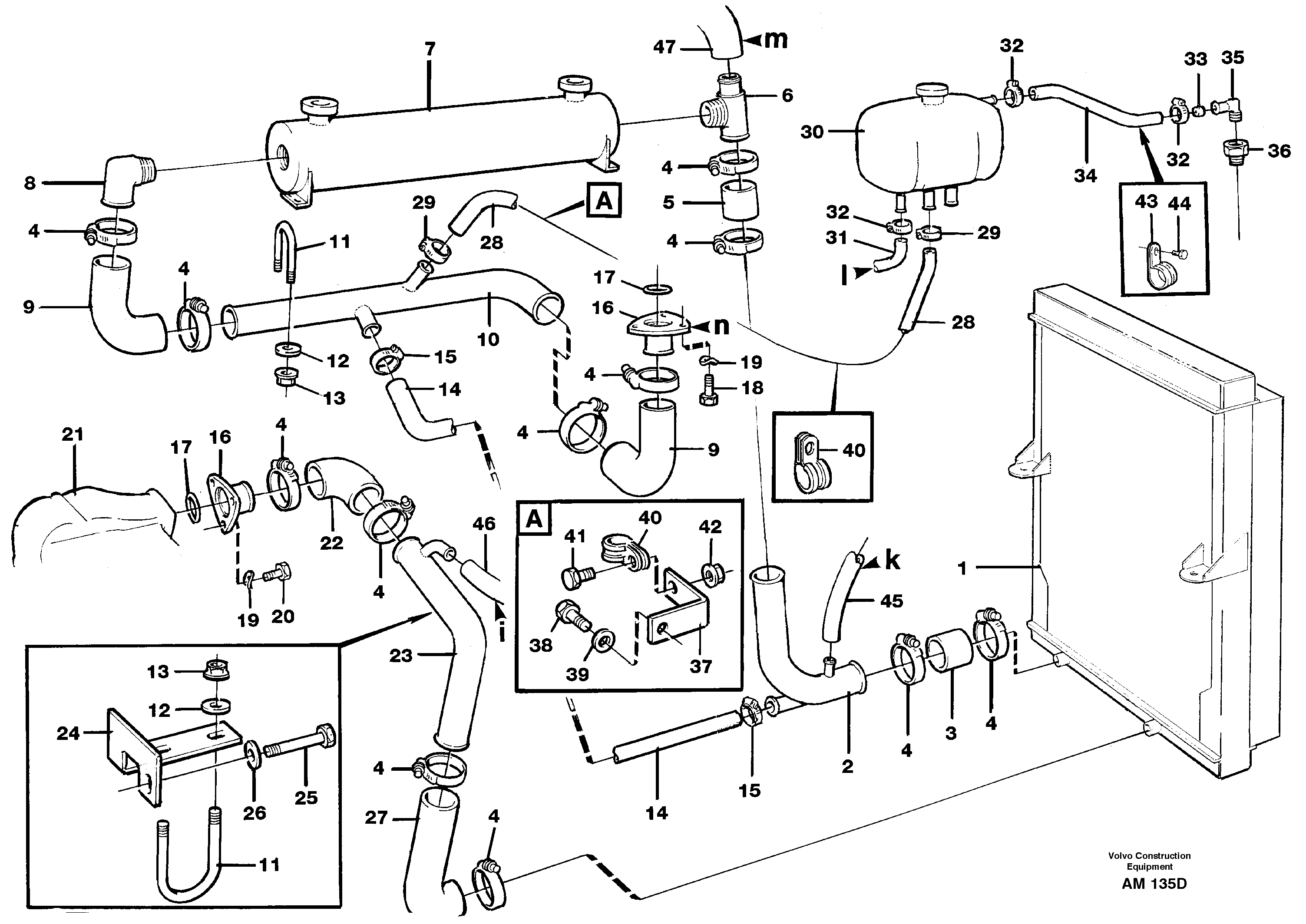

Cooling system

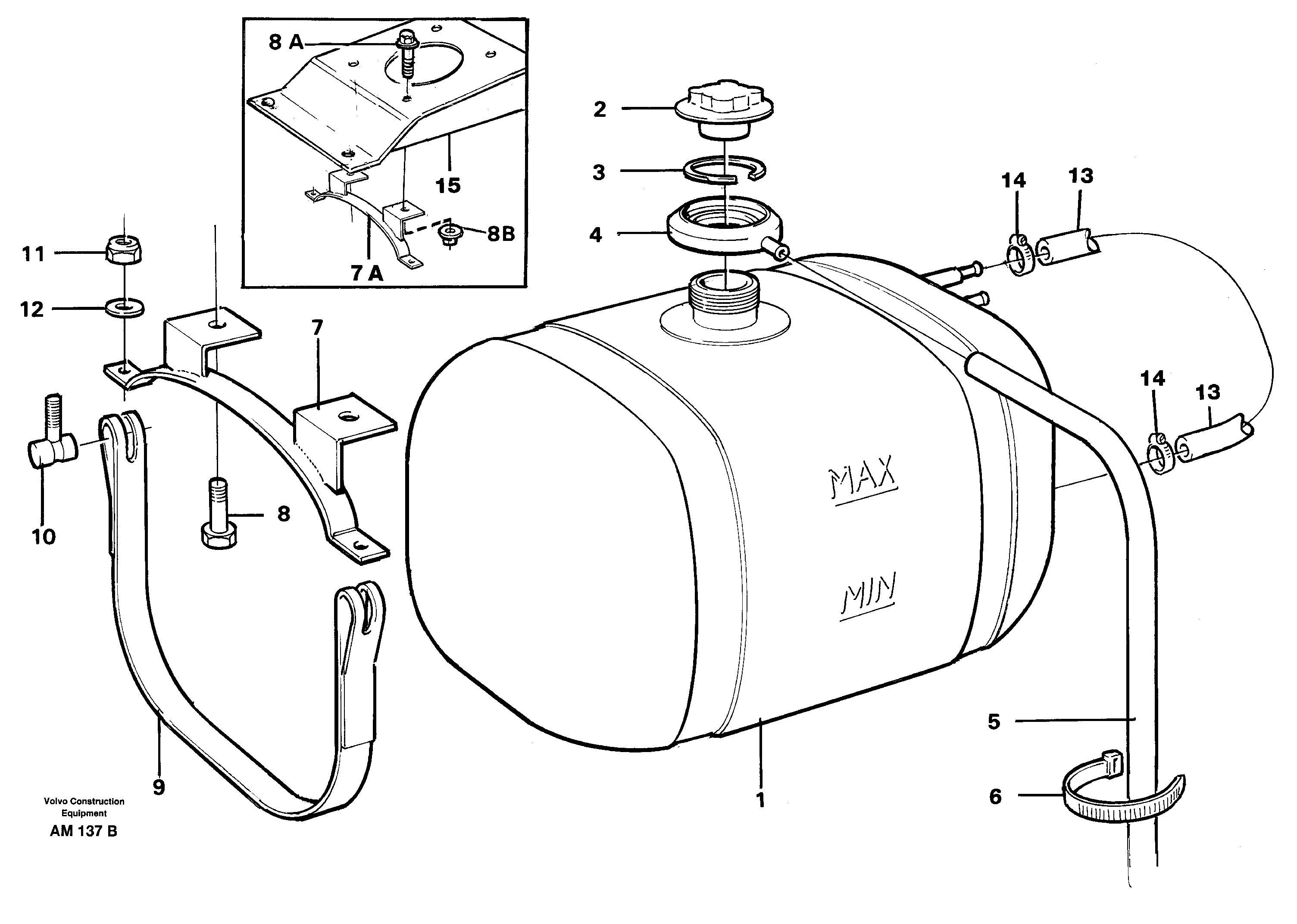

Expansion tank with bracket

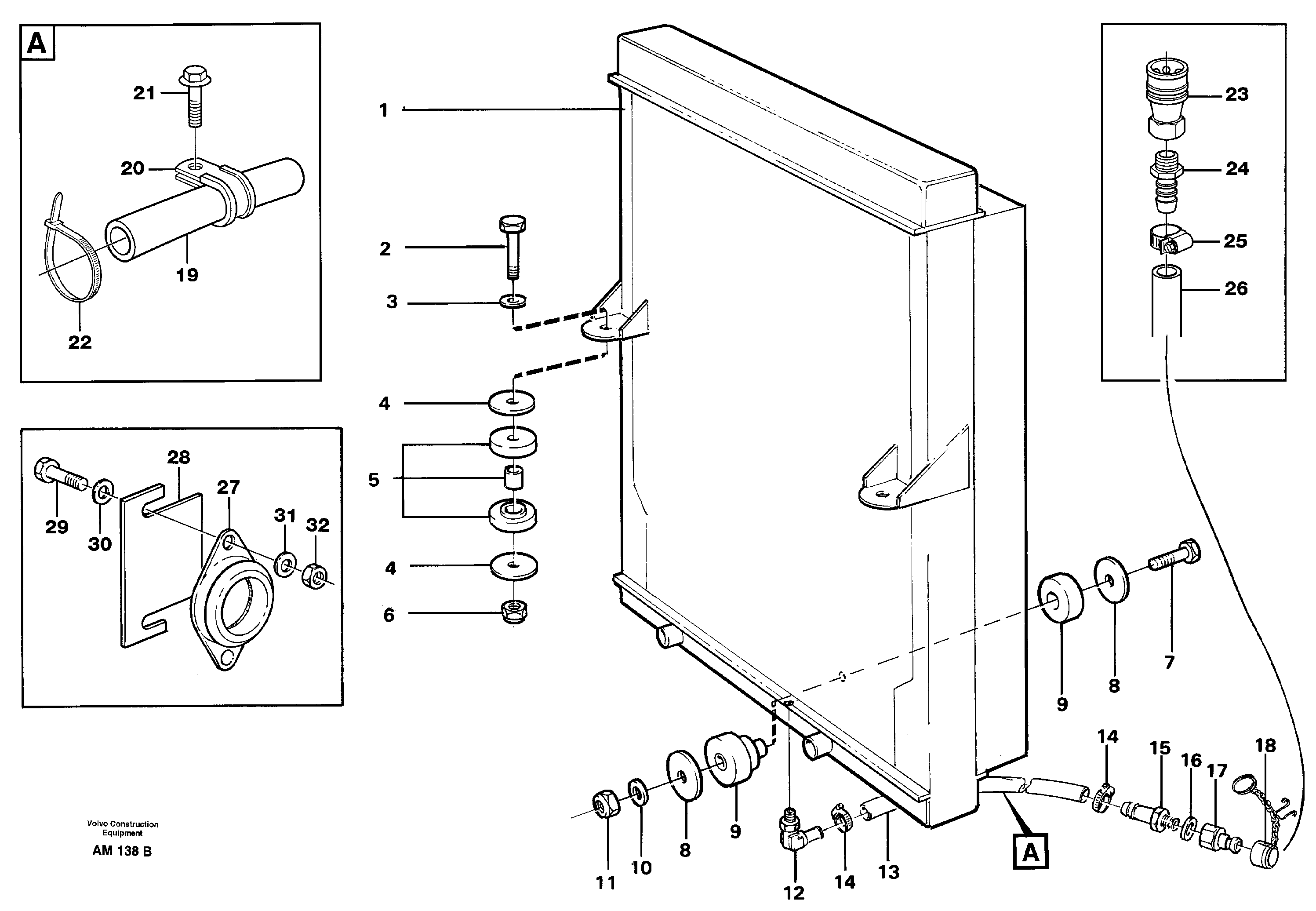

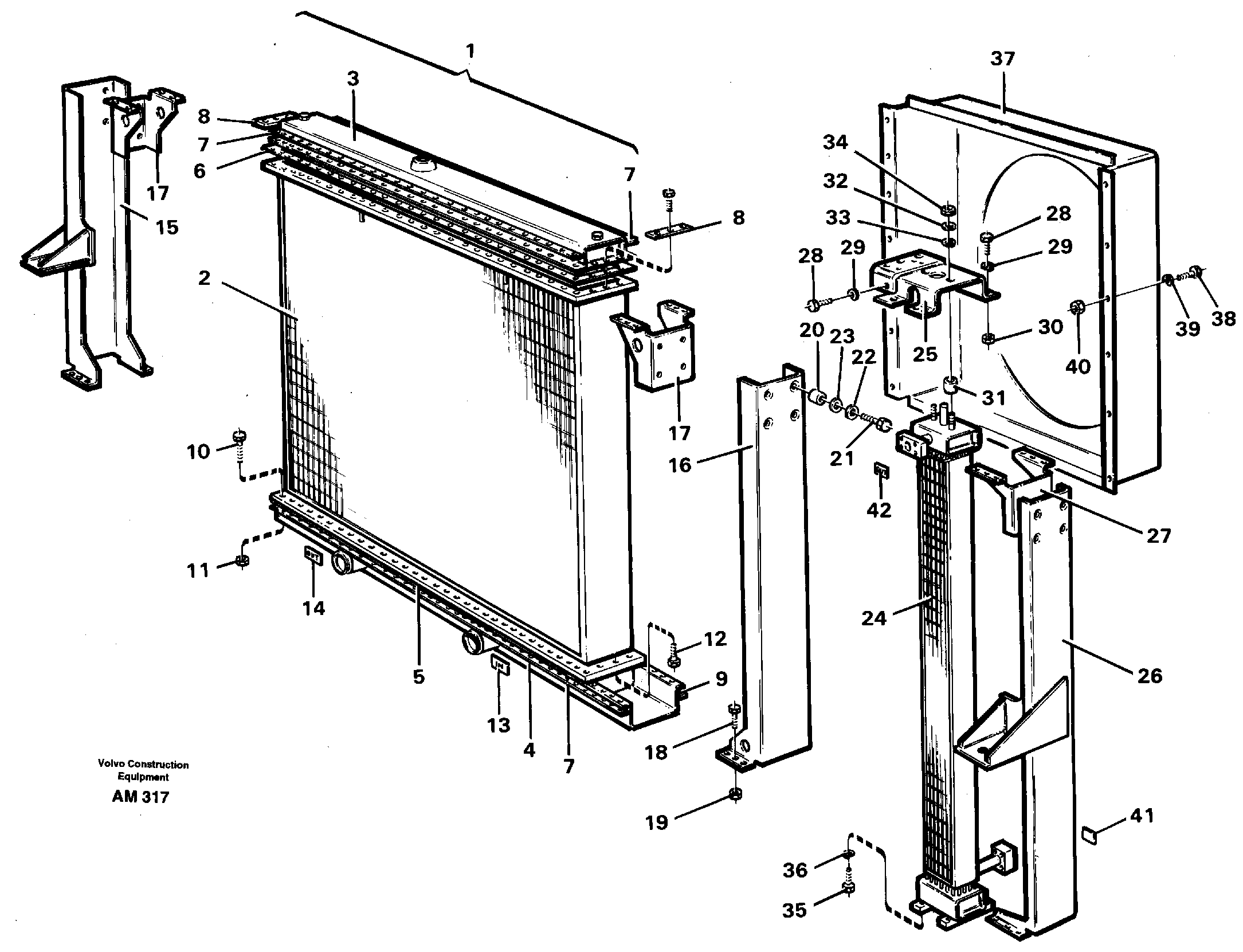

Radiator with fitting parts

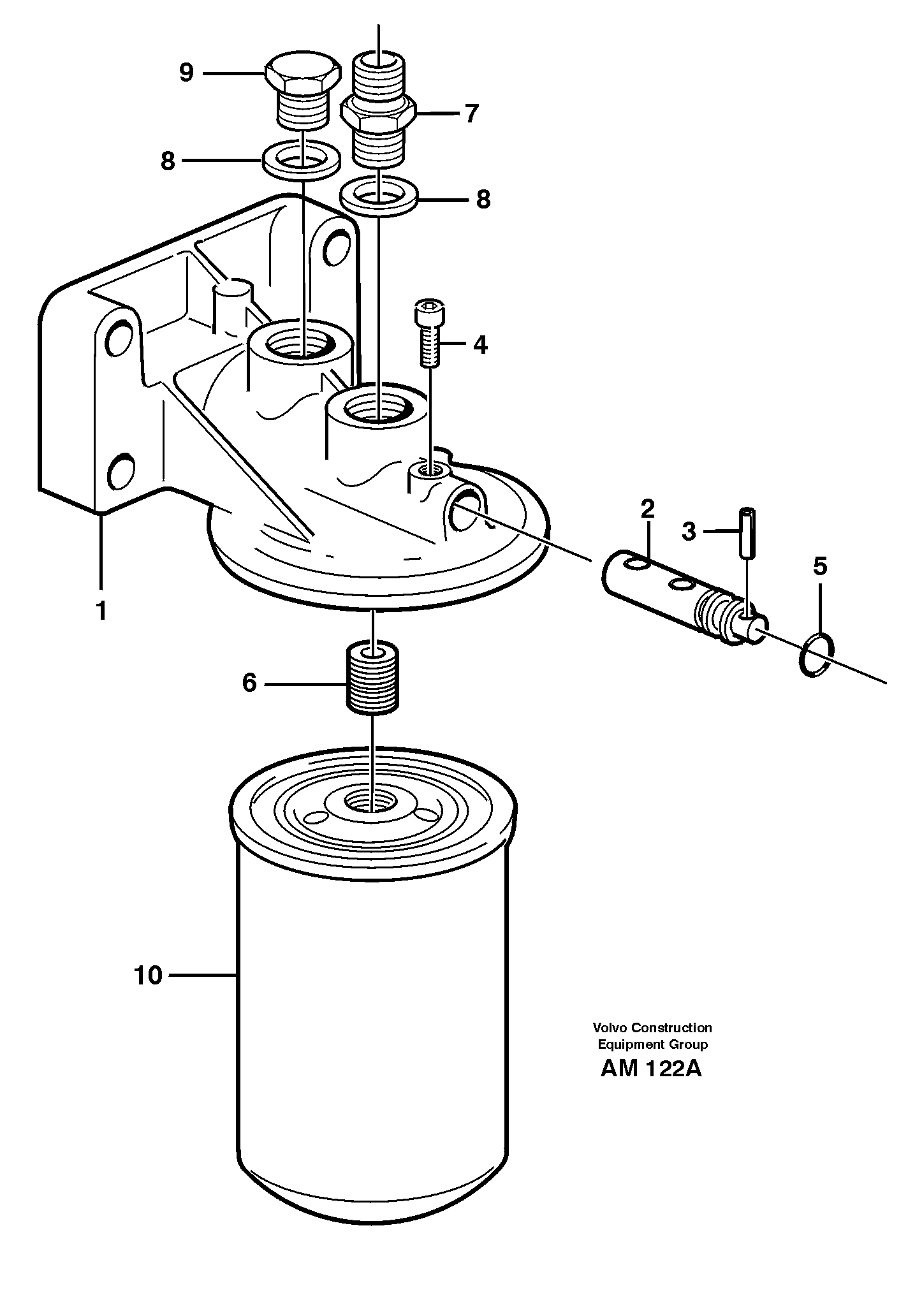

Coolant filter.

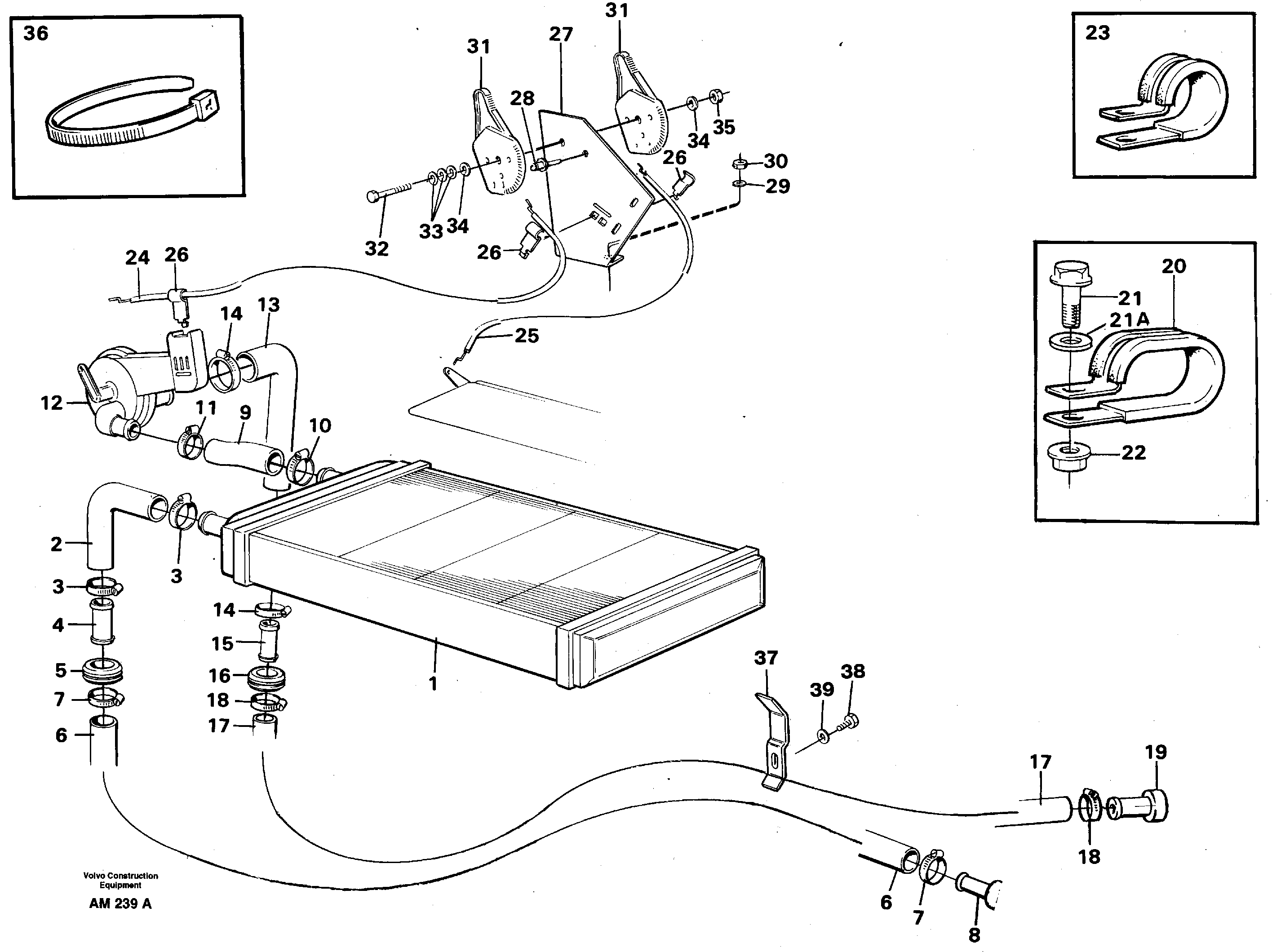

Radiator

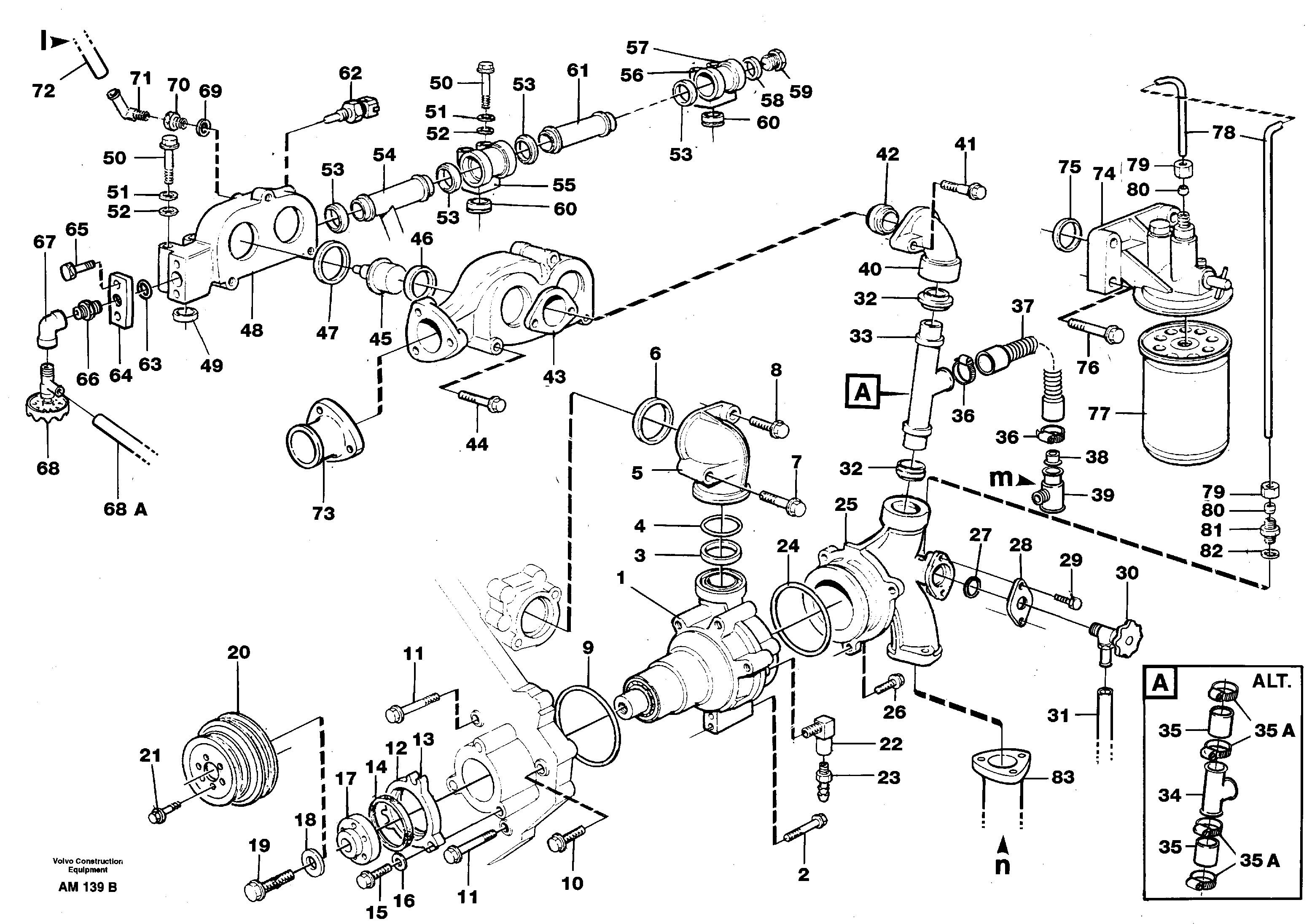

Water pump with fitting parts SER NO - 60070

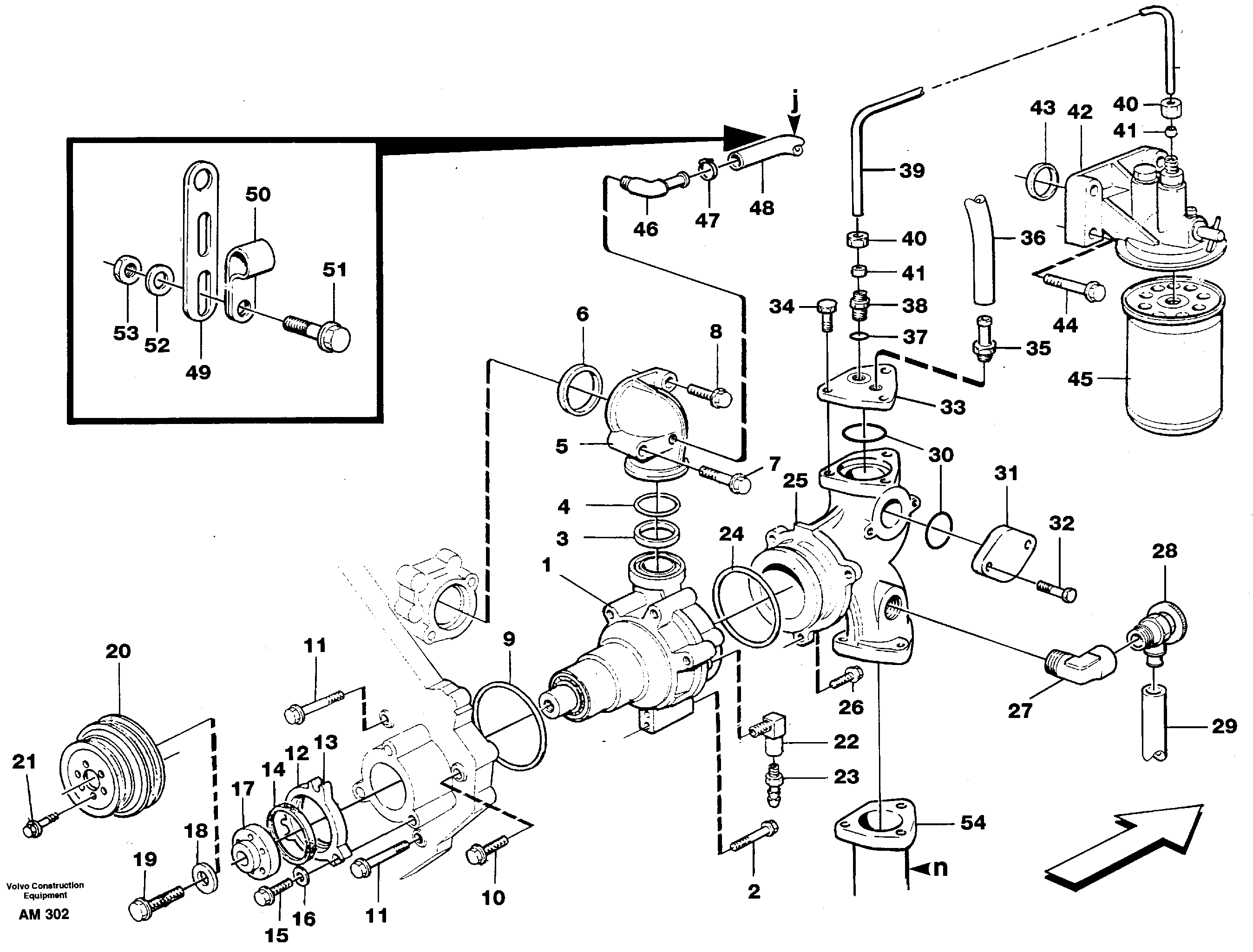

Water pump with fitting parts SER NO 60071 -

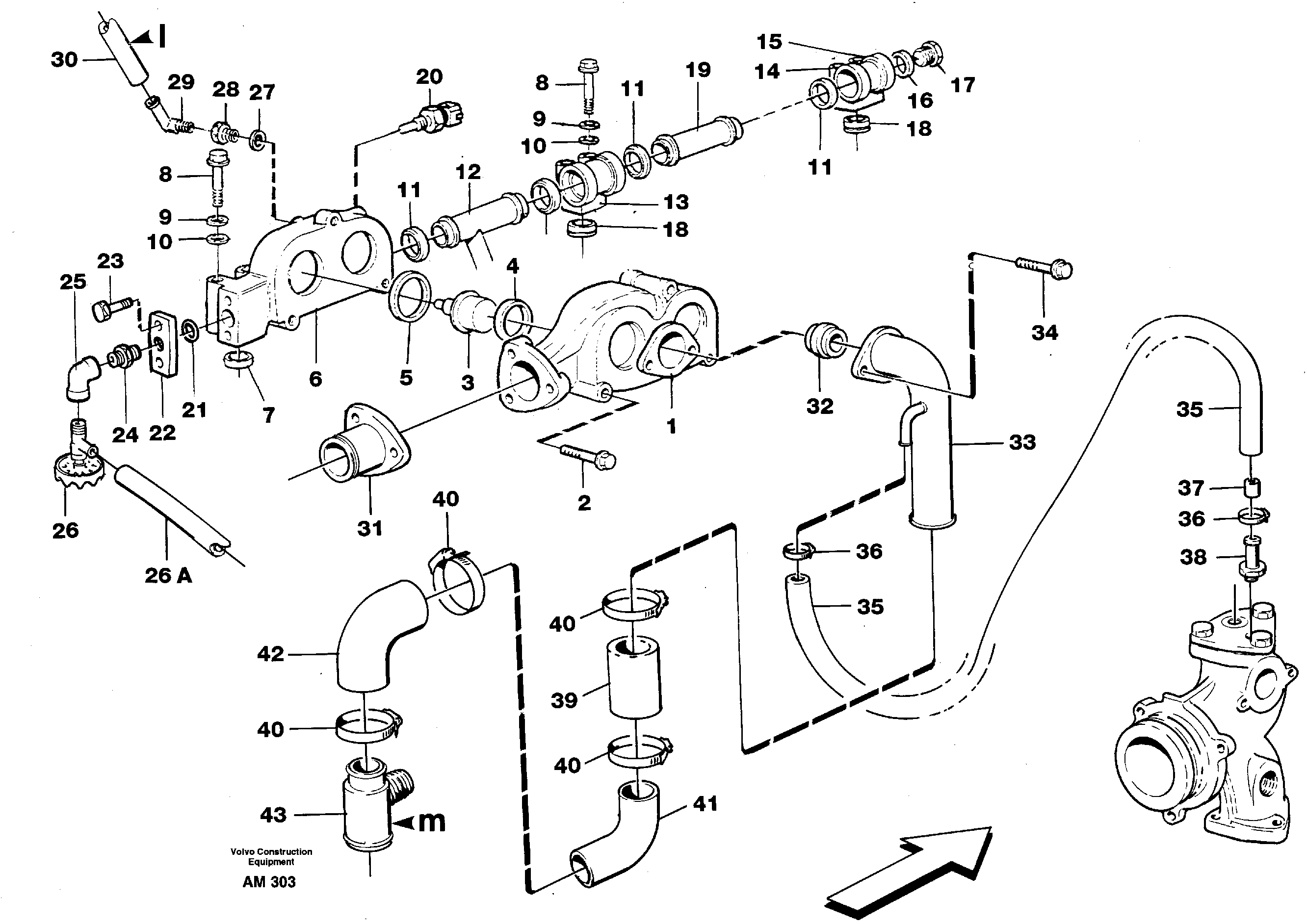

Thermostathousing with fitting parts SER NO 60071 -

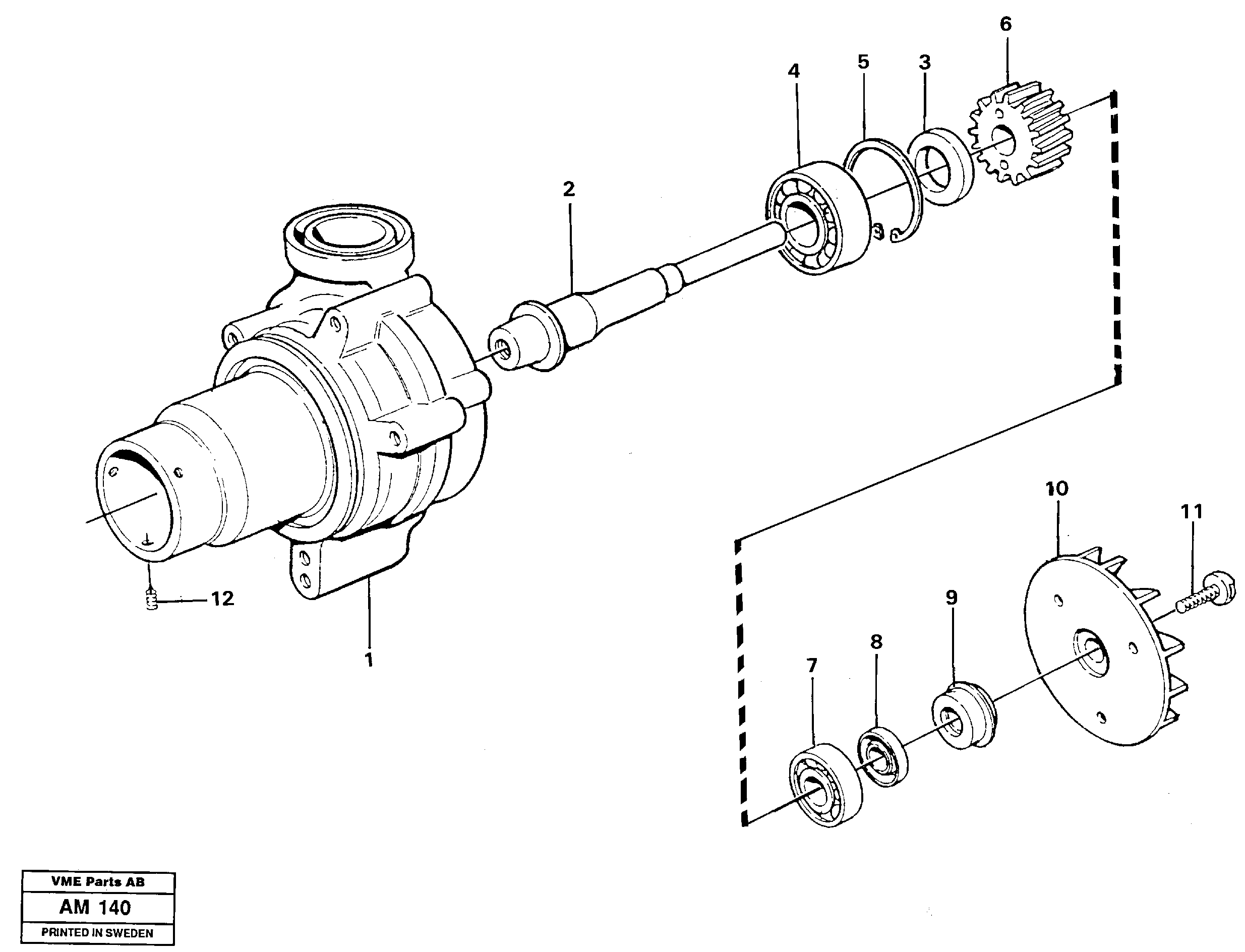

Water pump

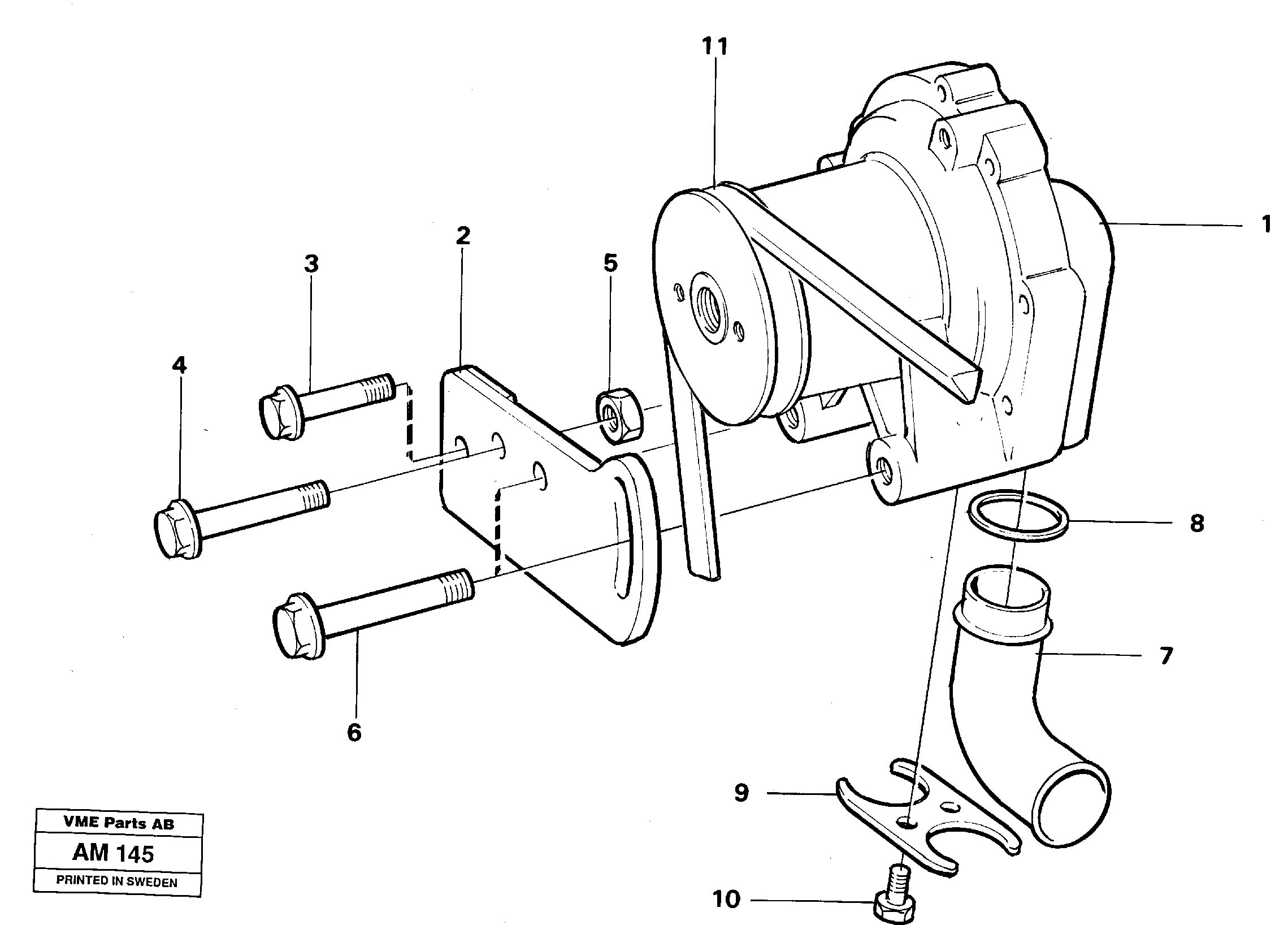

Extra water pump with fitting parts

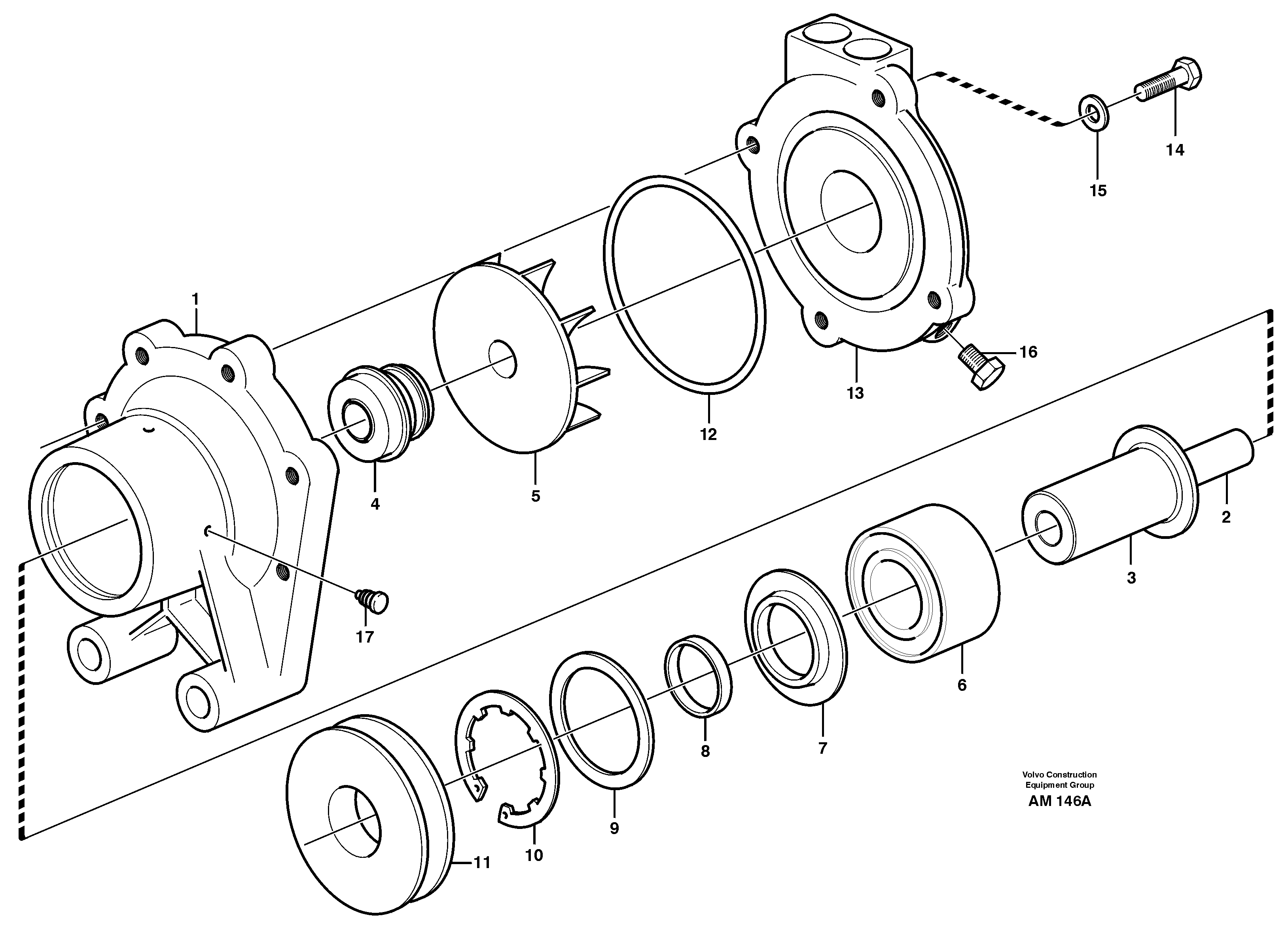

Extra water pump

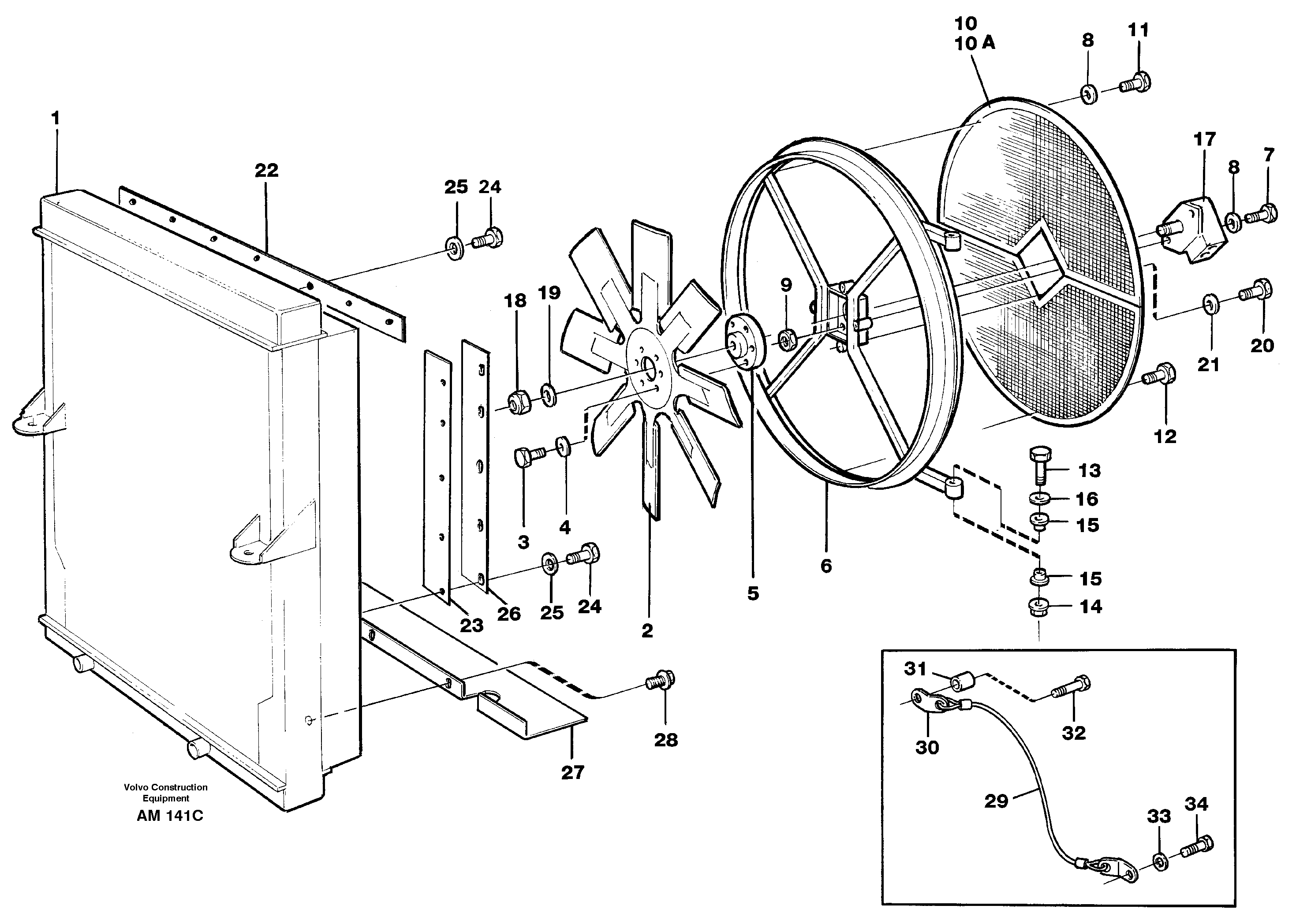

Fan and fan shroud

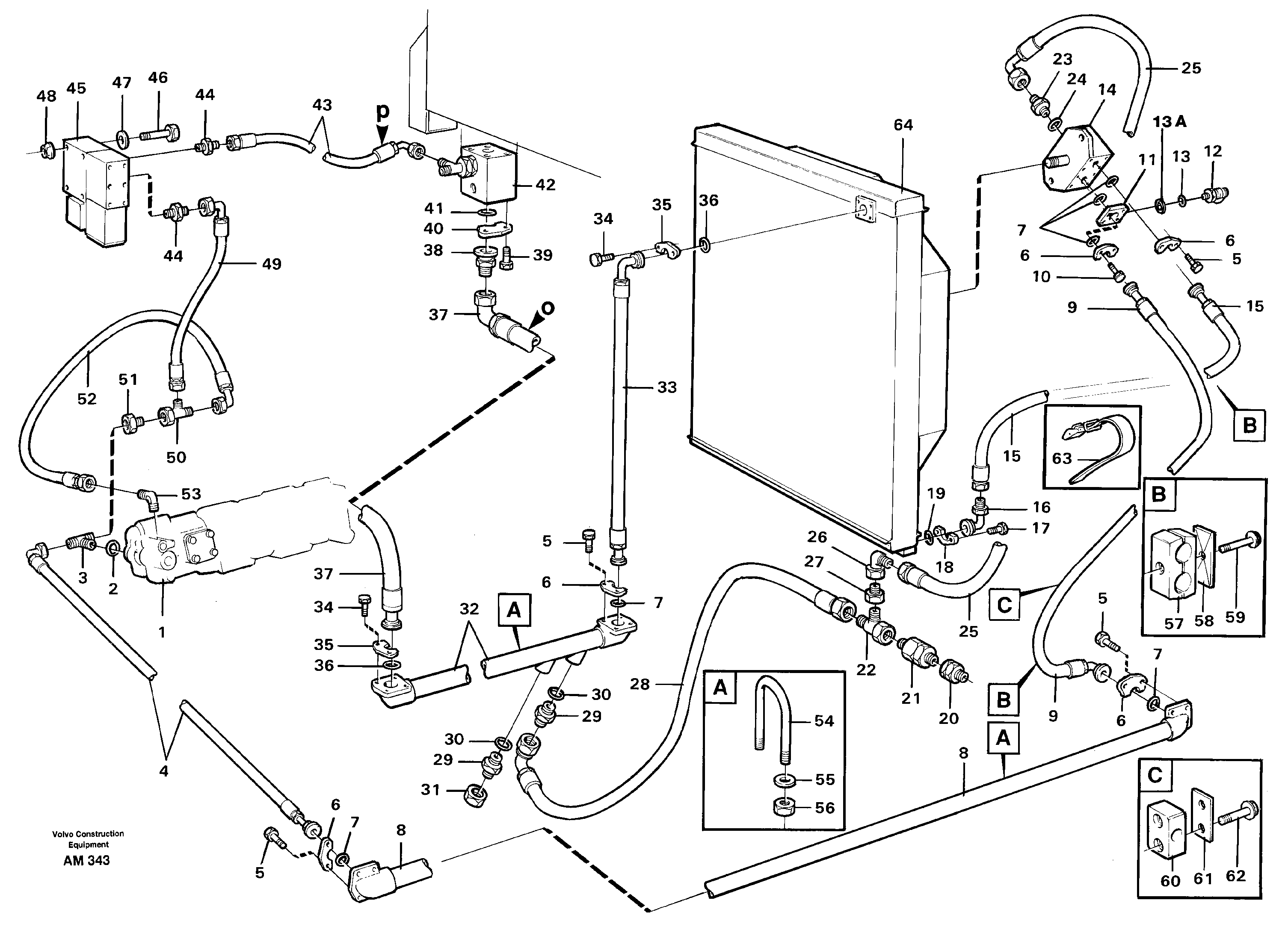

Fan drive

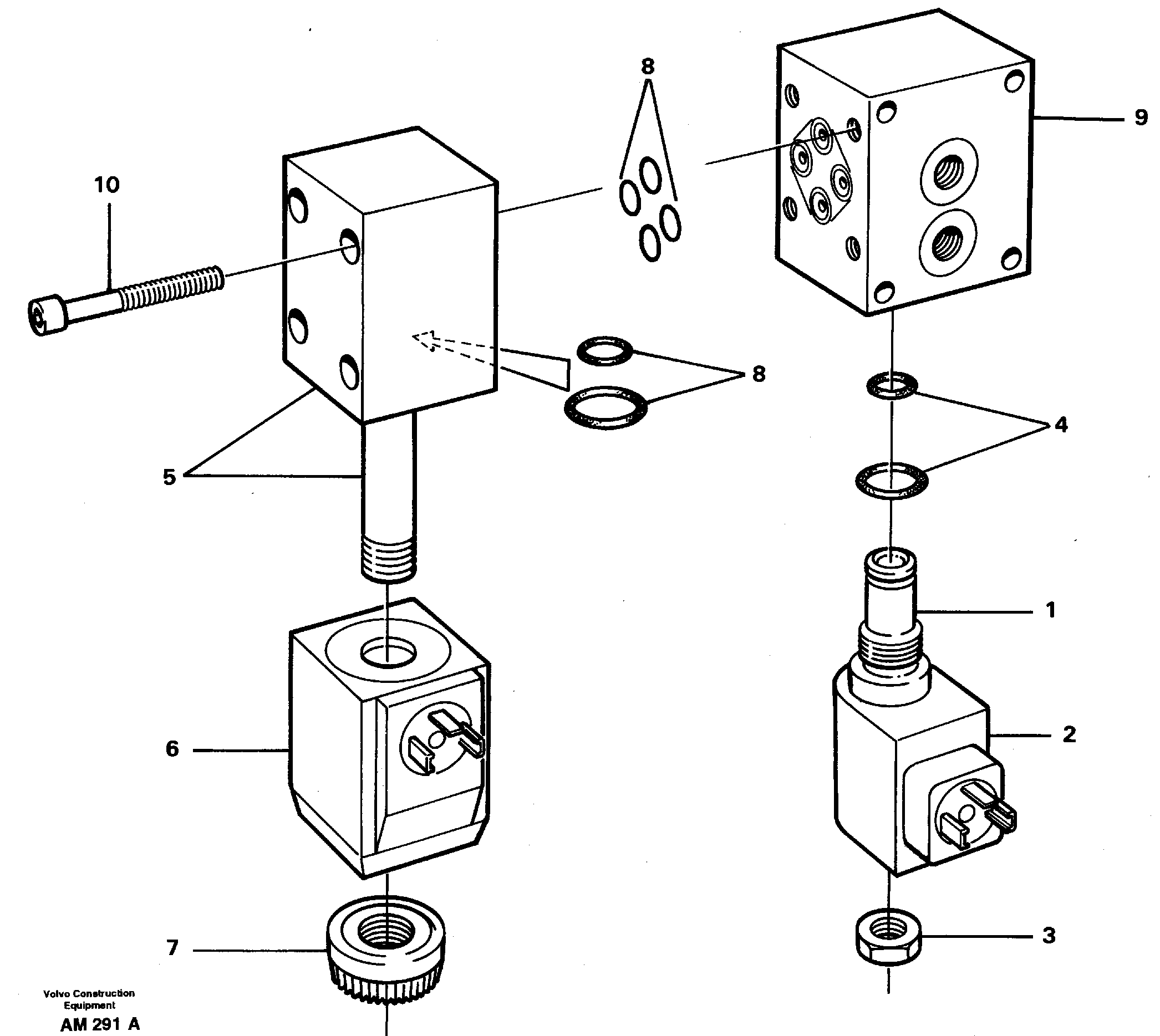

Fan drive: Thermostat valve

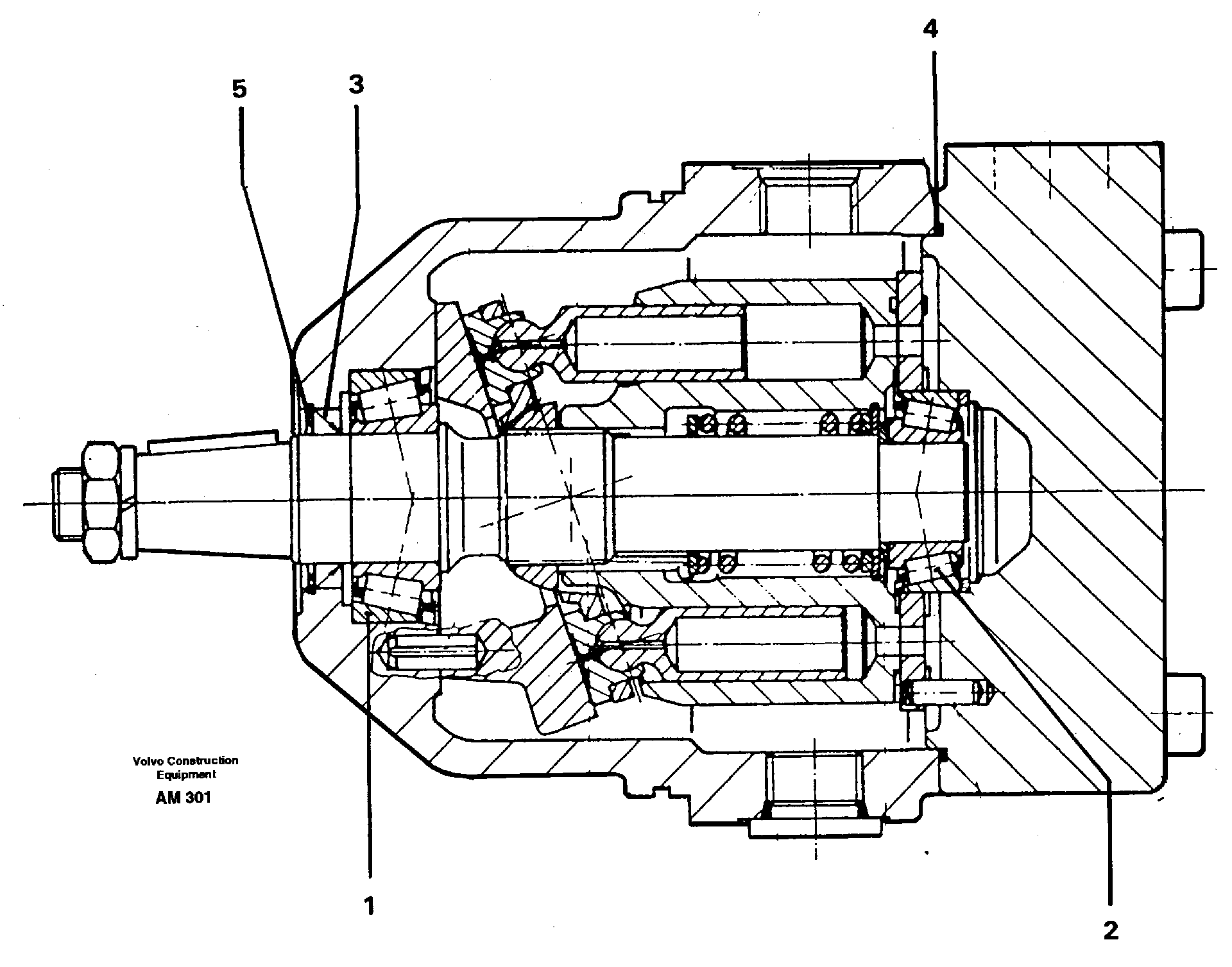

Hydraulic motor

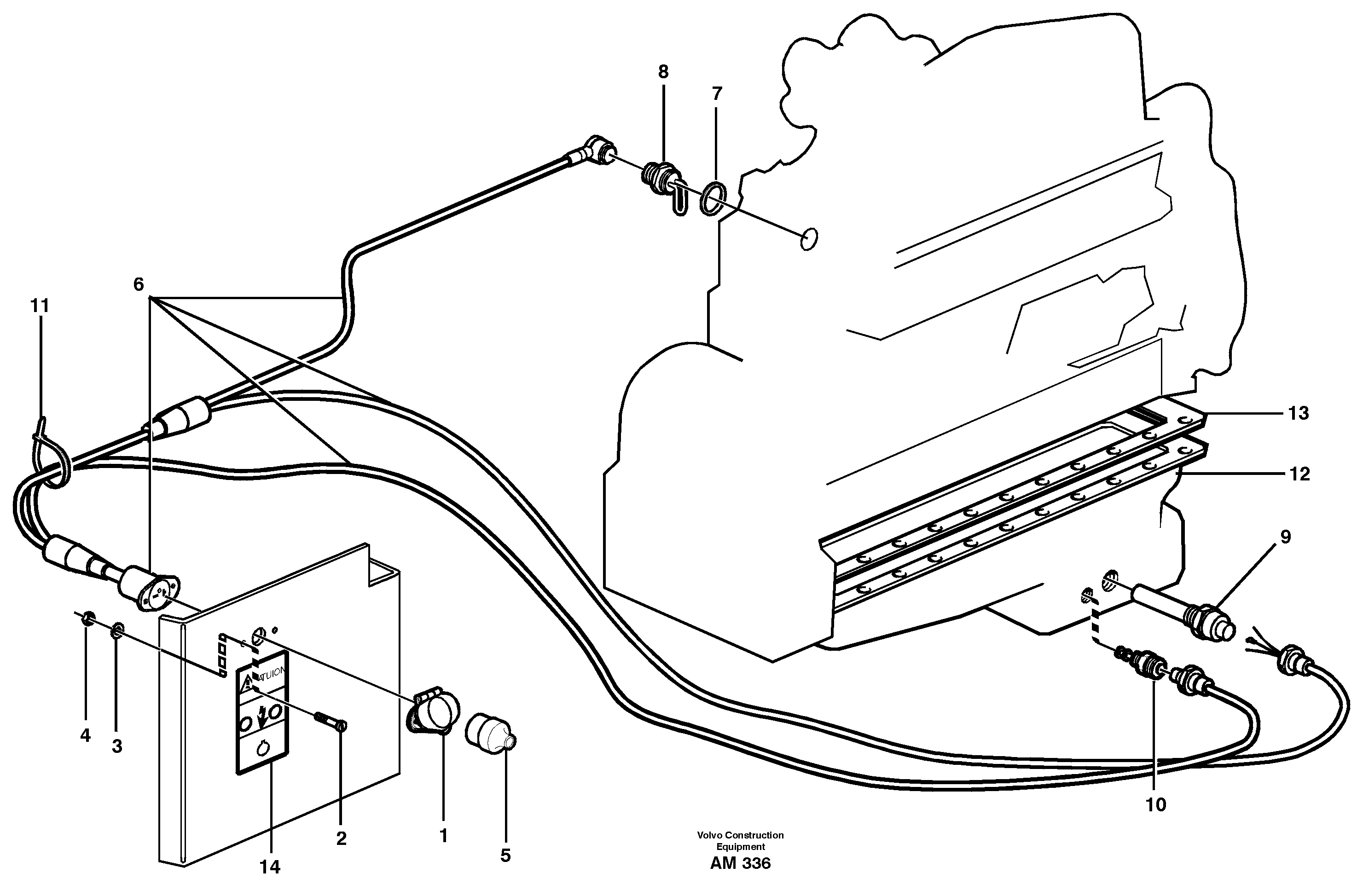

Engine heater 94664 (120 V USA), 94665 (240 V USA)

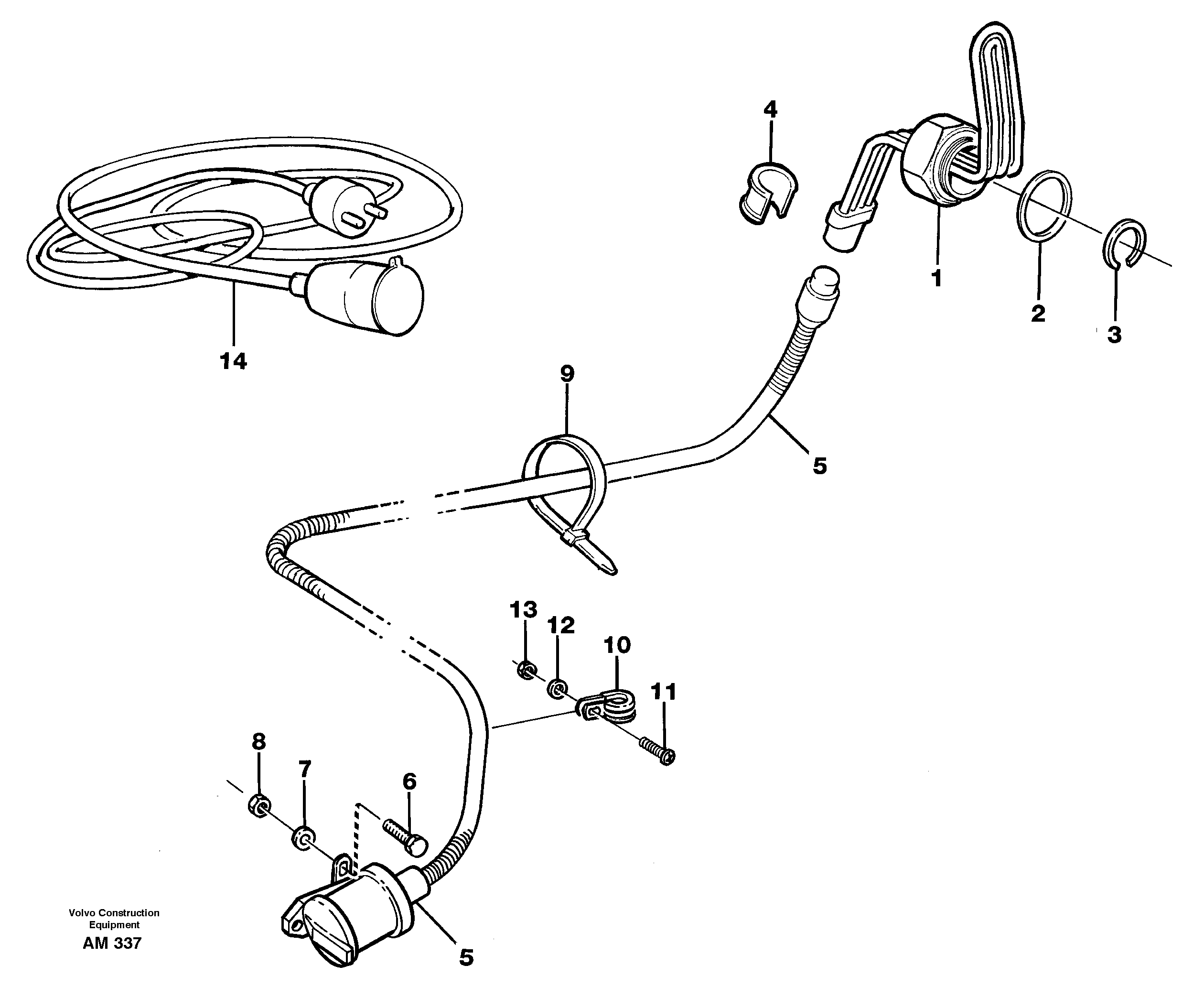

Engine heater 94927 (Eur.)

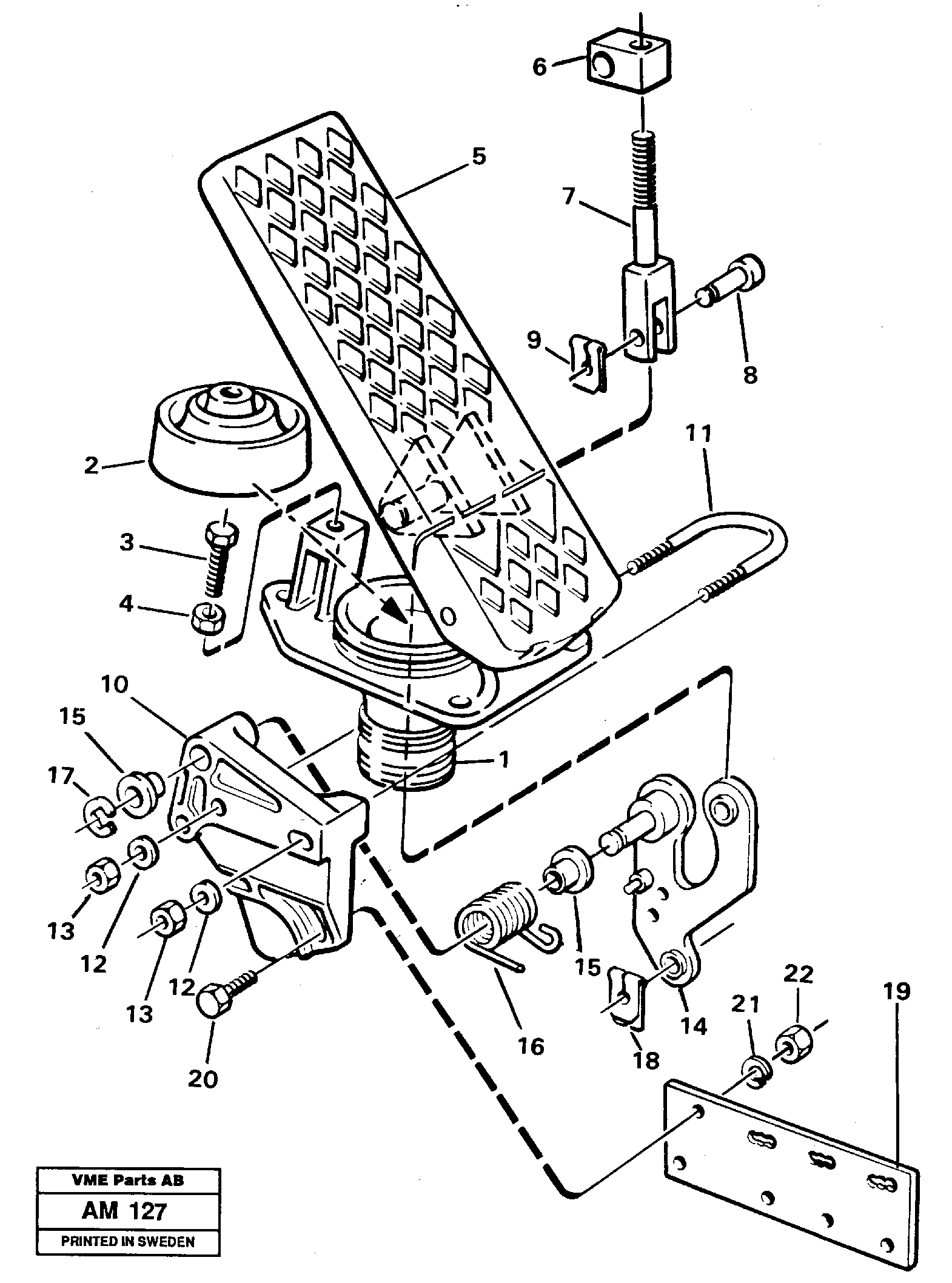

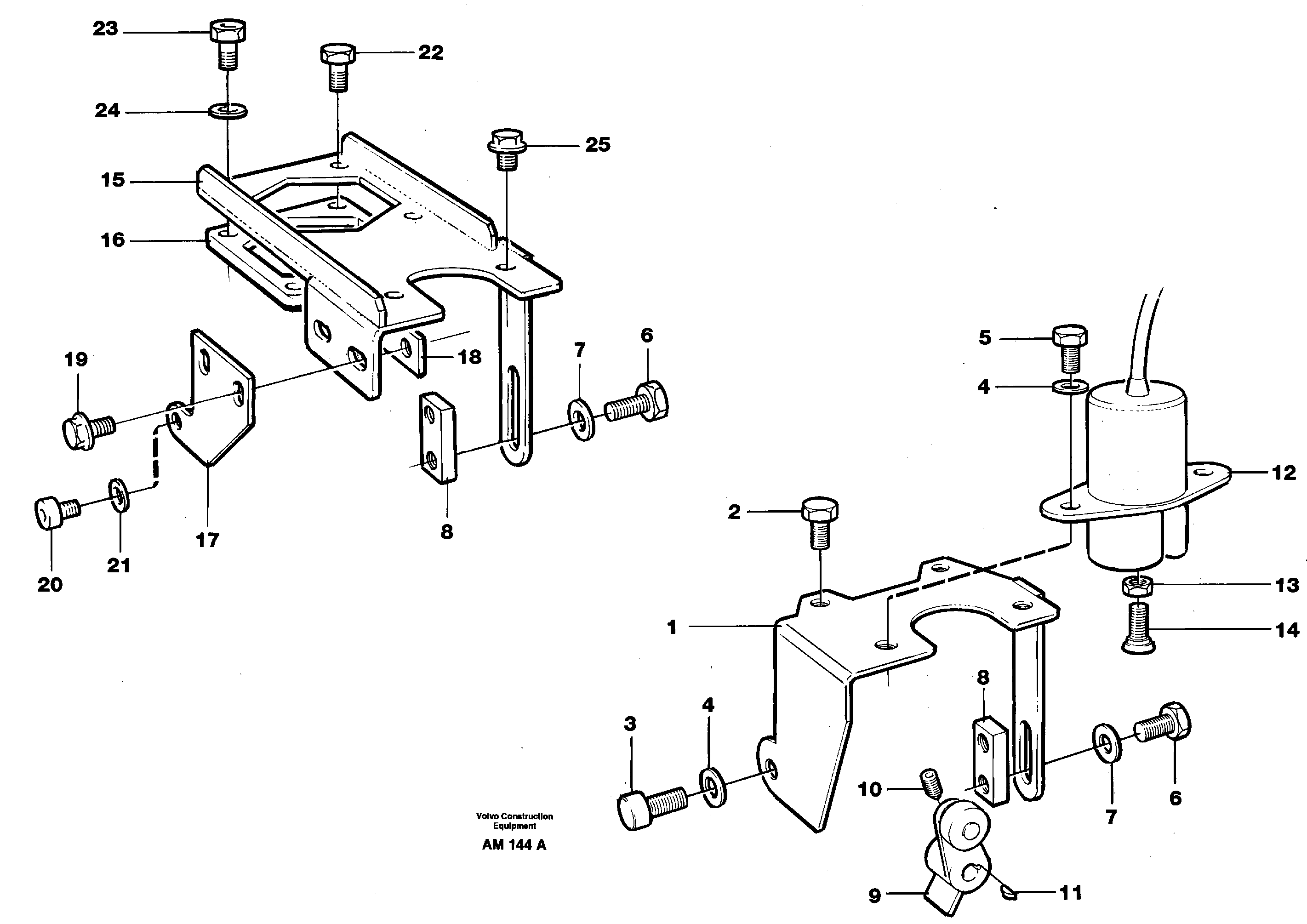

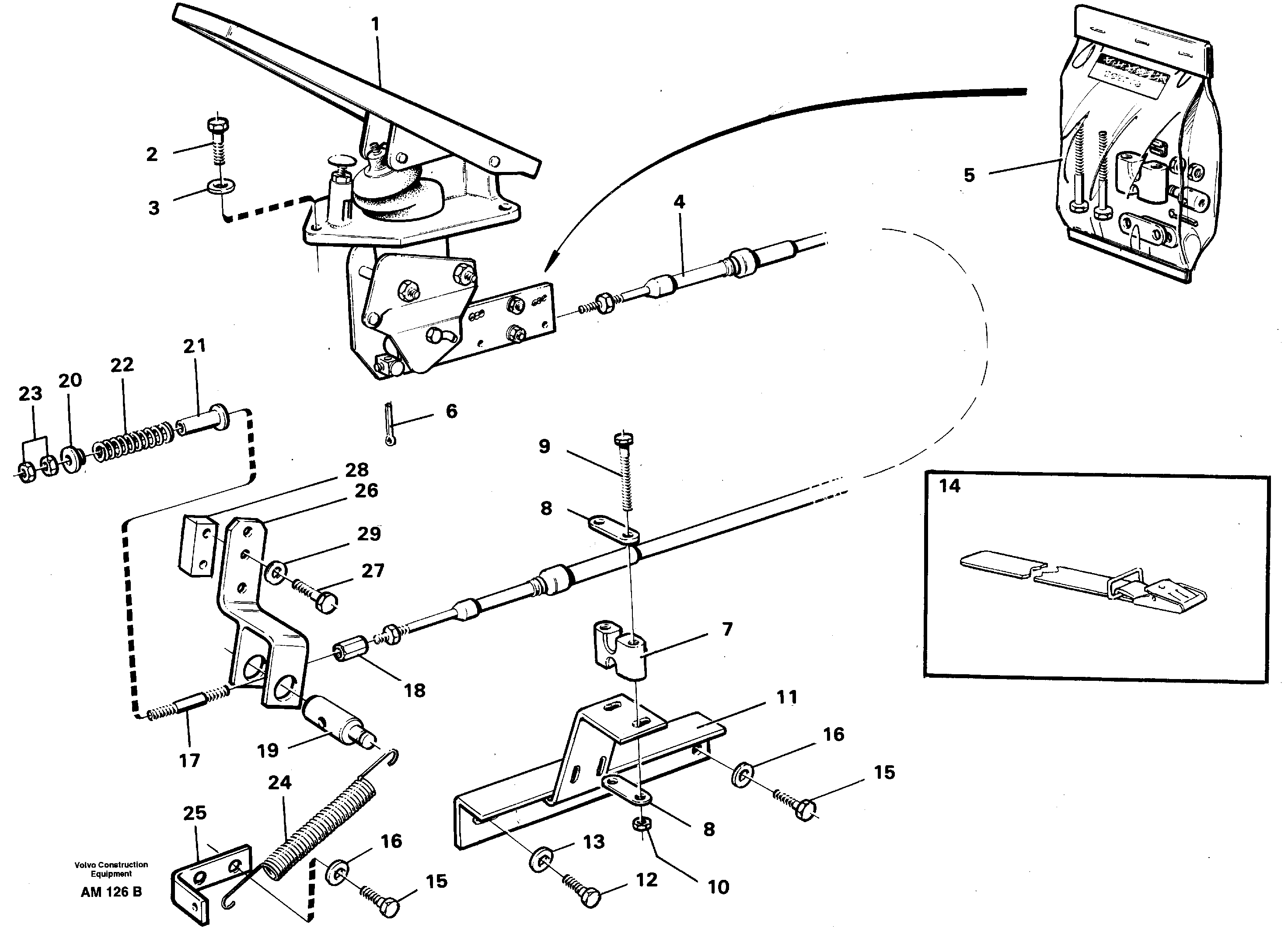

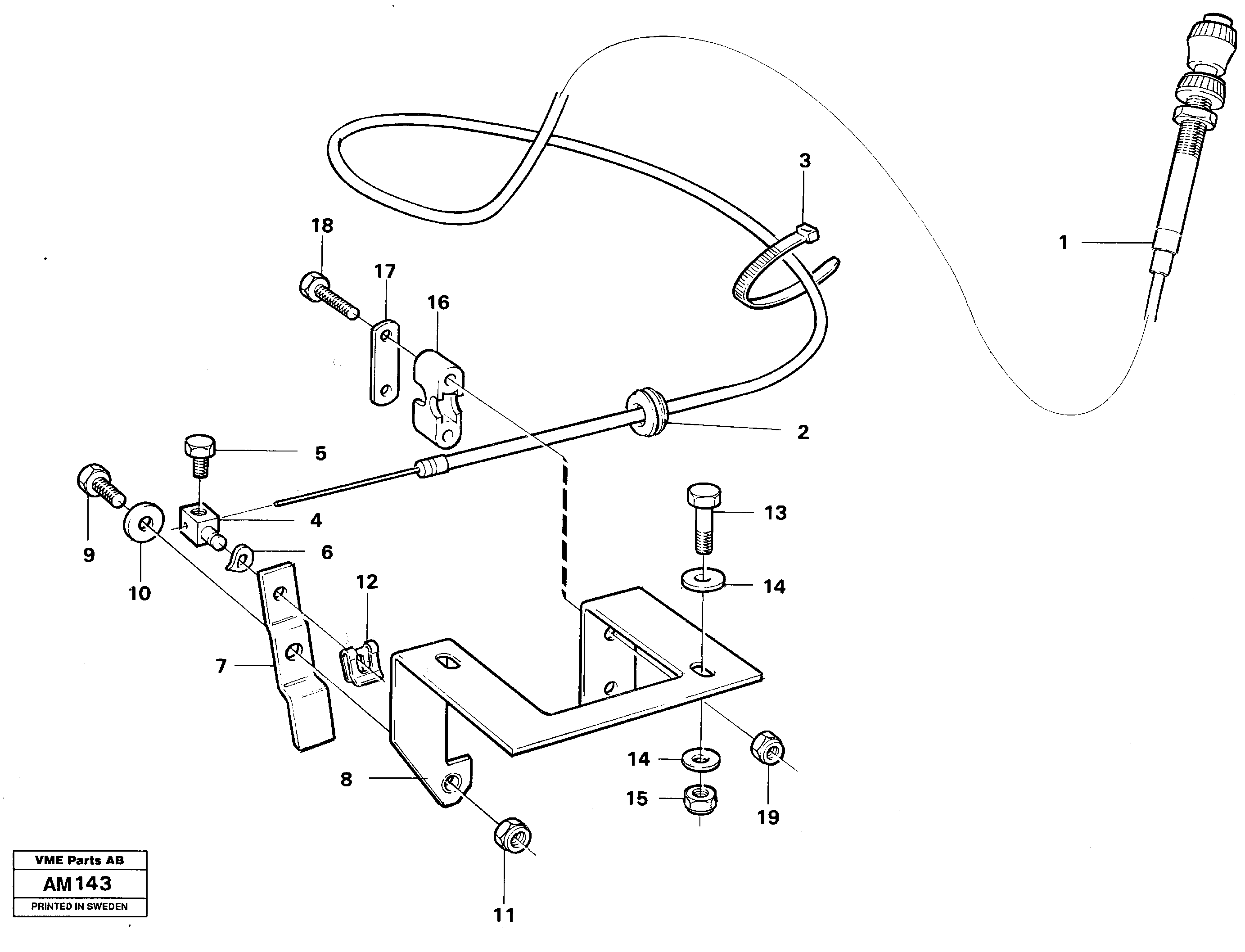

Engine control
Electrical, warning, informationsystems and instruments

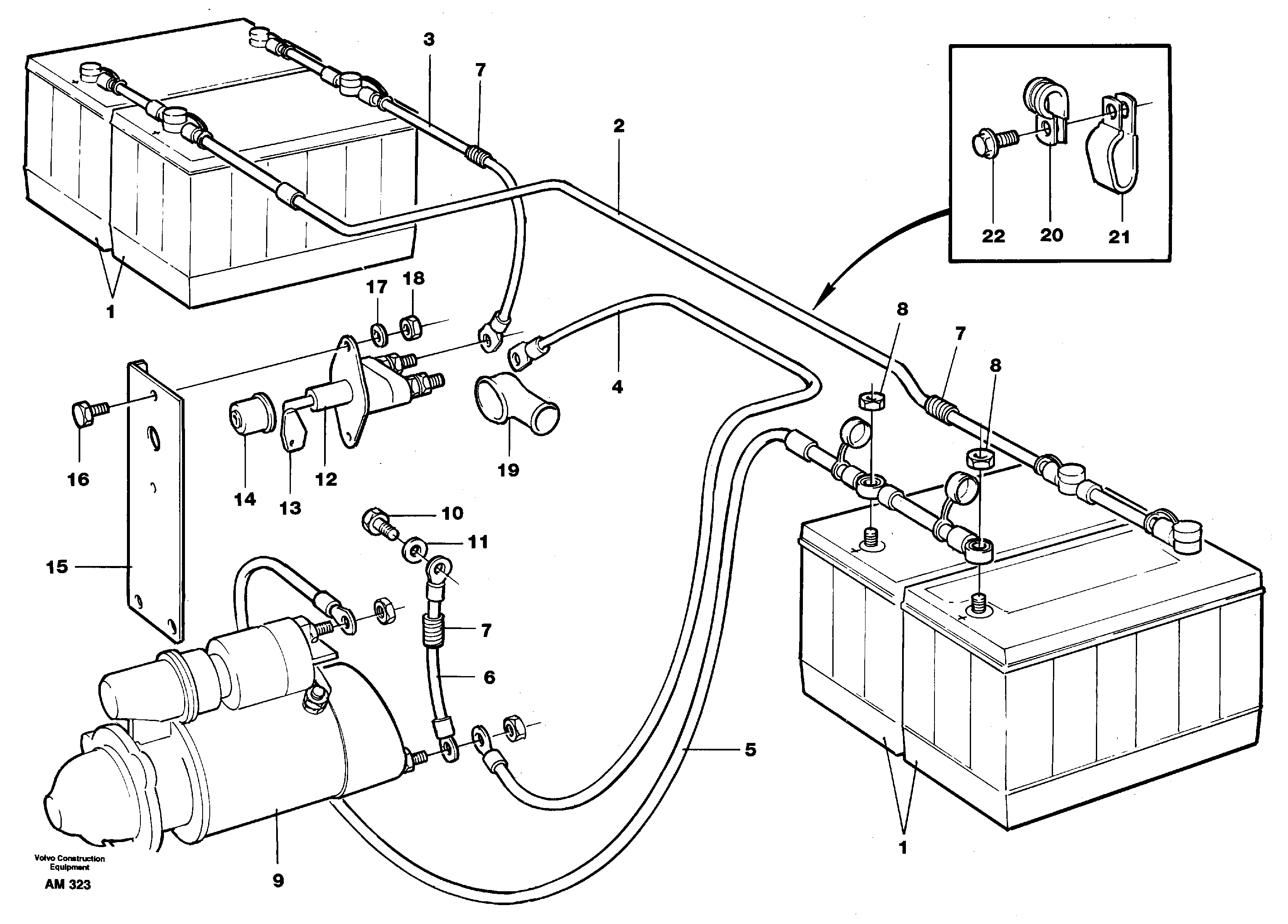

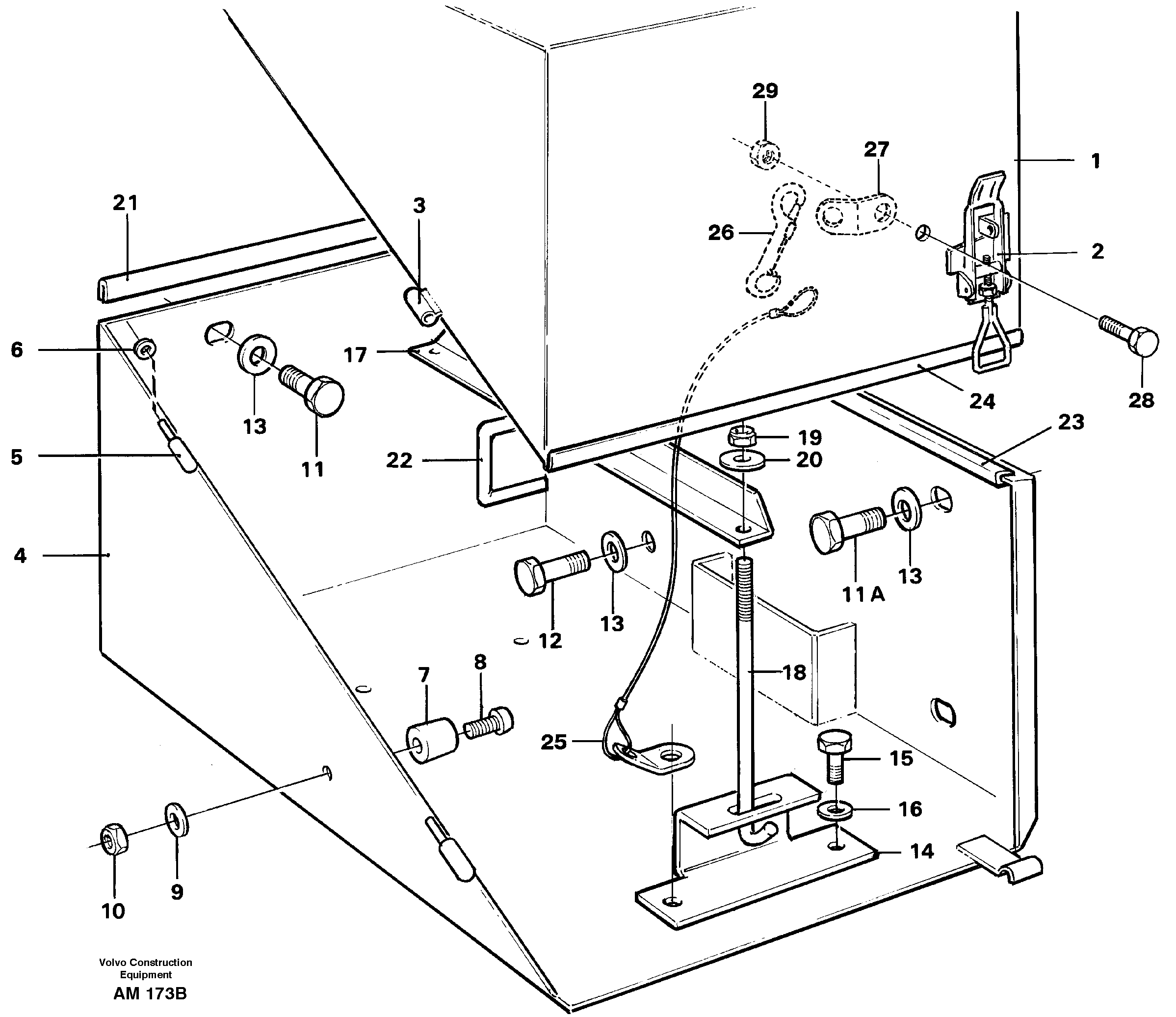

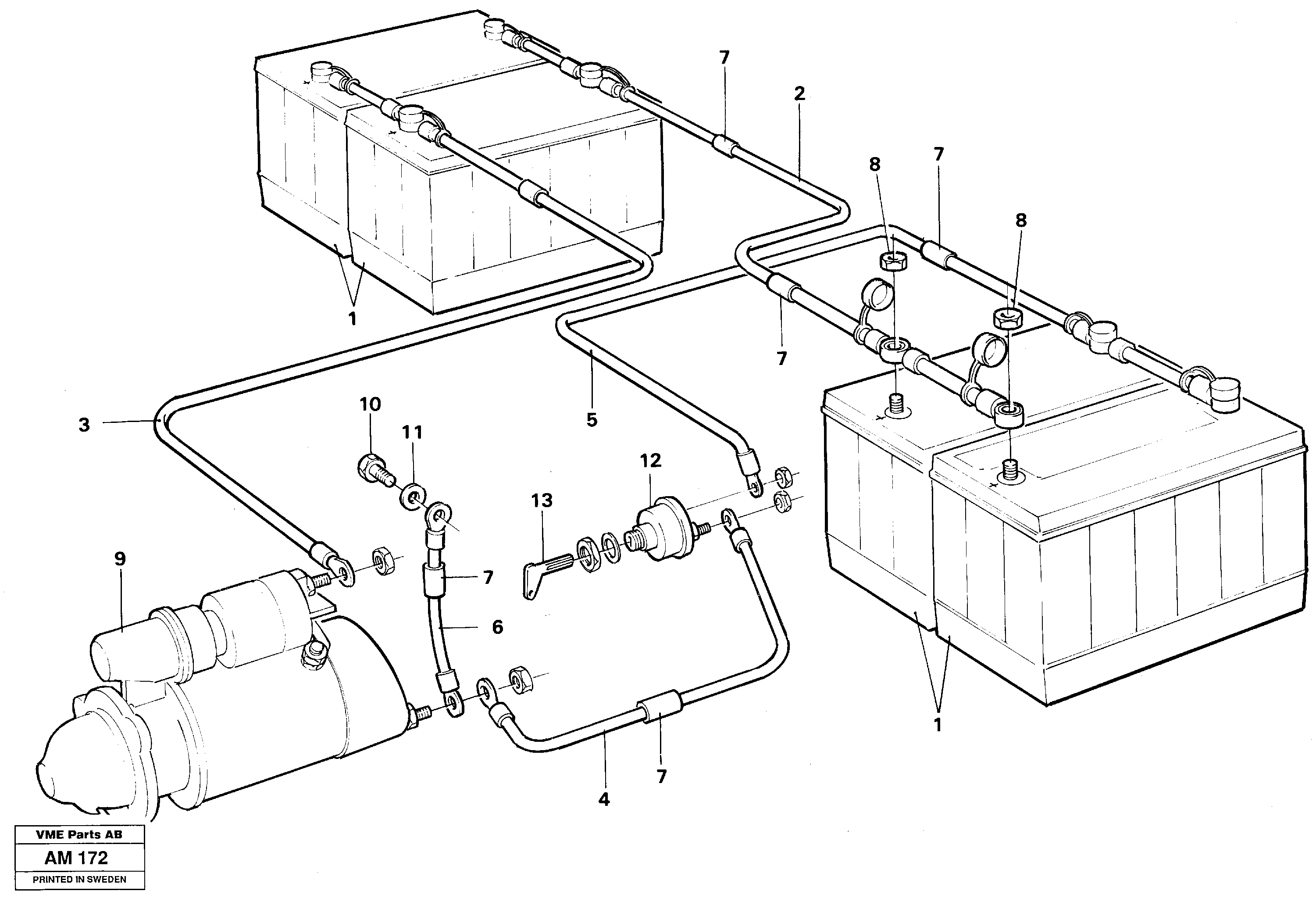

Battery

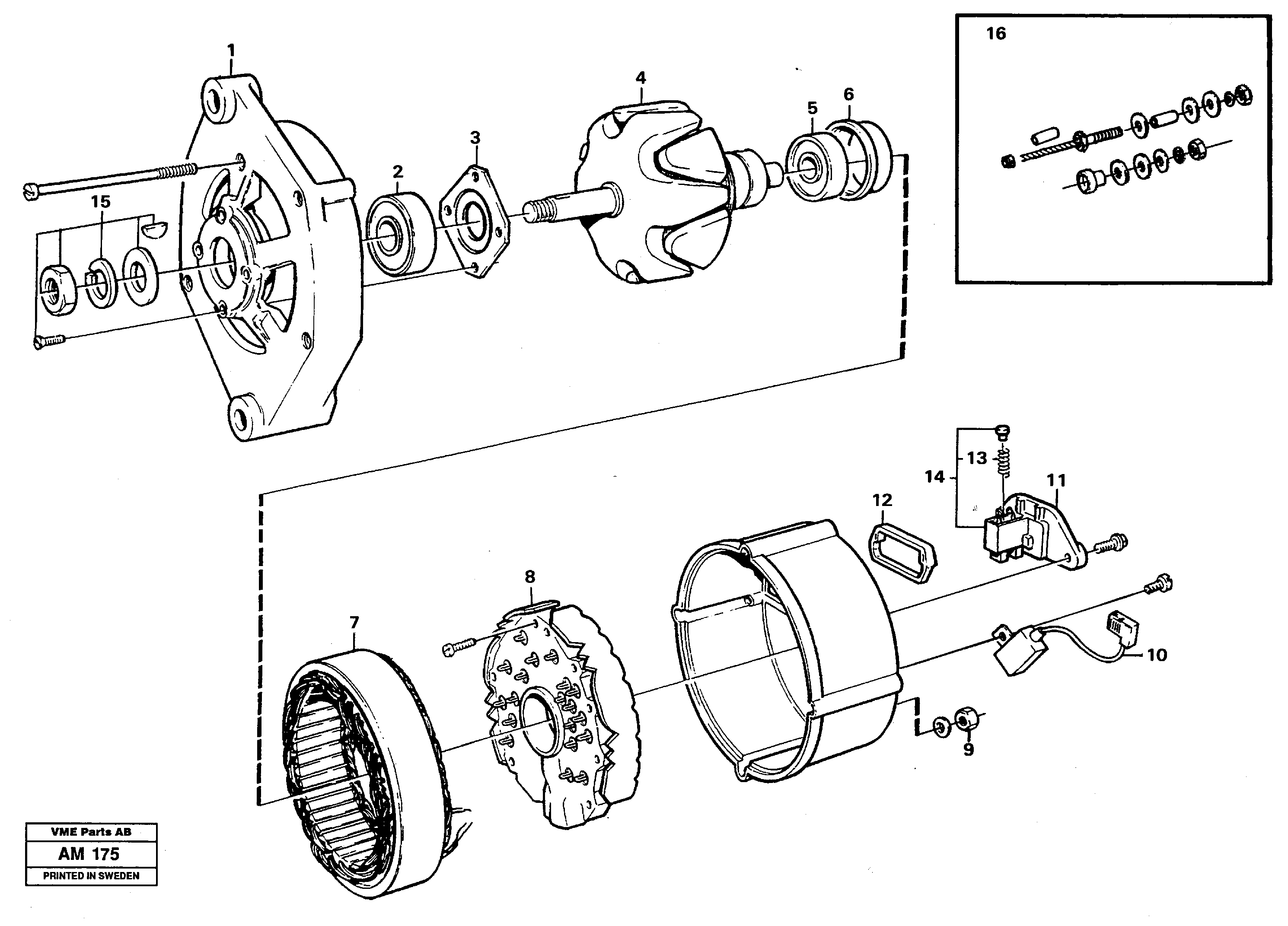

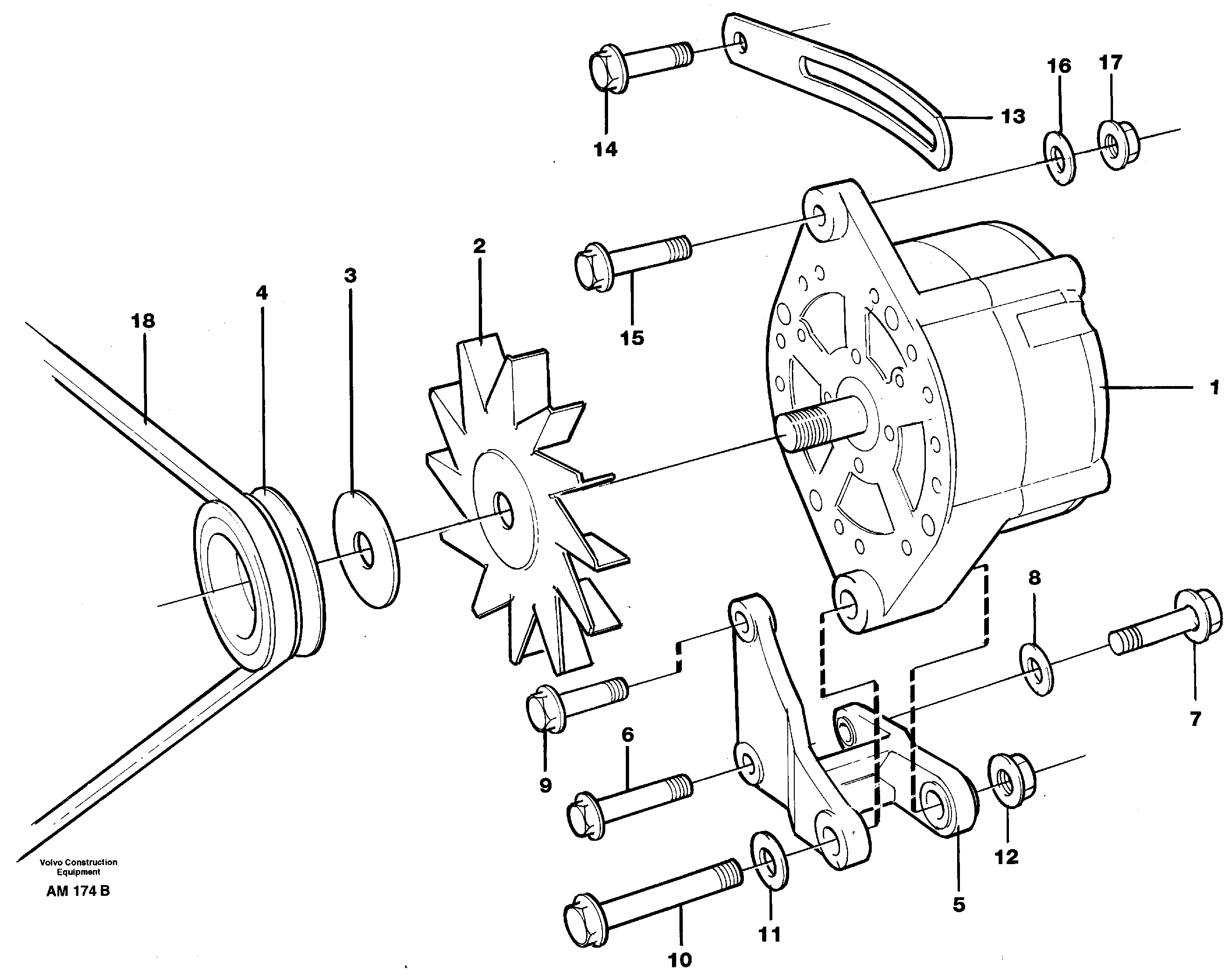

Alternator and charge regulator

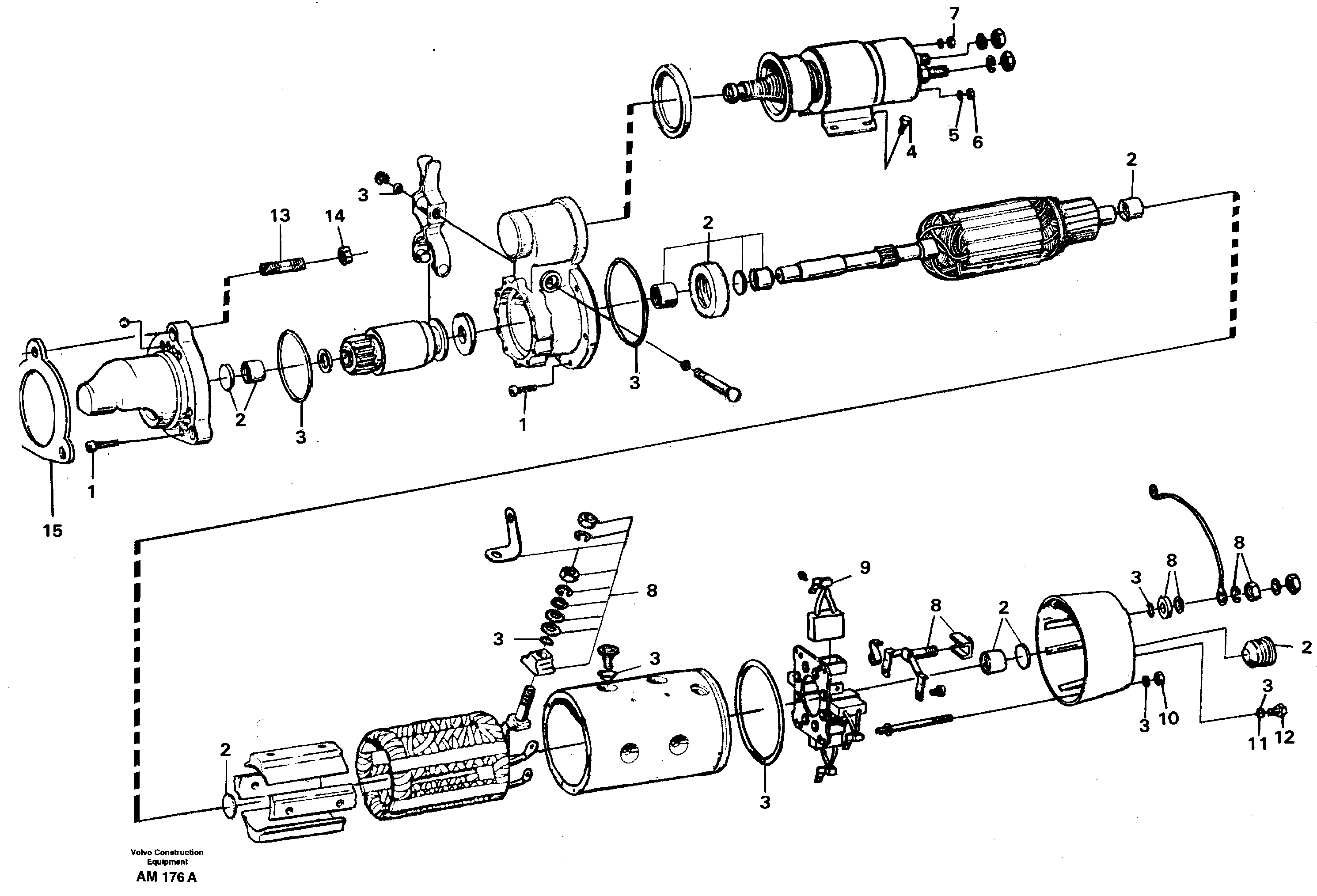

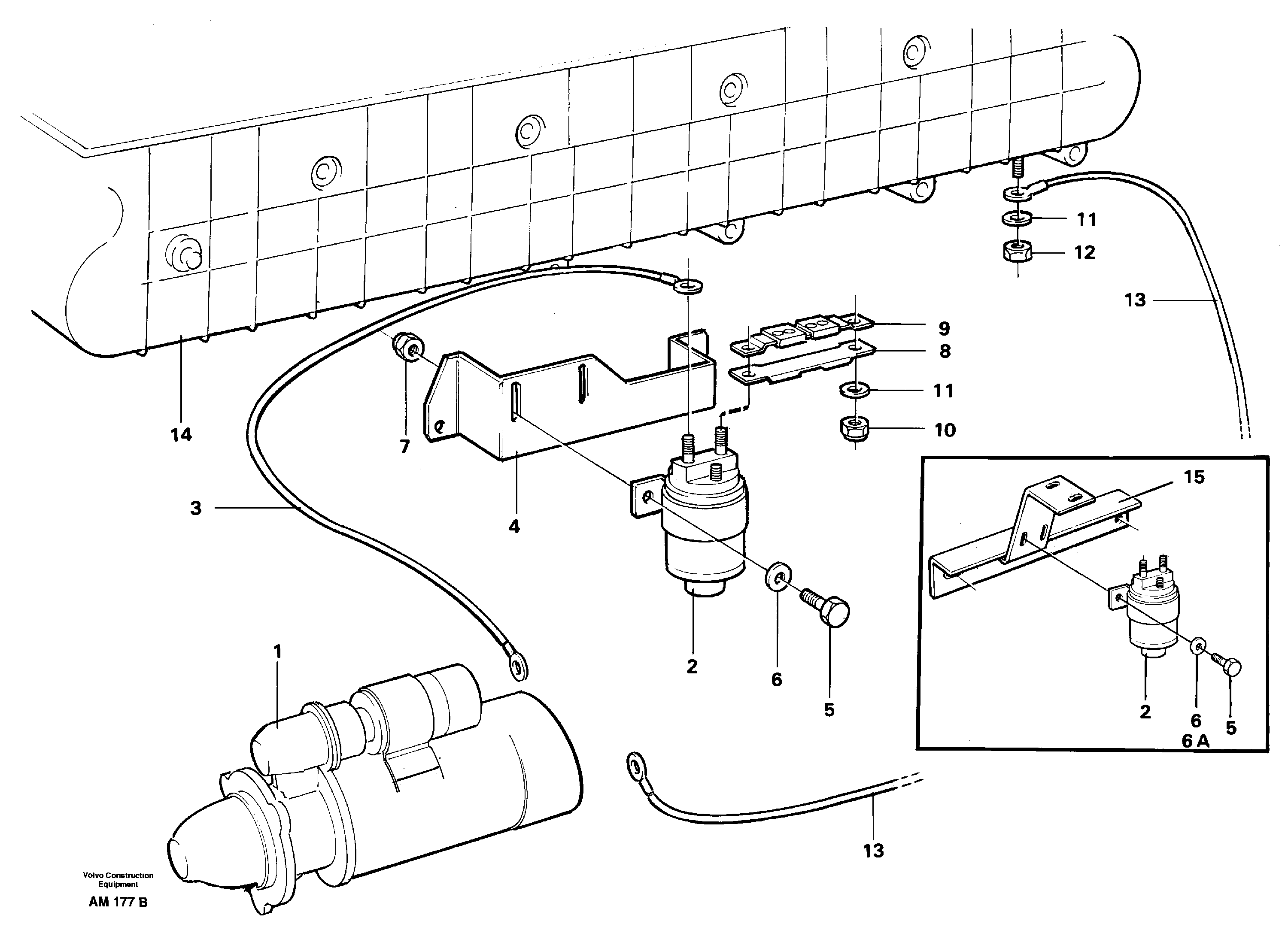

Starting system

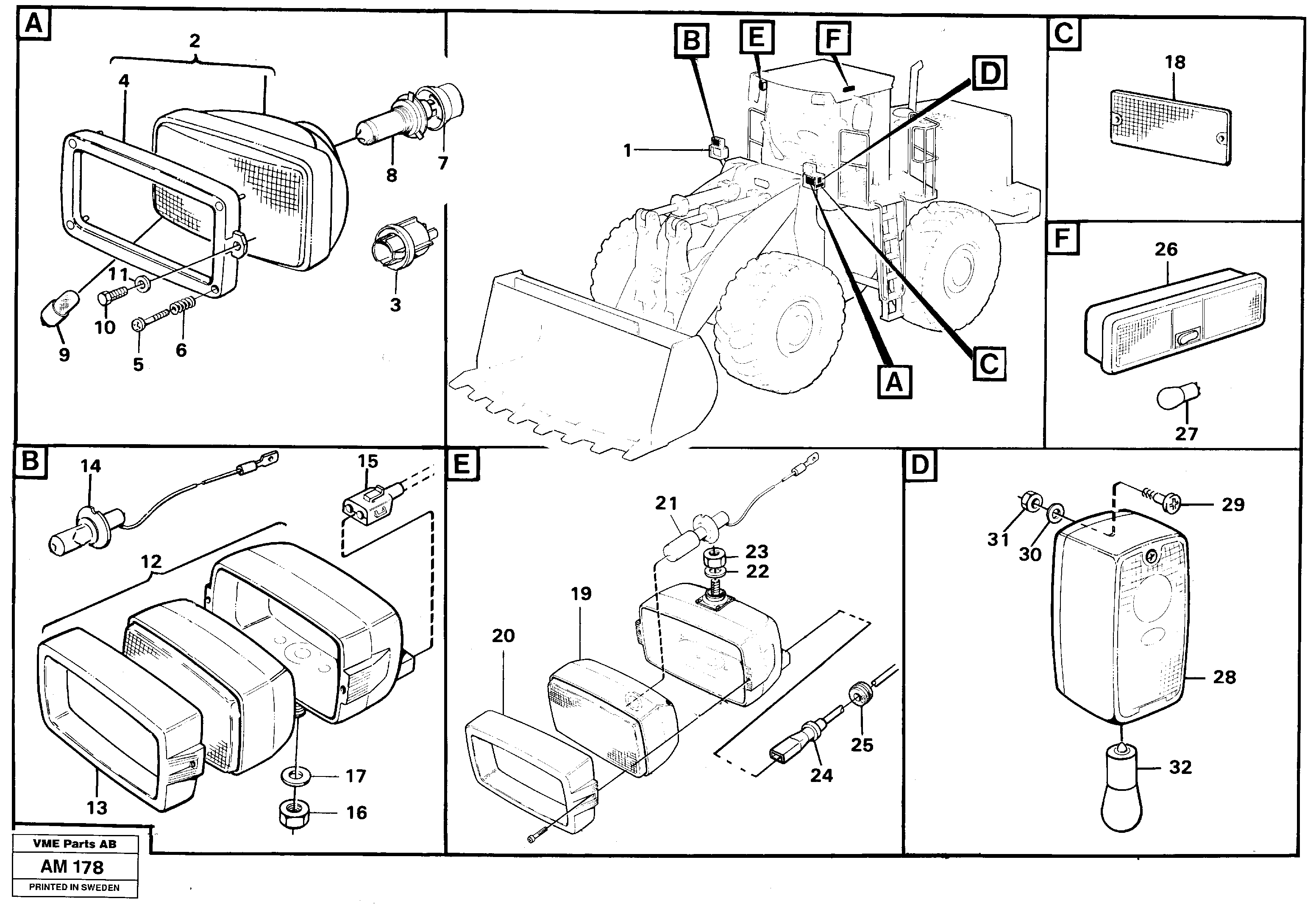

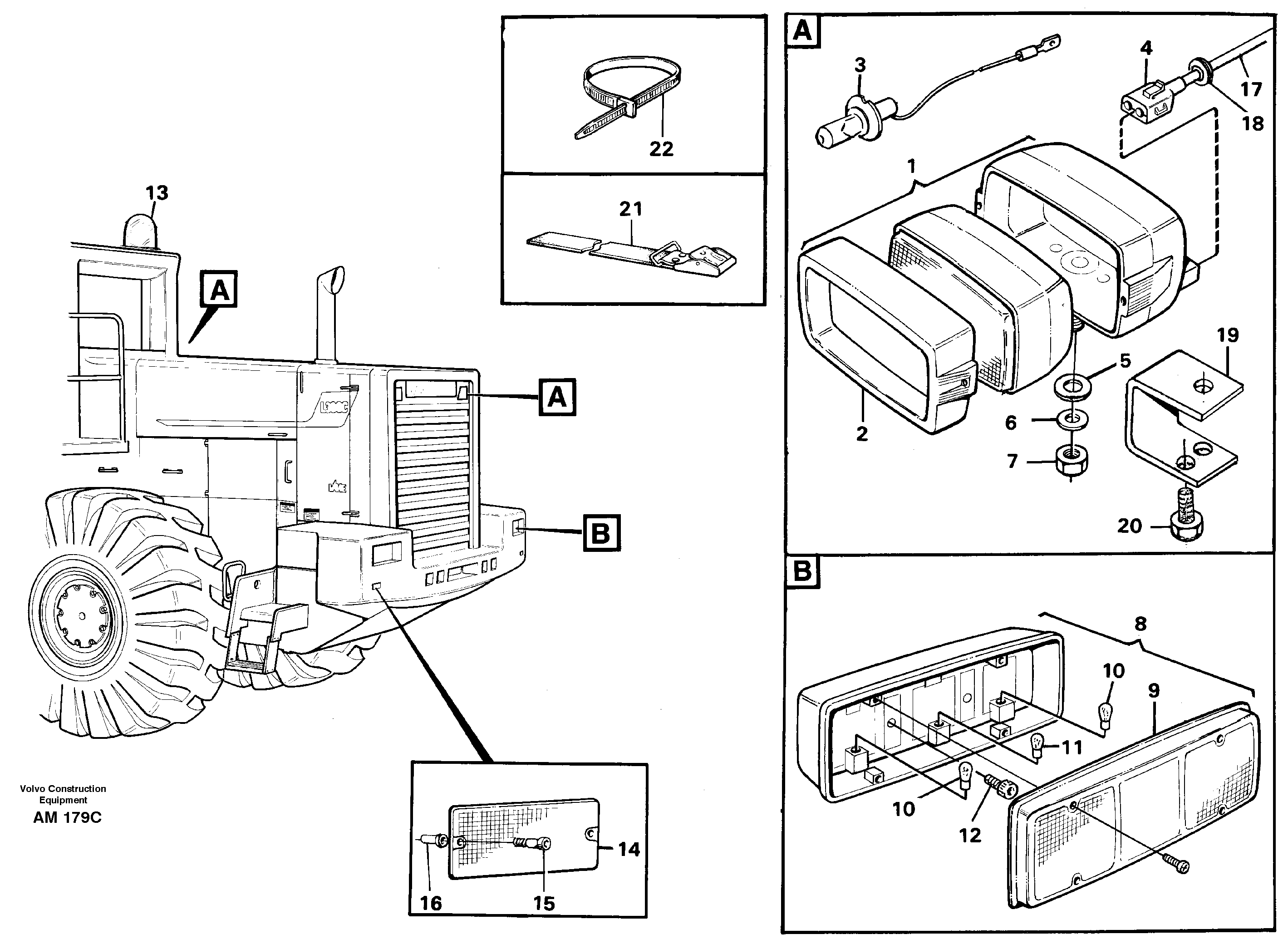

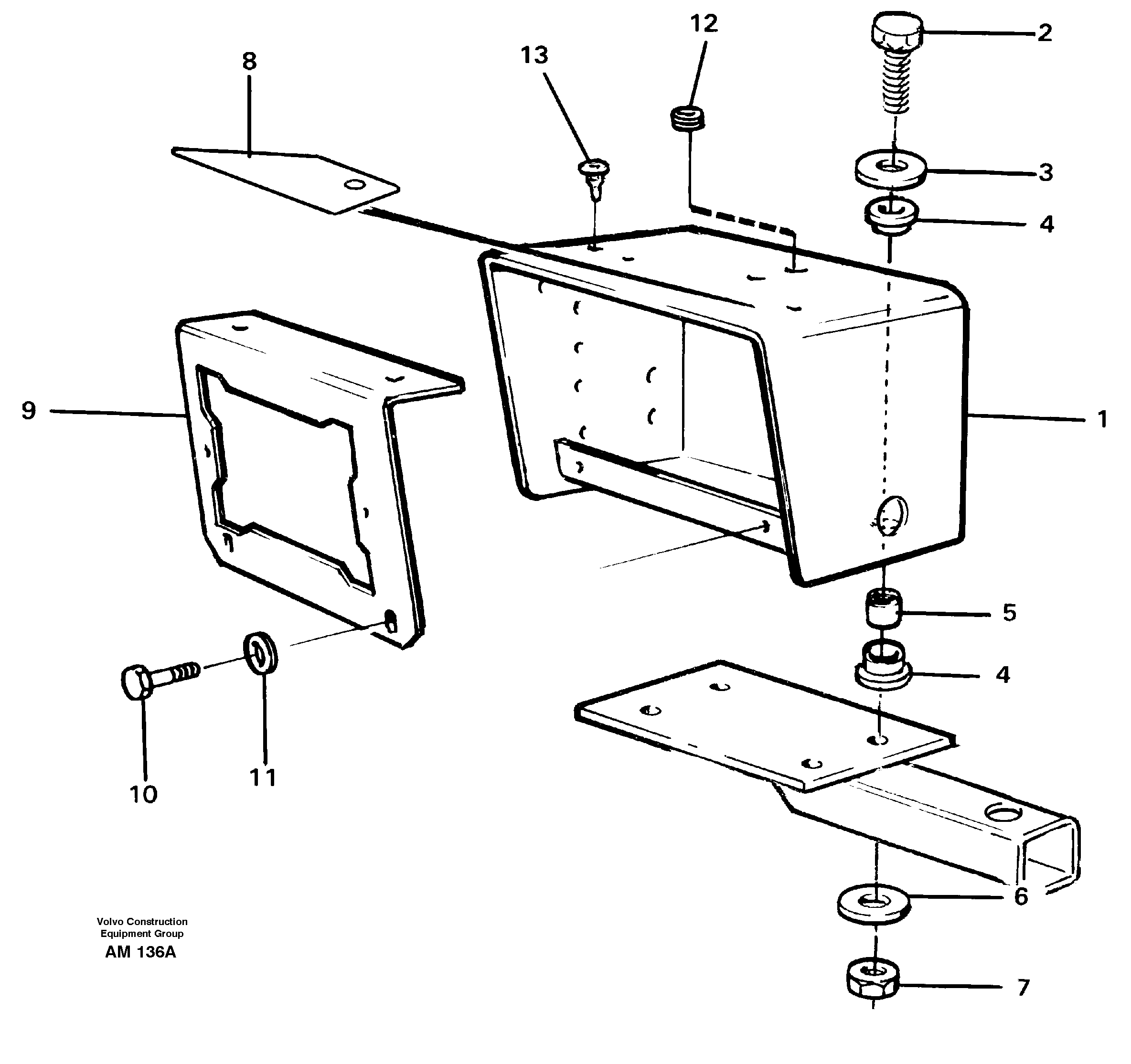

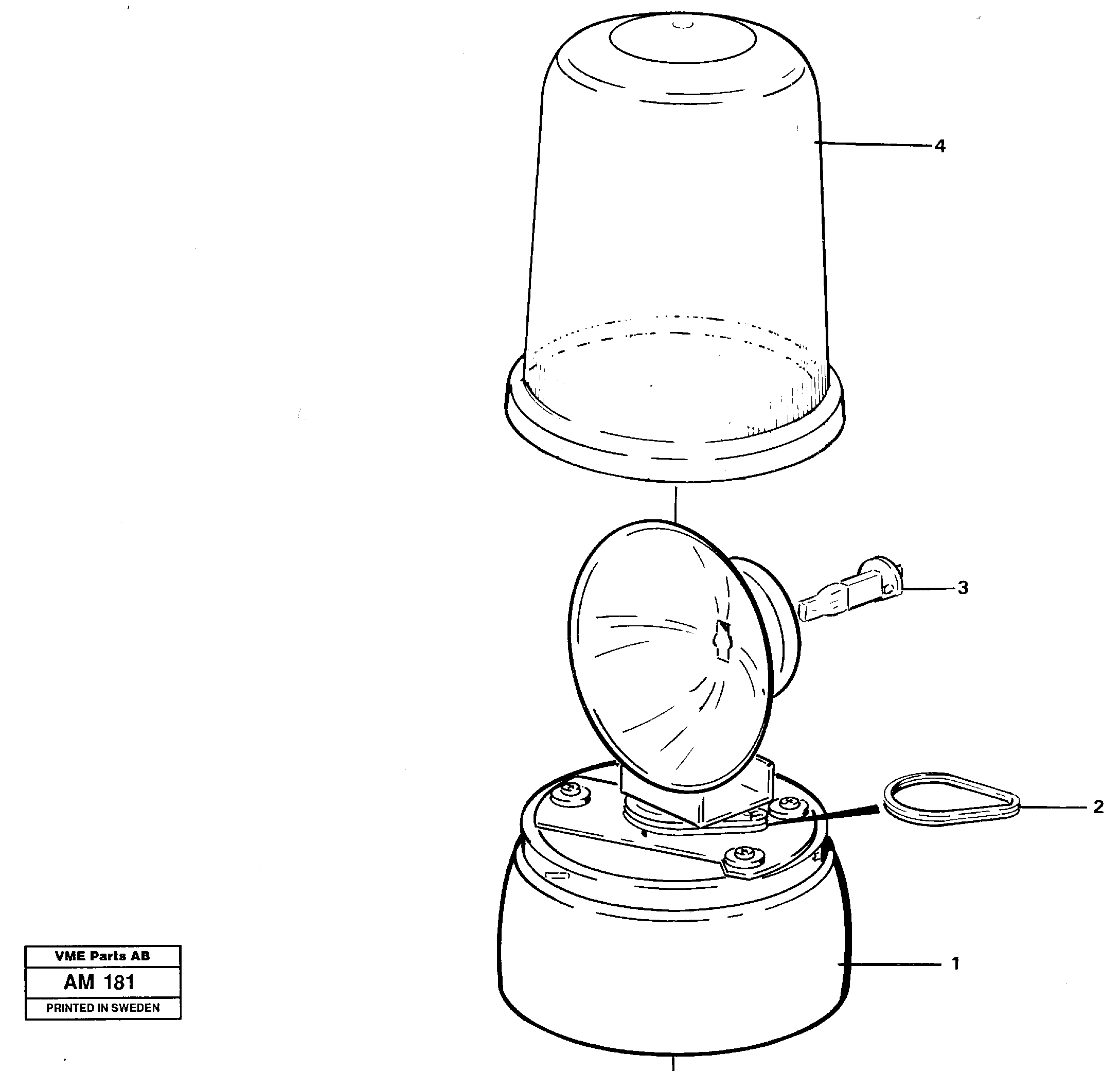

Lighting

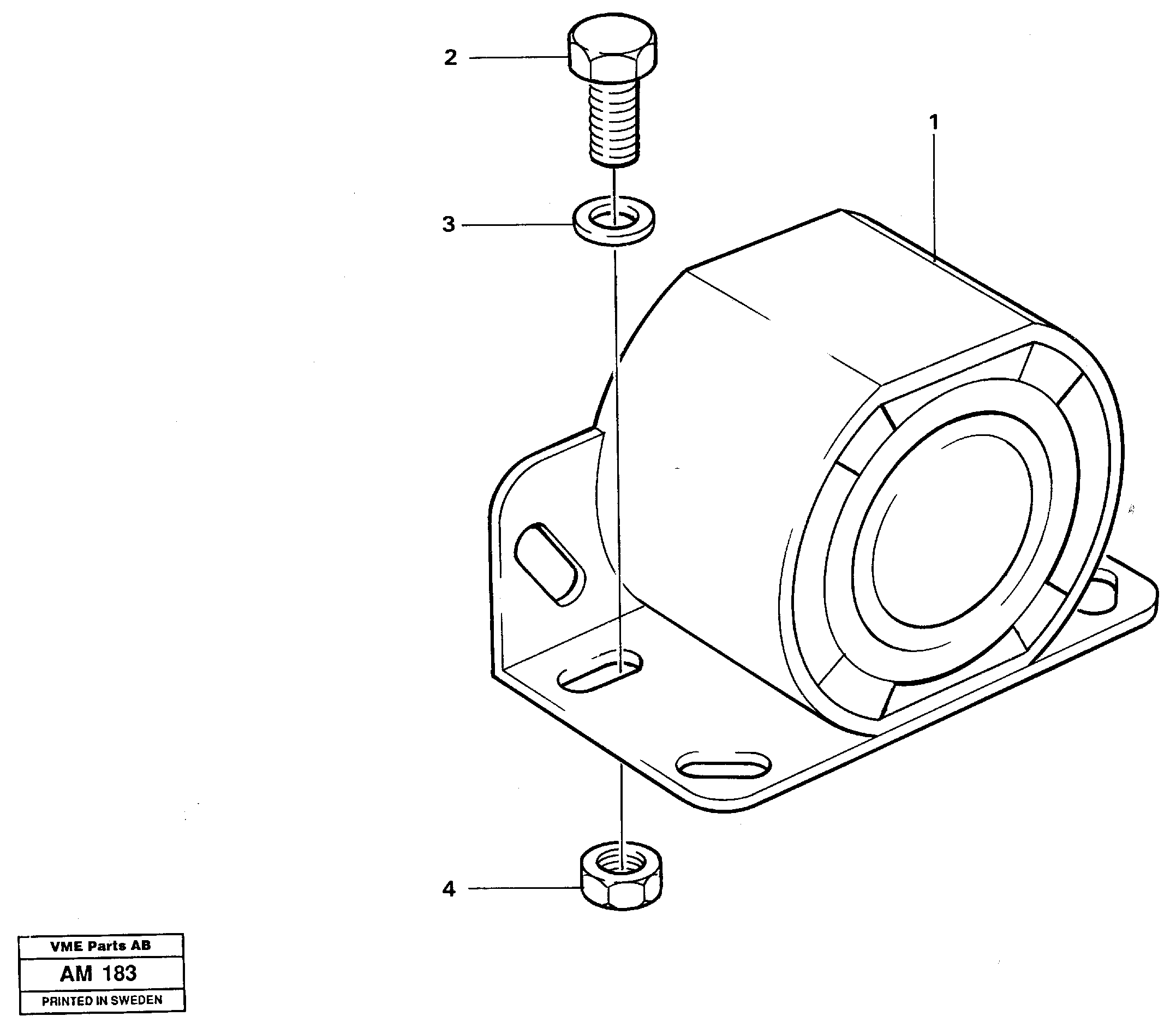

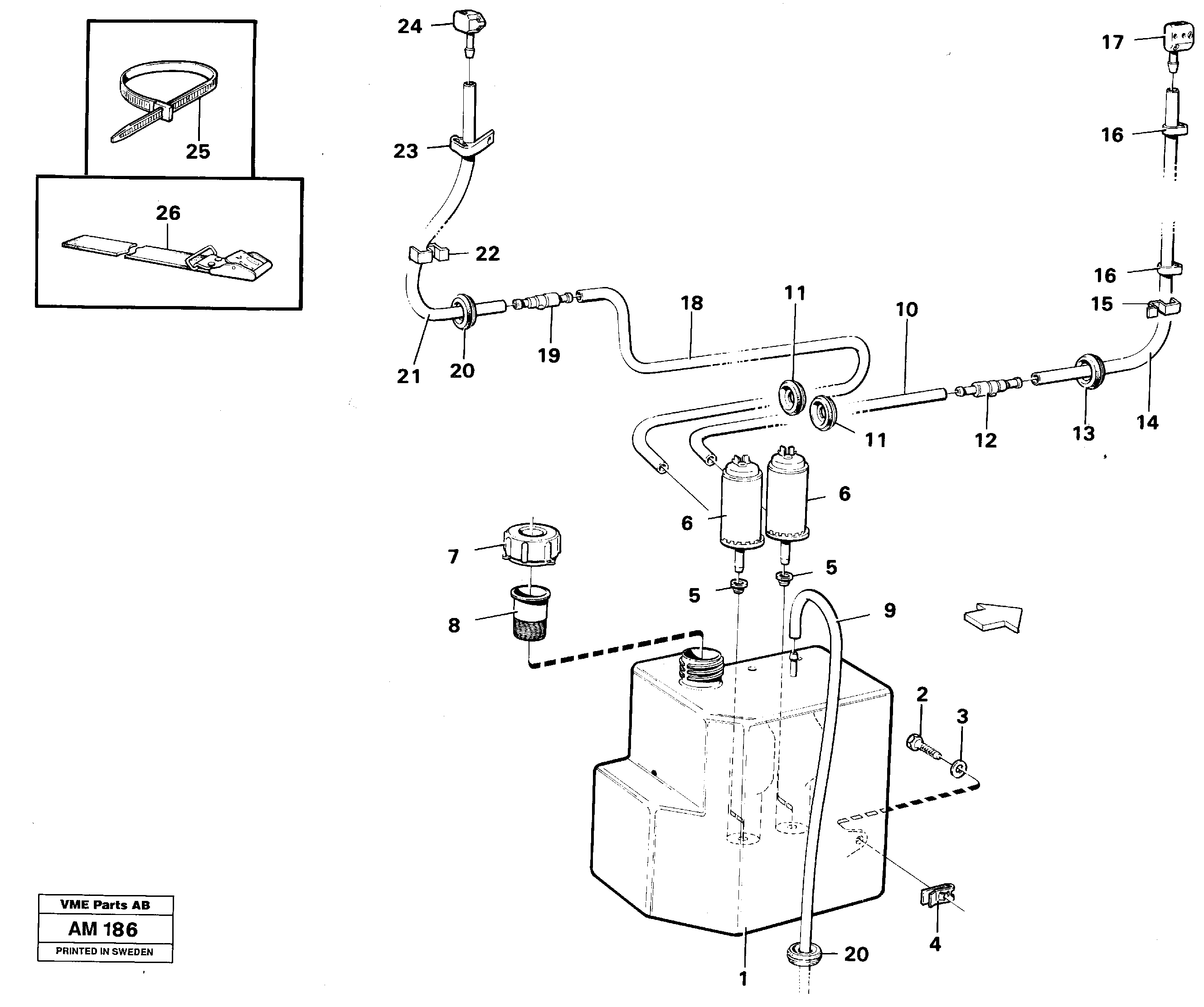

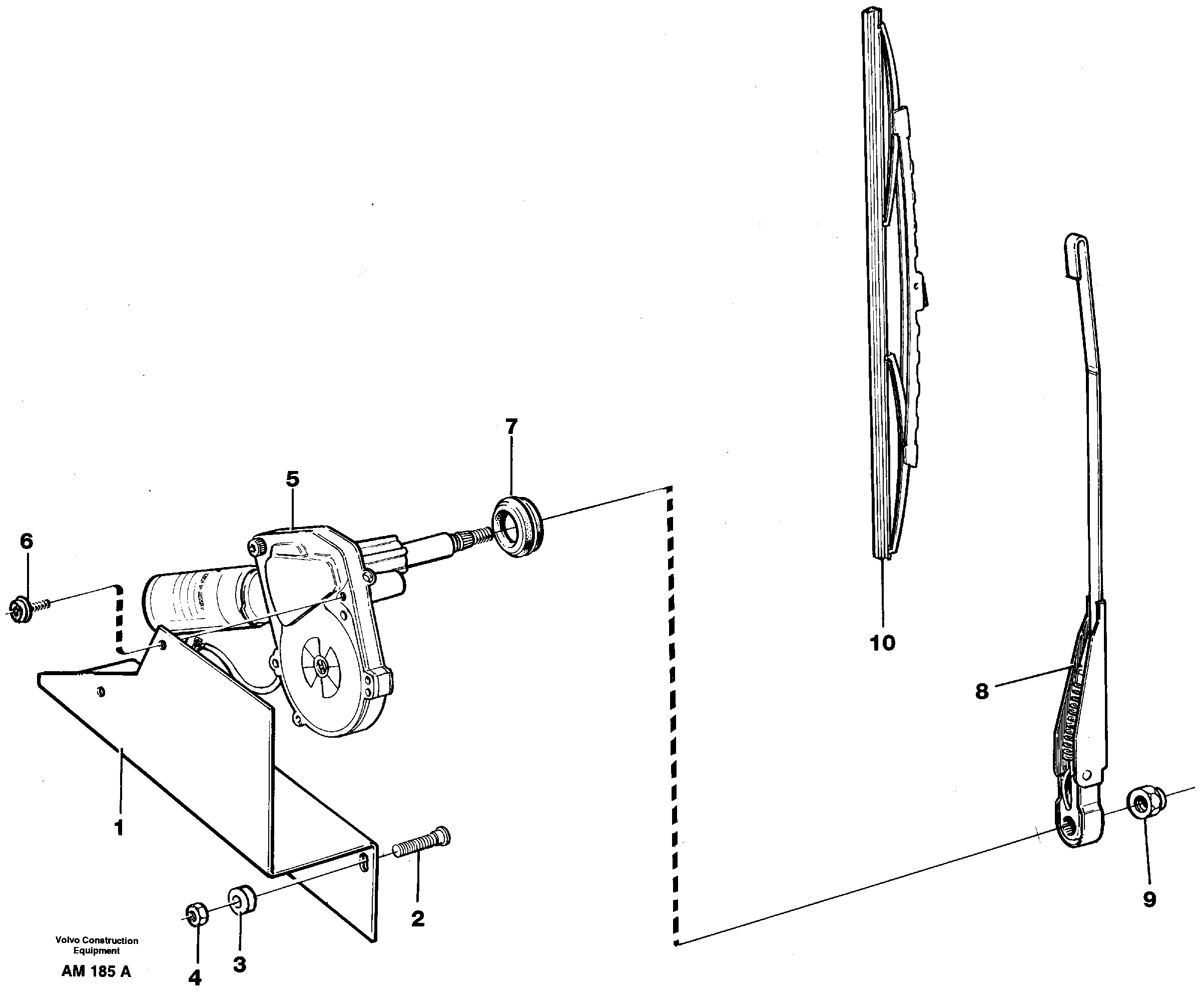

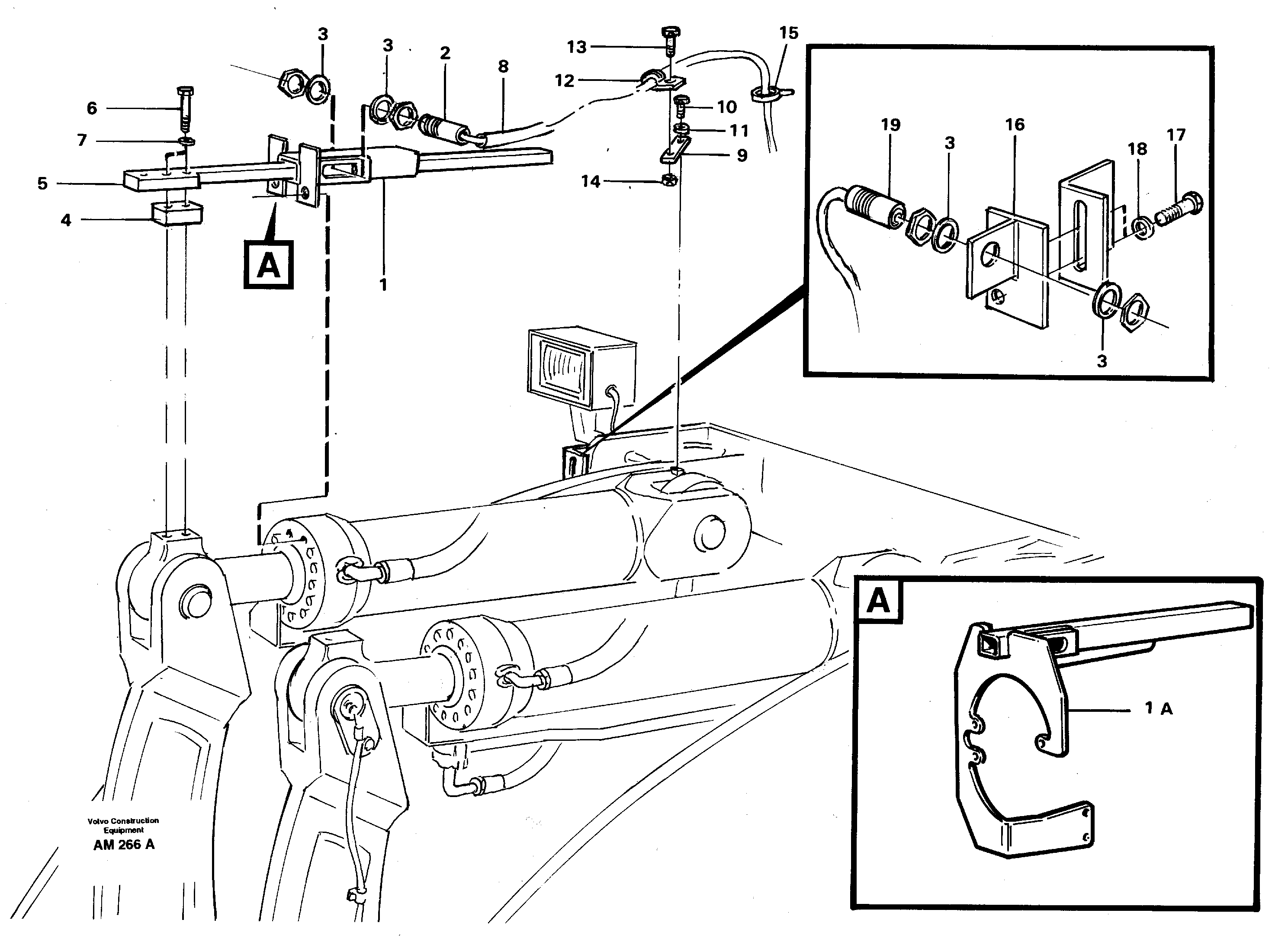

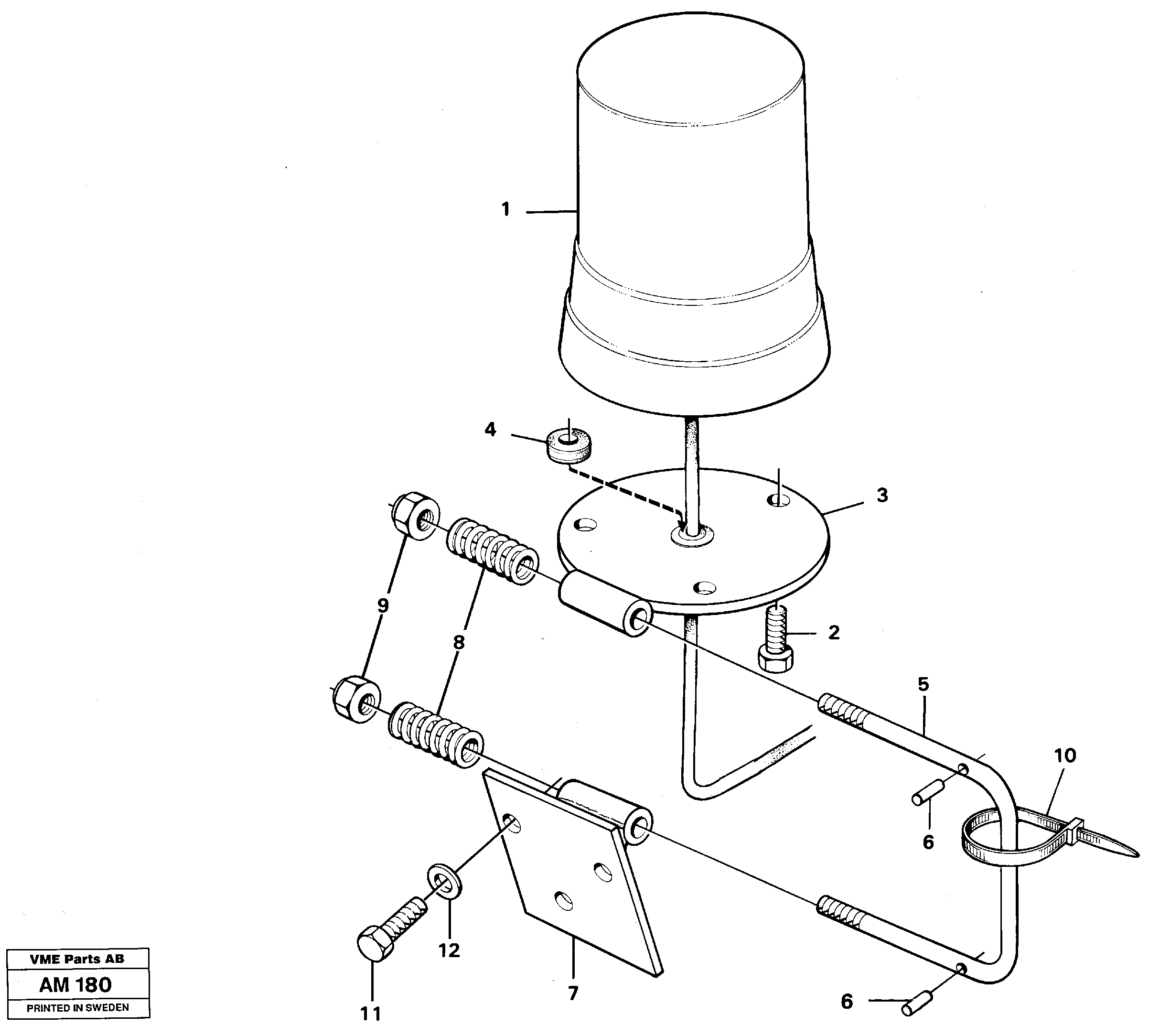

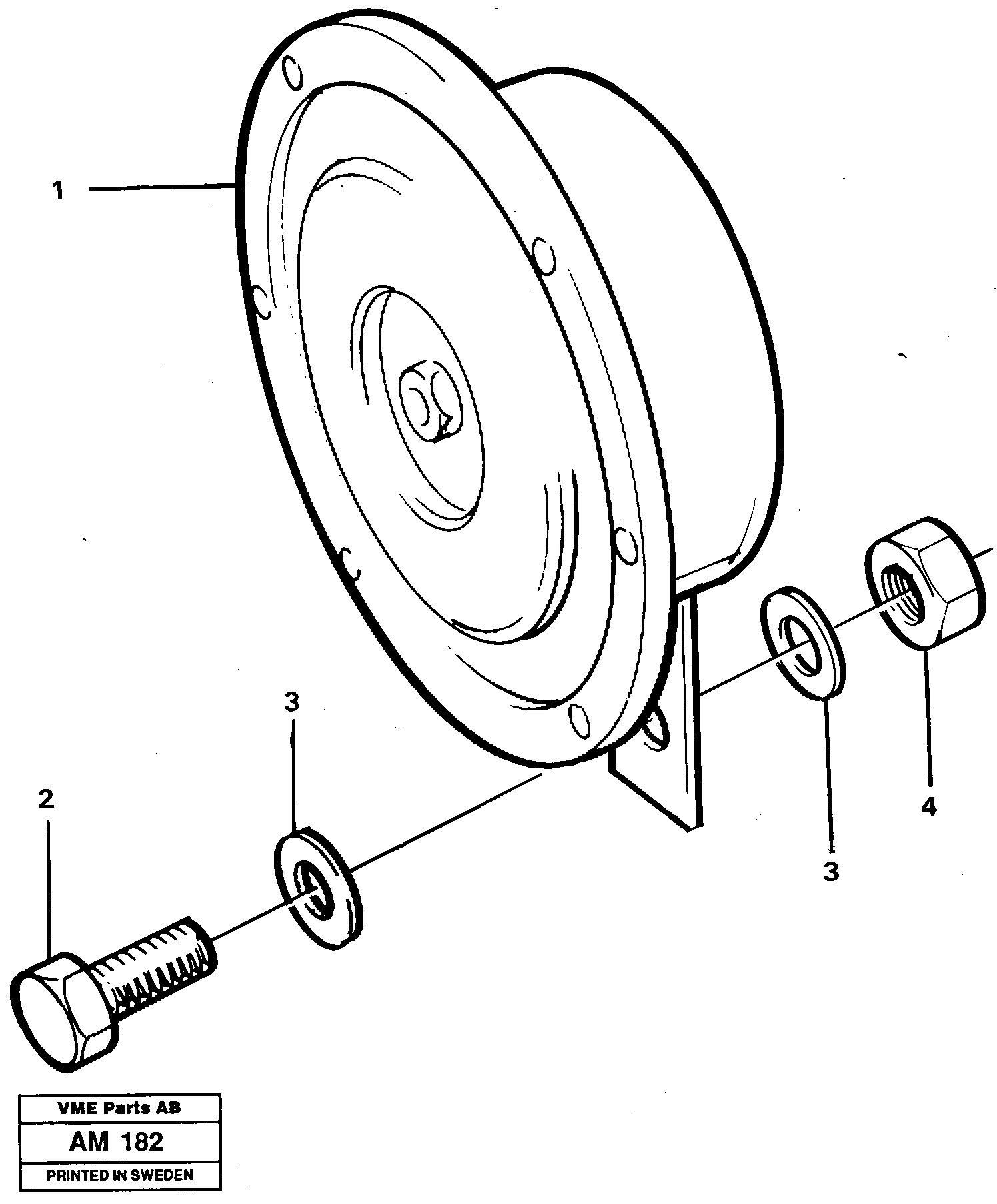

Other electrical equipment

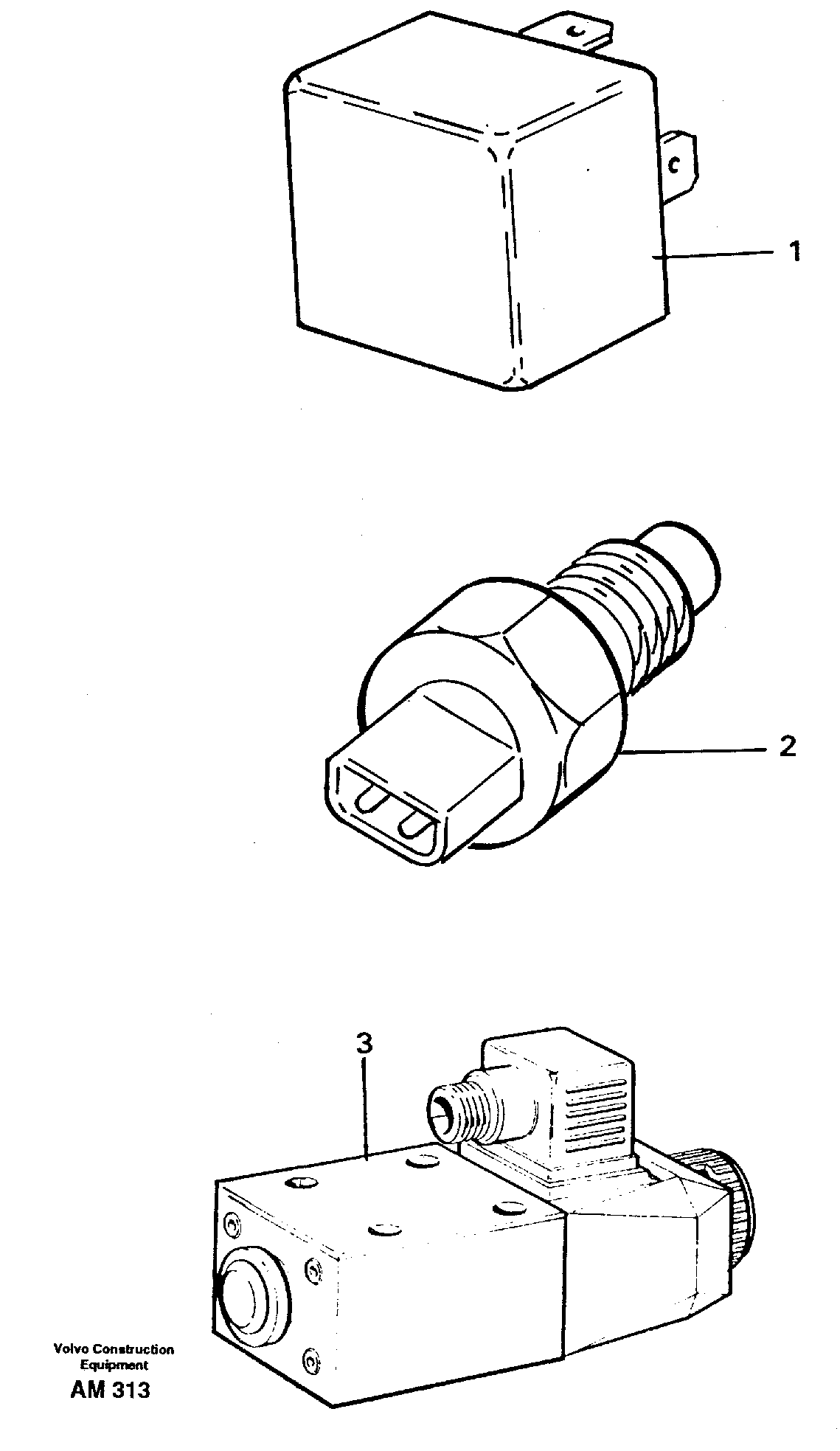

Cable, fuse and relay

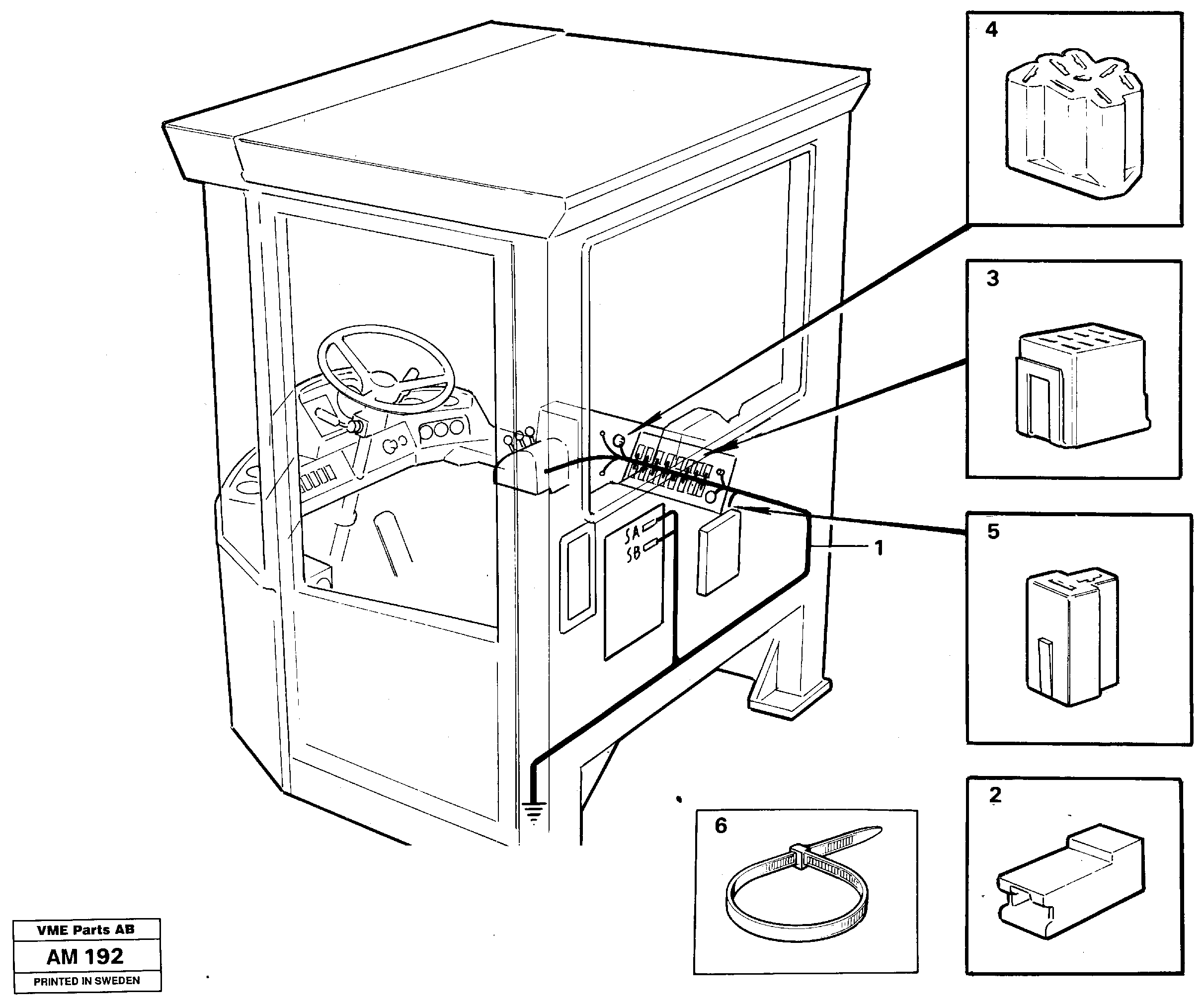

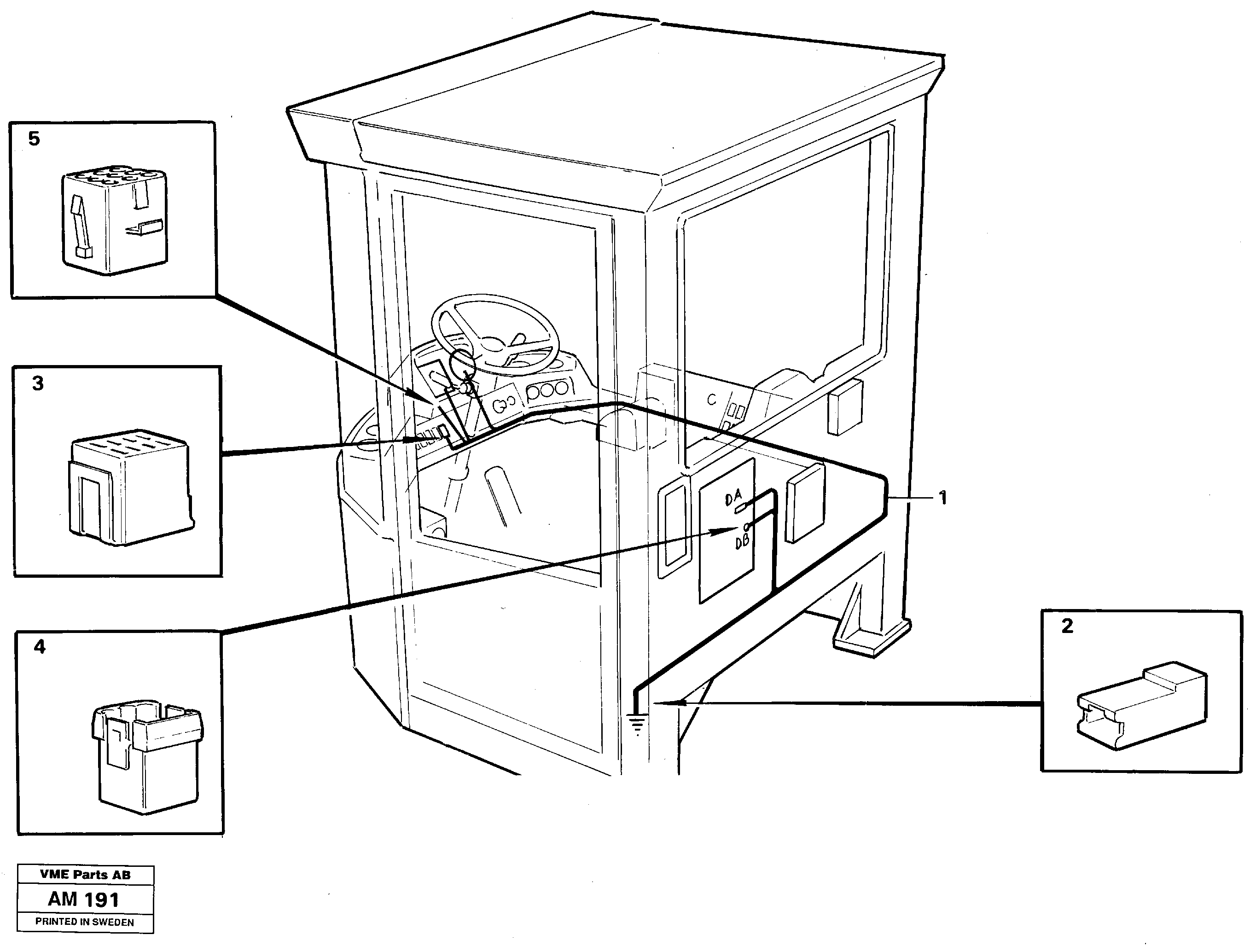

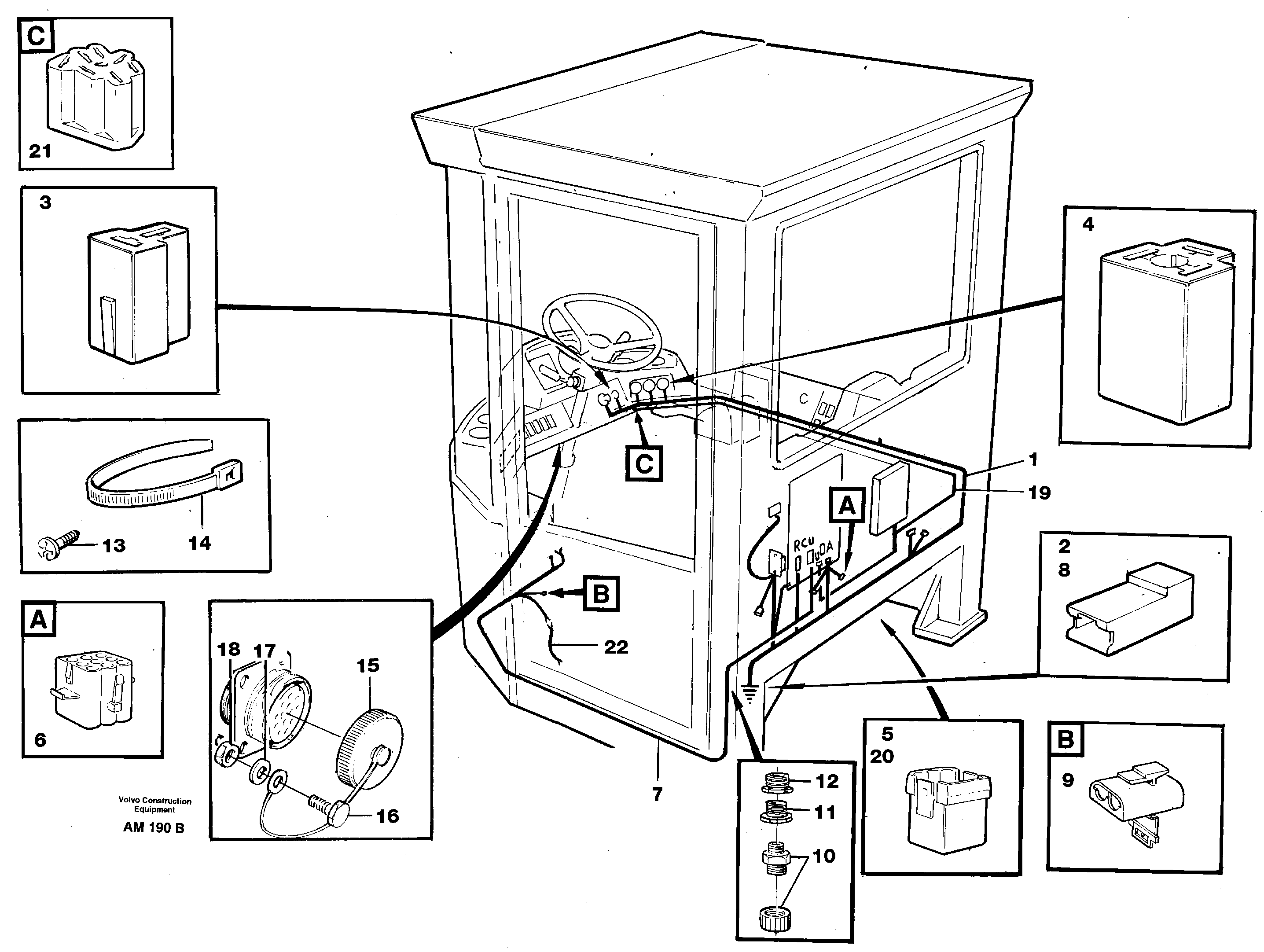

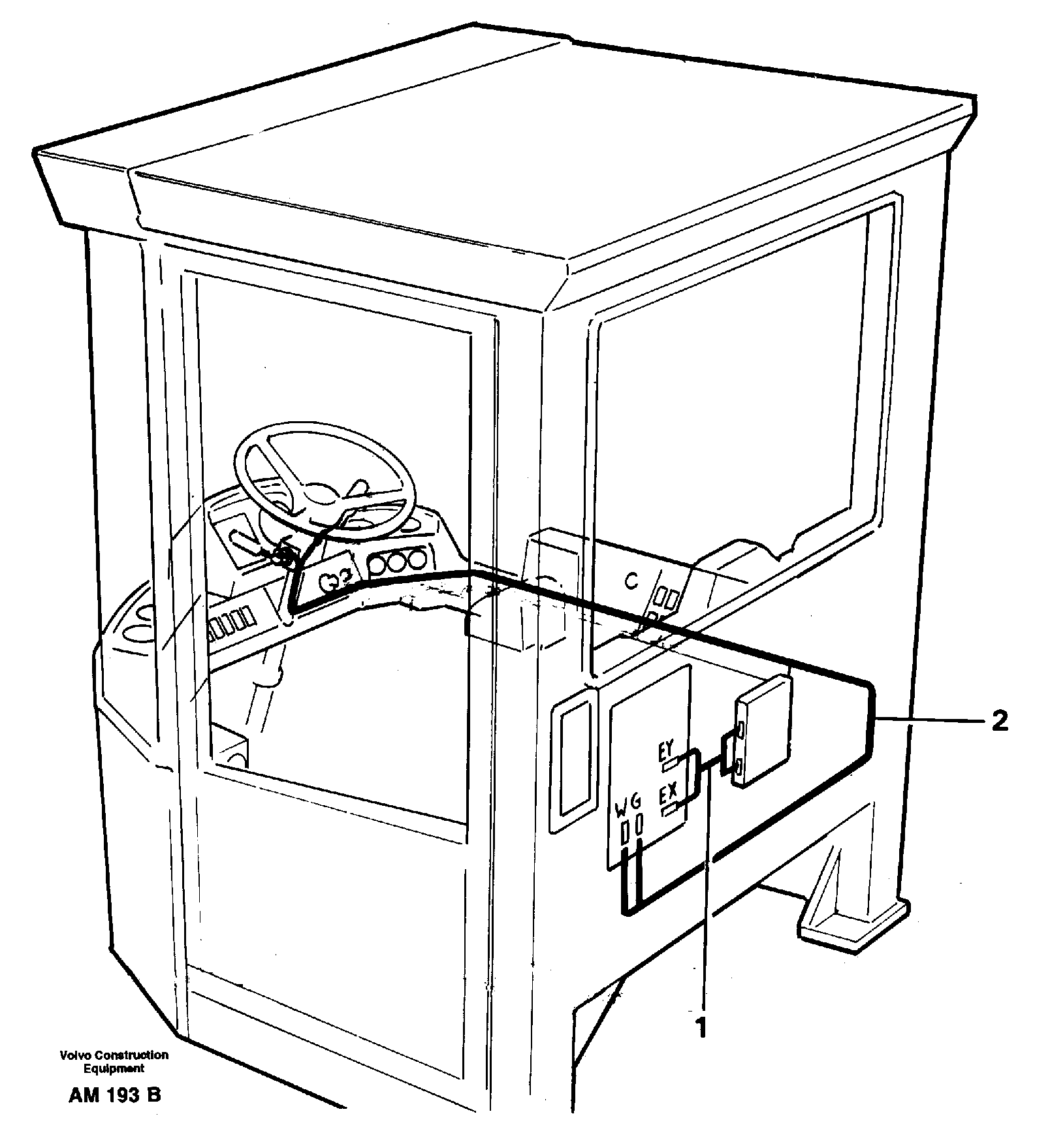

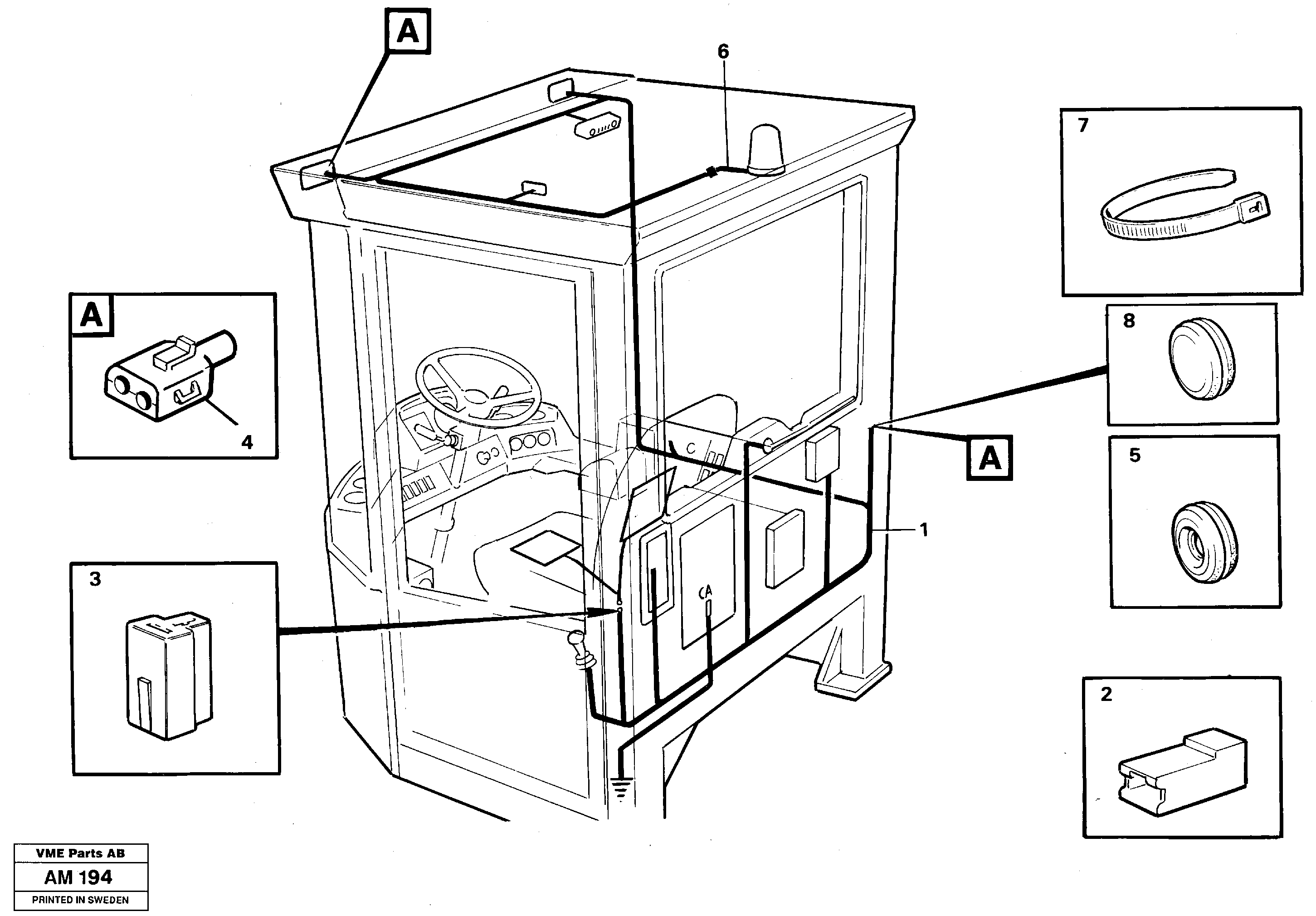

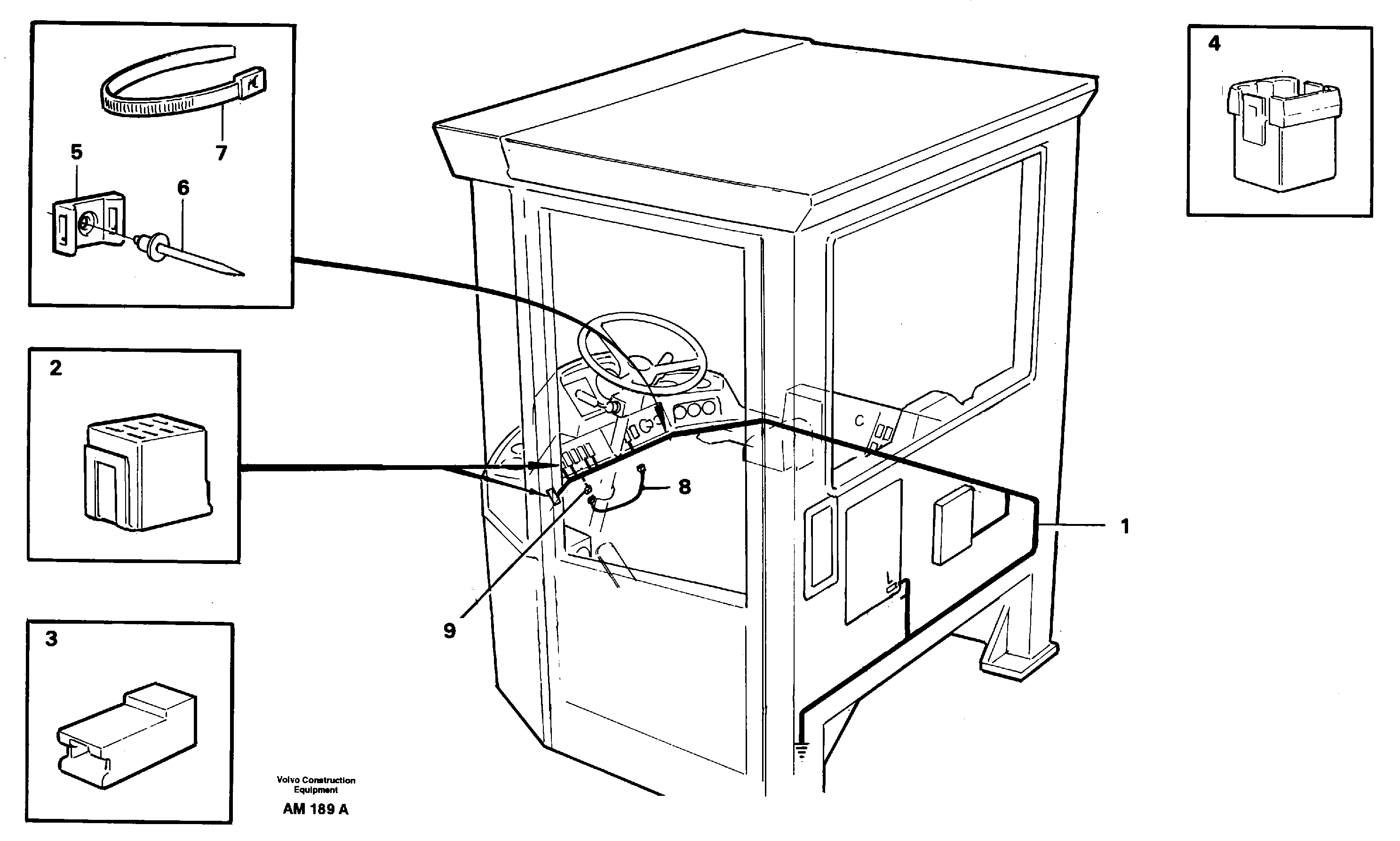

Cable harnesses, cab
Cable harnesses, cab
Cable harnesses, cab
Cable harnesses, cab
Cable harnesses, cab
Cable harnesses, cab

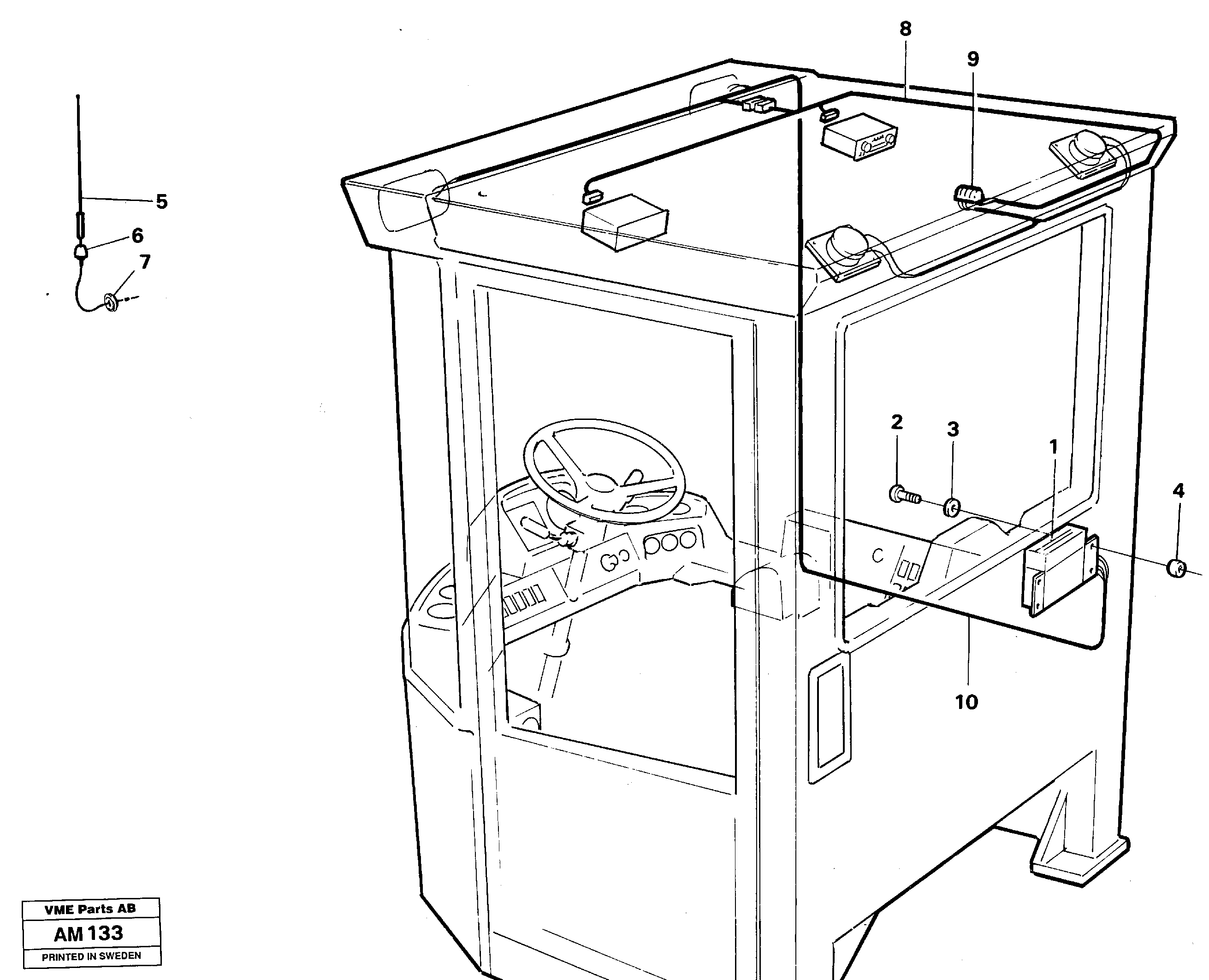

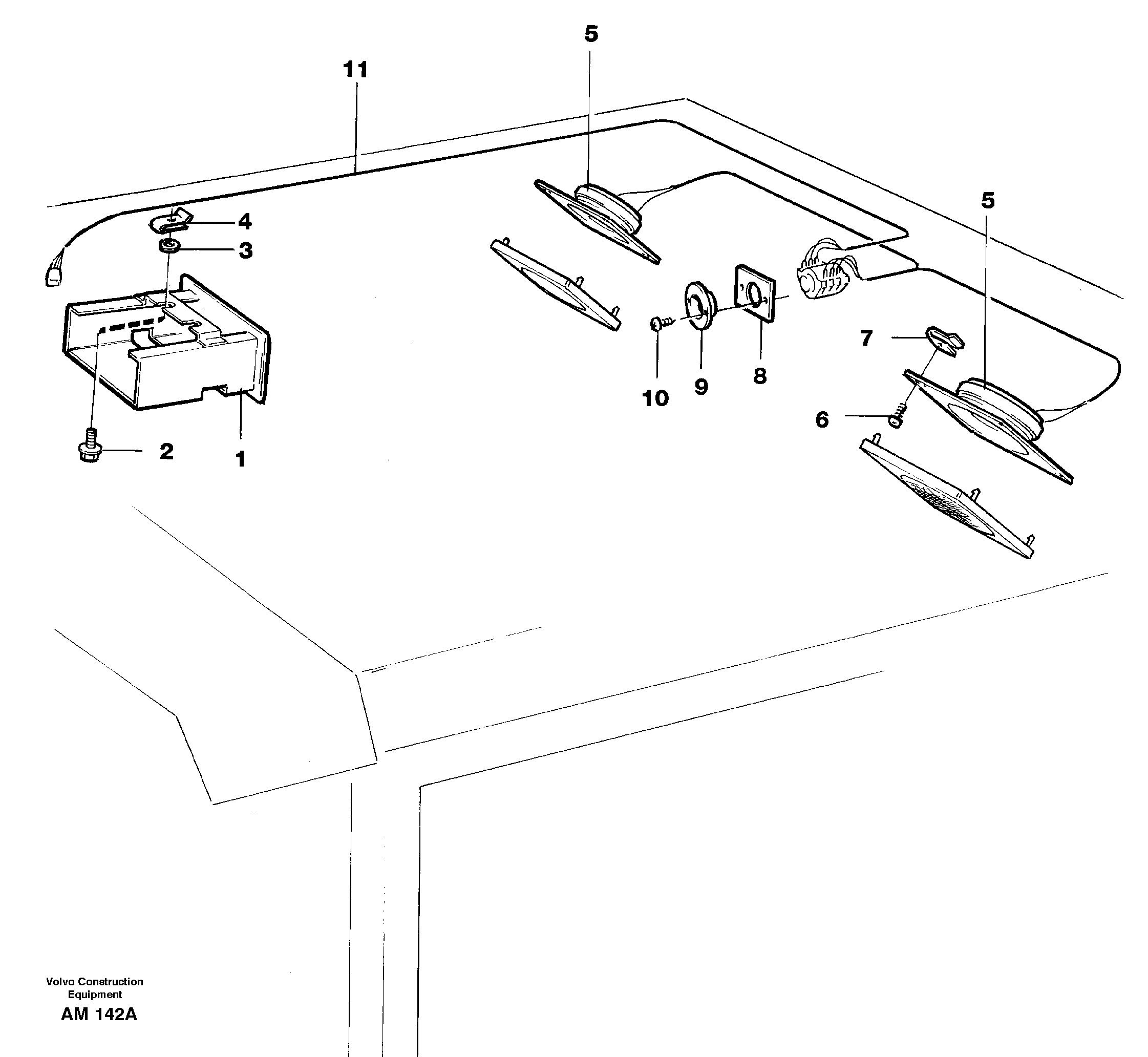

Cable harness for radio. 91936

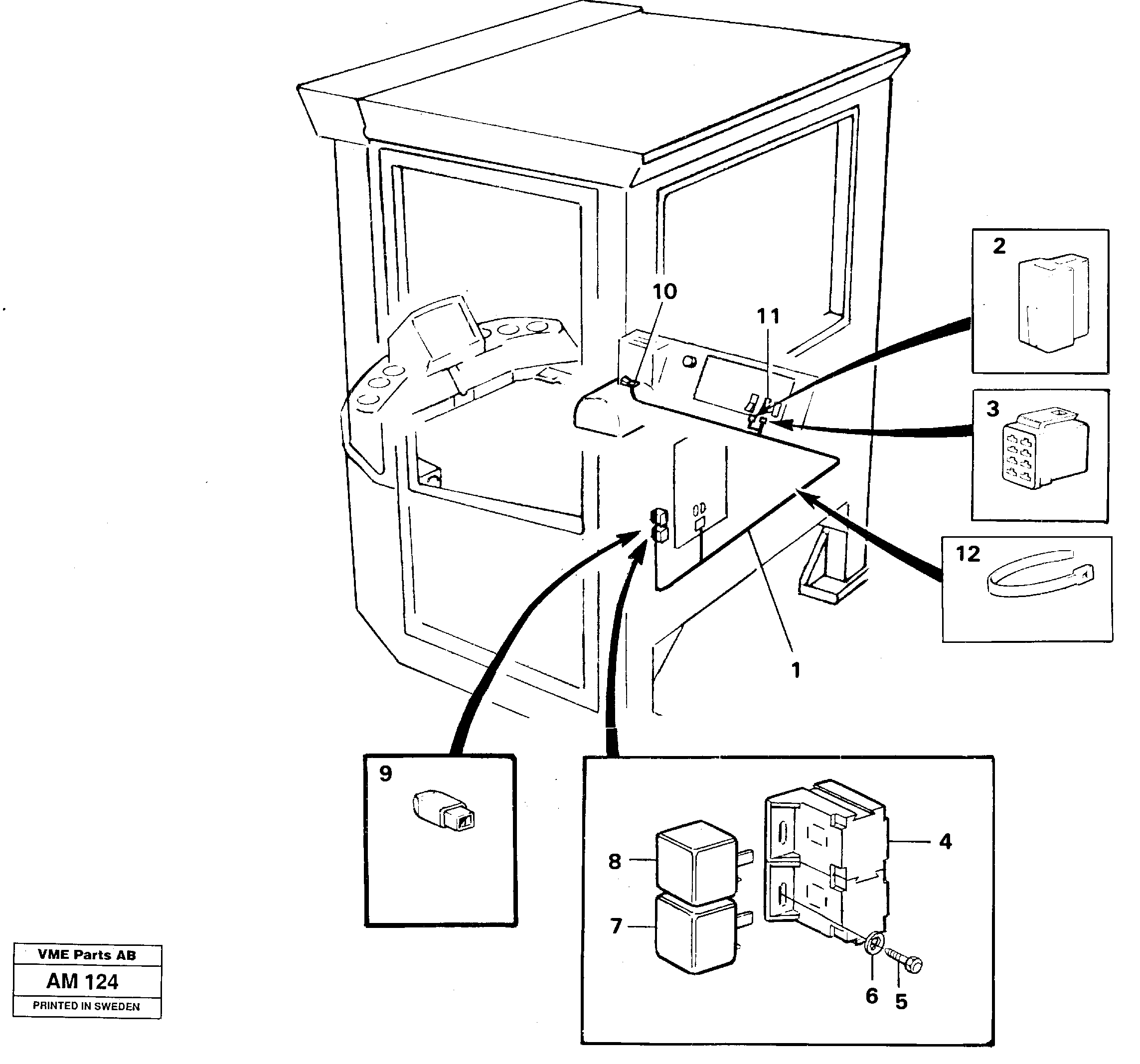

Cable harness for forward and rear. 92770

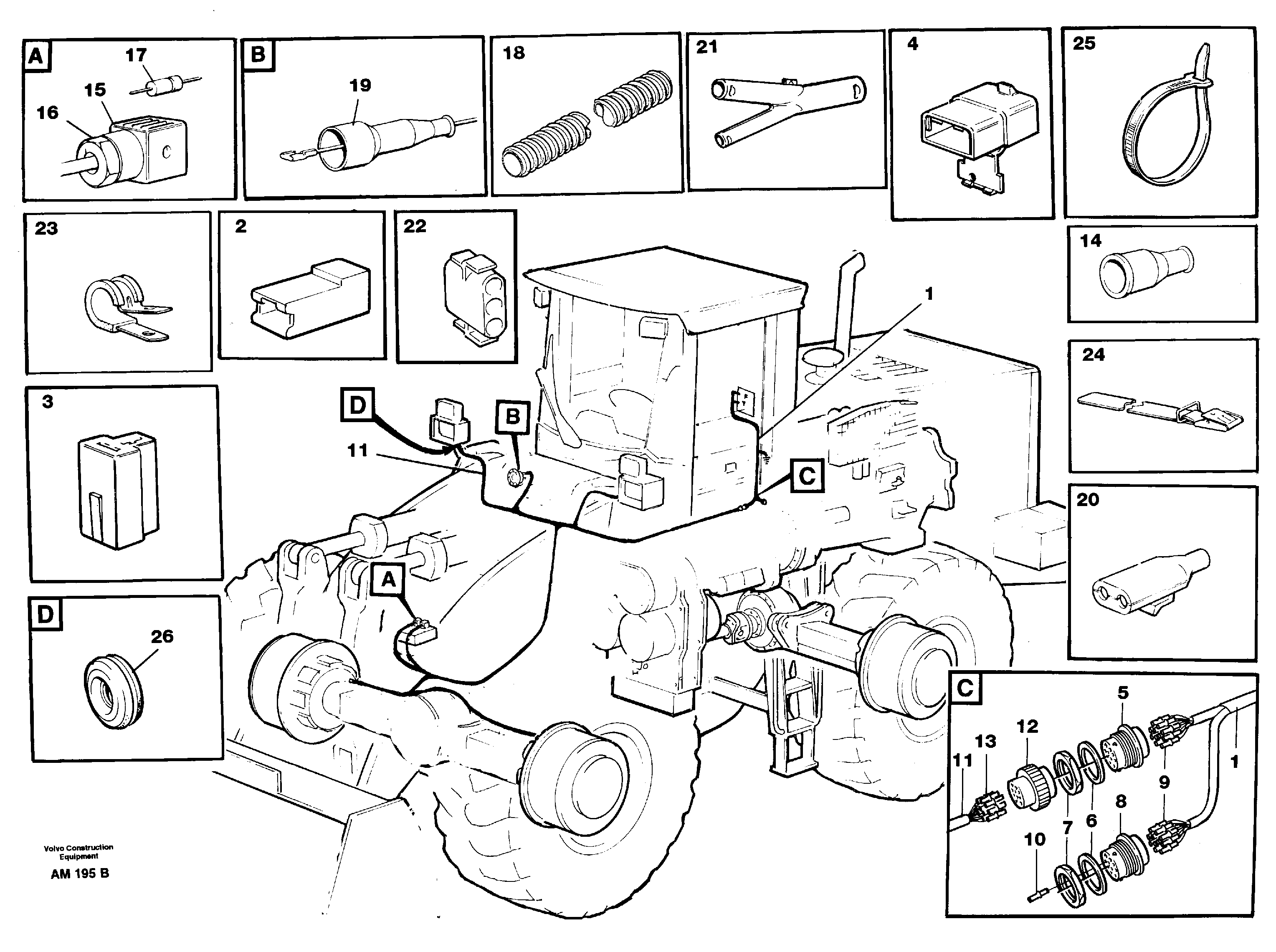

Cable harness, front

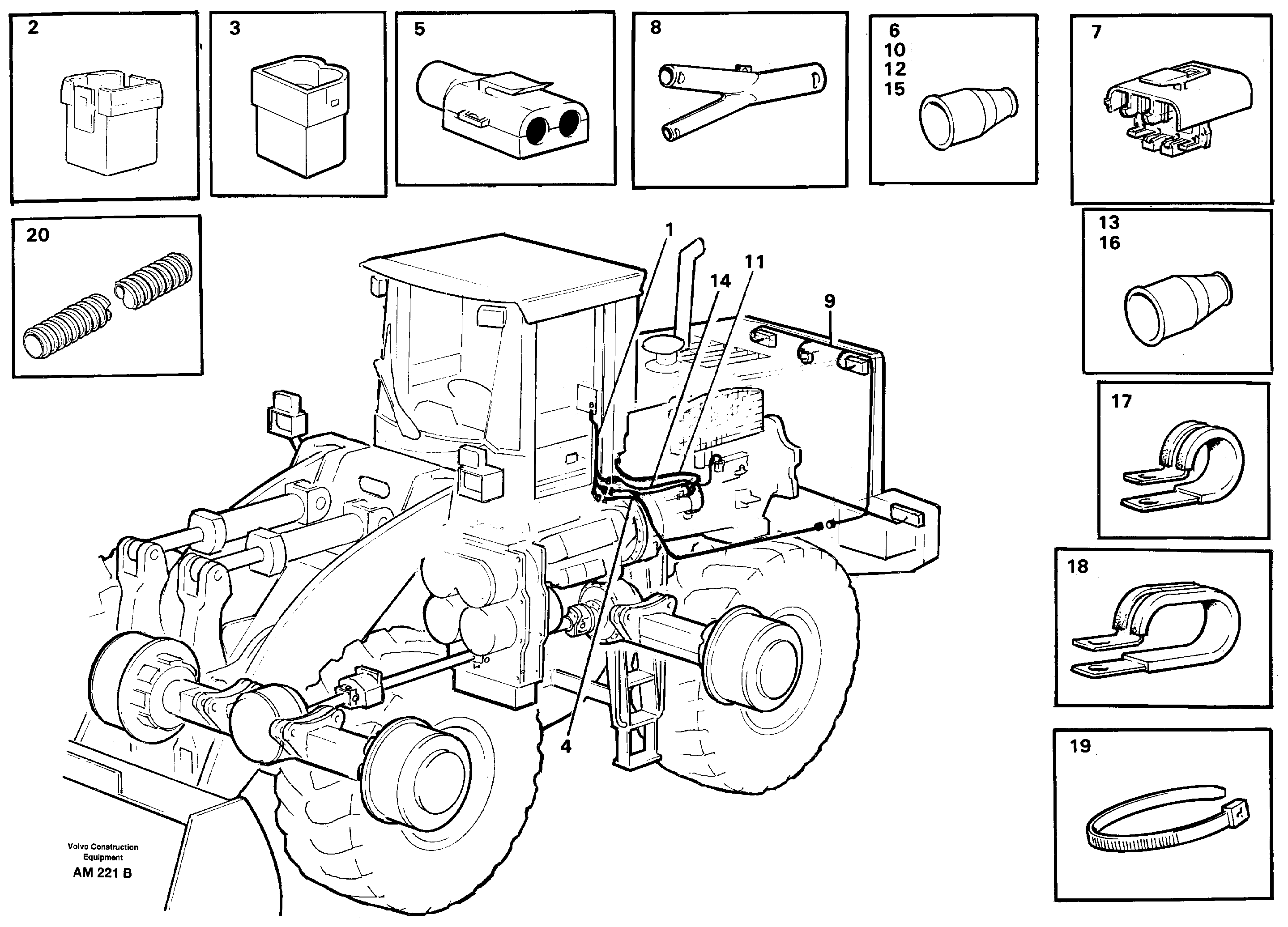

Cable harnesses, rear.

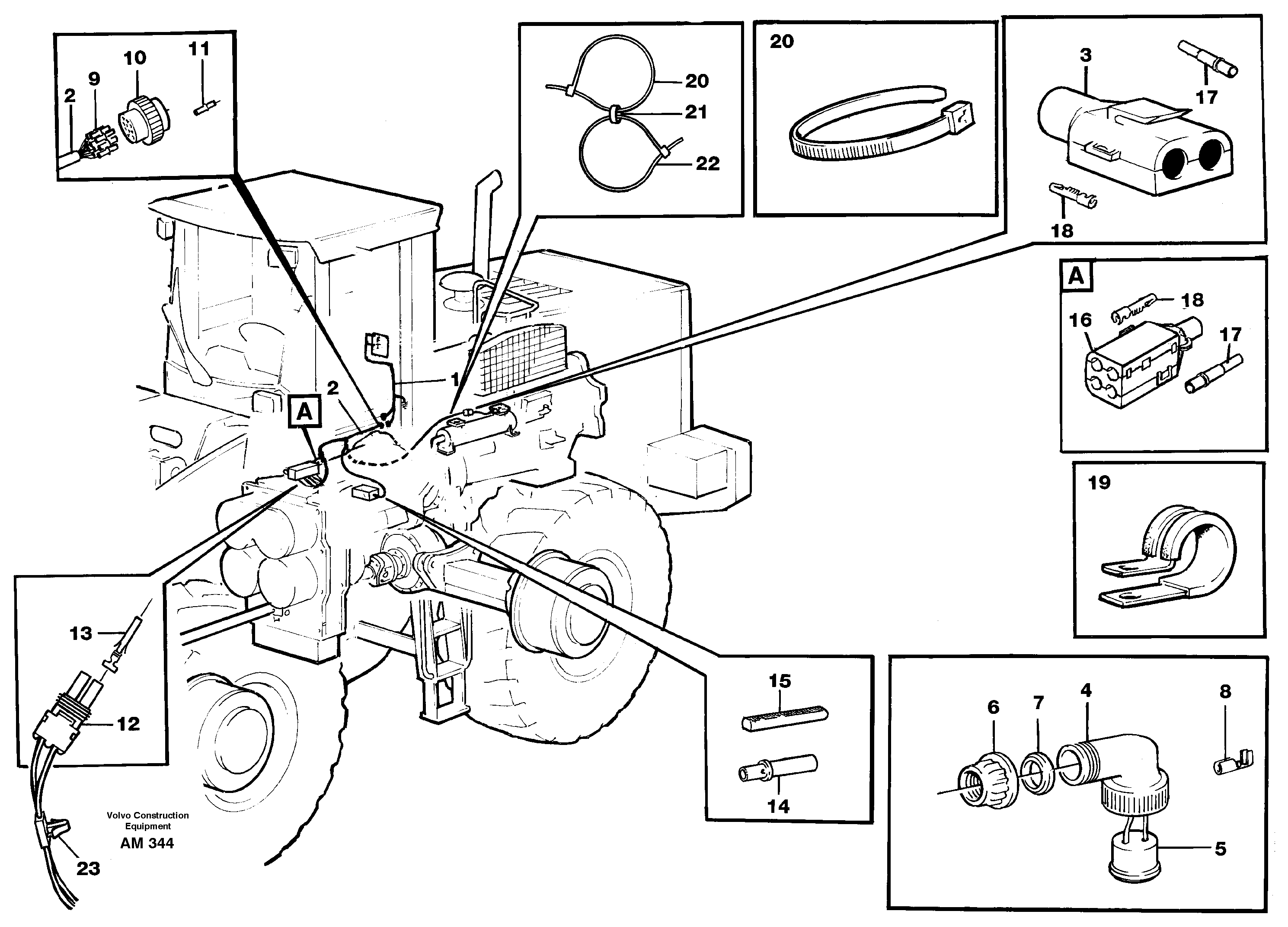

Cable harness, transmission.

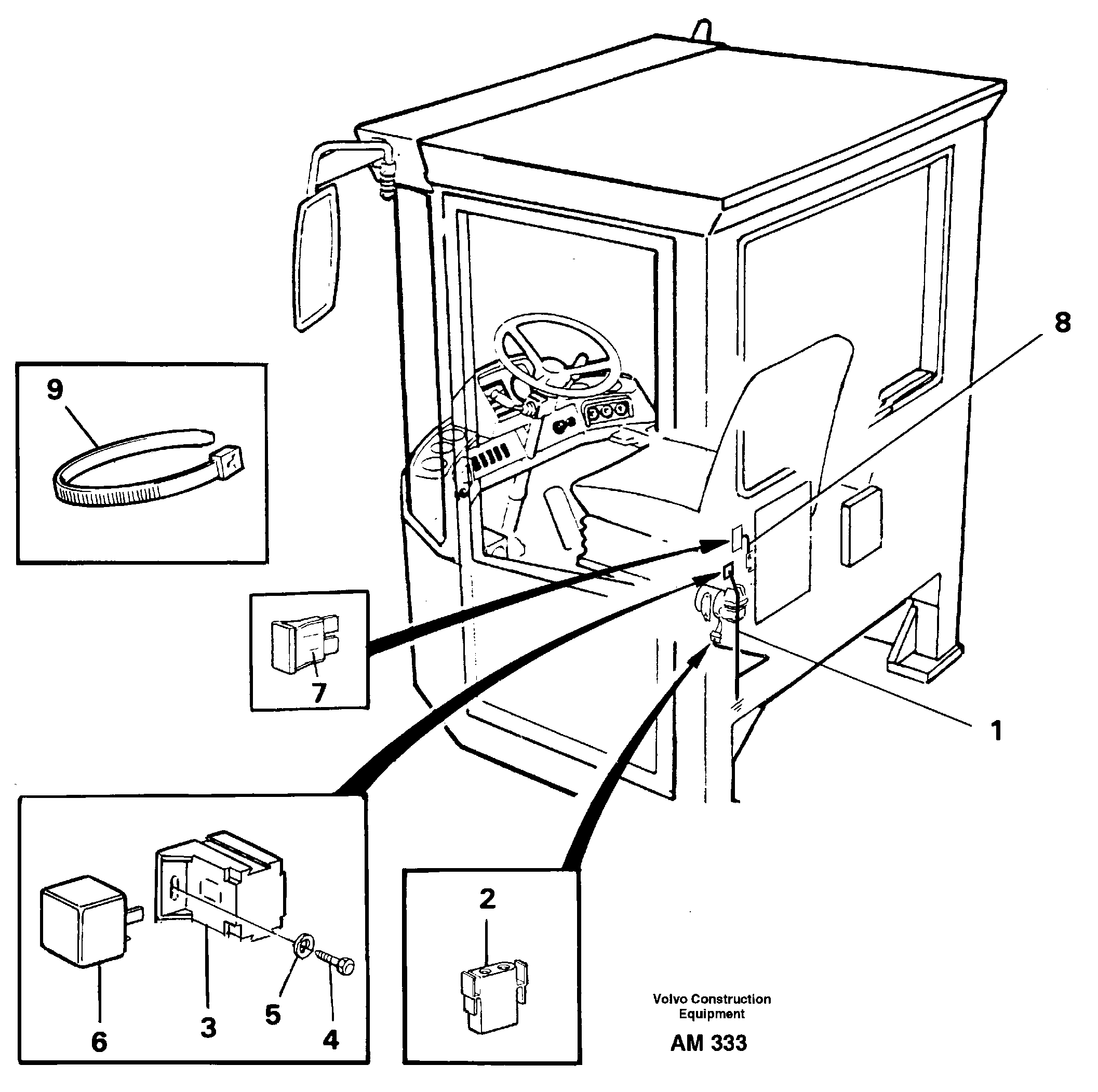

Cable harness, air-suspension seat 92405, 94907, 94914

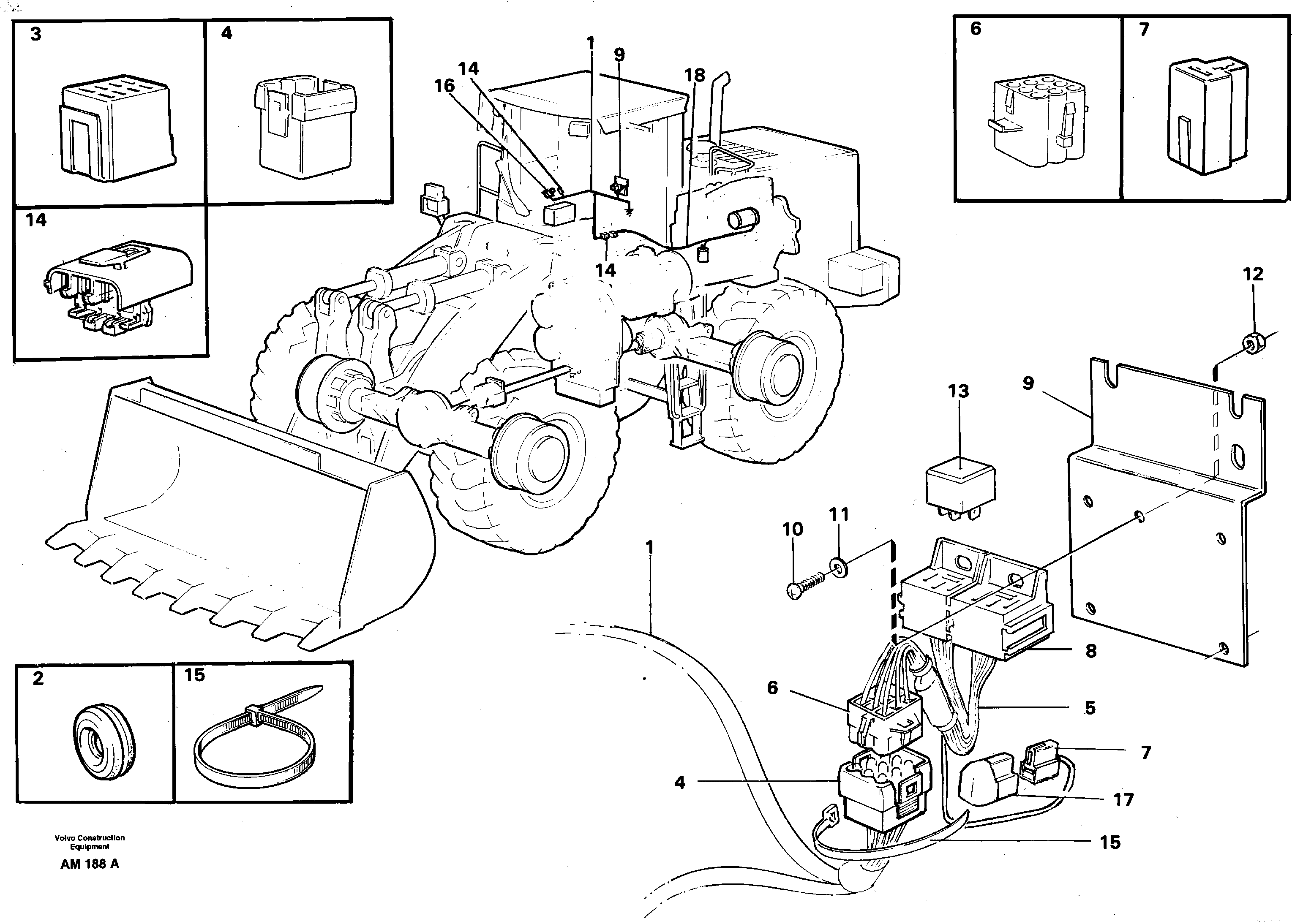

Cable harness for air conditioning.

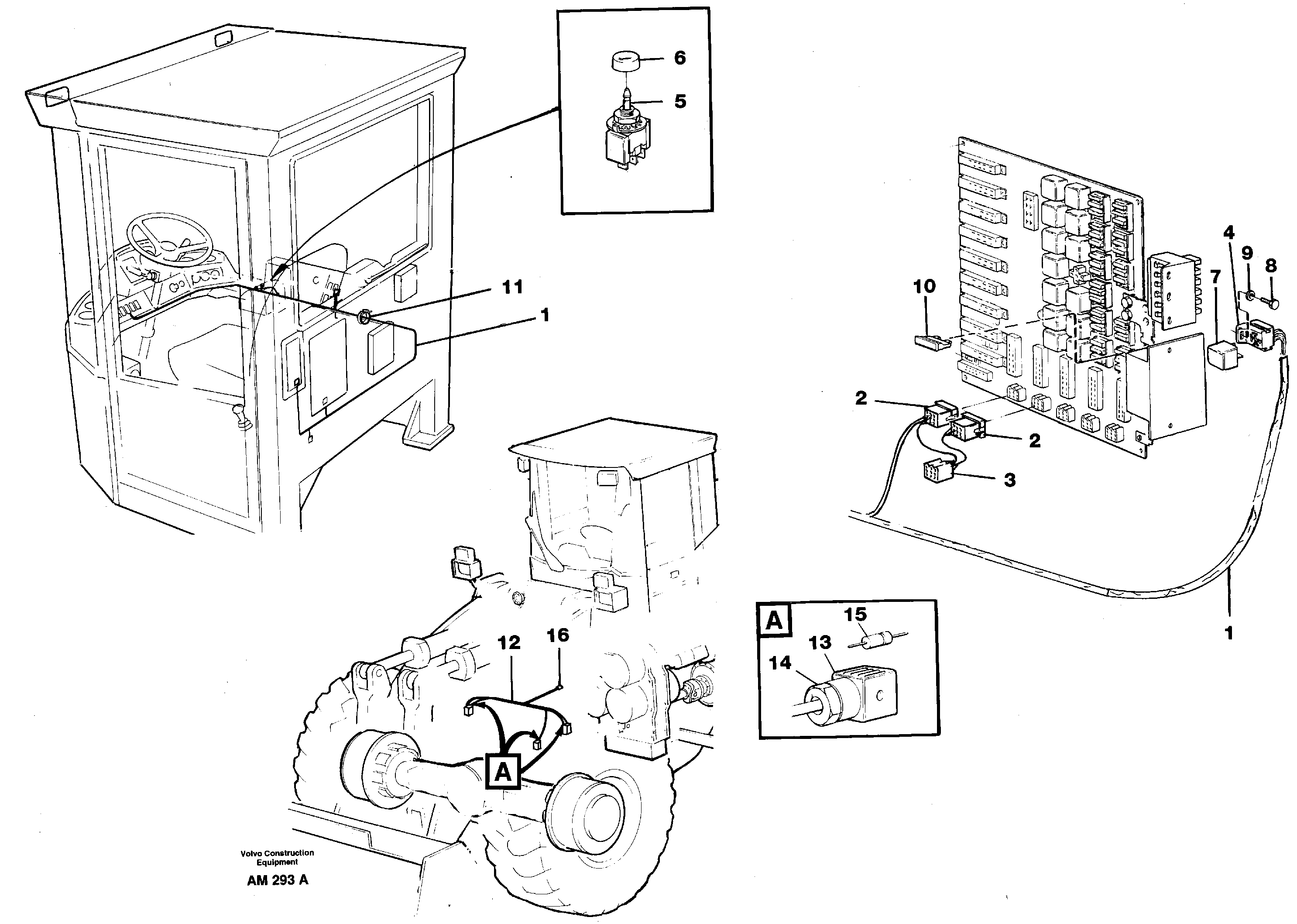

Electrical system: Boom suspension system 94514

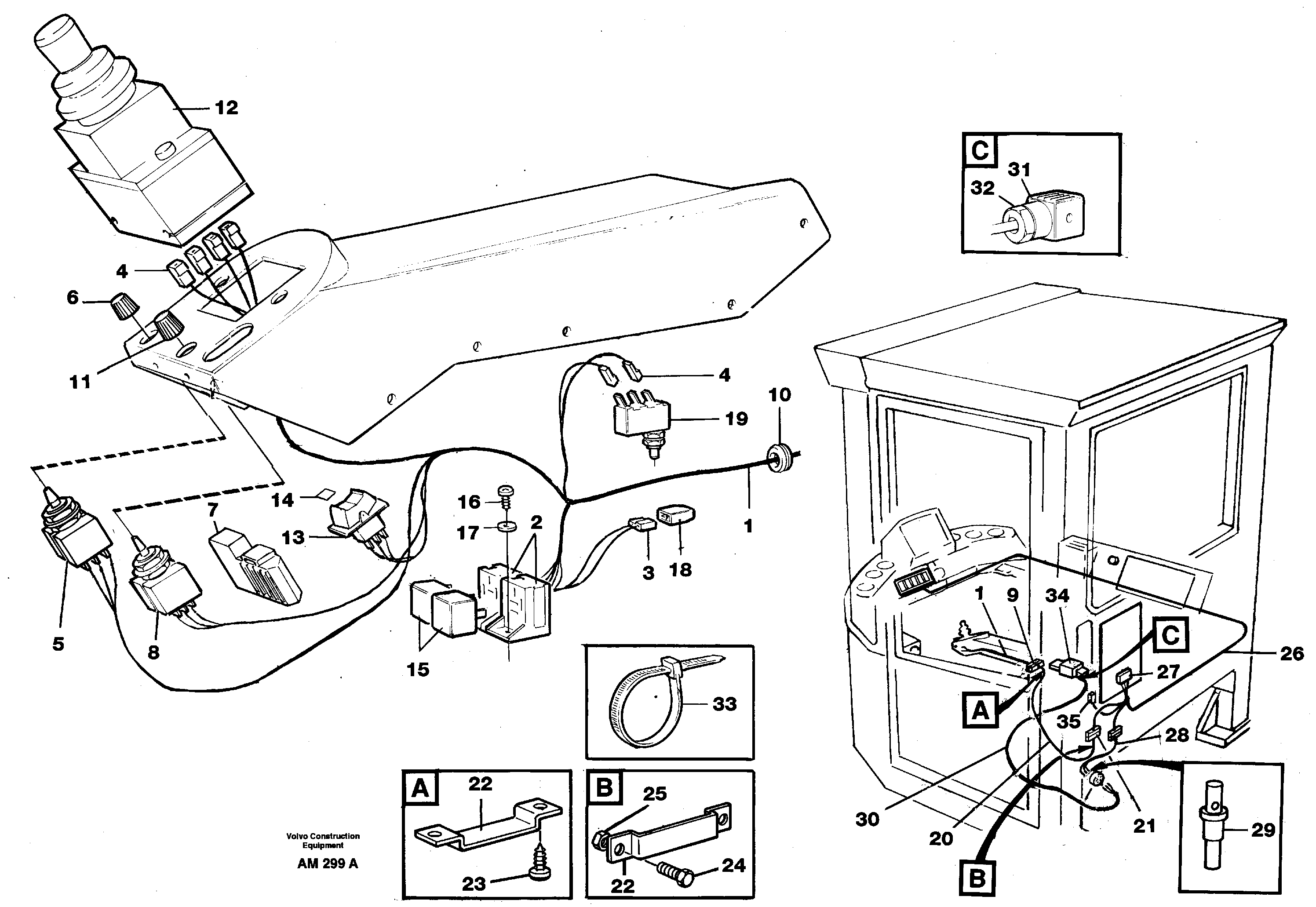

Cable harness for Cdc-steering 94512

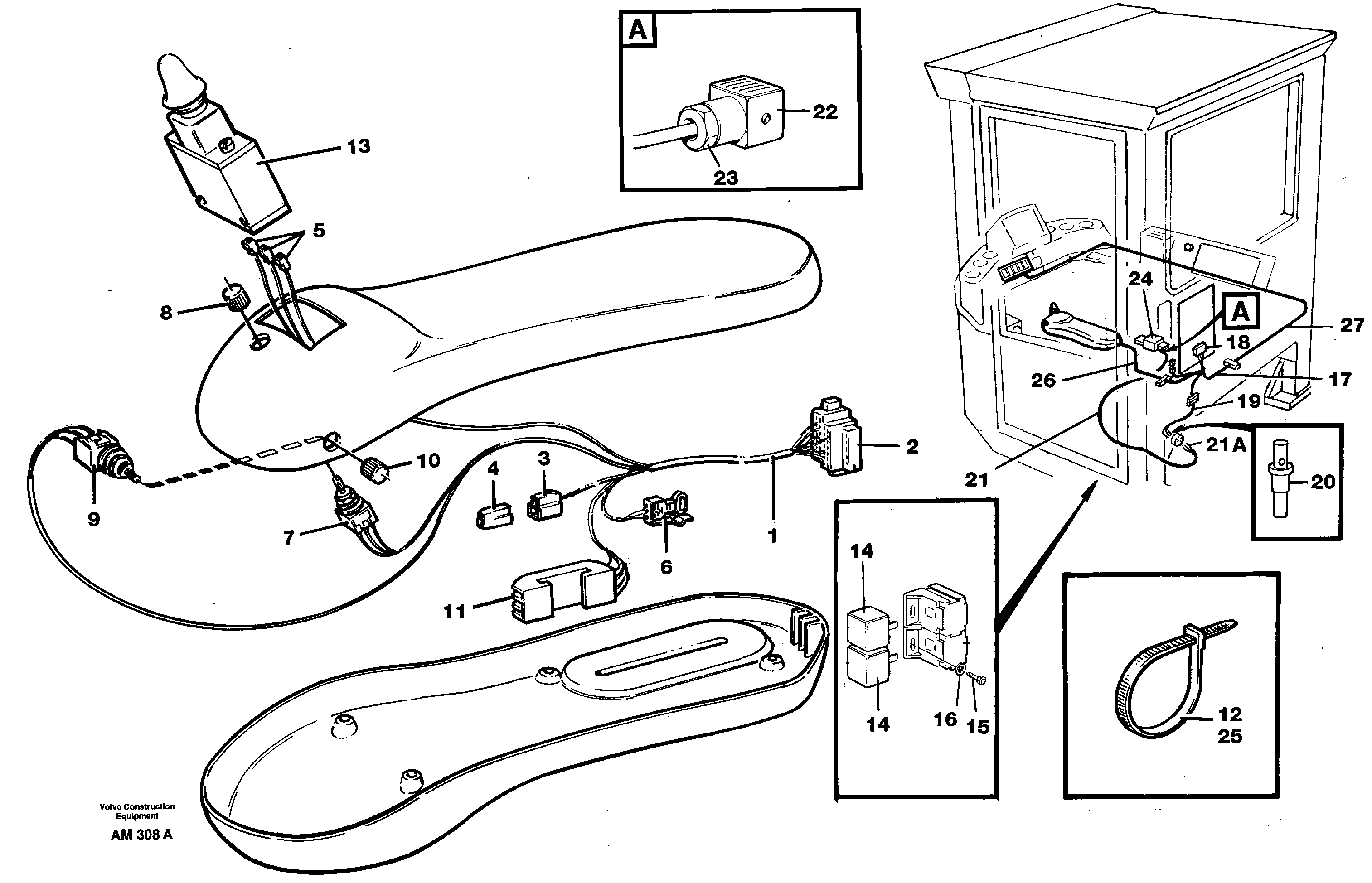

Cable harness for Cdc-steering. 94619

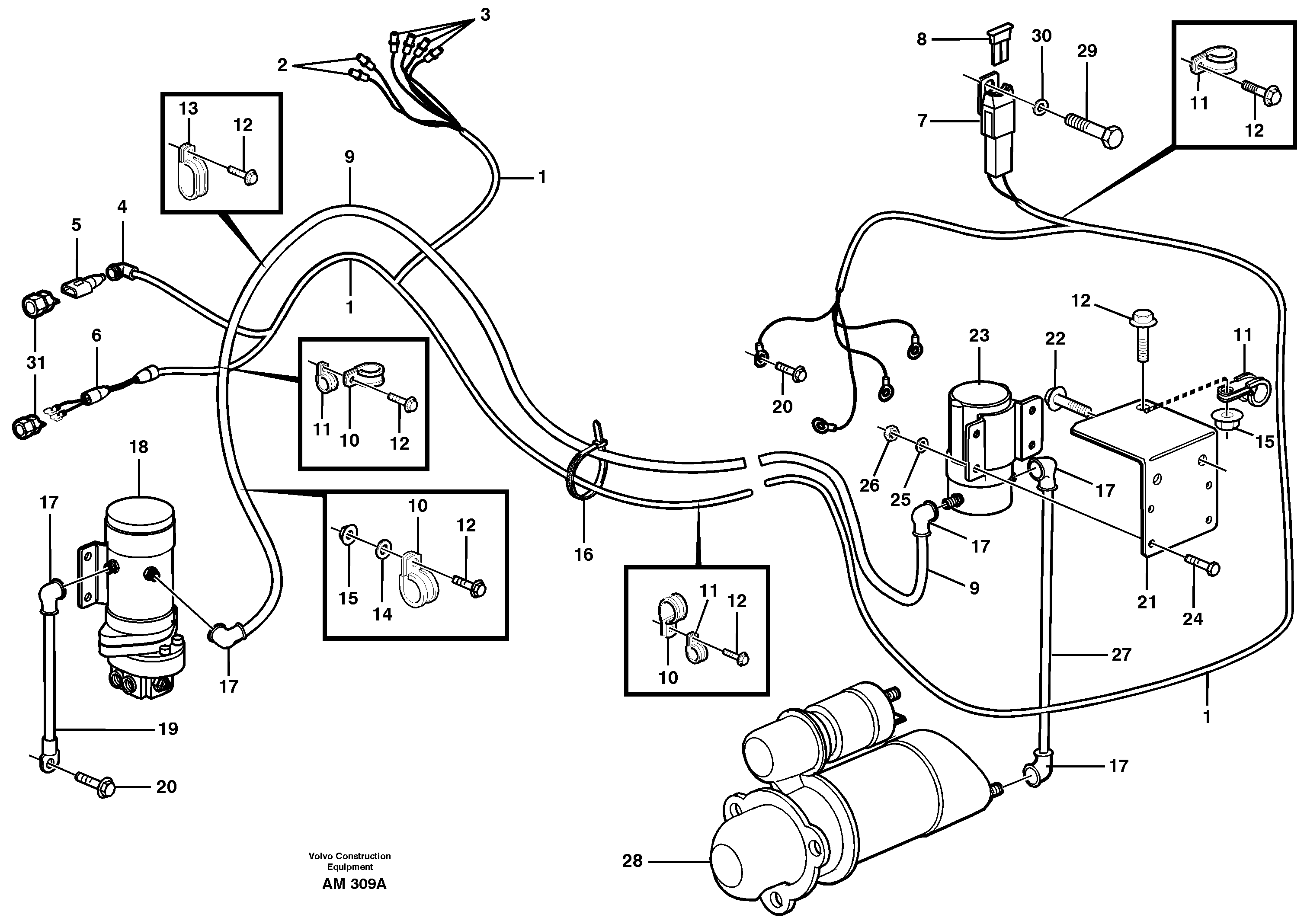

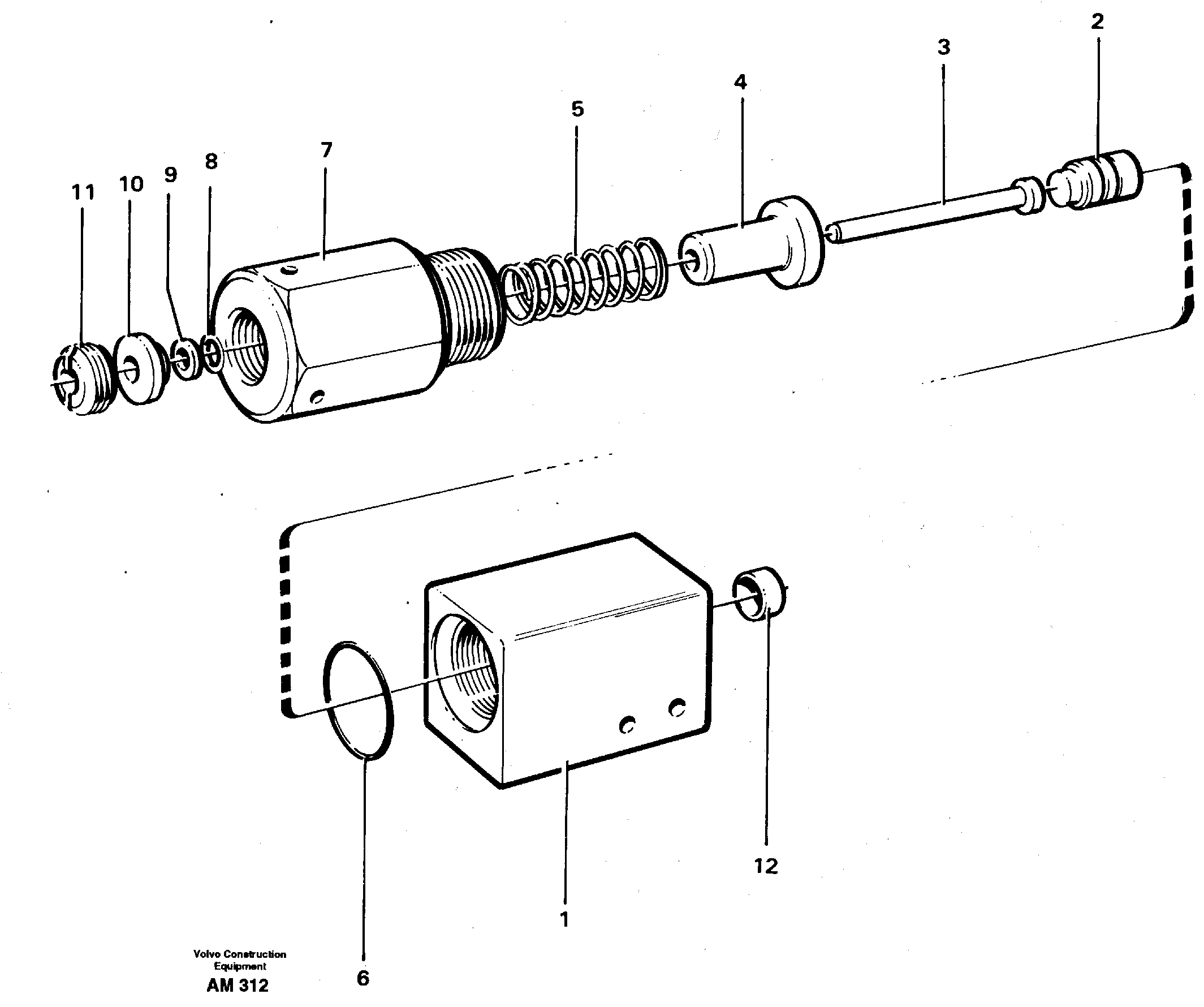

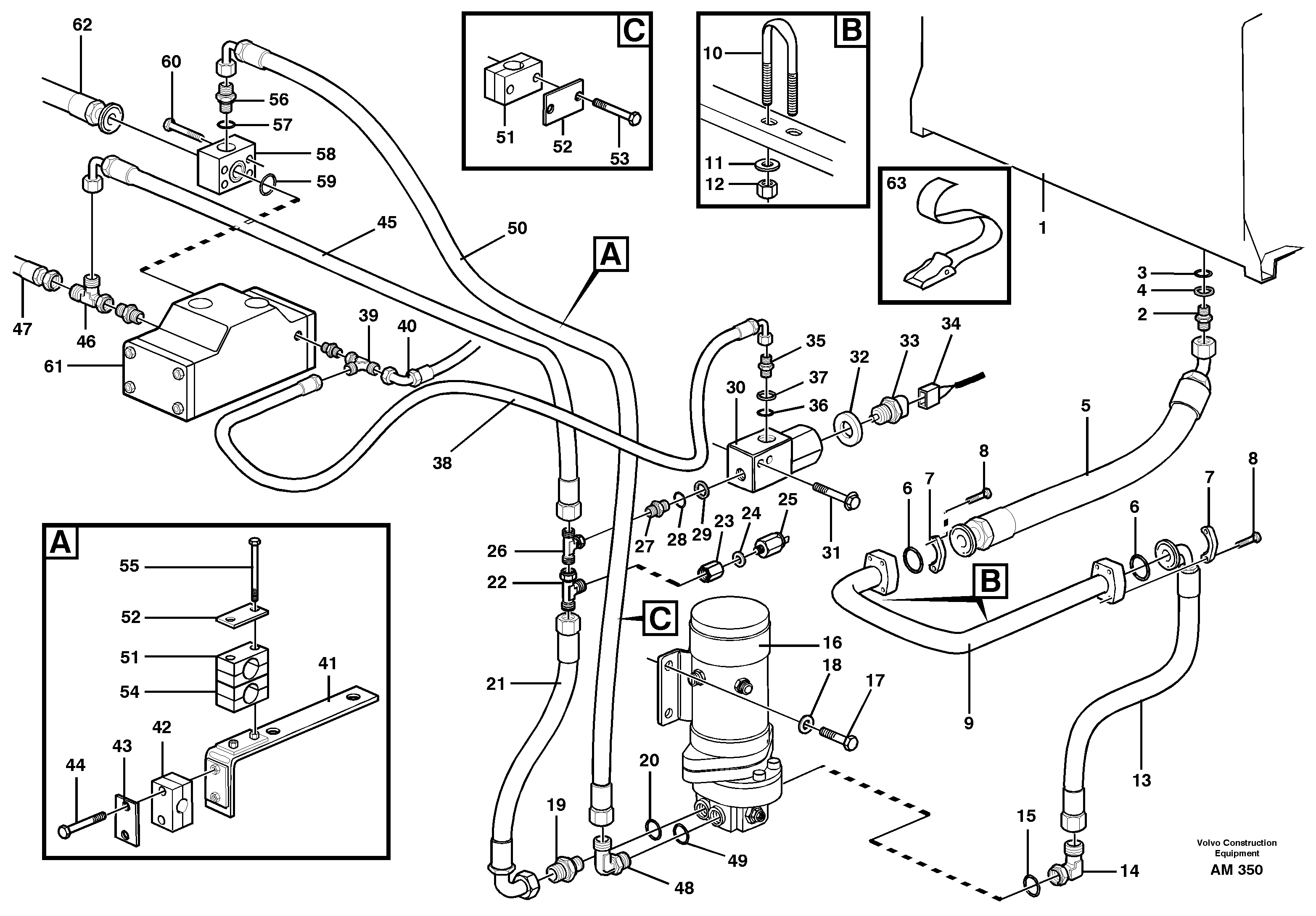

Cable harness, secondary steering system. 94612

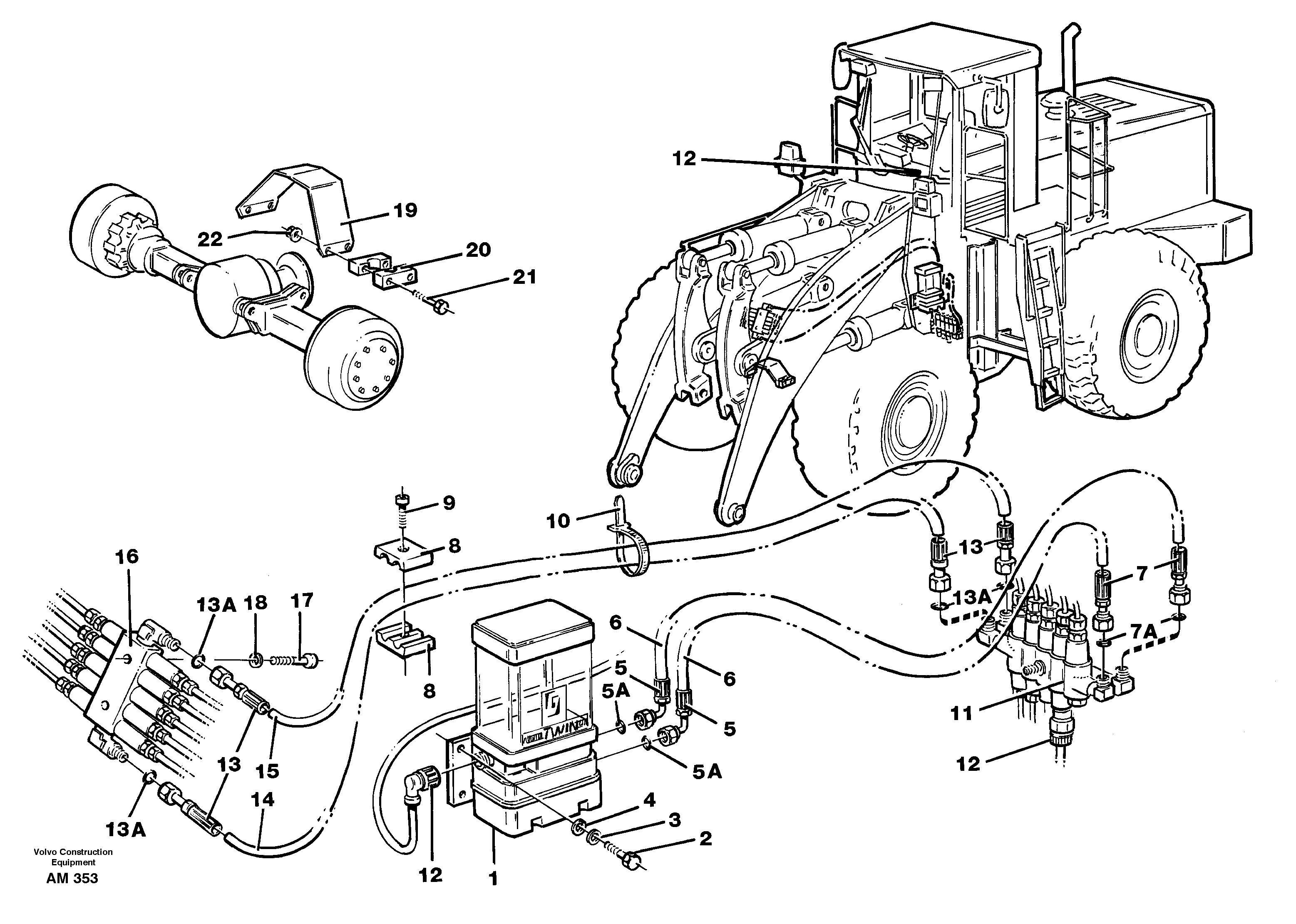

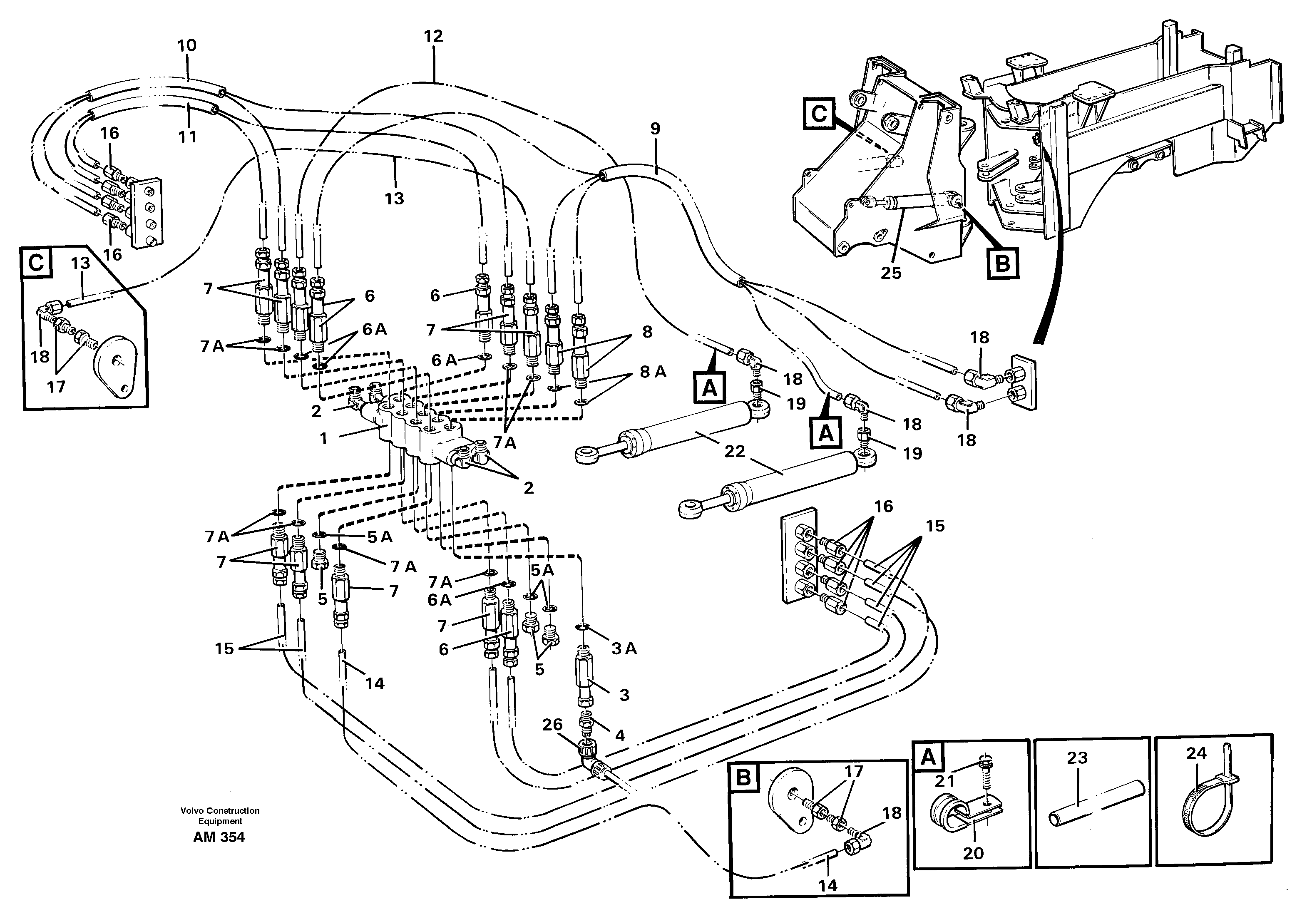

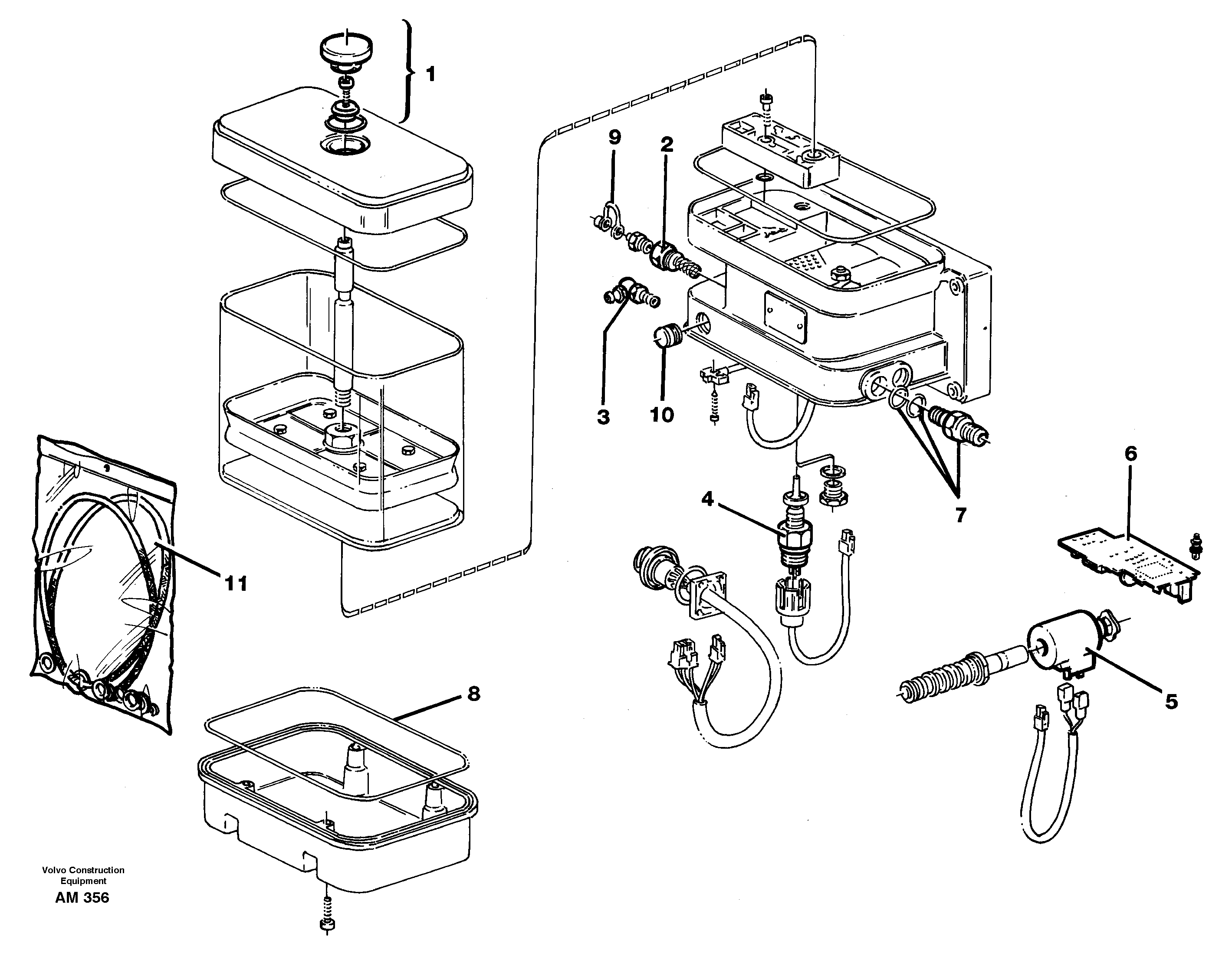

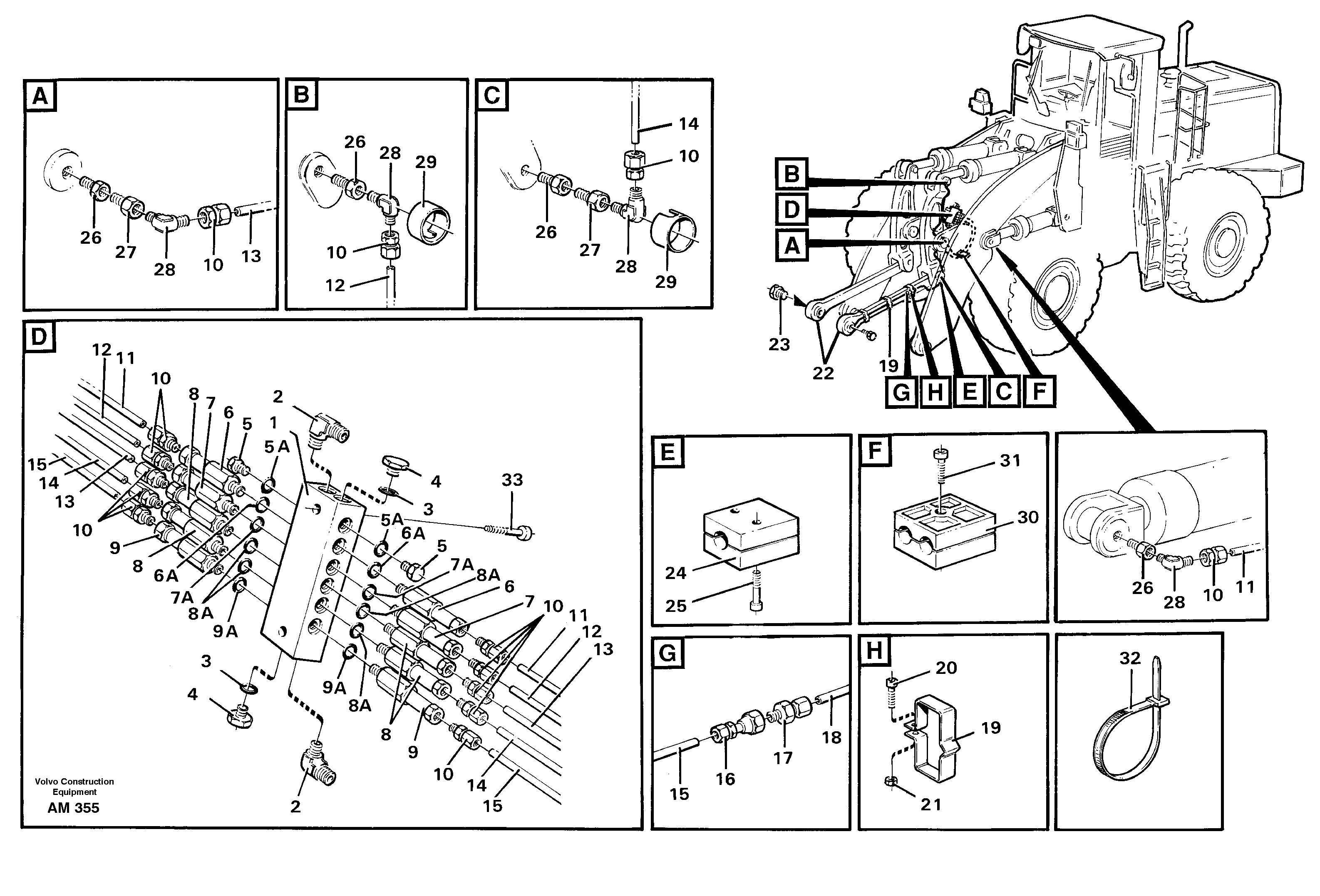

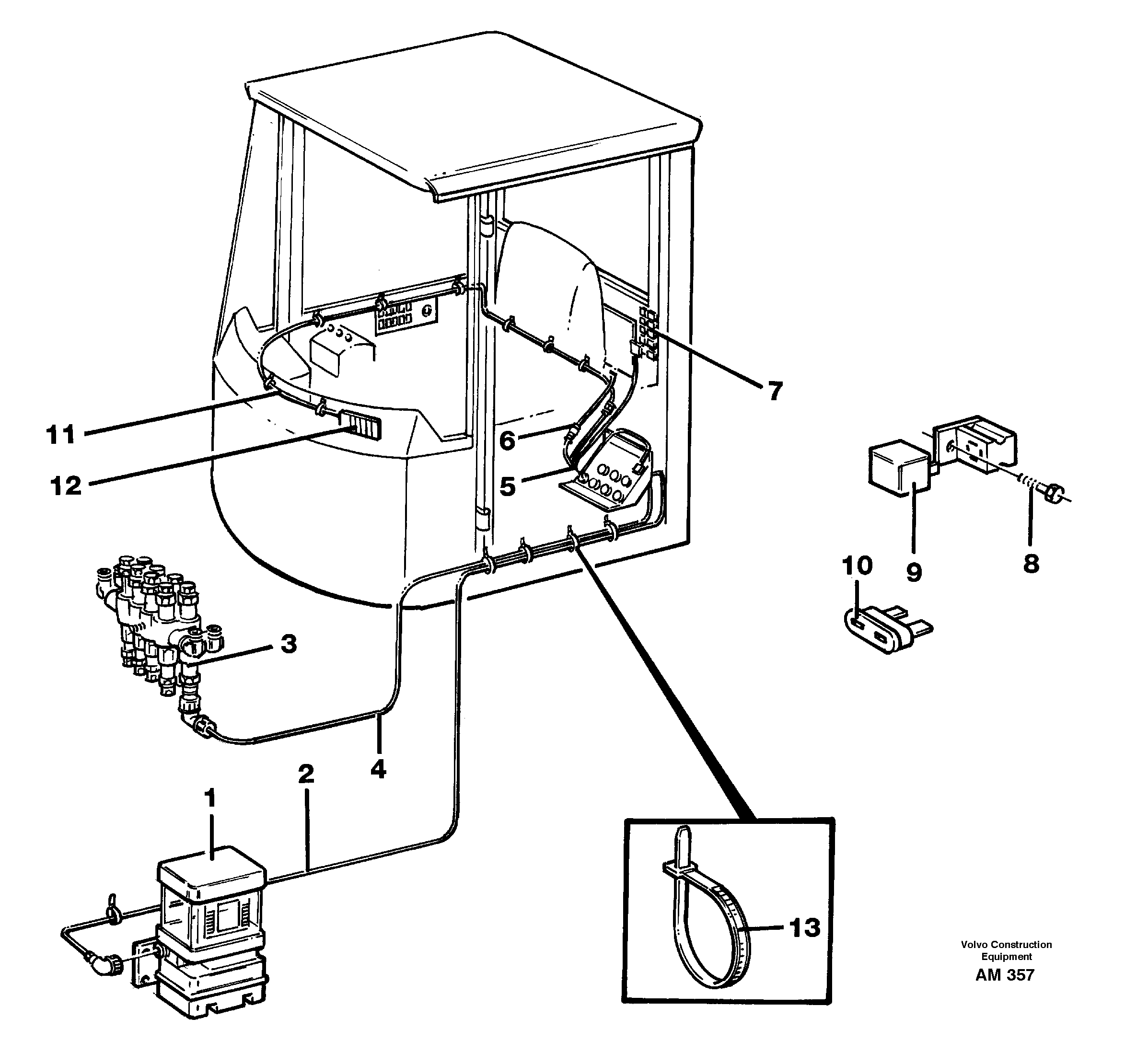

Cable harness for central lubrication 94930

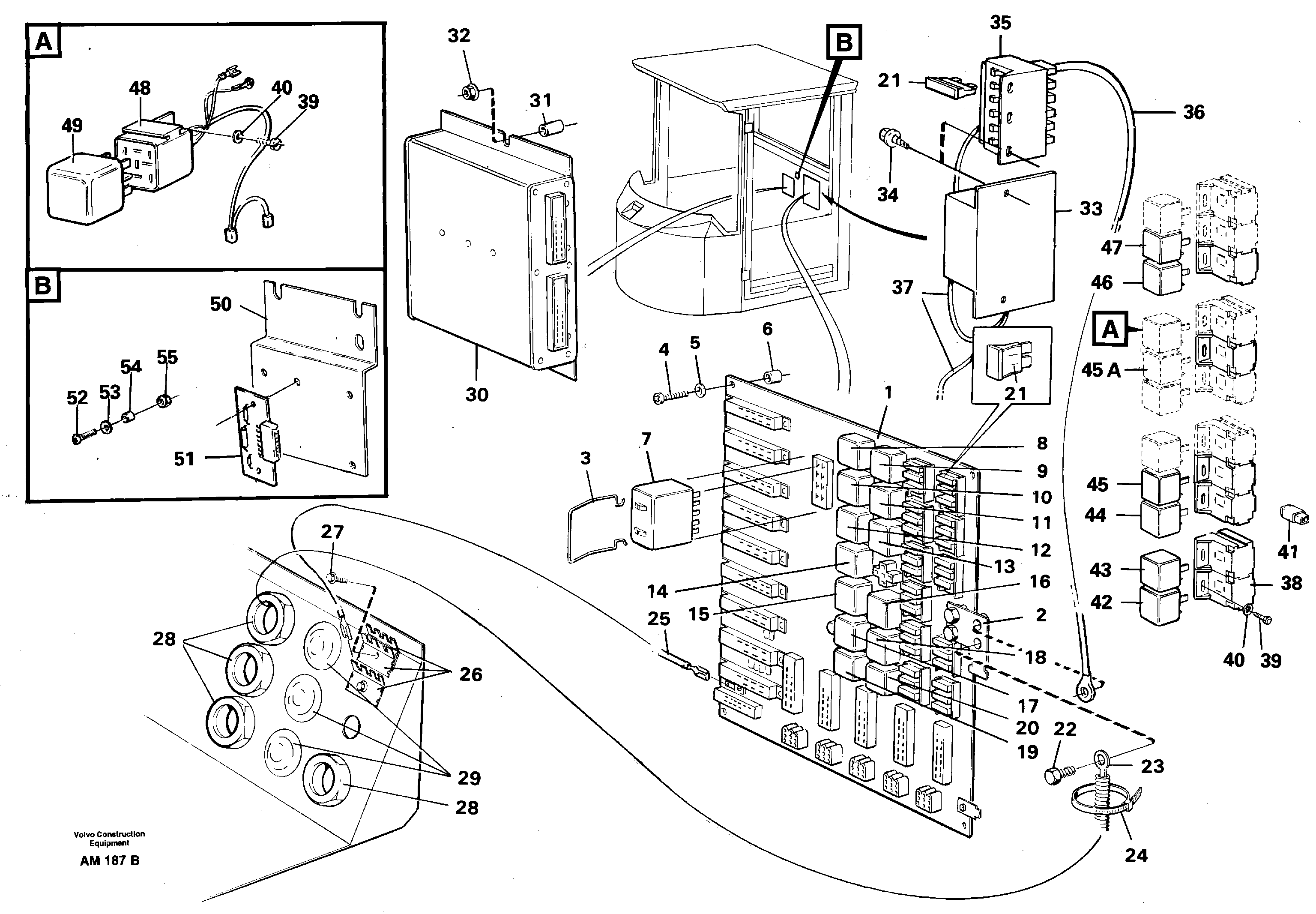

Electrical distribution box

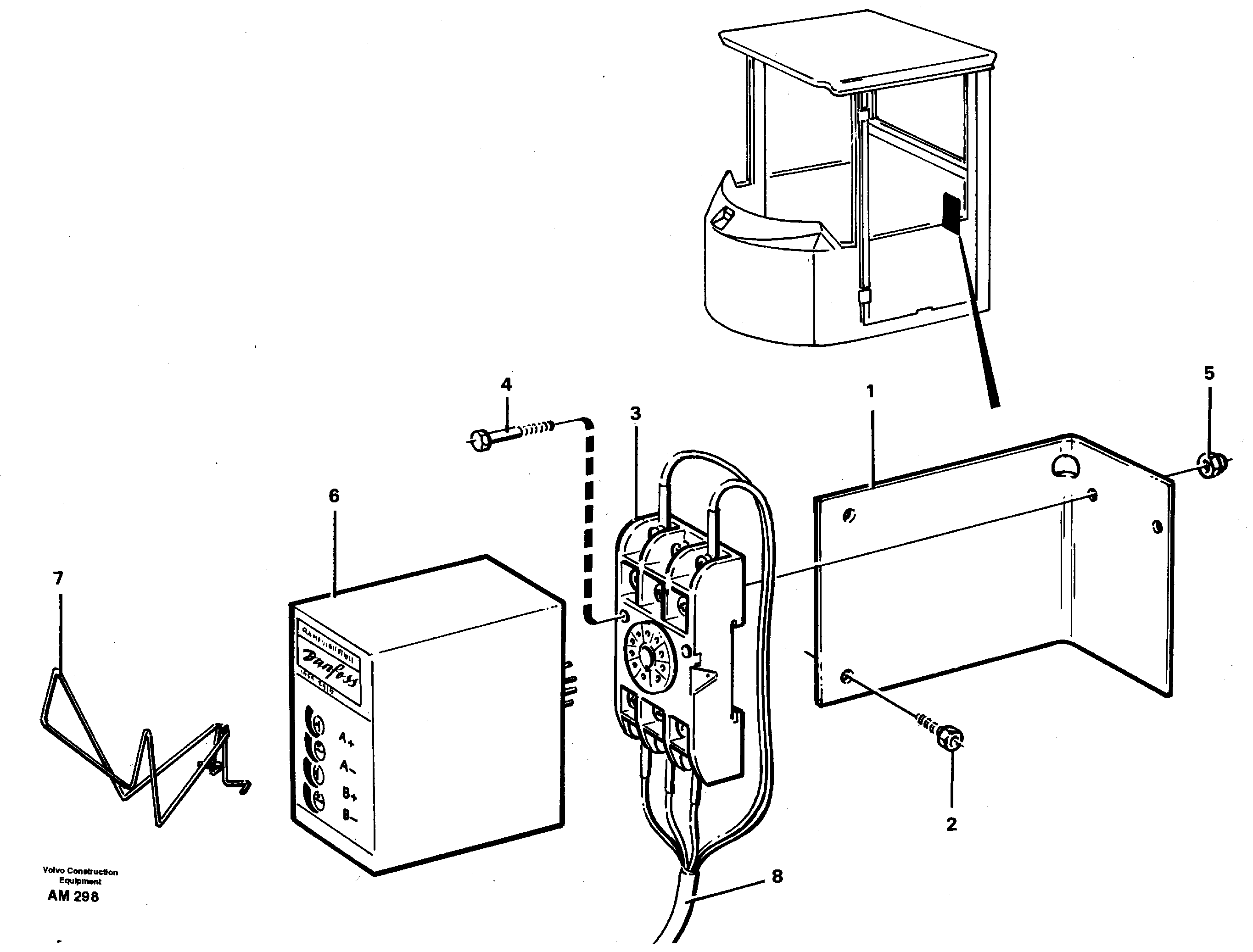

Electronic unit. 94512
Wires
Hose and manifold
Cable terminal
Insulator for spade terminal
Spade terminal
Pin insulator
Pin
Humidity-proof connections
Connectors
Housings for timers and tabs

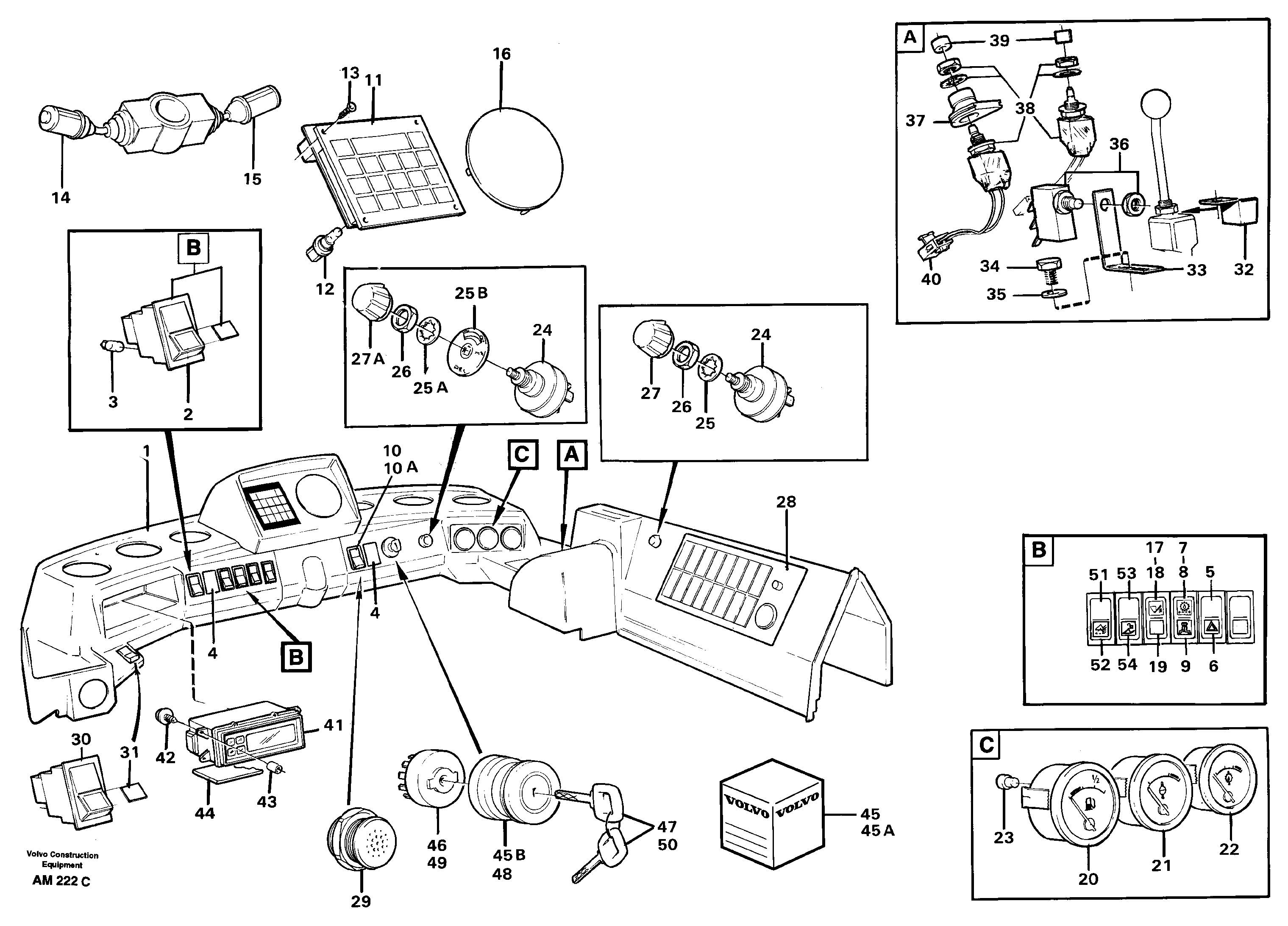

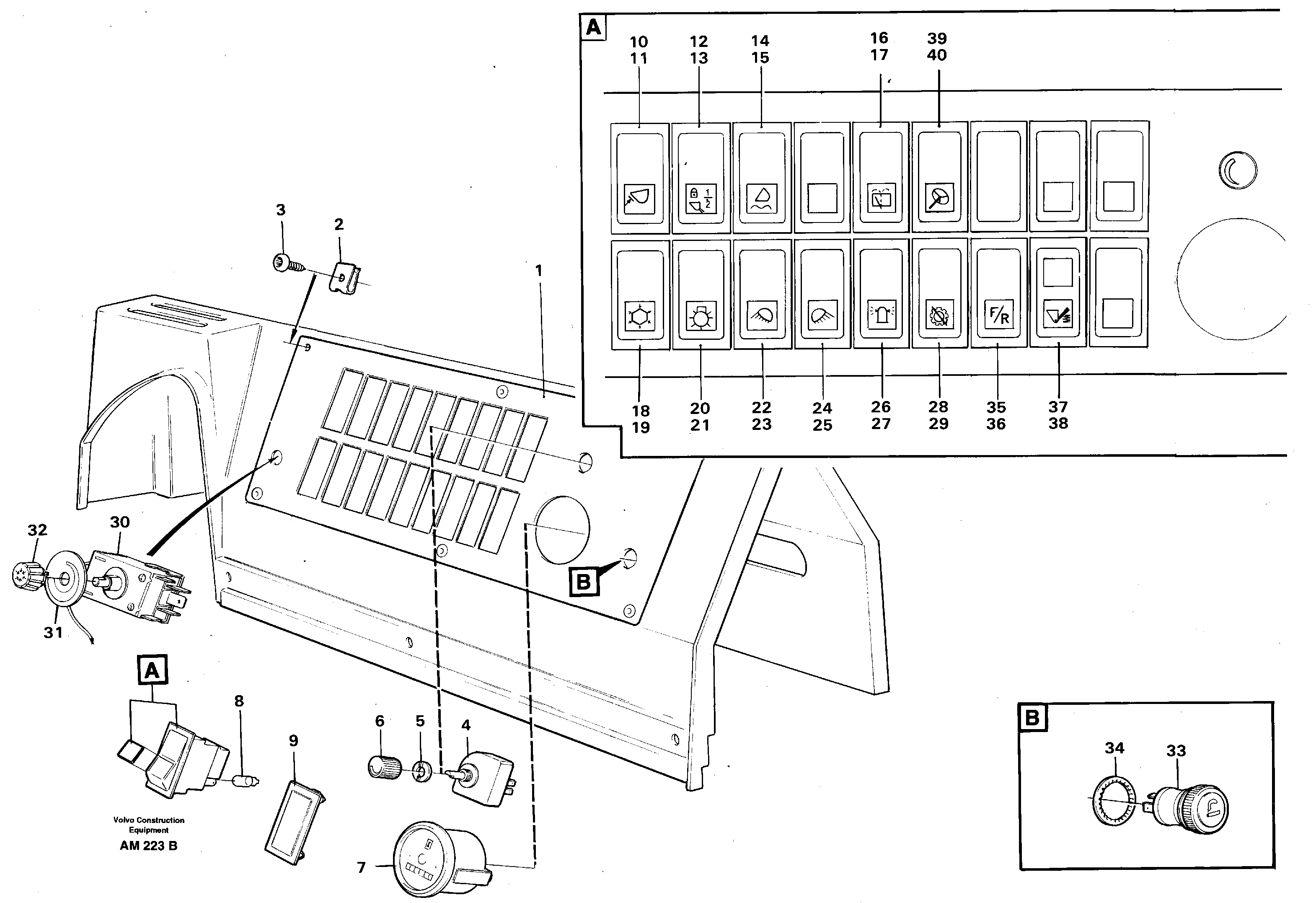

Instrument, sensor, warning and information system
Power transmission

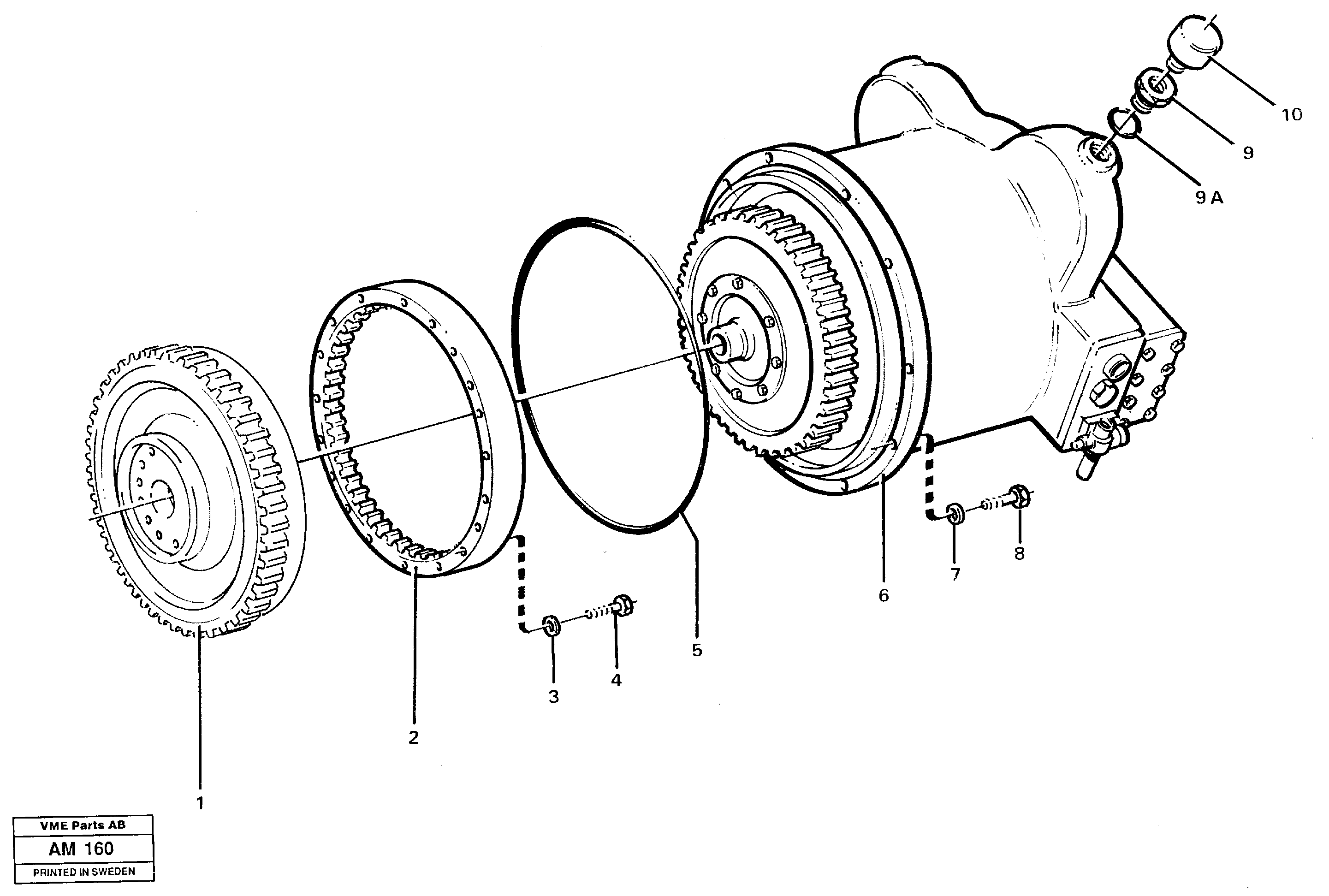

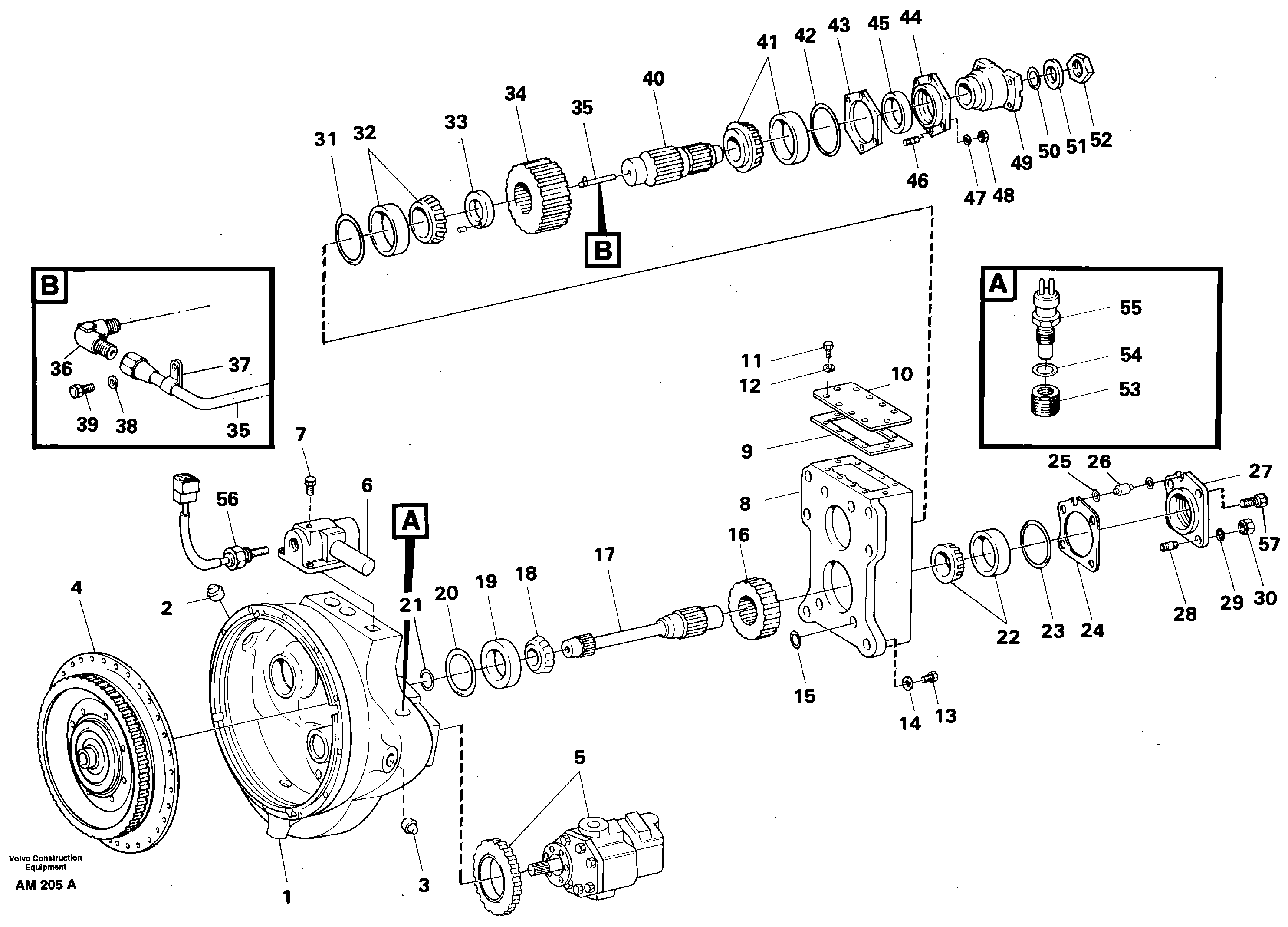

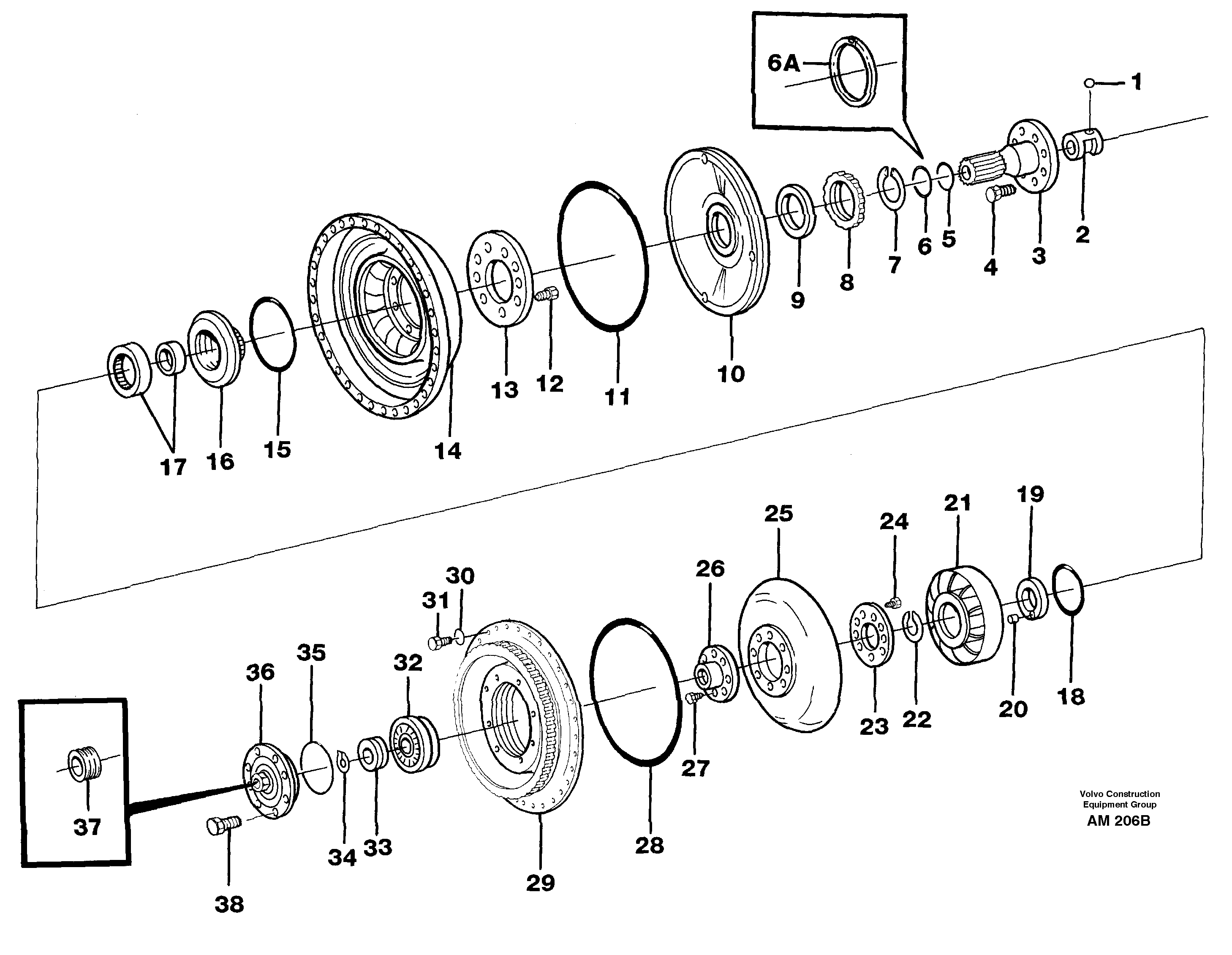

Clutch, torque converter

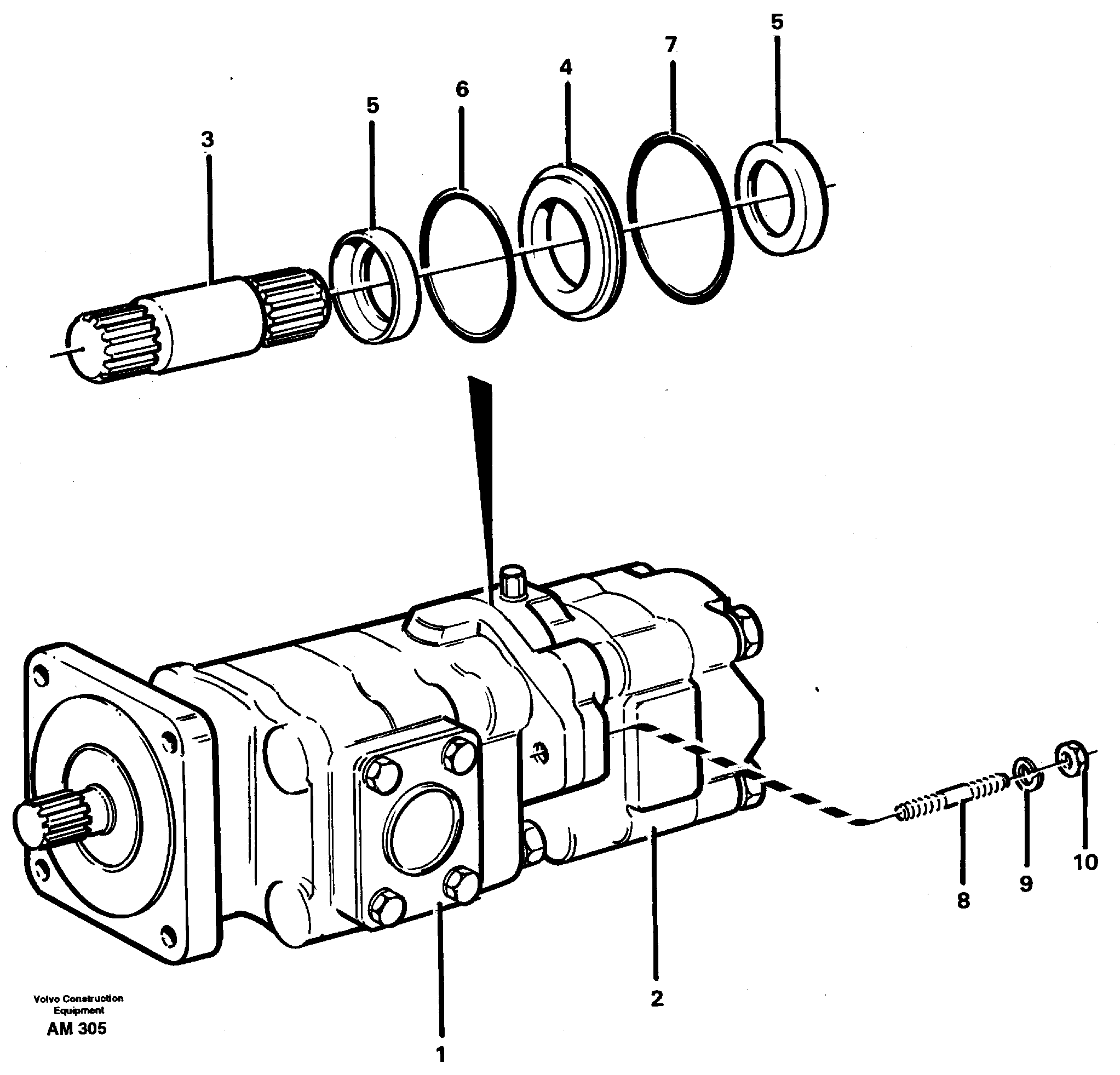

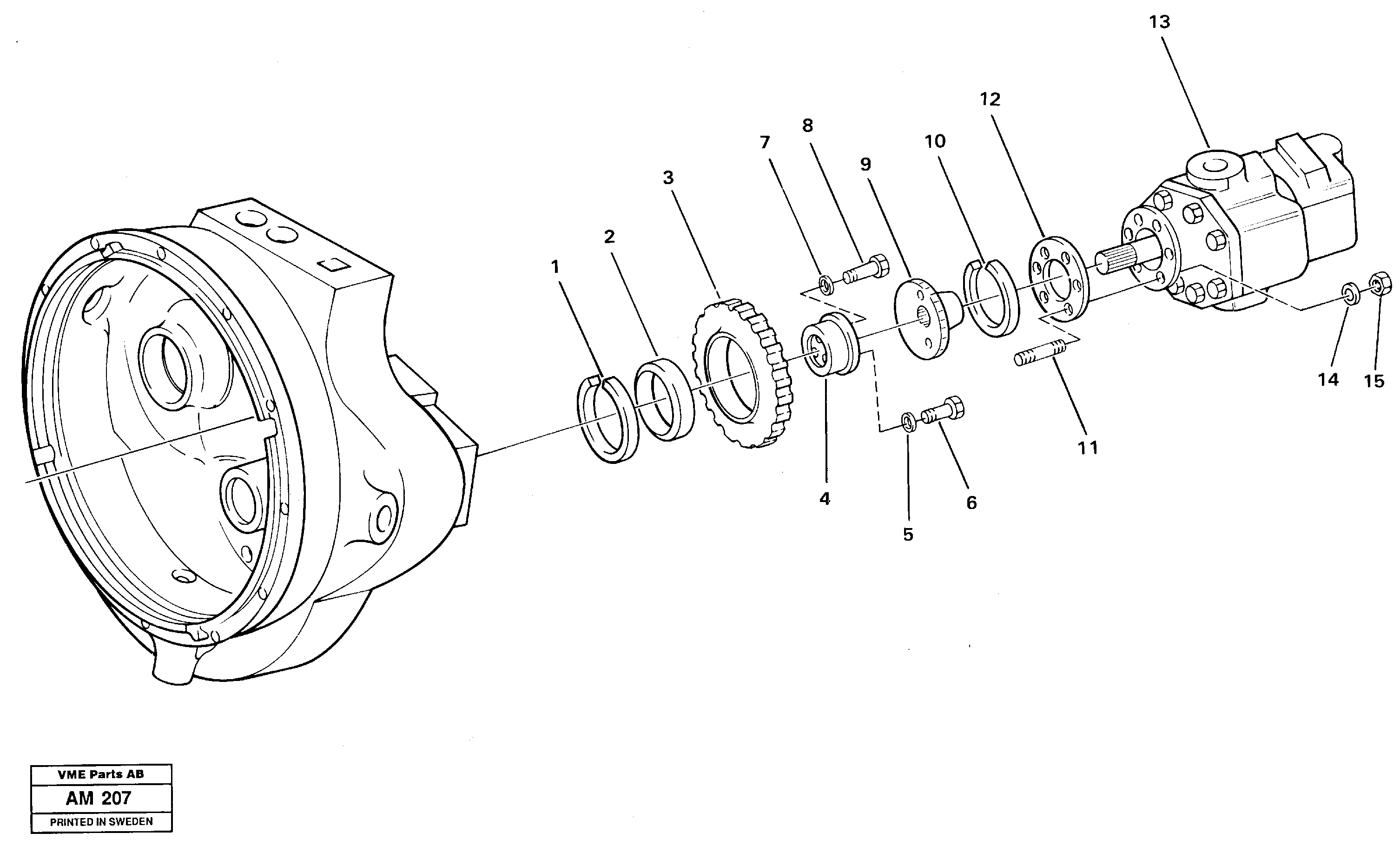

Transmission, hydraulic control

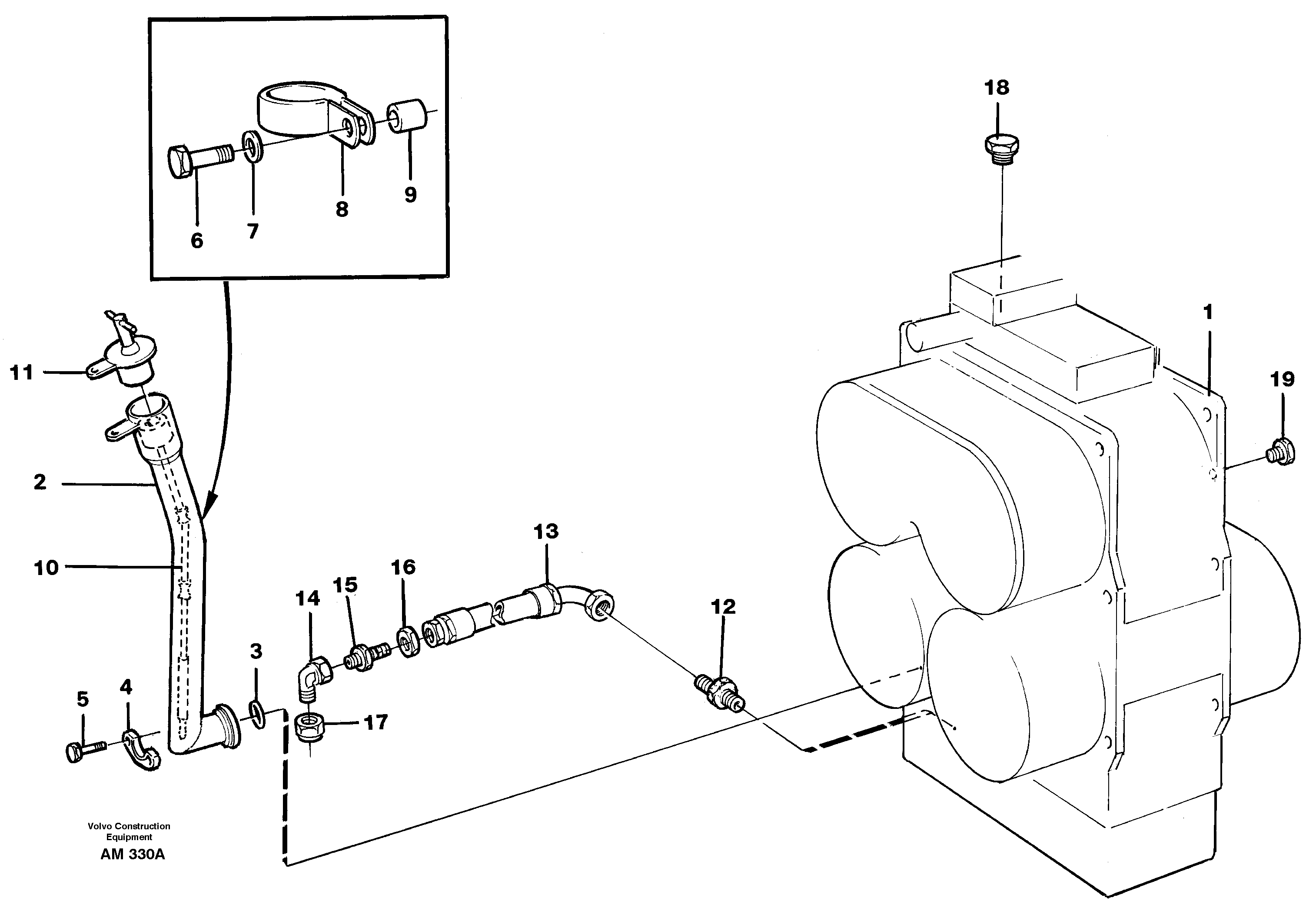

Transmission: refill, drain

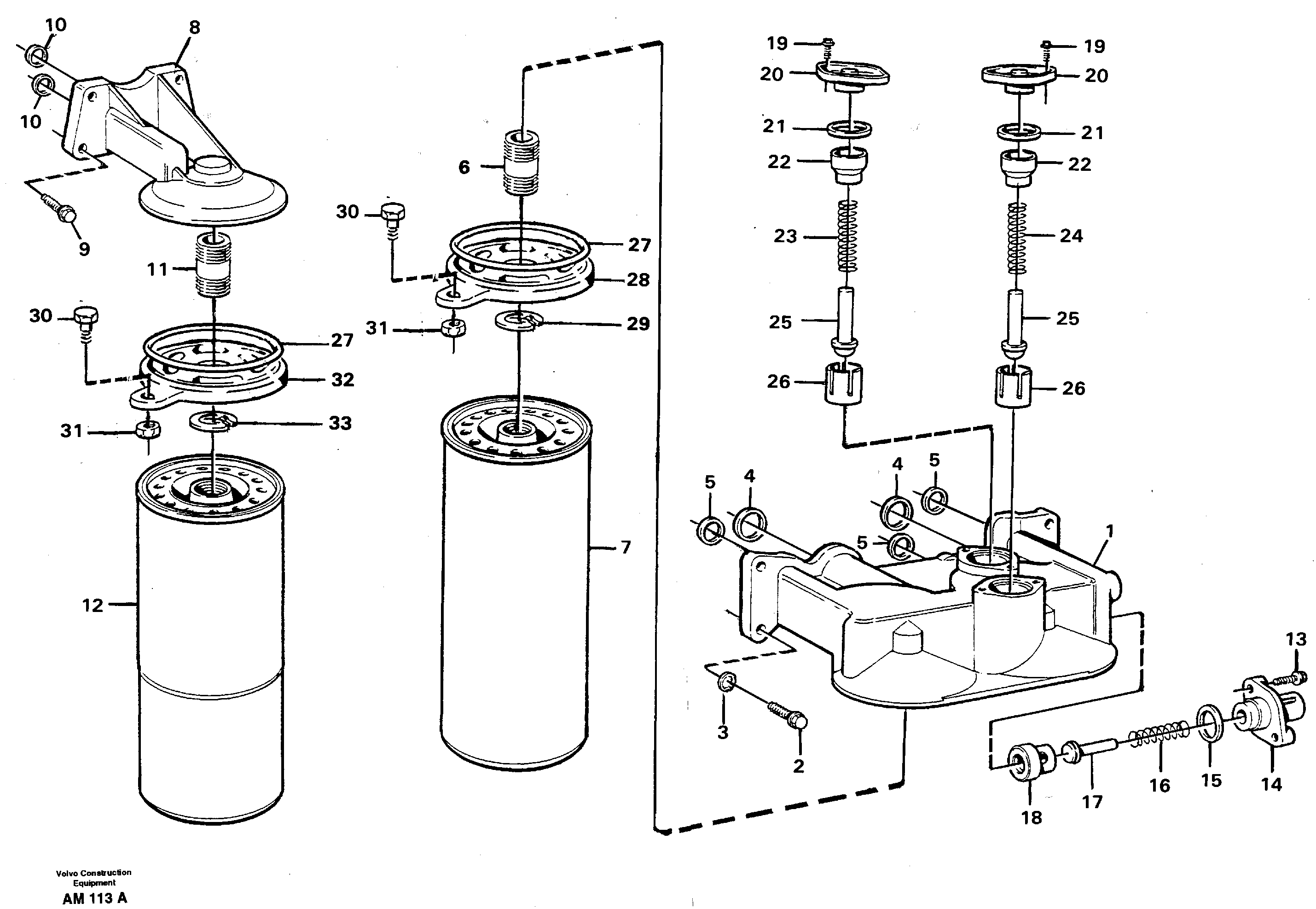

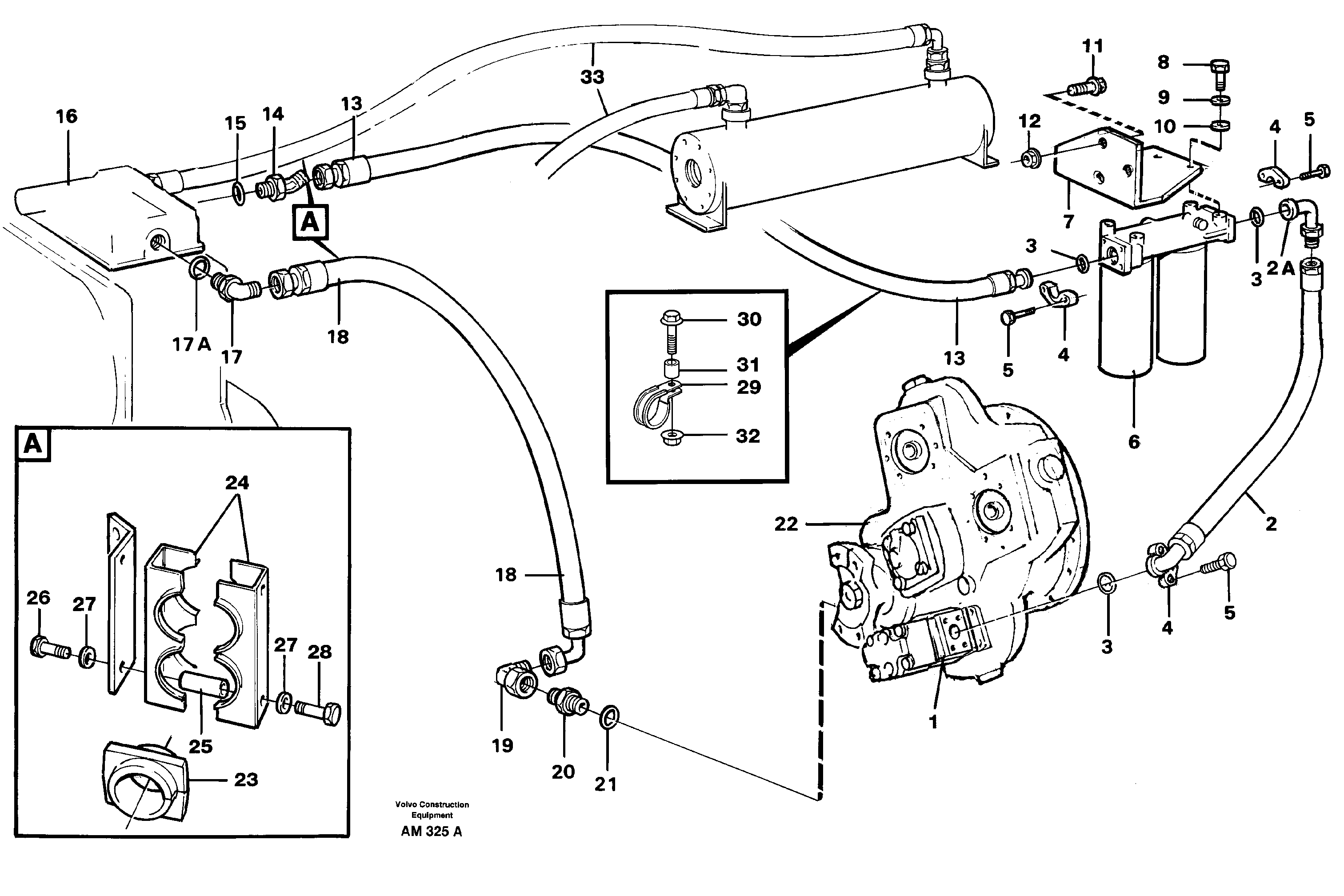

Transmission: Oil filter,oil lines

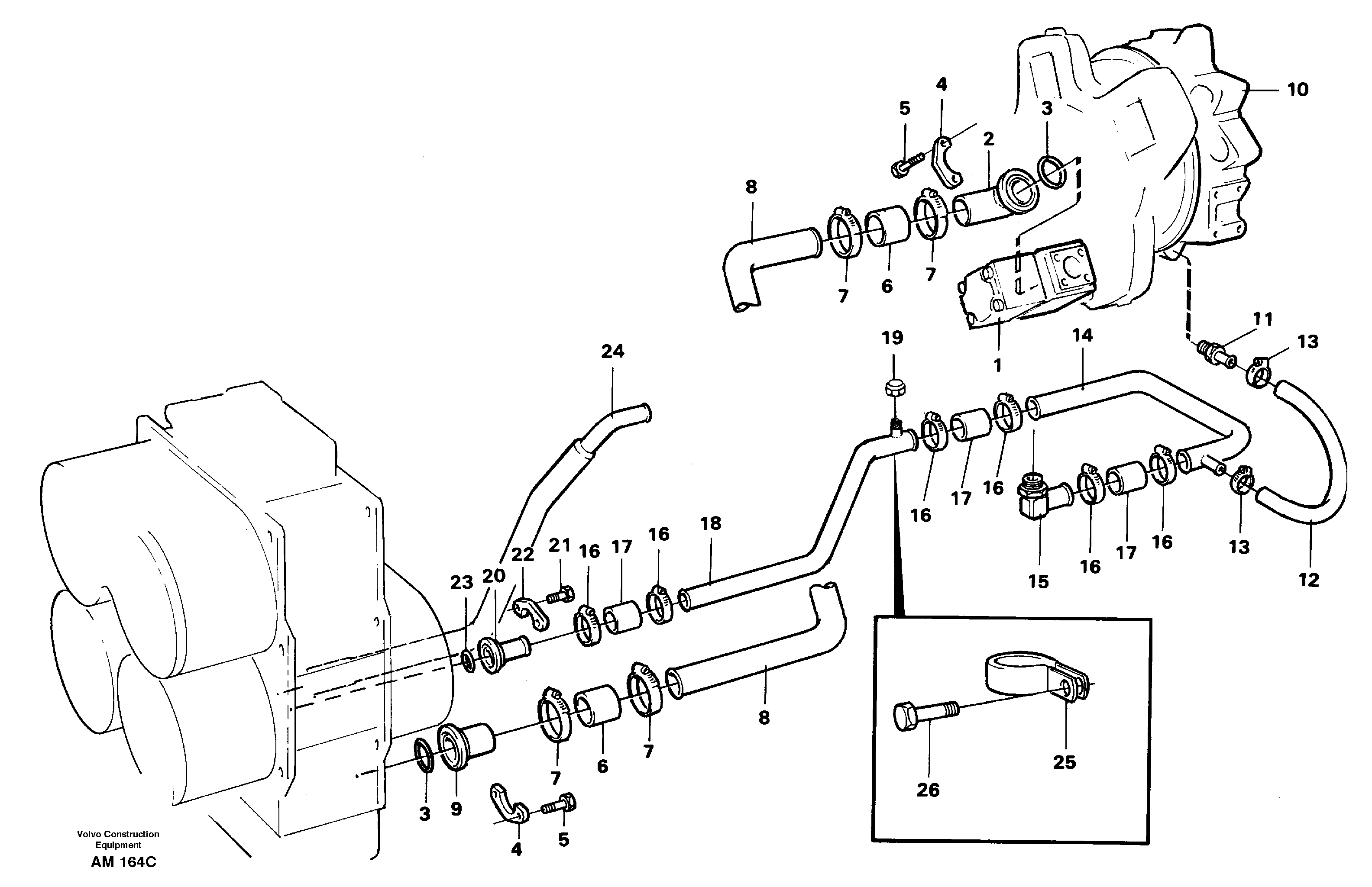

Transmission: Suction- and return pipes

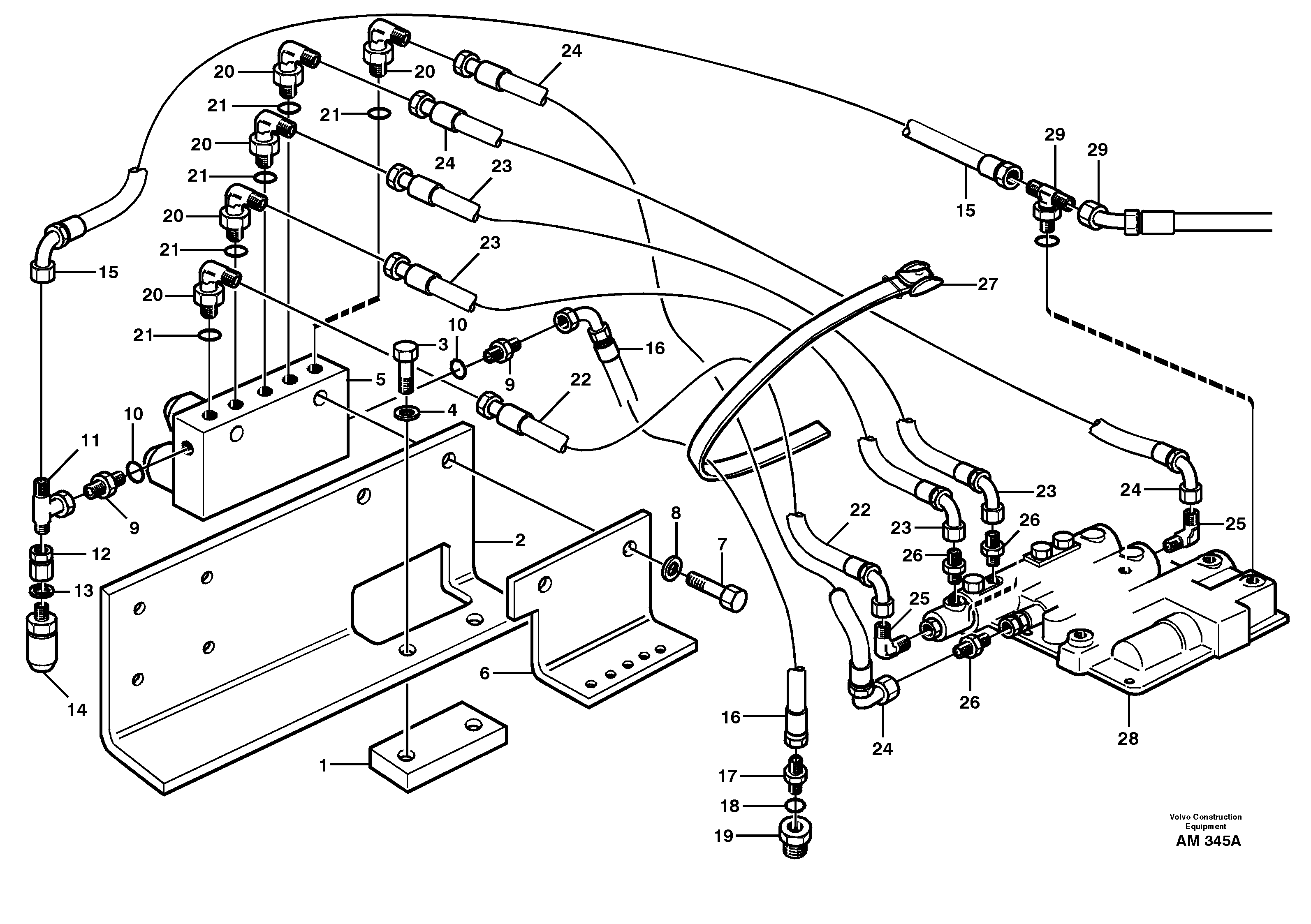

Solenoid valve with connection parts

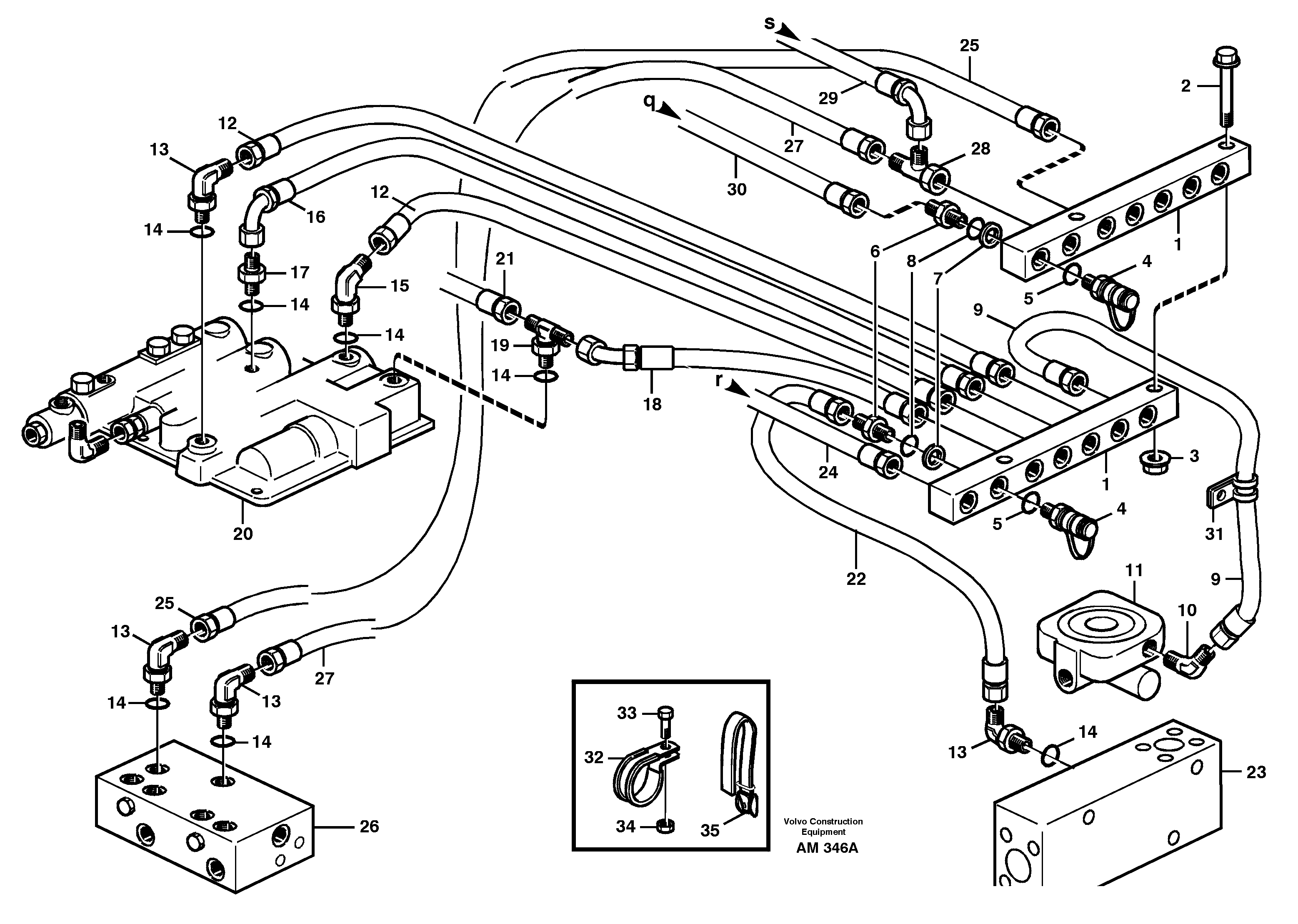

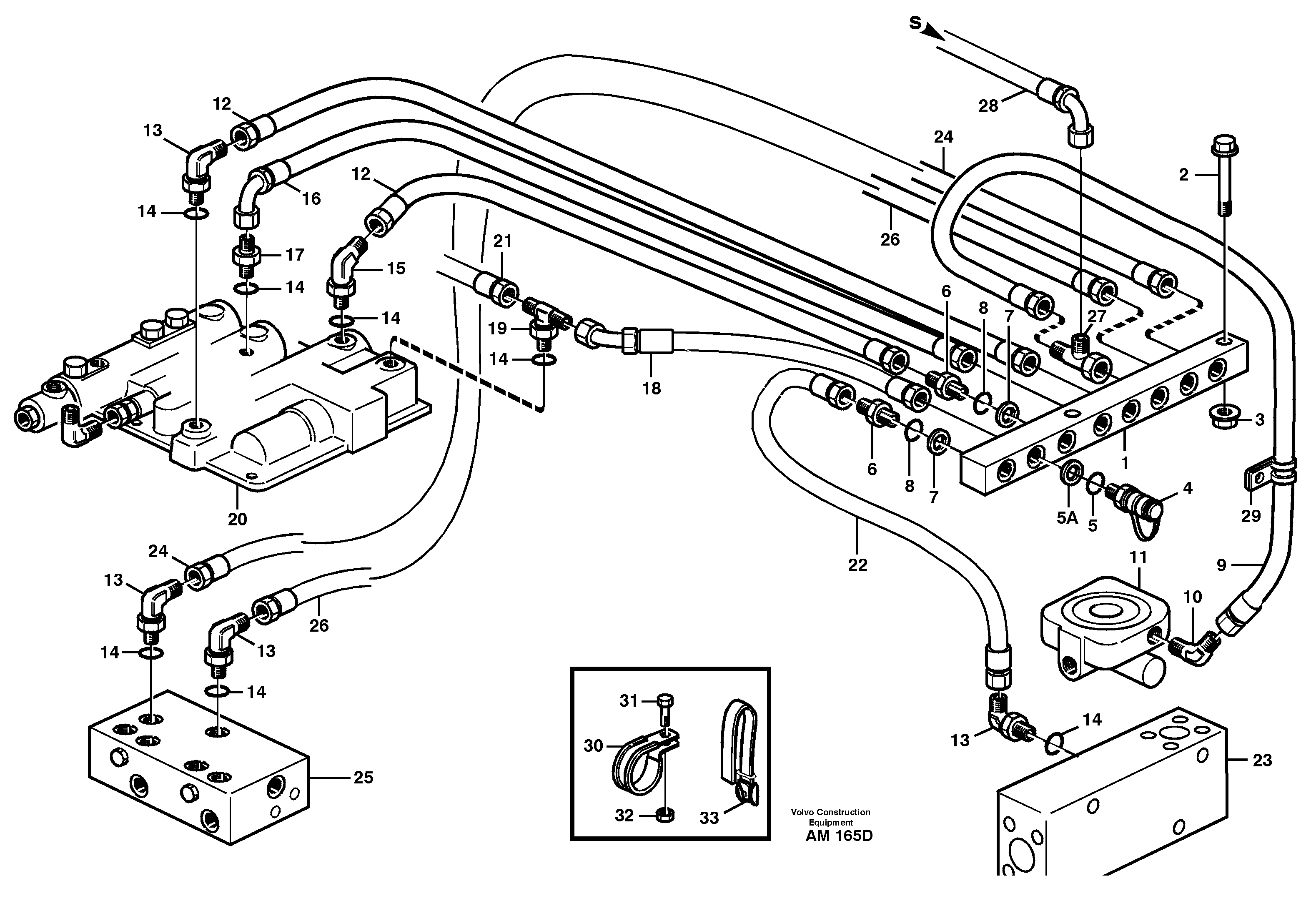

Testing nipples SER NO - 60095
Testing nipples SER NO 60096 -

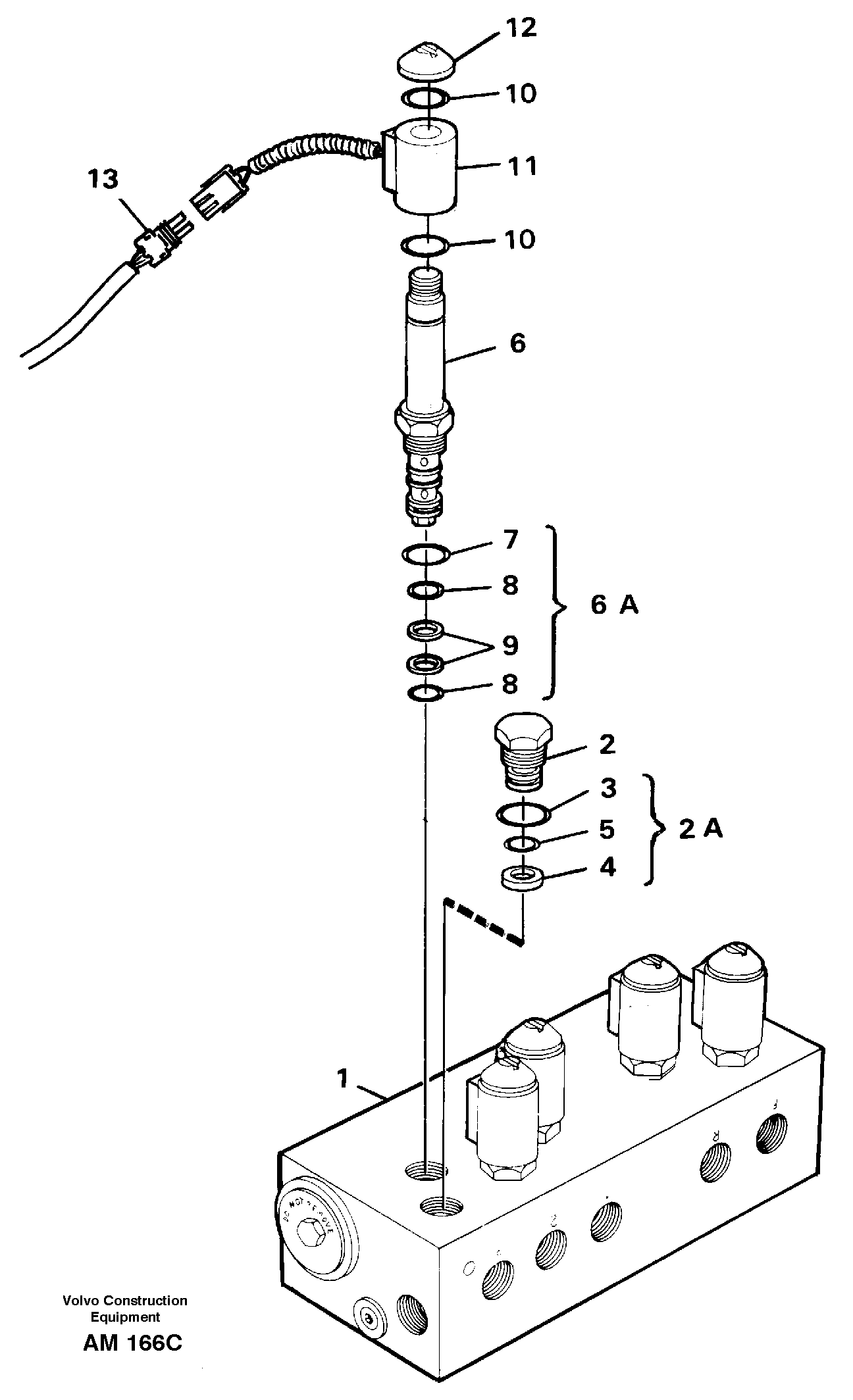

Solenoid valve

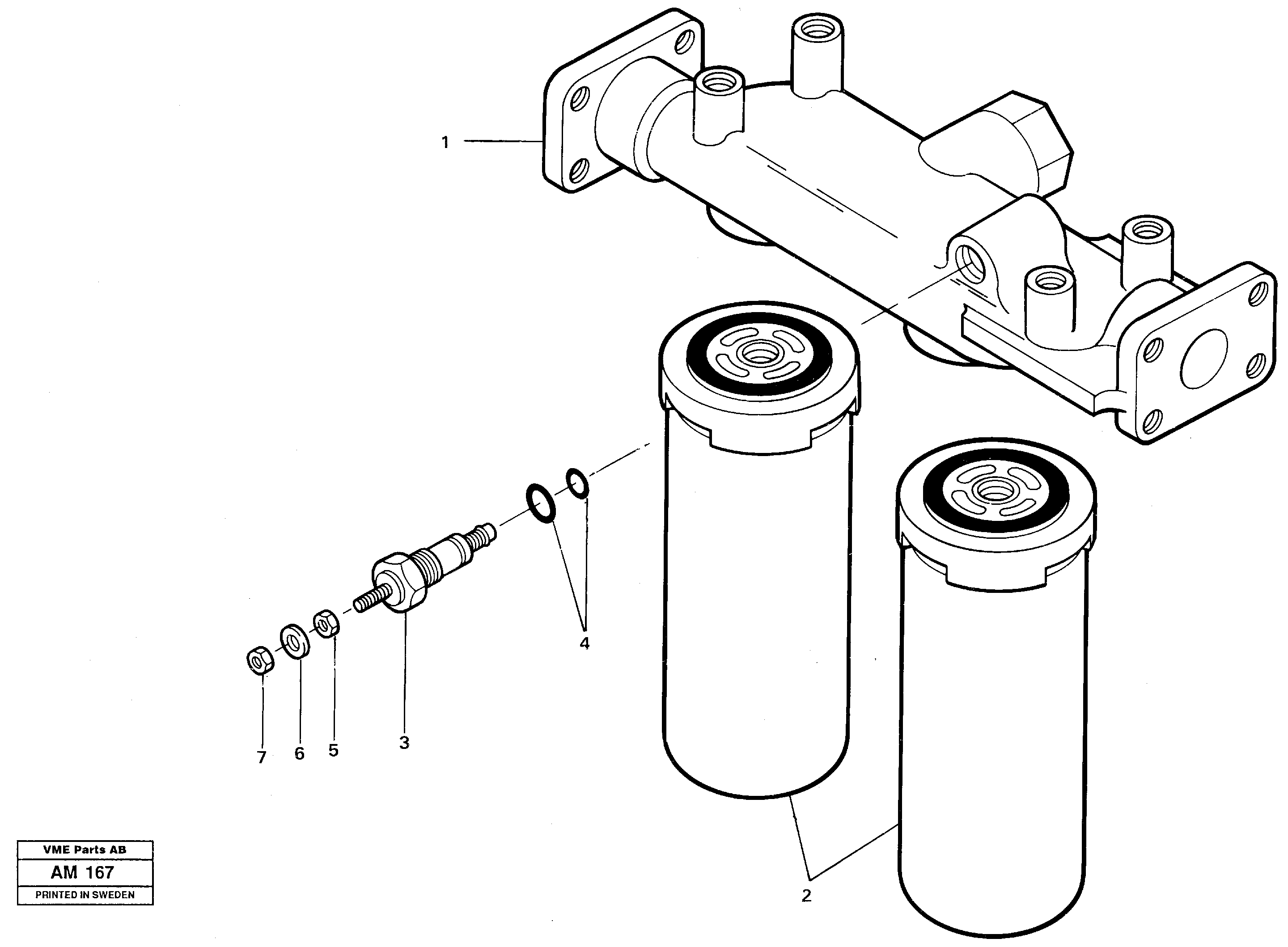

Transmission filter

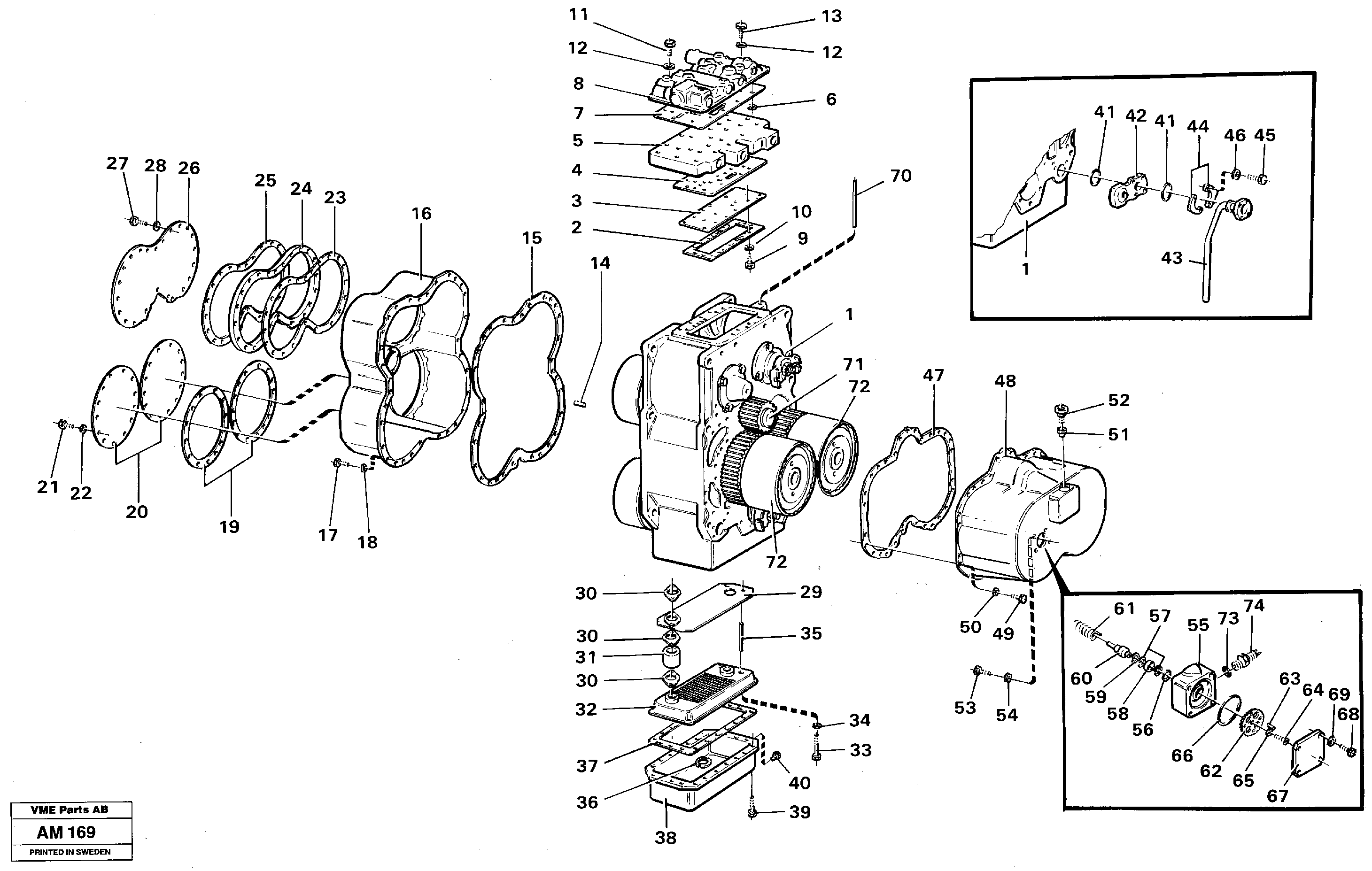

Power transmission

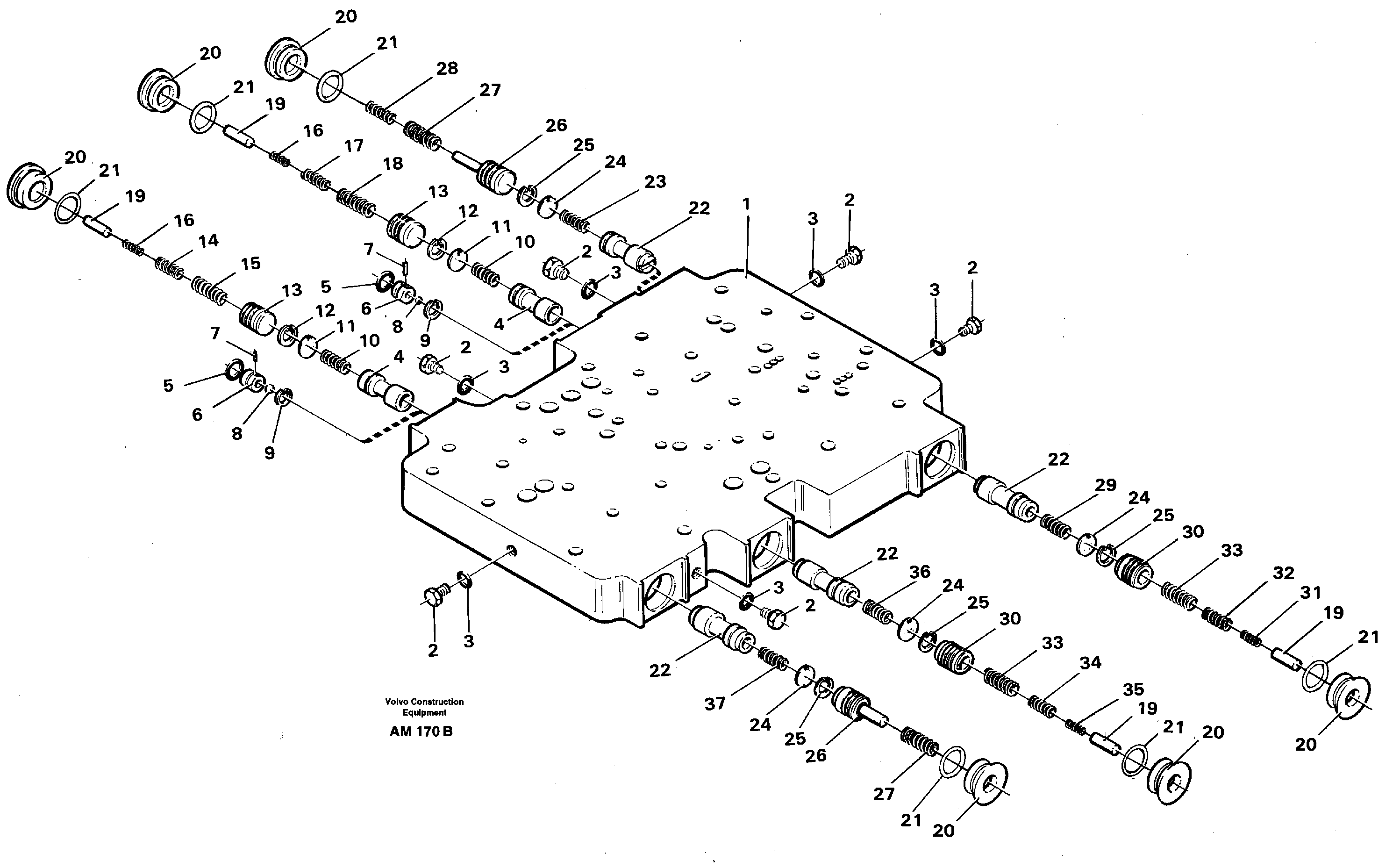

Damping valve block

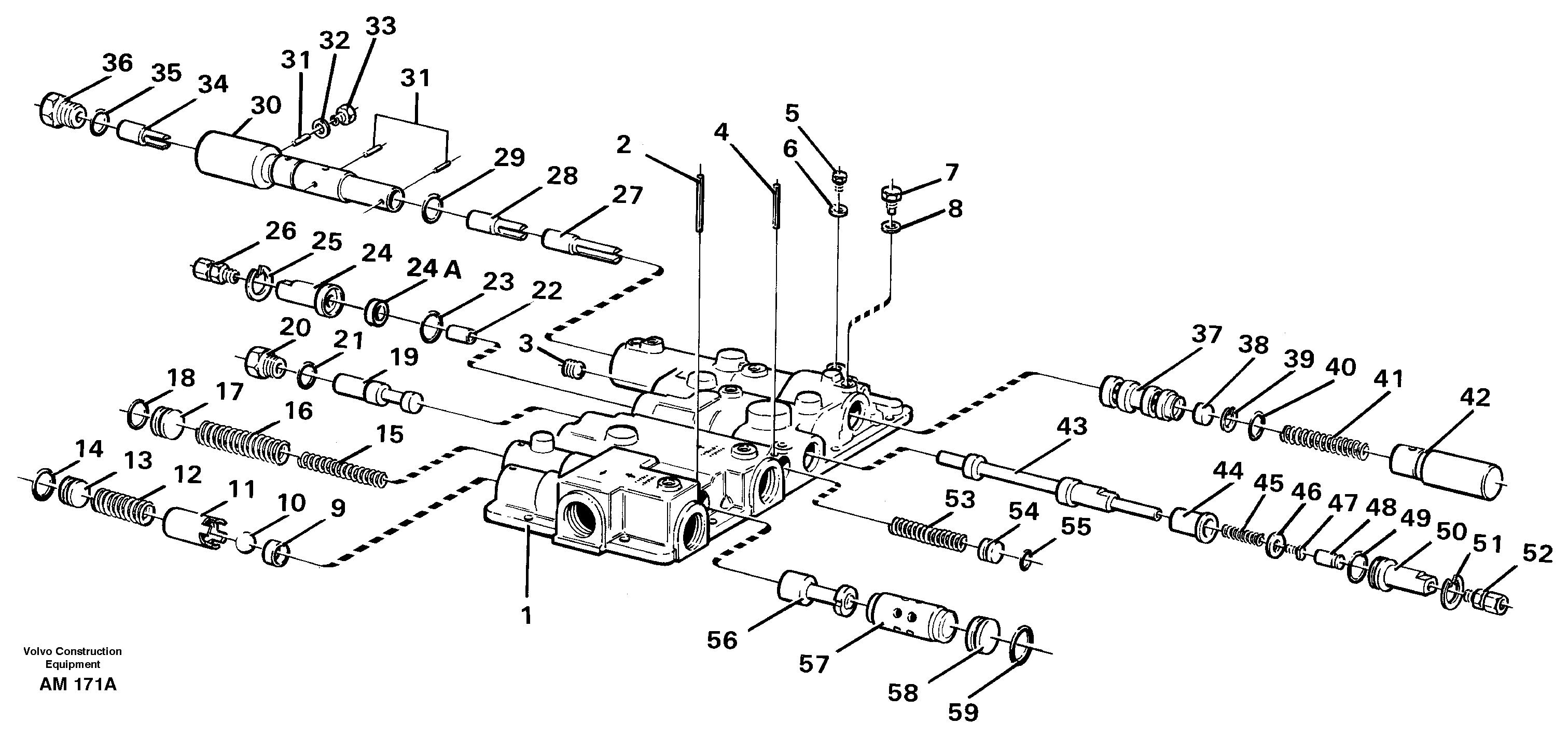

Control valve

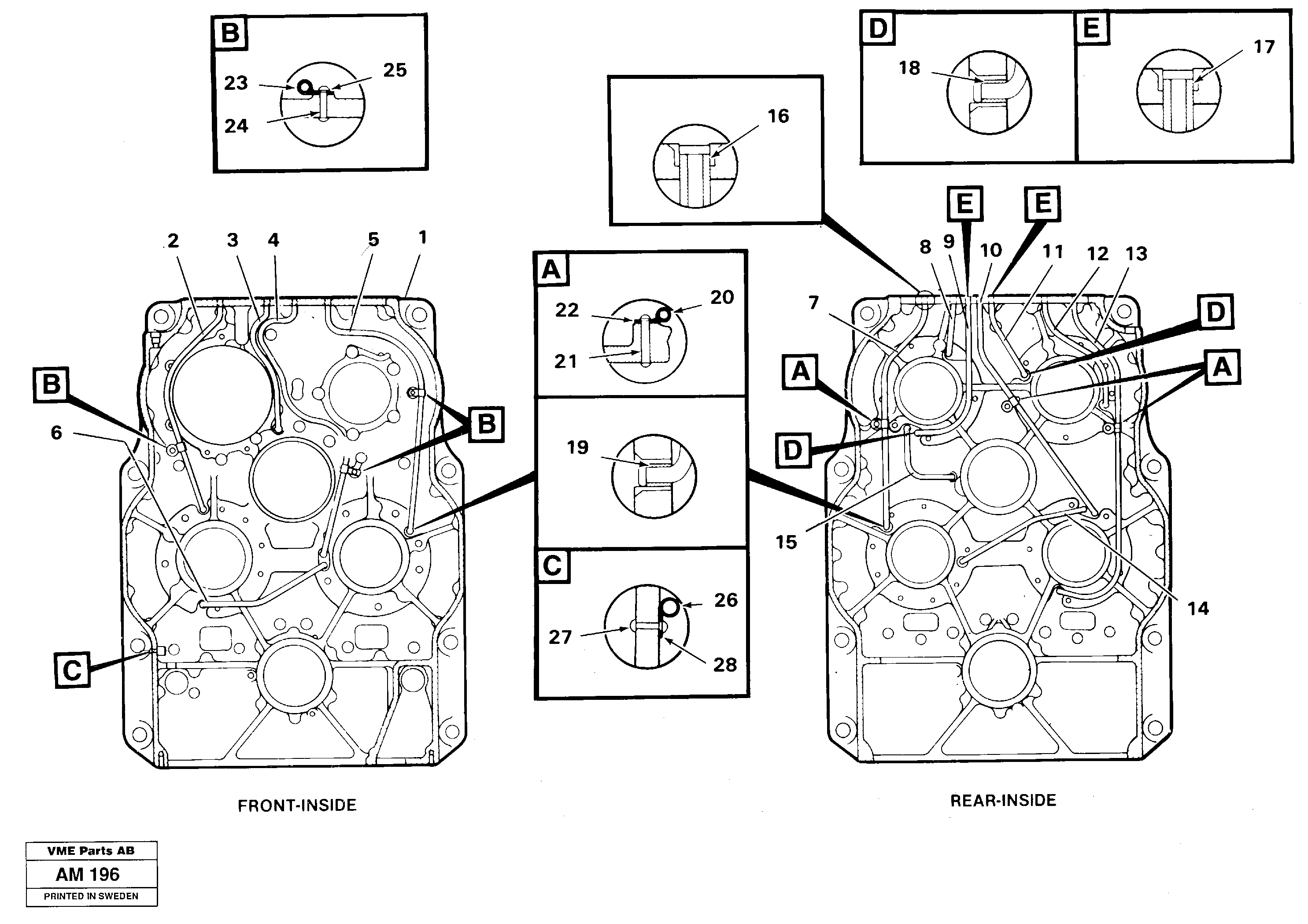

Transmission housing, Internal tubing

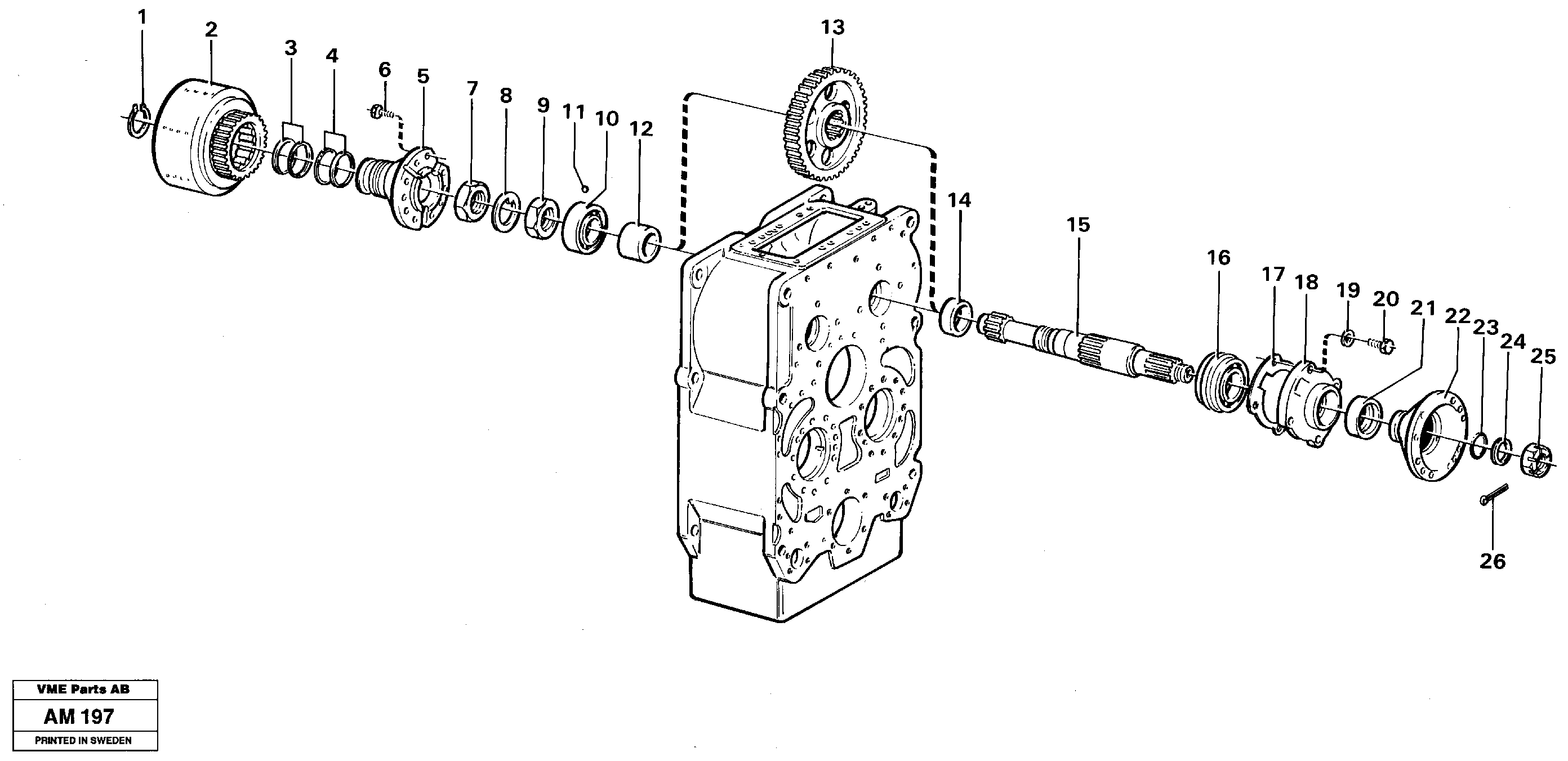

Input shaft, forward

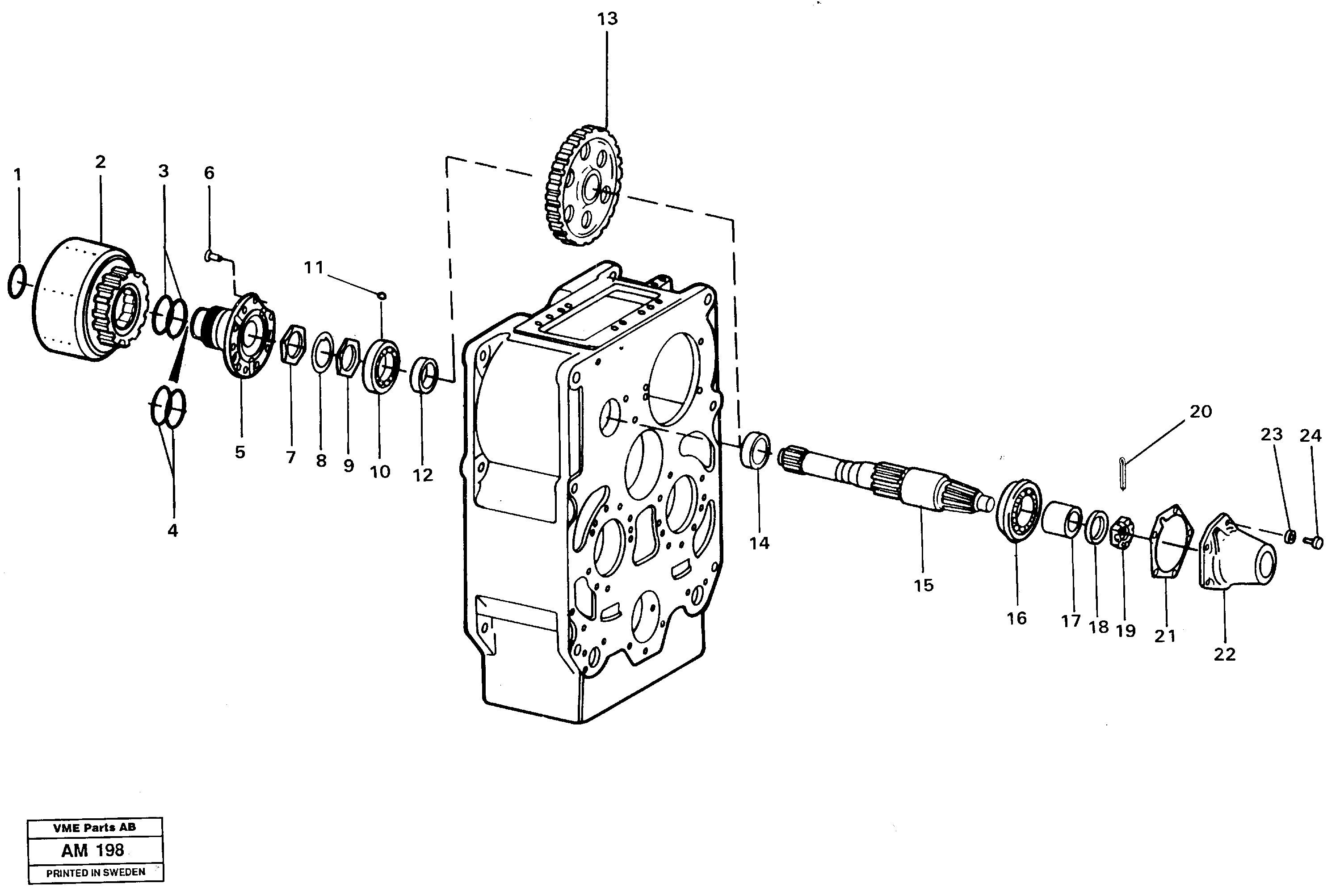

Reverse shaft

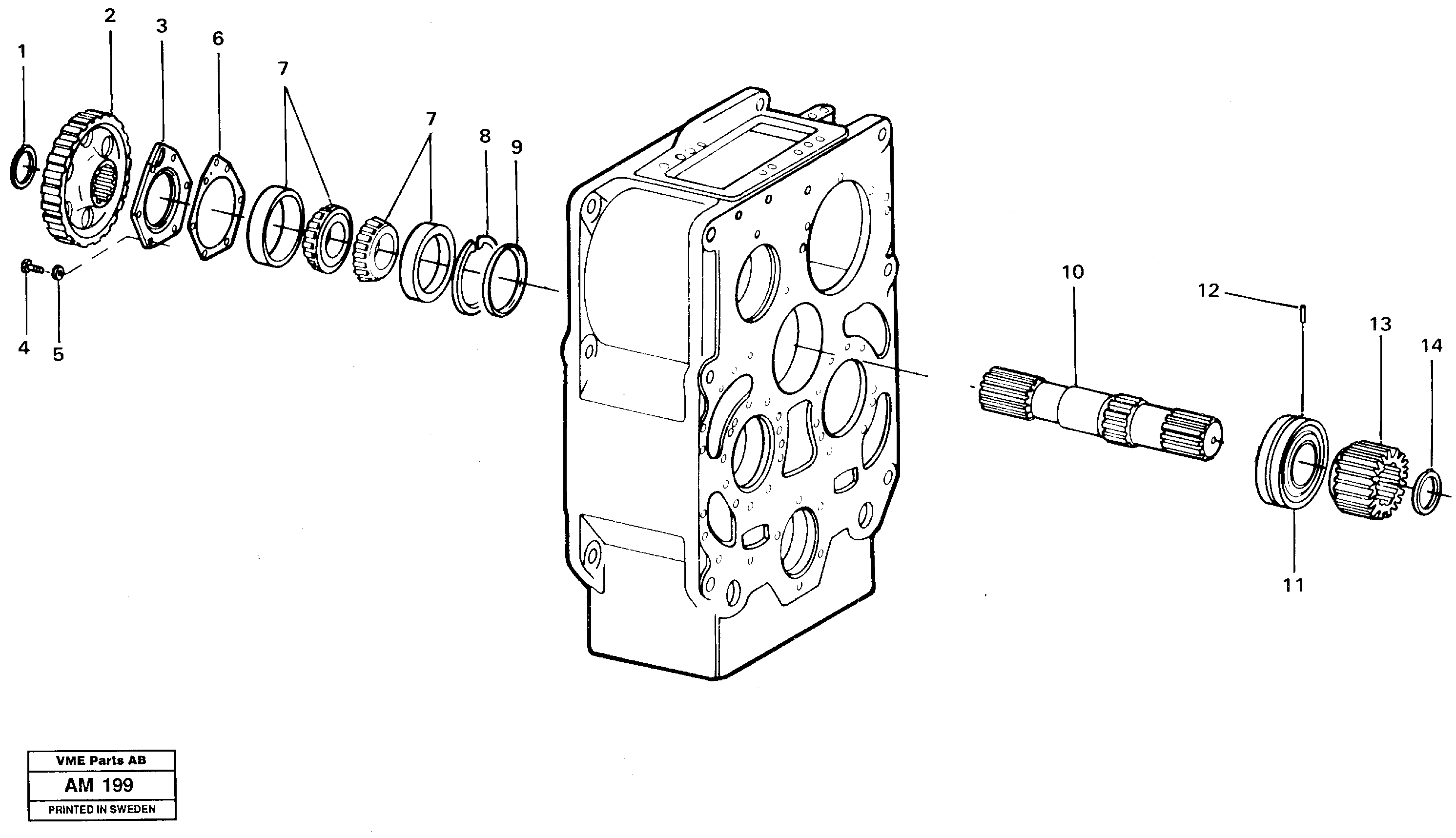

Idler

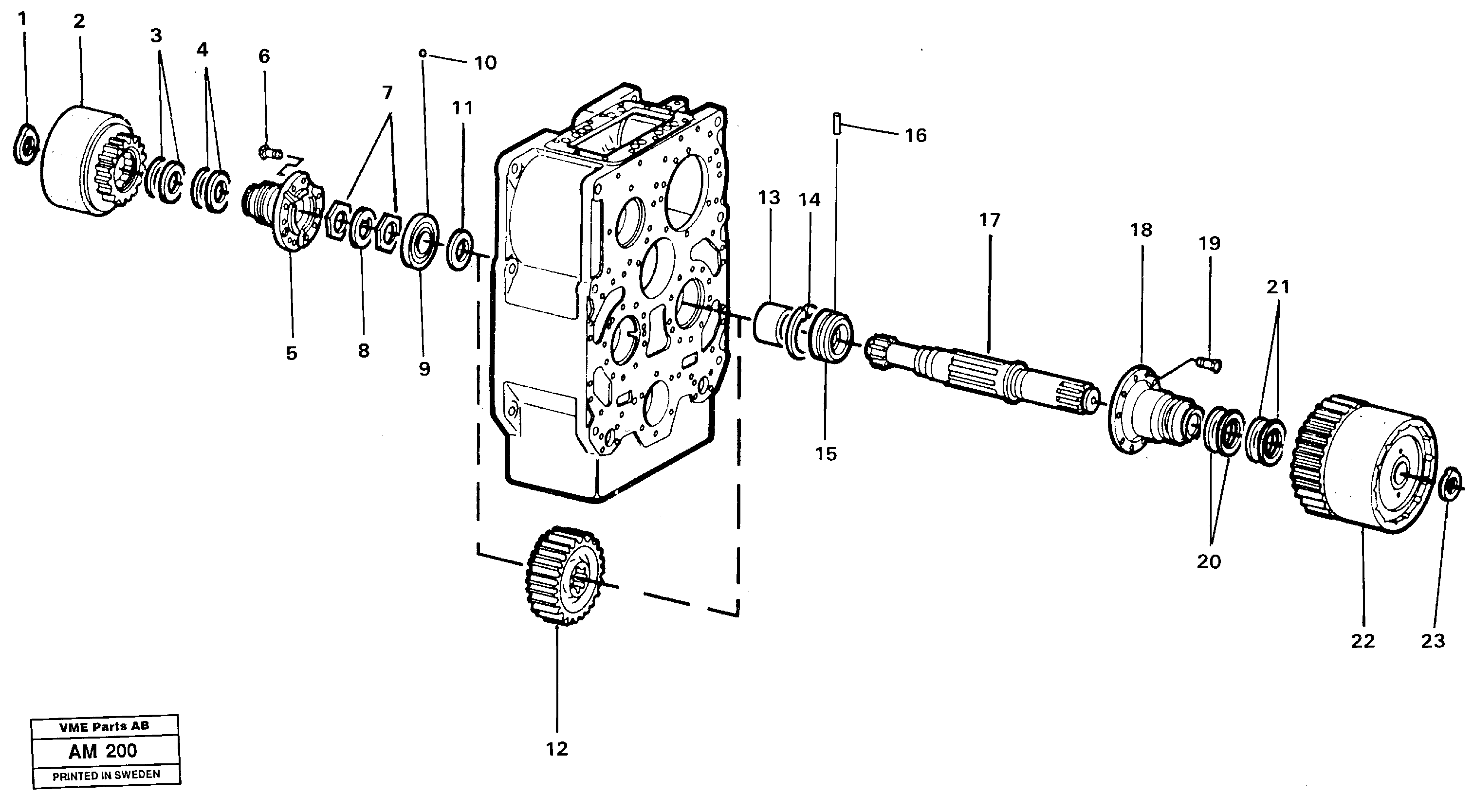

Clutch shaft, 1st & 3rd

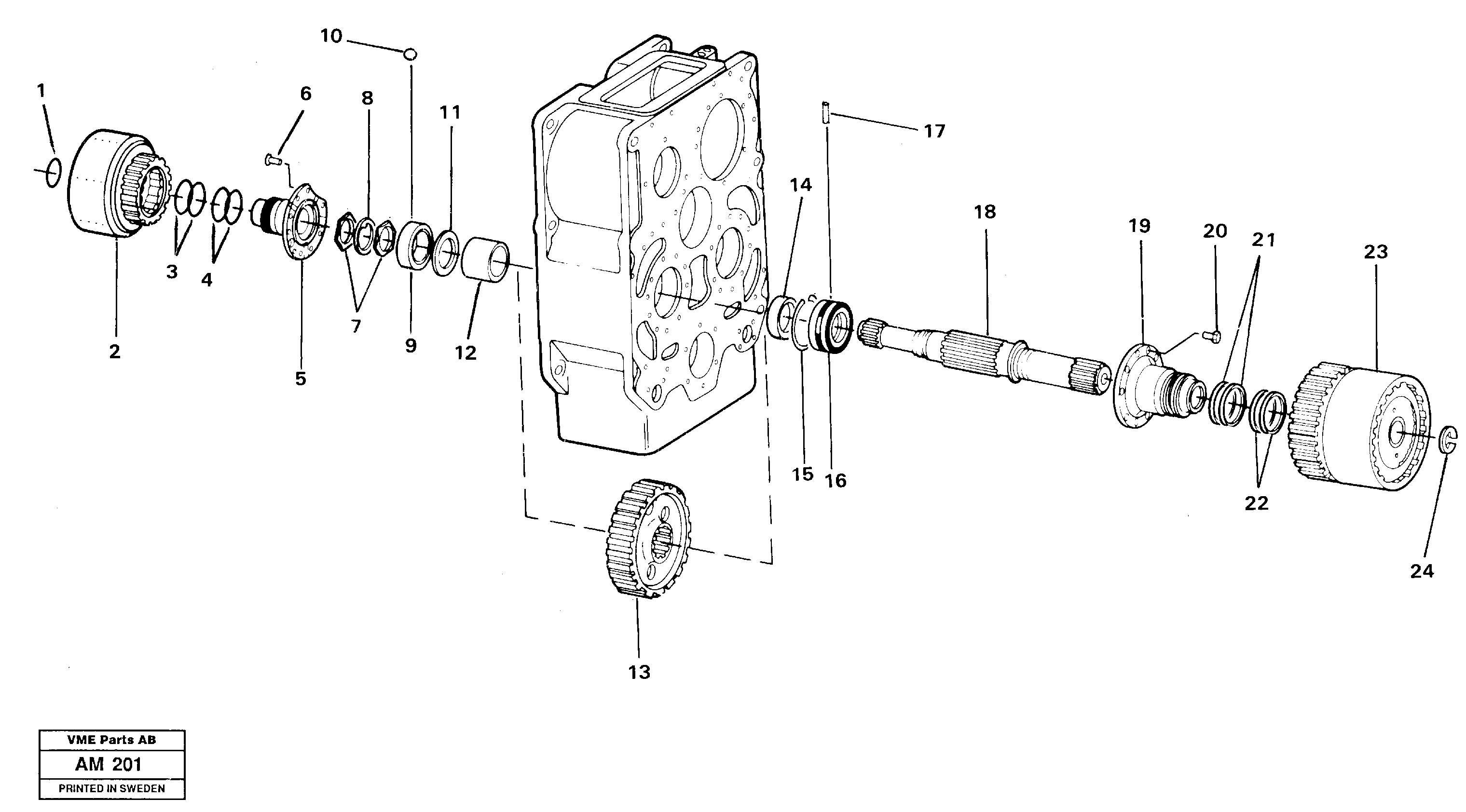

Clutch shaft,2nd & 4th

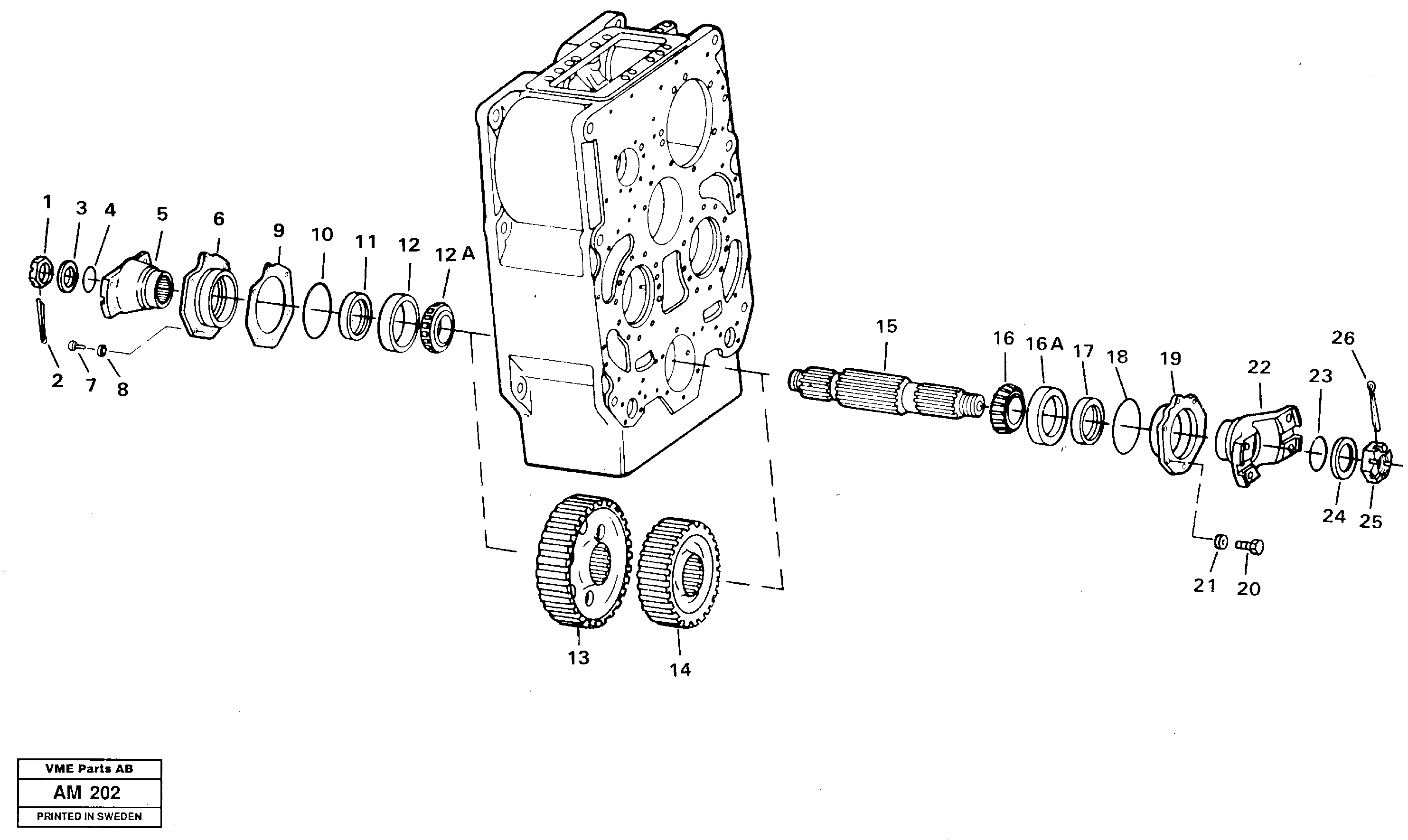

Output gear
Clutch drum, Forward & reverse

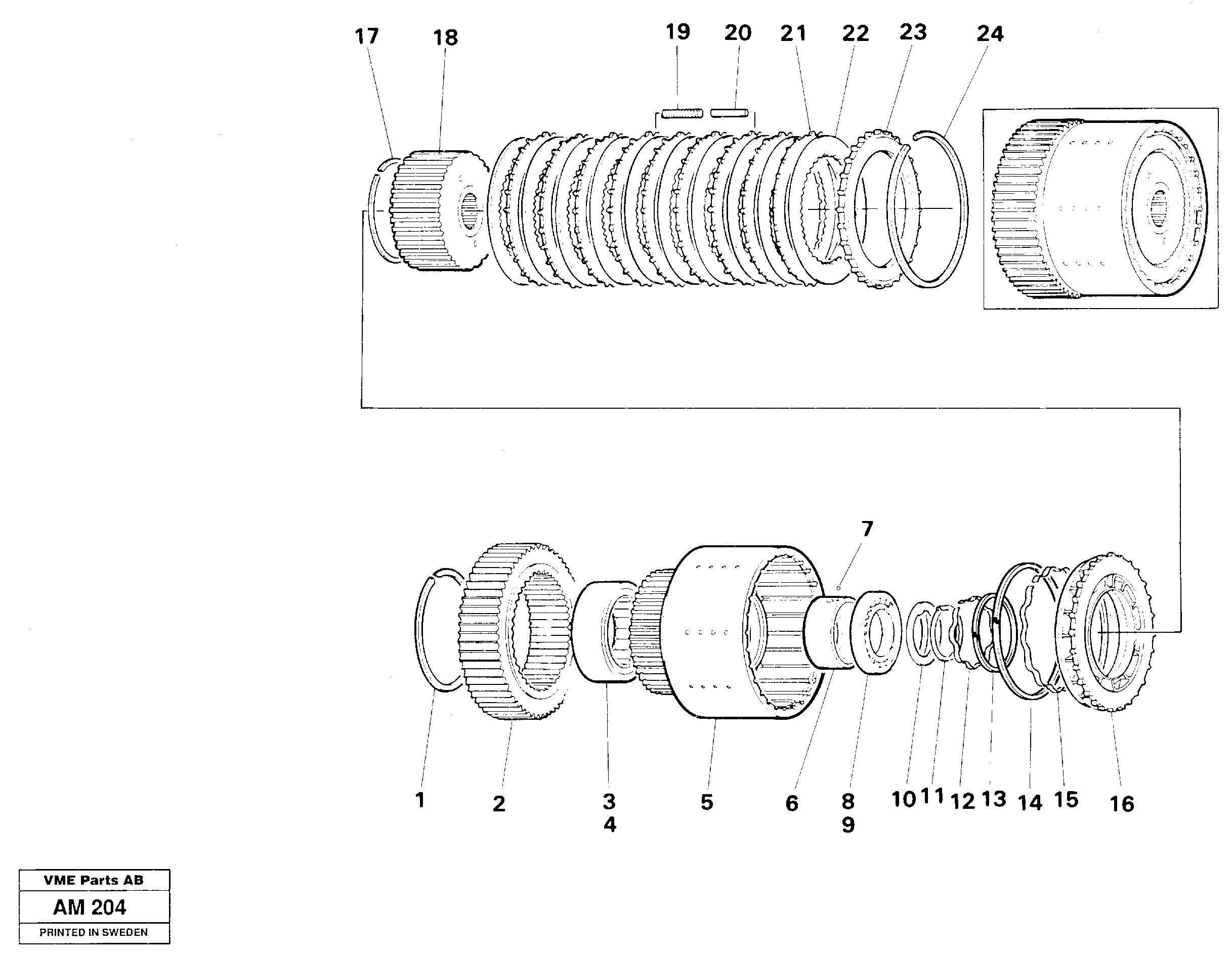

Clutch drum, First & second

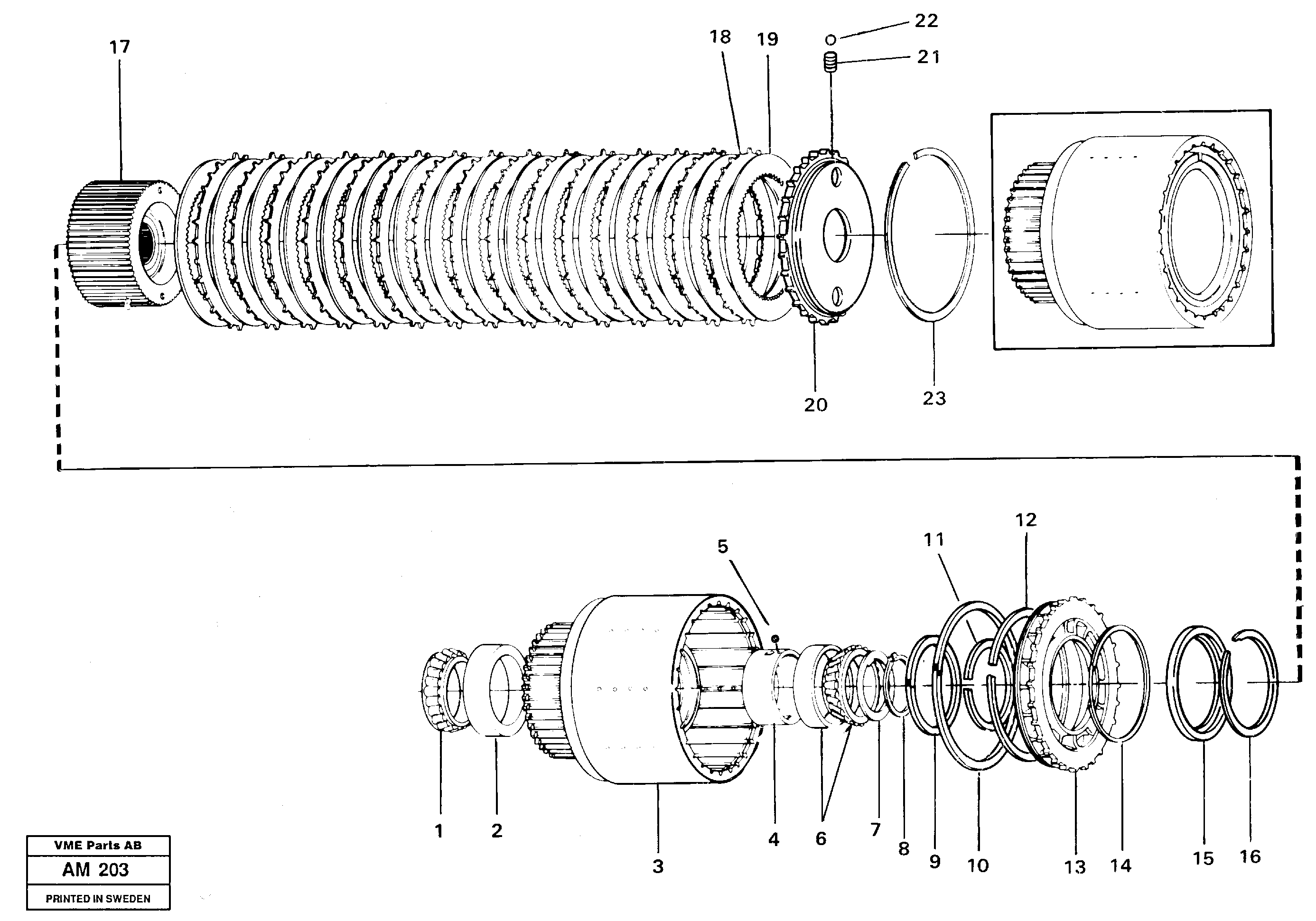

Clutch drum, Third & fourth

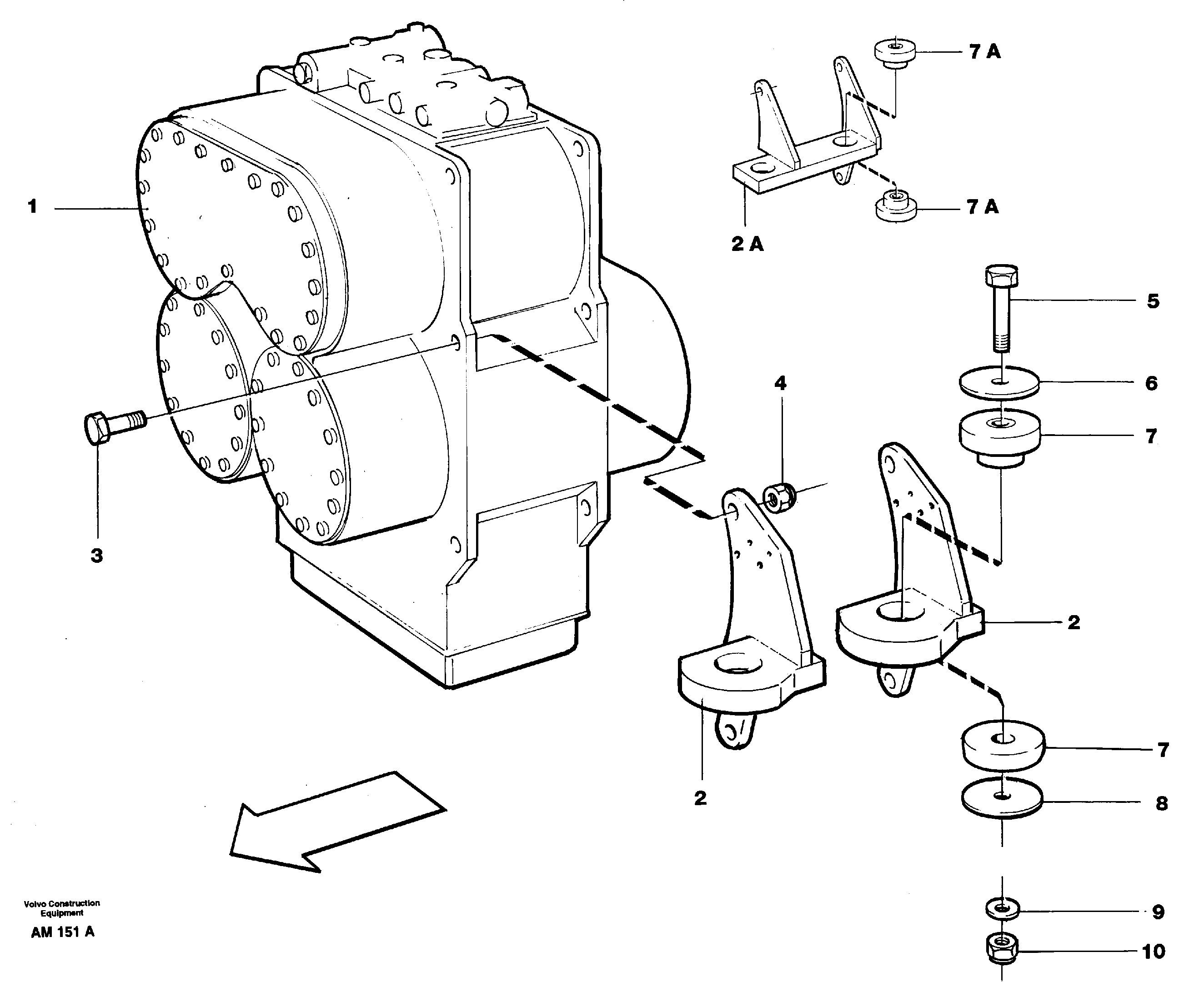

Transmission mounting

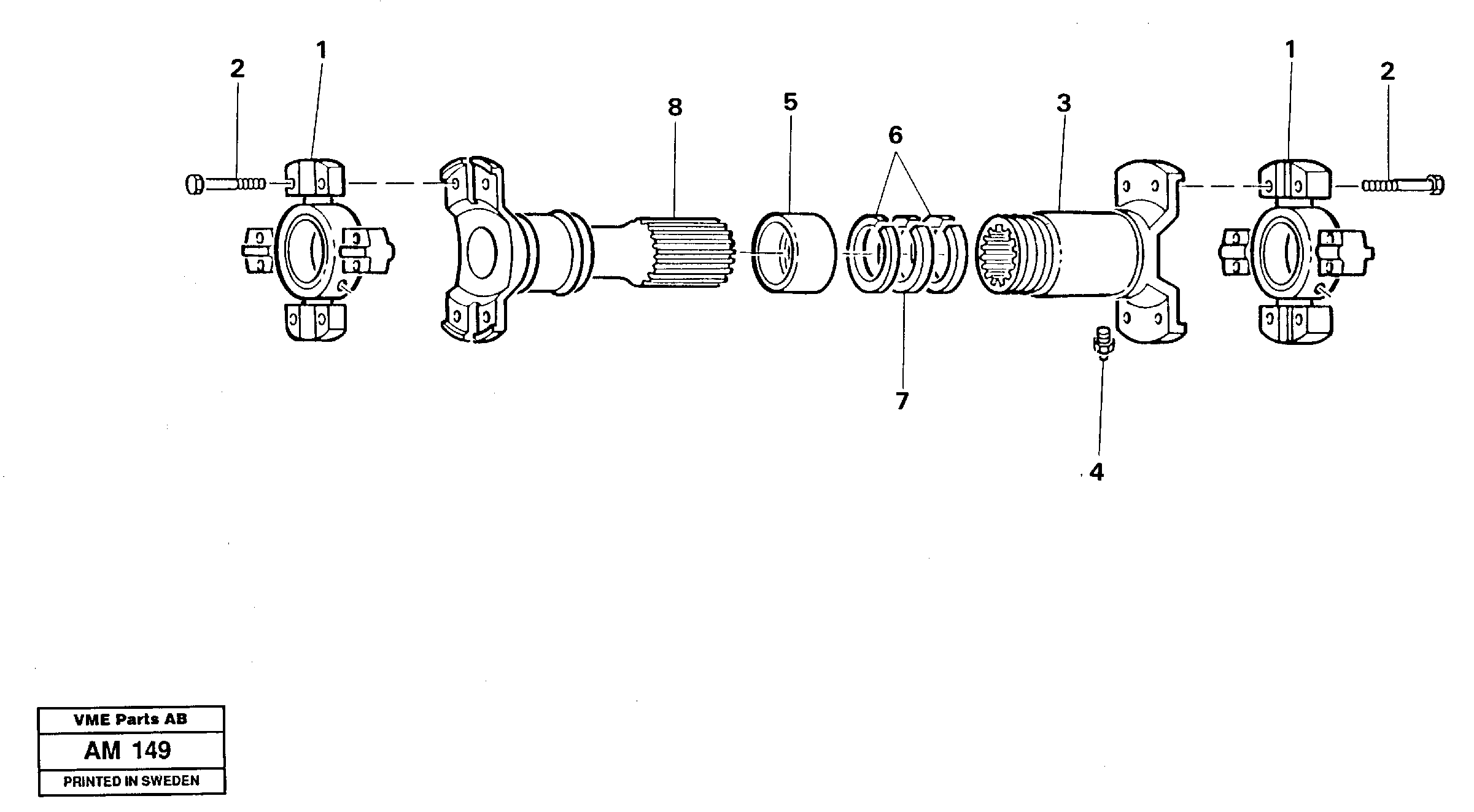

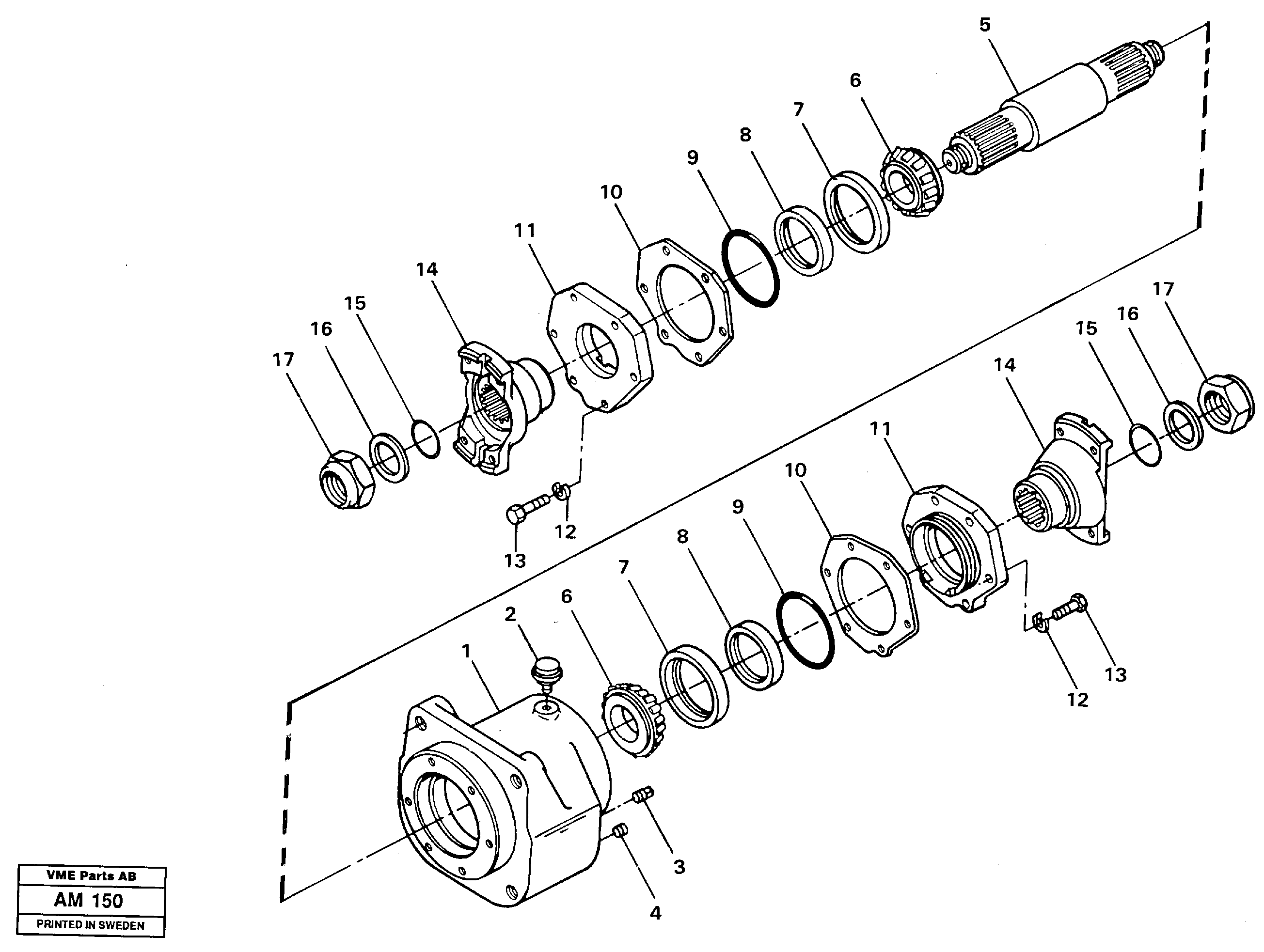

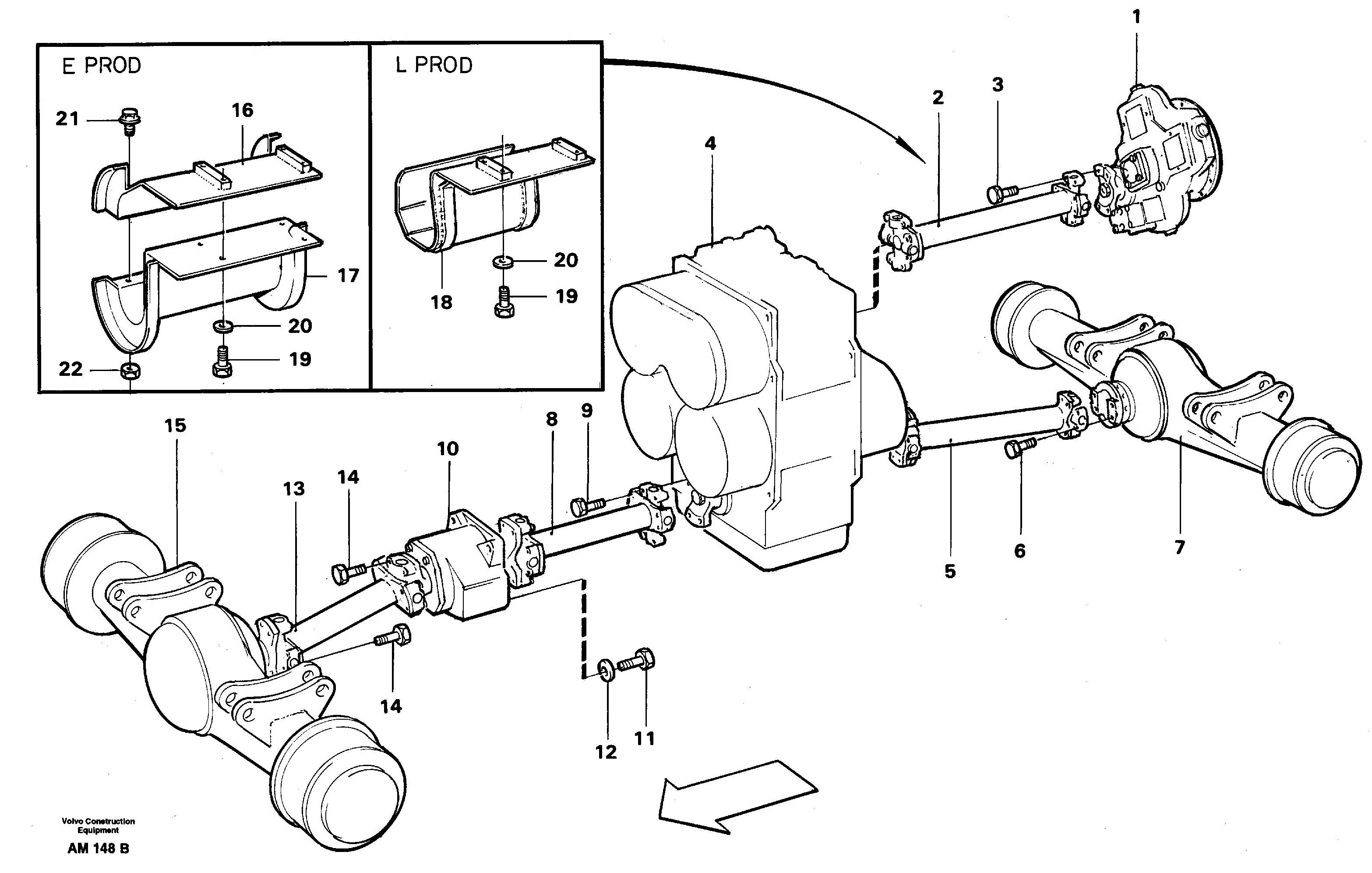

Propeller shaft

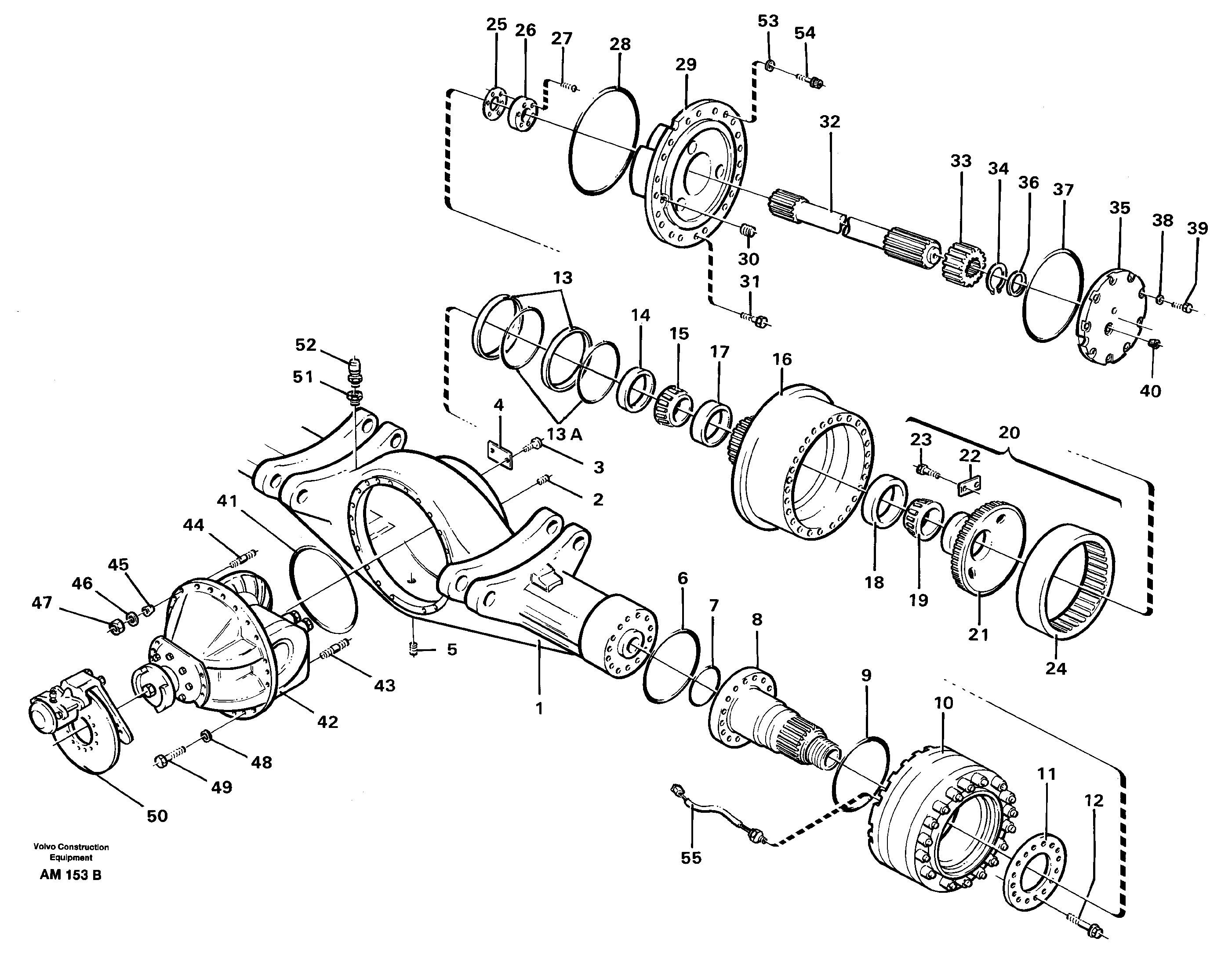

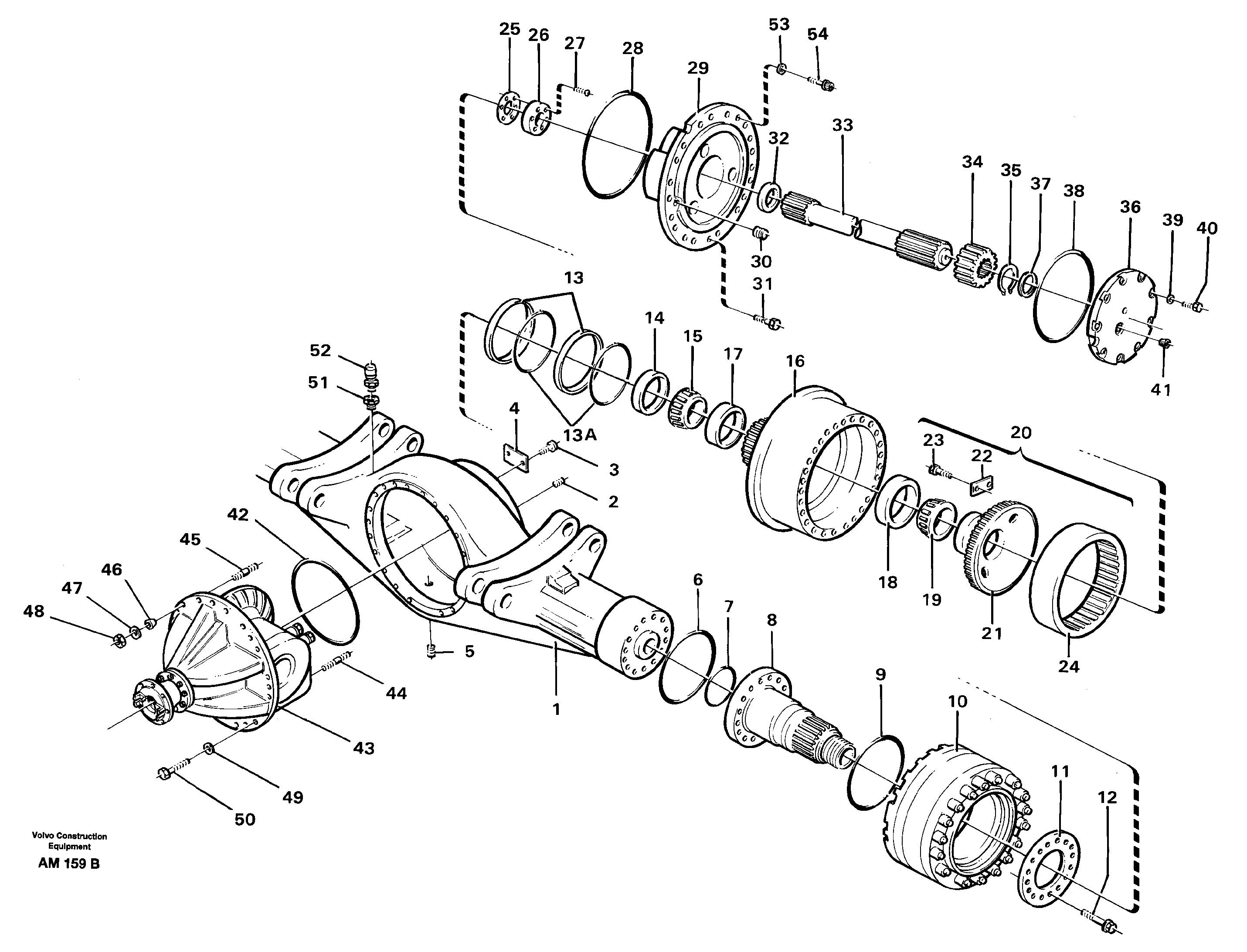

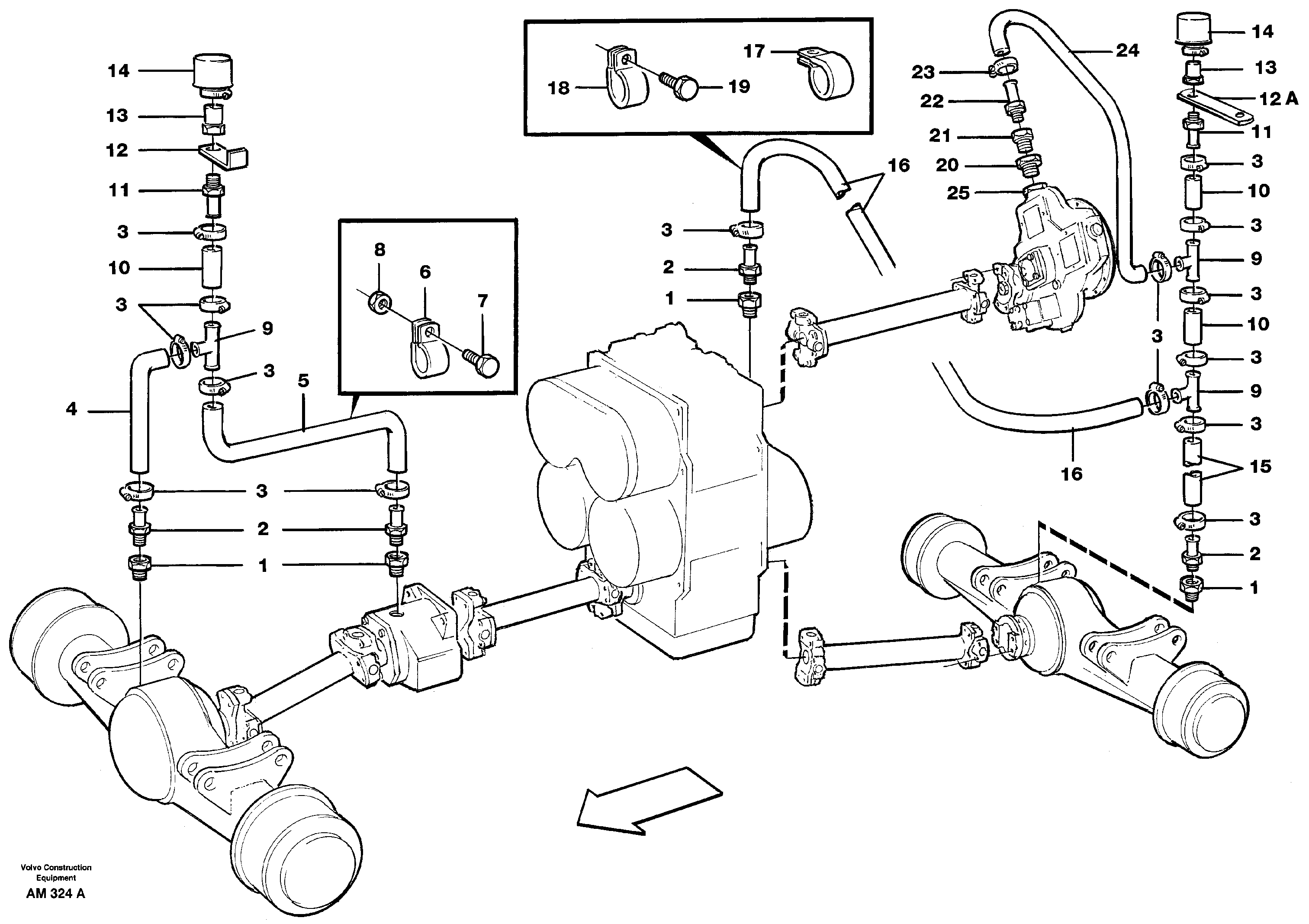

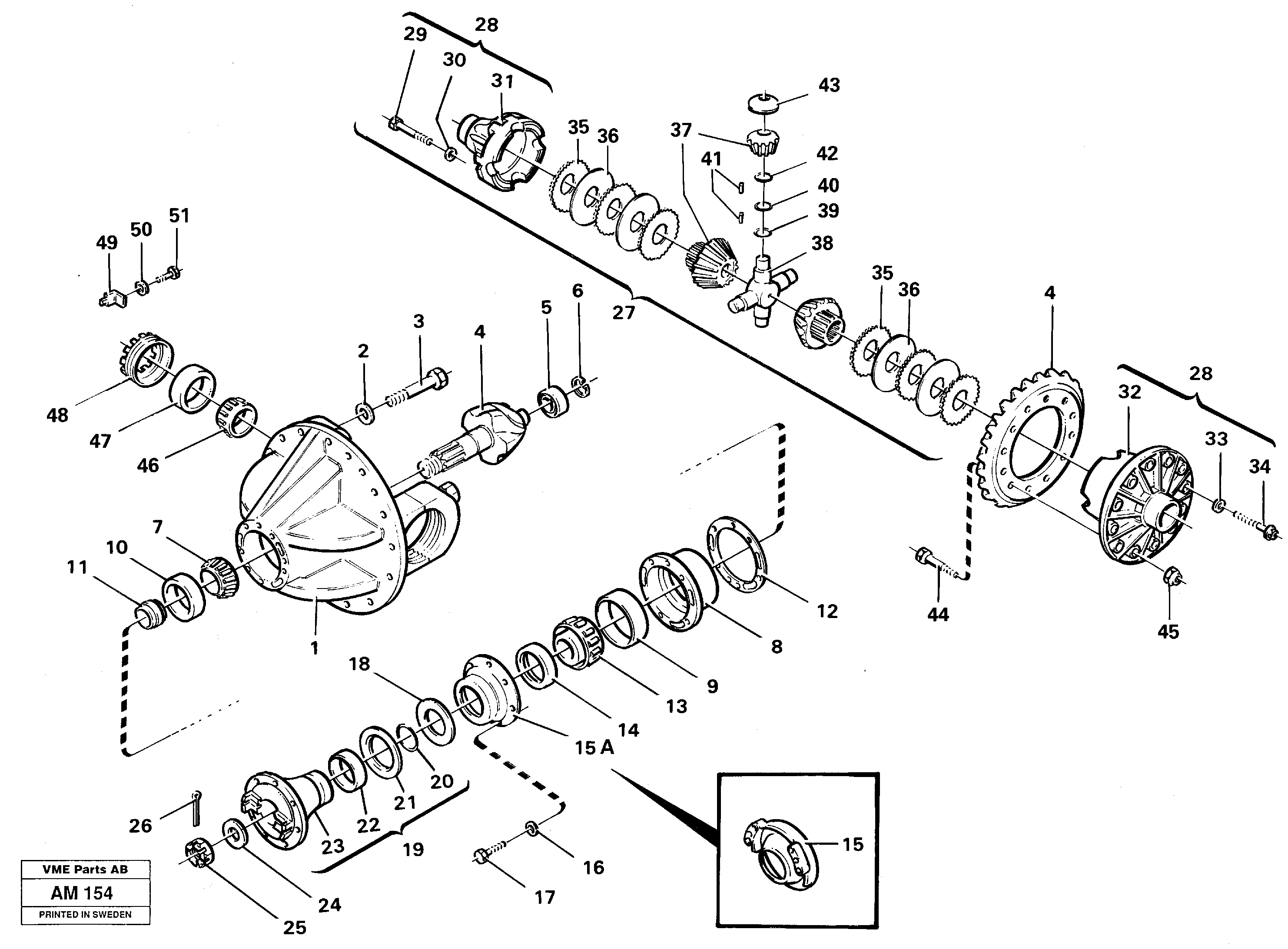

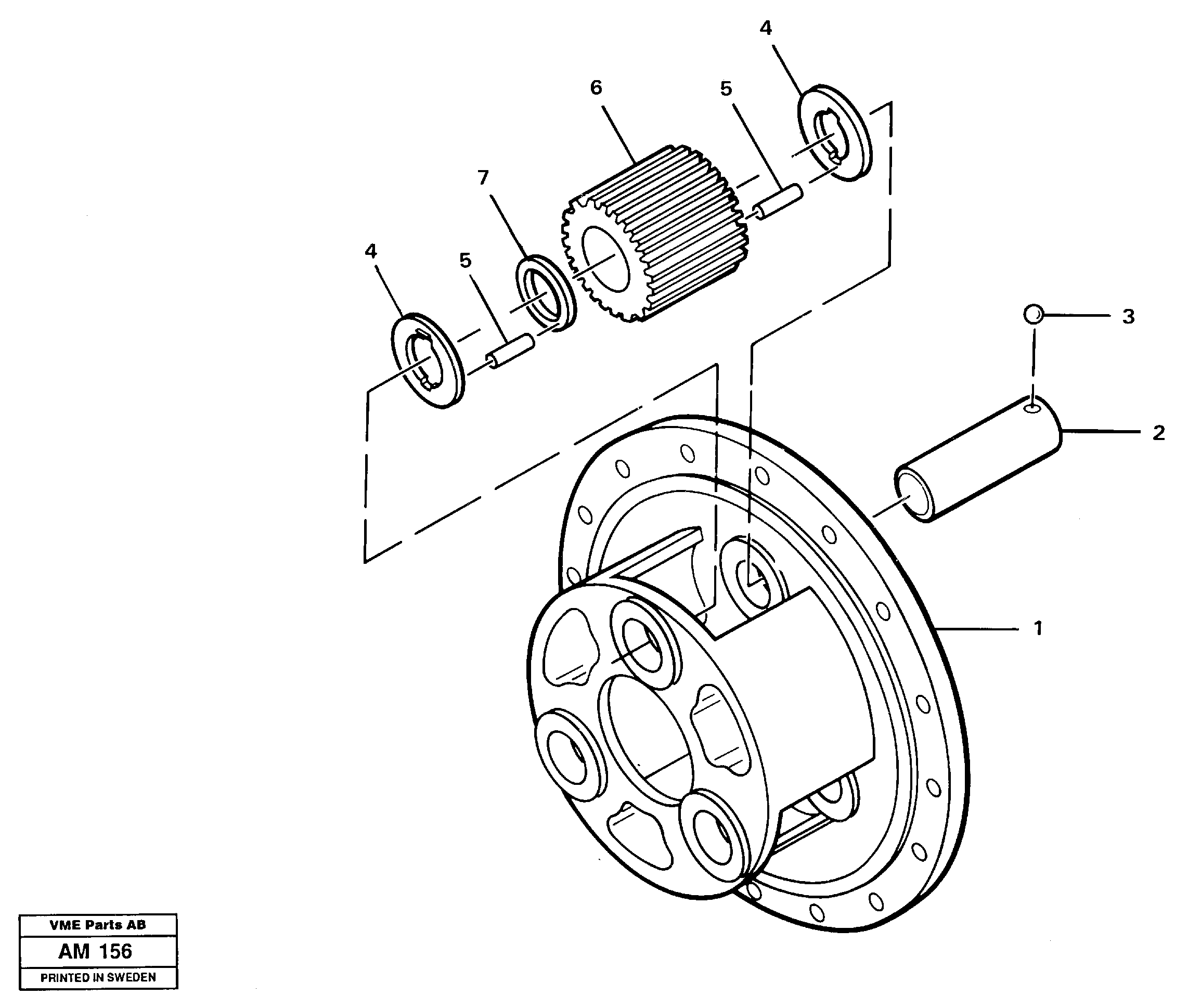

Front axle, rear axle
Miscellaneous
Brake

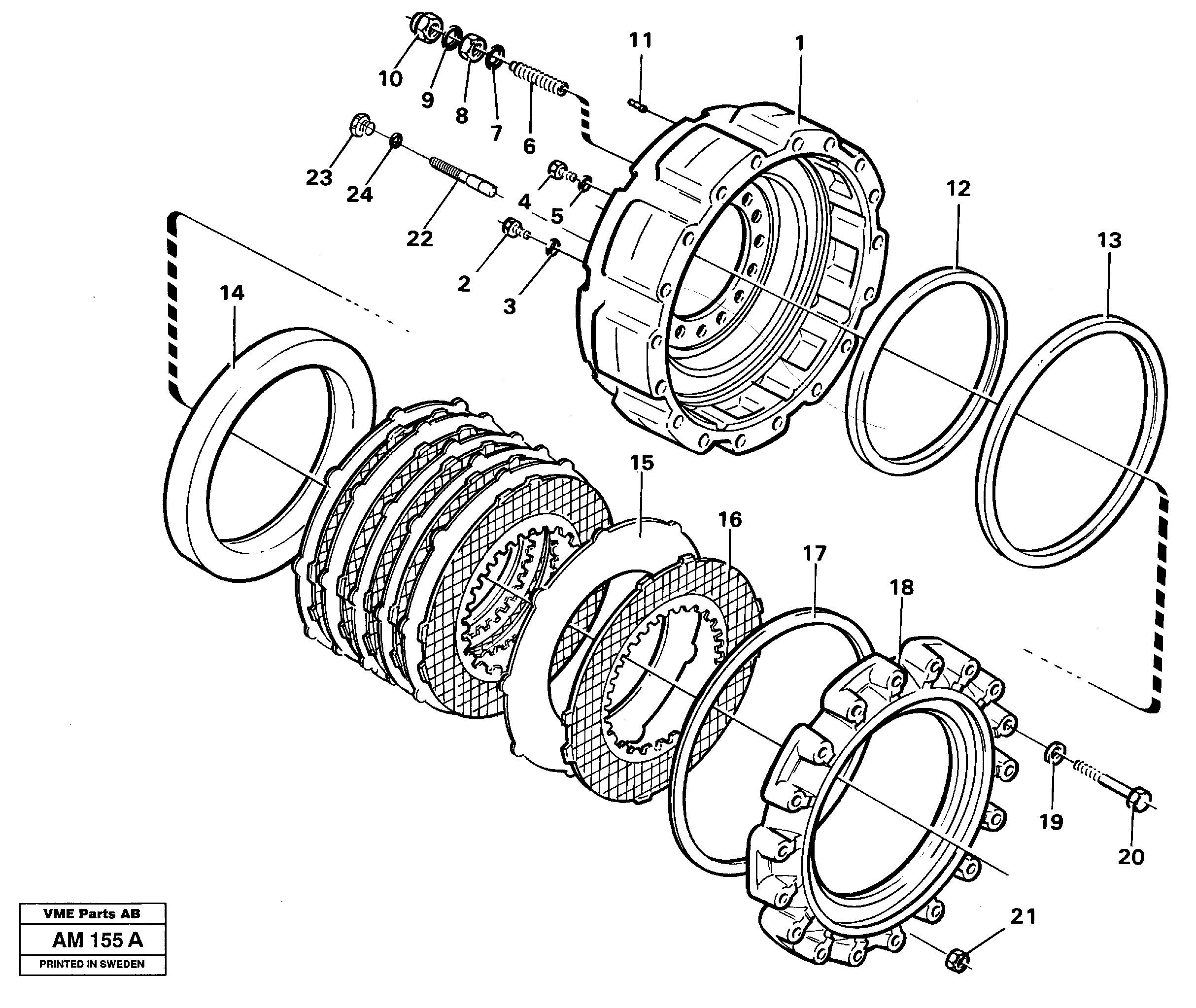

Wheel brake

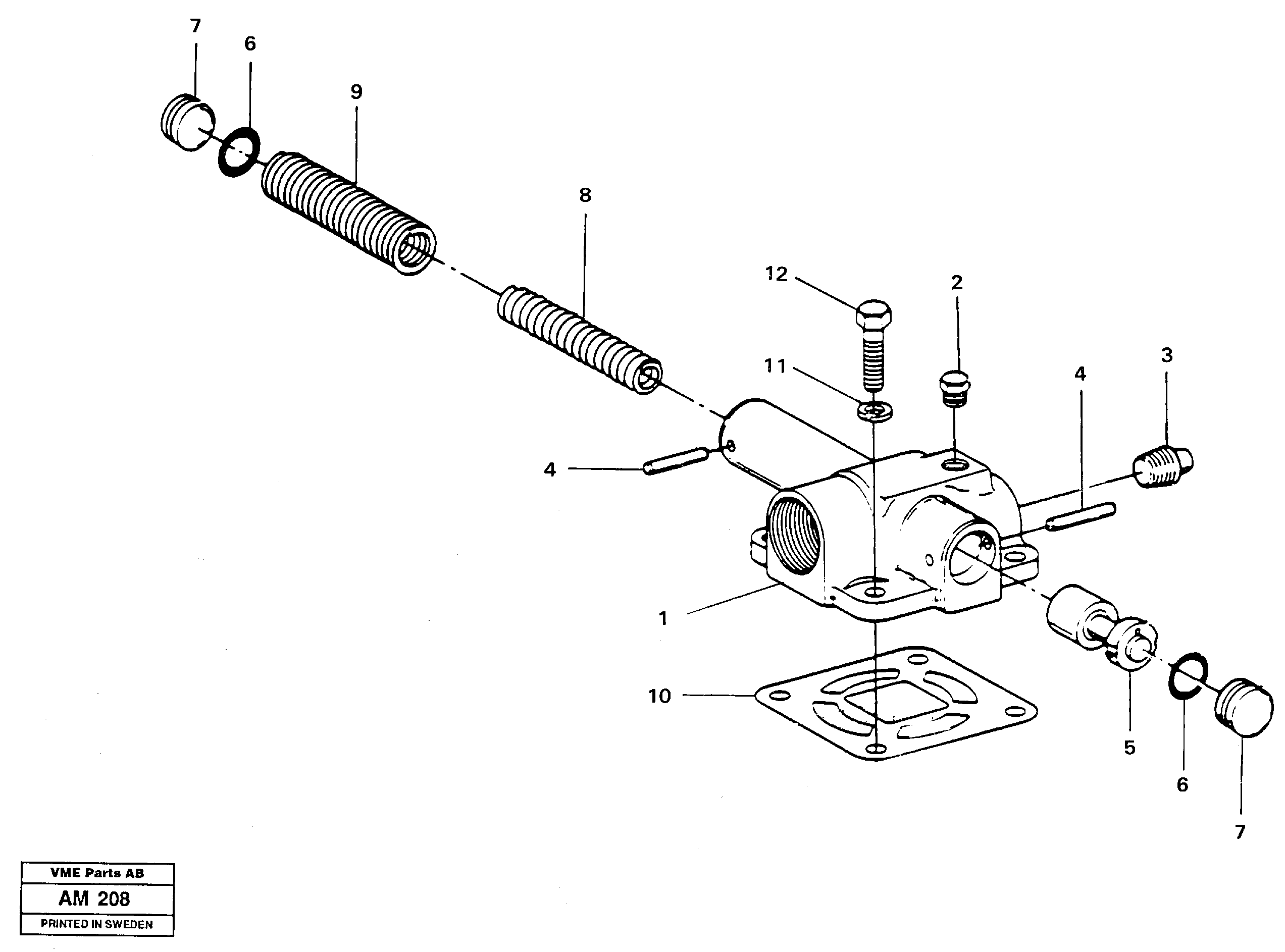

Hydraulic brake system

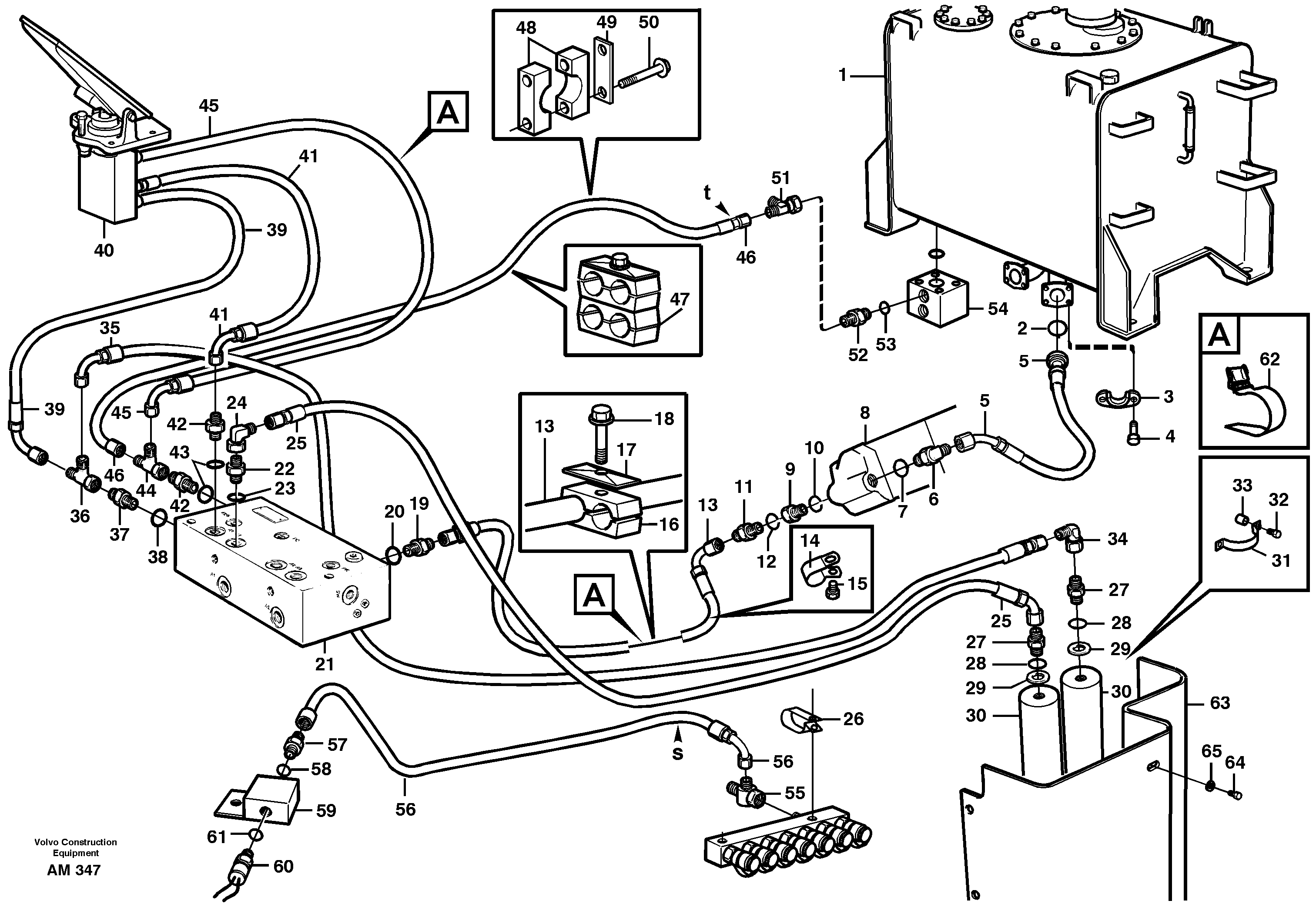

Brake lines,tank-pump- distr. valve-footbr.valve

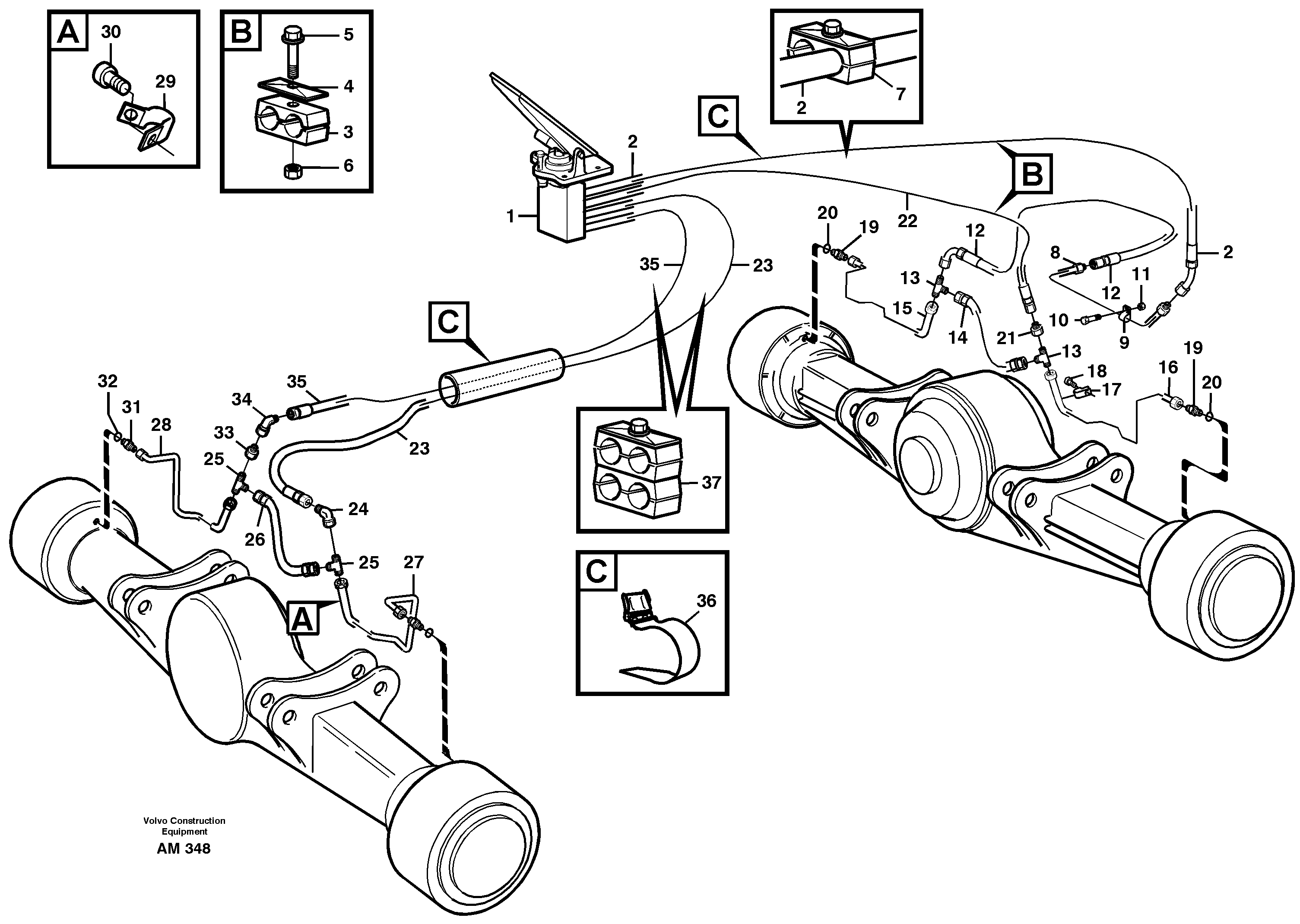

Brake lines, footbrake valve - axles

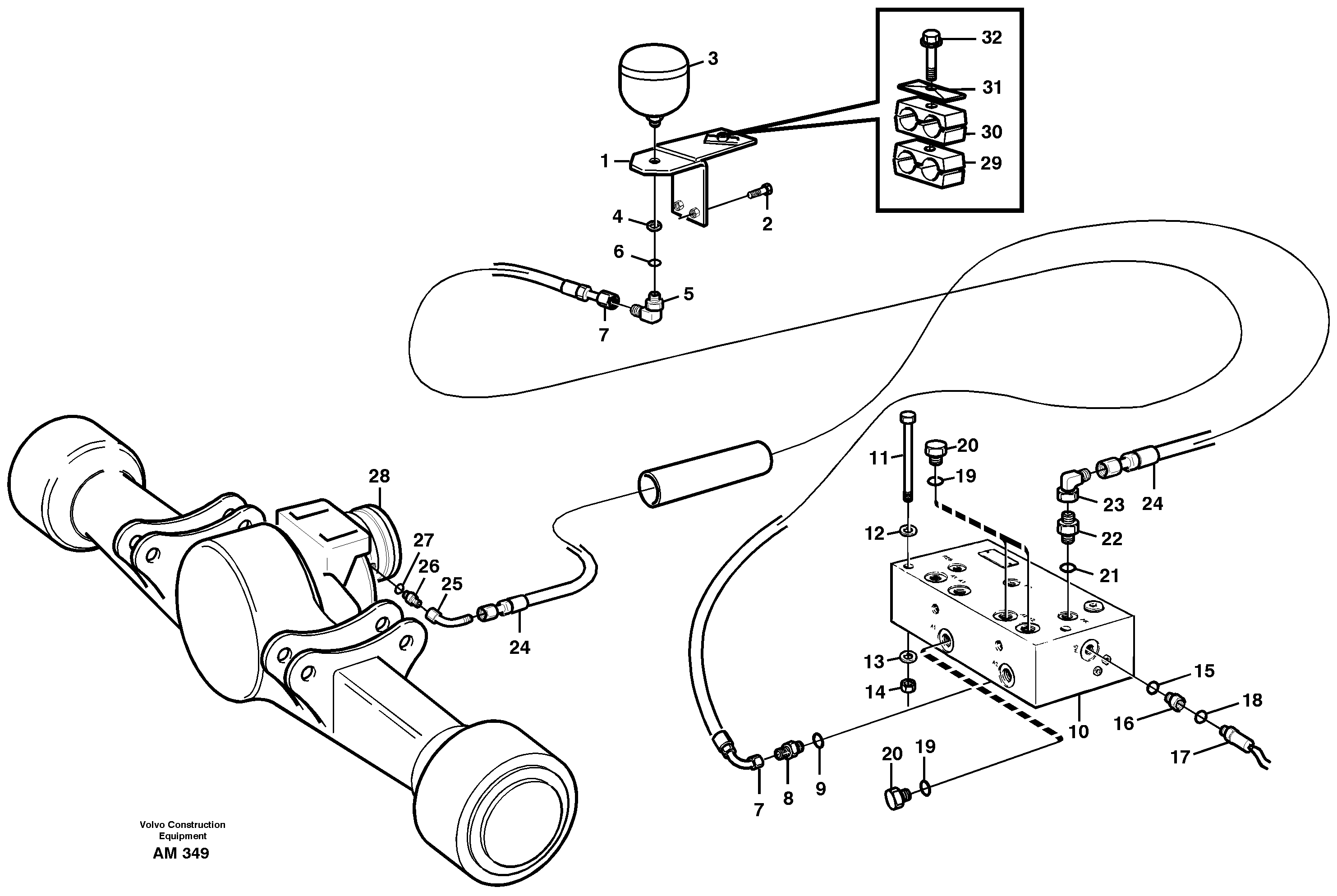

Parking brake system

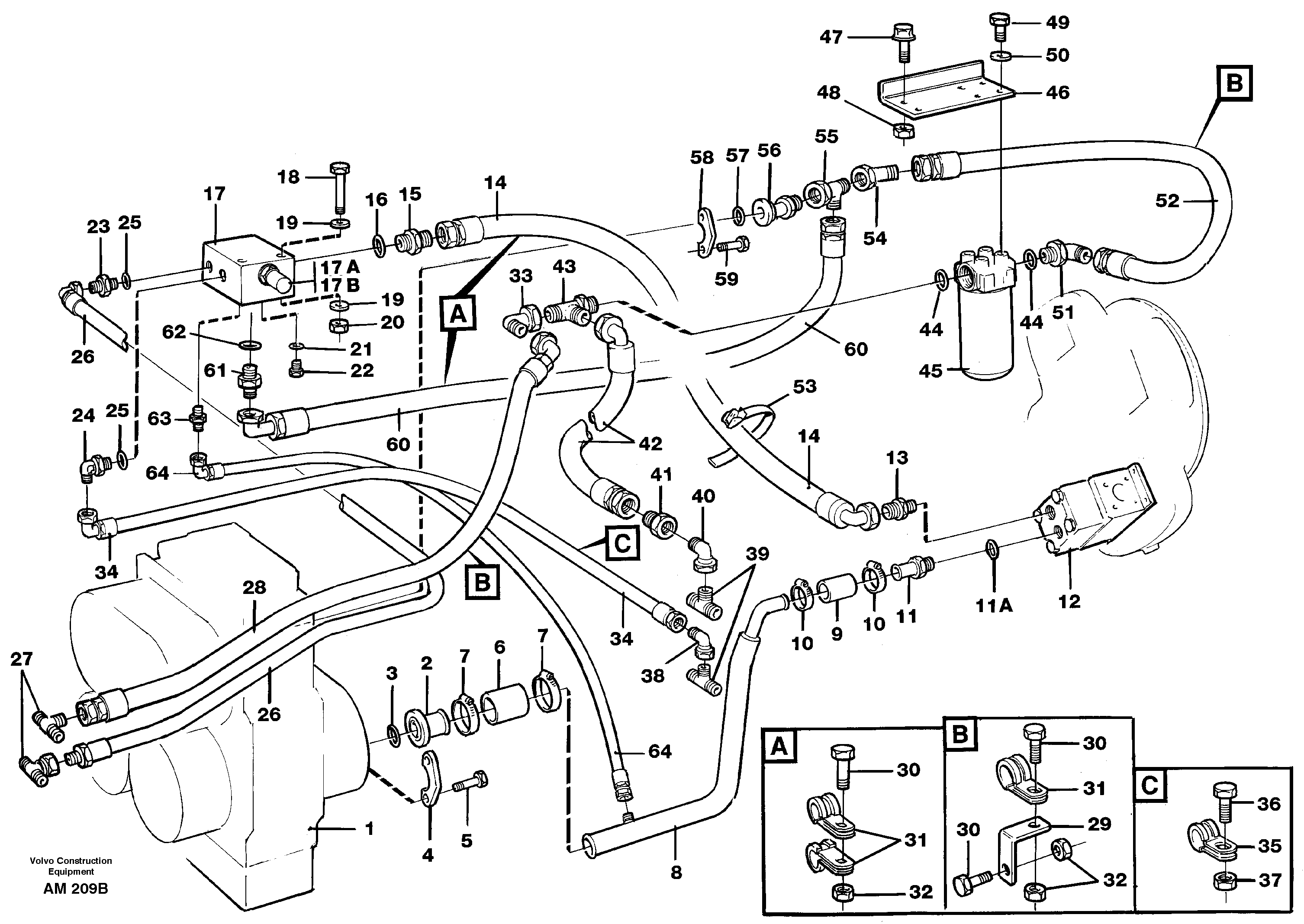

Brake cooling system

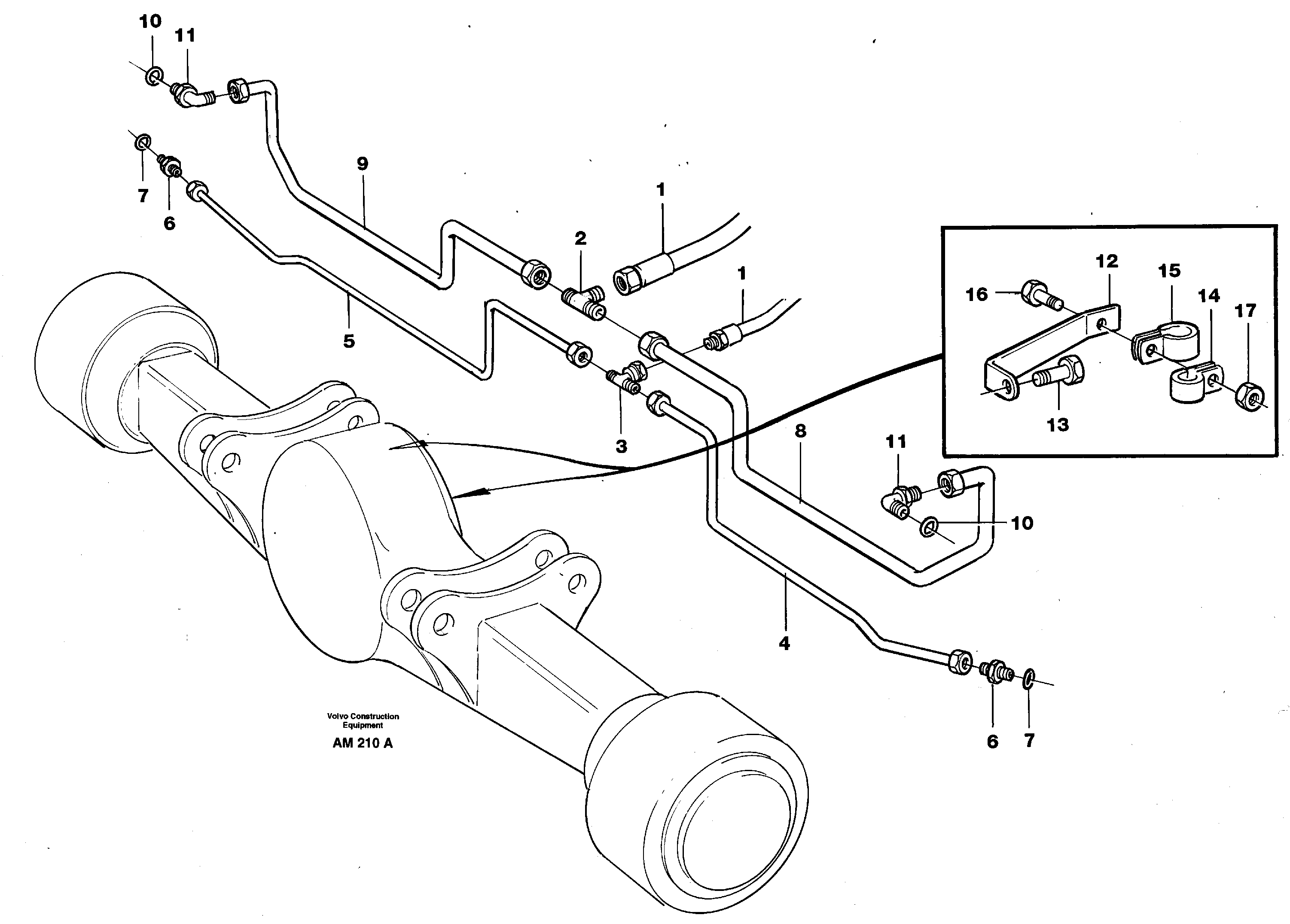

Brake cooling system: front lines

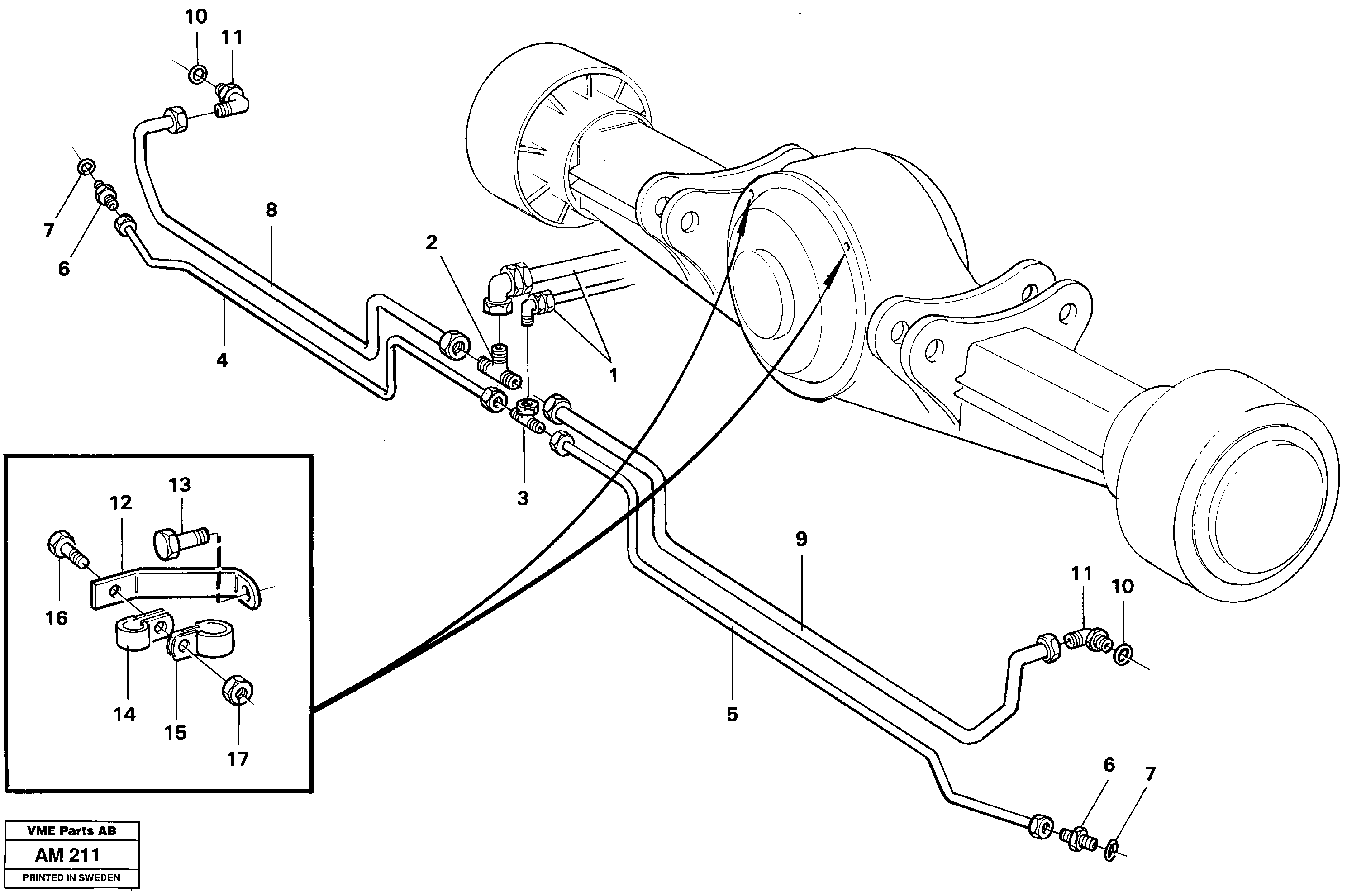

Brake cooling system: rear lines

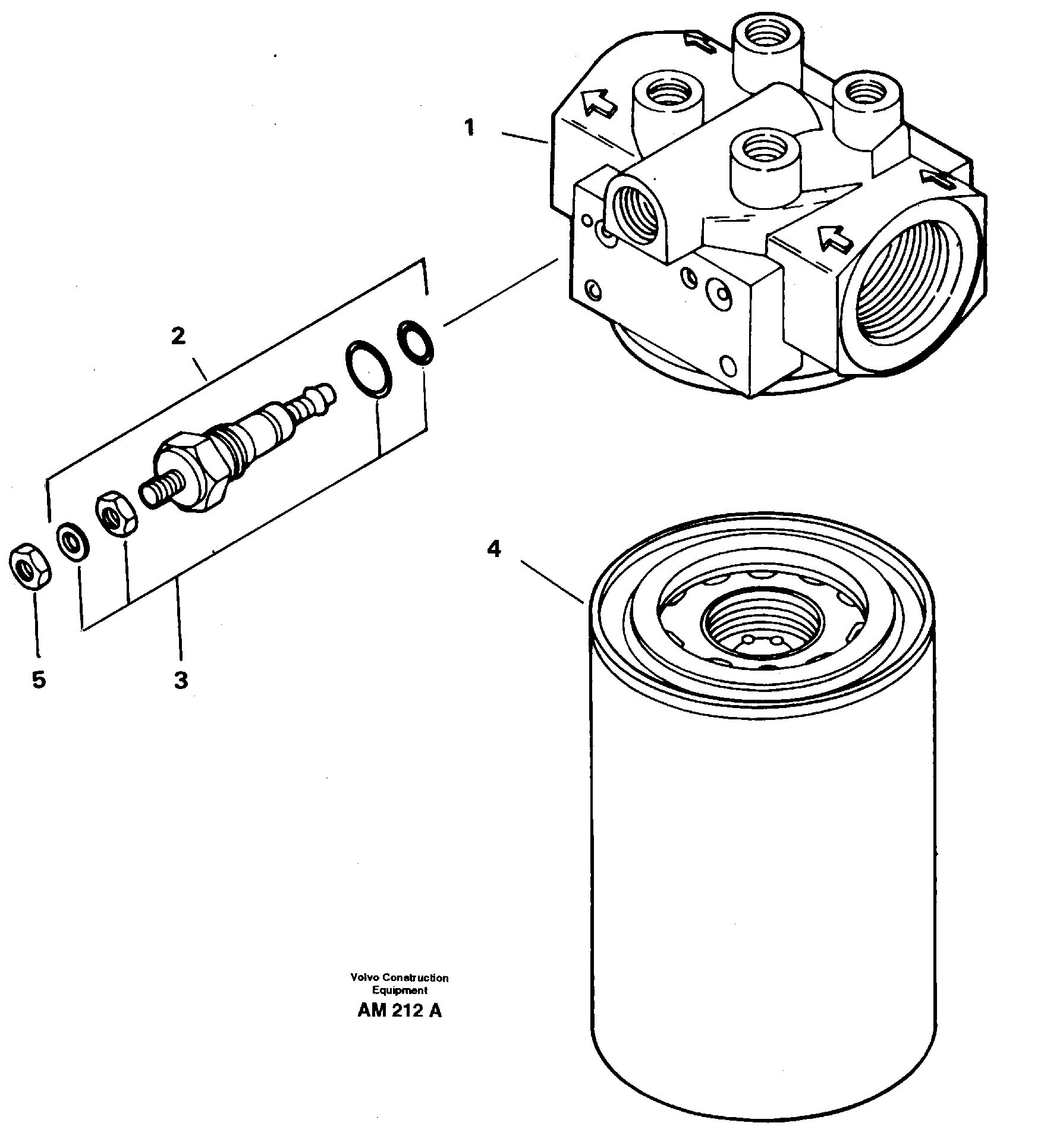

Brake cooling system: filter

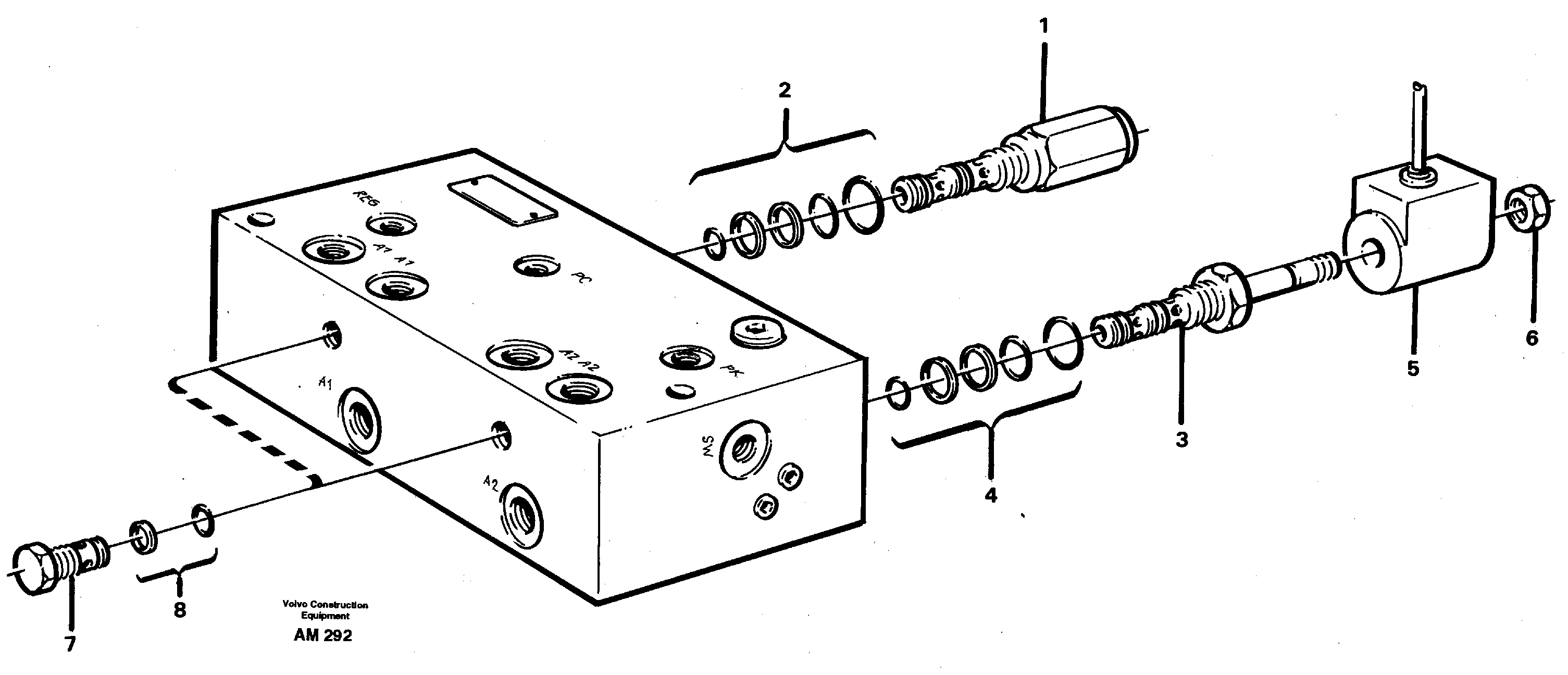

Distribution valve

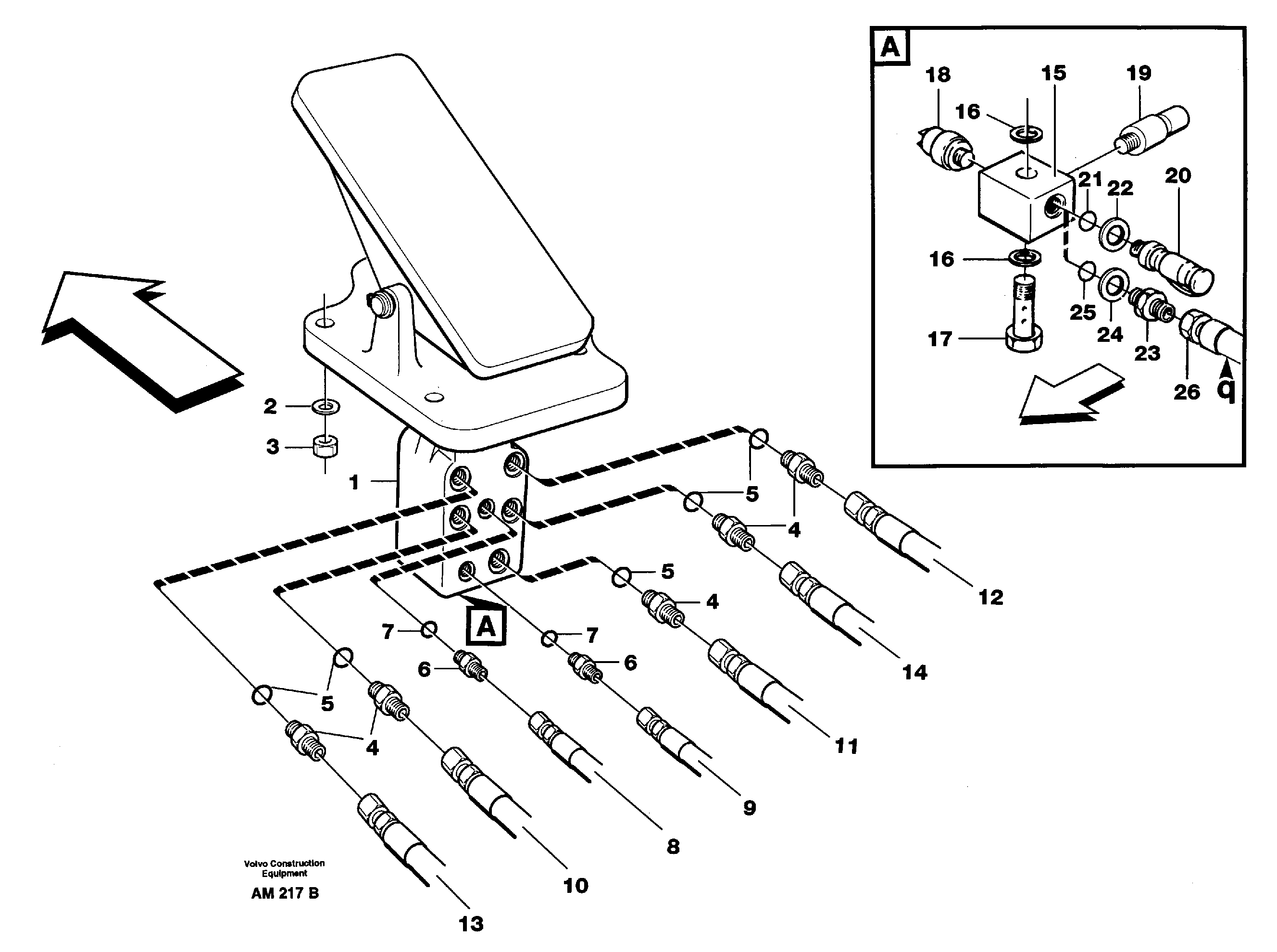

Footbrake valve, mounting

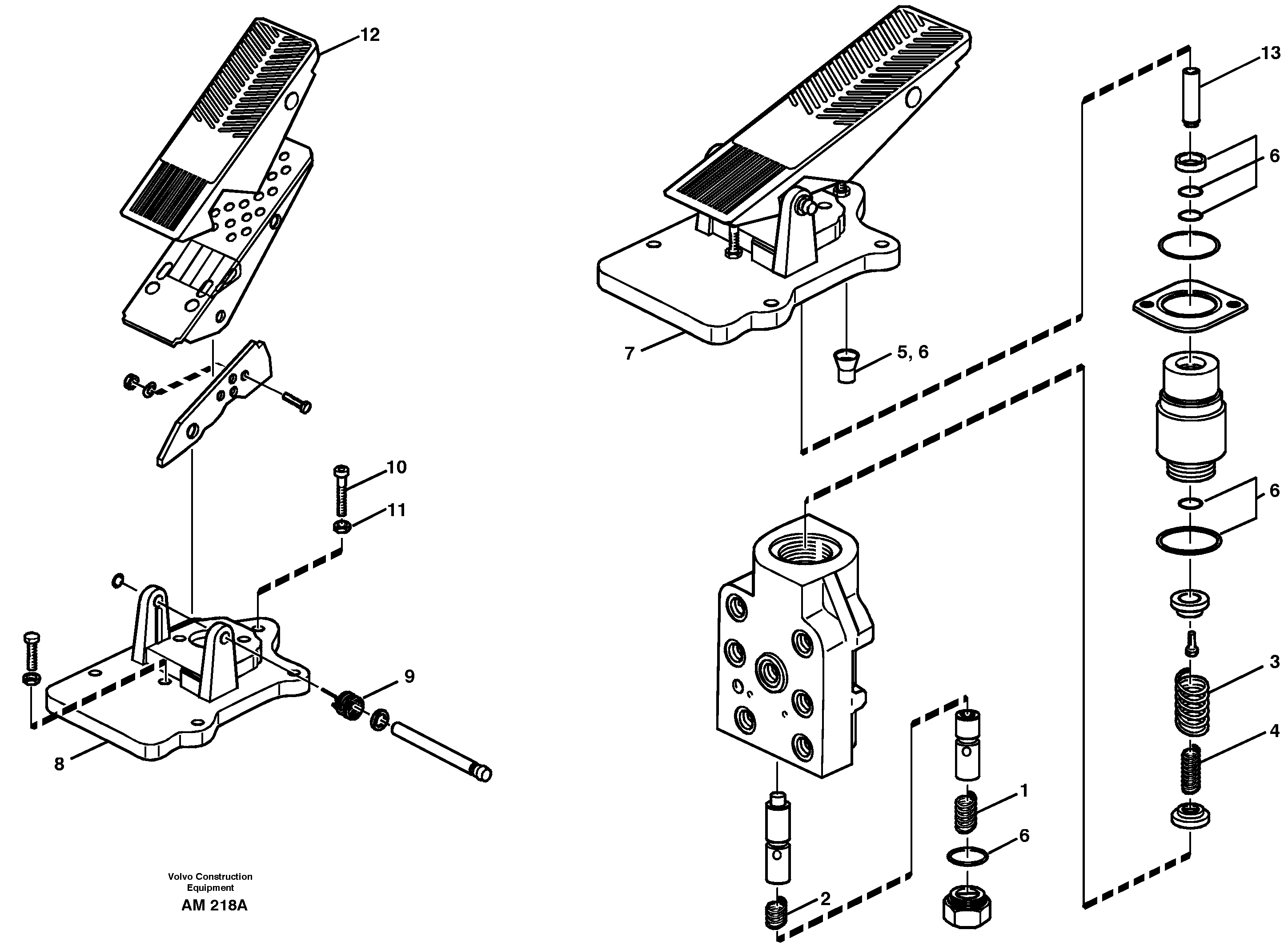

Footbrake valve

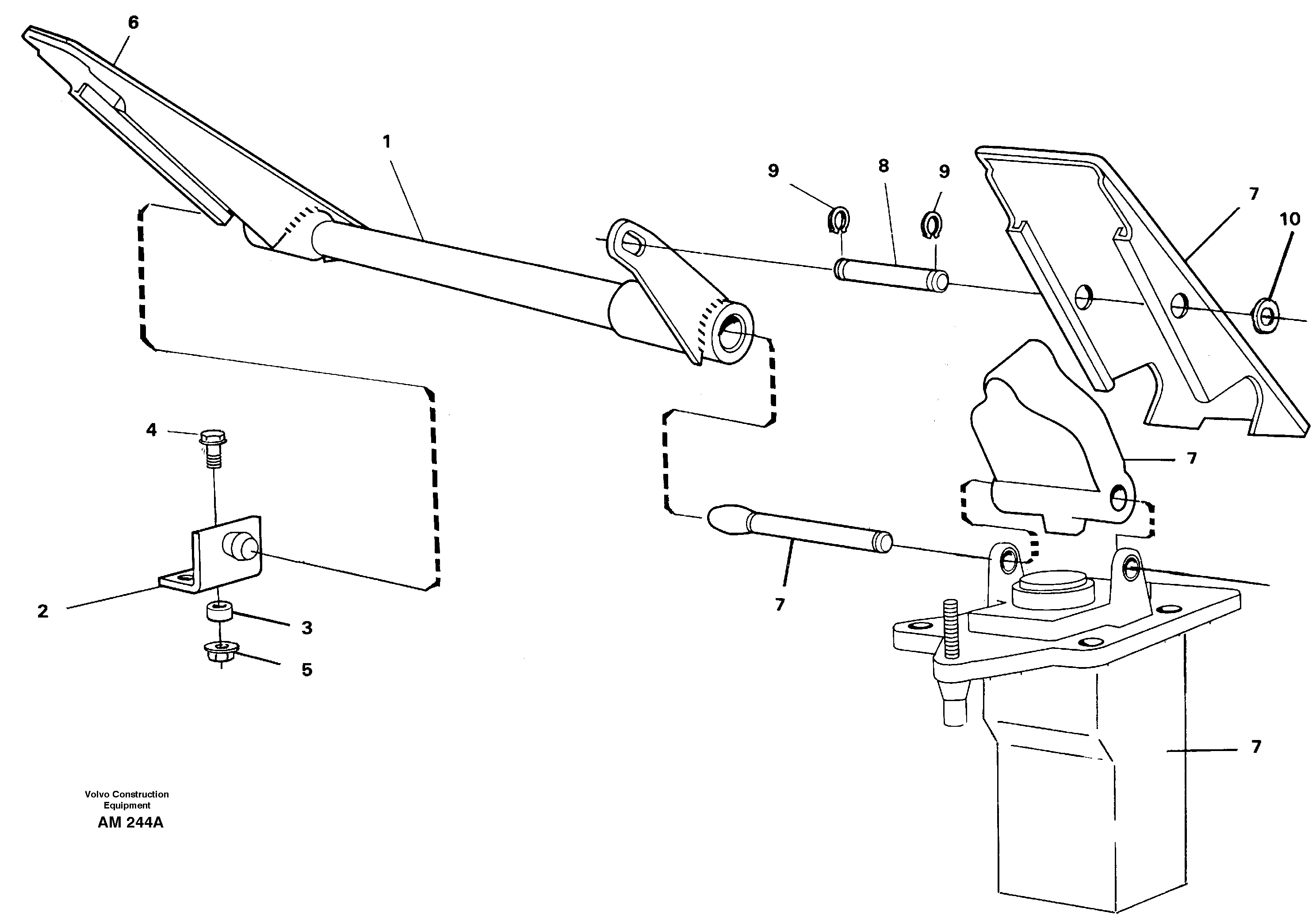

Dual brake pedals 91925
Accumulator

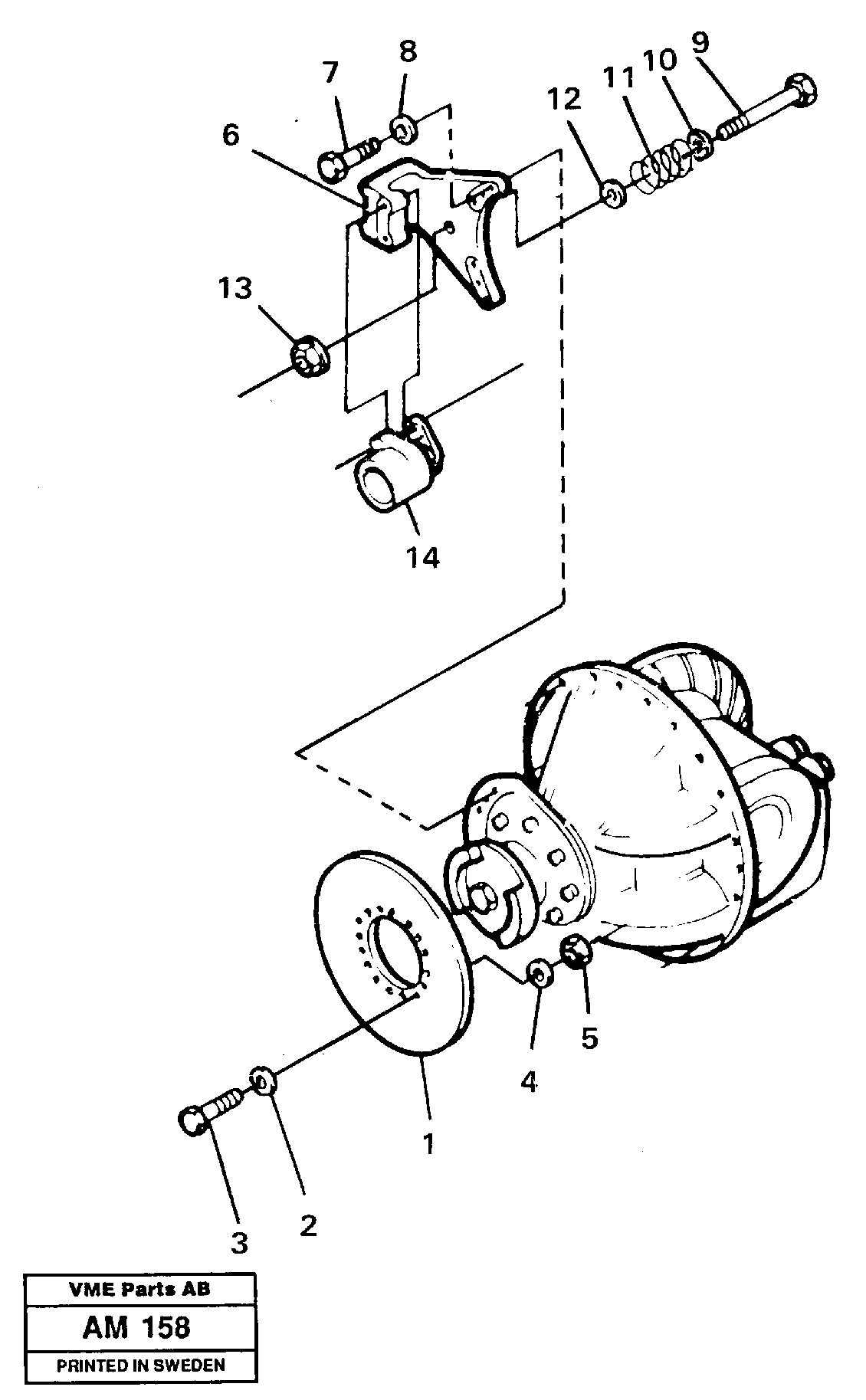

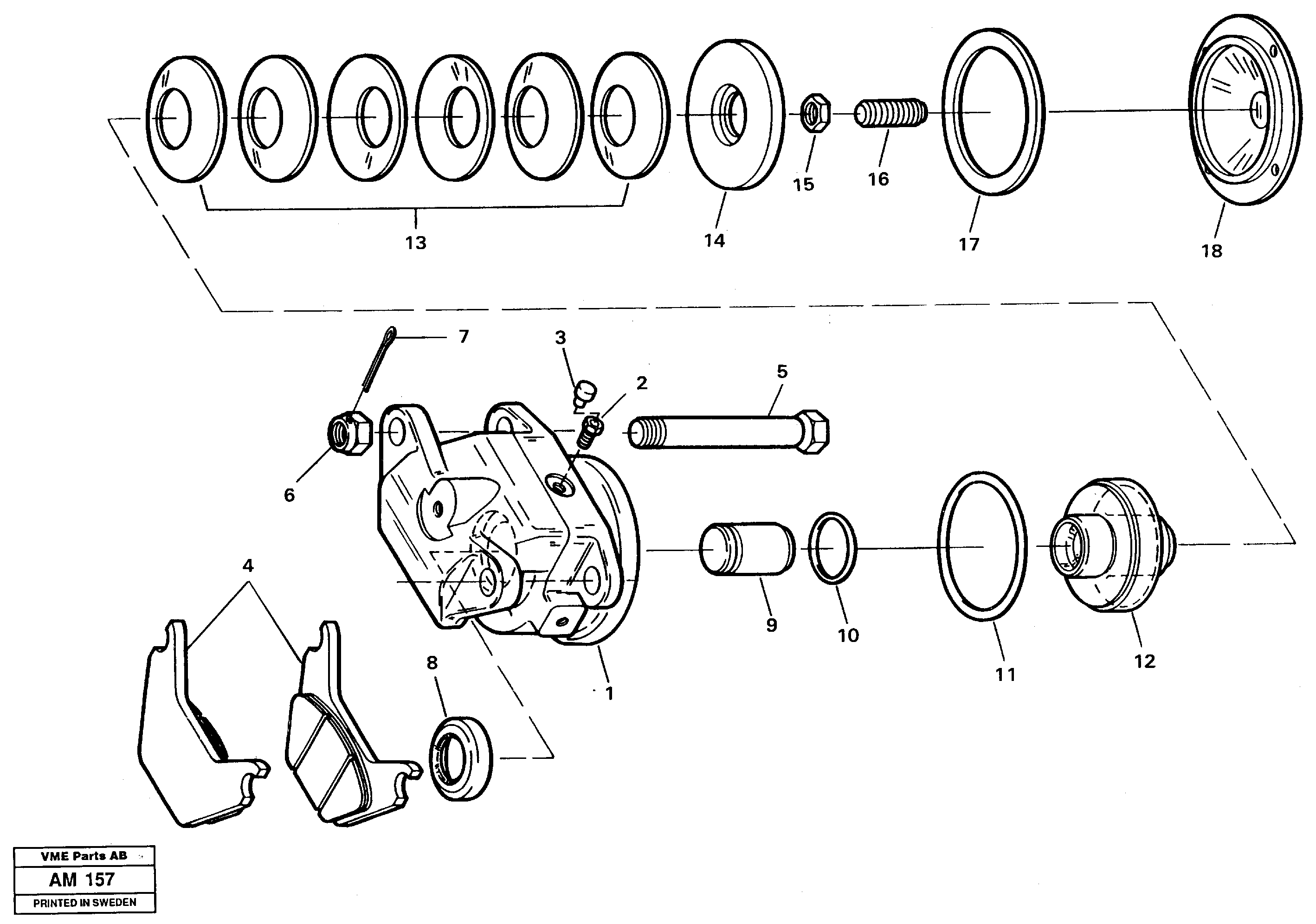

Parking brake

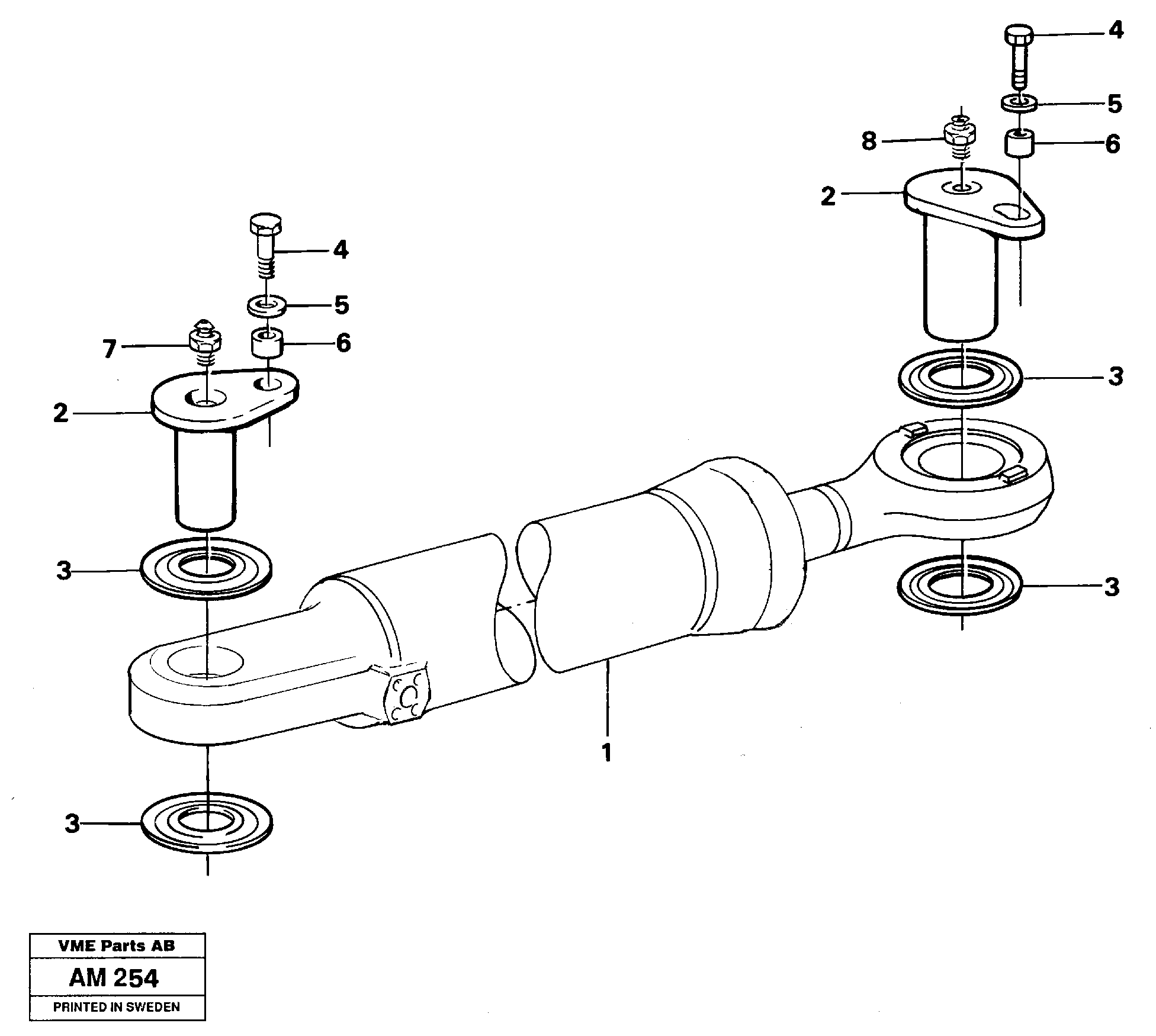

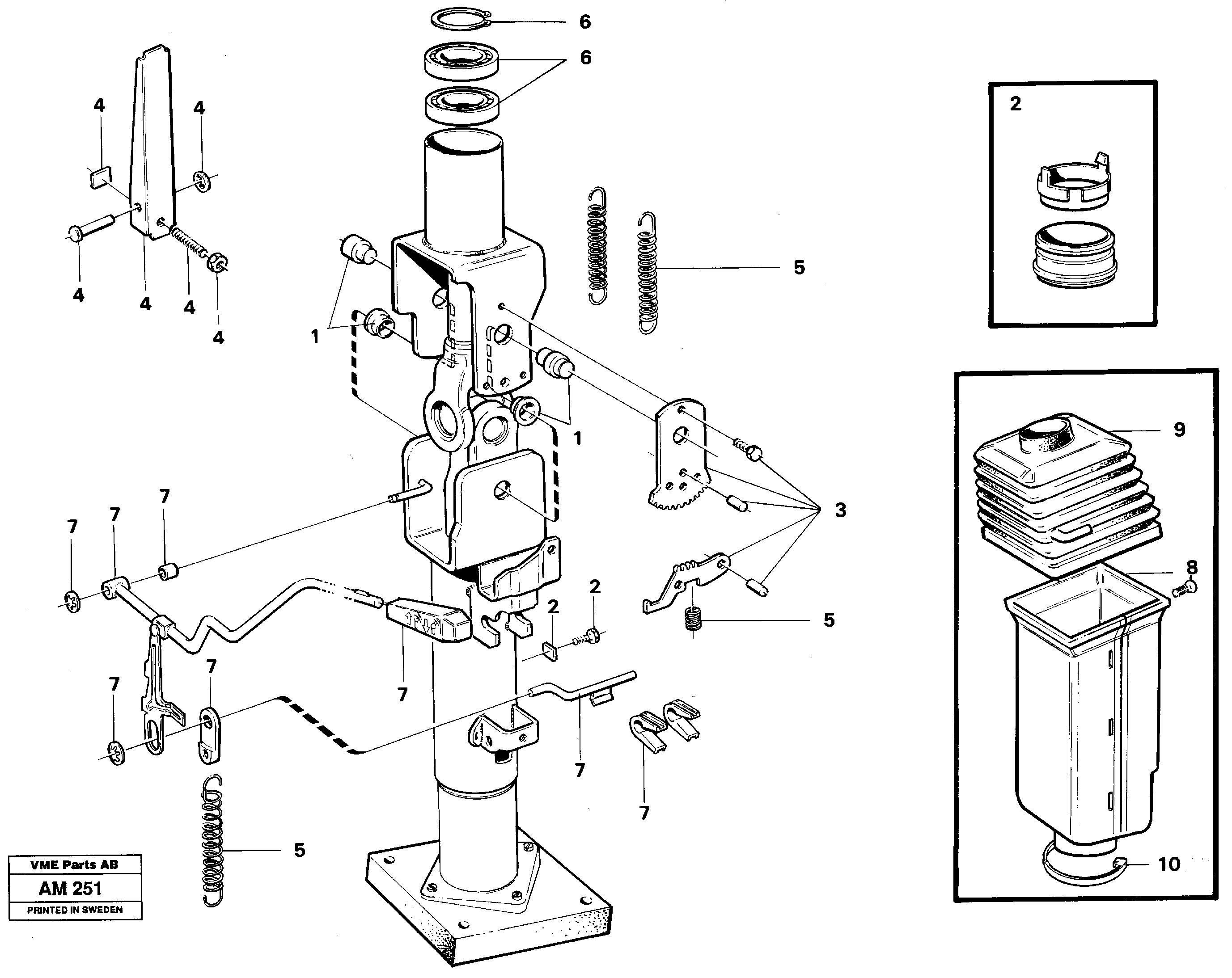

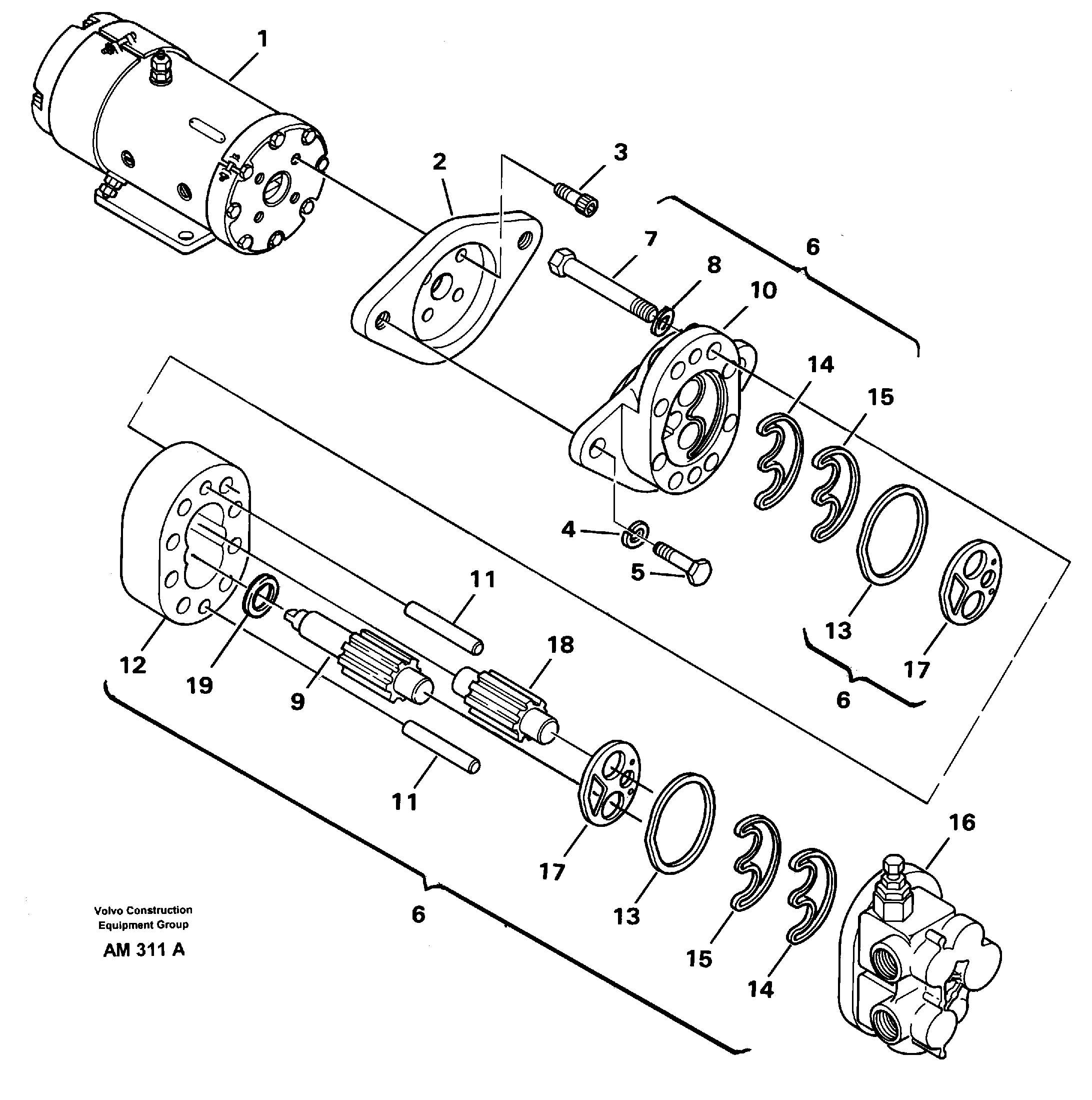

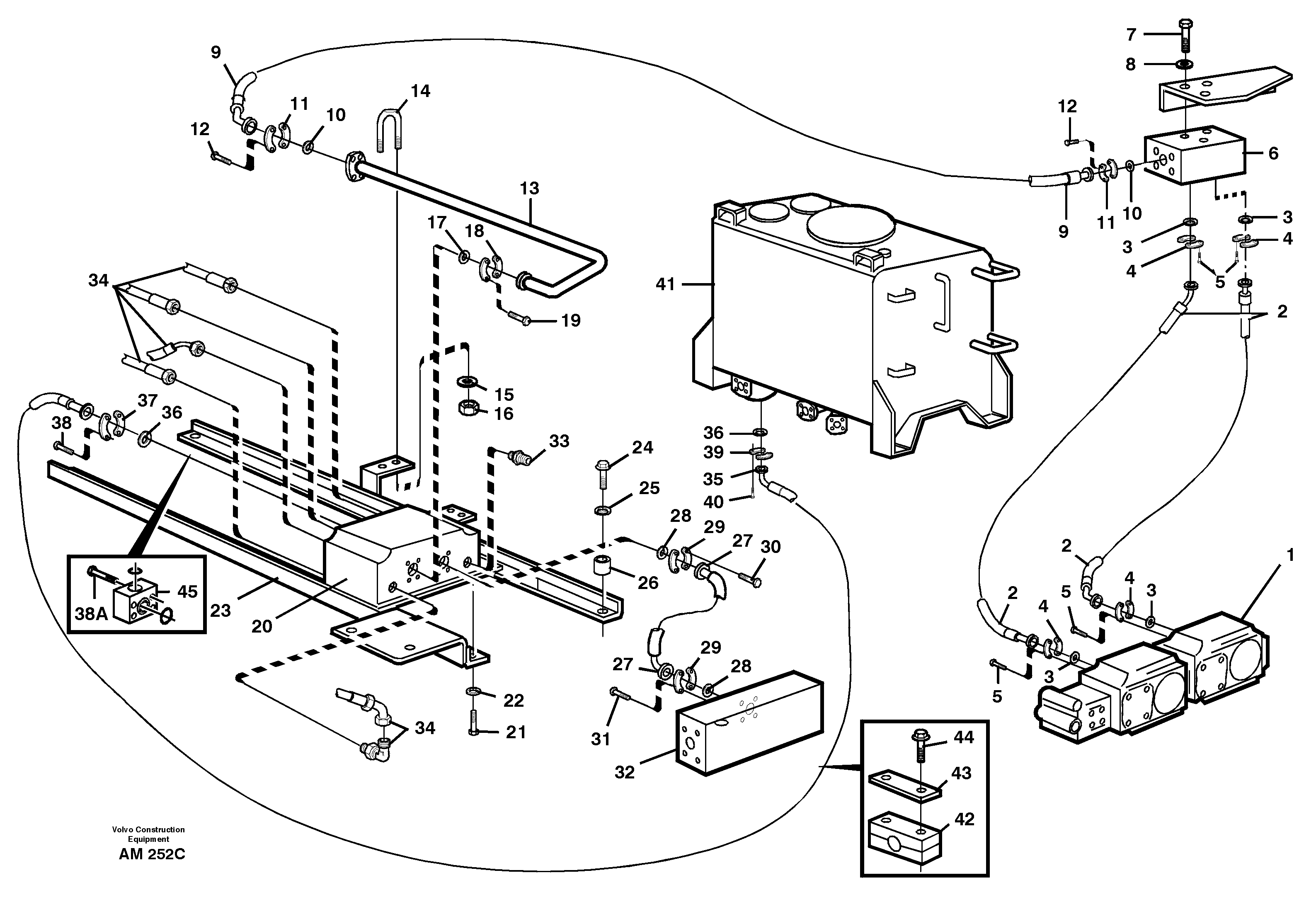

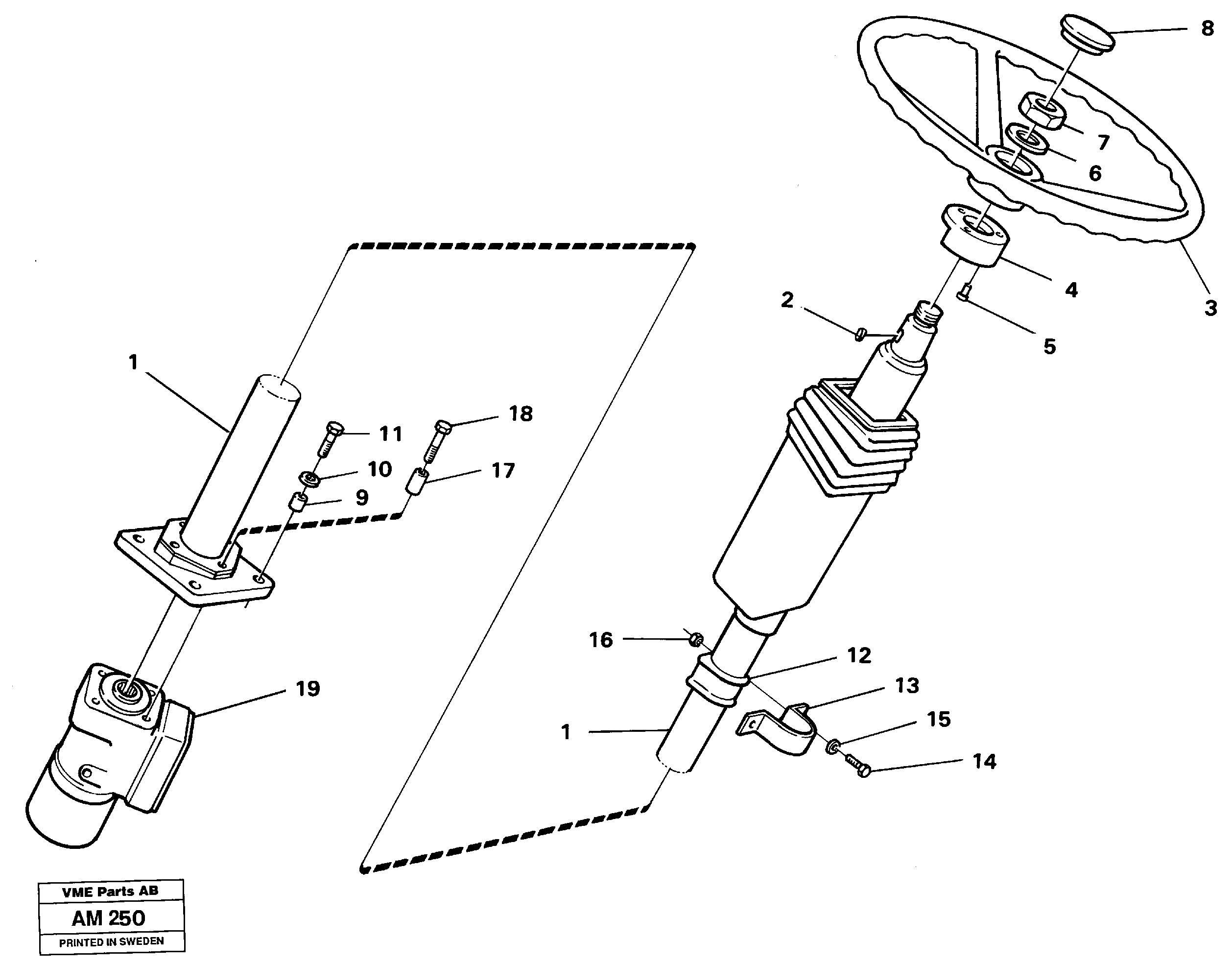

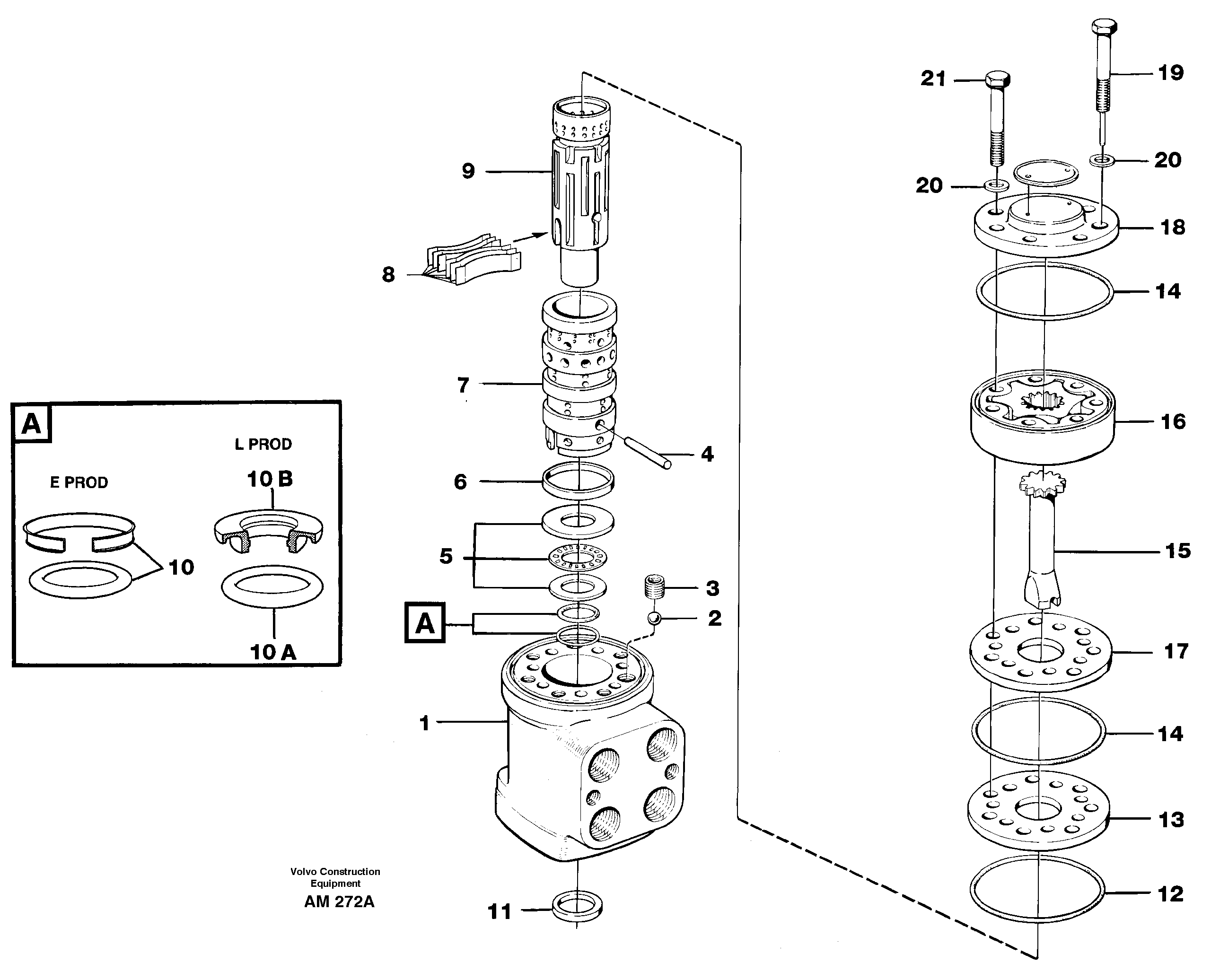

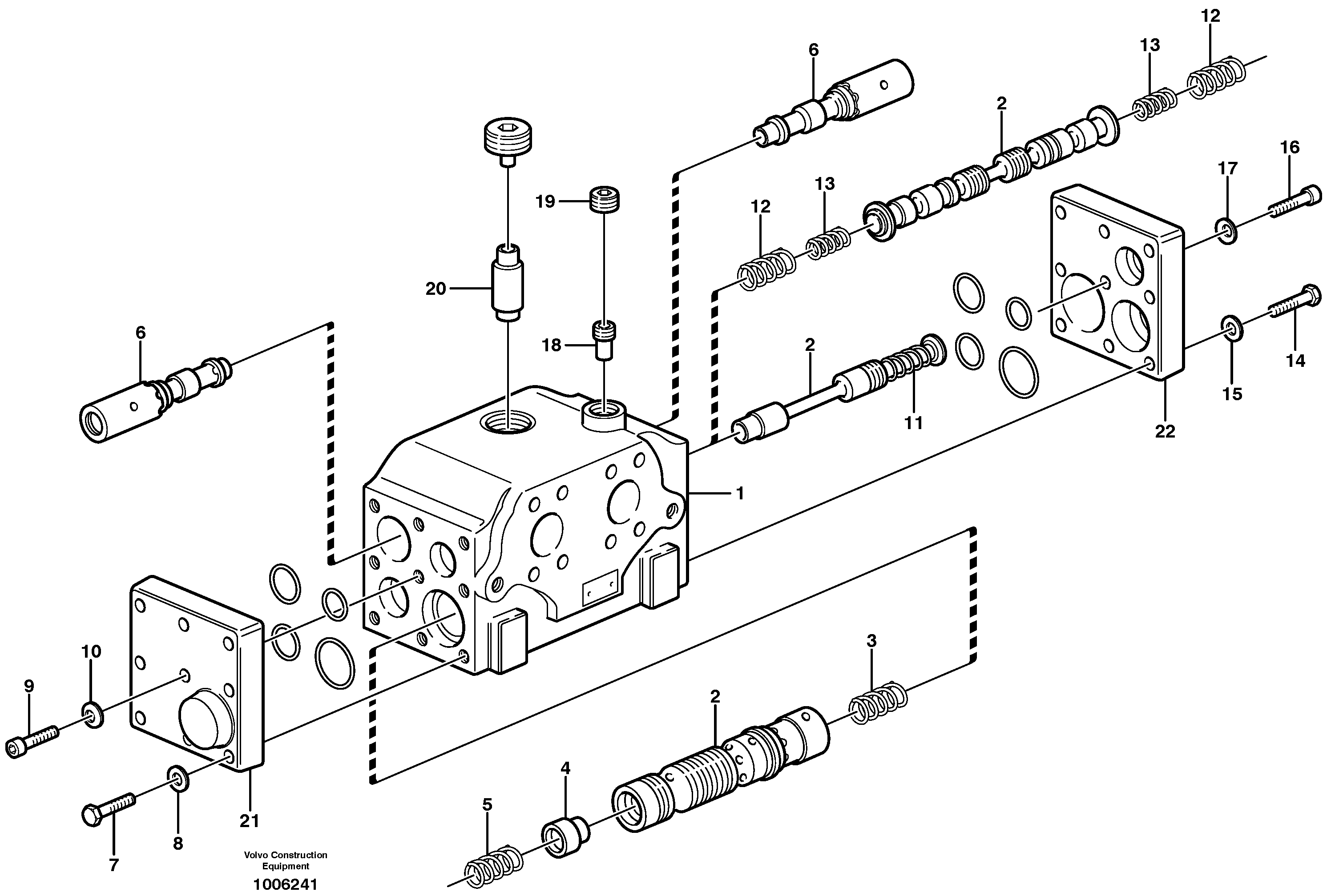

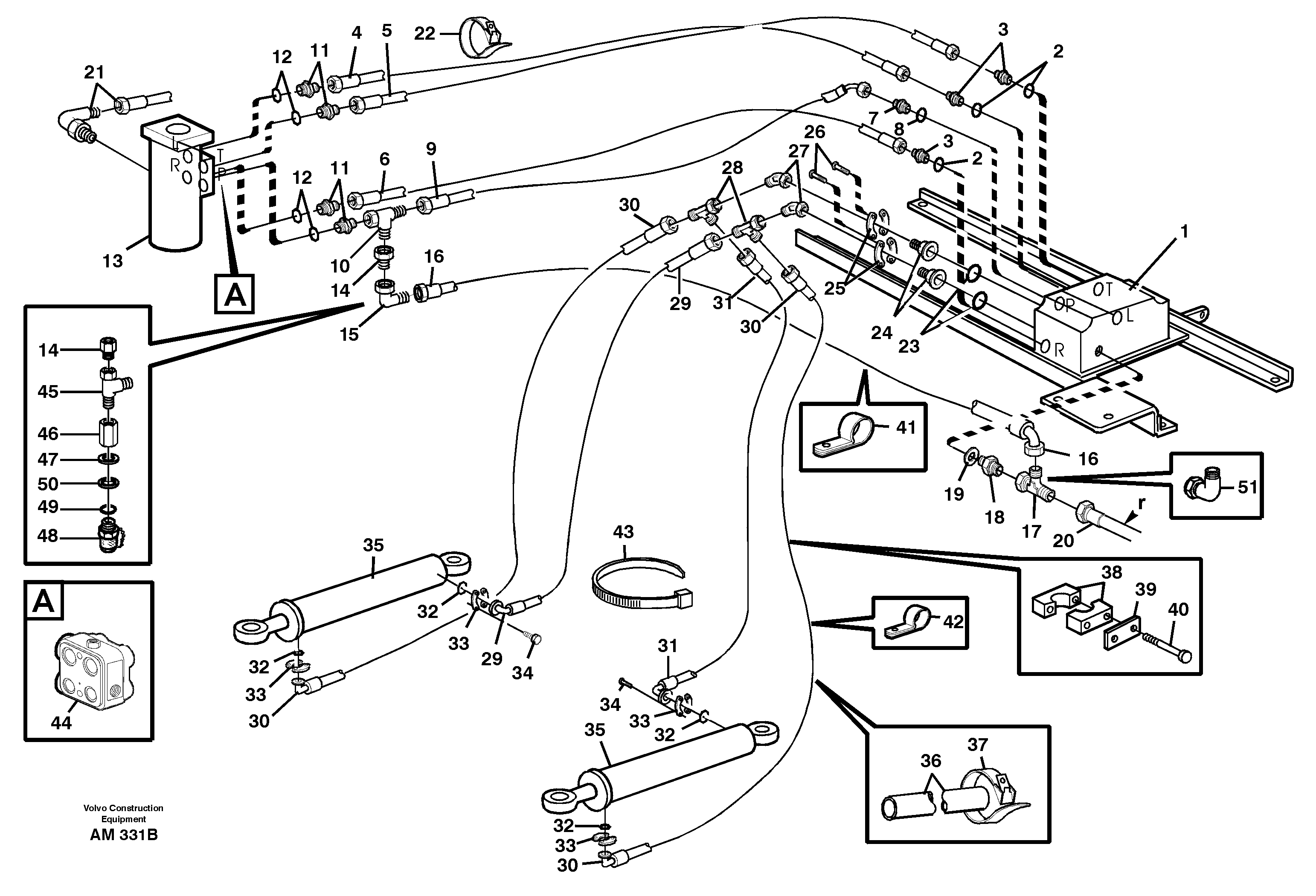

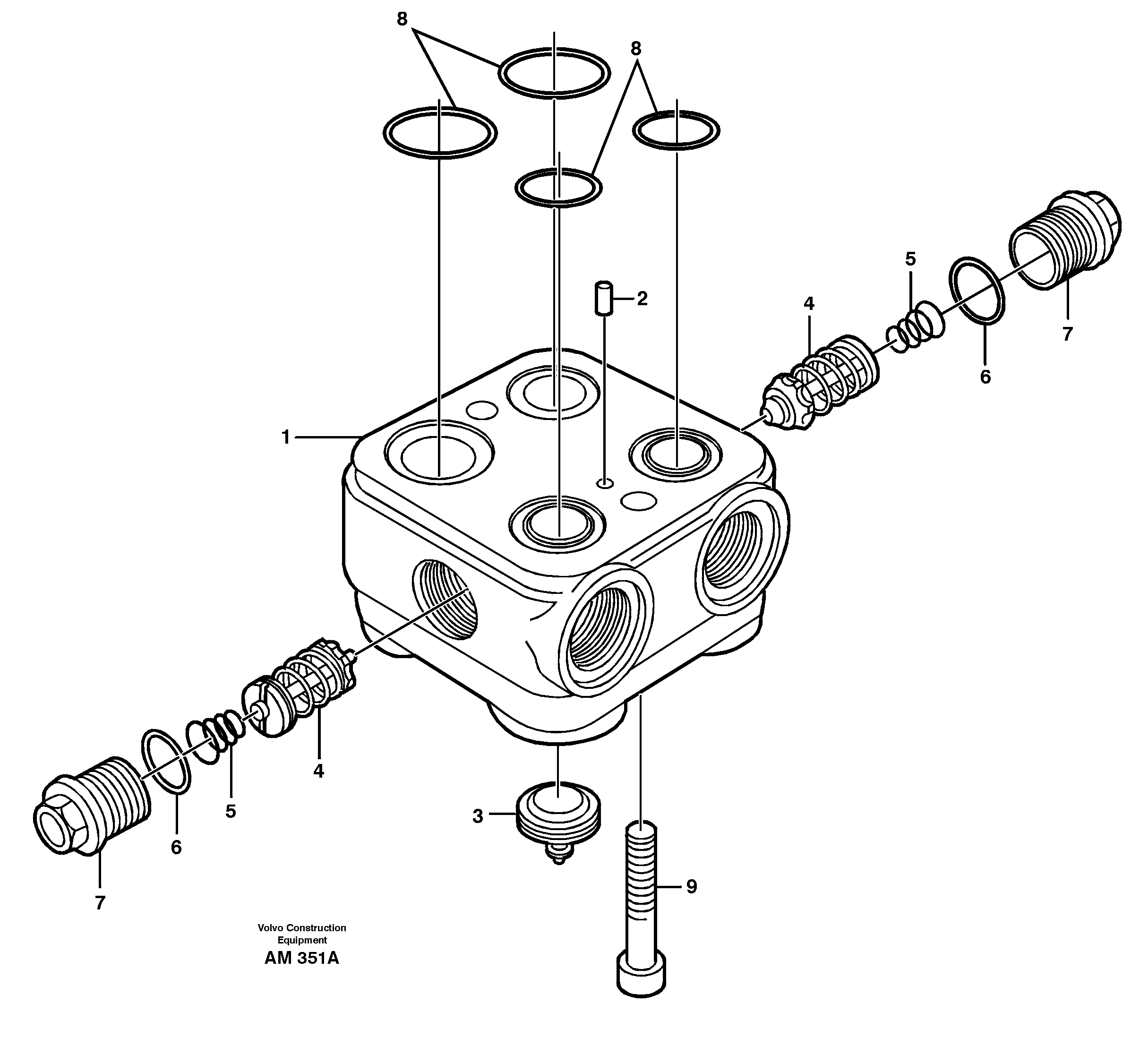

Steering

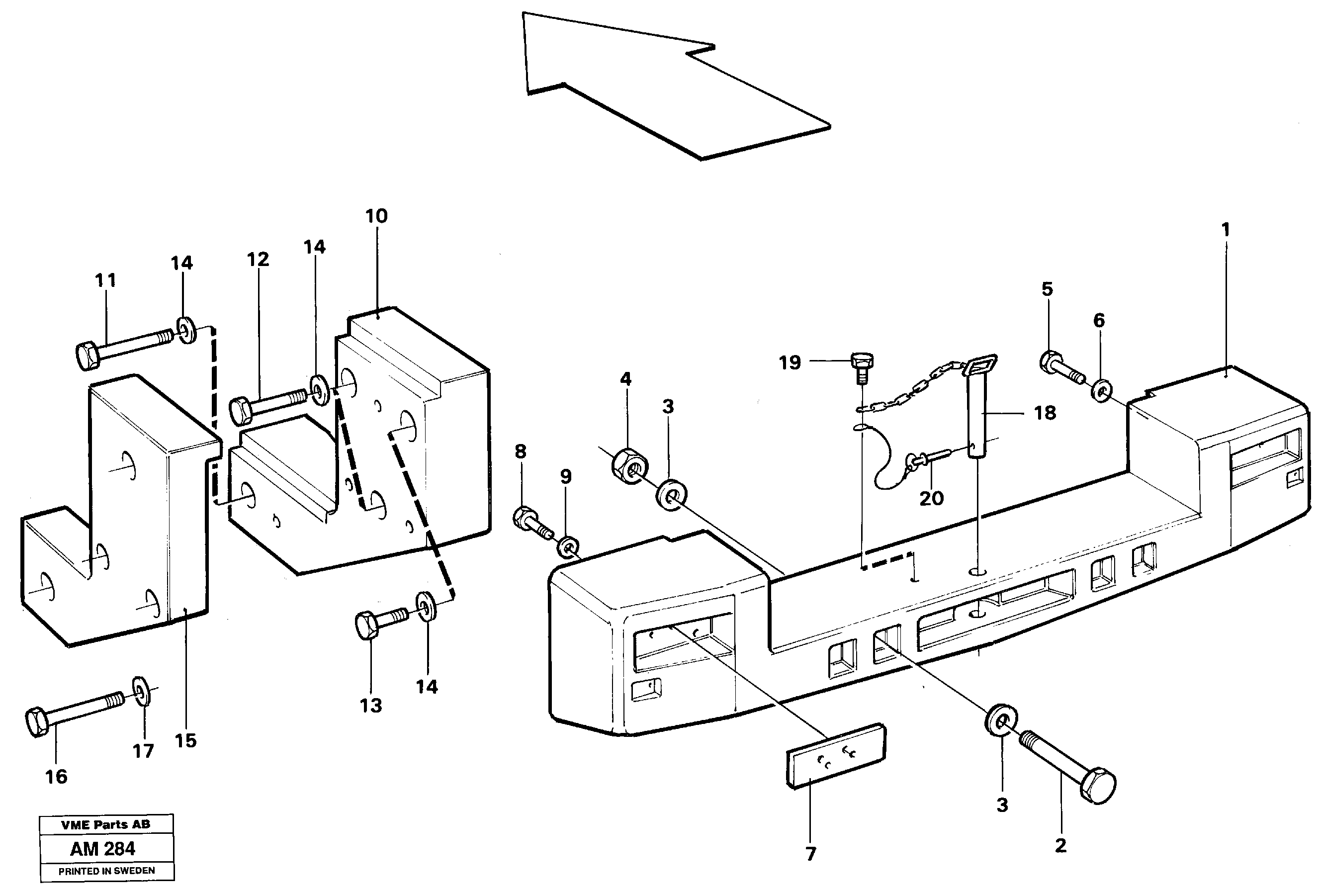

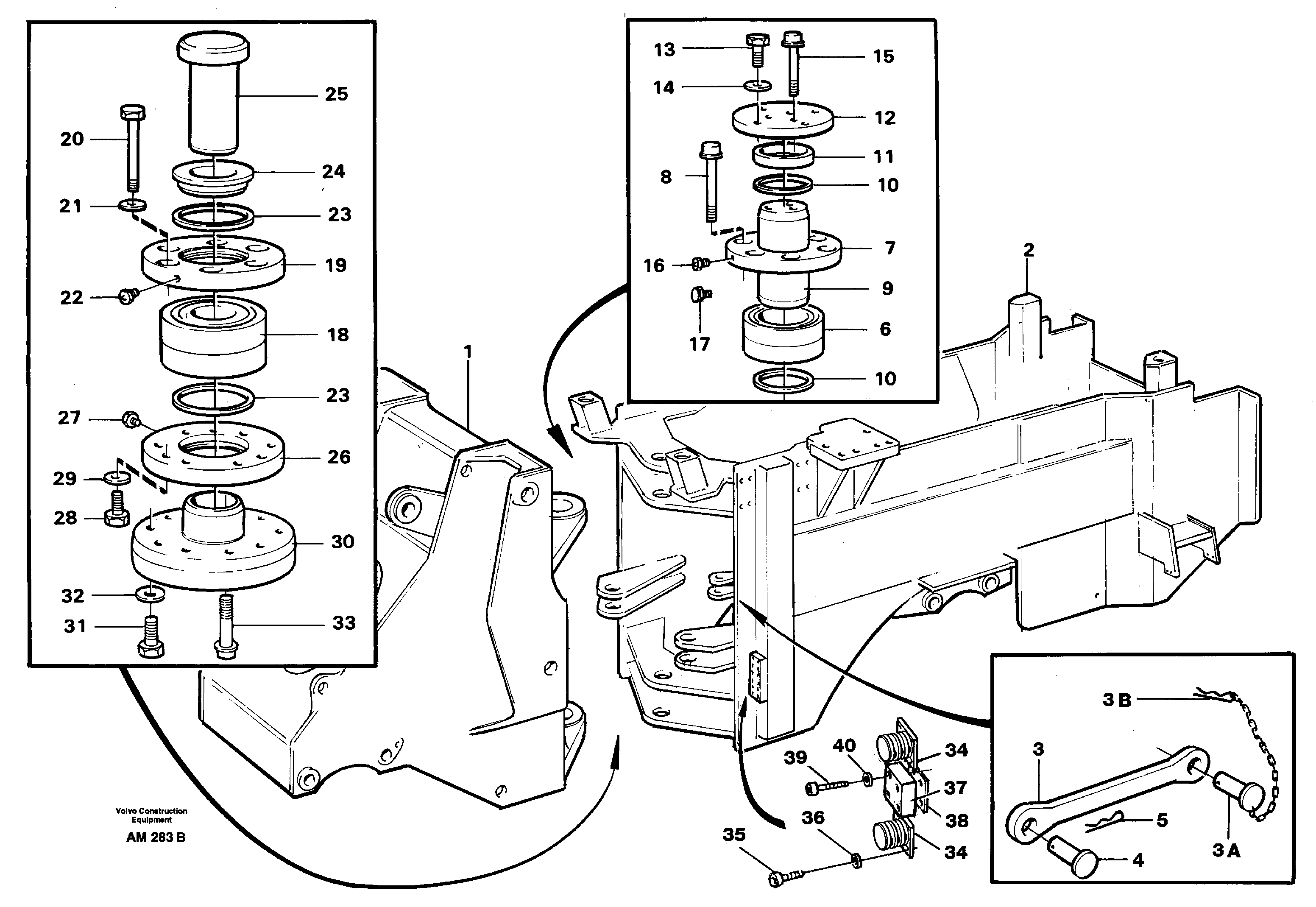

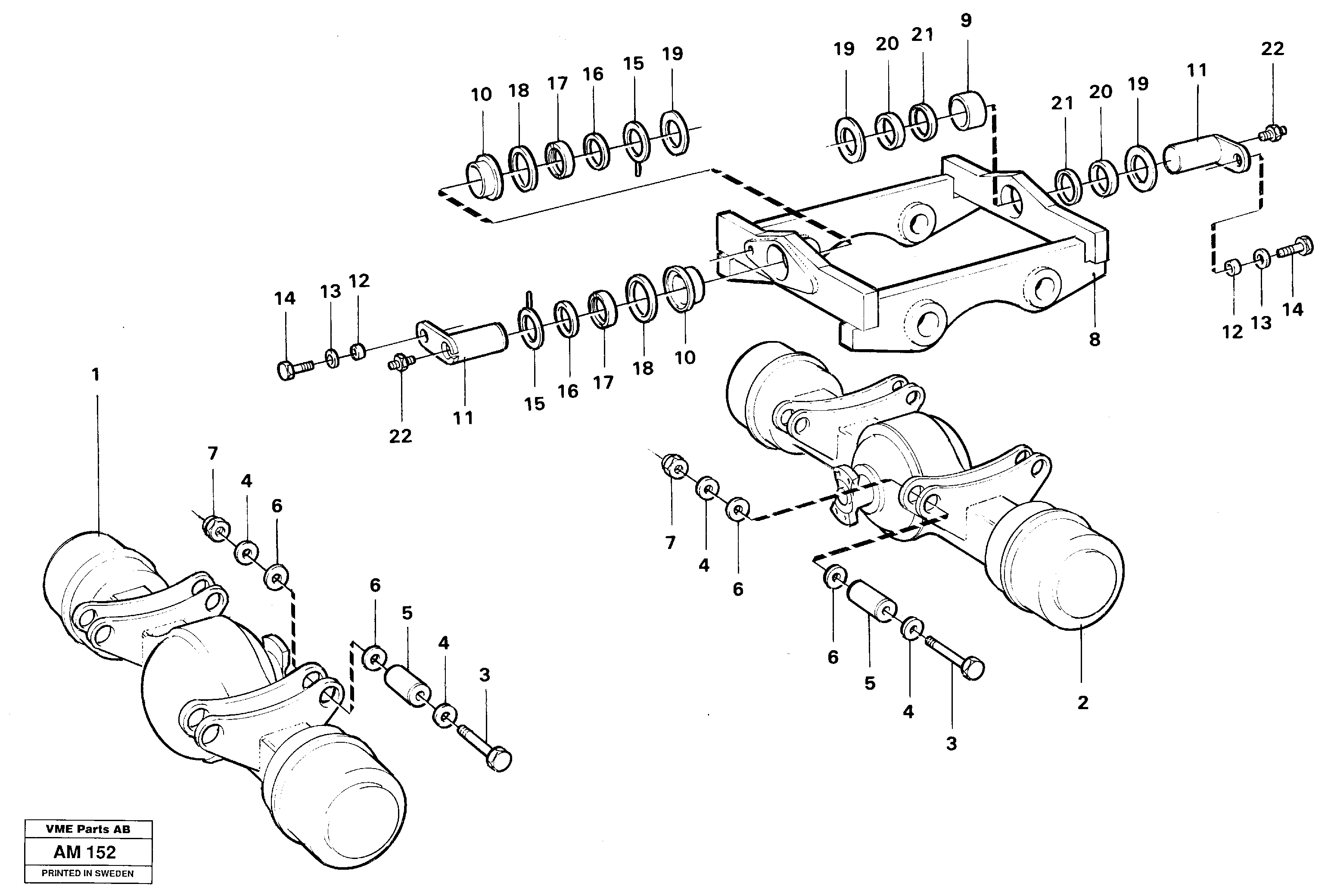

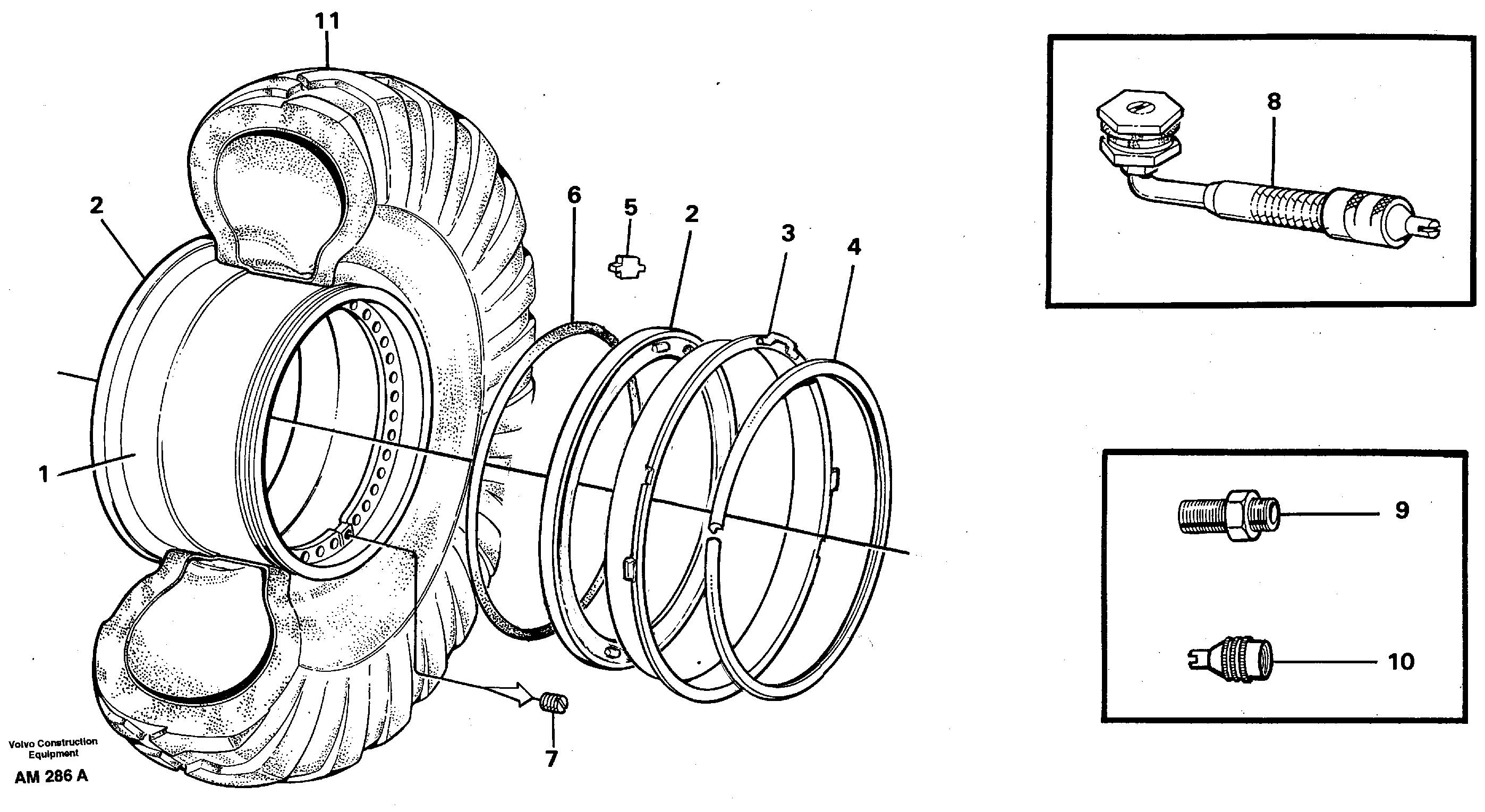

Frame, springs, damping, axle suspension, wheels/track unit
Machinery house, cab, exterior trim parts anywhere

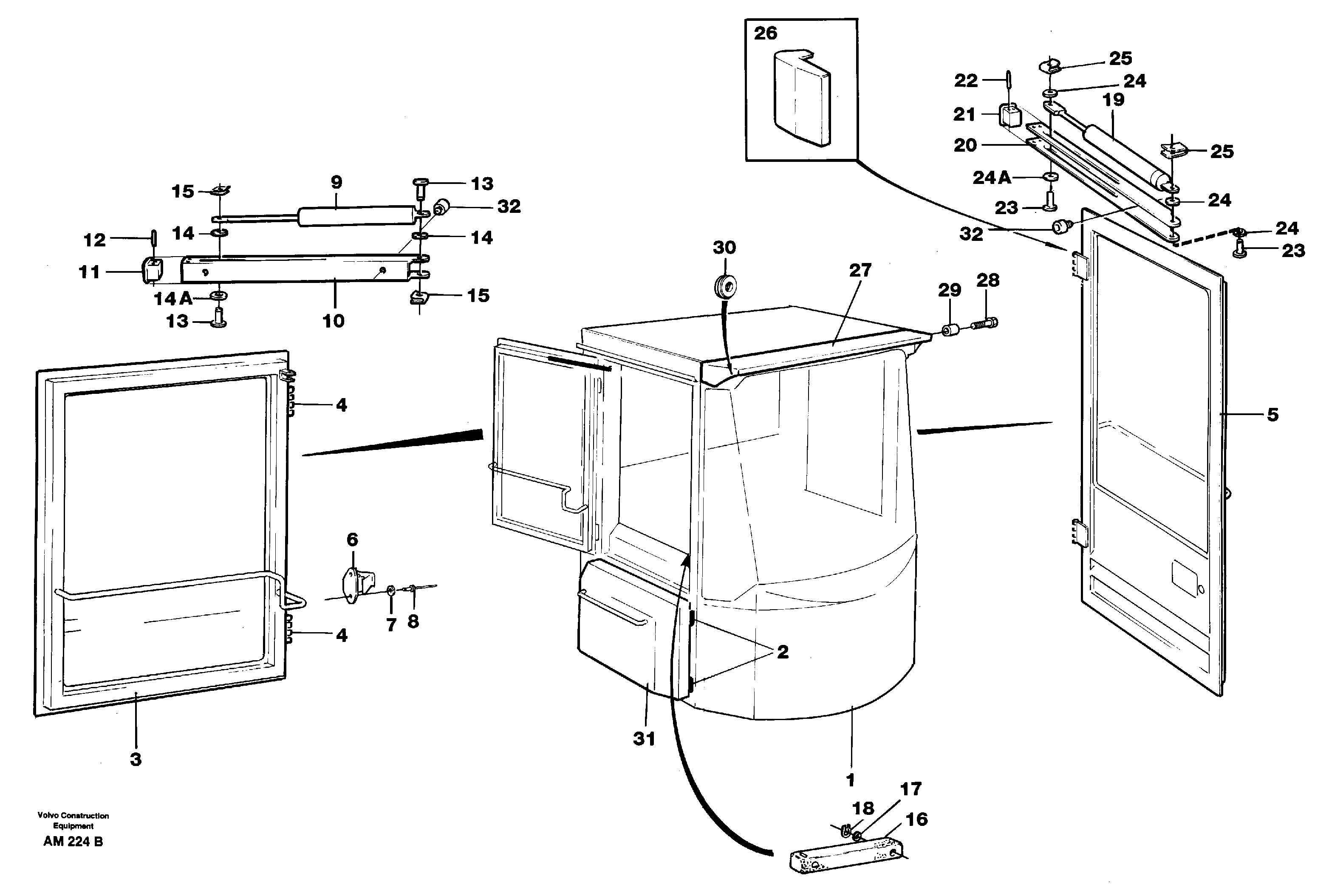

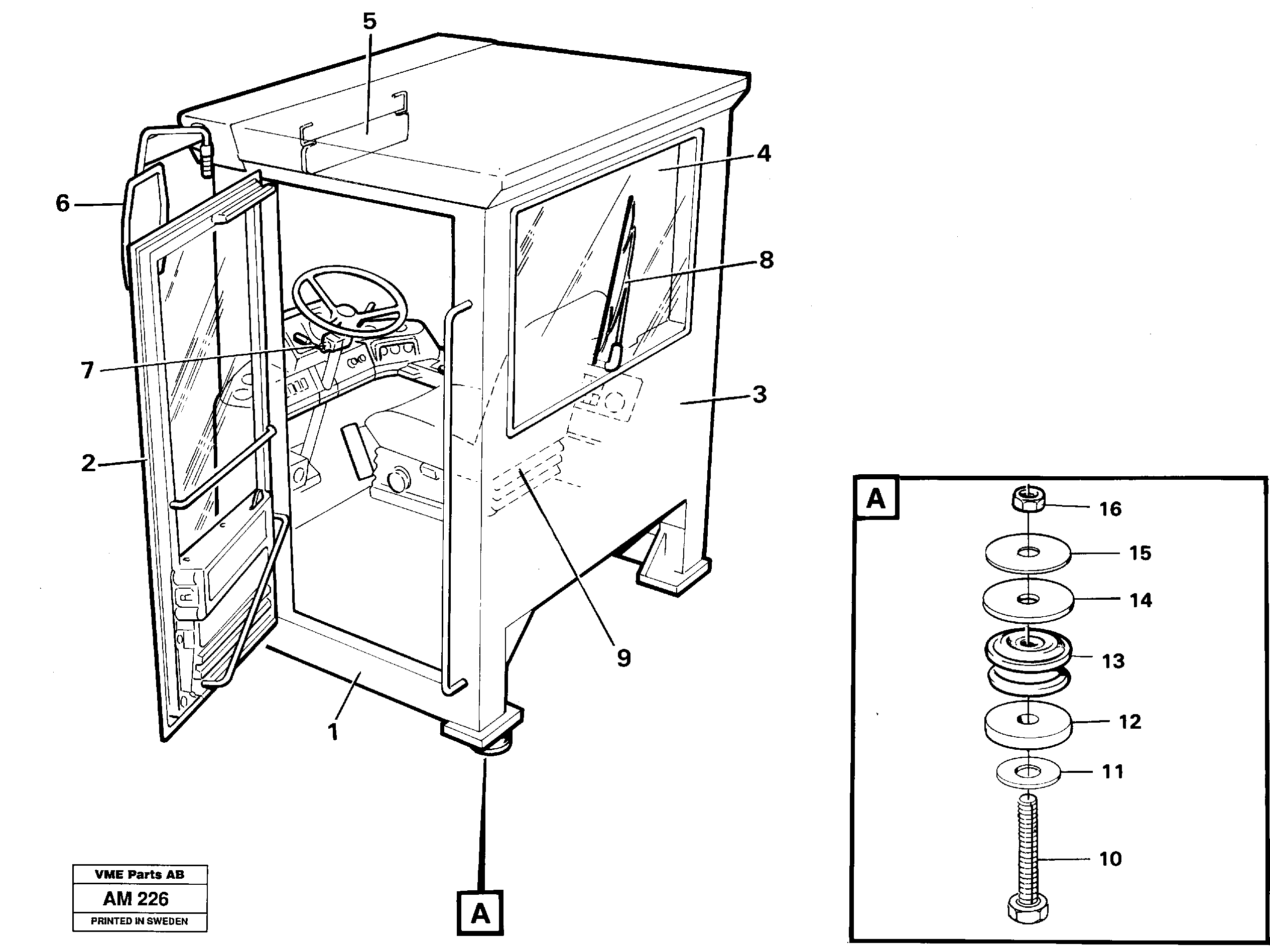

Cab, naked, canopy

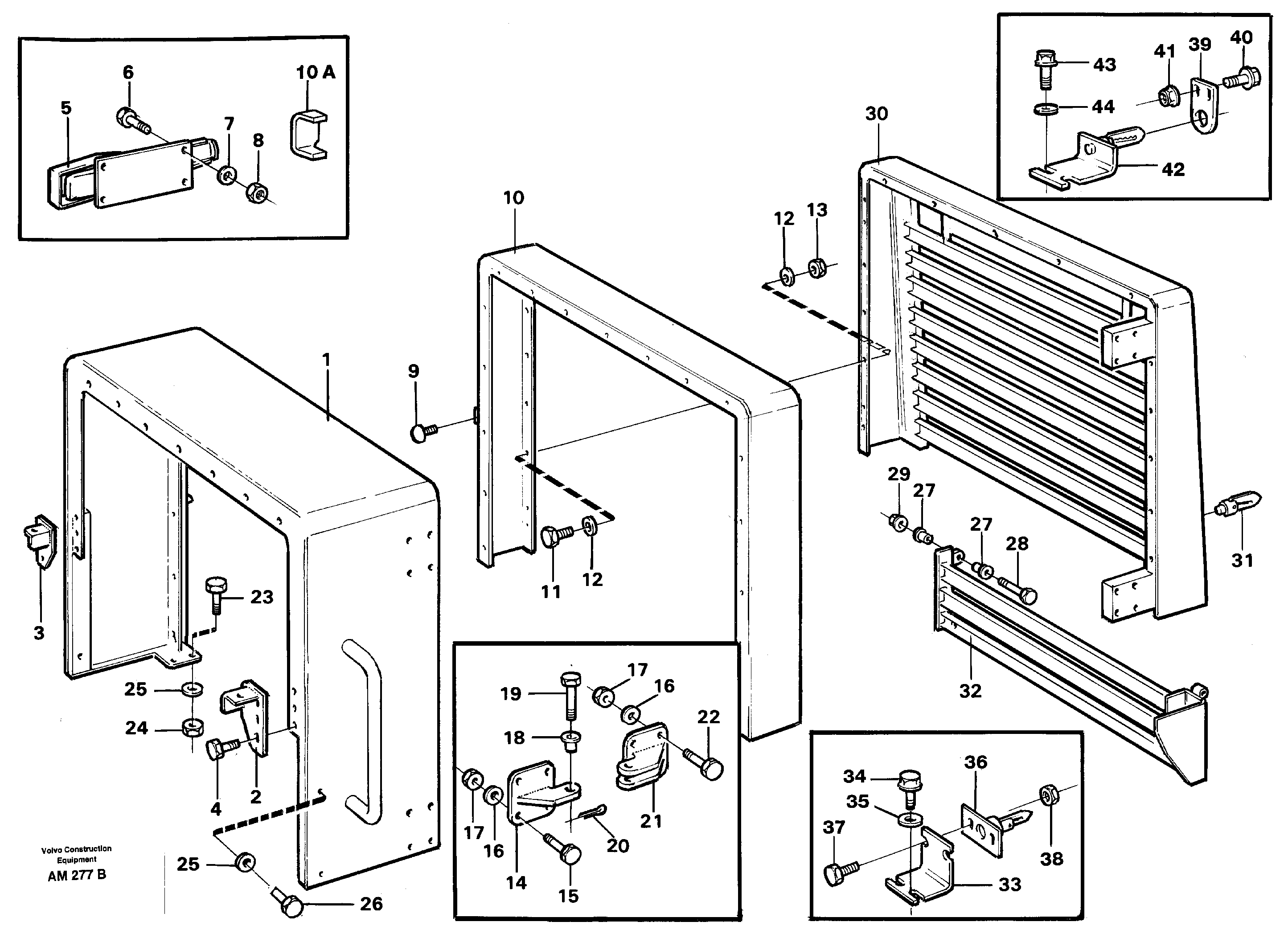

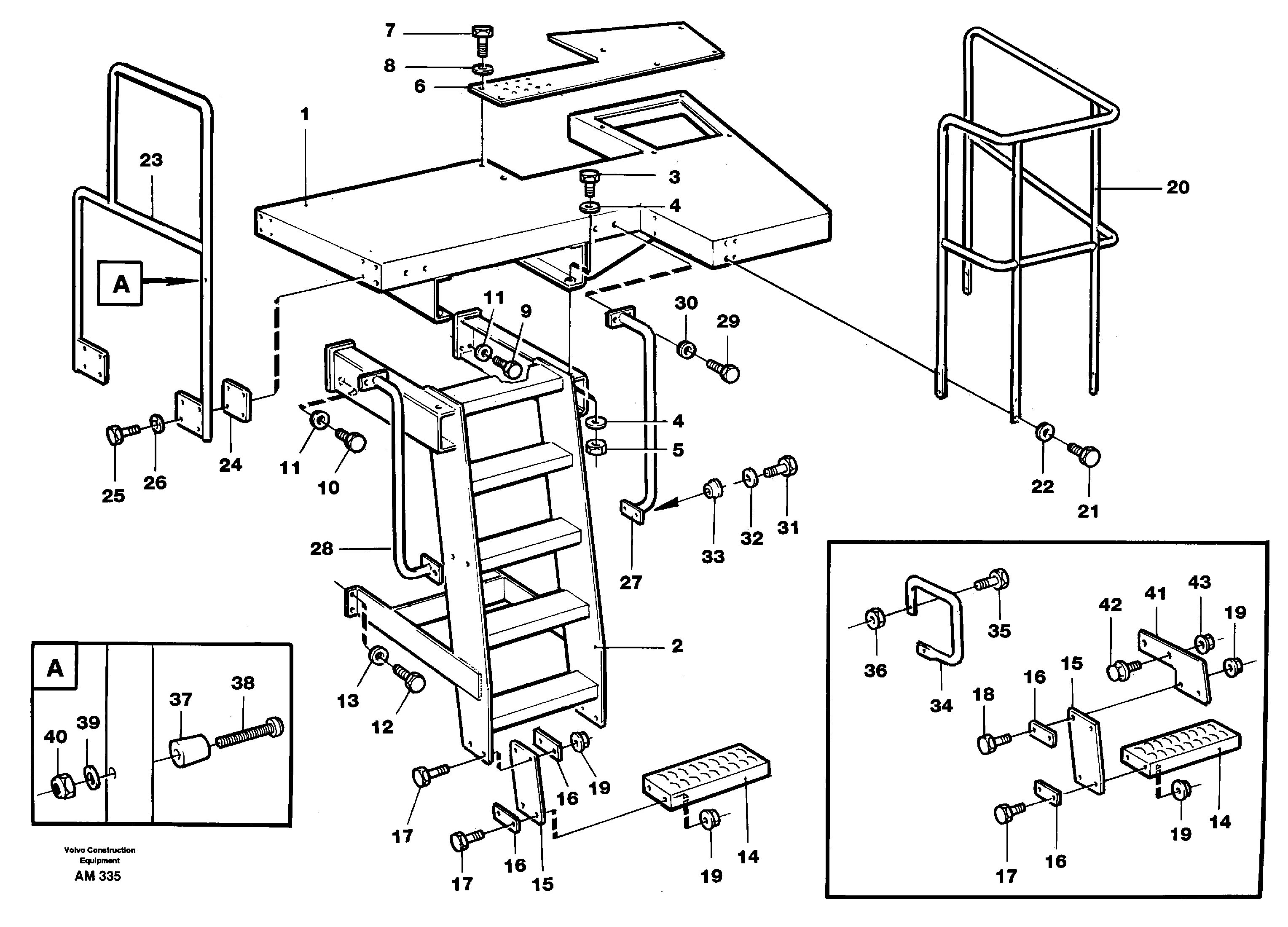

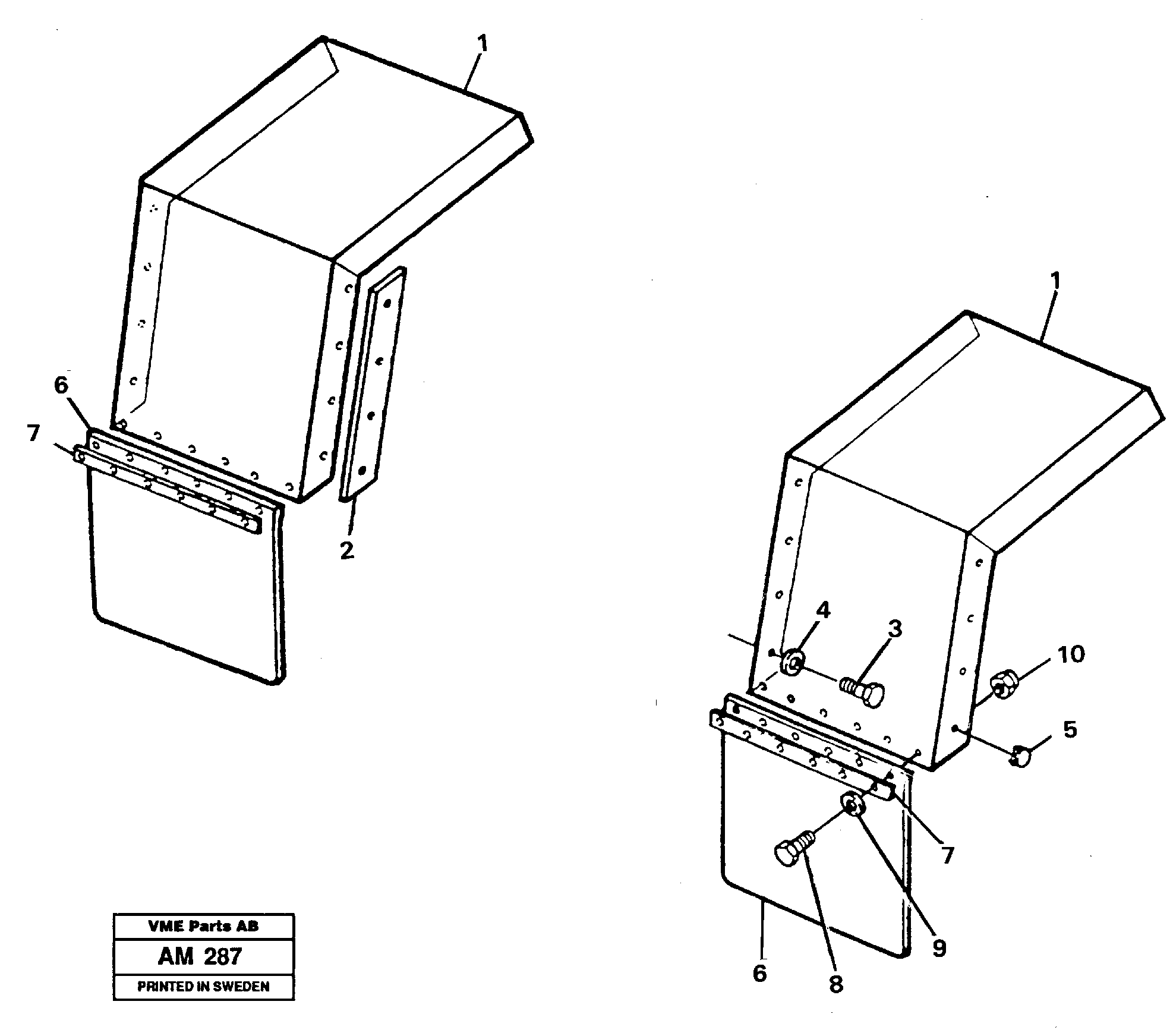

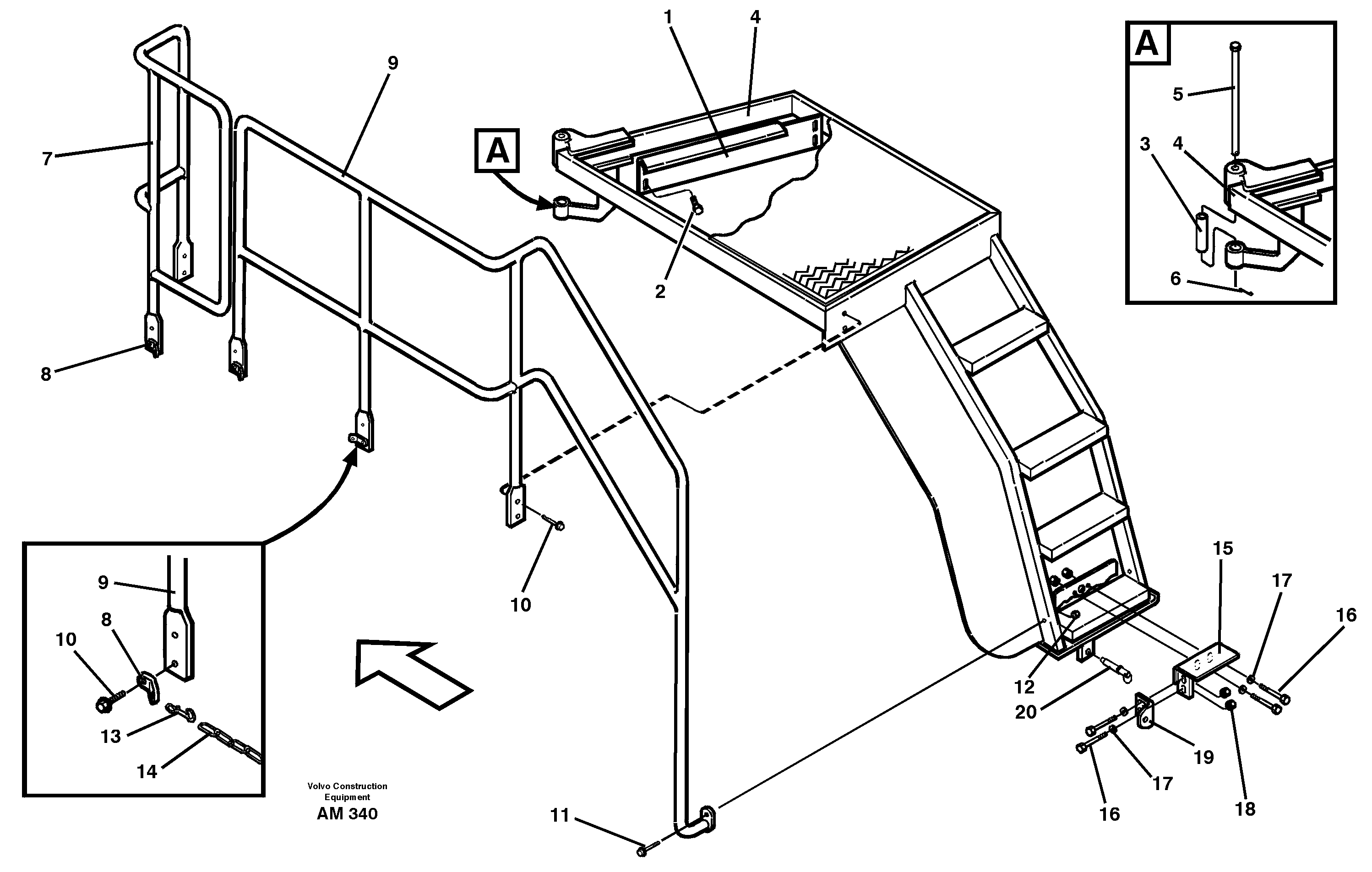

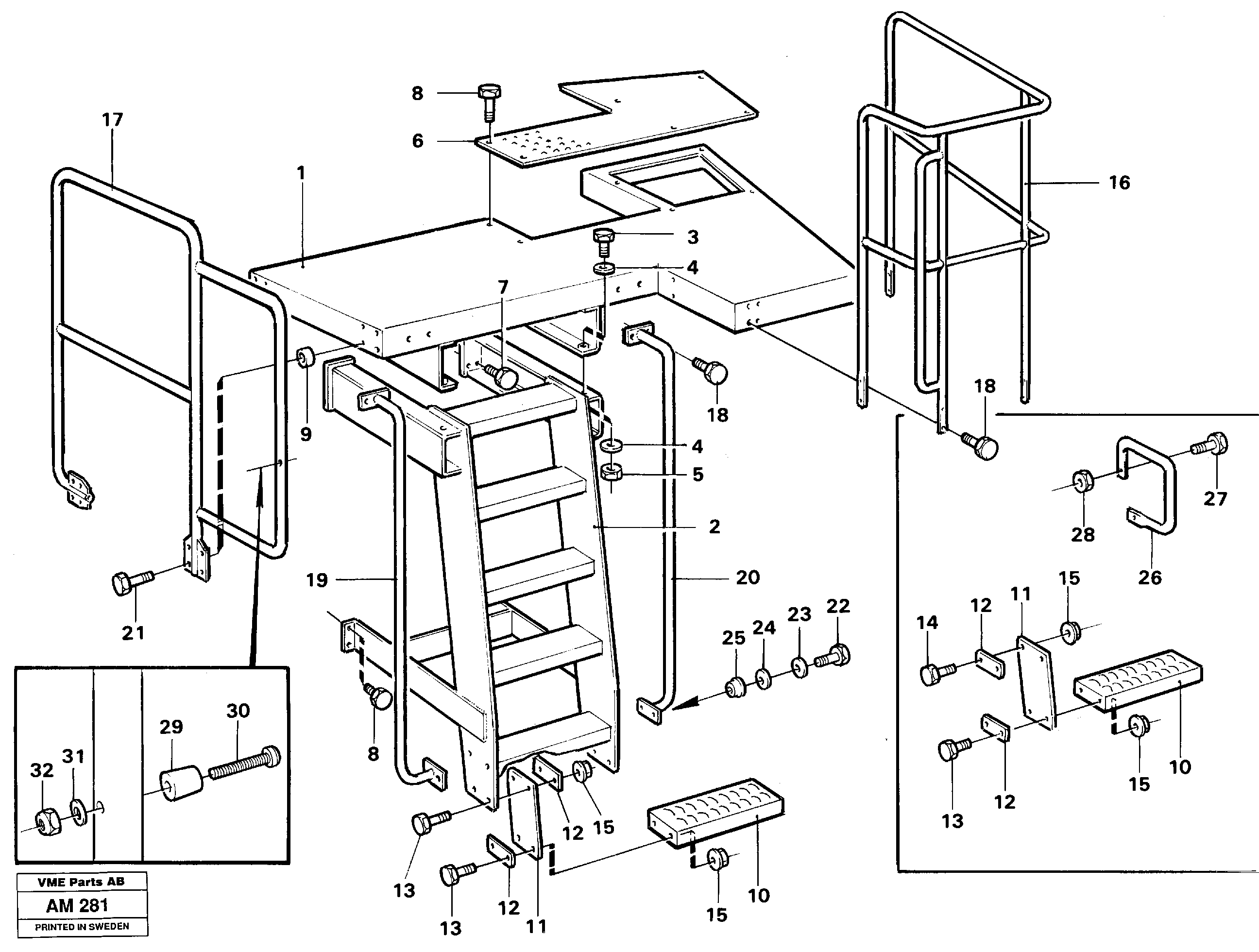

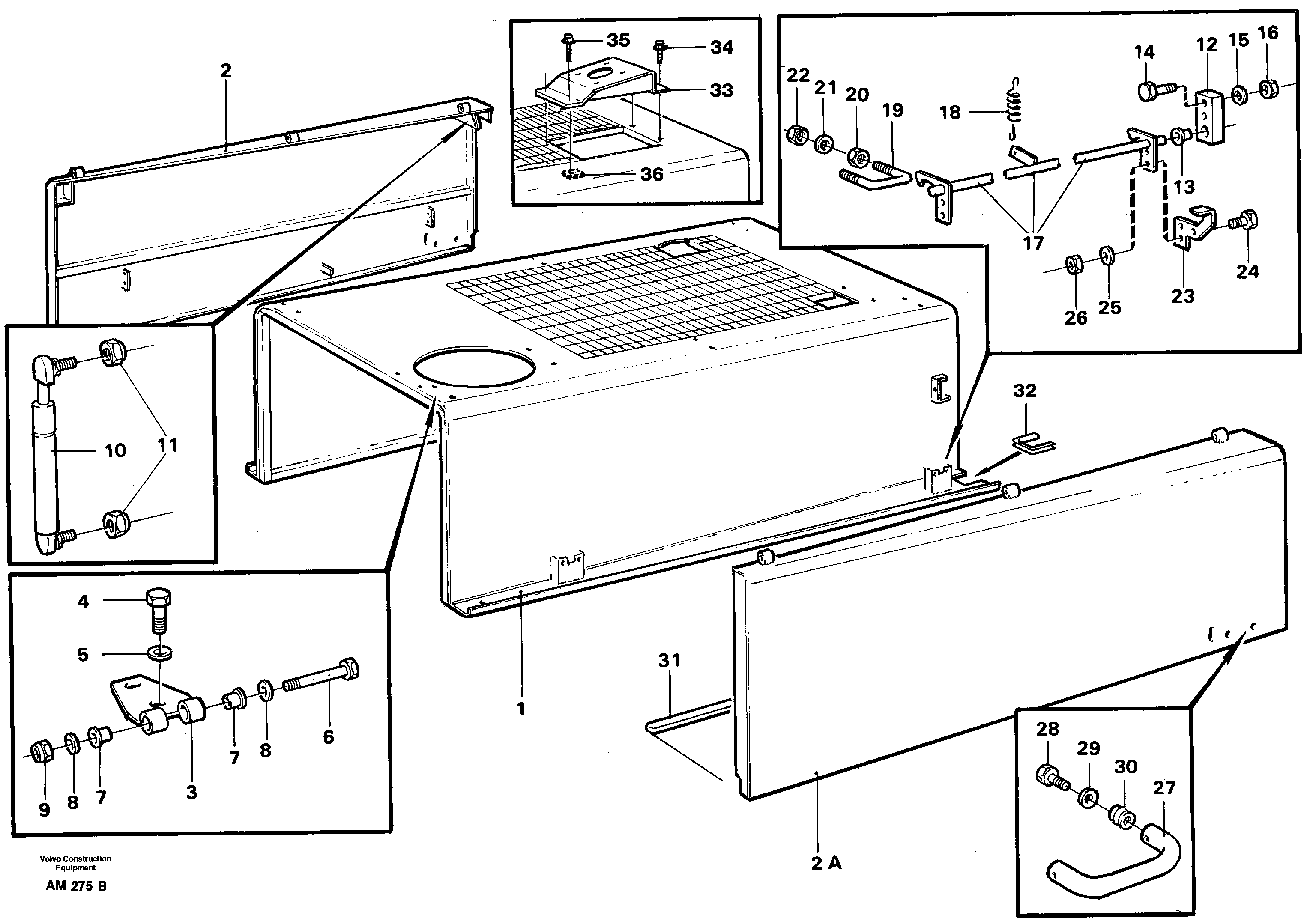

Engine hood, mudguard, foot step

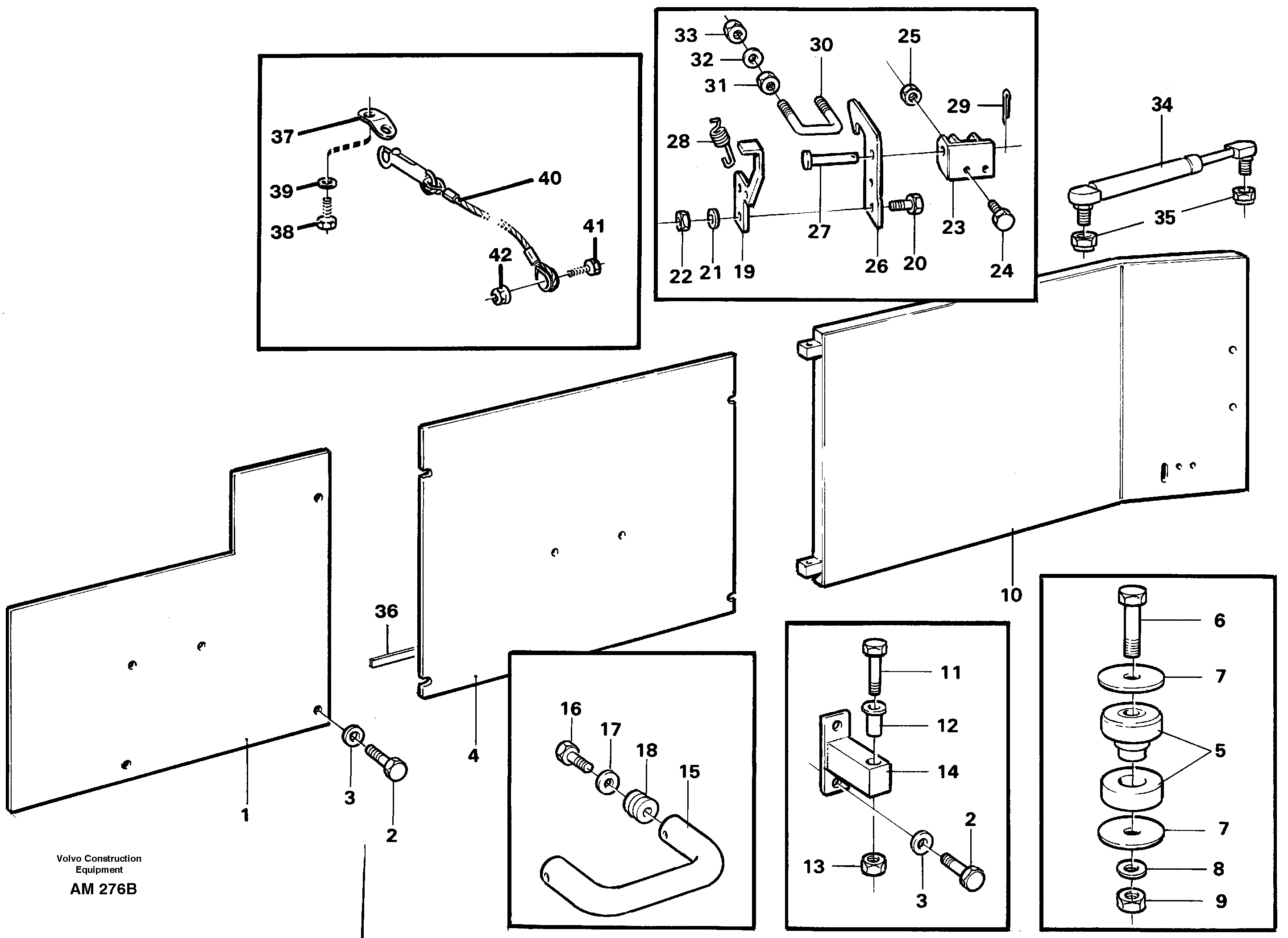

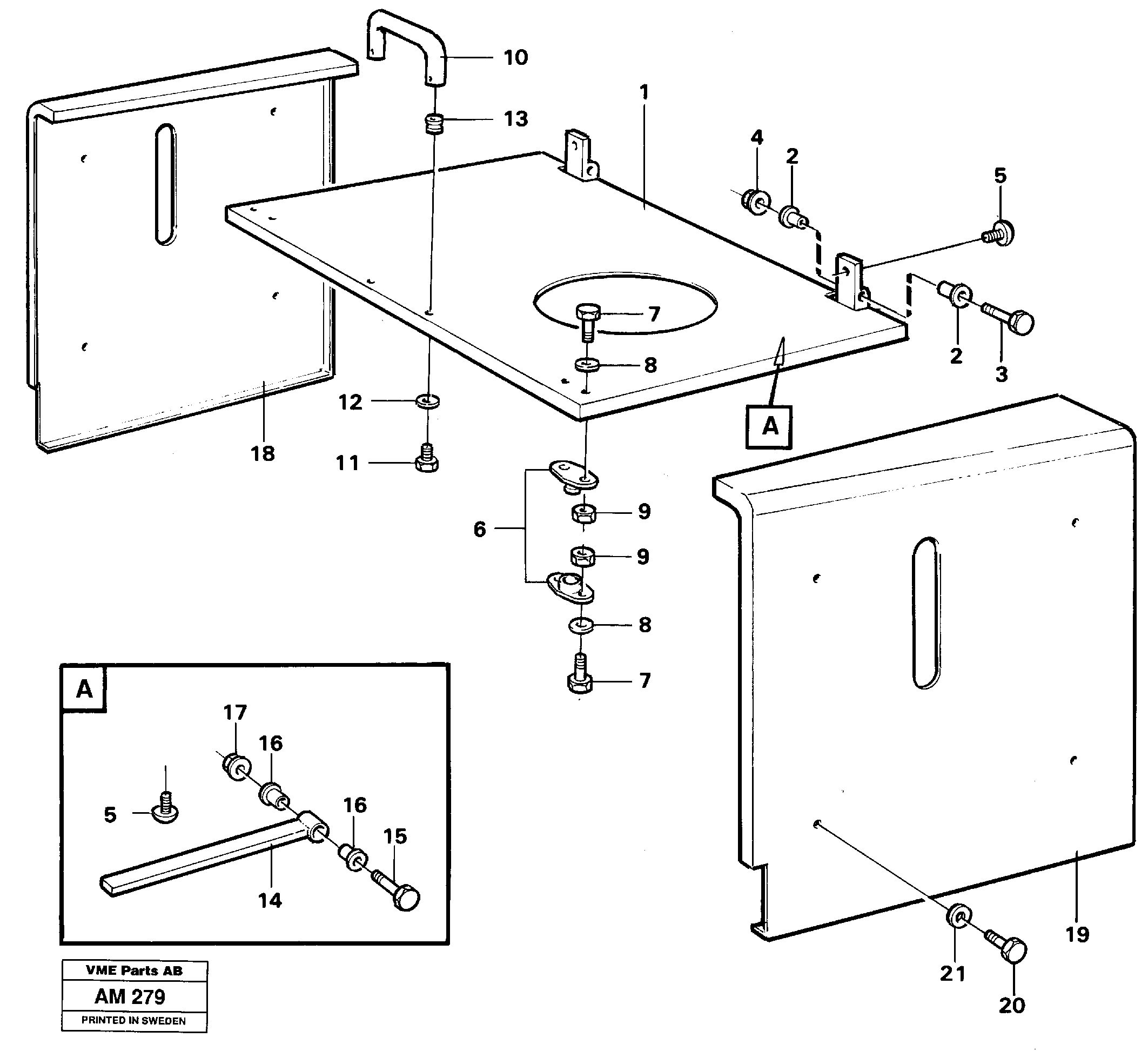

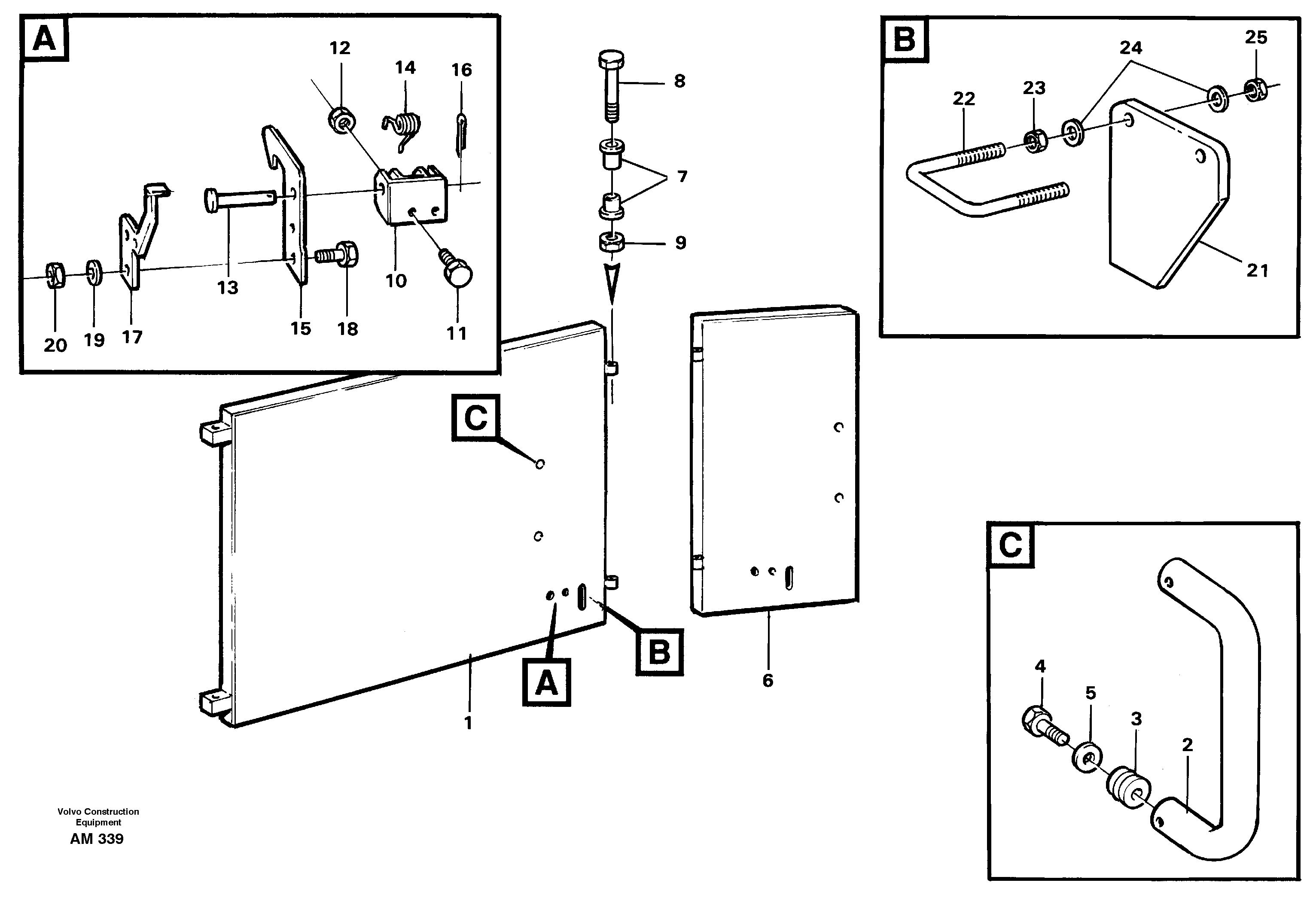

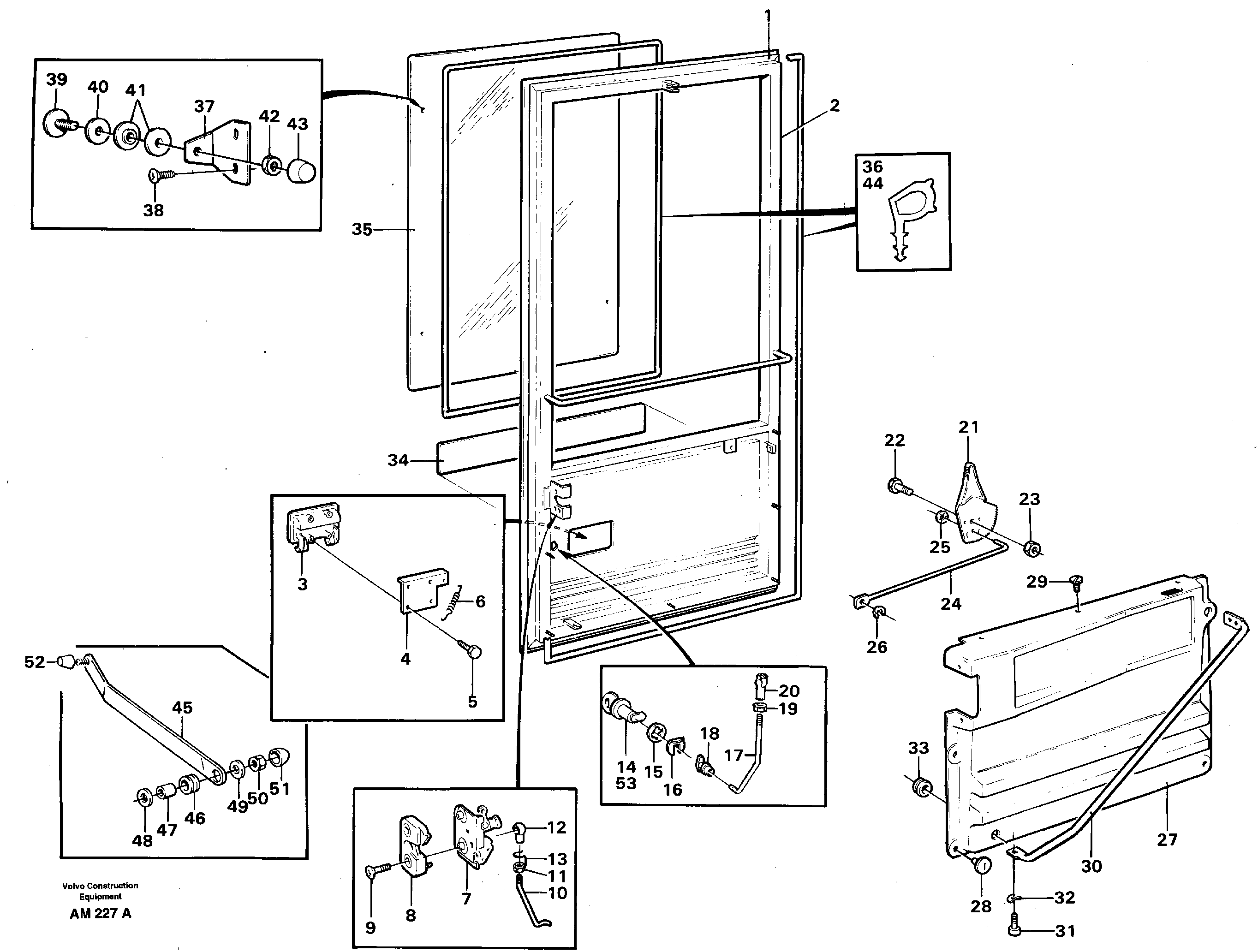

Doors, hatch, cover plate

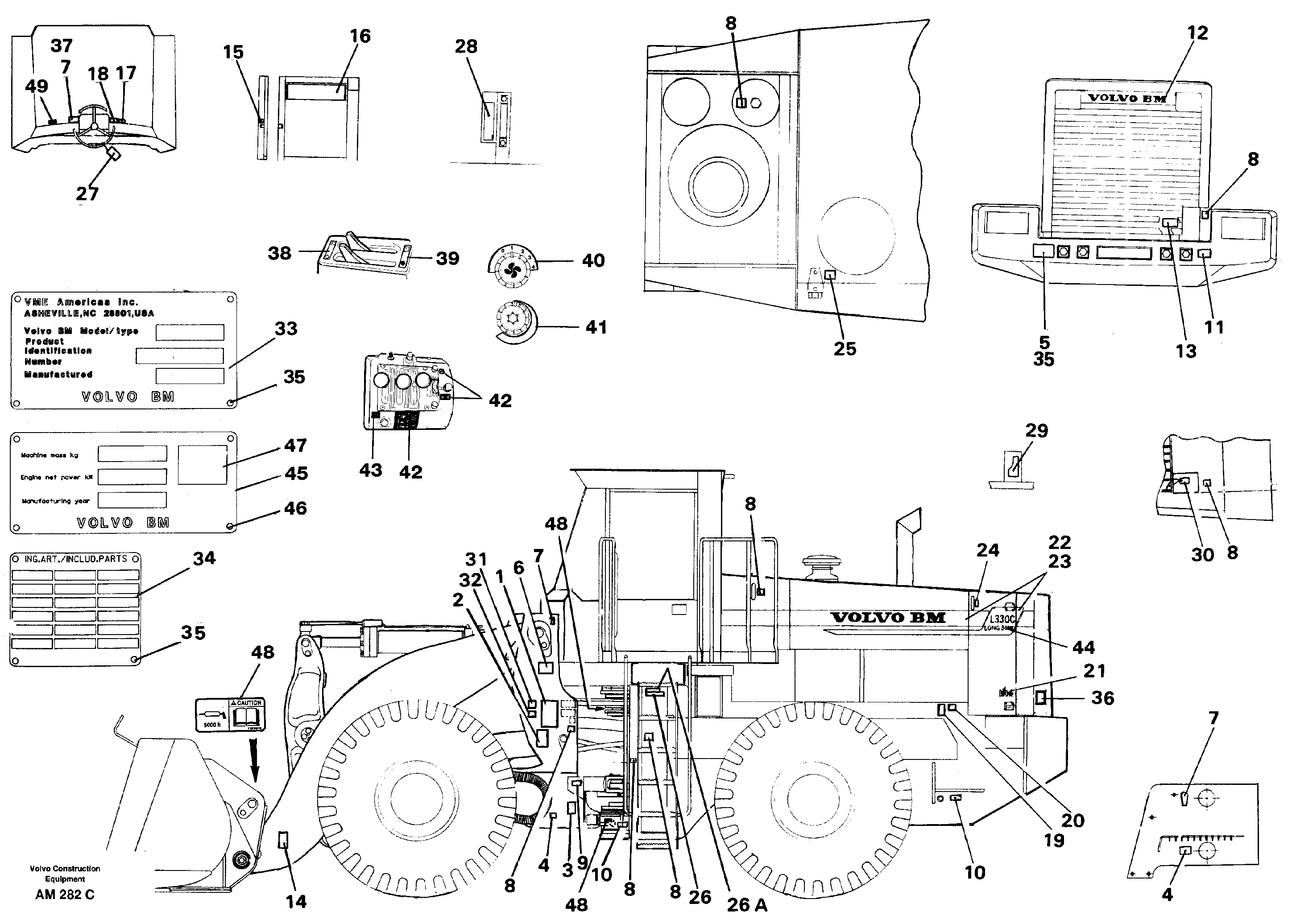

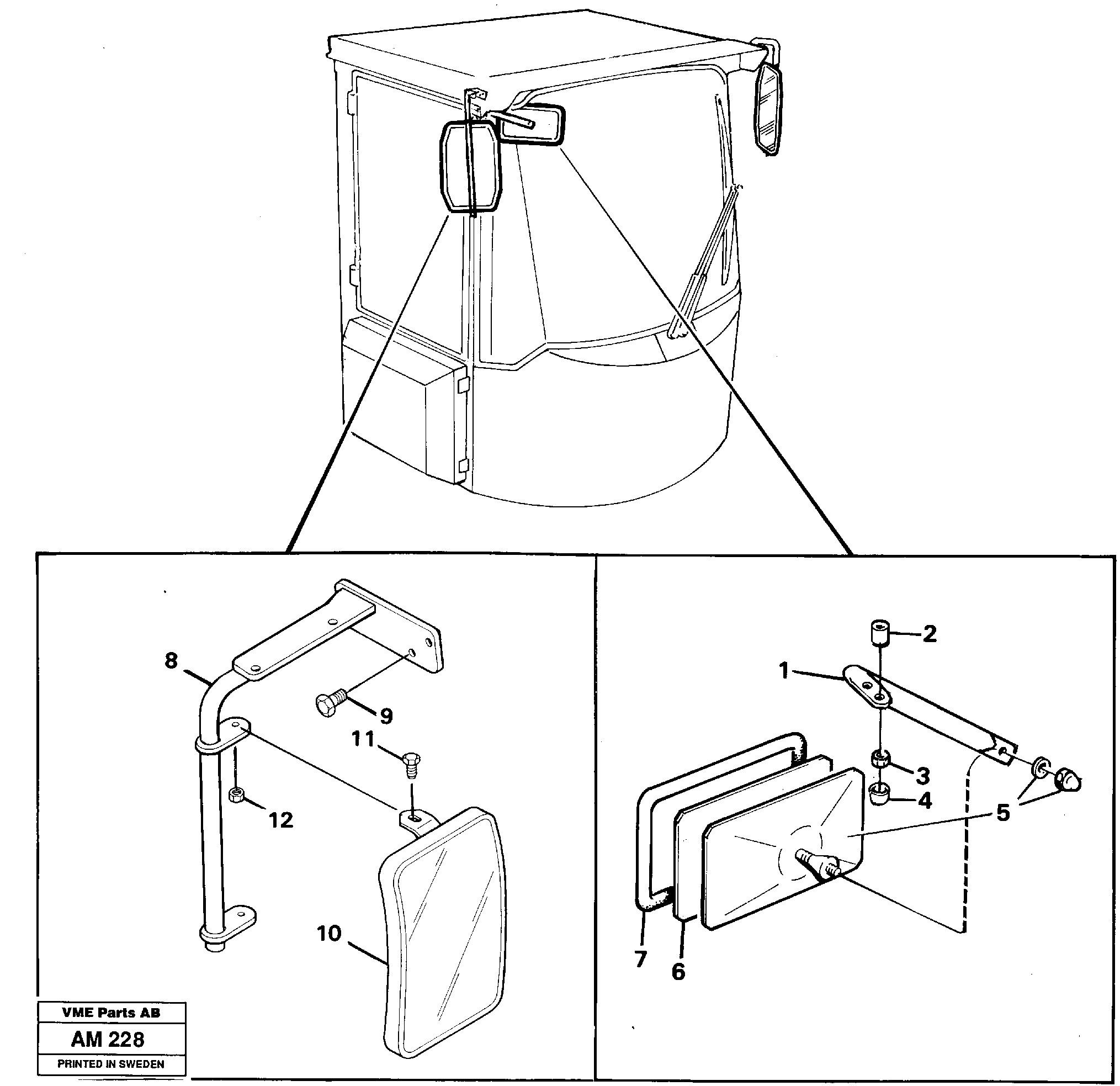

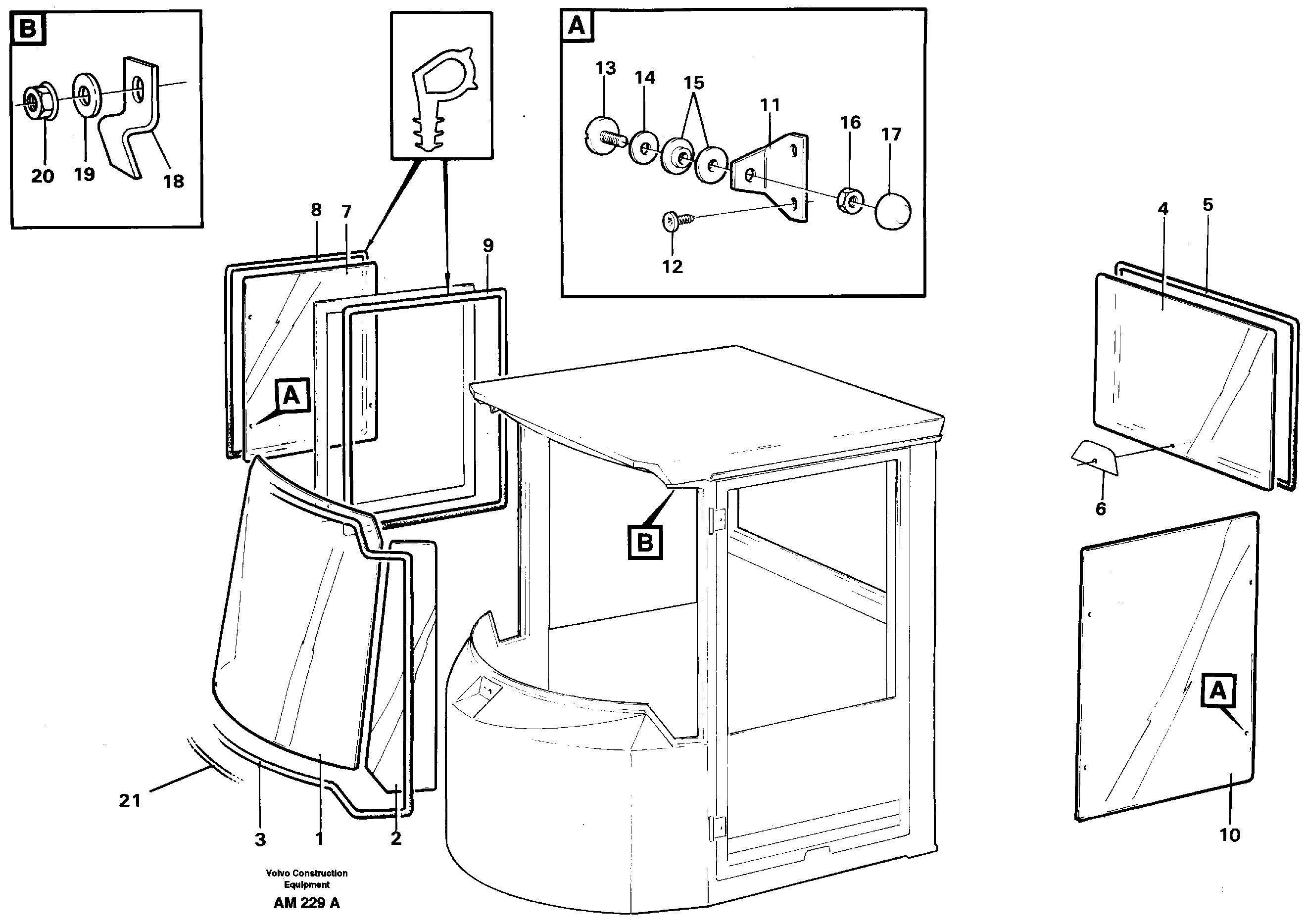

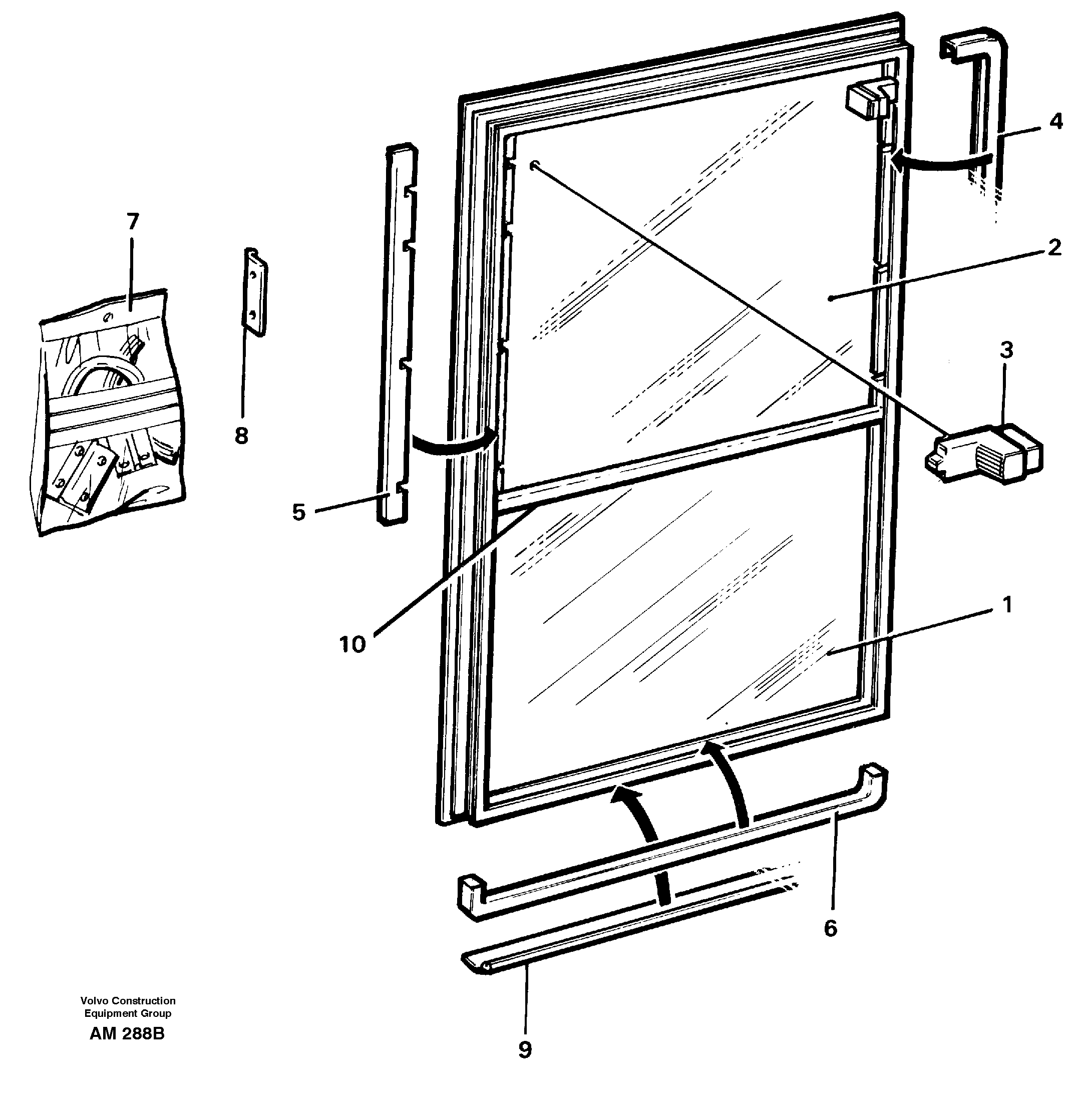

Trim part, outside, Glass, Sealing moulding
Cab interior/upholstery

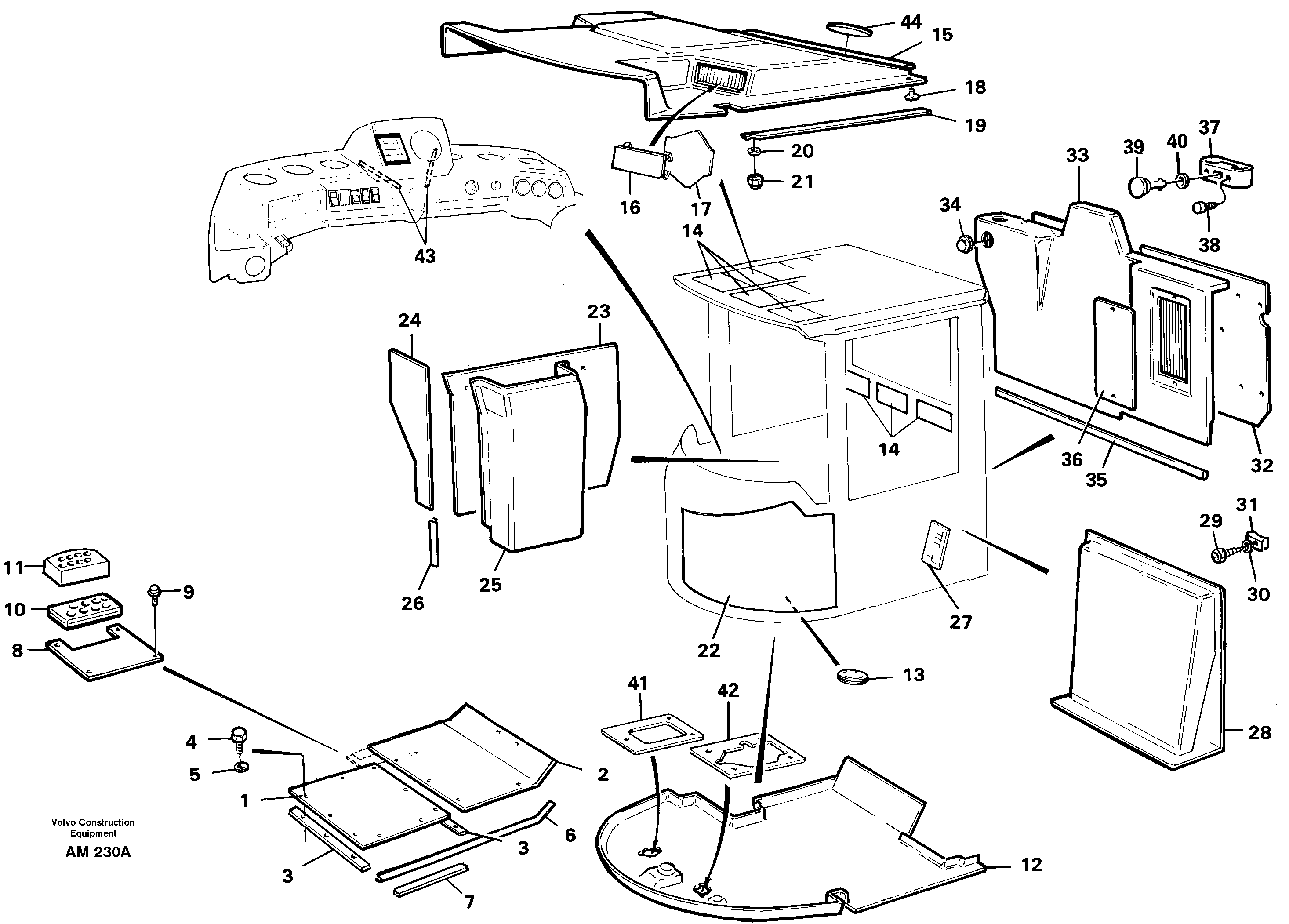

Insulating matting

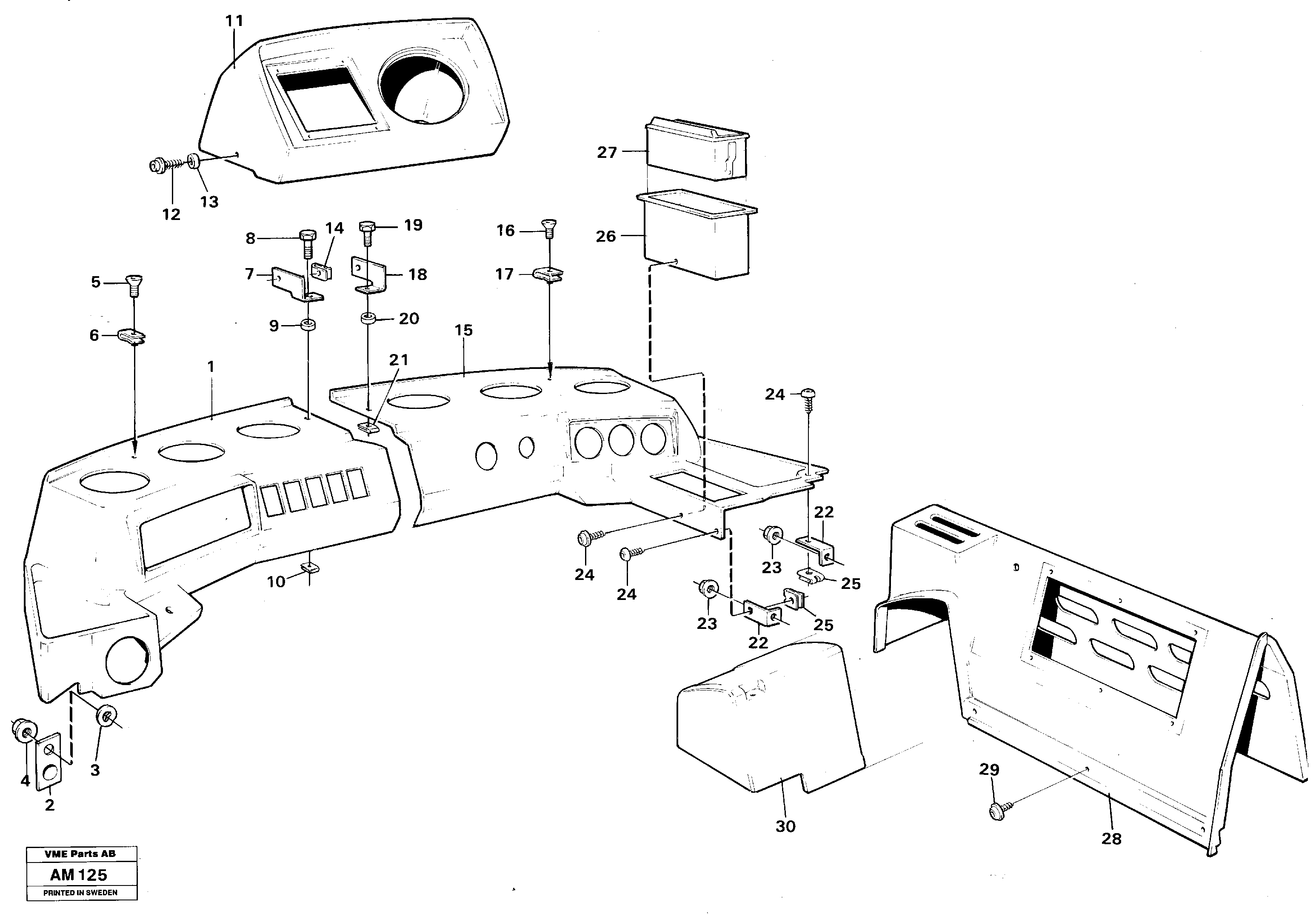

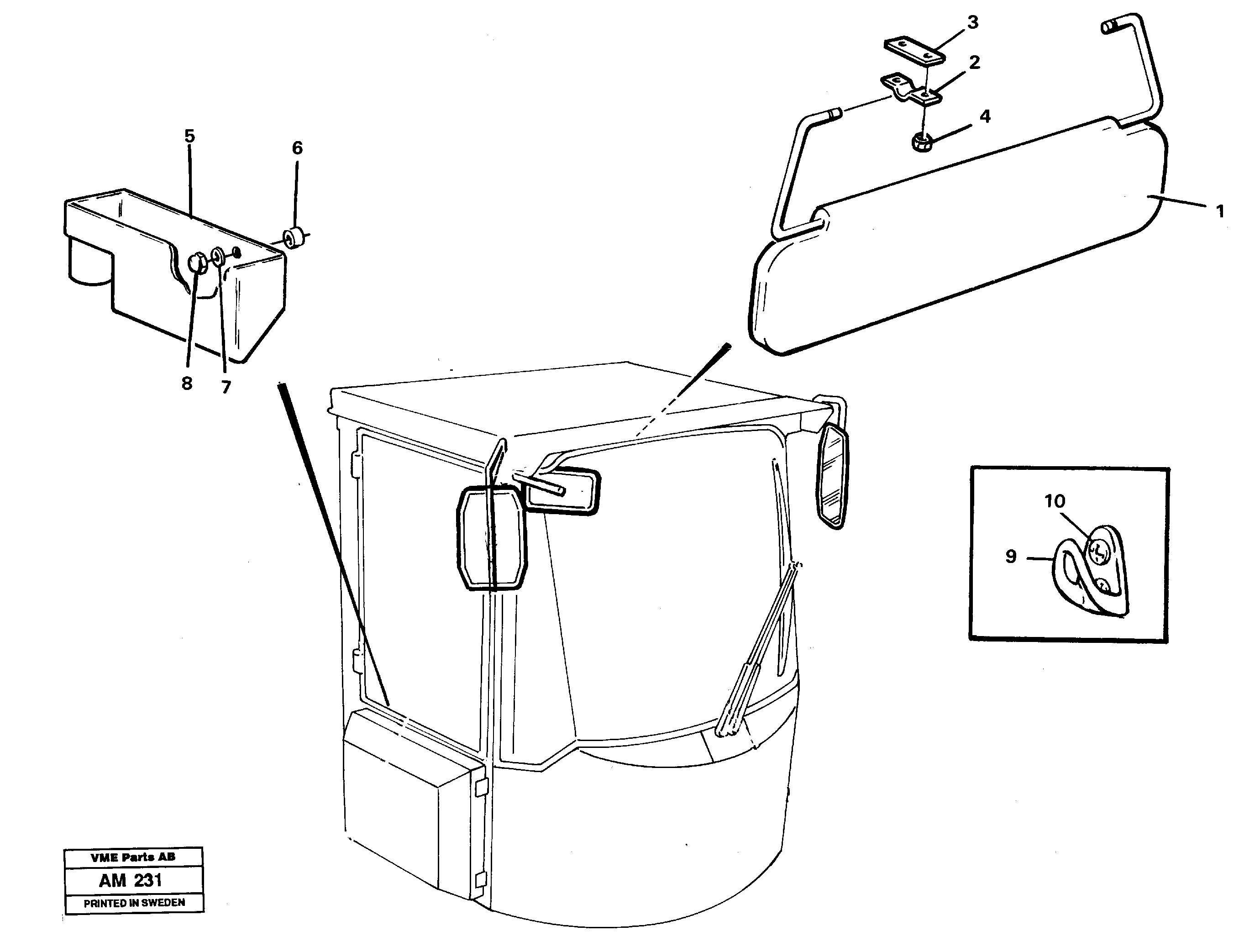

Interior components

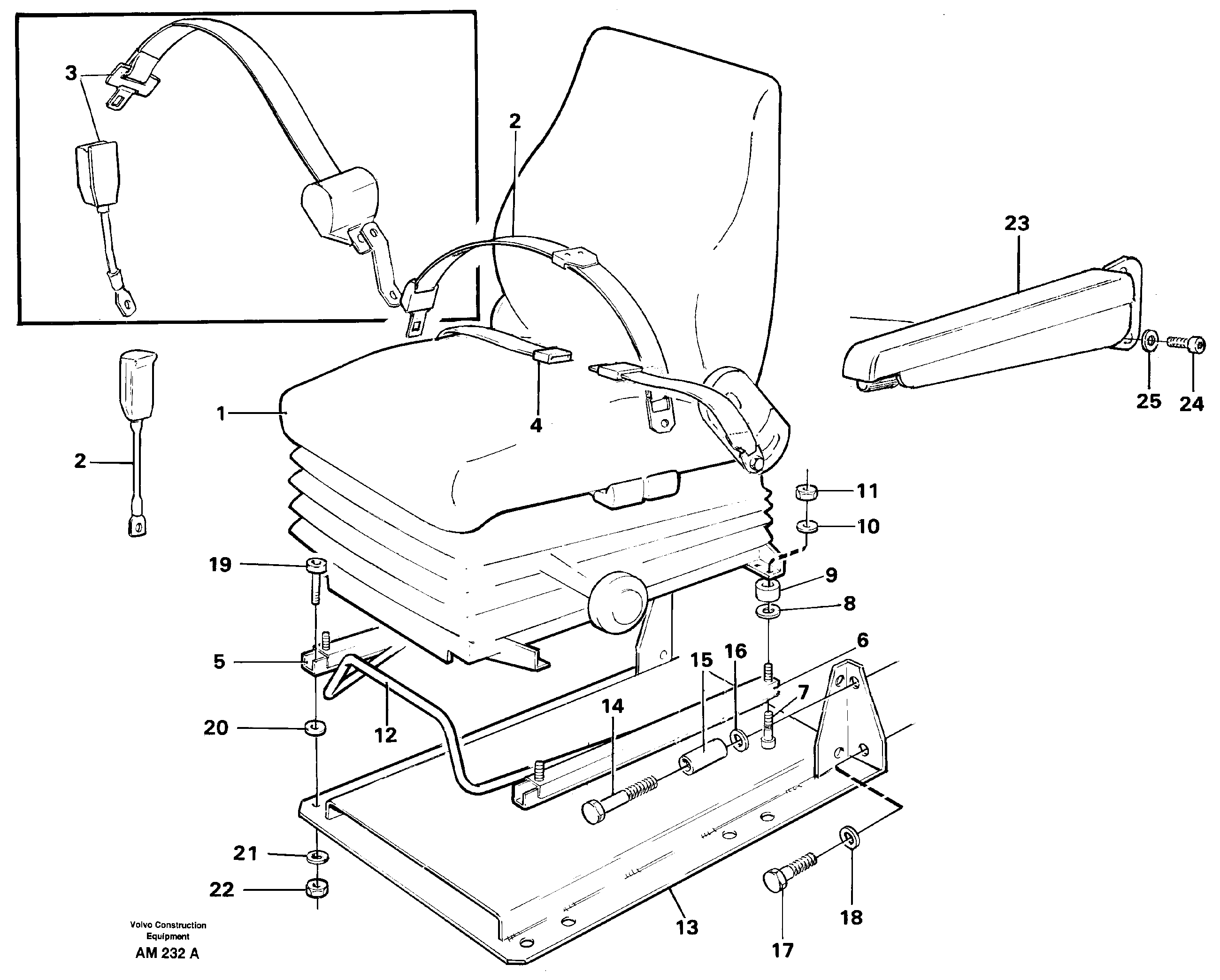

Operator seat with fitting parts

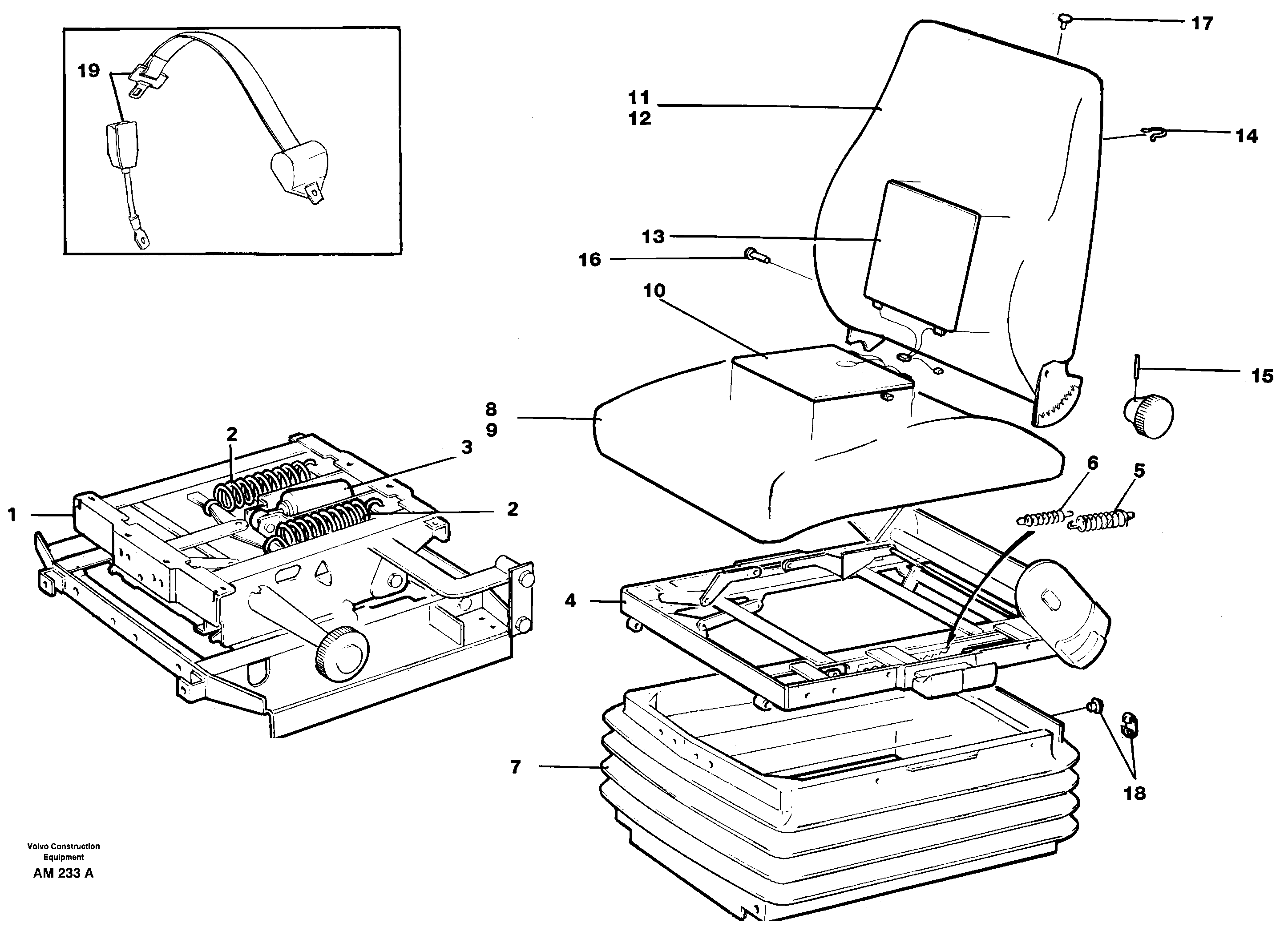

Operator seat Isri

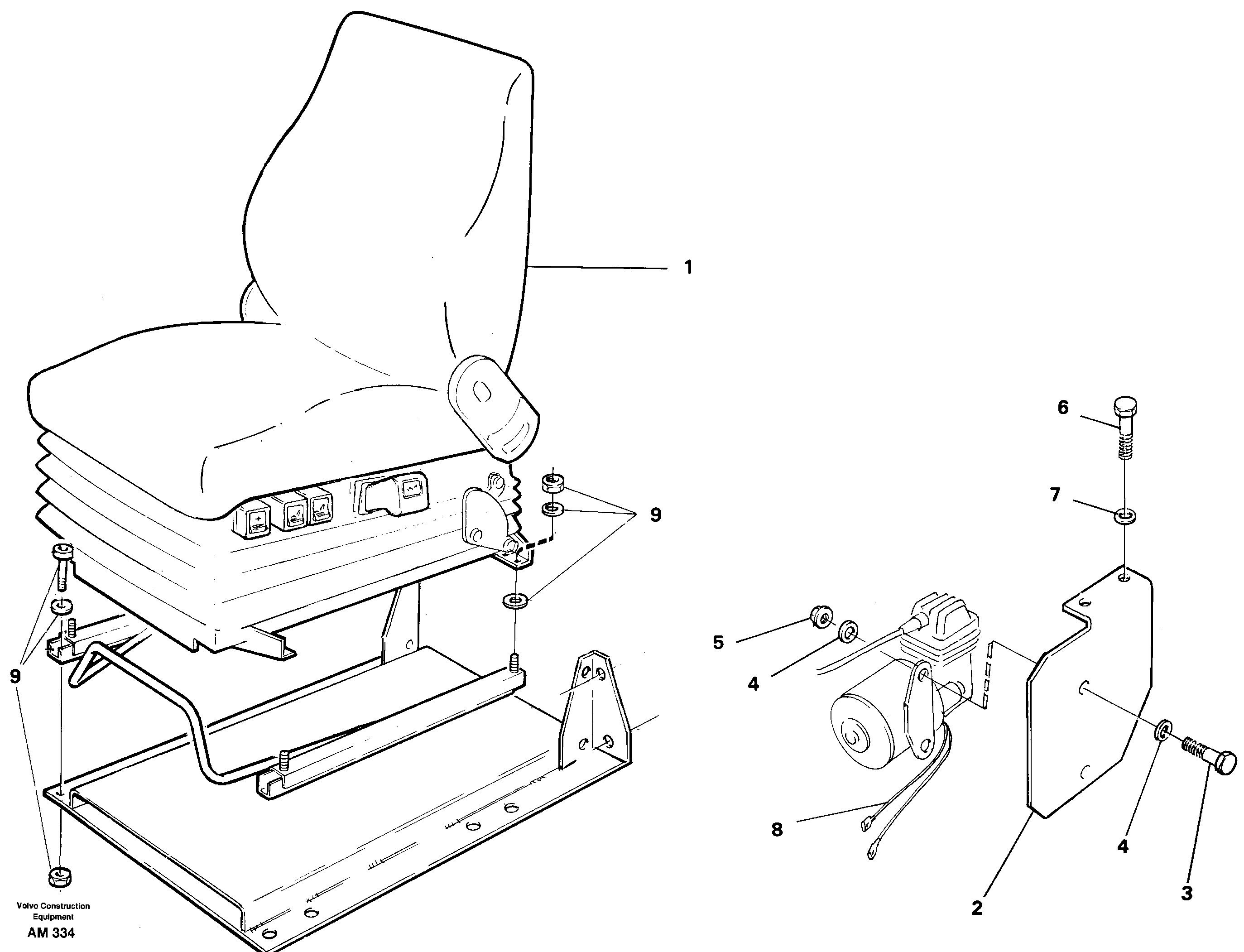

Driver's seat, air suspensioned Isri 92405, 94907, 94914

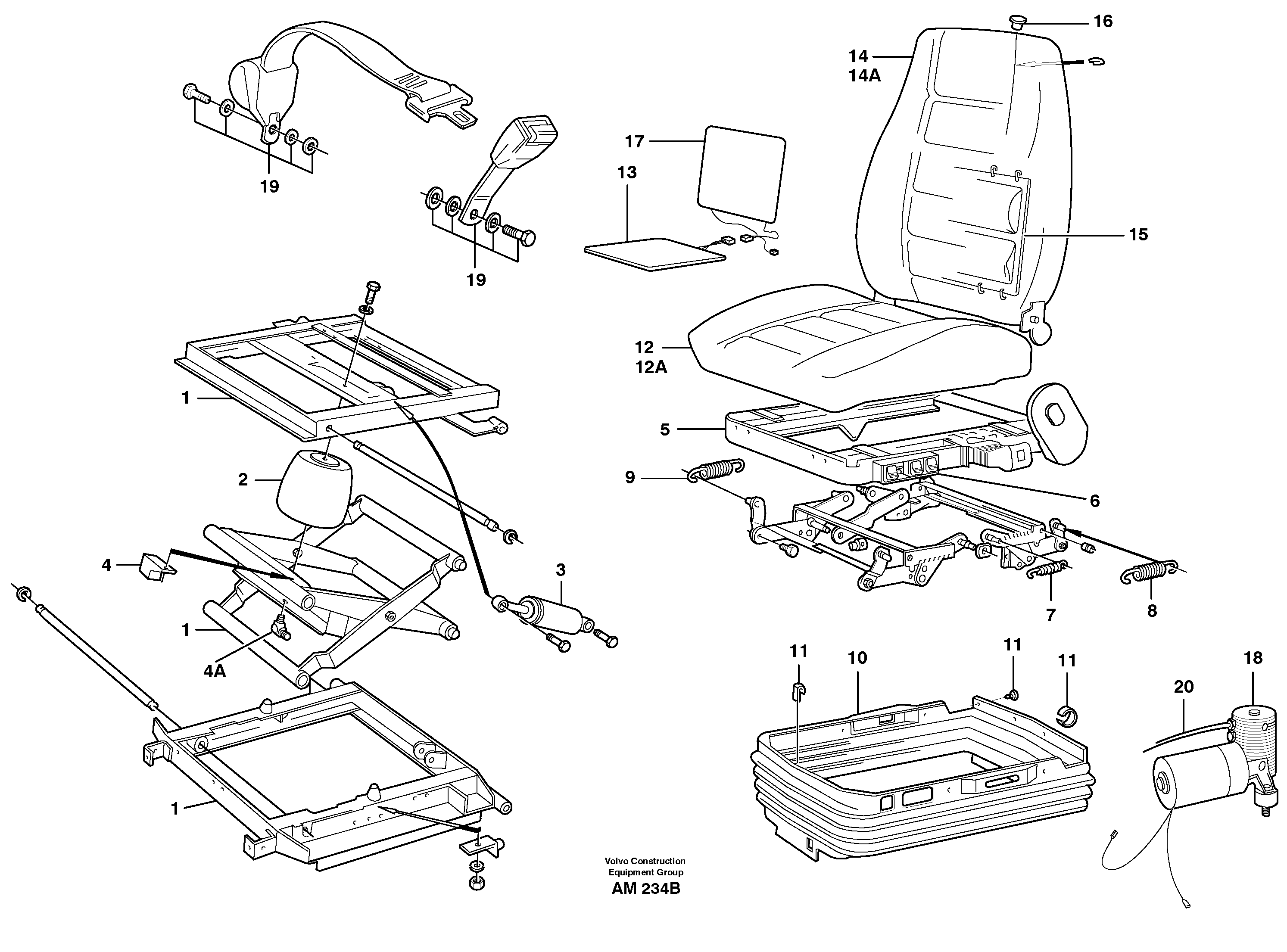

Operator's seat, heated, air suspensioned 92405, 94907, 94914

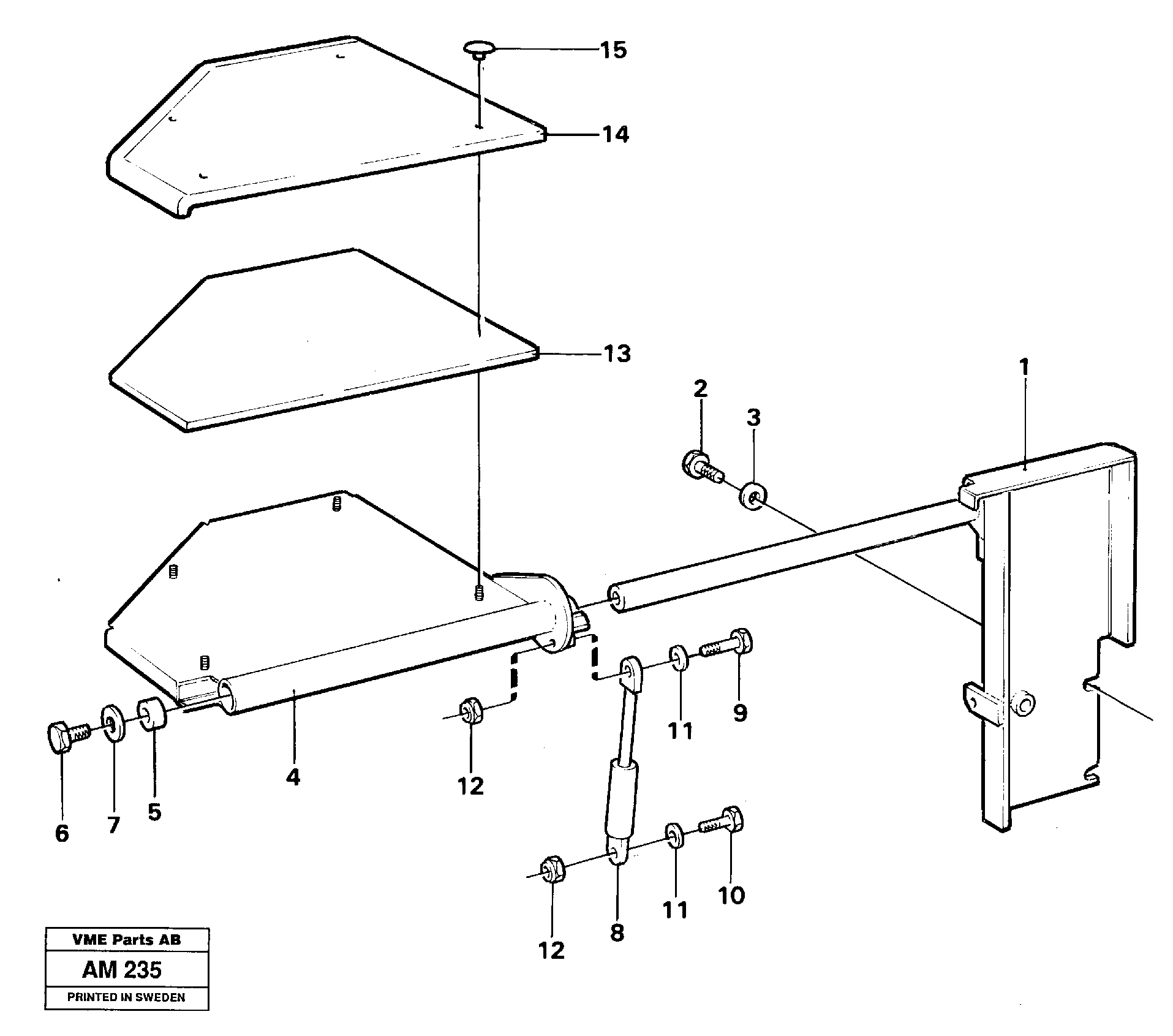

Instructor's seat 91988

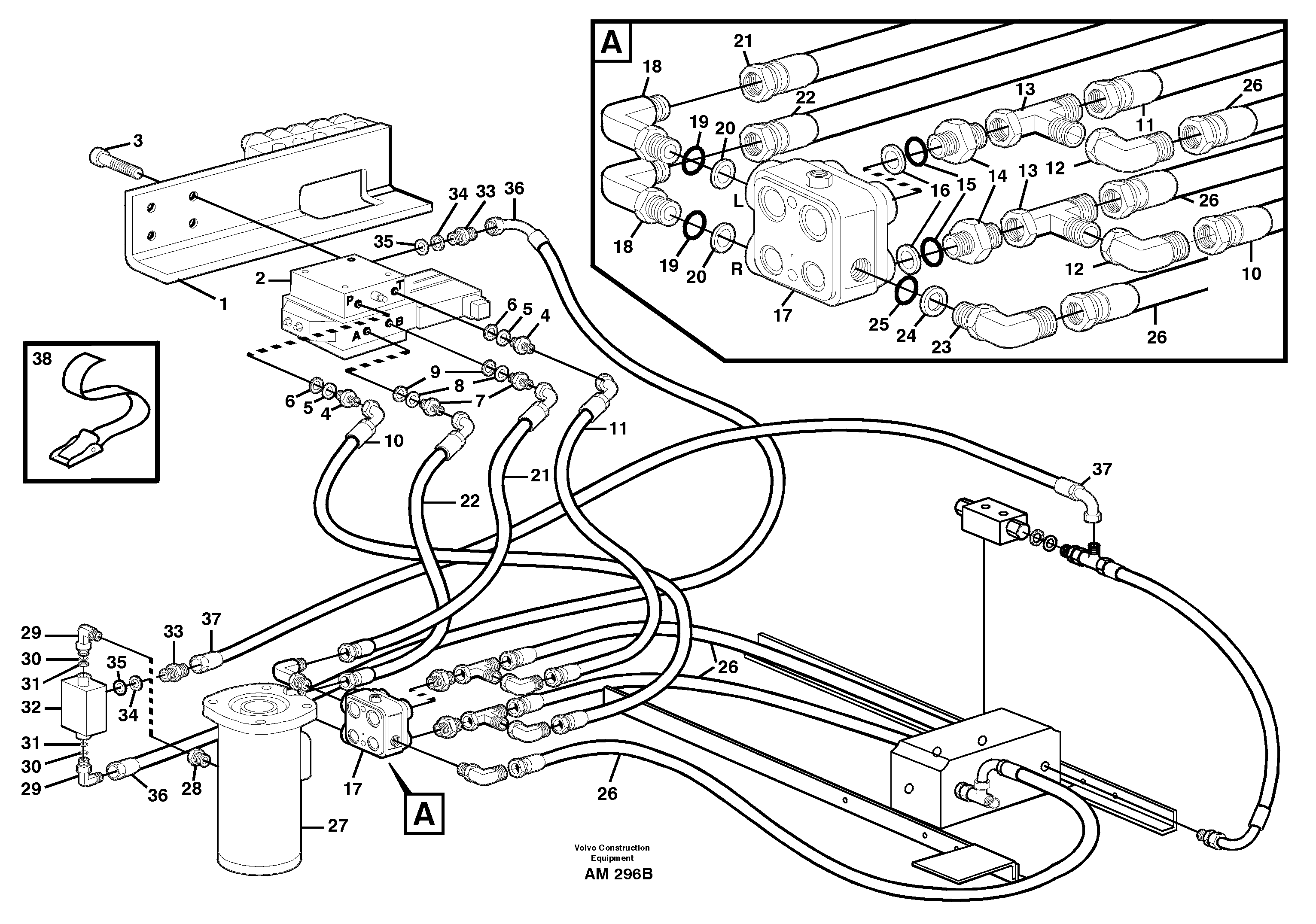

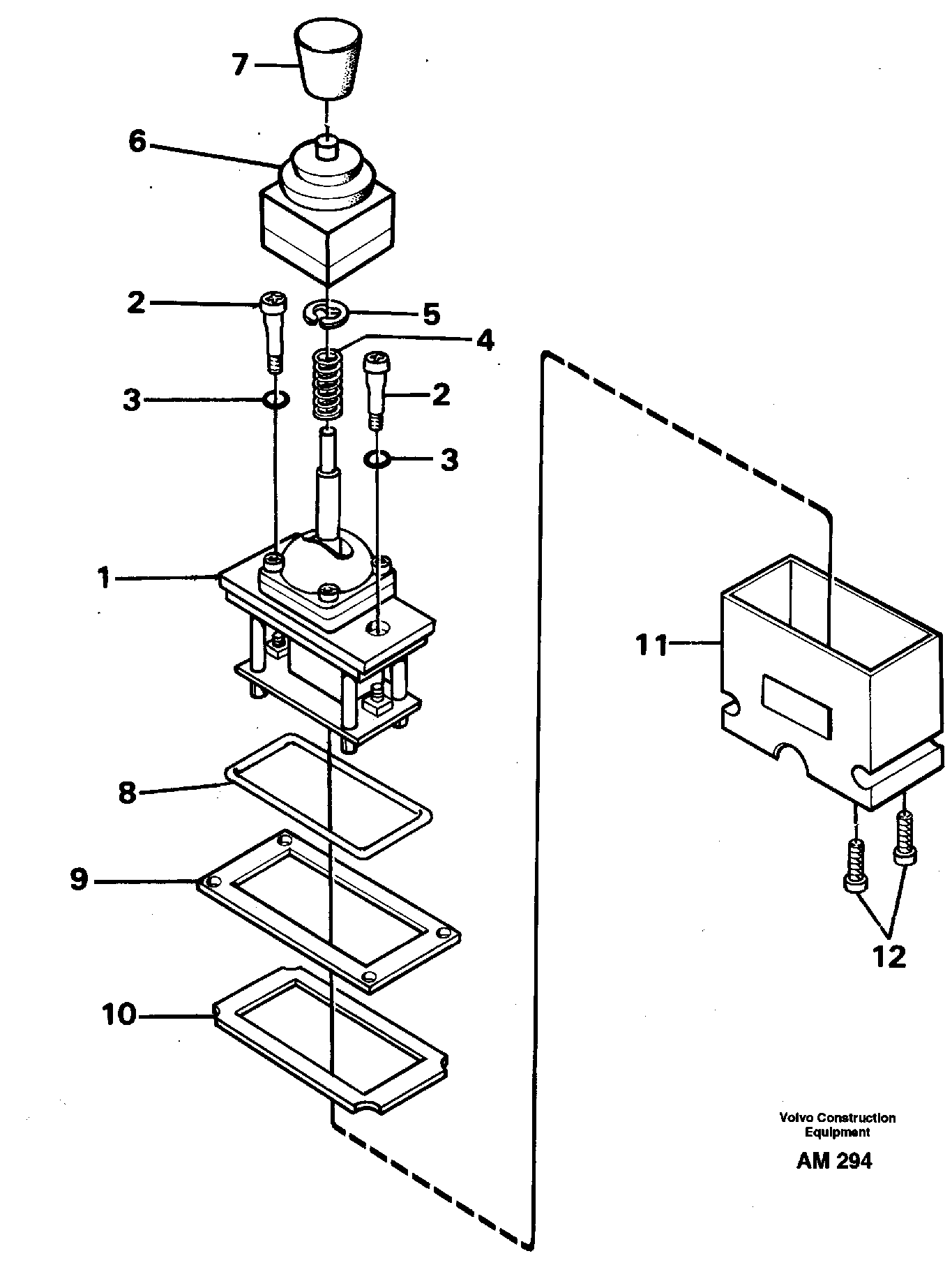

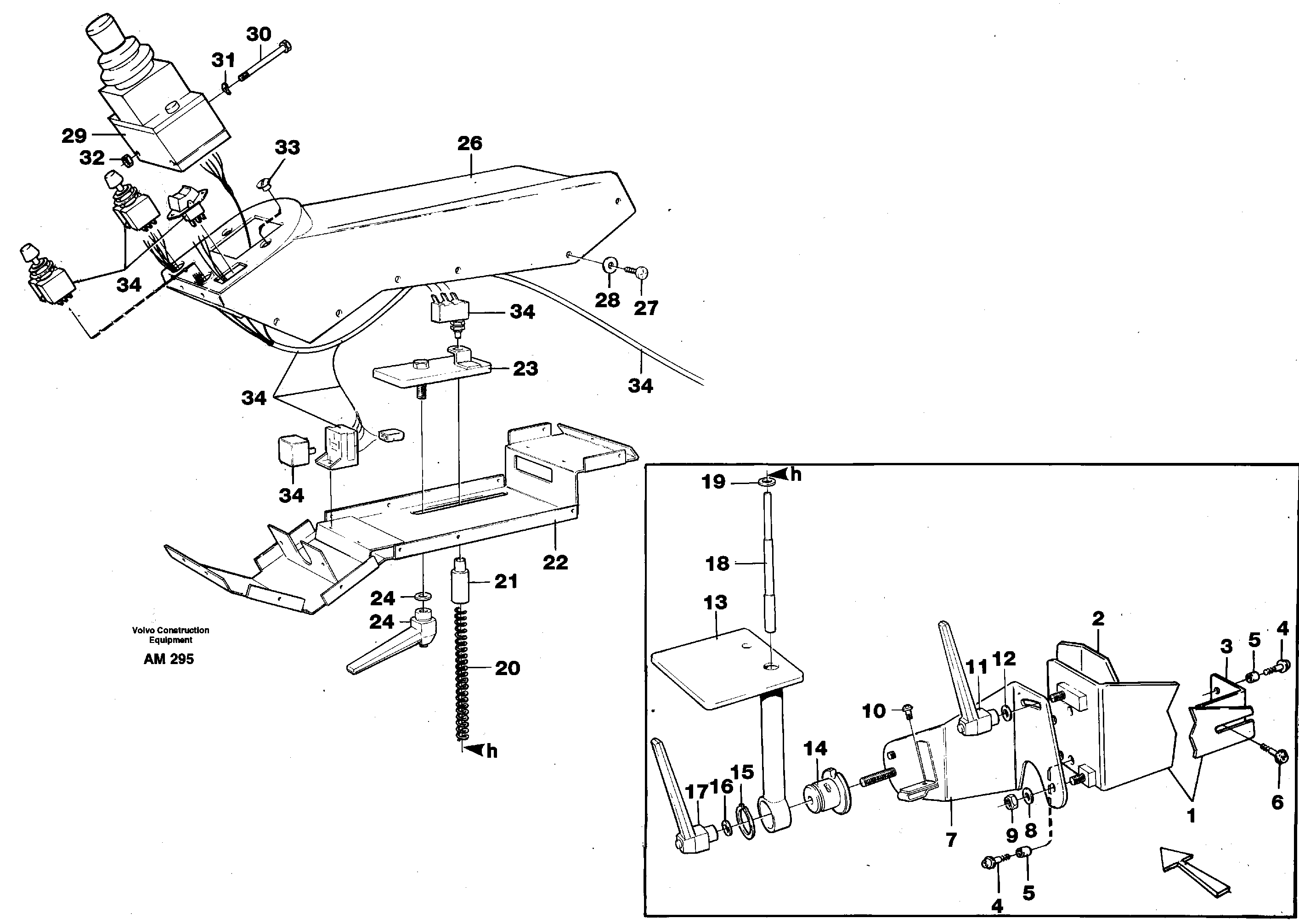

Cdc-steering, foldable armrest. 94512

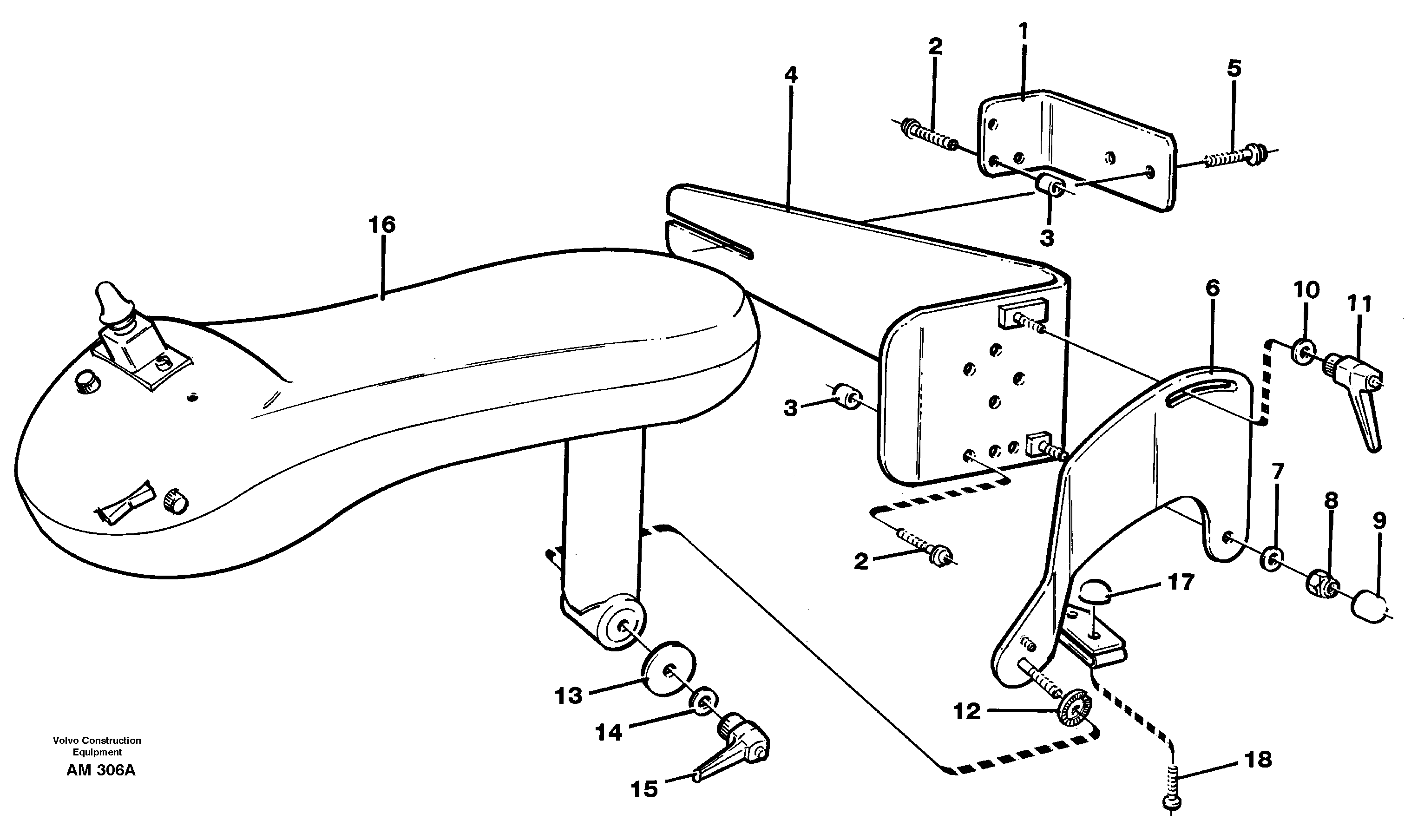

Cdc-steering, armrest, mounting 94619

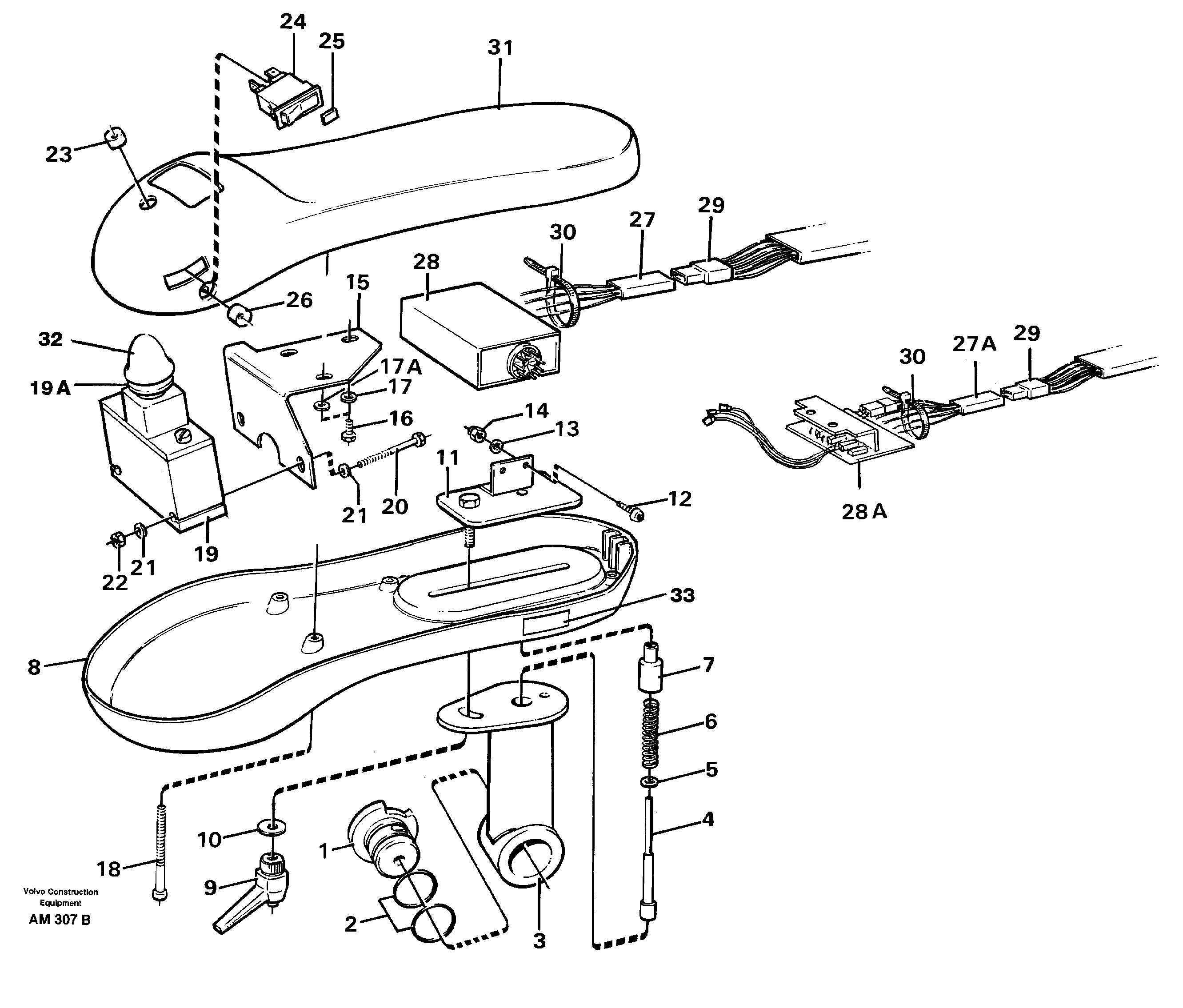

Armrest 94619

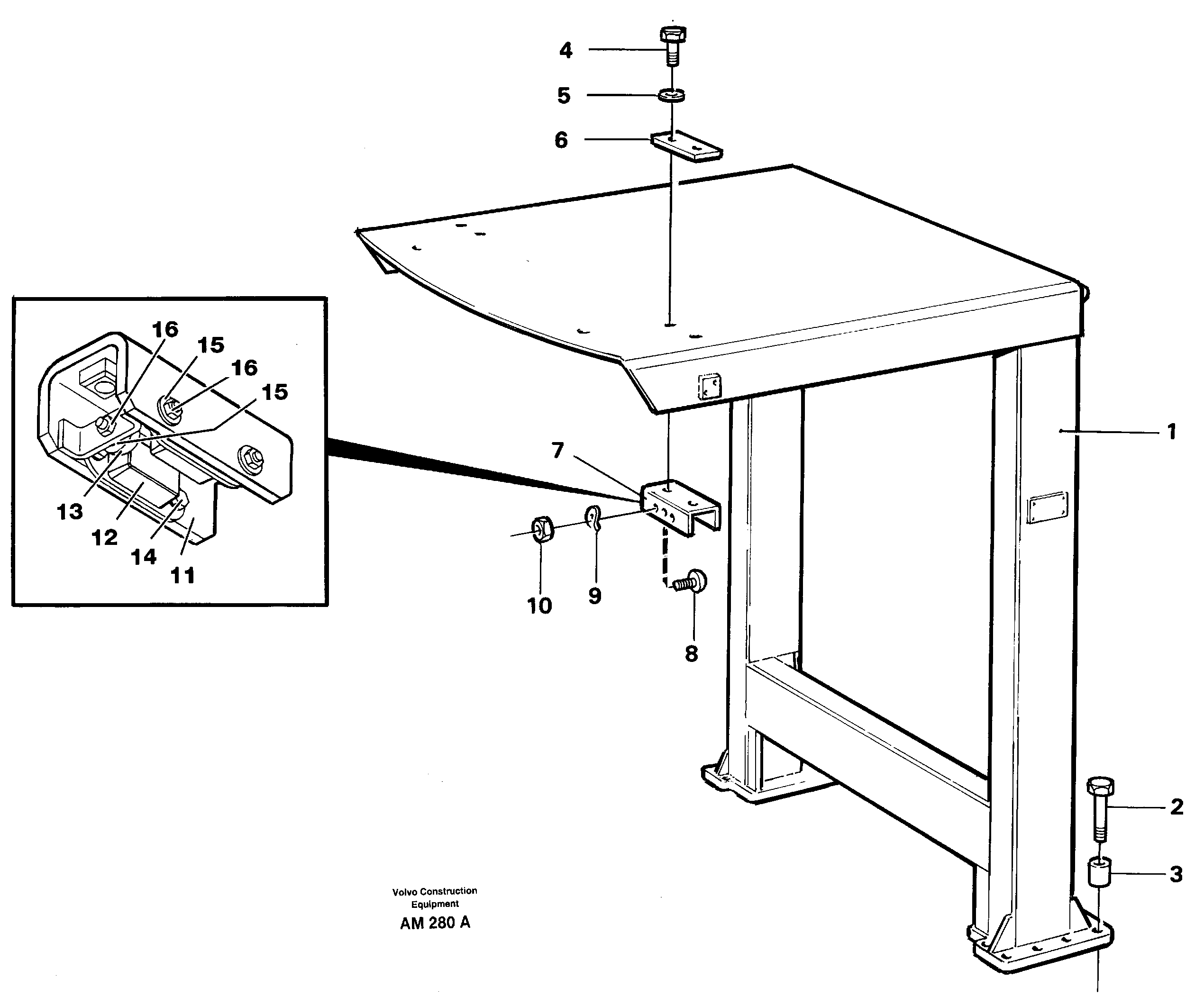

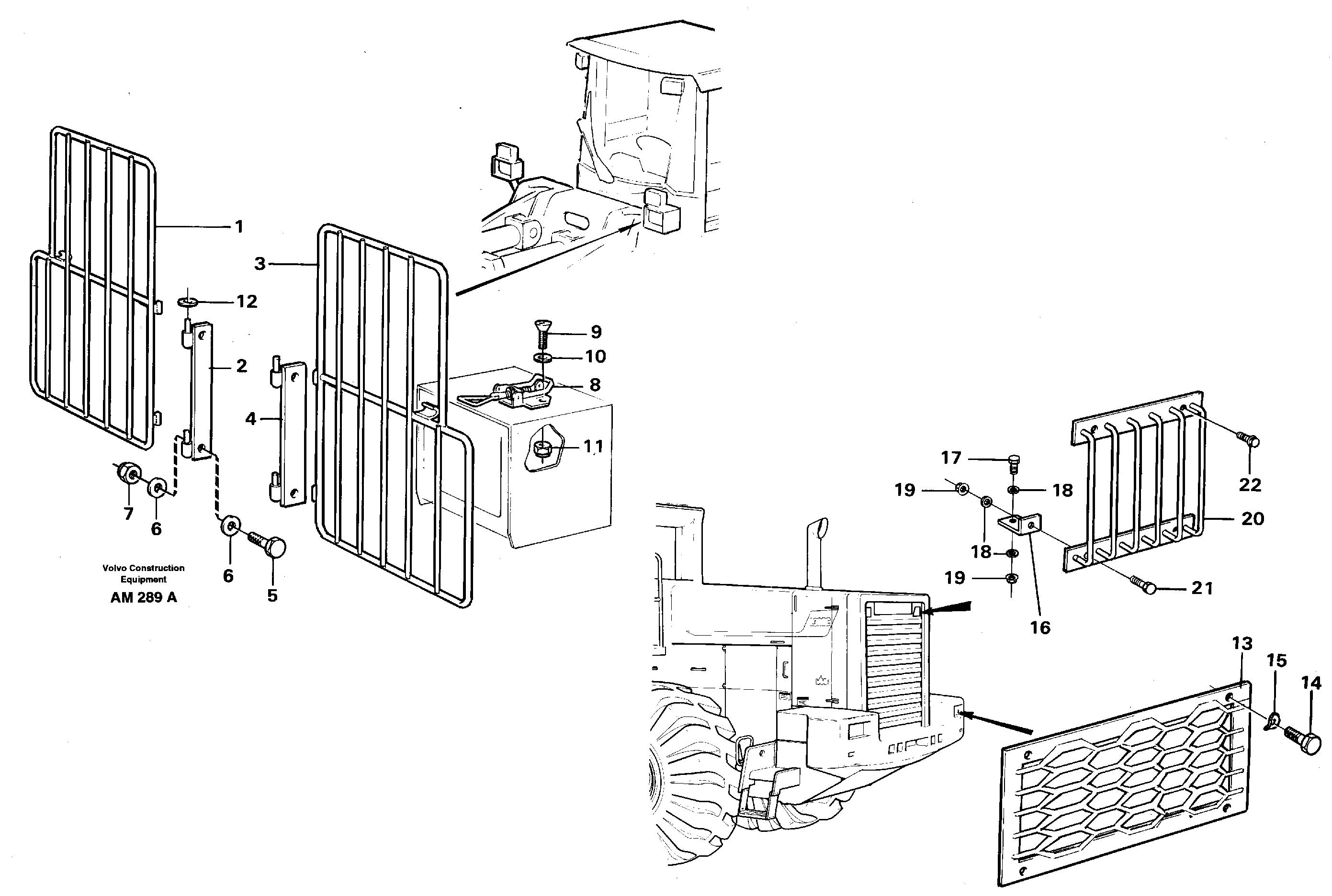

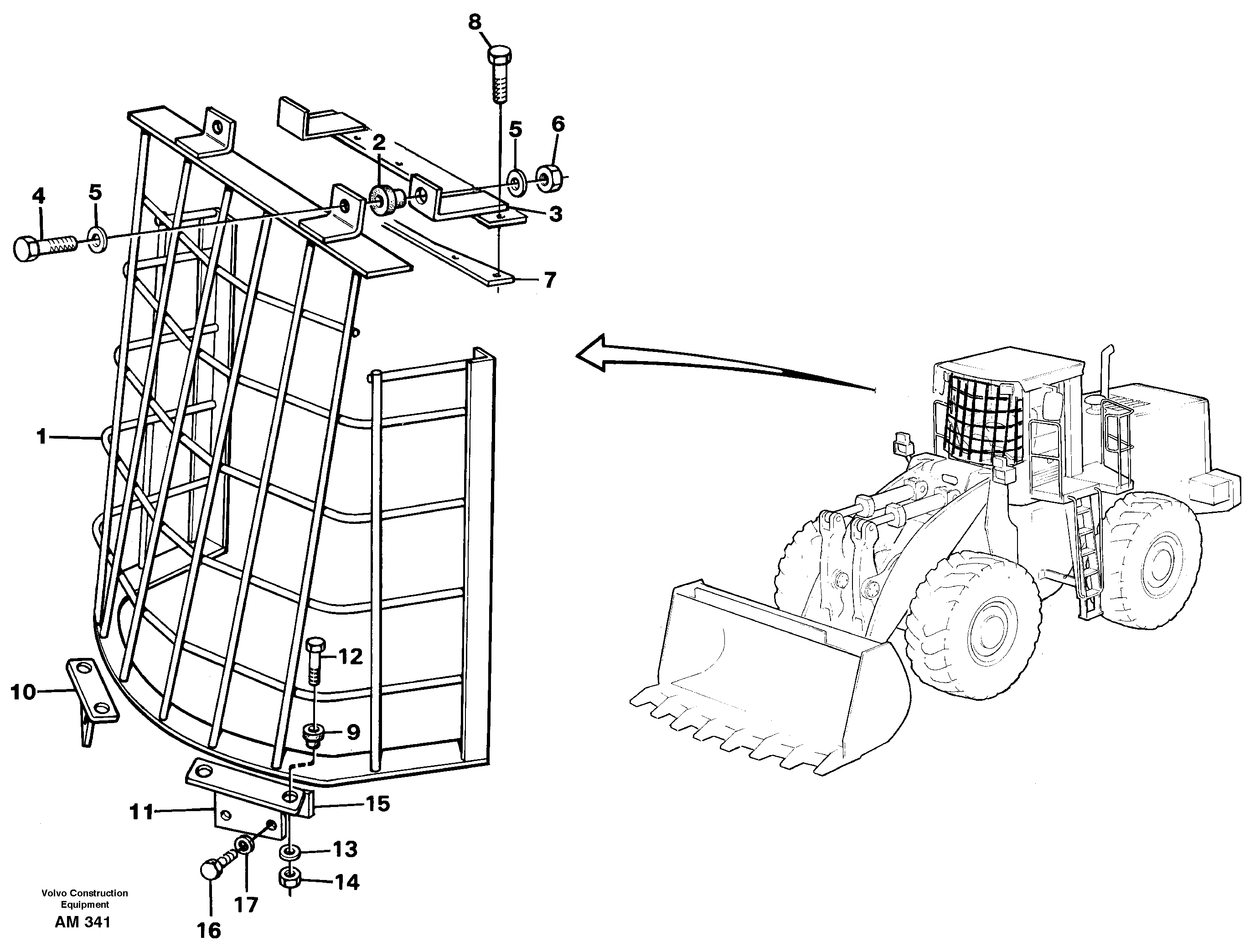

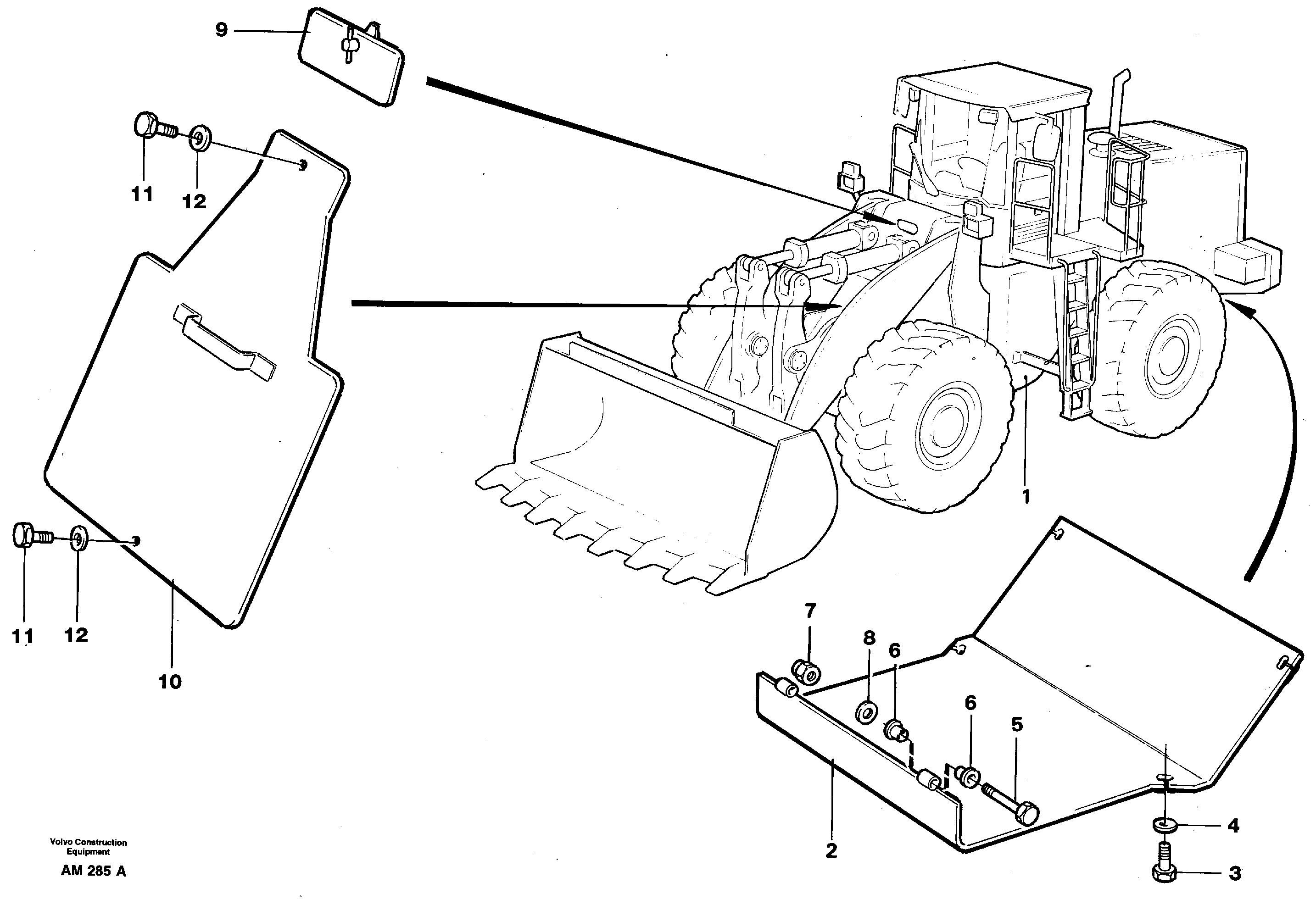

Protective equipment

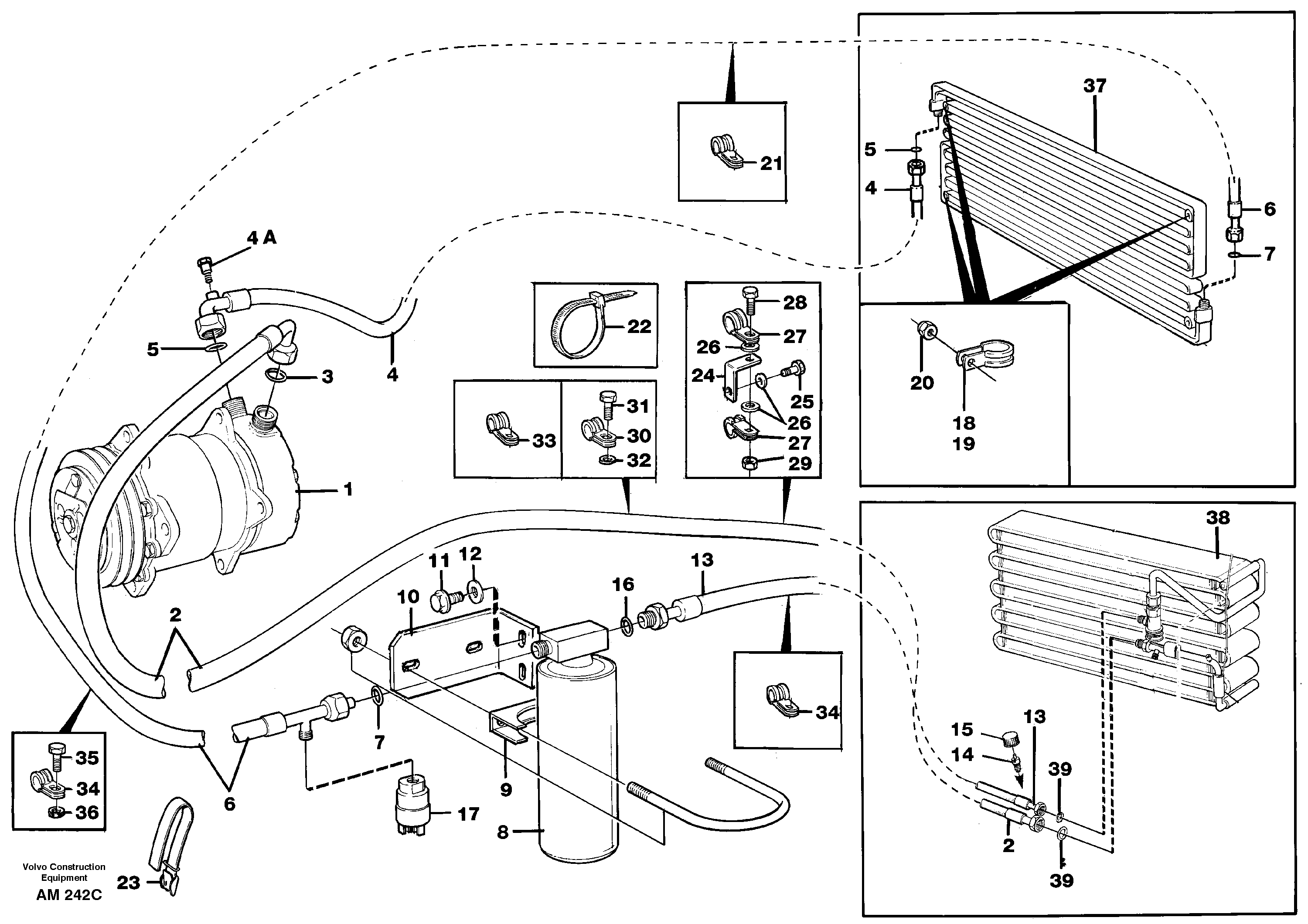

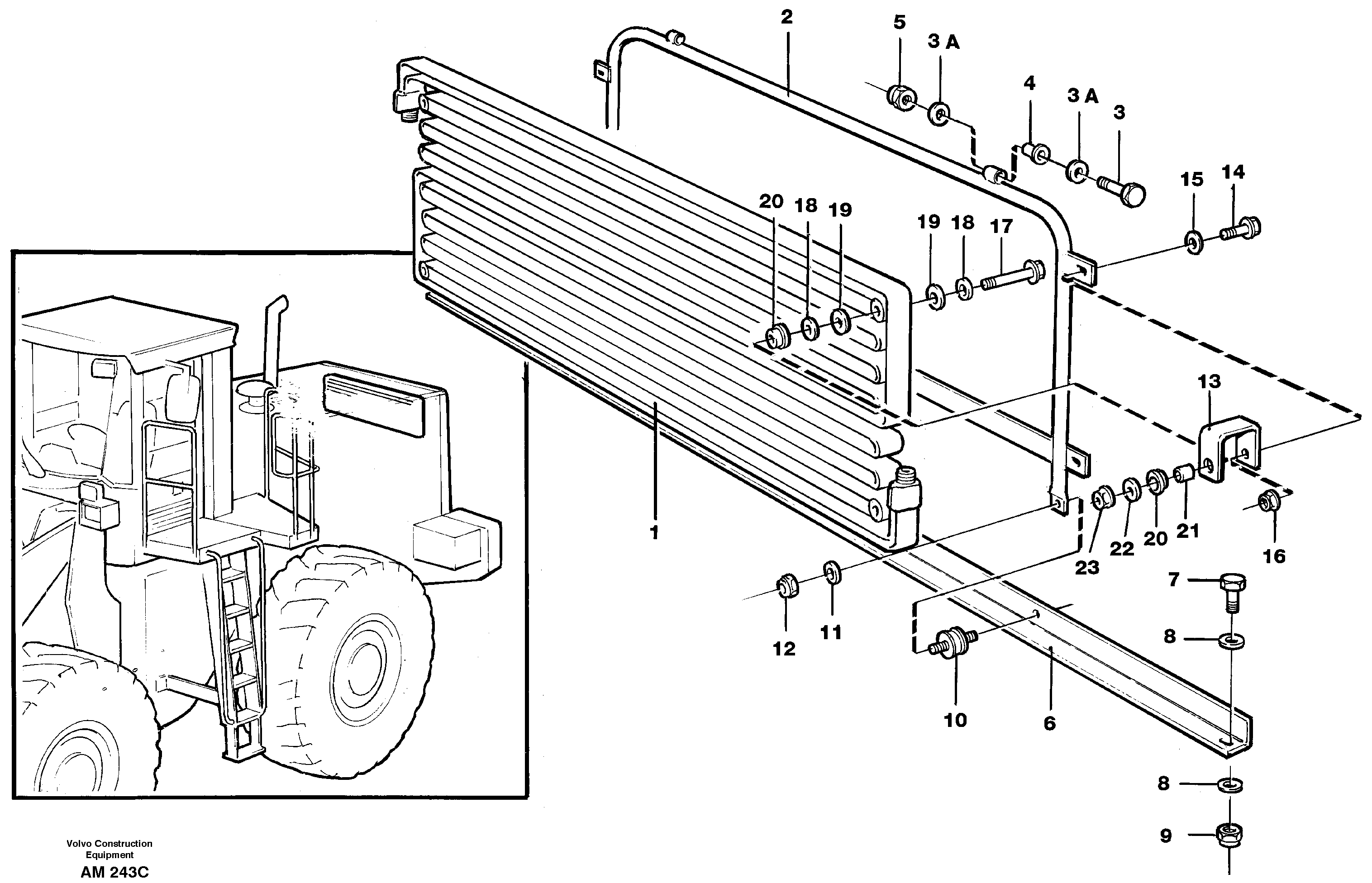

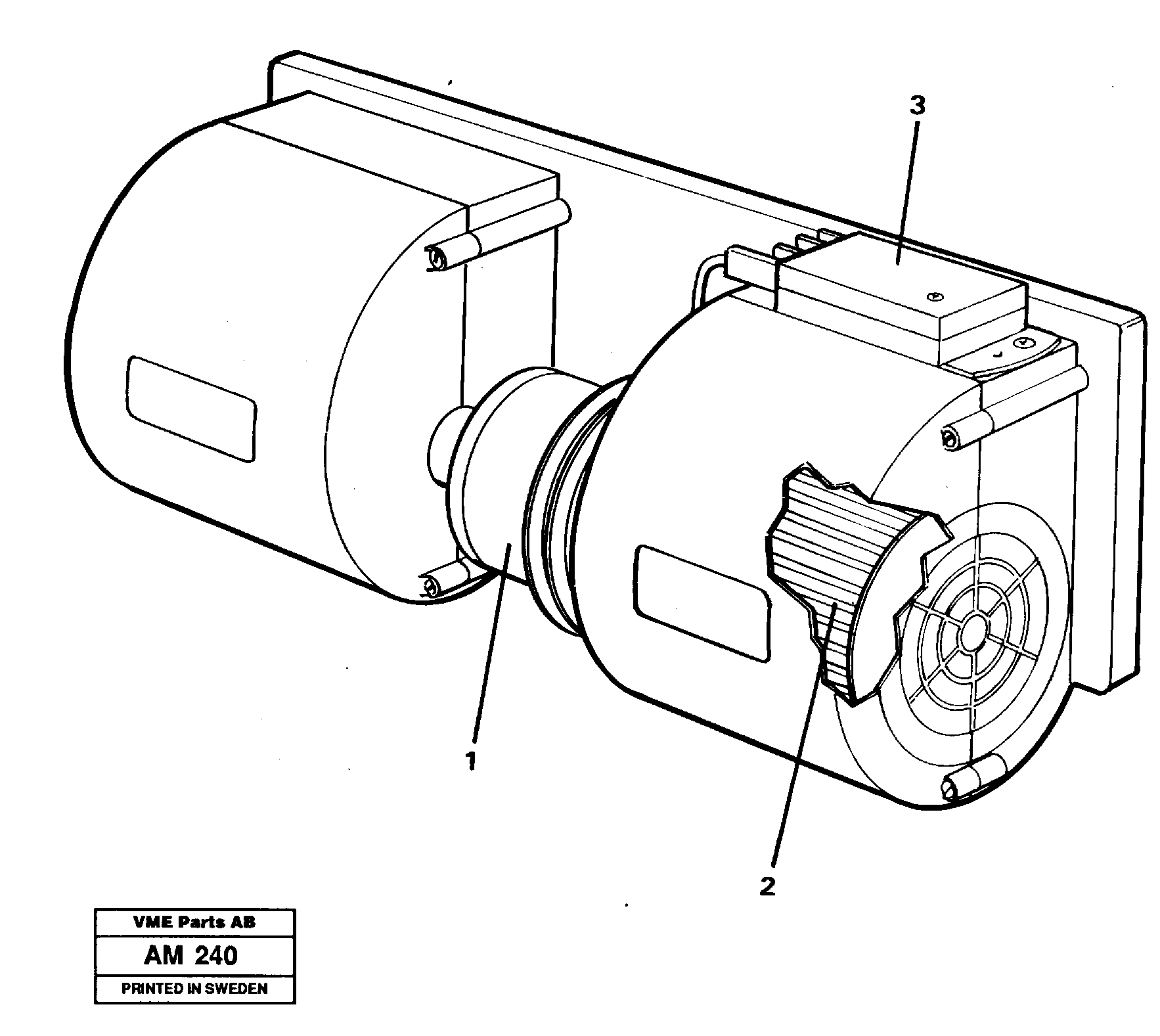

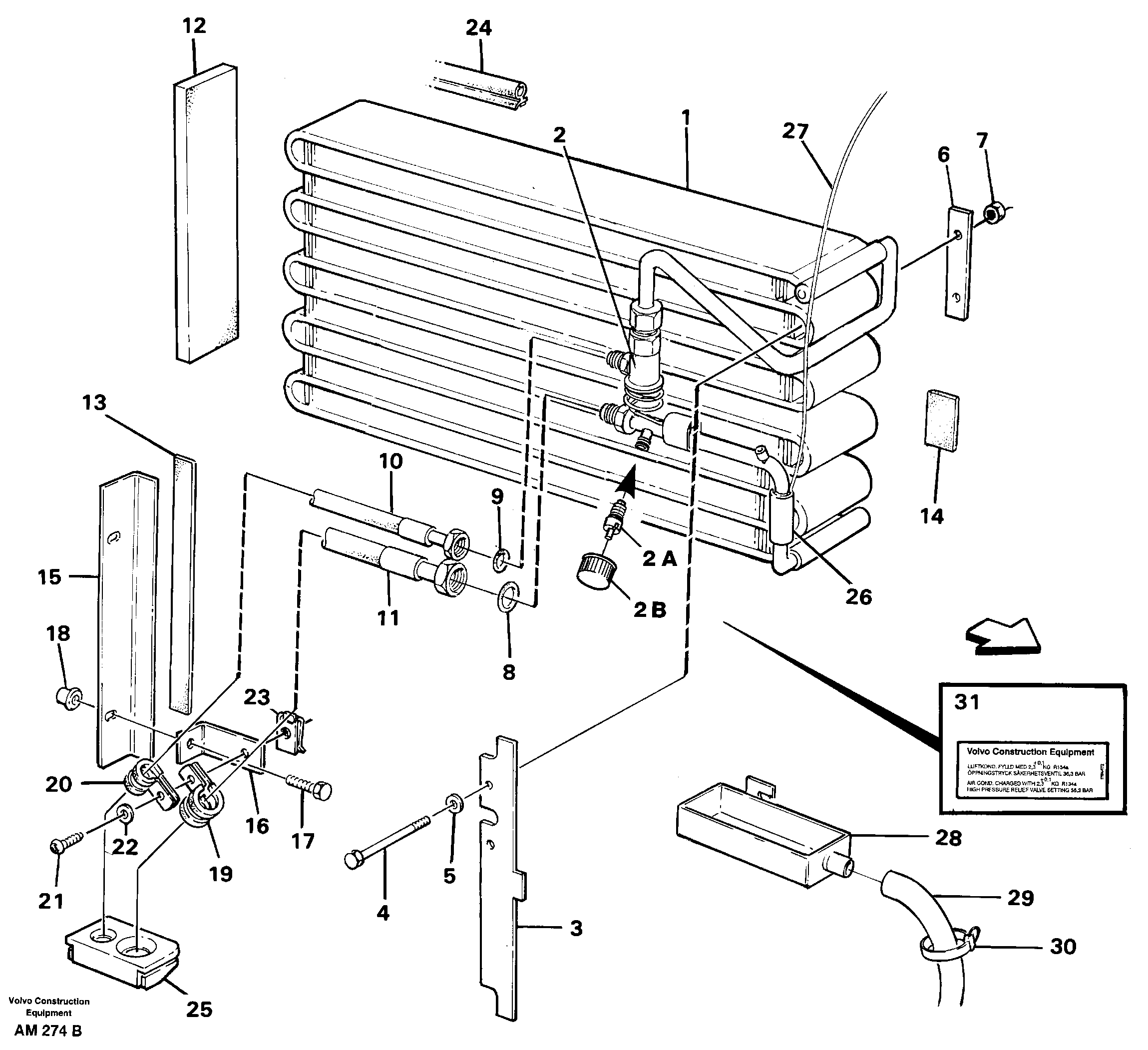

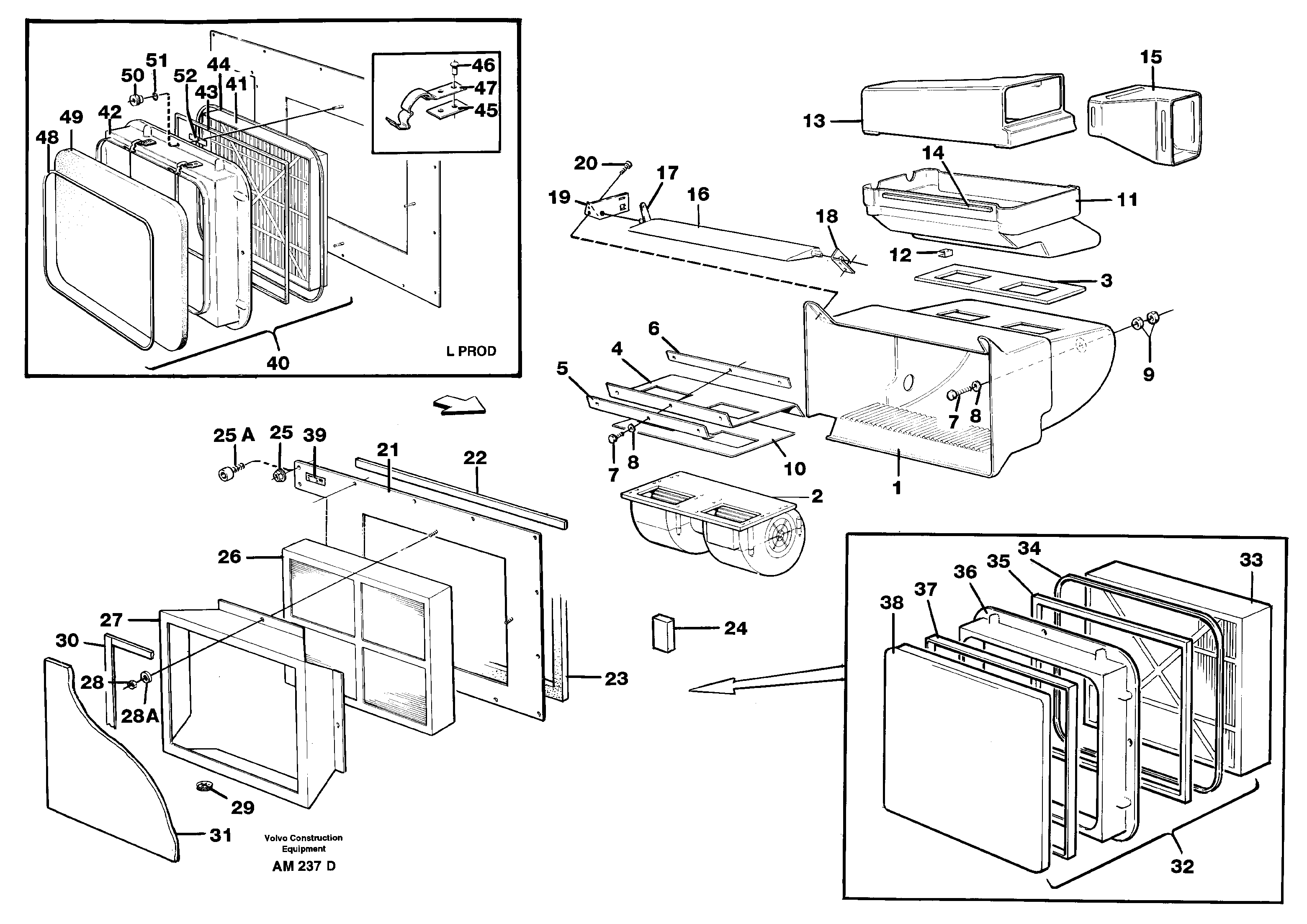

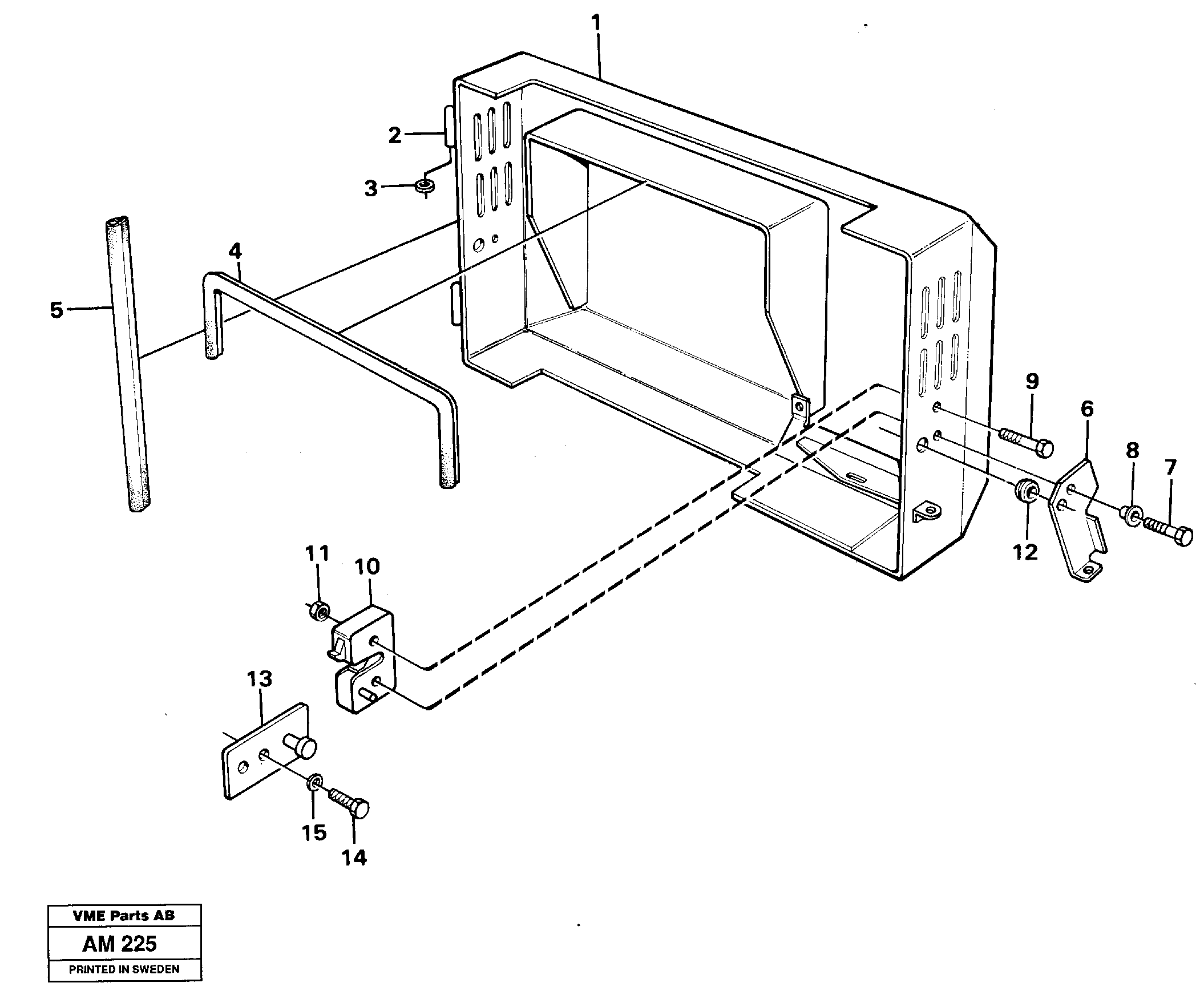

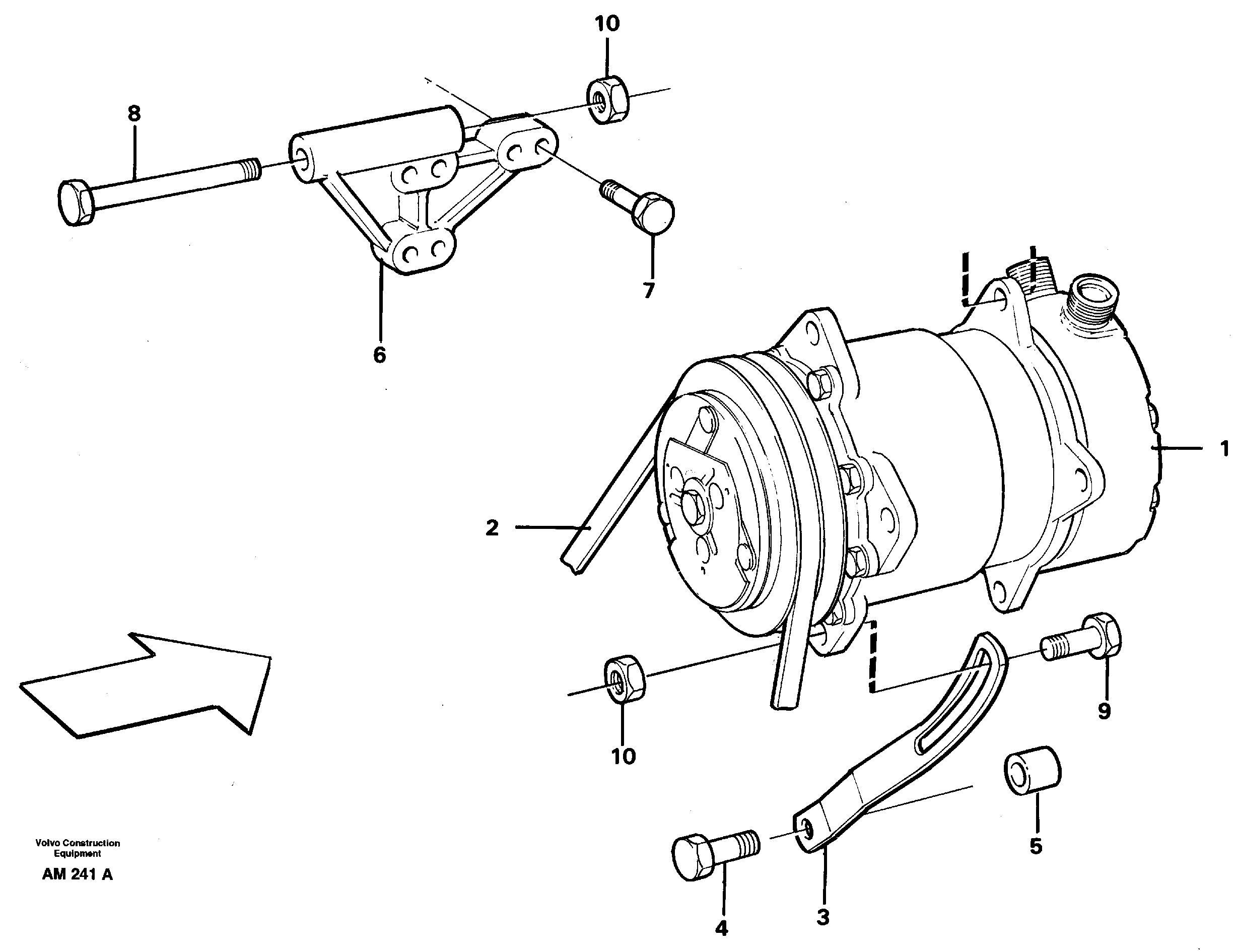

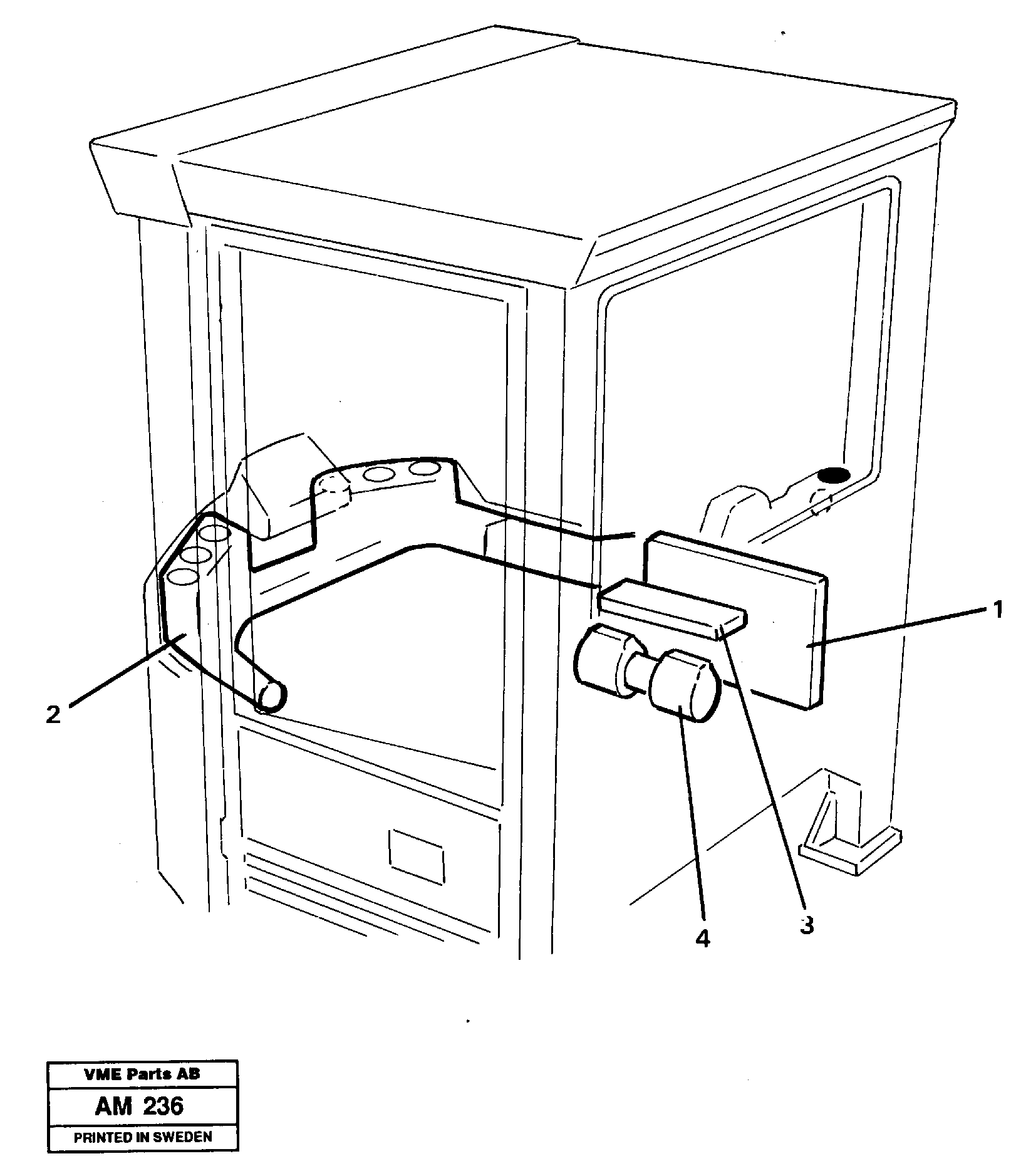

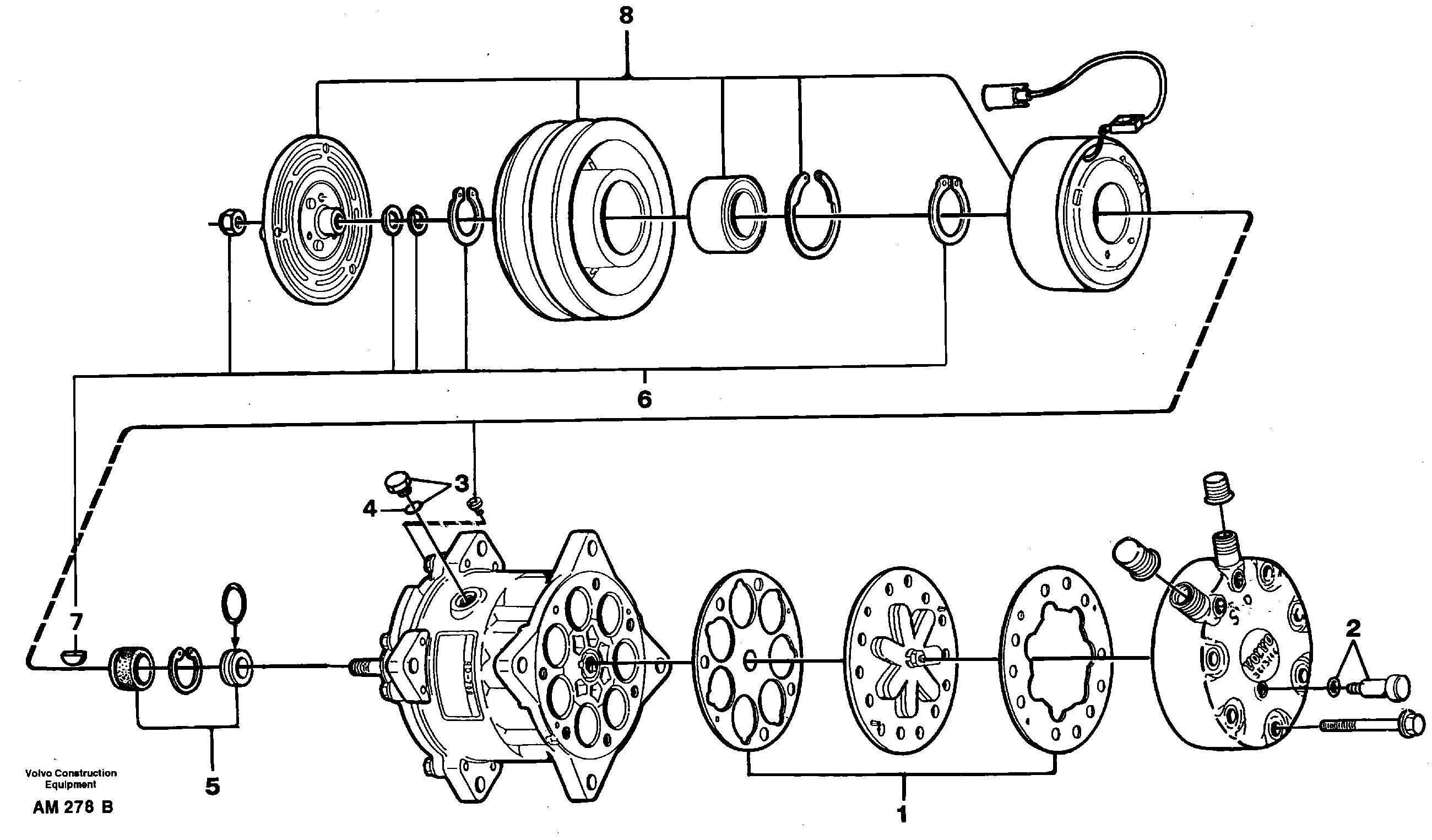

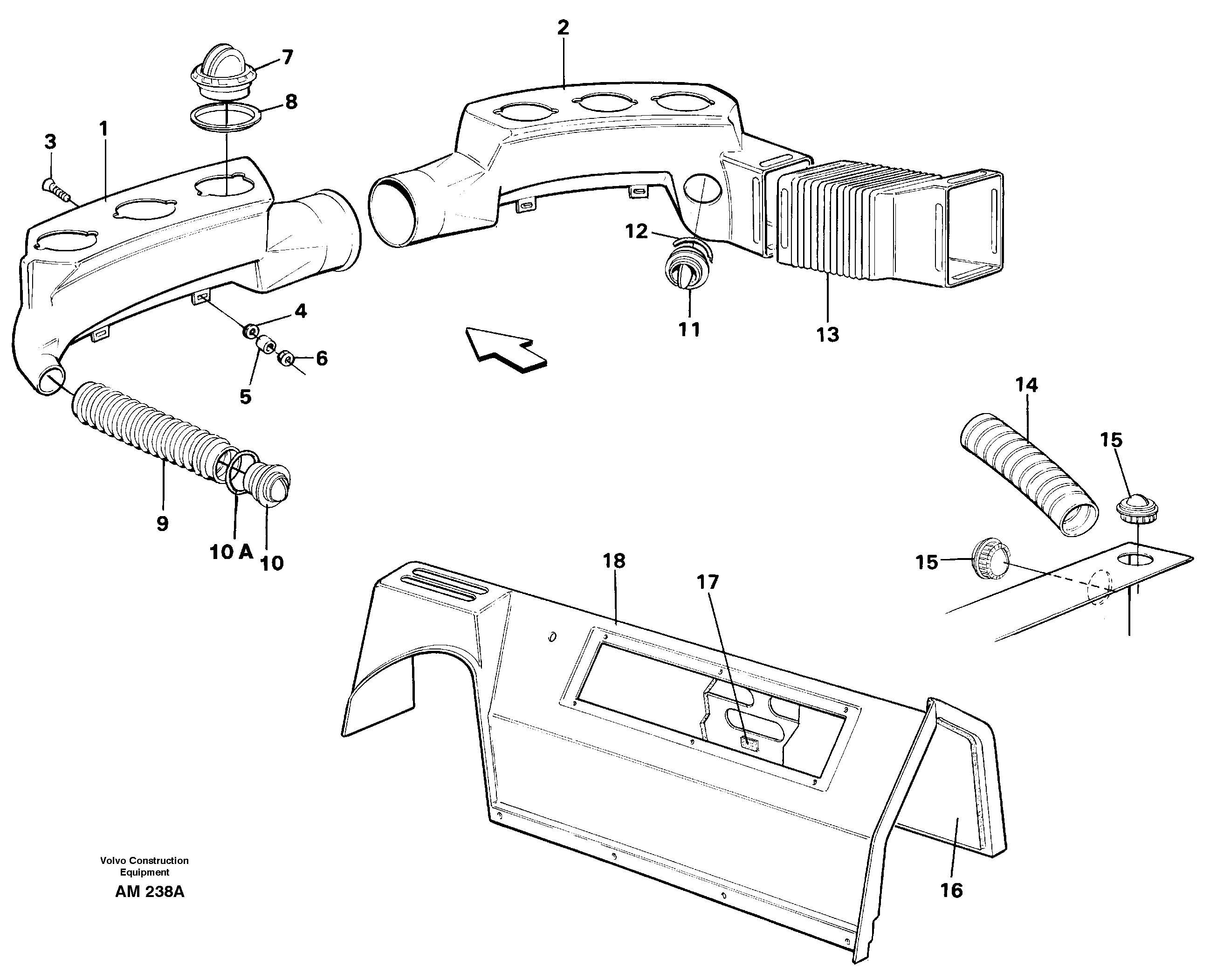

Air Conditioning unit
Interior Equipment

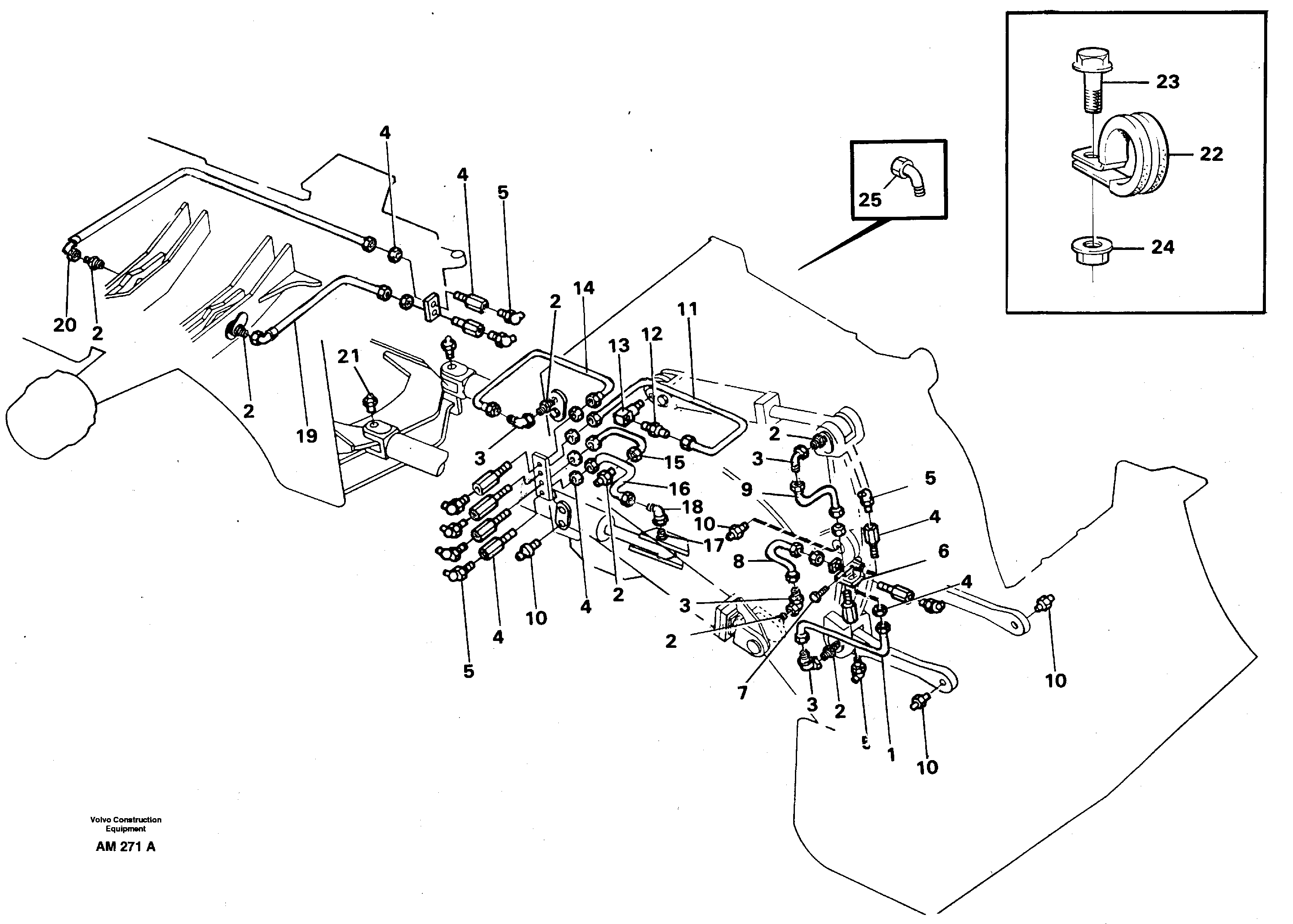

Miscellaneous

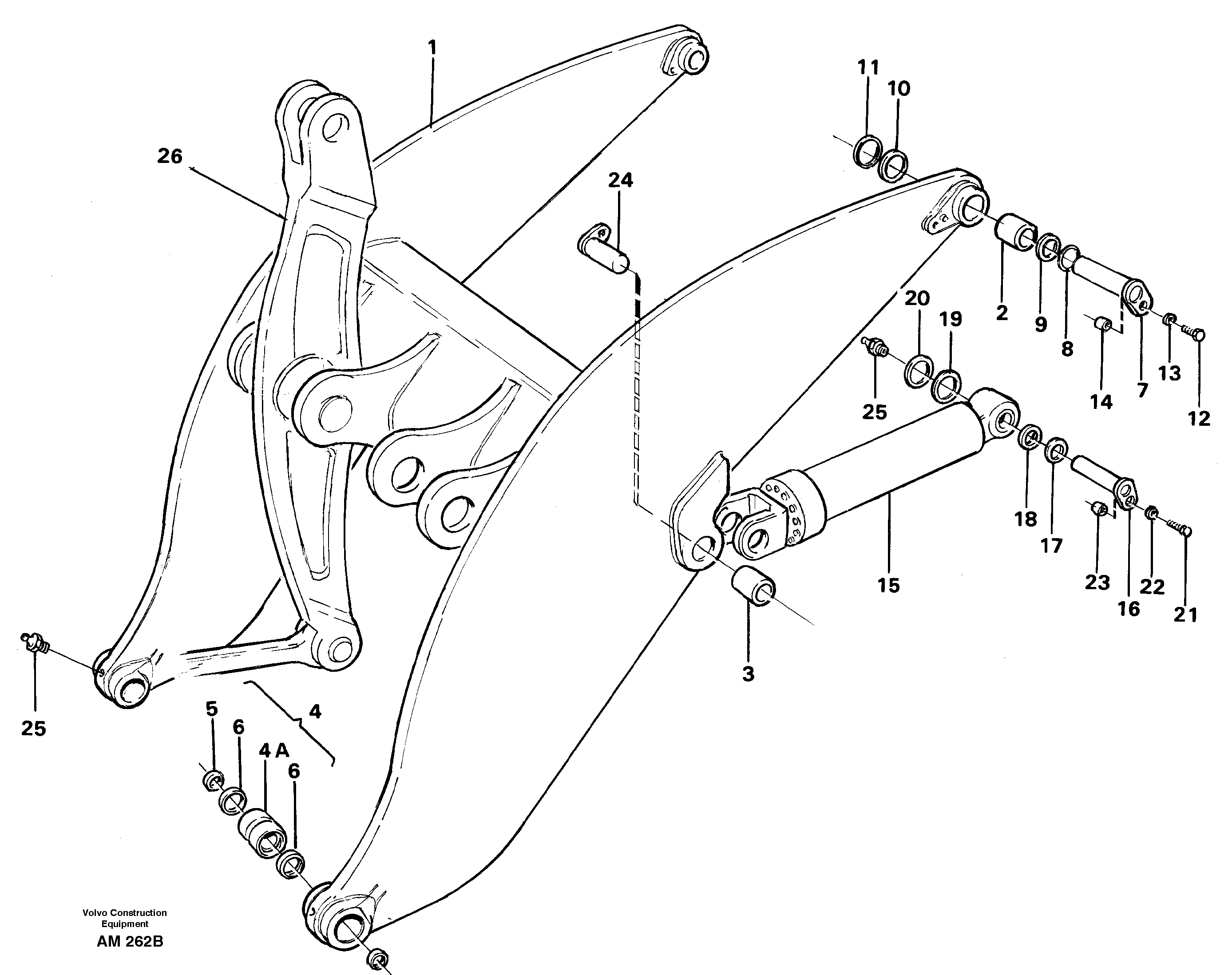

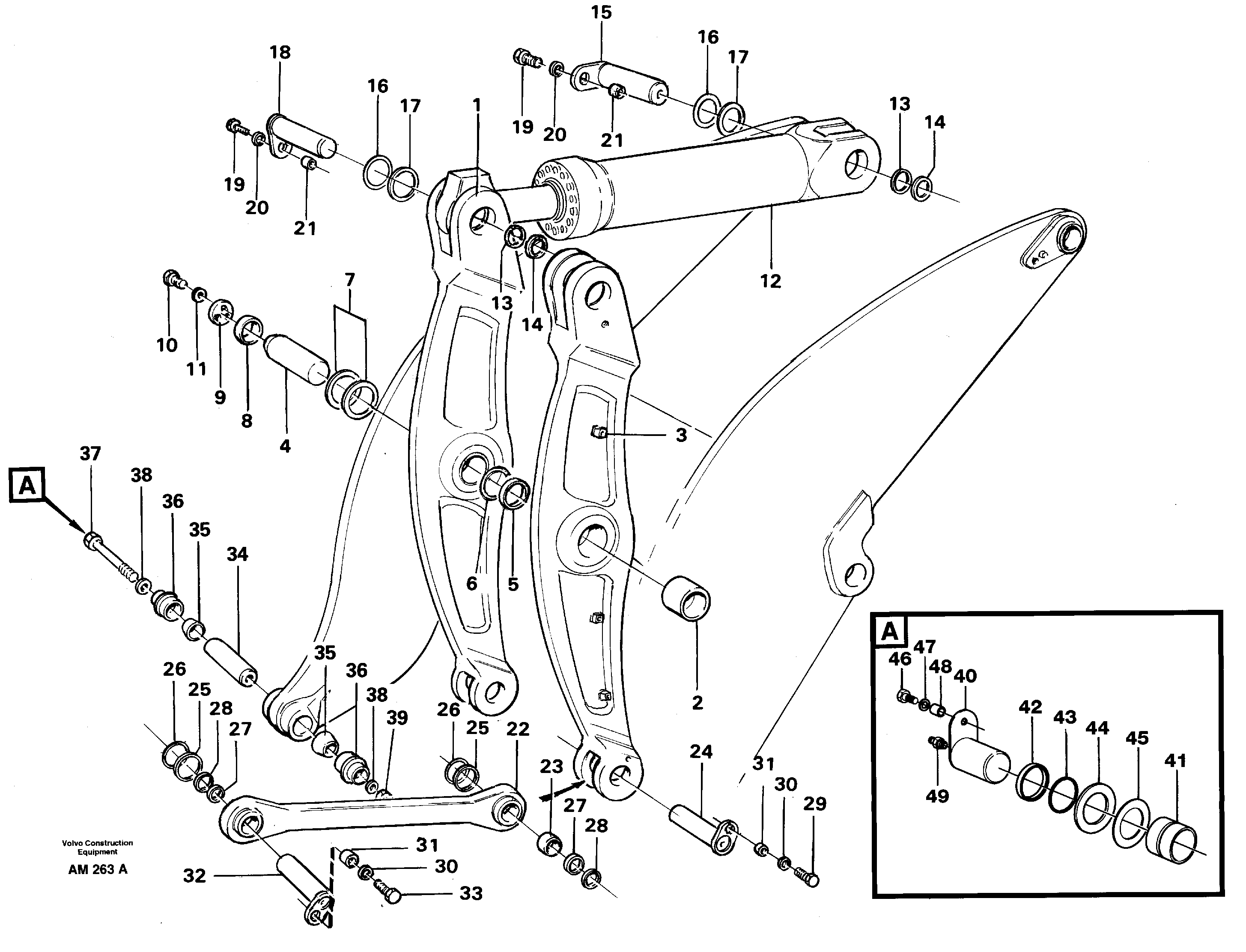

Hydraulic system, digging/handling/grading equipm., misc. Equip.
Working hydraulics, Servo hydraulics

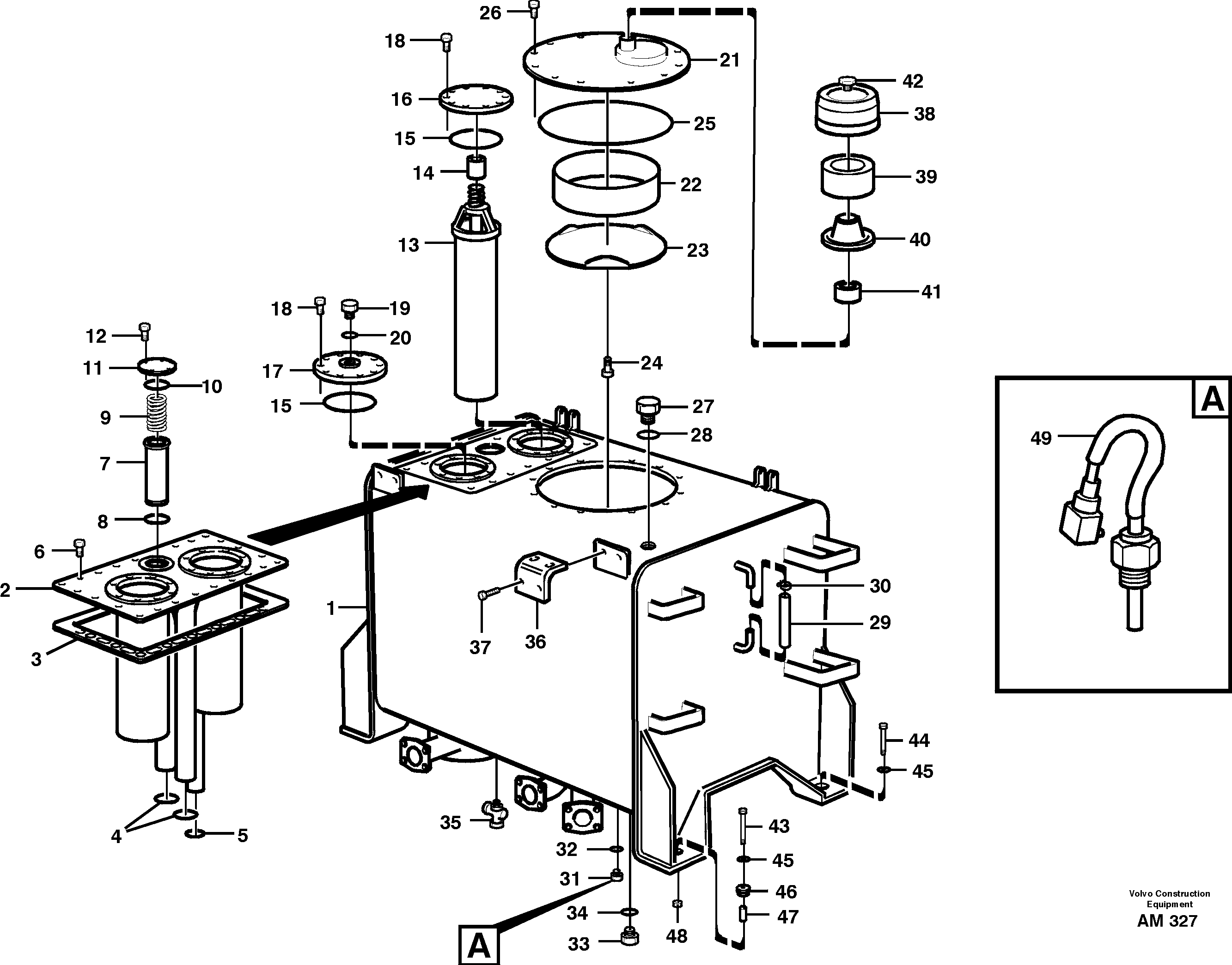

Hydraulic oil tank

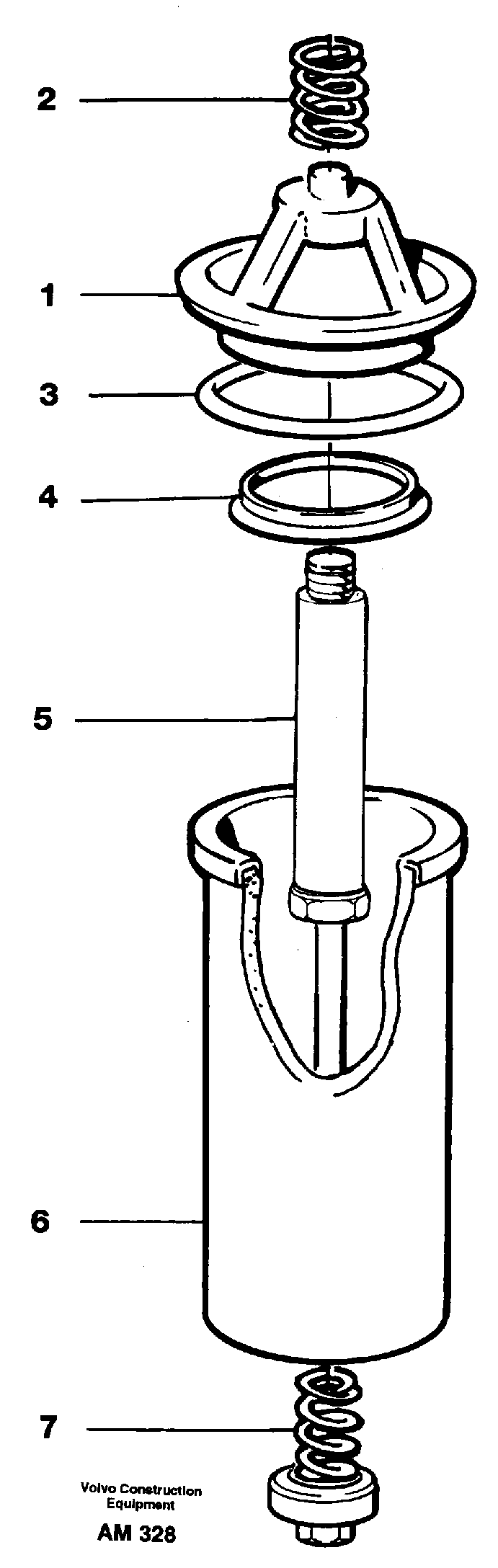

Hydraulic fluid filter

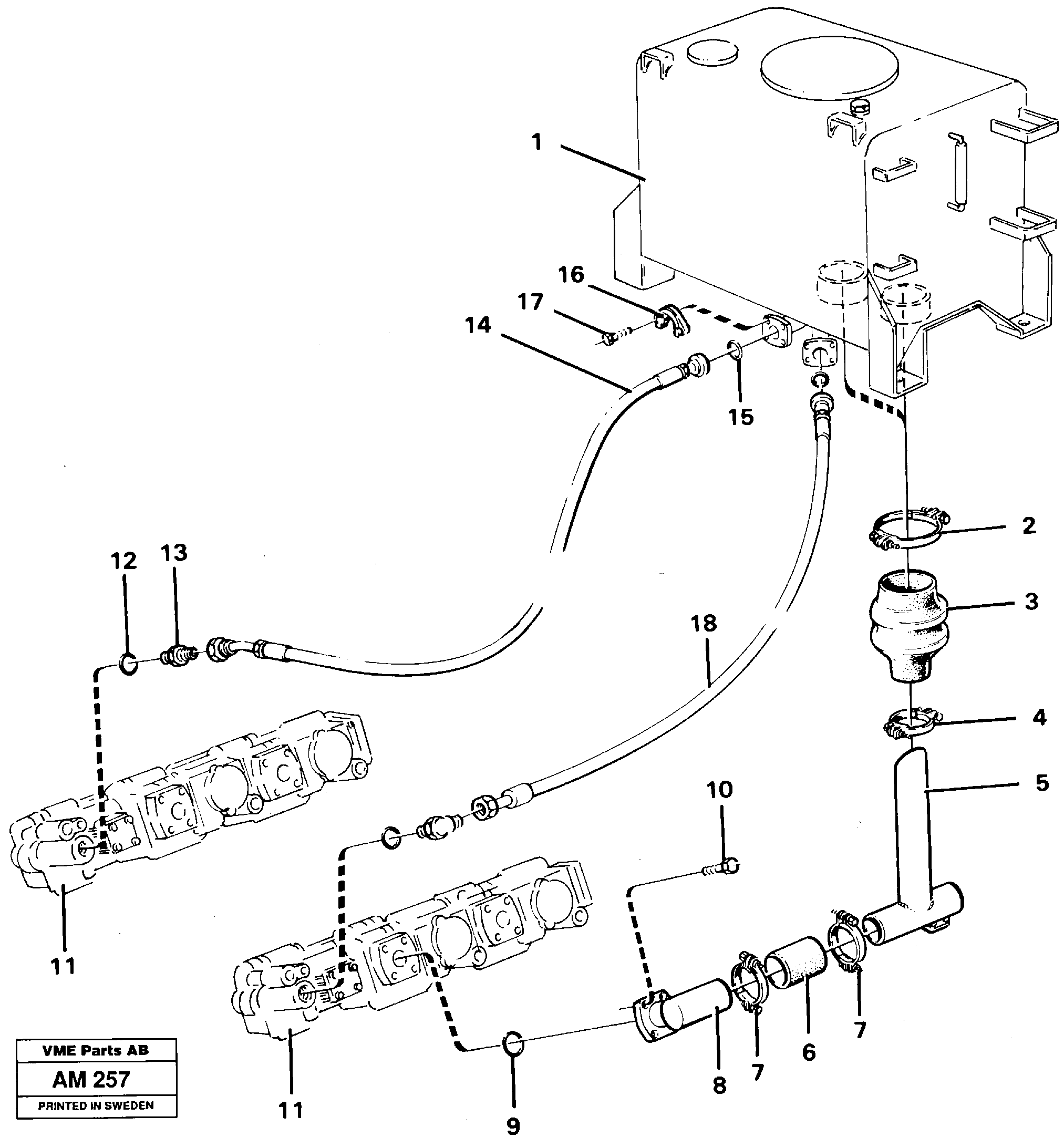

Hydraulic system: suction line,pump

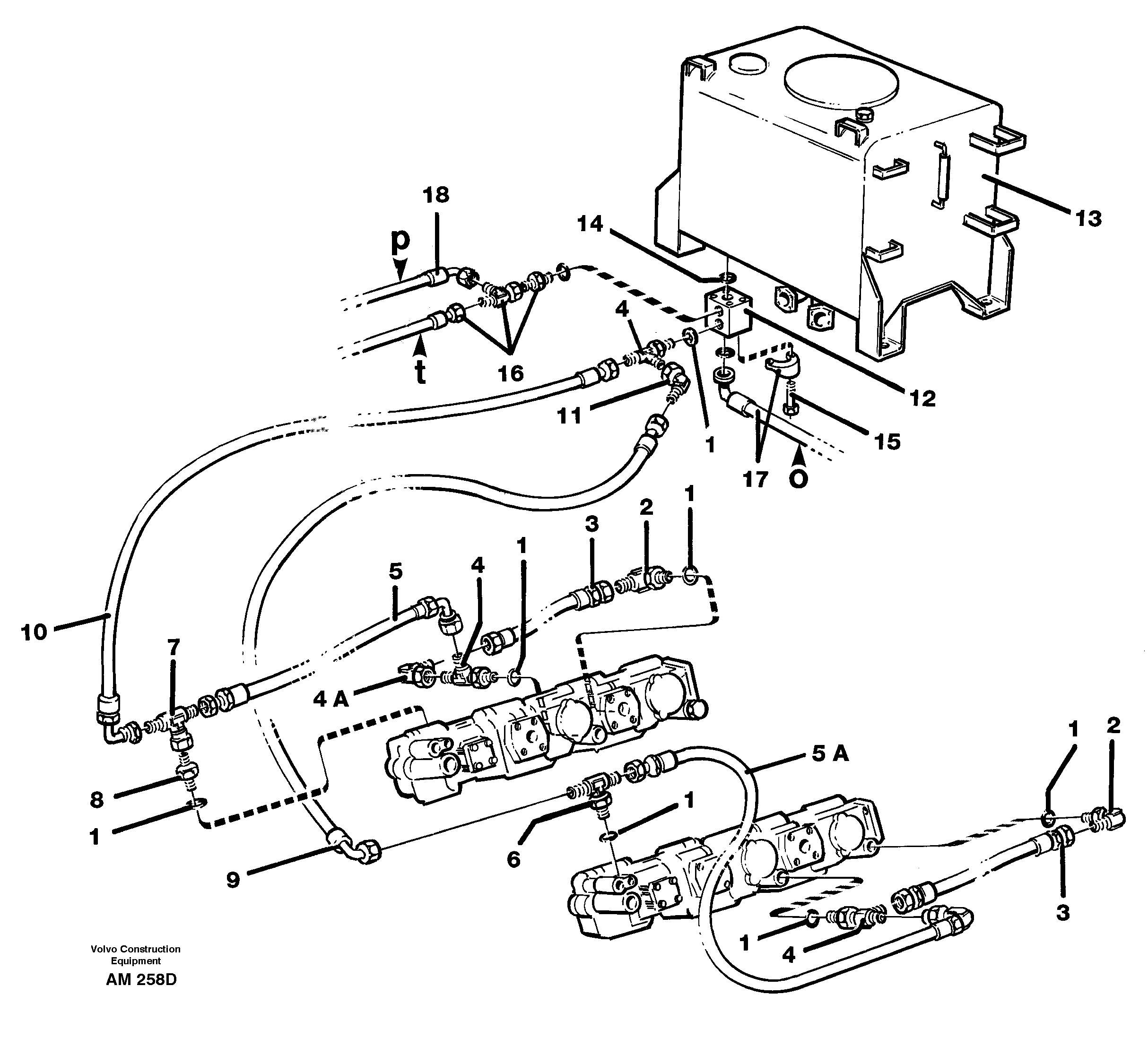

Hydraulic system, return line, pump

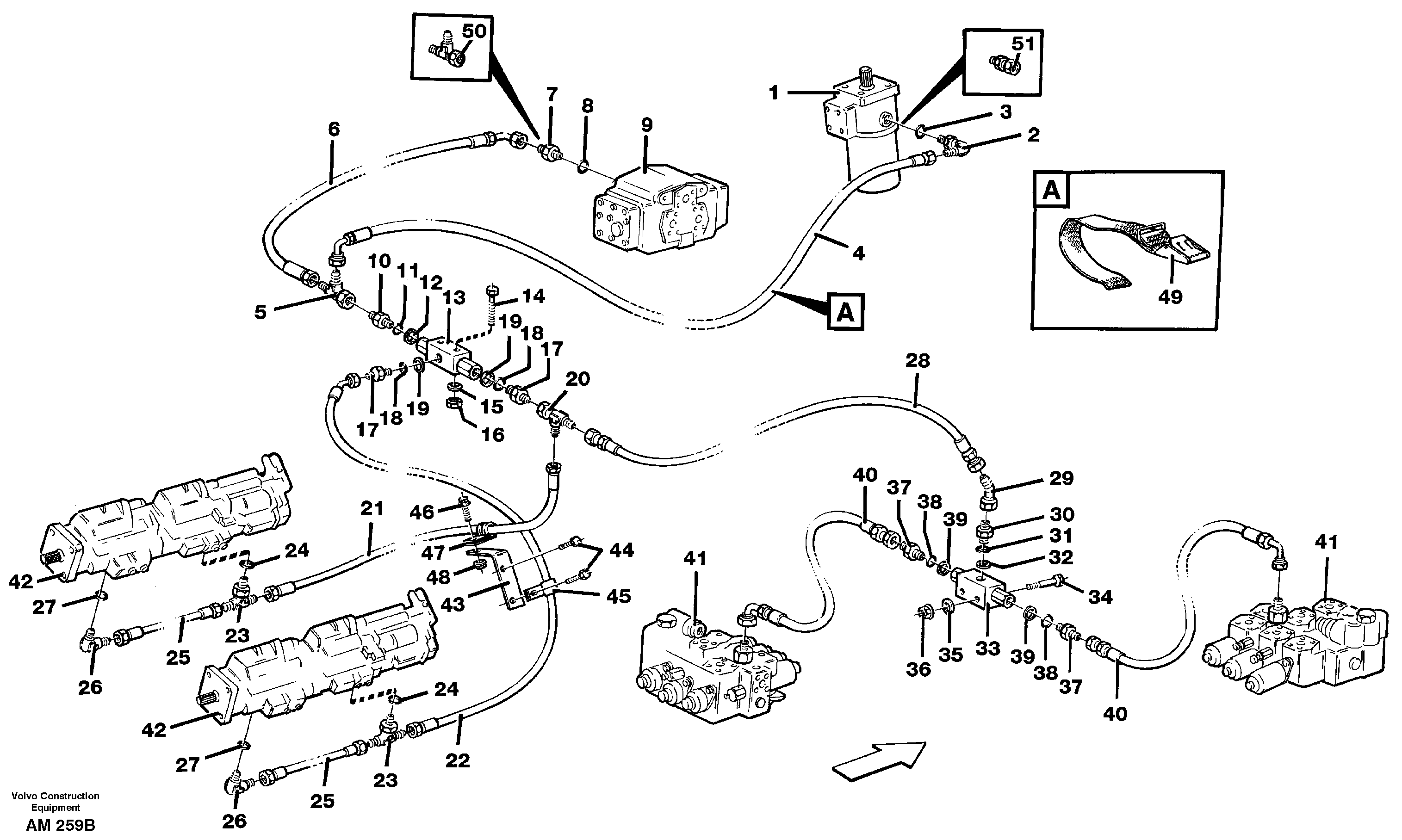

Hydraulic system: load sensing line

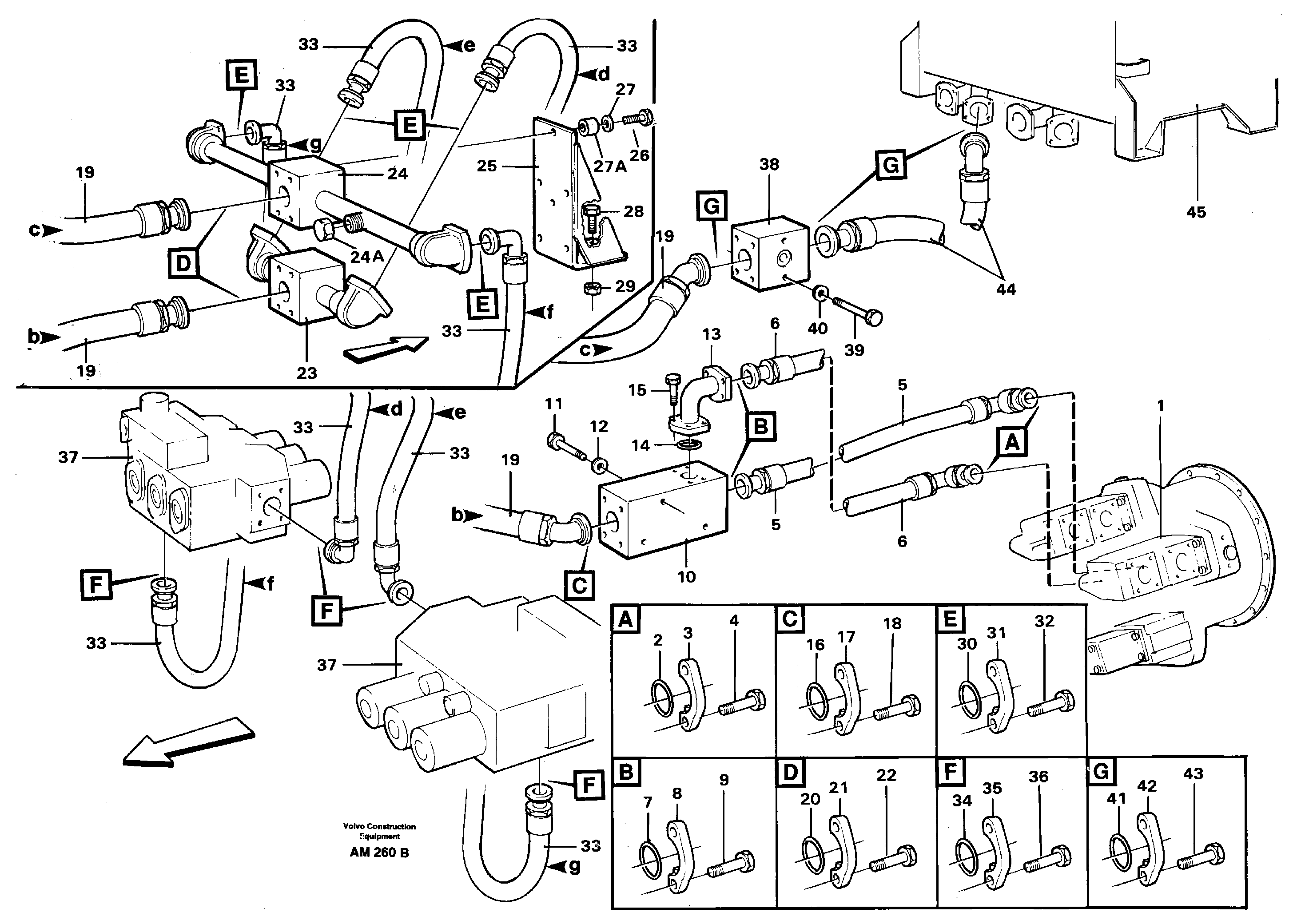

Hydraulic system: feed-and suction line

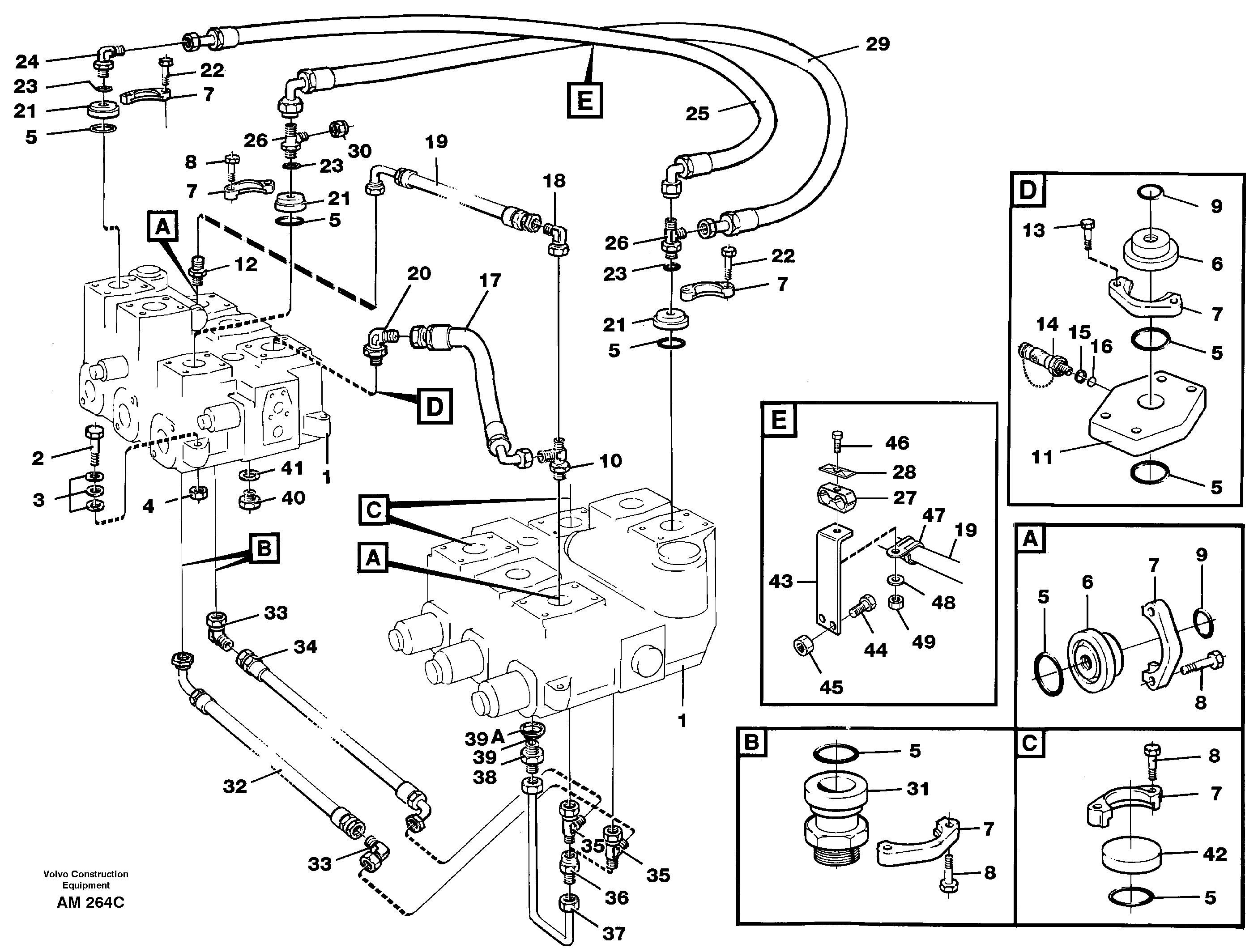

Control valve, assembly

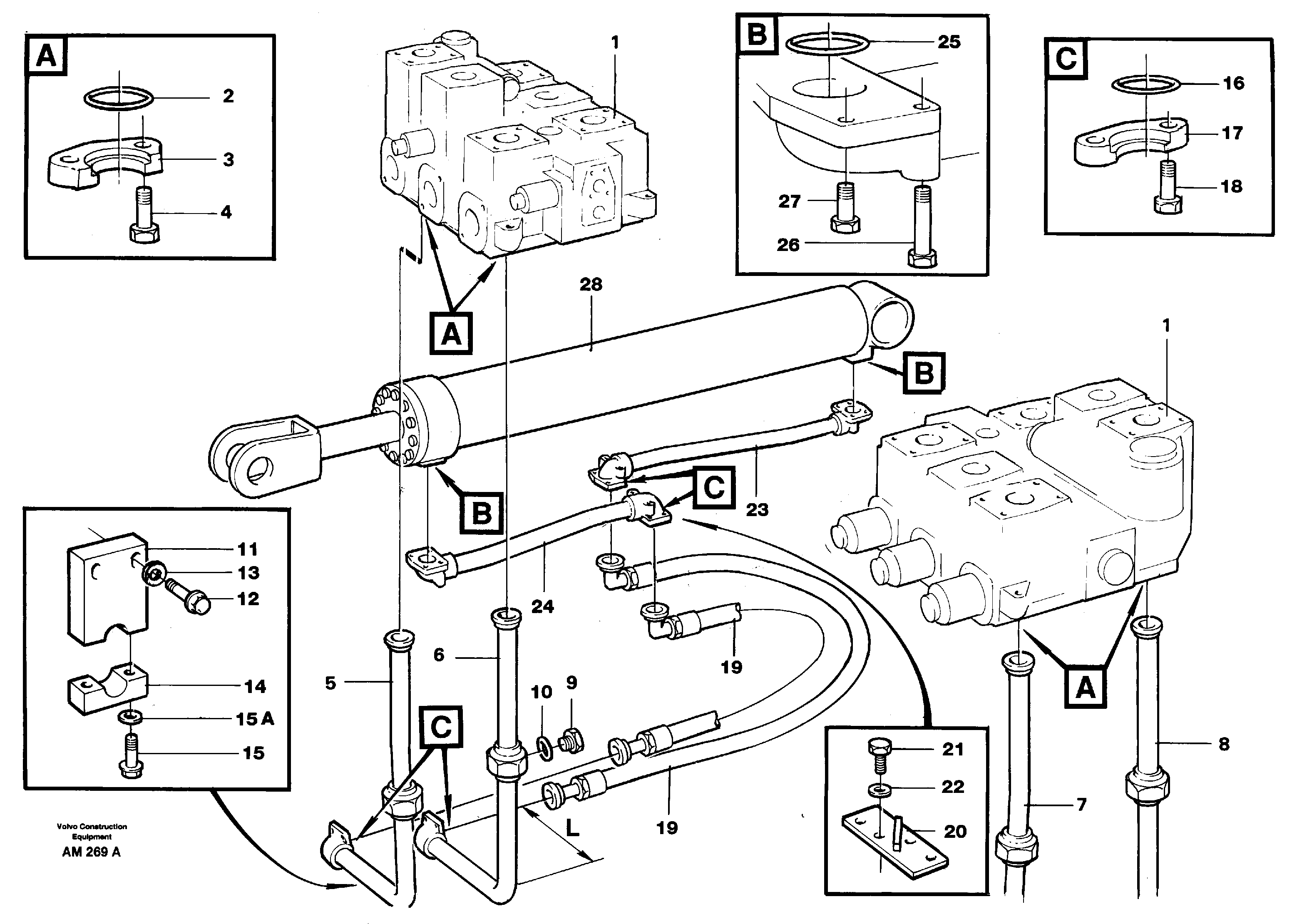

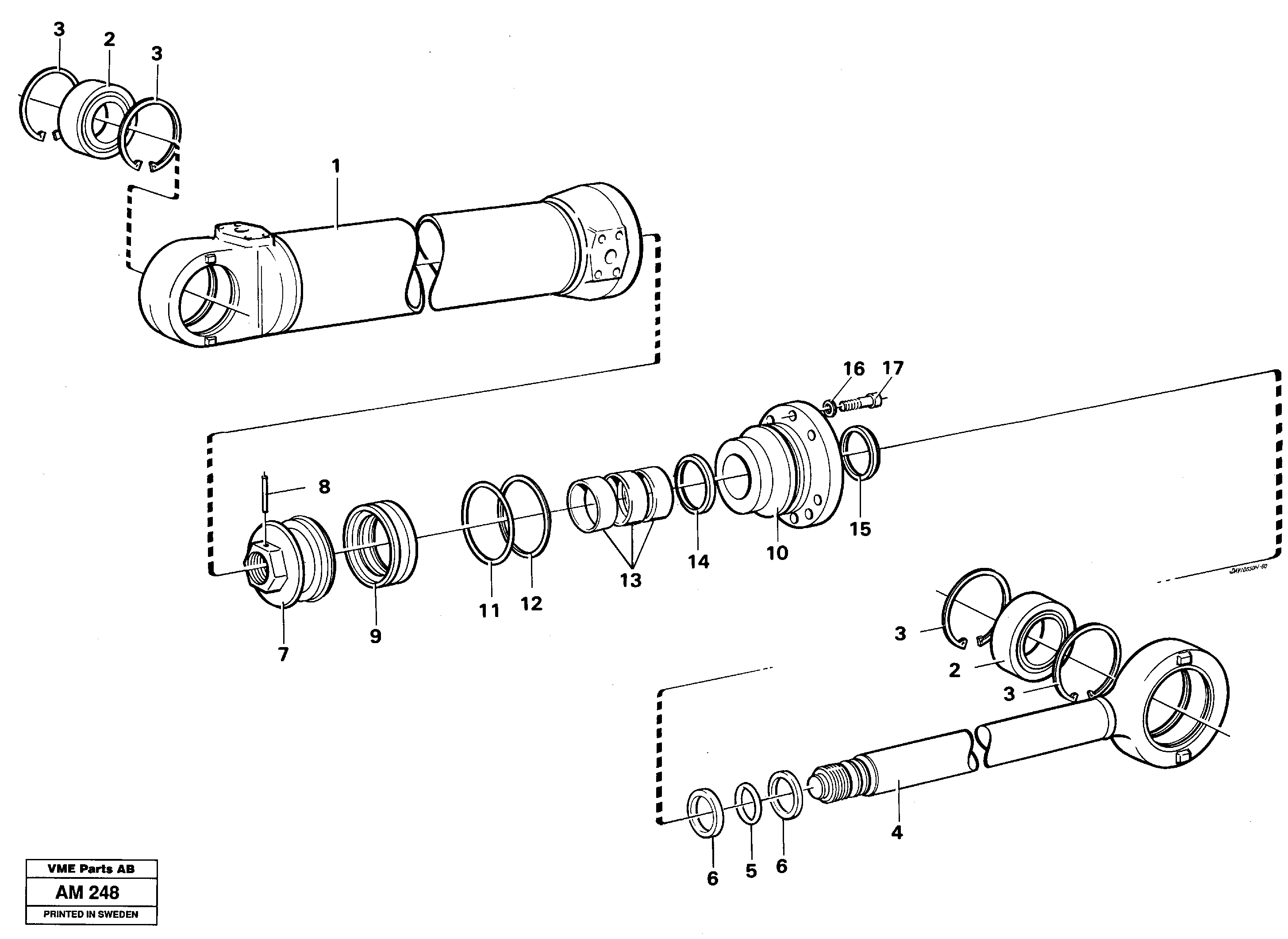

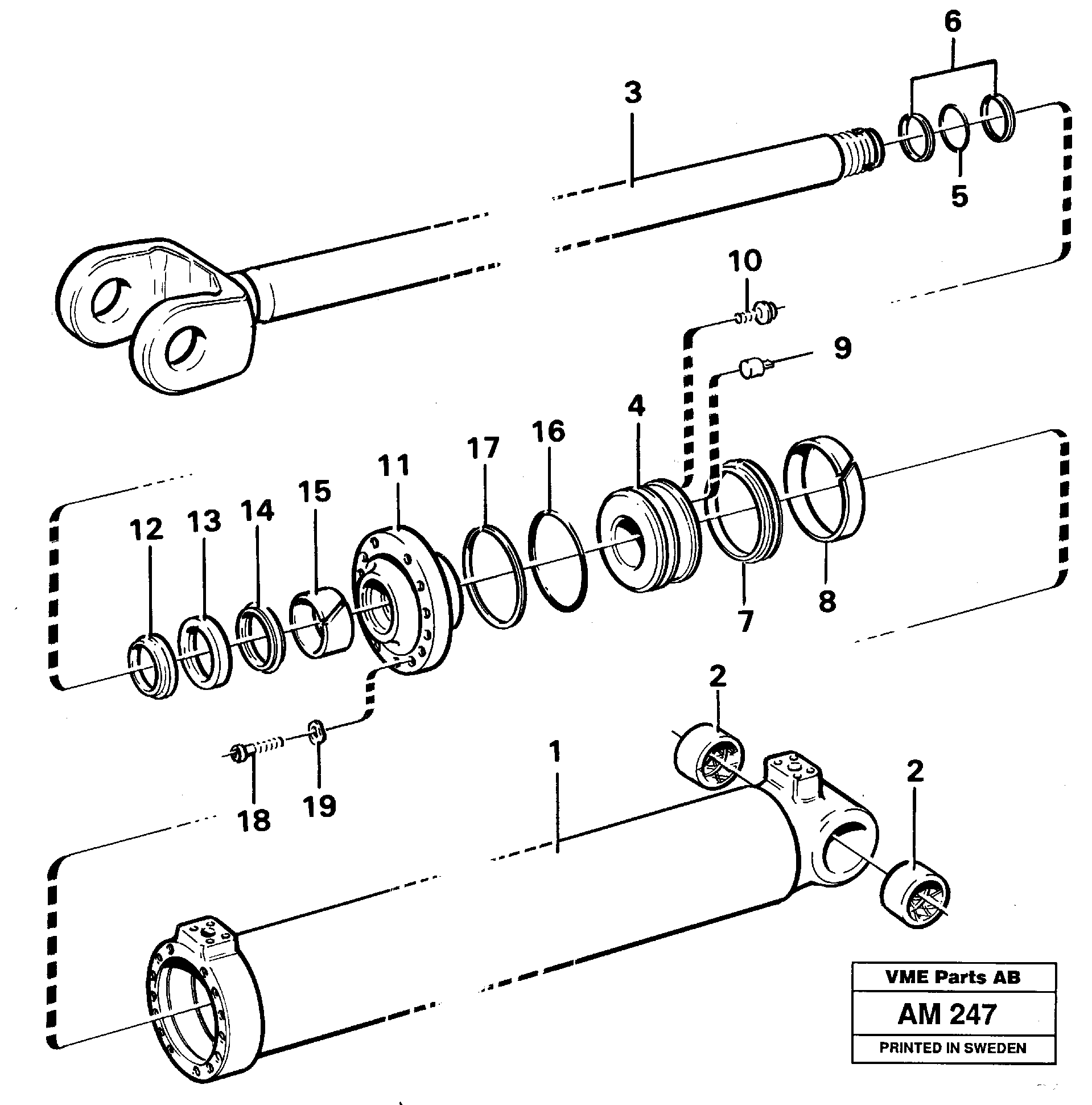

Hydraulic system: lift function

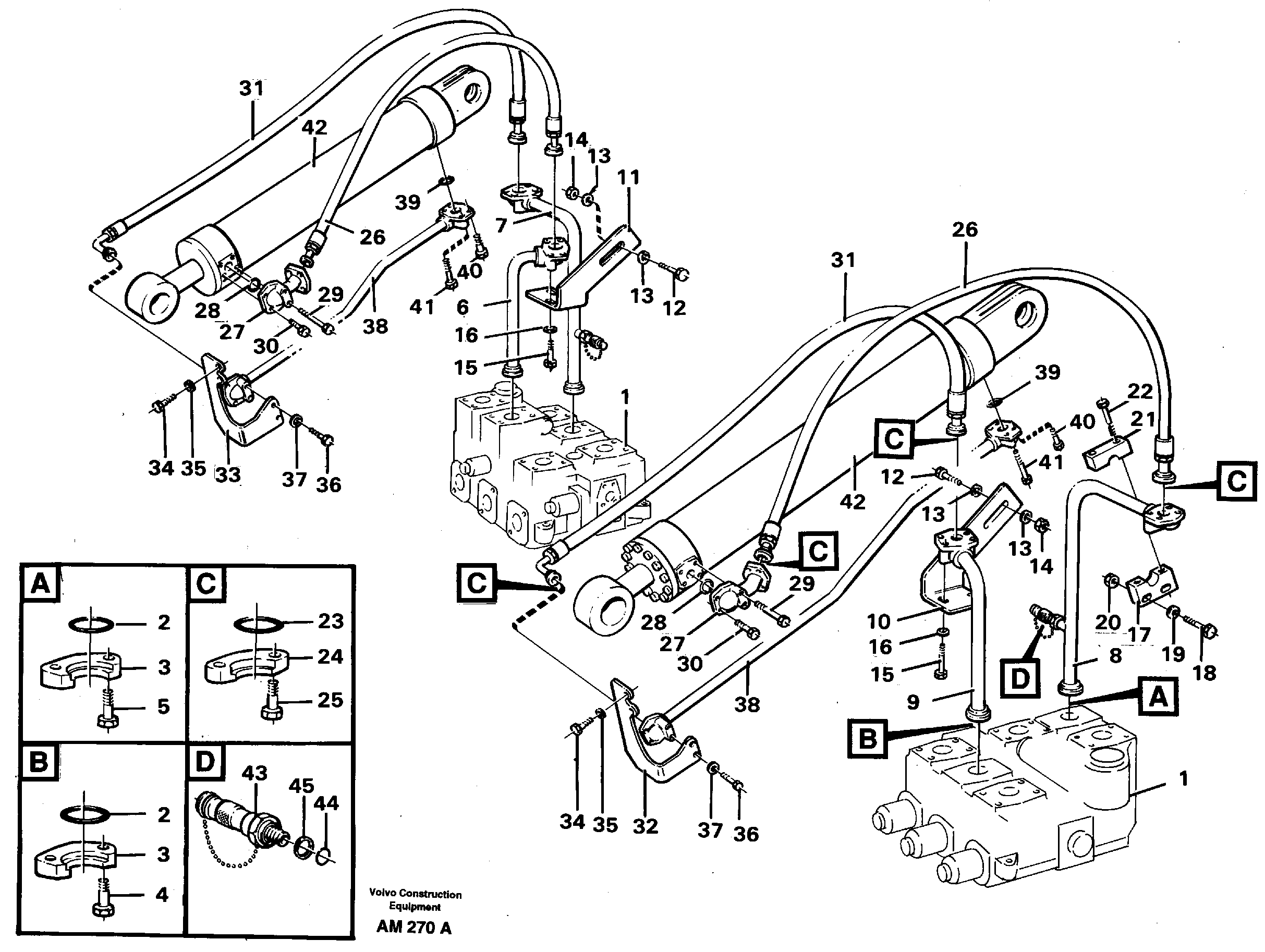

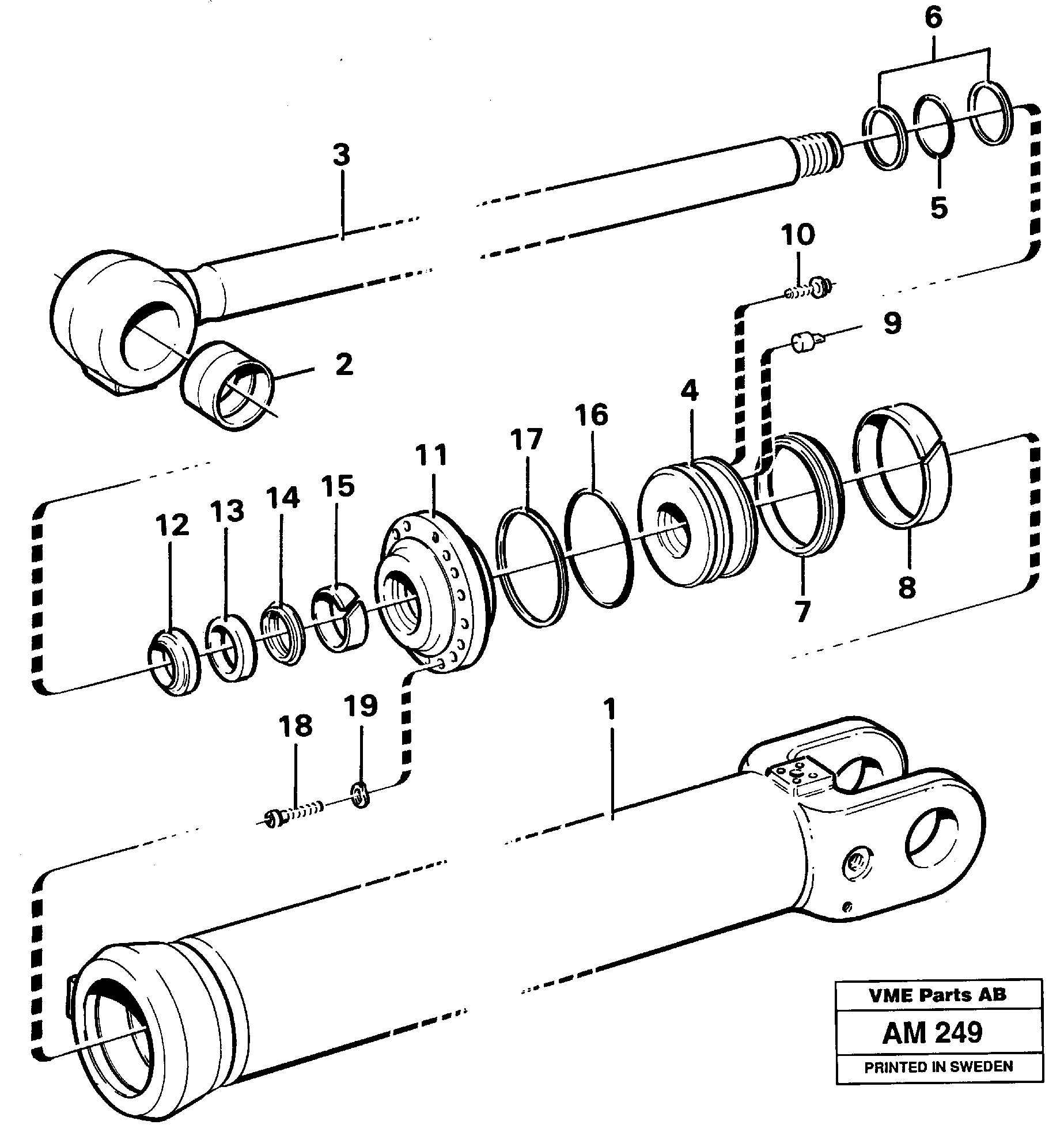

Hydraulic system: tilt function

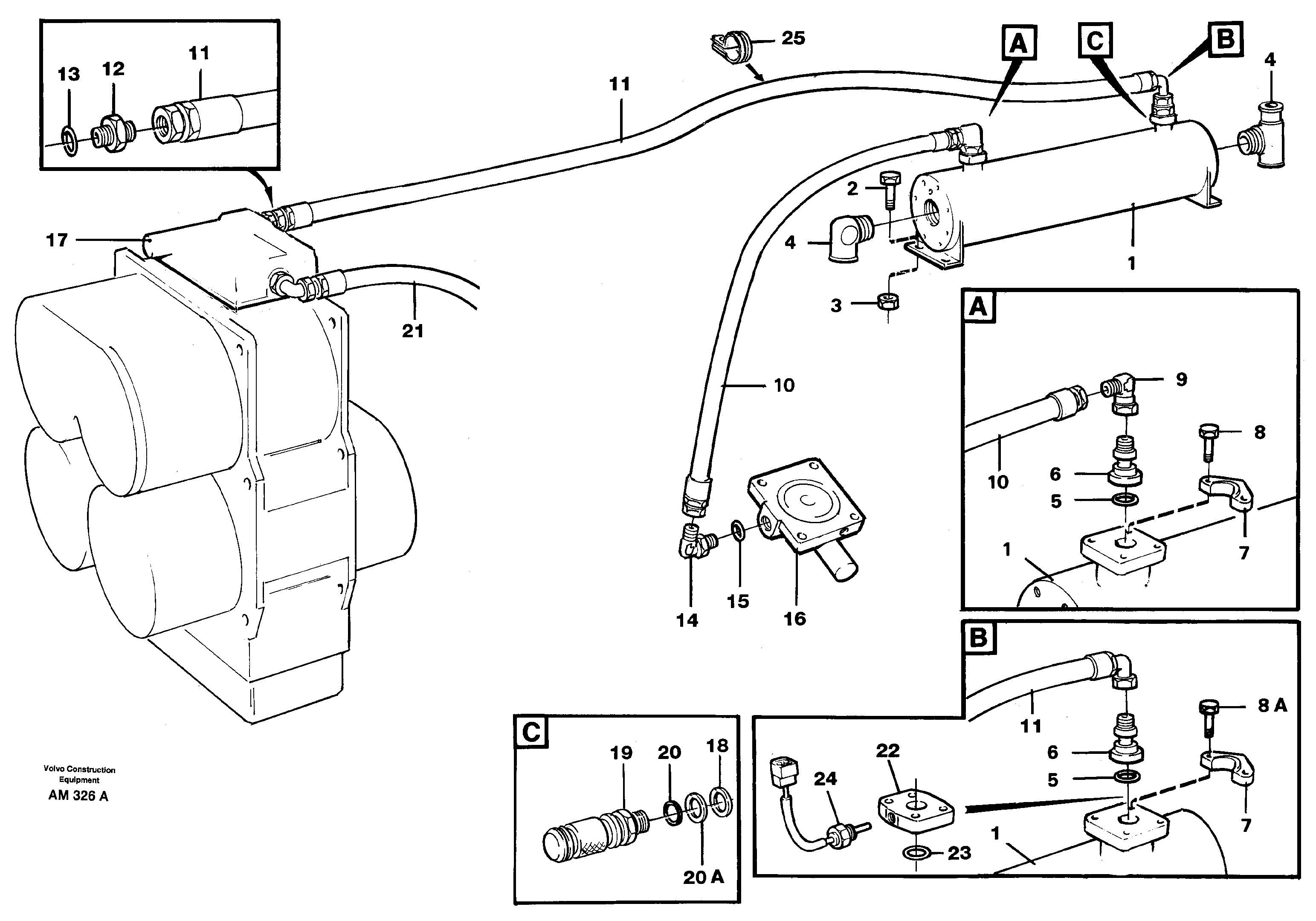

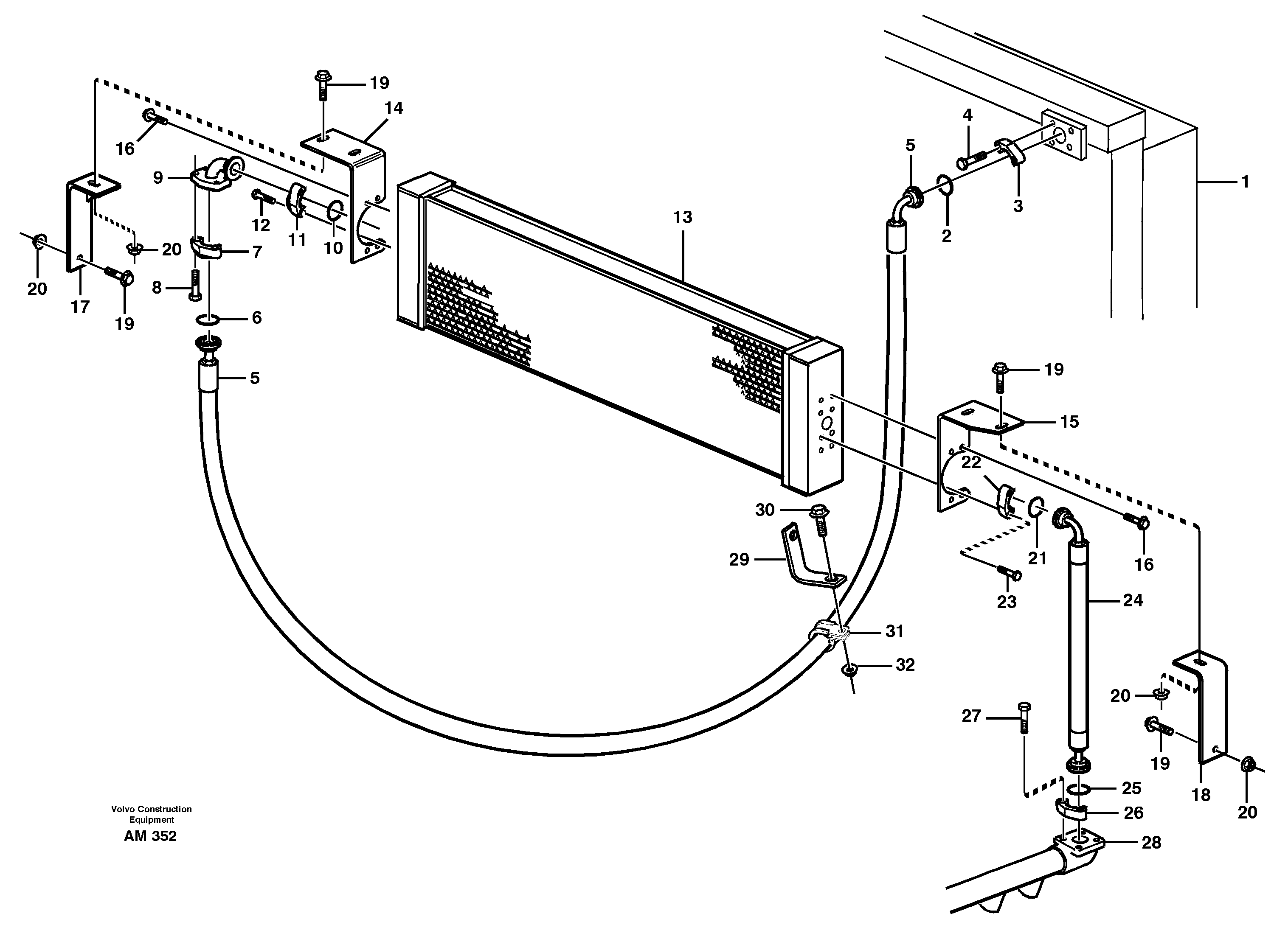

Hydraulic oil cooler 93803

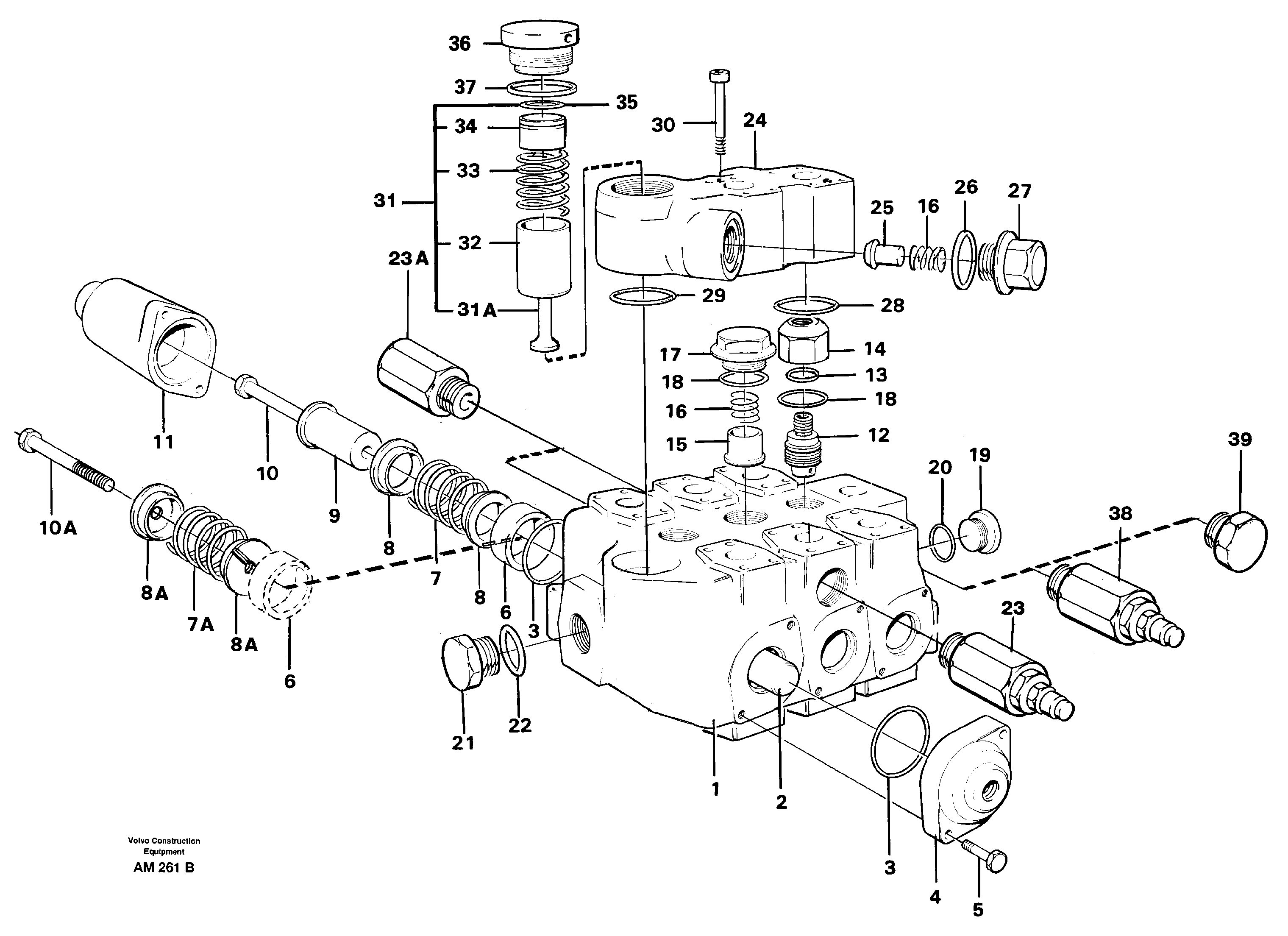

Control valve

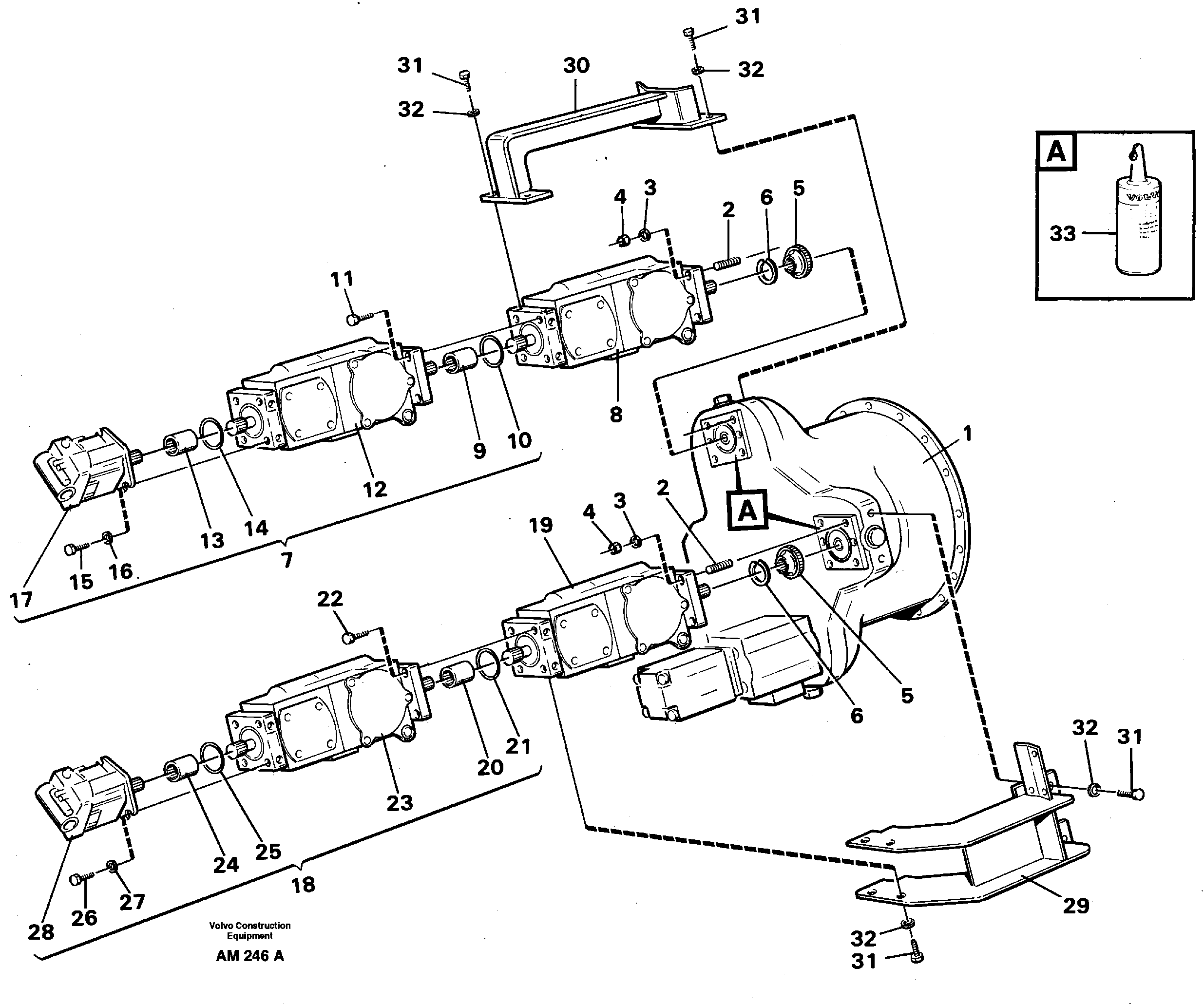

Hydraulic pump, assembly

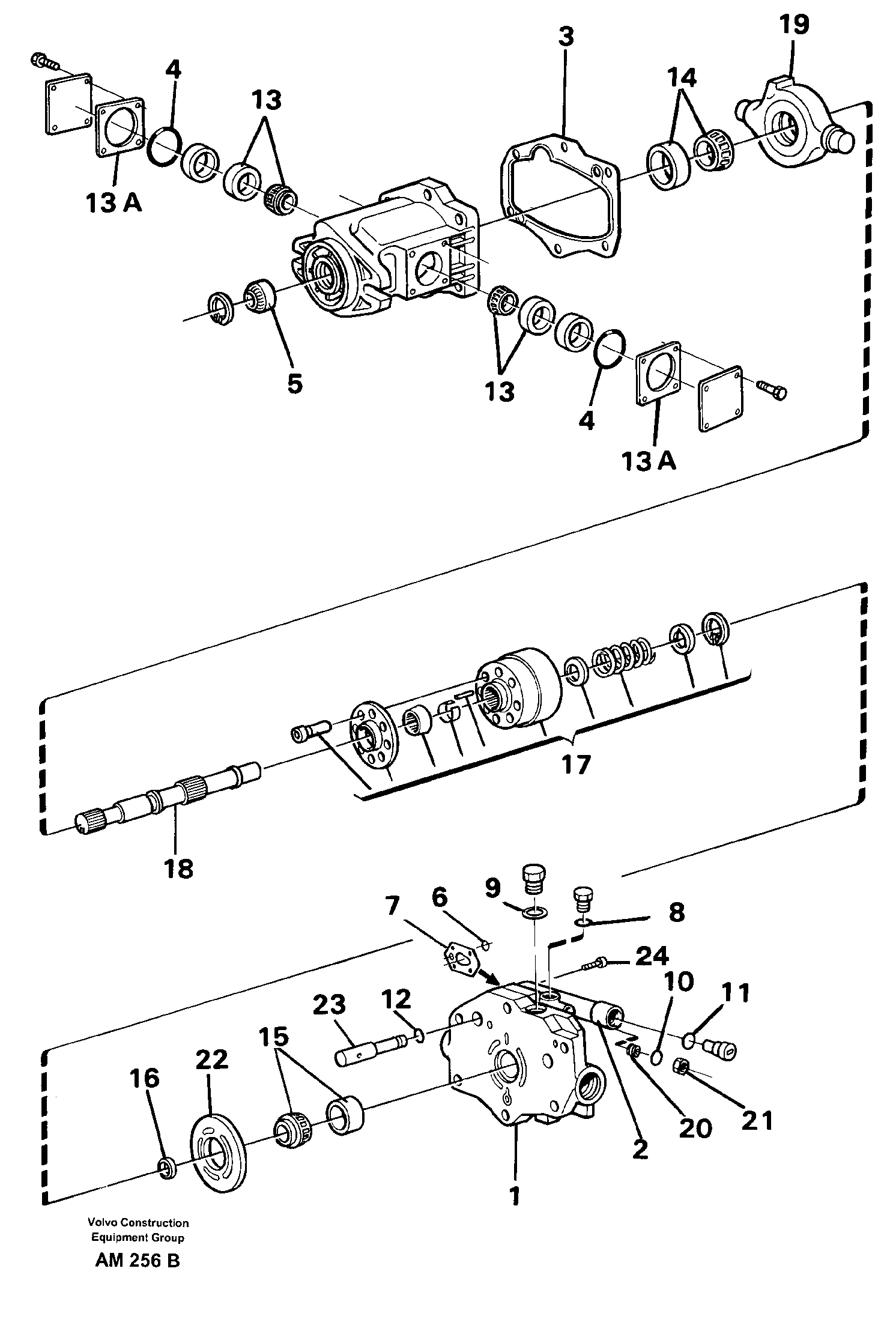

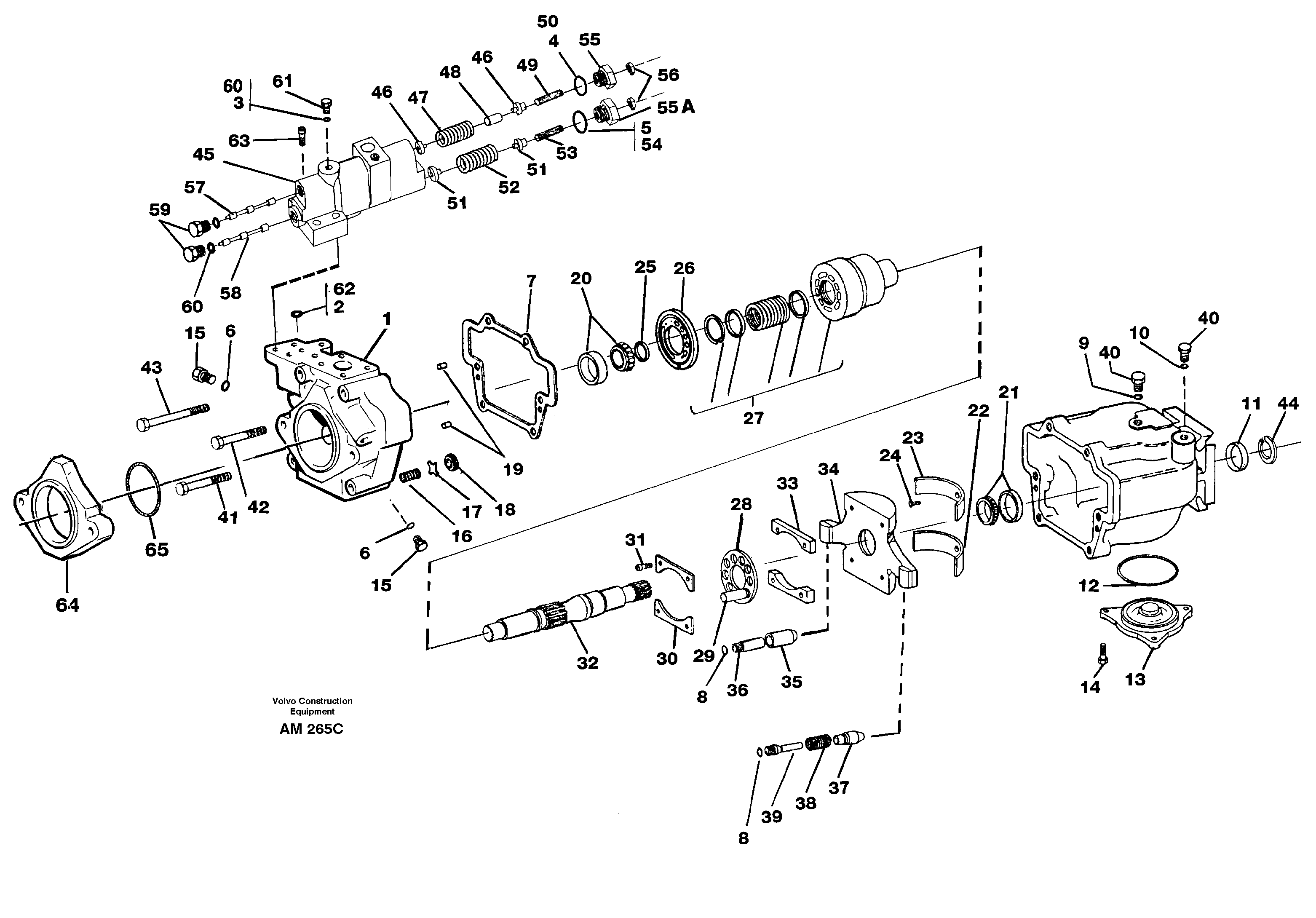

Hydraulic pump
Hydraulic pump

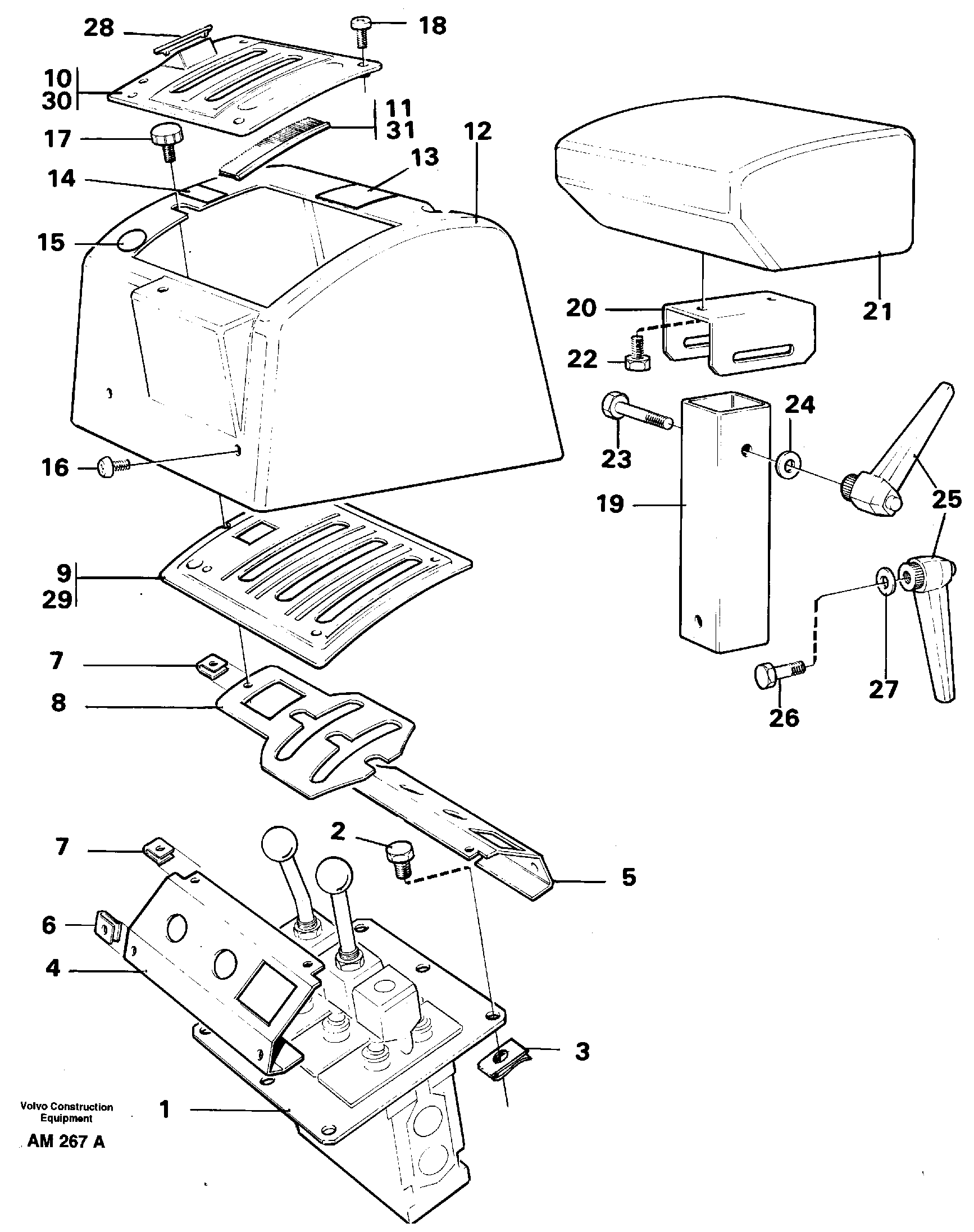

Servo valve with fitting parts

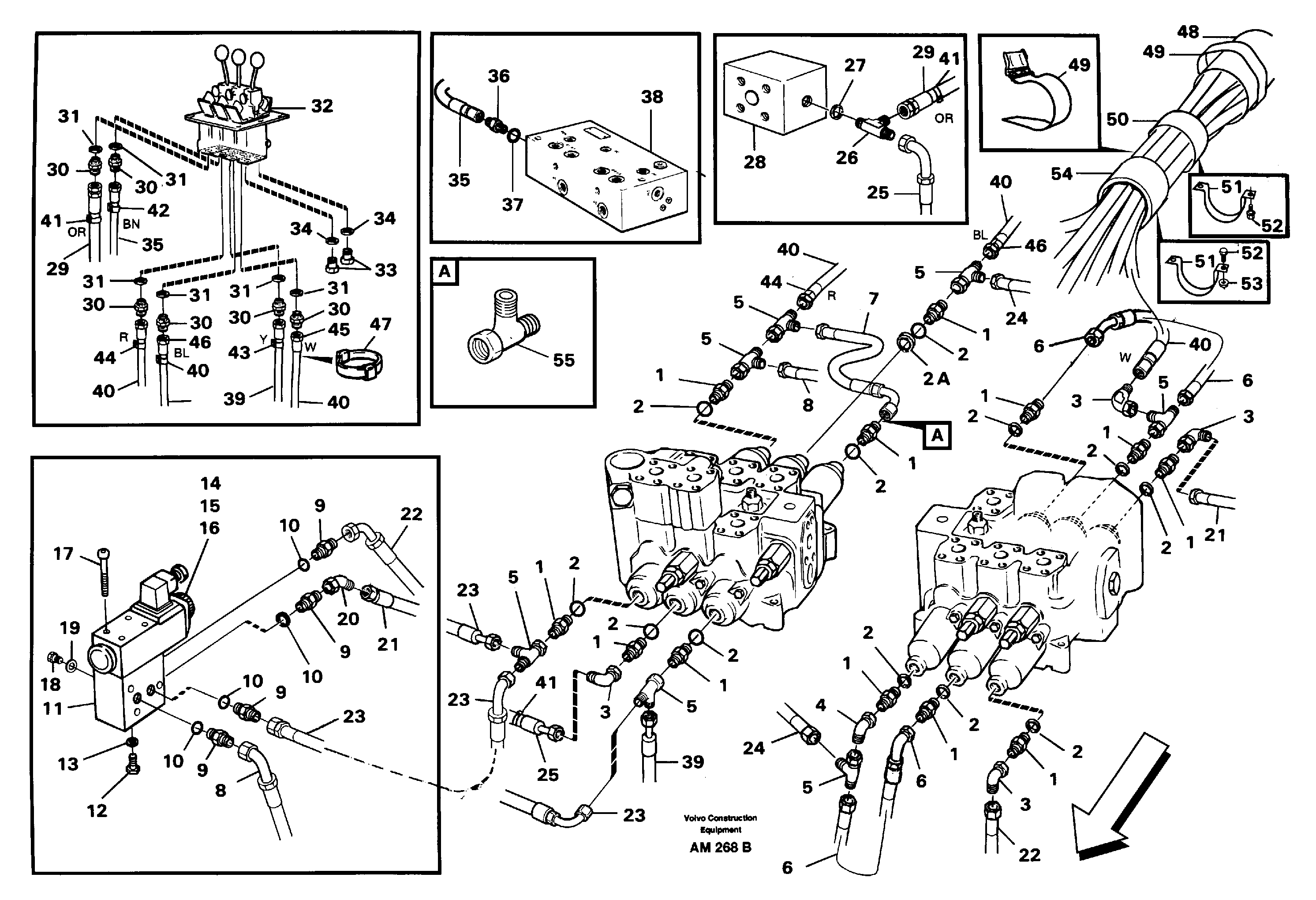

Servo - hydraulic

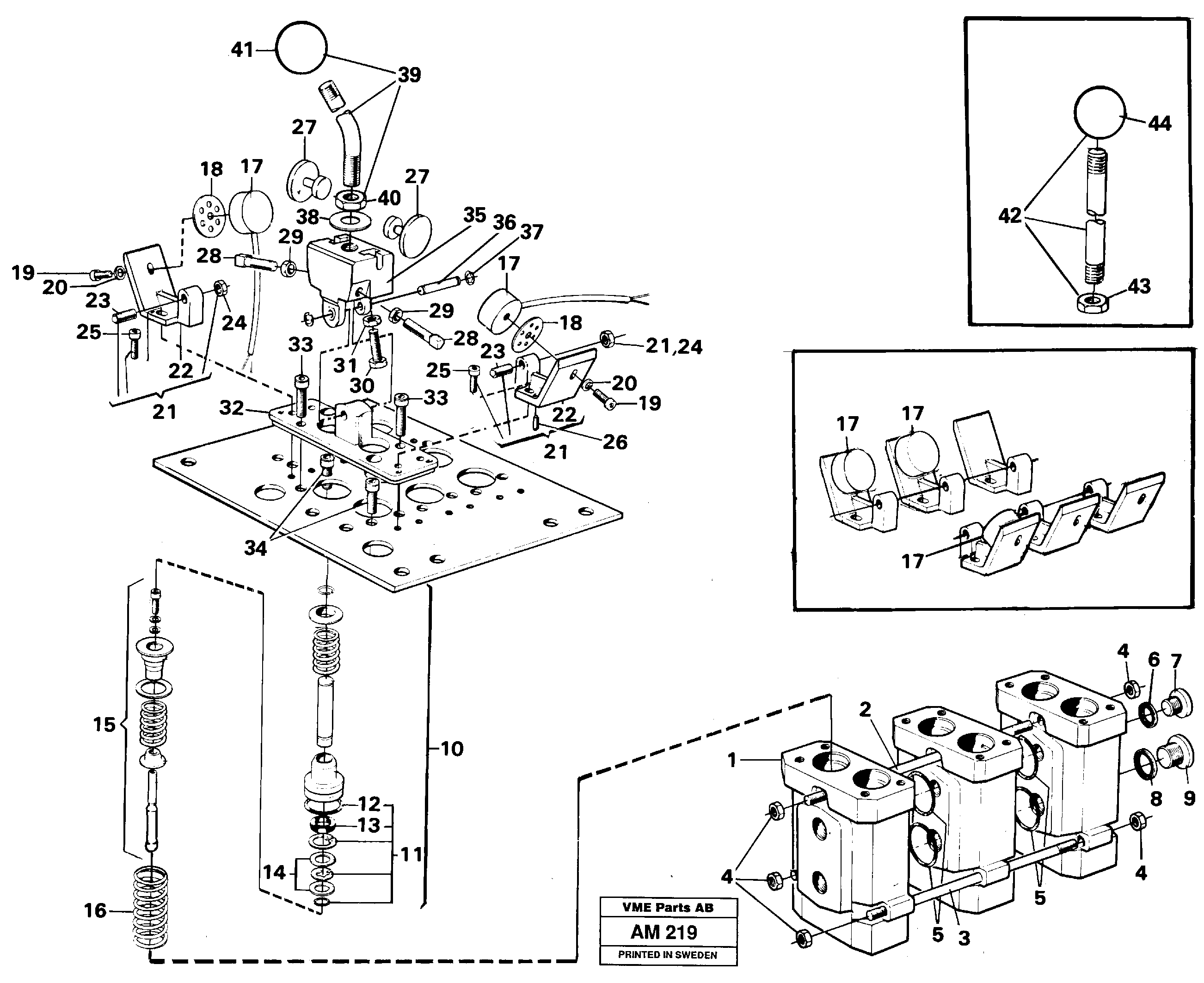

Servo valve.

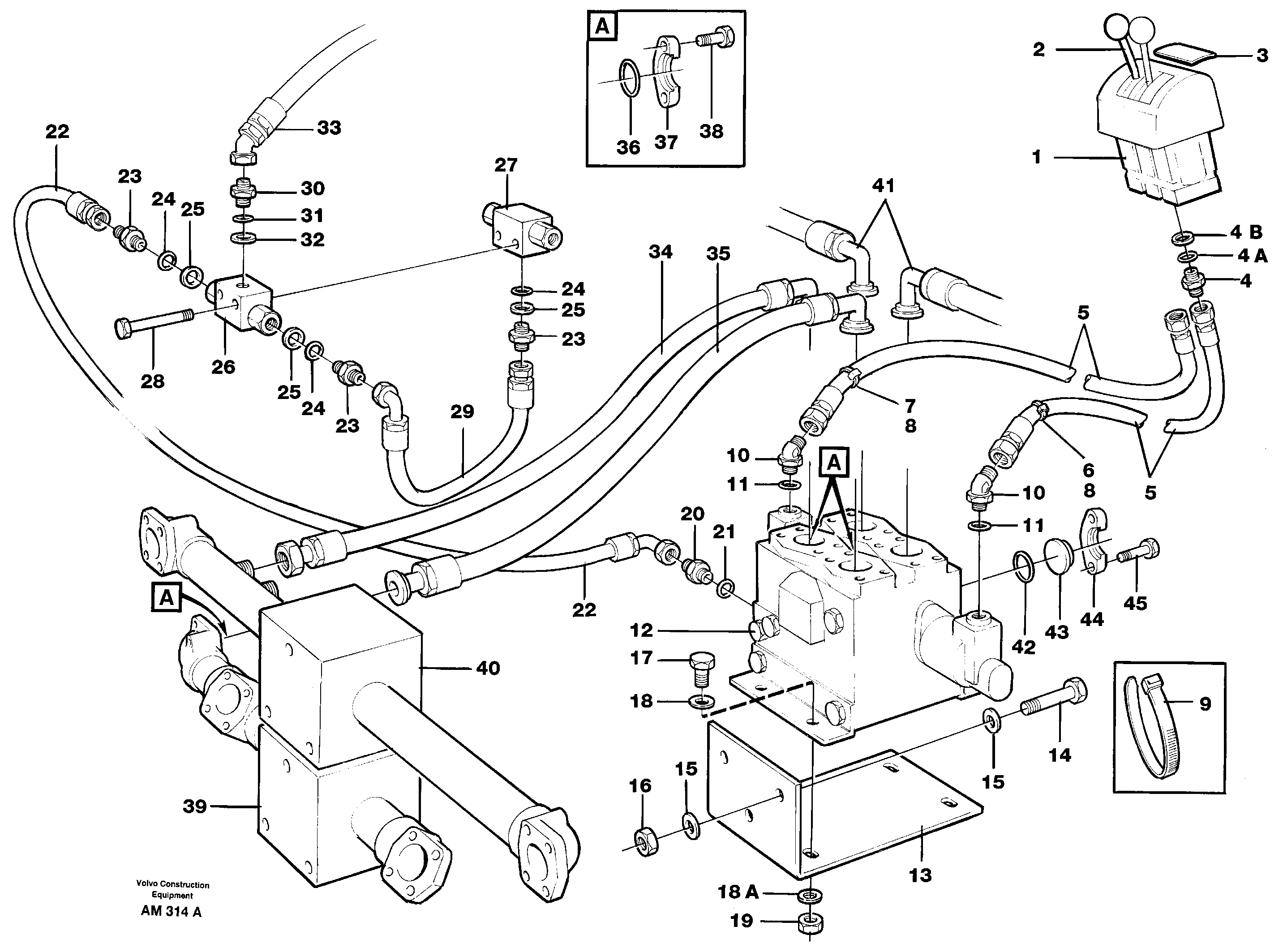

Hydraulic system, 3rd function 94778

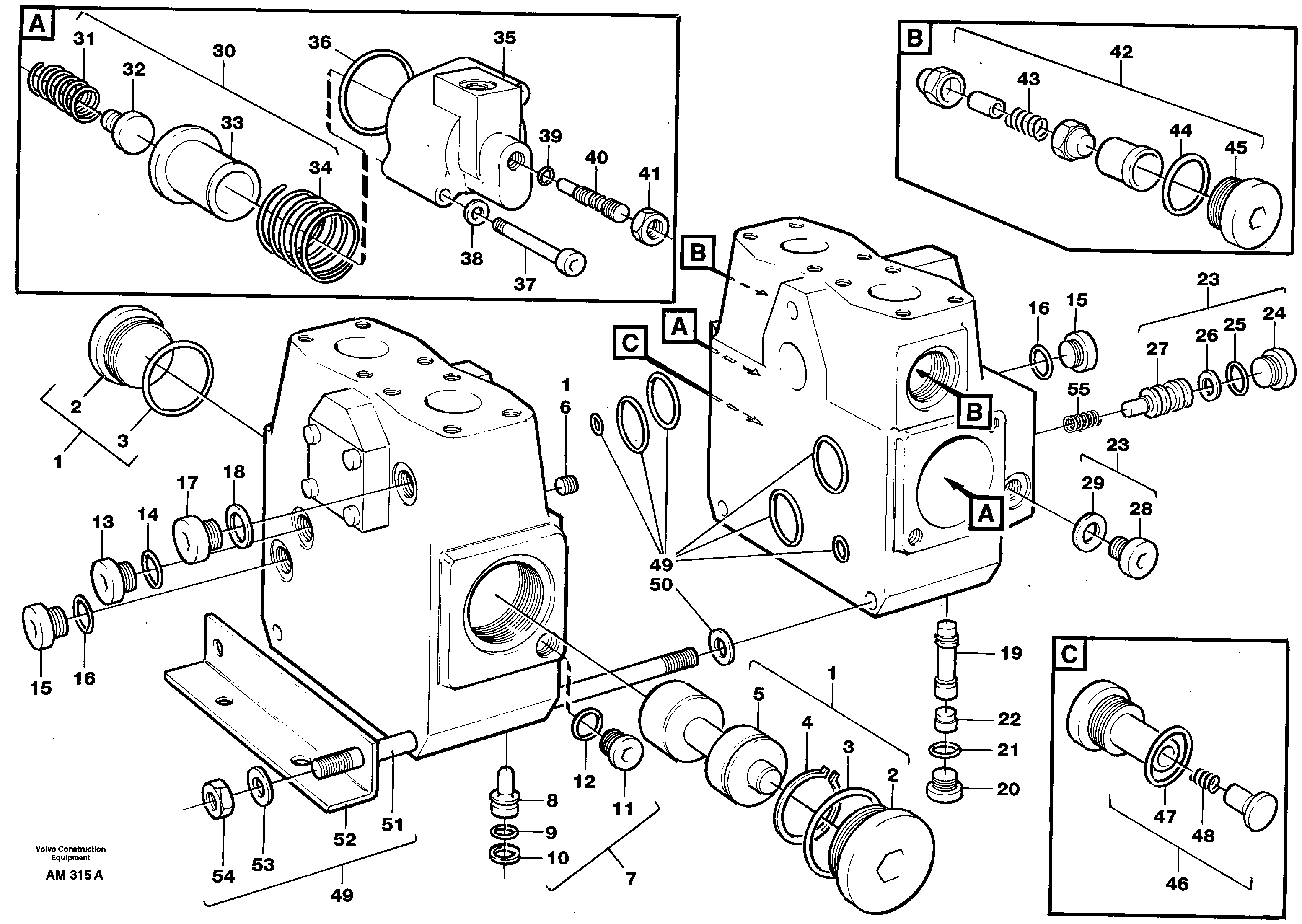

Valve, 3rd function 94778, SER NO - 60126

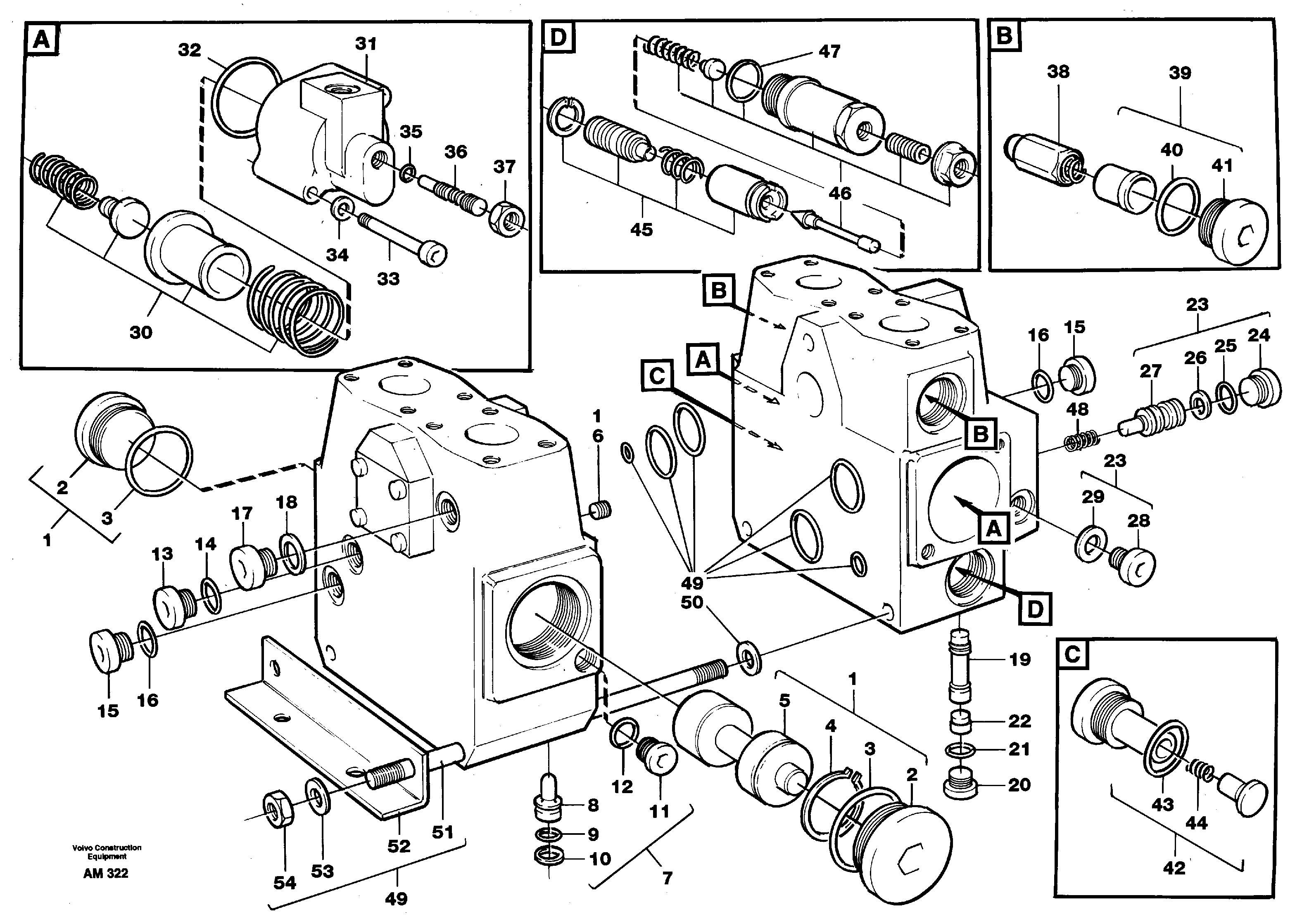

Valve, 3rd function 94778, SER NO 60127 -

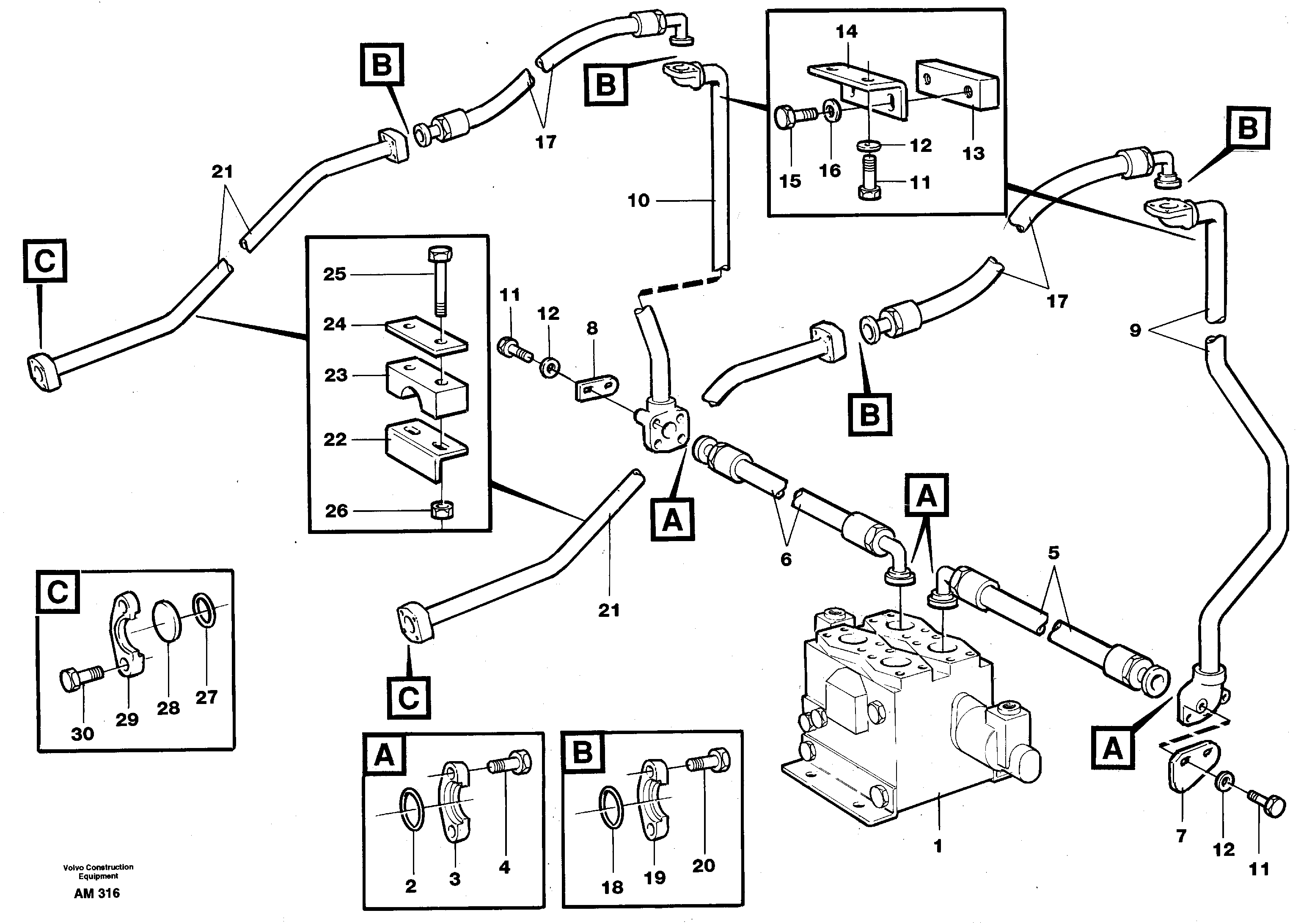

Pressure lines, 3rd function 94778

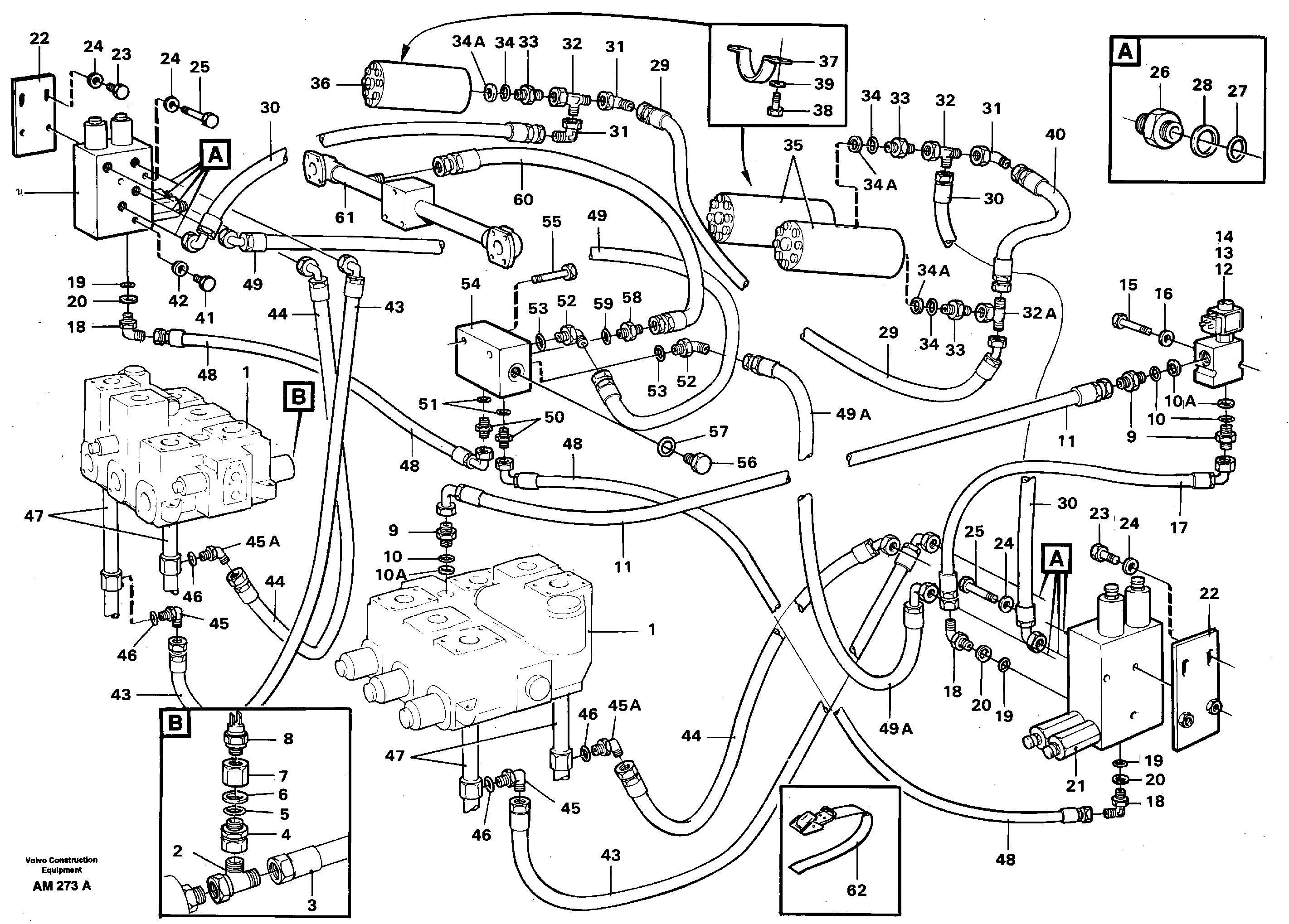

Boom suspension system 94514

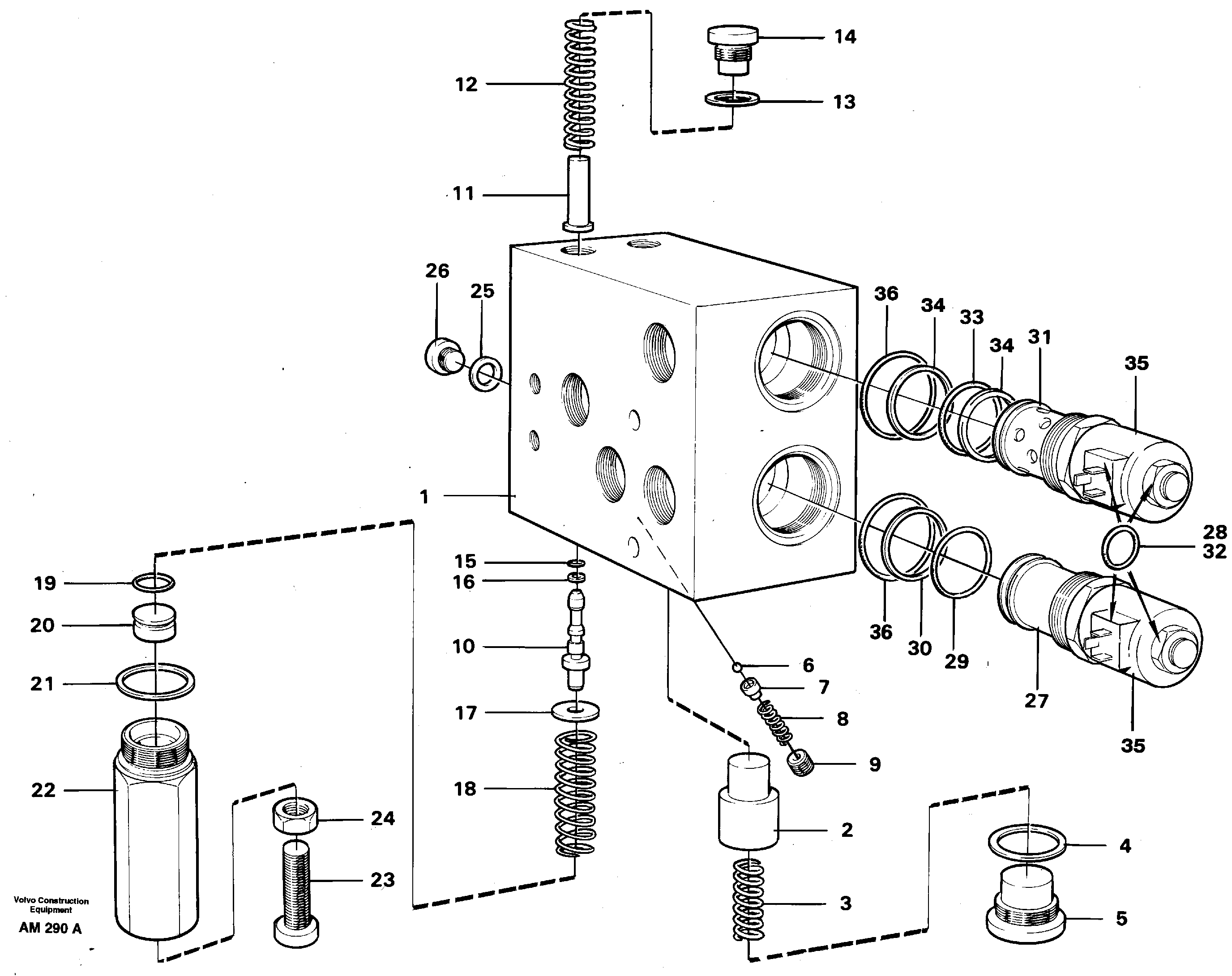

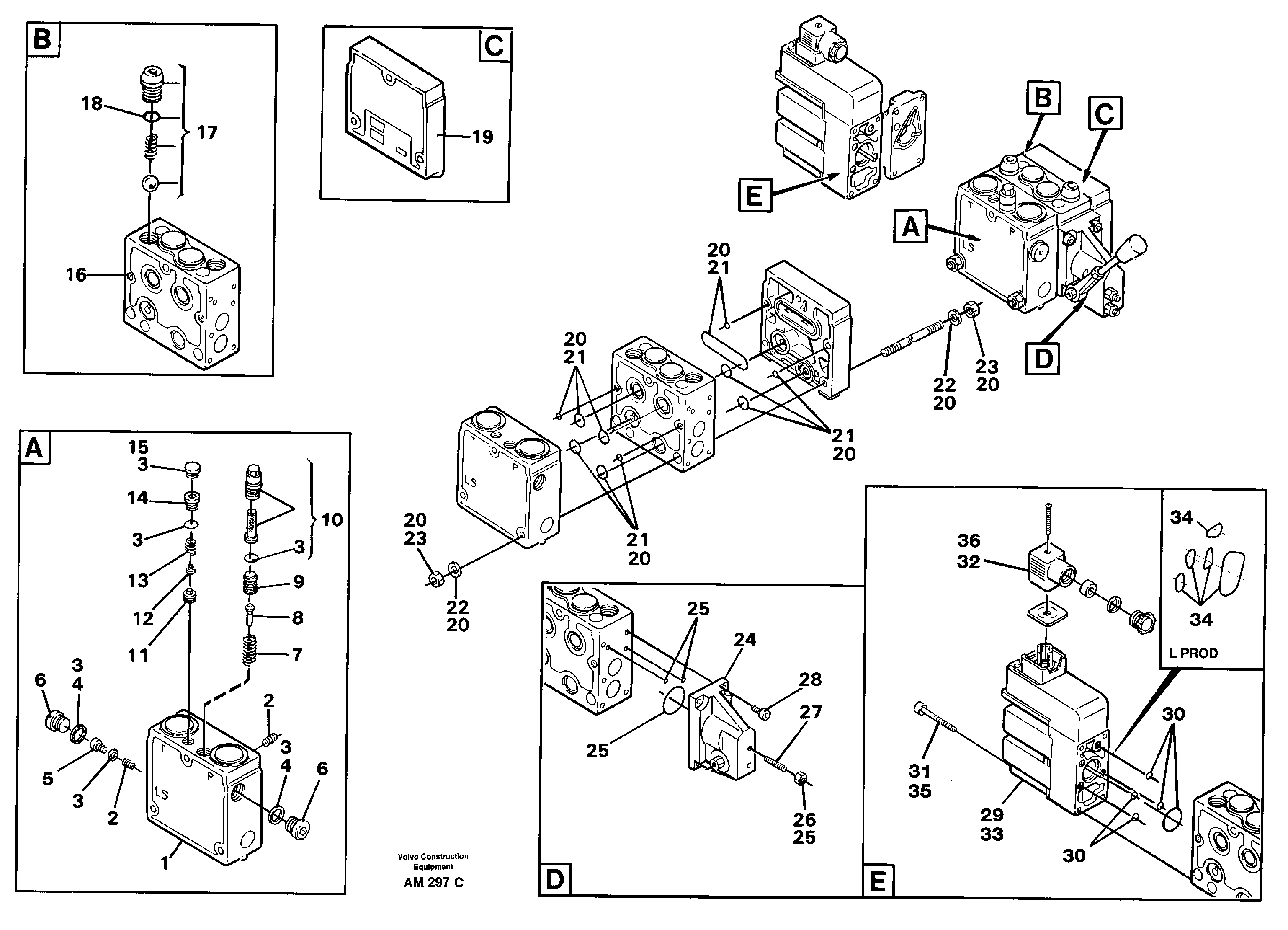

Valve, circuit body and return valve 94514

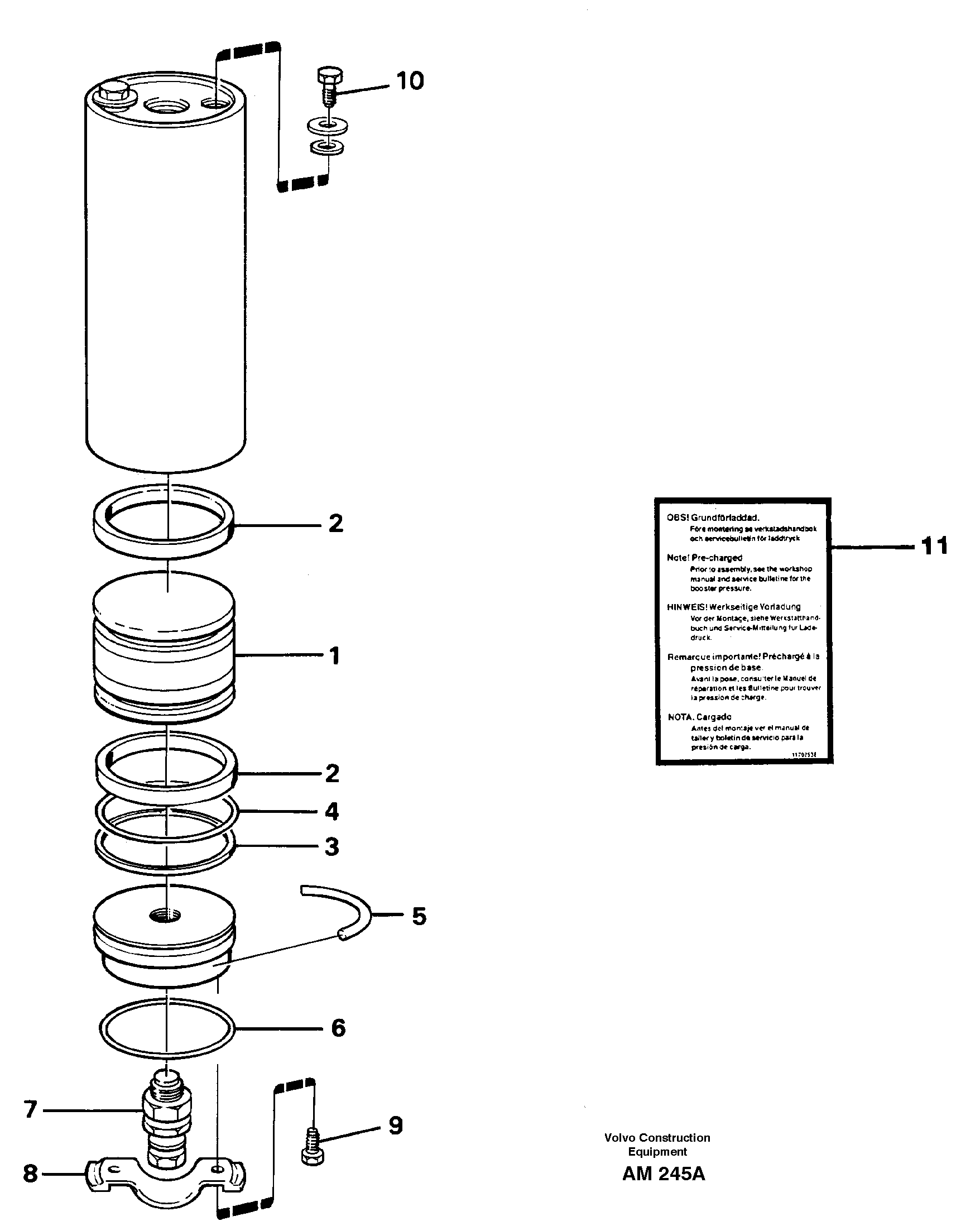

Accumulator 94514
