Volvo L32 1840001-1842200
195 pages · 147 diagrams
- L32
- Volvo Compact Wheel Loaders, Volvo Backhoe Loaders, Volvo Skid Steer Loaders

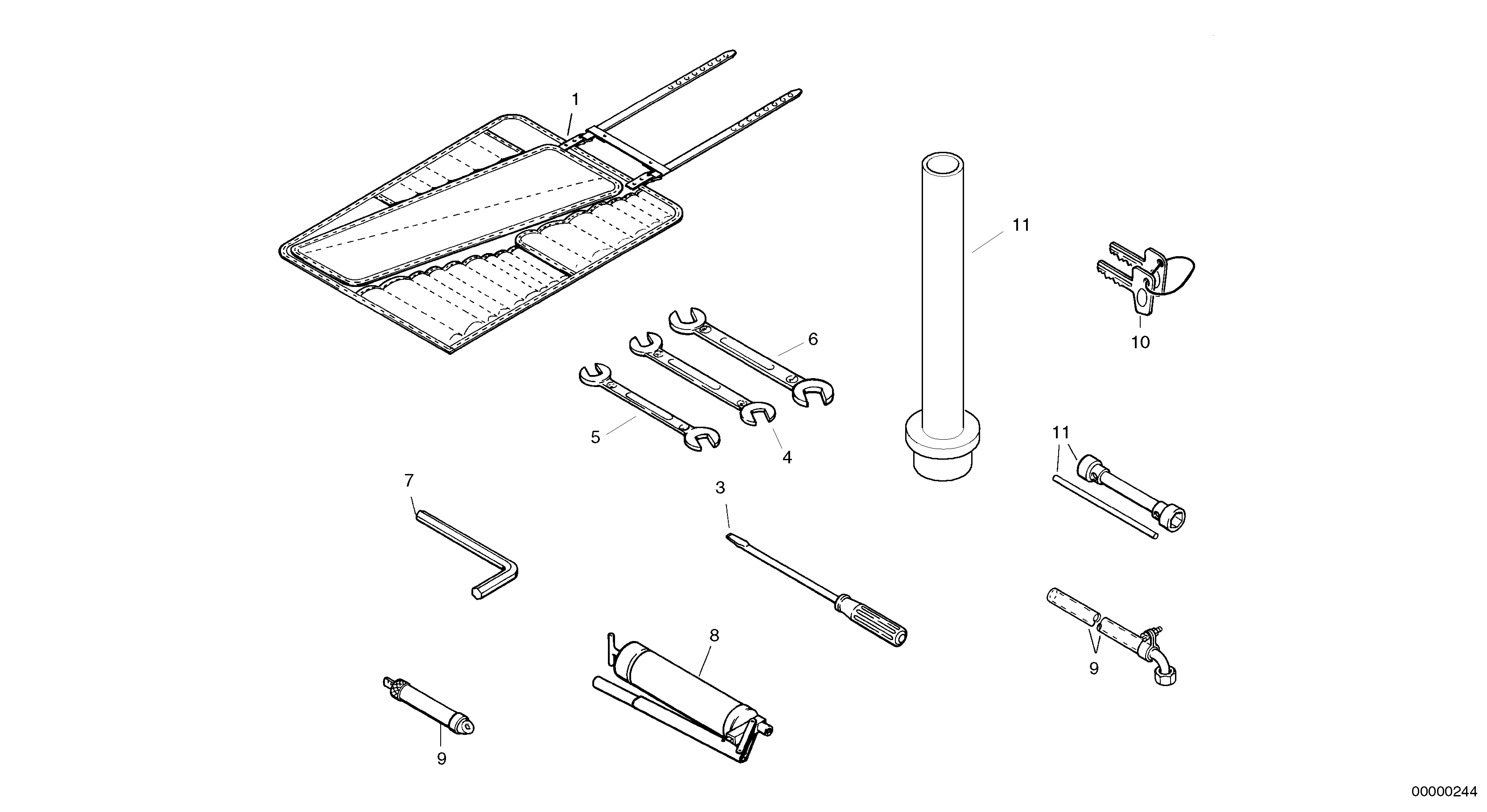

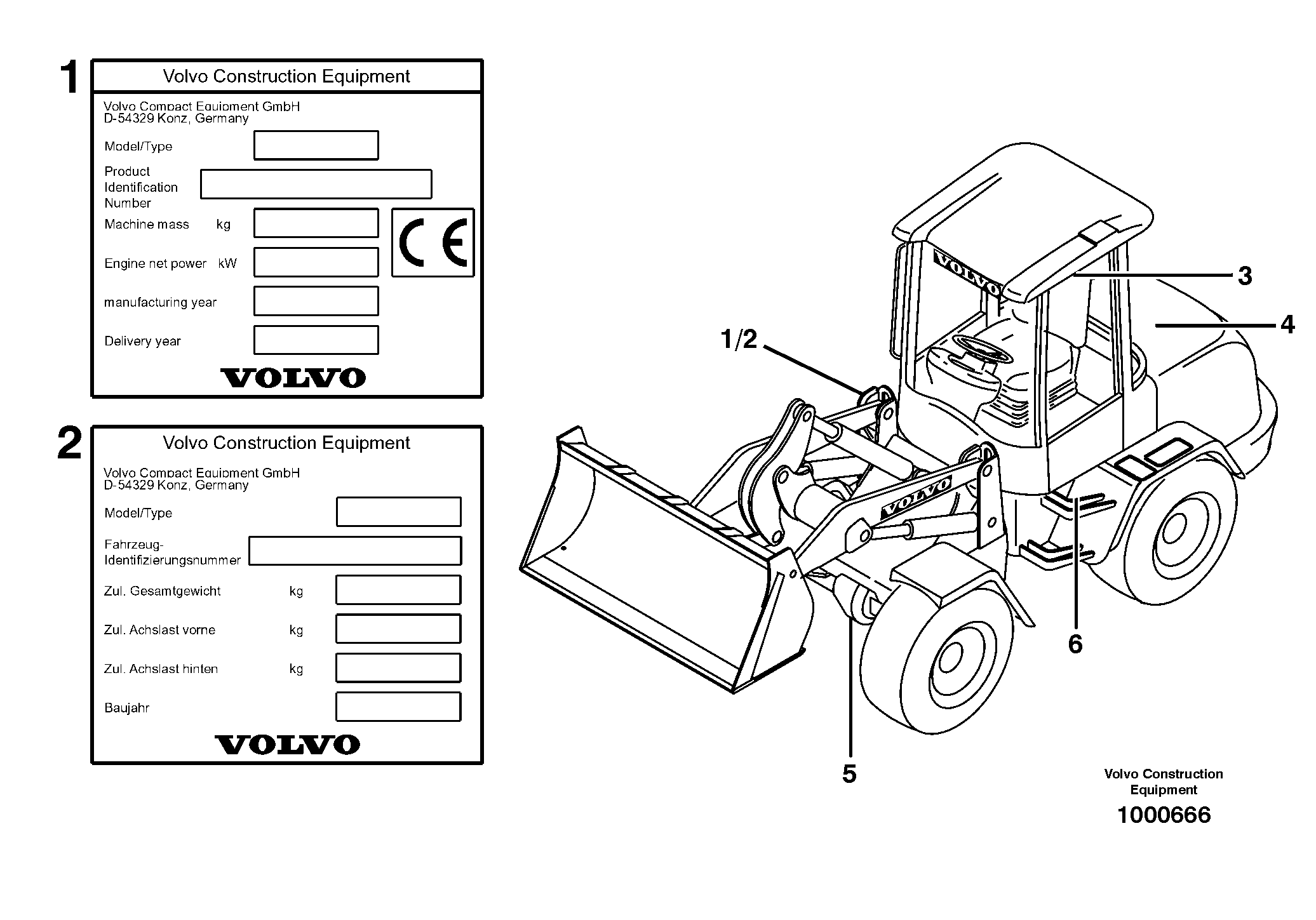

General

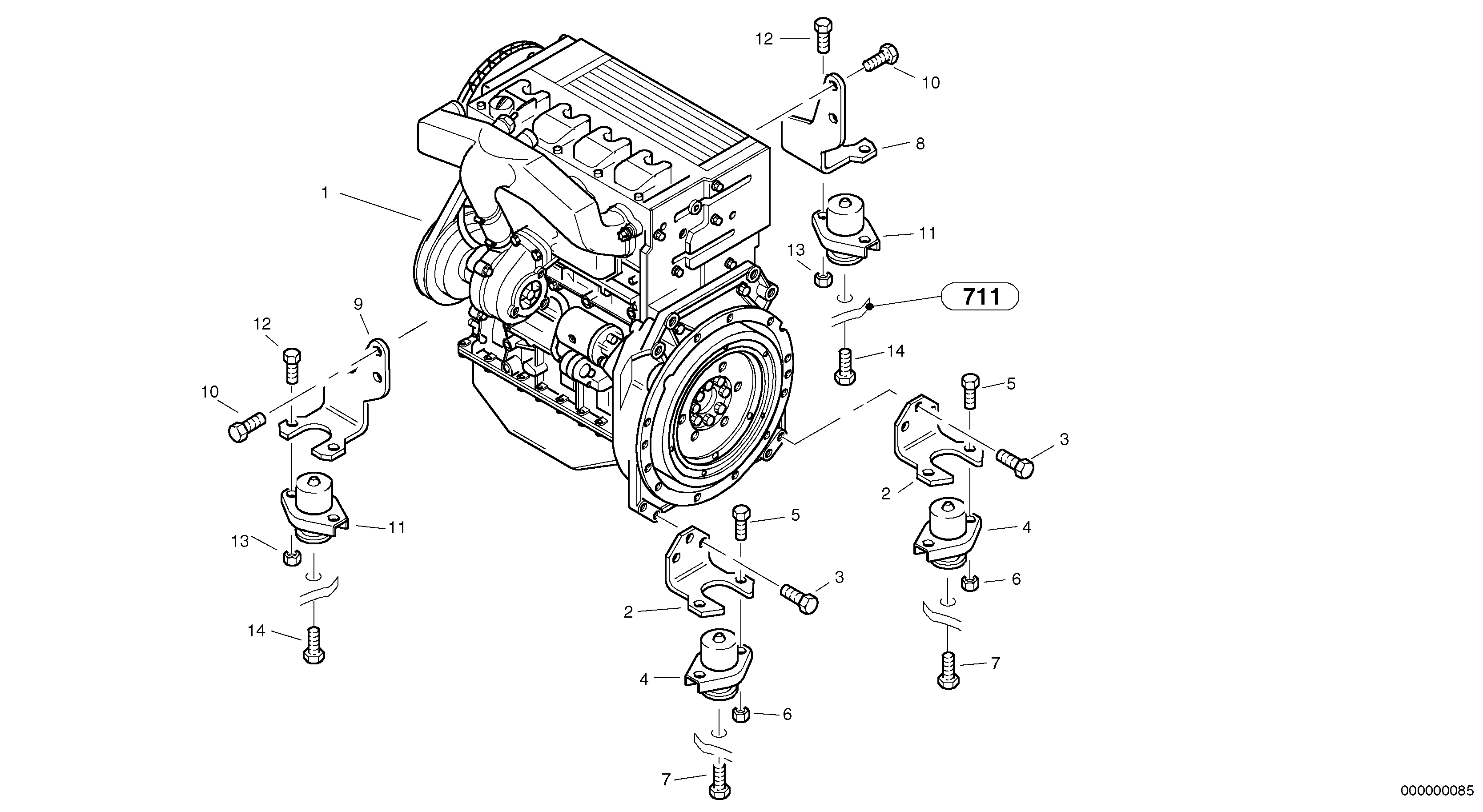

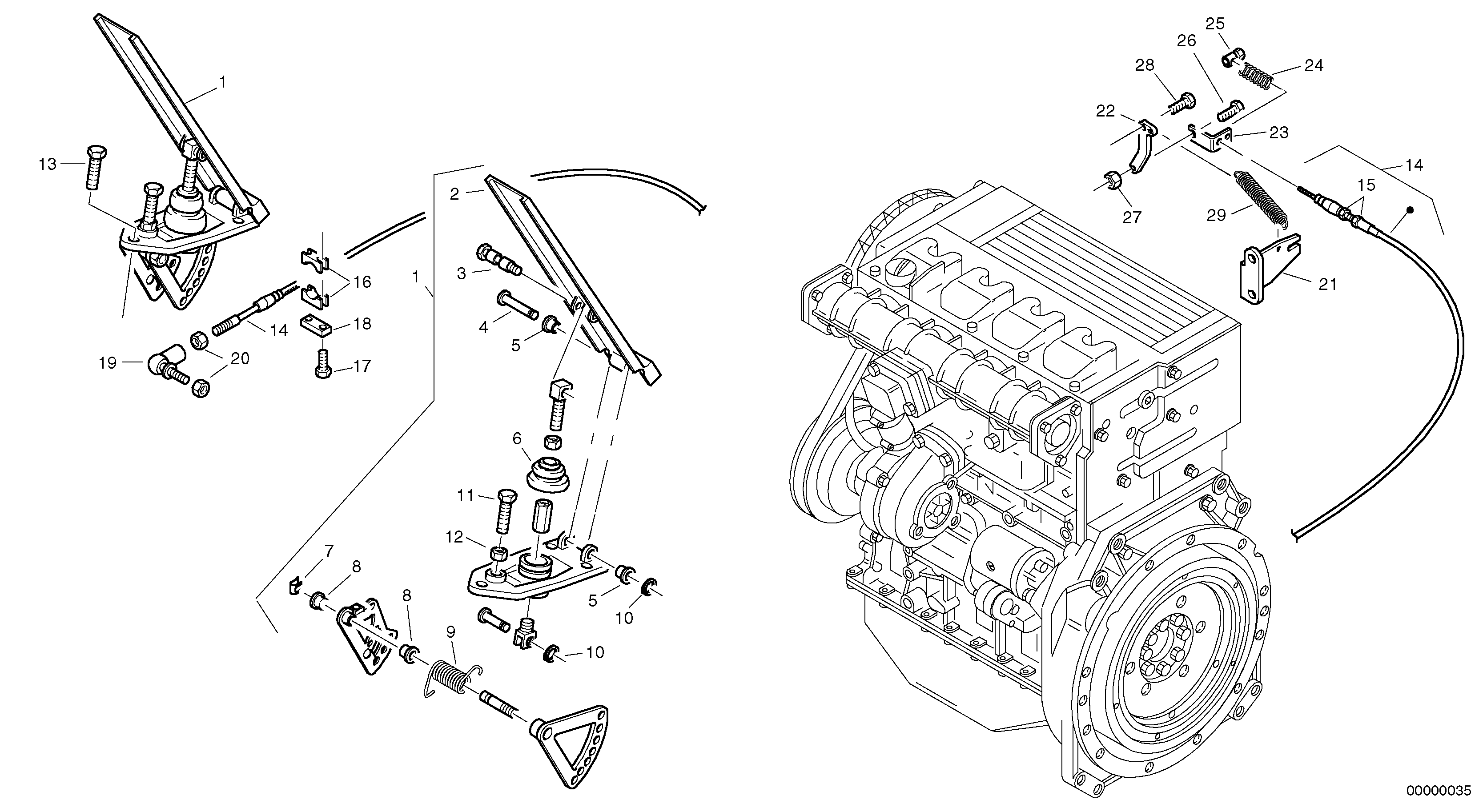

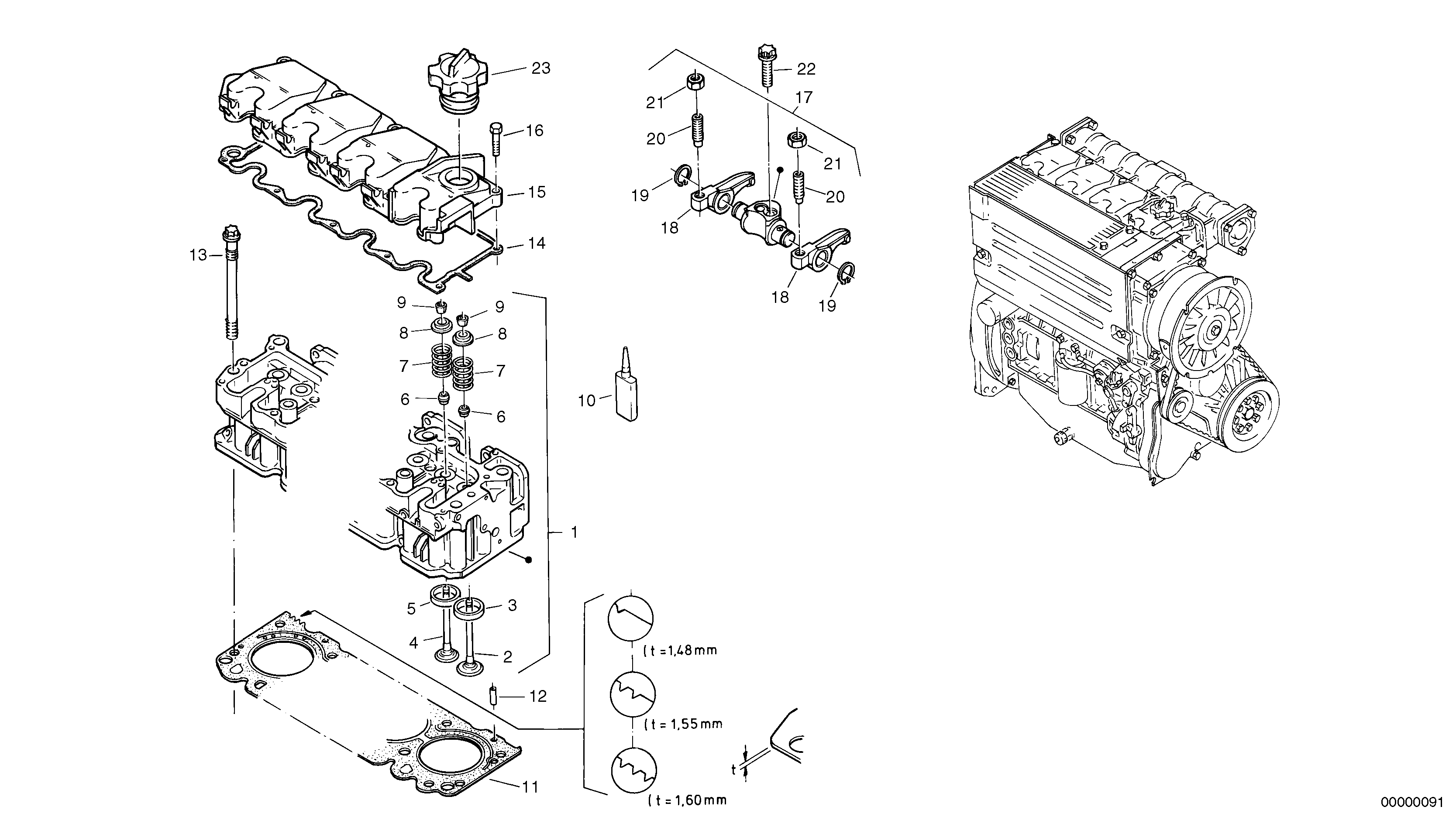

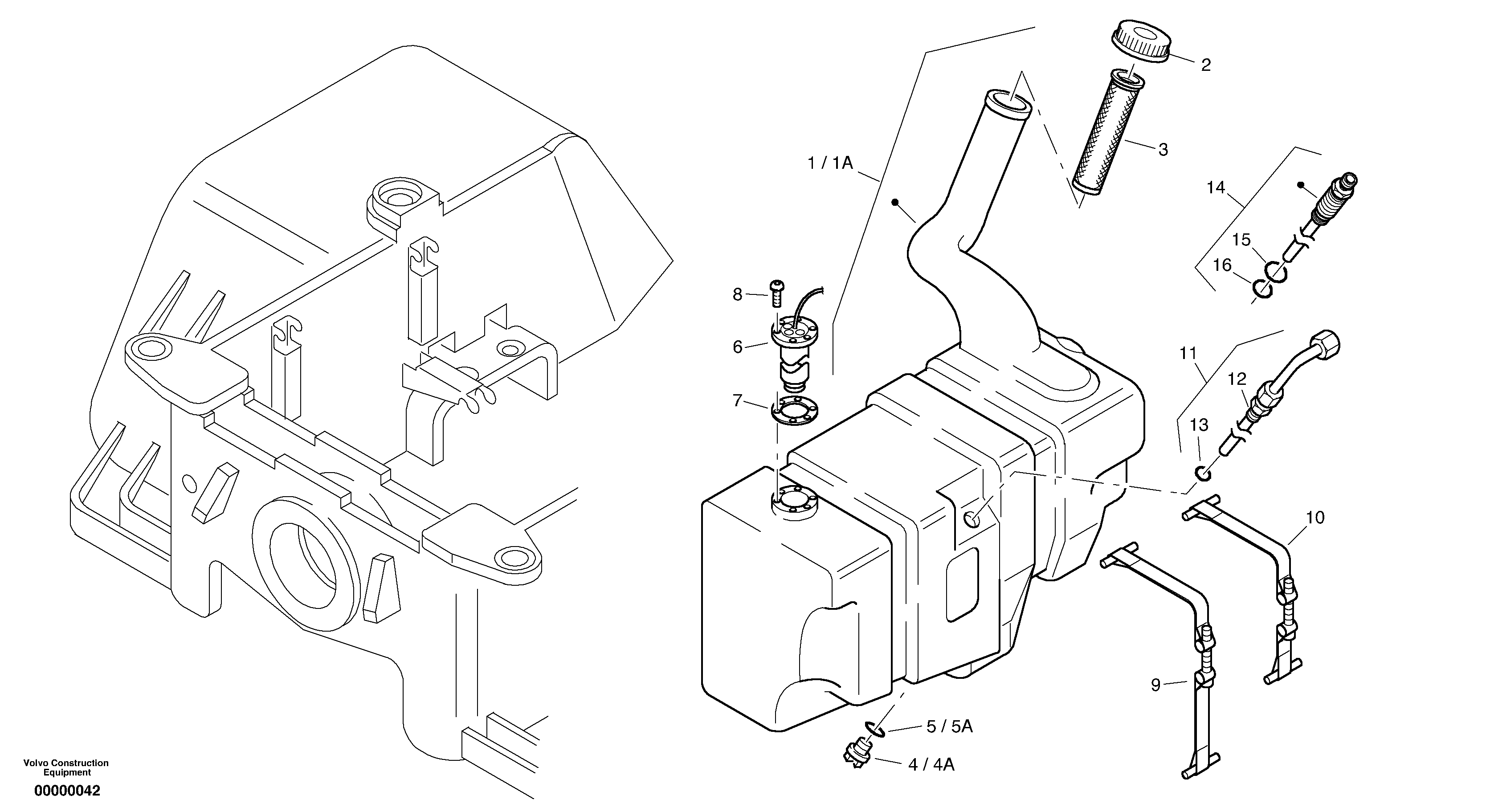

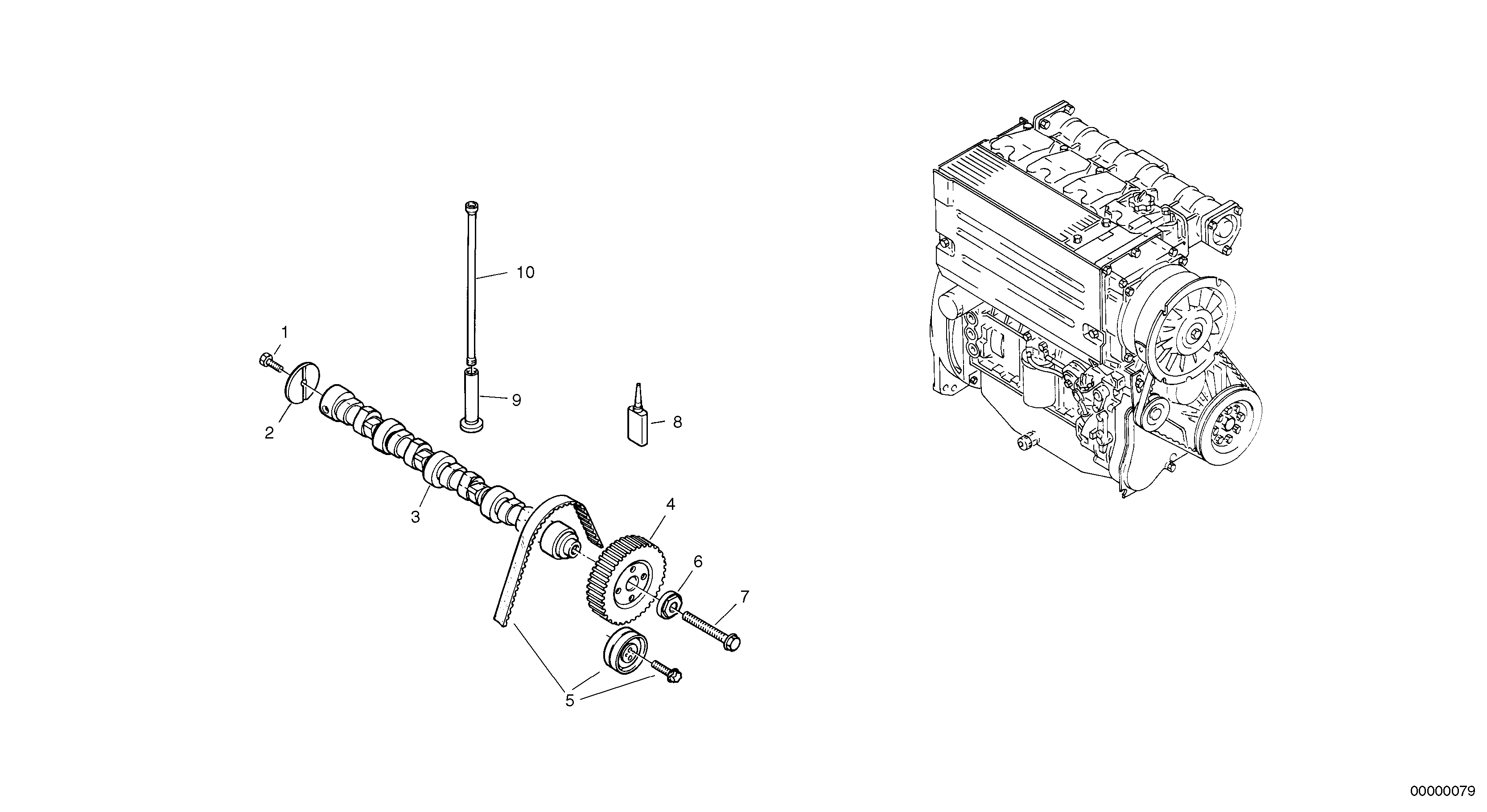

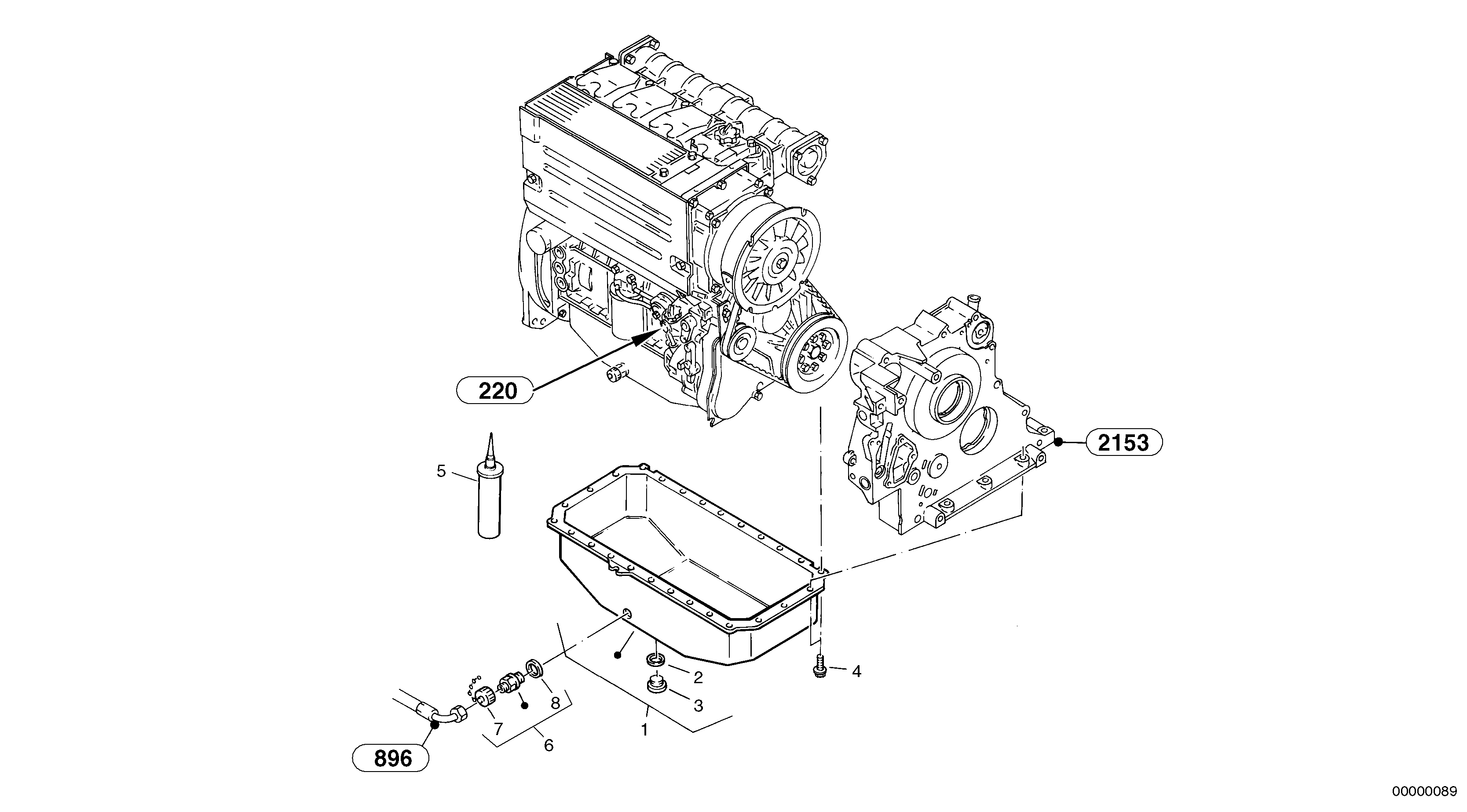

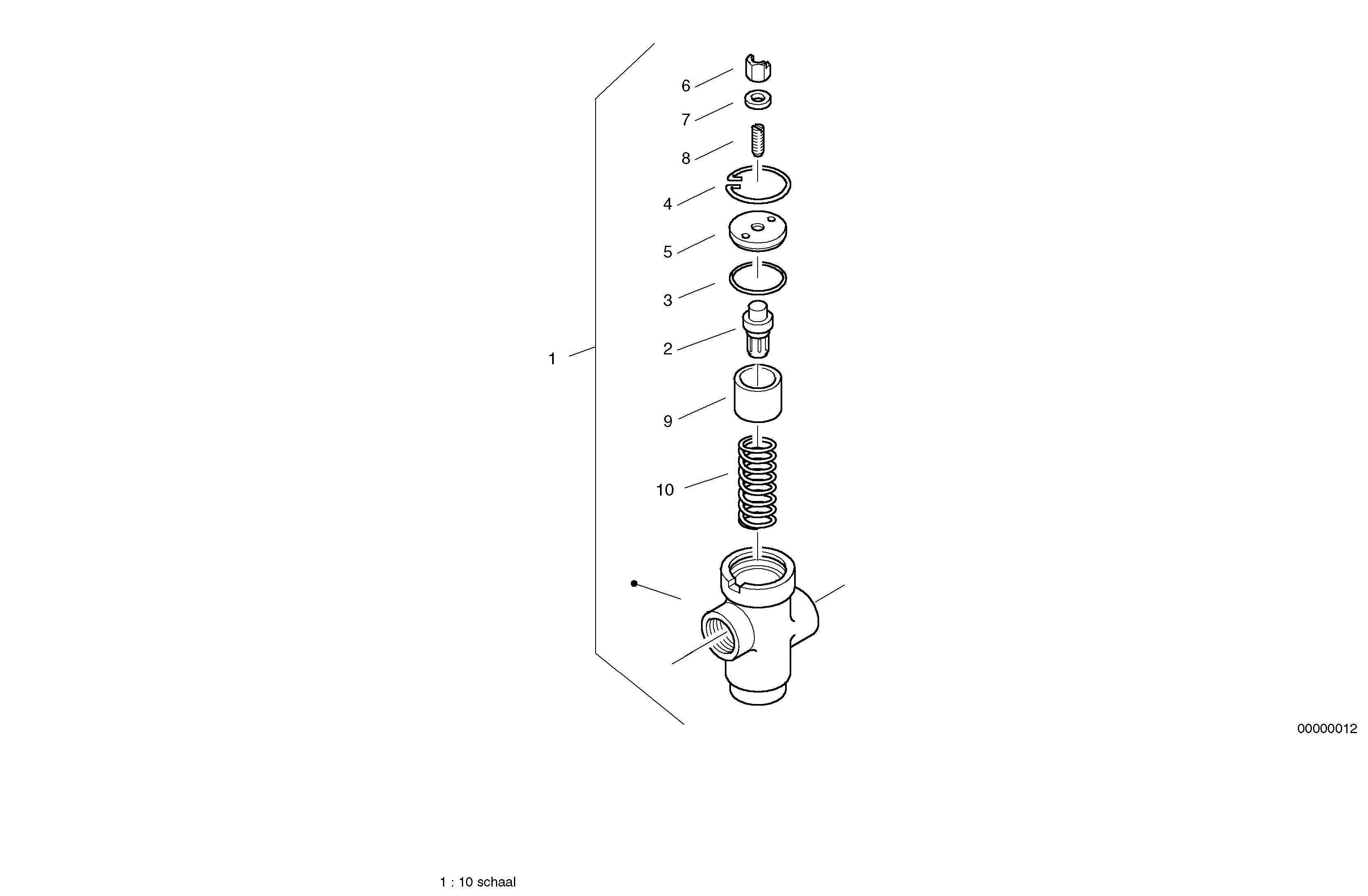

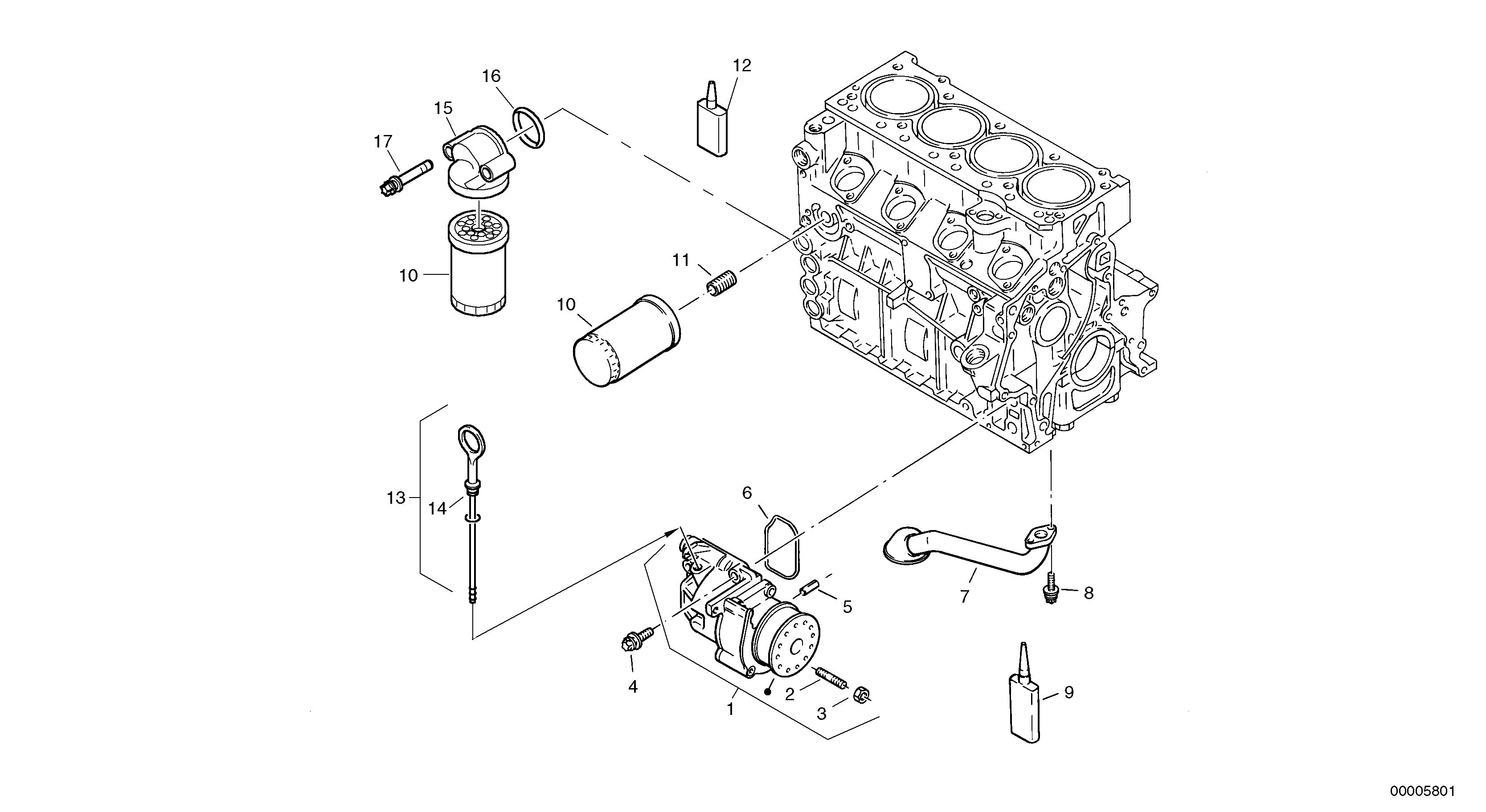

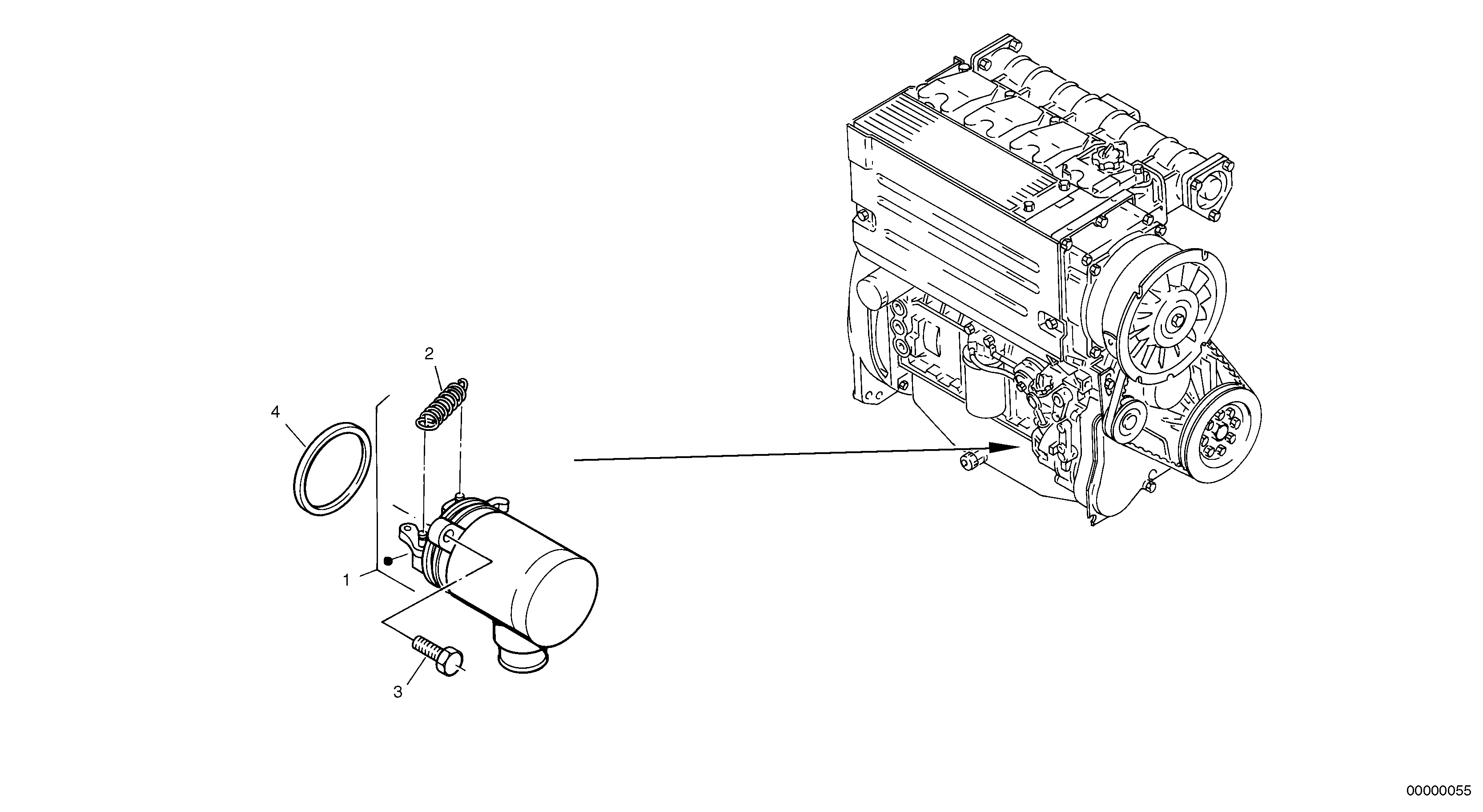

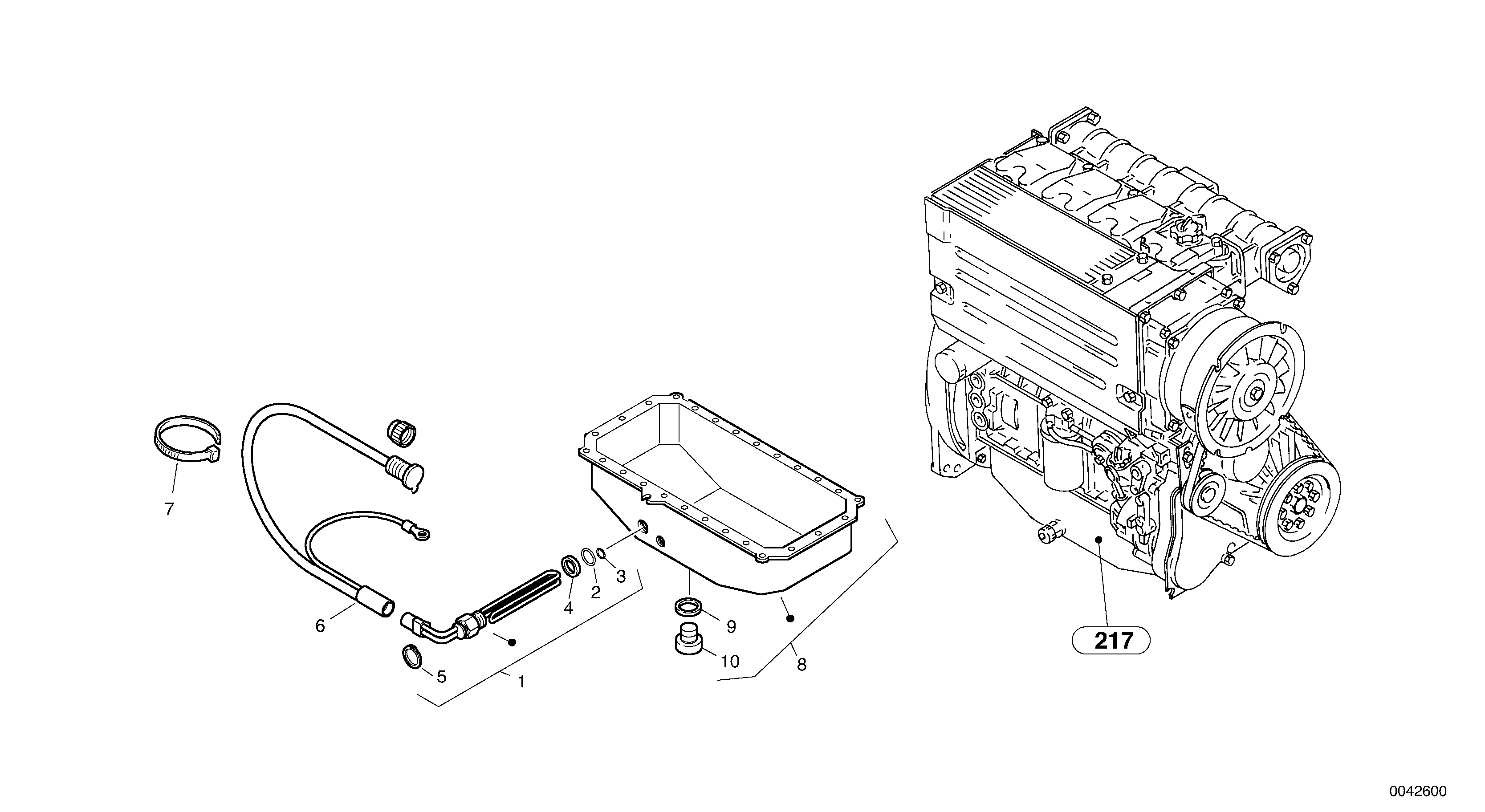

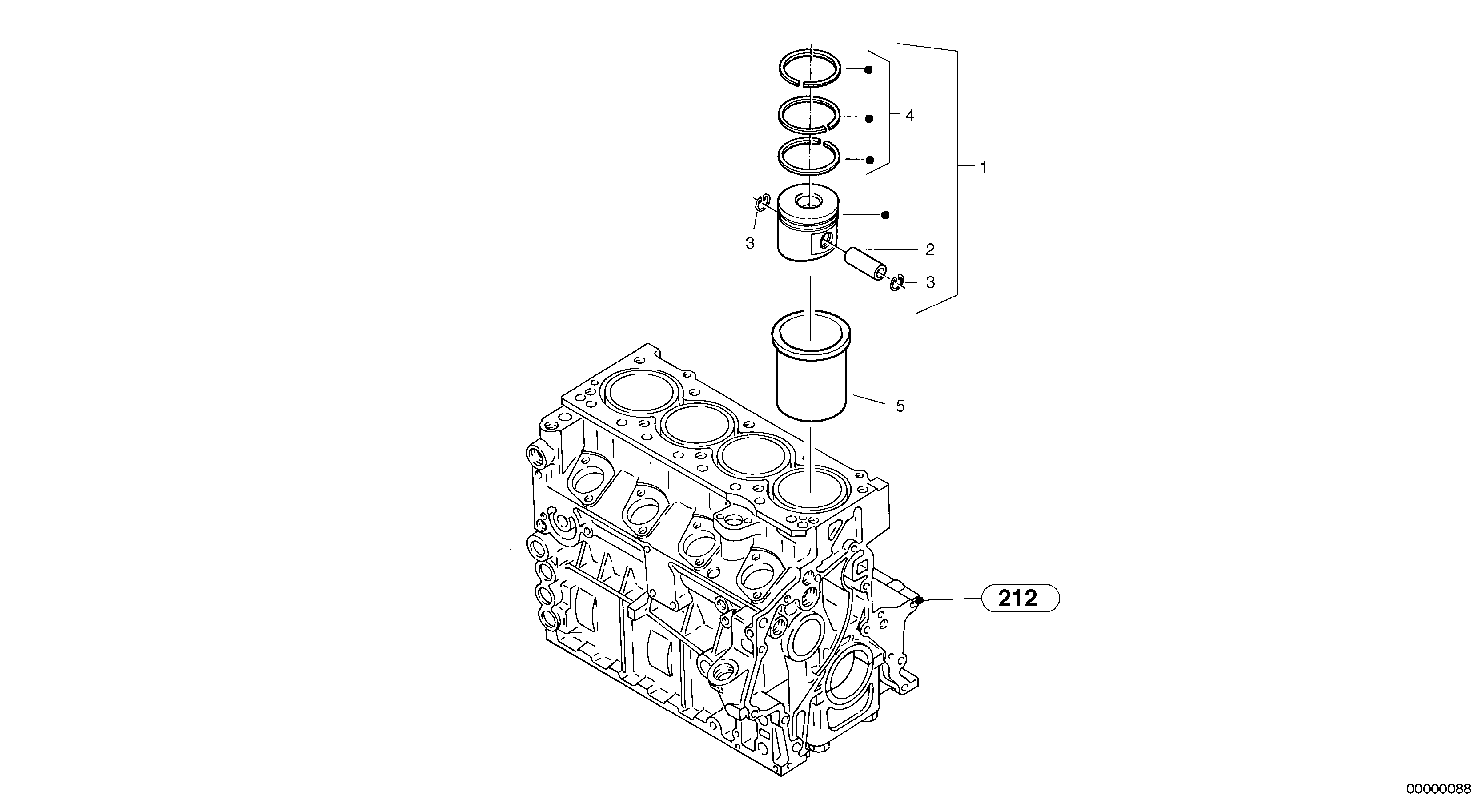

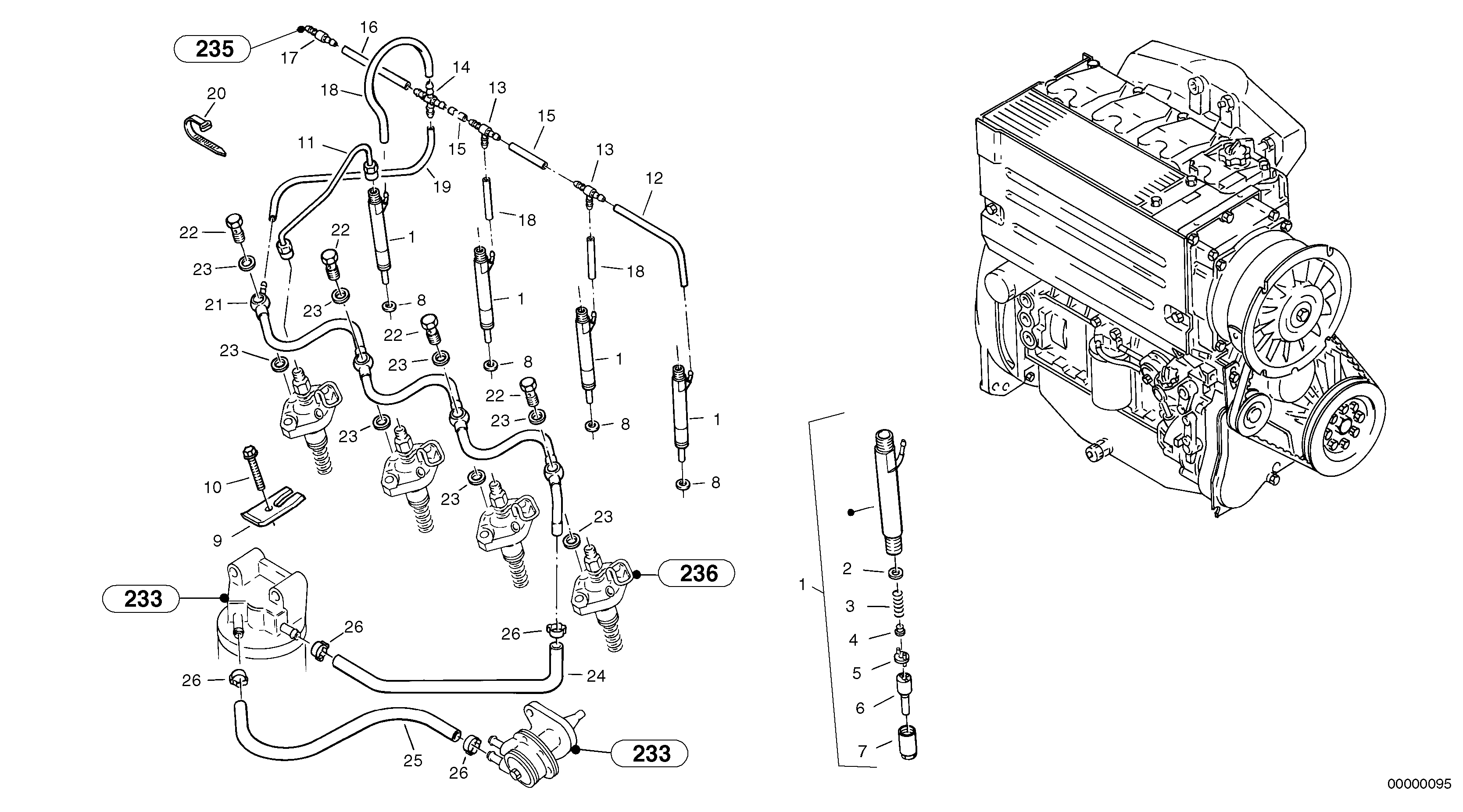

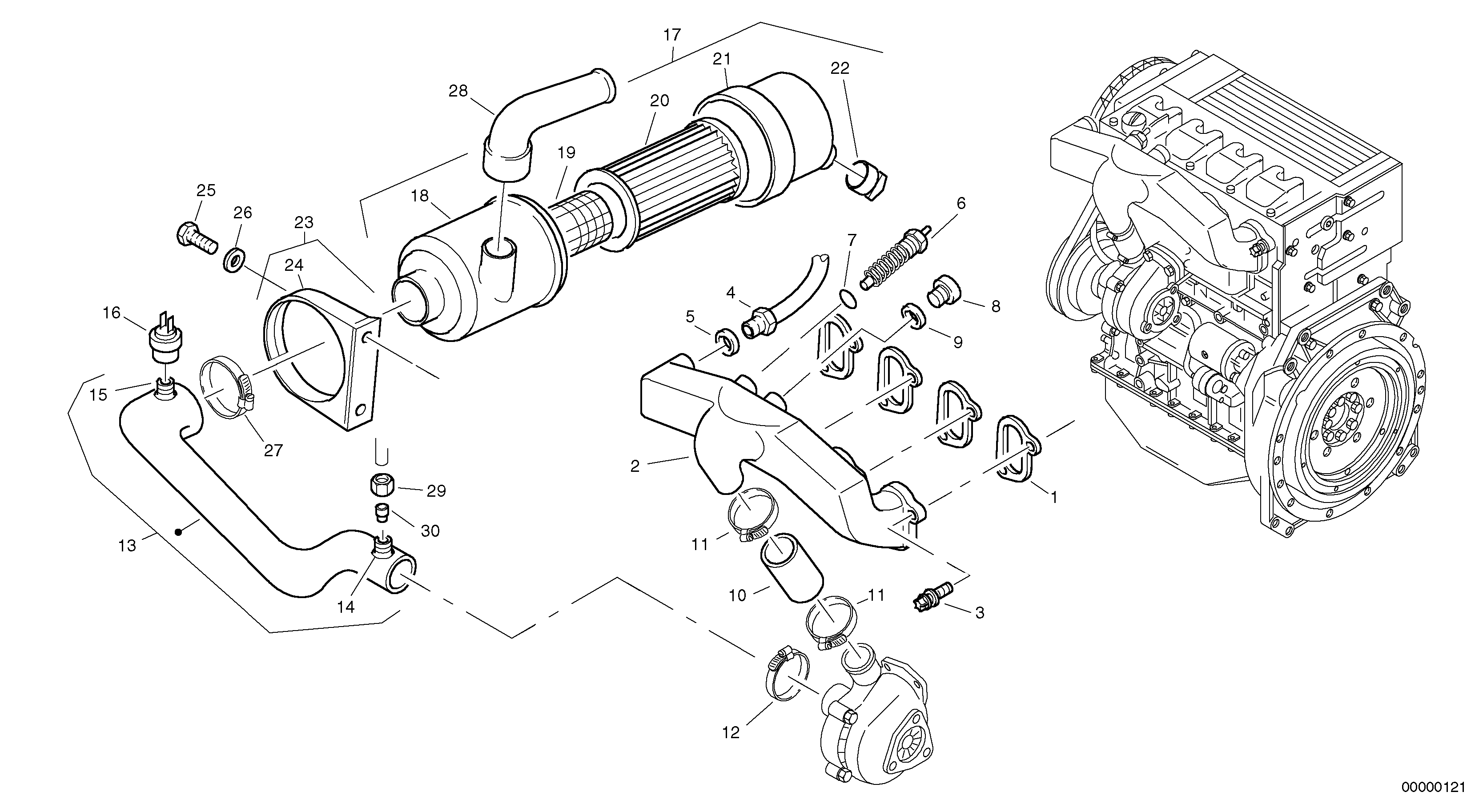

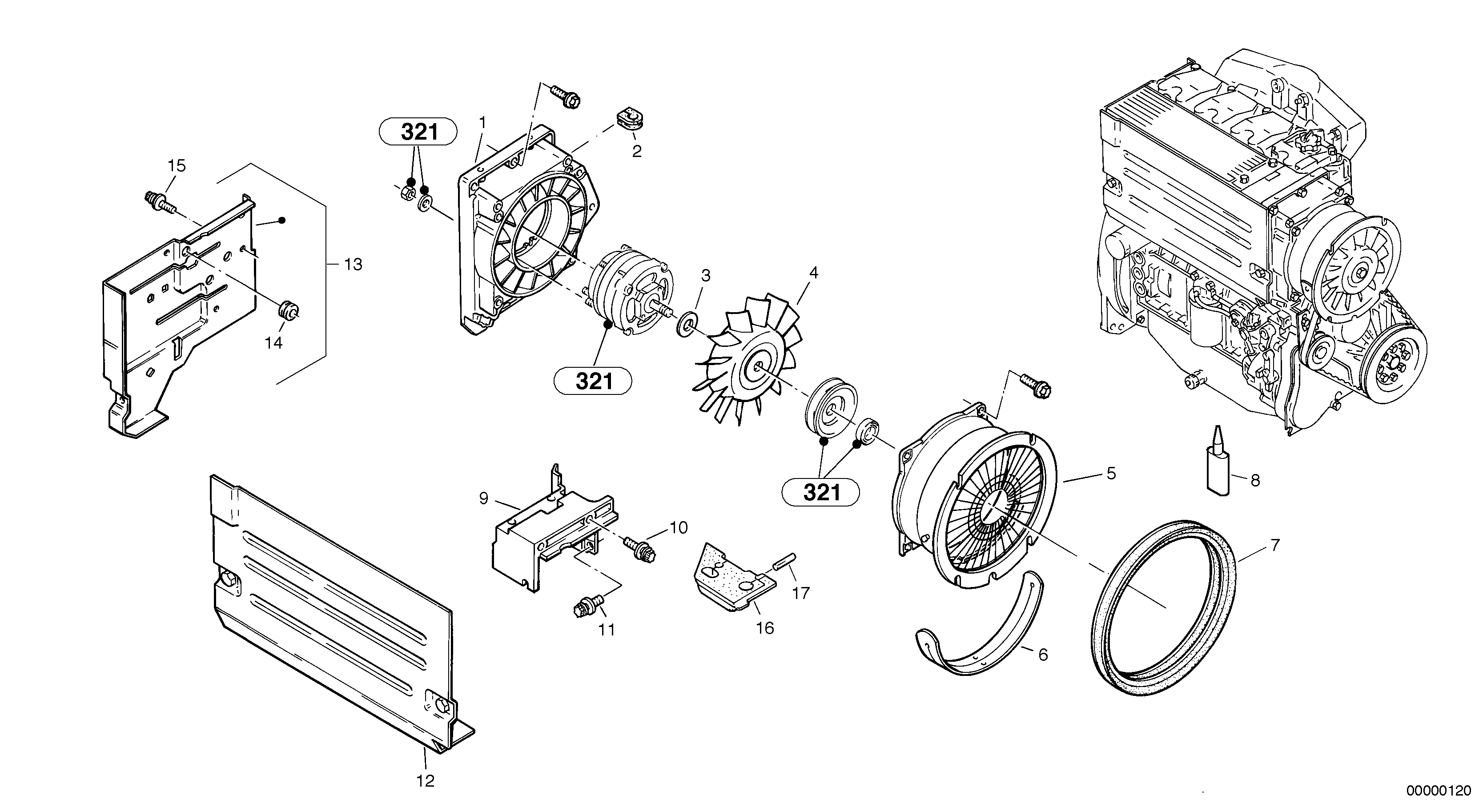

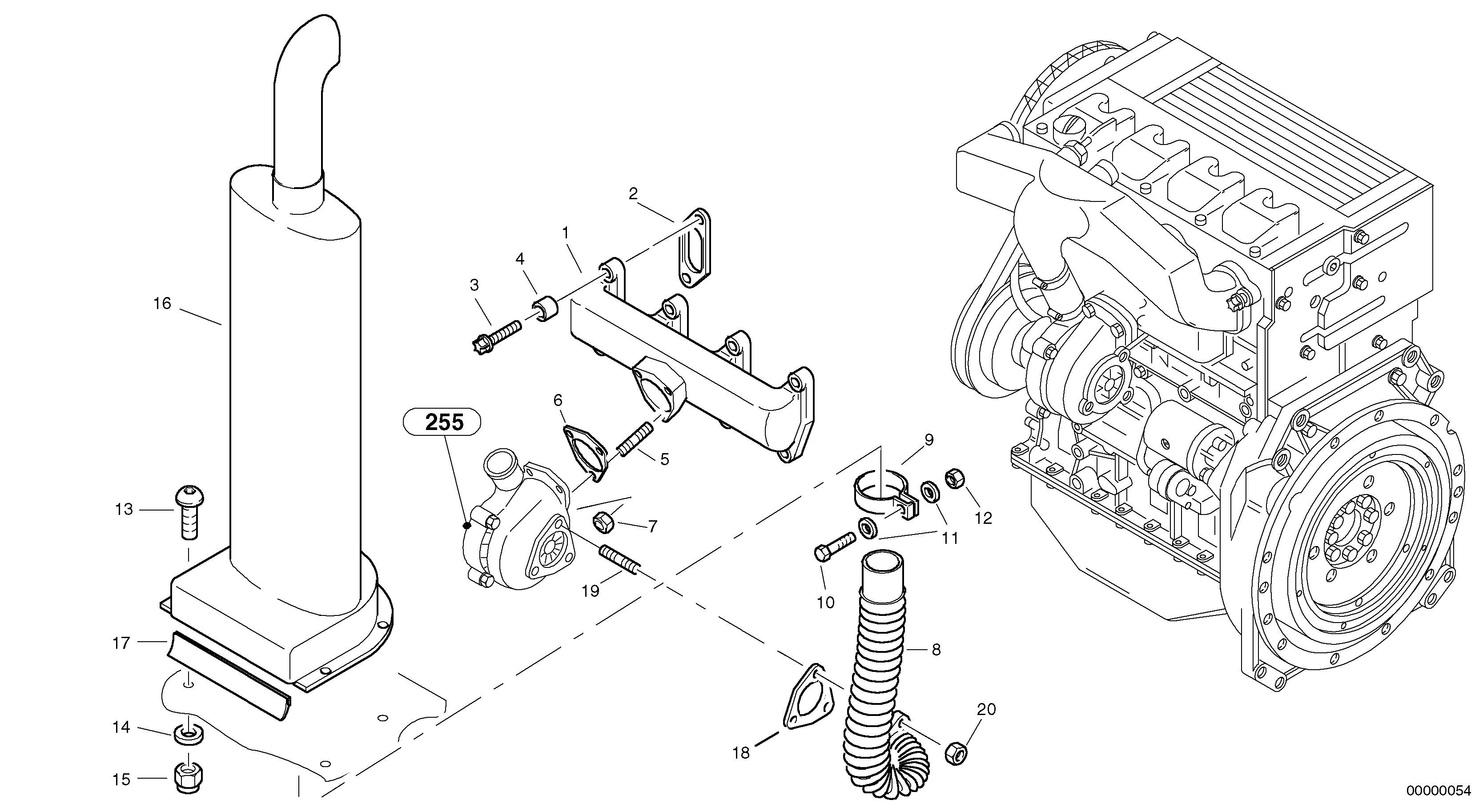

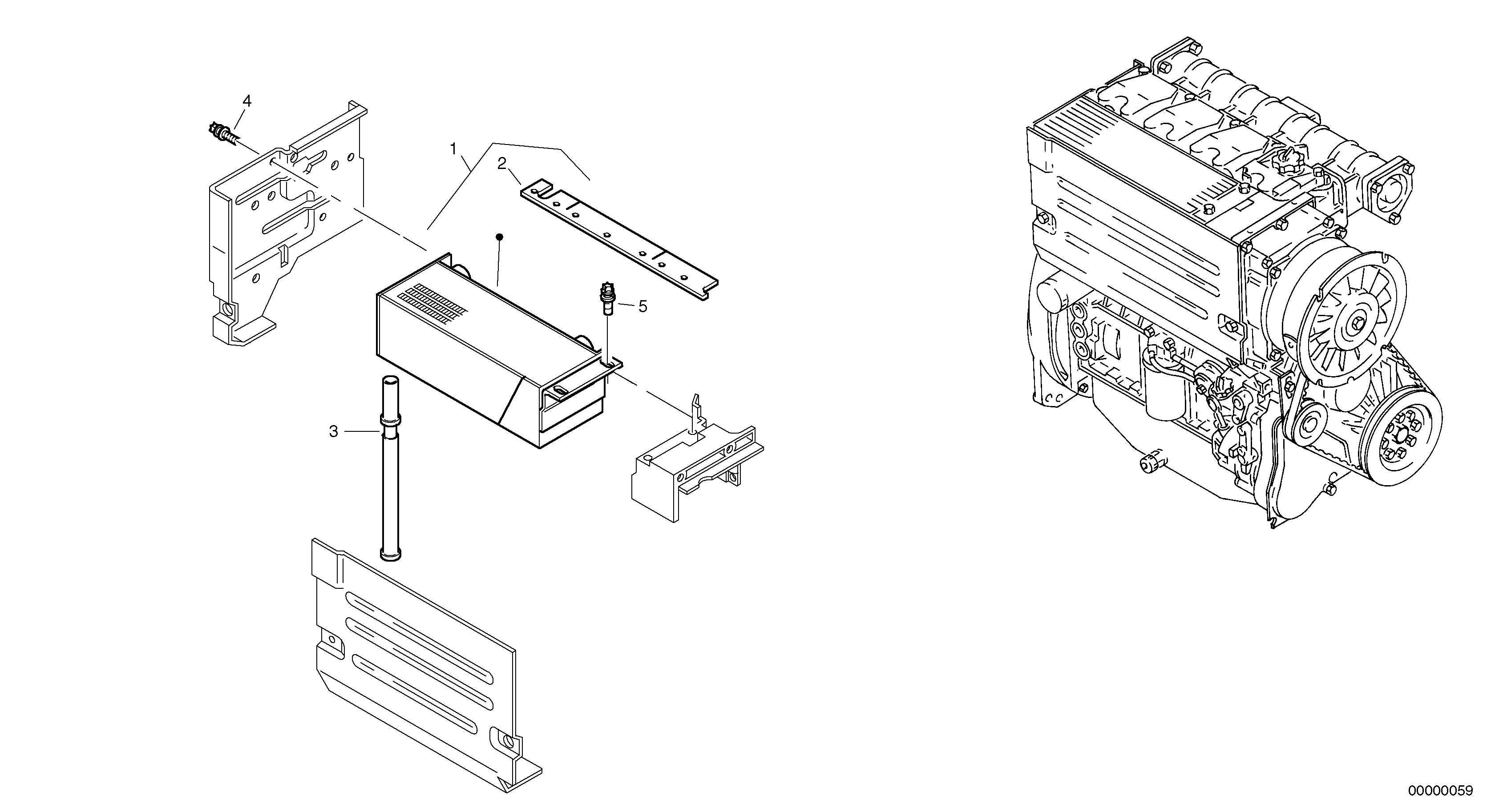

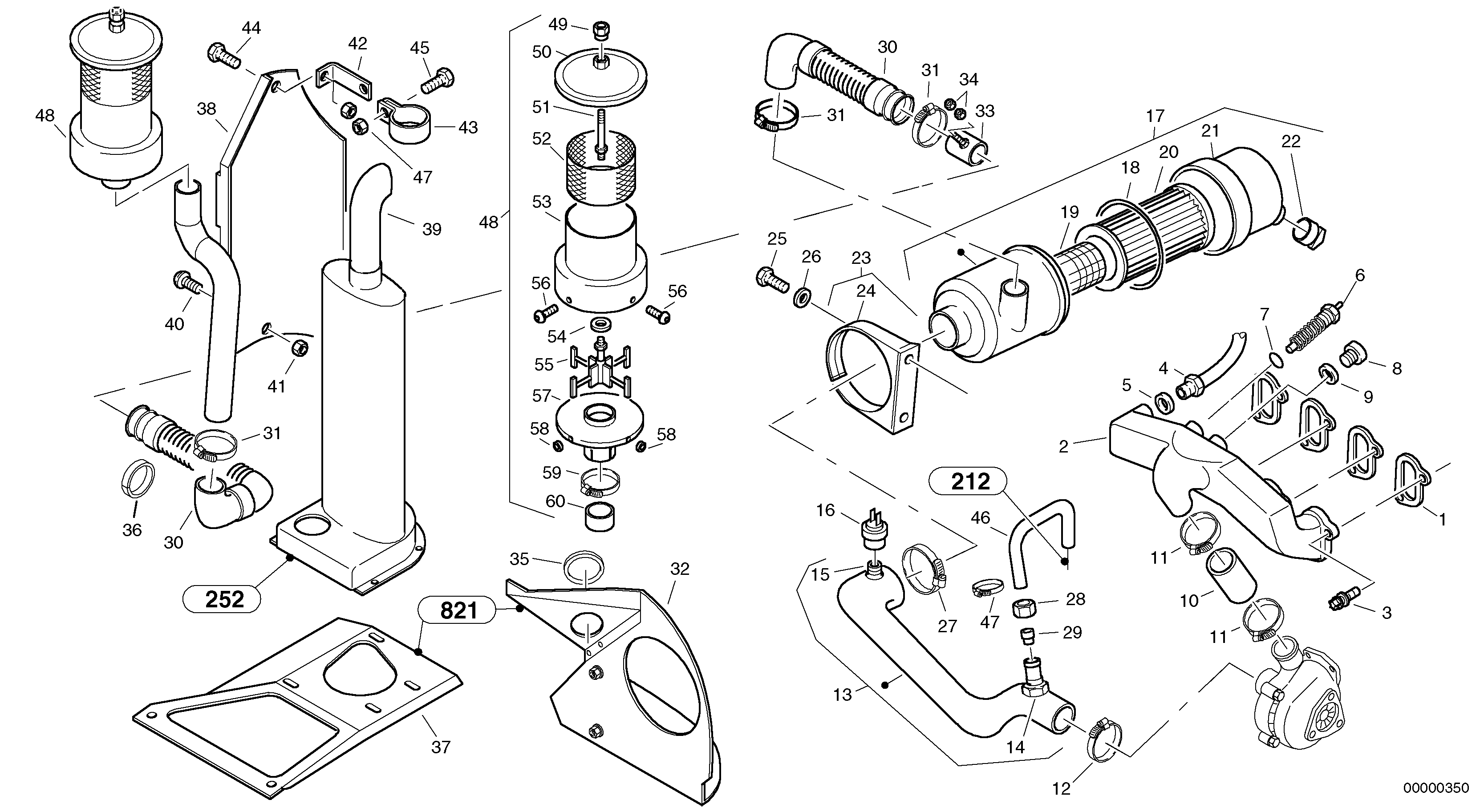

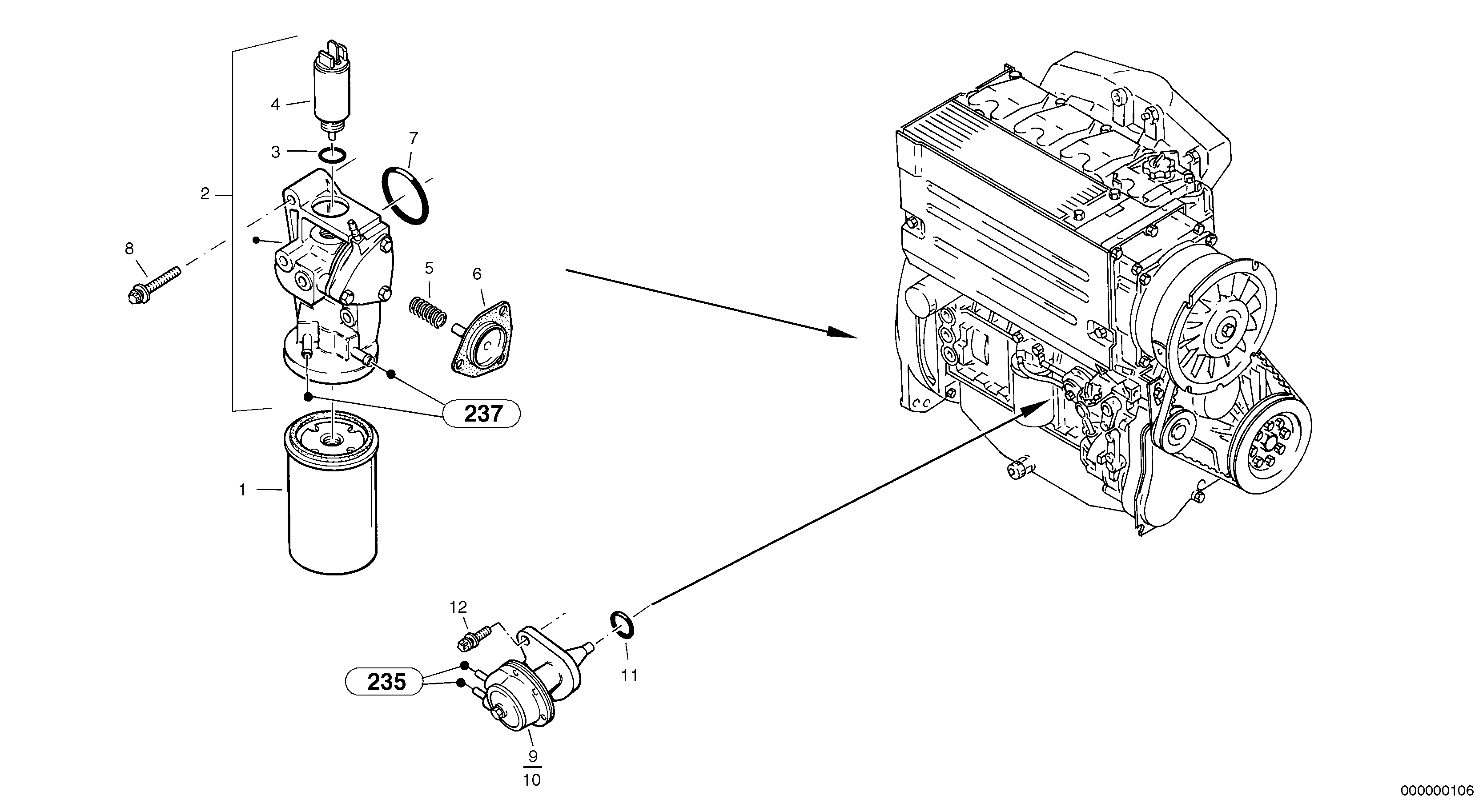

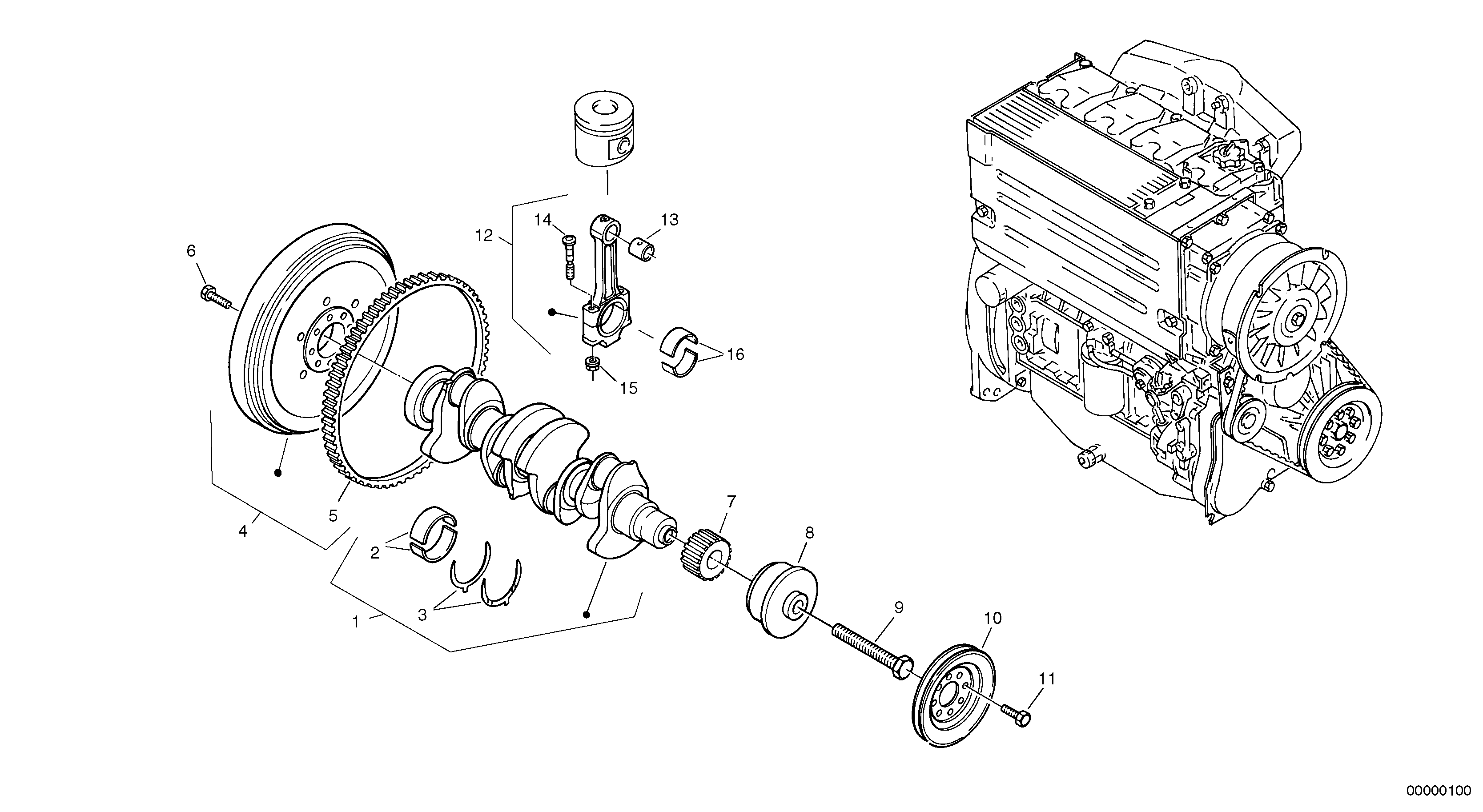

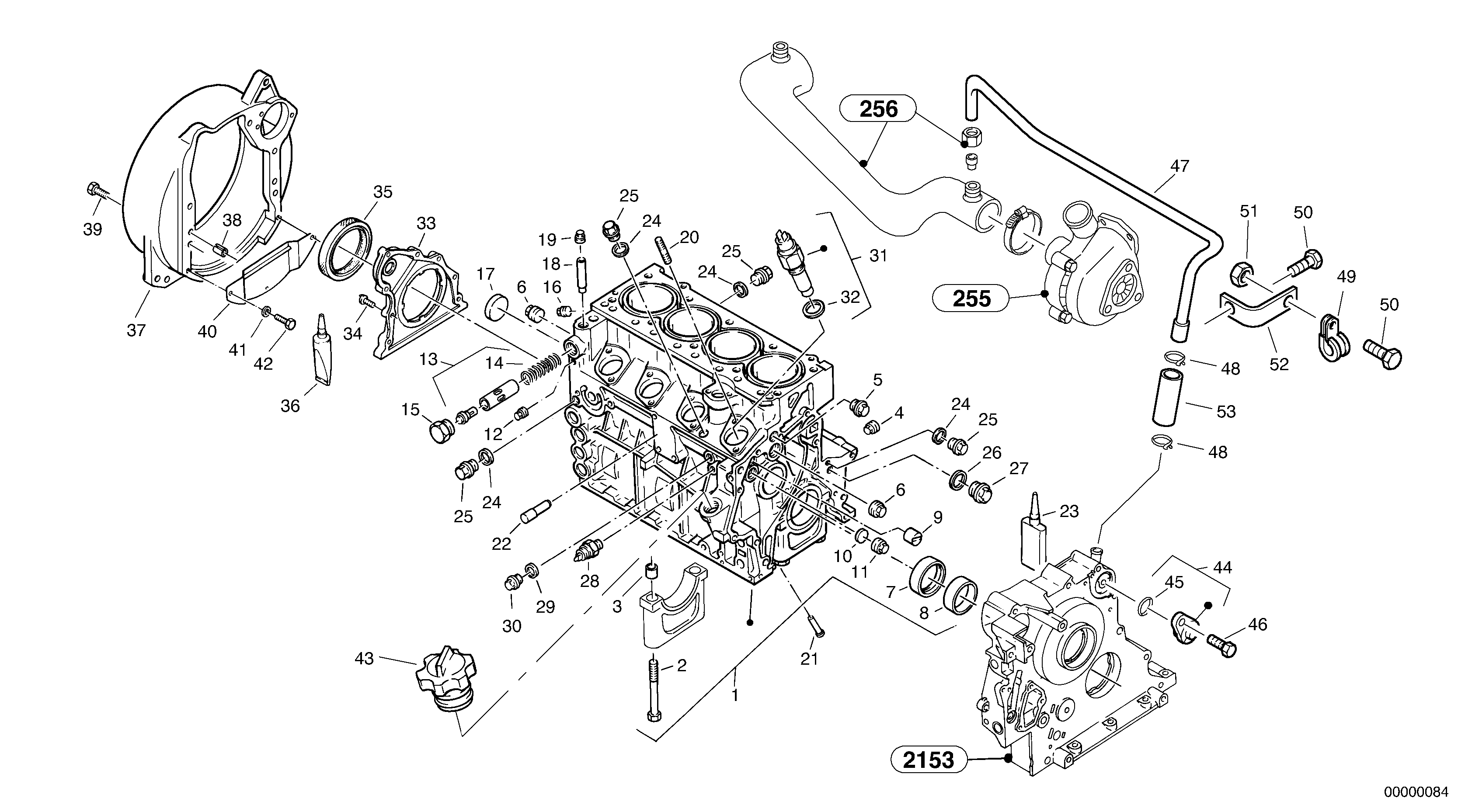

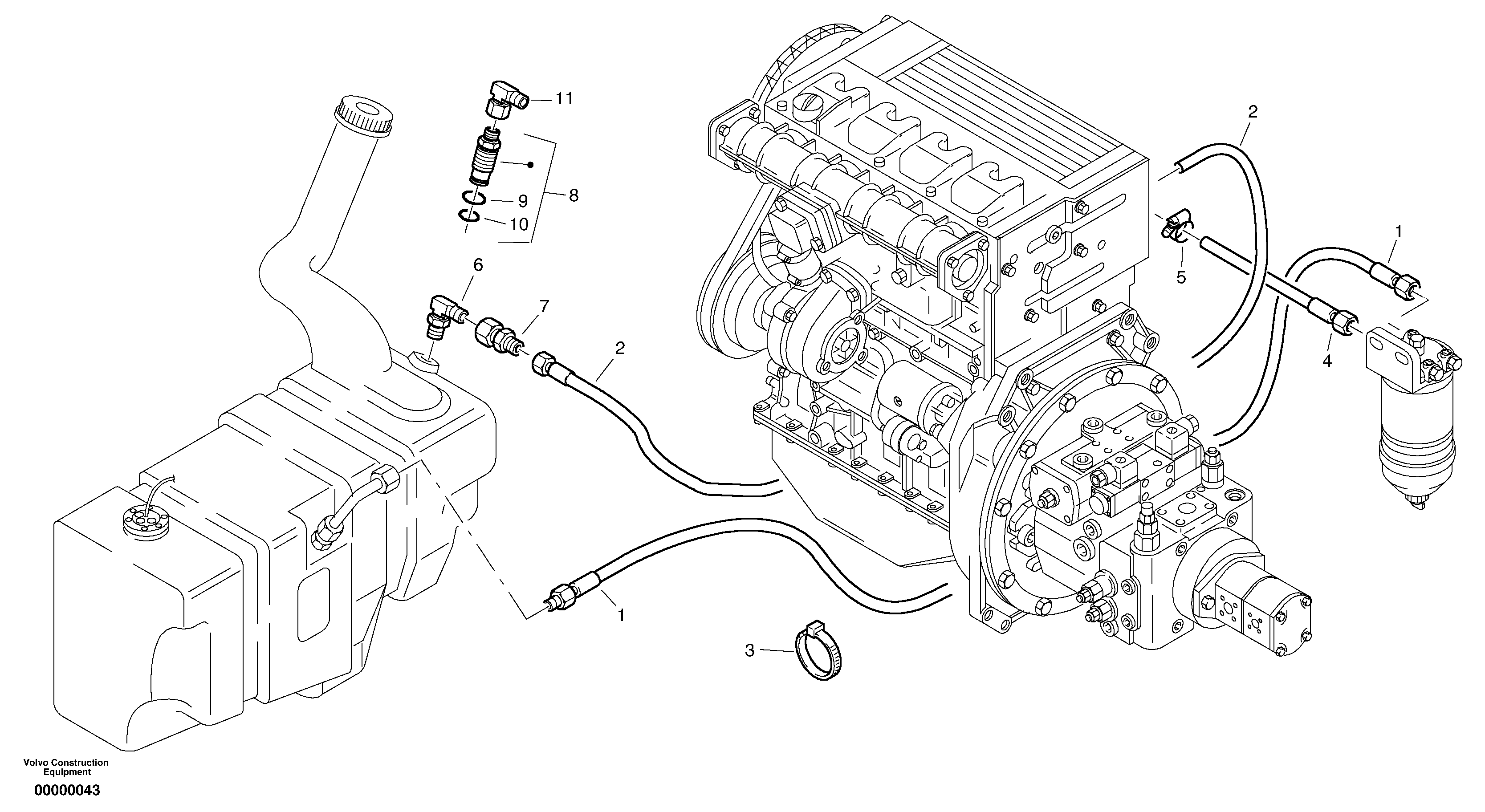

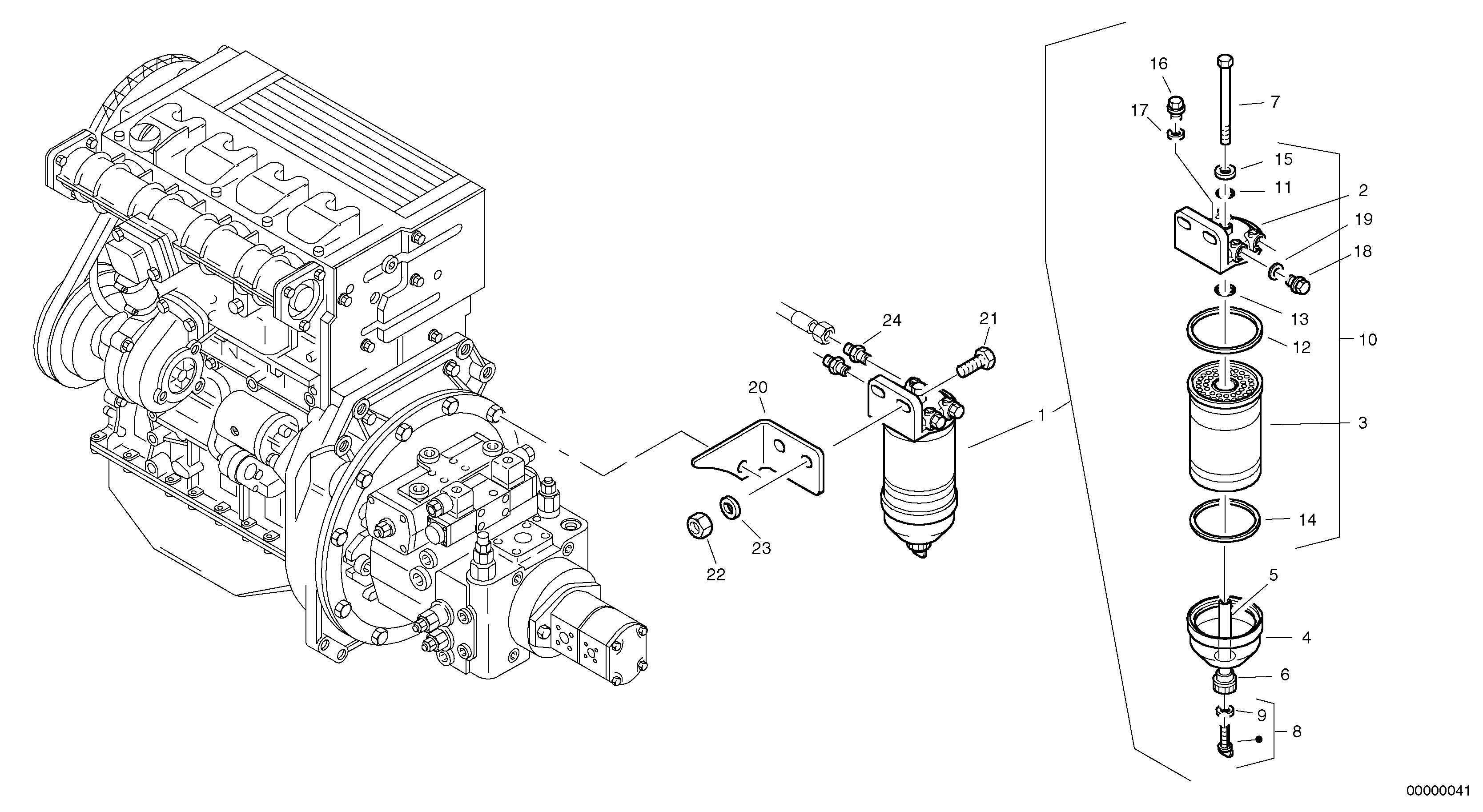

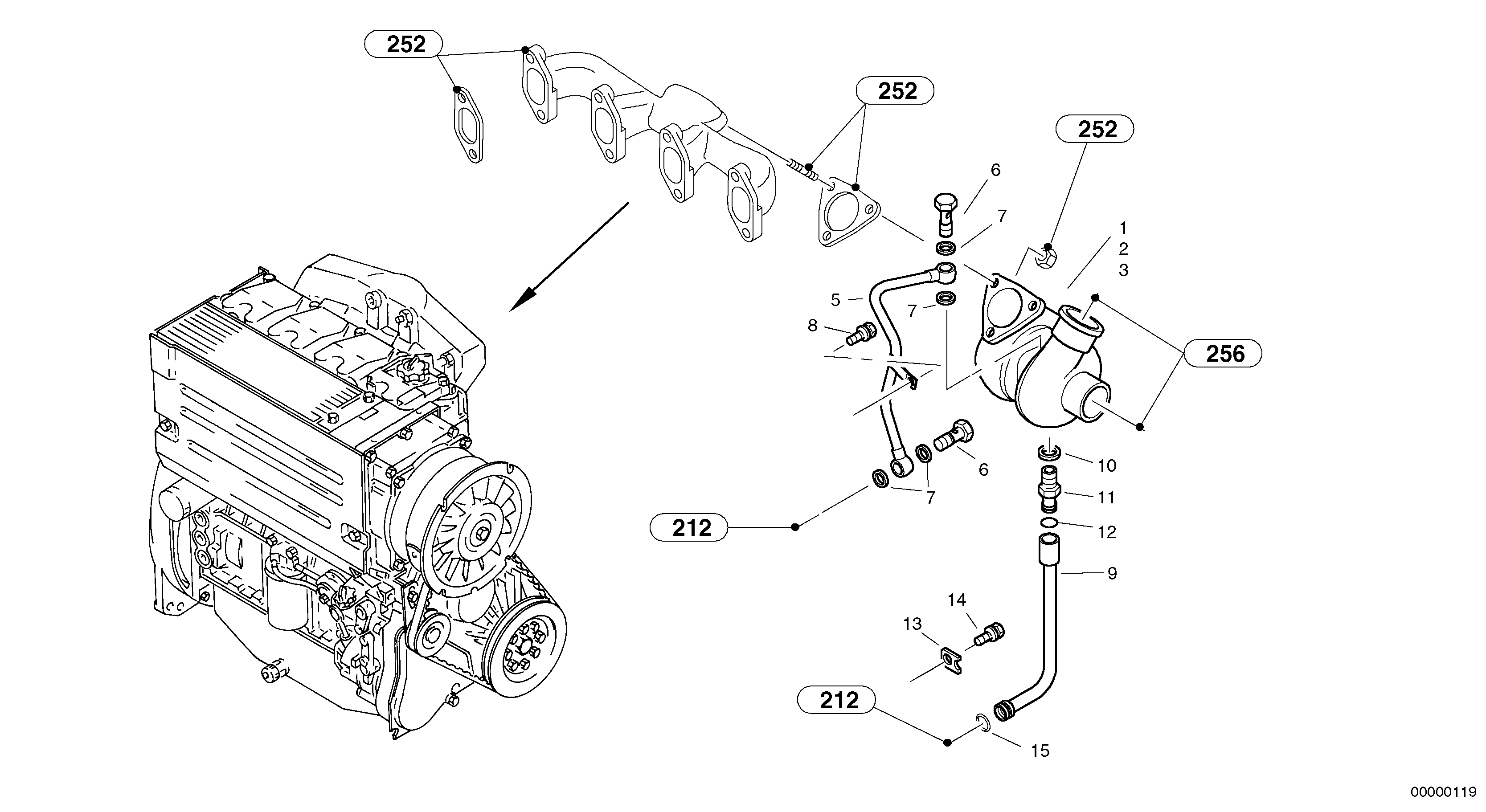

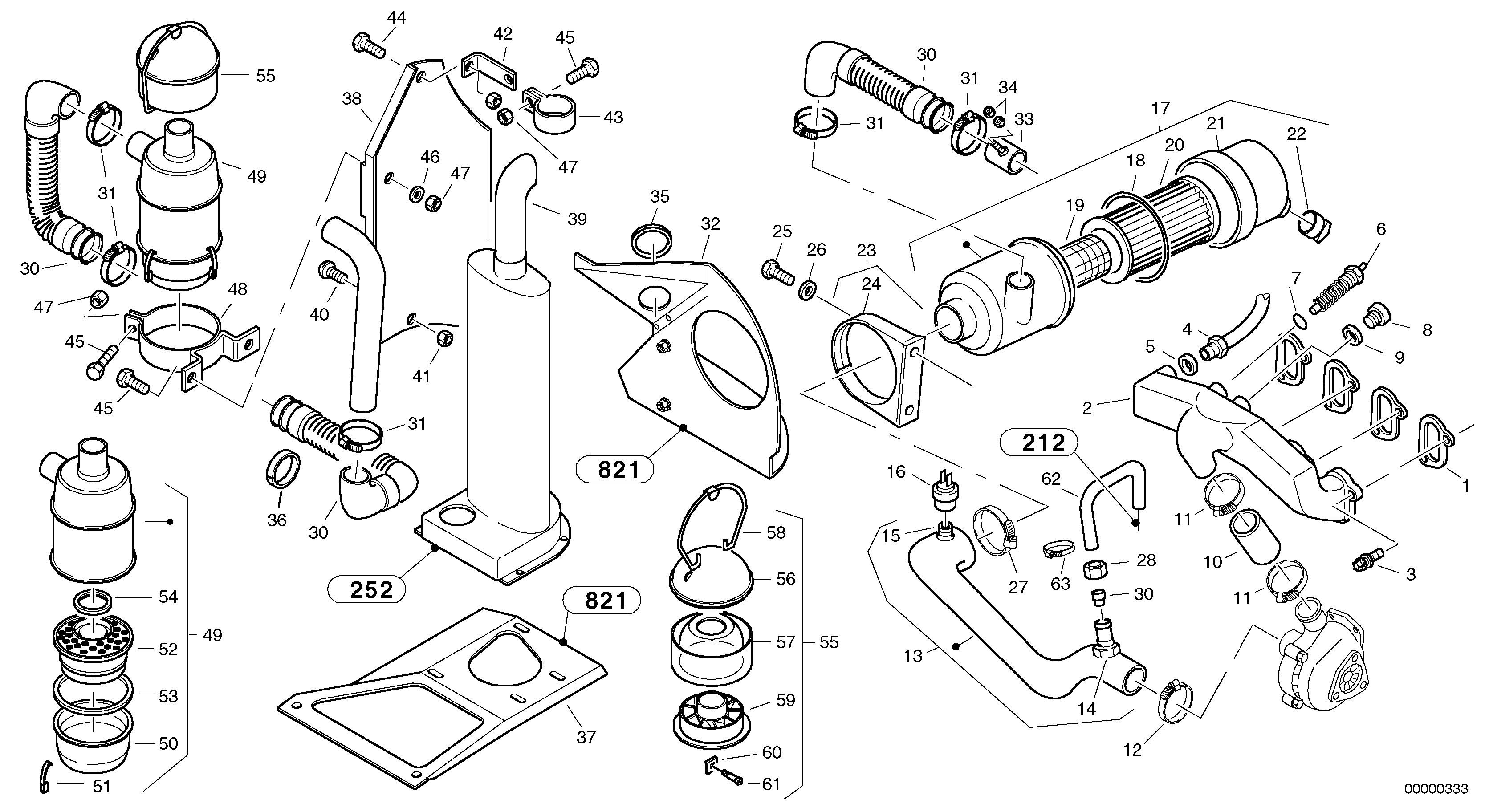

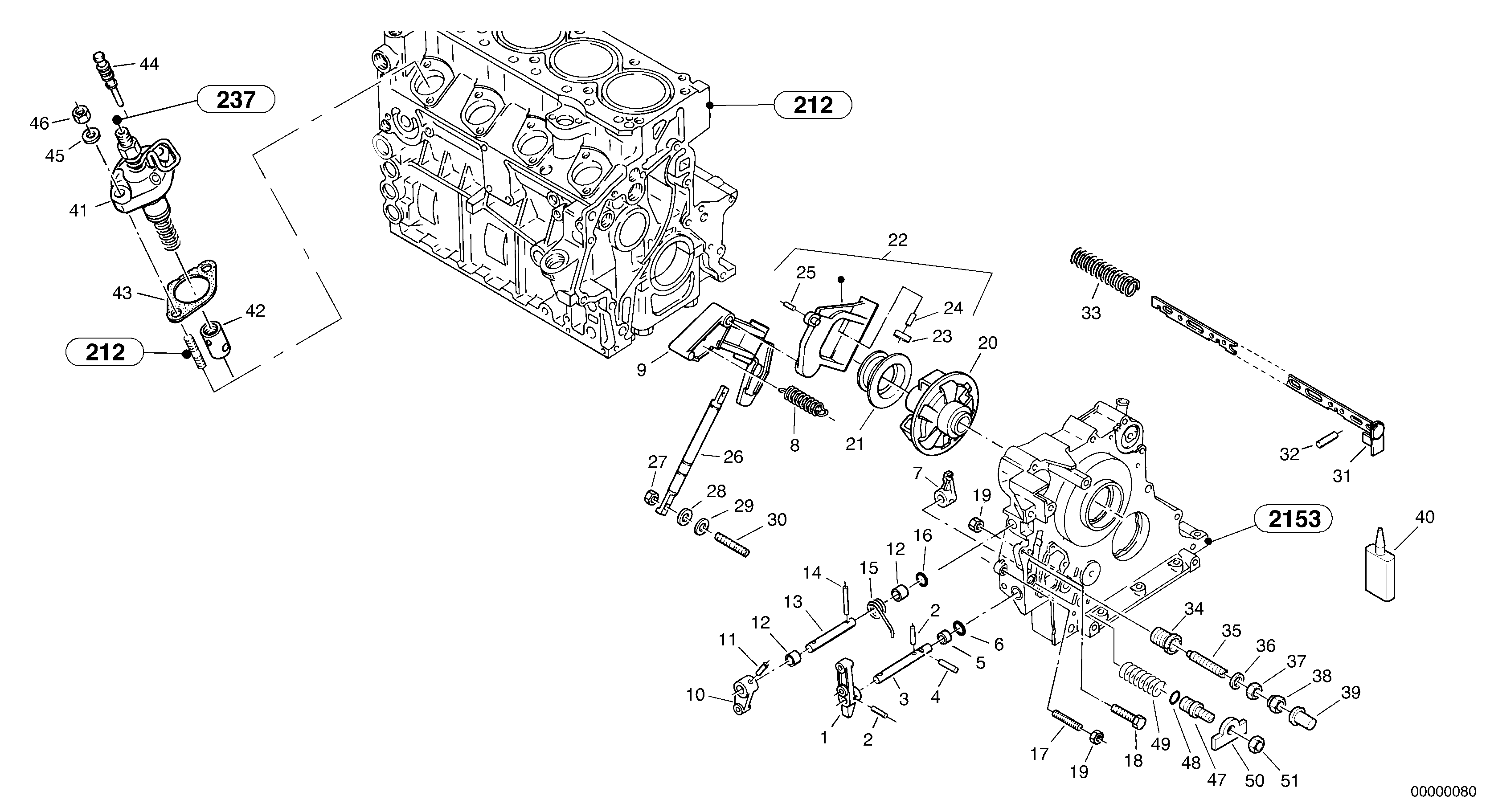

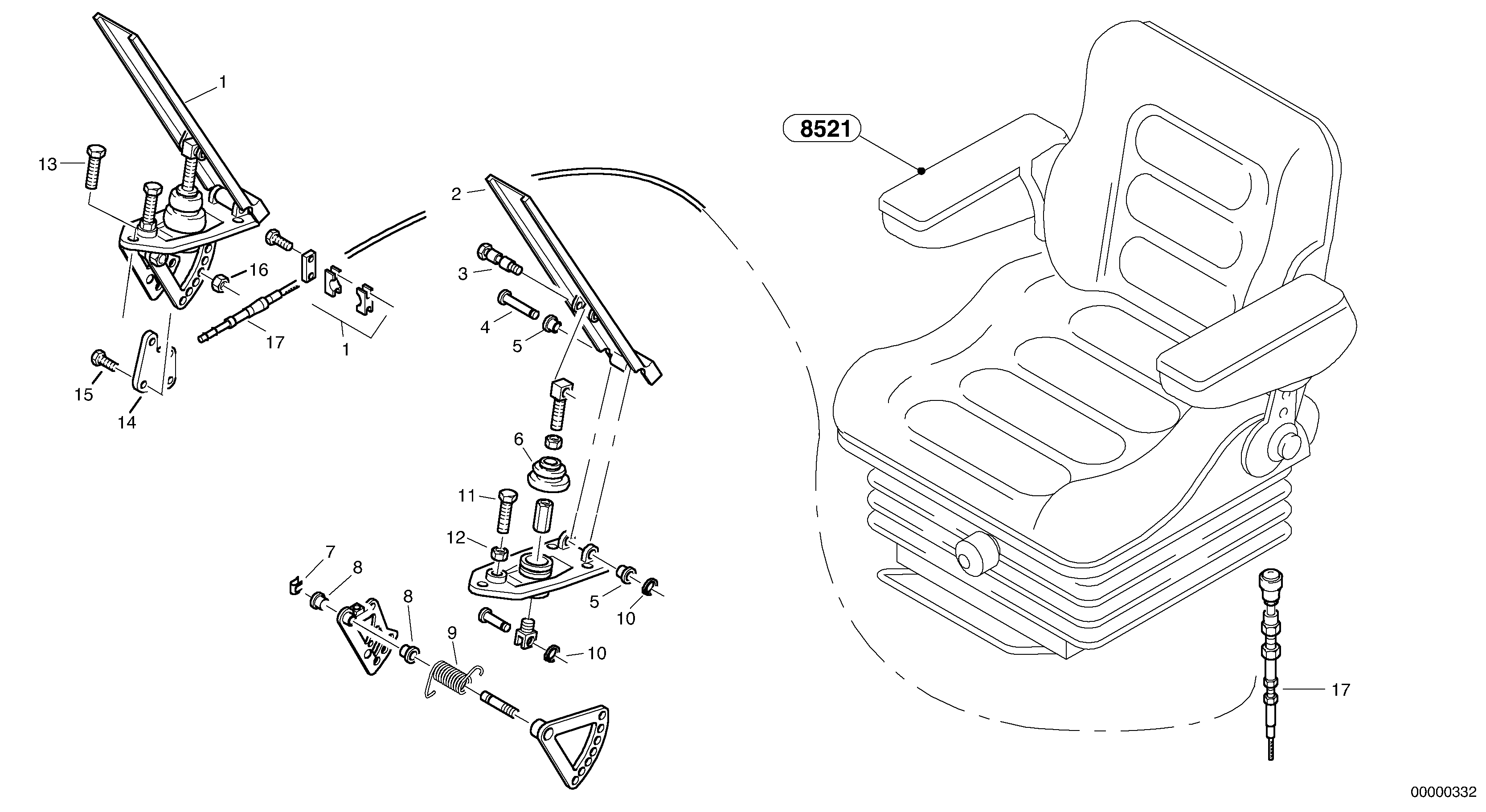

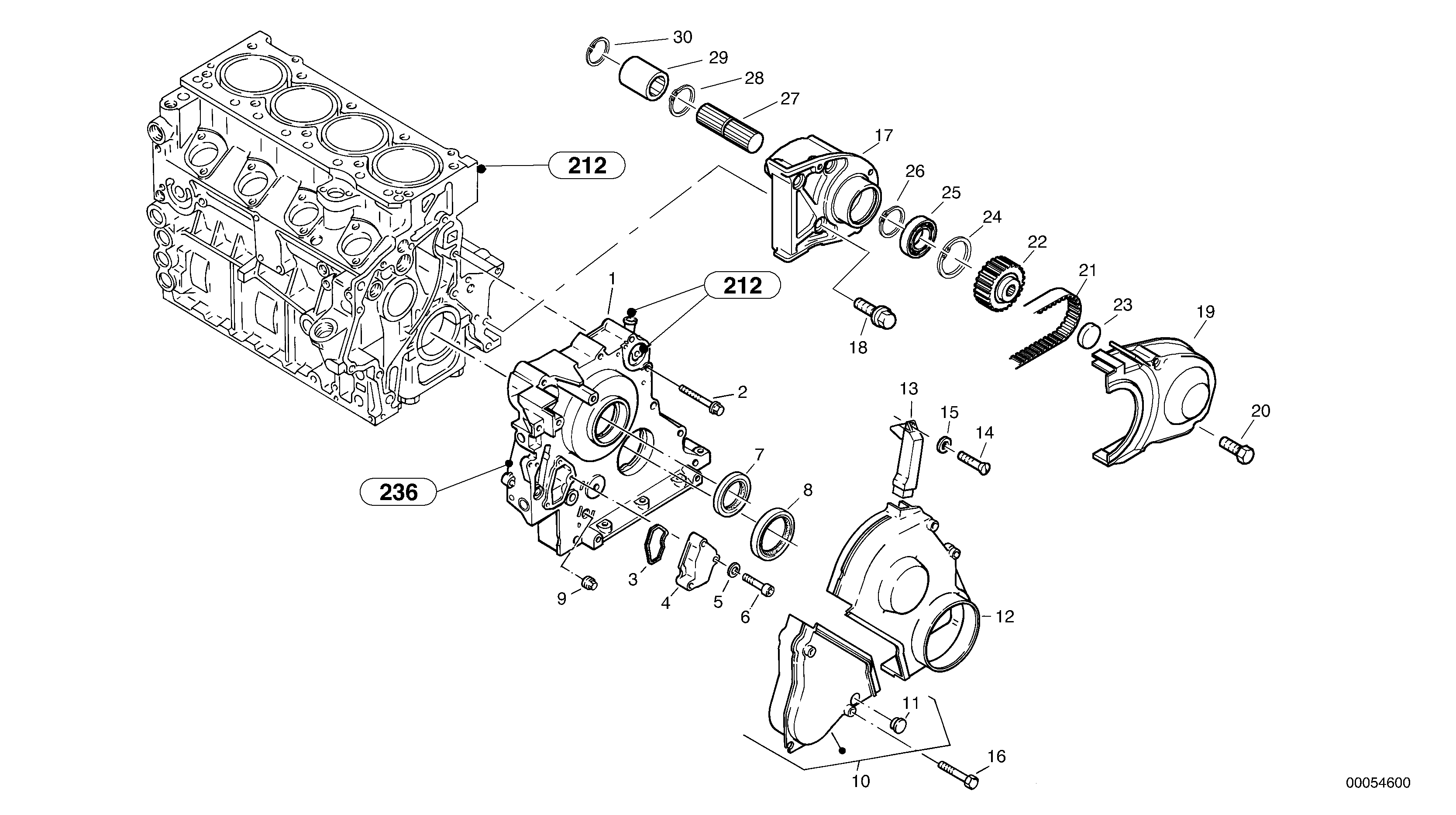

Engine with mounting and equipment

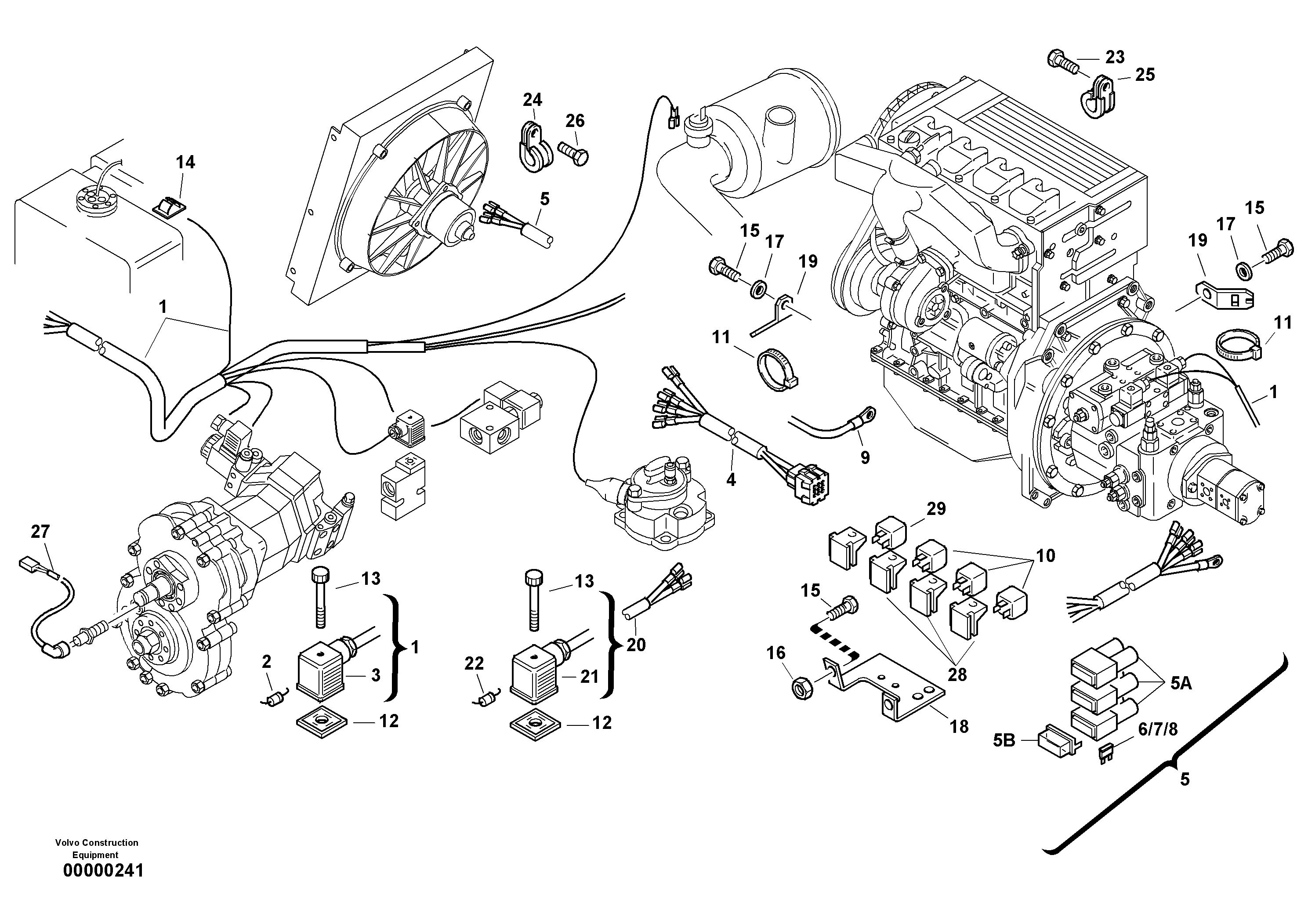

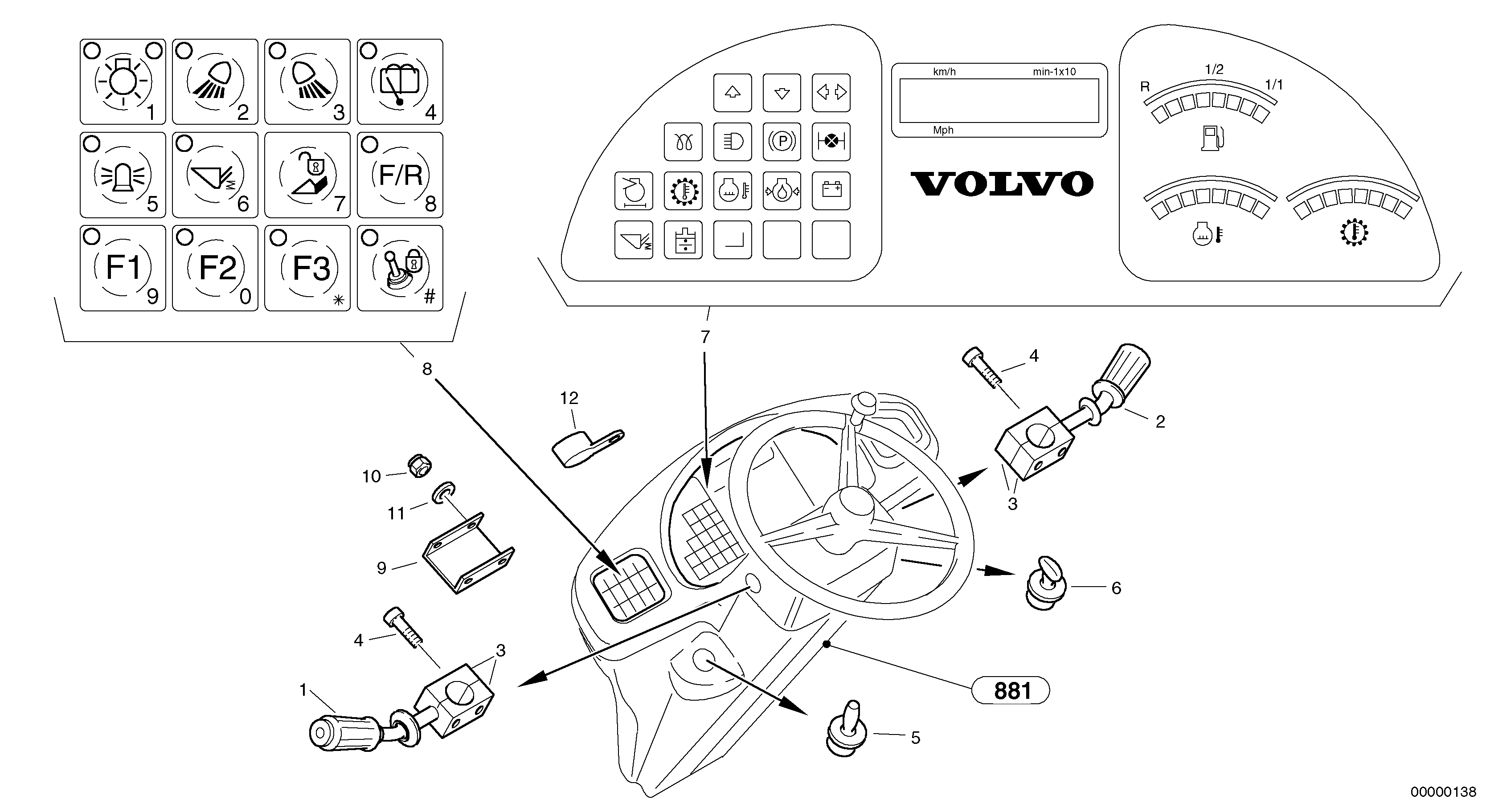

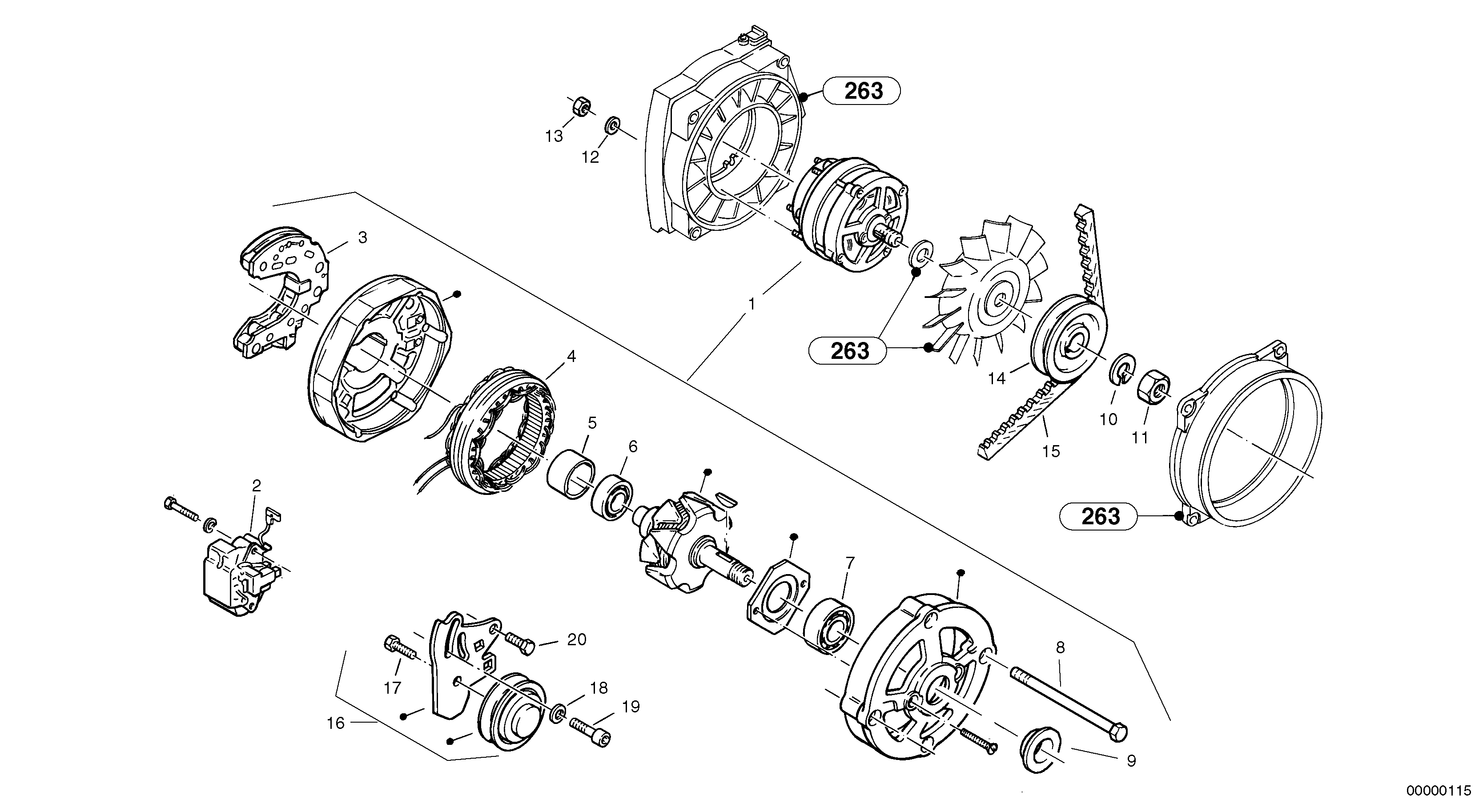

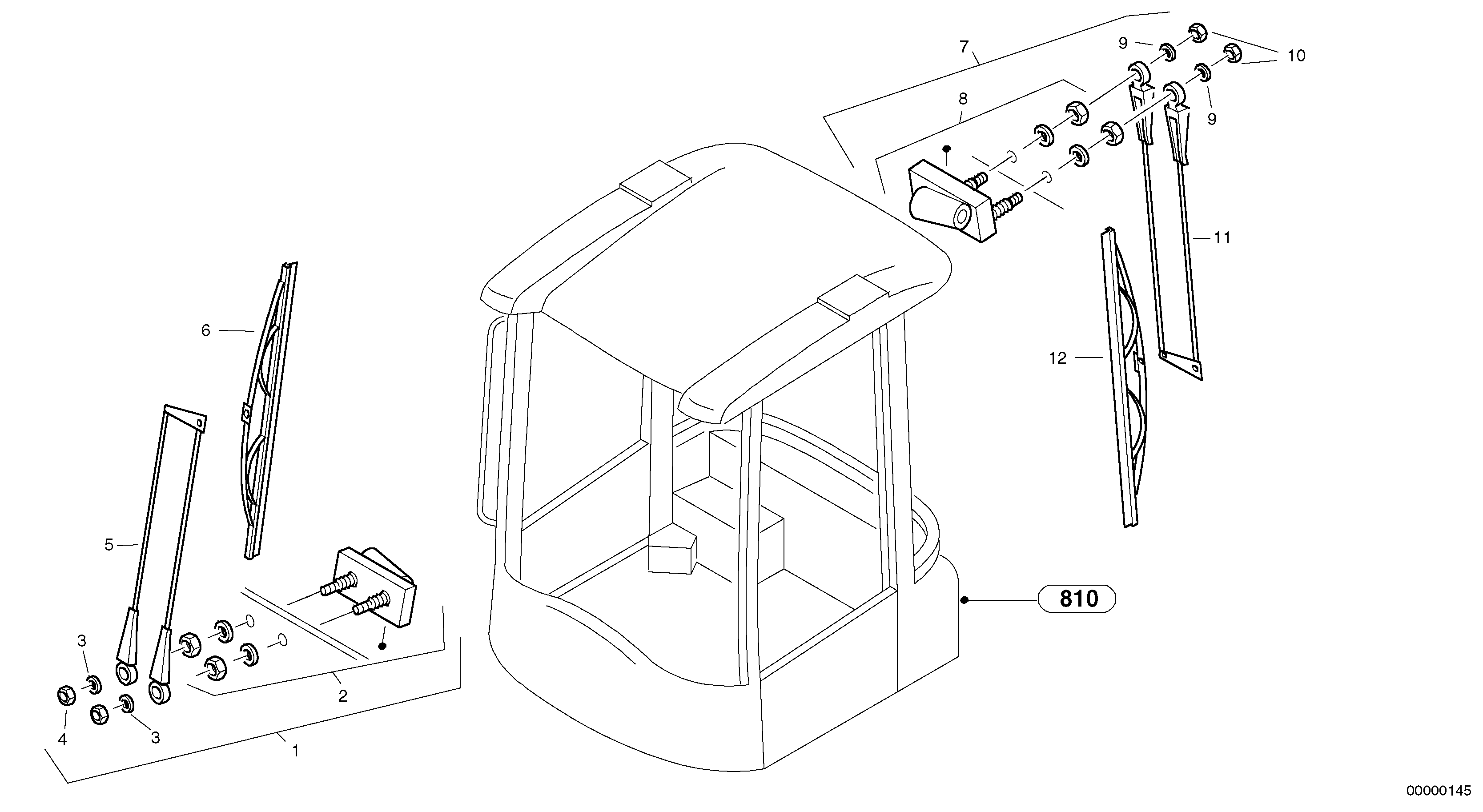

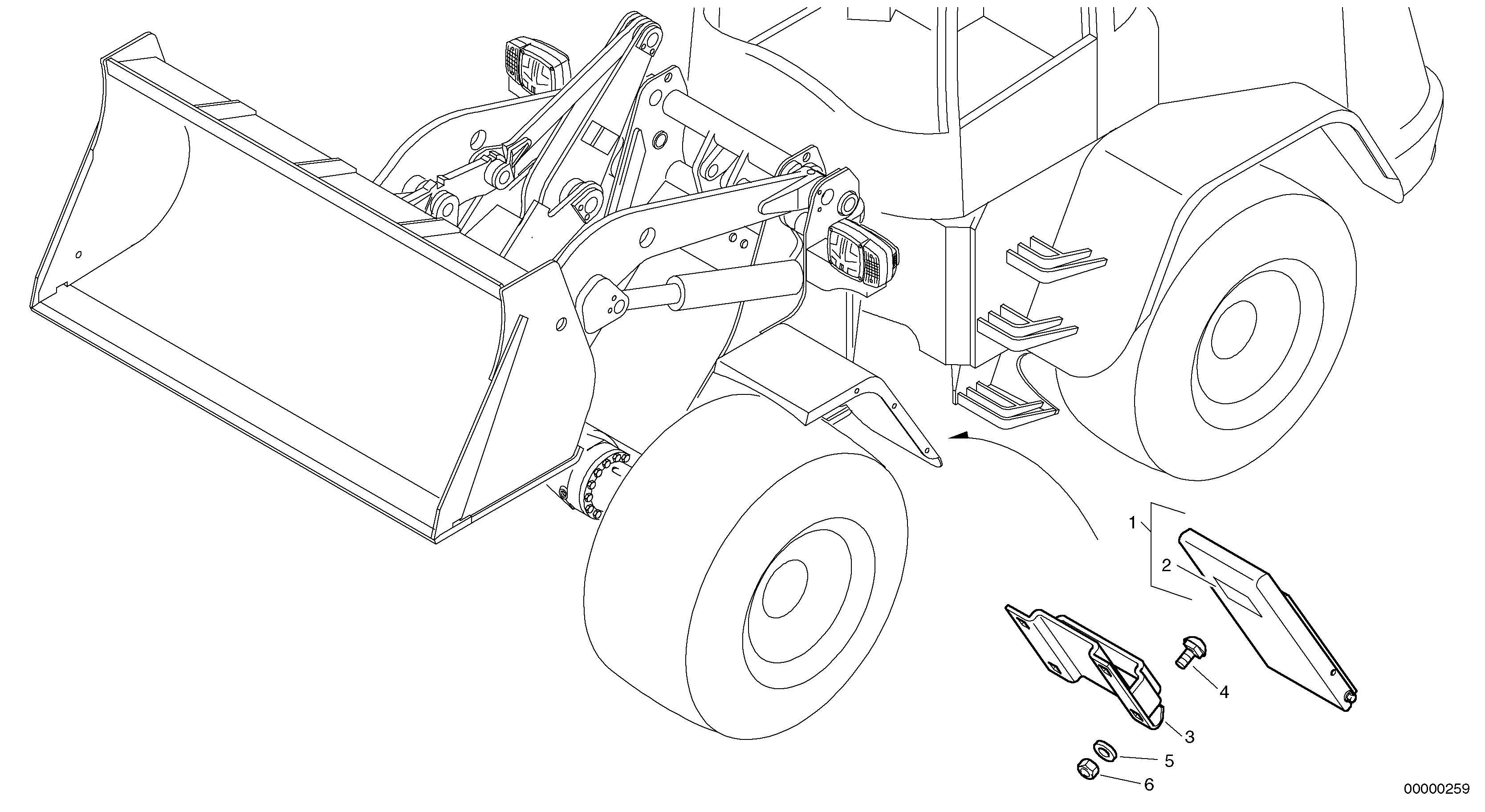

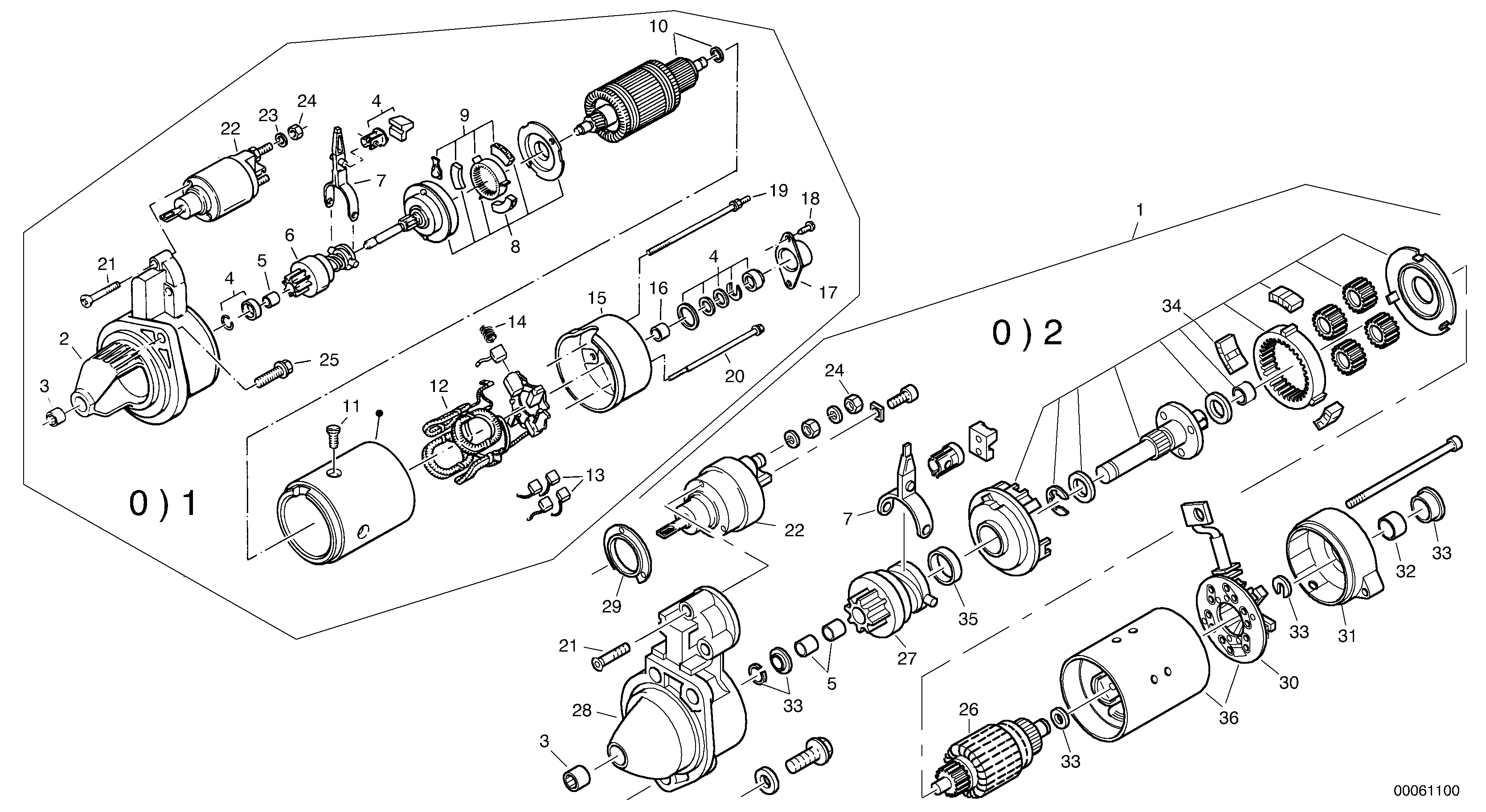

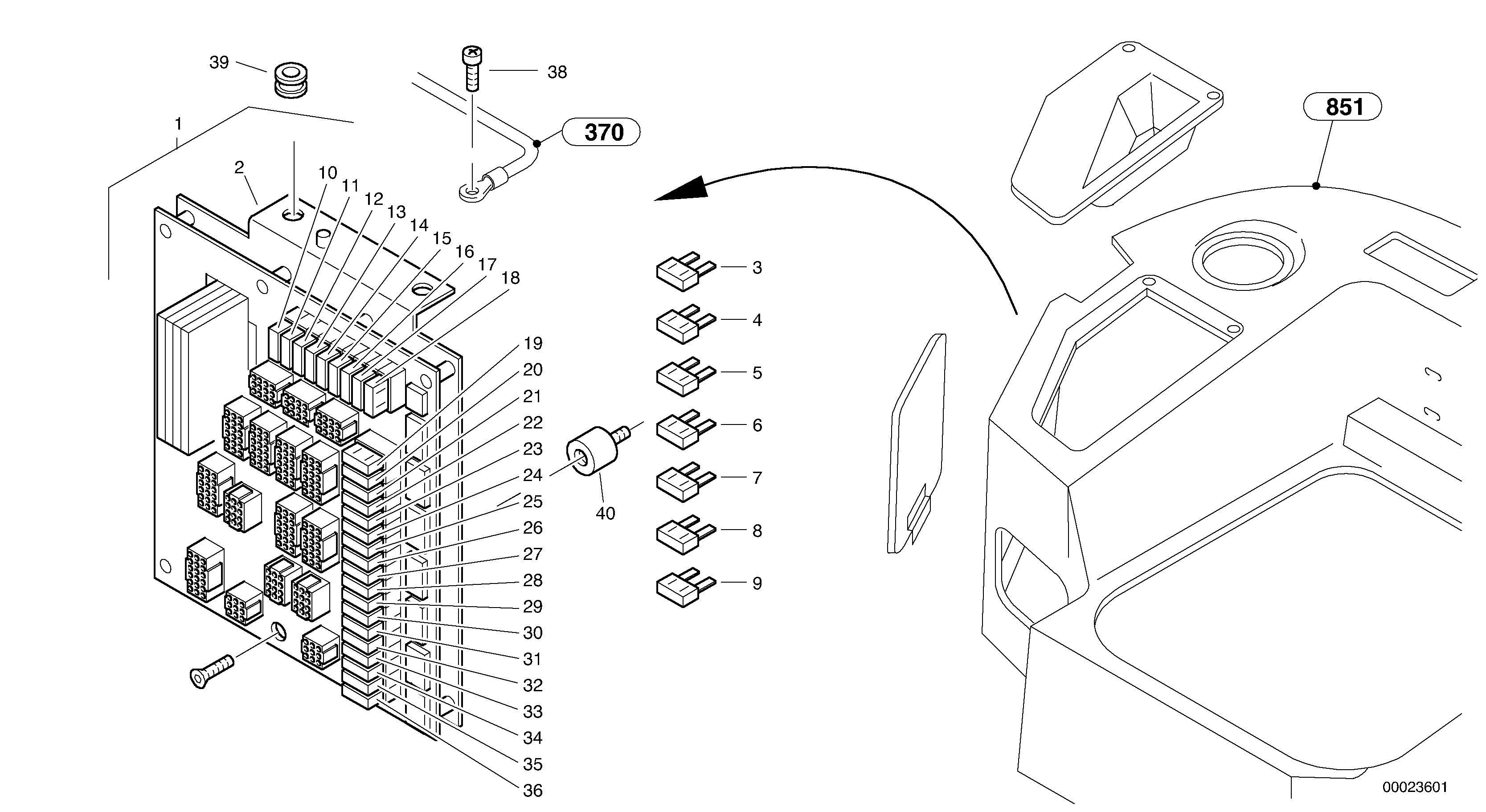

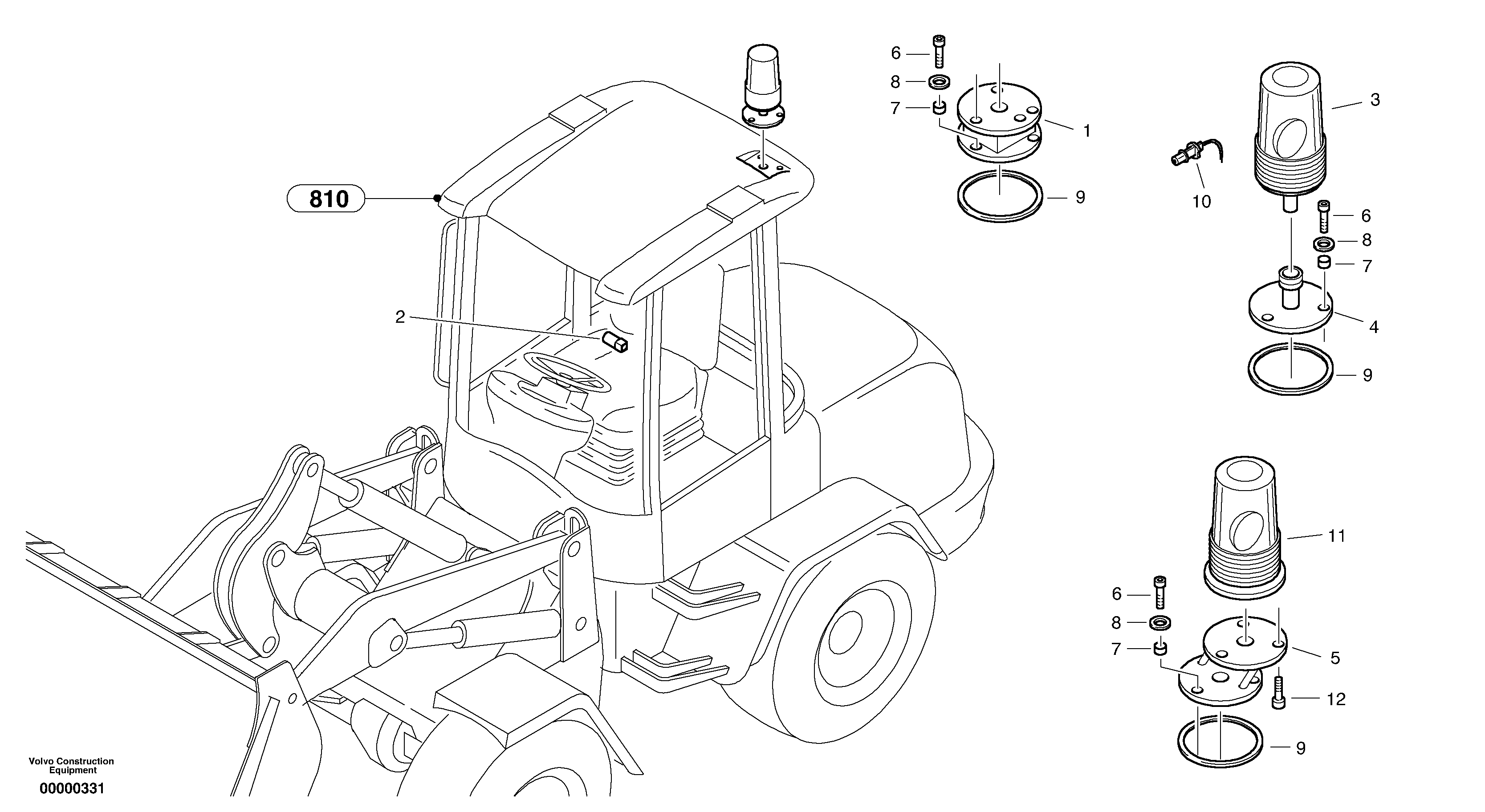

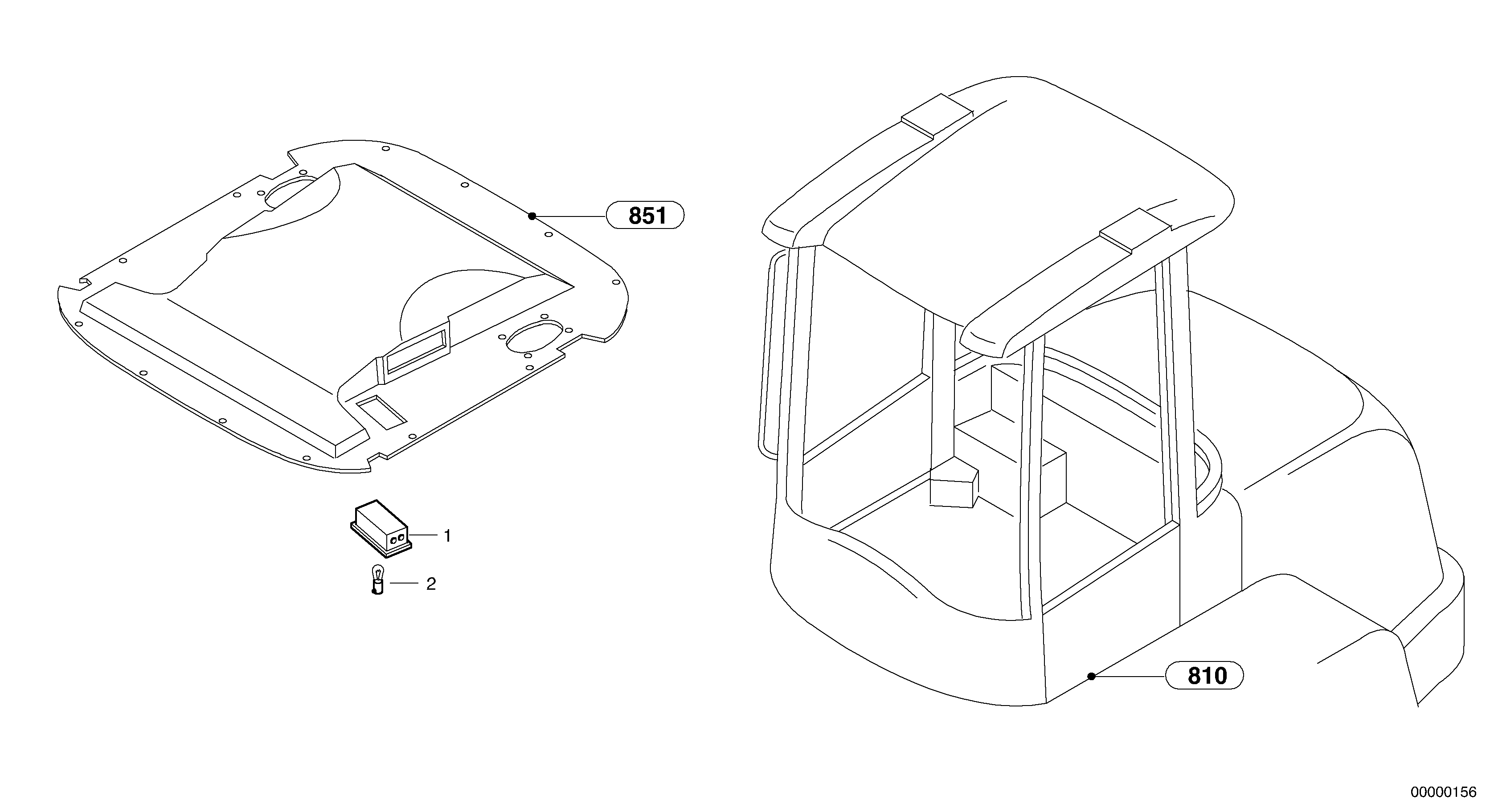

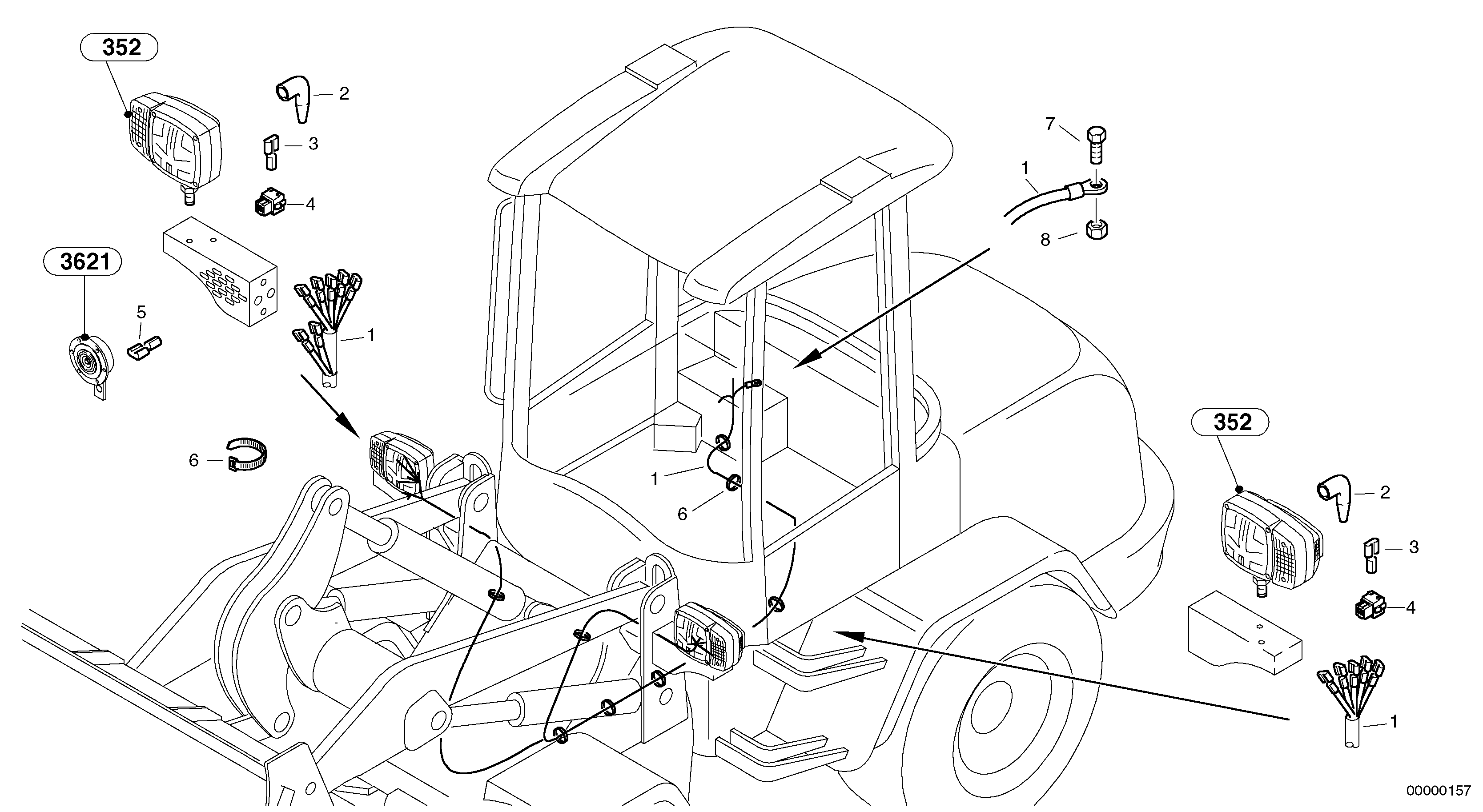

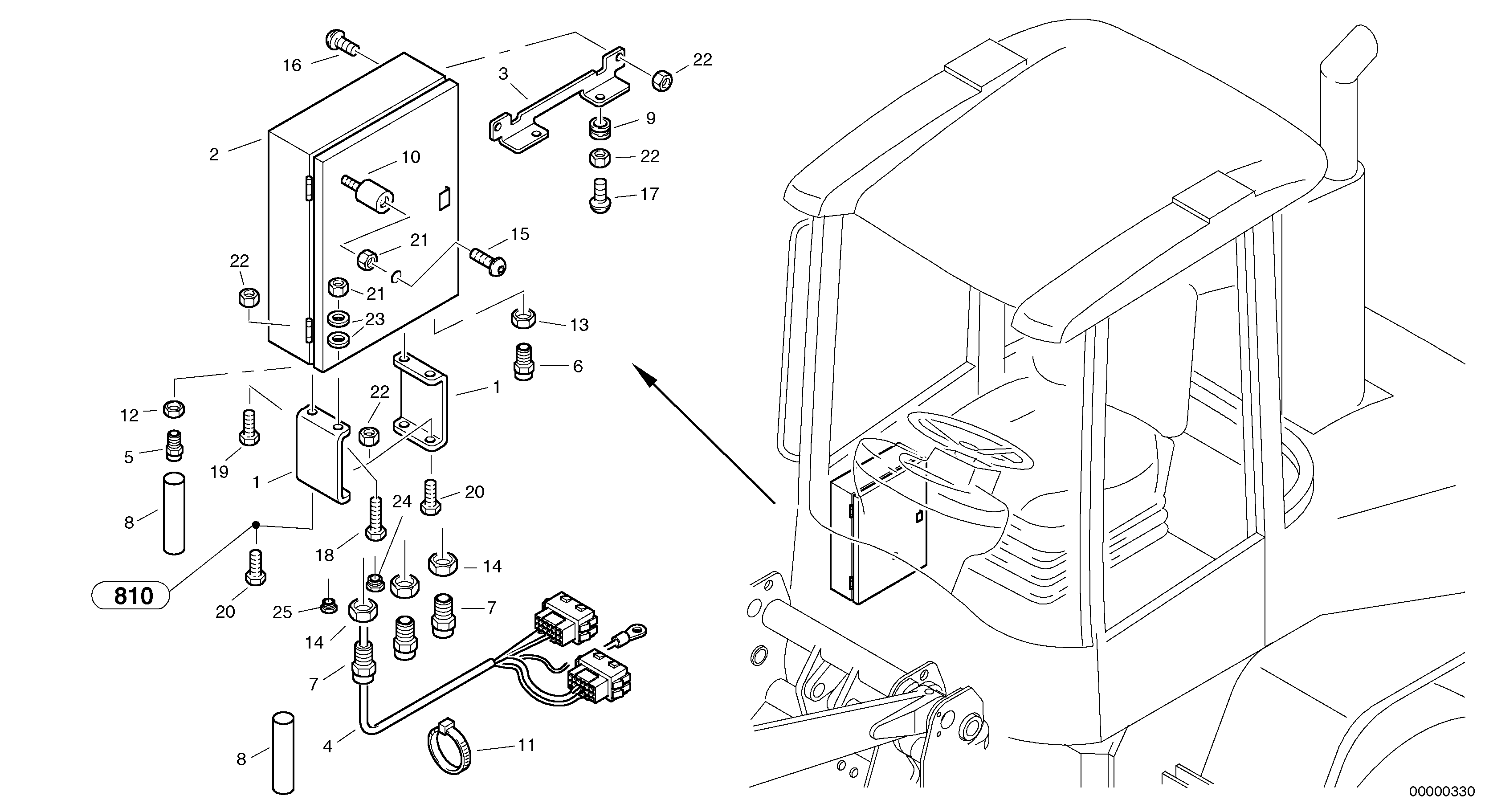

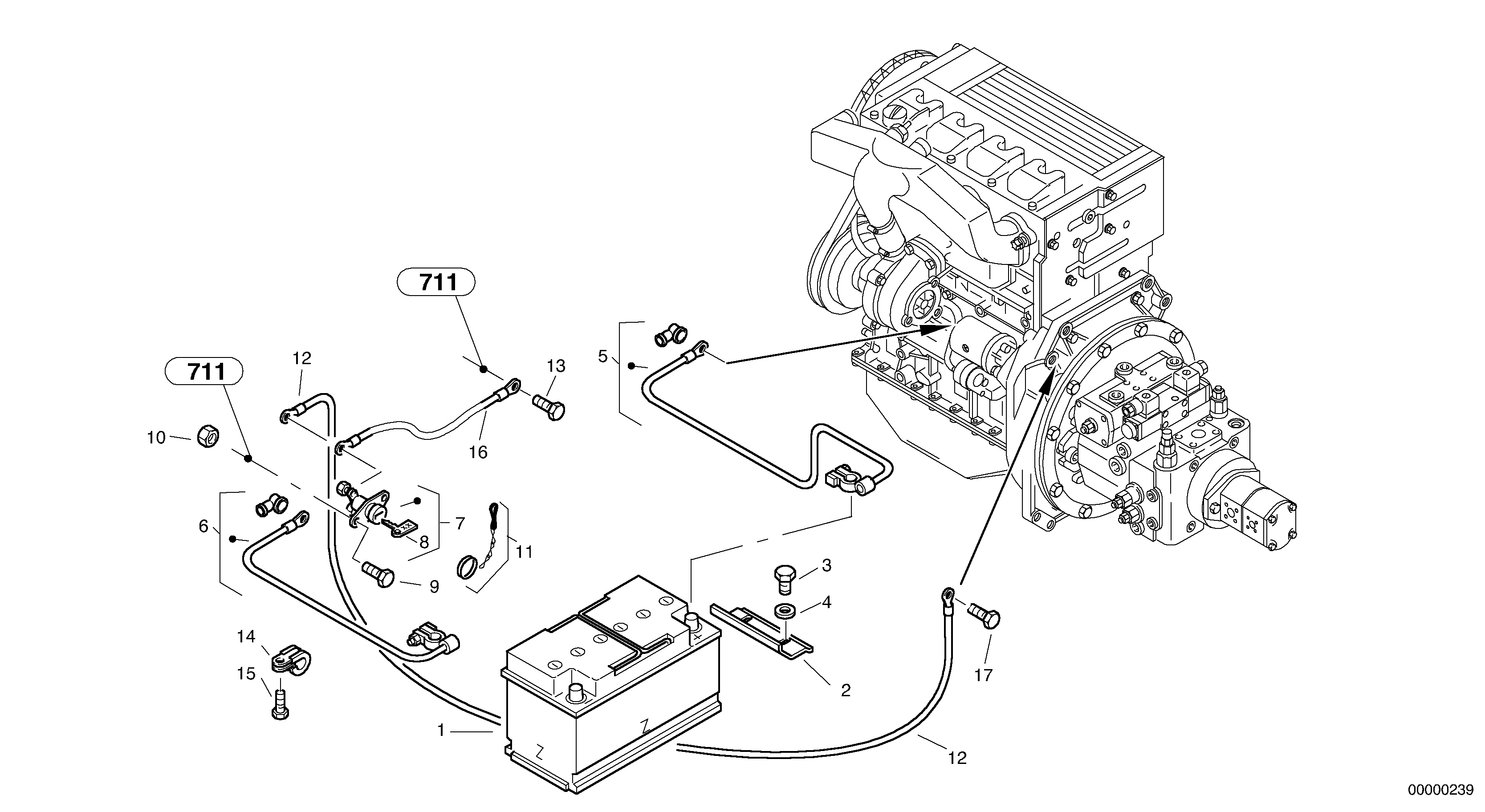

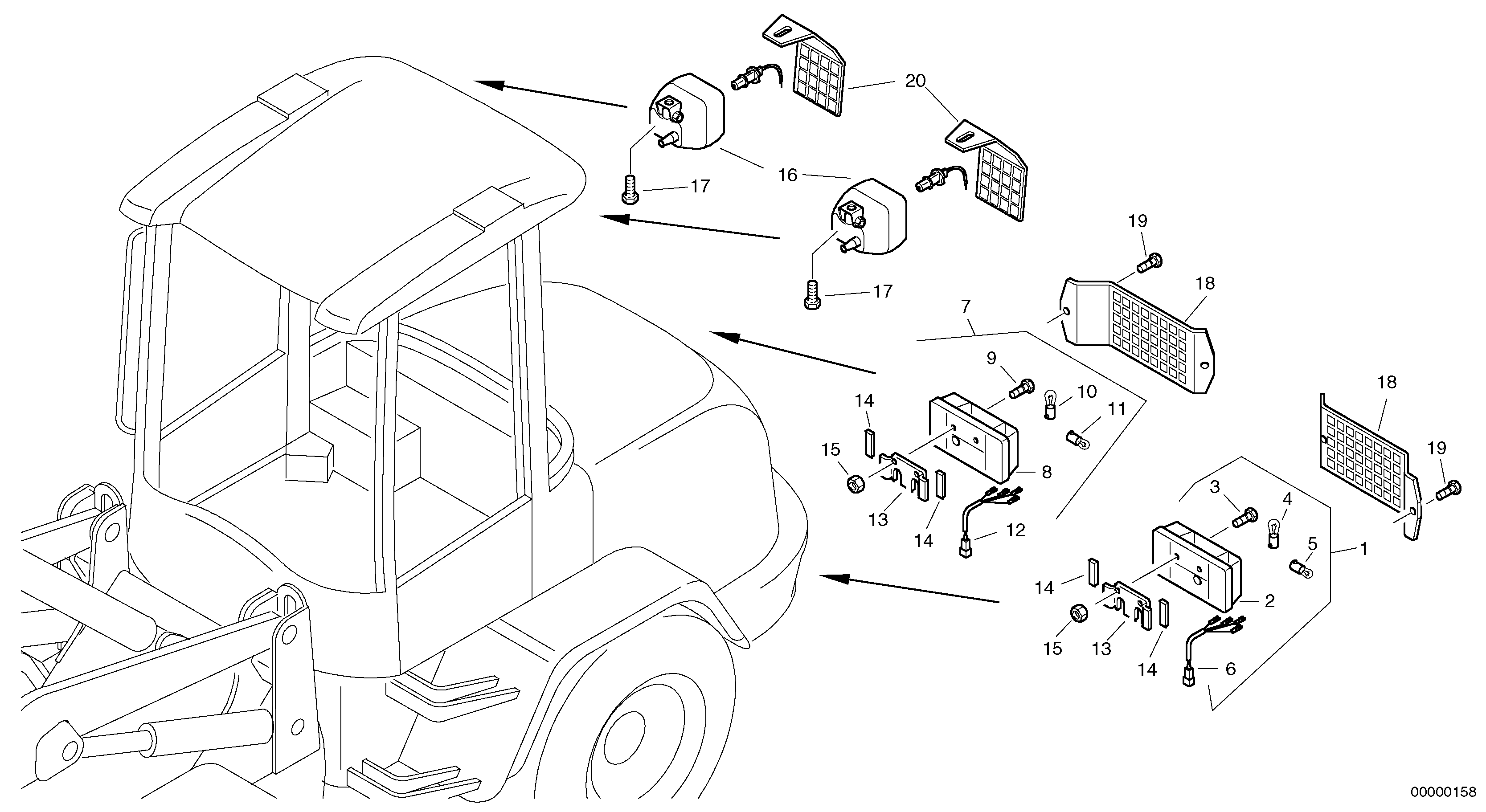

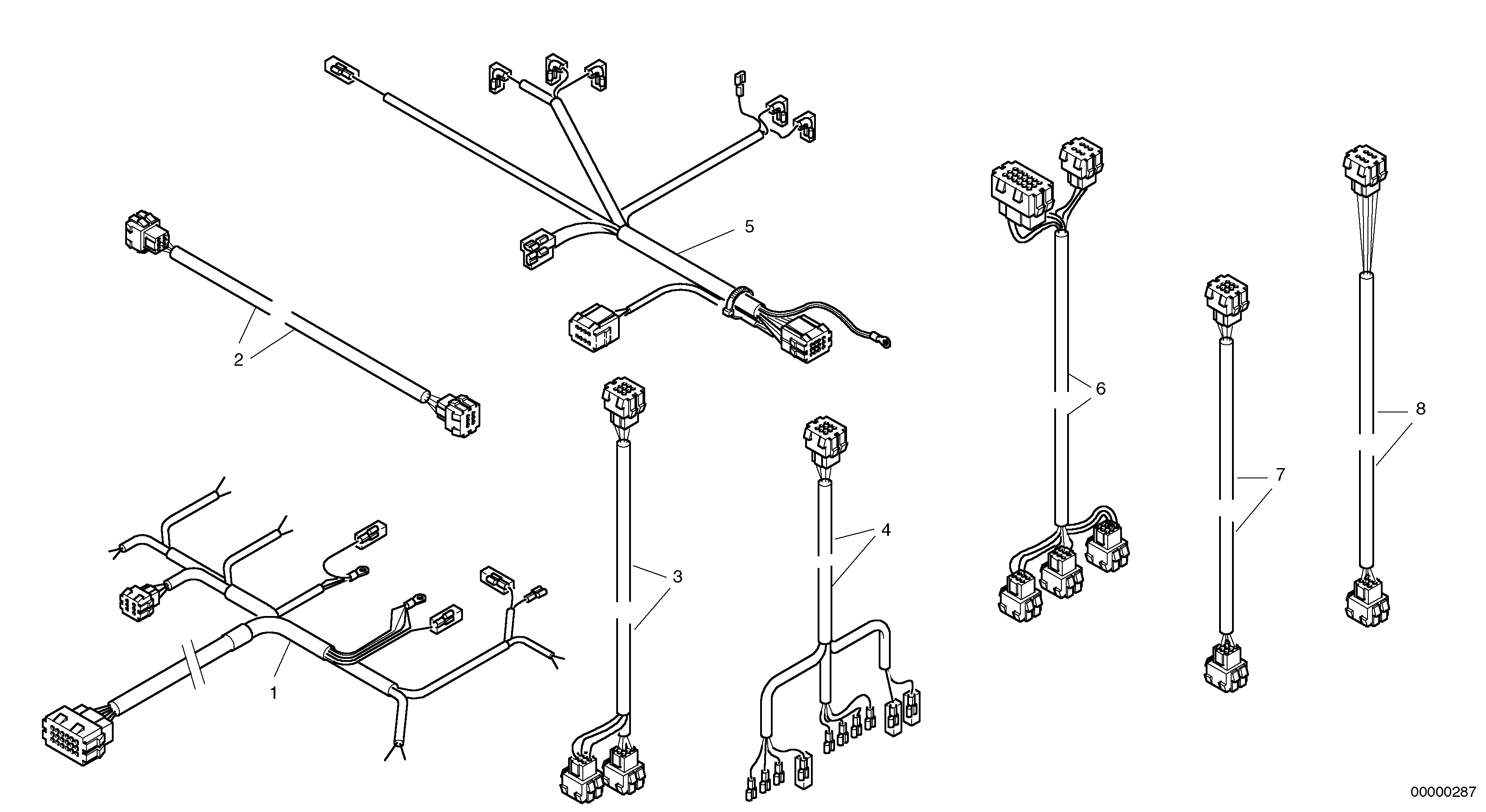

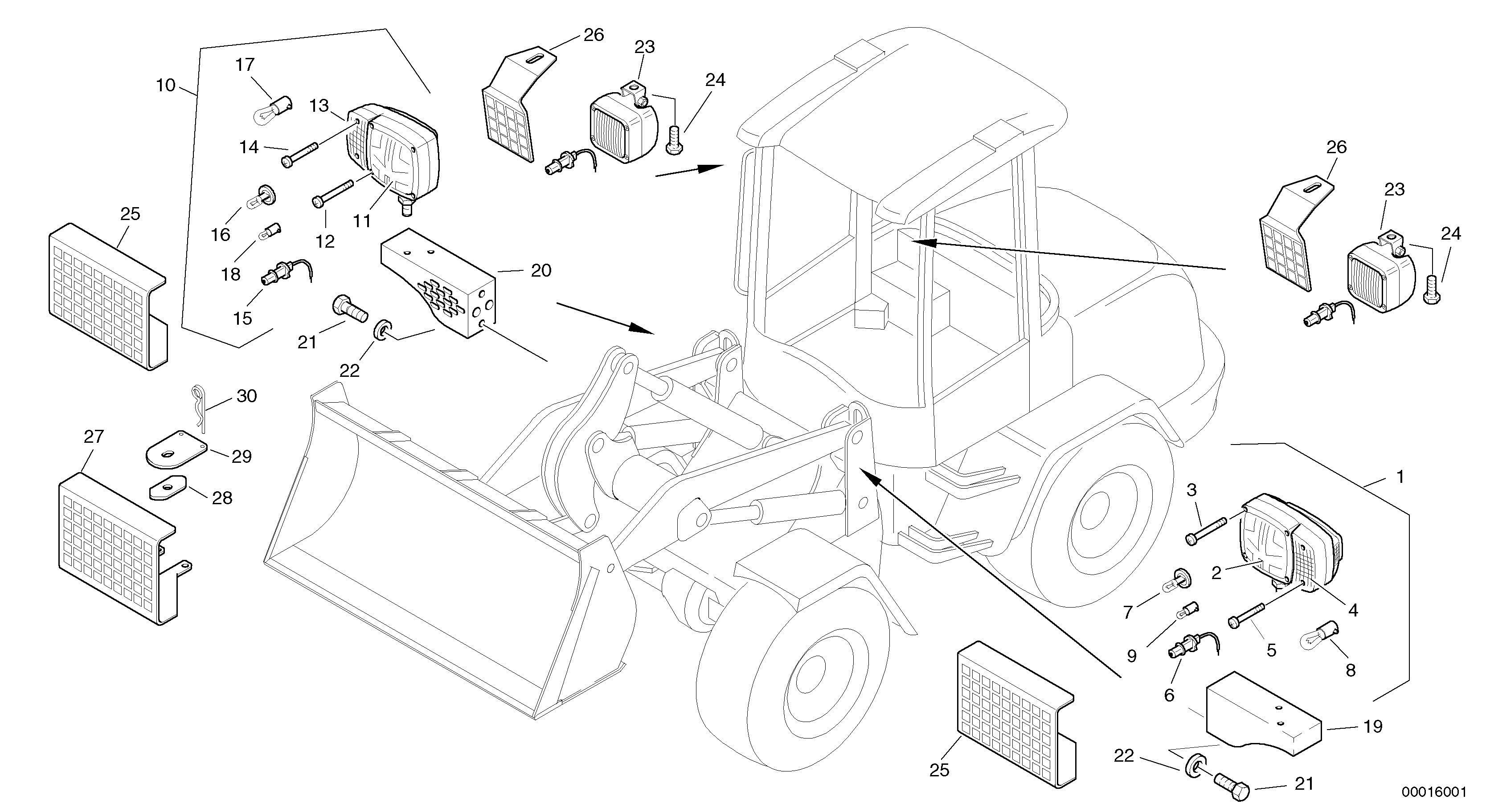

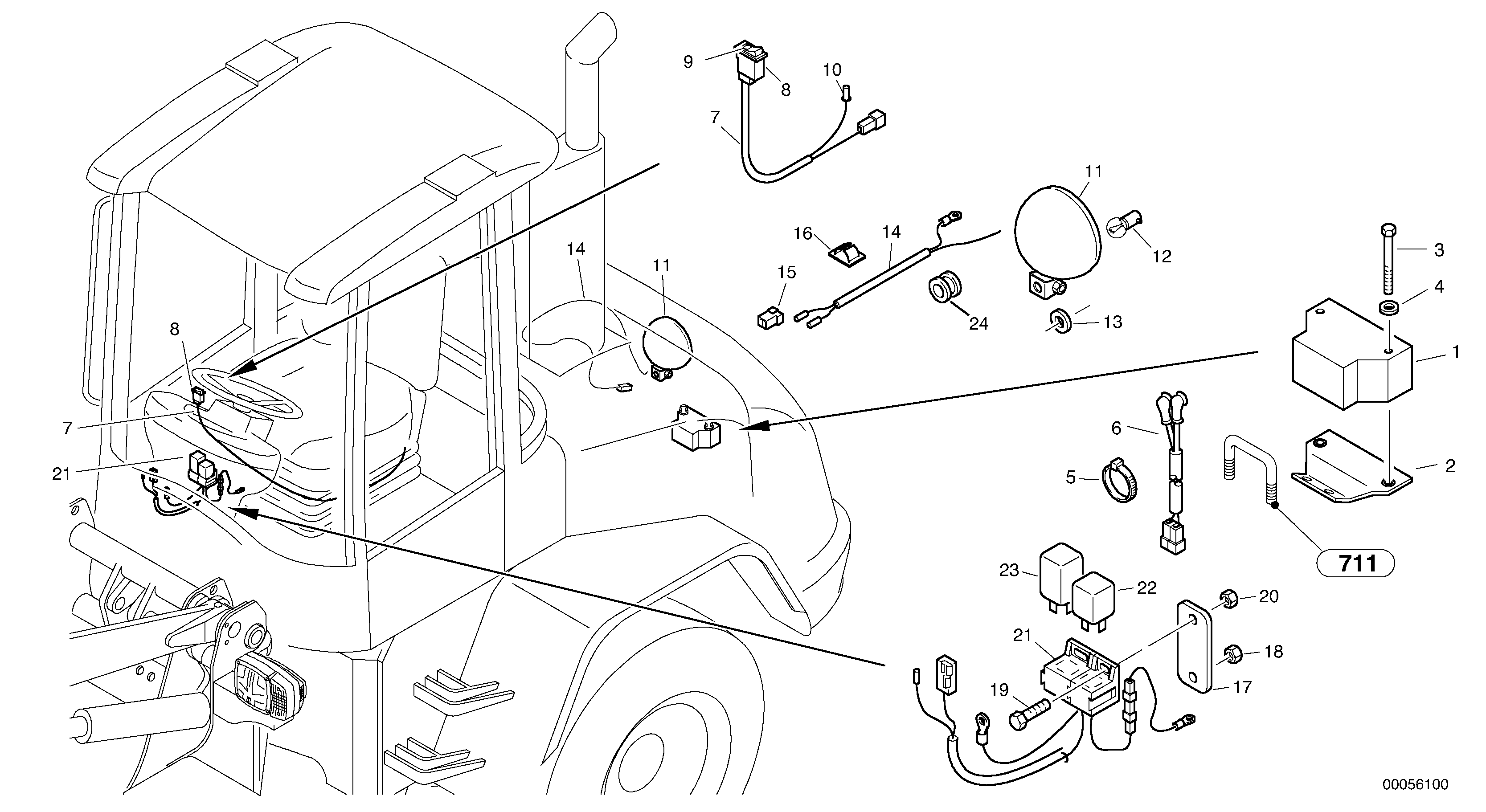

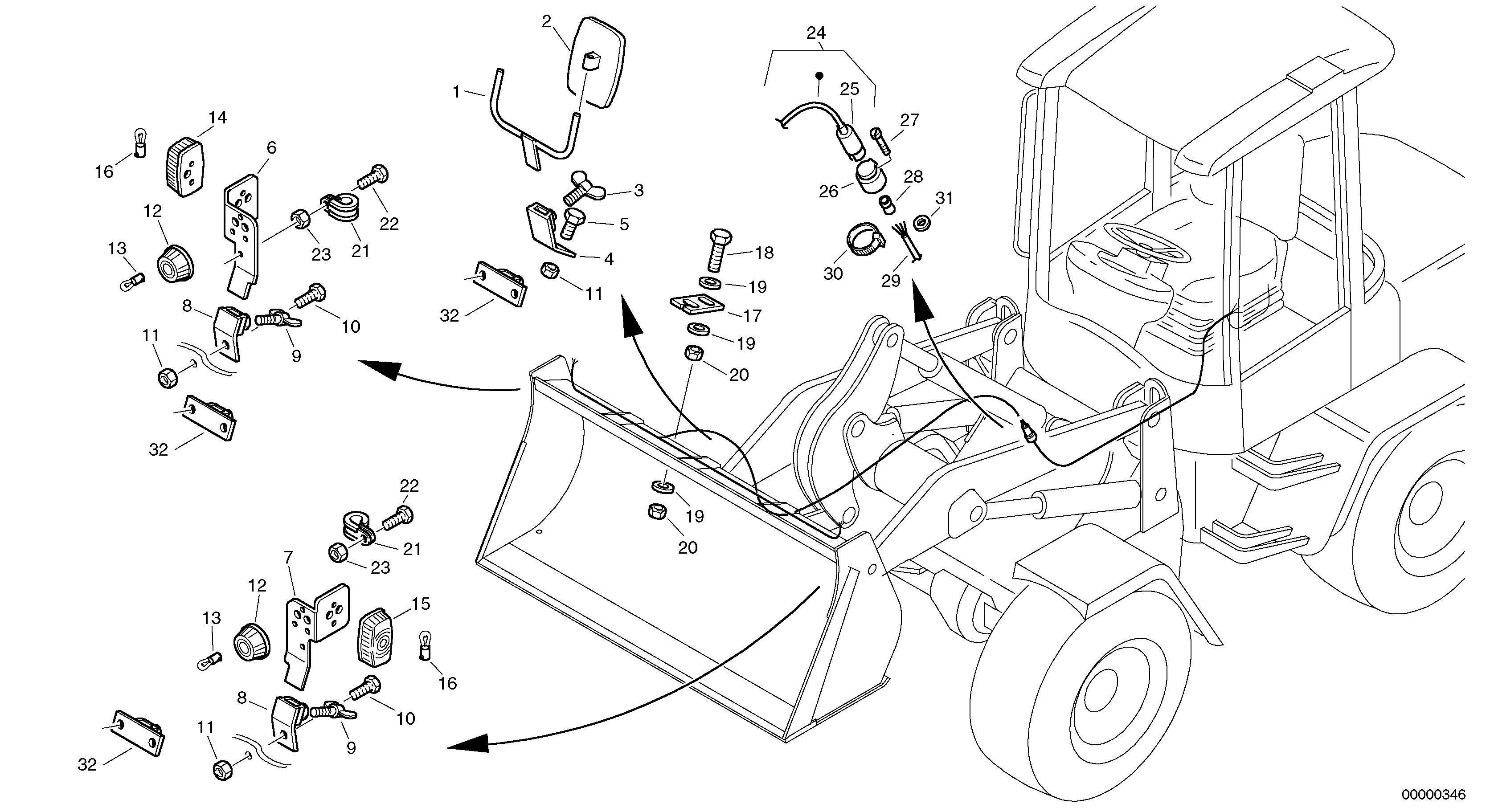

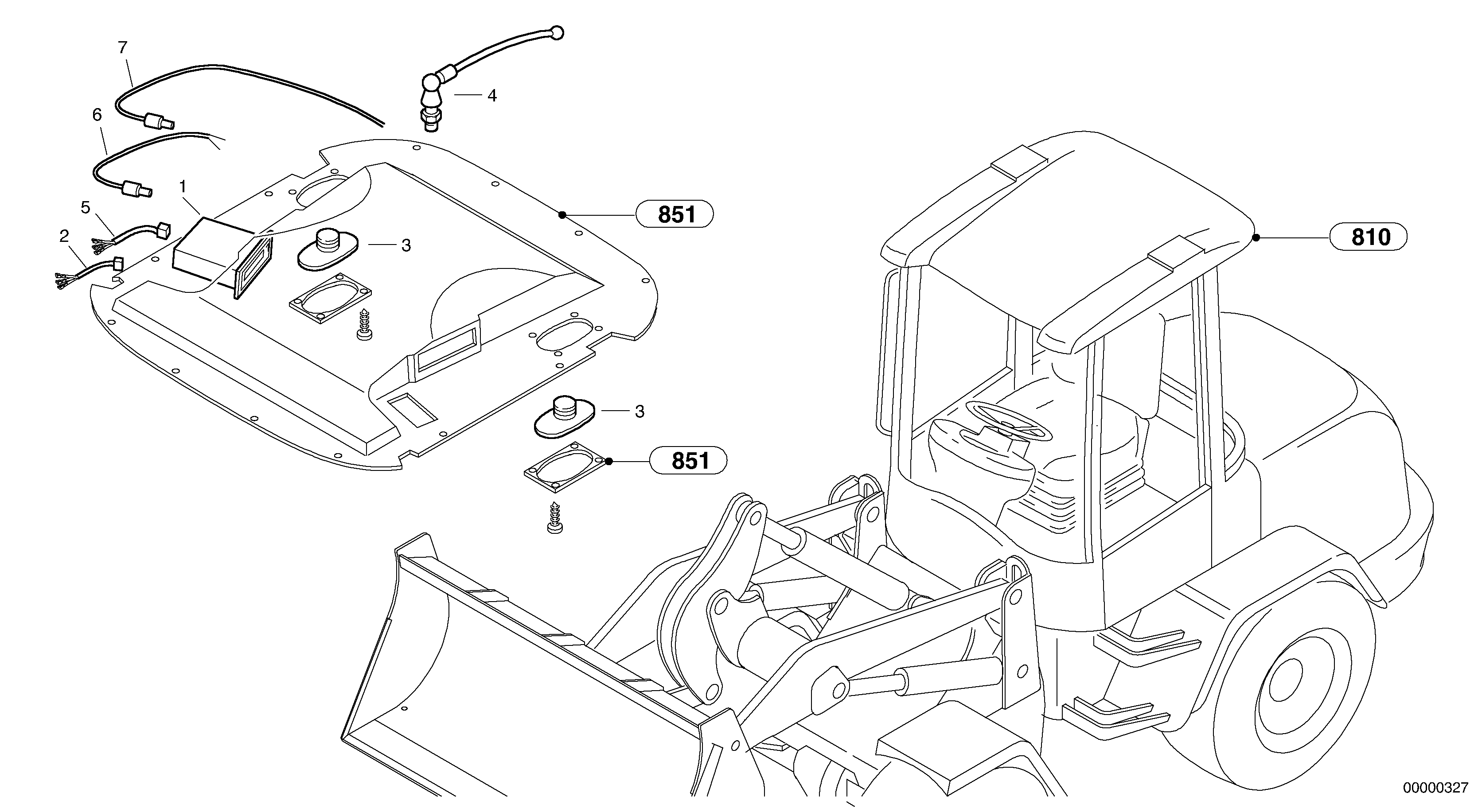

Electrical, warning, informationsystems and instruments

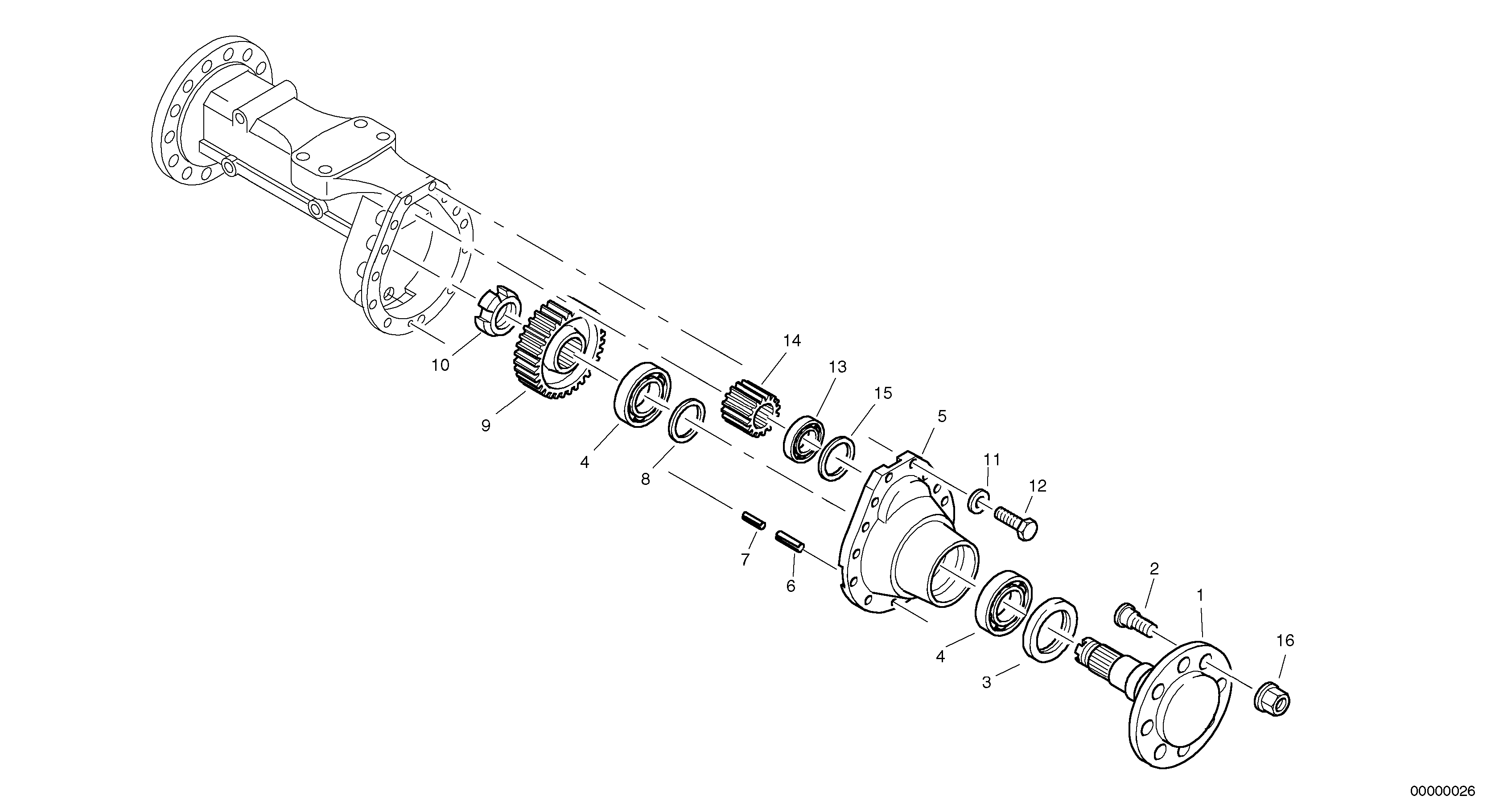

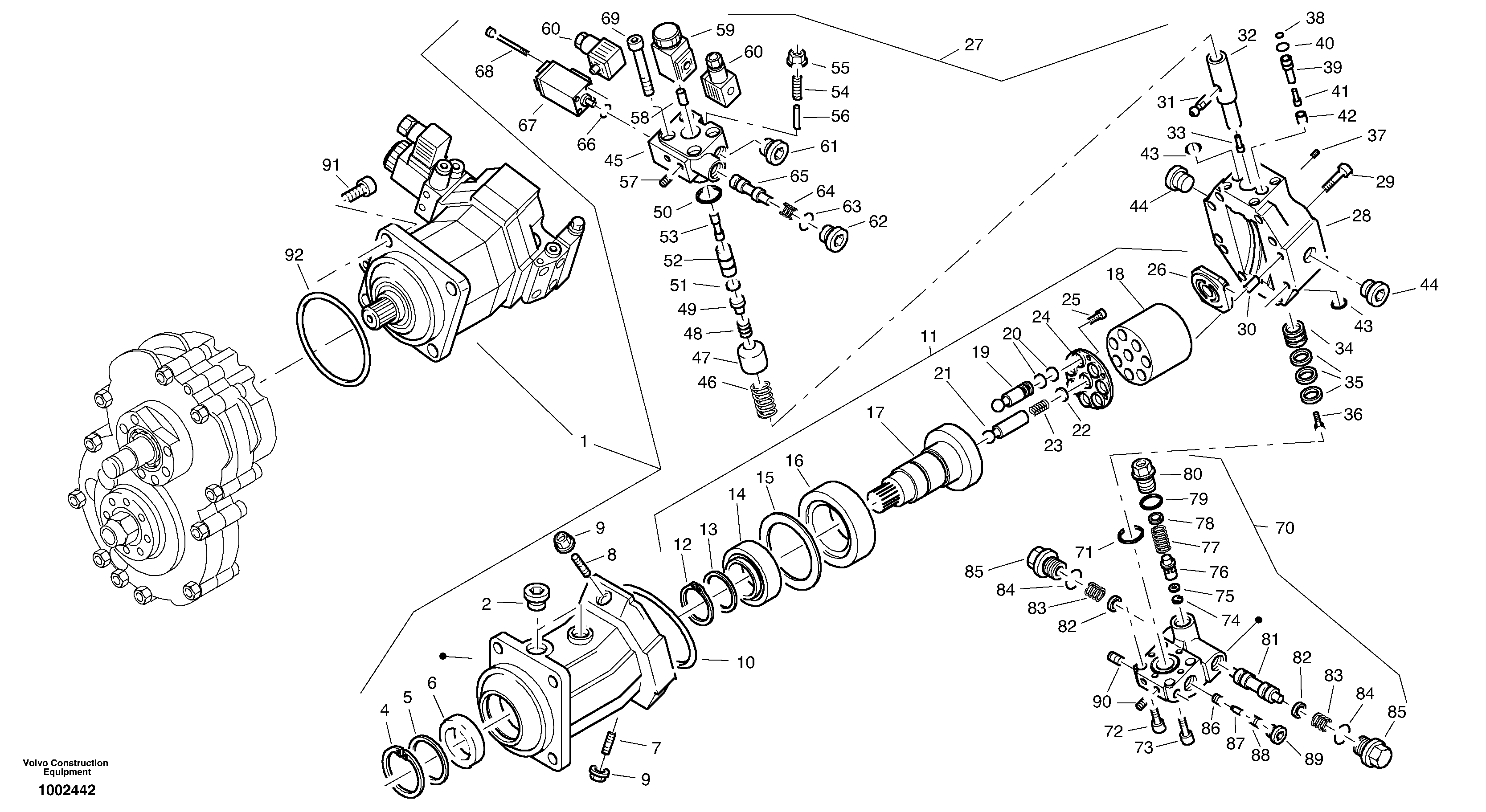

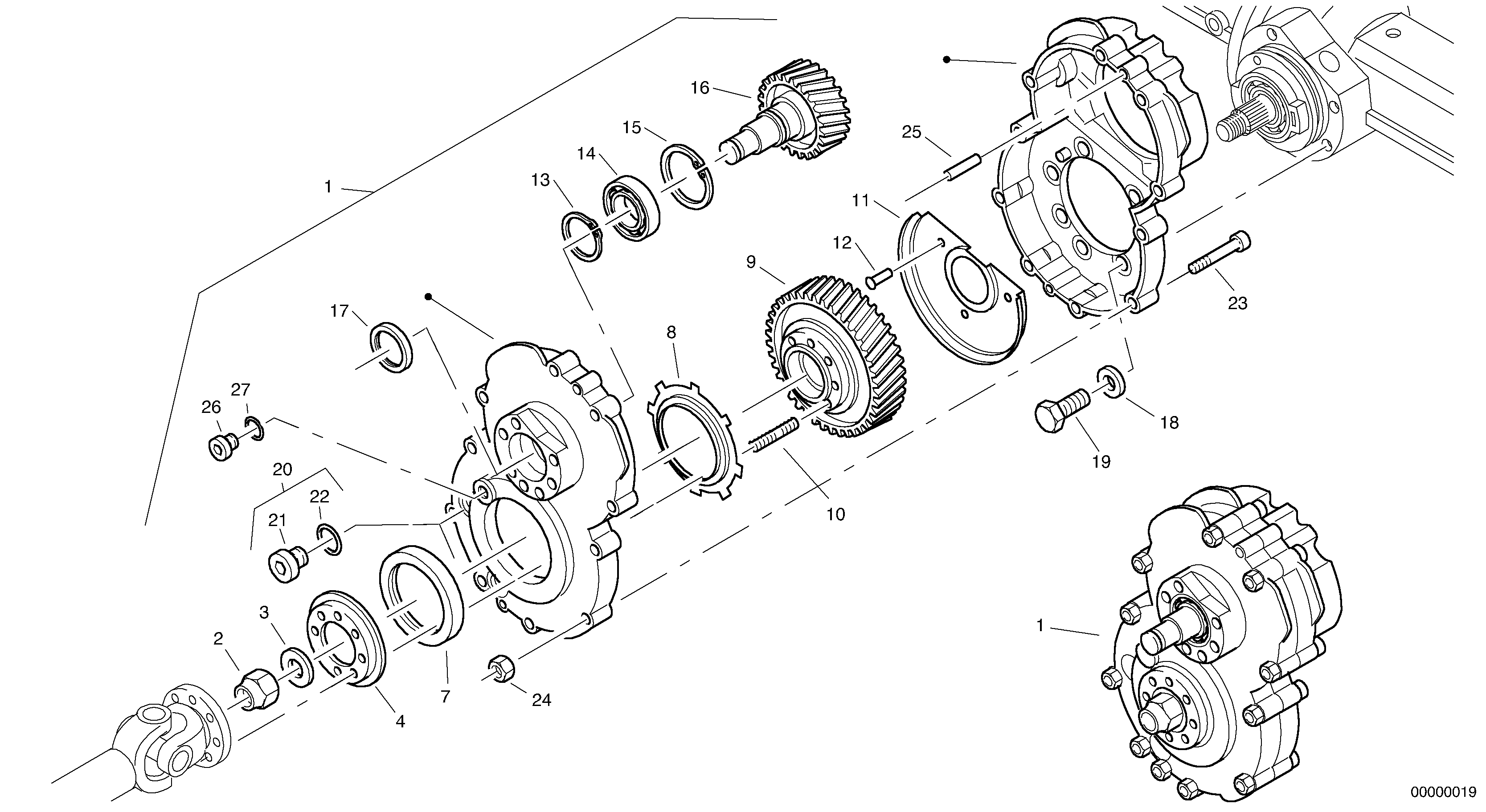

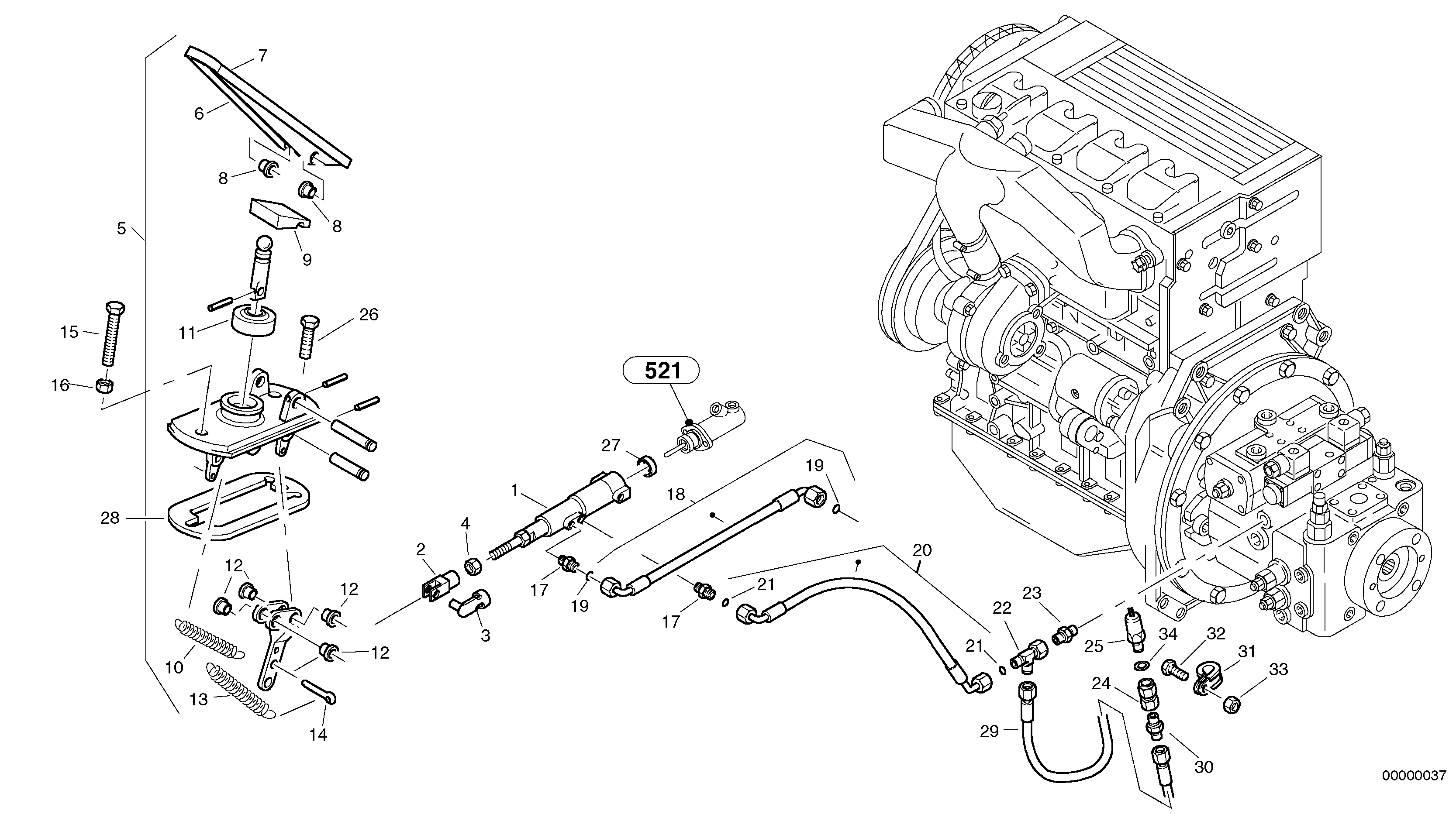

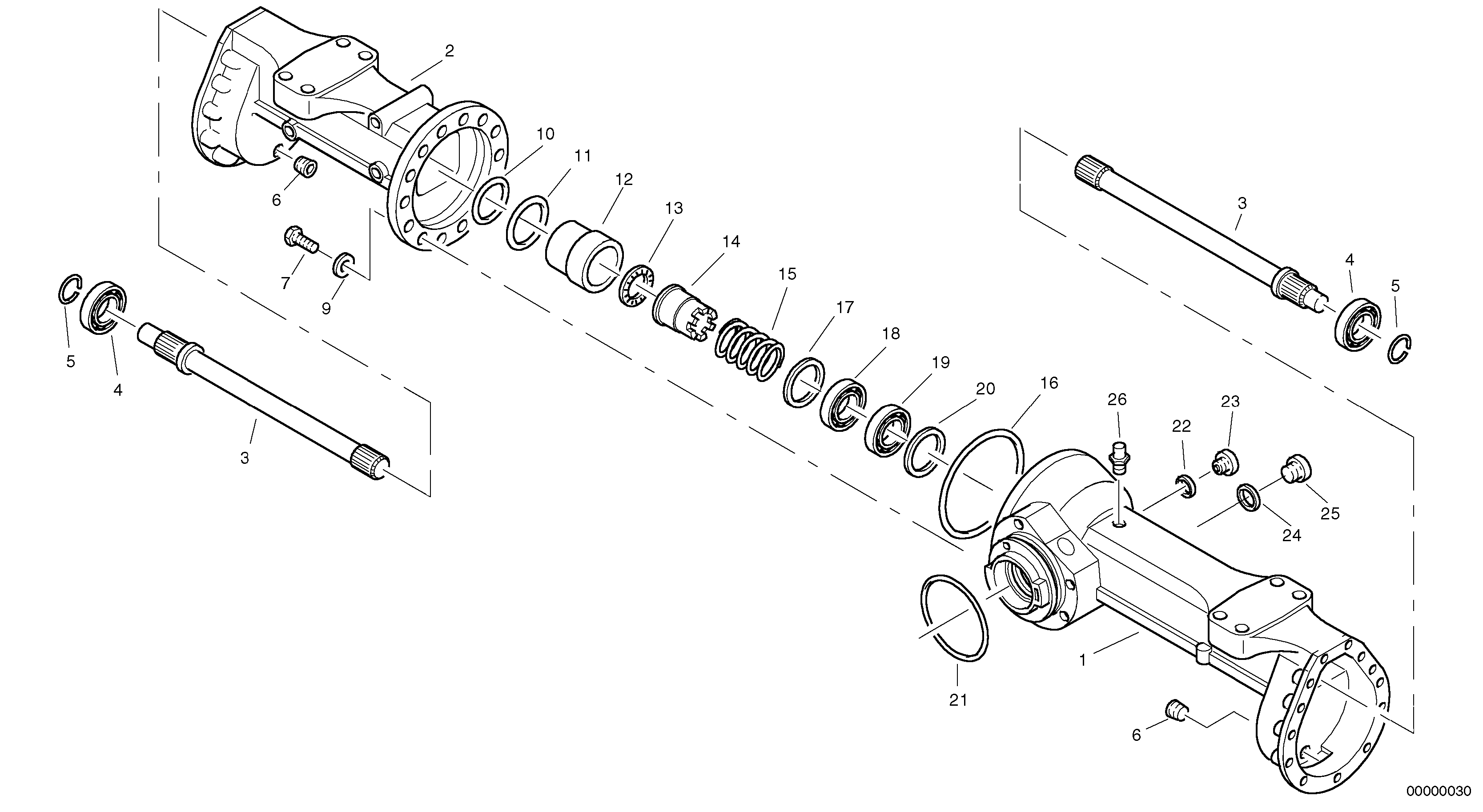

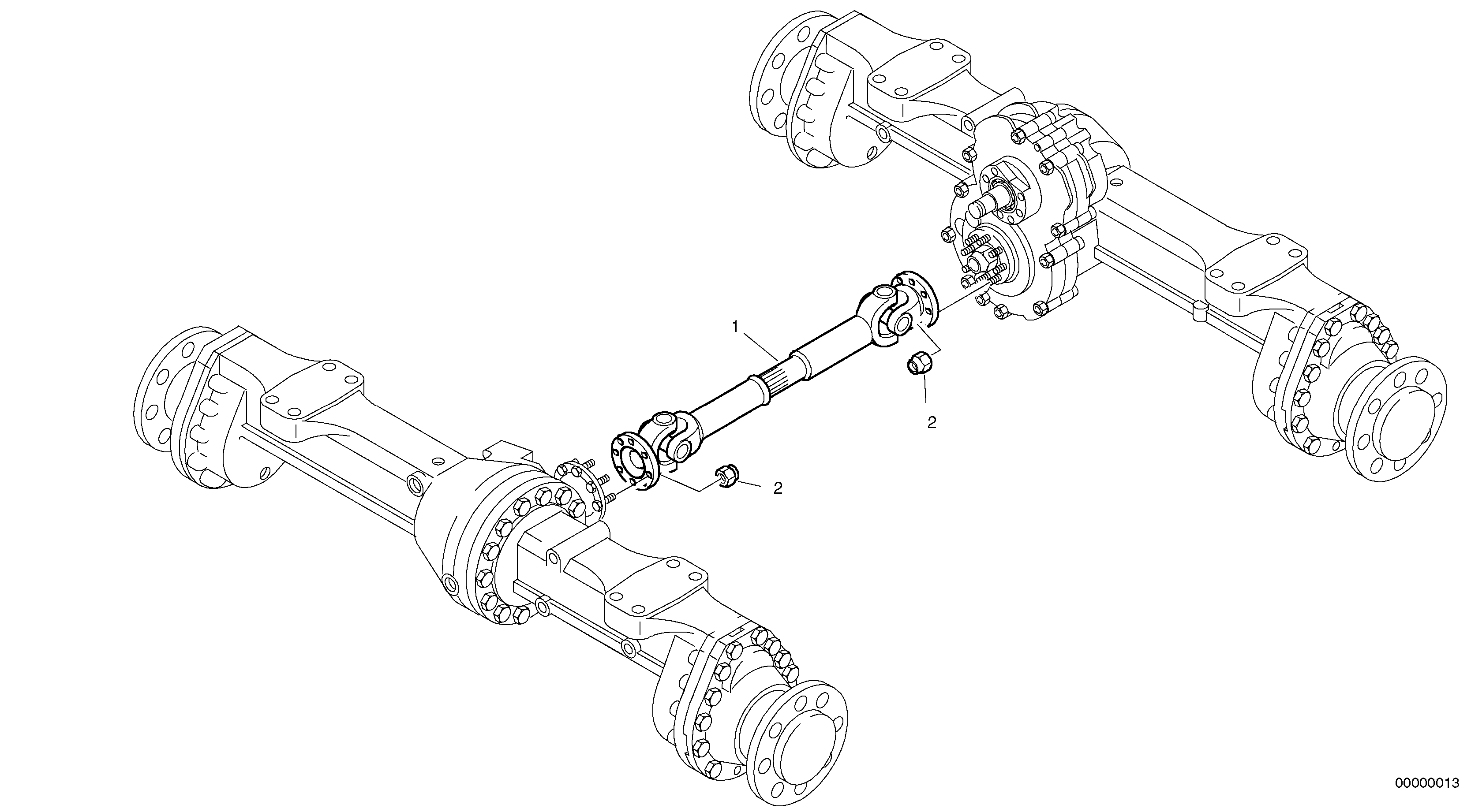

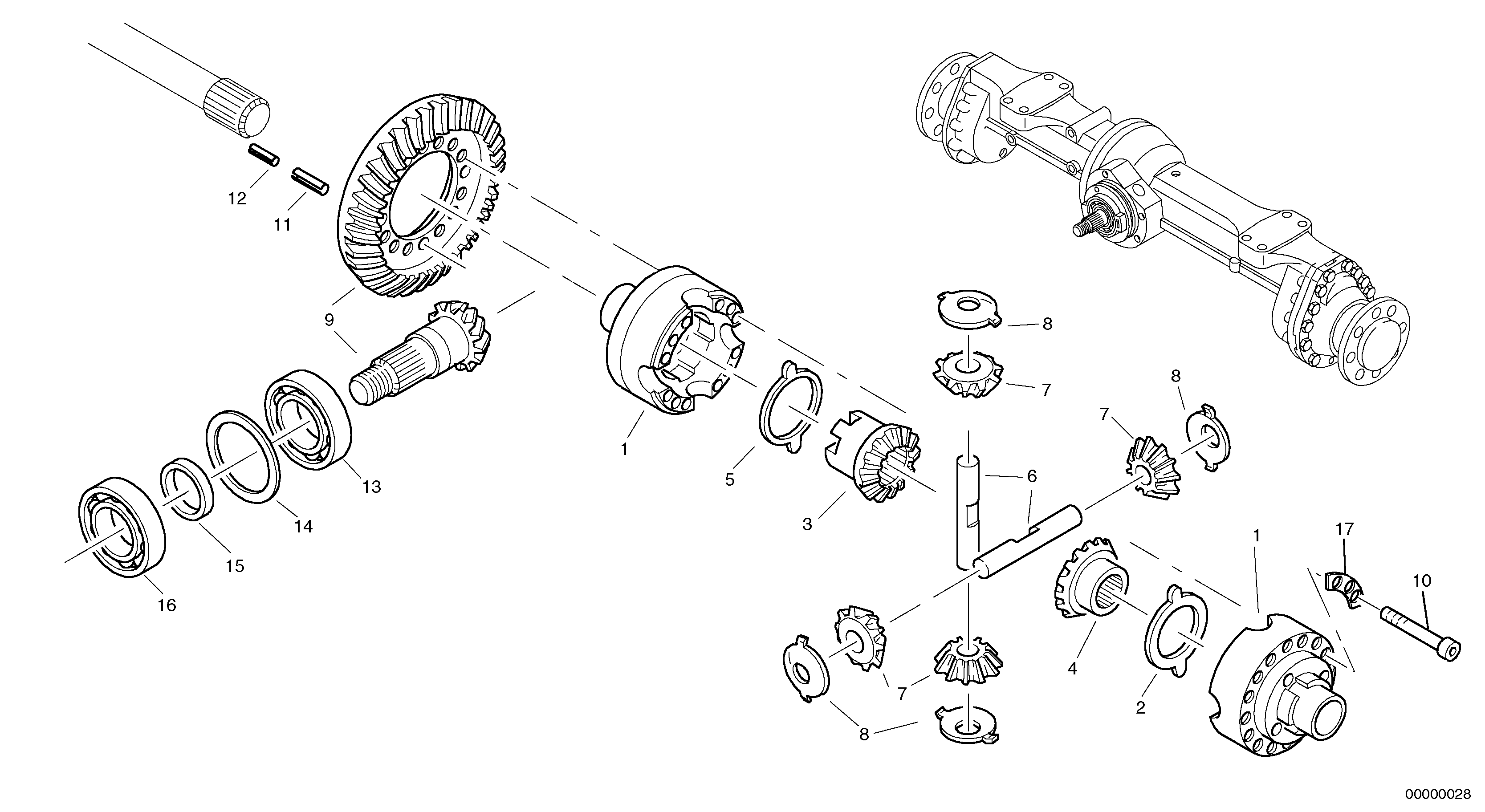

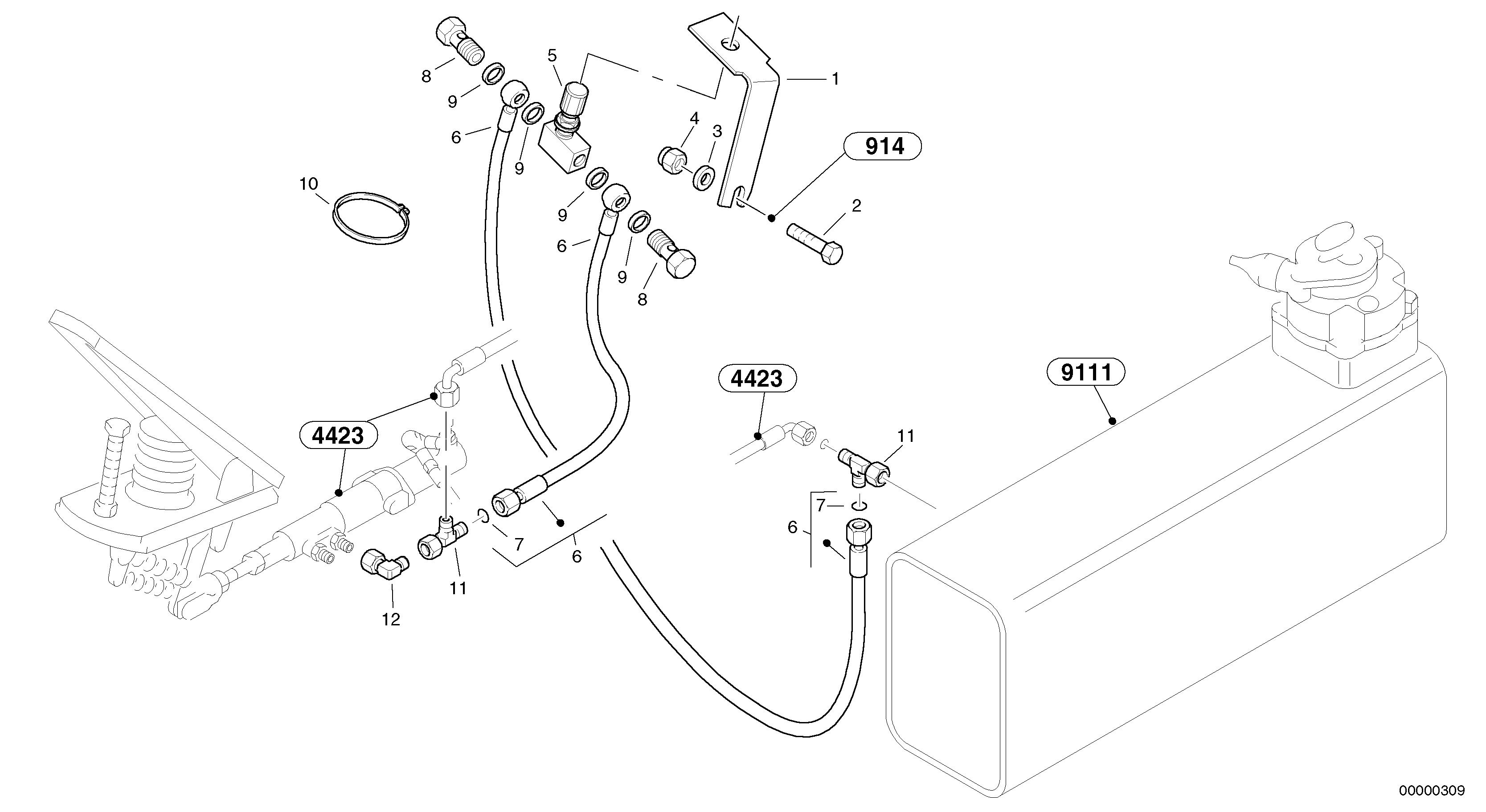

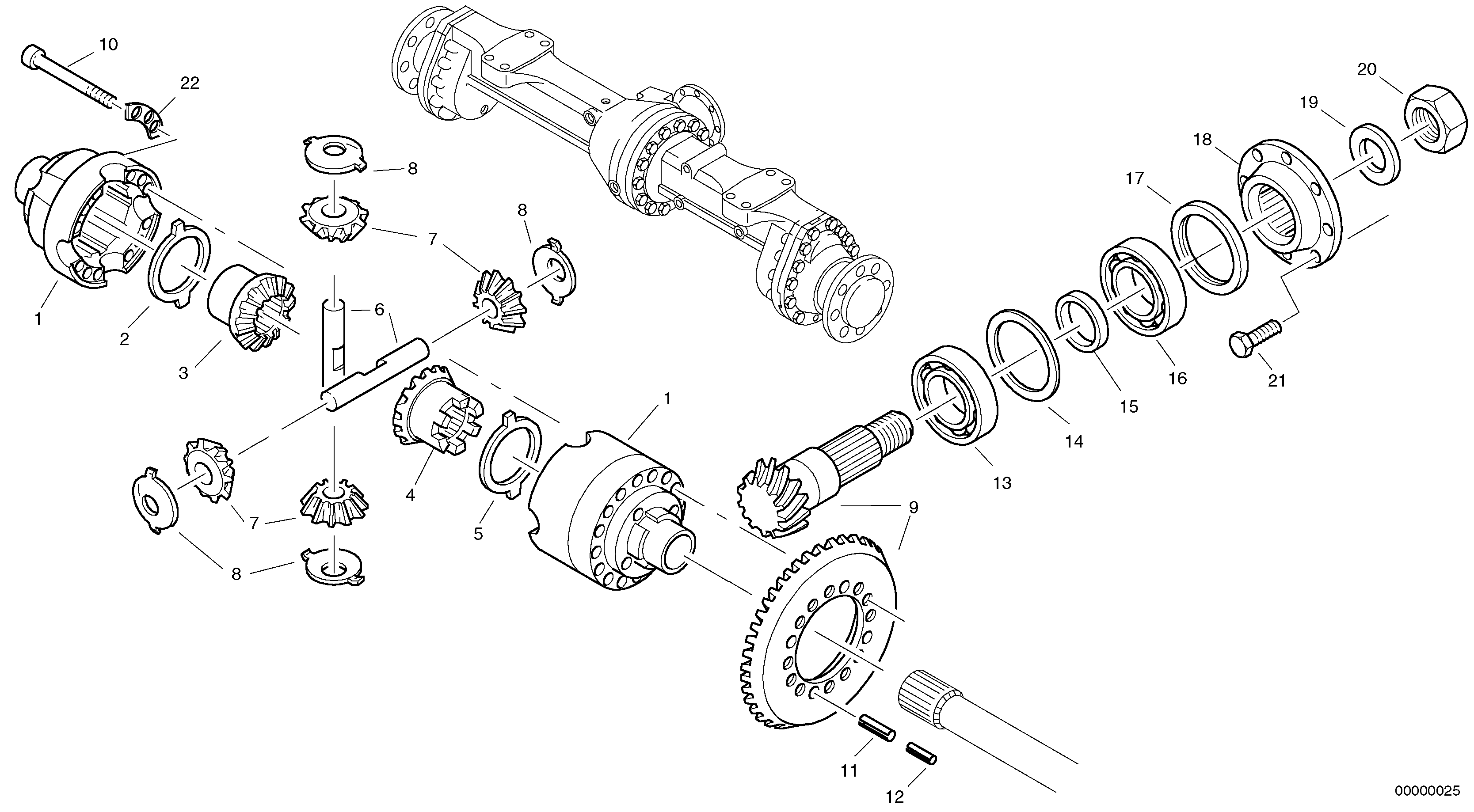

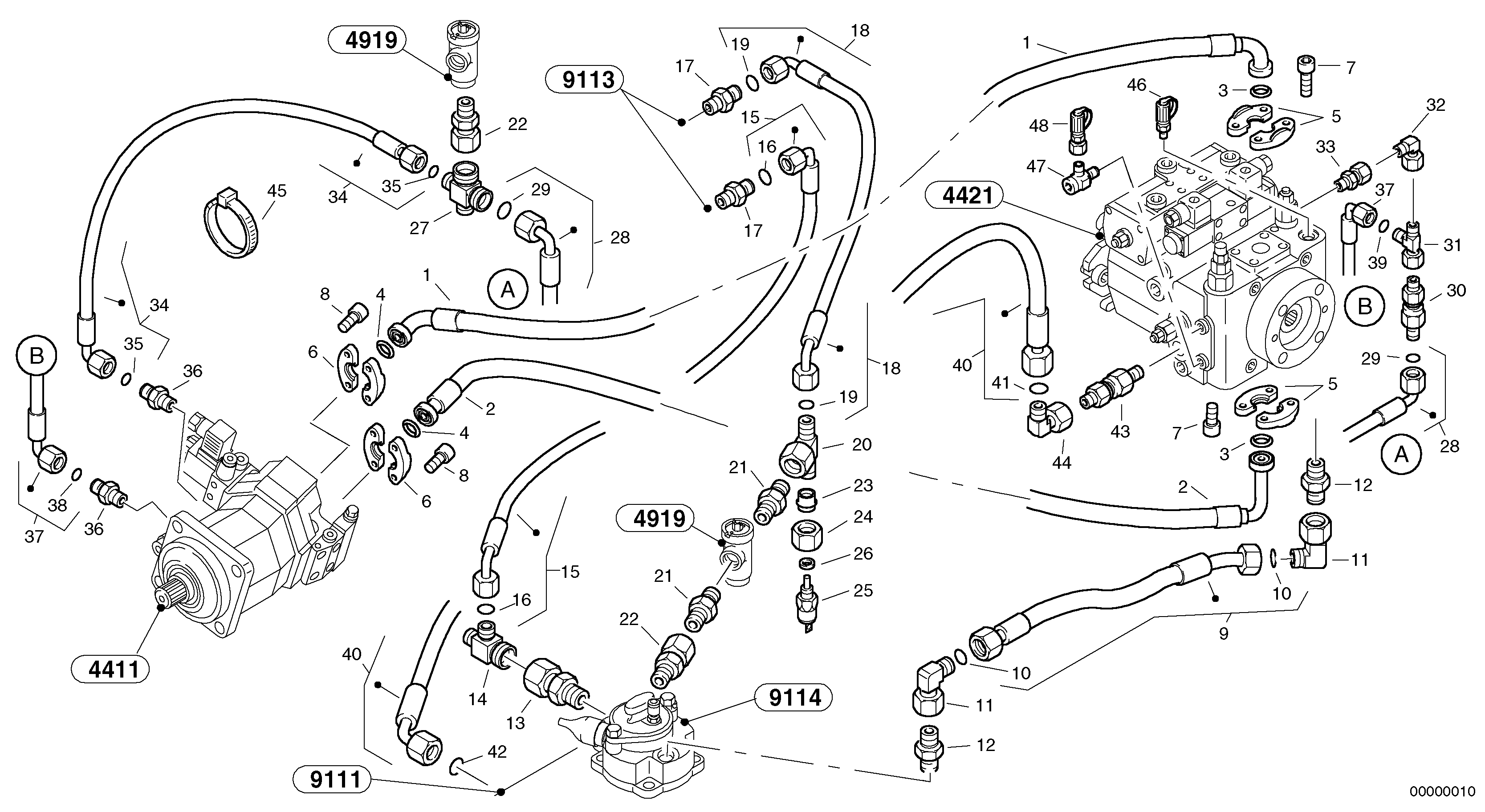

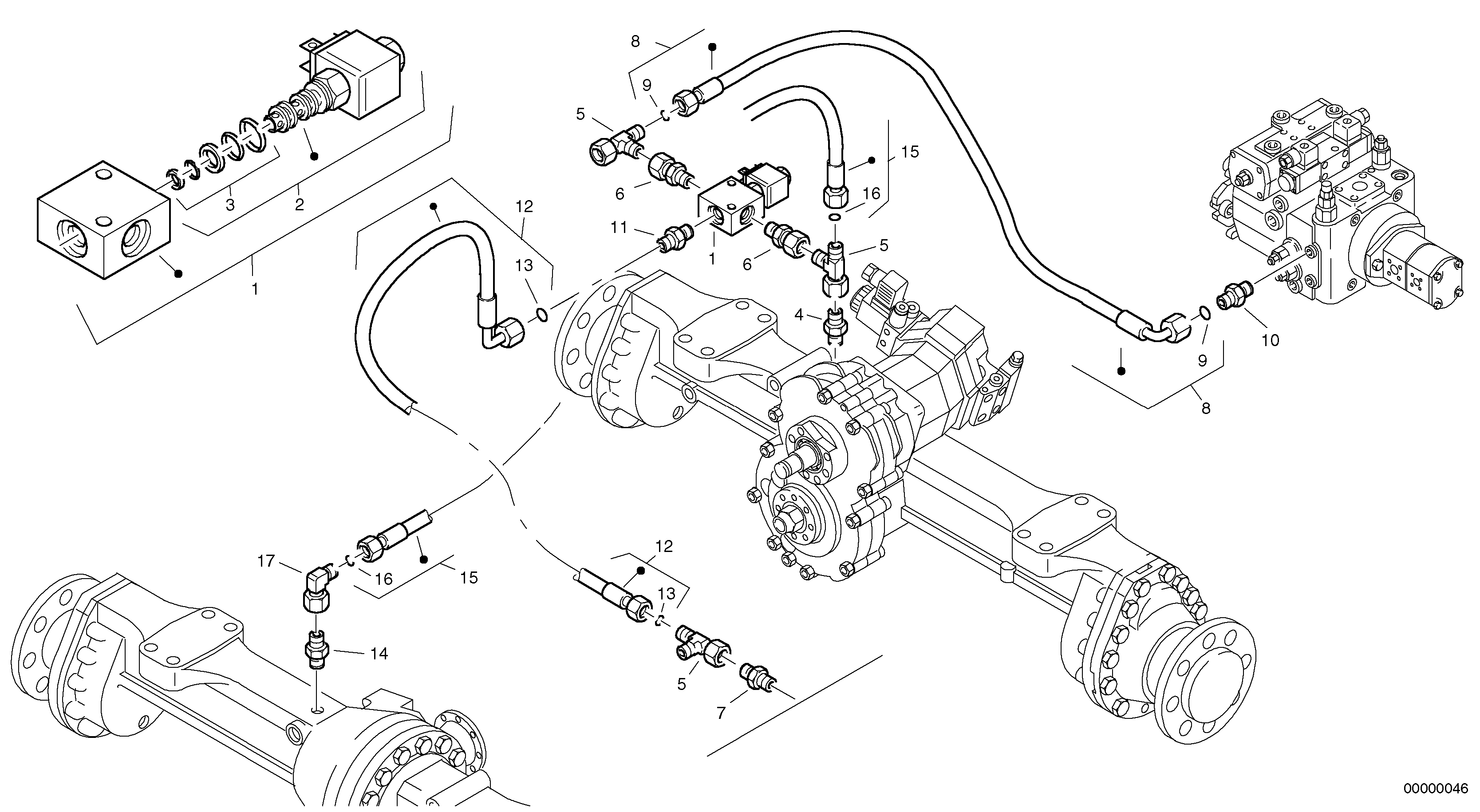

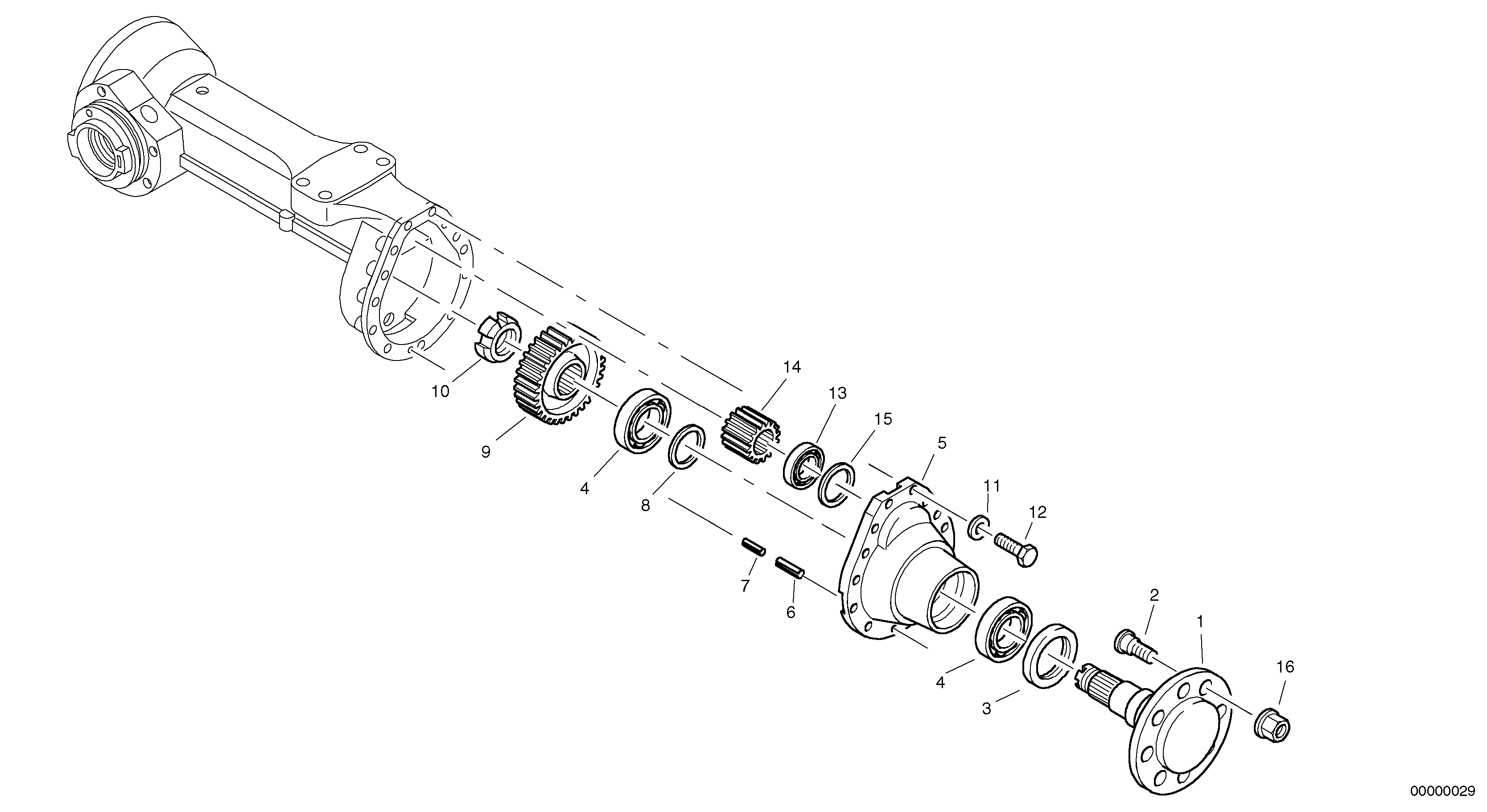

Power transmission

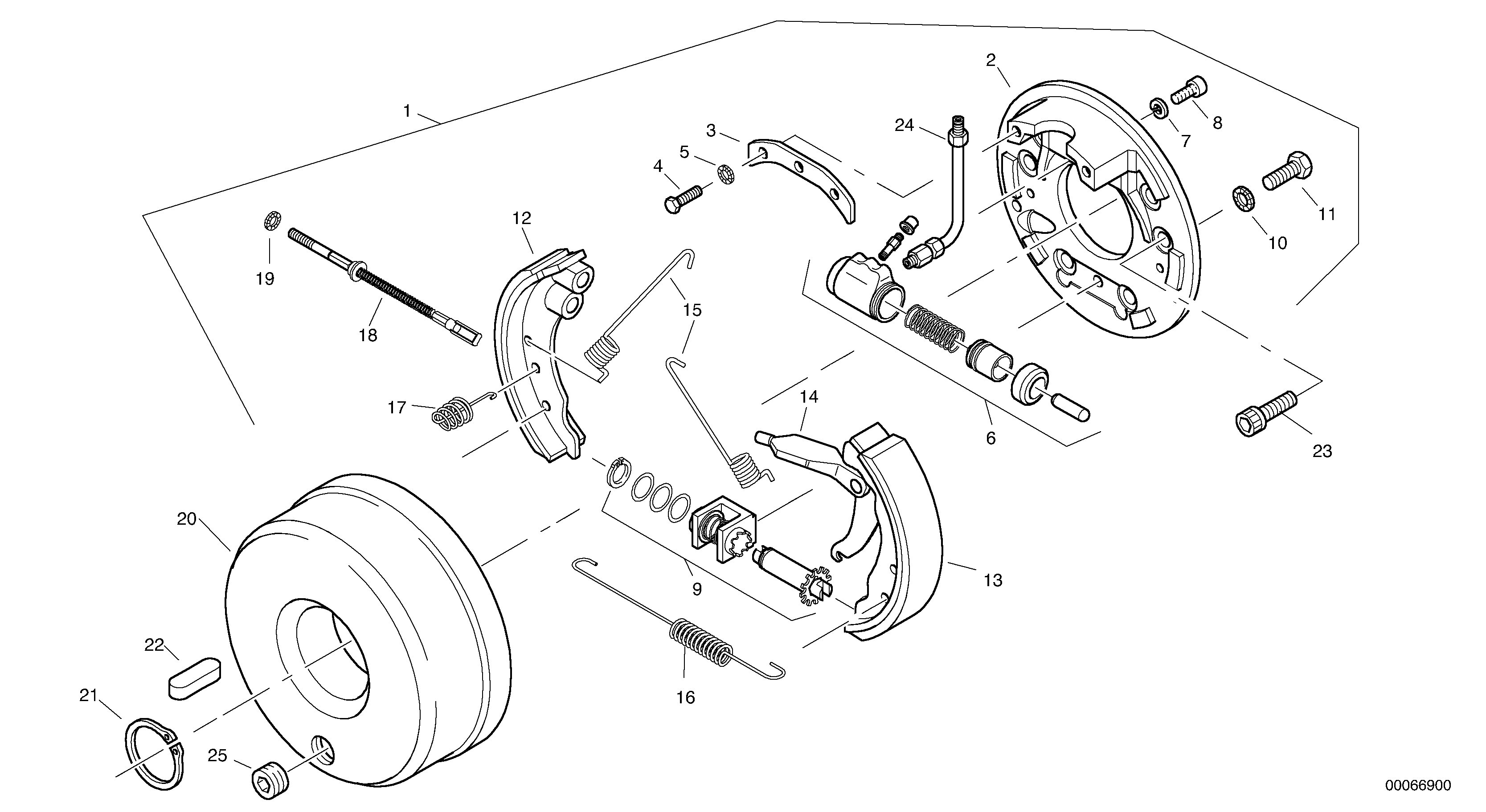

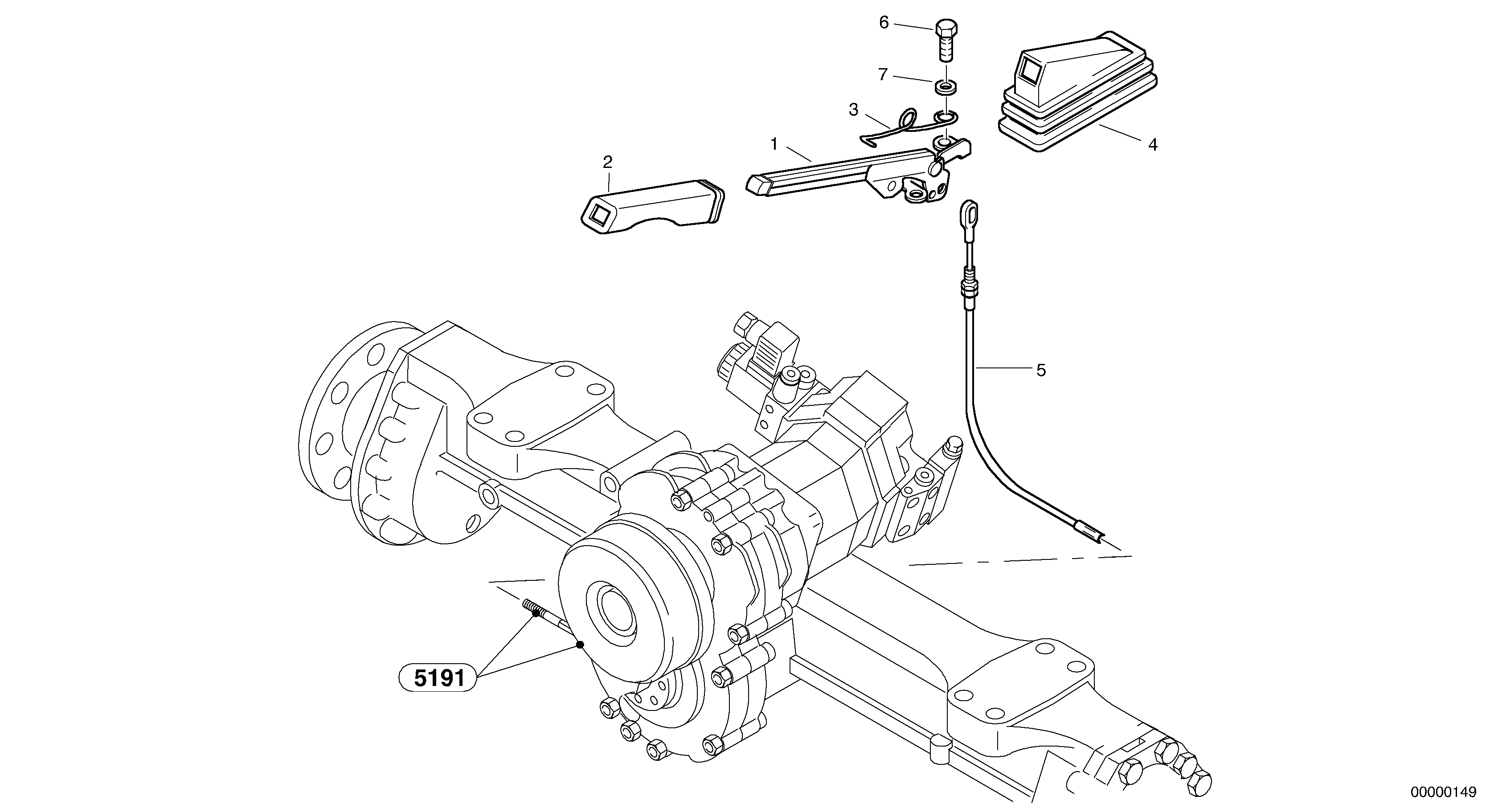

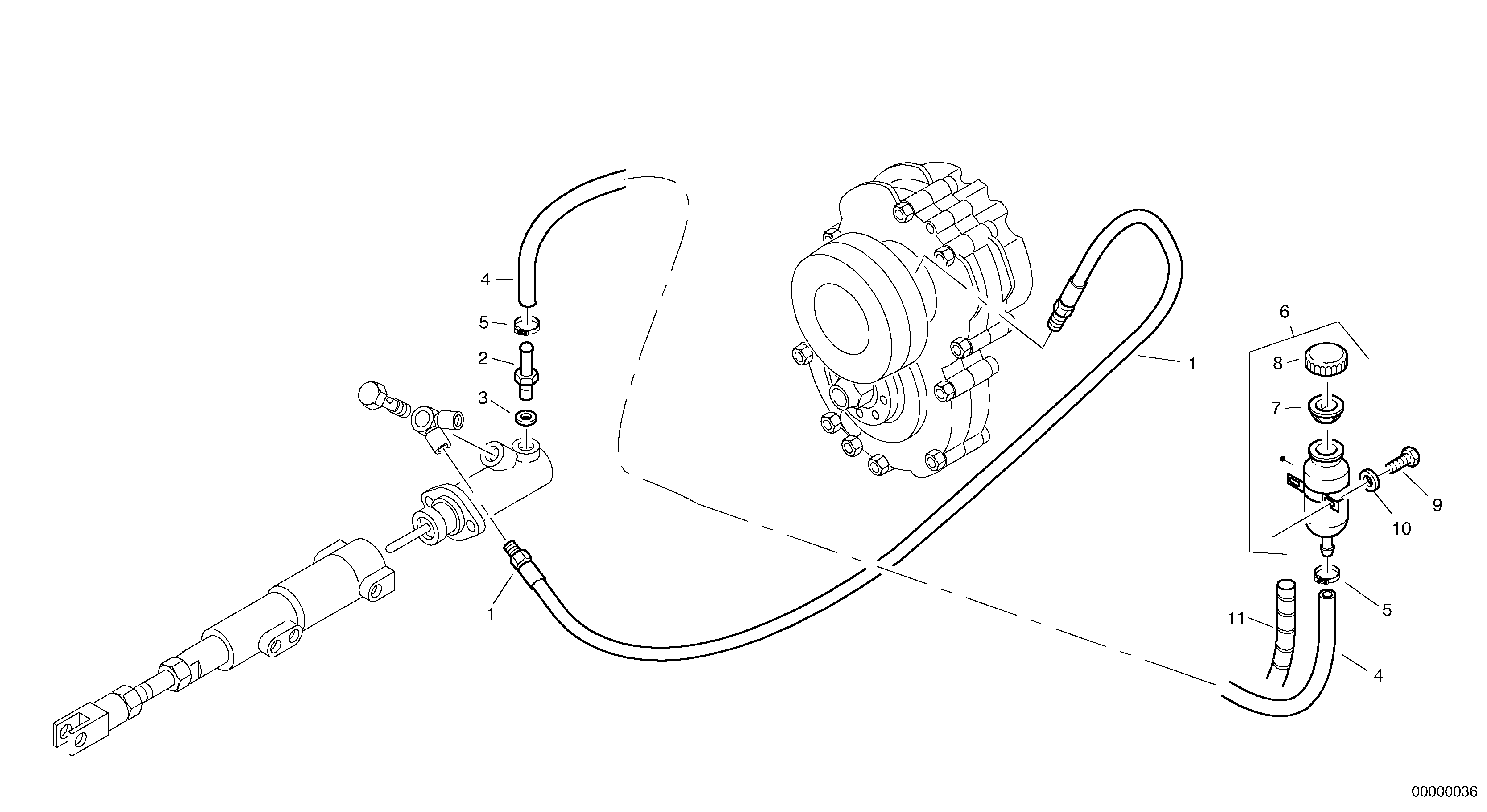

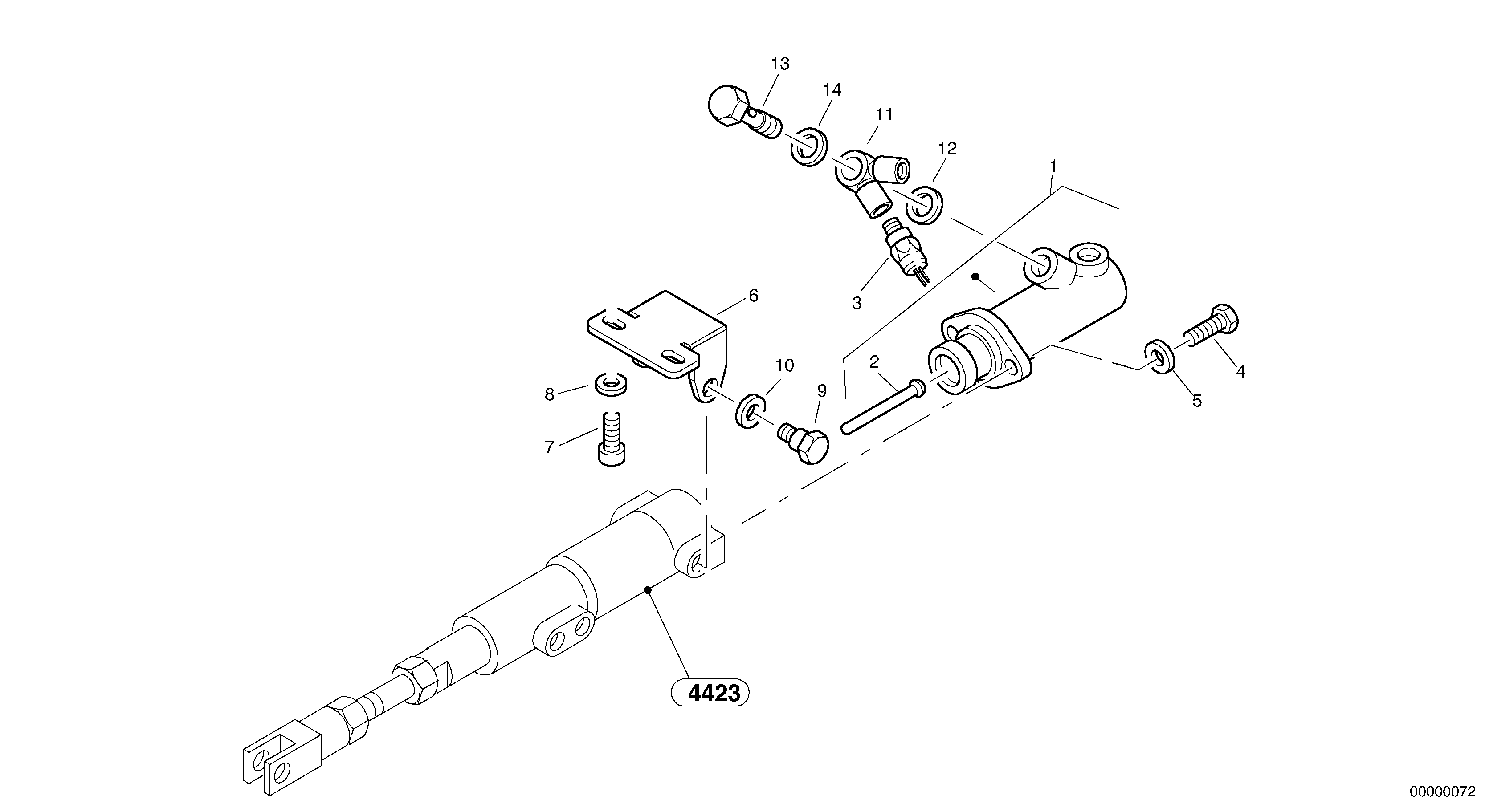

Brake

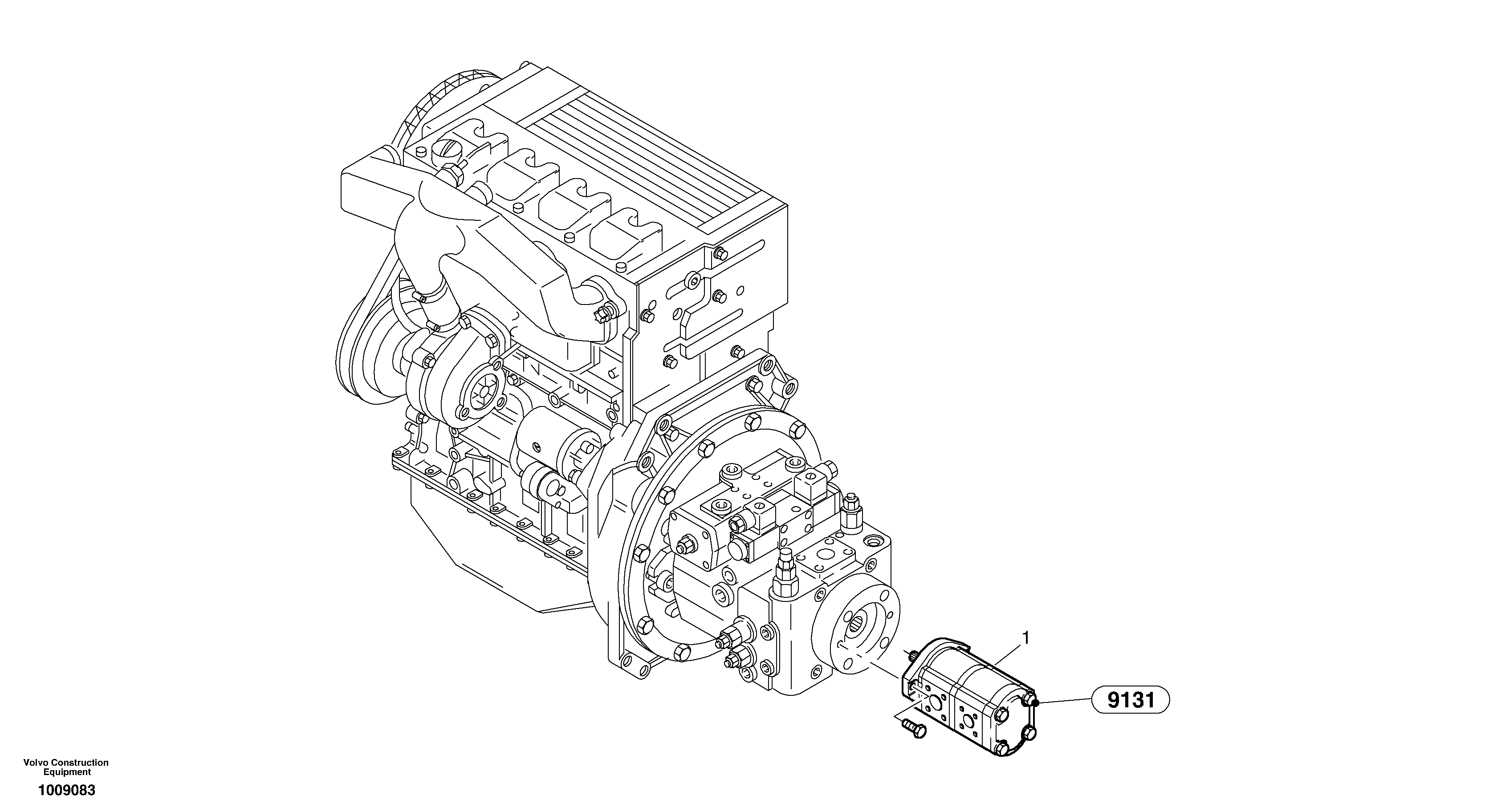

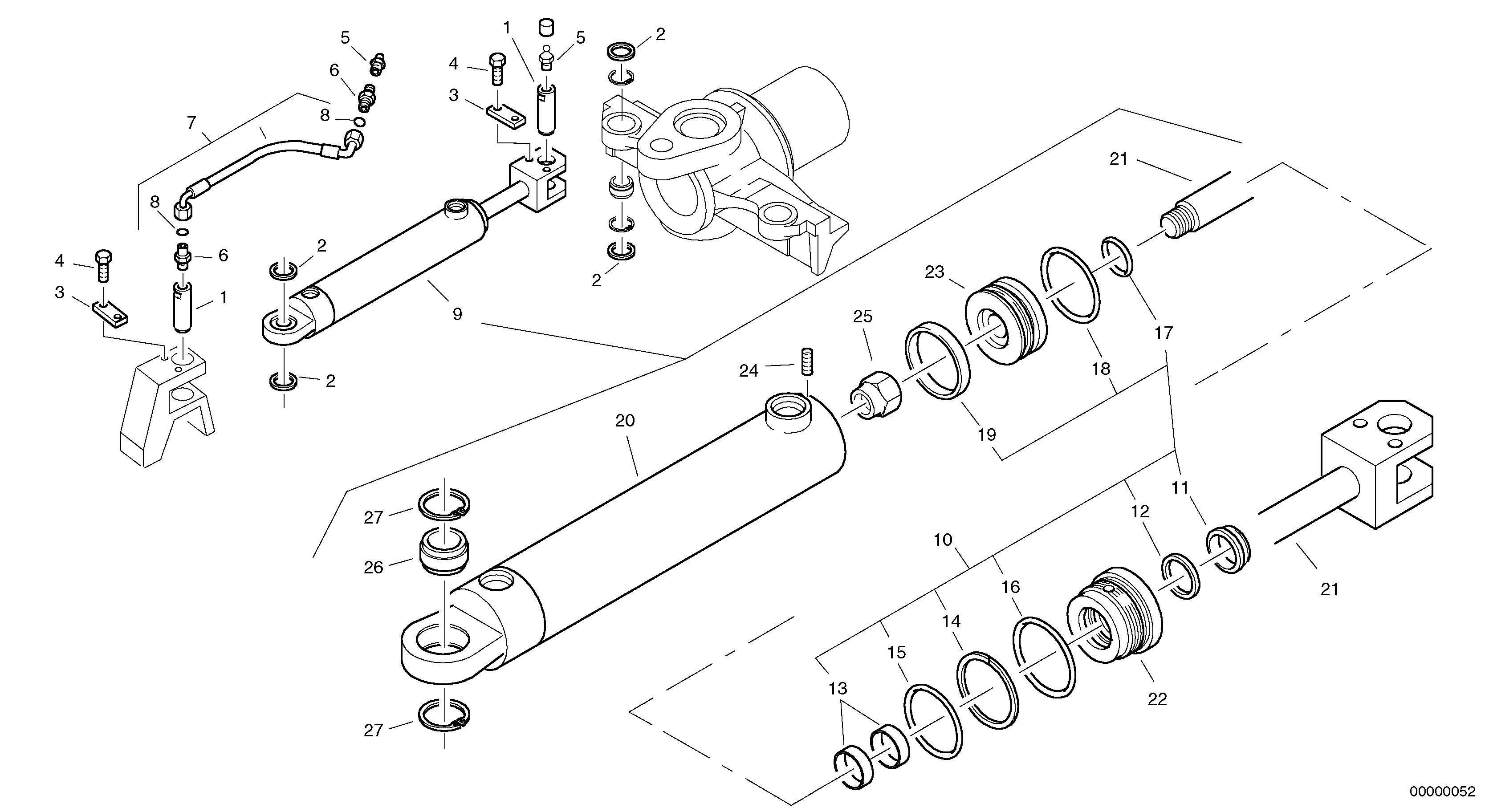

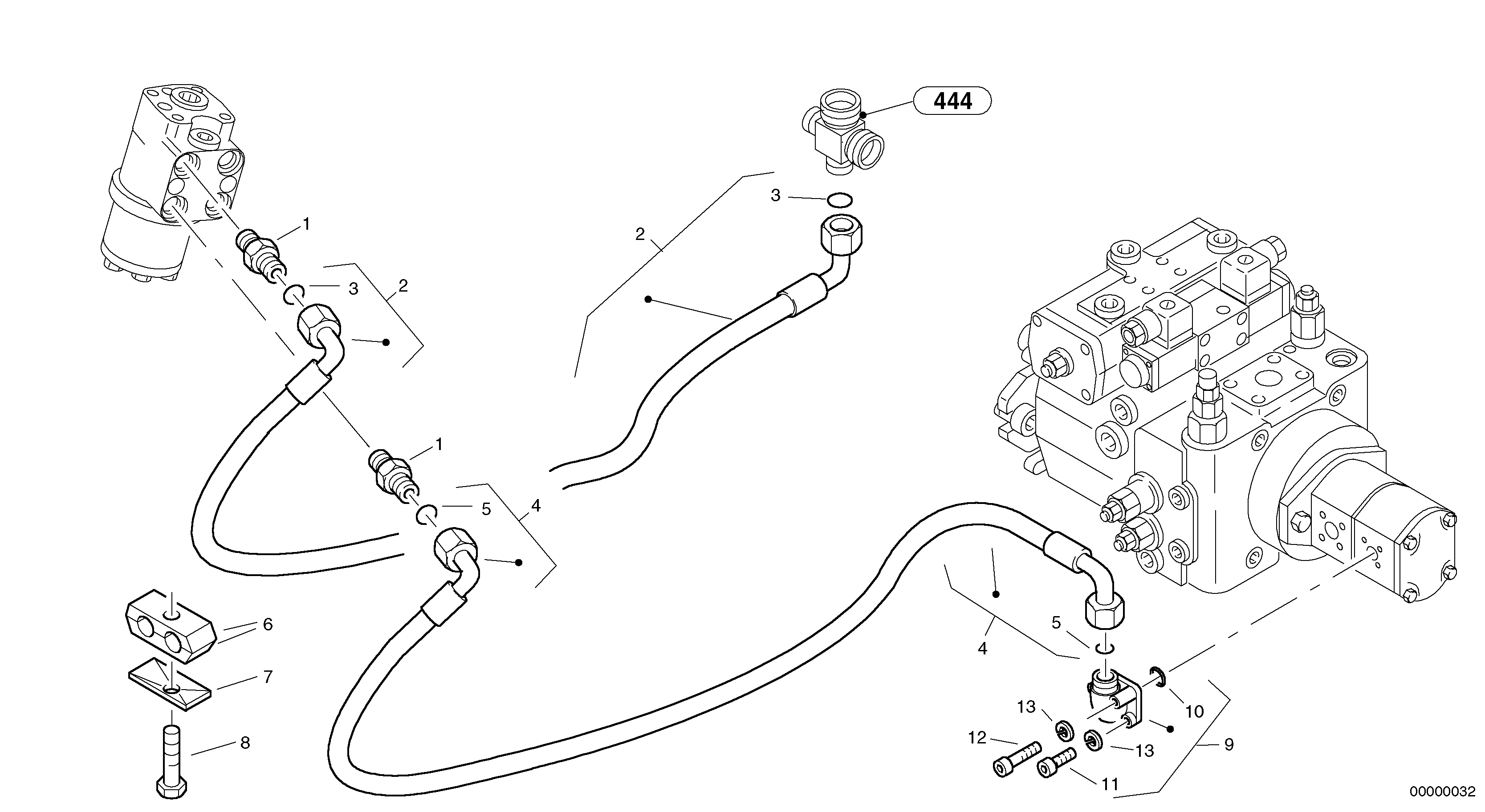

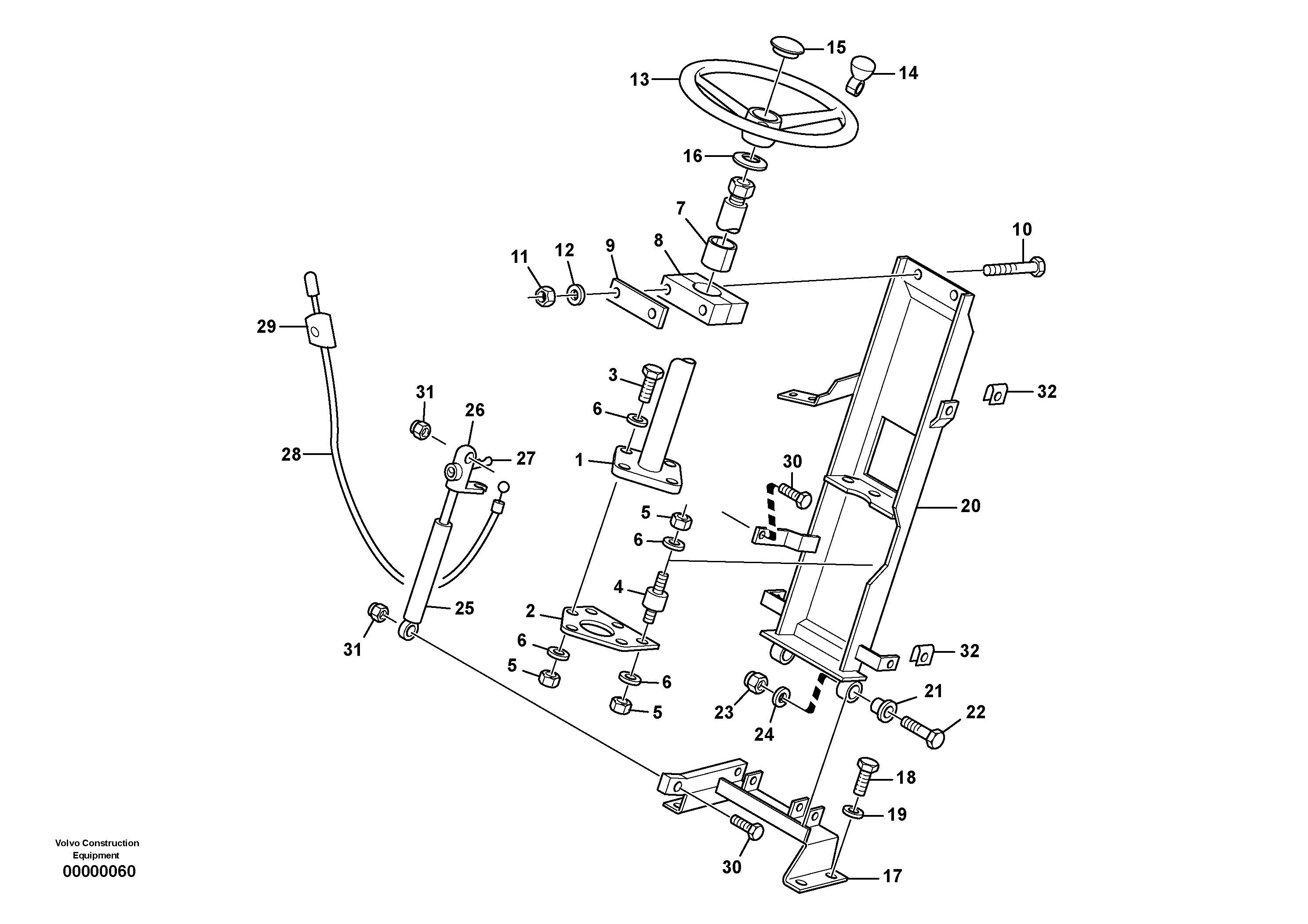

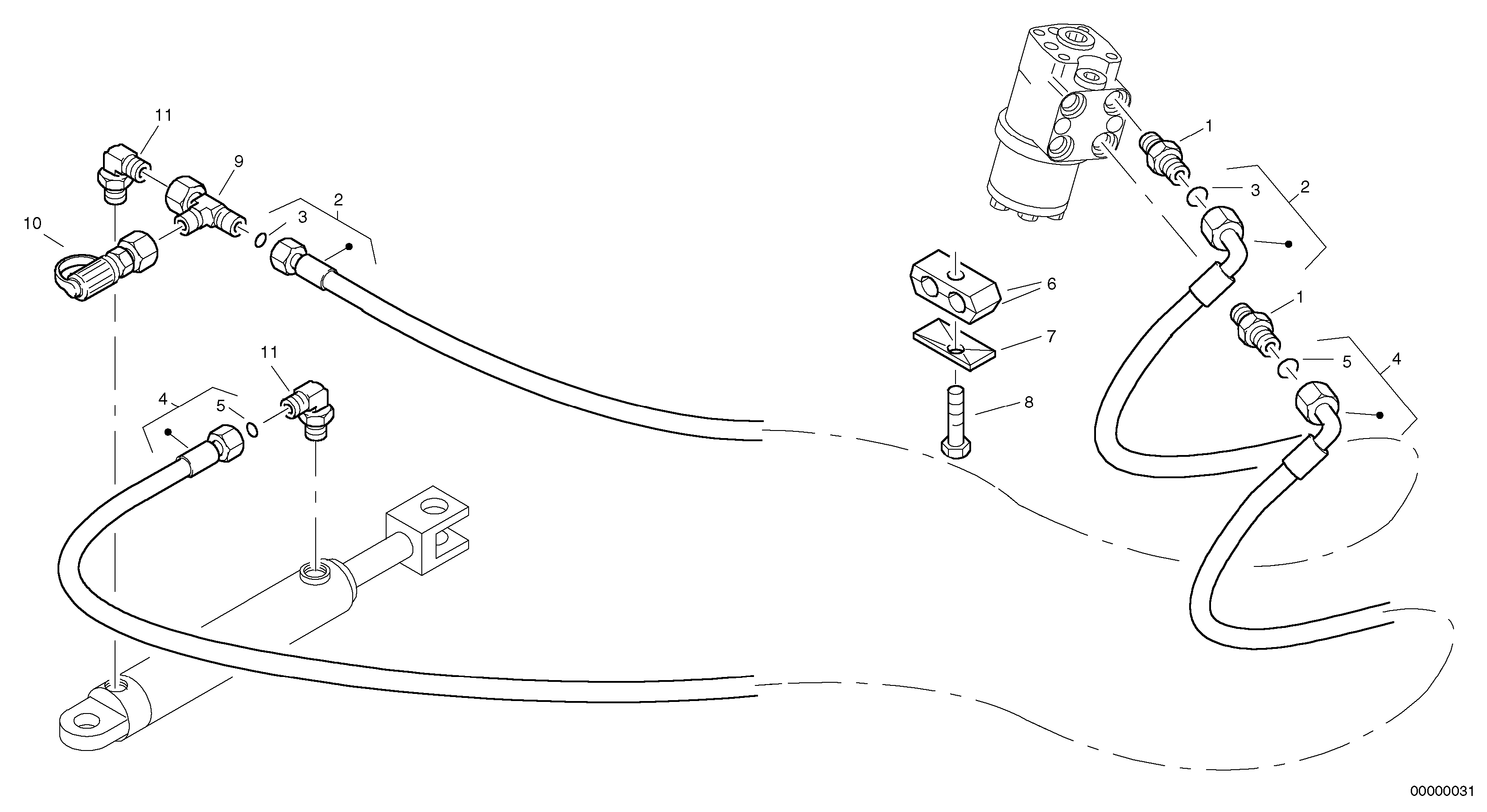

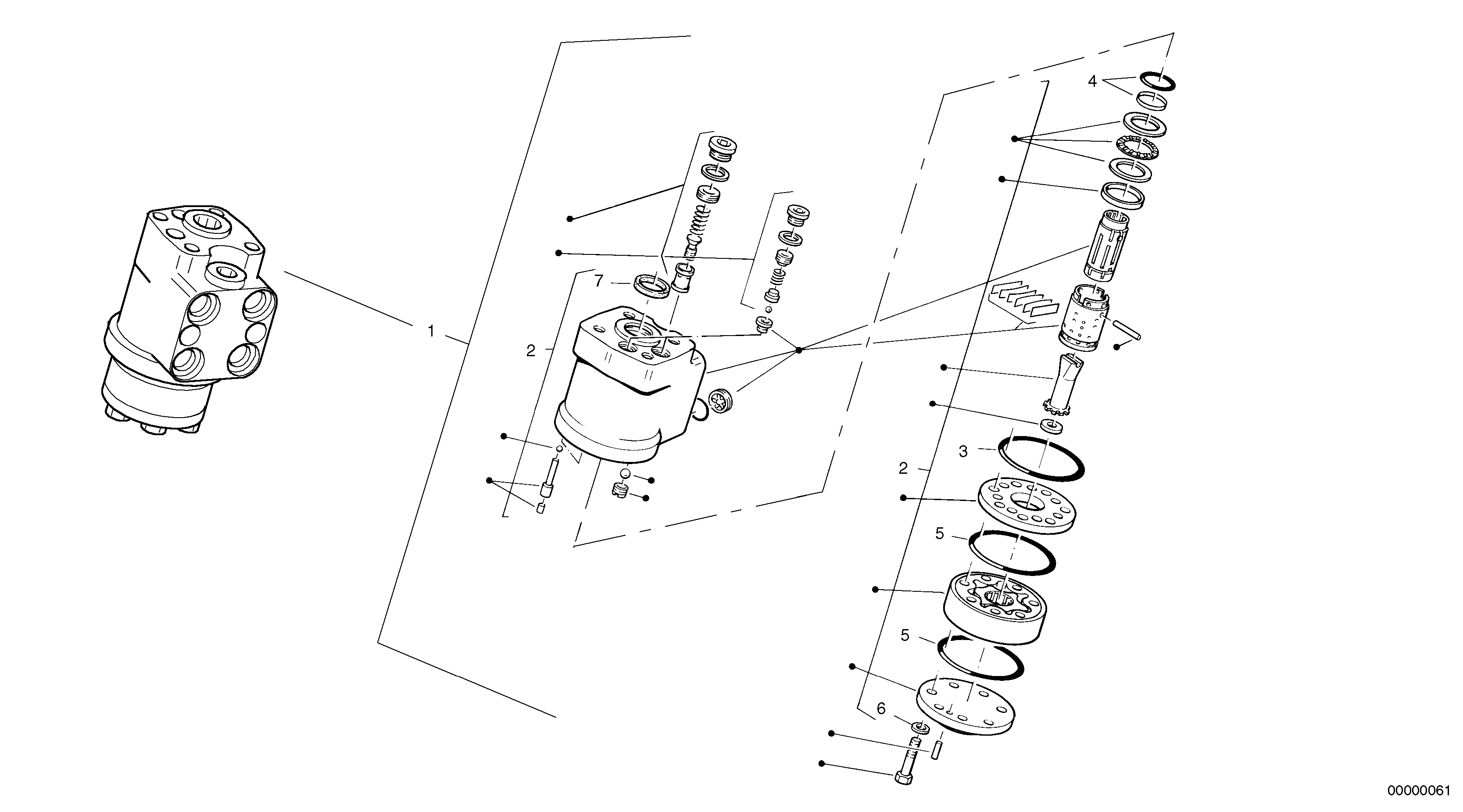

Steering

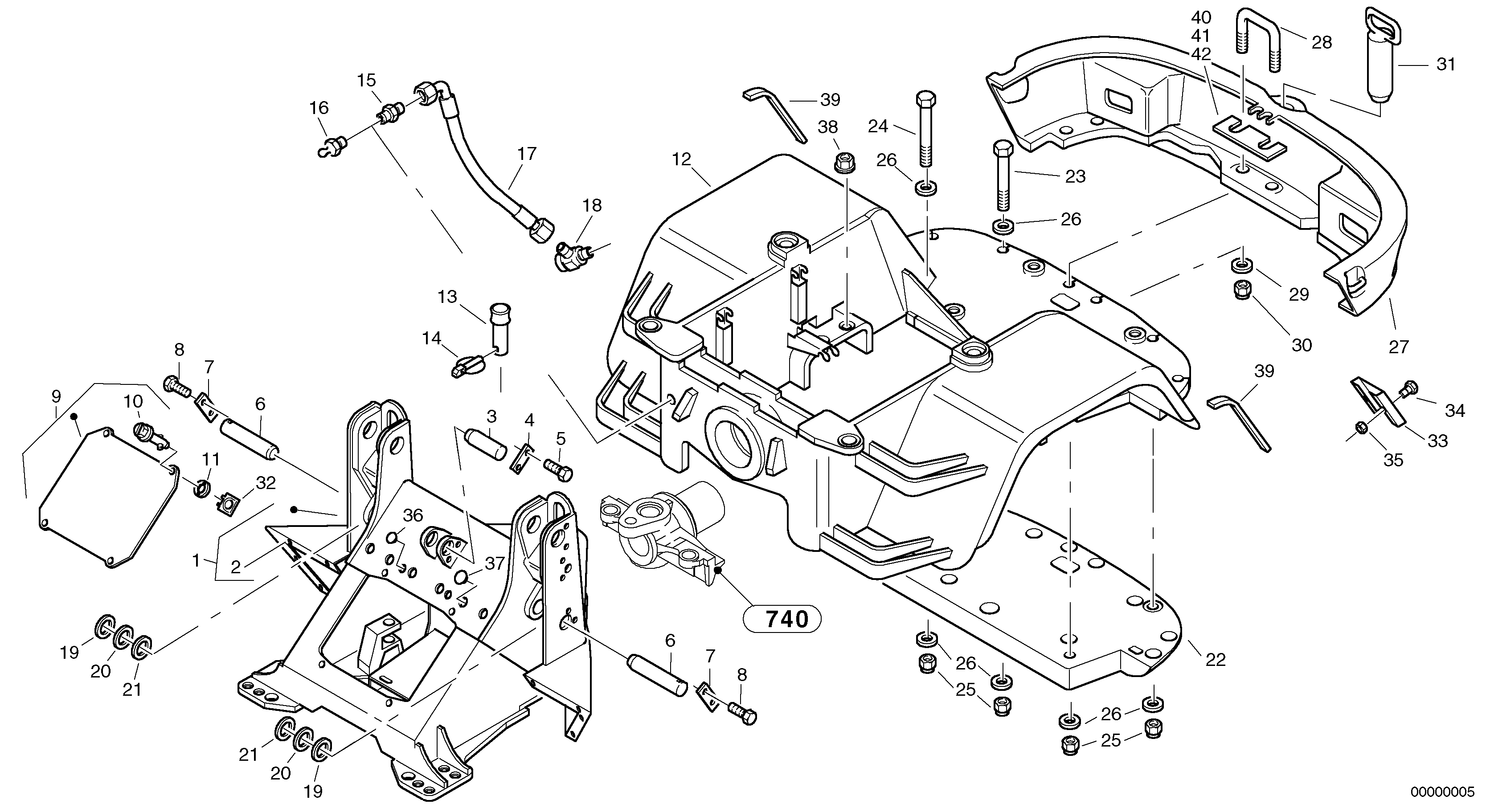

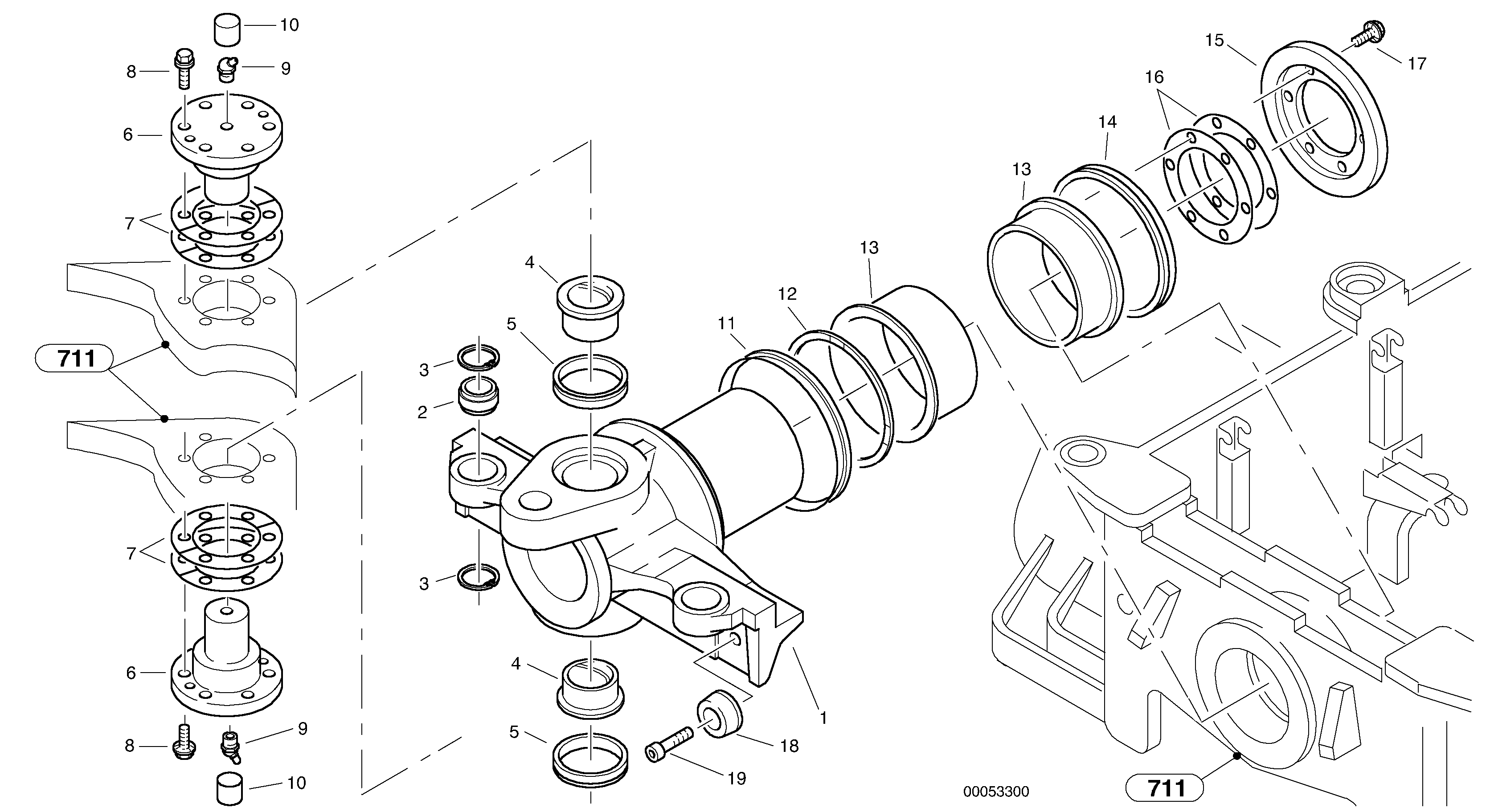

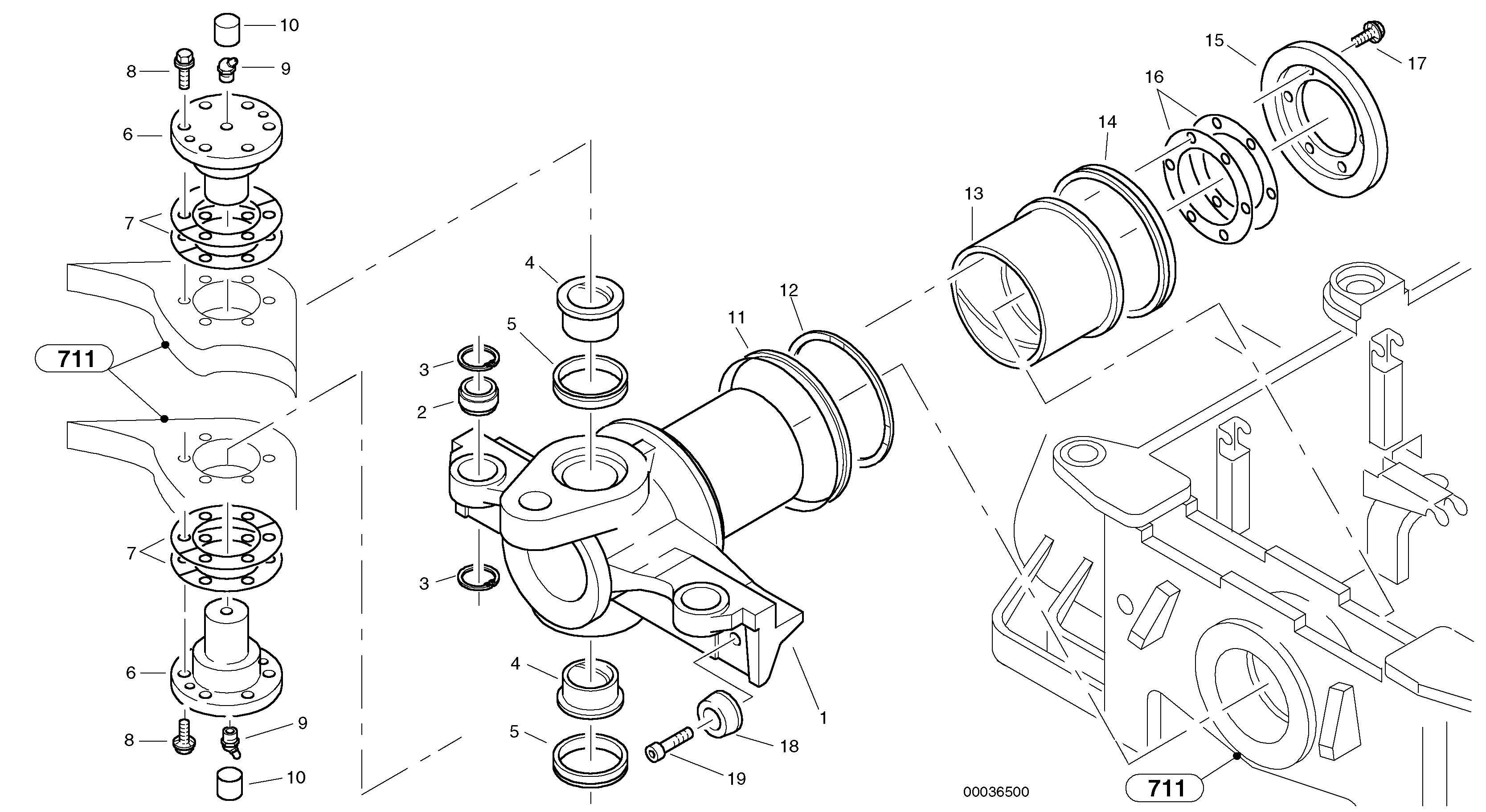

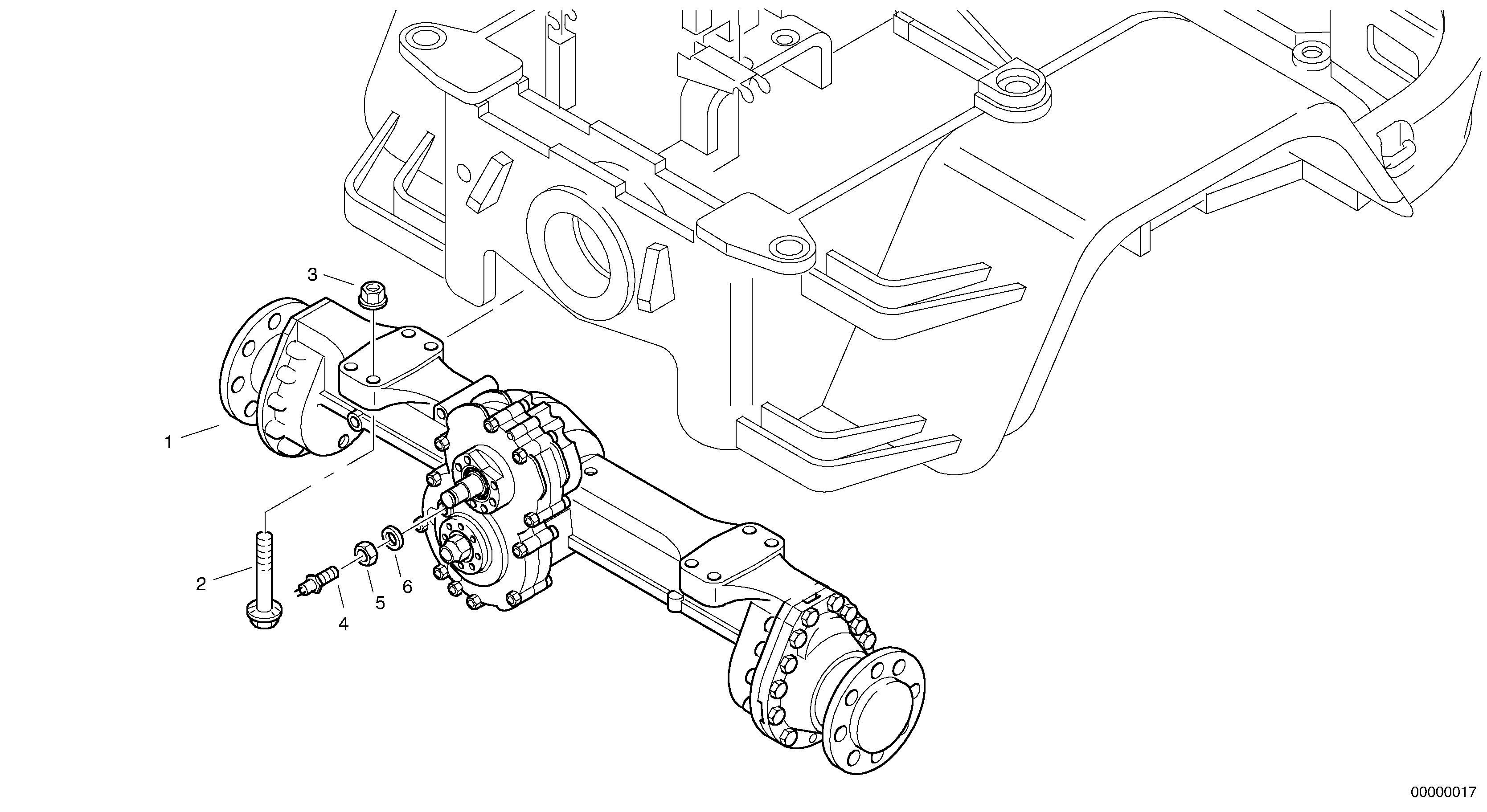

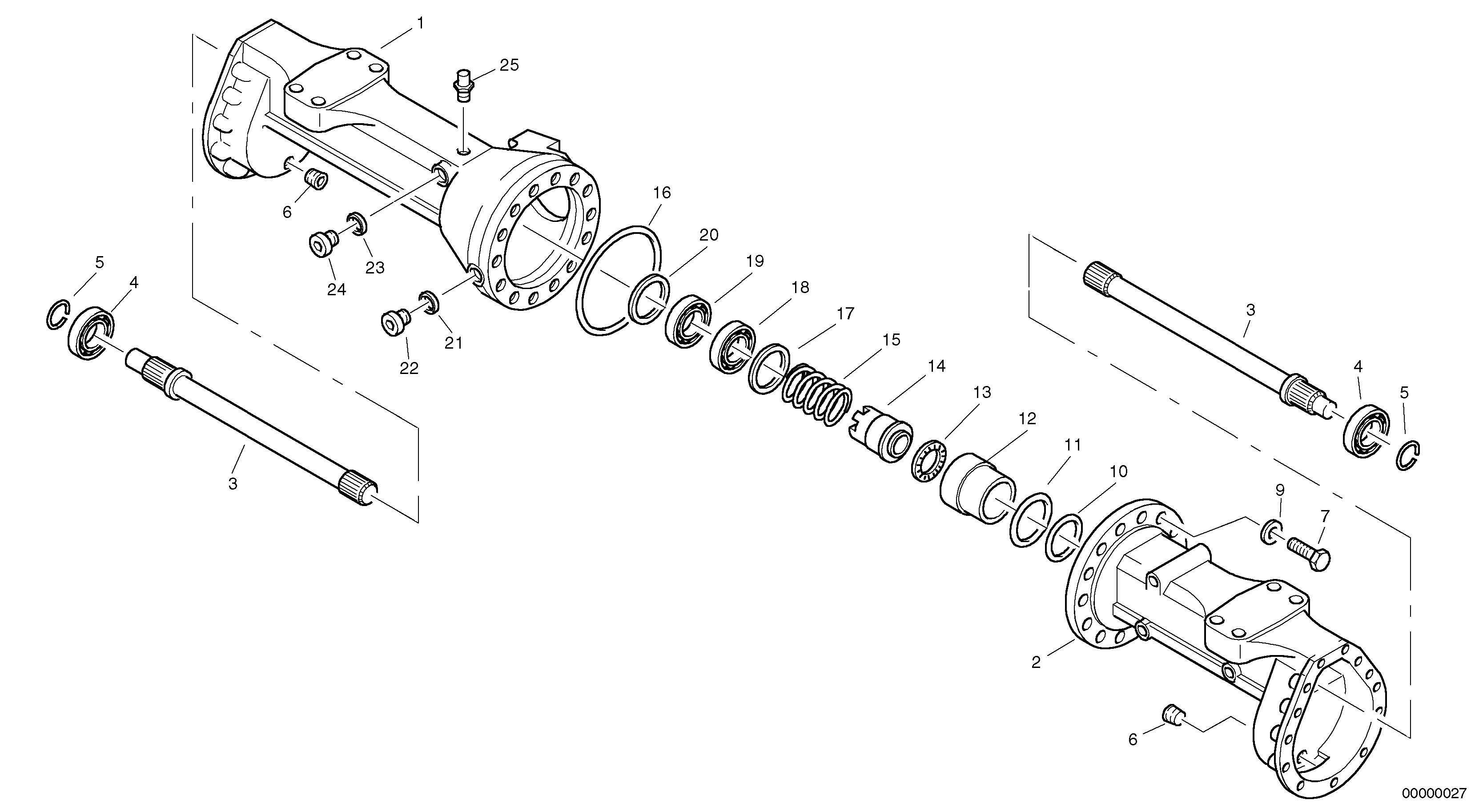

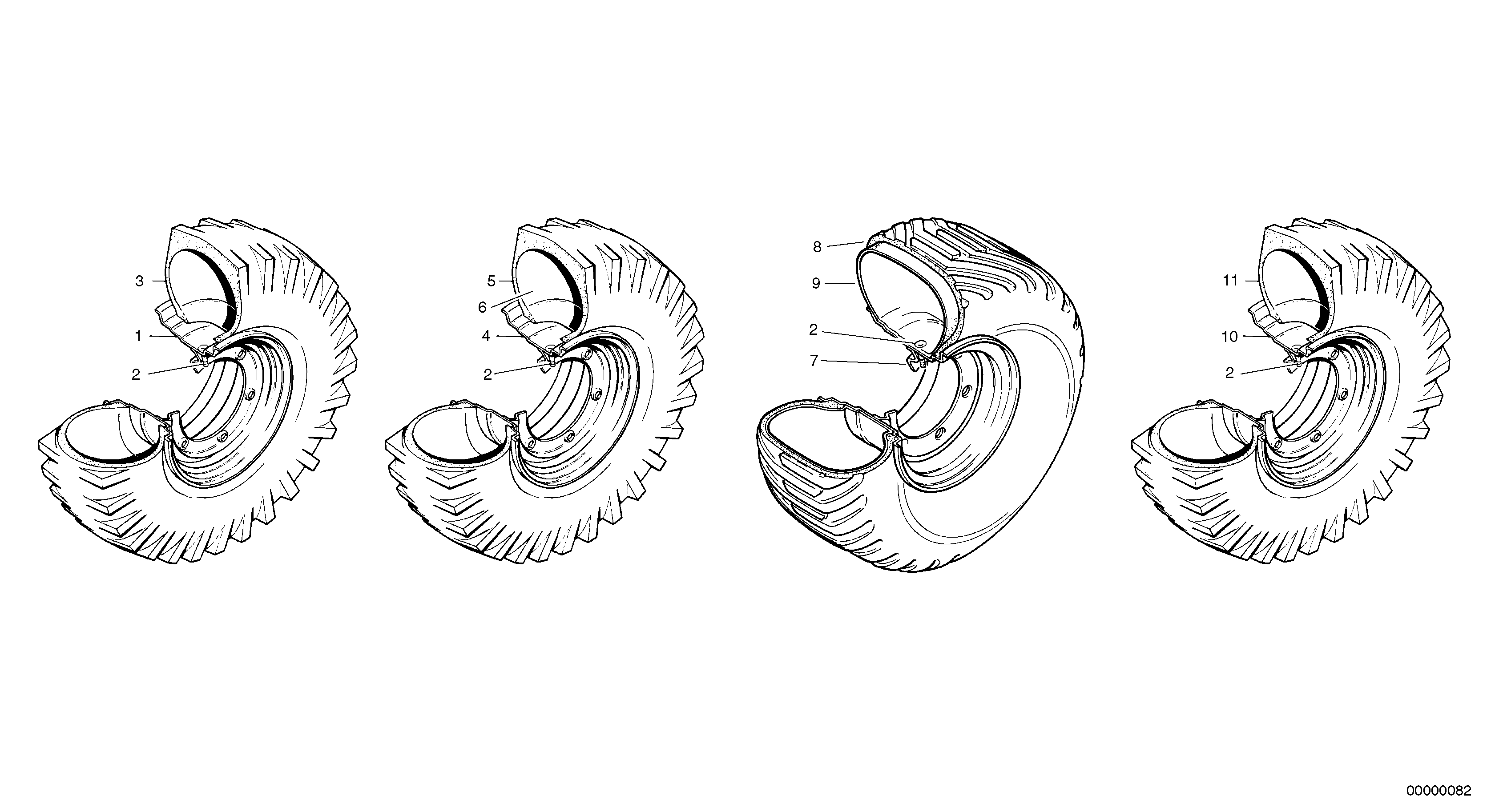

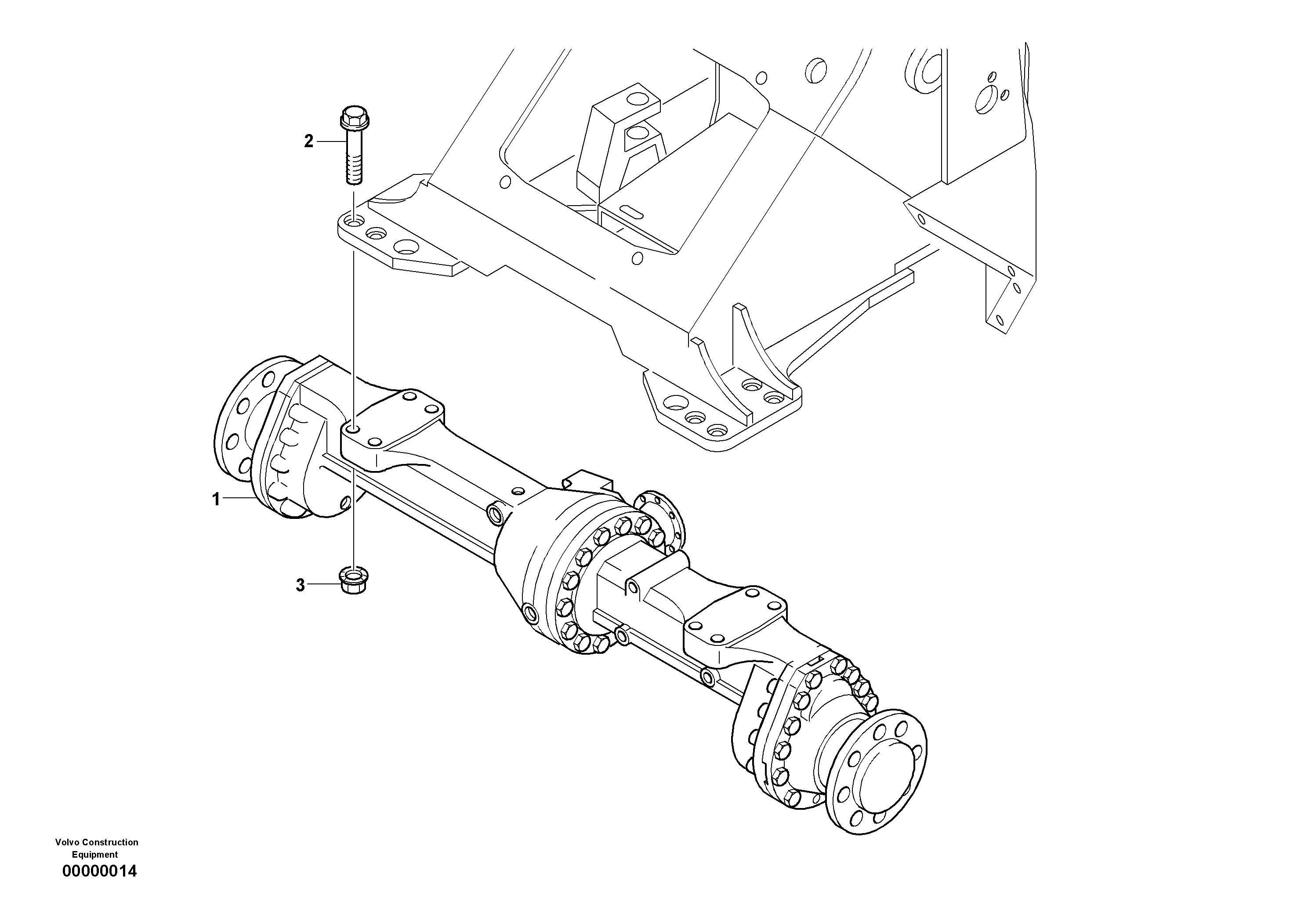

Frame, springs, damping, axle suspension, wheels/track unit

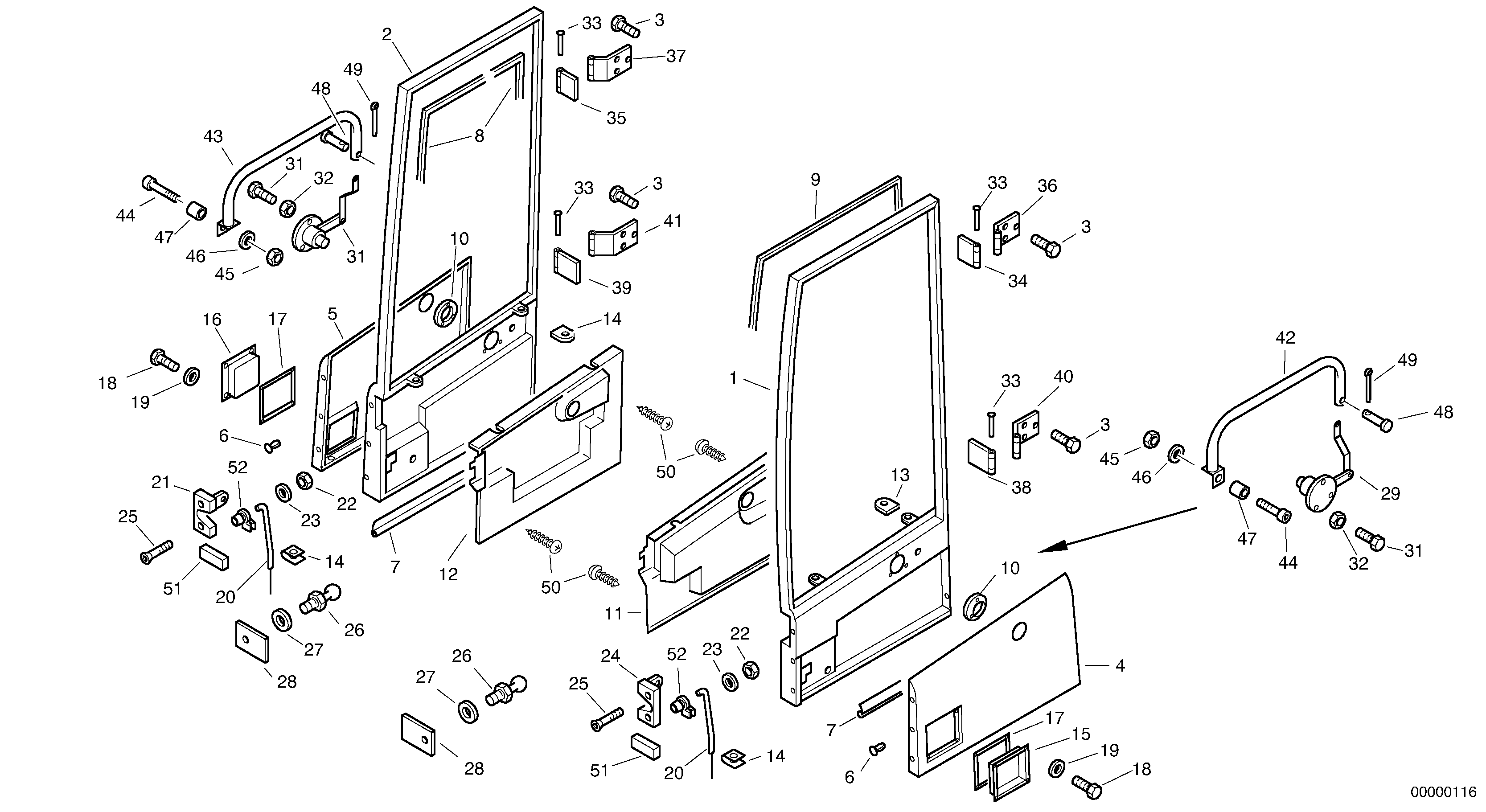

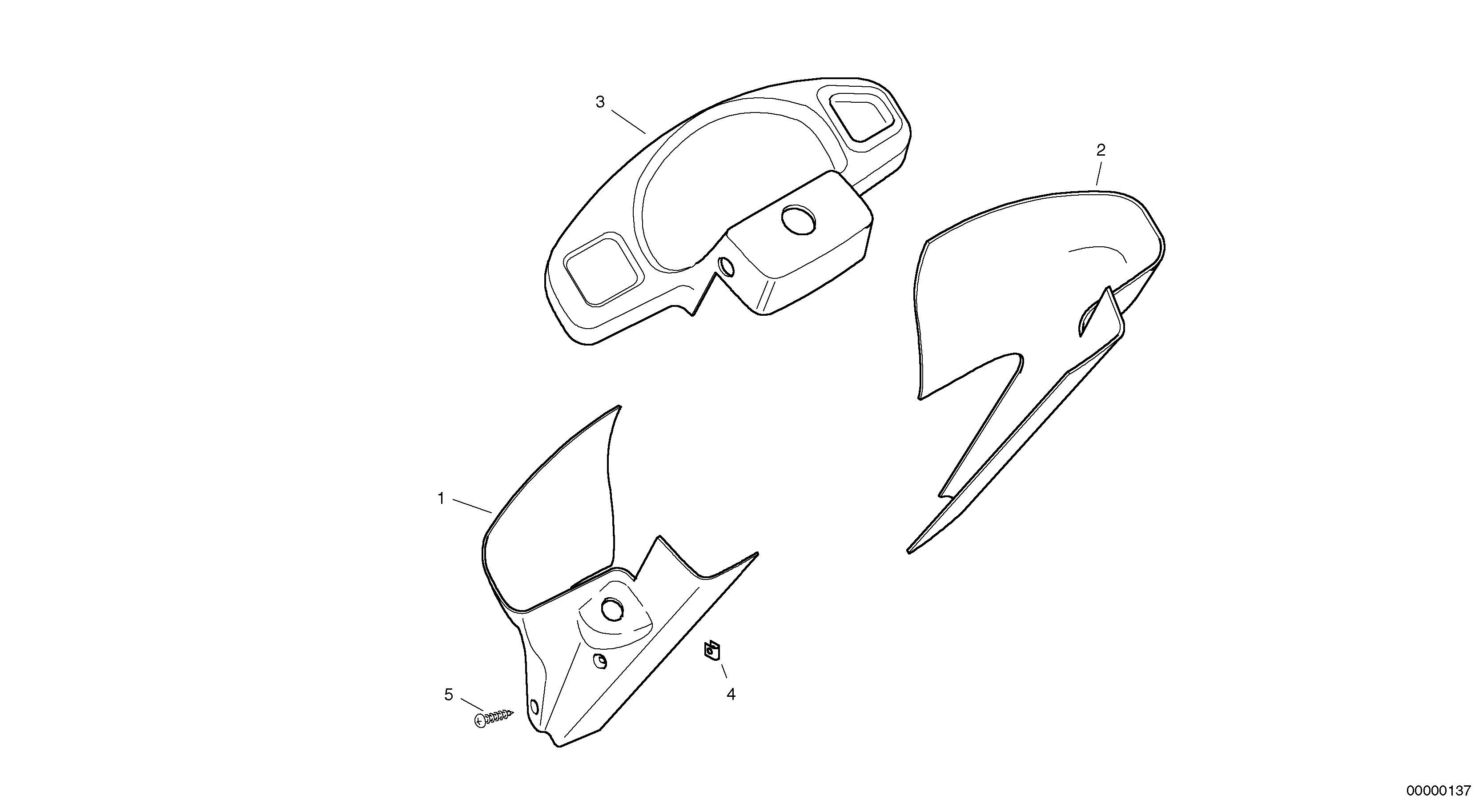

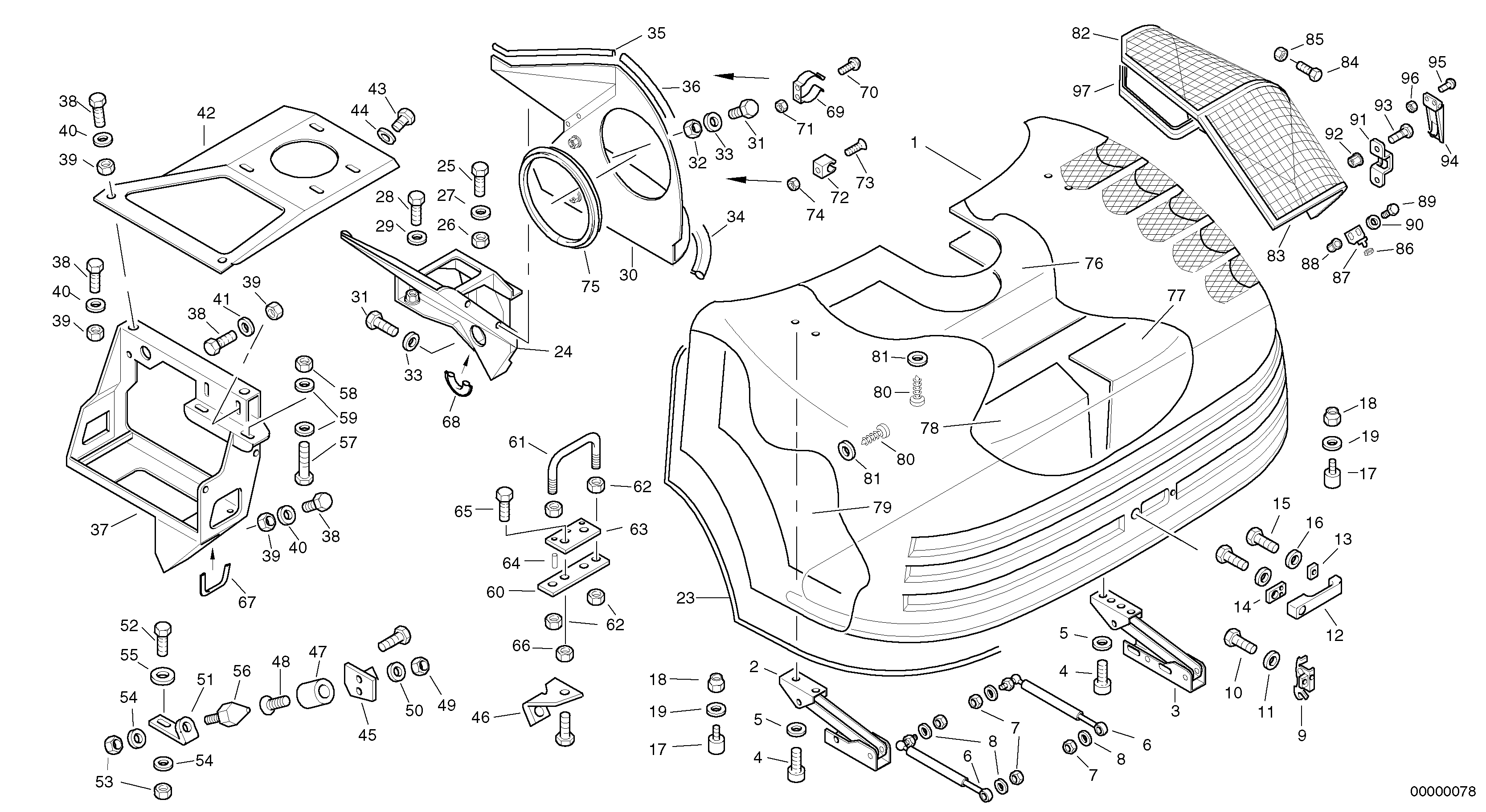

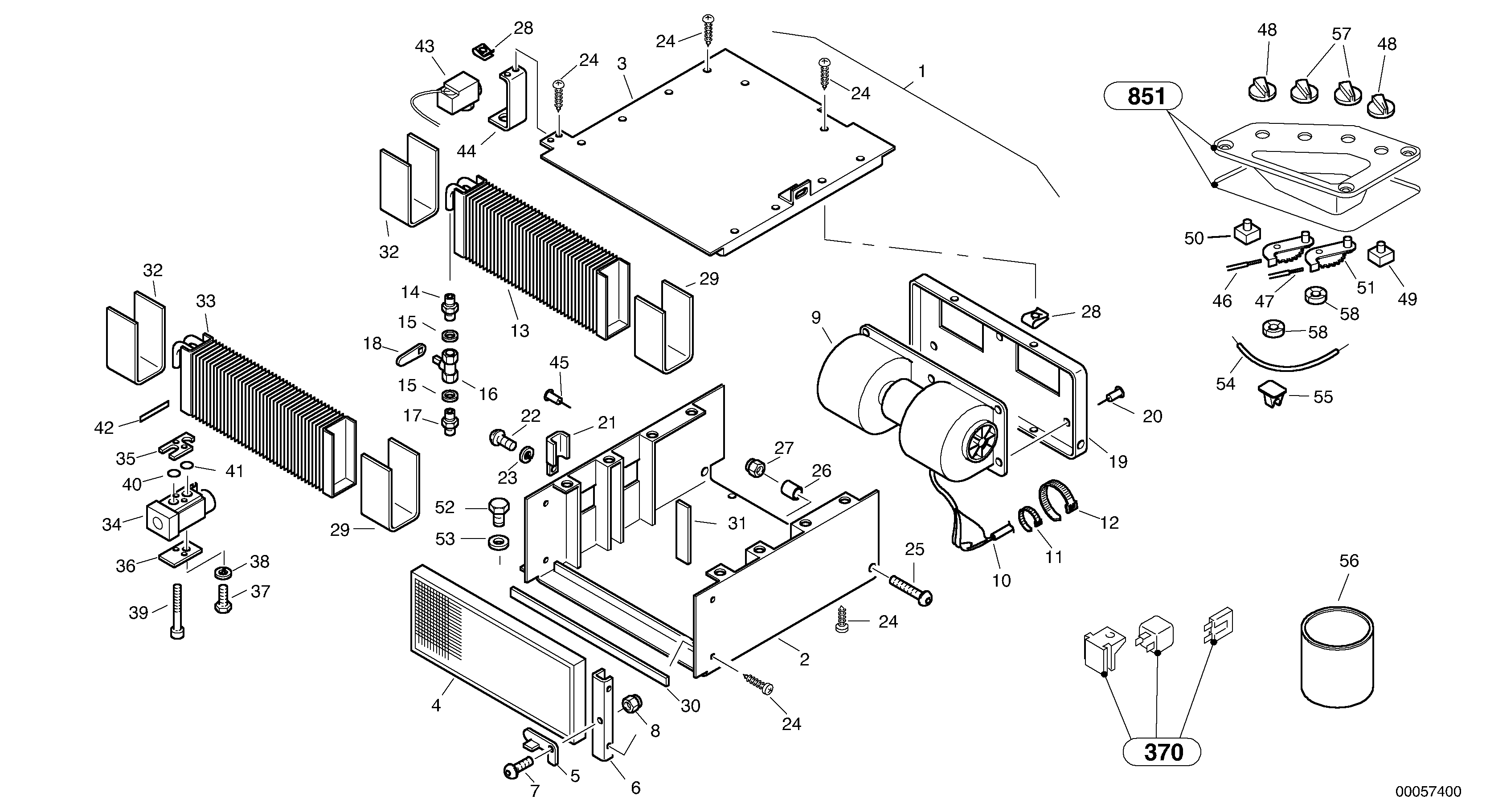

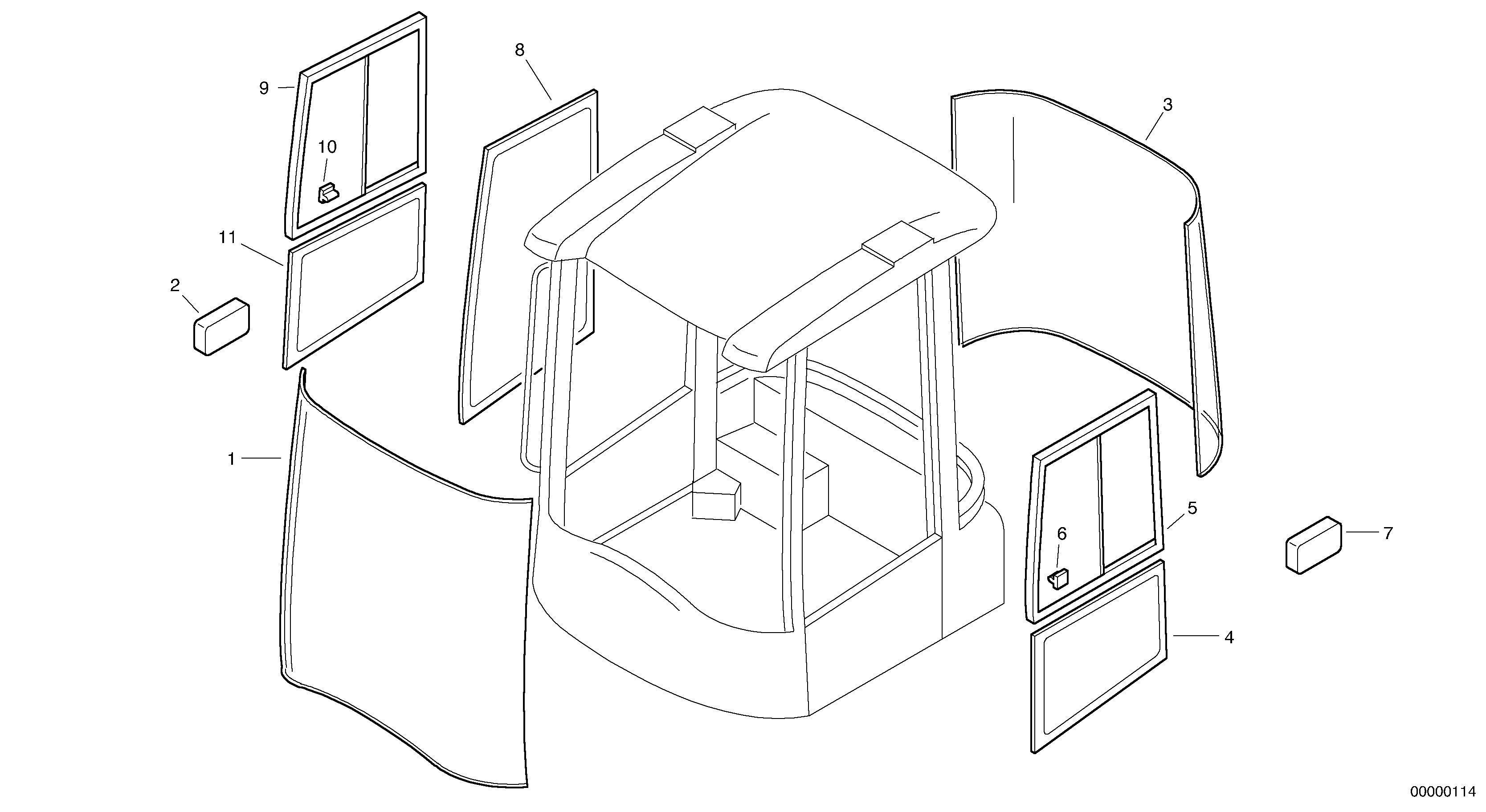

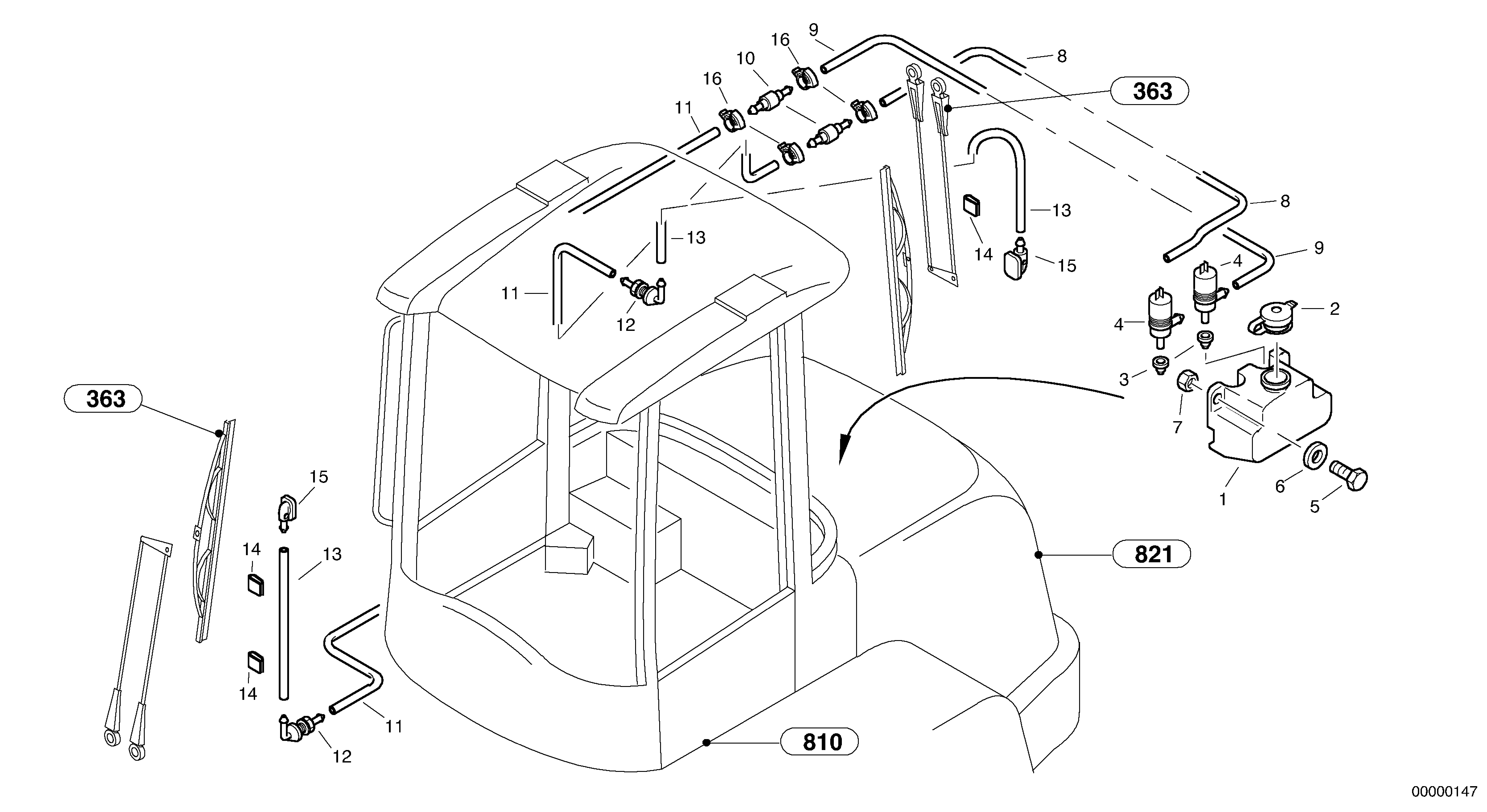

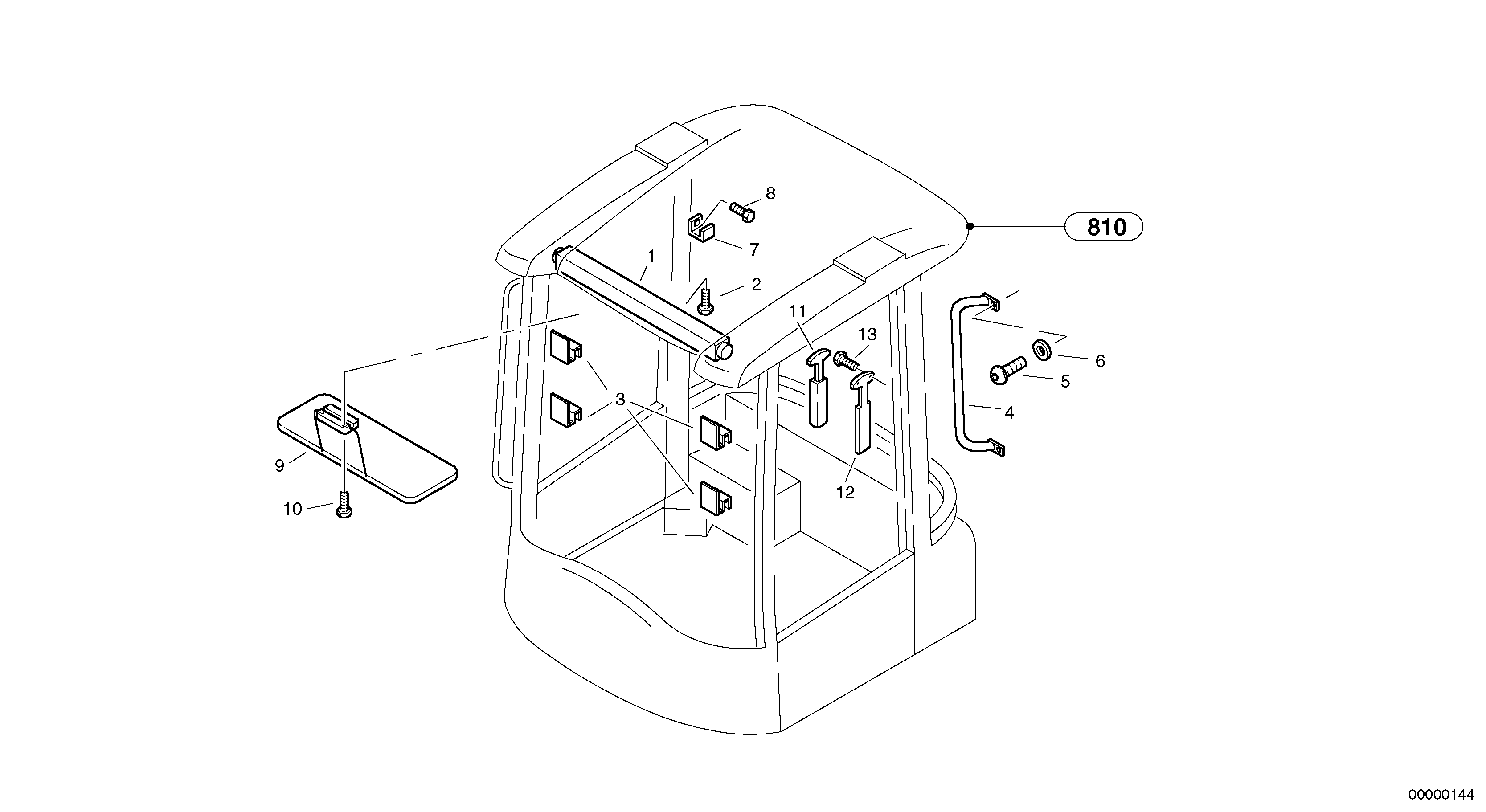

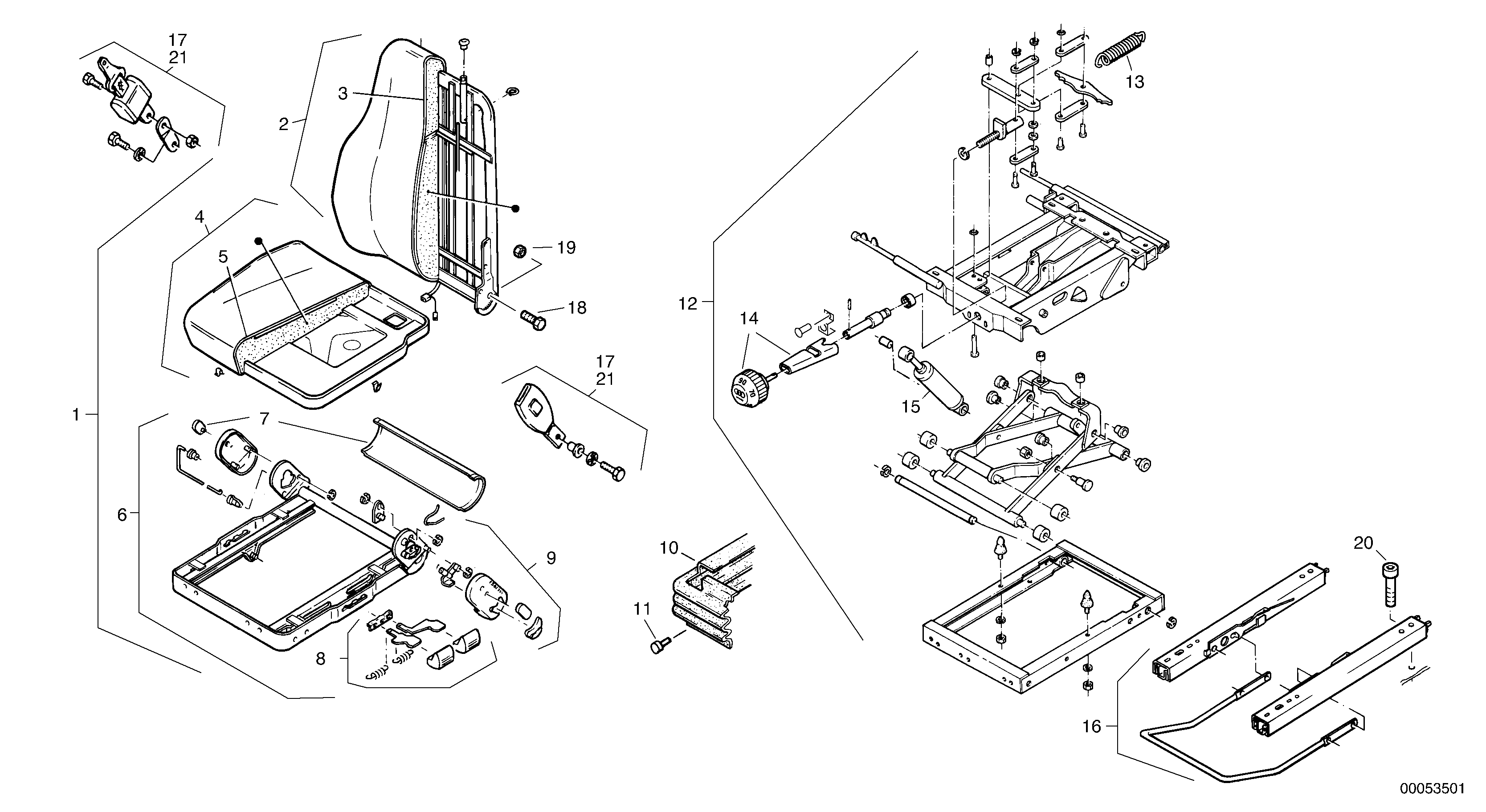

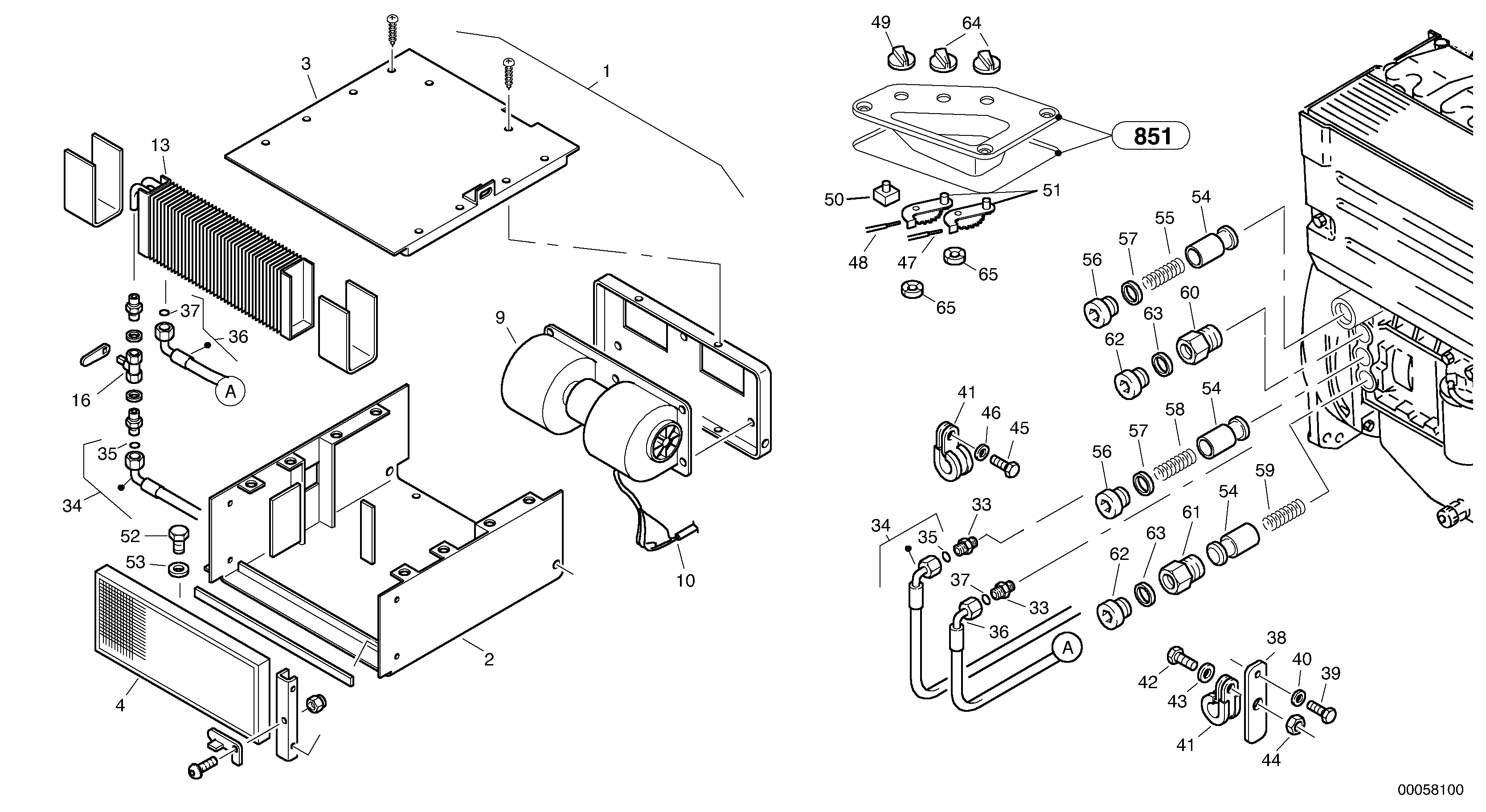

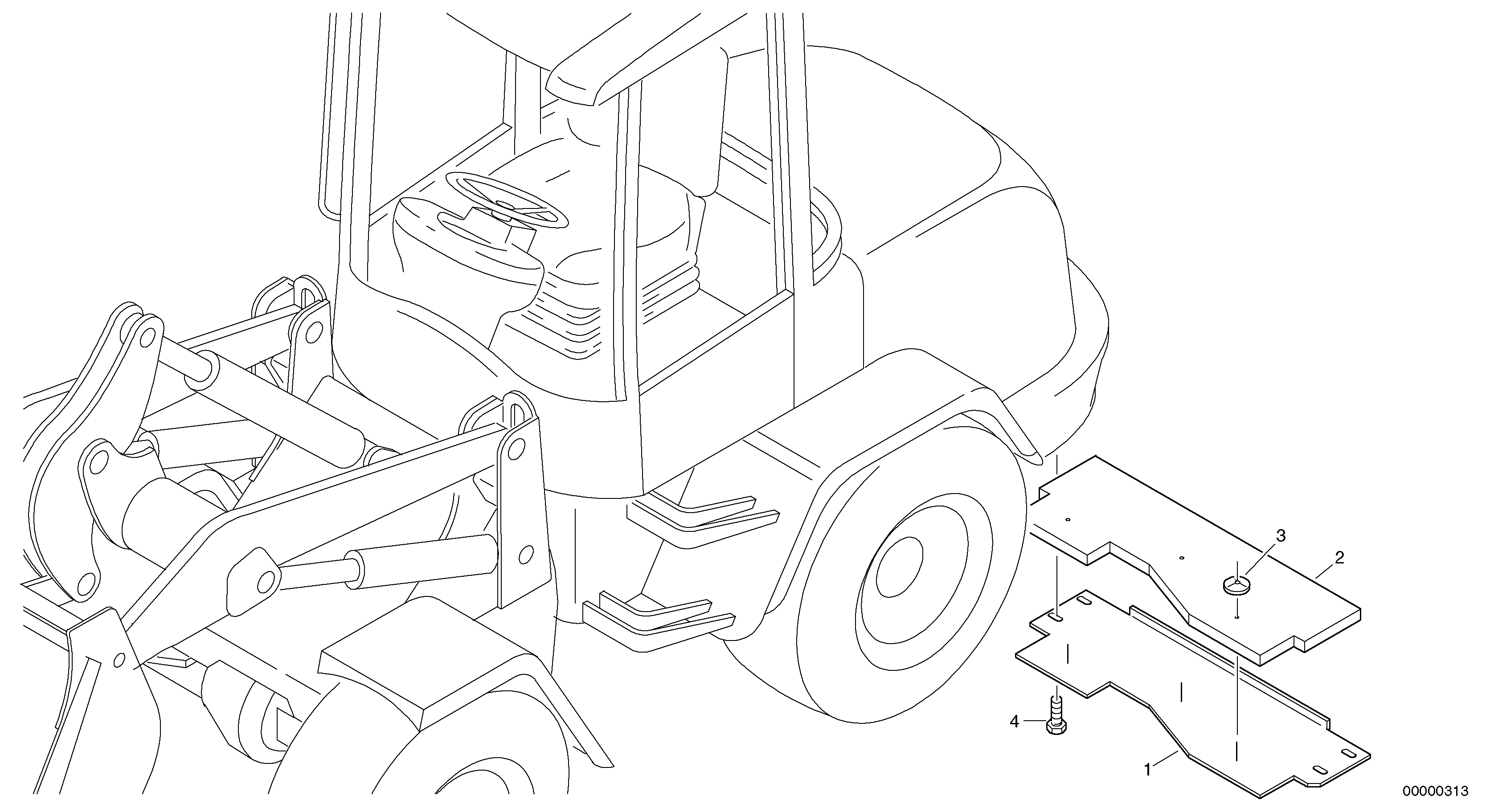

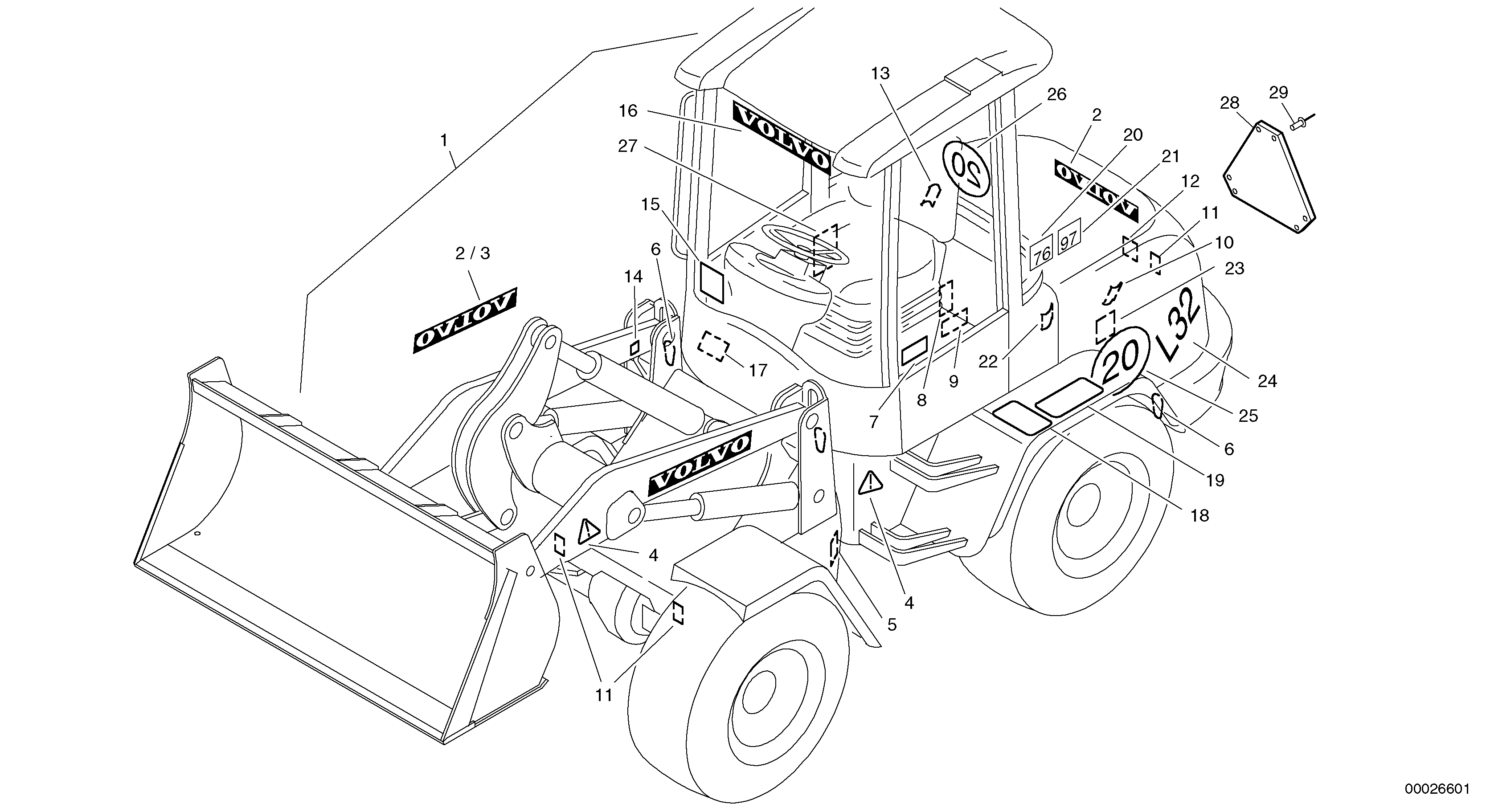

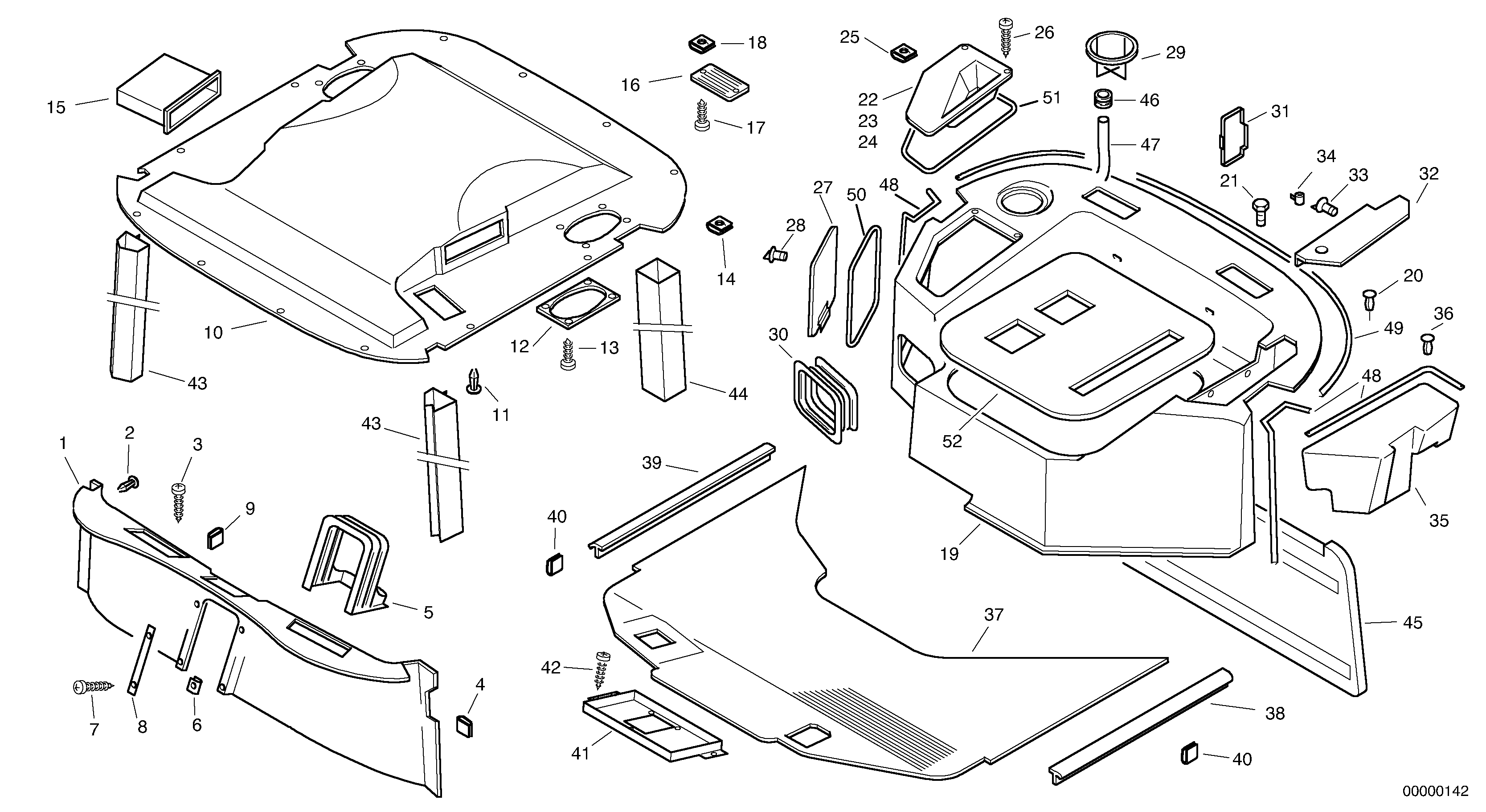

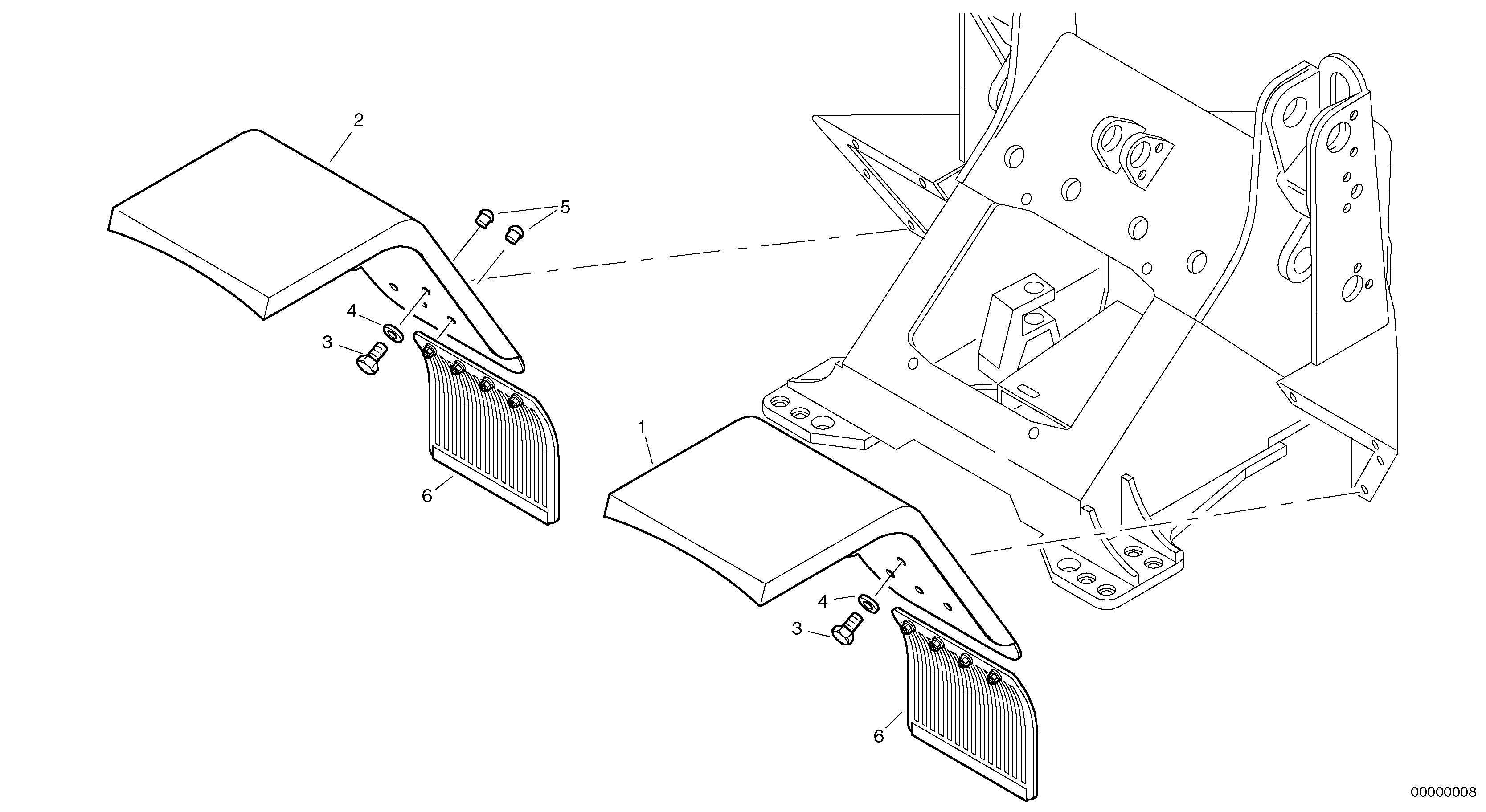

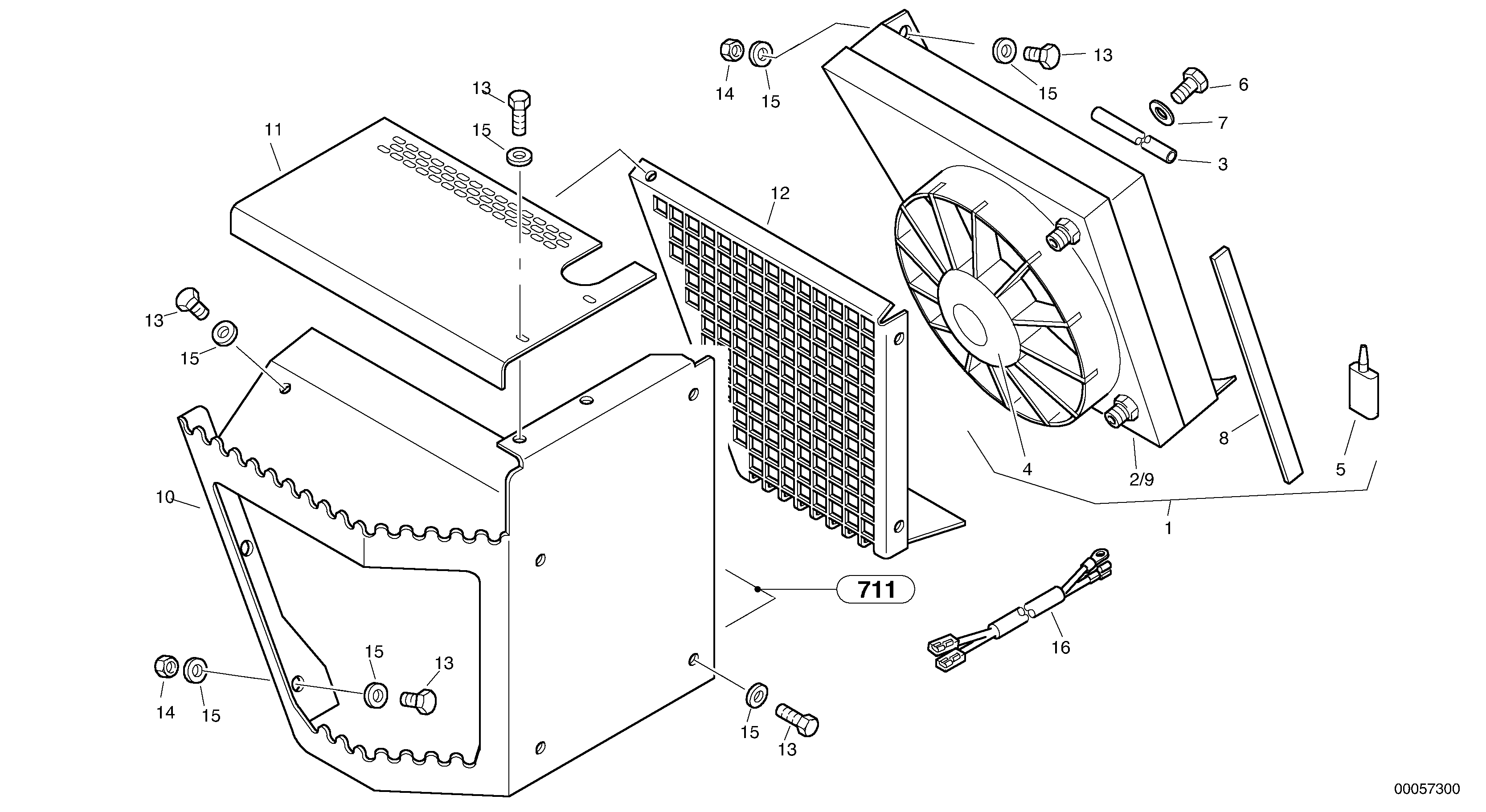

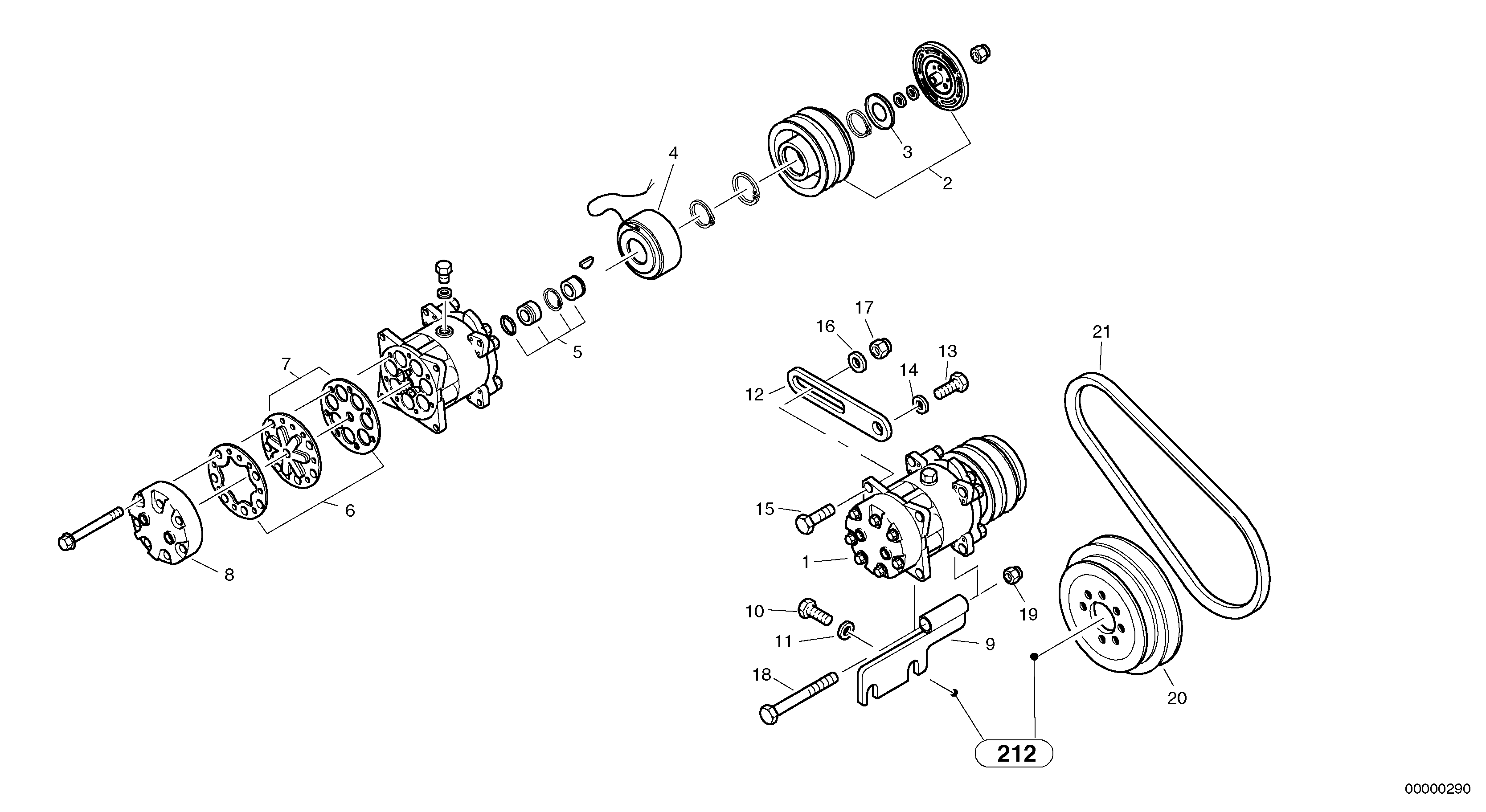

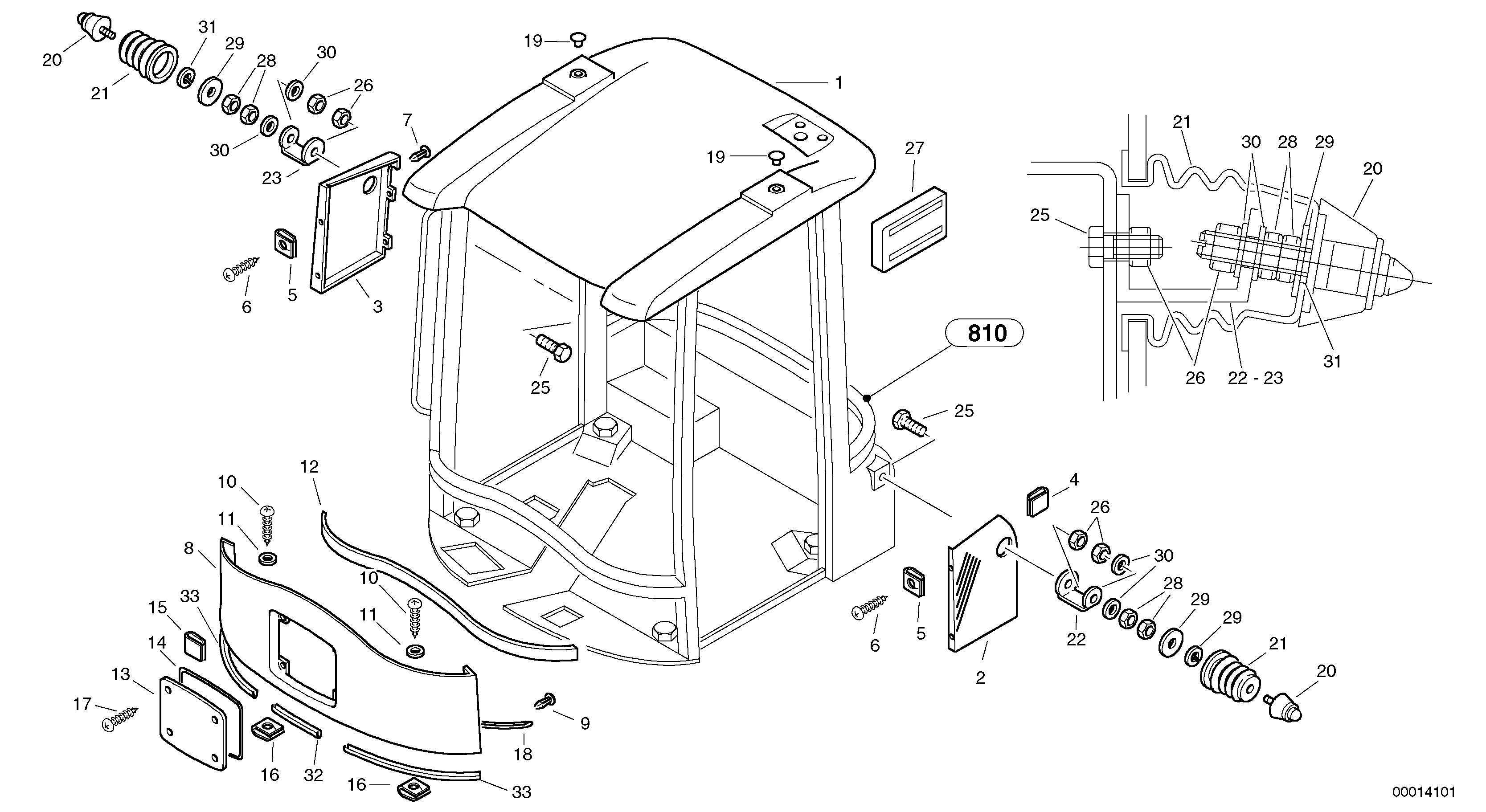

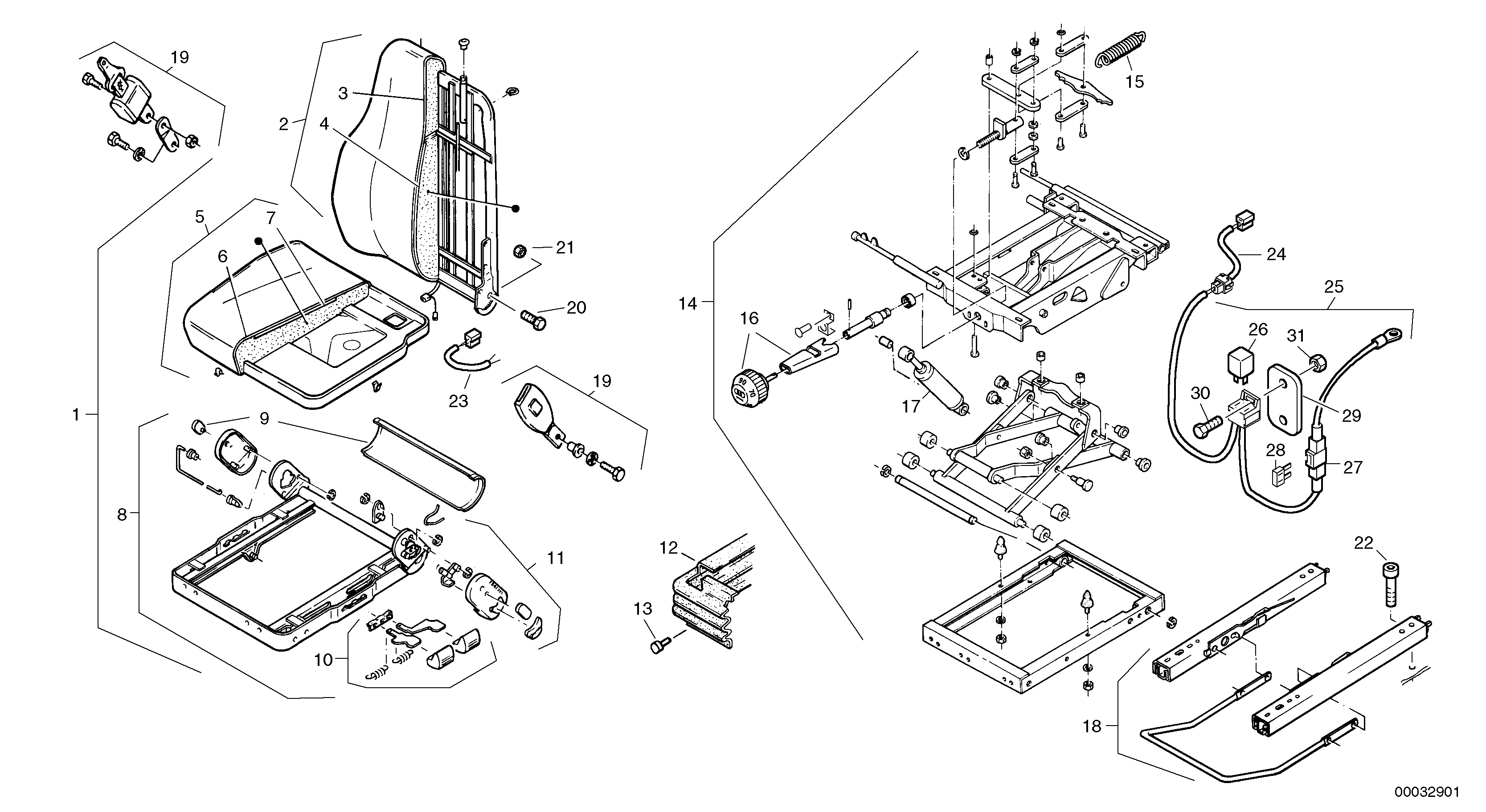

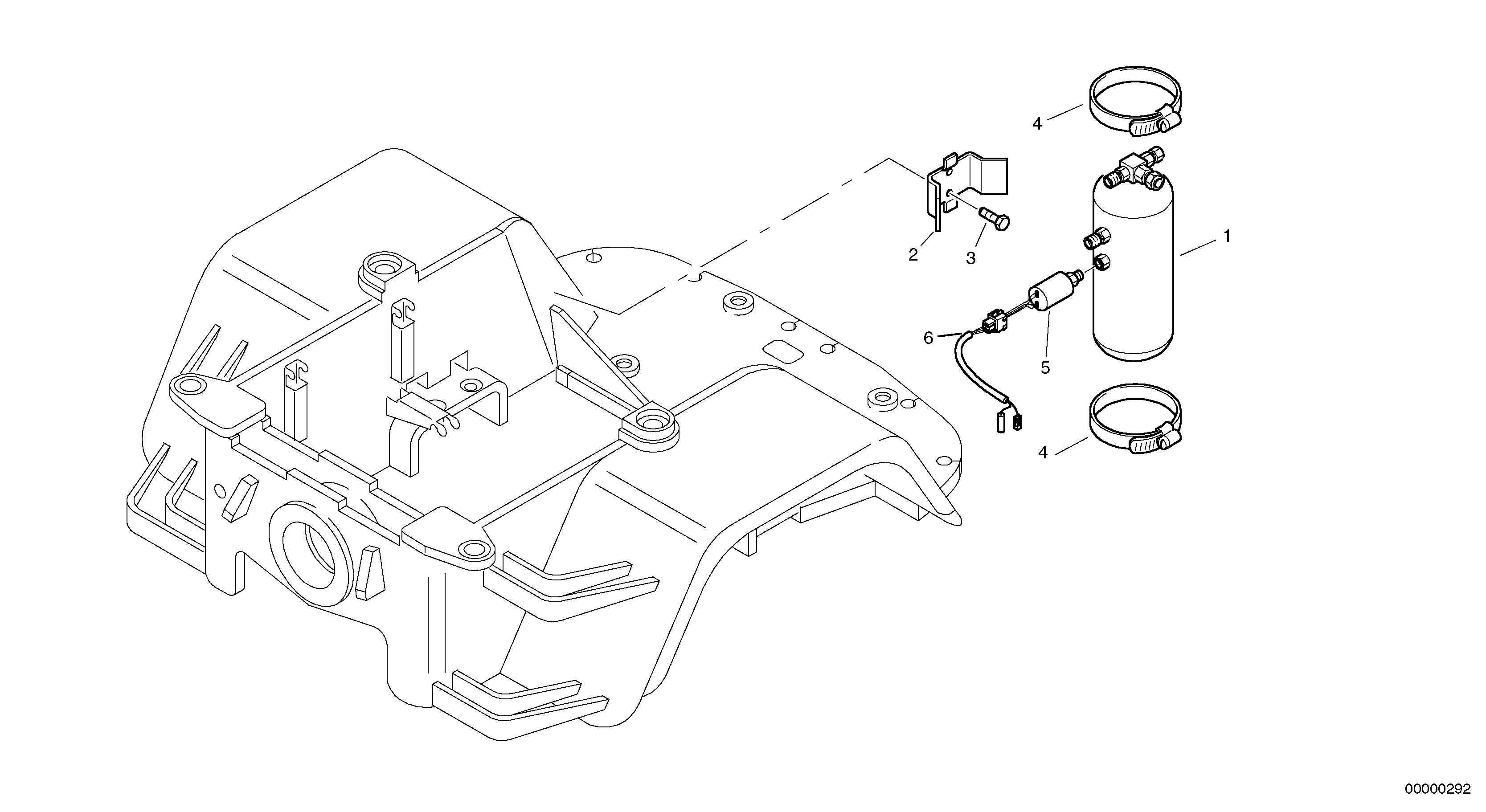

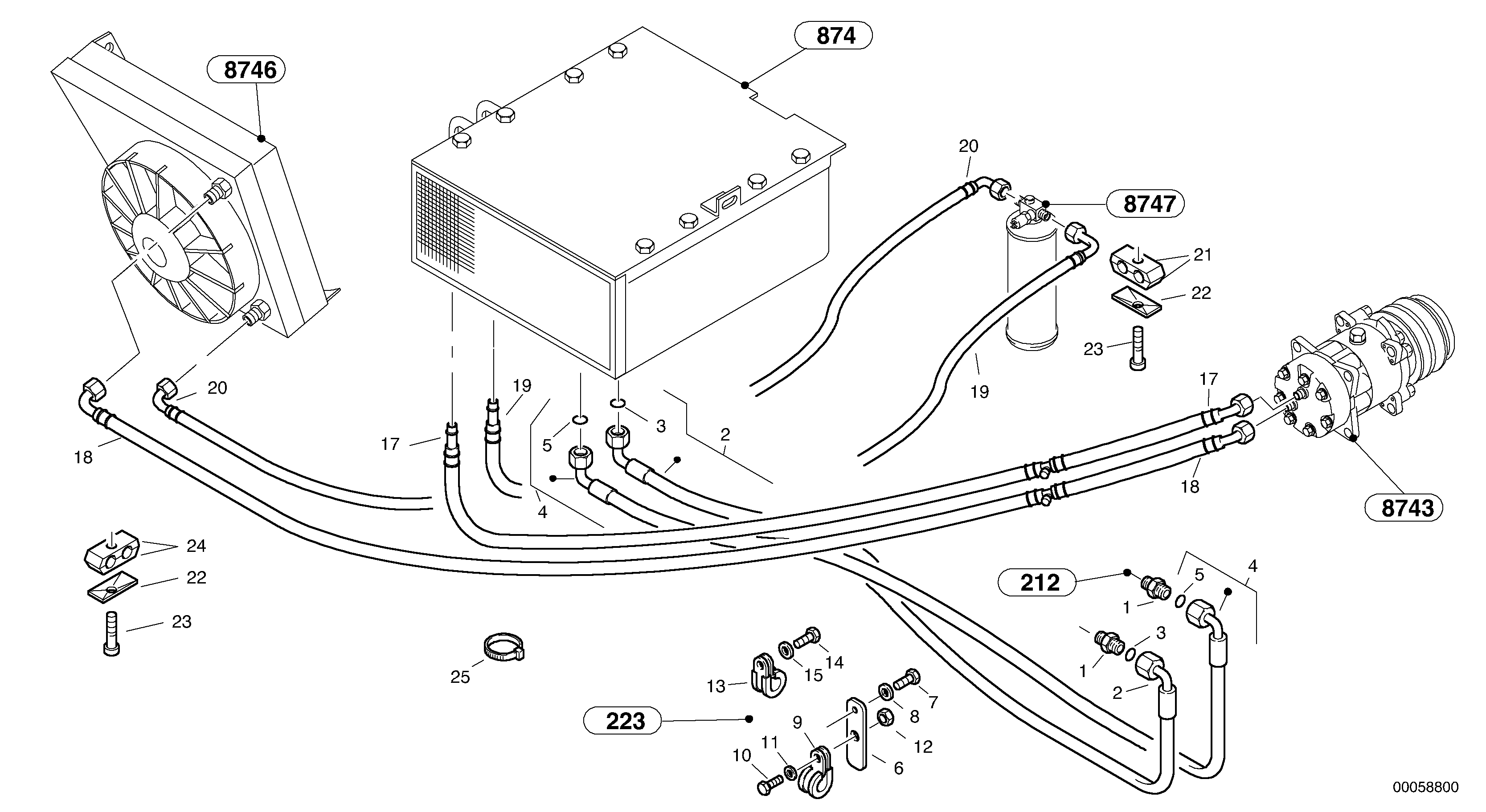

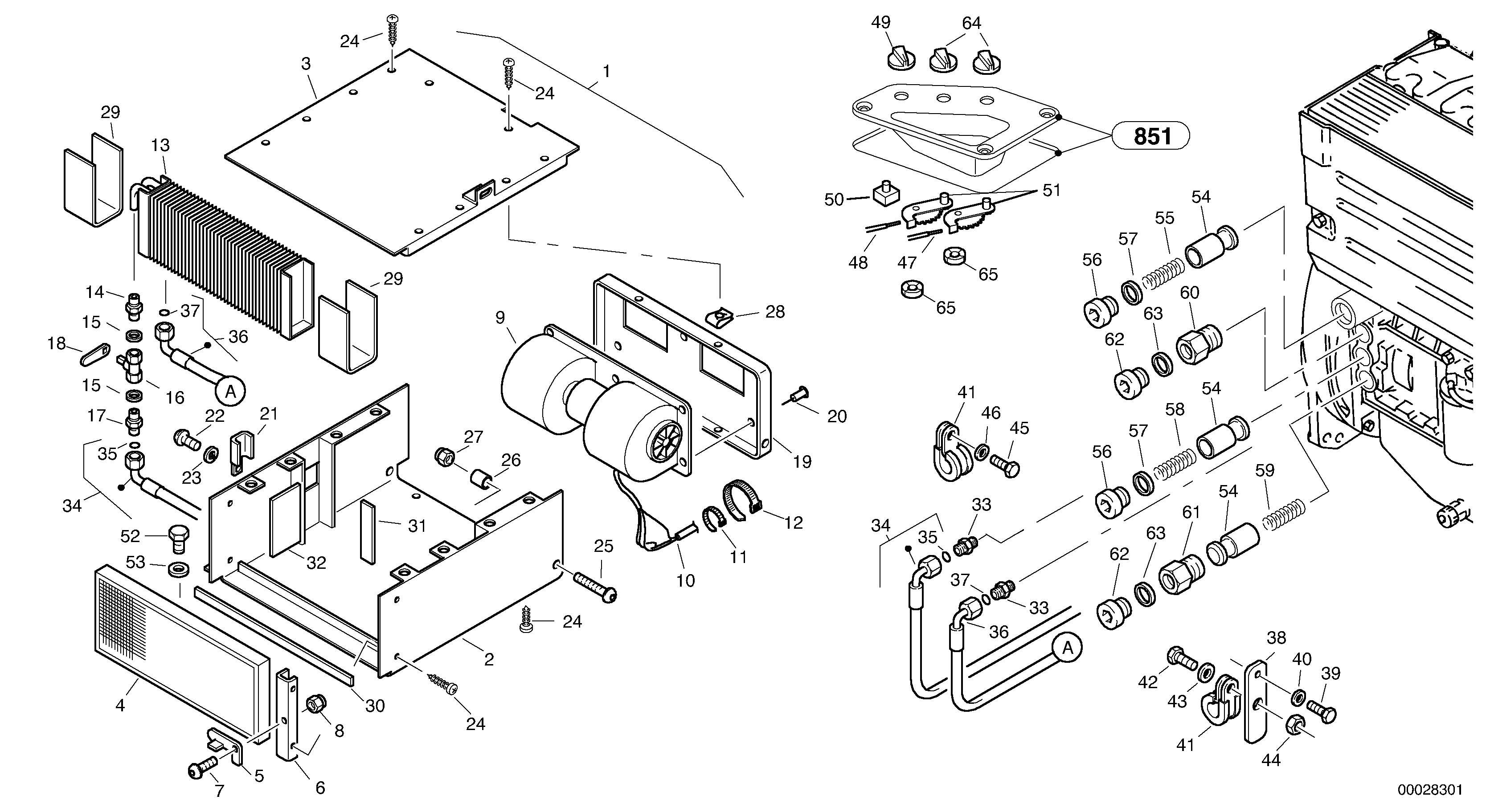

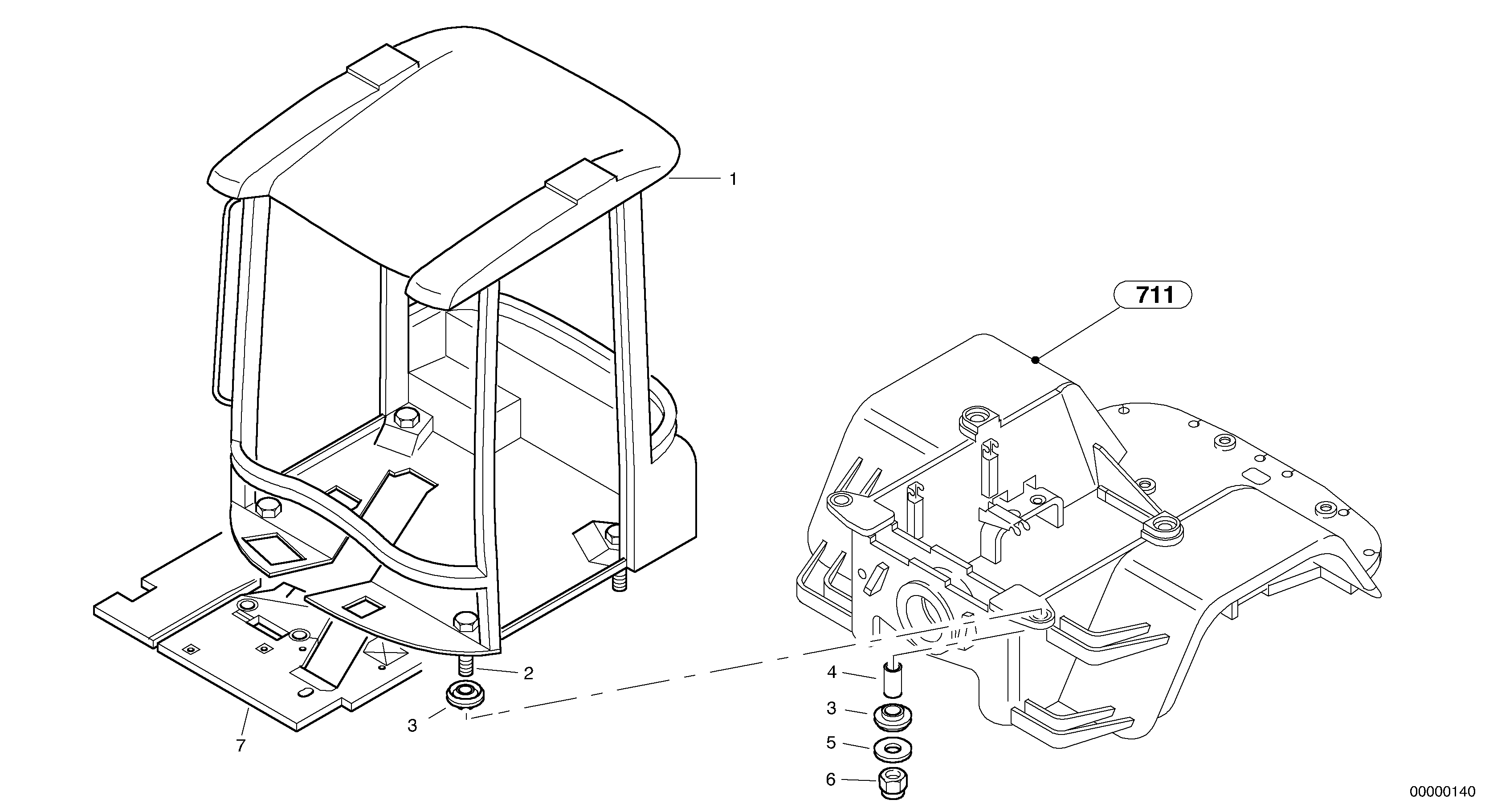

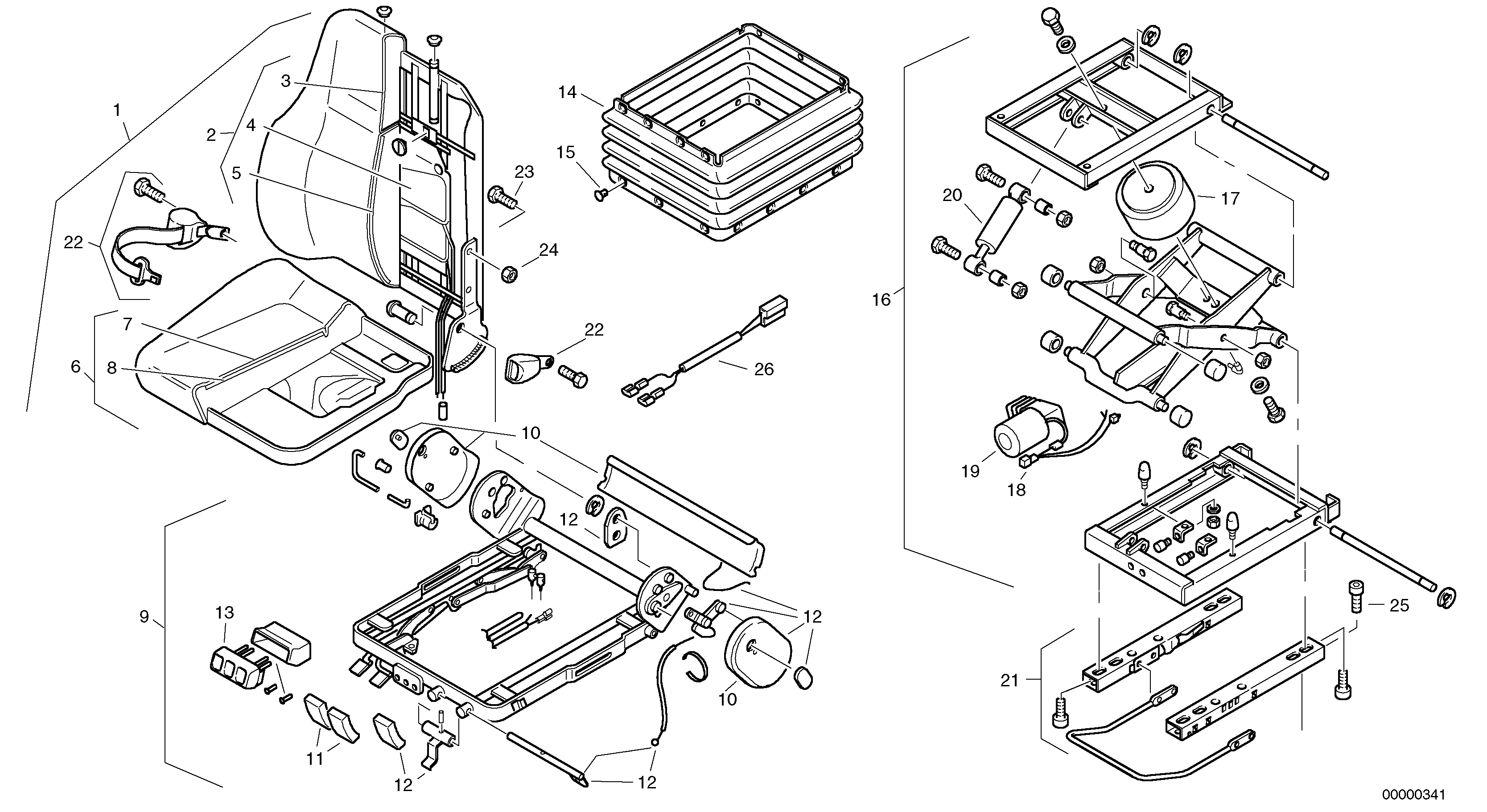

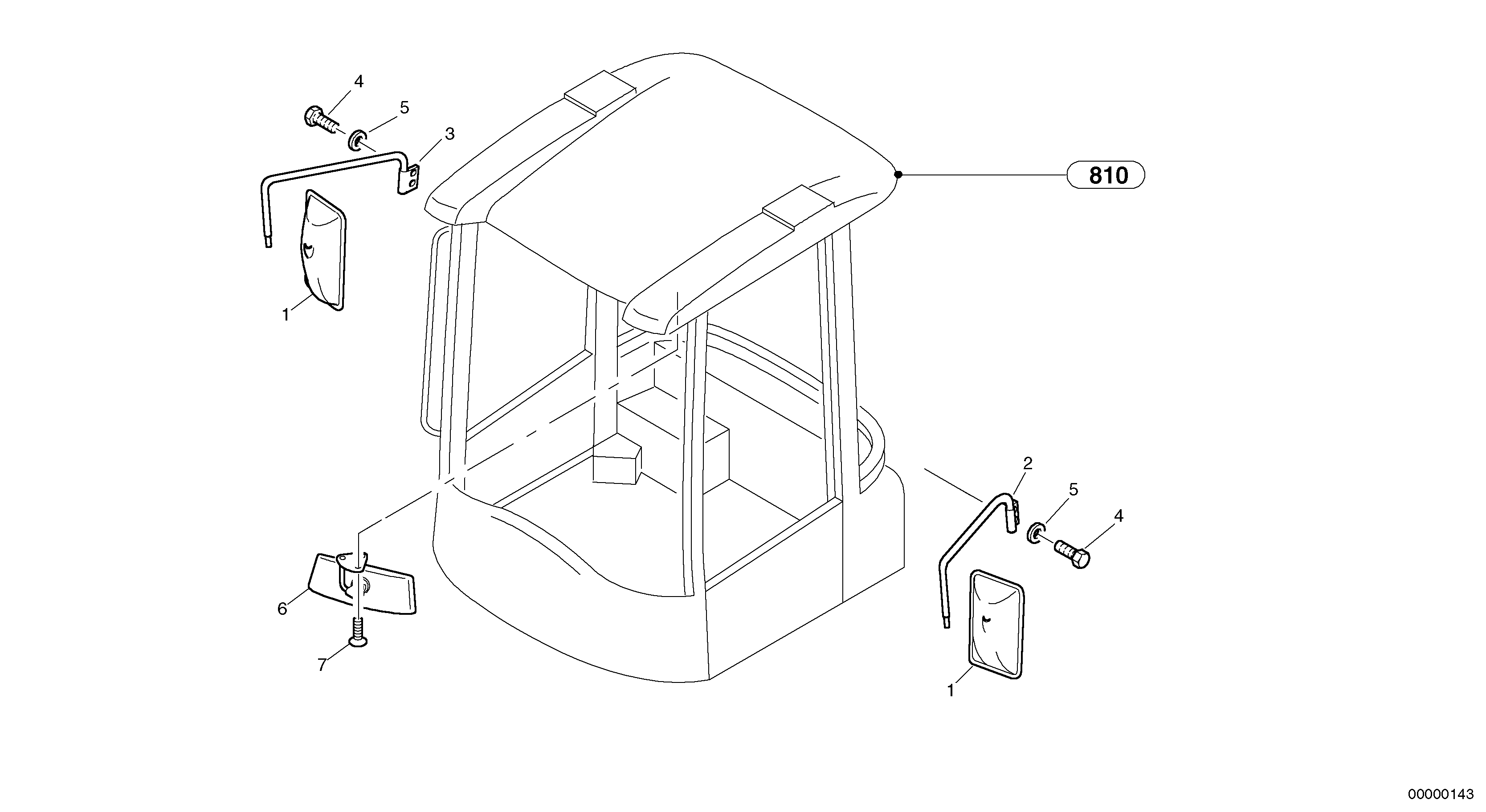

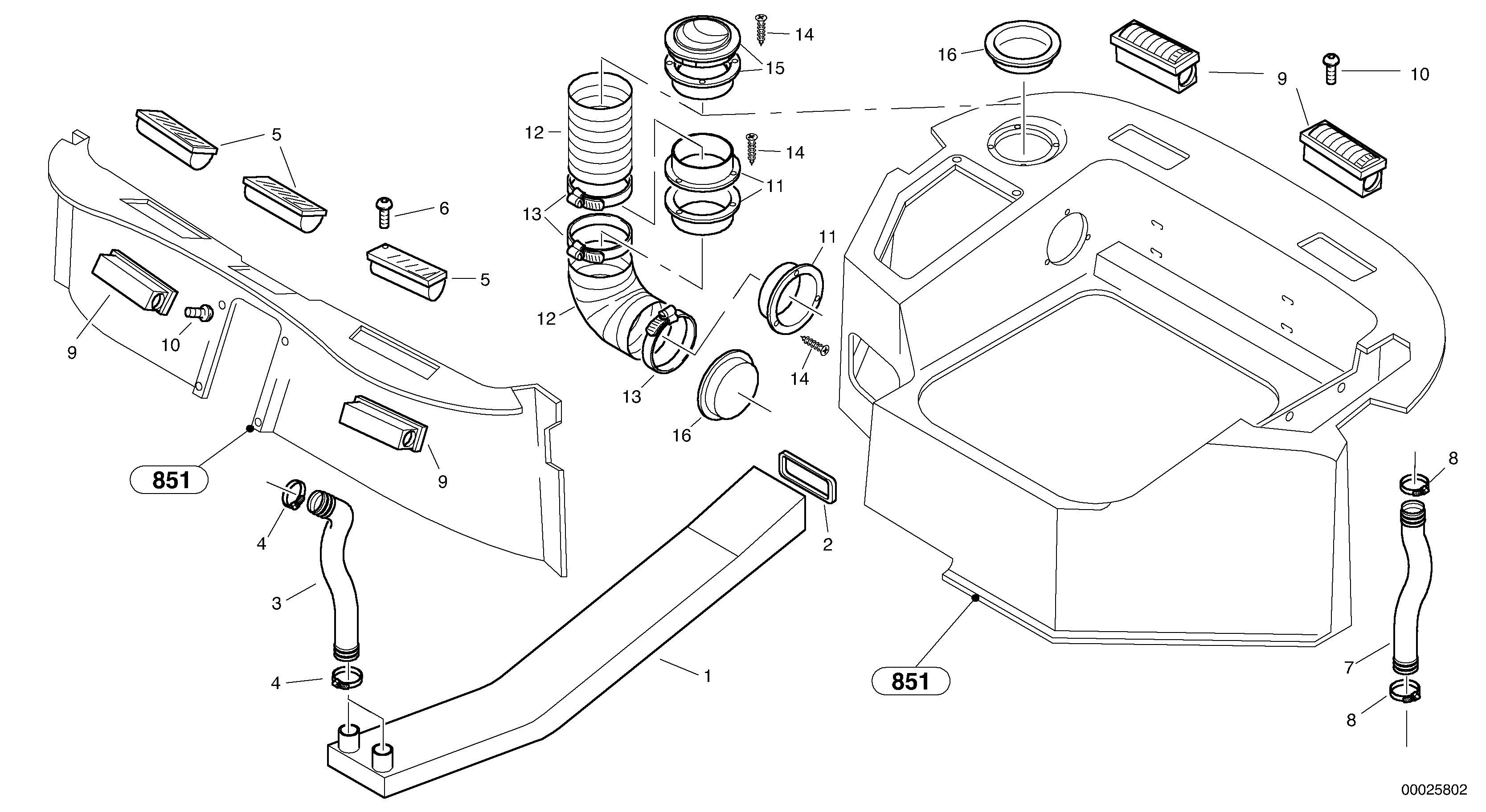

Machinery house, cab, exterior trim parts anywhere

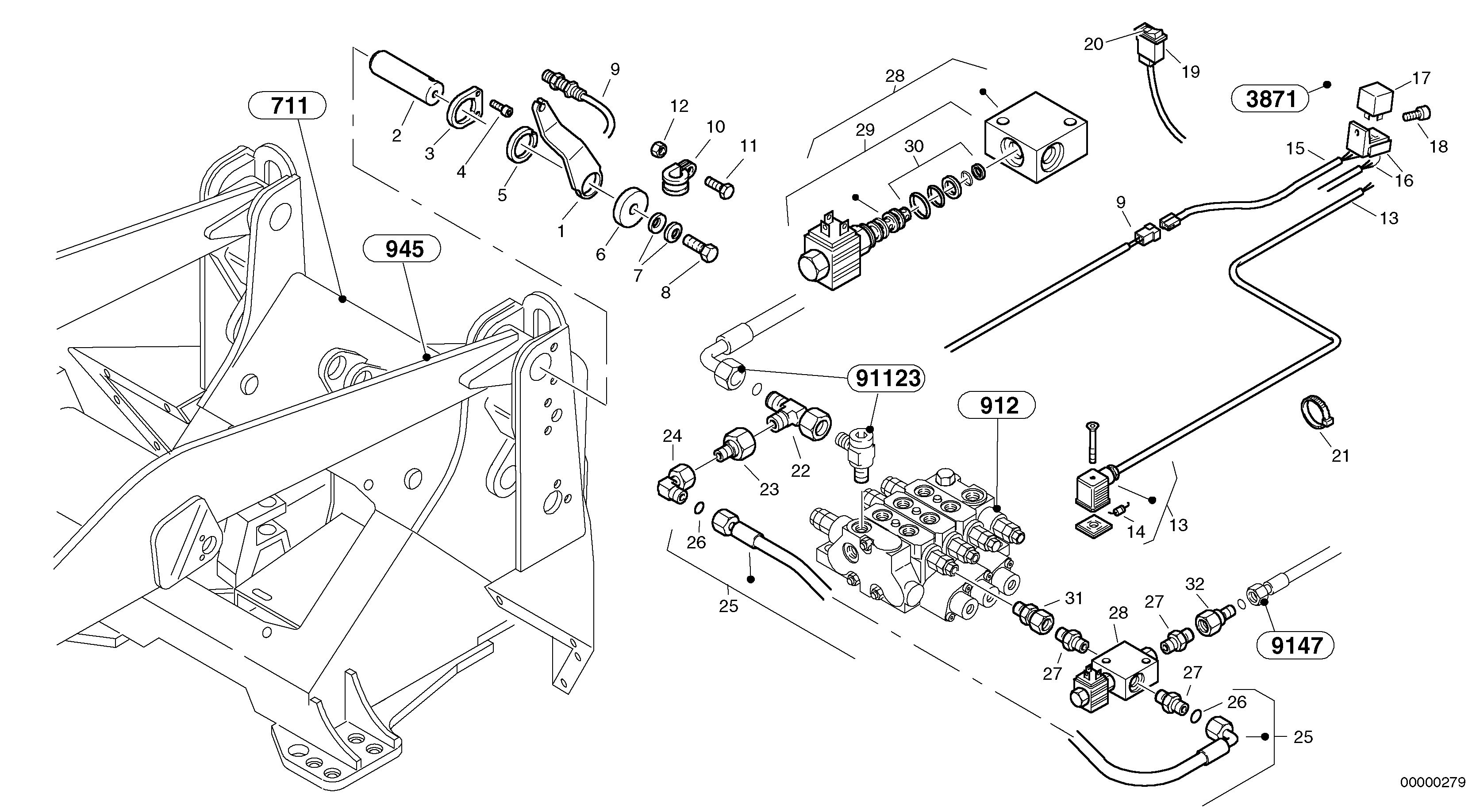

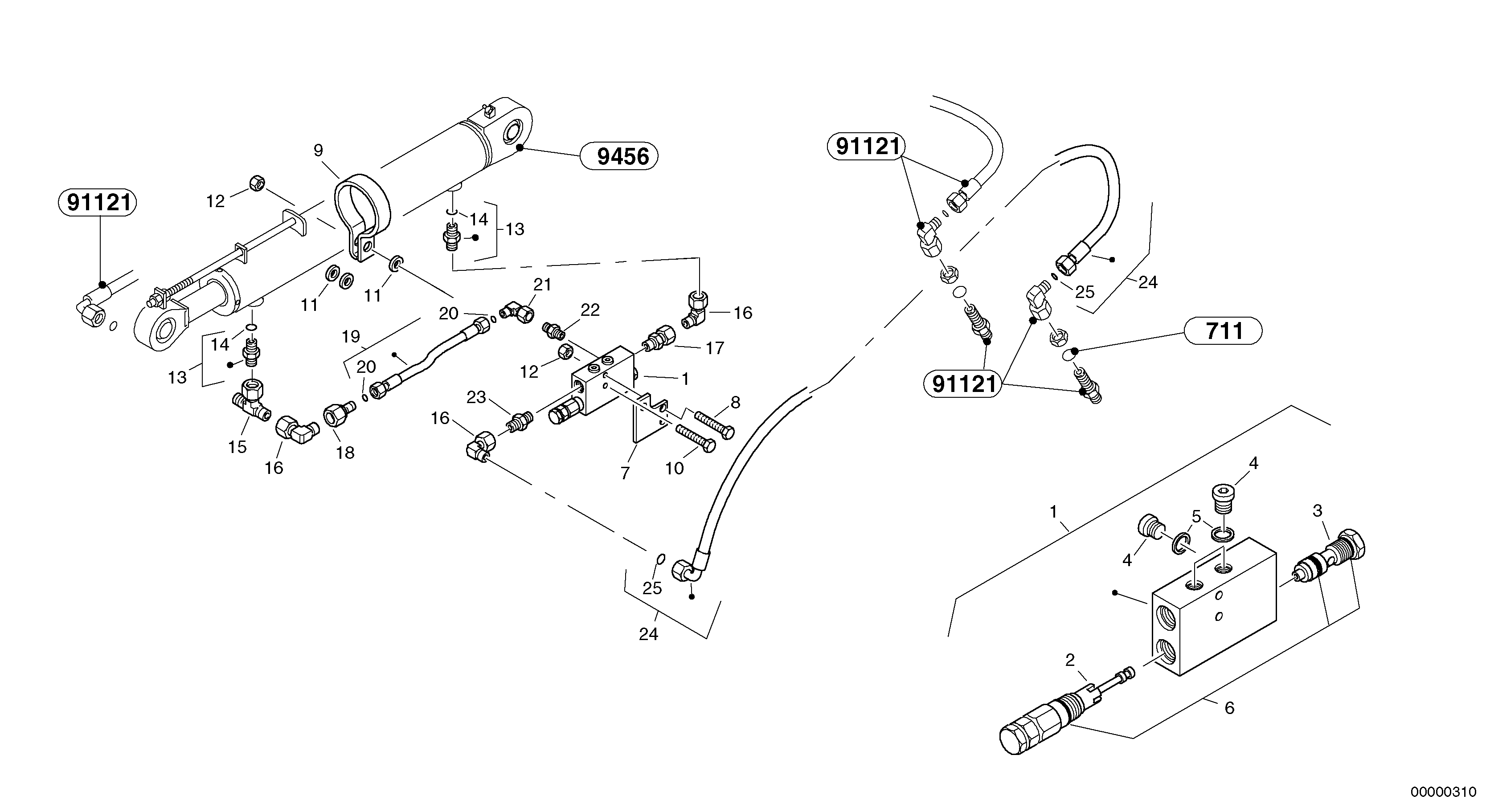

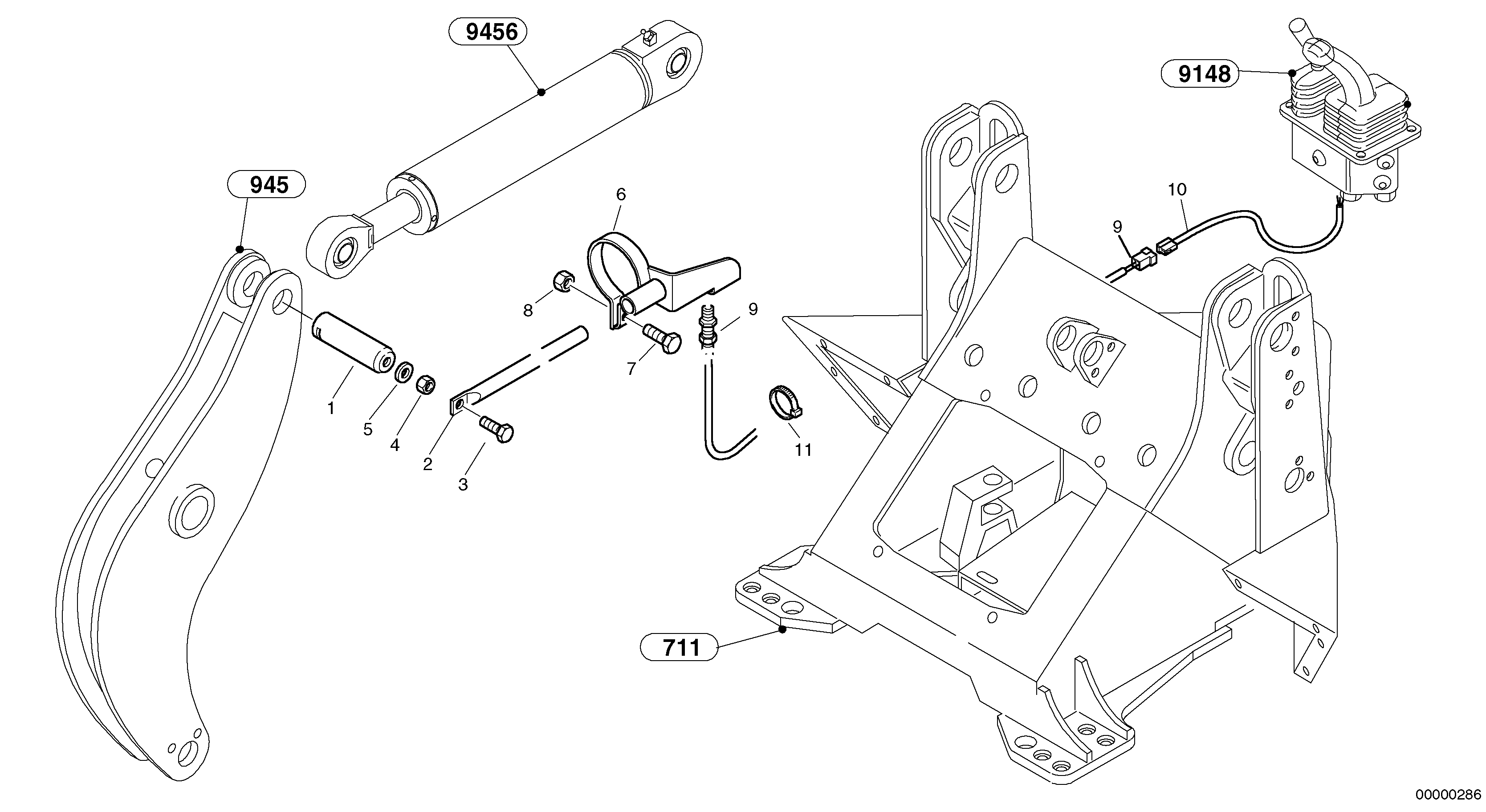

Hydraulic system, digging/handling/grading equipm., misc. Equip.

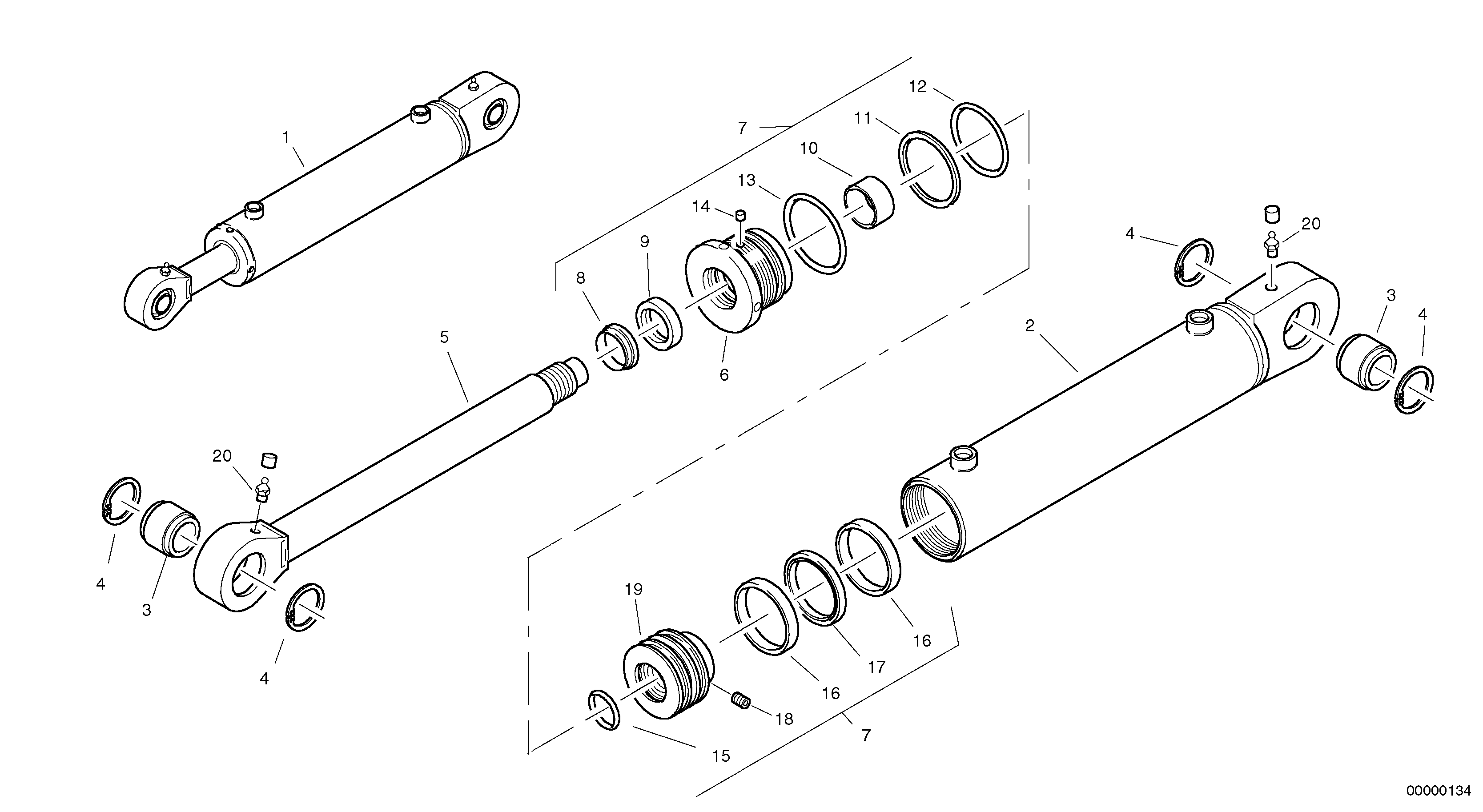

Working hydraulics, Servo hydraulics

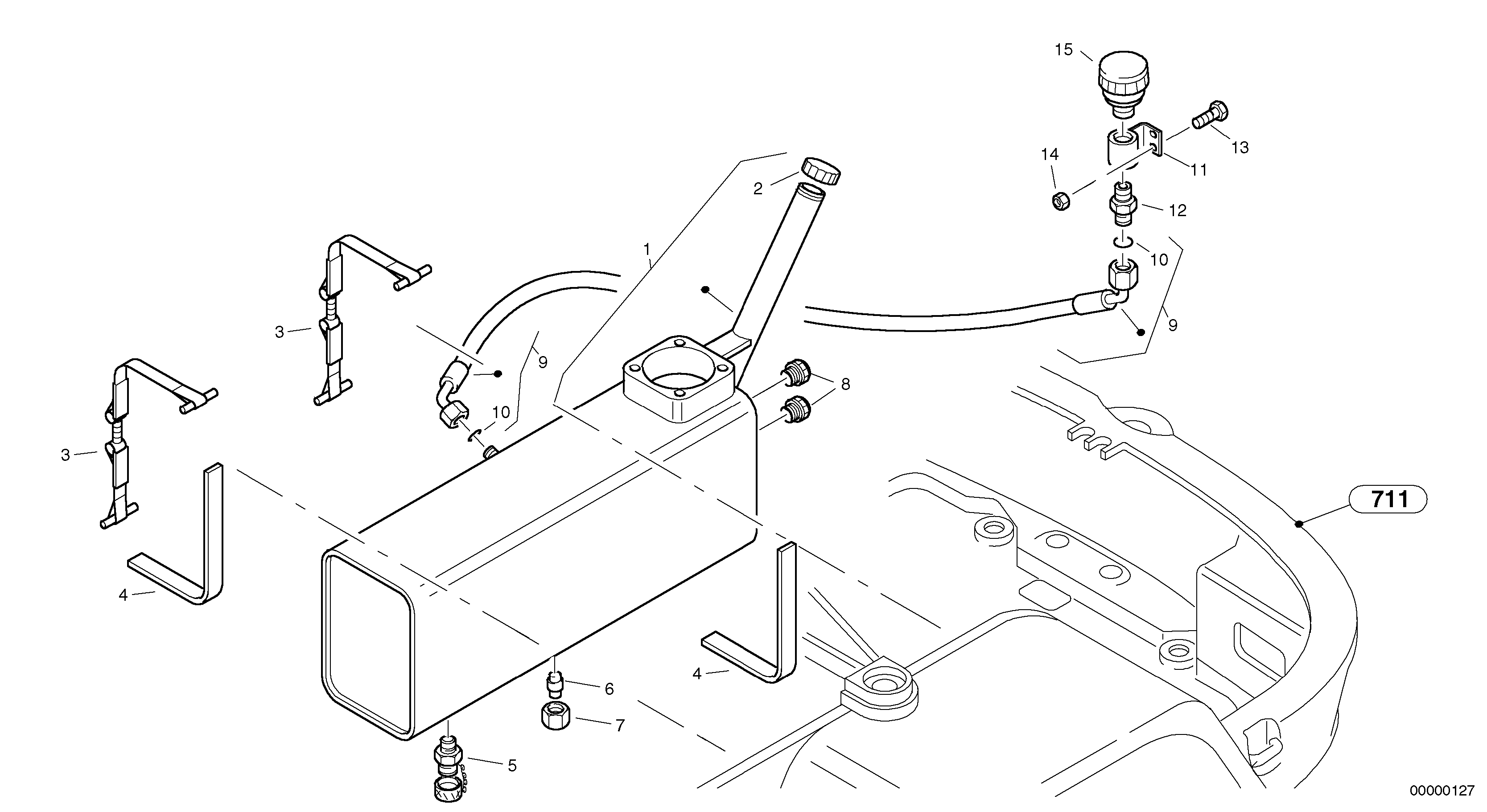

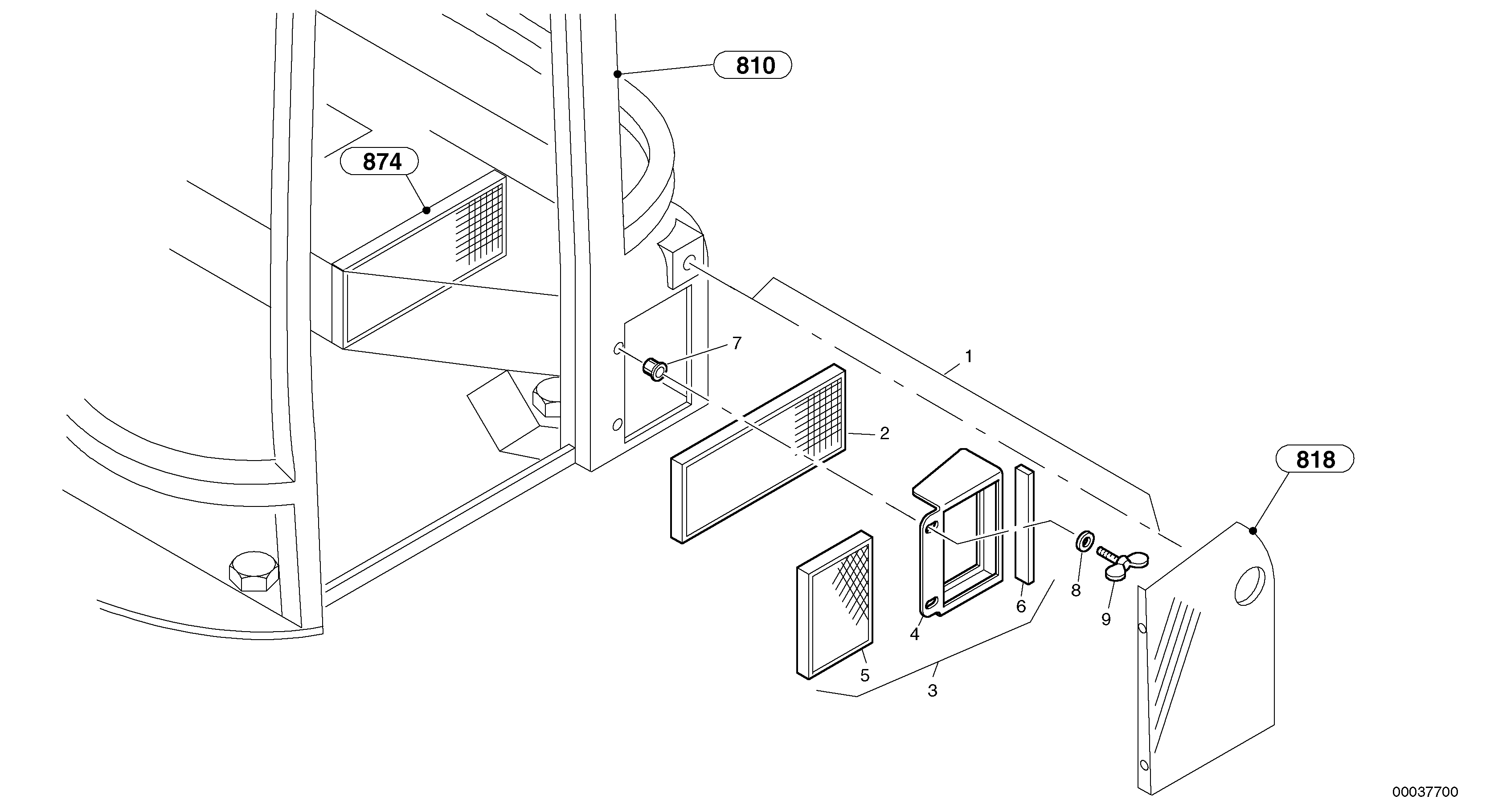

Hydraulic oil tank

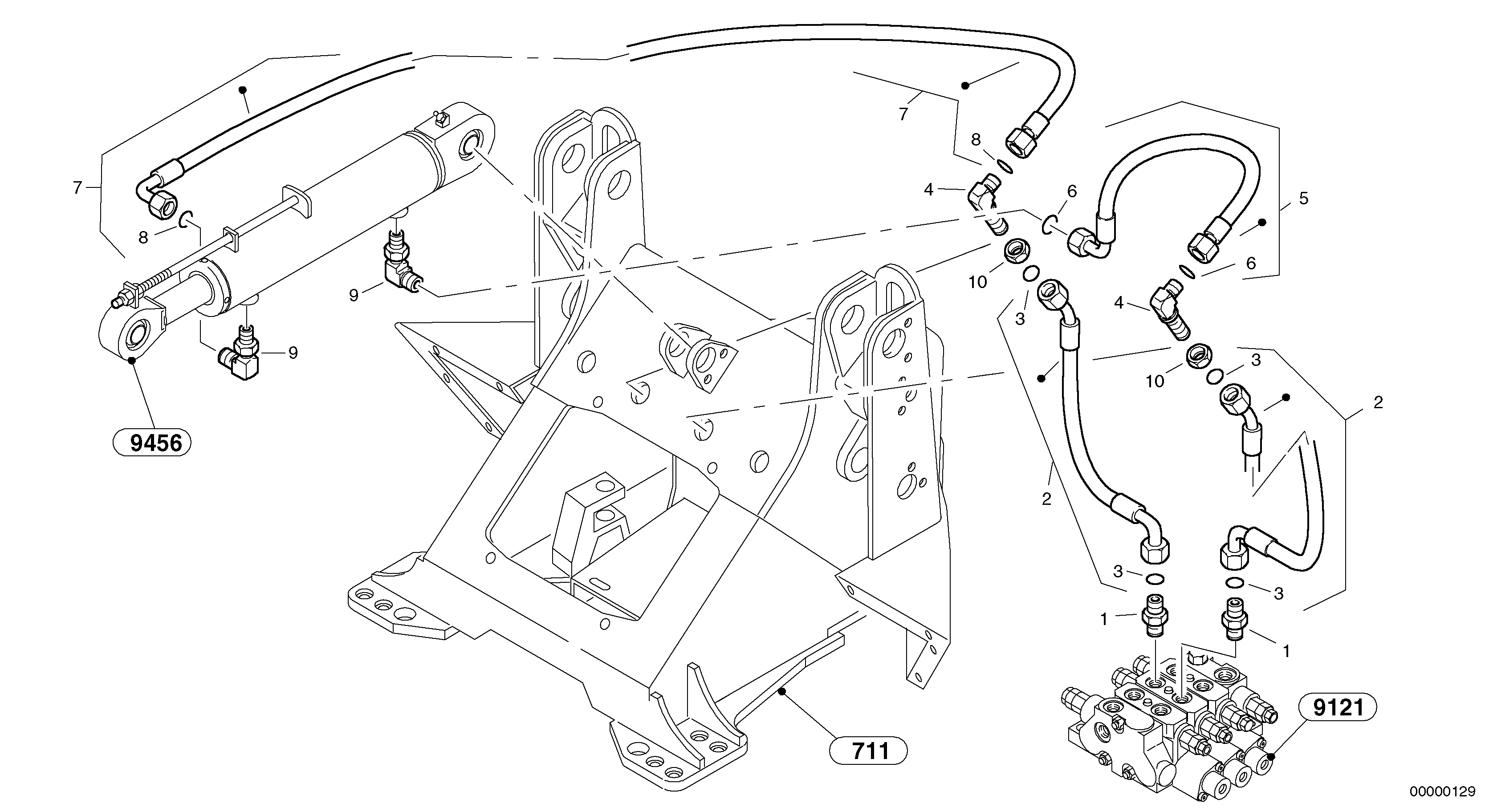

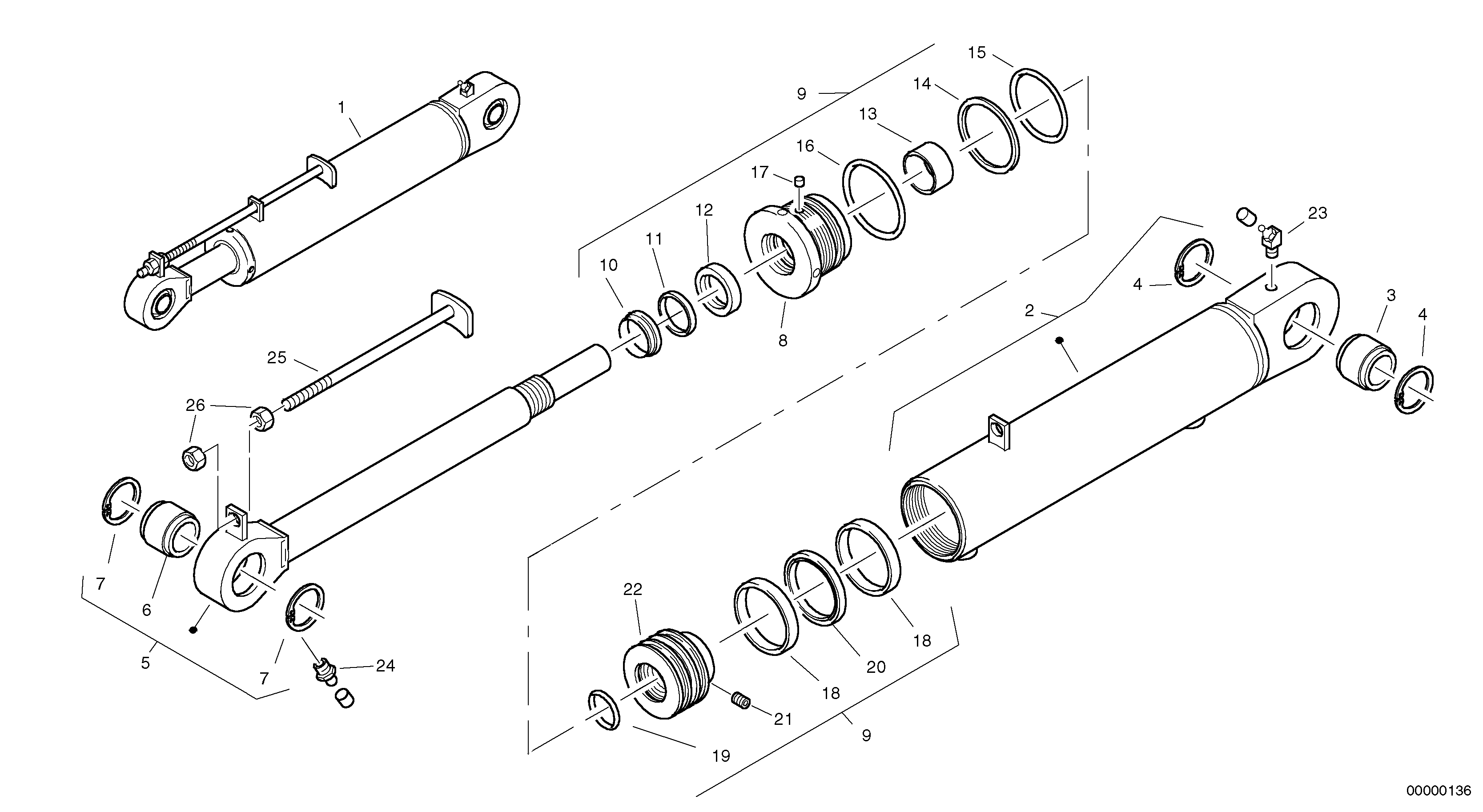

Hydraulic lines - tilt hydraulic

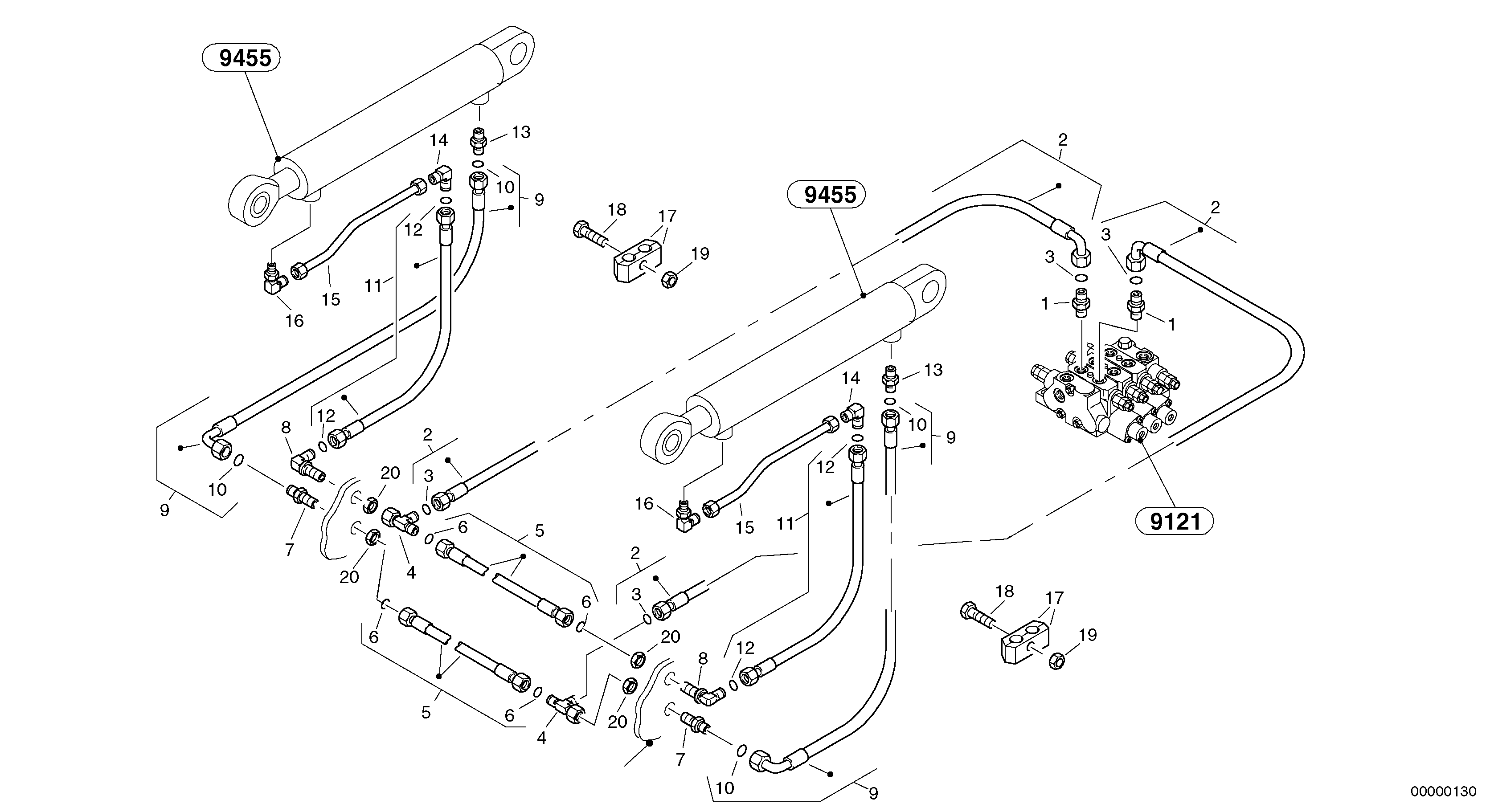

Hydraulic lines - lift hydraulic

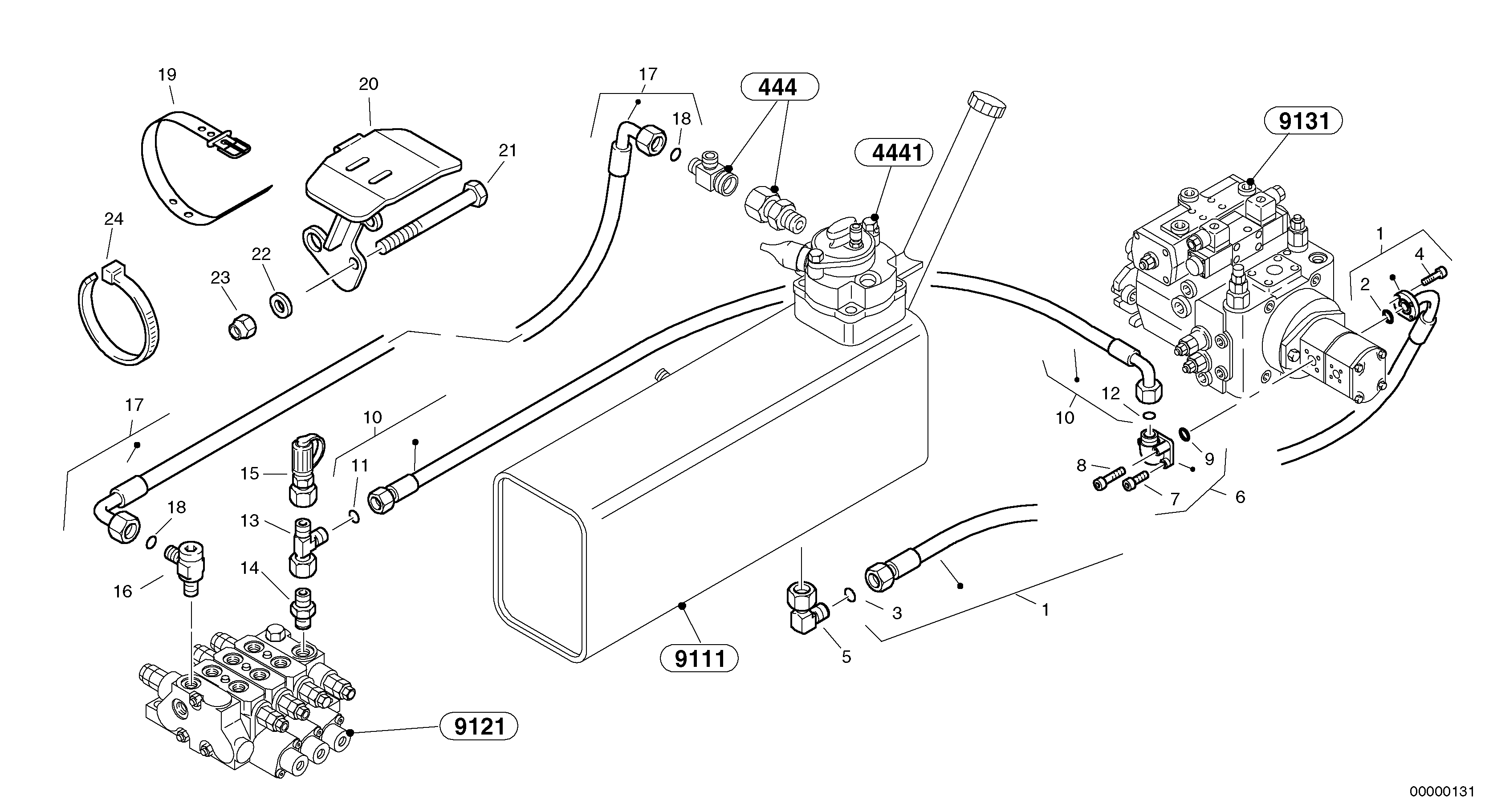

Lines - rear vehicle

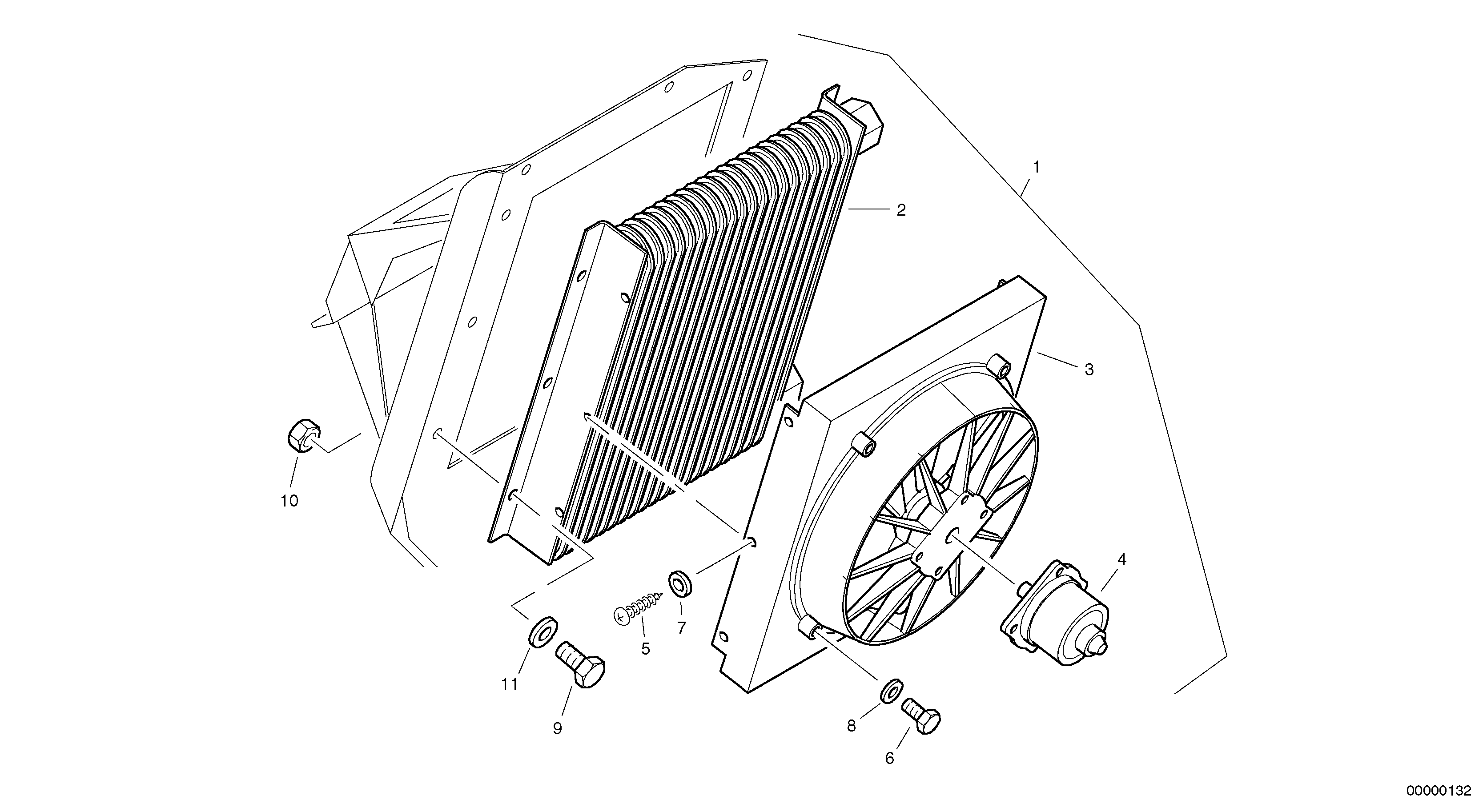

Radiateur - Installation

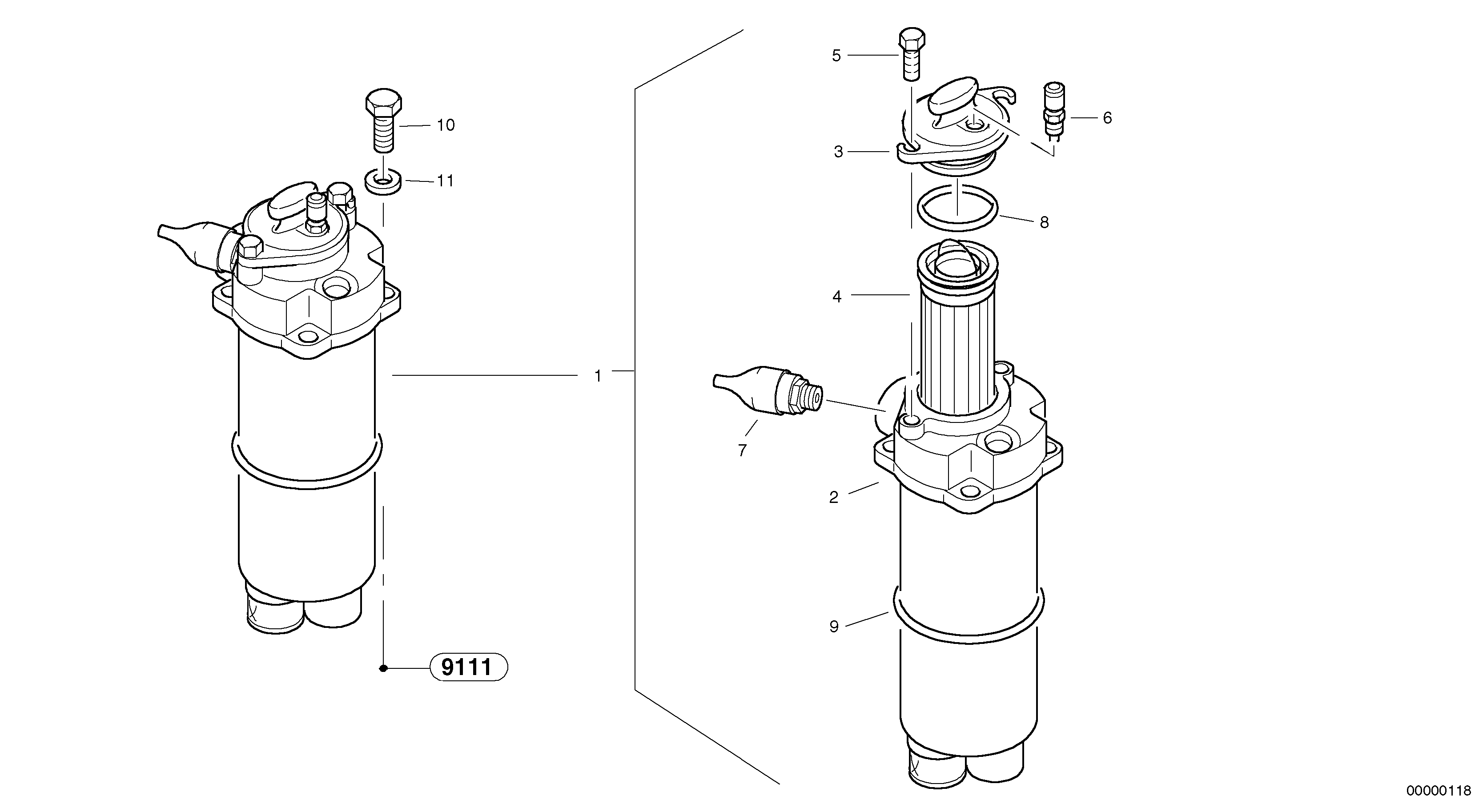

Suction recoil filter

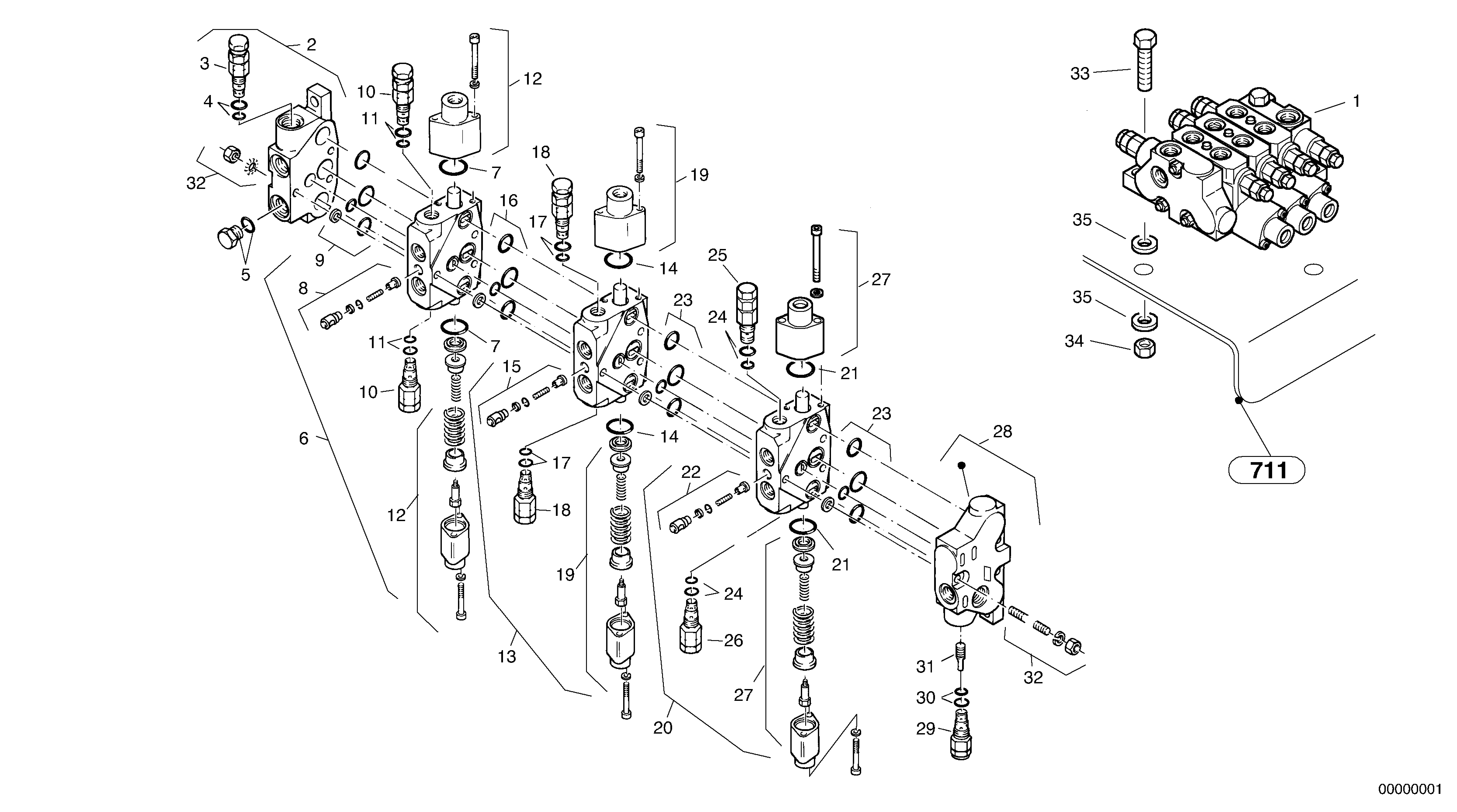

Control valve

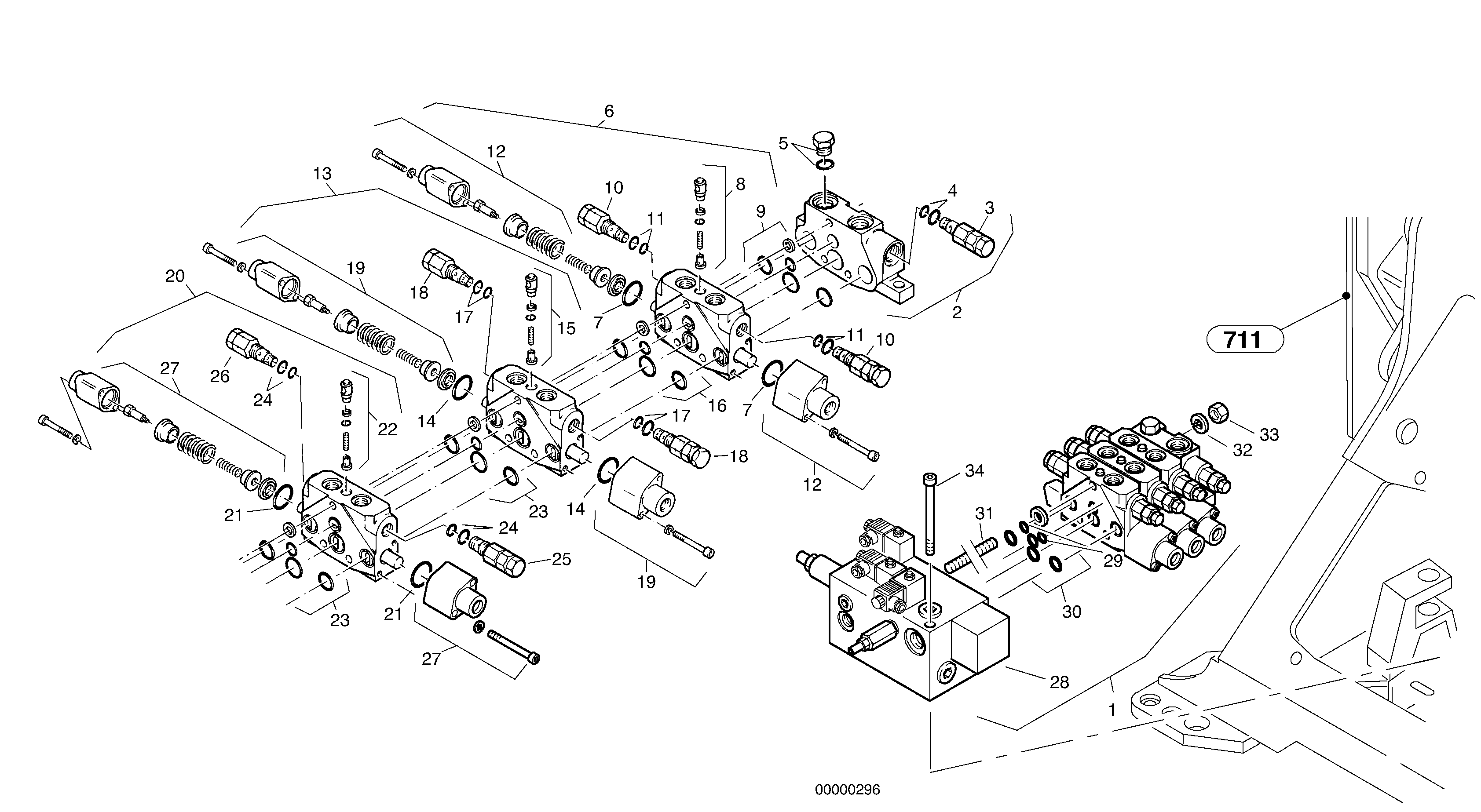

Control valve - Boom suspension system (BSS)

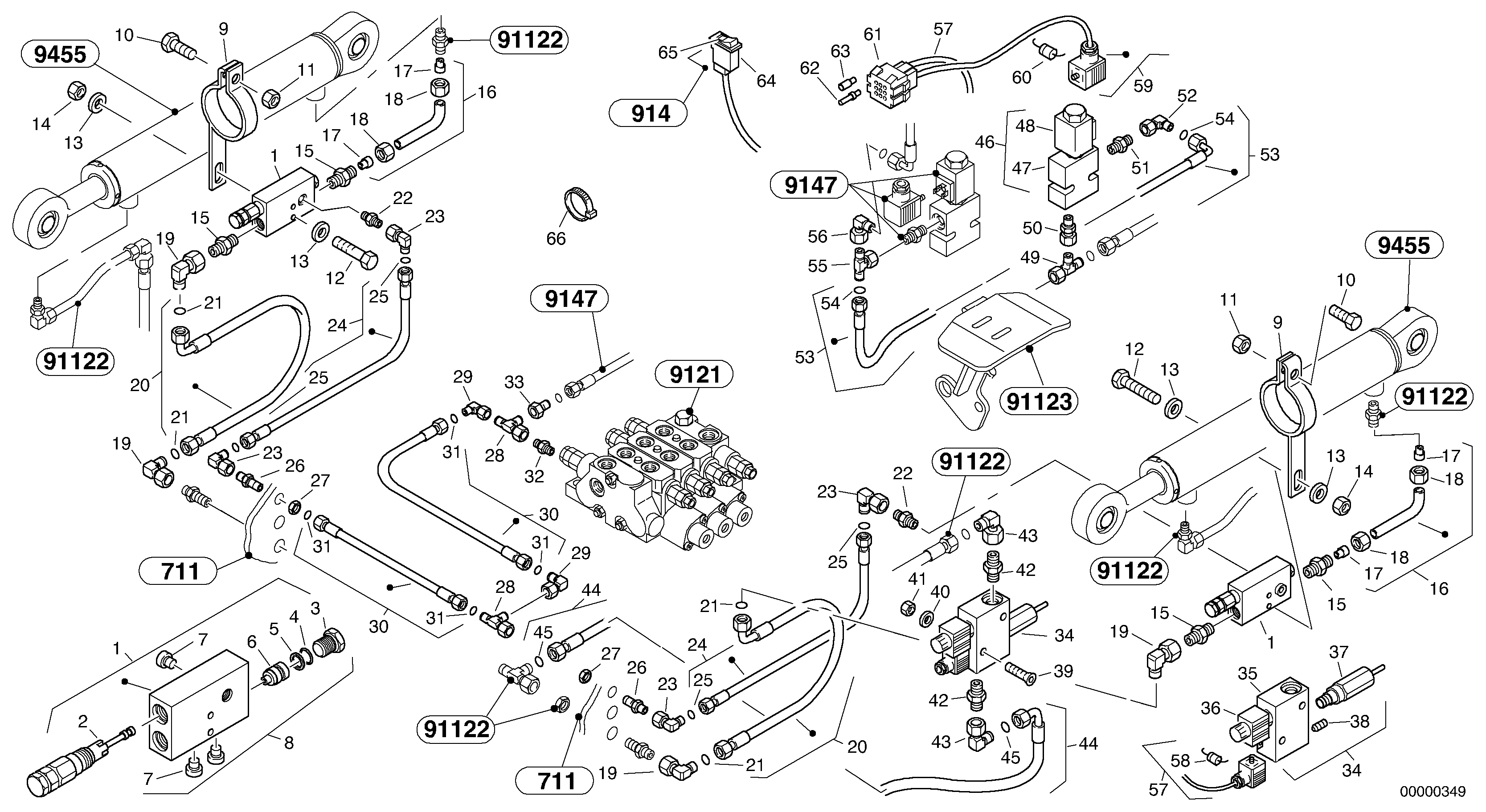

Line fracture safety - Lift

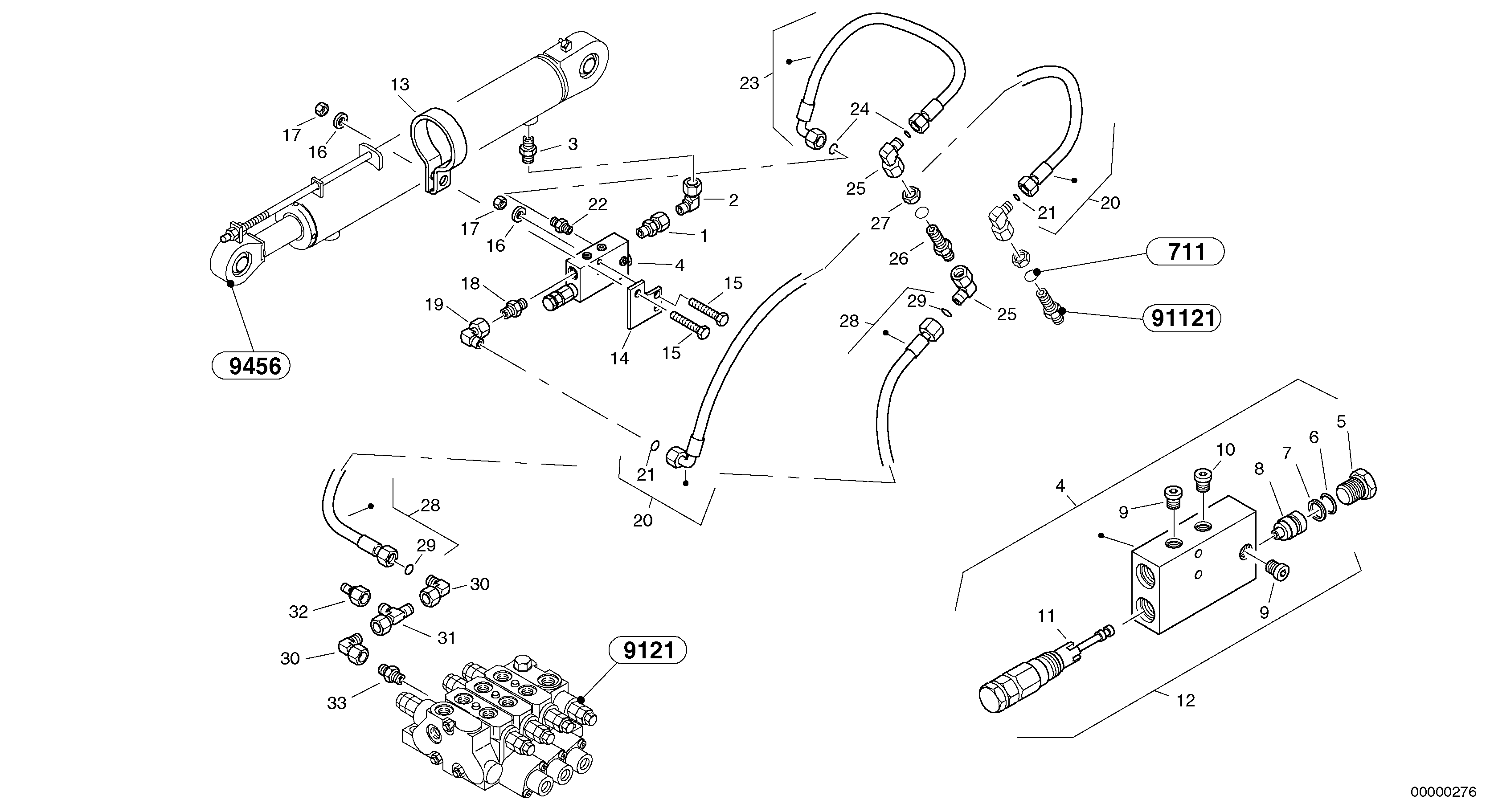

Line fracture safety - Tilt

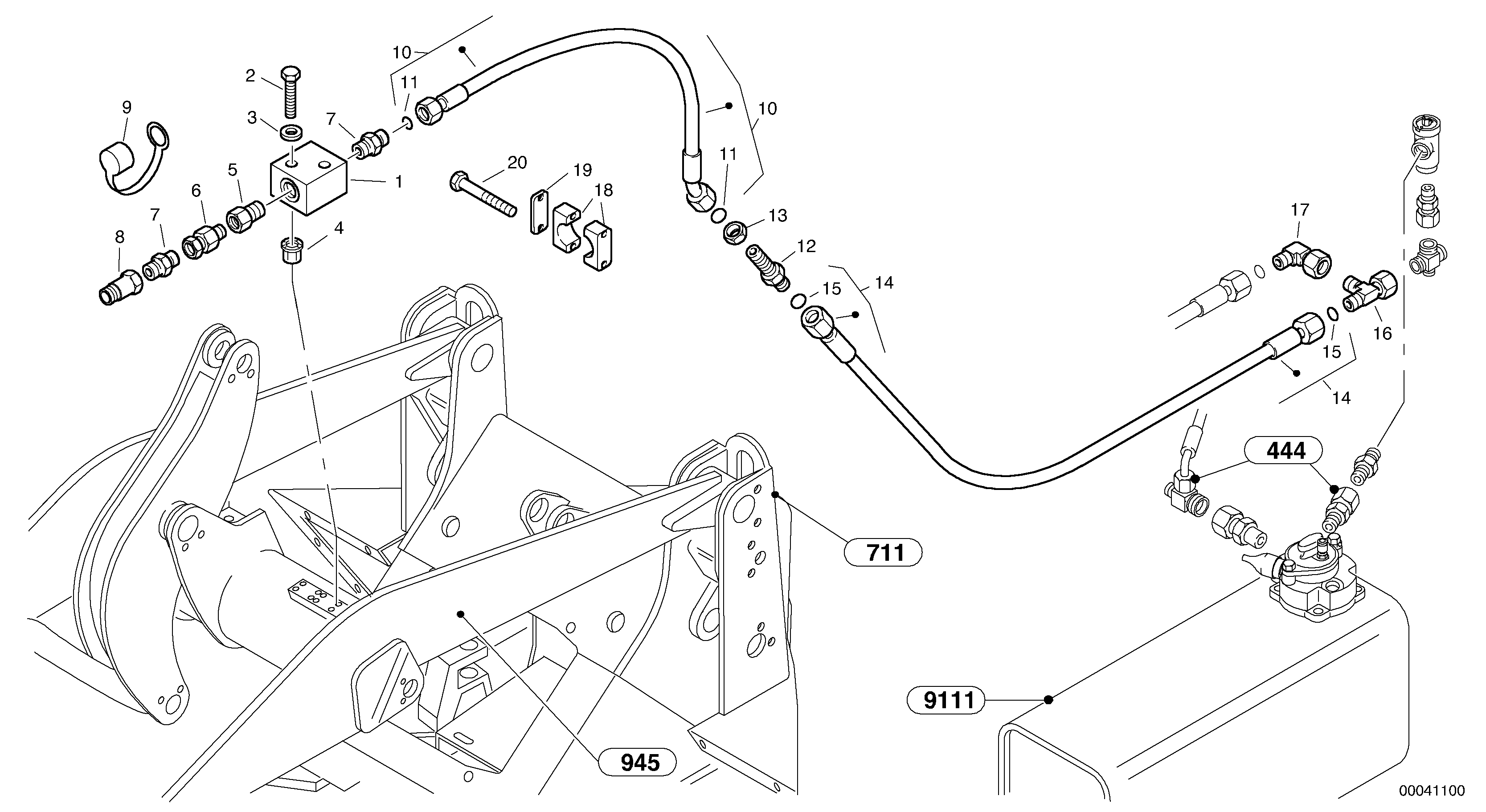

Leakage line - Option-filter

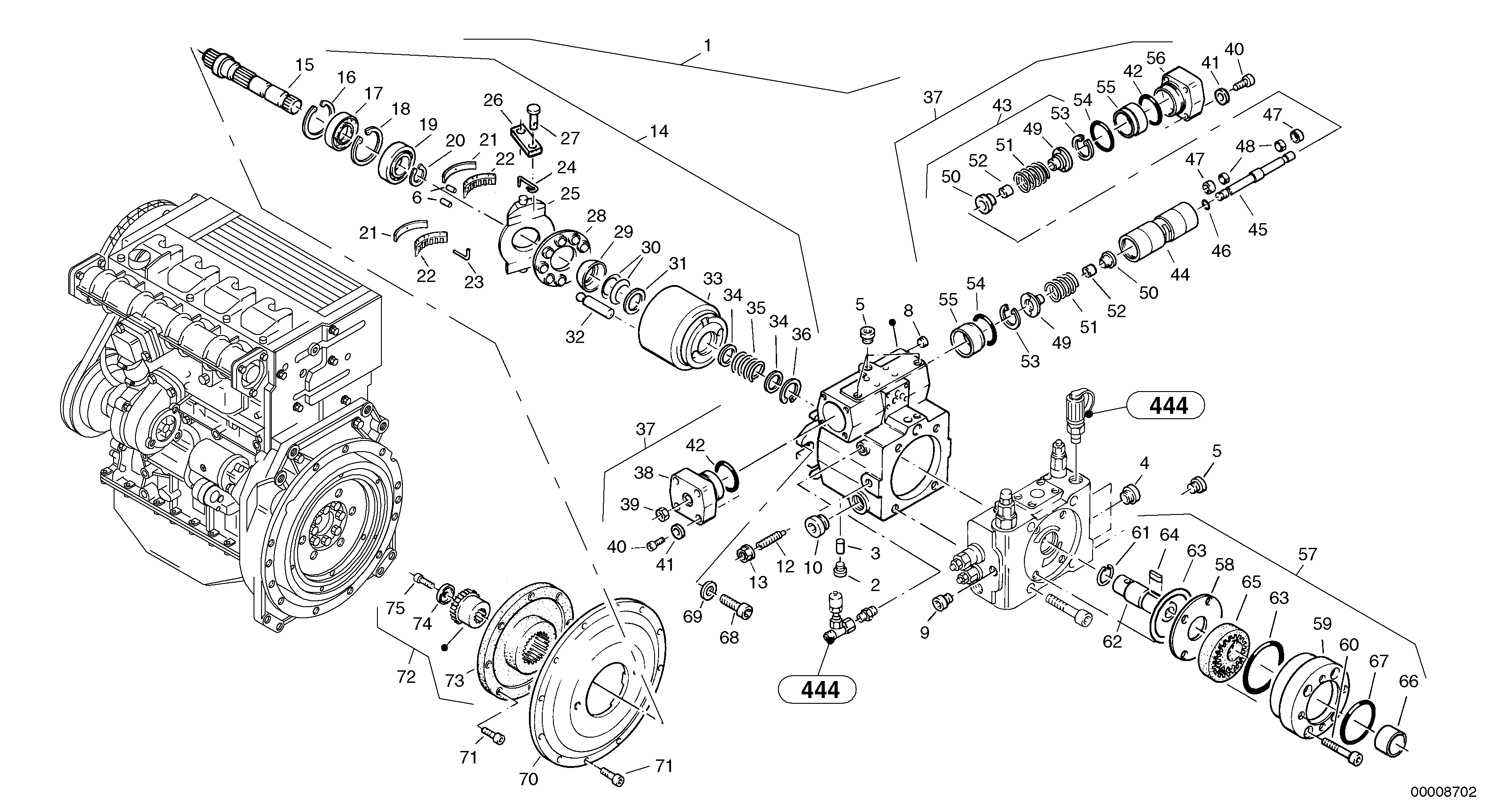

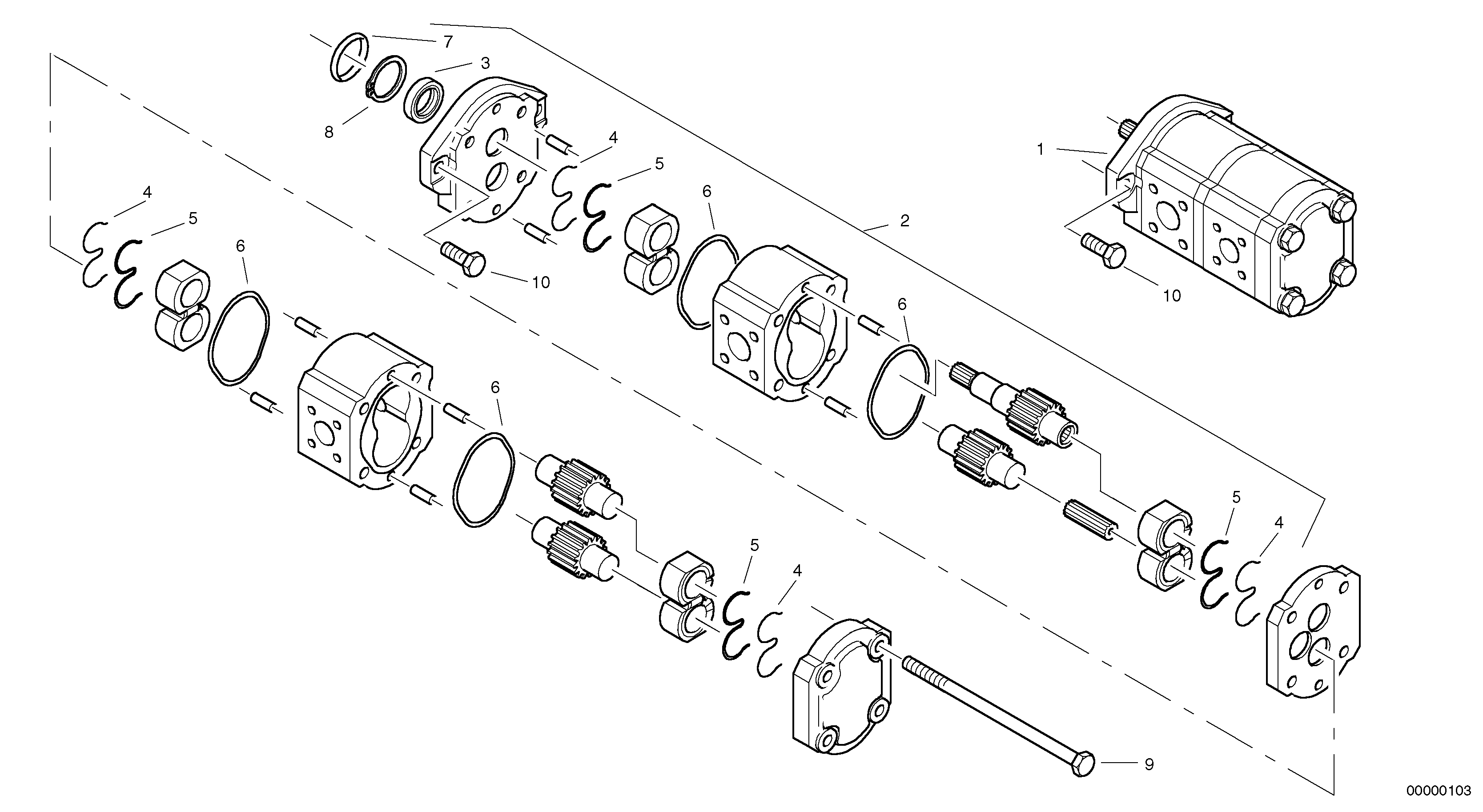

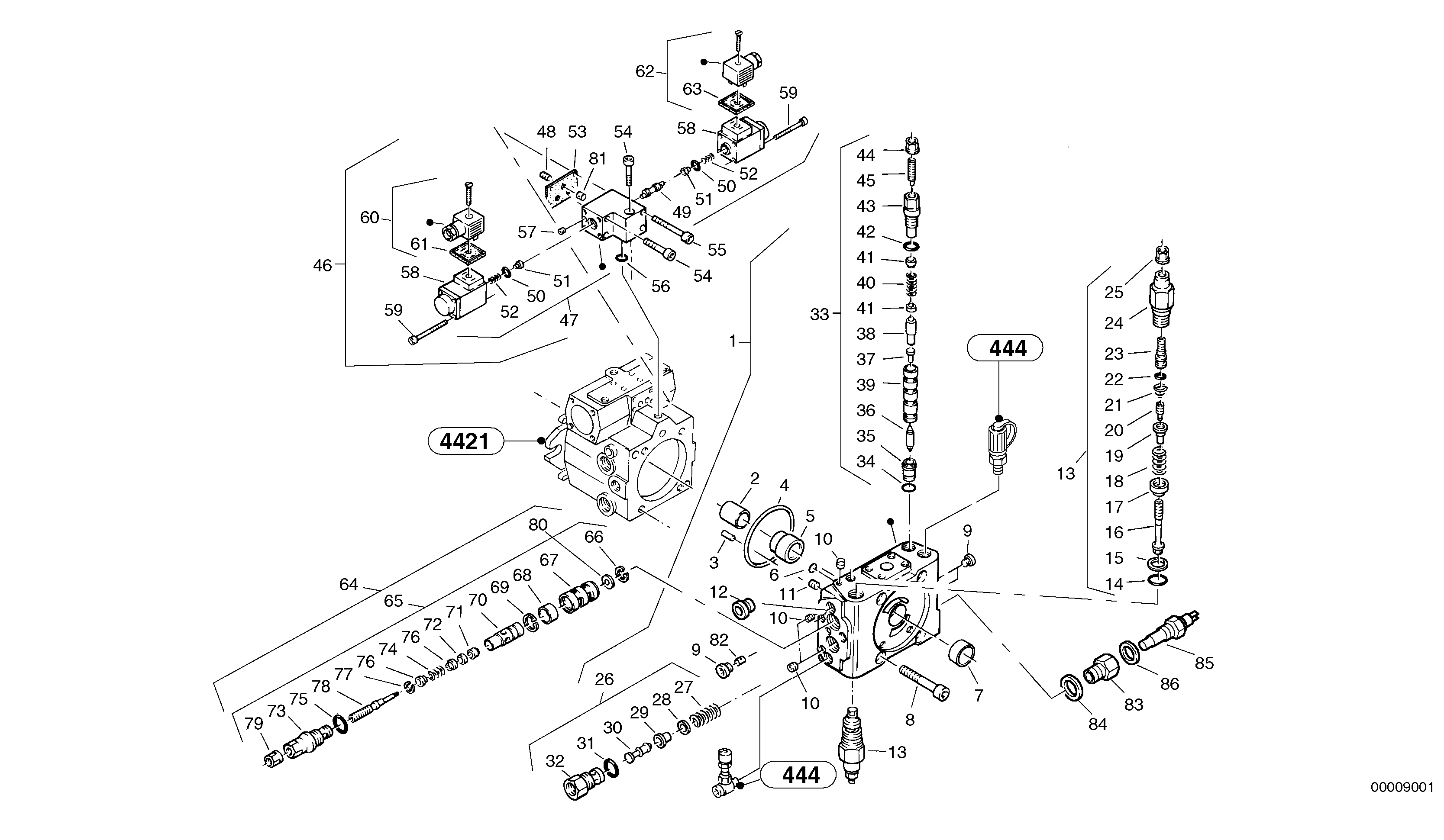

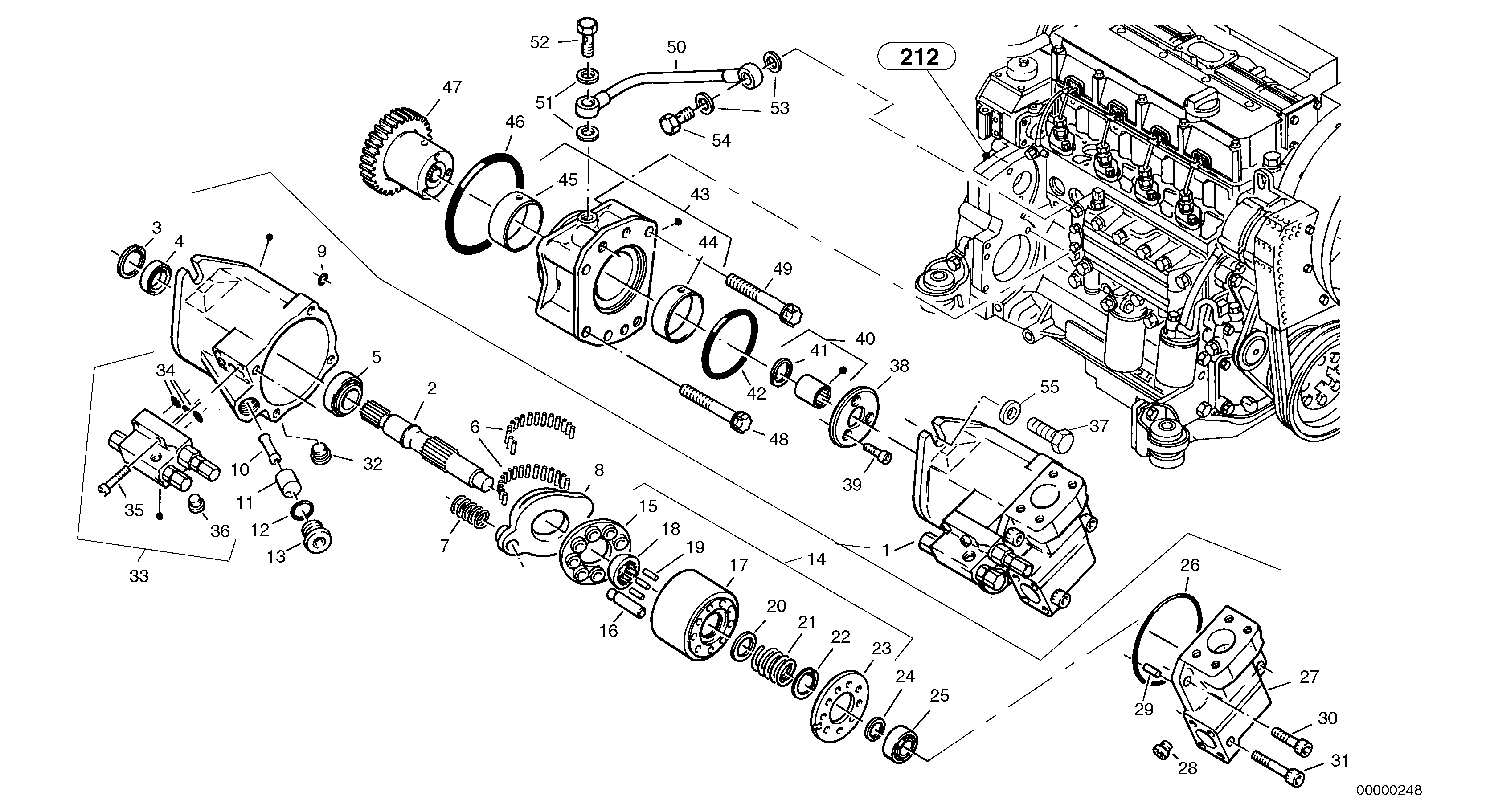

Pump - working hydraulic

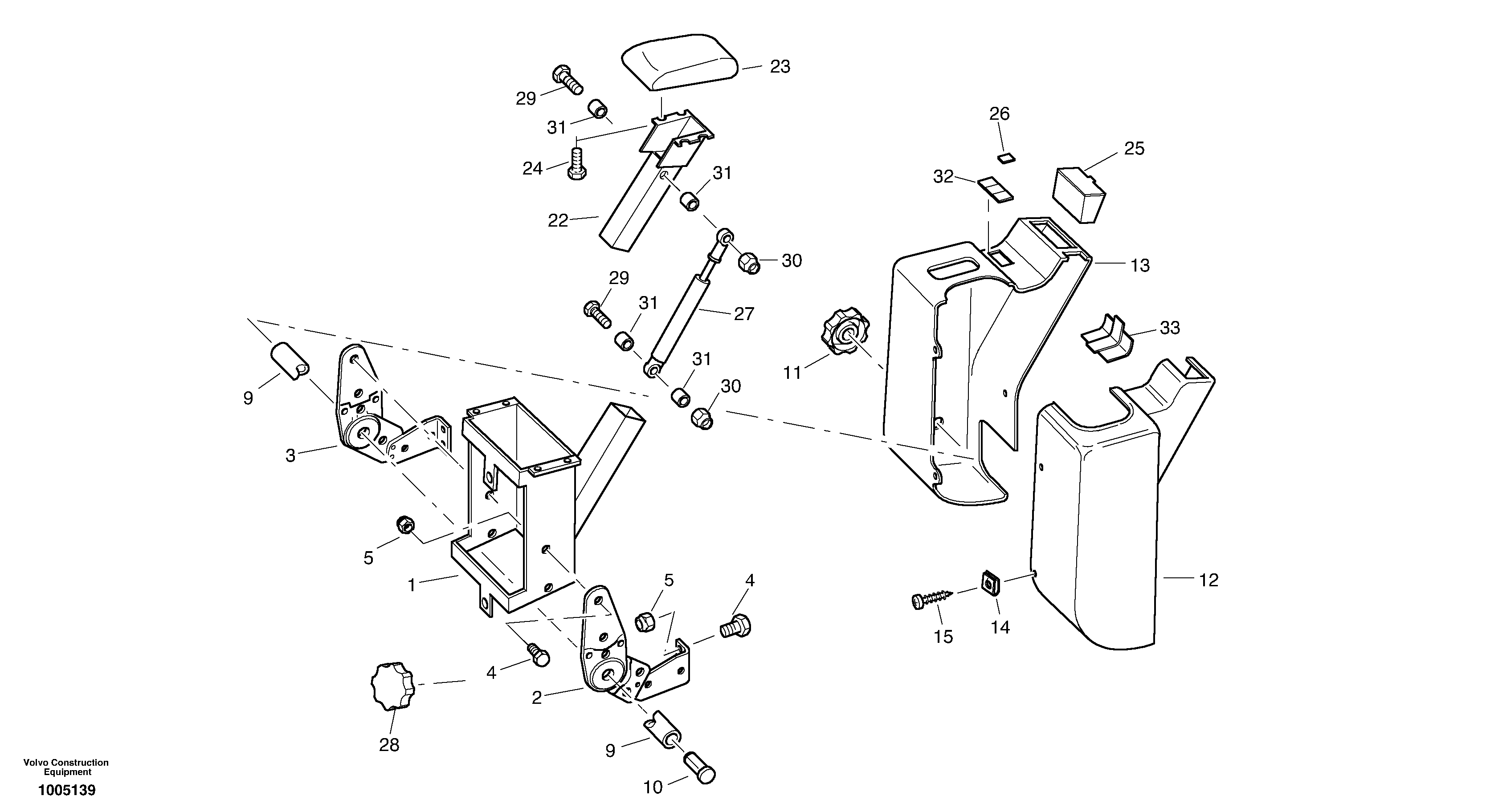

Servo valve - Installation

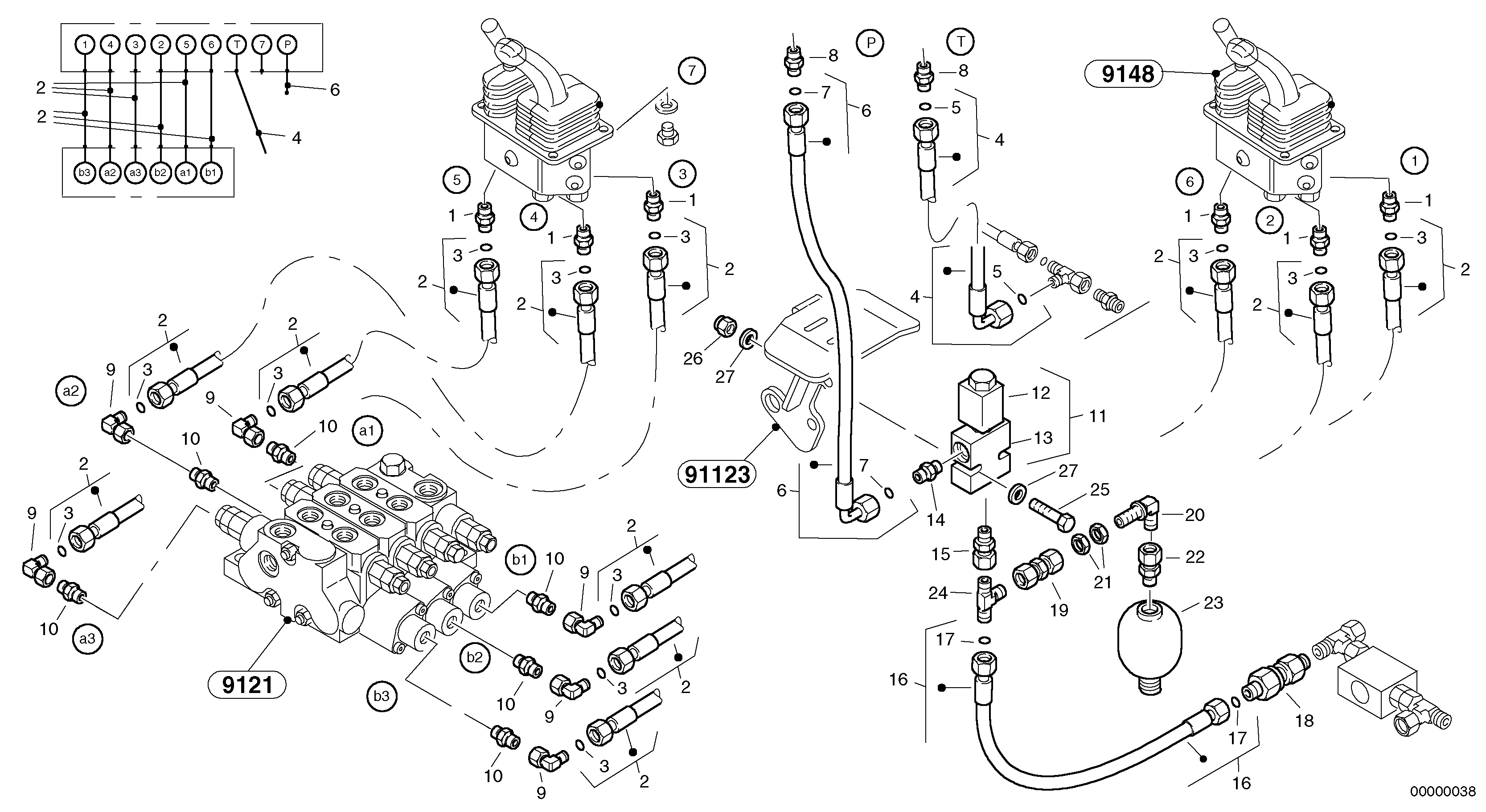

Lines - servo control

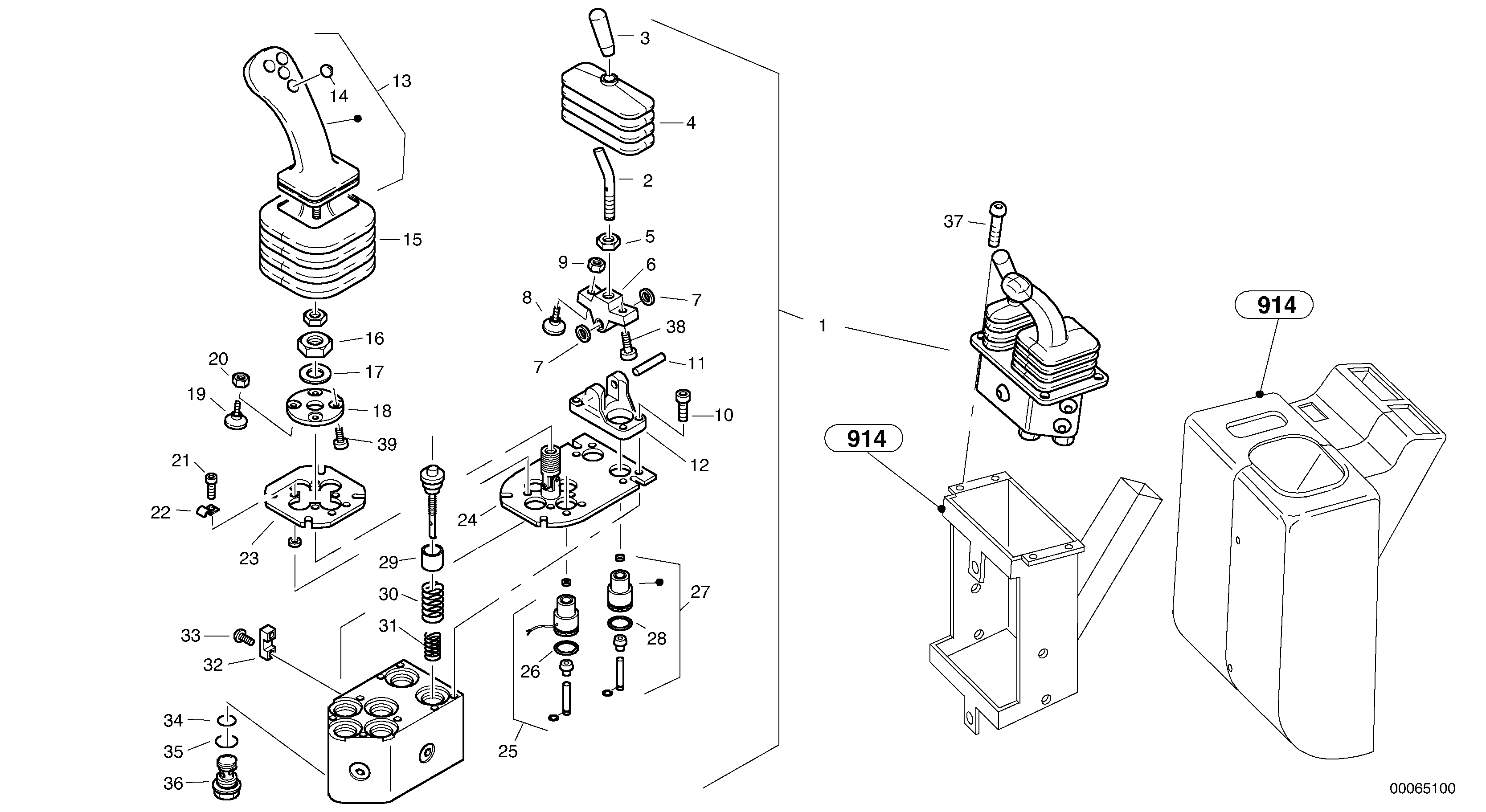

Servo control valve

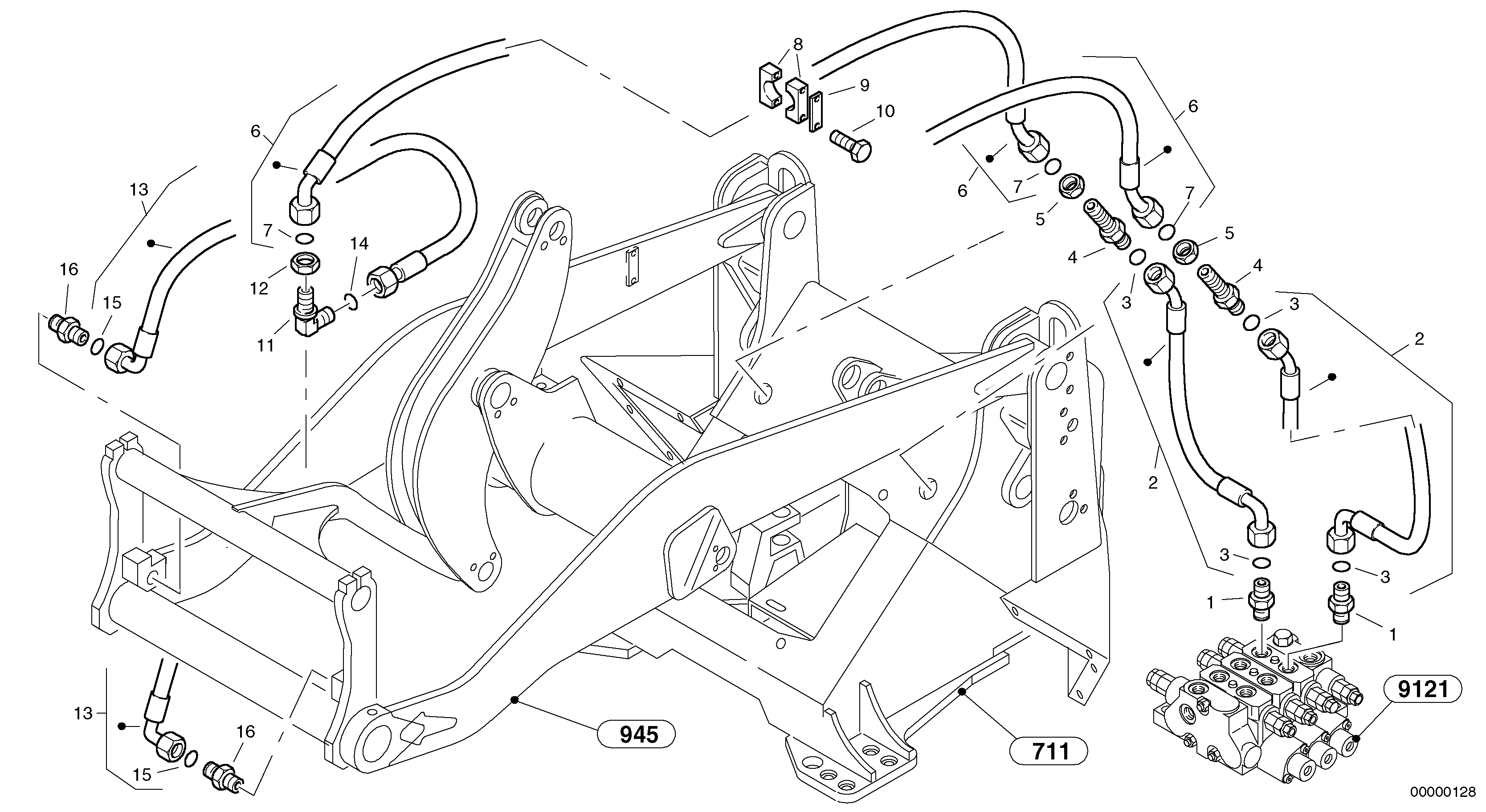

Lines to attachment mounting plate

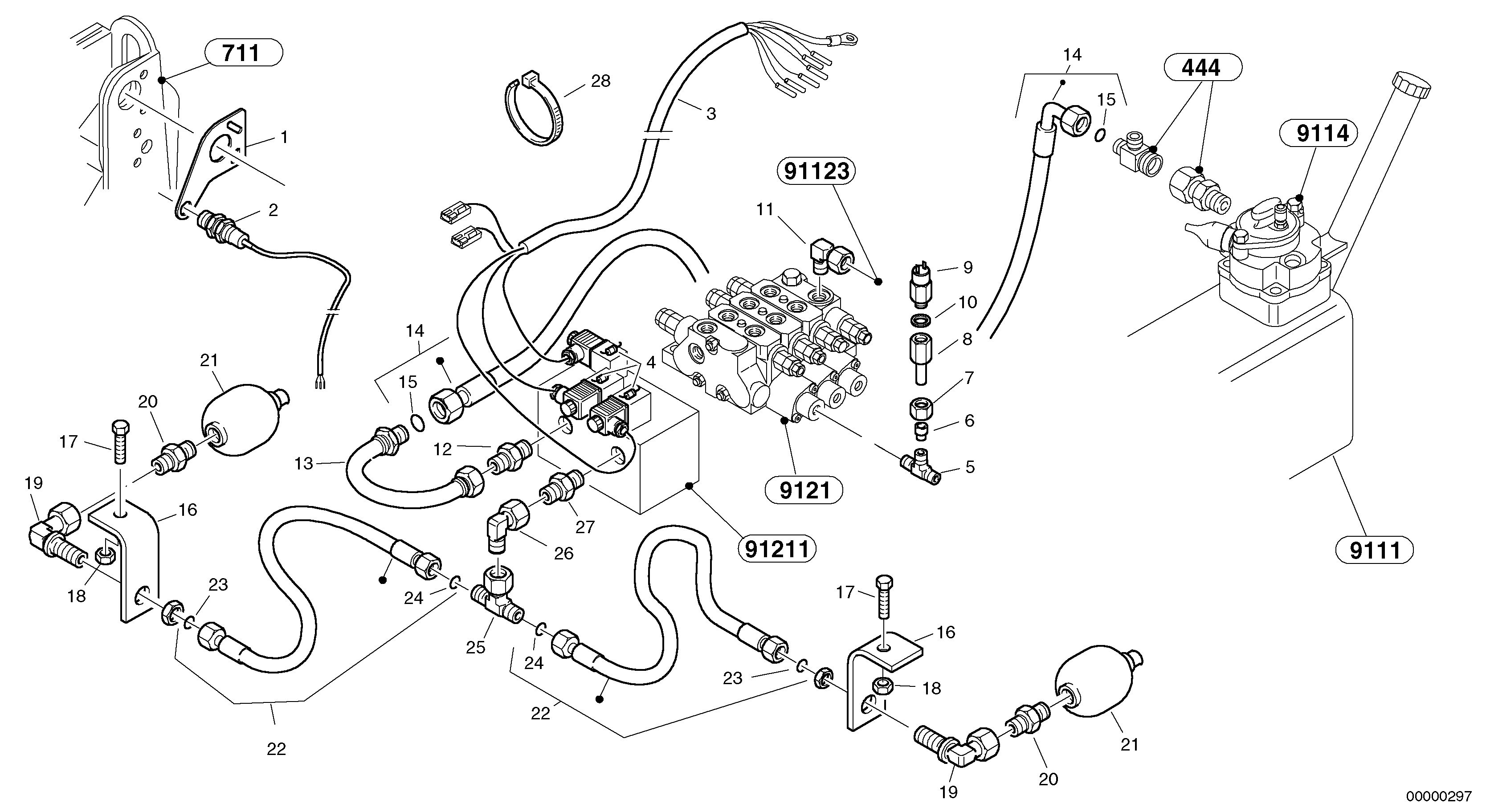

Boom suspension system (BSS)

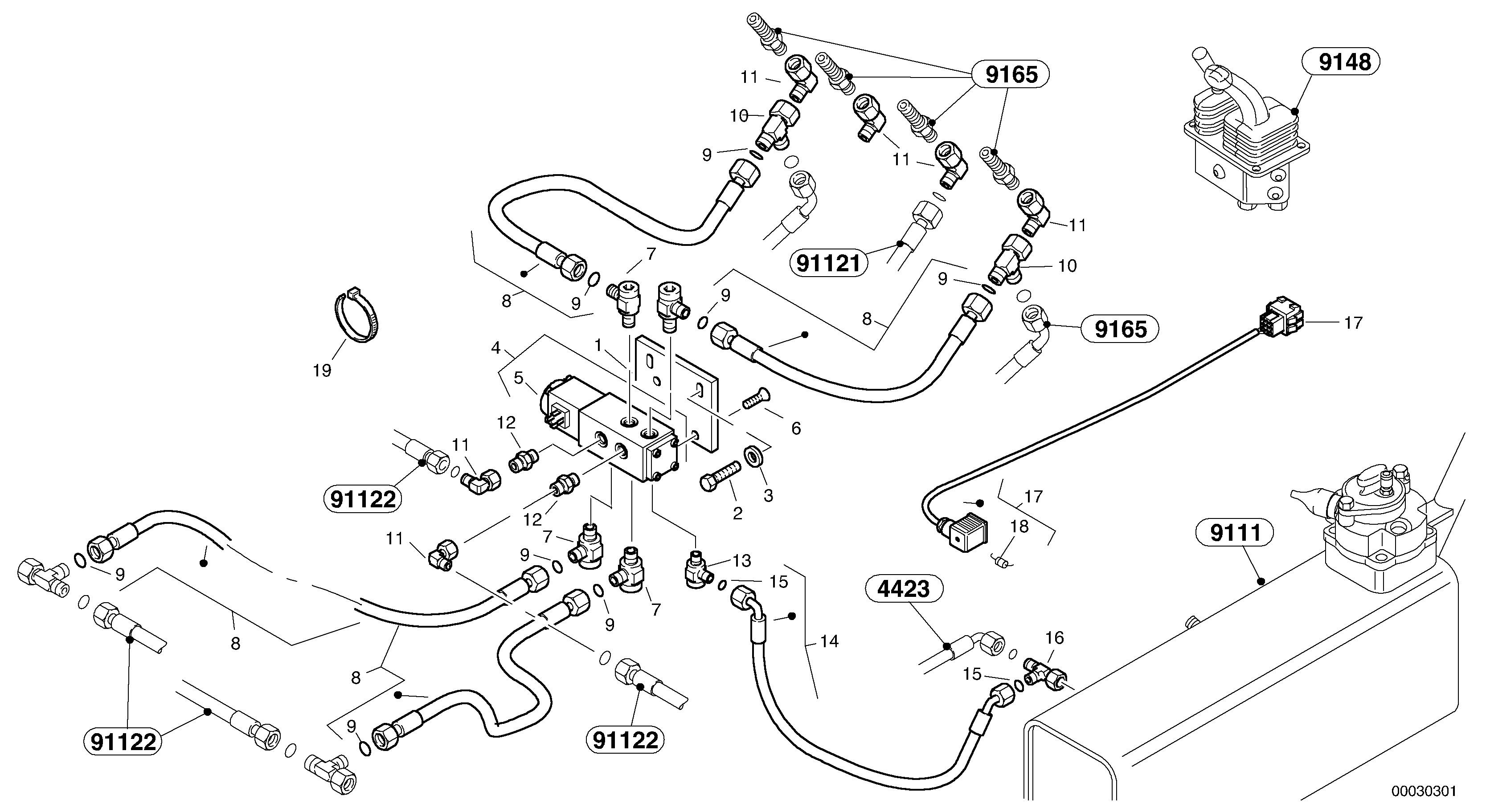

Hydraulic function - Nr. 3

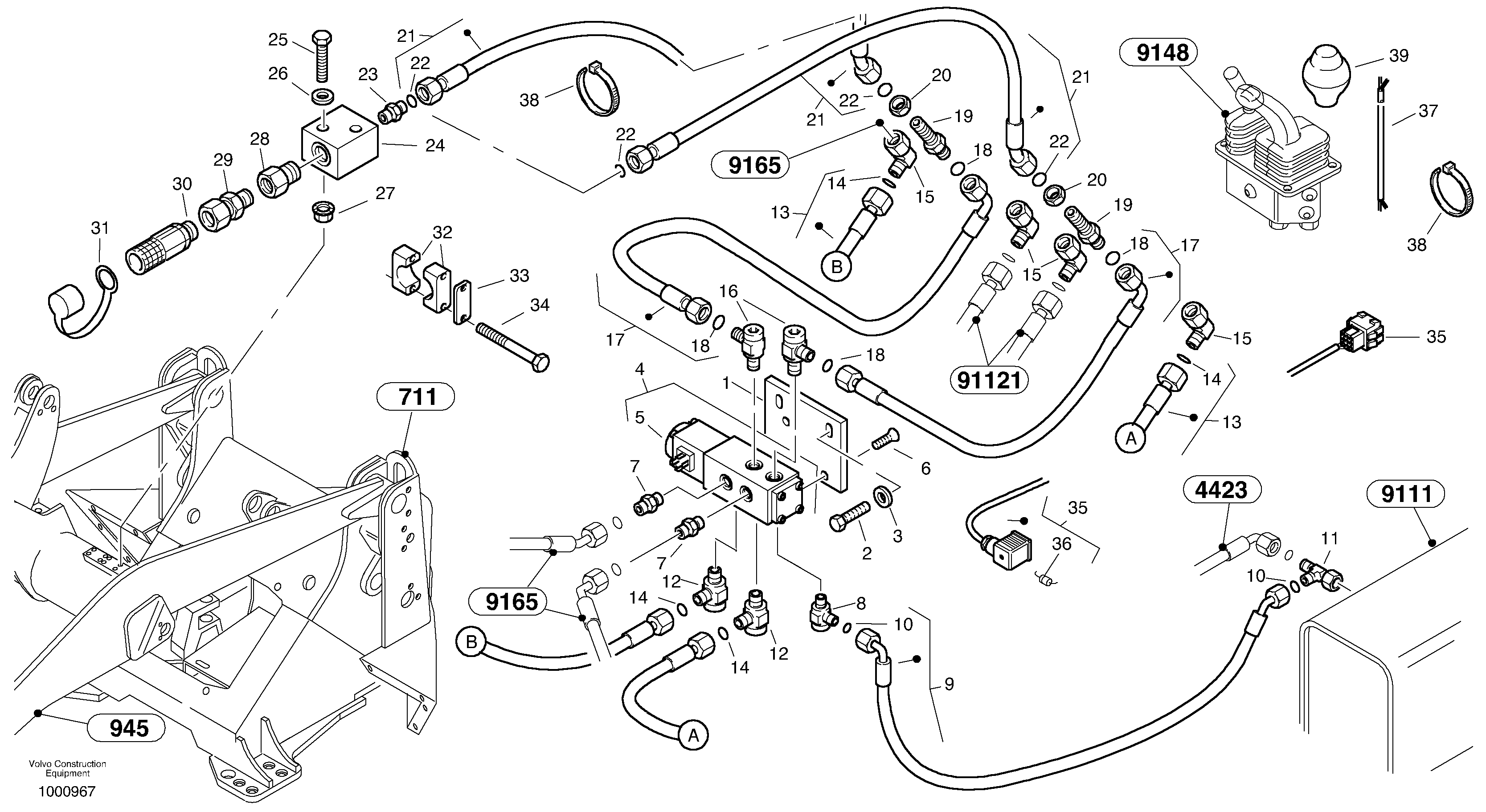

Hydraulic function - Nr. 4

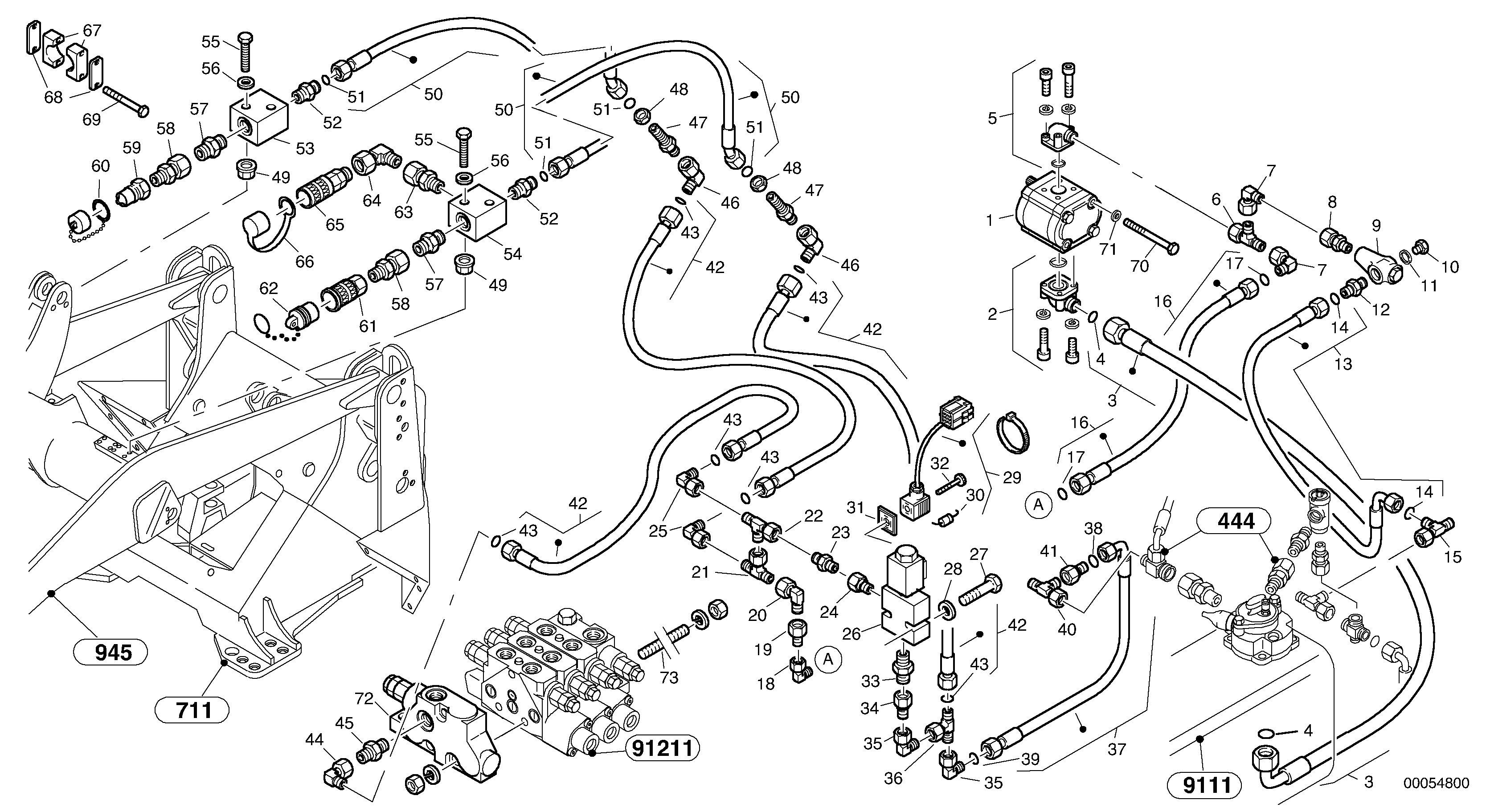

Auxil. pump with lines

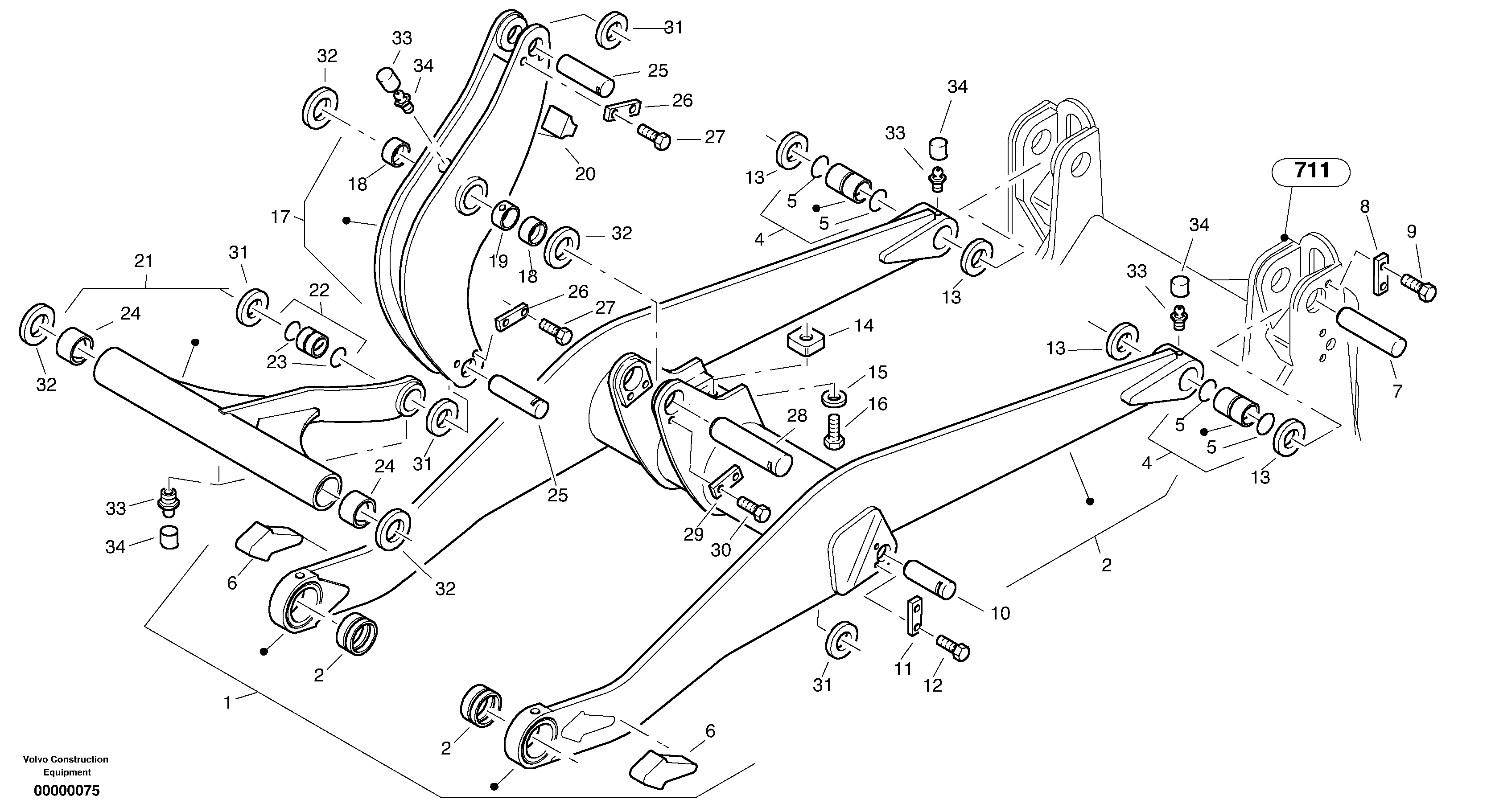

Mechanical equipment

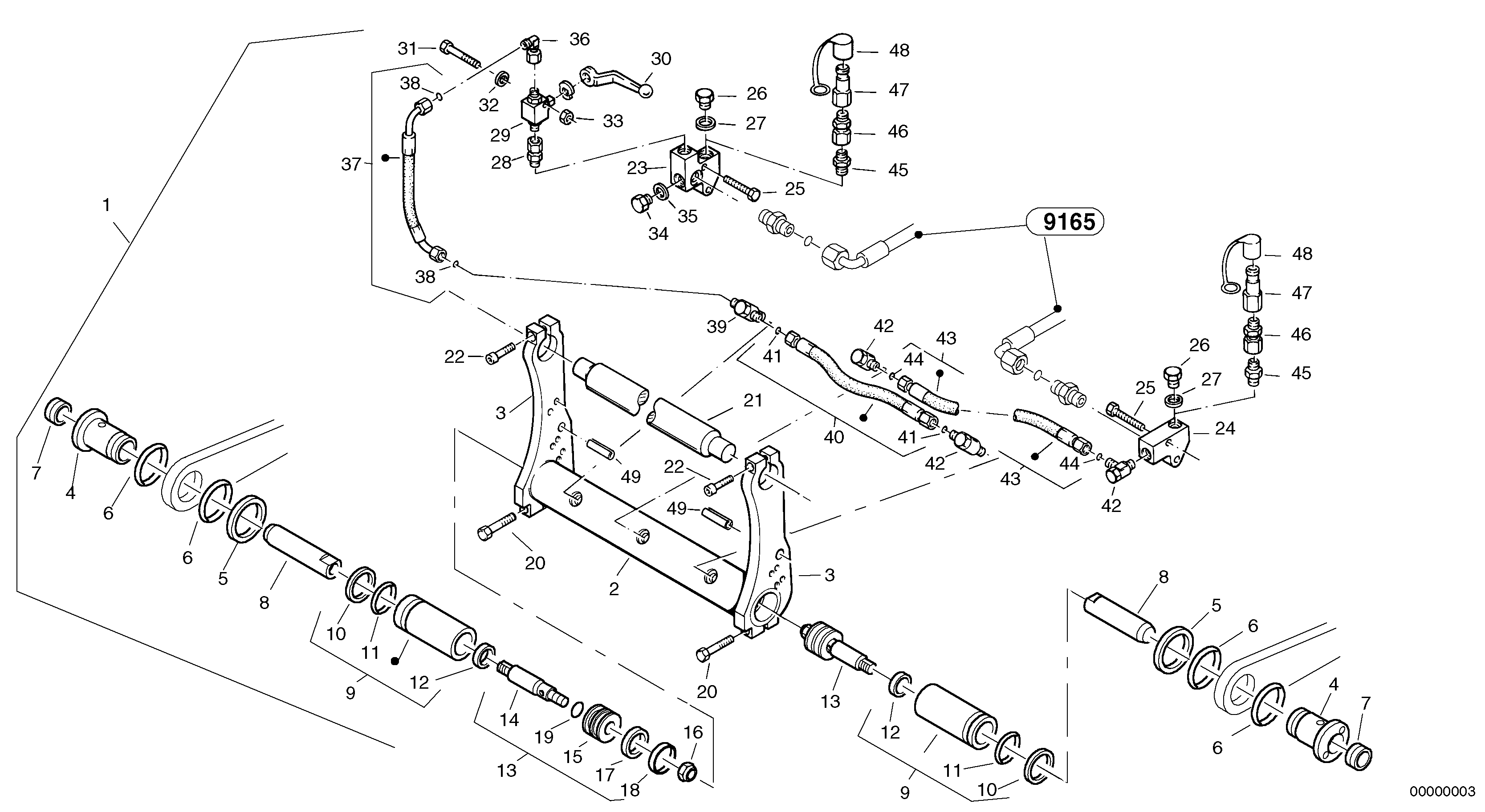

Attachment mounting plate - Quick change, hydraulic

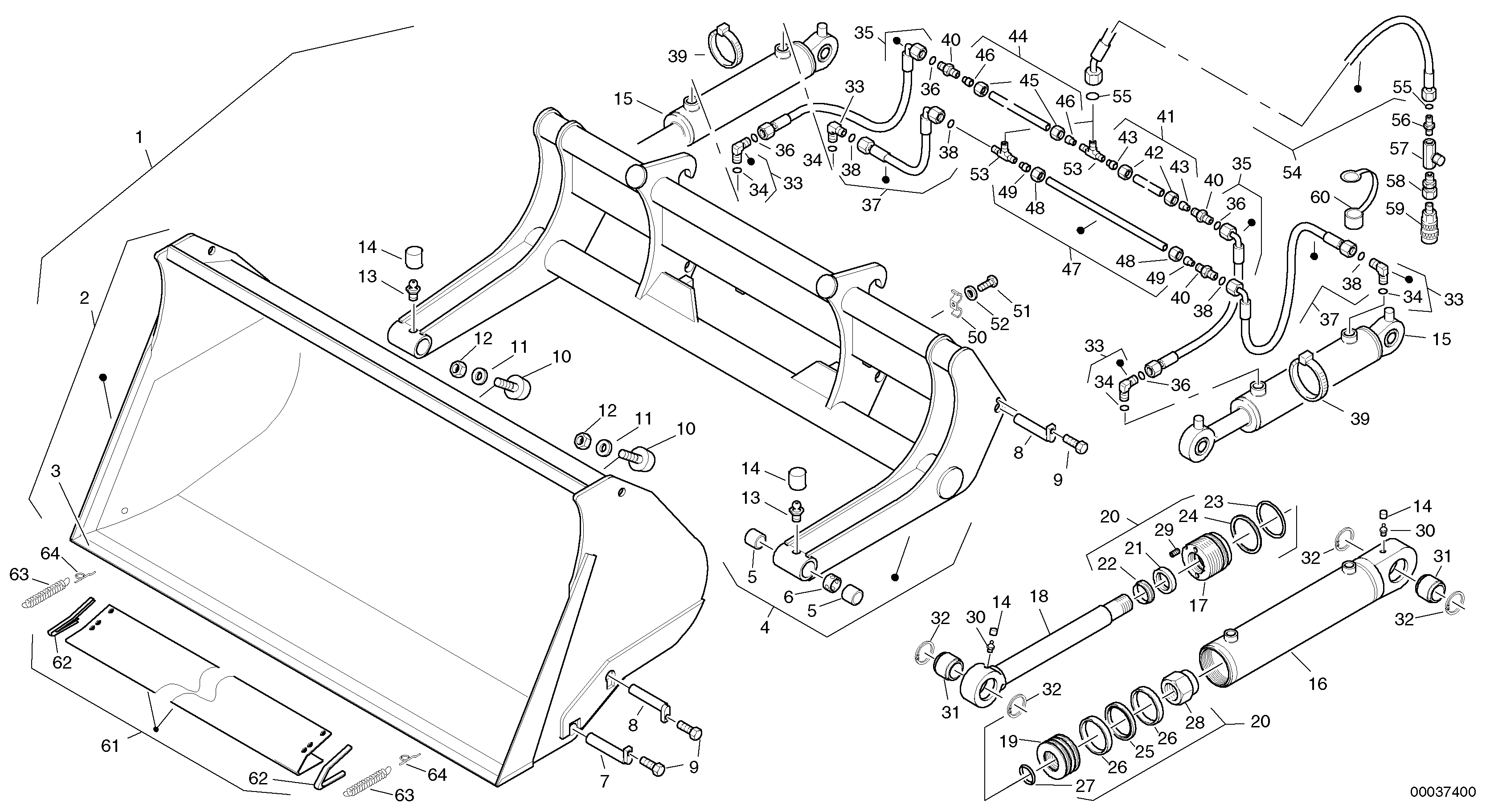

Tipping bucket

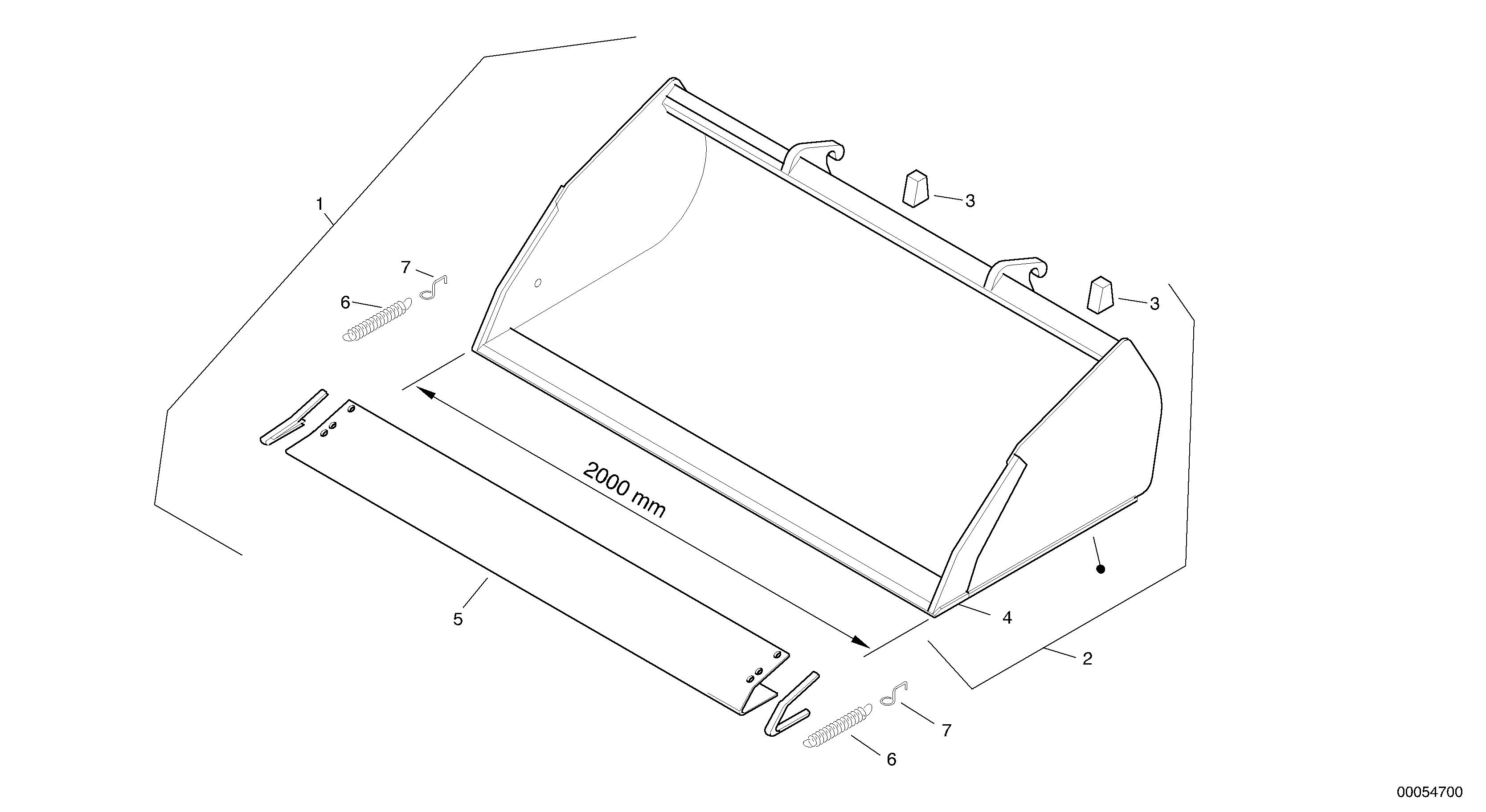

Planing shovel

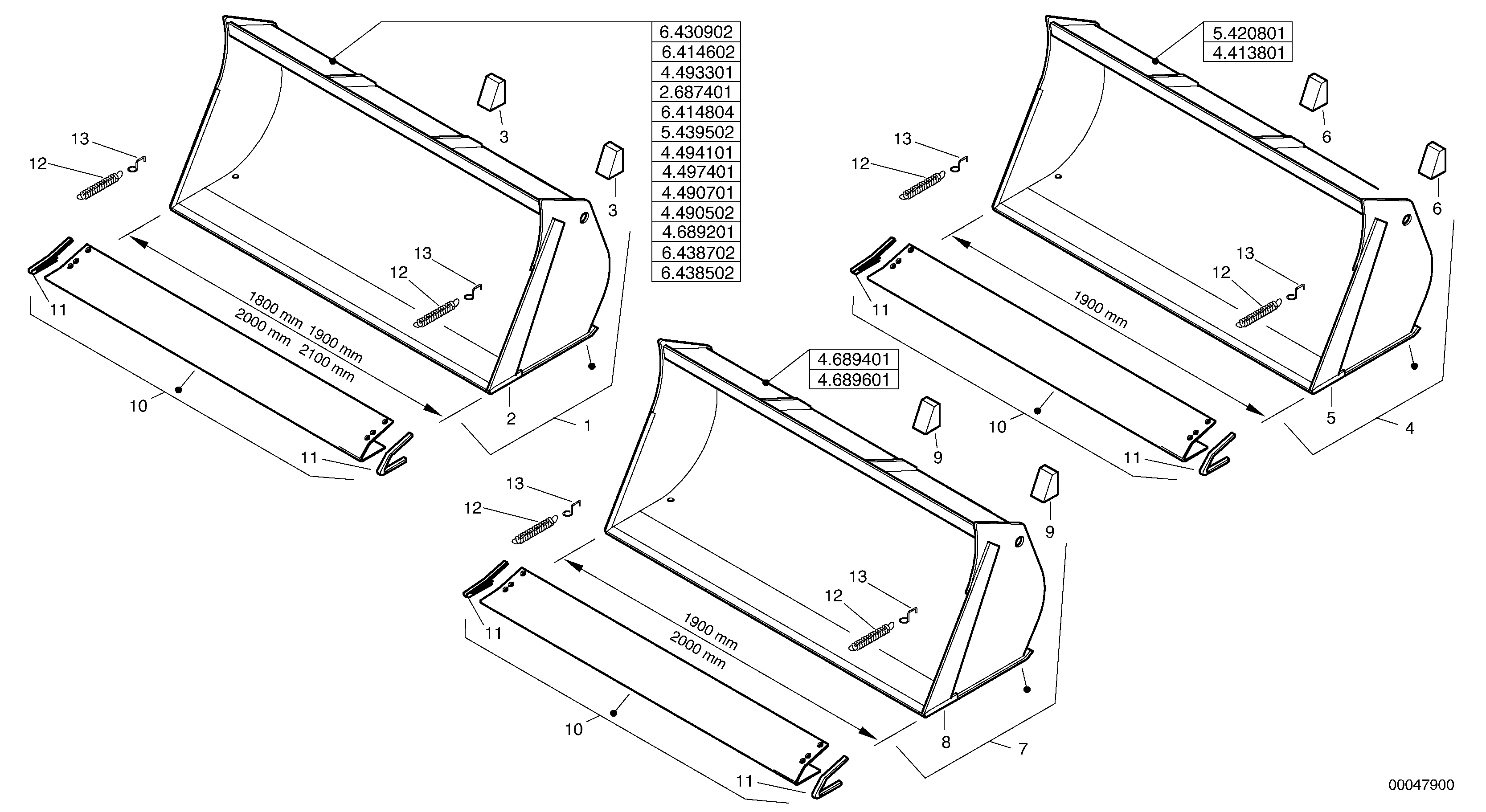

Bucket without teeth - Z-cinematic

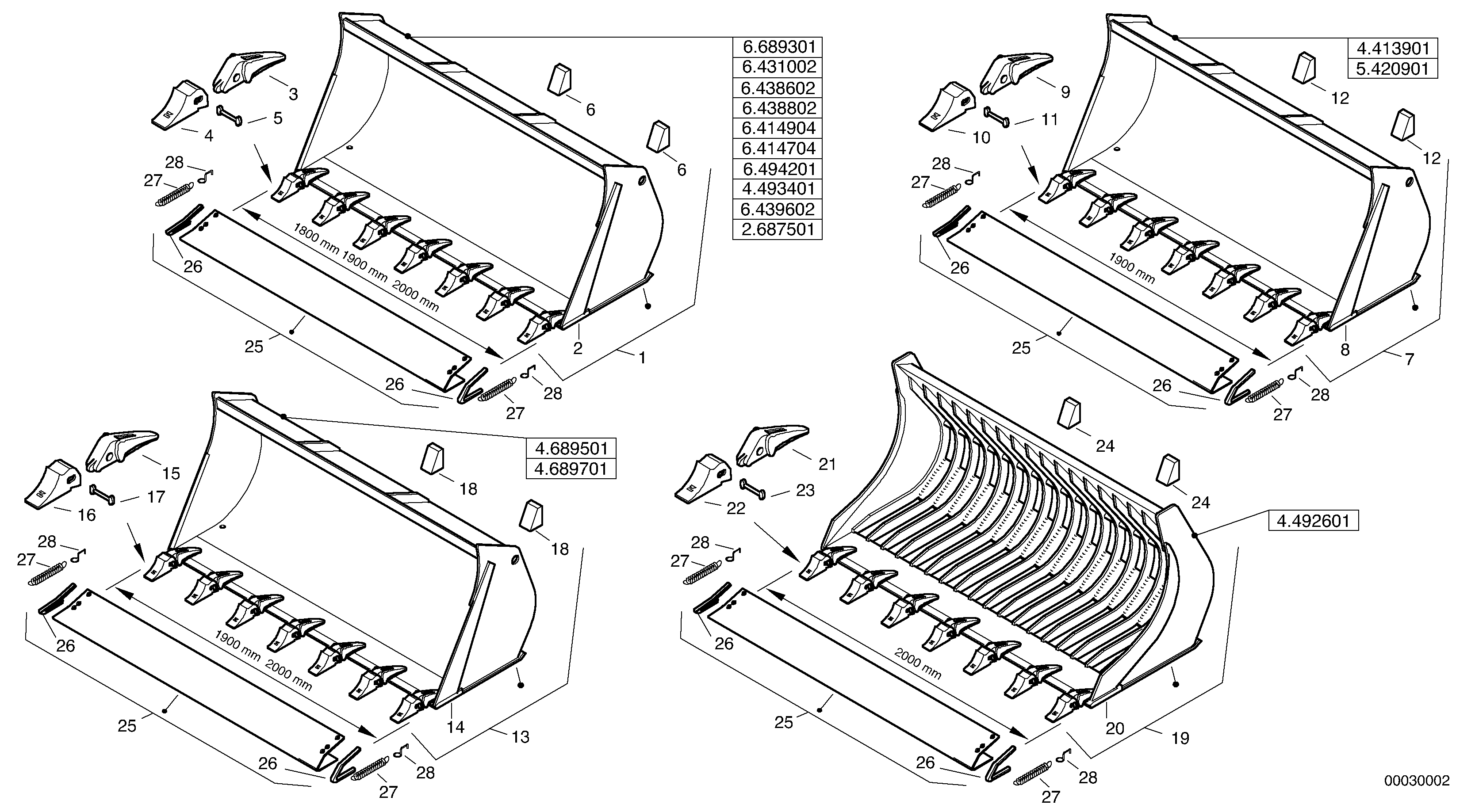

Bucket with teeth - Z-cinematic
Combined bucket

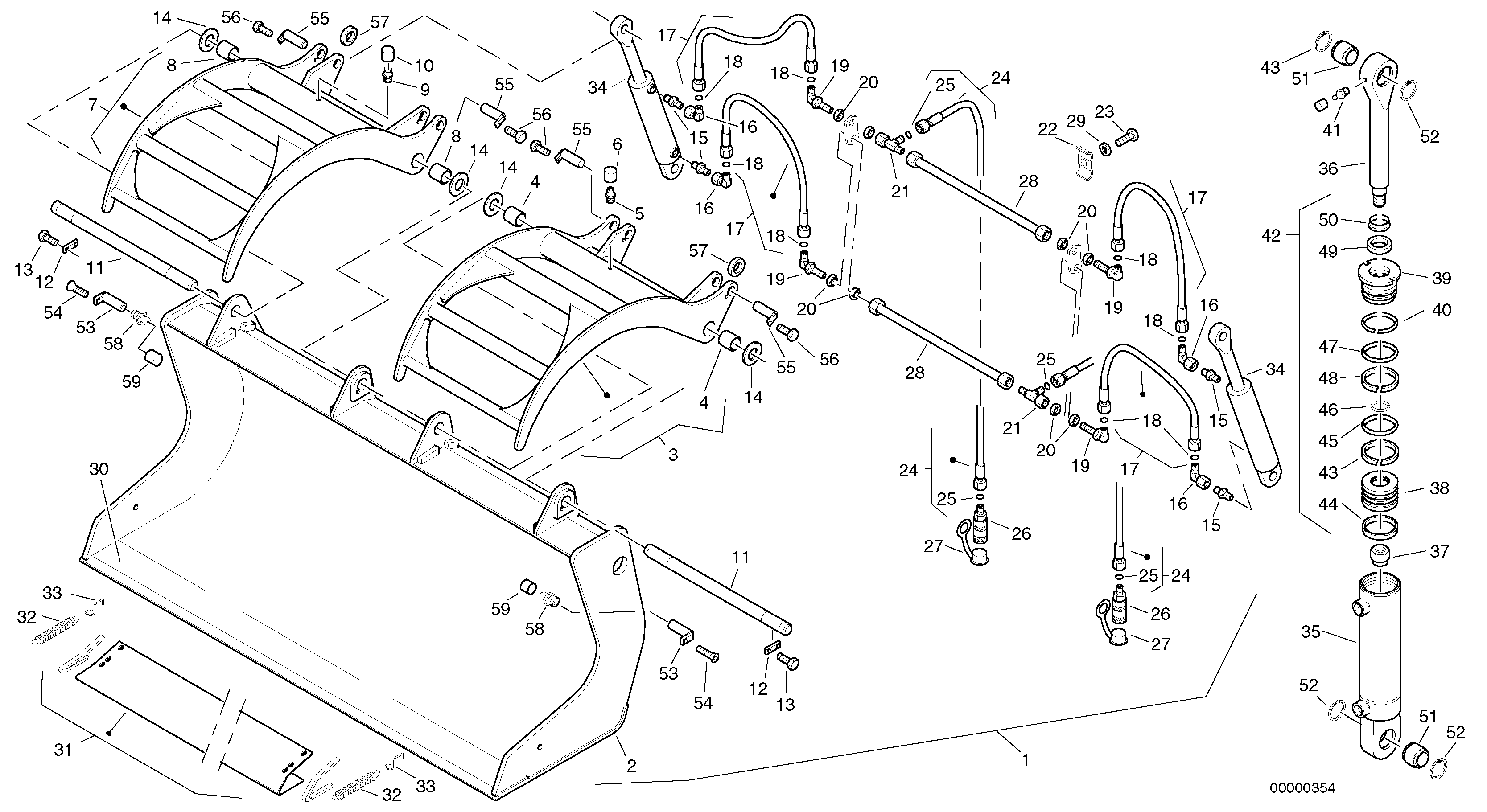

Scrap bucket

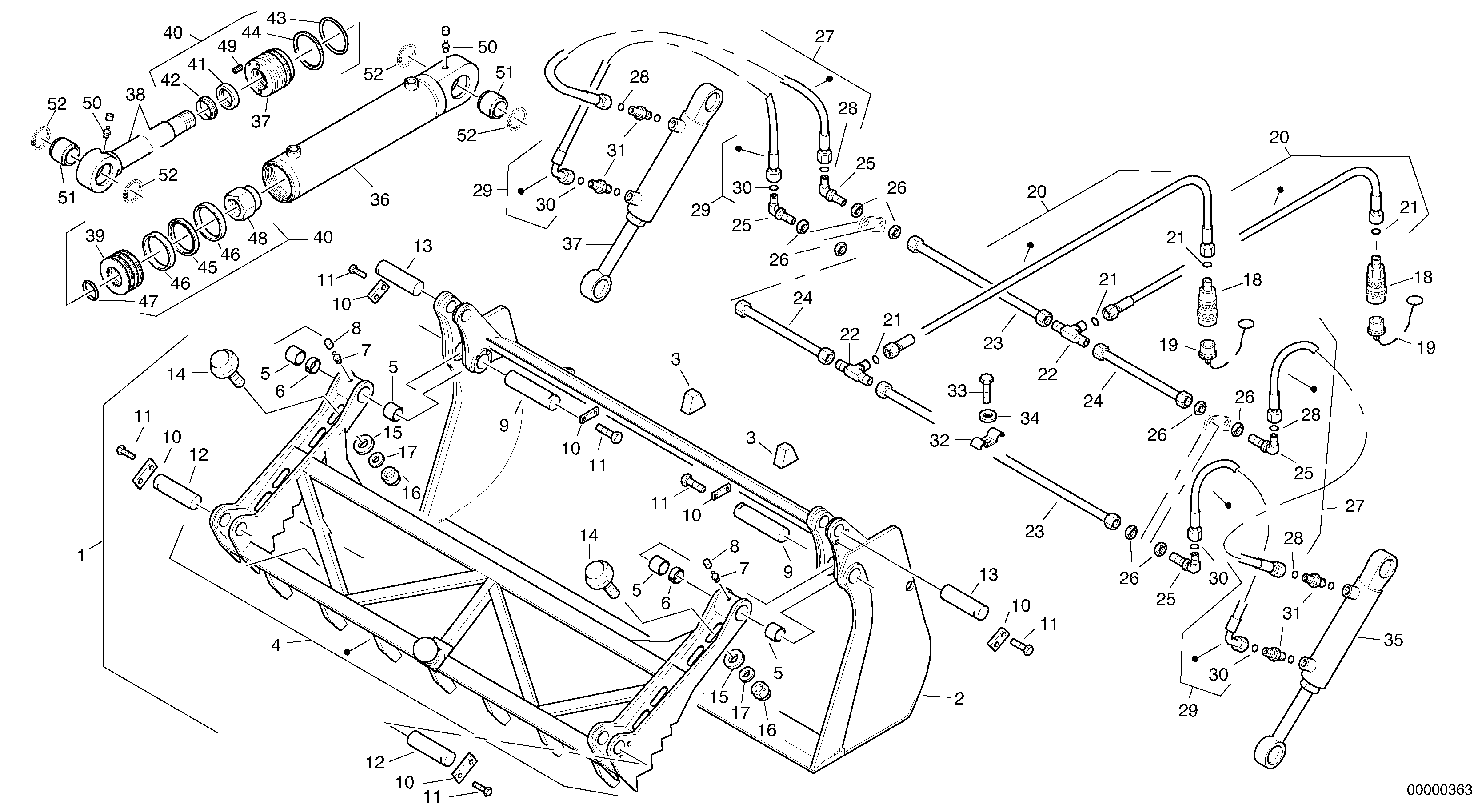

Grab bucket

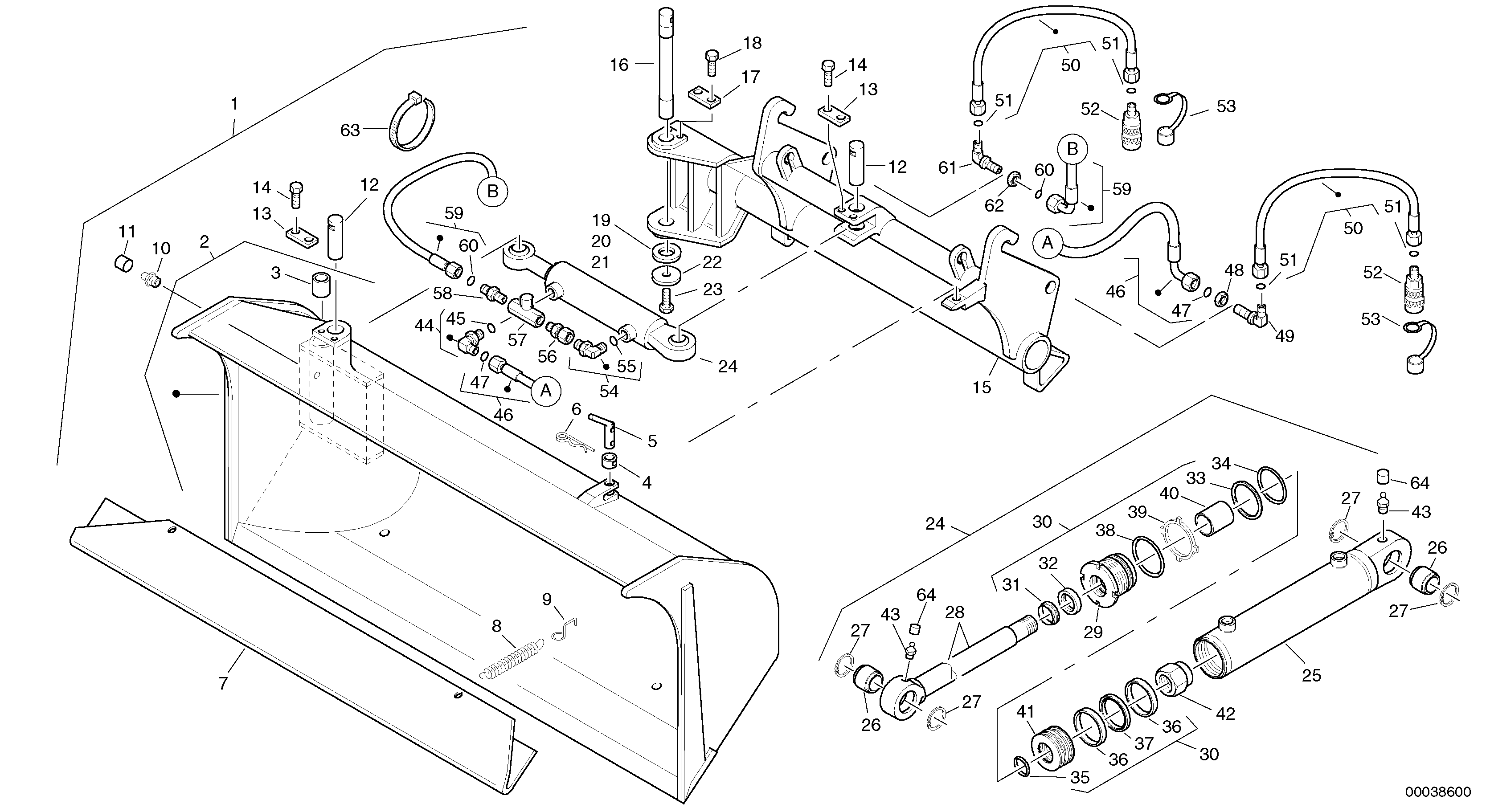

Side tip bucket - 1,1 m³

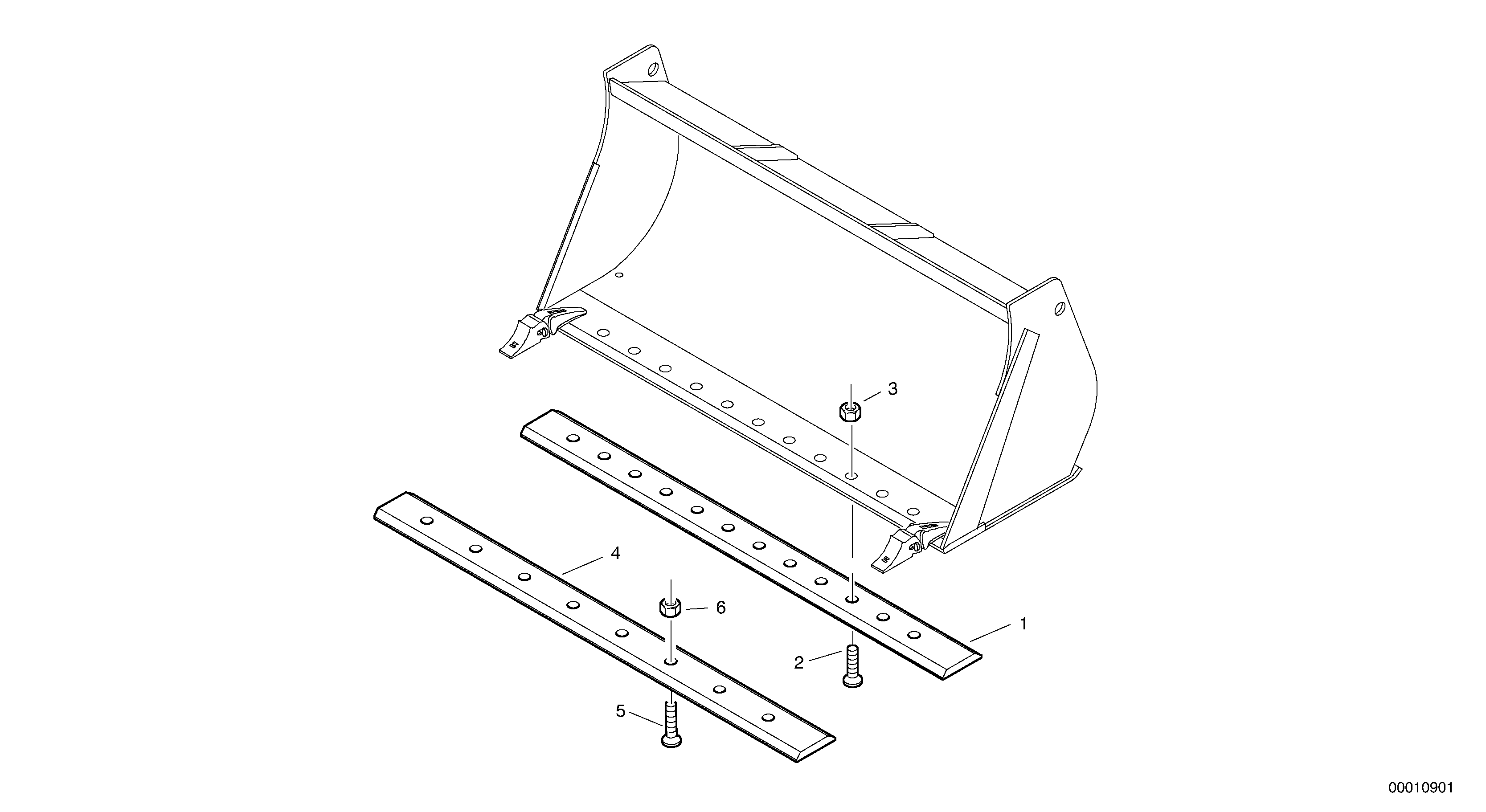

Bolt-on cutting edge

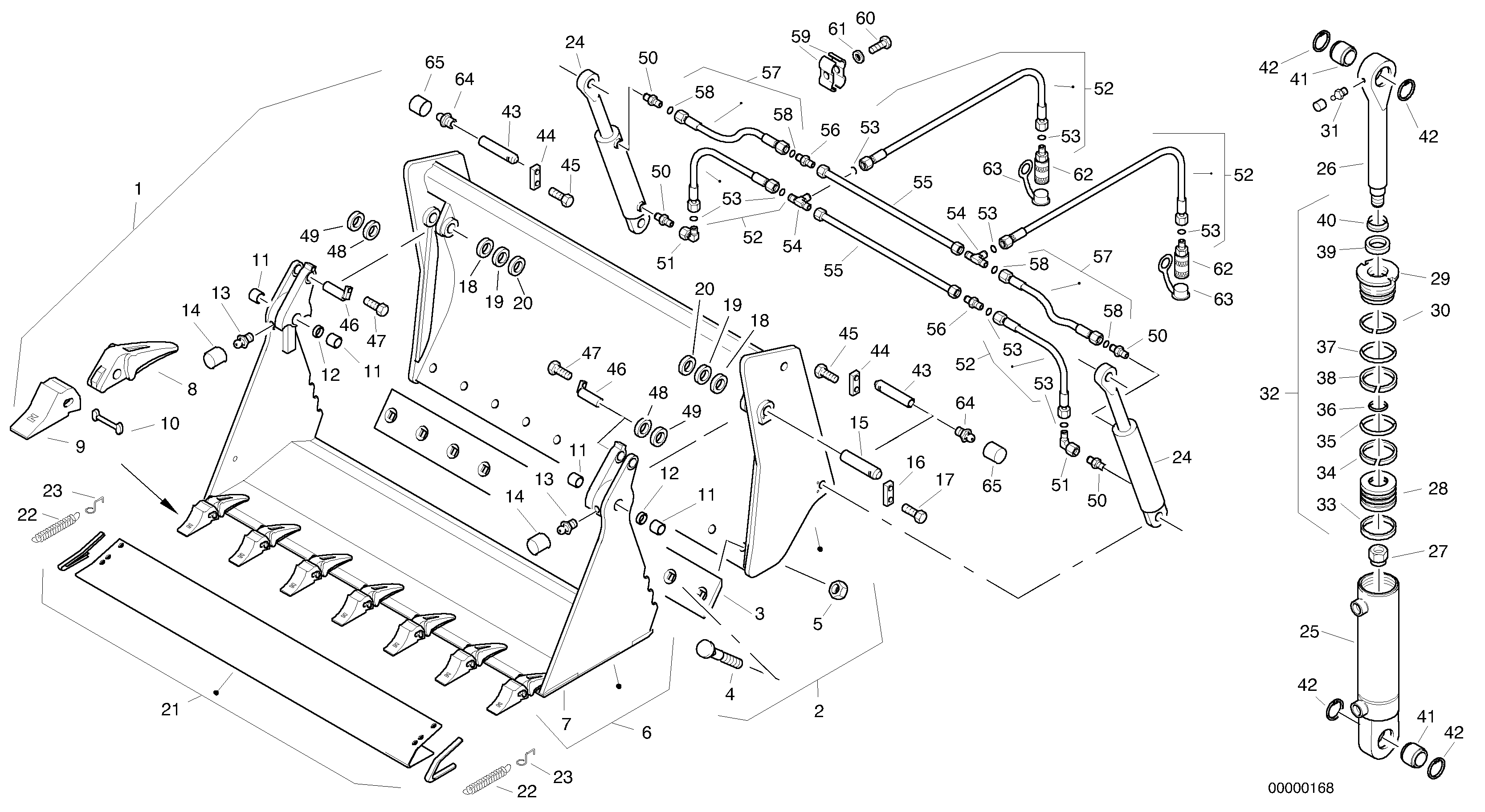

Shutter bucket with teeth

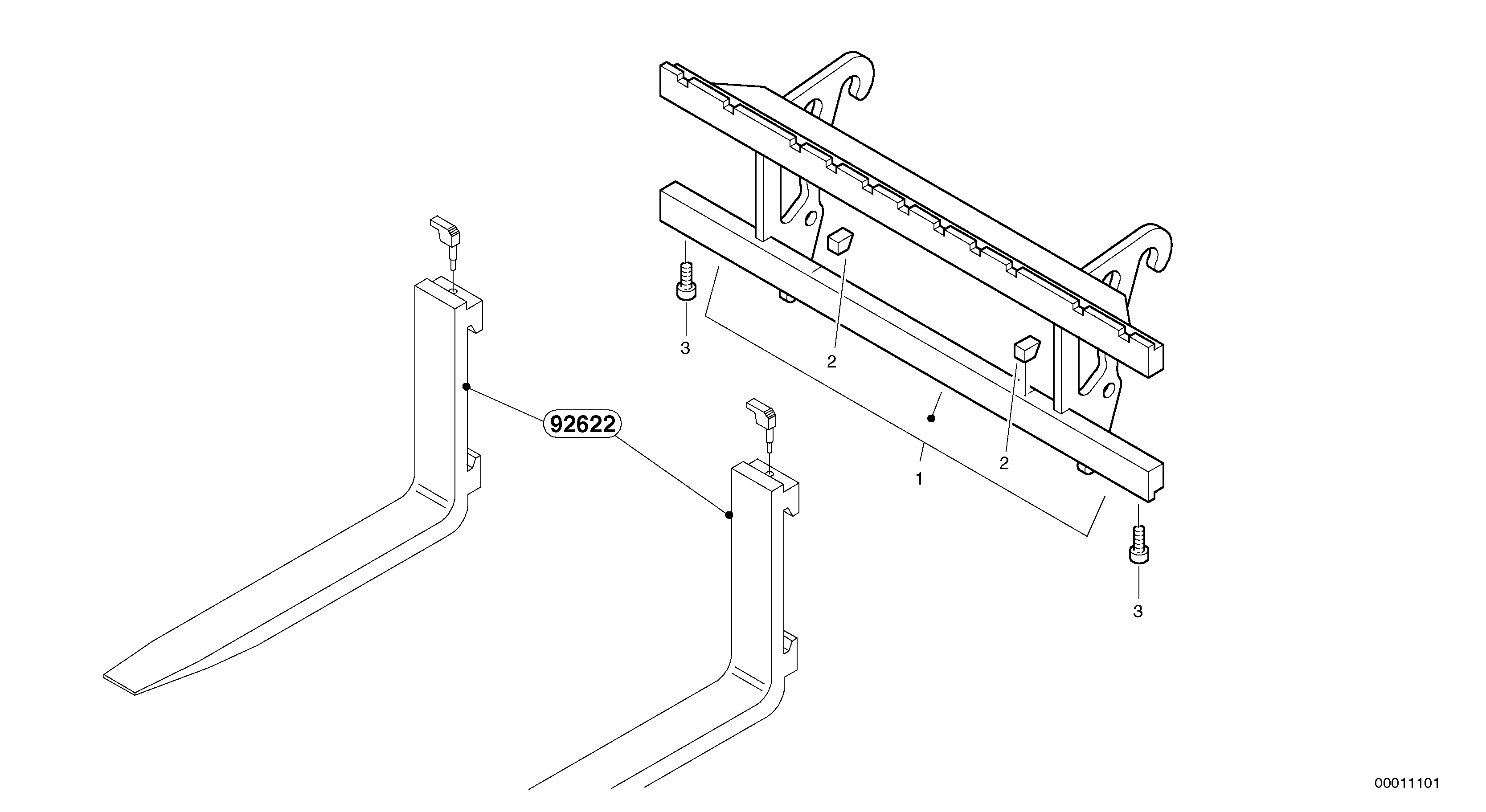

Fork lift attachment support

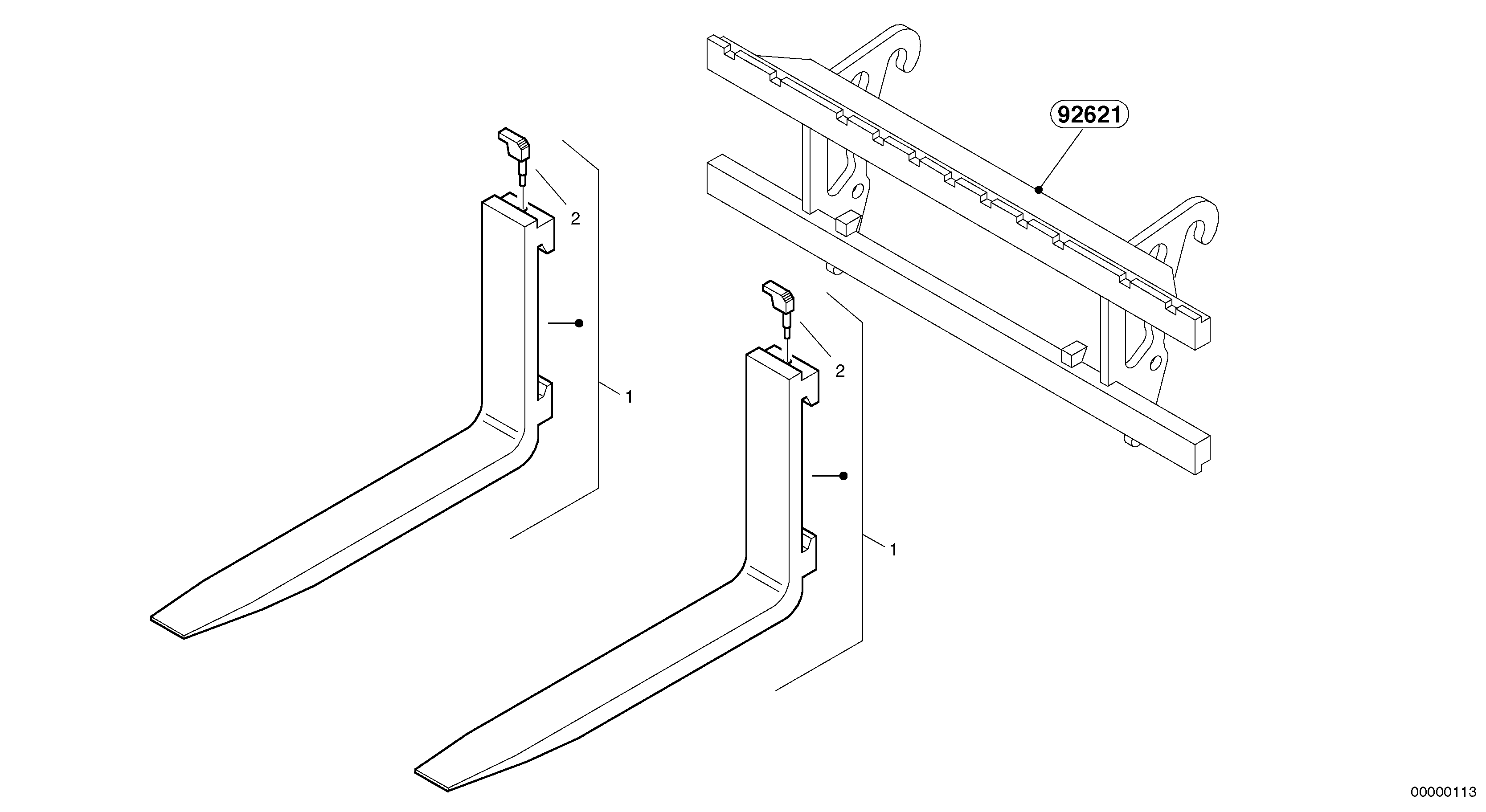

Fork tines

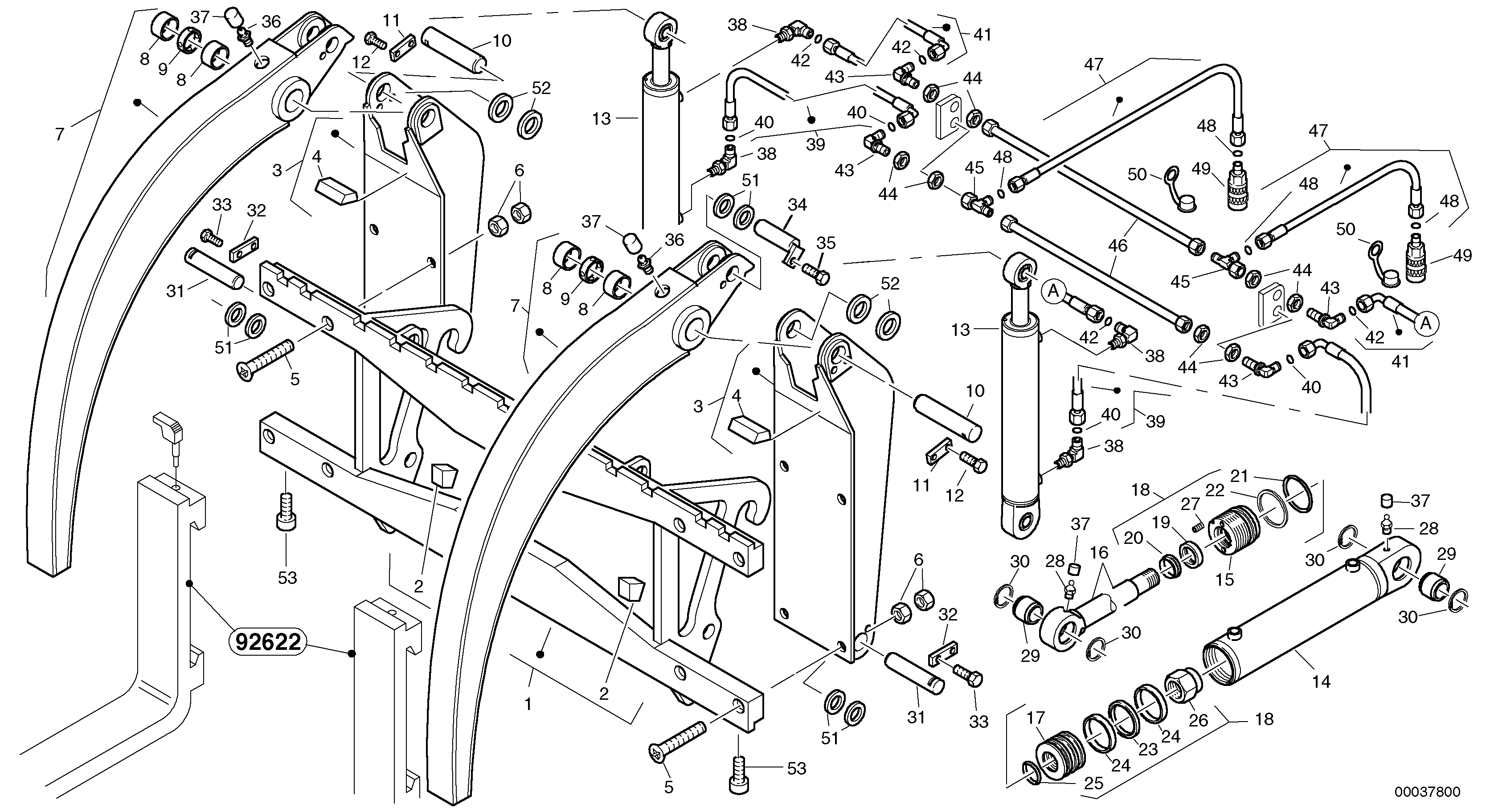

Fork lift attachment support with grab

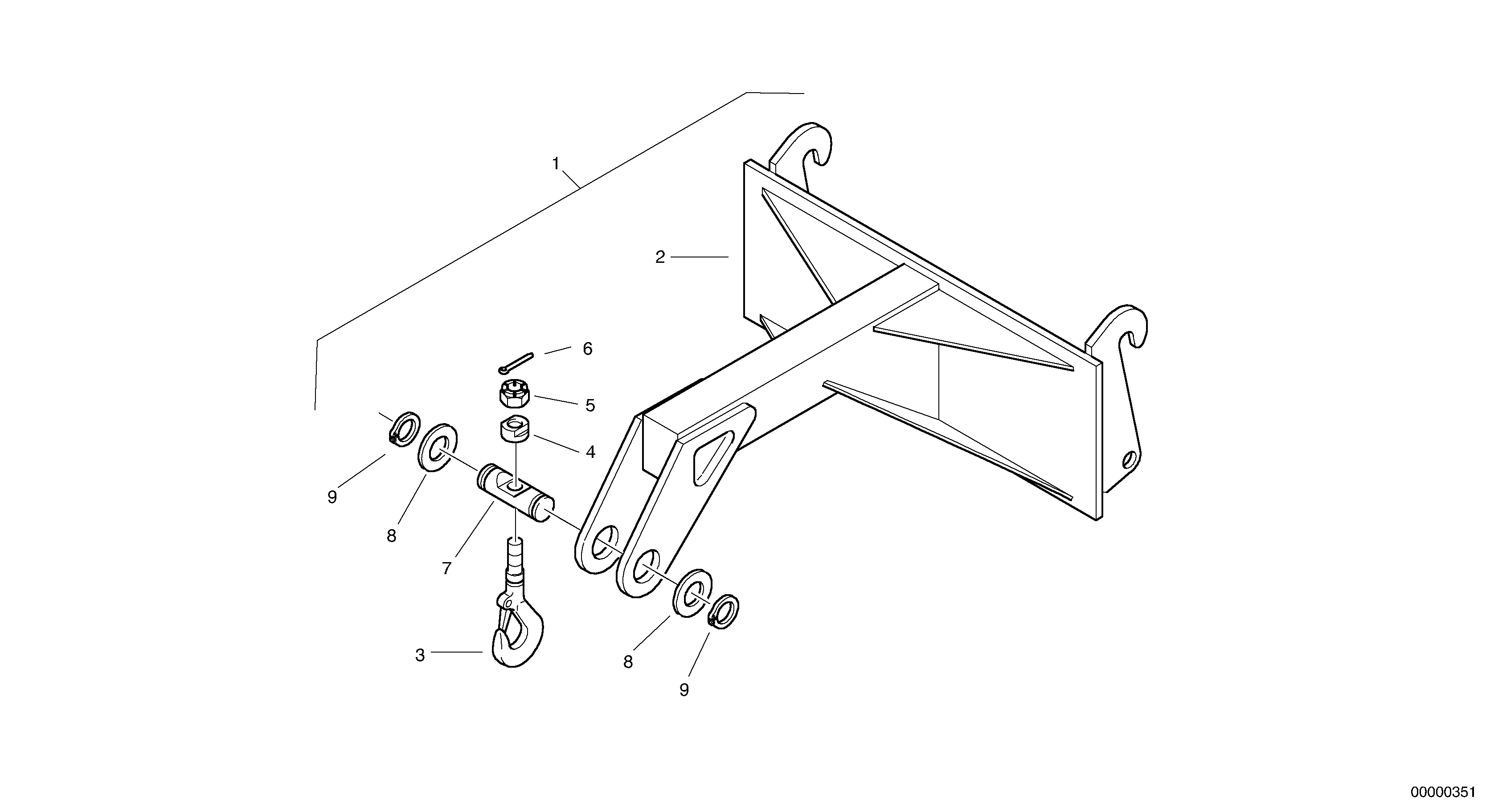

Load hook

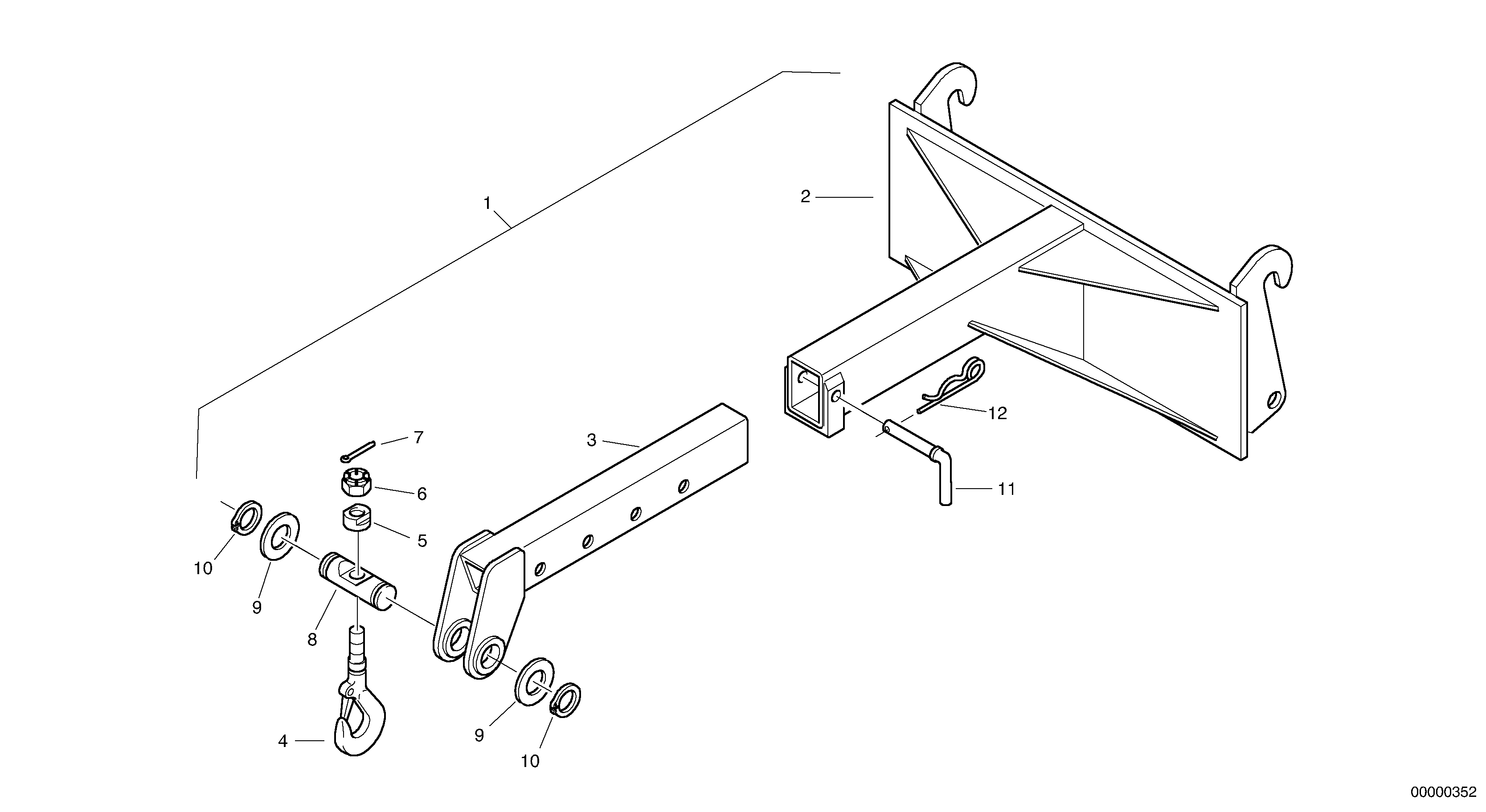

Load hook, telescopically

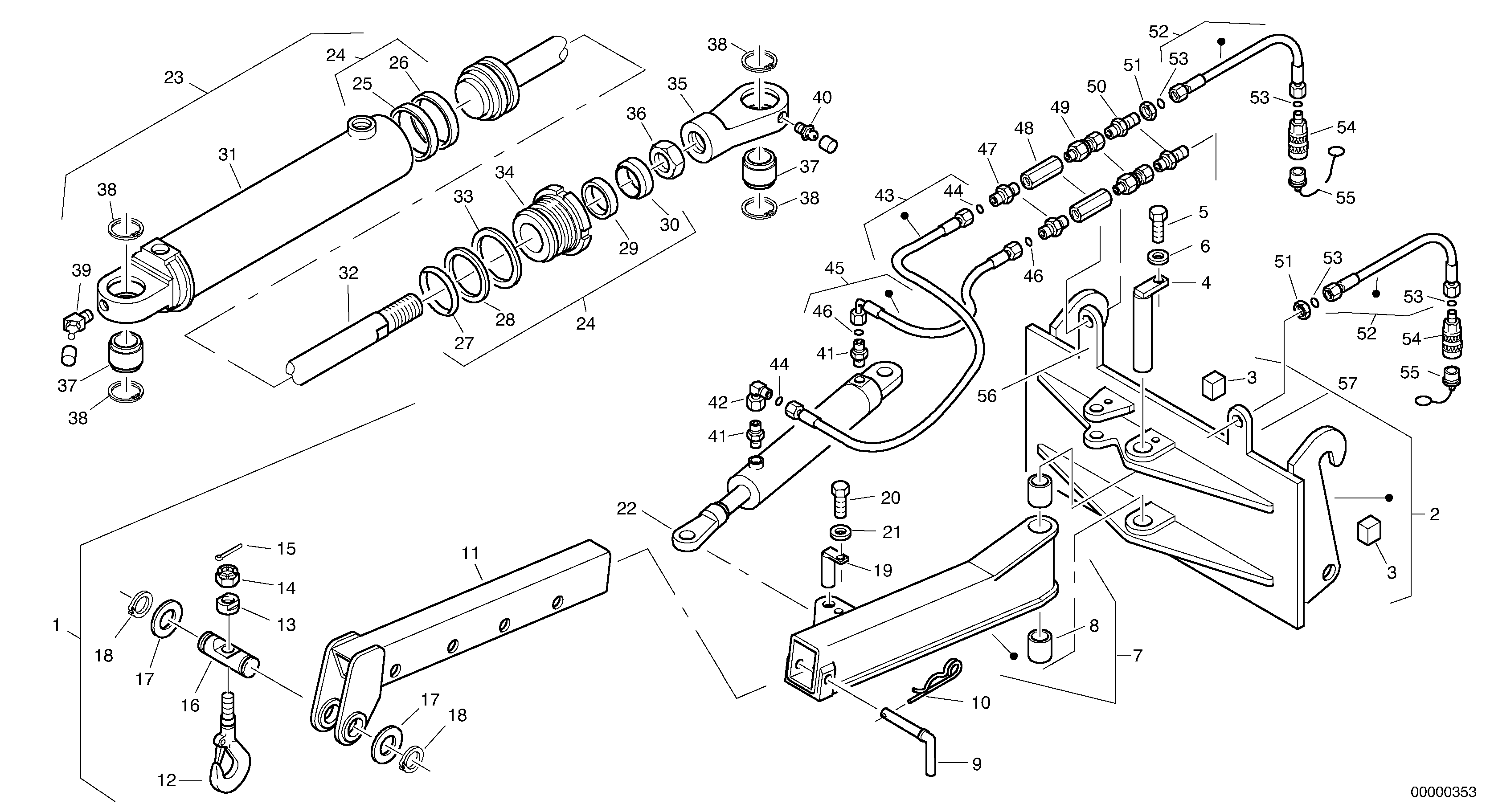

Load hook, slewing
