Volvo L120C 11319-, 61677-US, 70075- BR
335 pages · 284 diagrams
- L120C
- Wheel Loaders Volvo, L50C-L120C, Attach. Buckets, Attach. Misc.

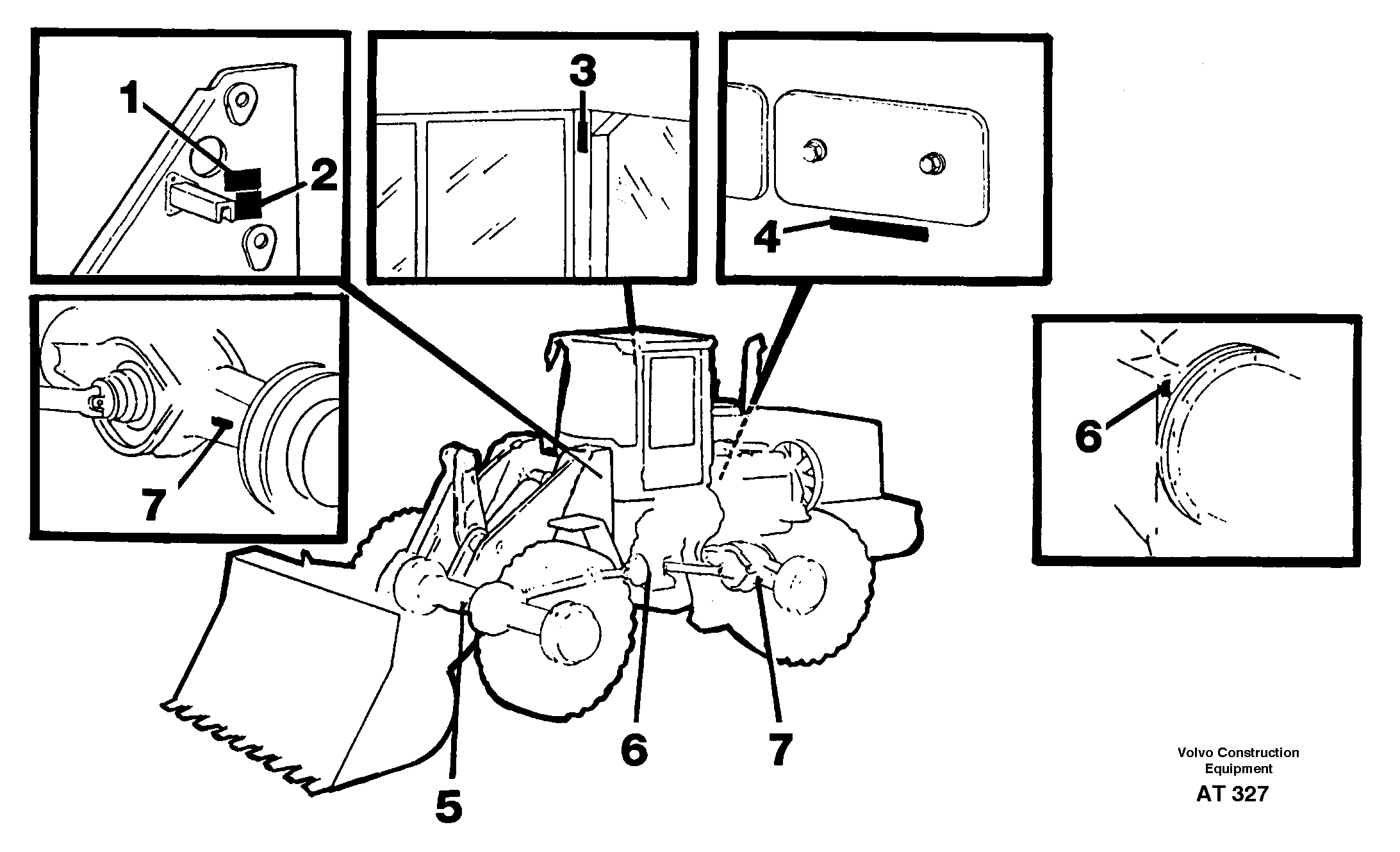

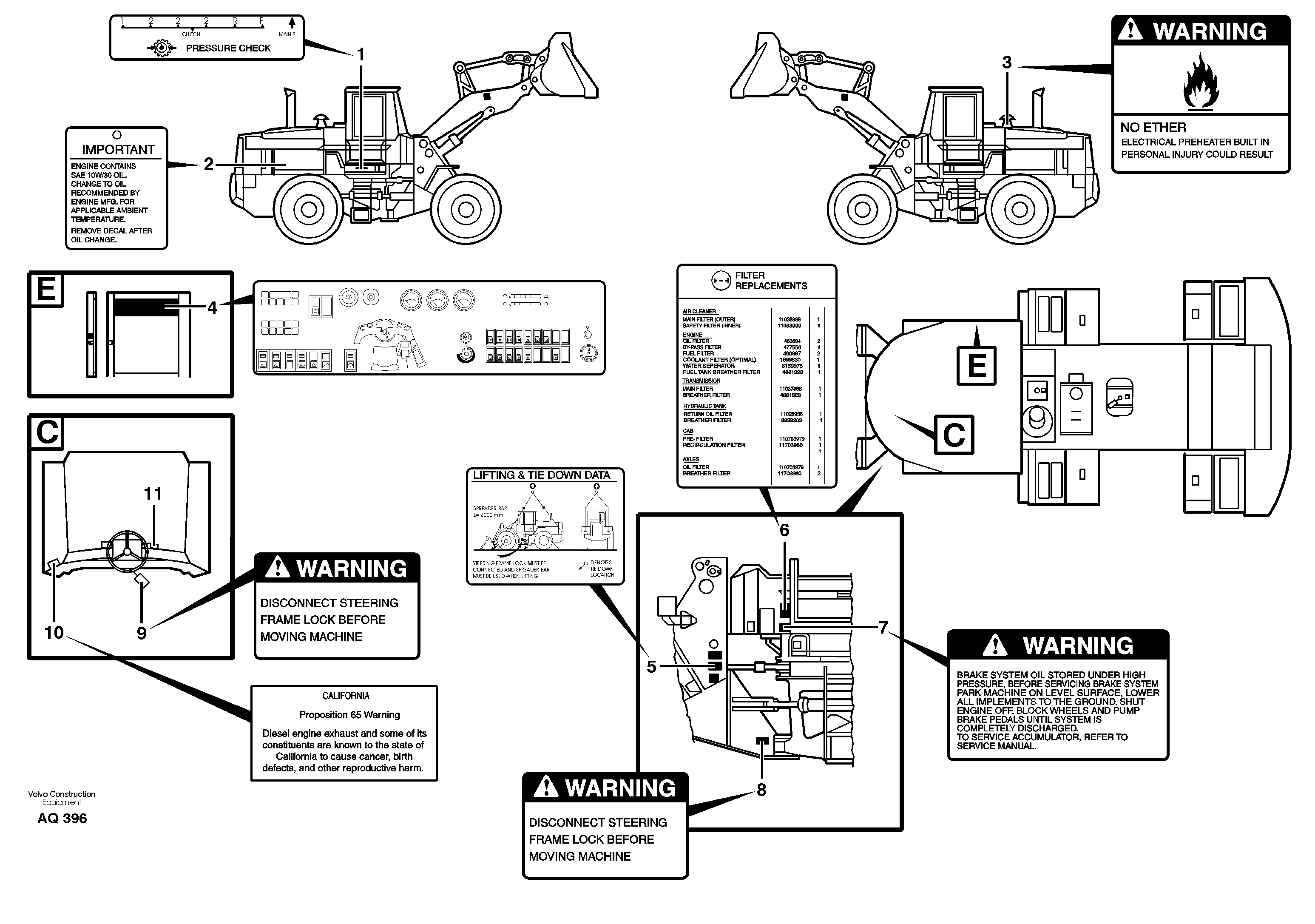

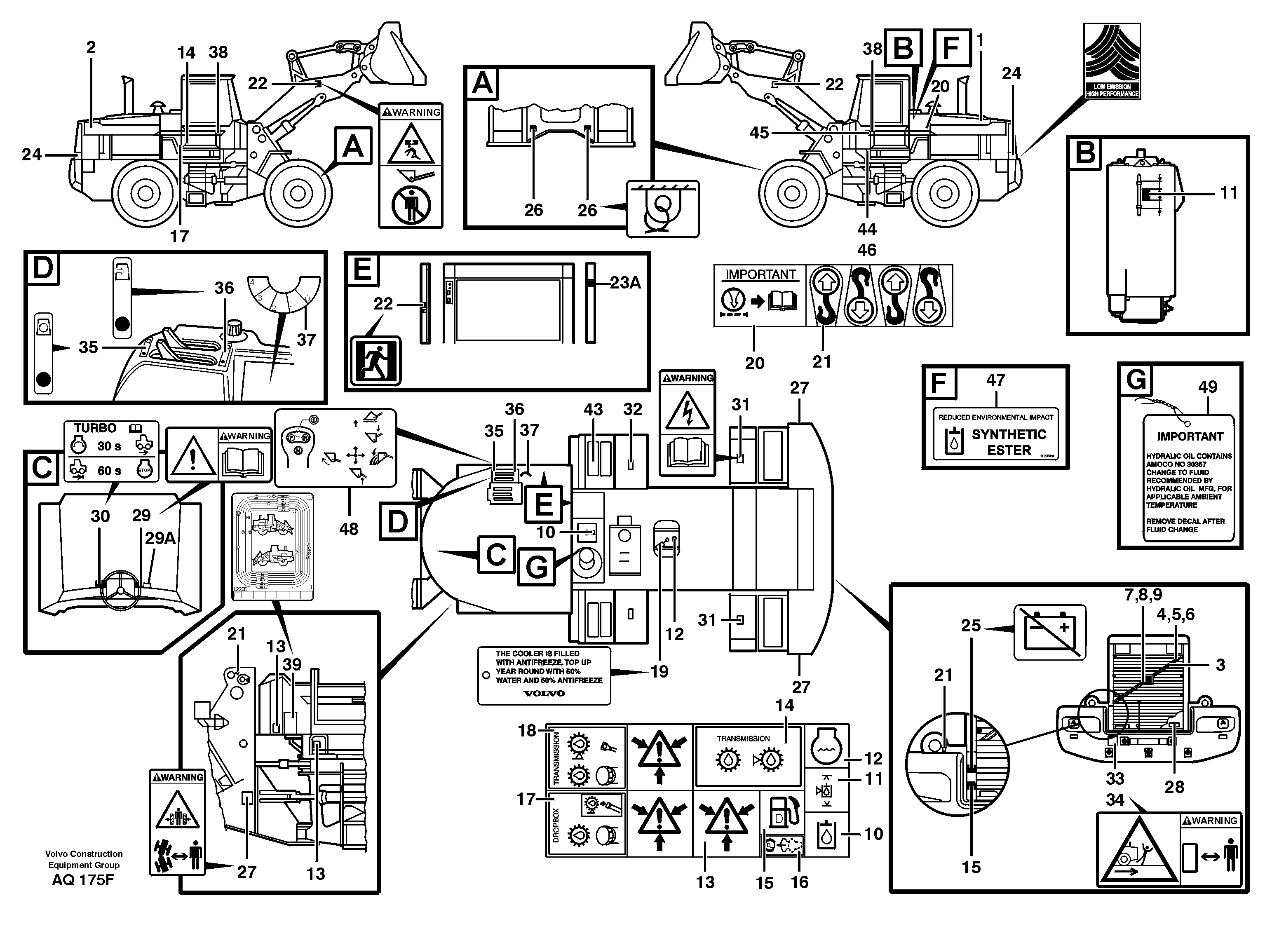

General

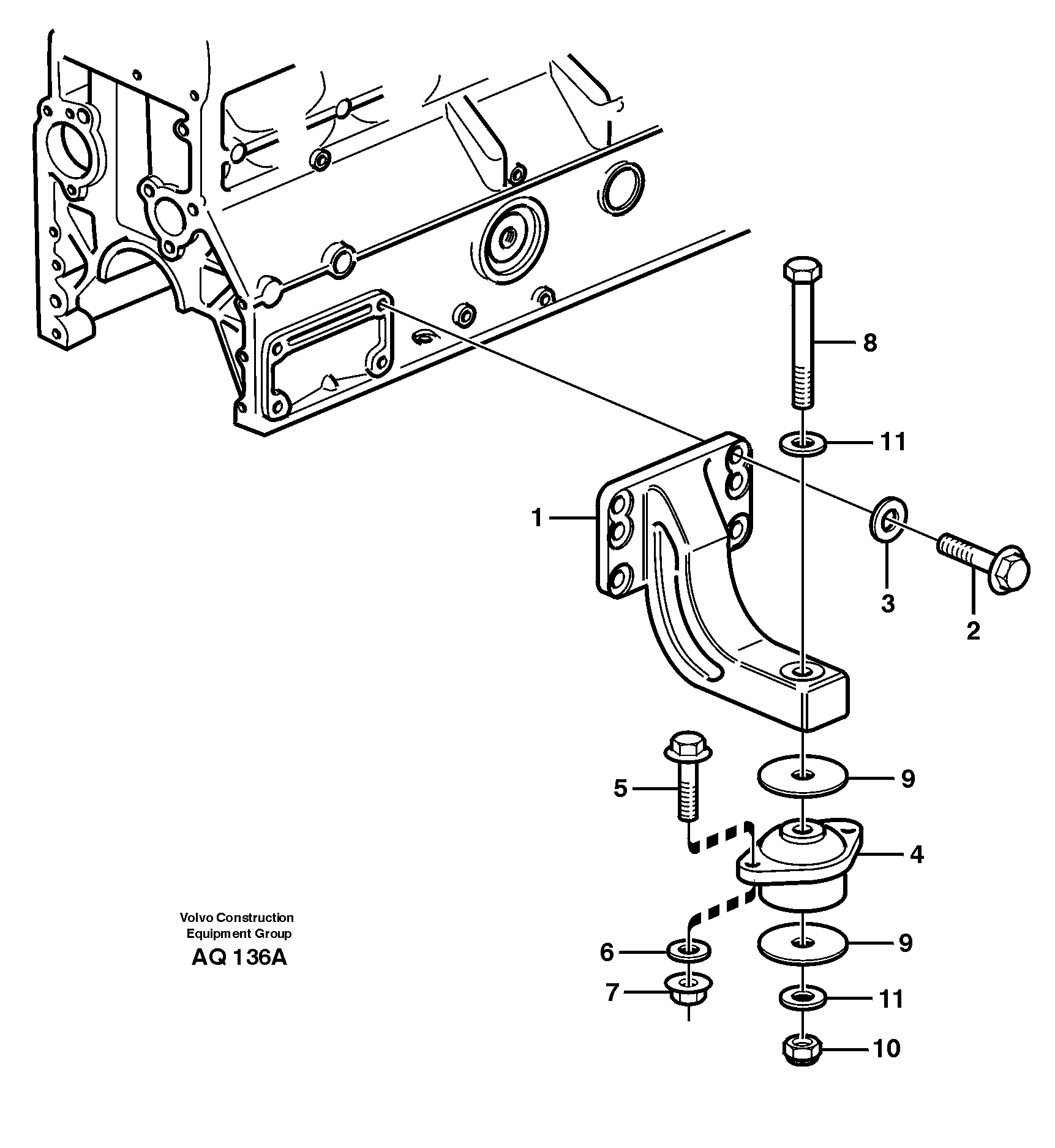

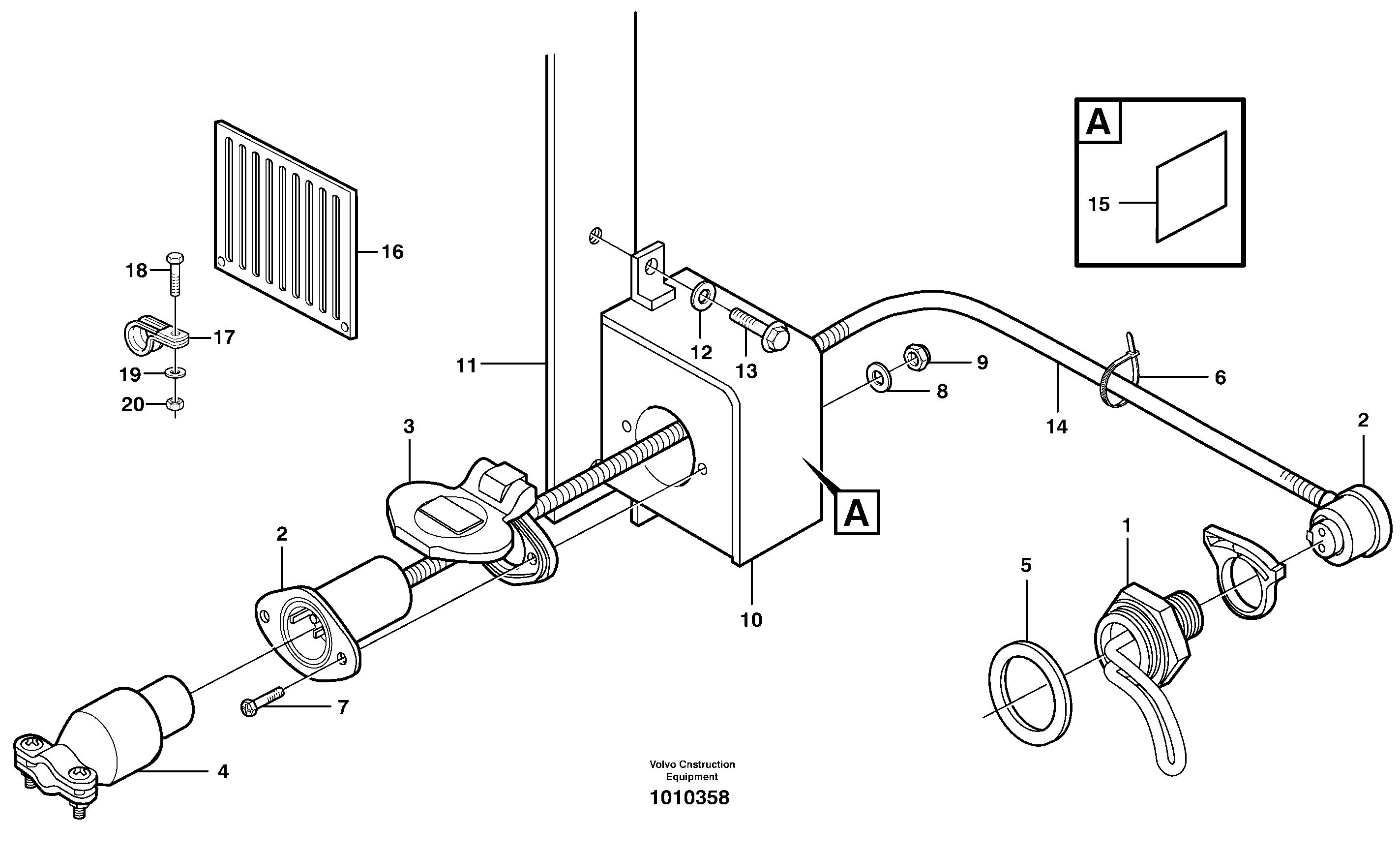

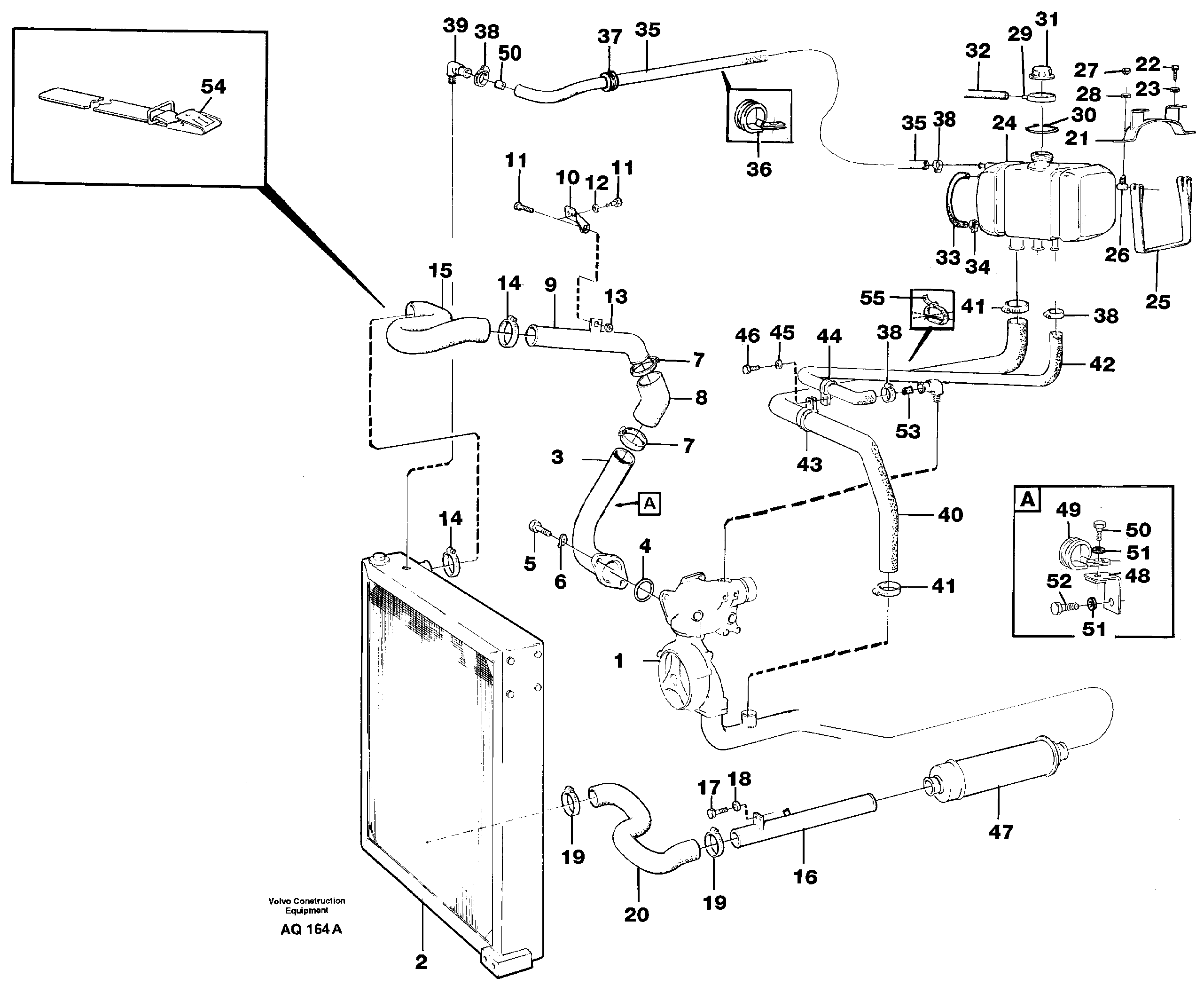

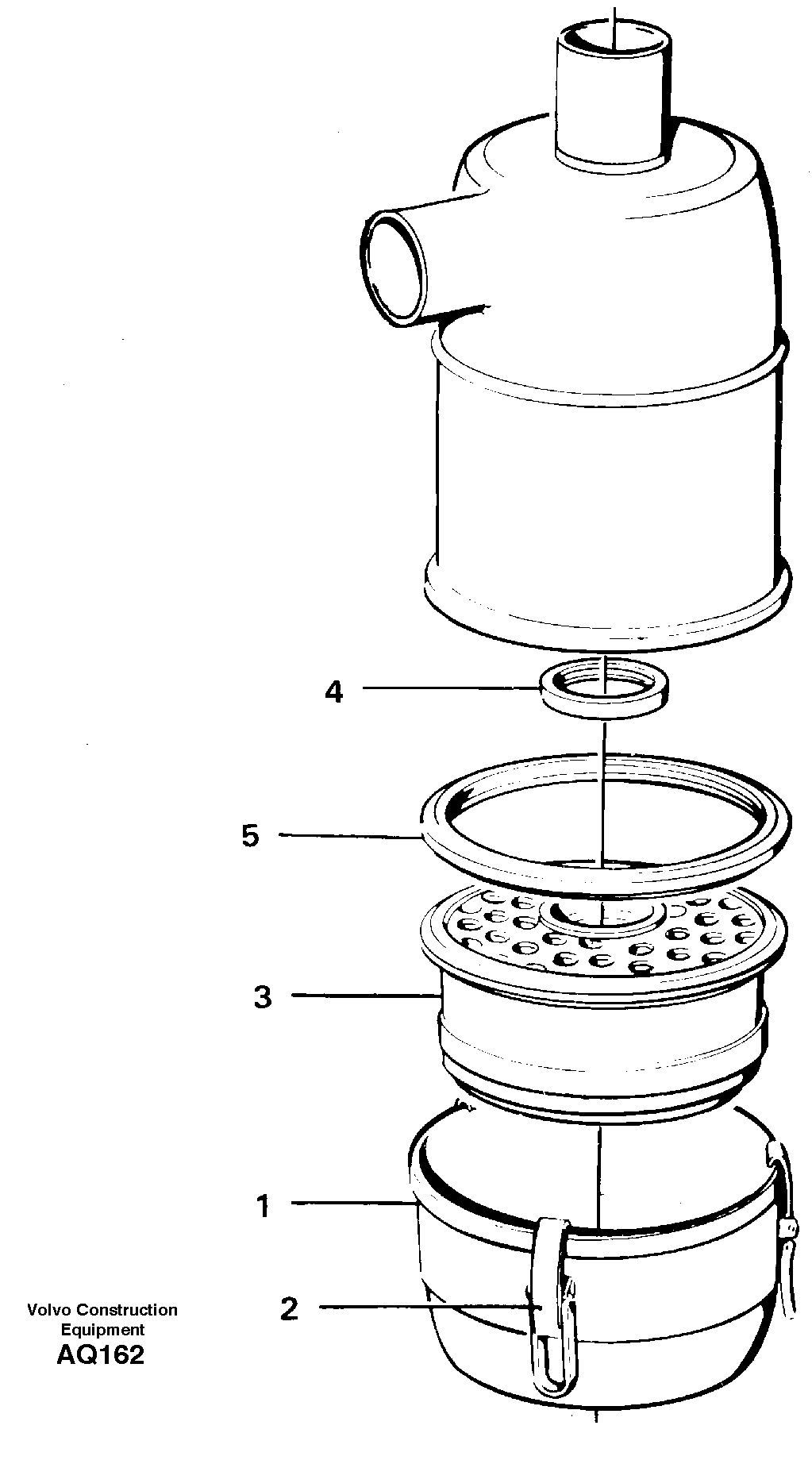

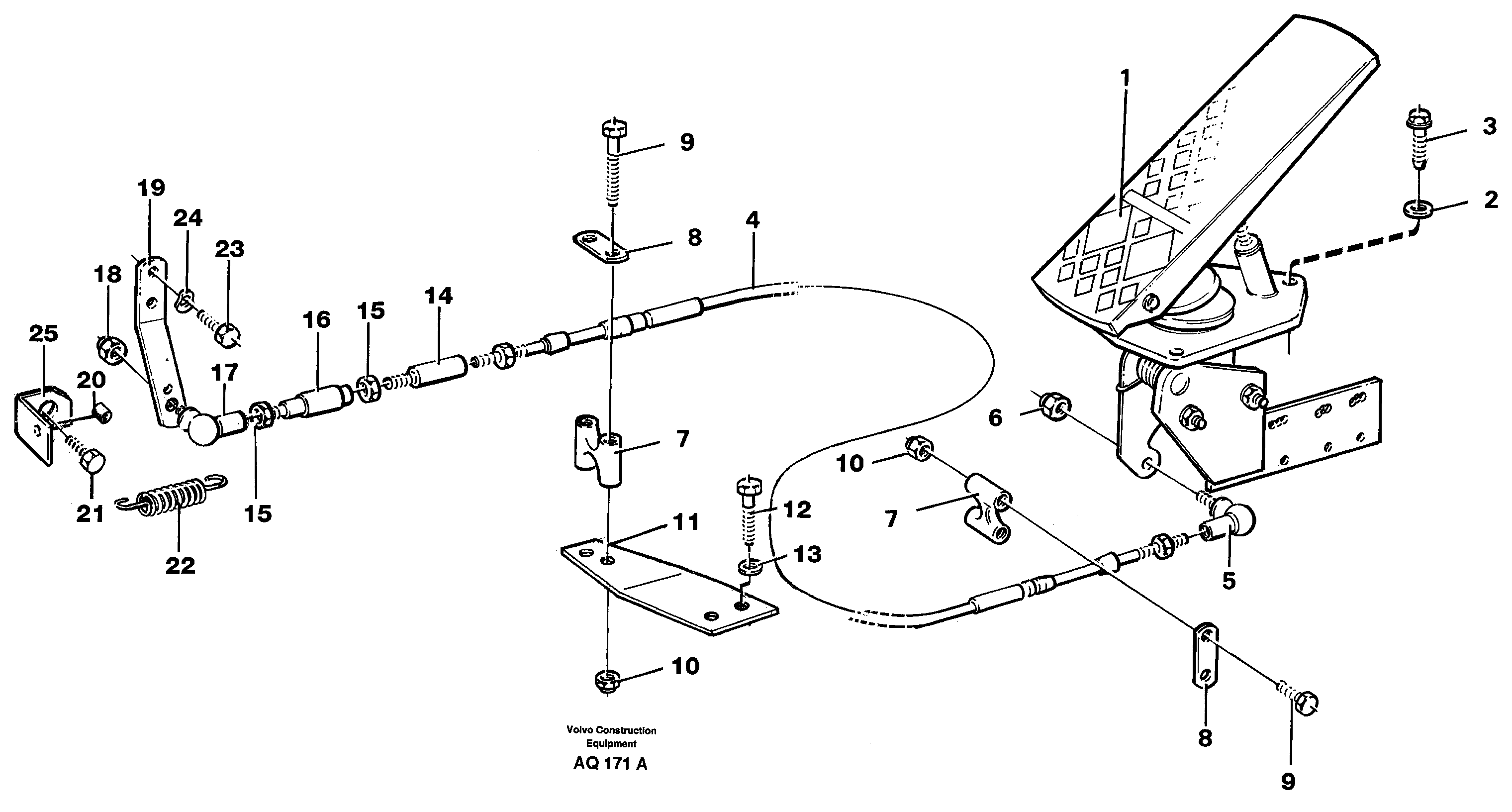

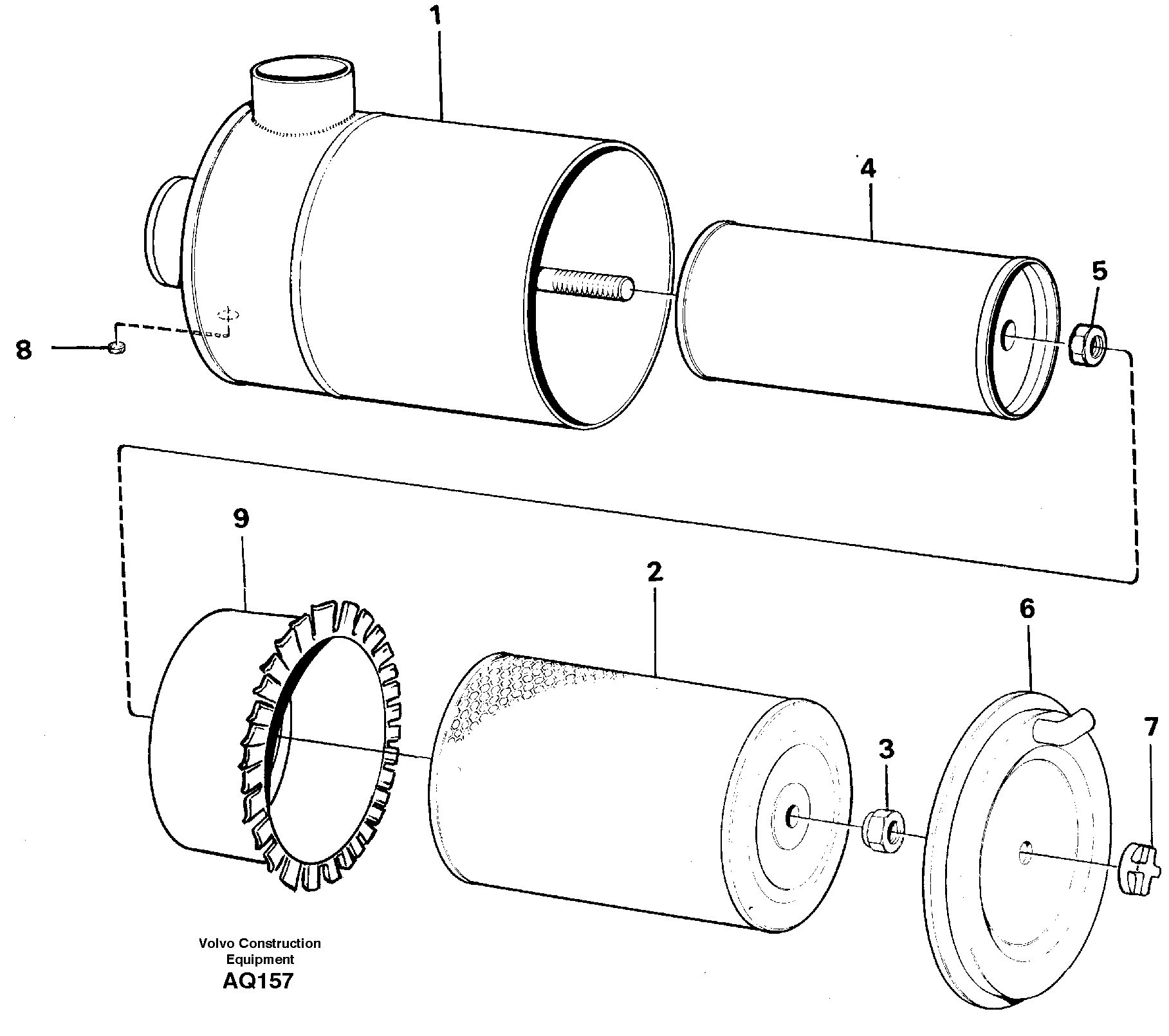

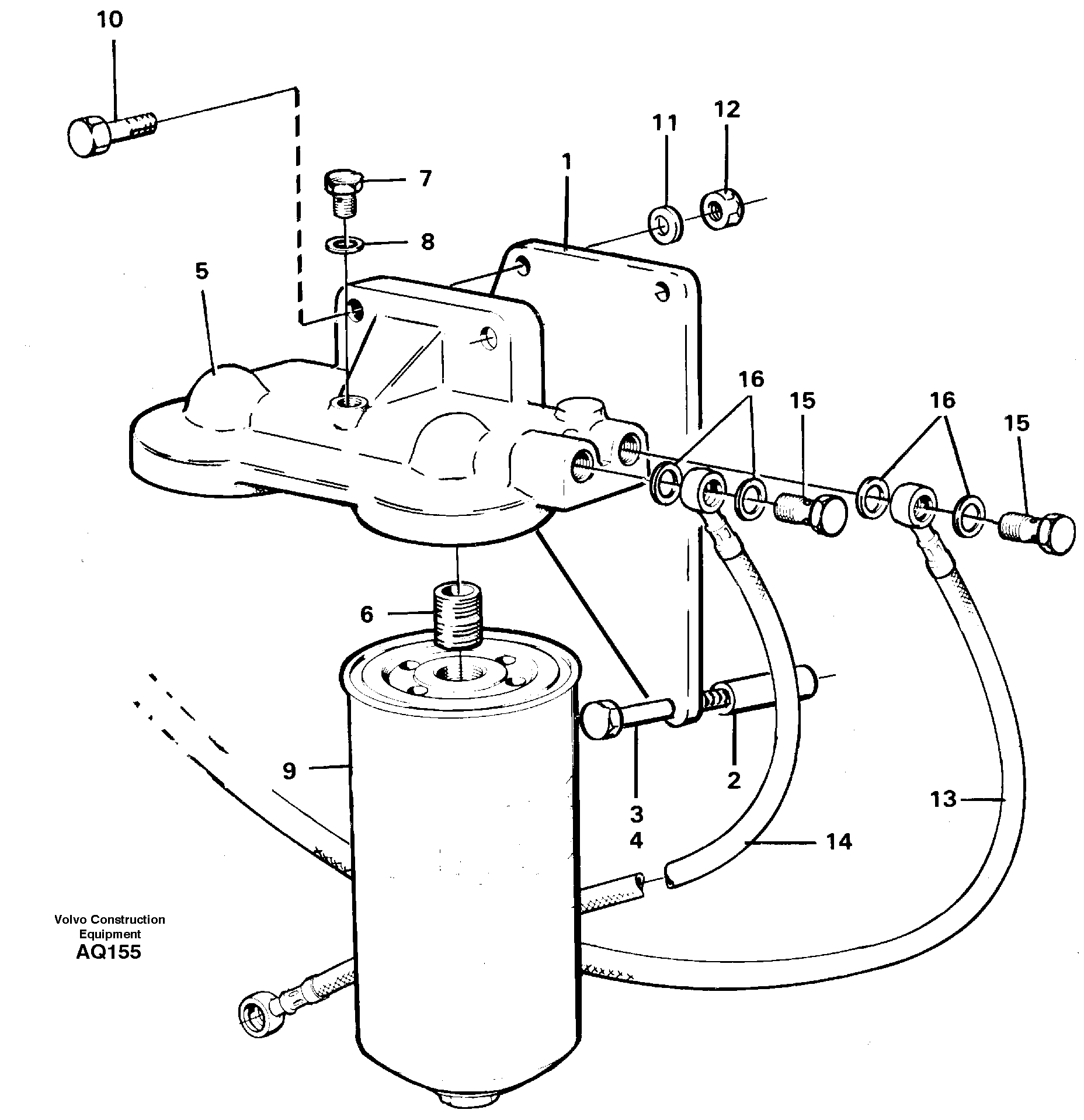

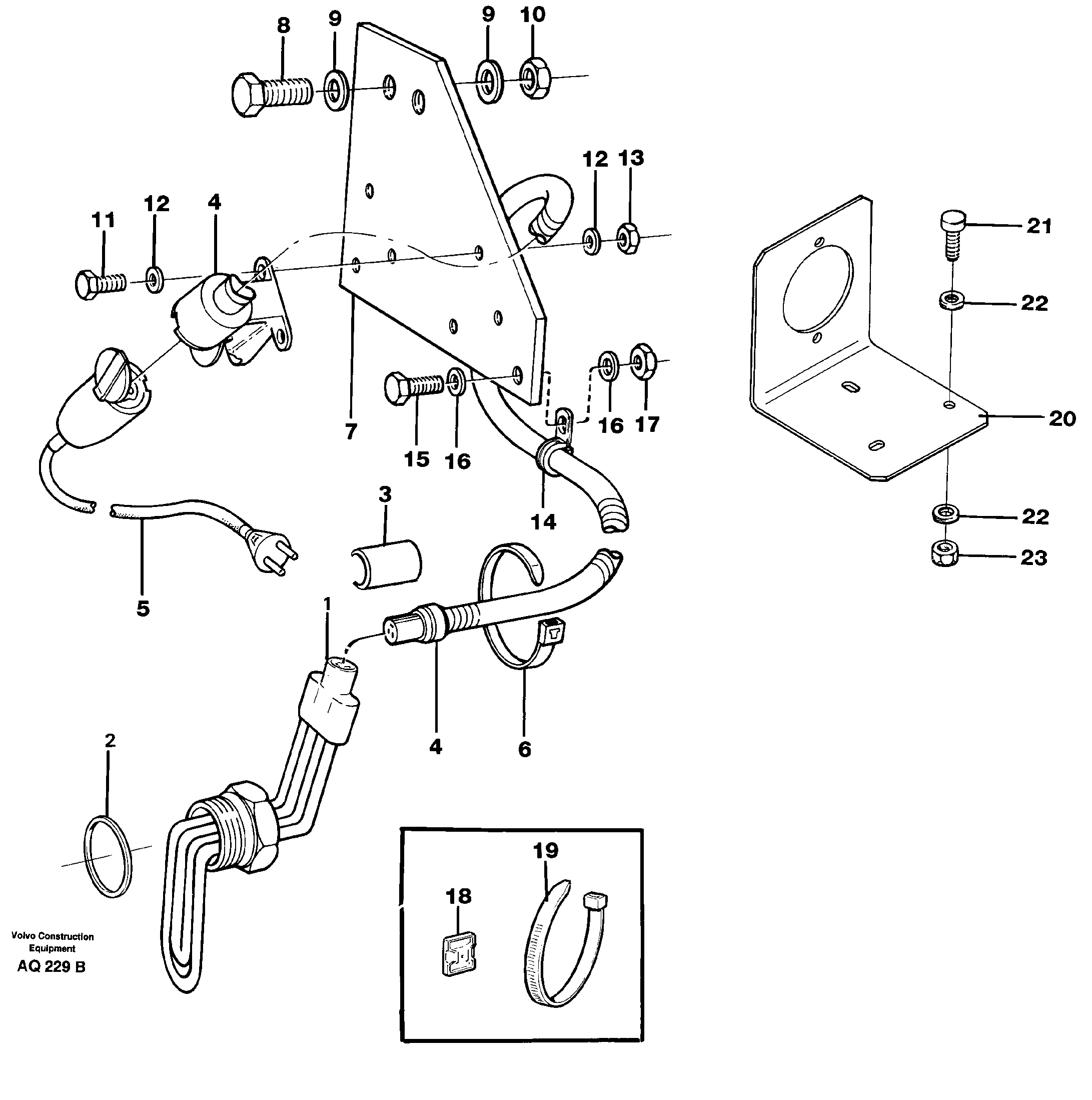

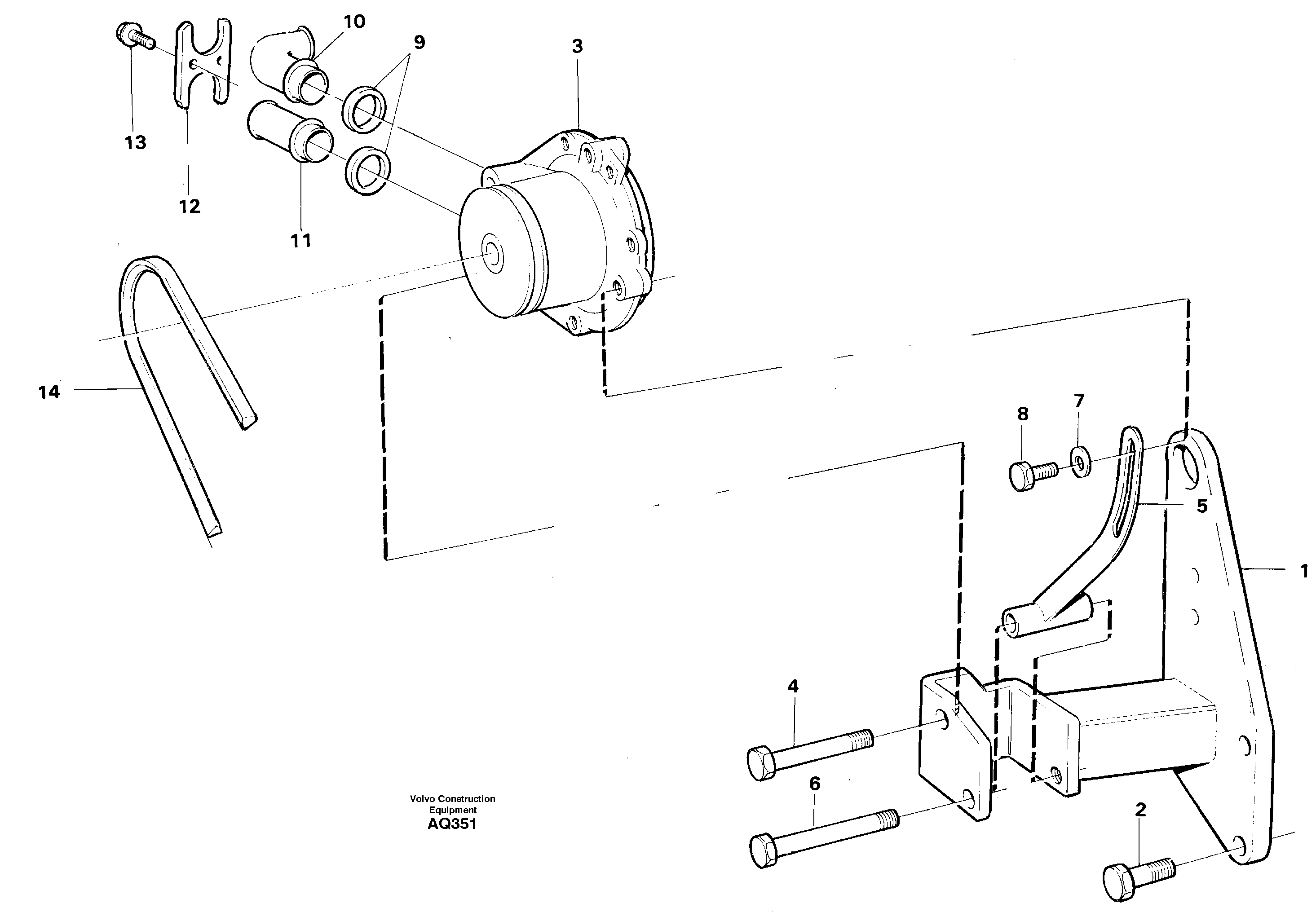

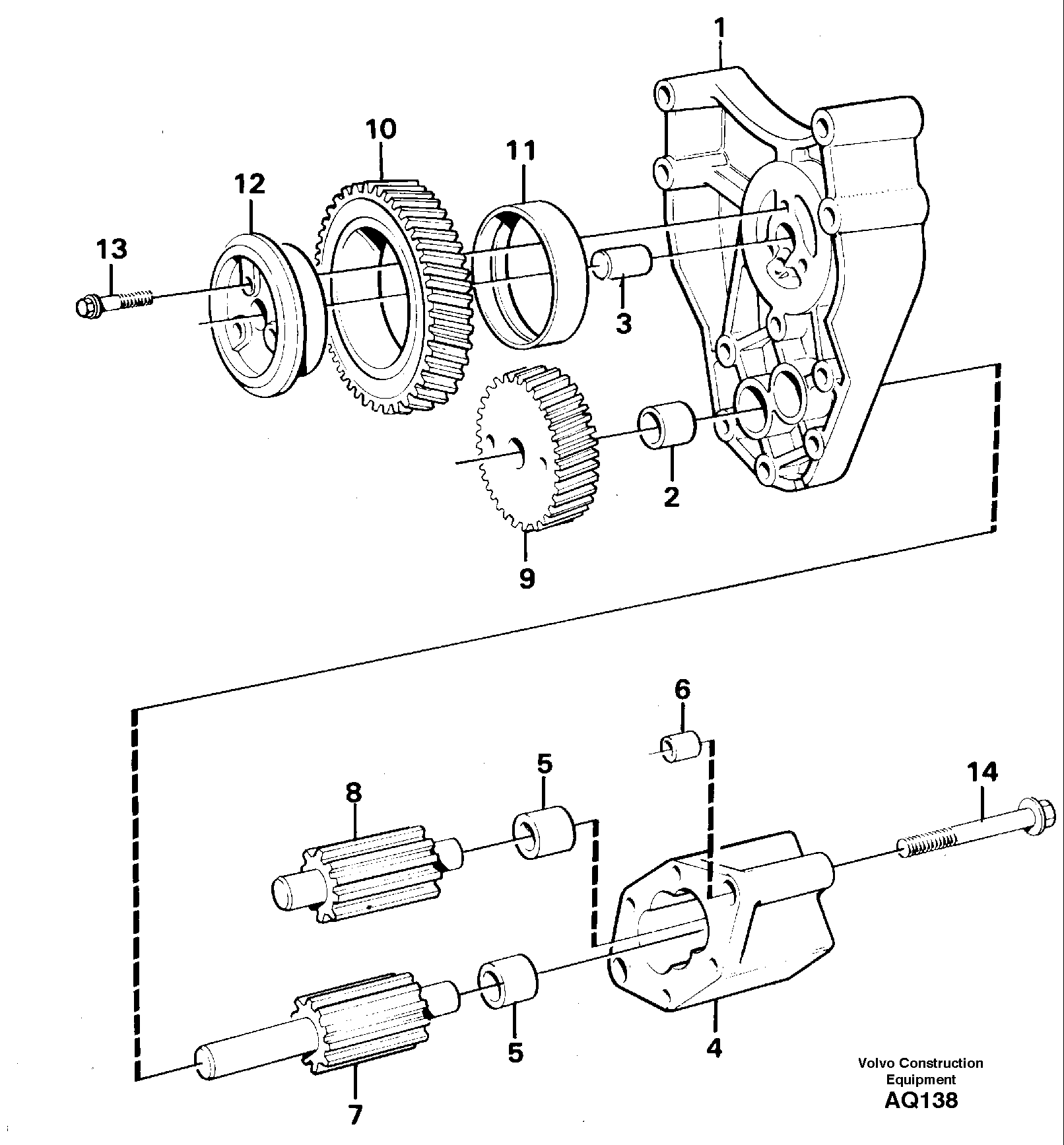

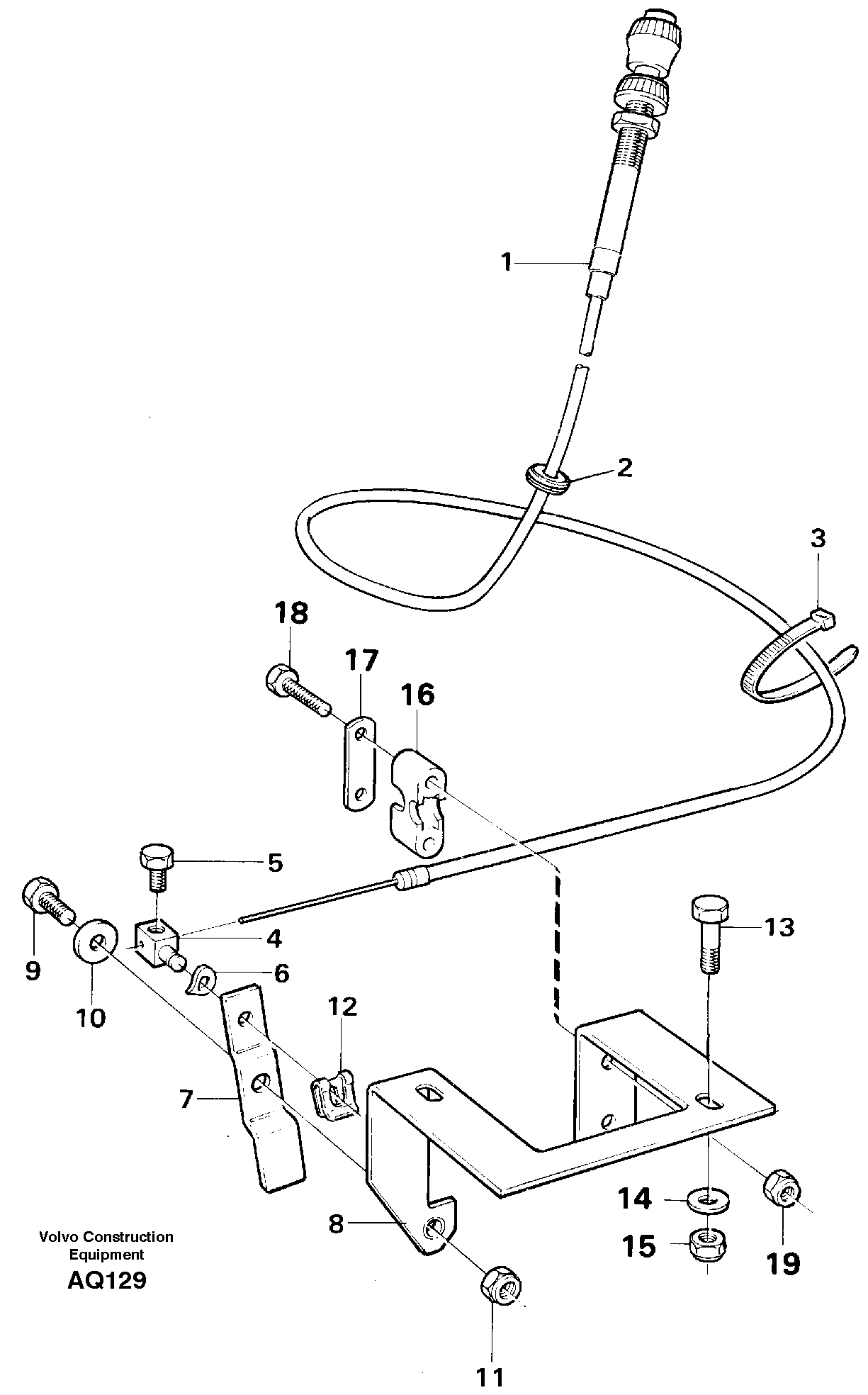

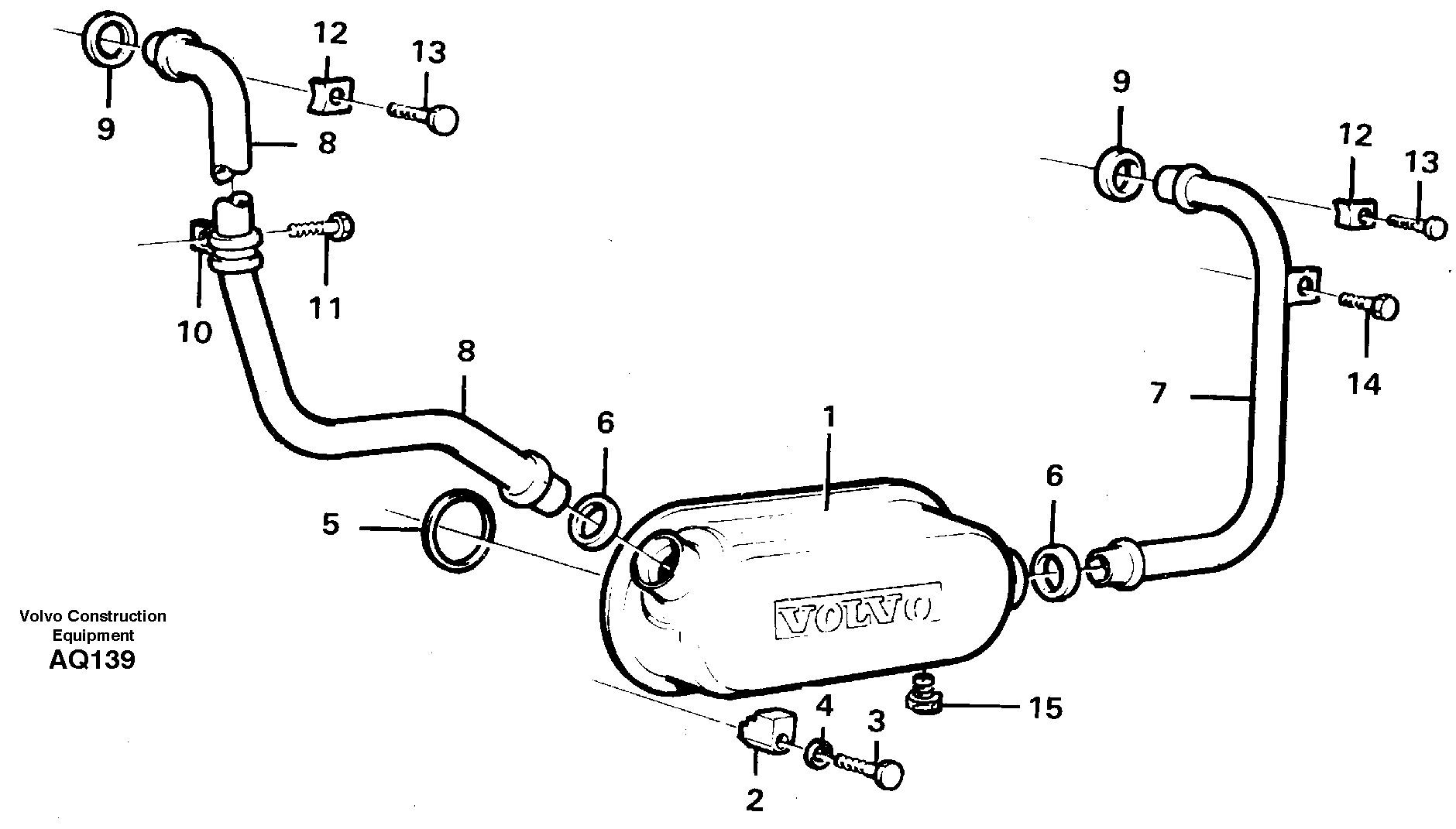

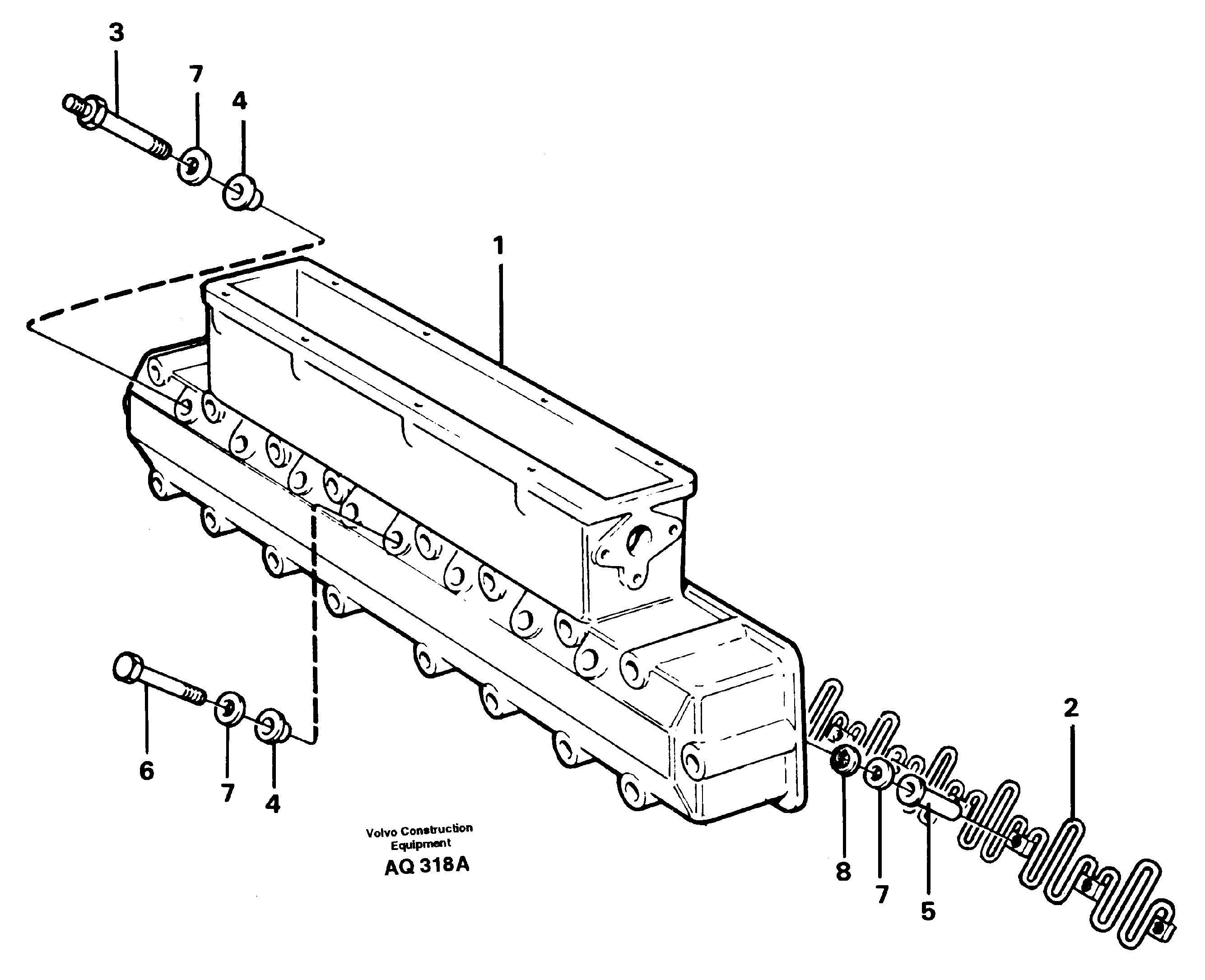

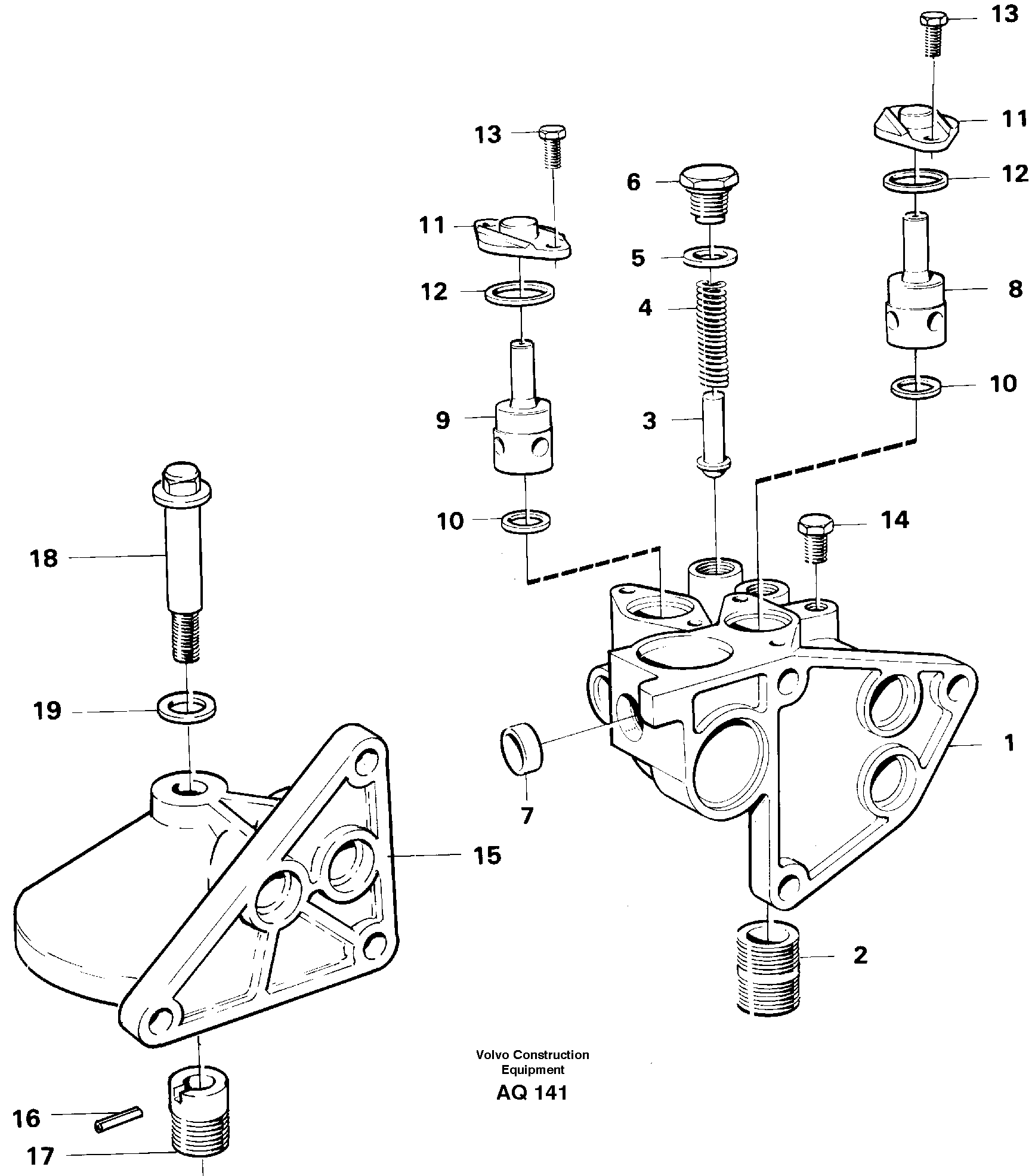

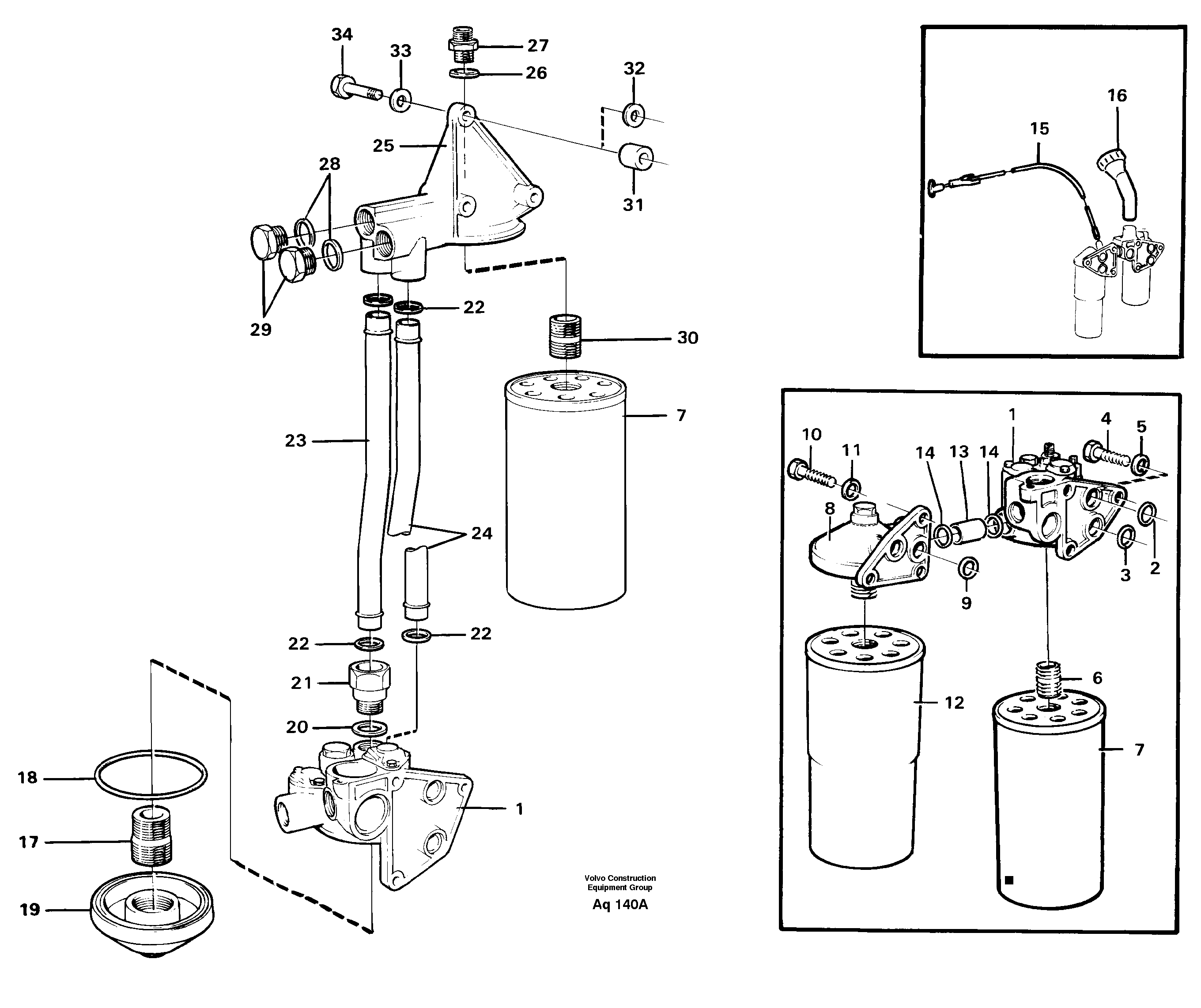

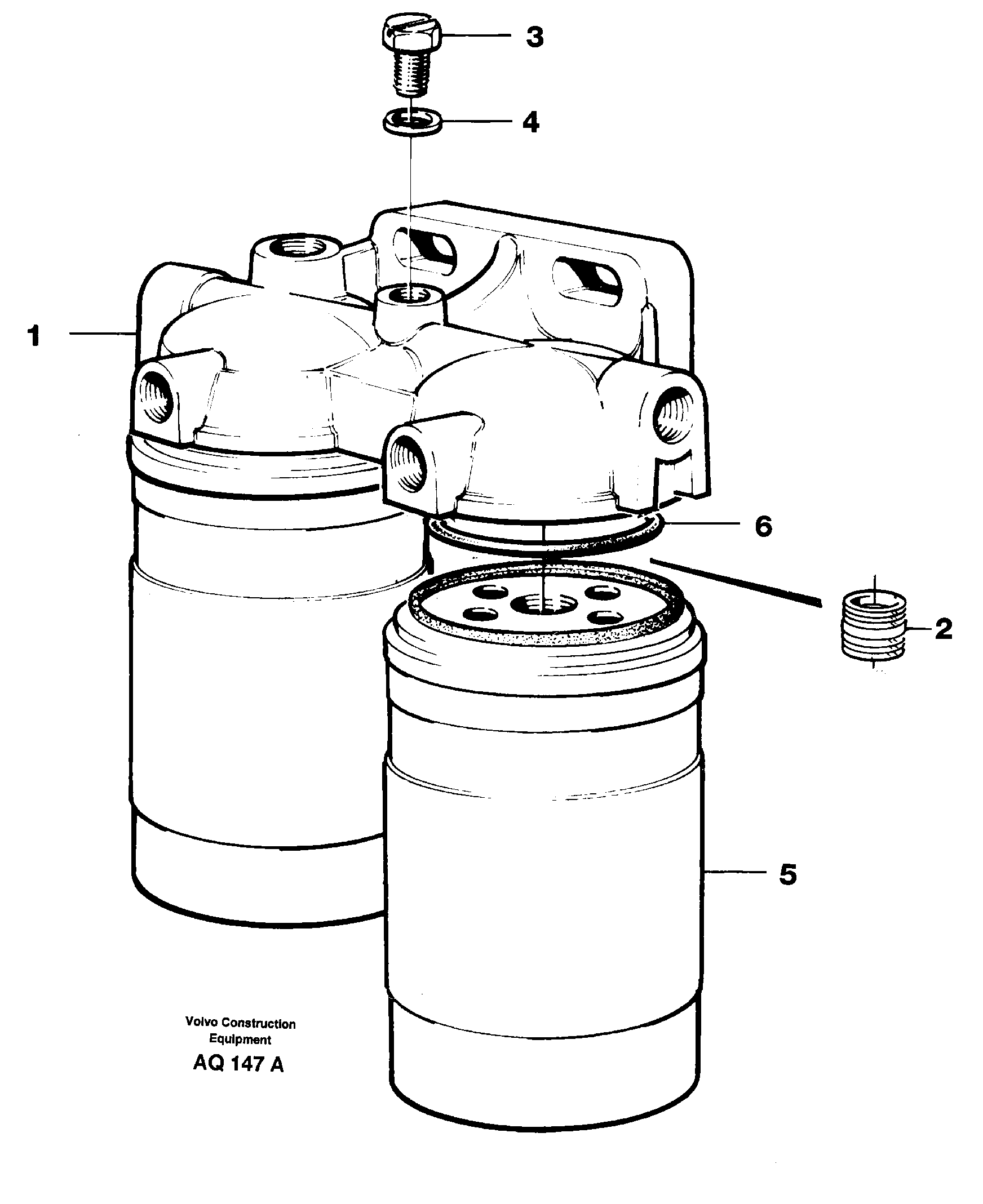

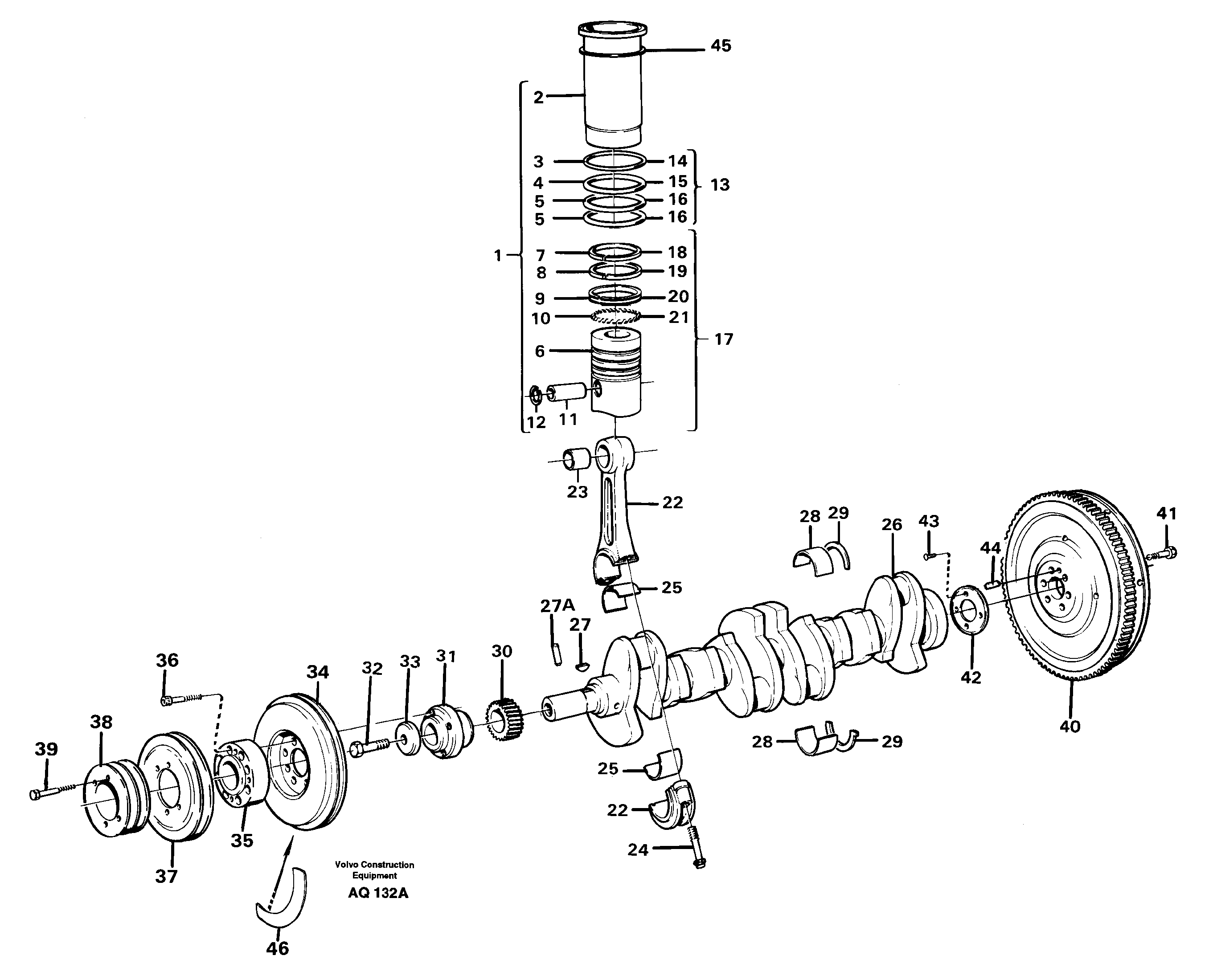

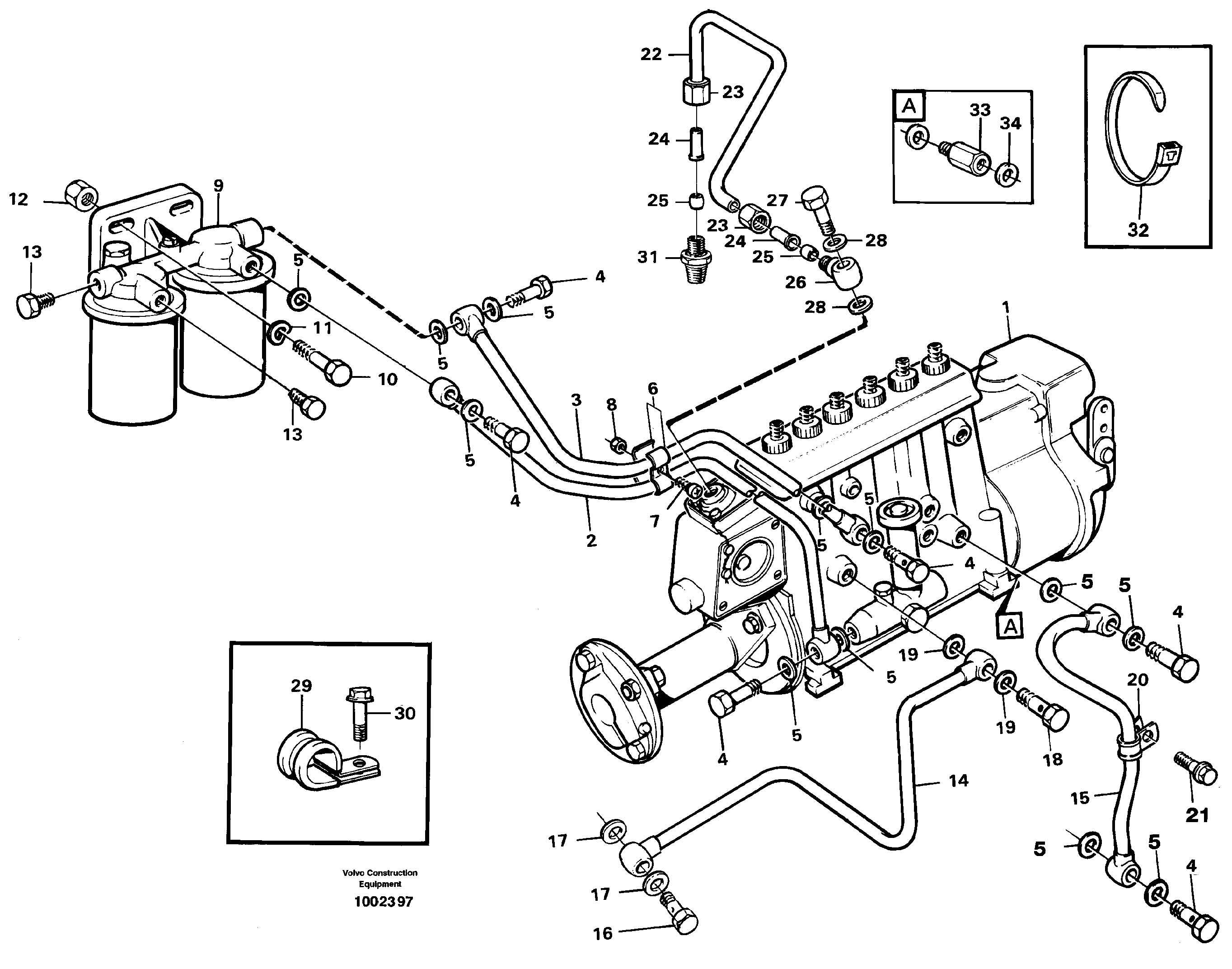

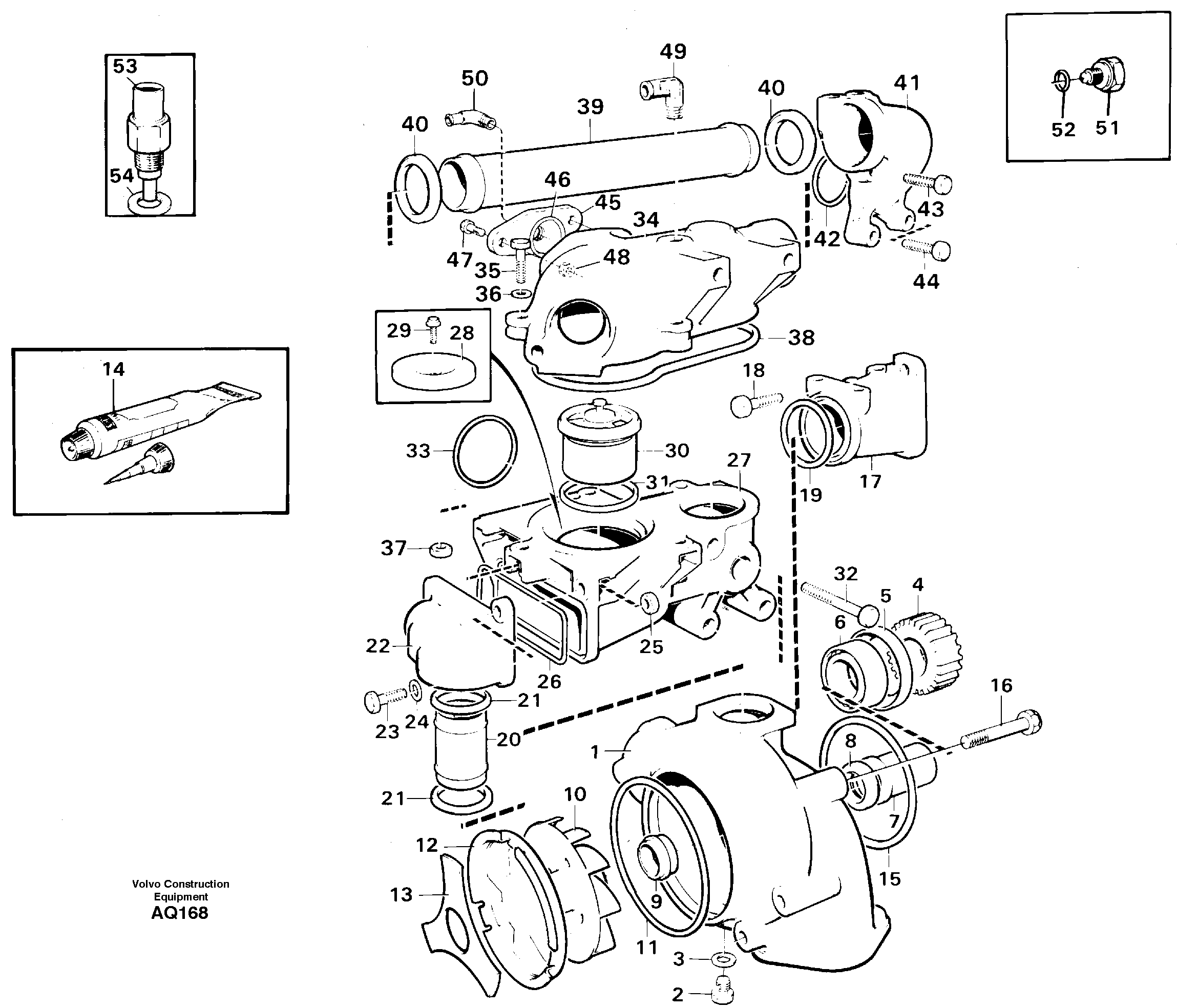

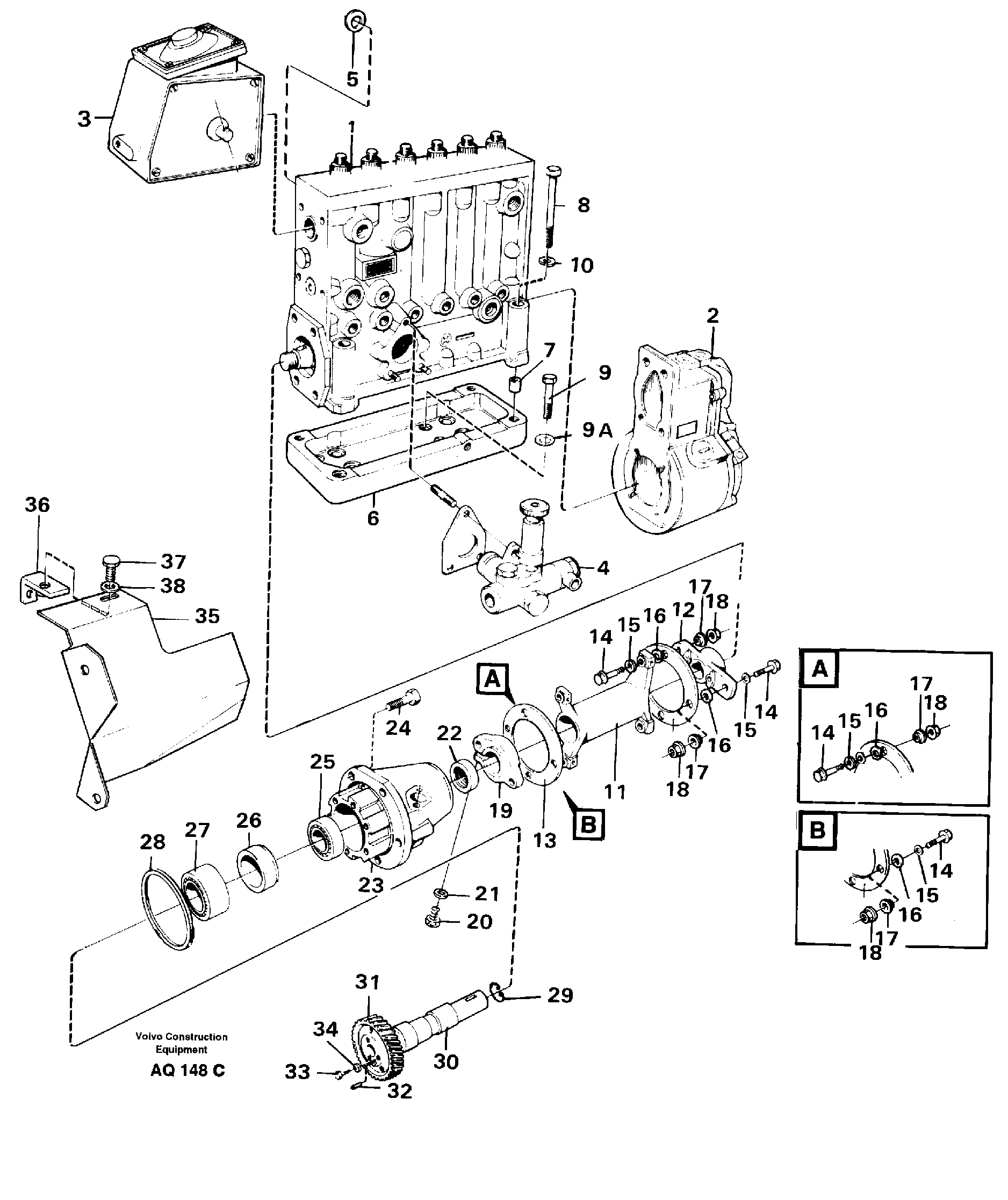

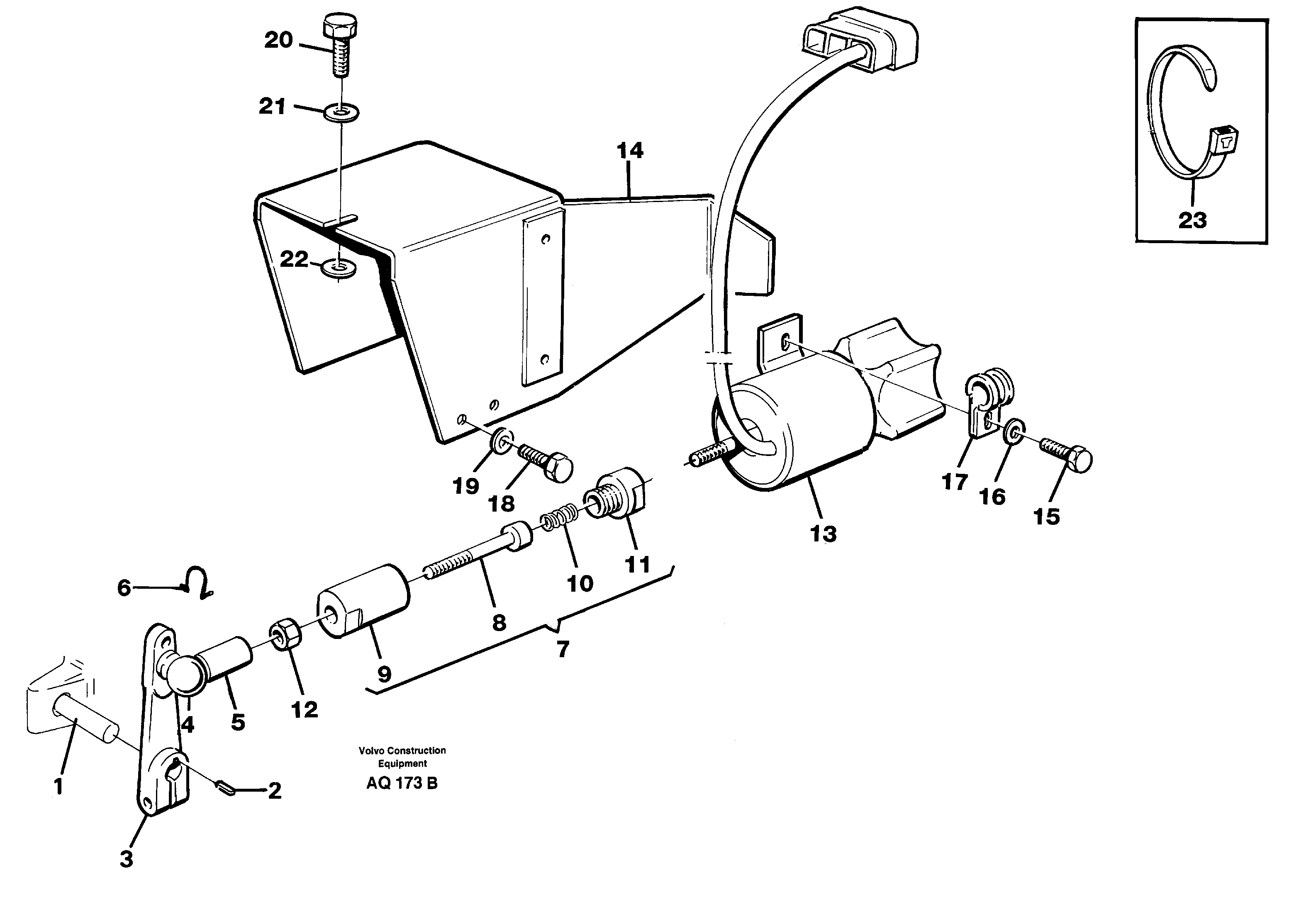

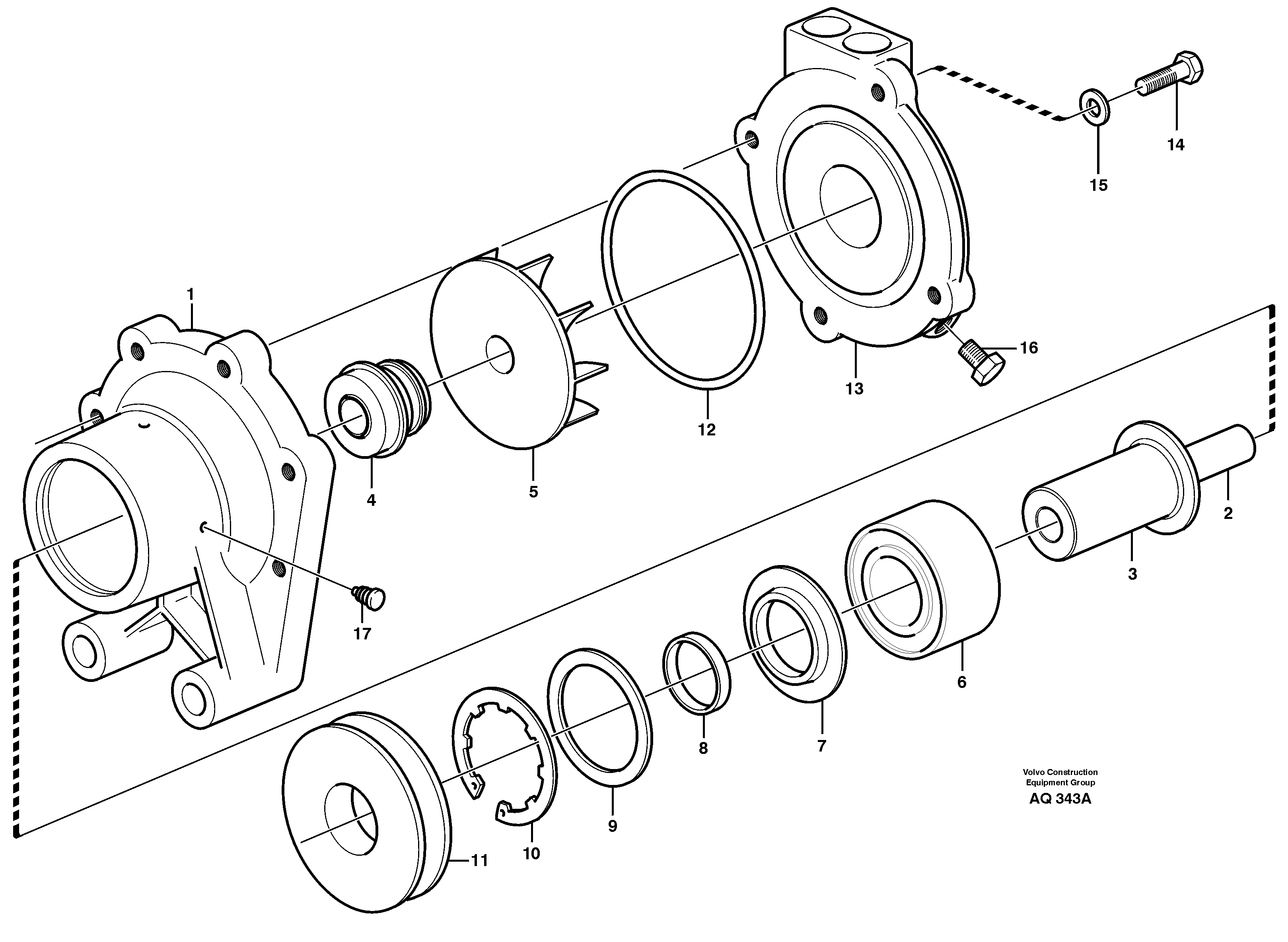

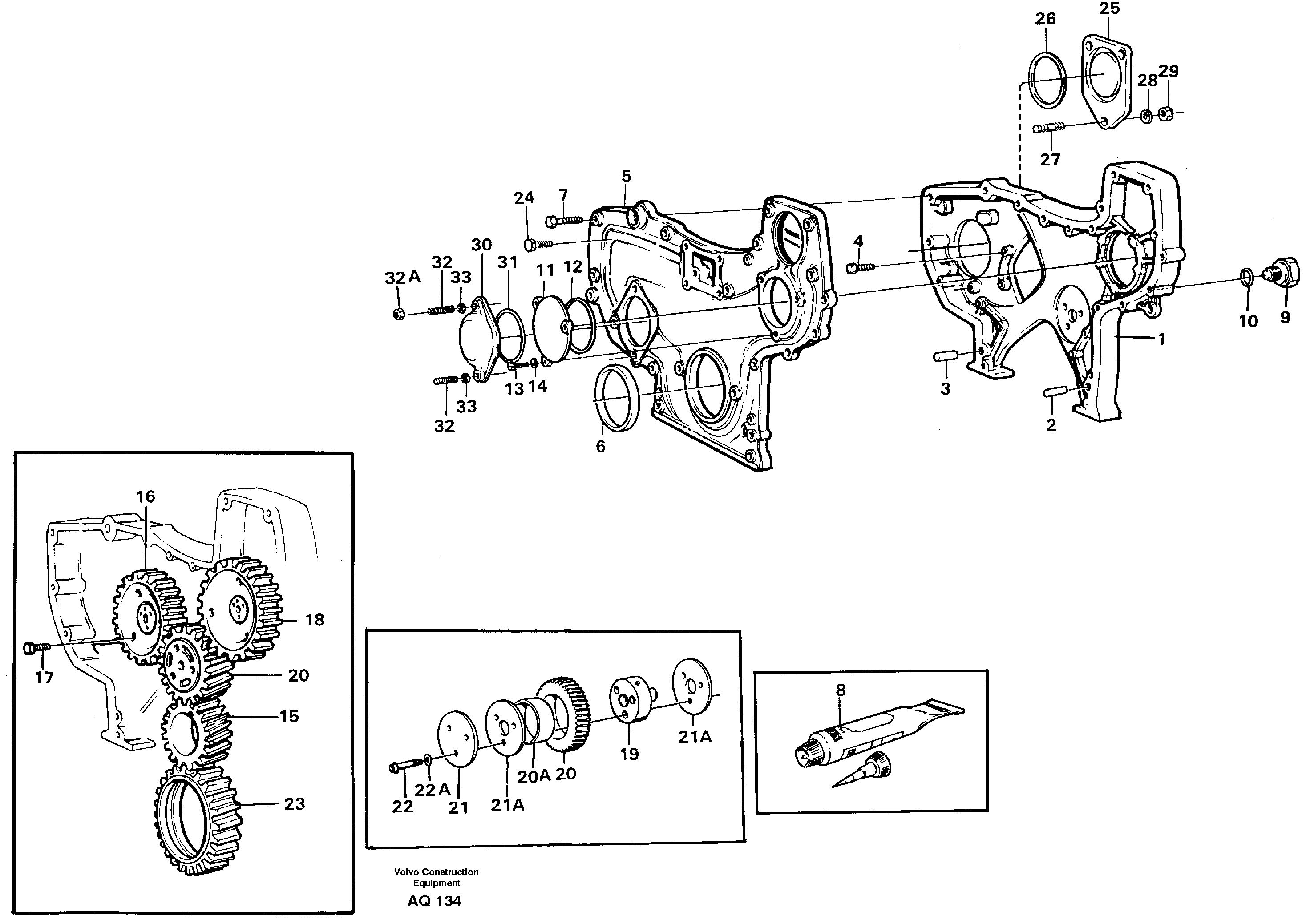

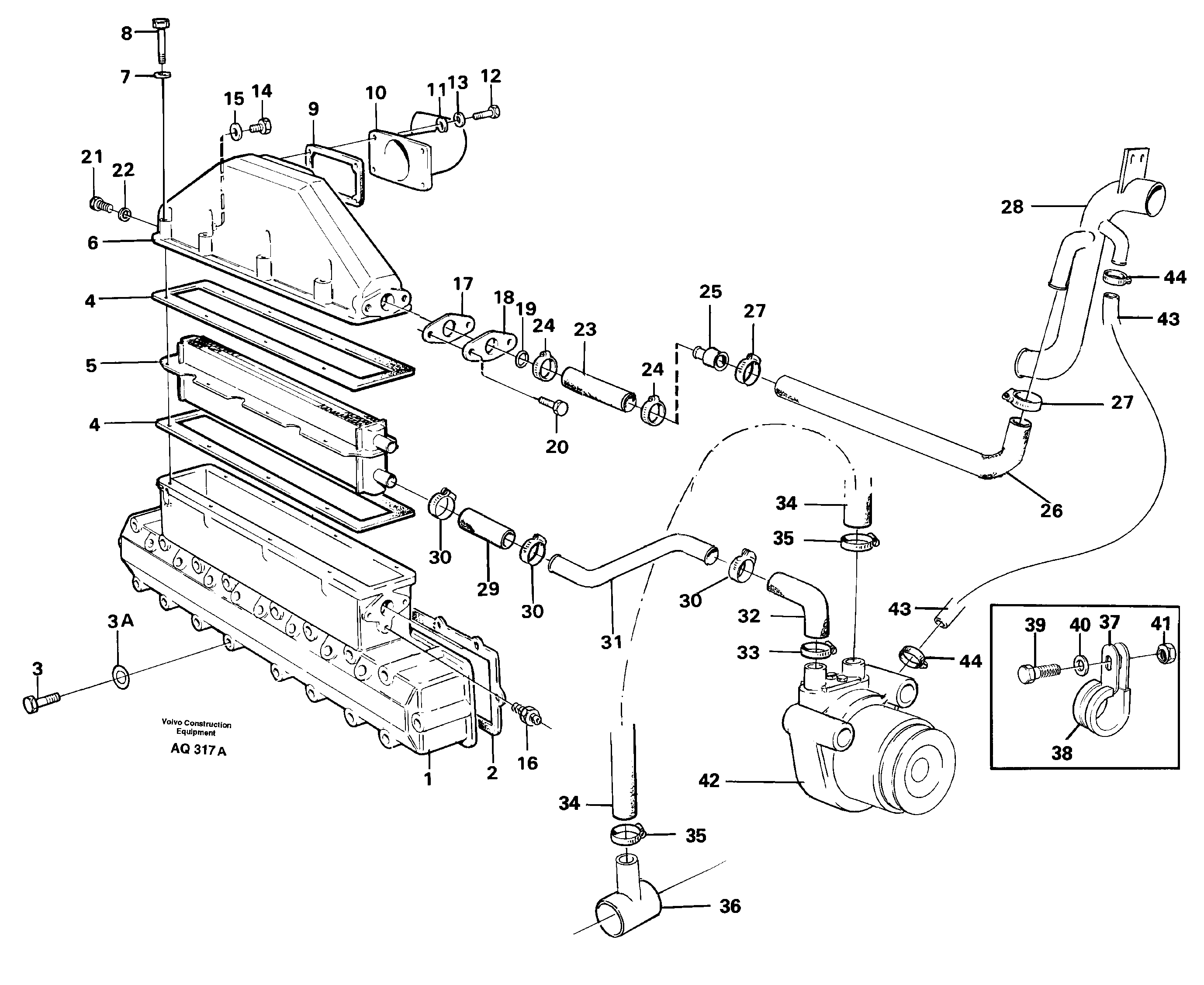

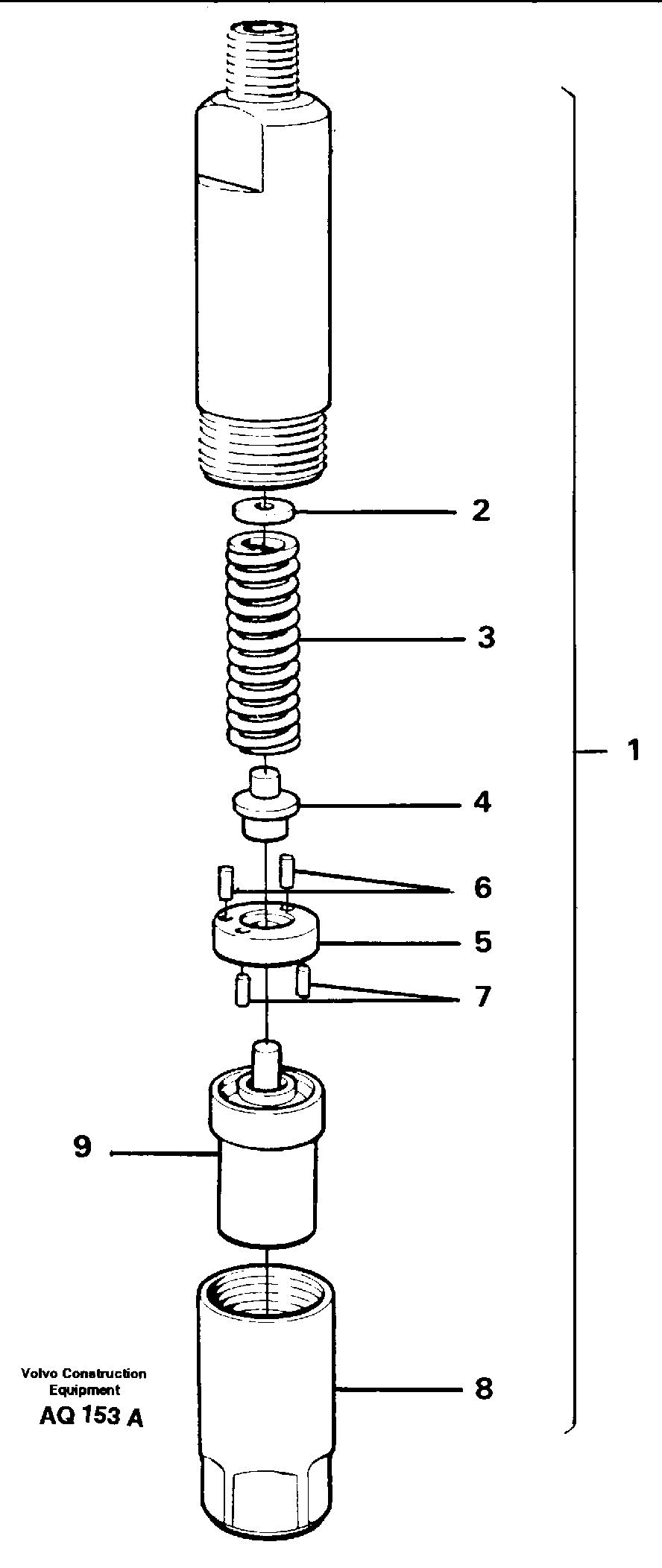

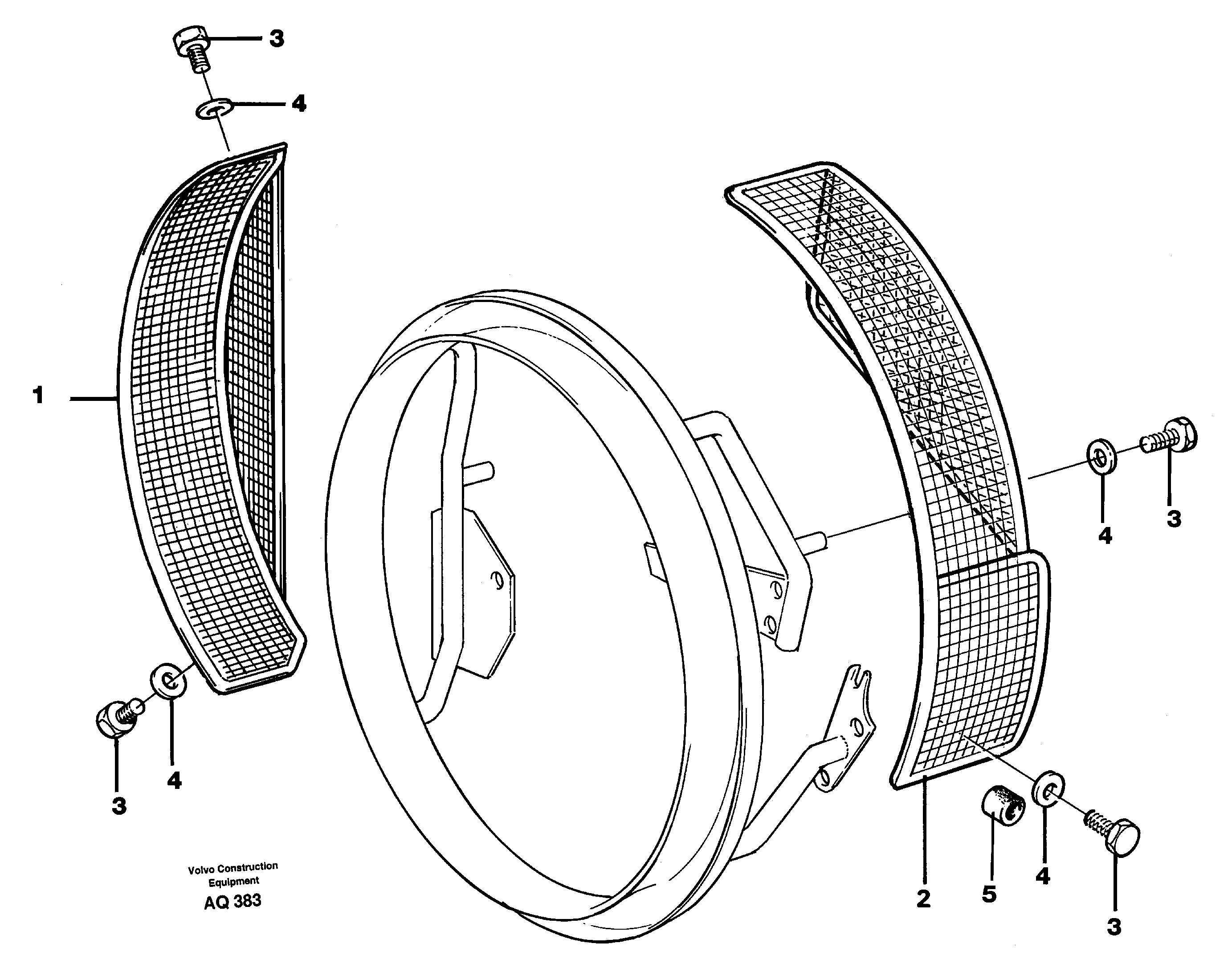

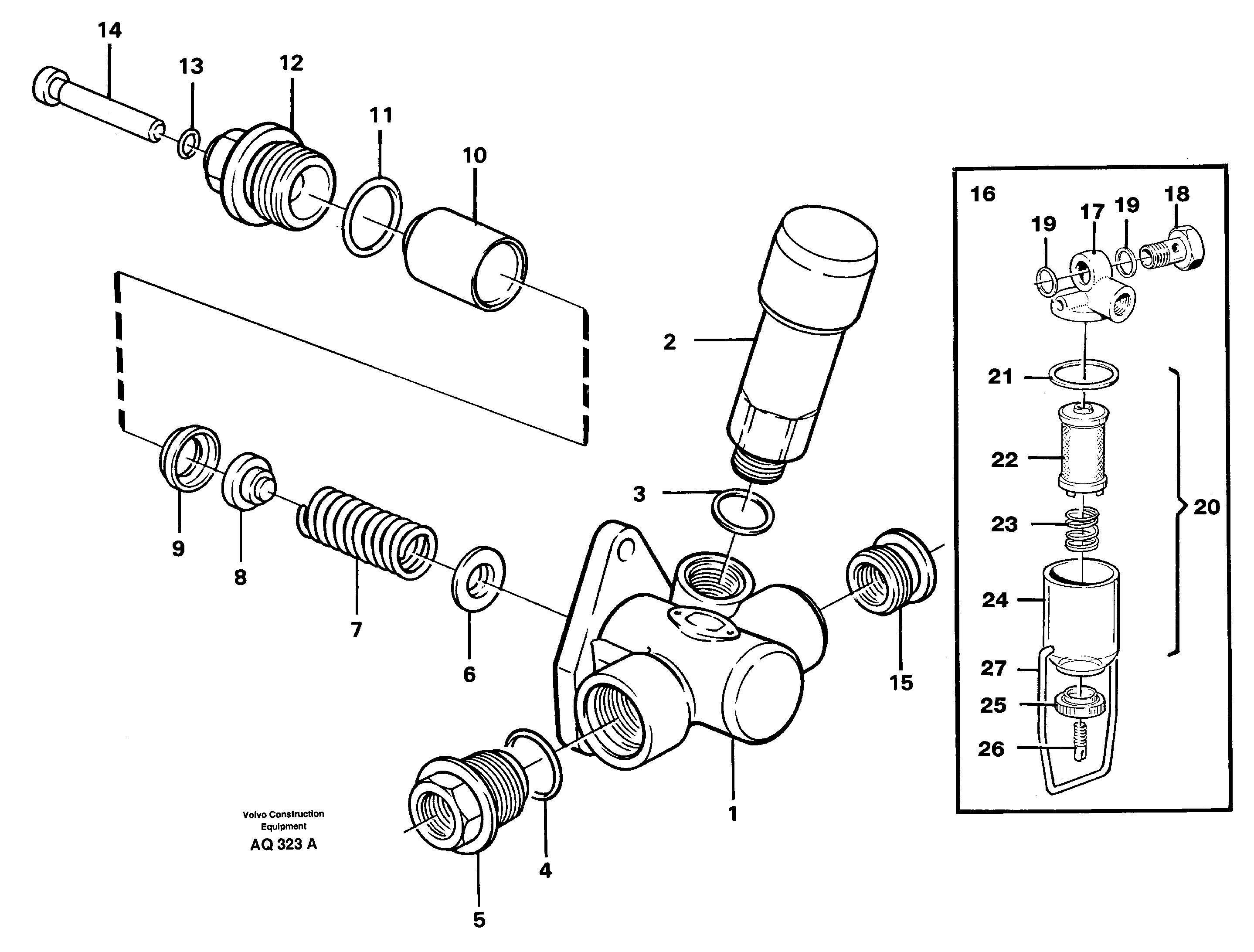

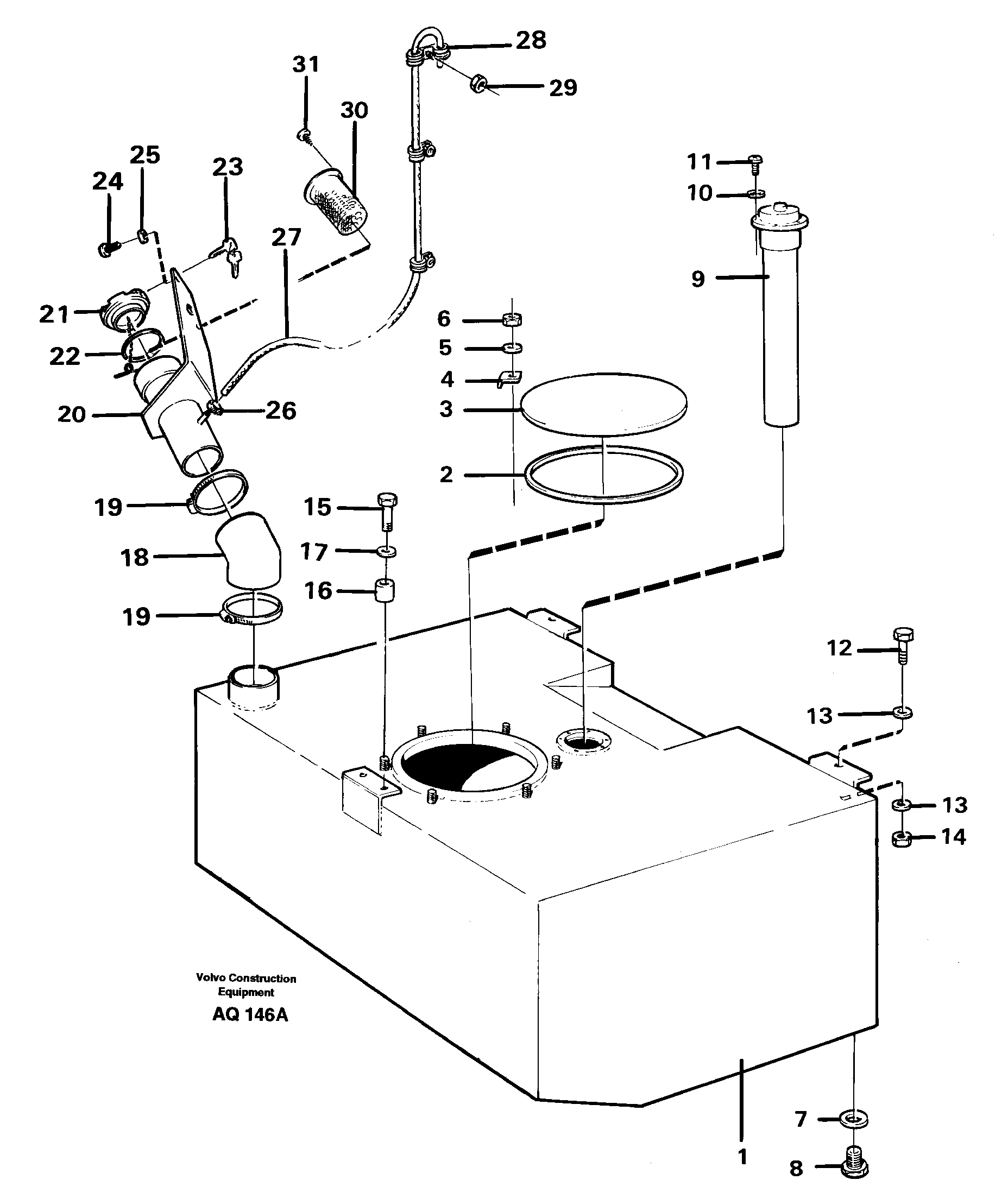

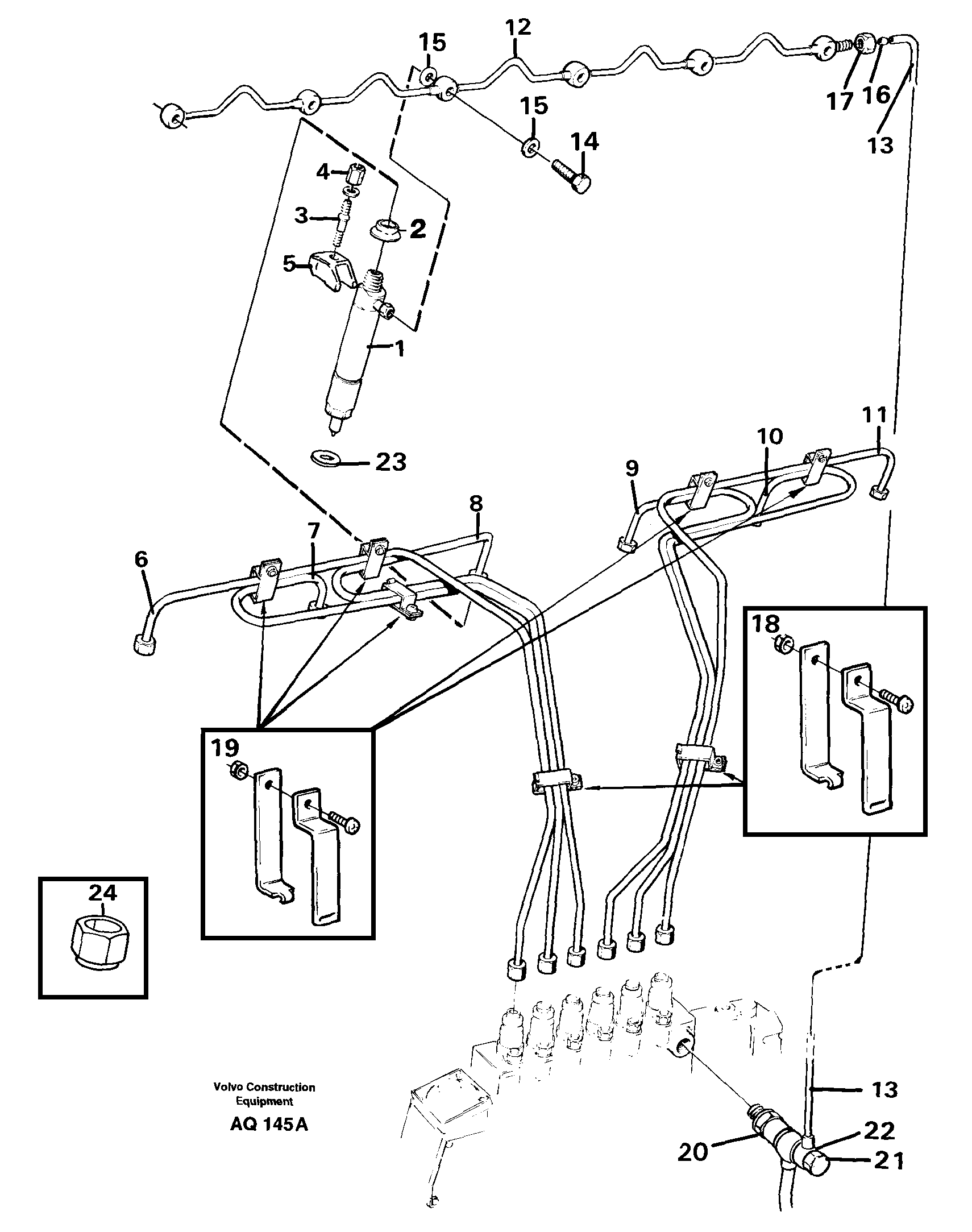

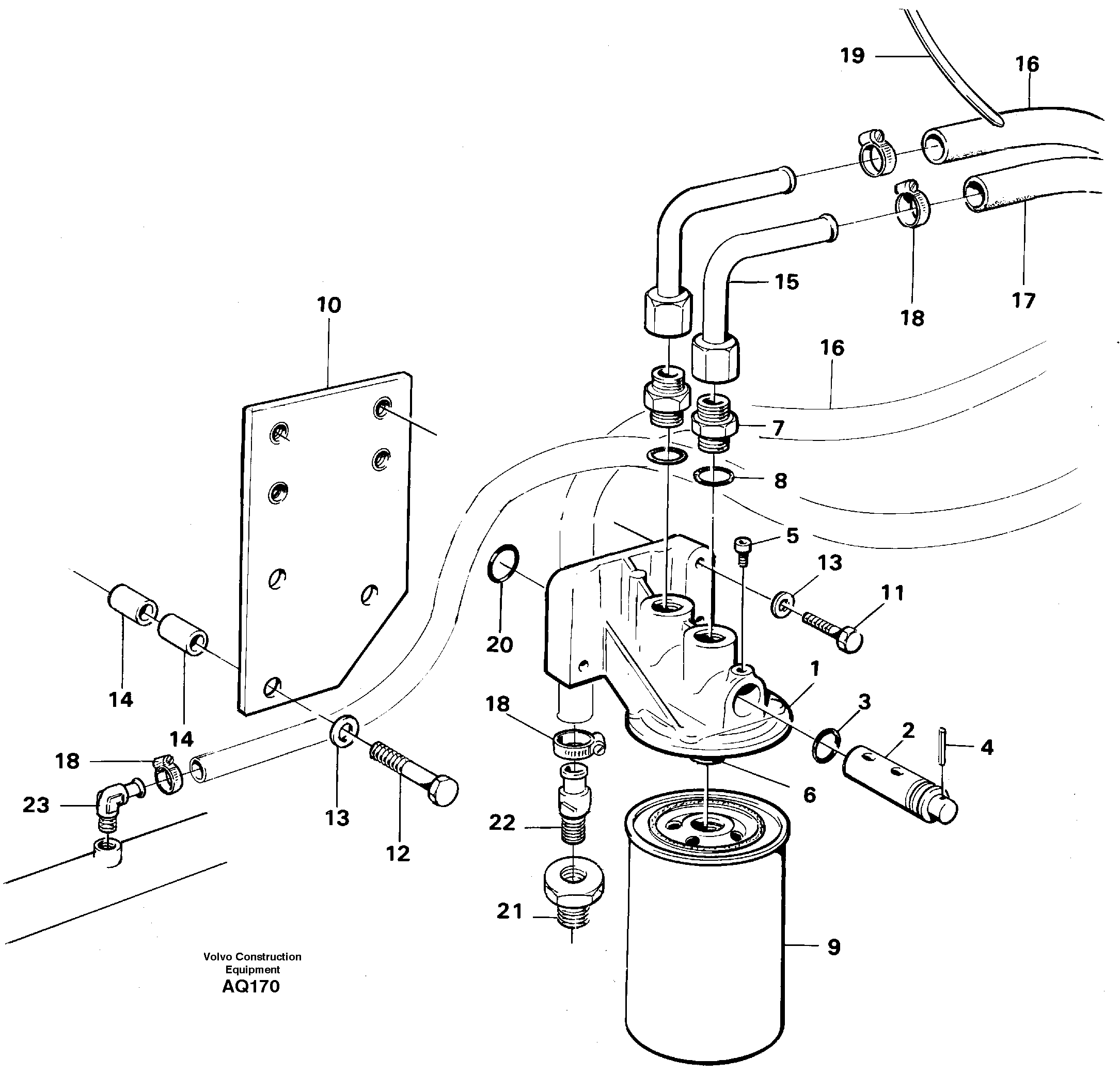

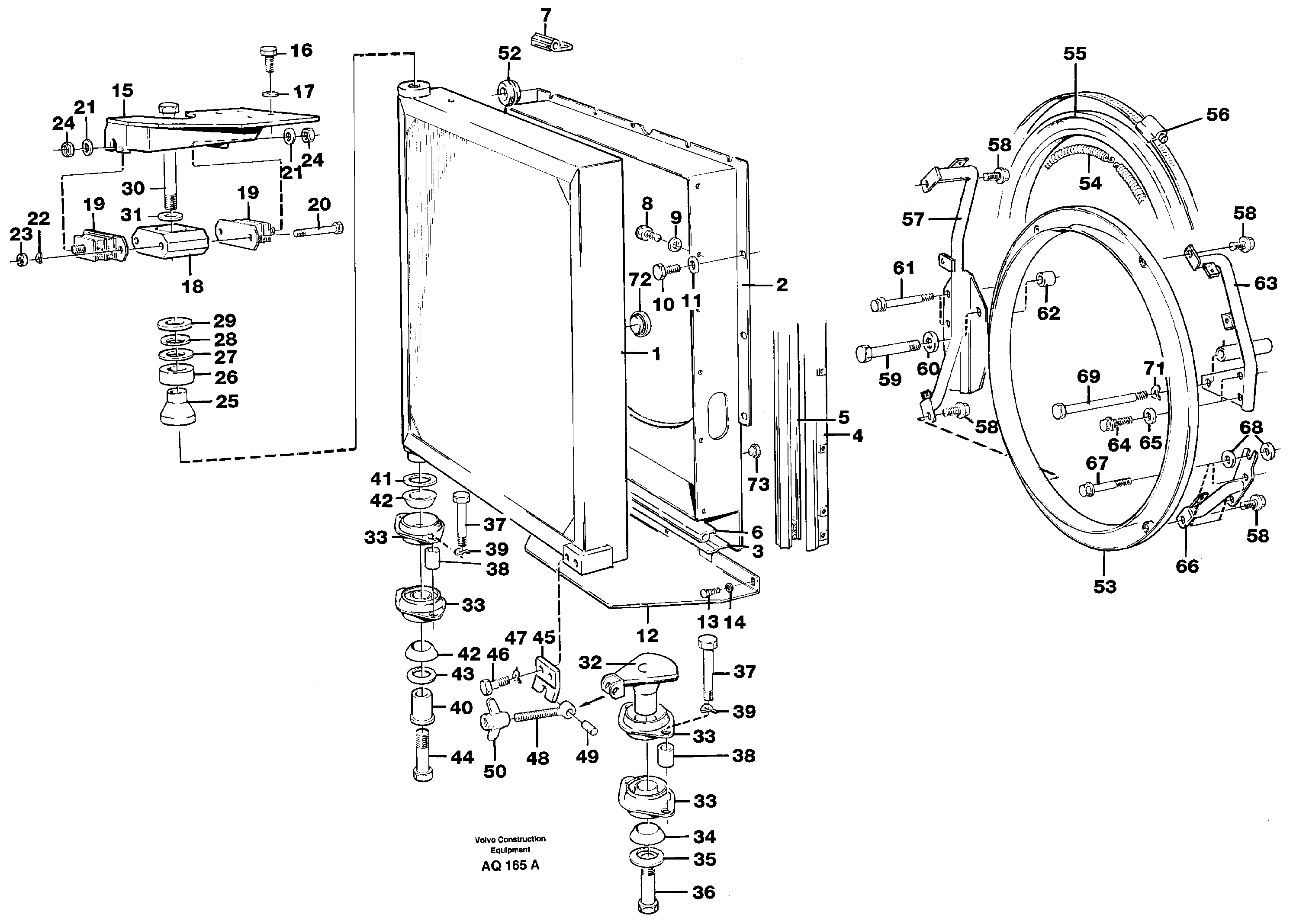

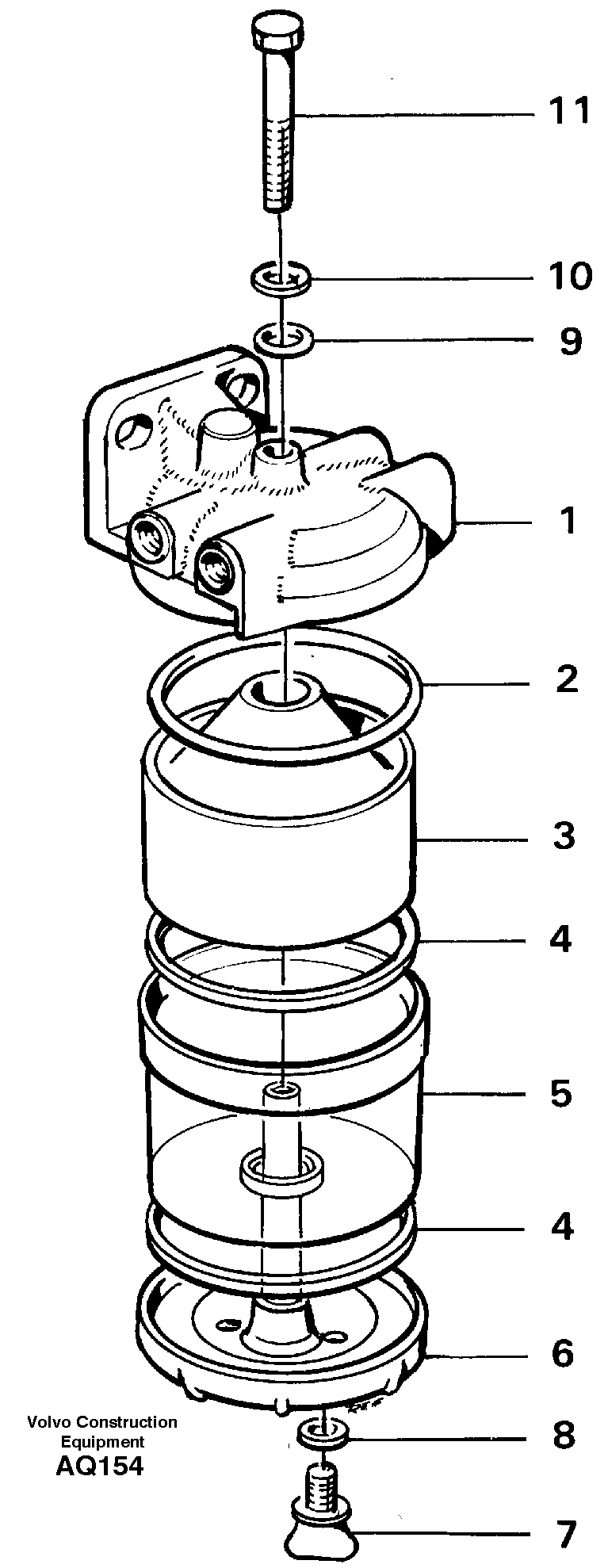

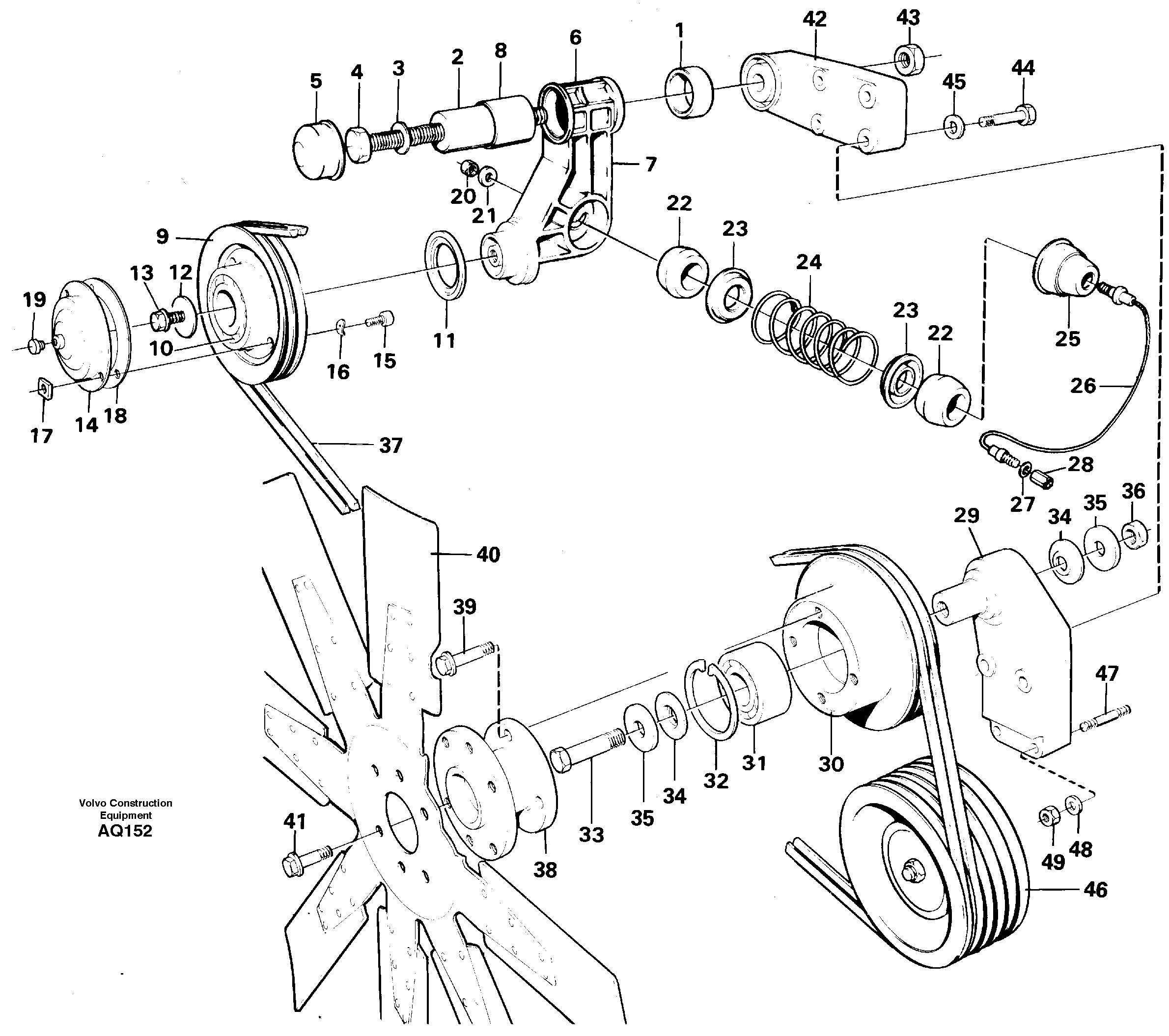

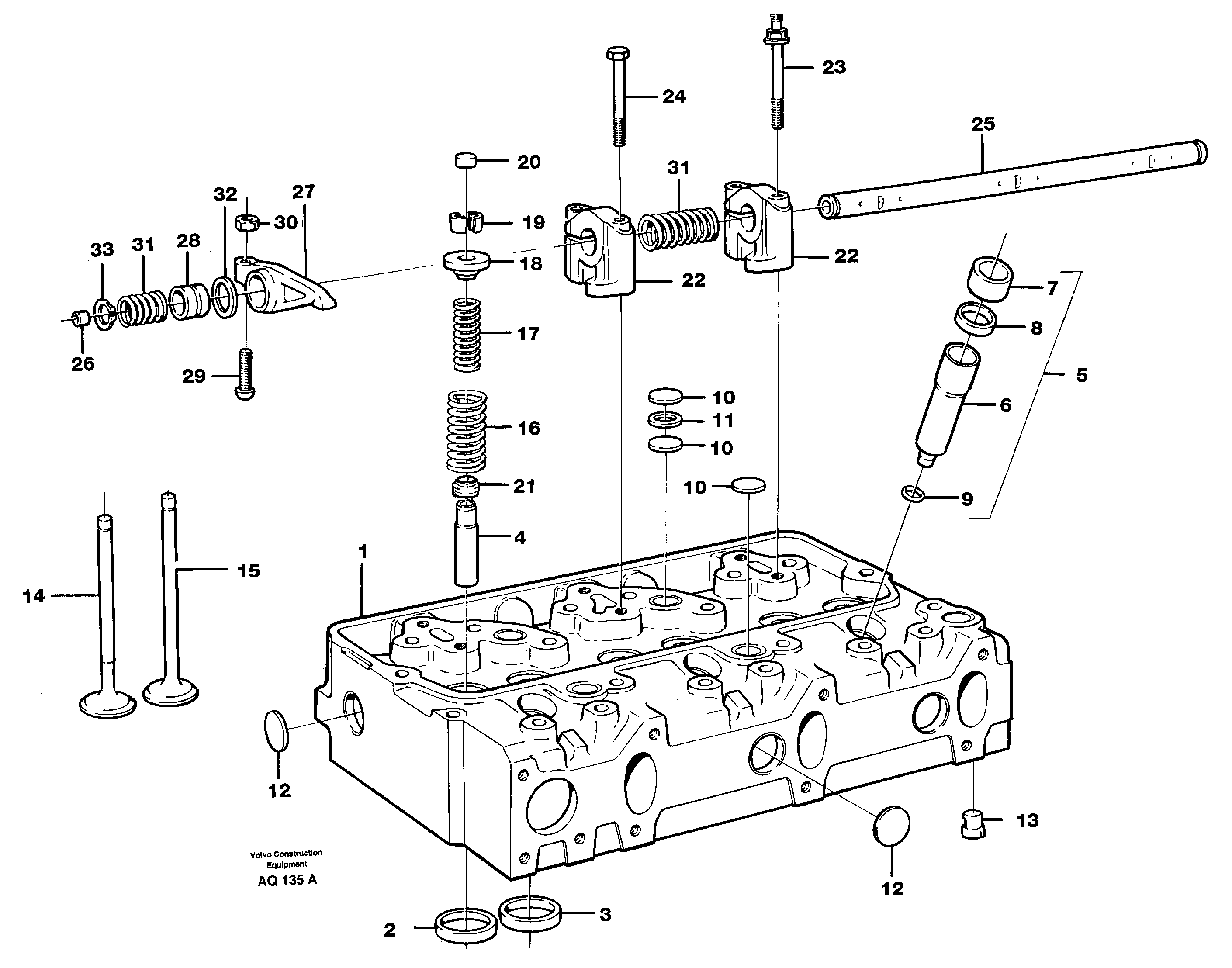

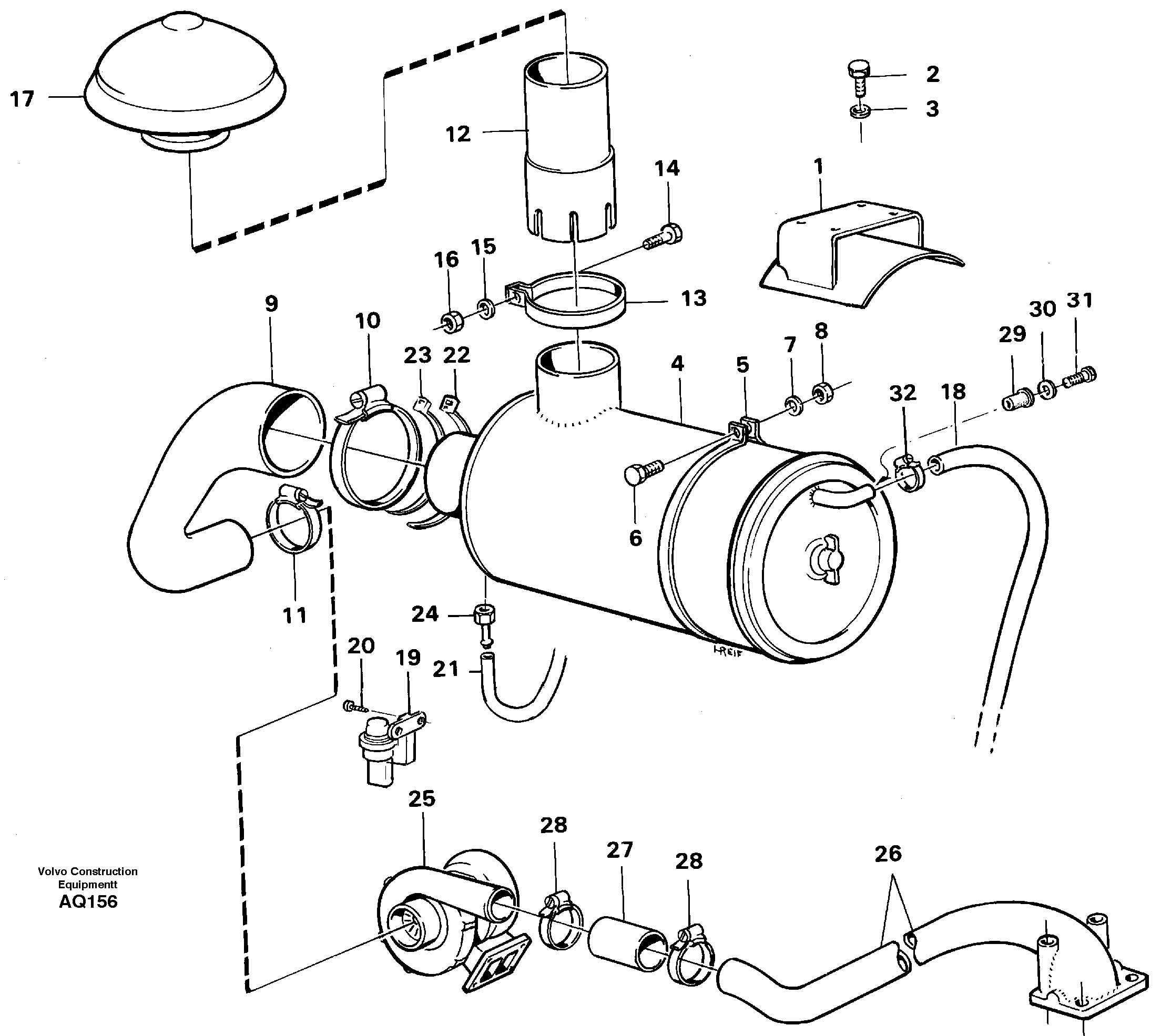

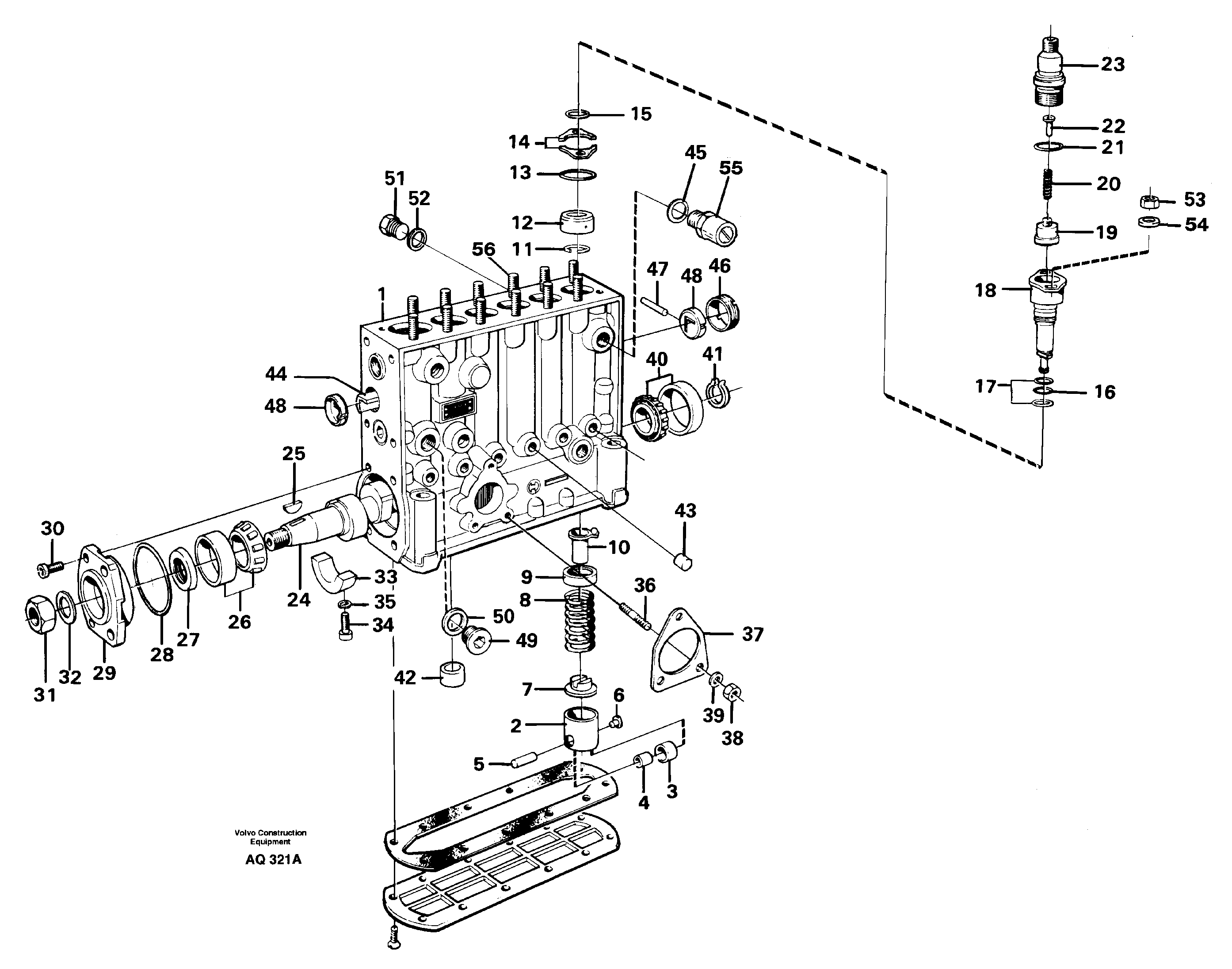

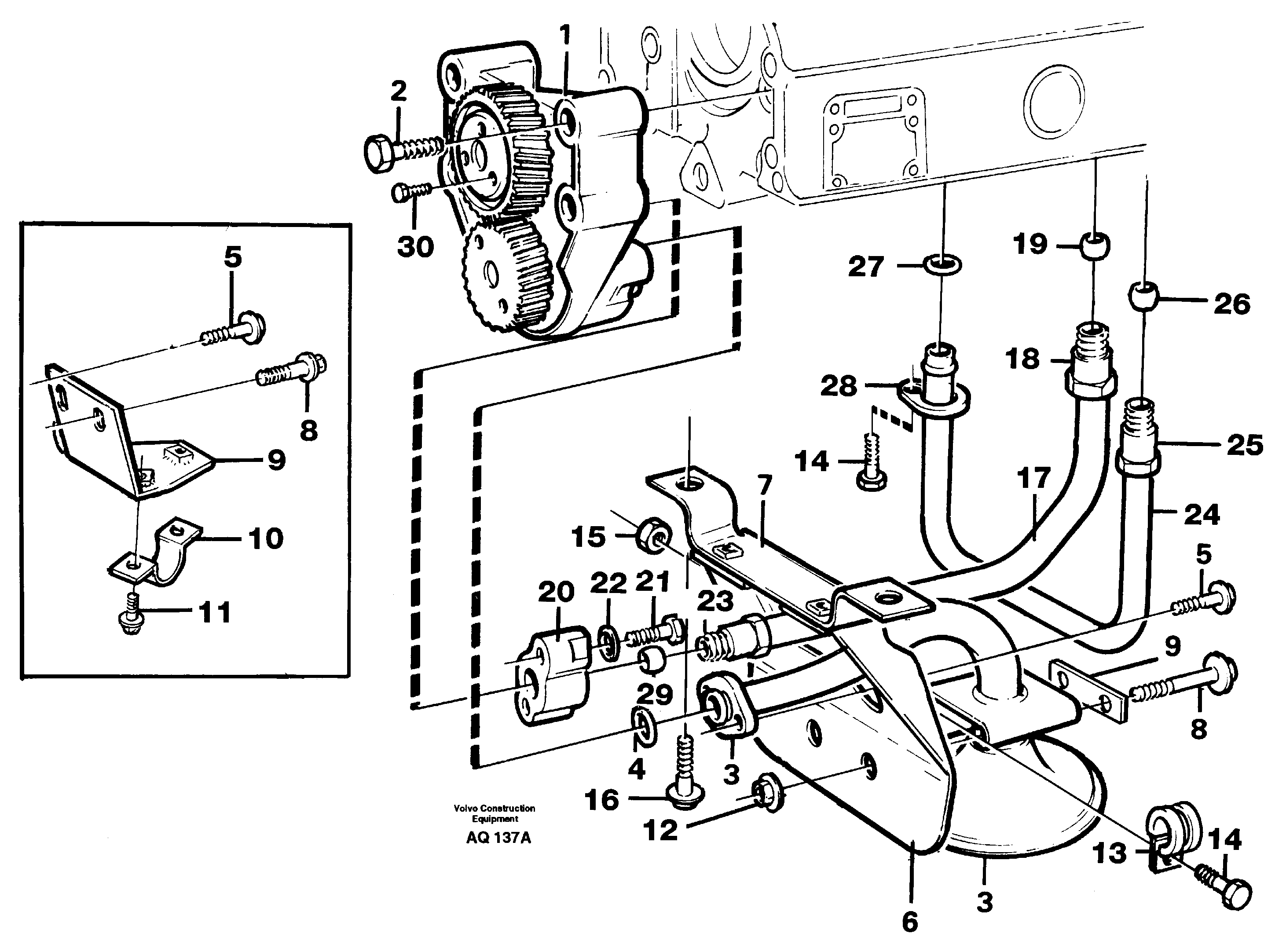

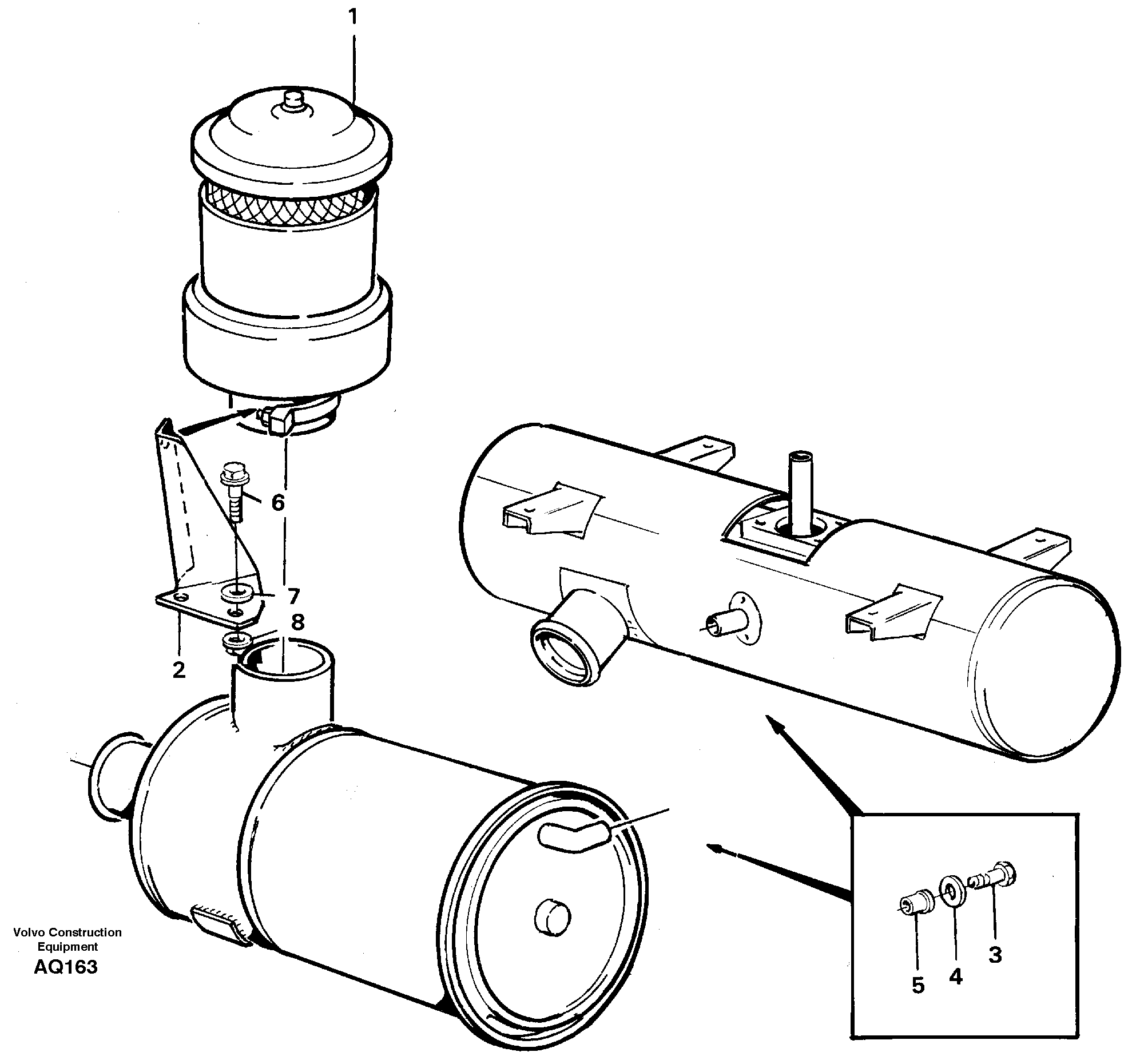

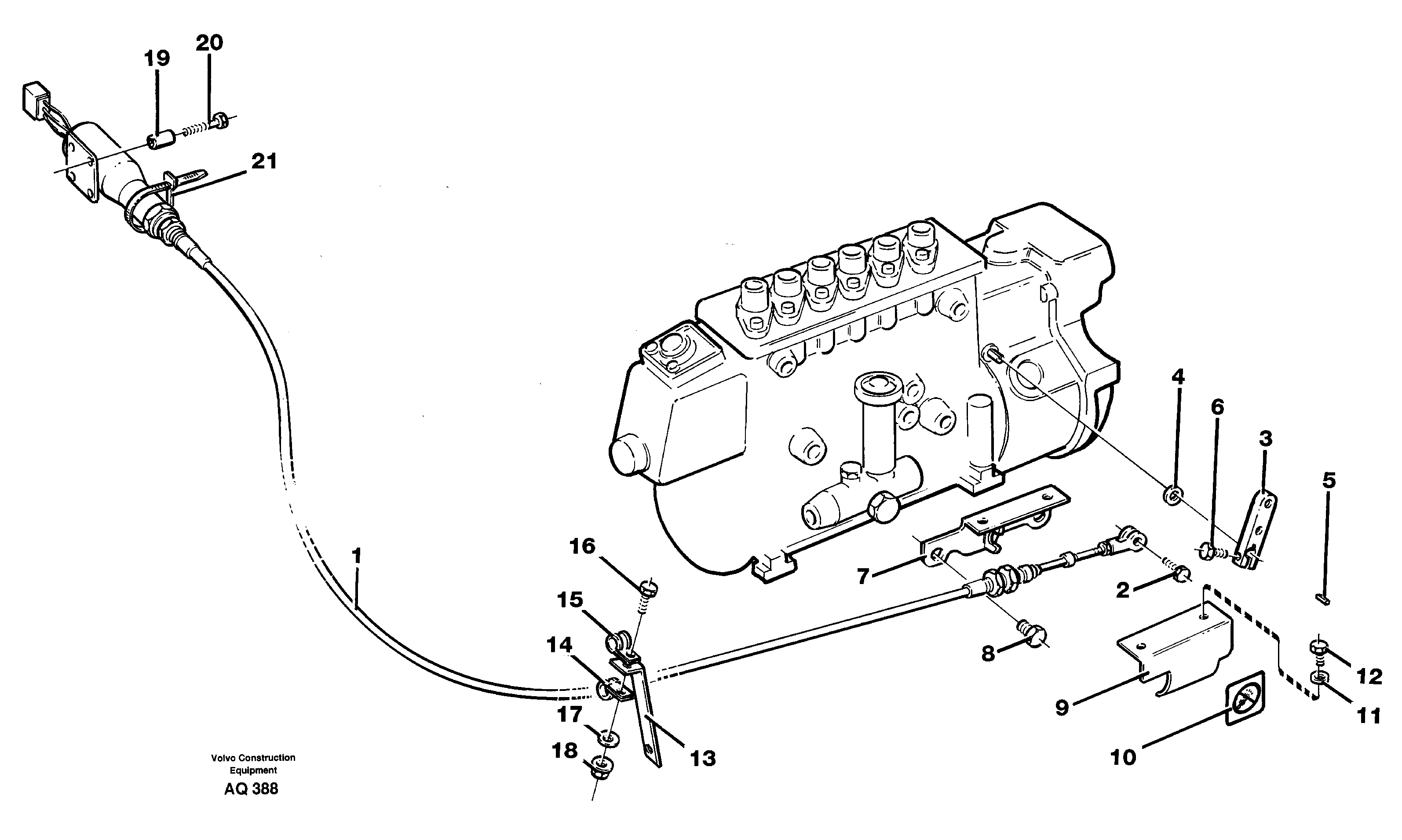

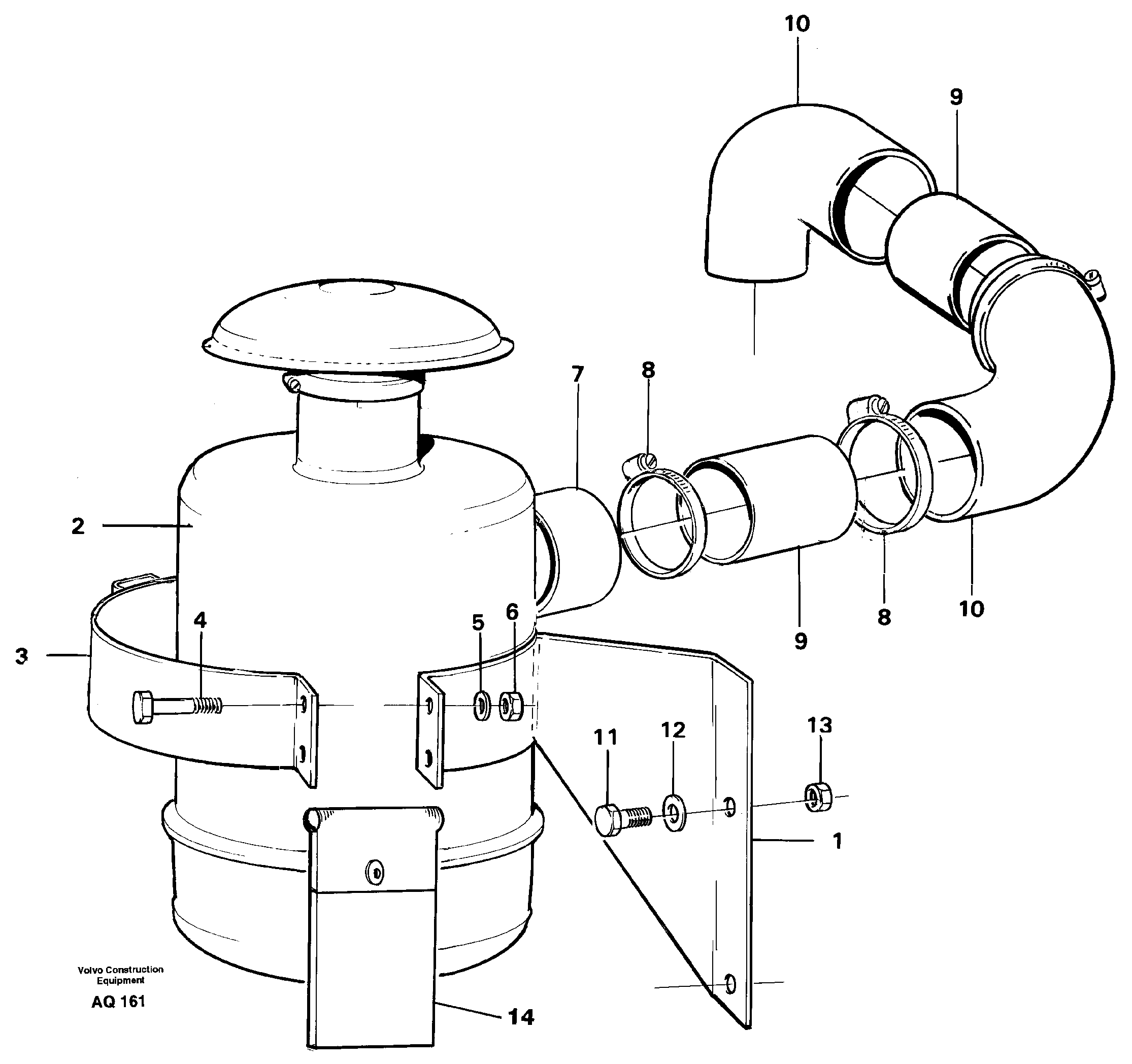

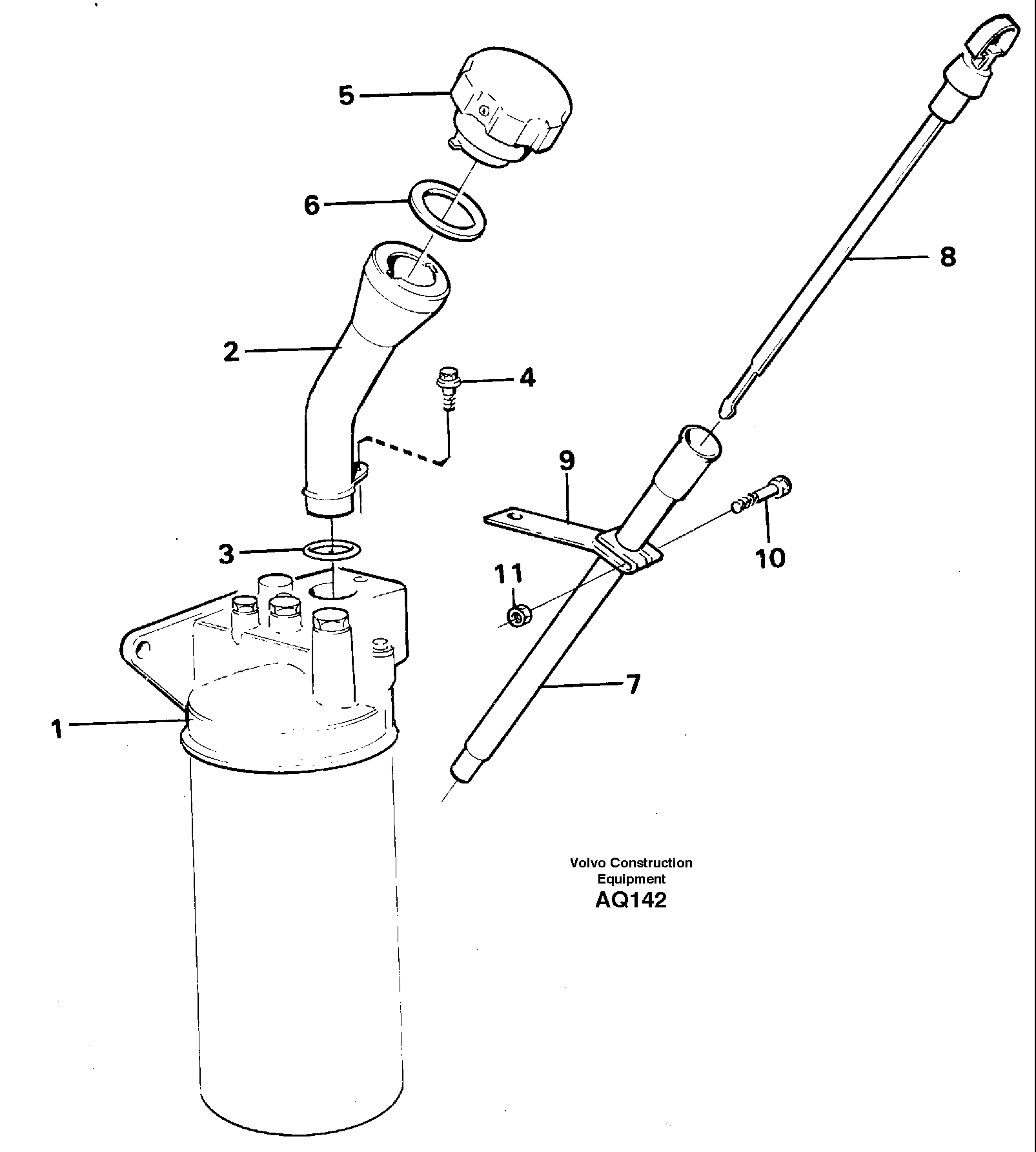

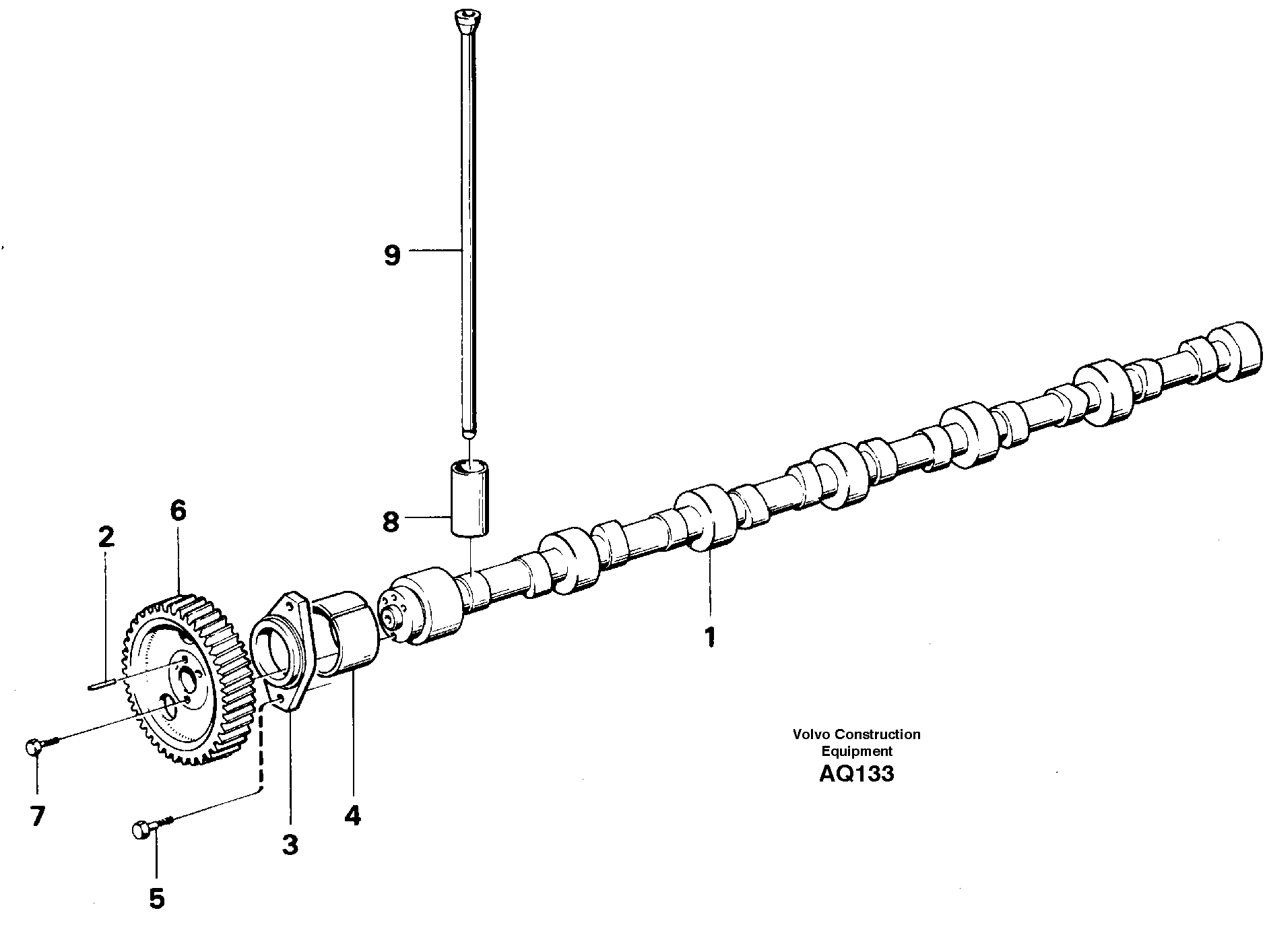

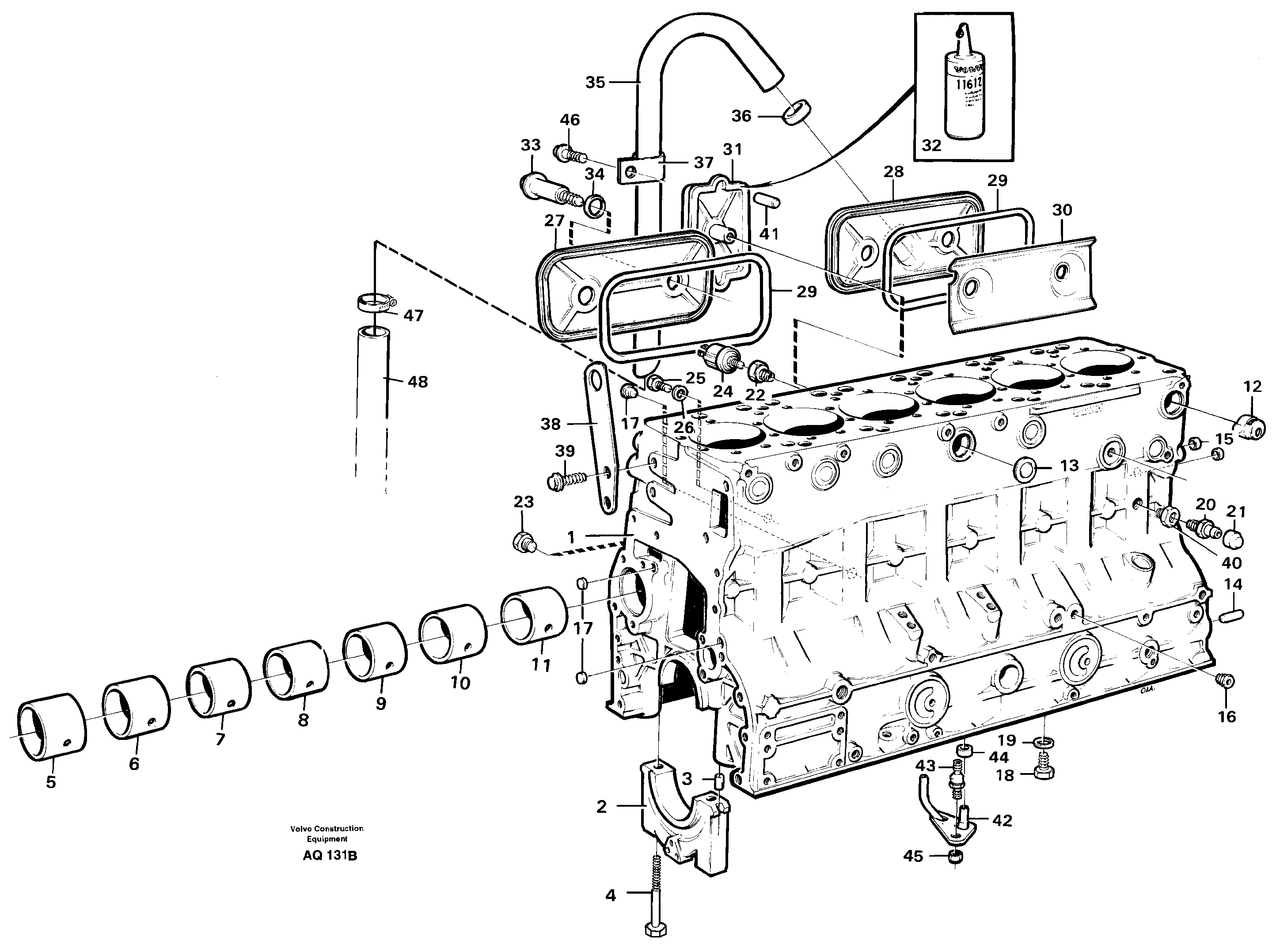

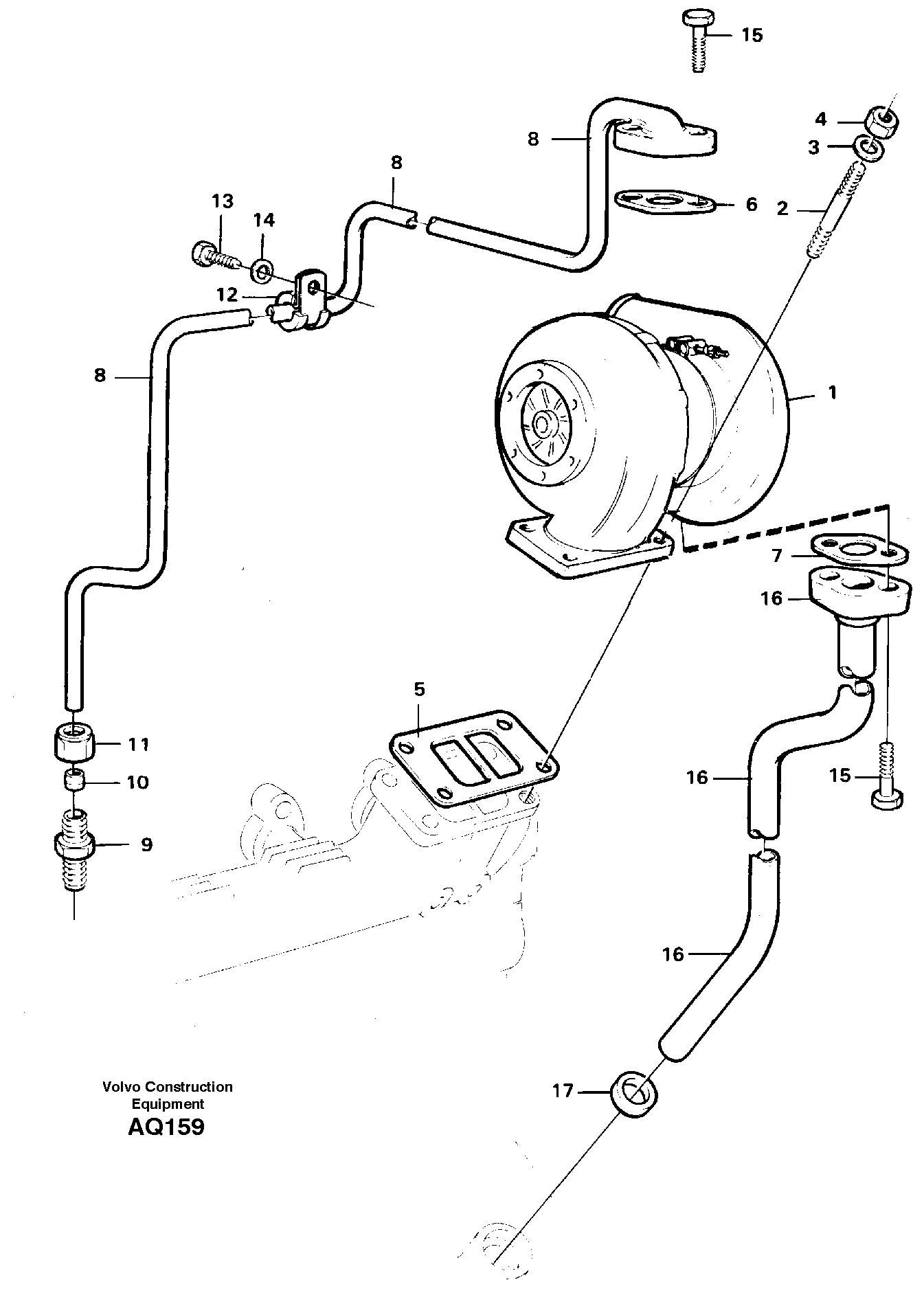

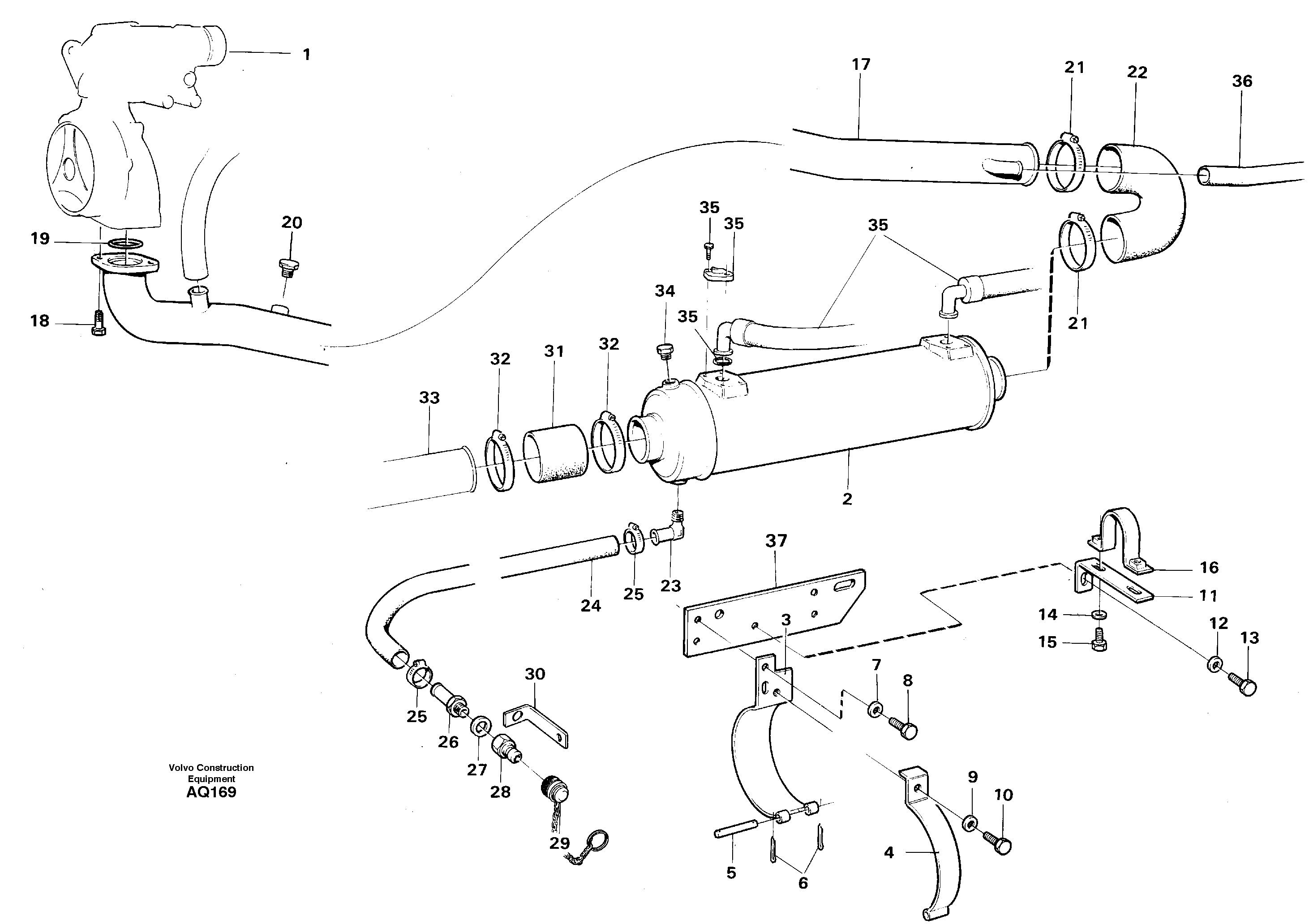

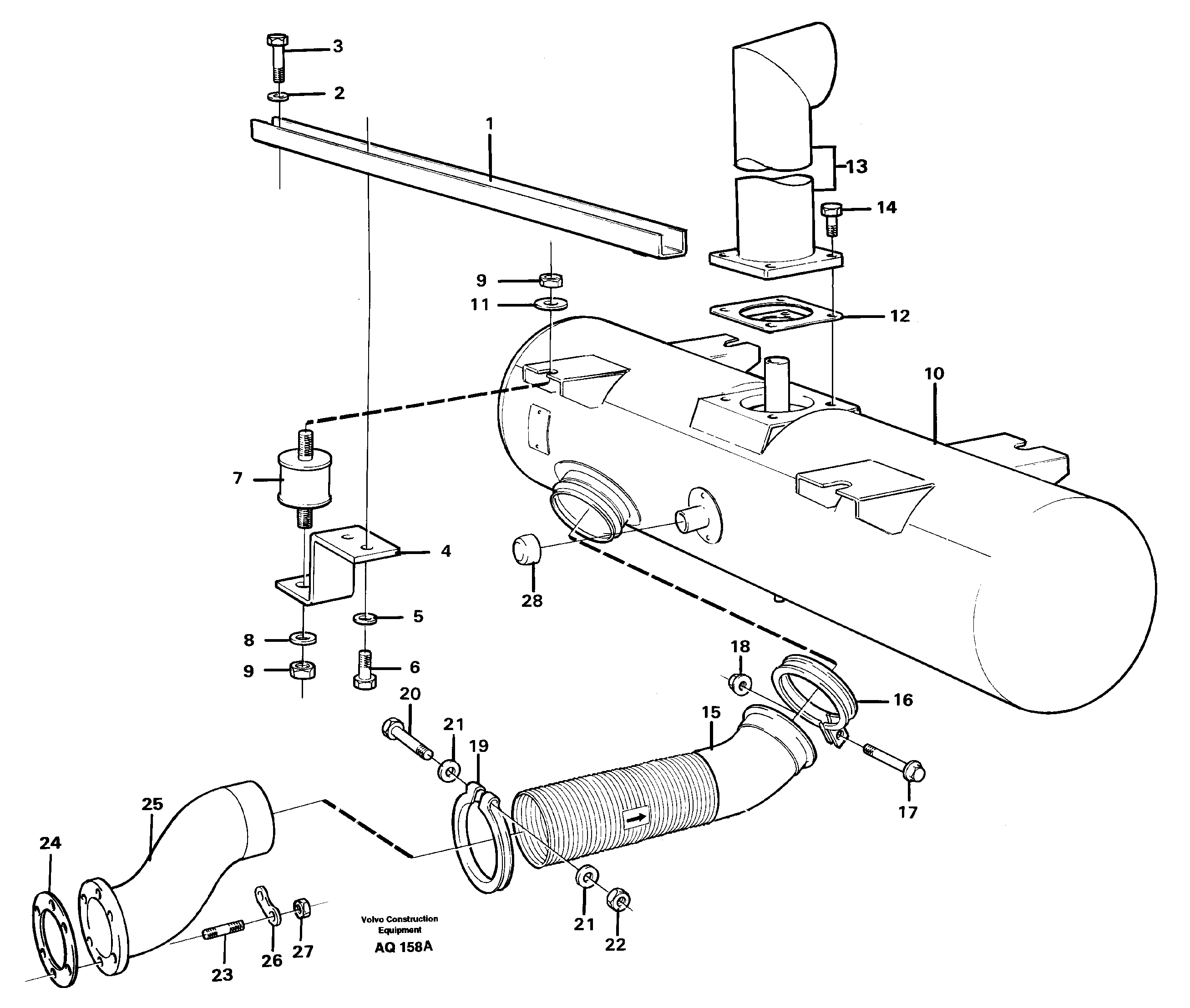

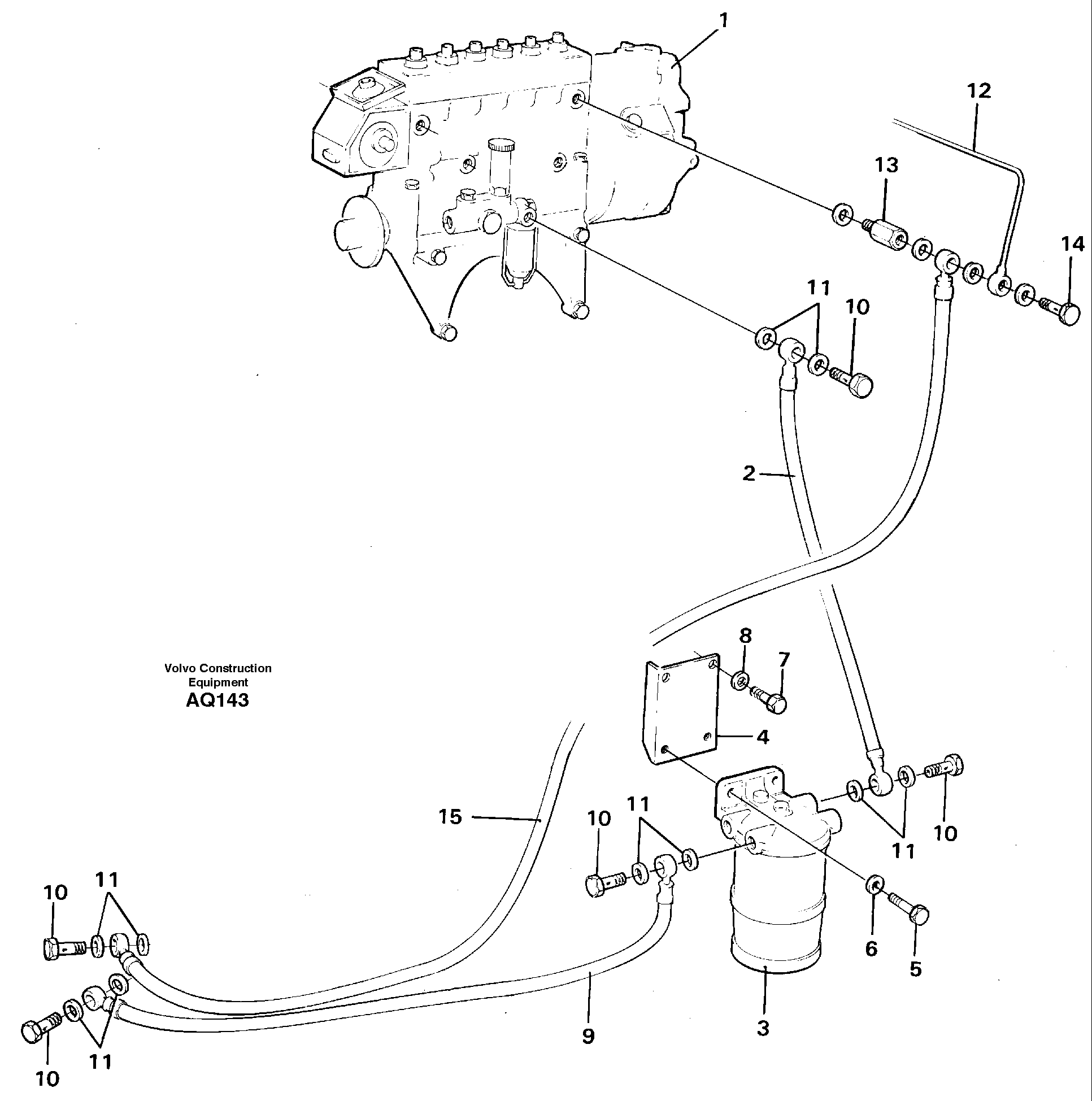

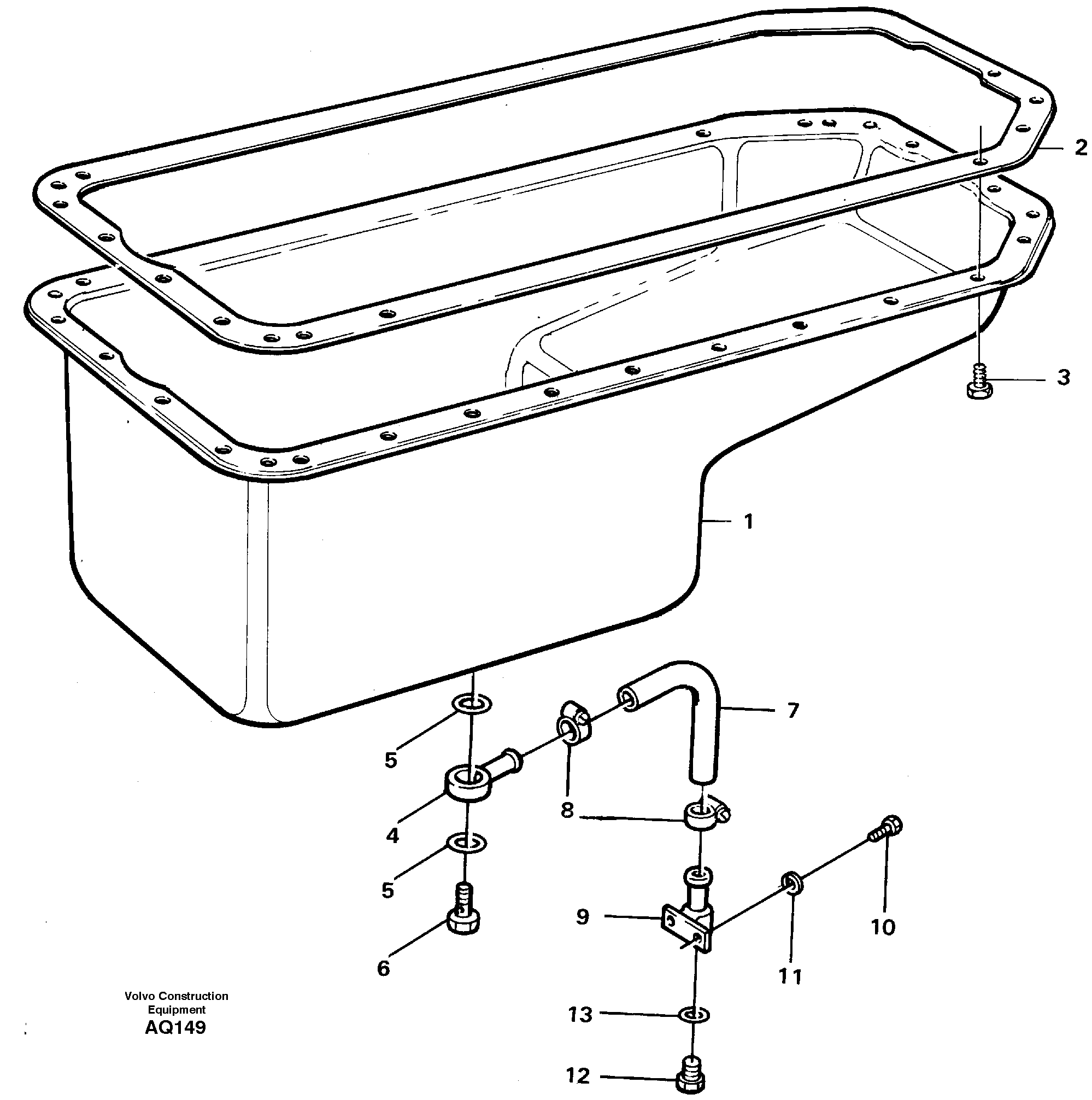

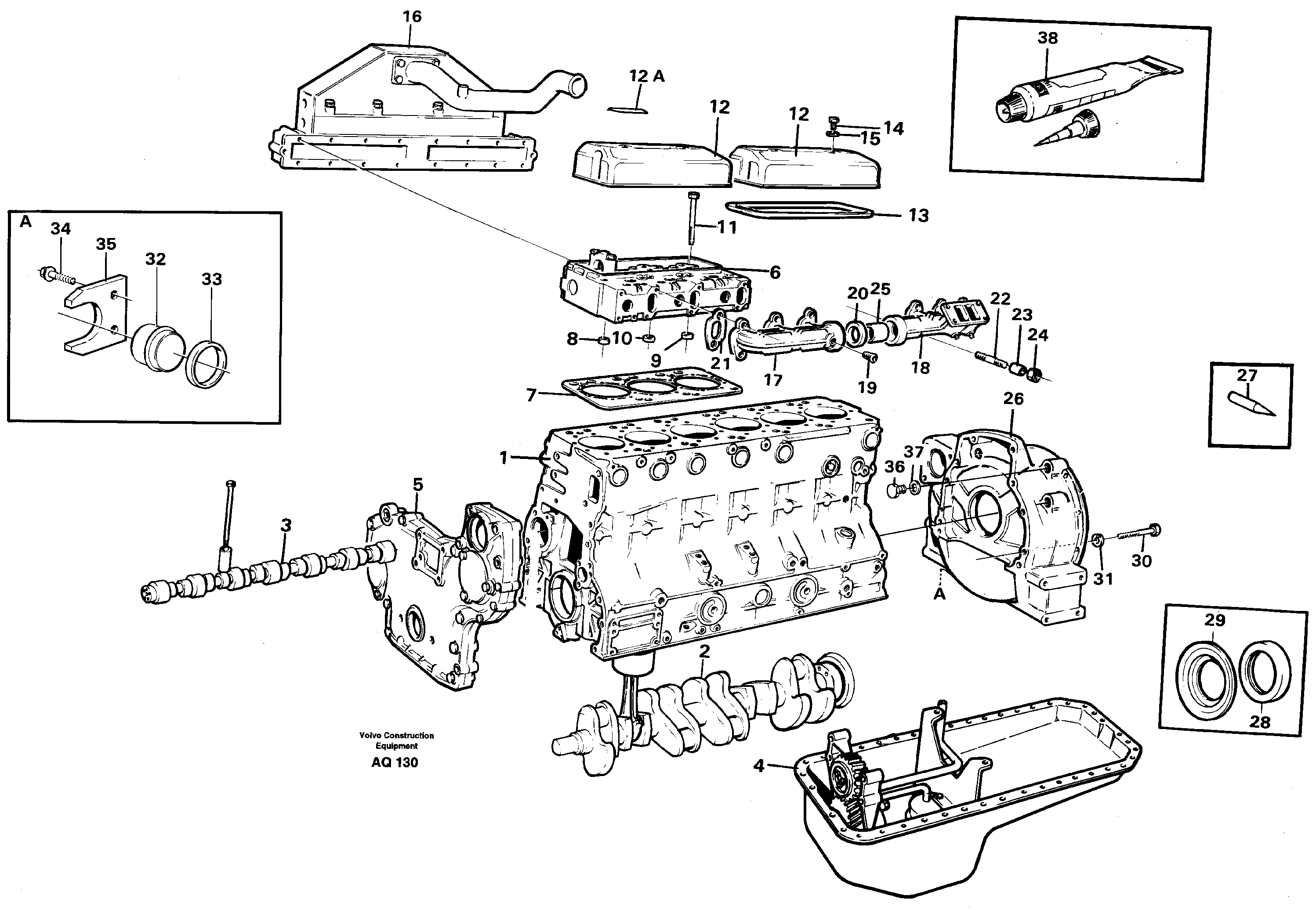

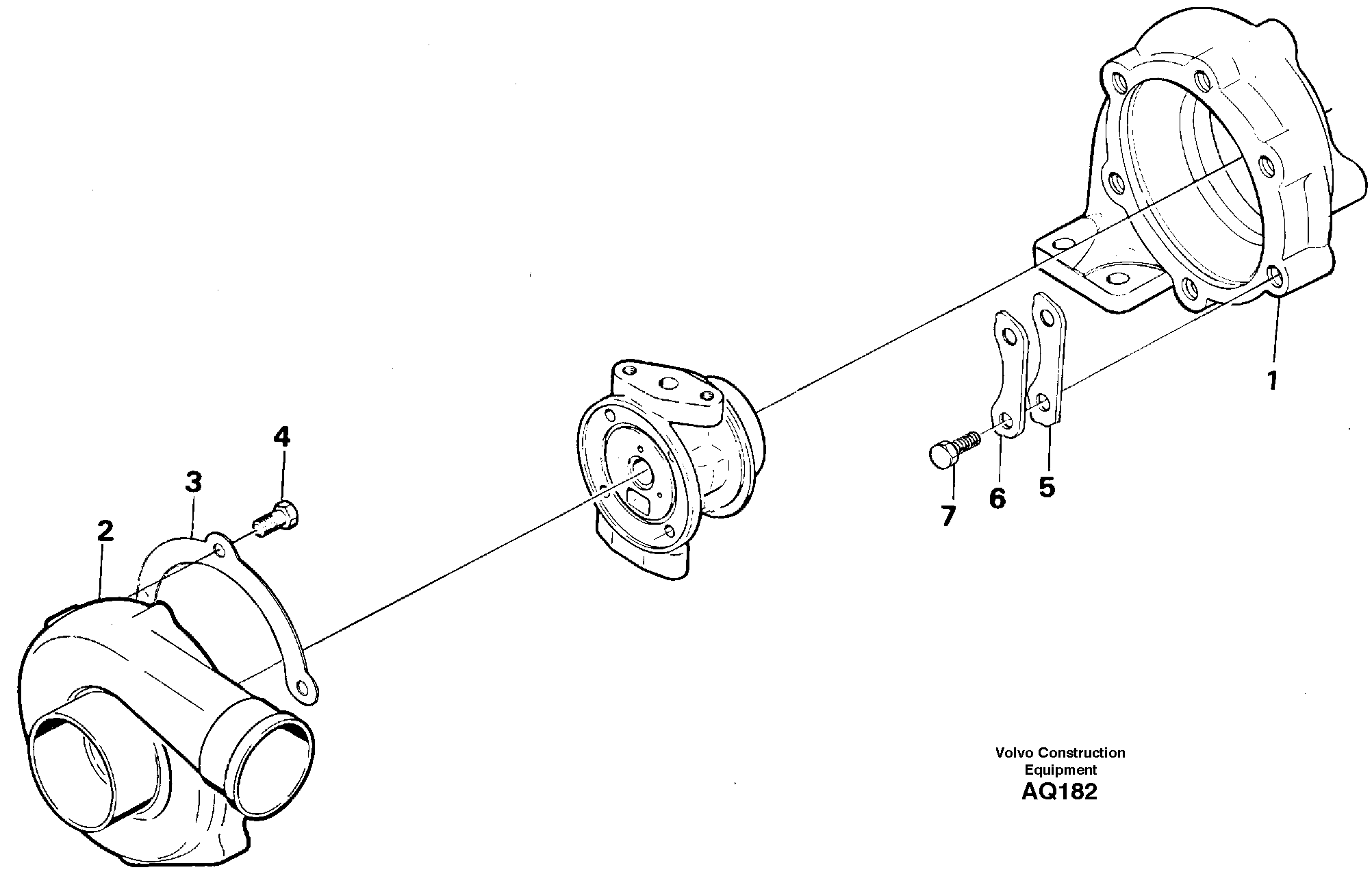

Engine with mounting and equipment
Electrical, warning, informationsystems and instruments

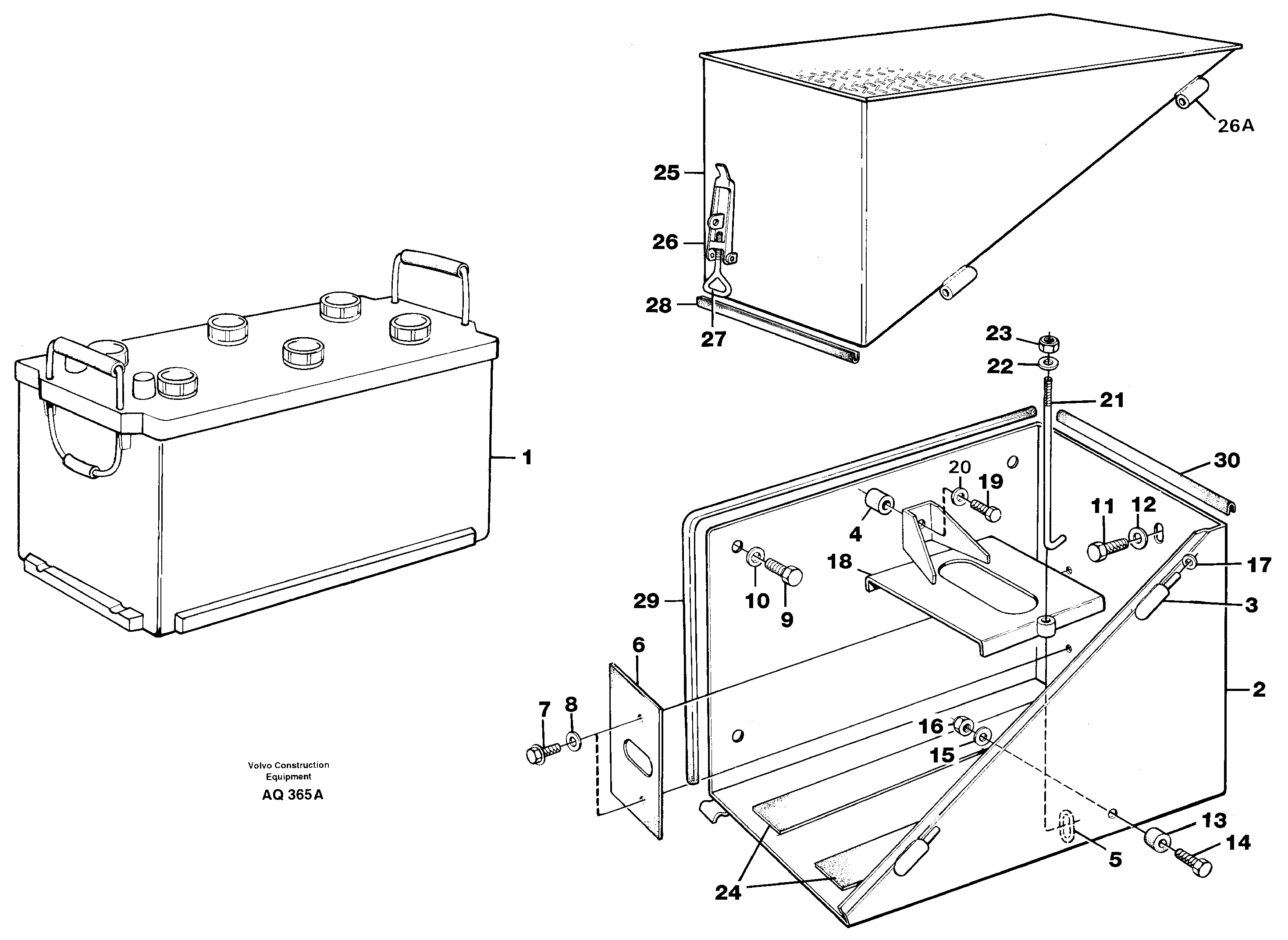

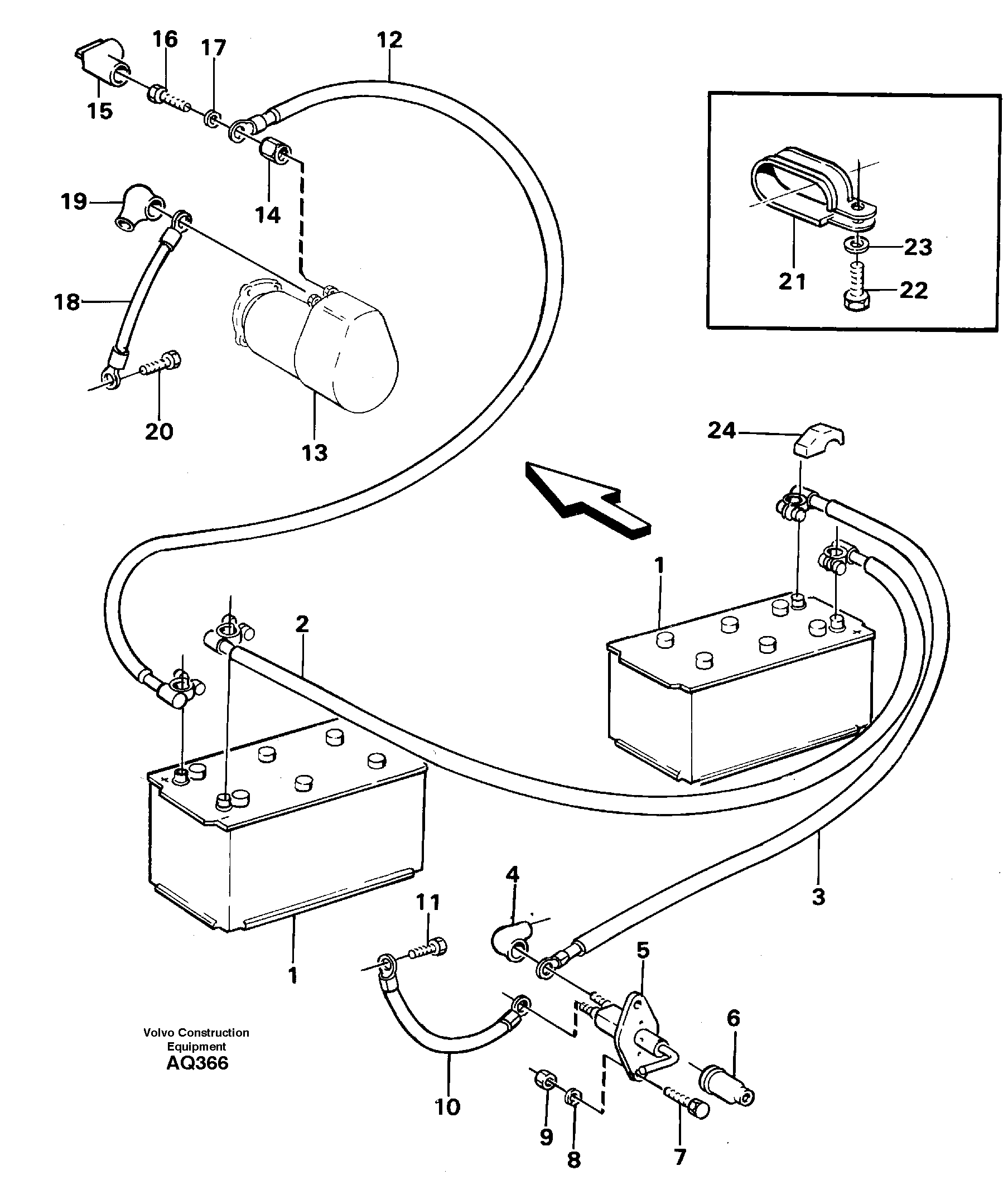

Battery

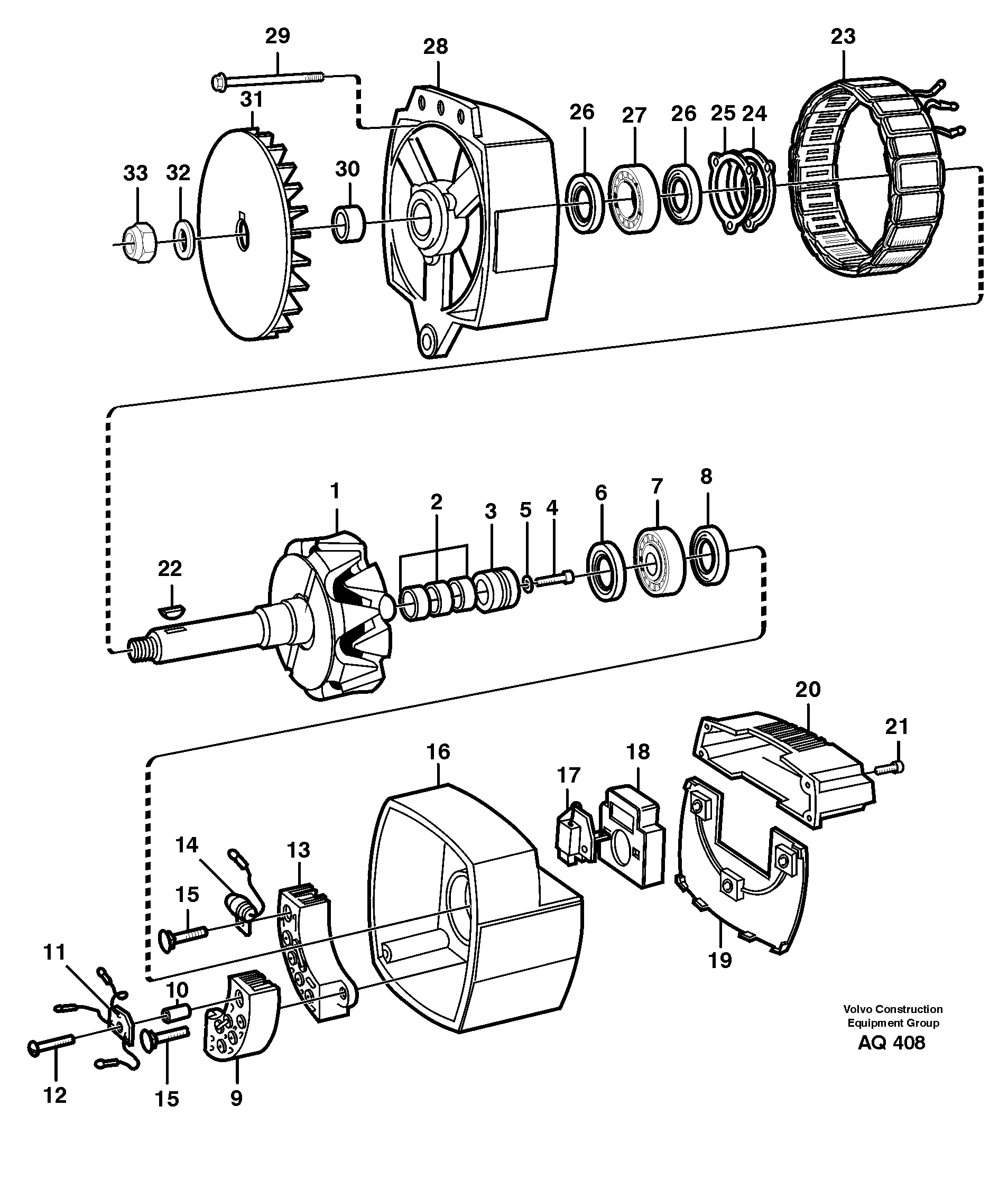

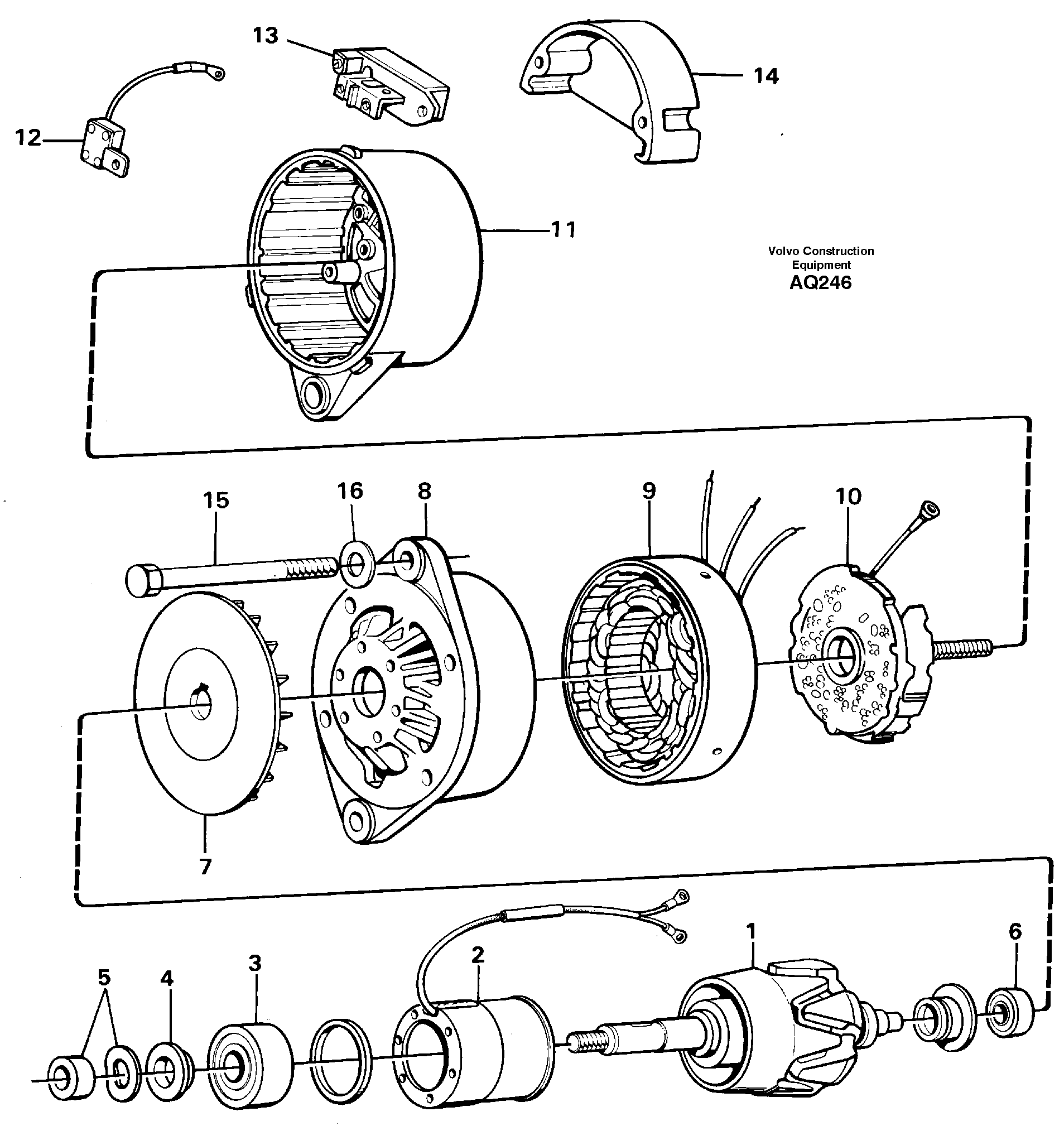

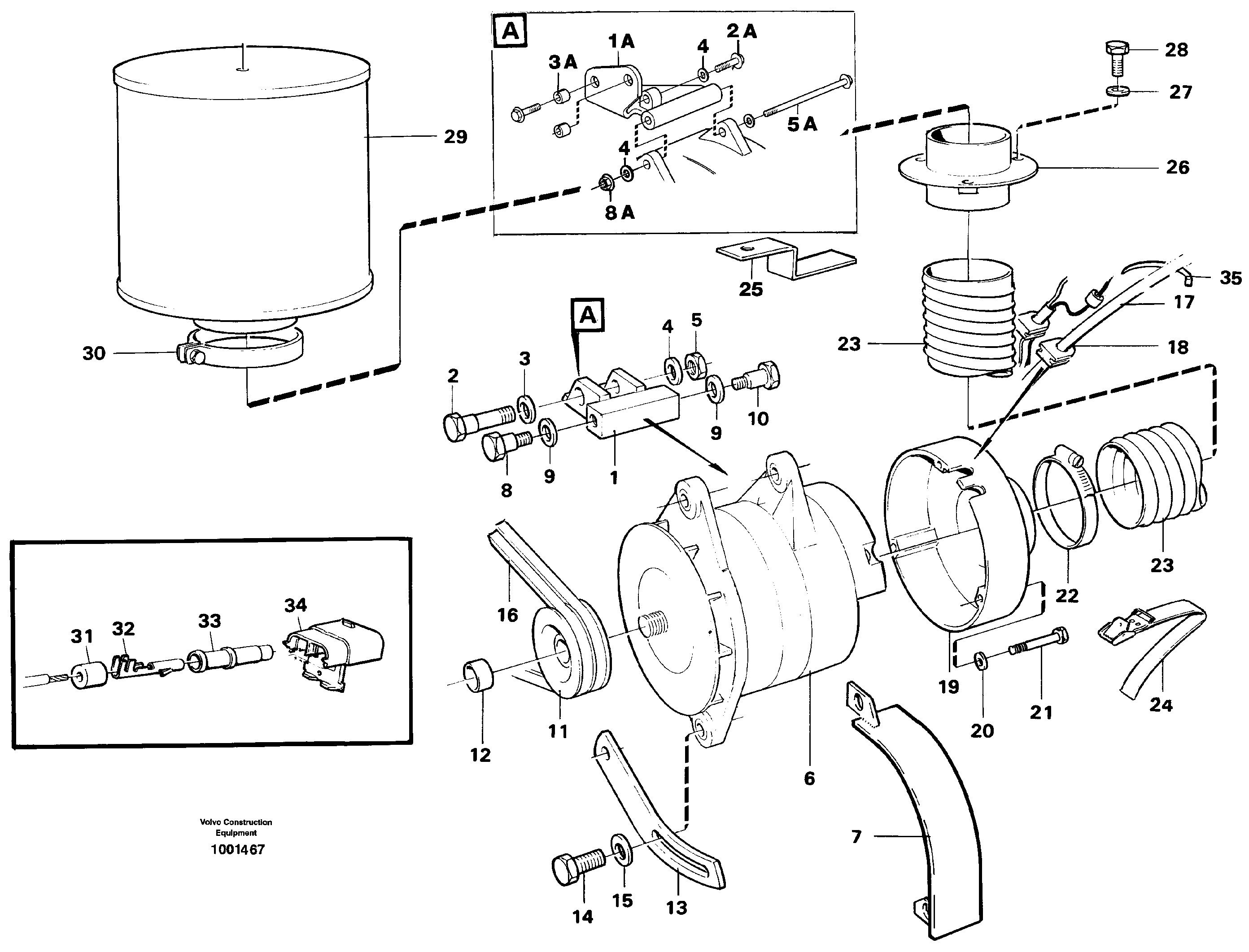

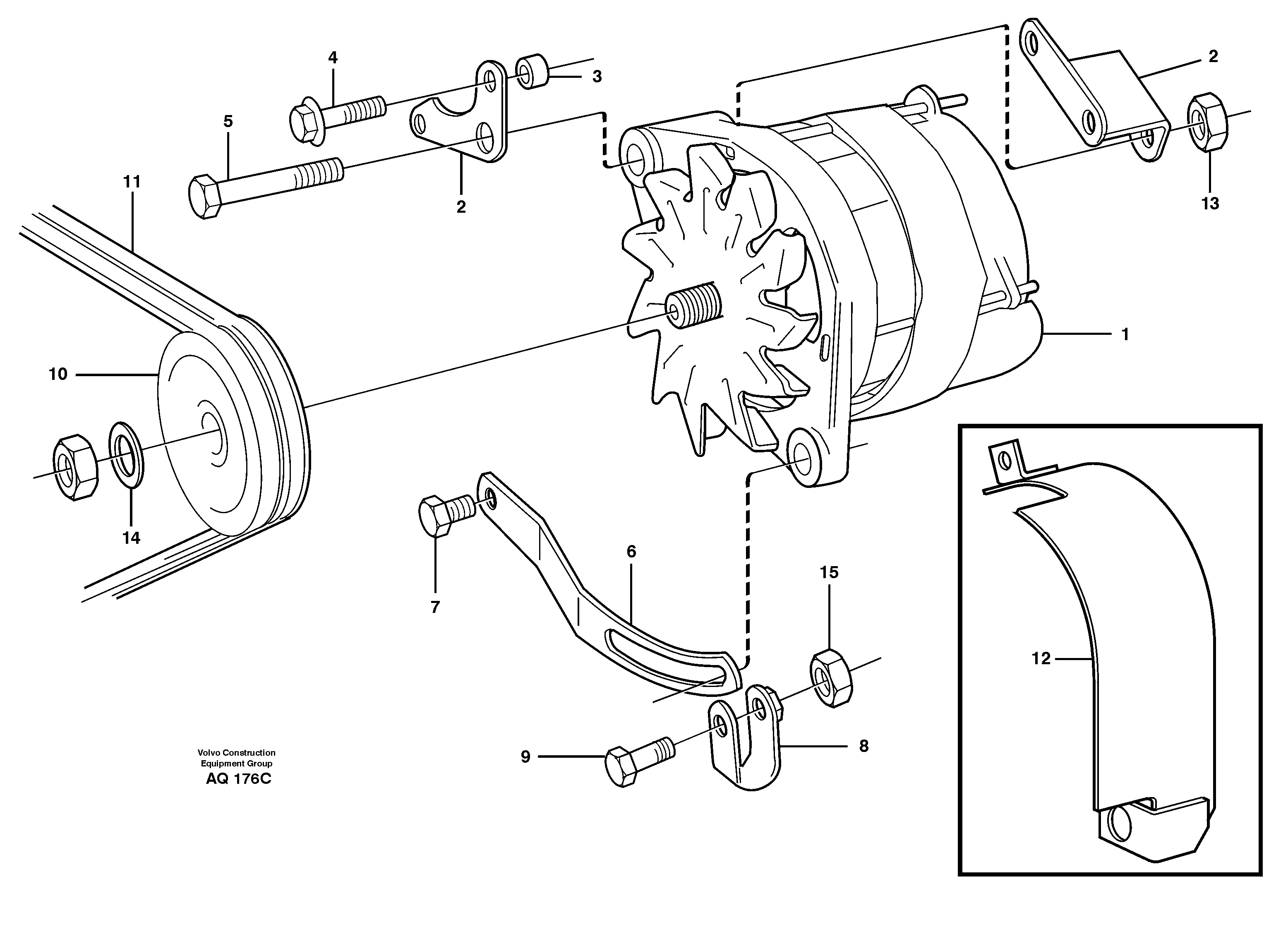

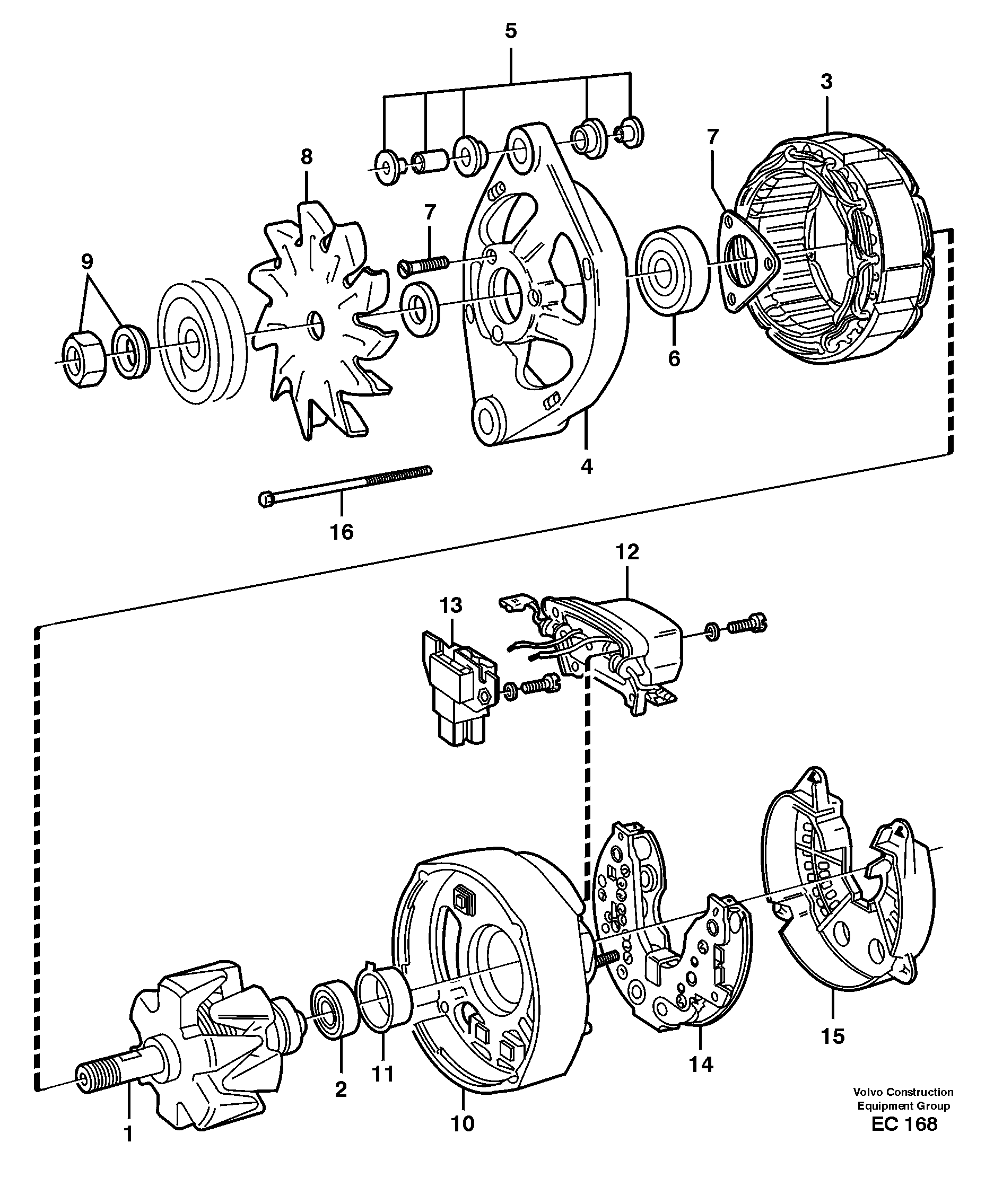

Alternator and charge regulator

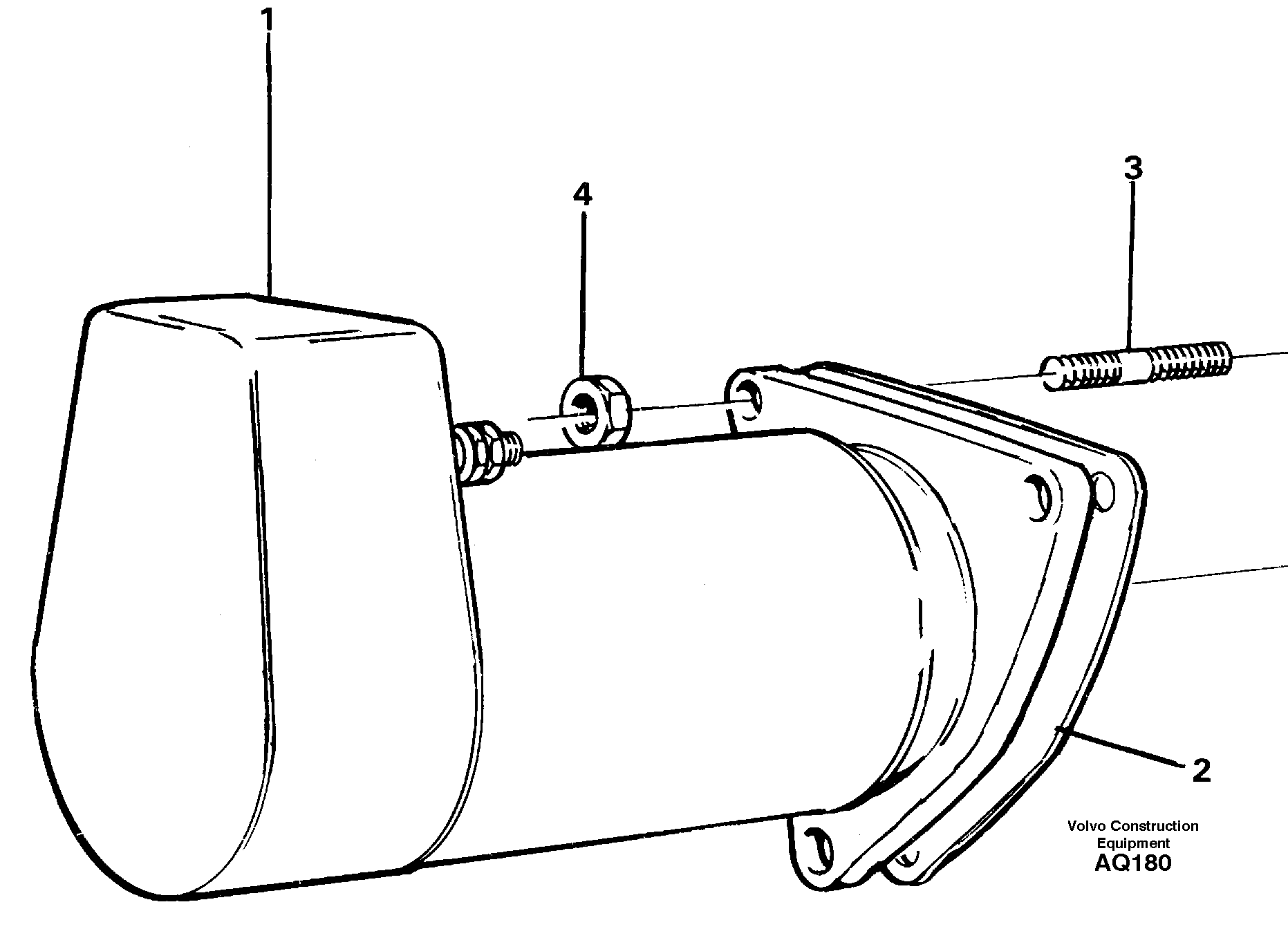

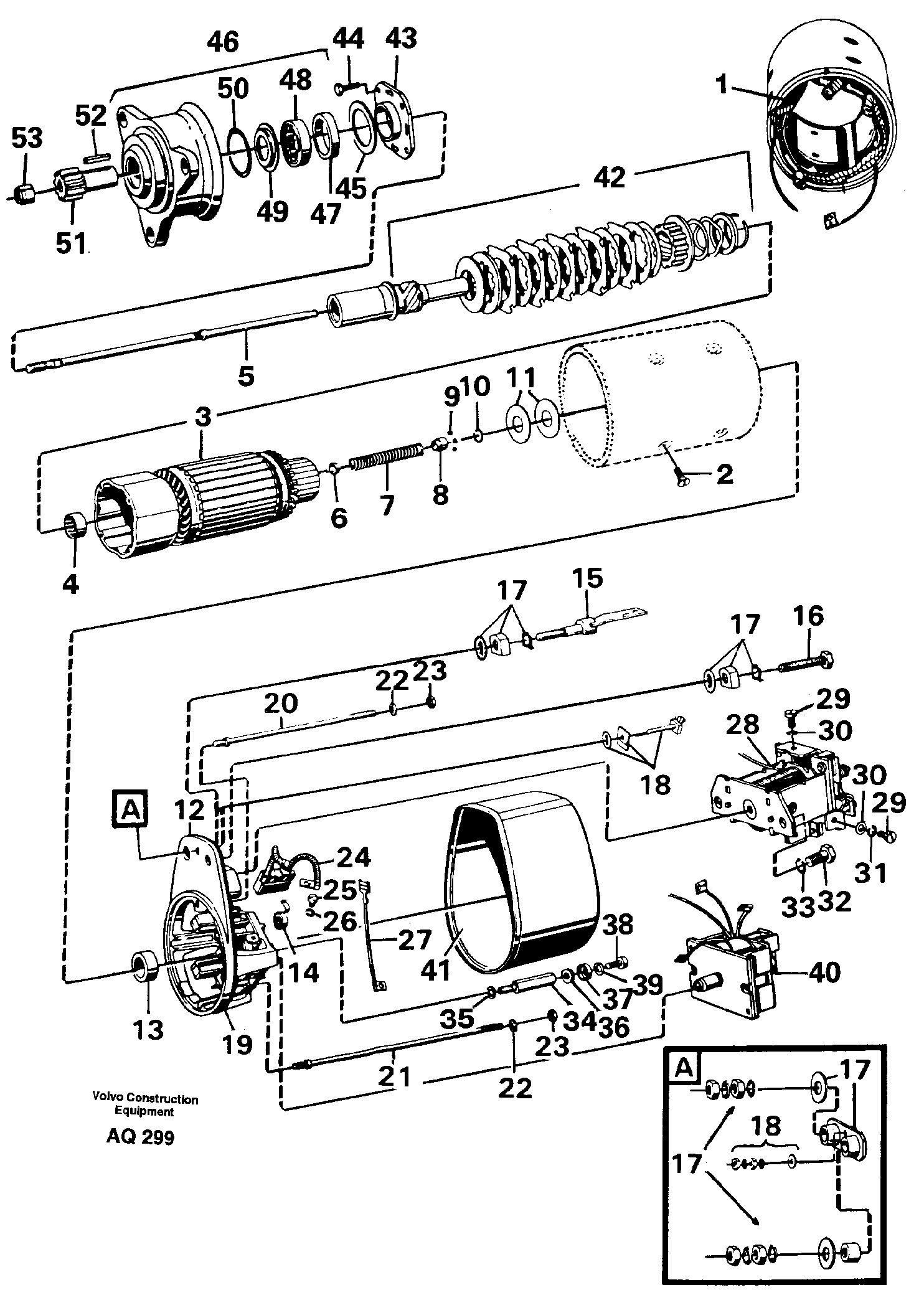

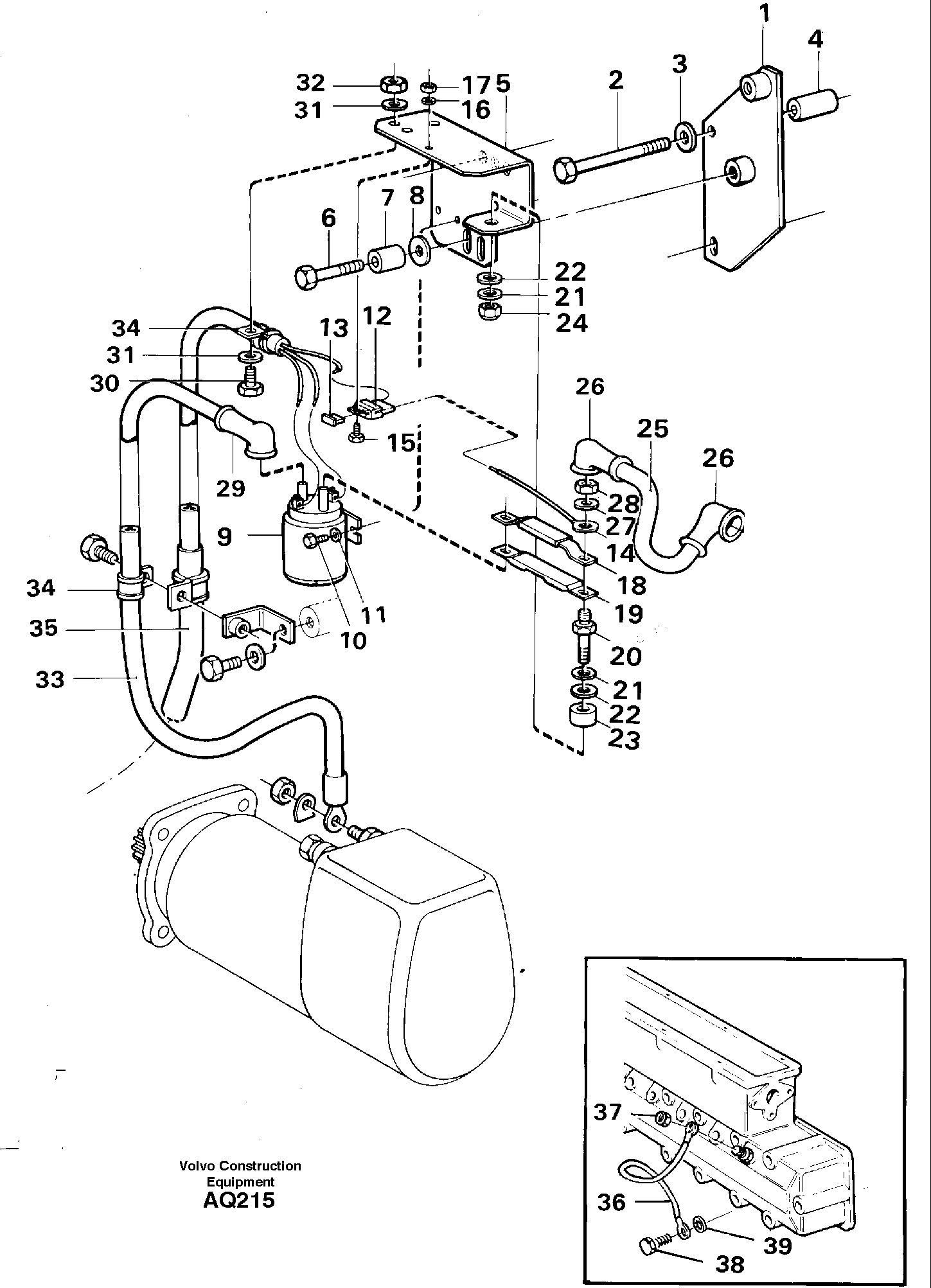

Starting system

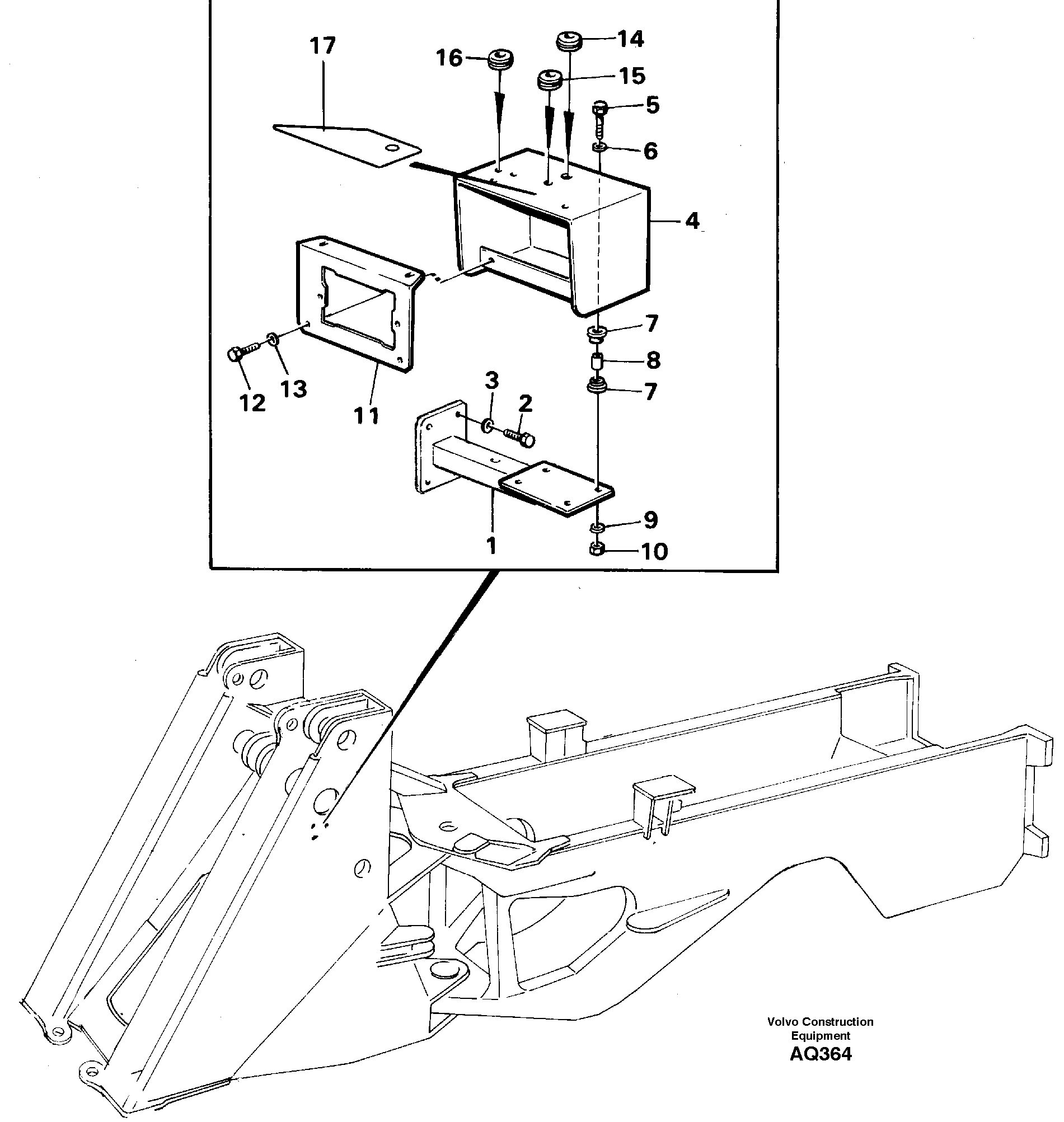

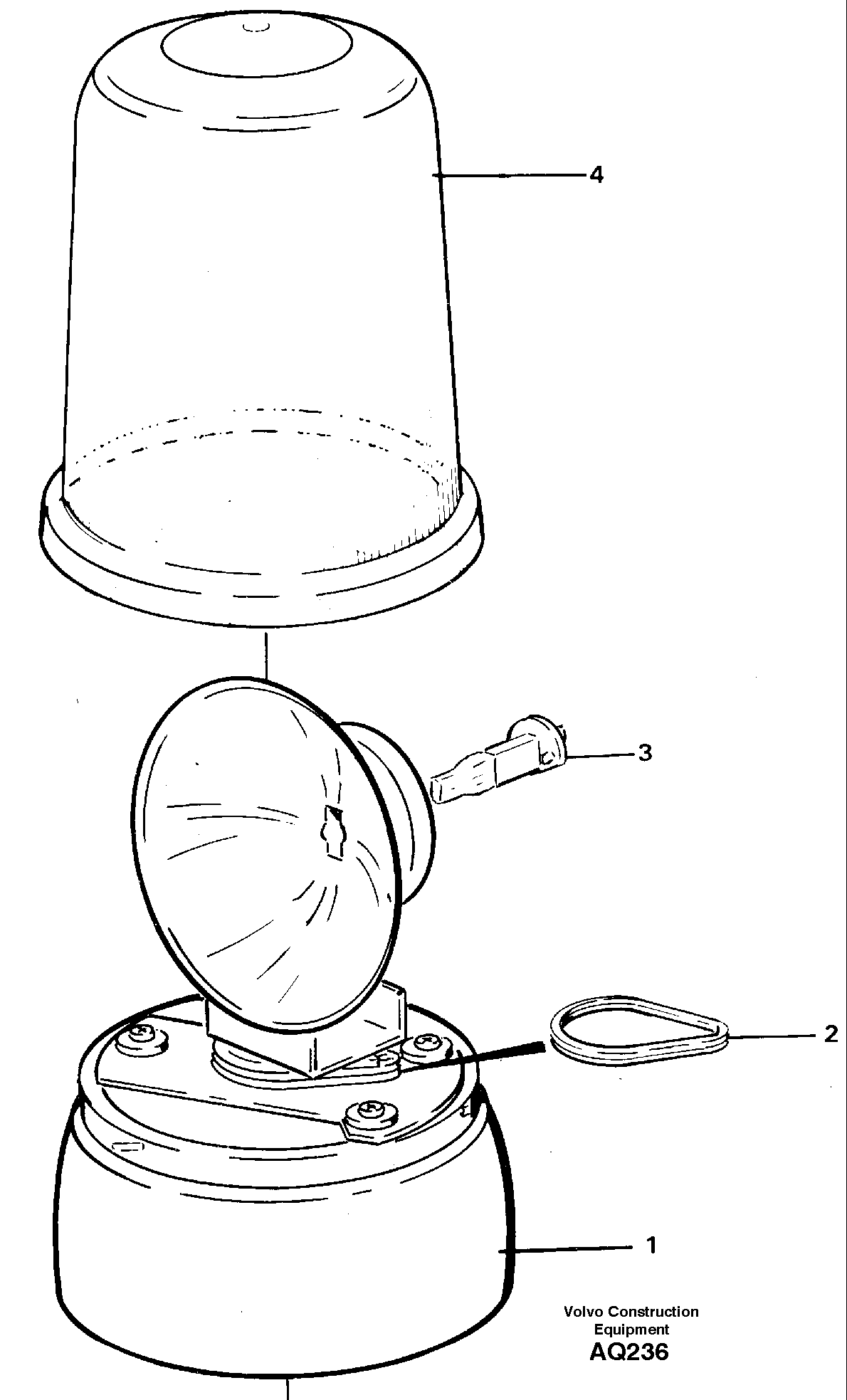

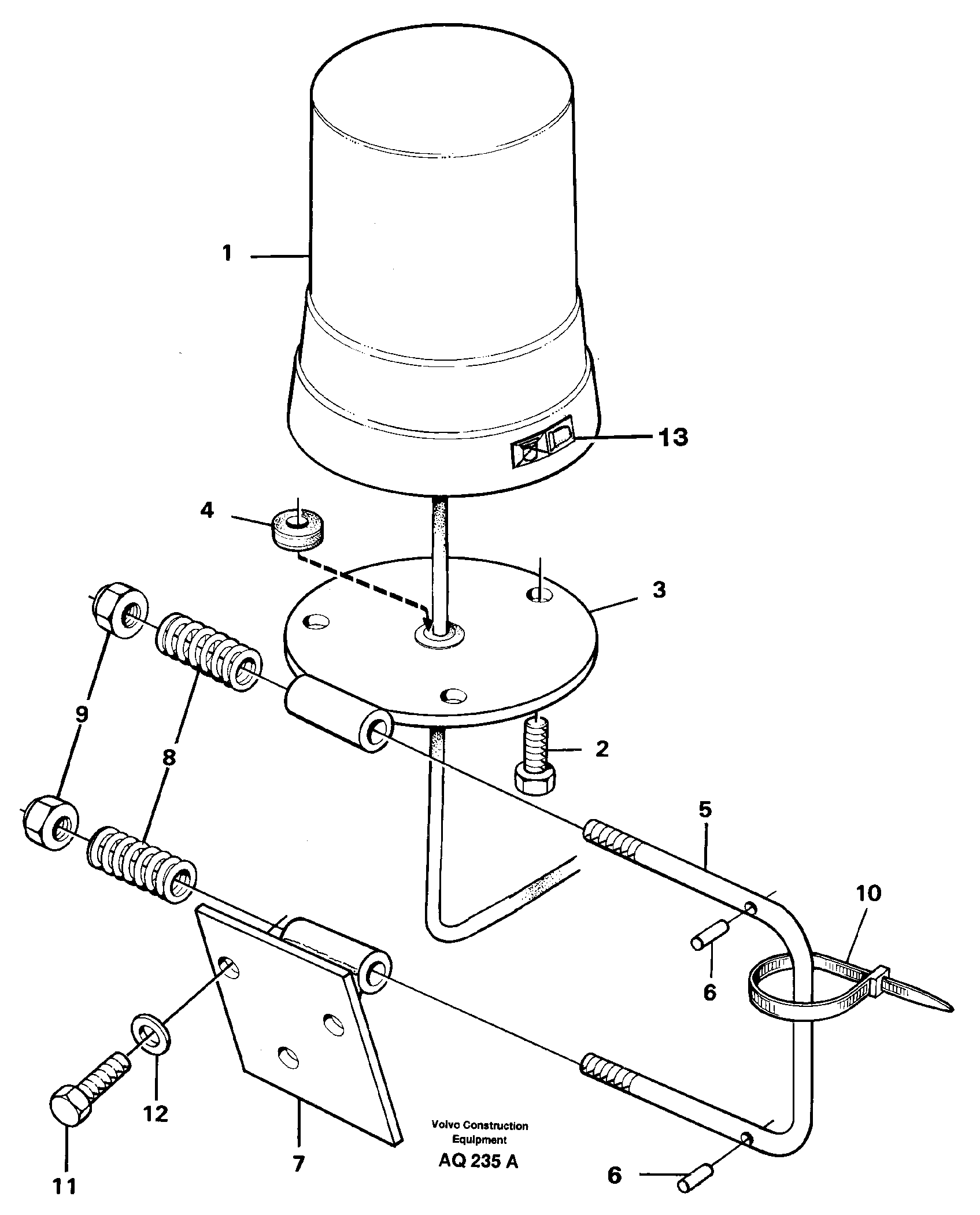

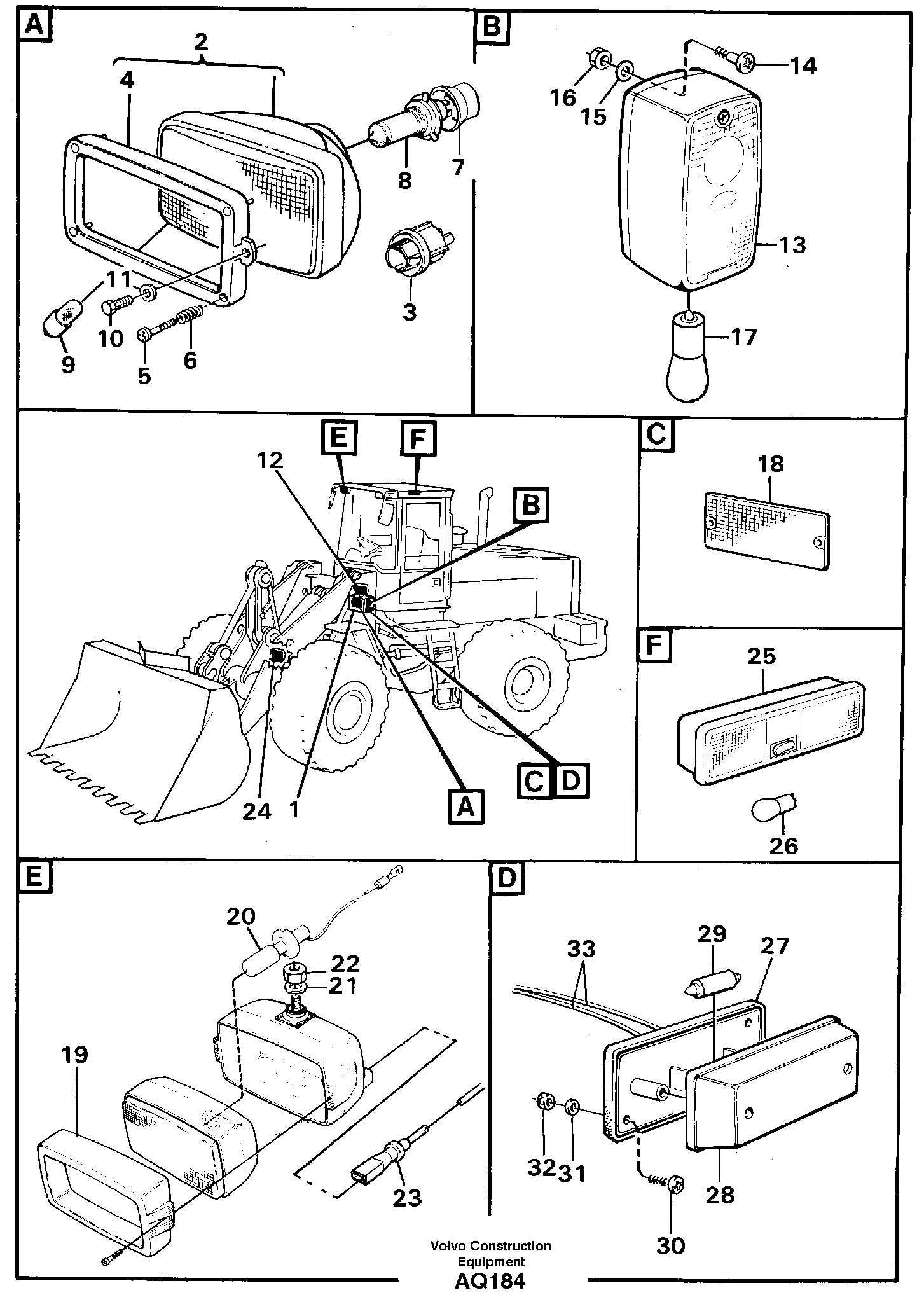

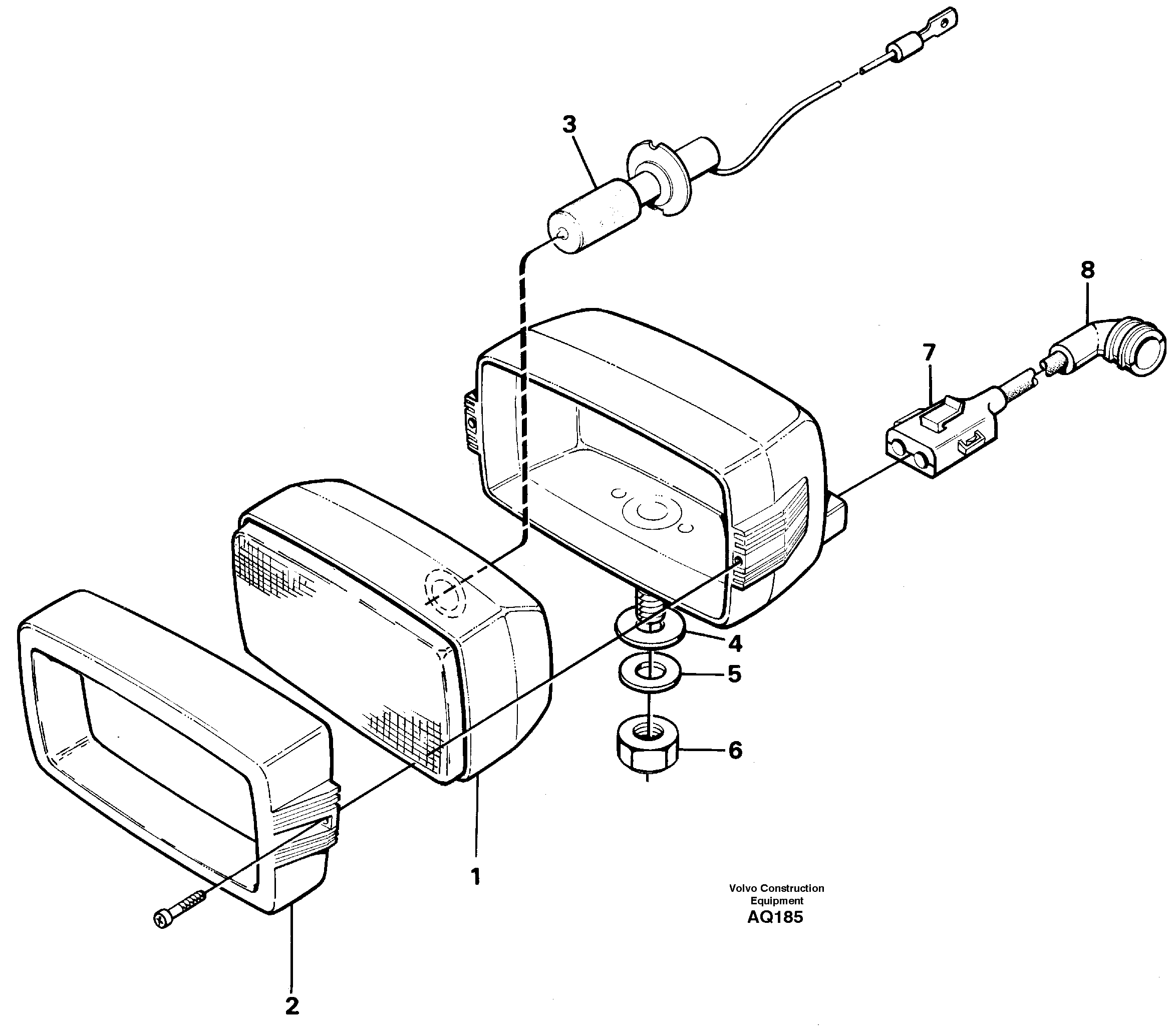

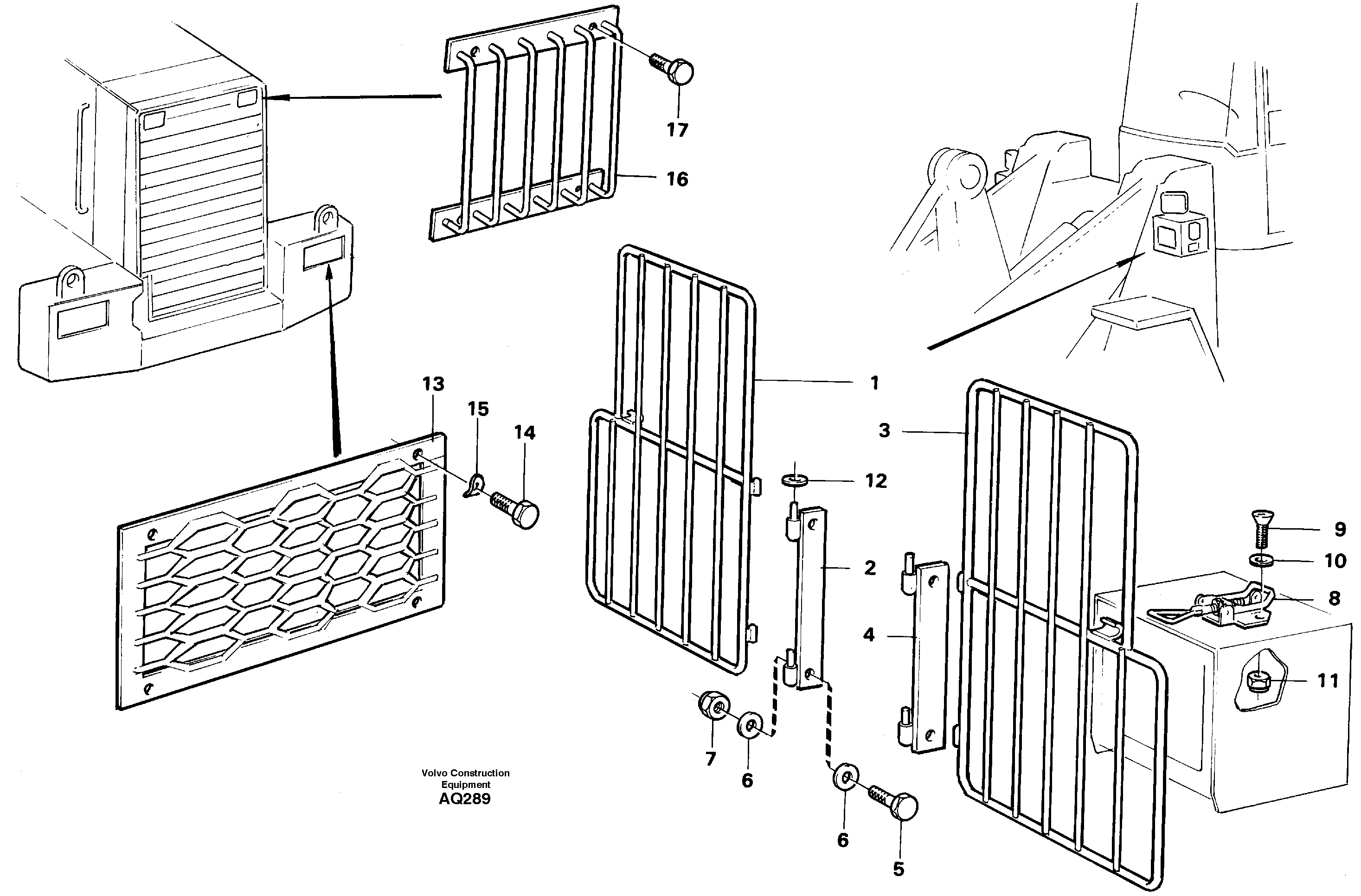

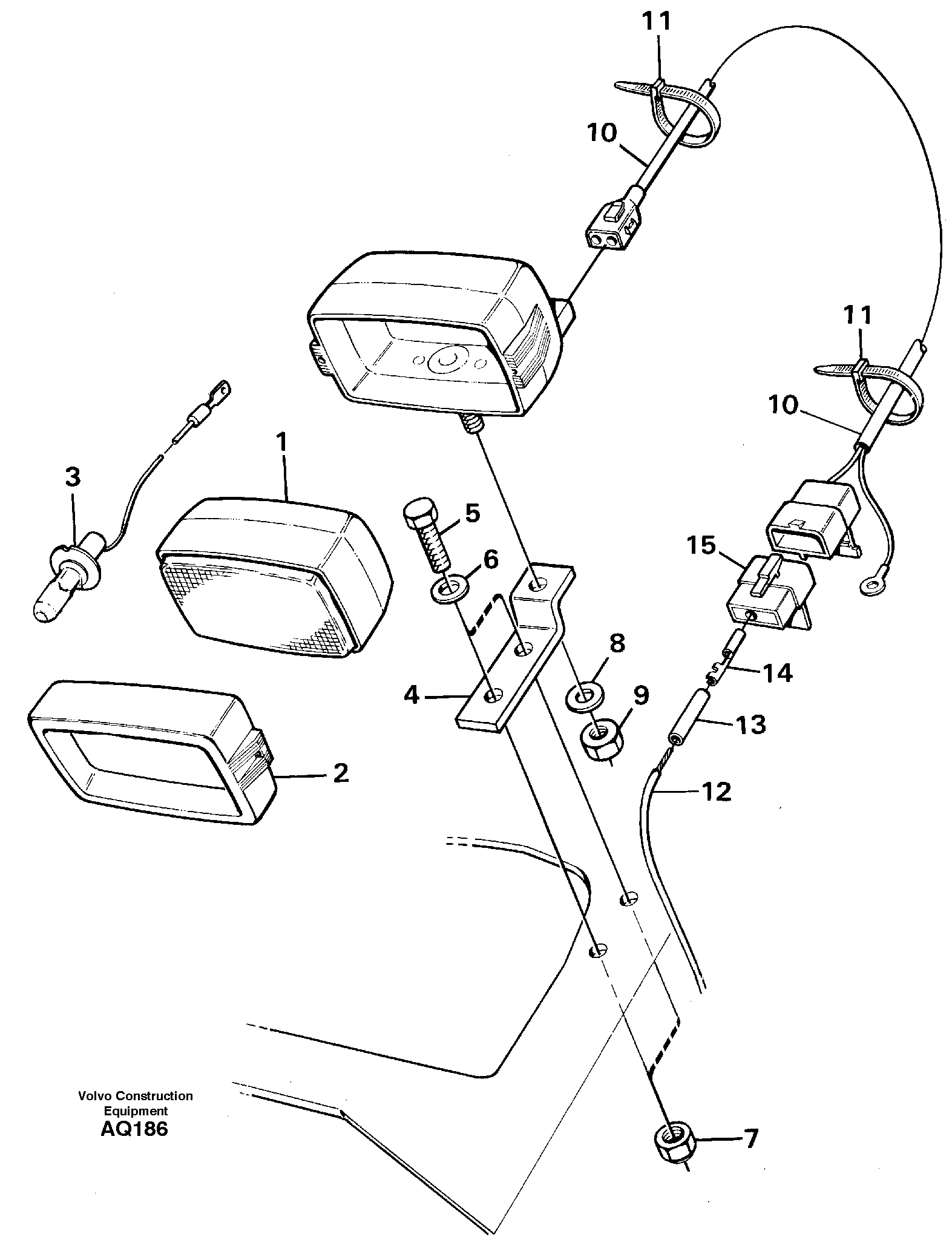

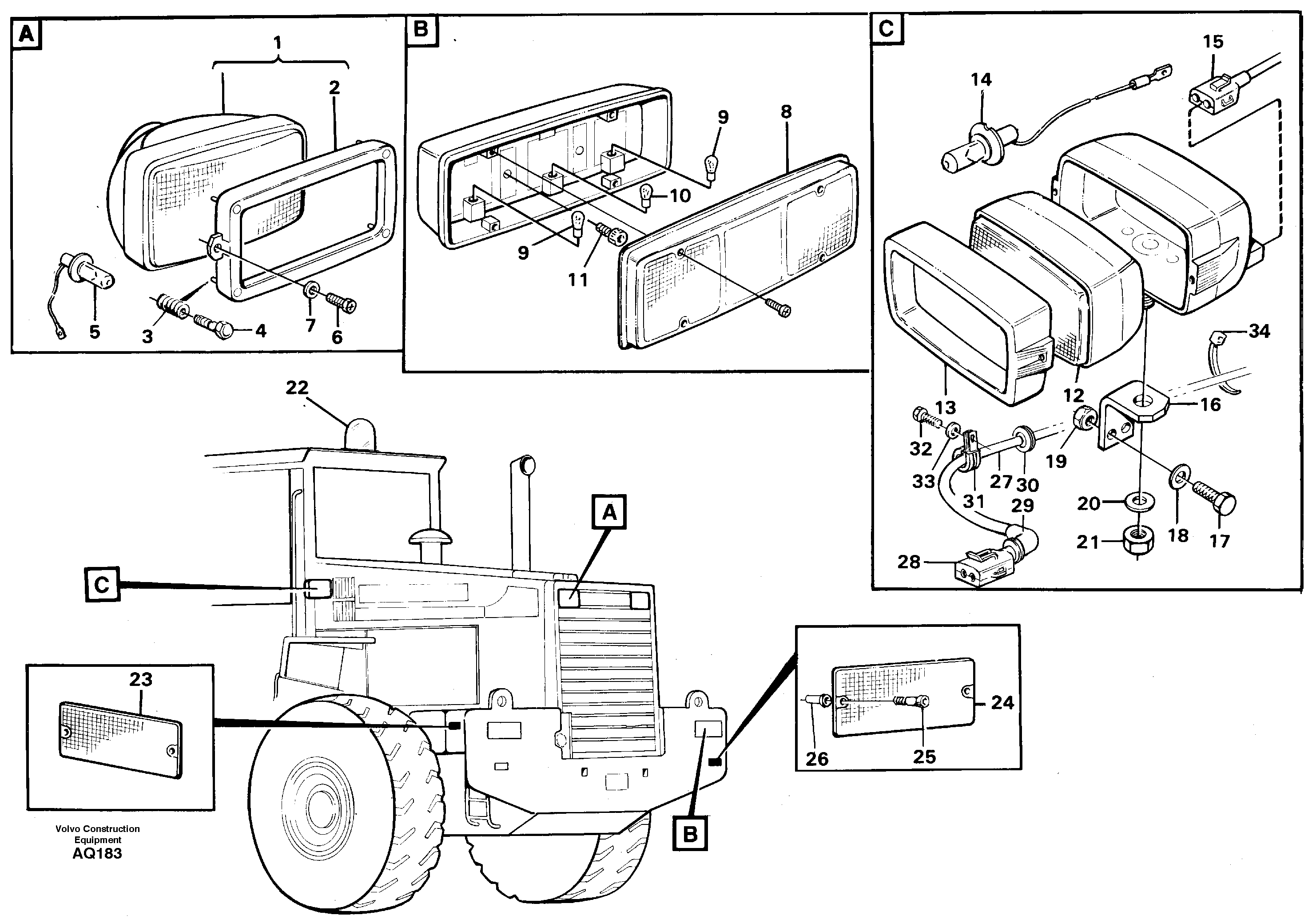

Lighting

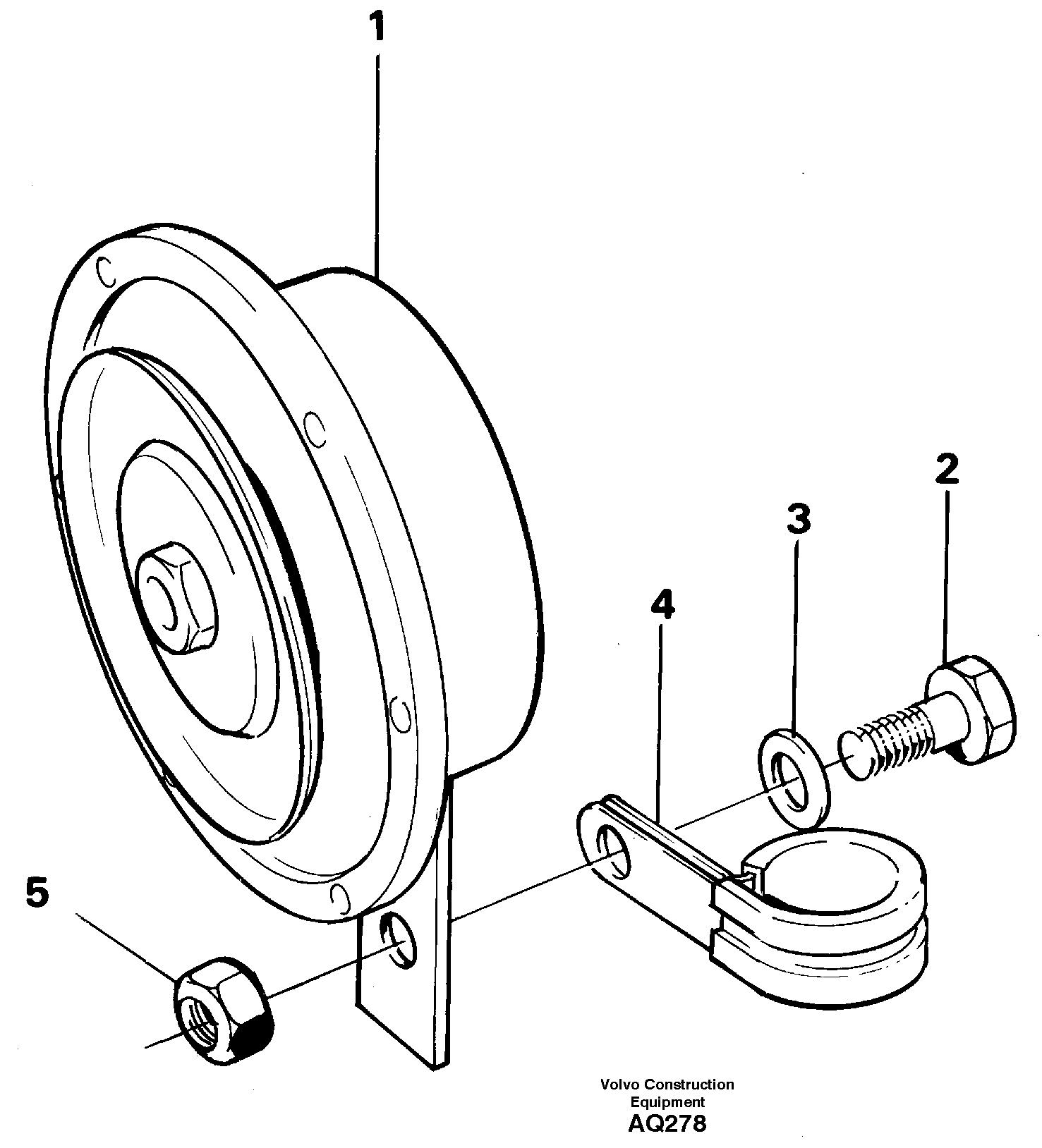

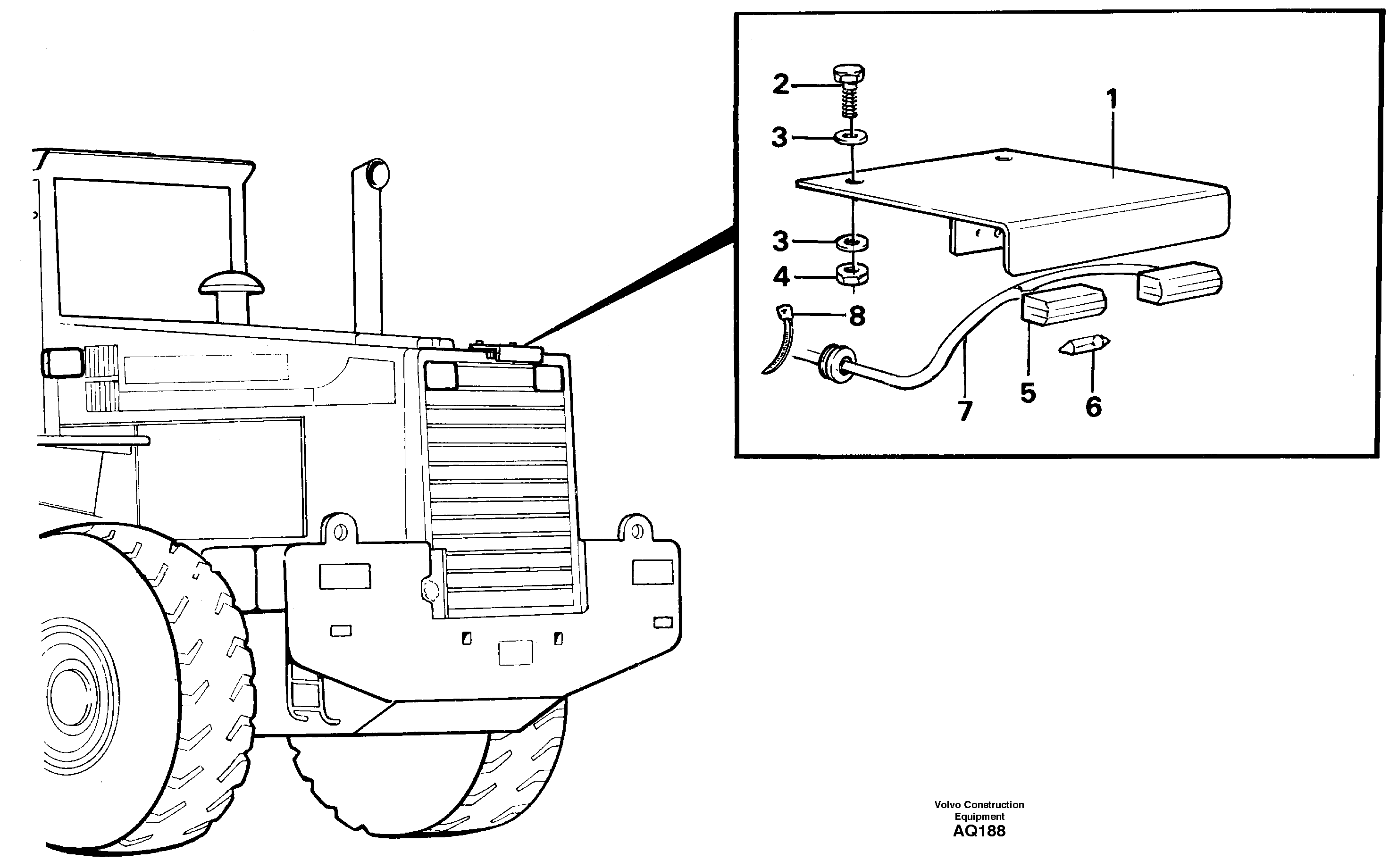

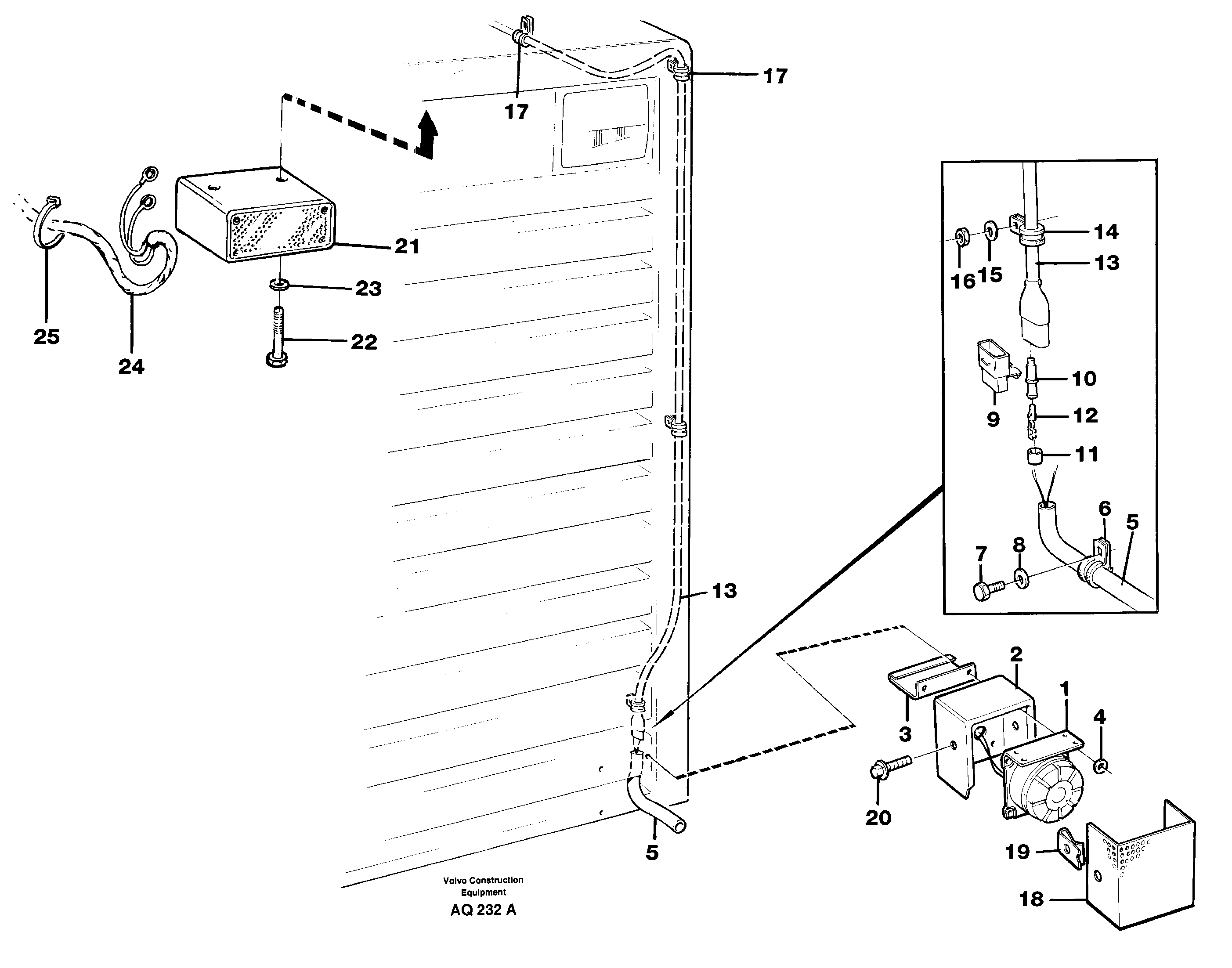

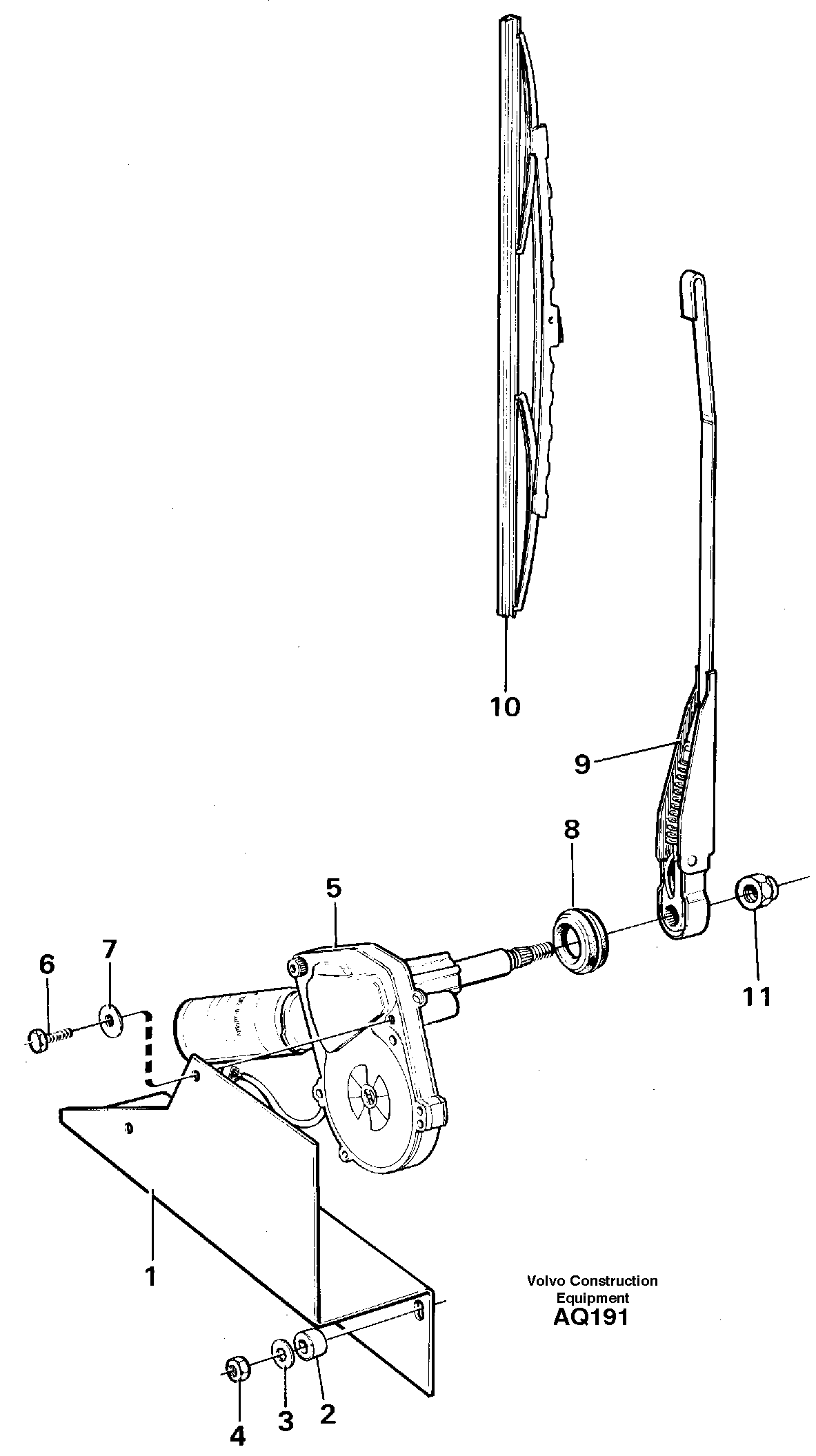

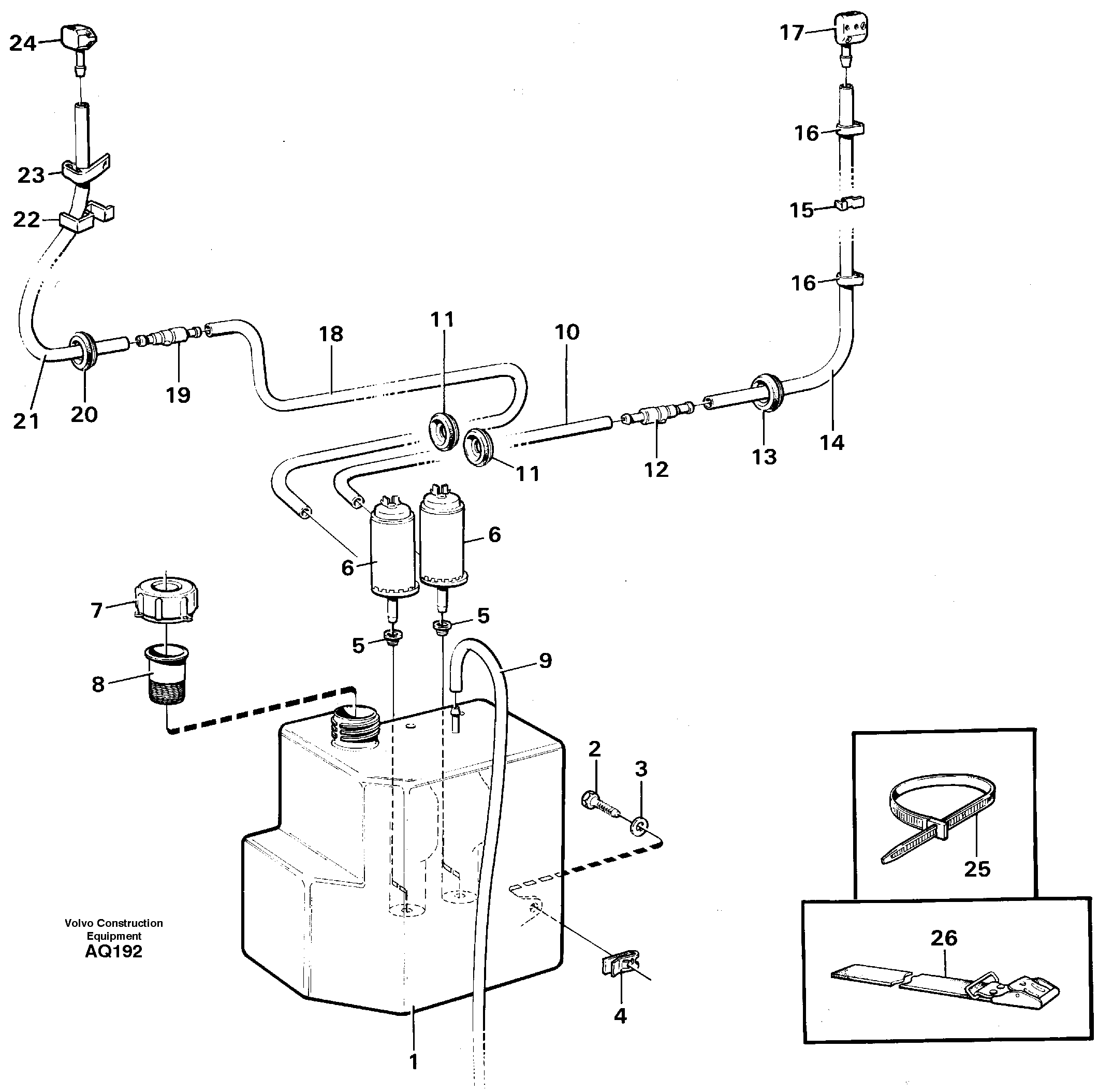

Other electrical equipment

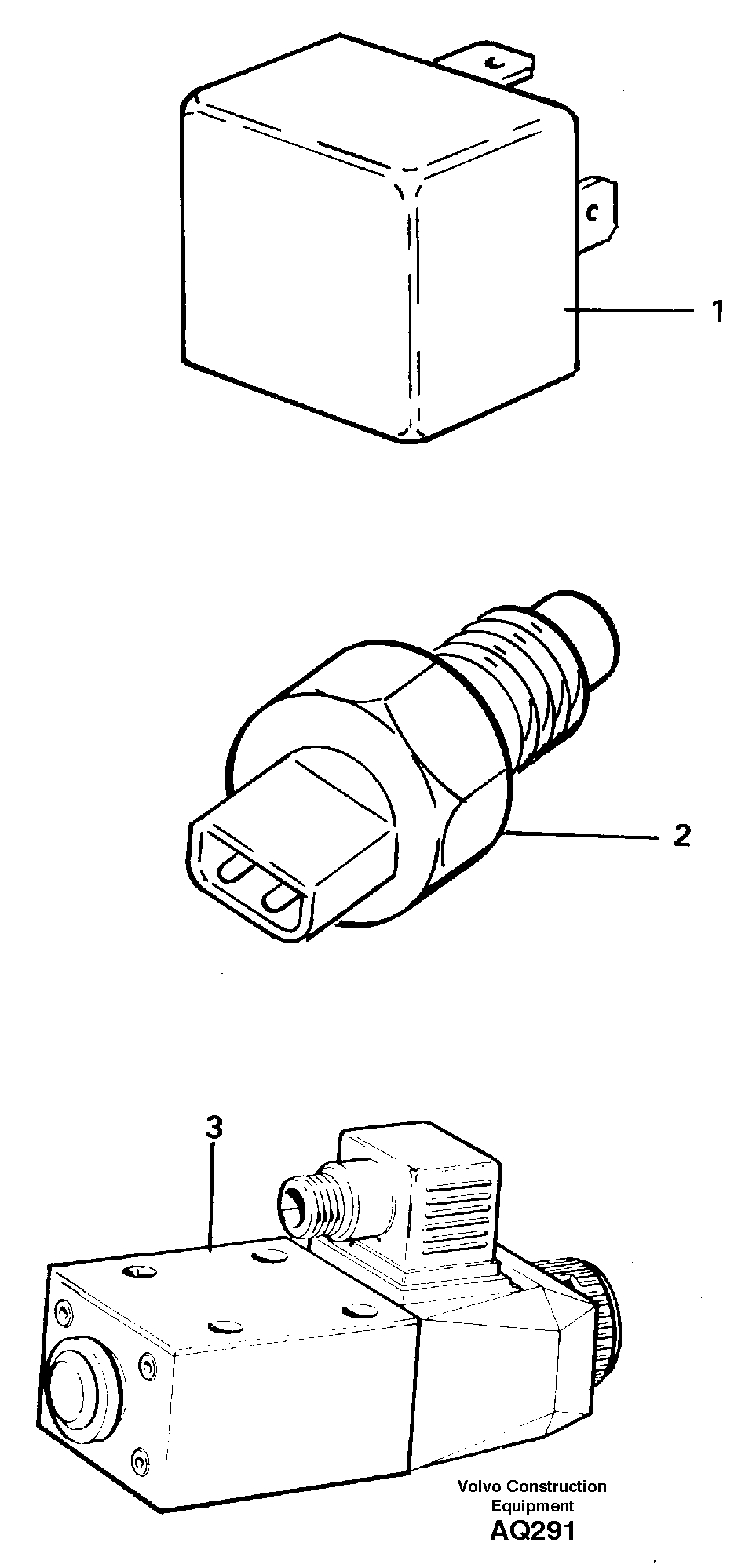

Cable, fuse and relay

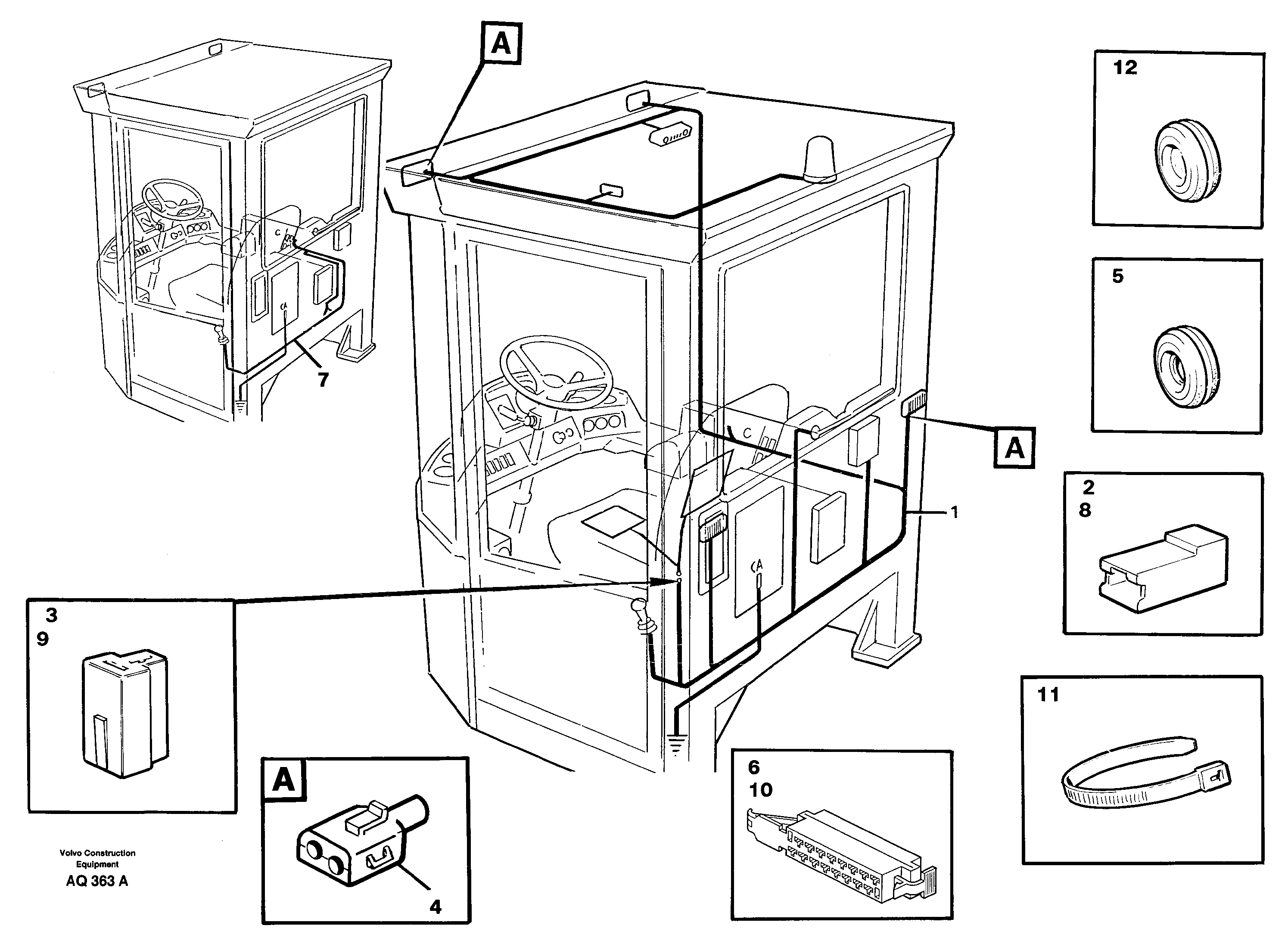

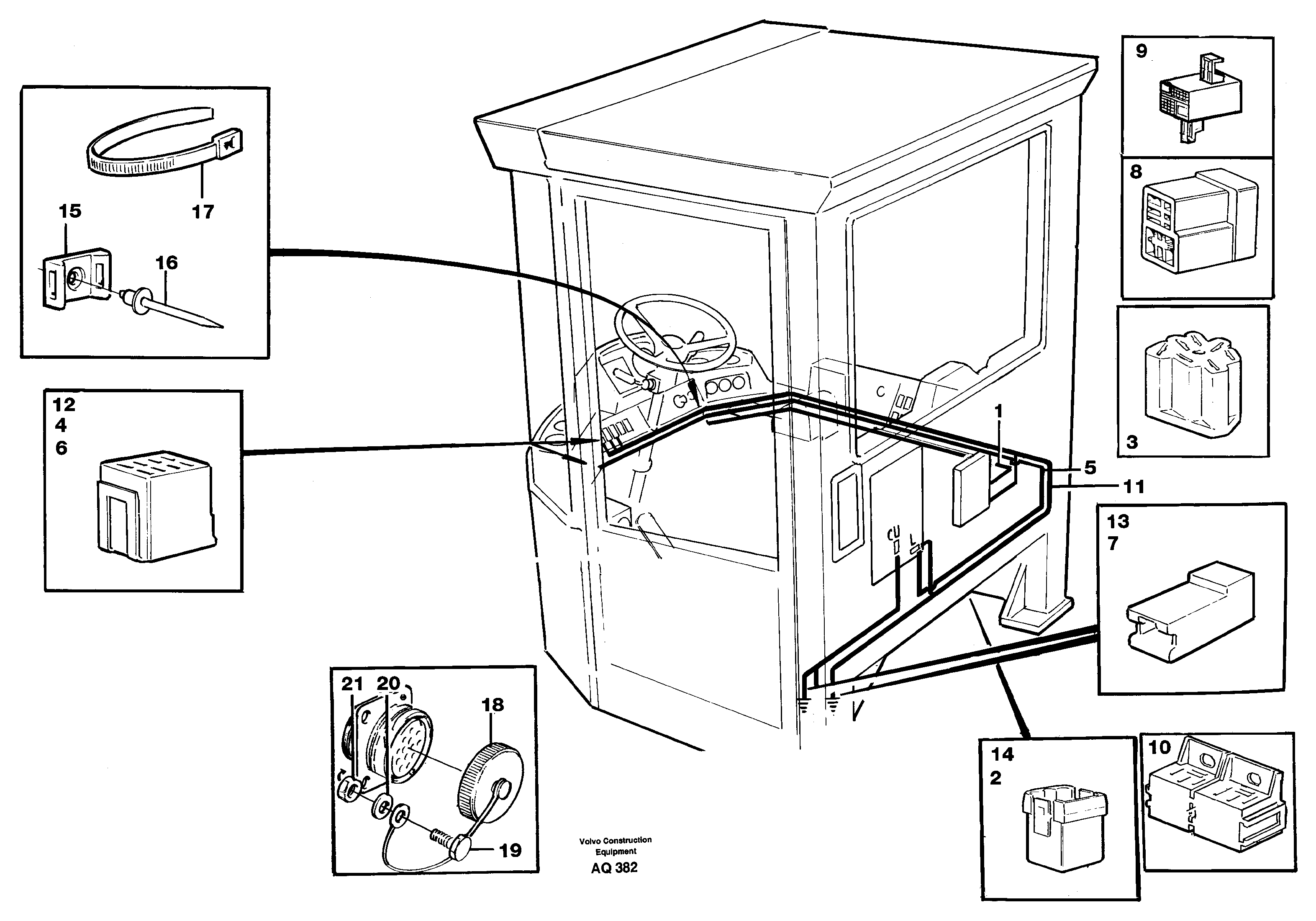

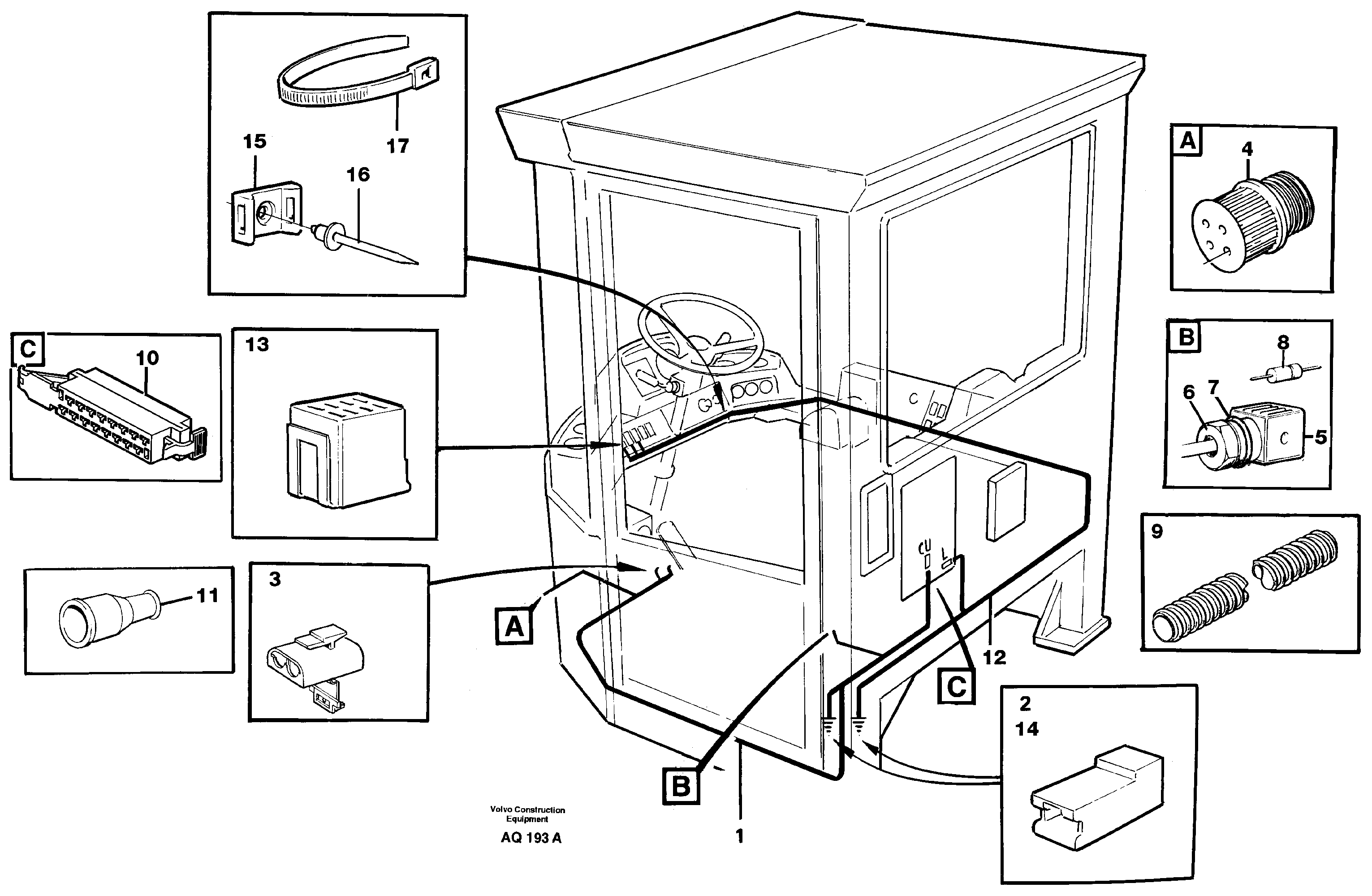

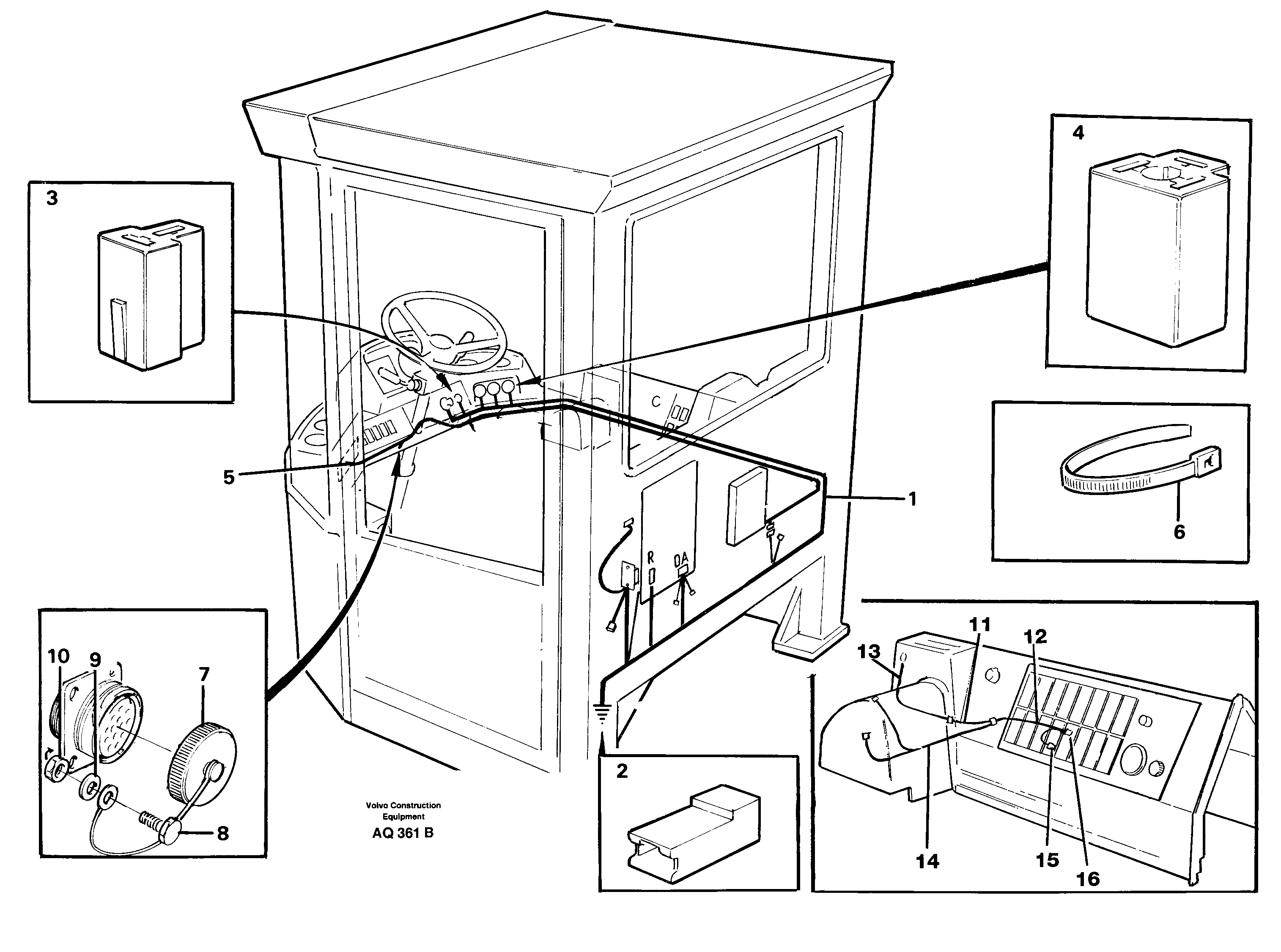

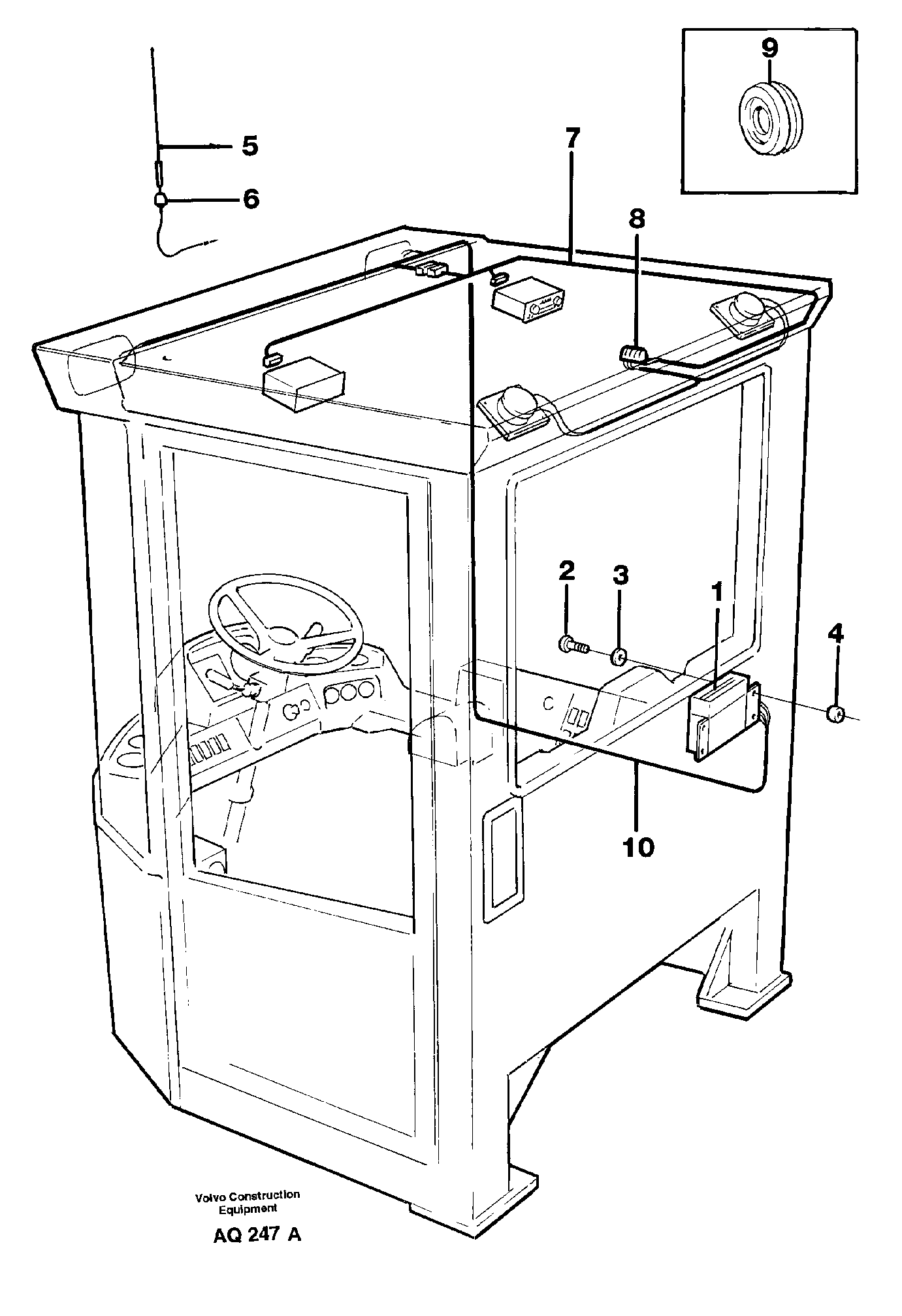

Cable harnesses, cab
Cable harnesses, cab
Cable harnesses, cab

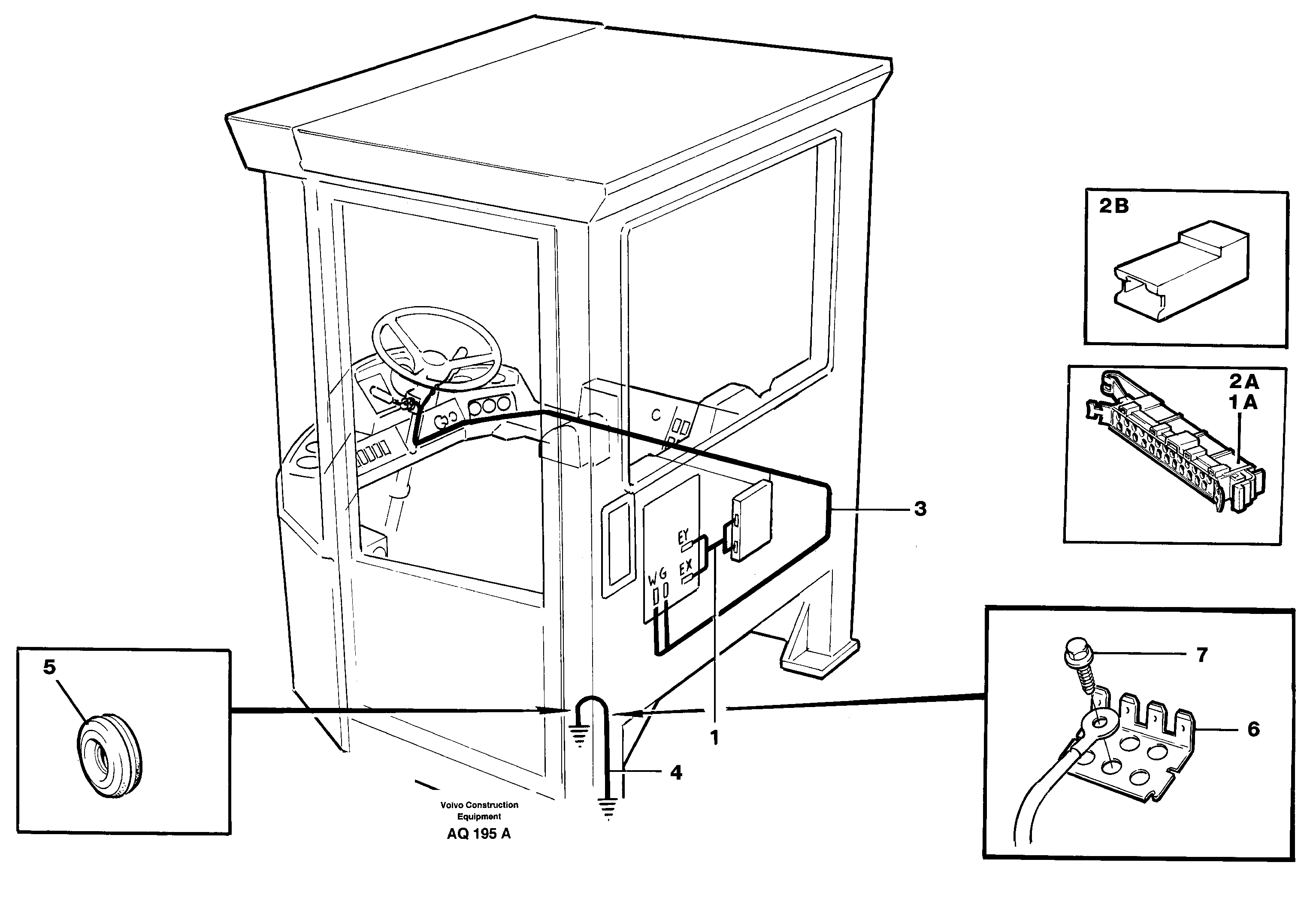

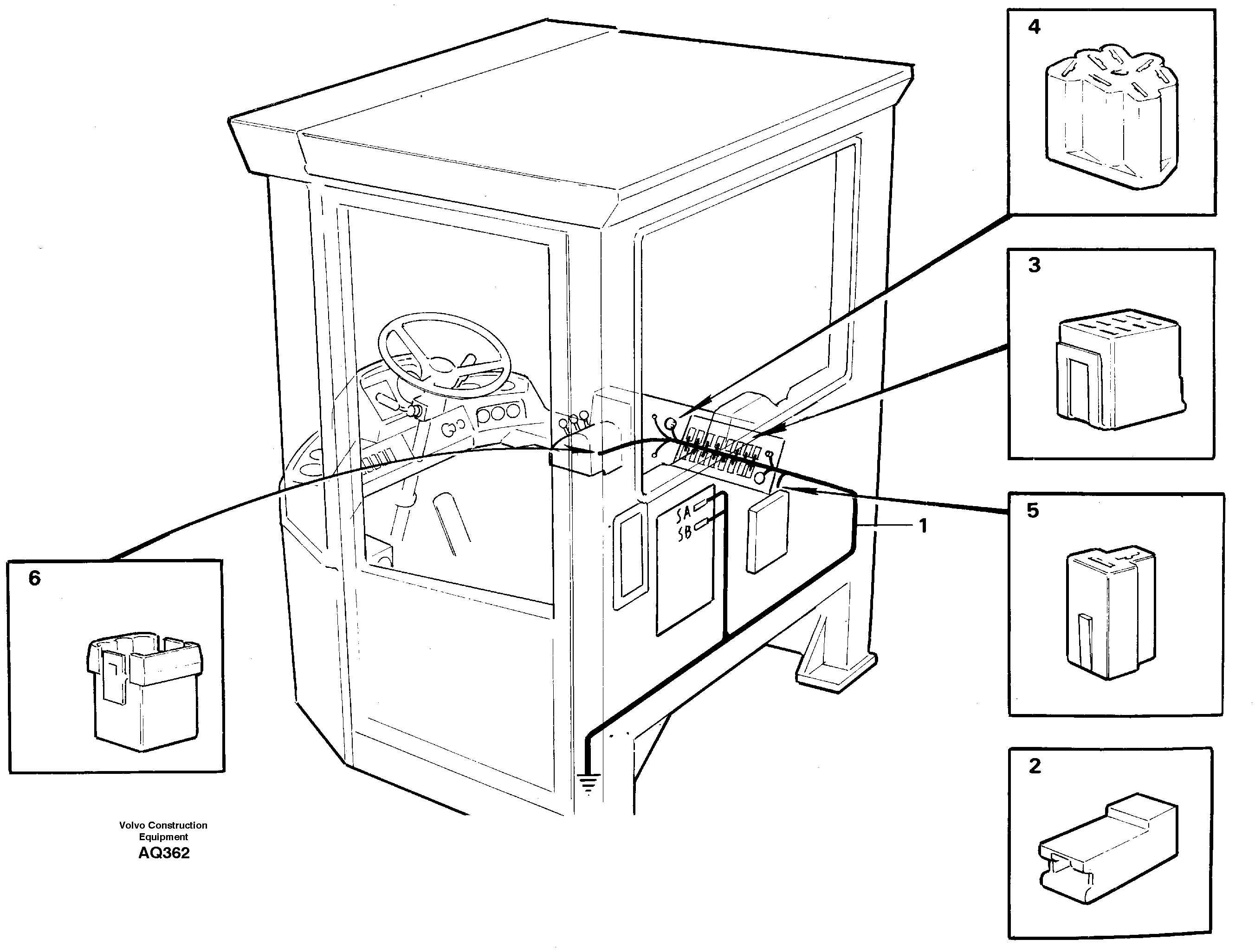

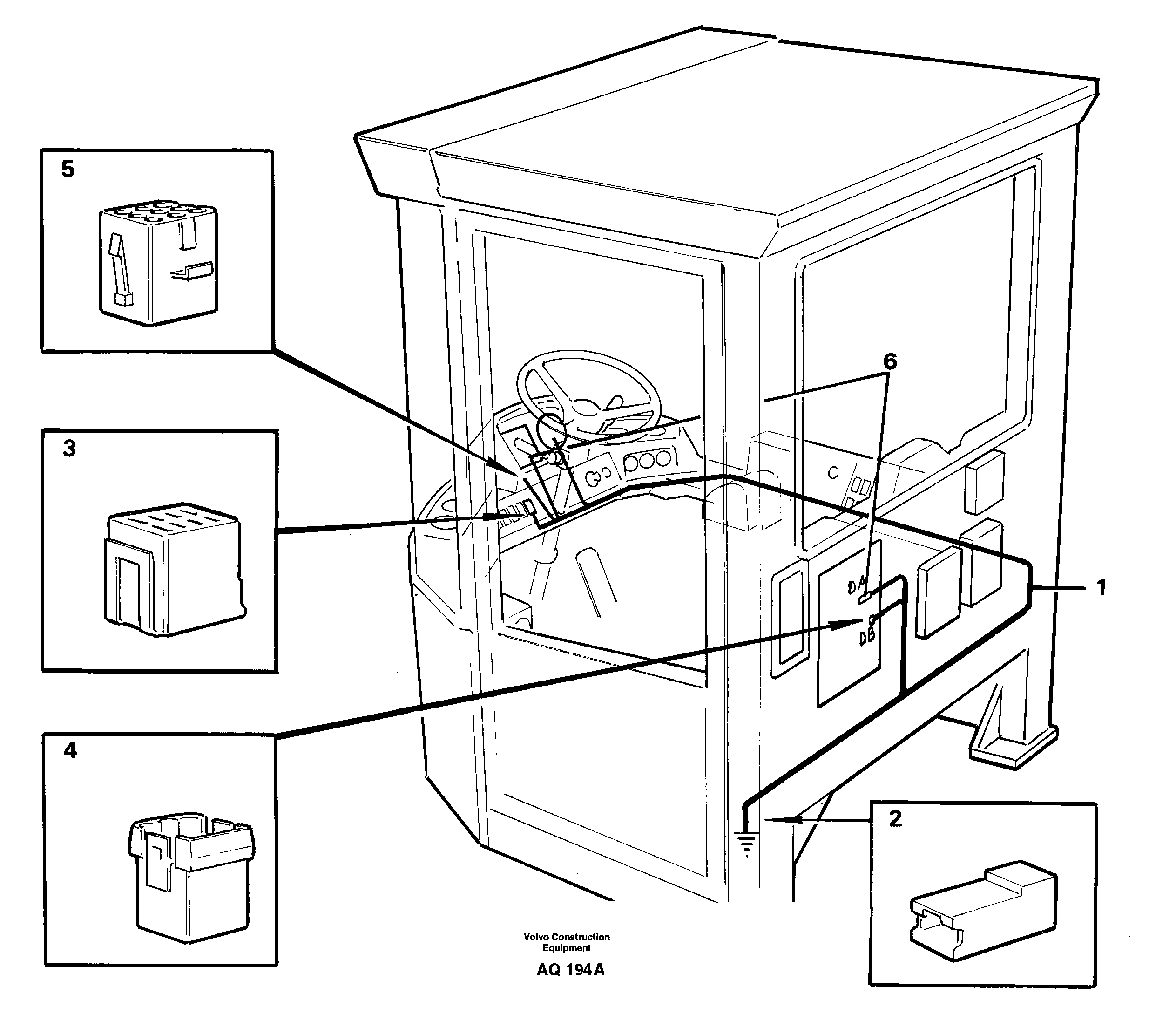

Cable harnesses, cab STD,93505
Cable harnesses, cab STD, 93505
Cable harnesses, cab STD, 93505
Cable harnesses, cab

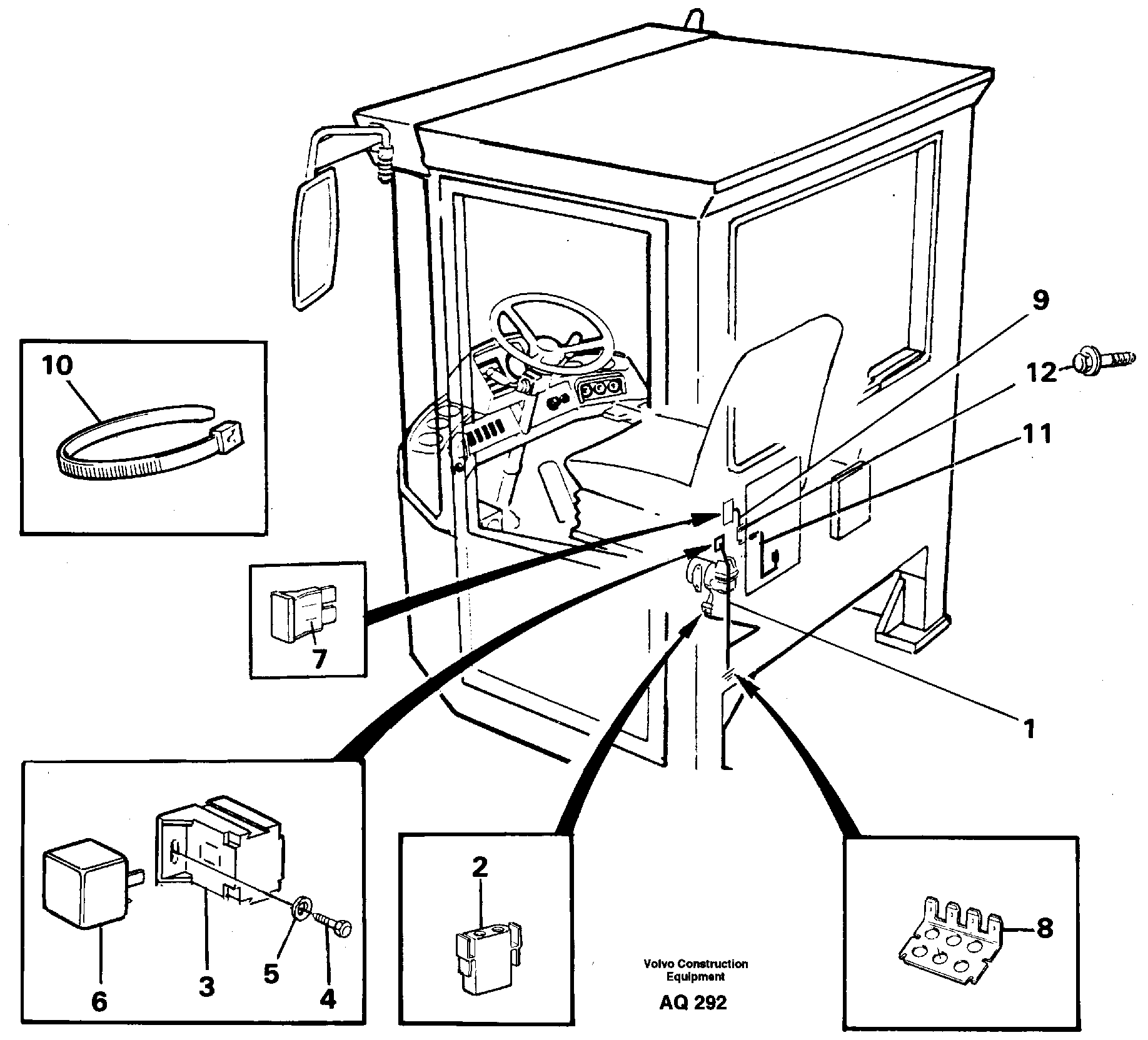

Cable harness, air-suspensioned seat. 92380, 92382, 92404,94907,94911

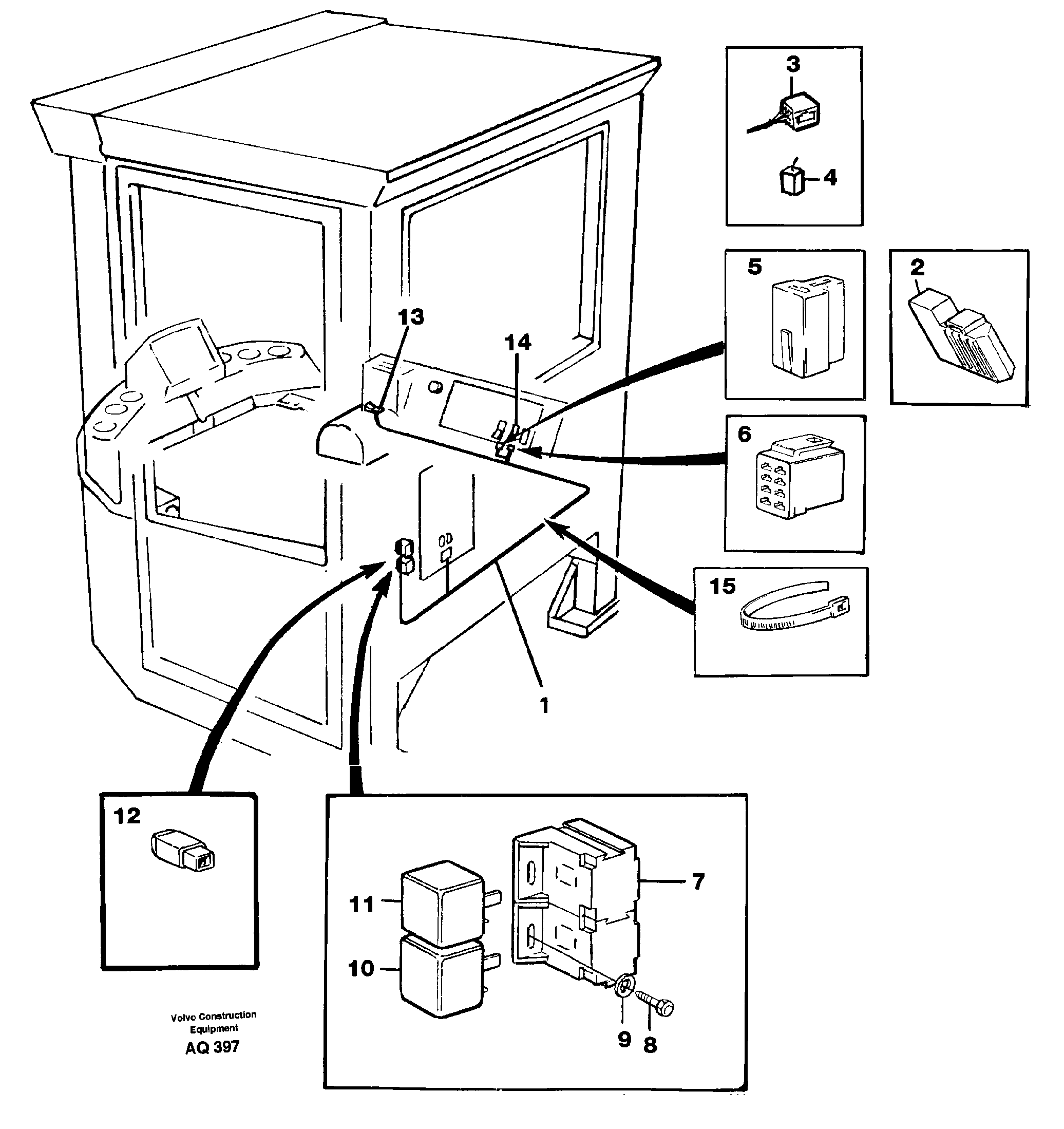

Cable harness for forward and rear. 92770

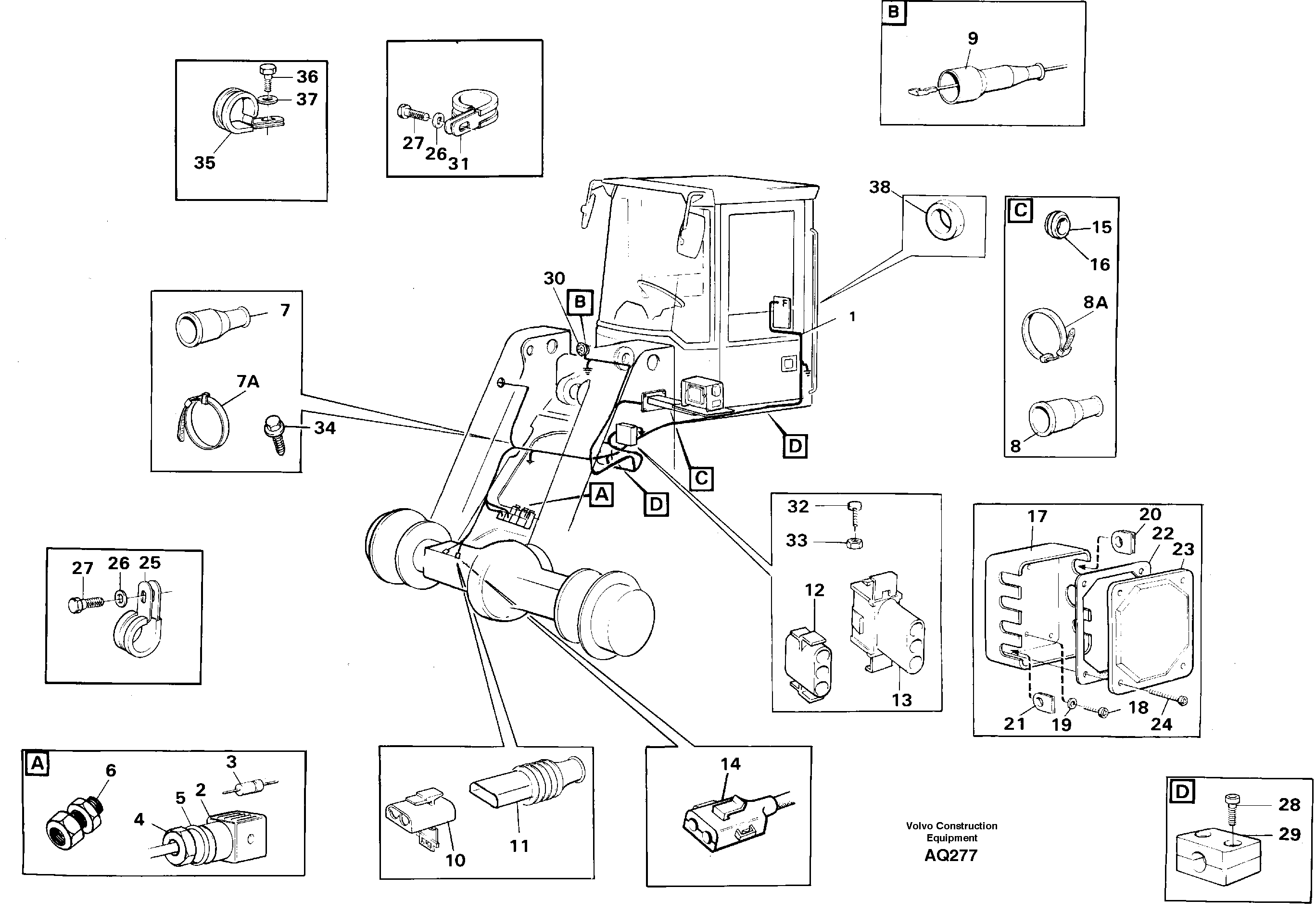

Cable harness, front

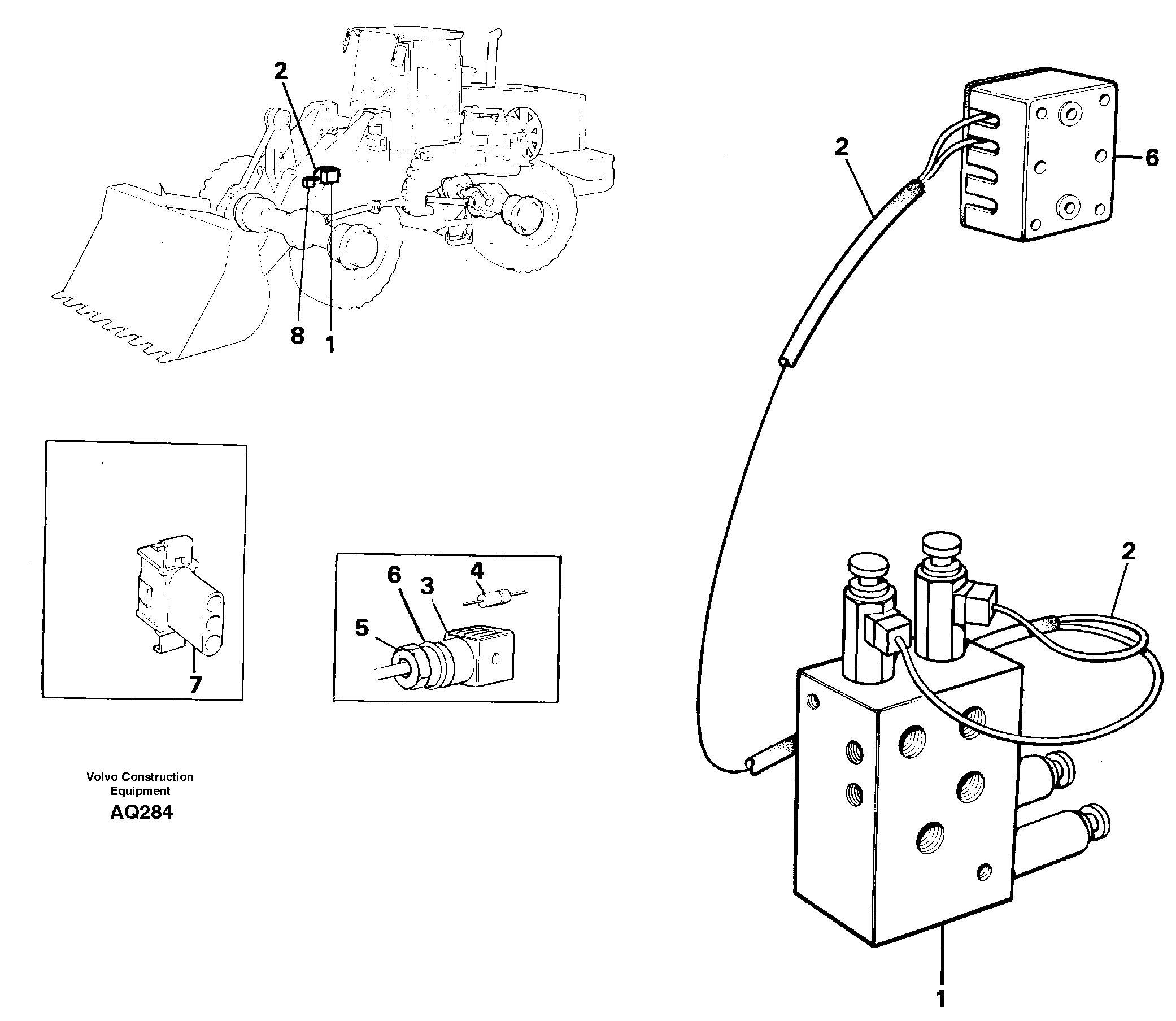

Cable harness boom suspension system, front. 94550

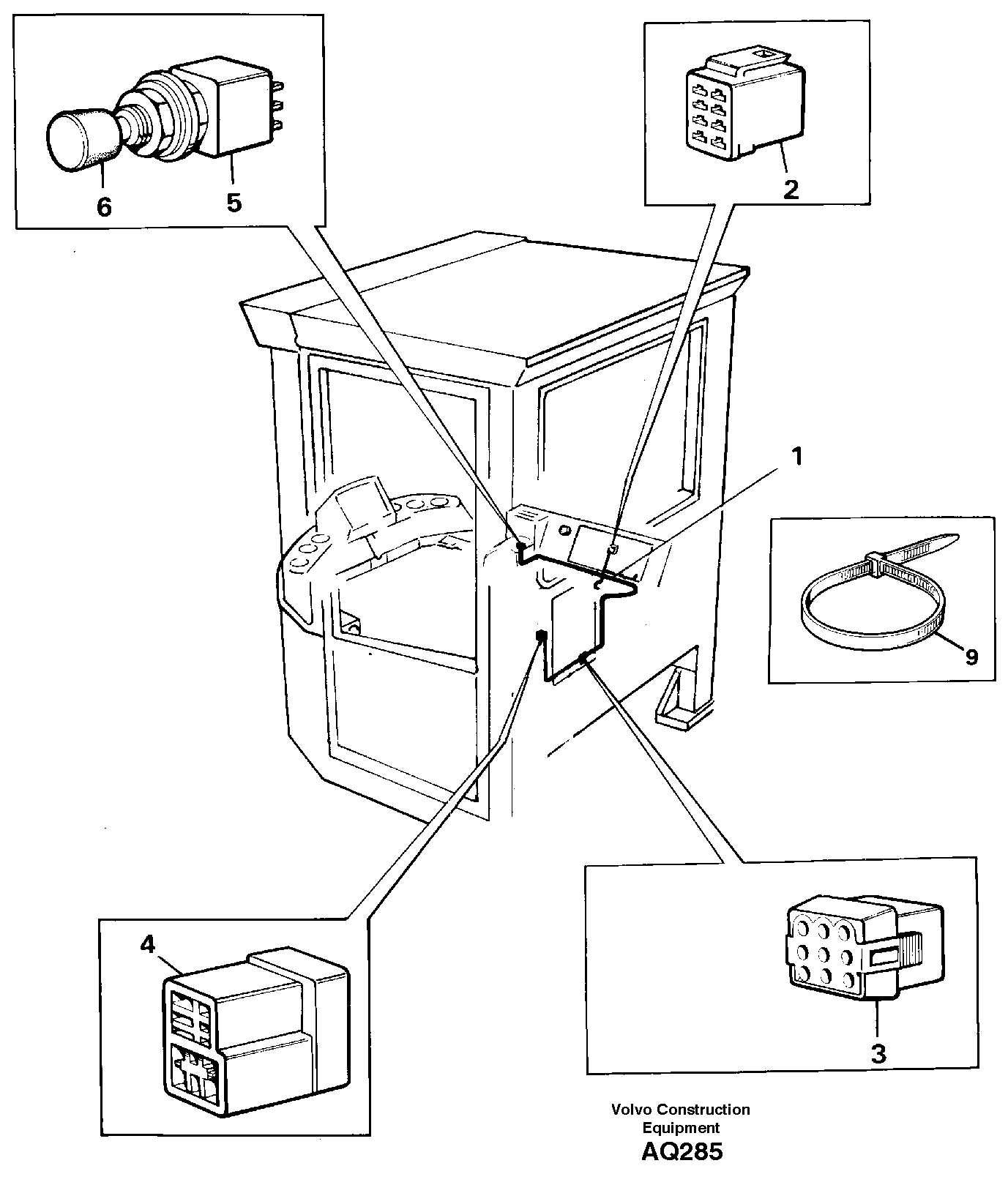

Cable harness, boom suspension system. 94550

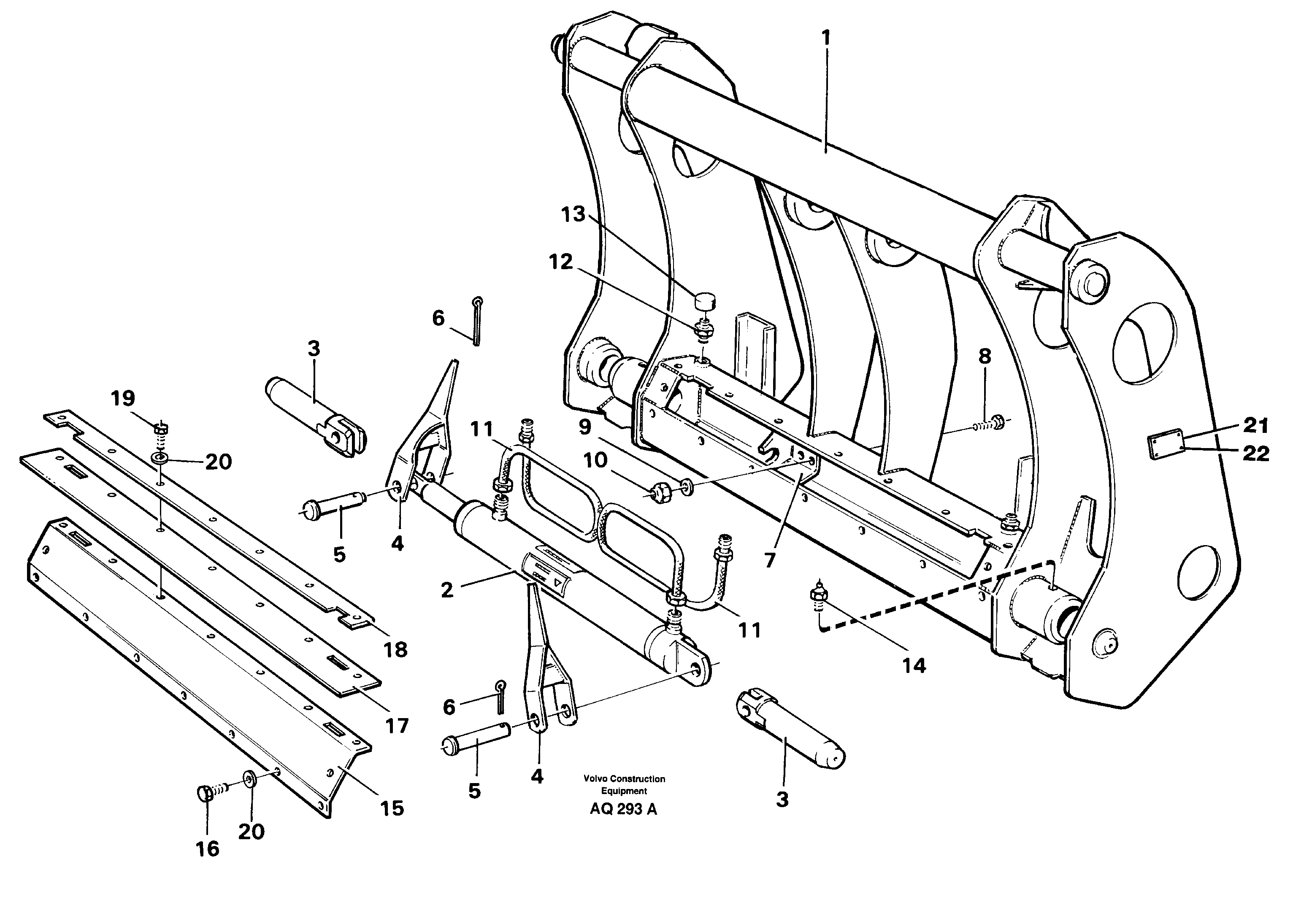

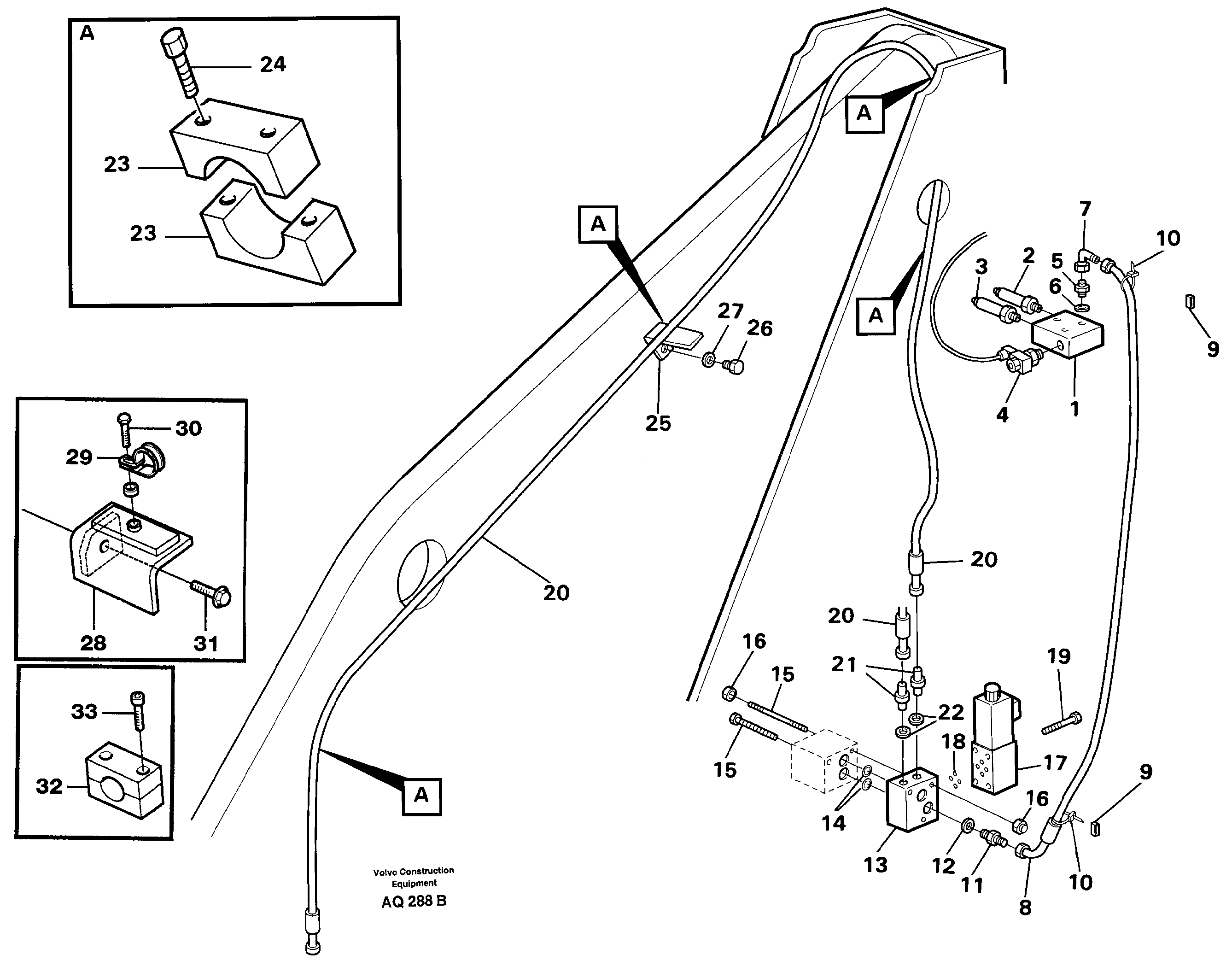

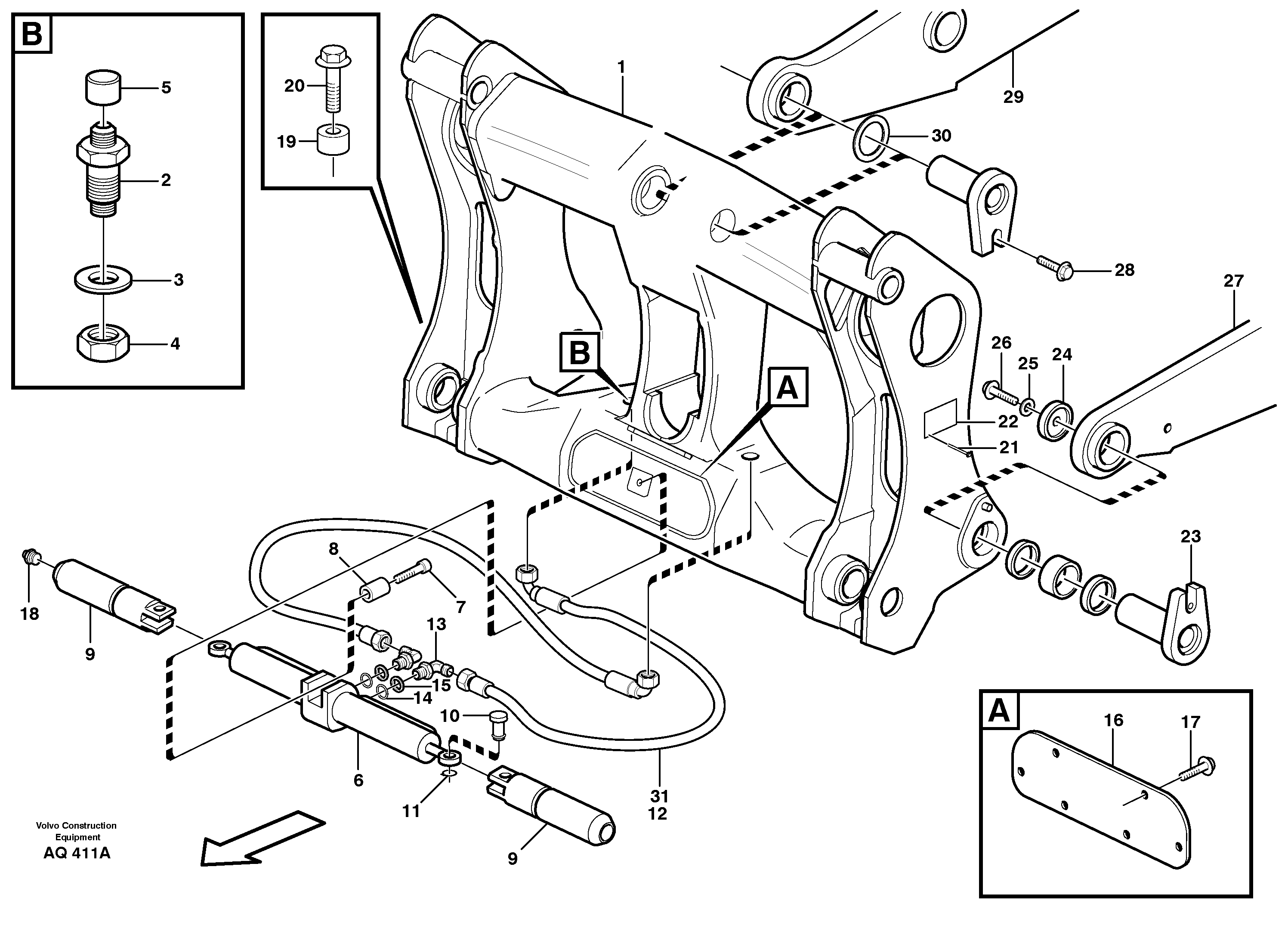

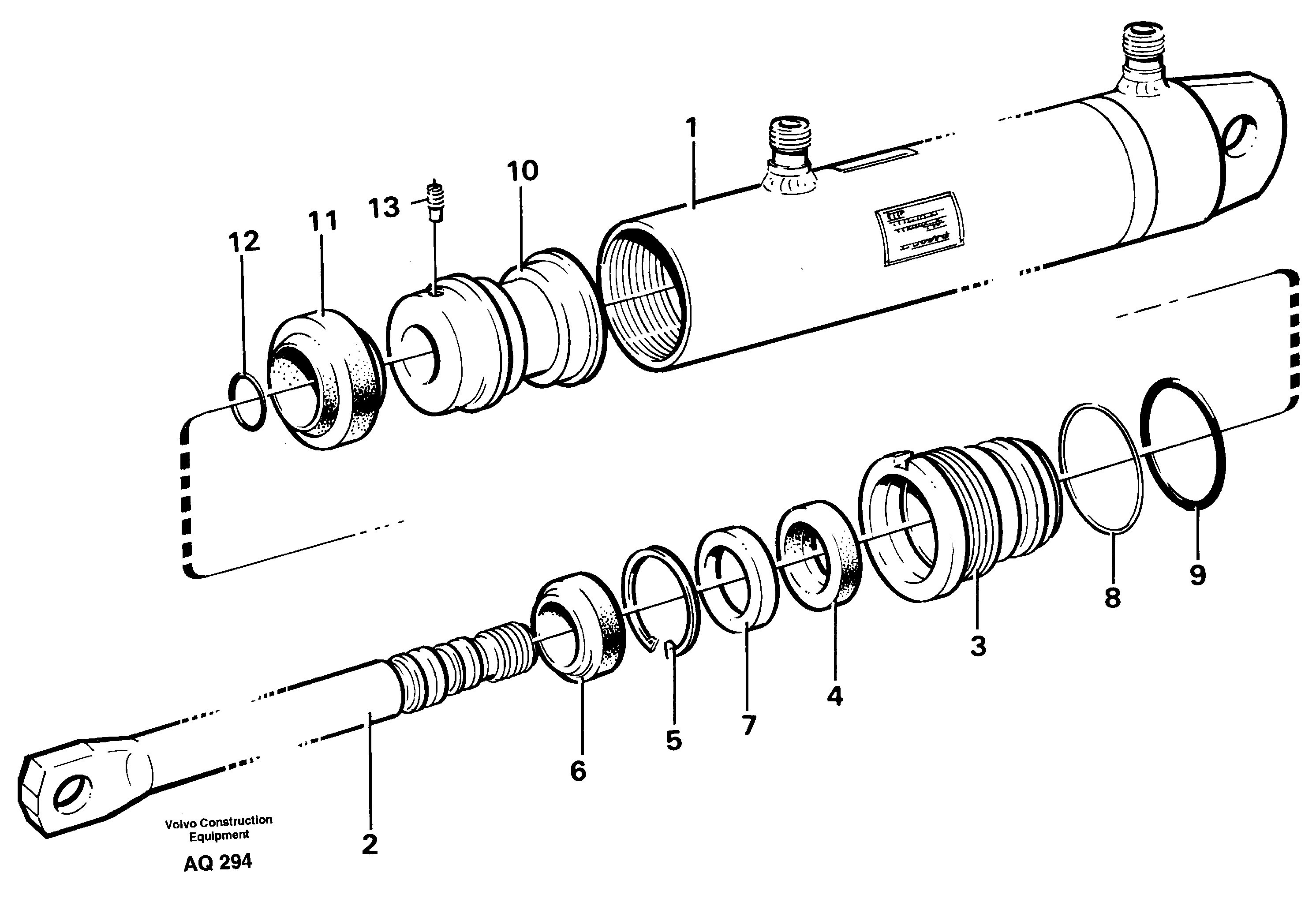

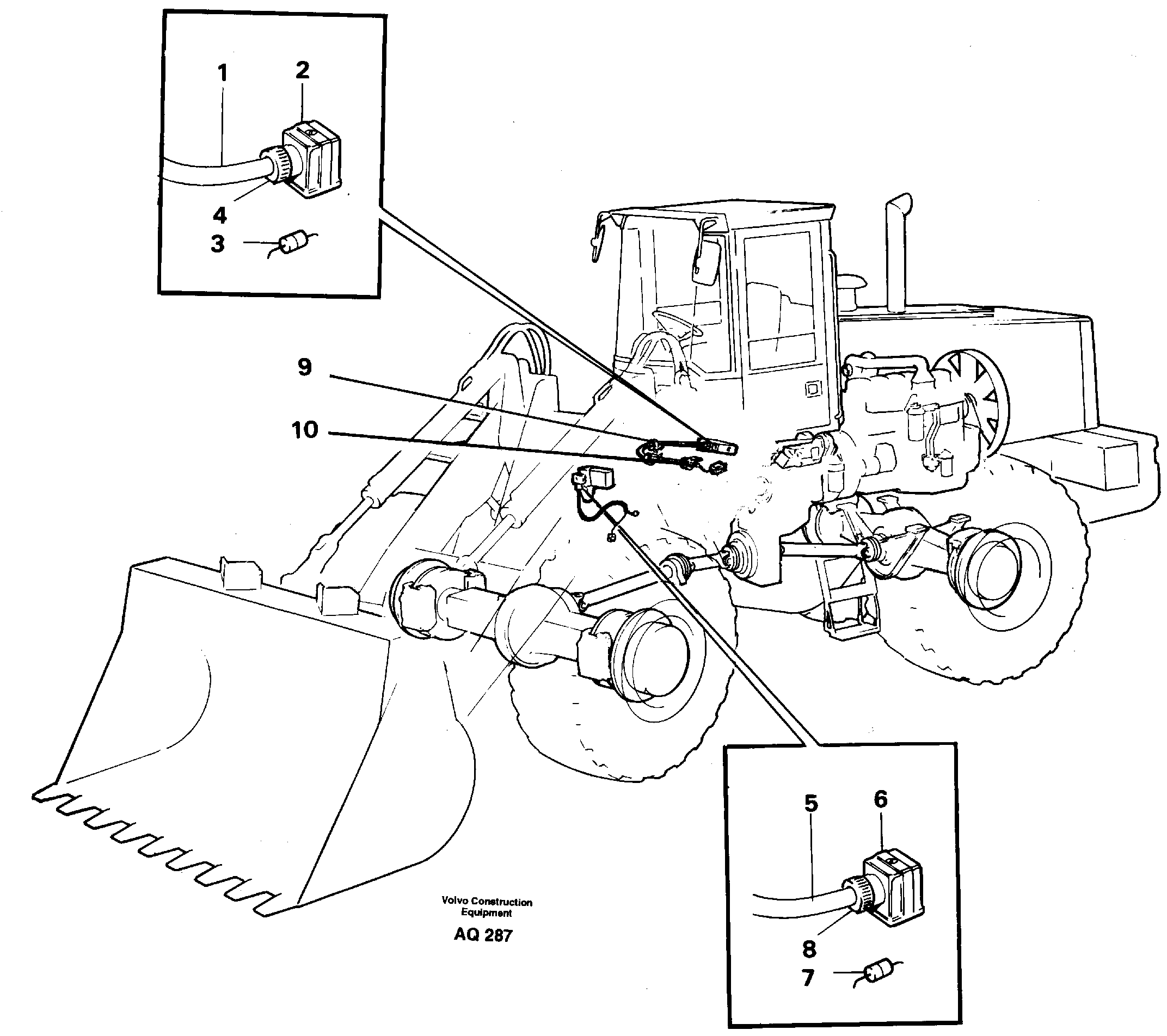

Attachment locking 92970, 92773, 93463 E PROD 93559 L PROD, 93445

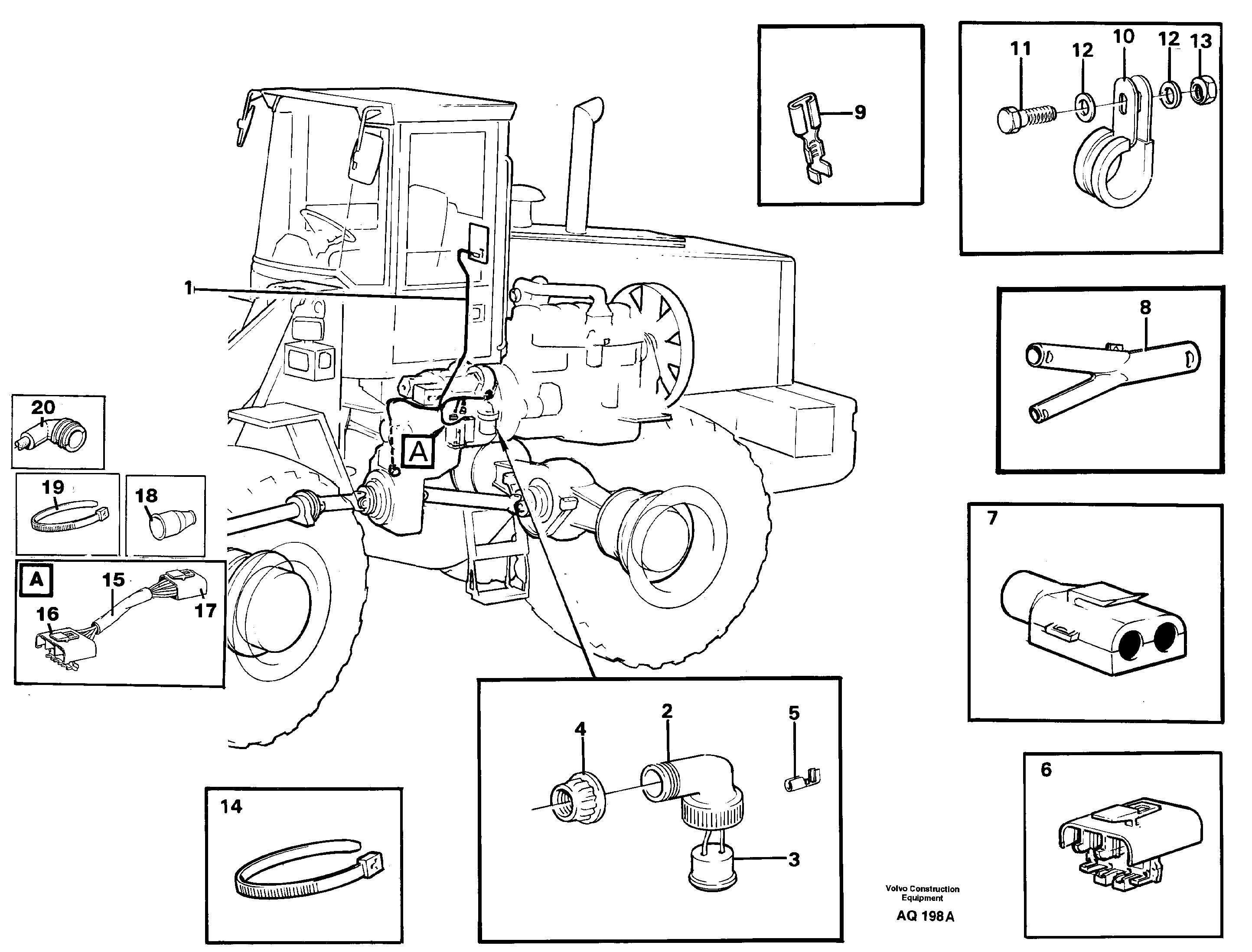

Cable harness, transmission

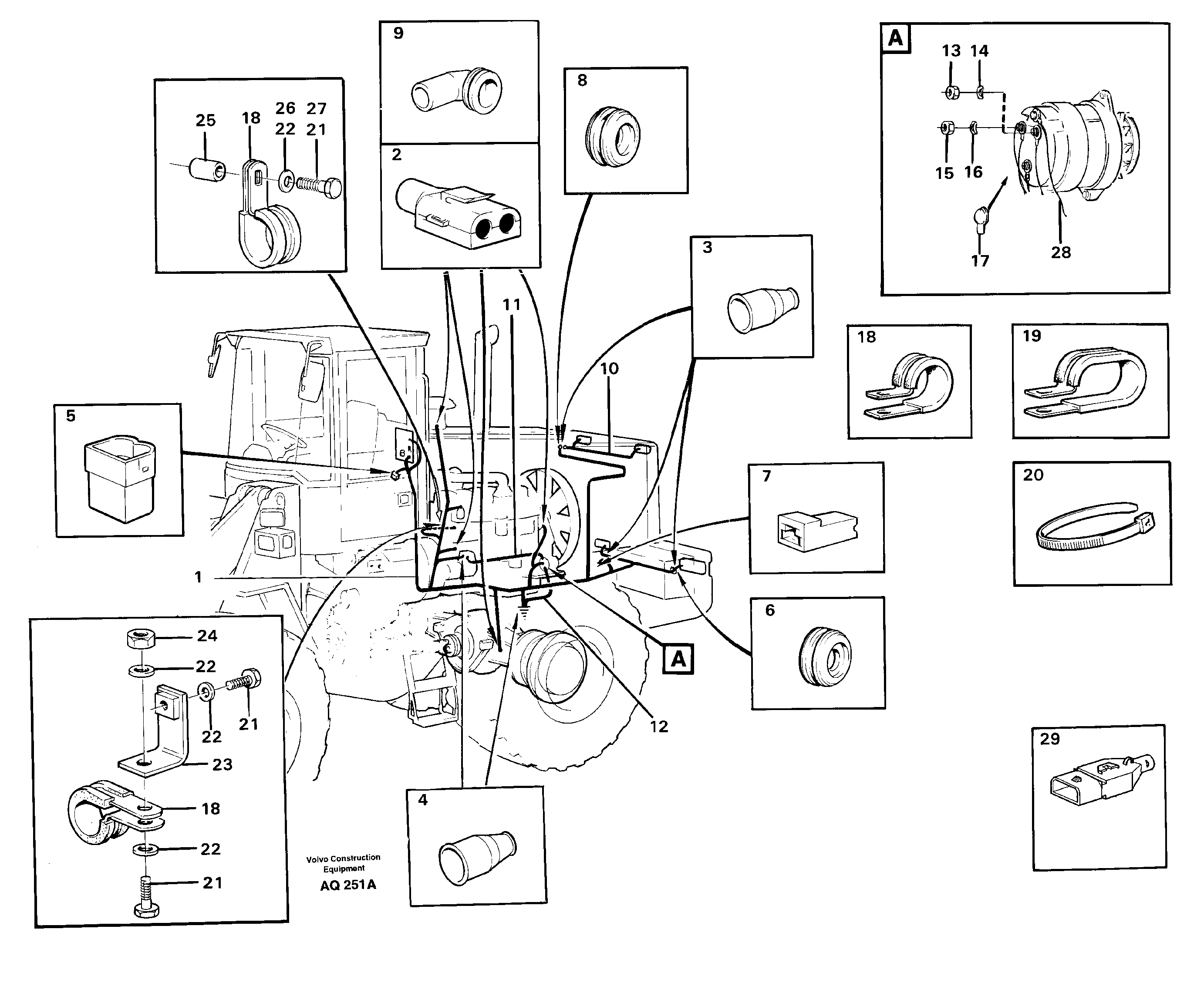

Cable harnesses, rear

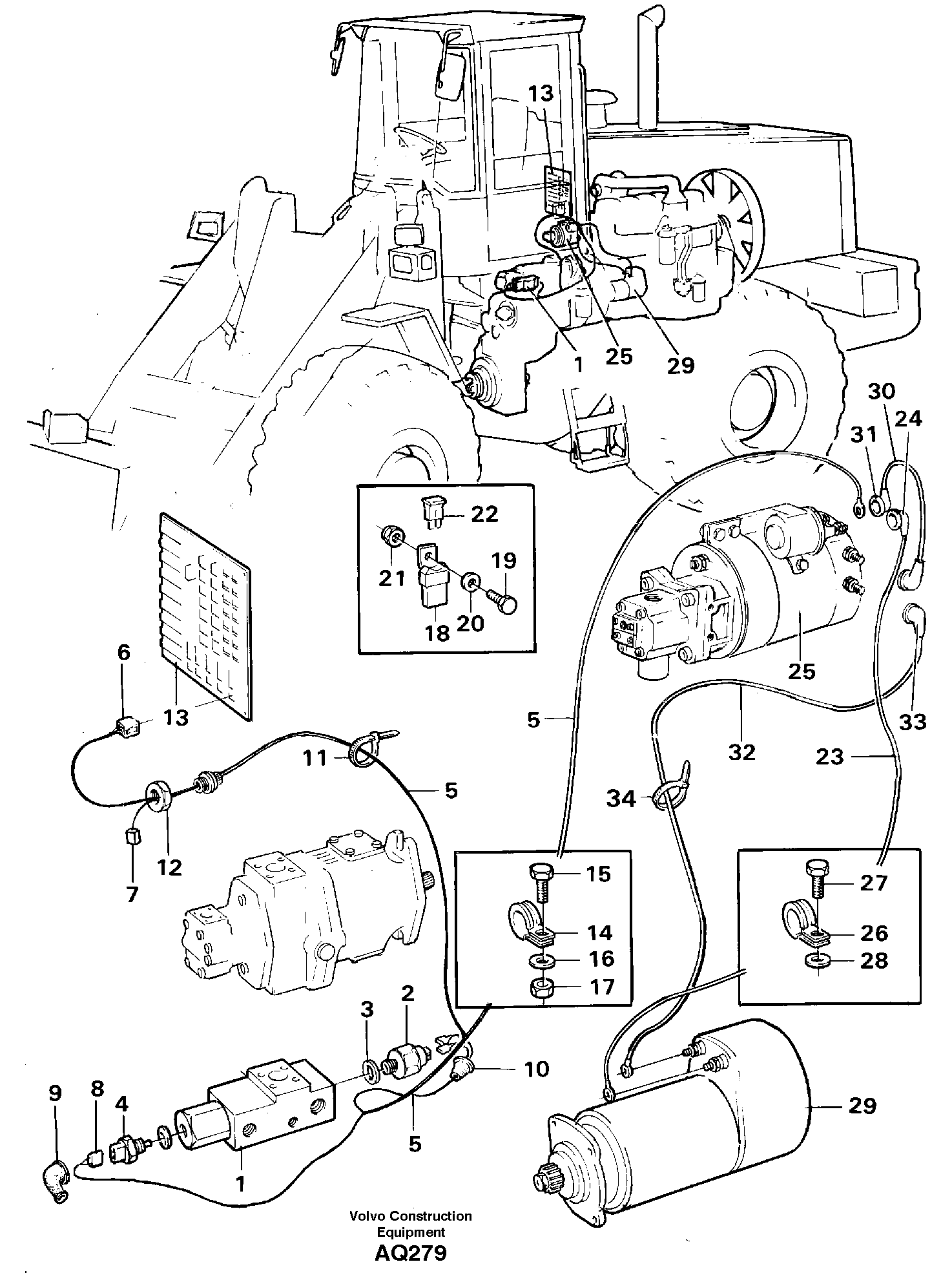

Cable harness secondary steering system 91919 SER NO - 11624, 93633 SER NO 11625 -

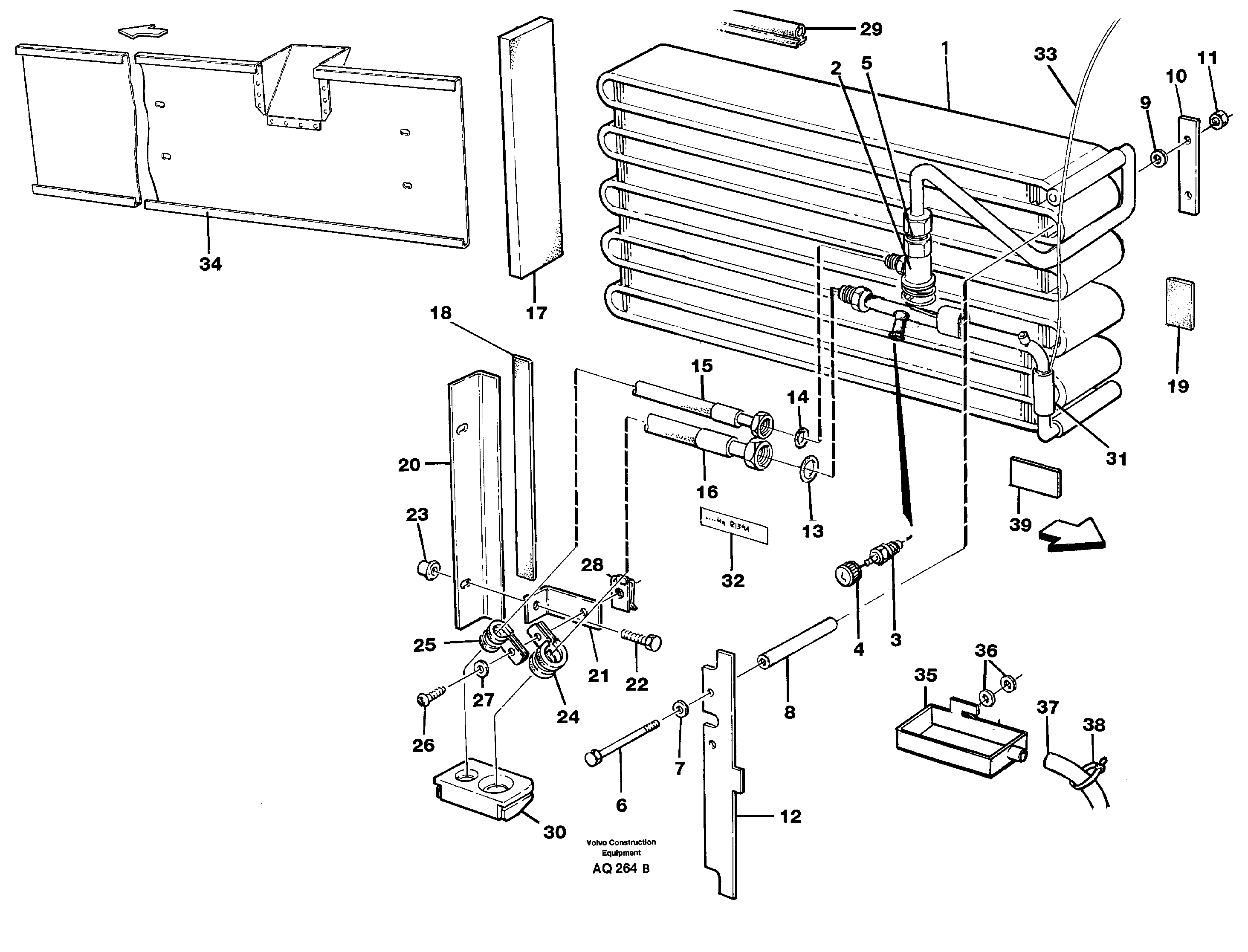

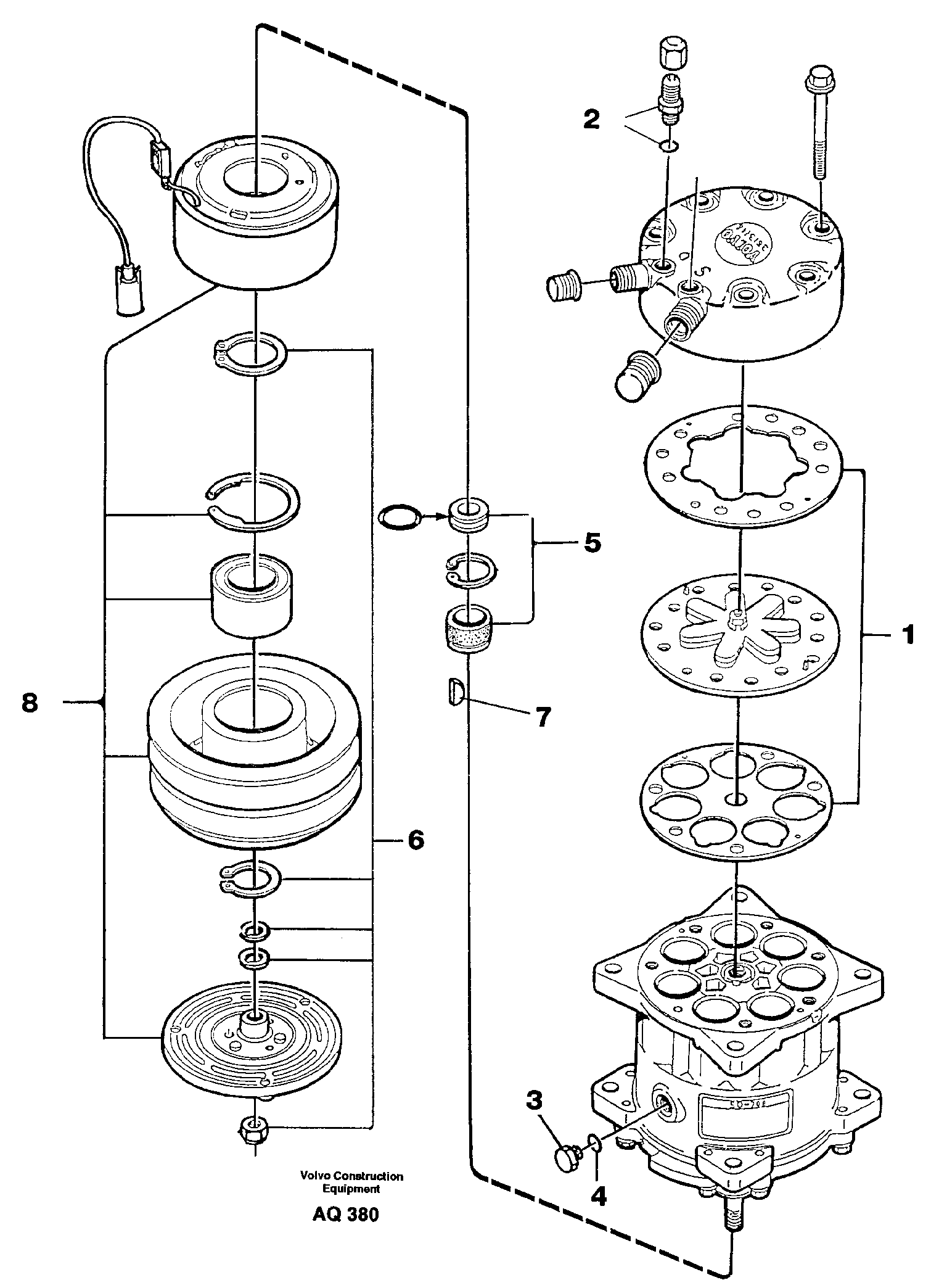

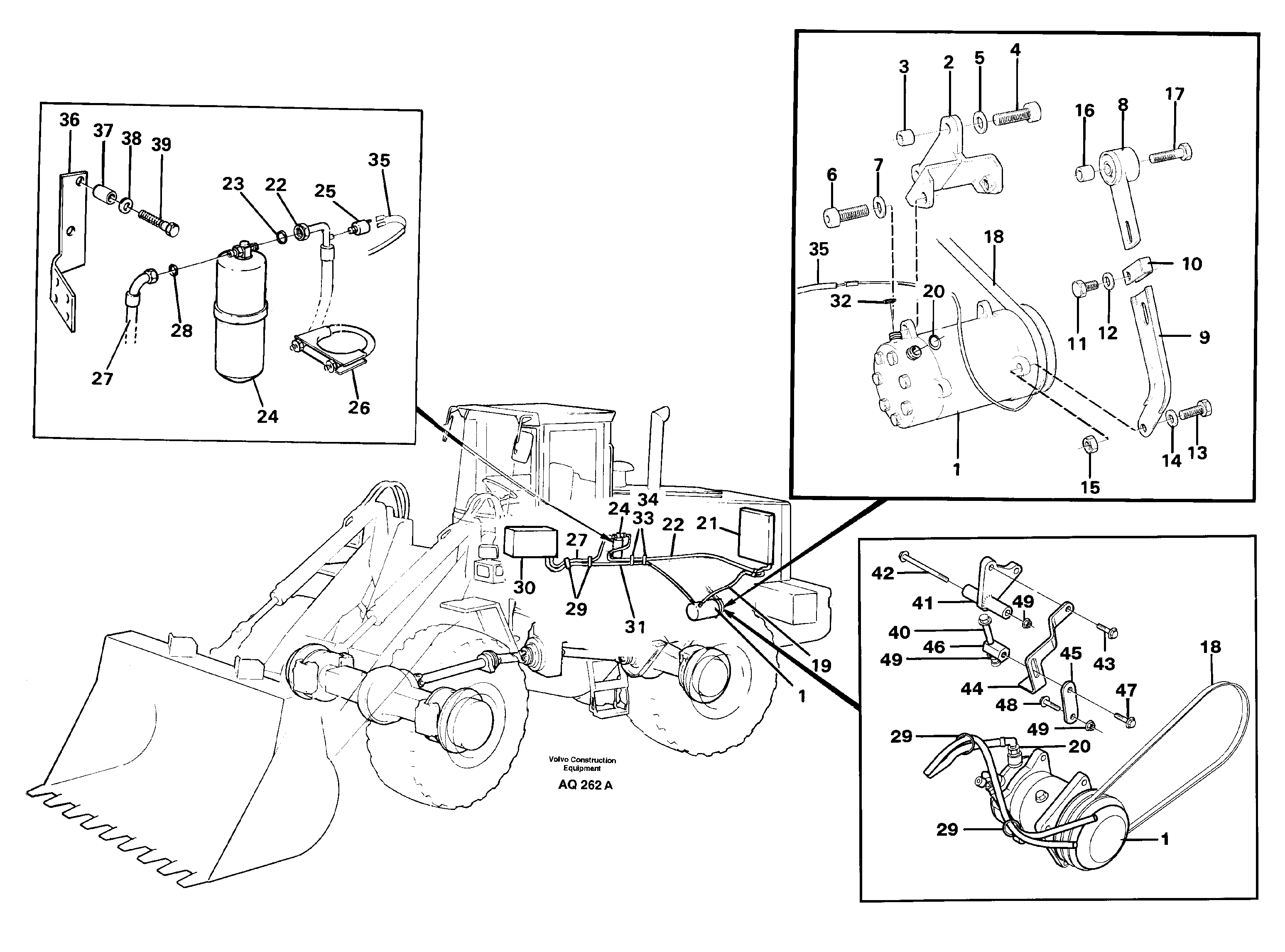

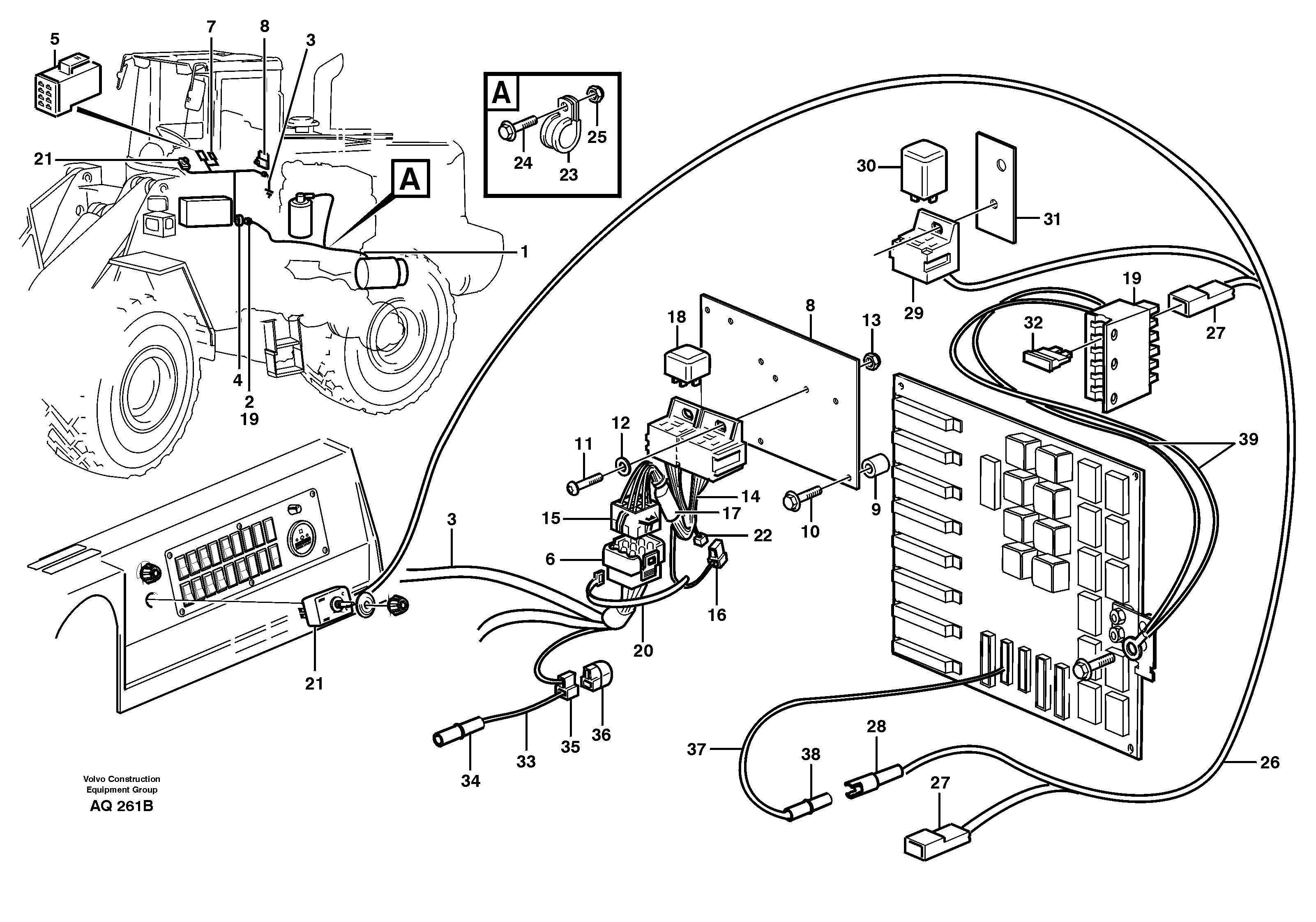

Cable harness for air conditioning 94562, 94839

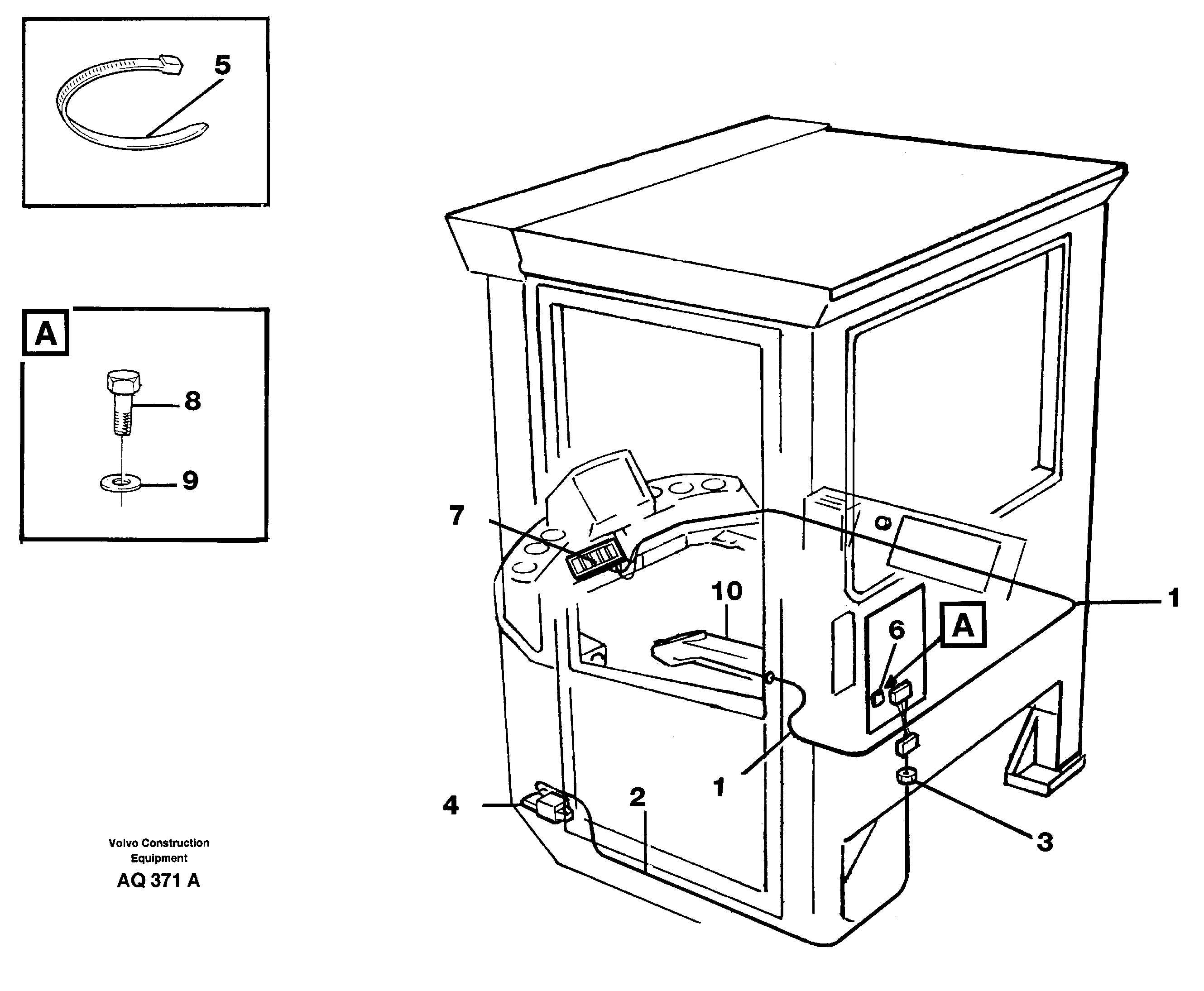

Cable harness for Cdc-steering. 94603

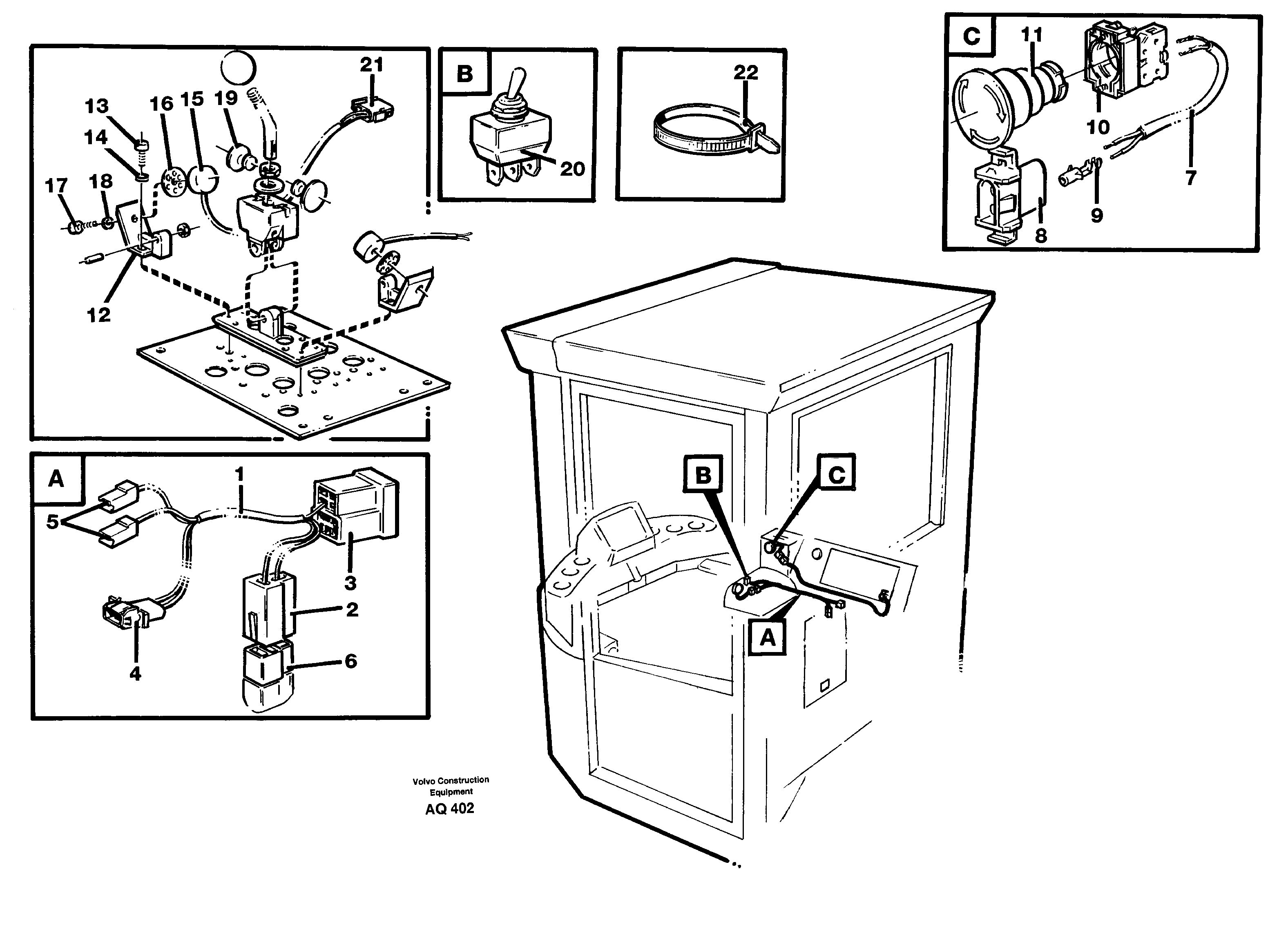

Cable harness: Adjustableflow from hydraulic function 3. 94963

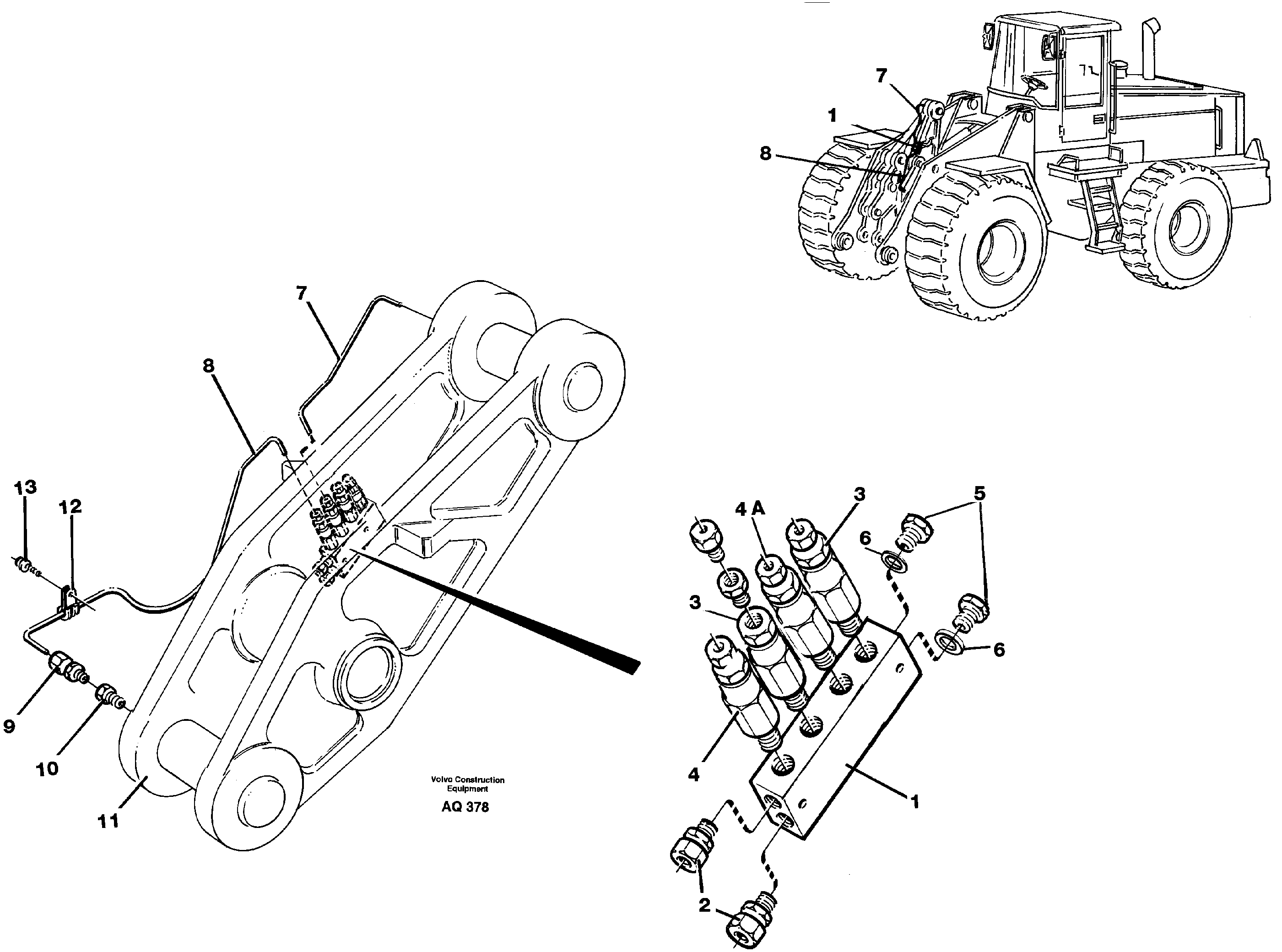

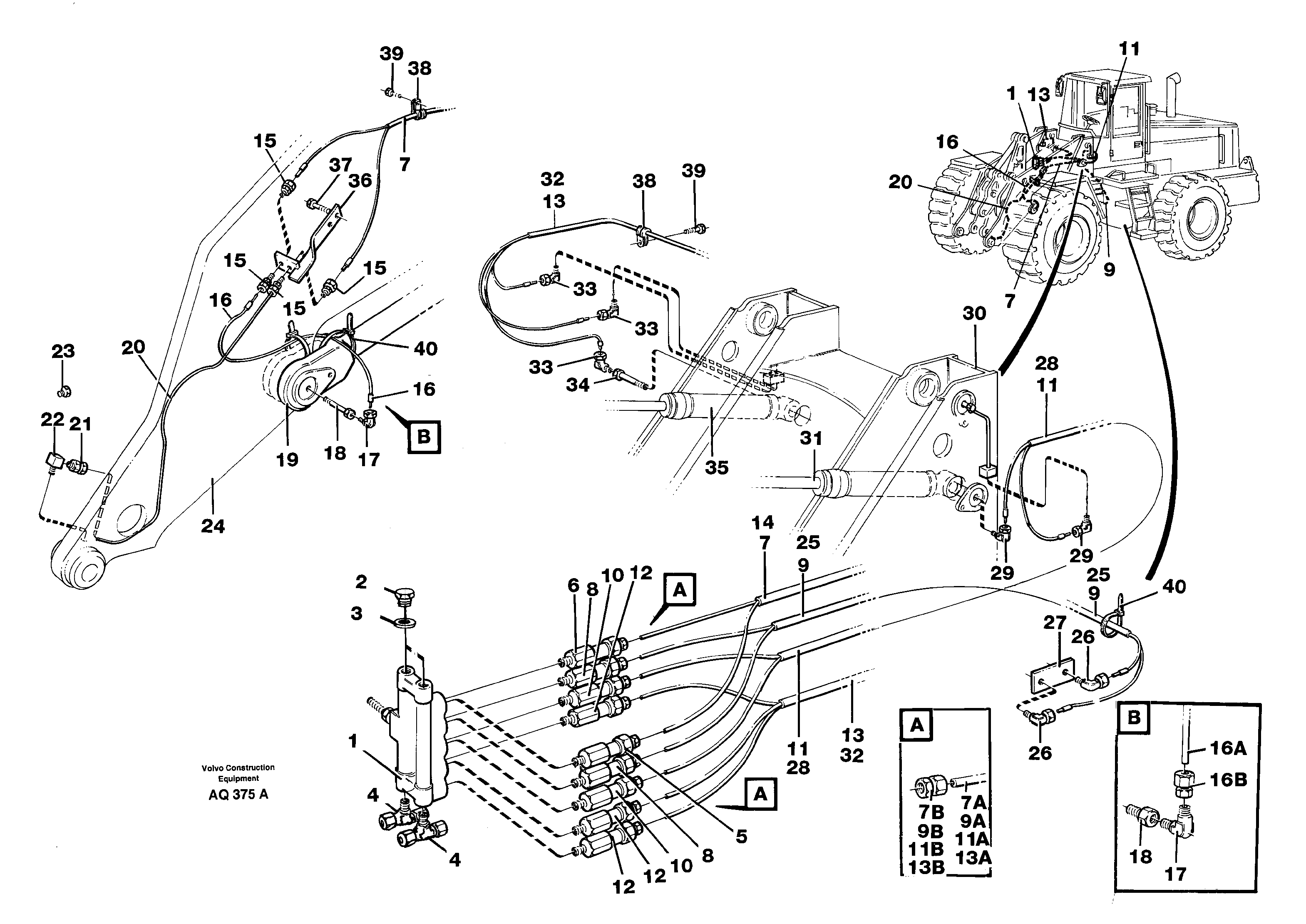

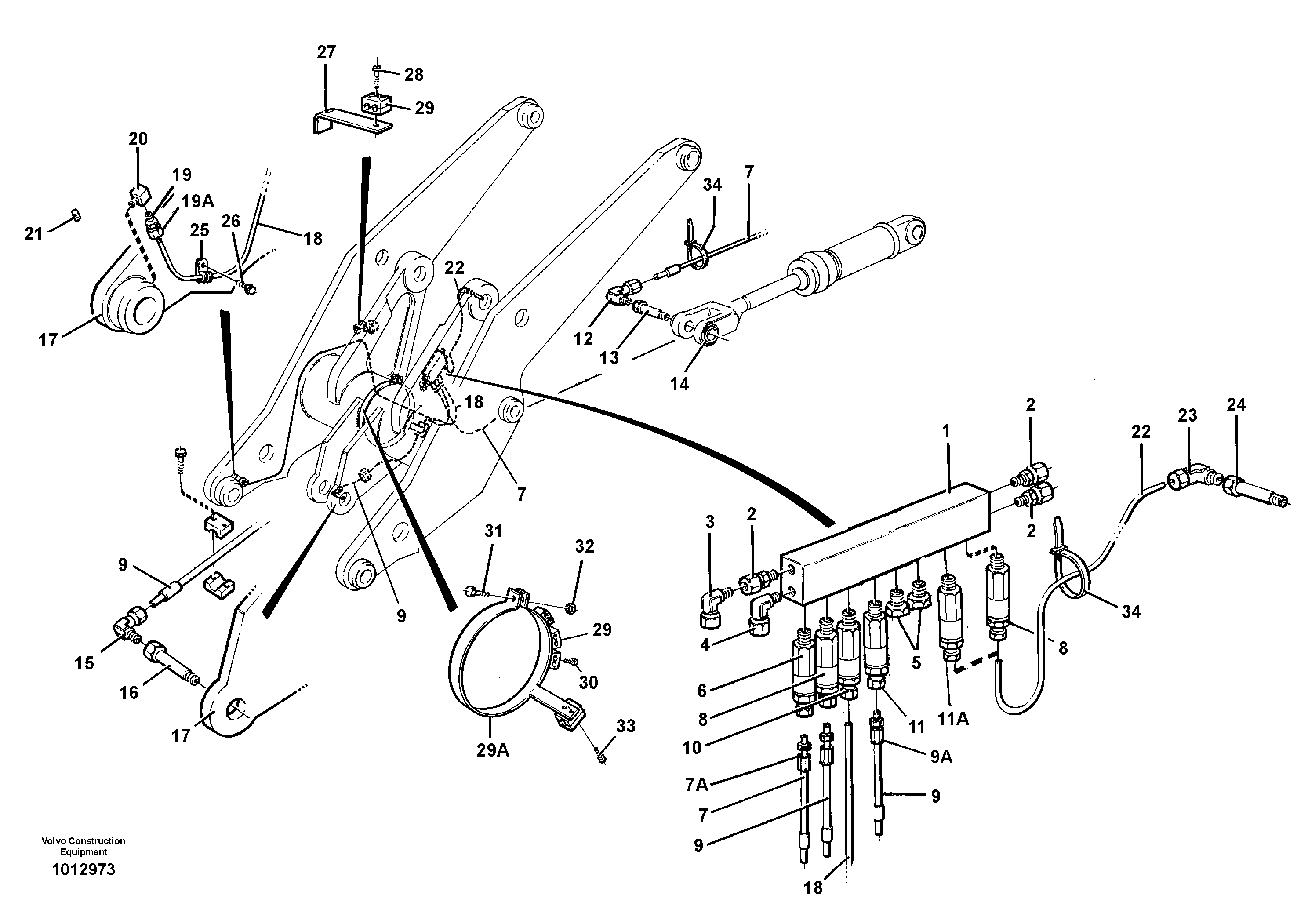

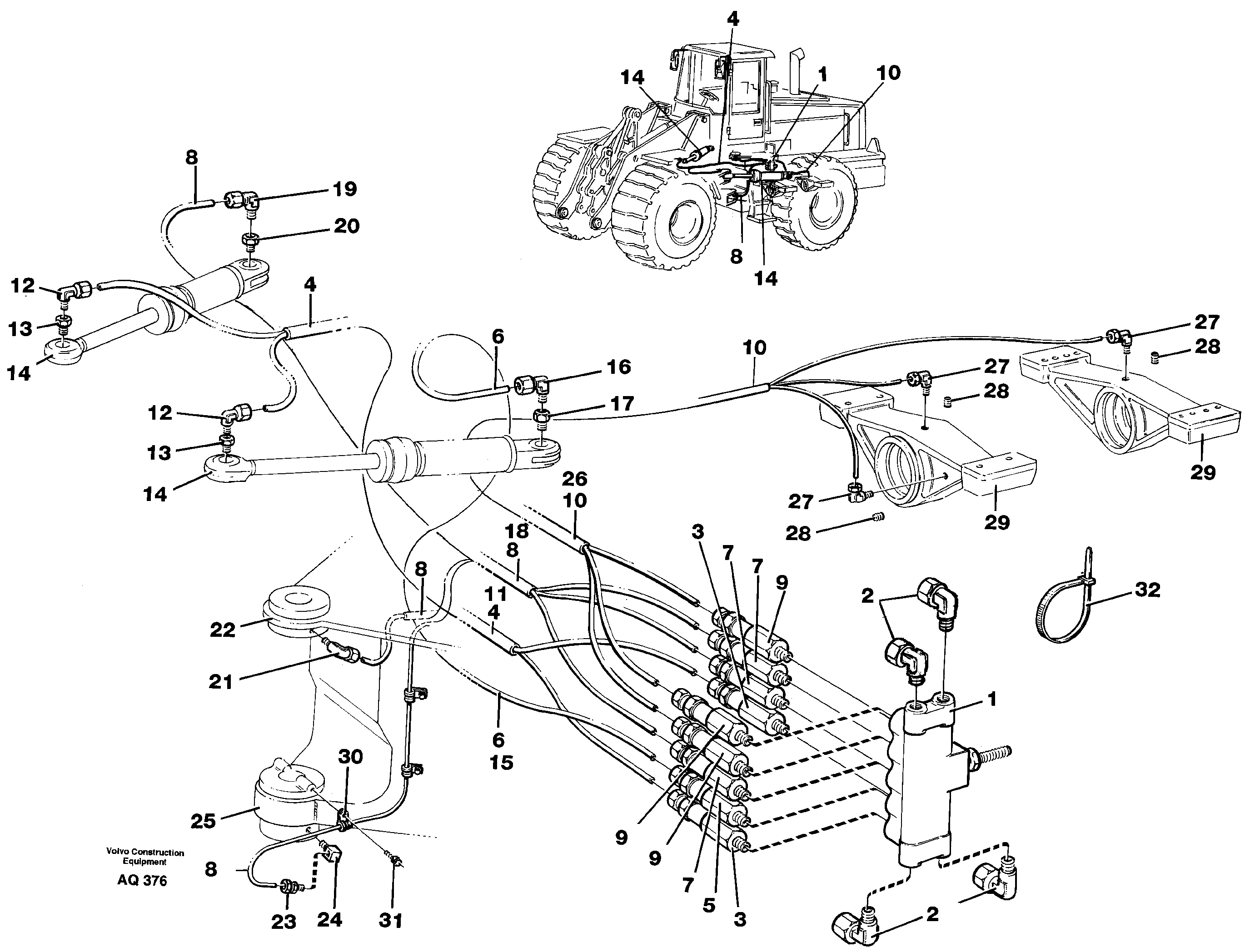

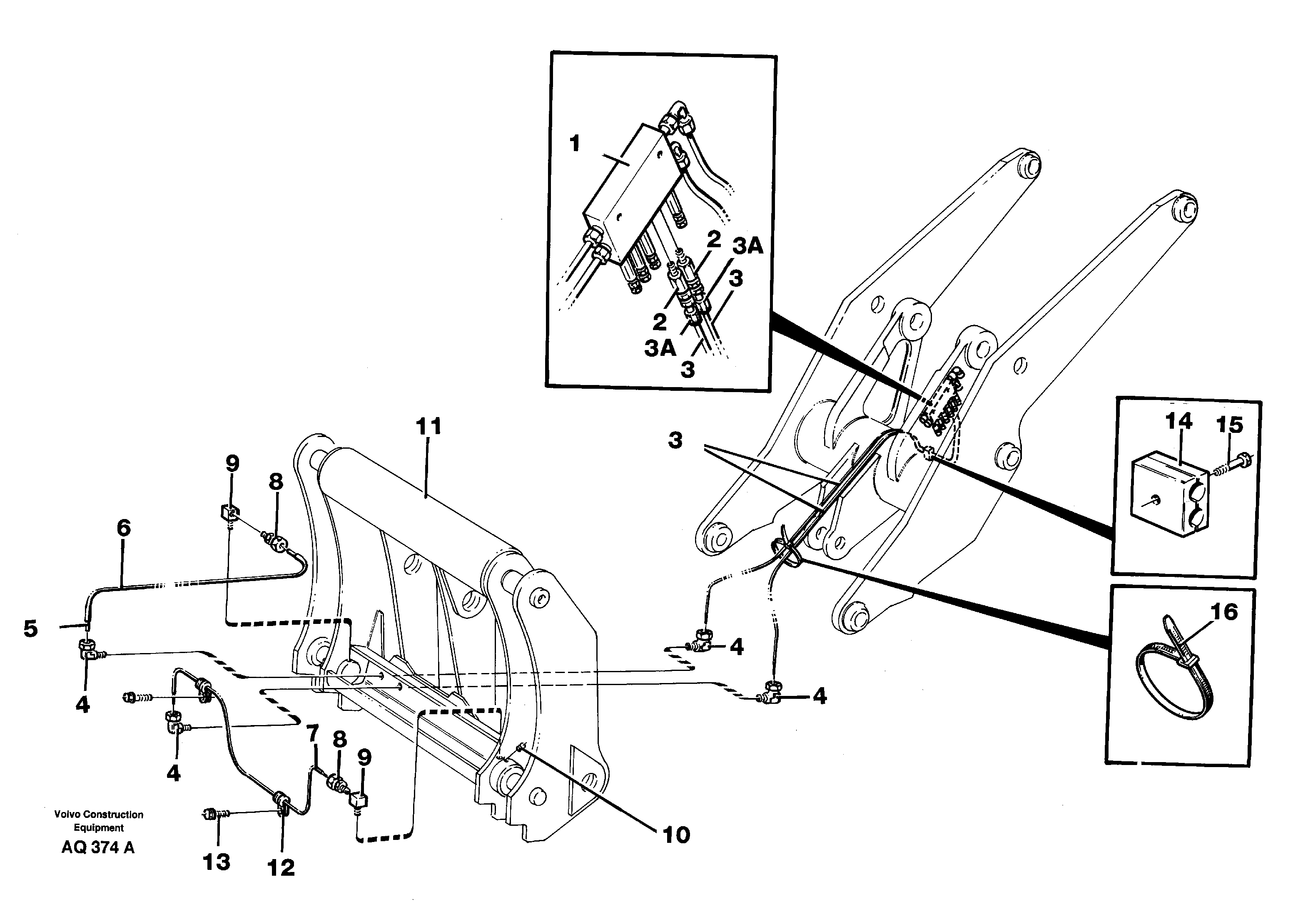

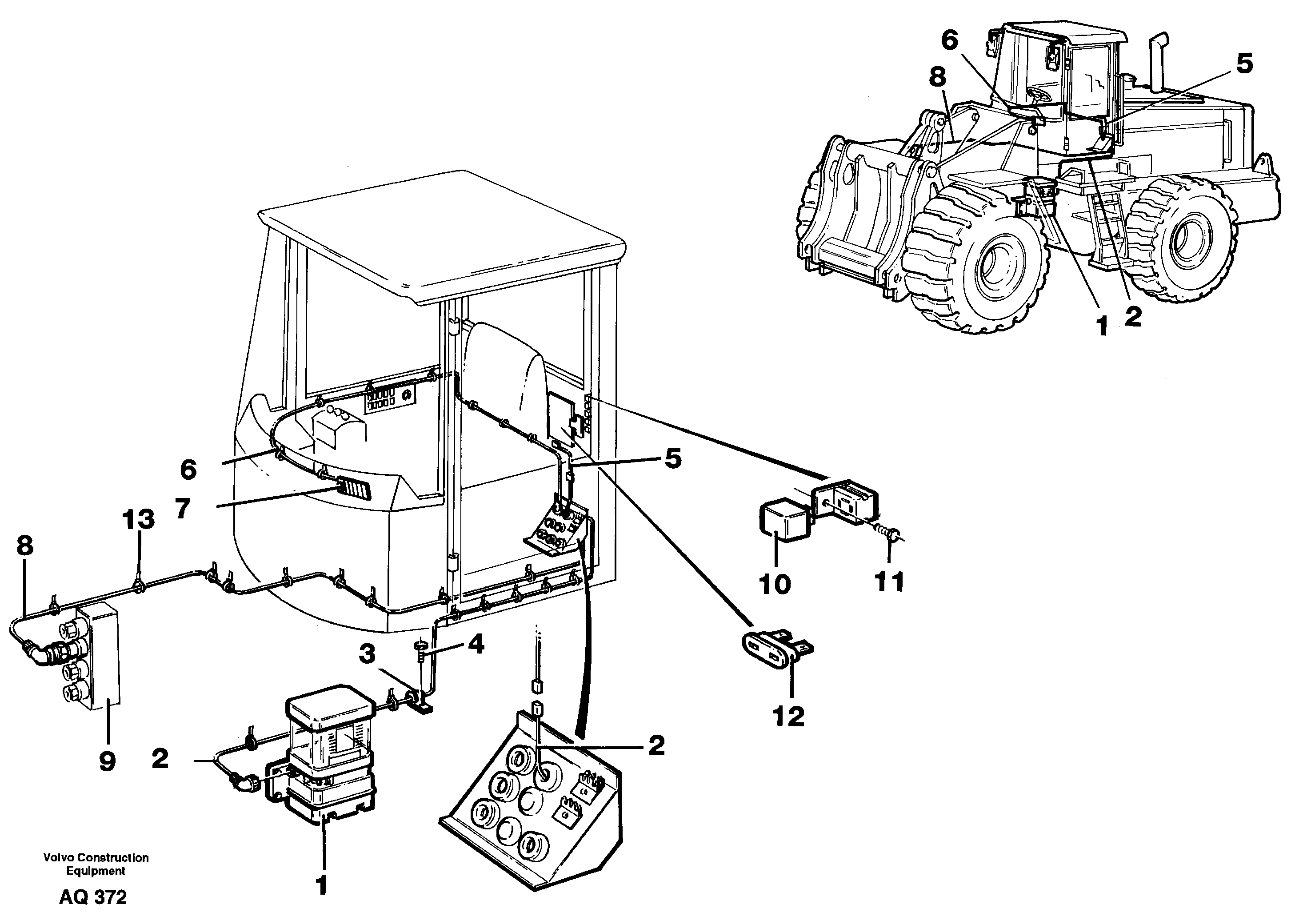

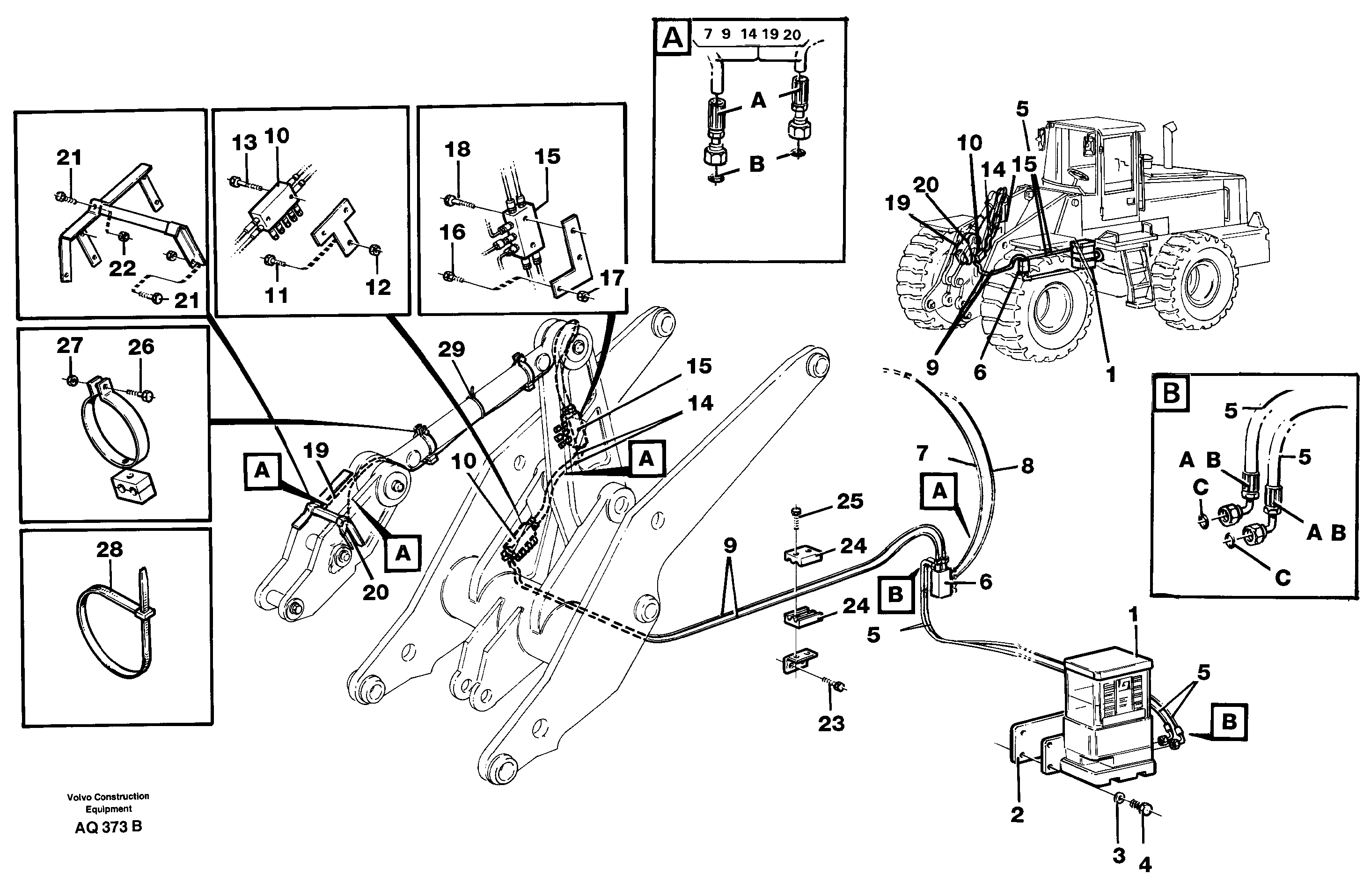

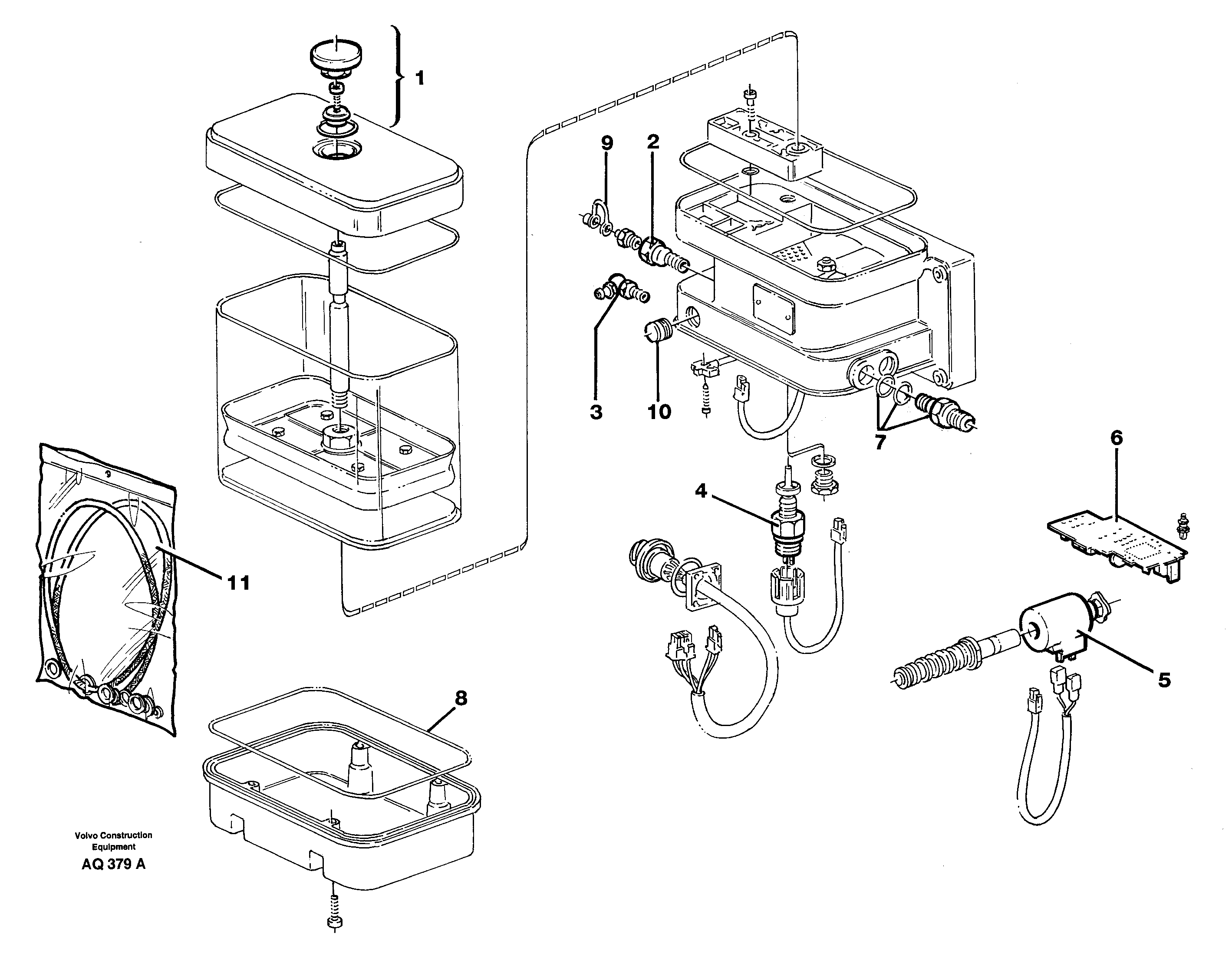

Cable harness for central lubrication. 94810

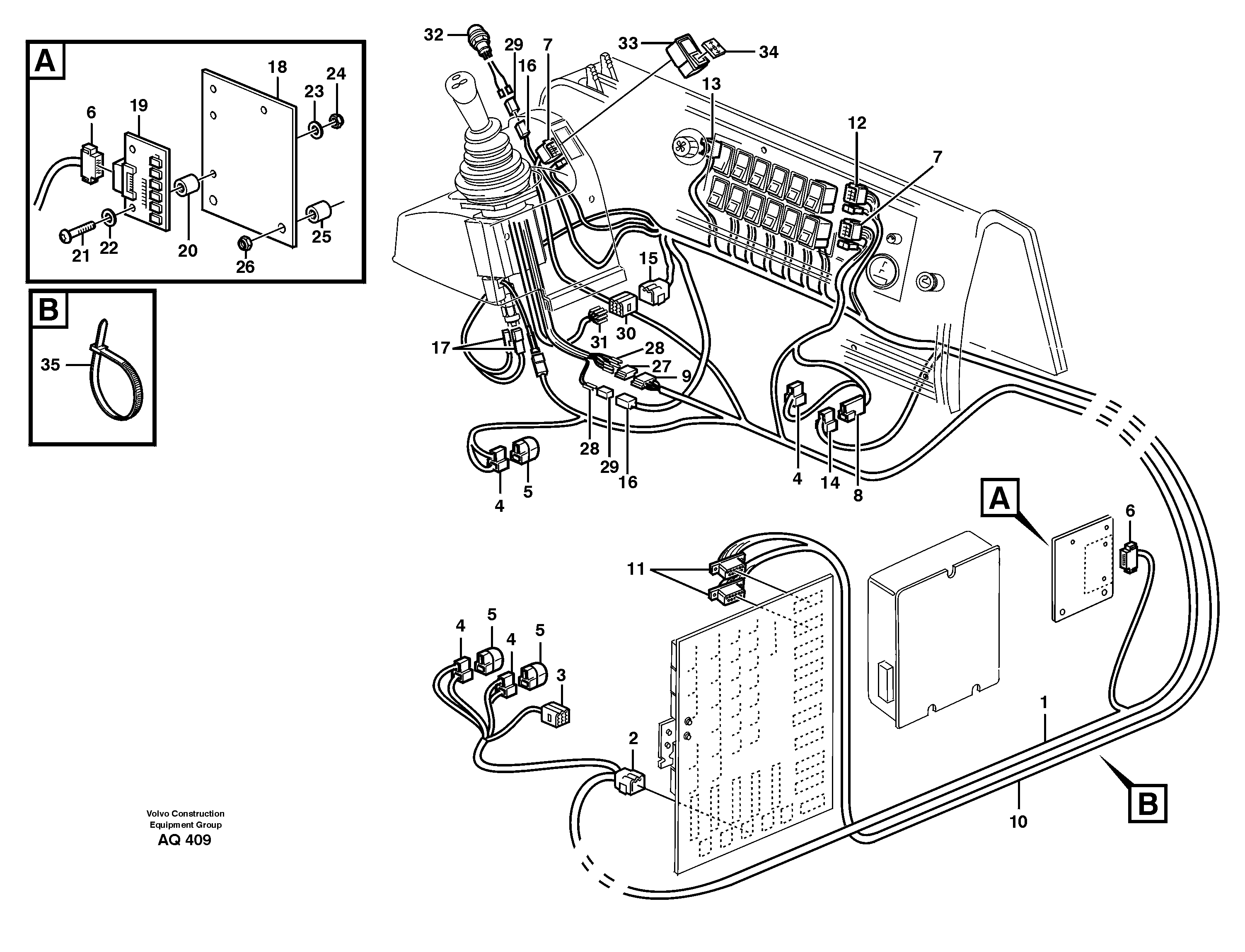

Cable harnesses, single lever control. 80074, 80126

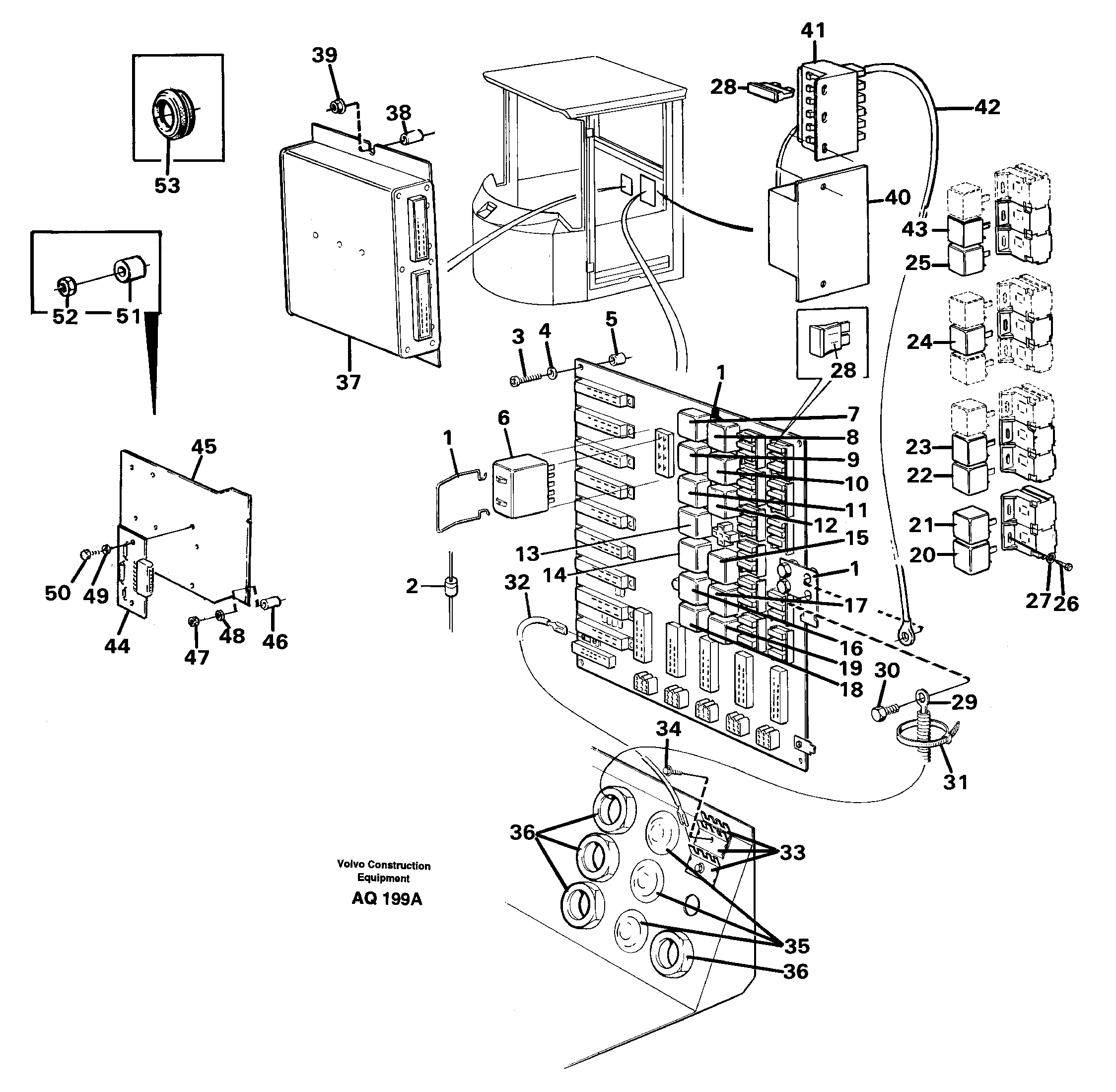

Electrical distribution box
Wires
Hose and manifold
Cable terminal
Insulator for spade terminal
Spade terminal
Pin insulator
Pin
Humidity-proof connections
Connectors
Housings for timers and tabs

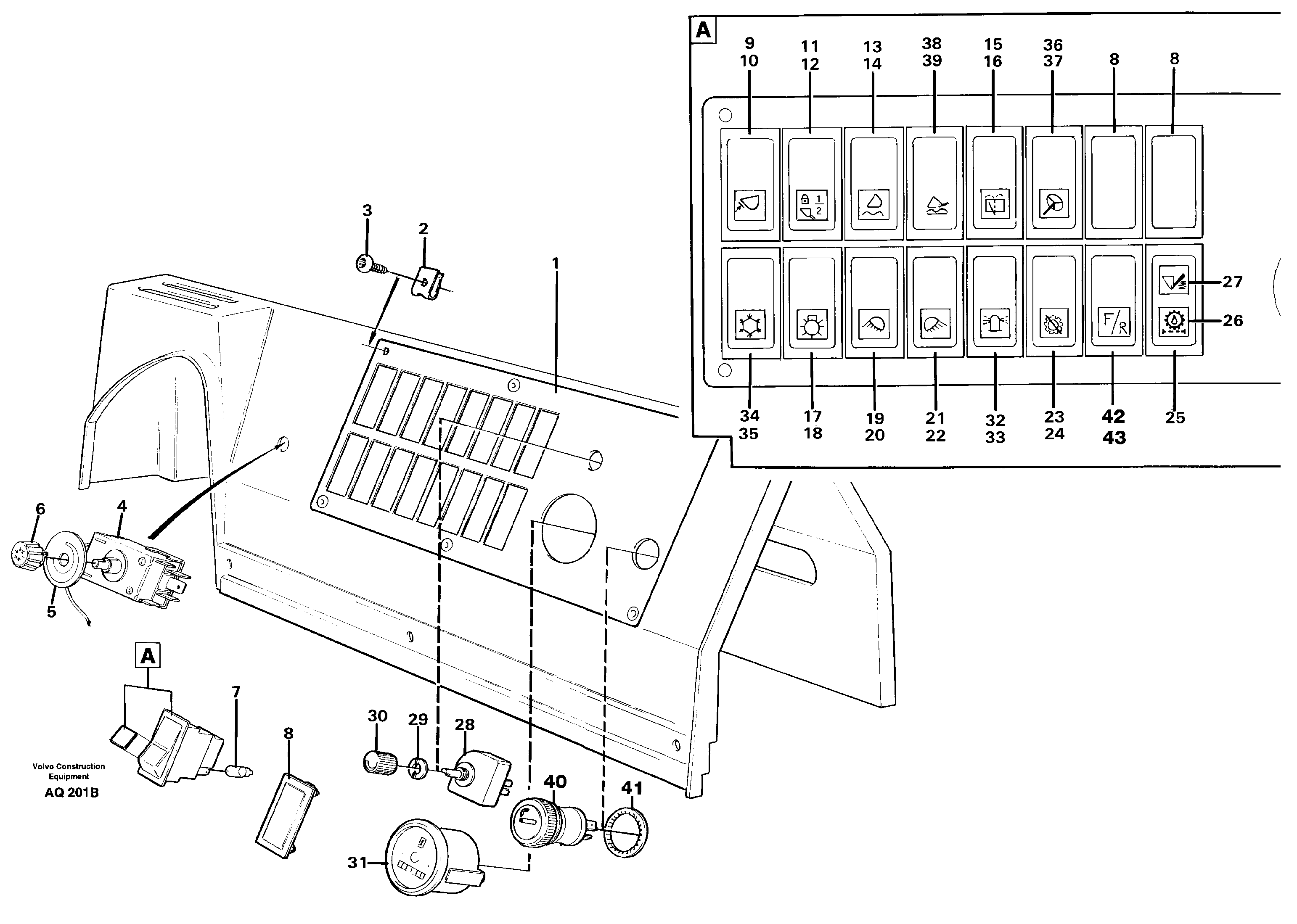

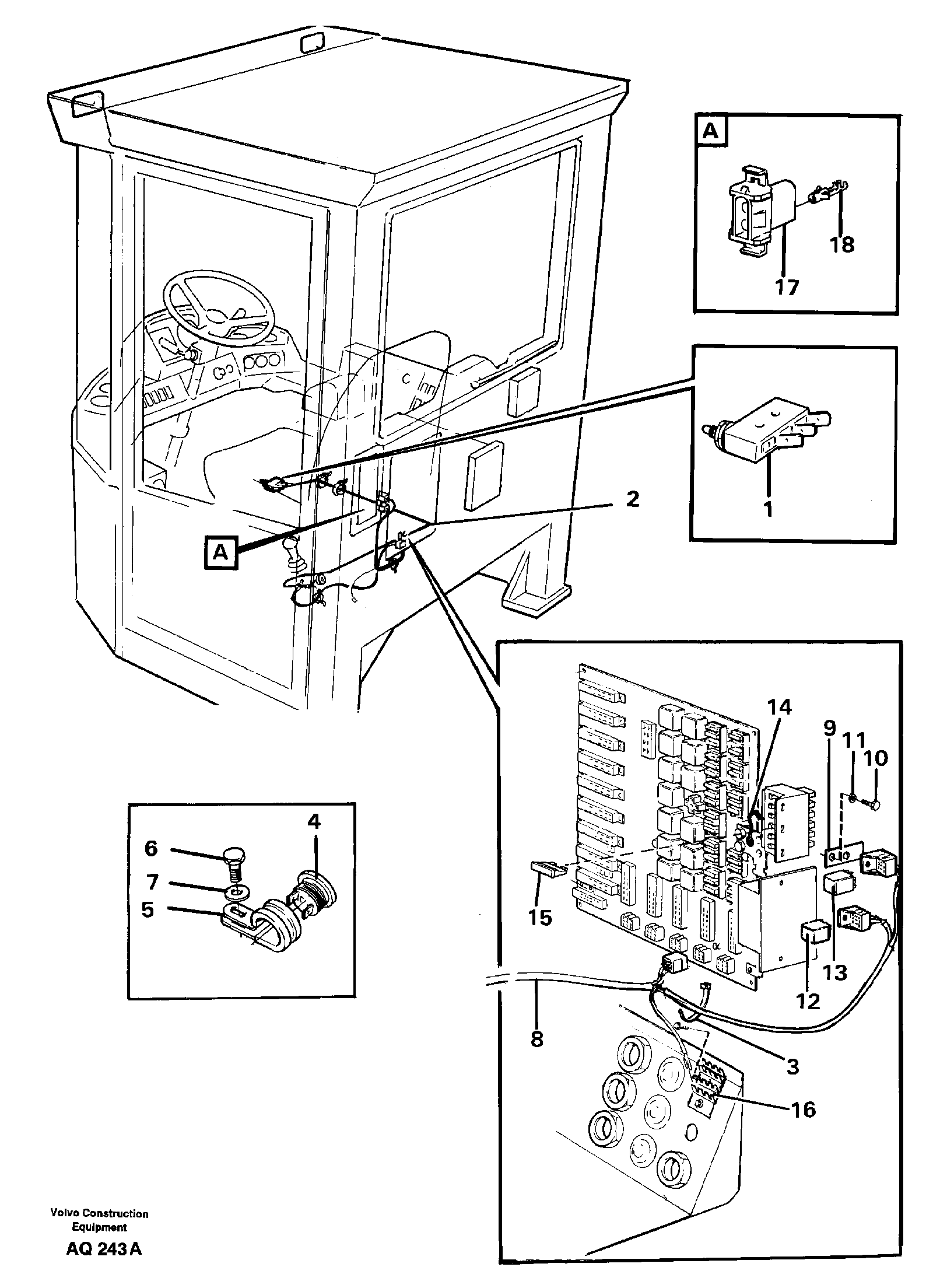

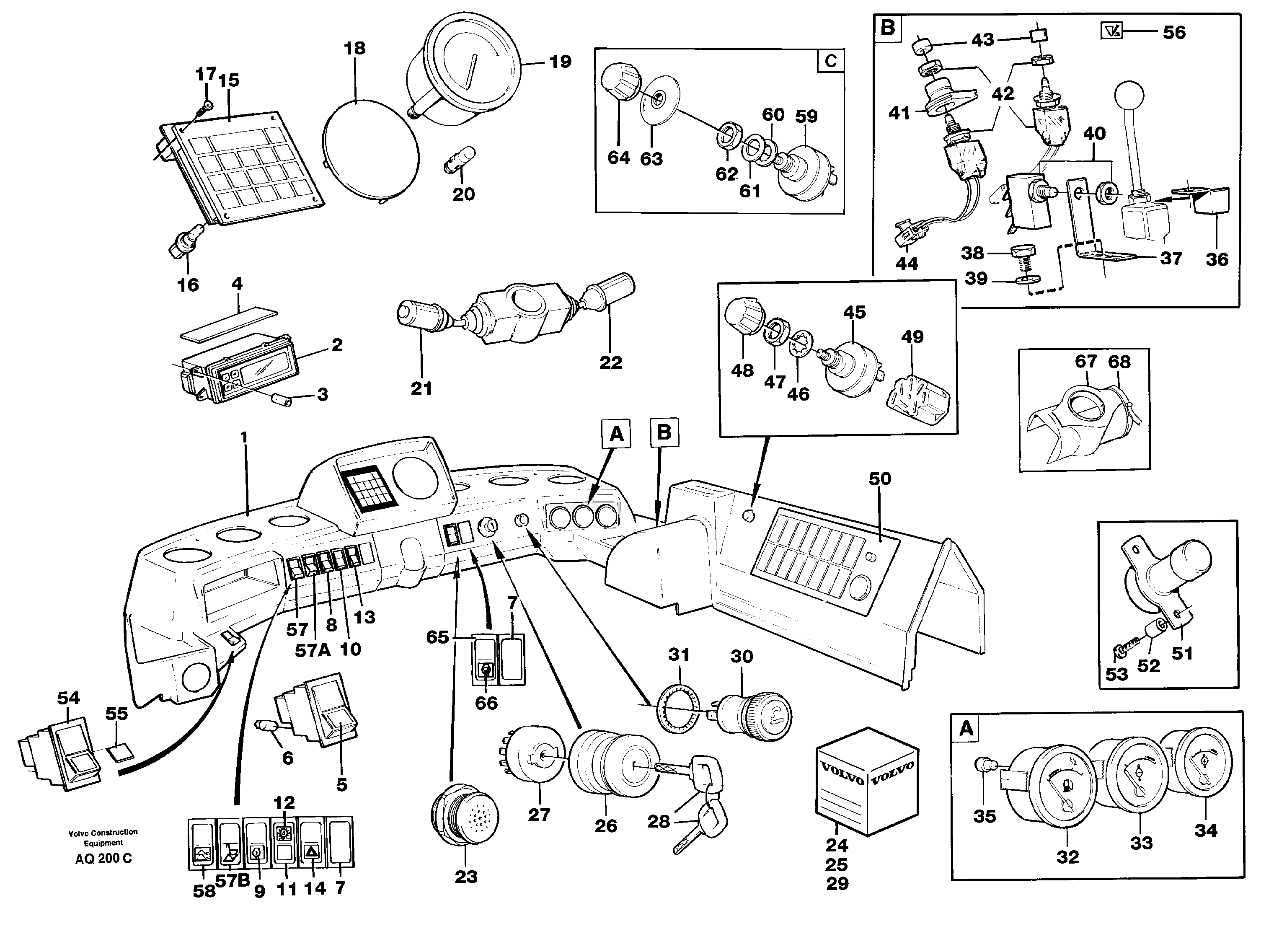

Instrument, sensor, warning and information system
Miscellaneous

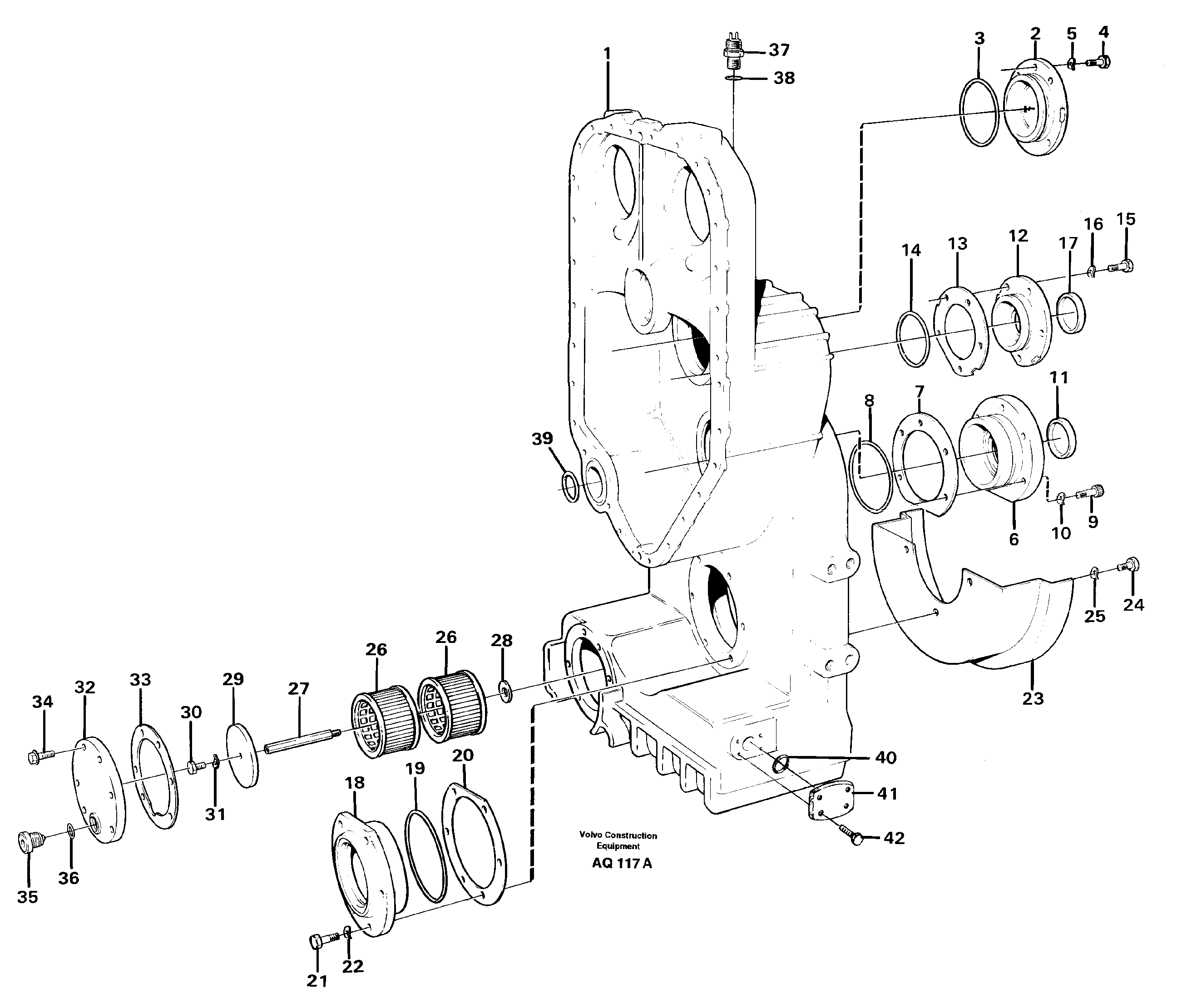

Power transmission

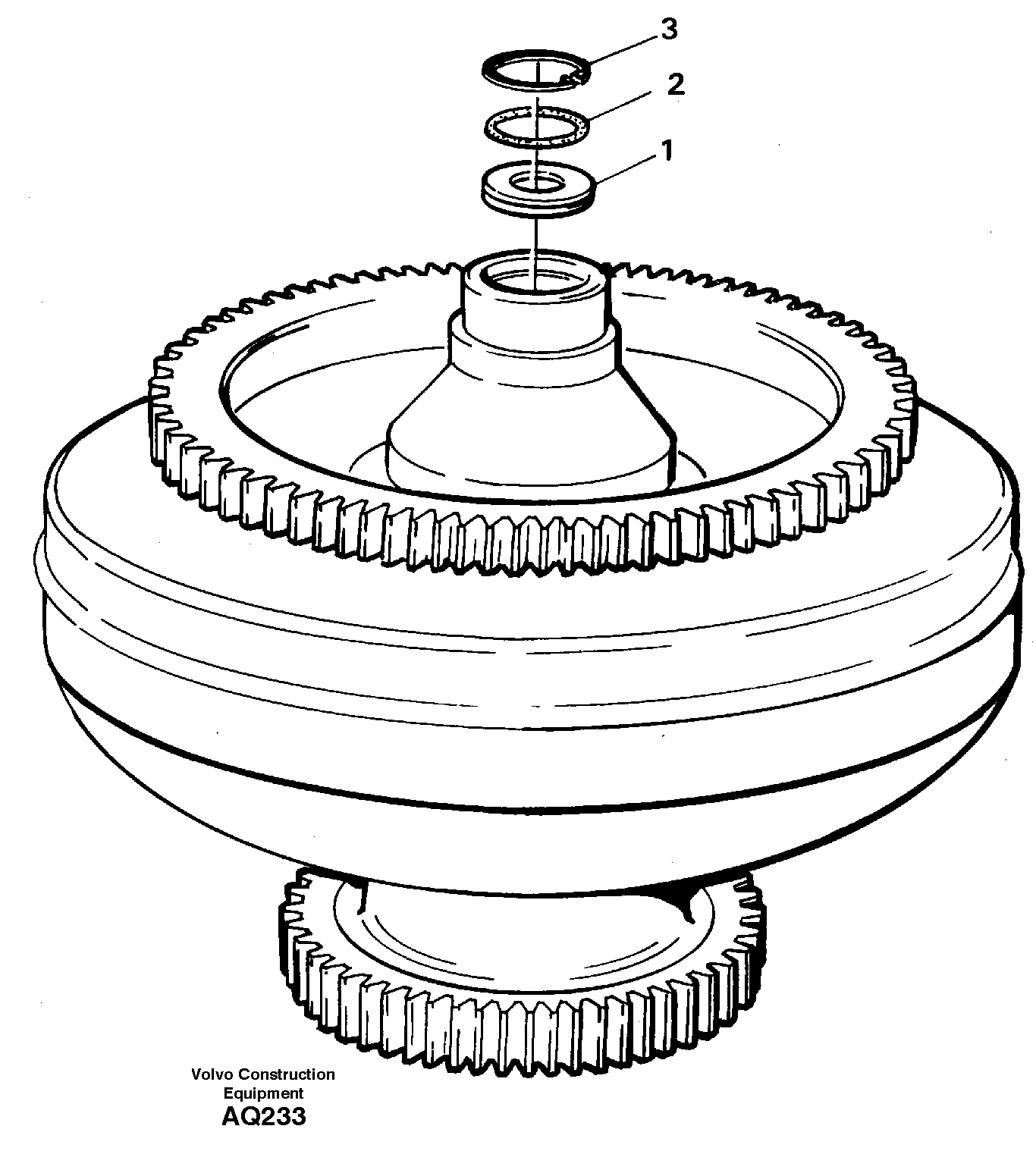

Clutch, torque converter
Transmission, hydraulic control

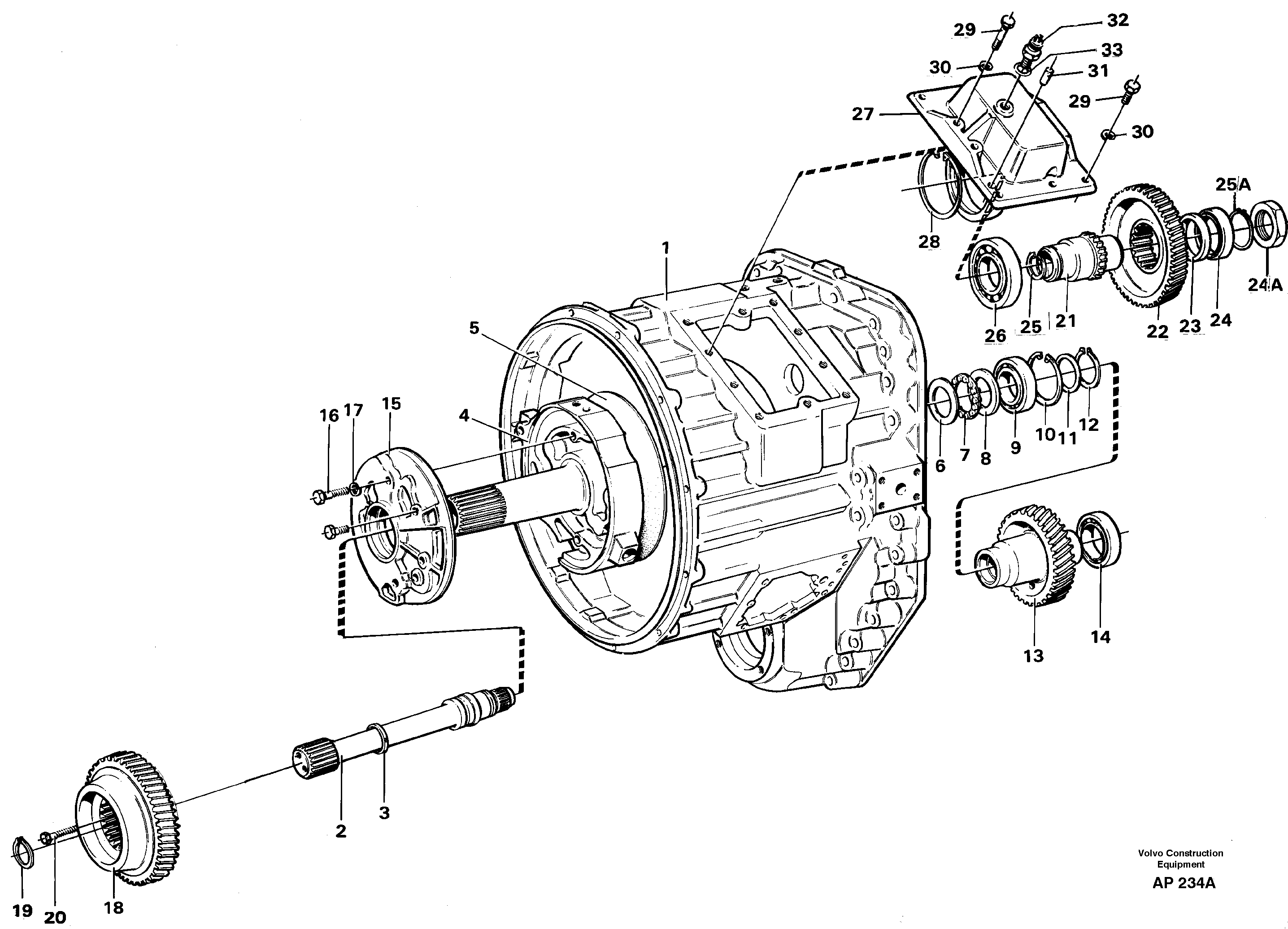

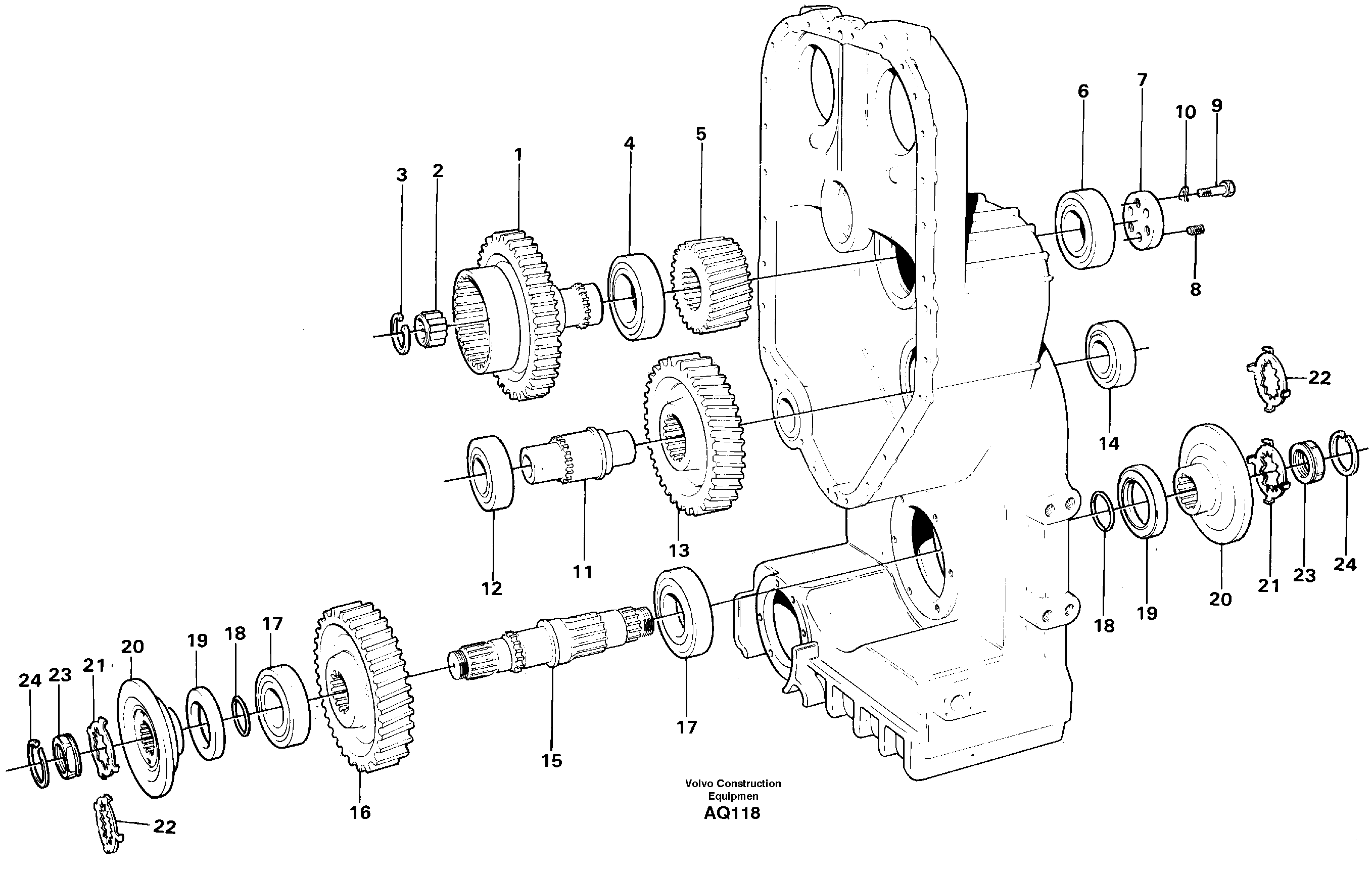

Converter housing, gears and shafts

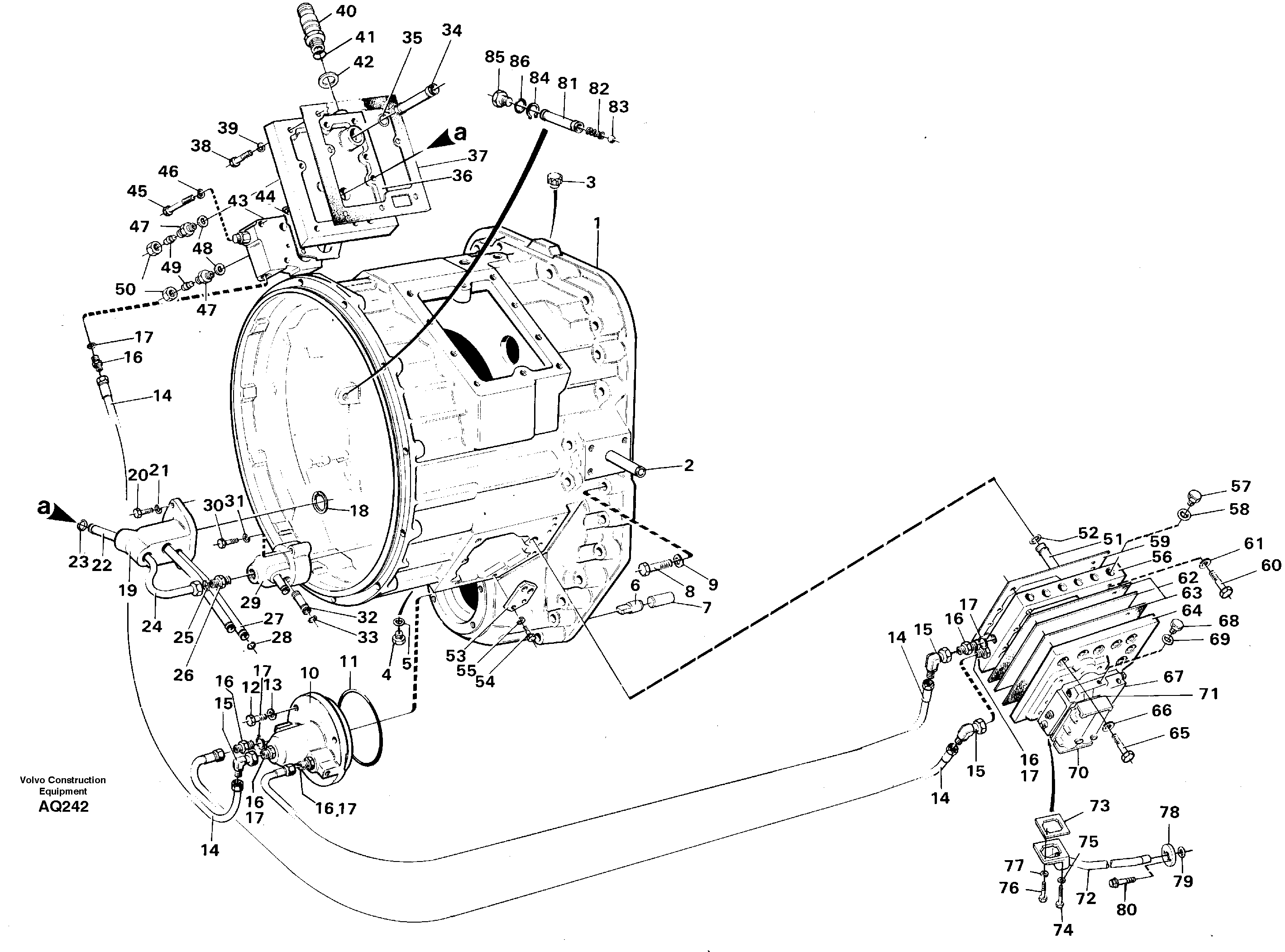

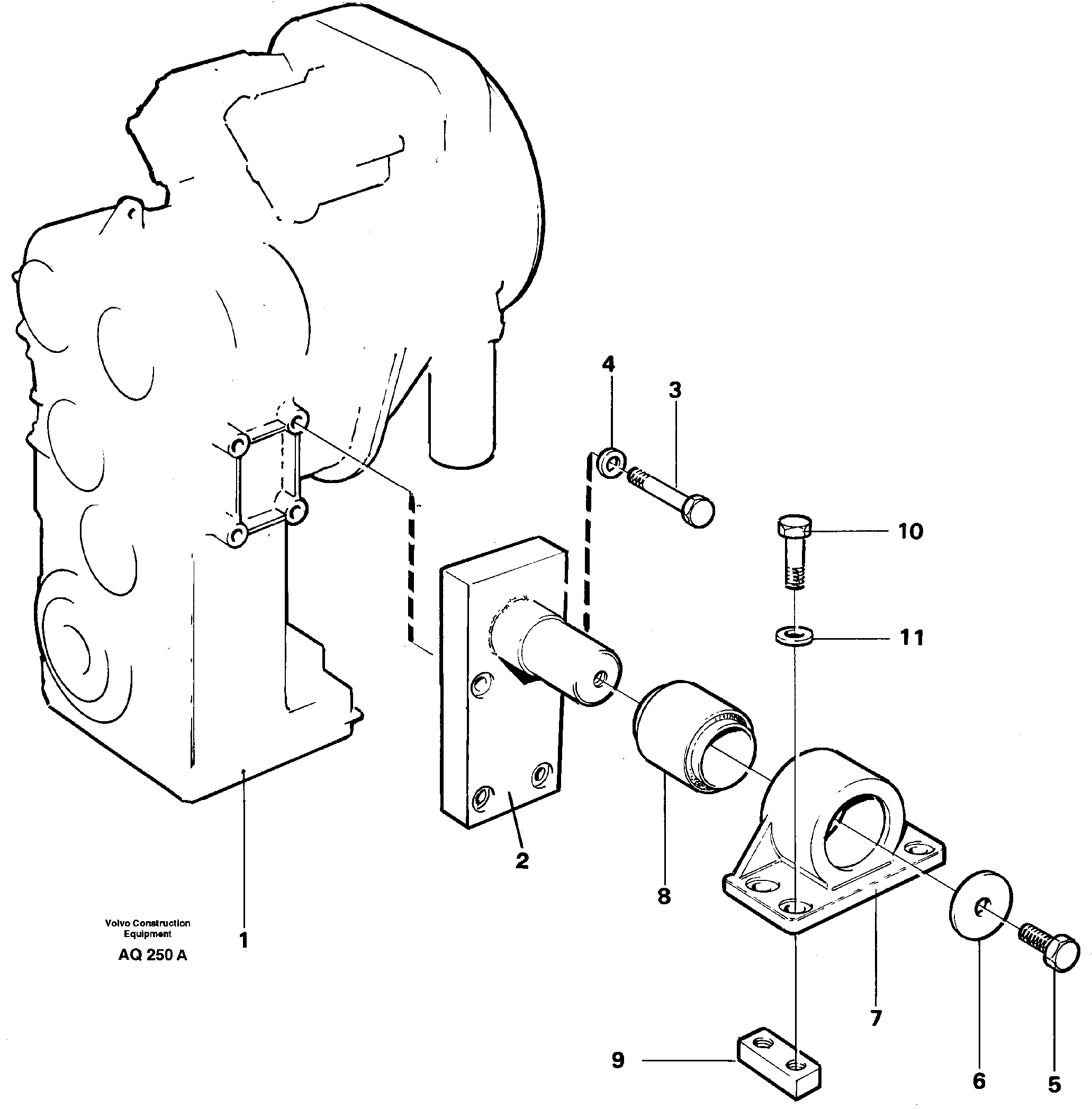

Converter housing with fitting parts

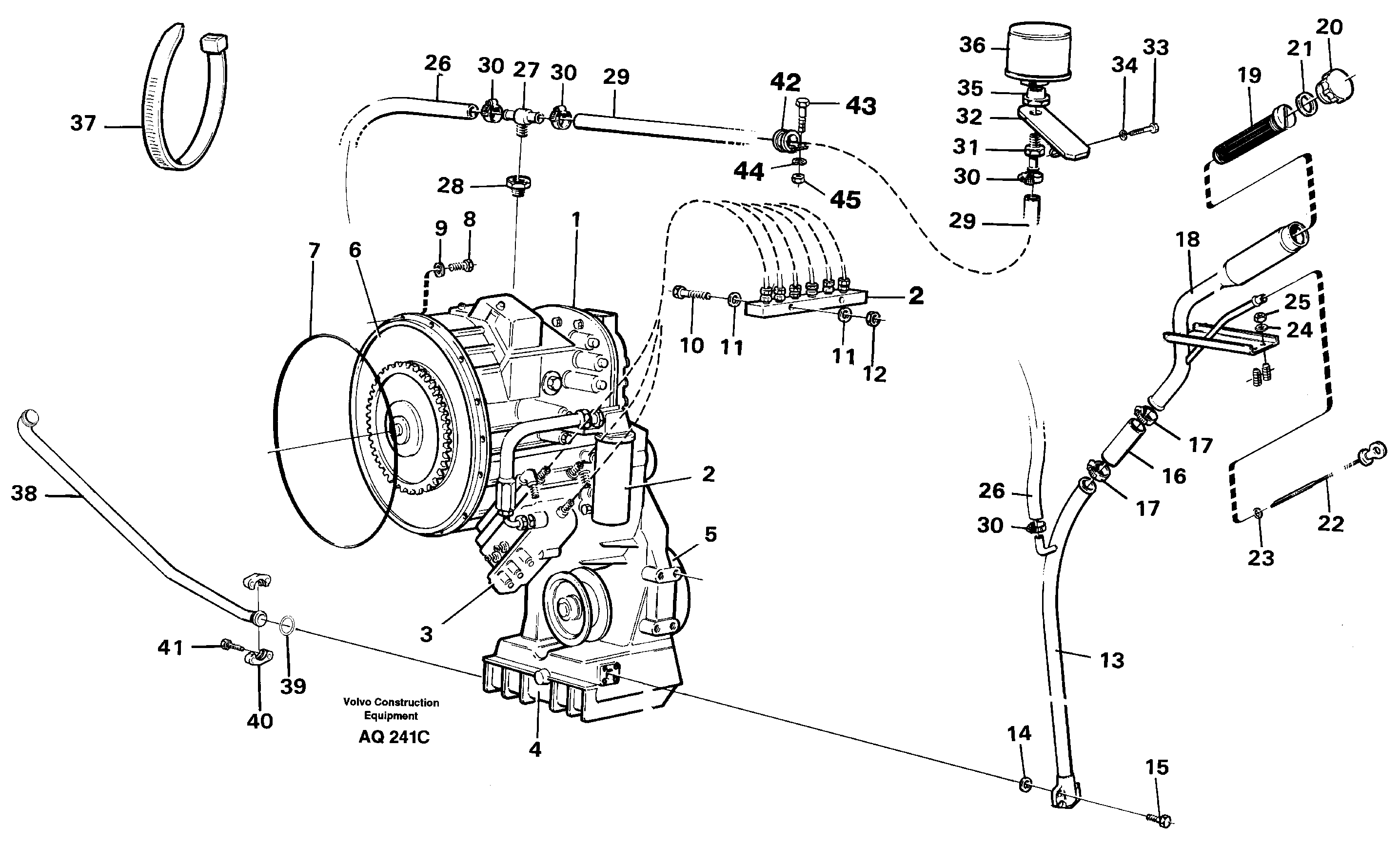

Hydraulic transmission with fitting parts

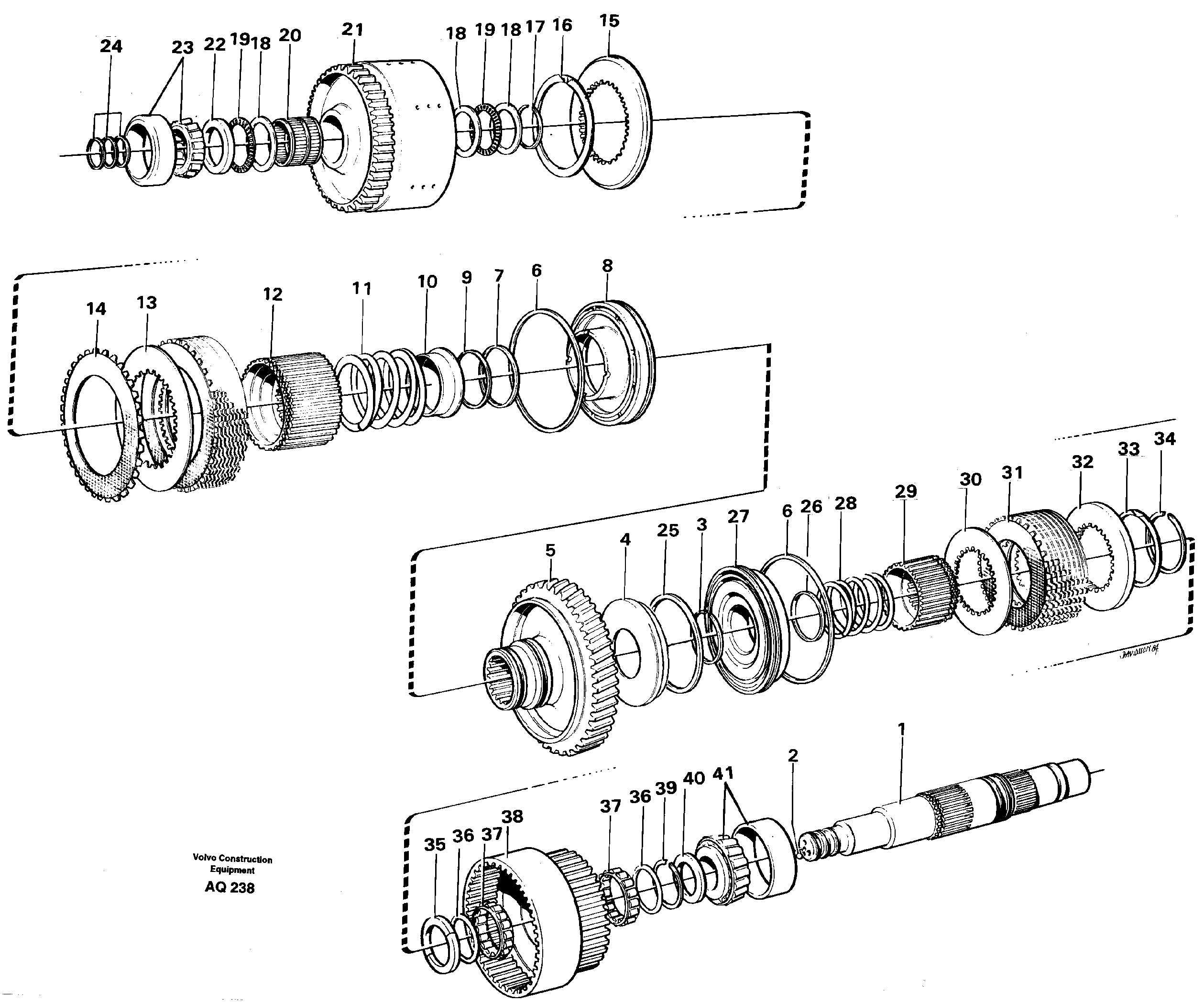

Hydraulic clutch forward / 1:st speed

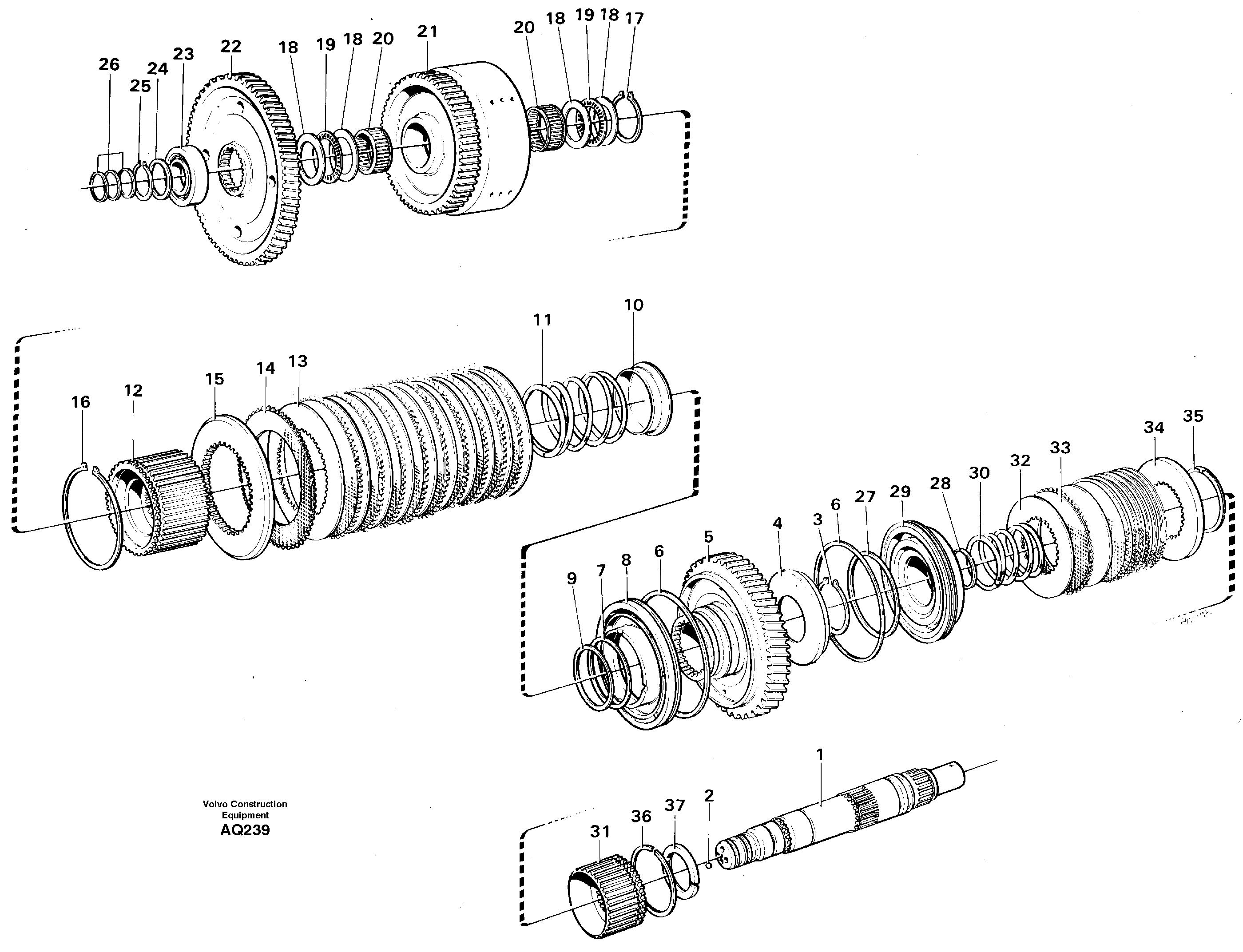

Hydraulic clutch reverse / 2nd speed

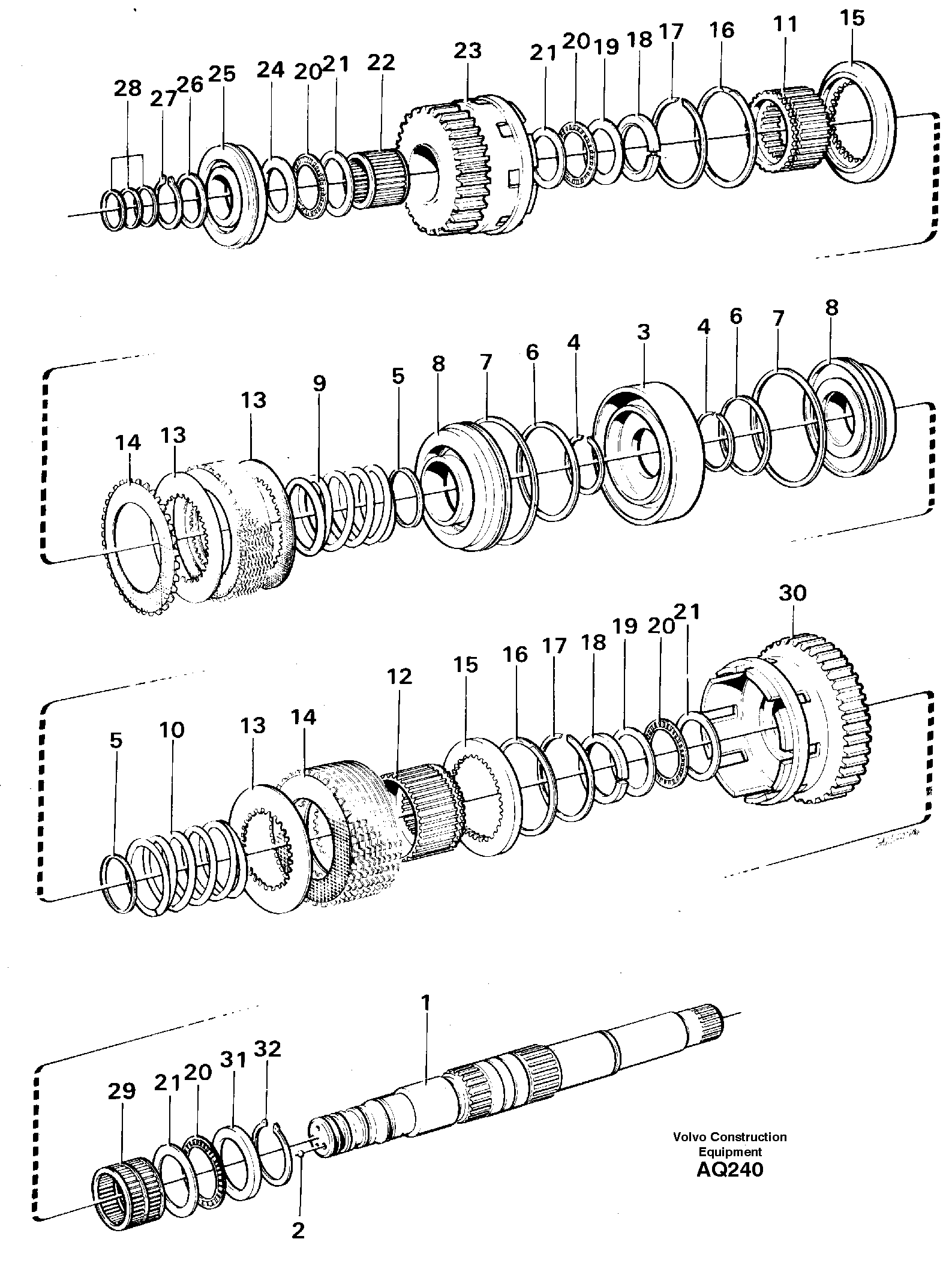

Hydraulic clutch 3rd / 4th speed
Hydraulic pump

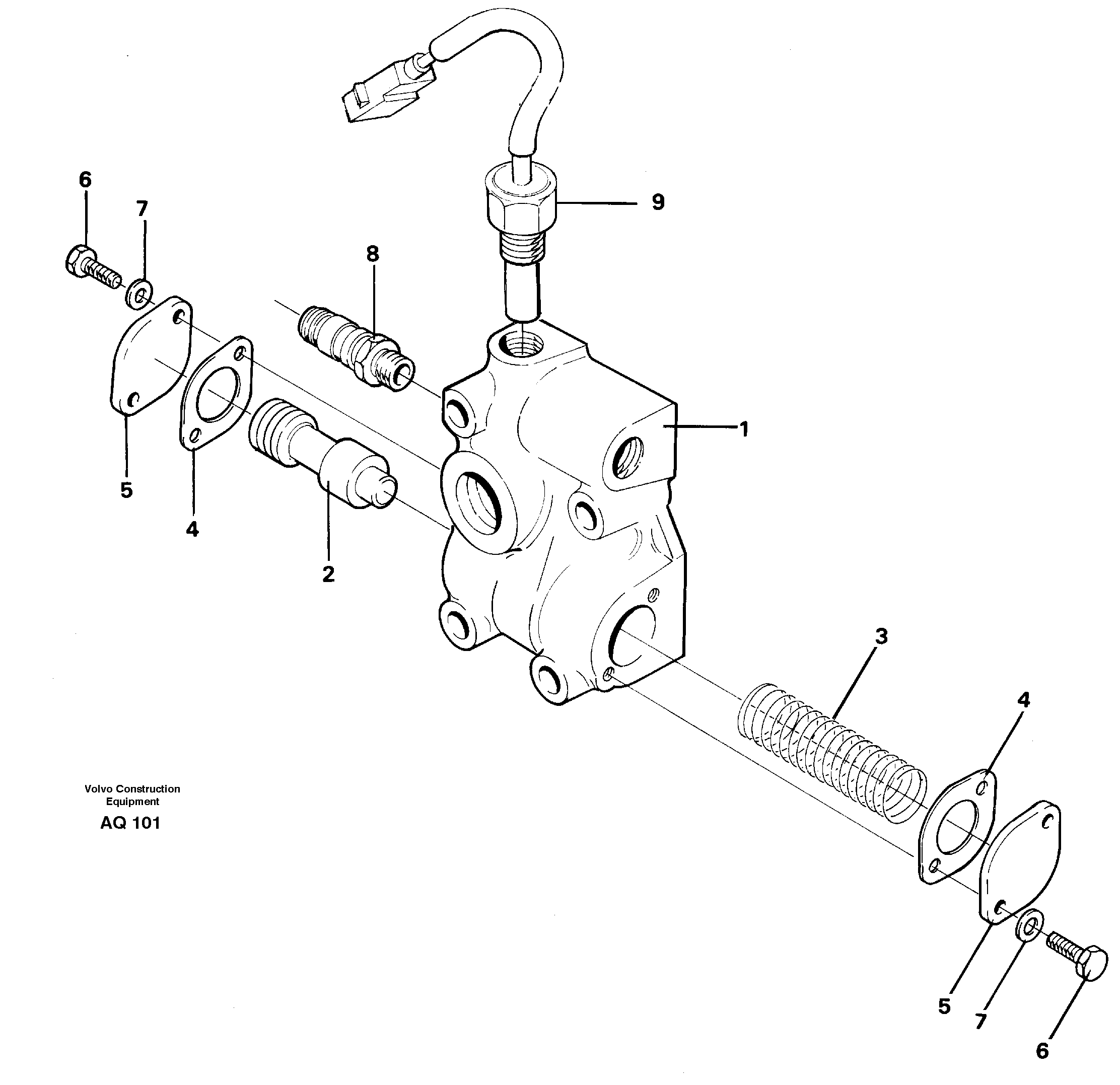

Lubricating oil valve

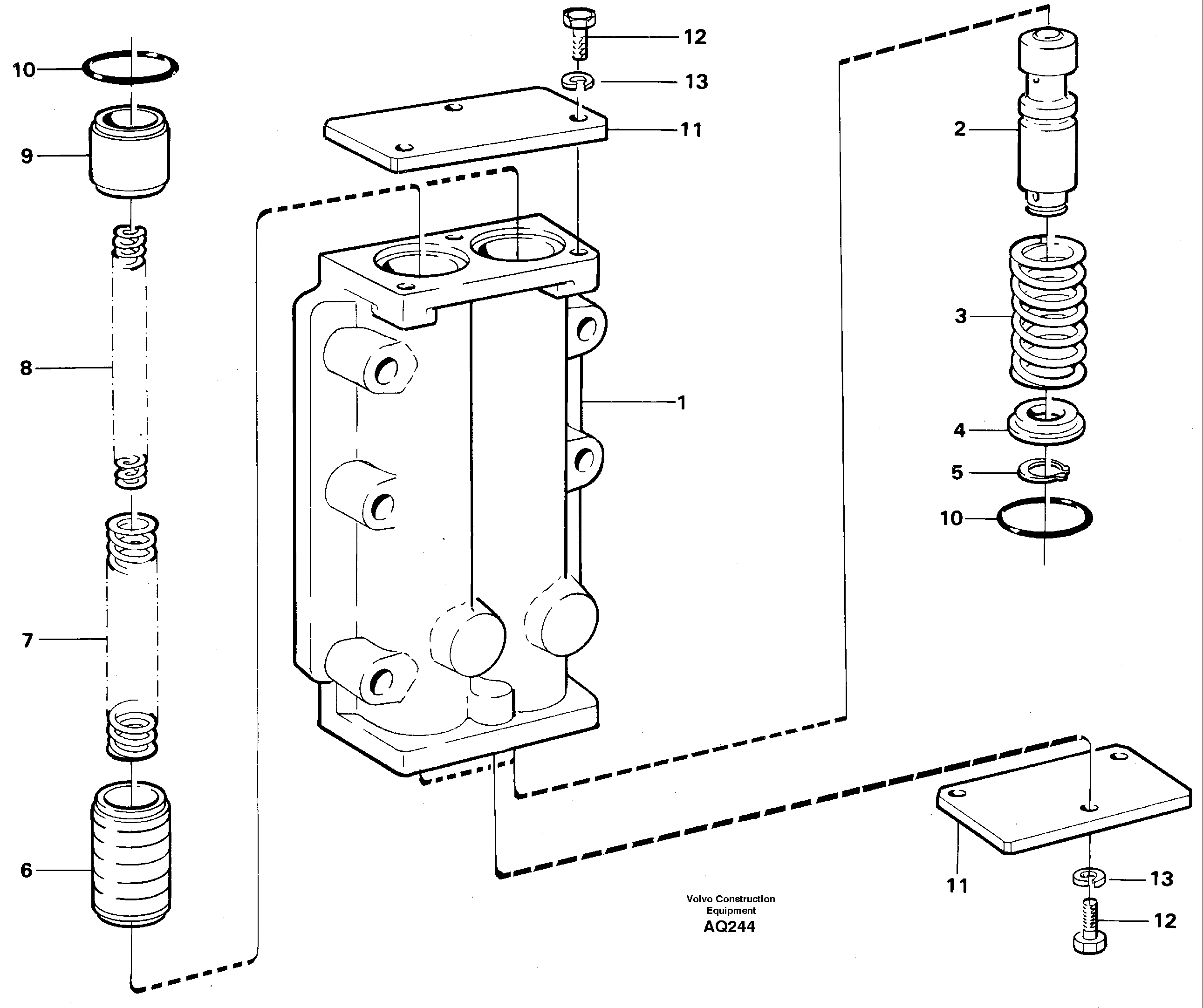

Pressure limiting valve

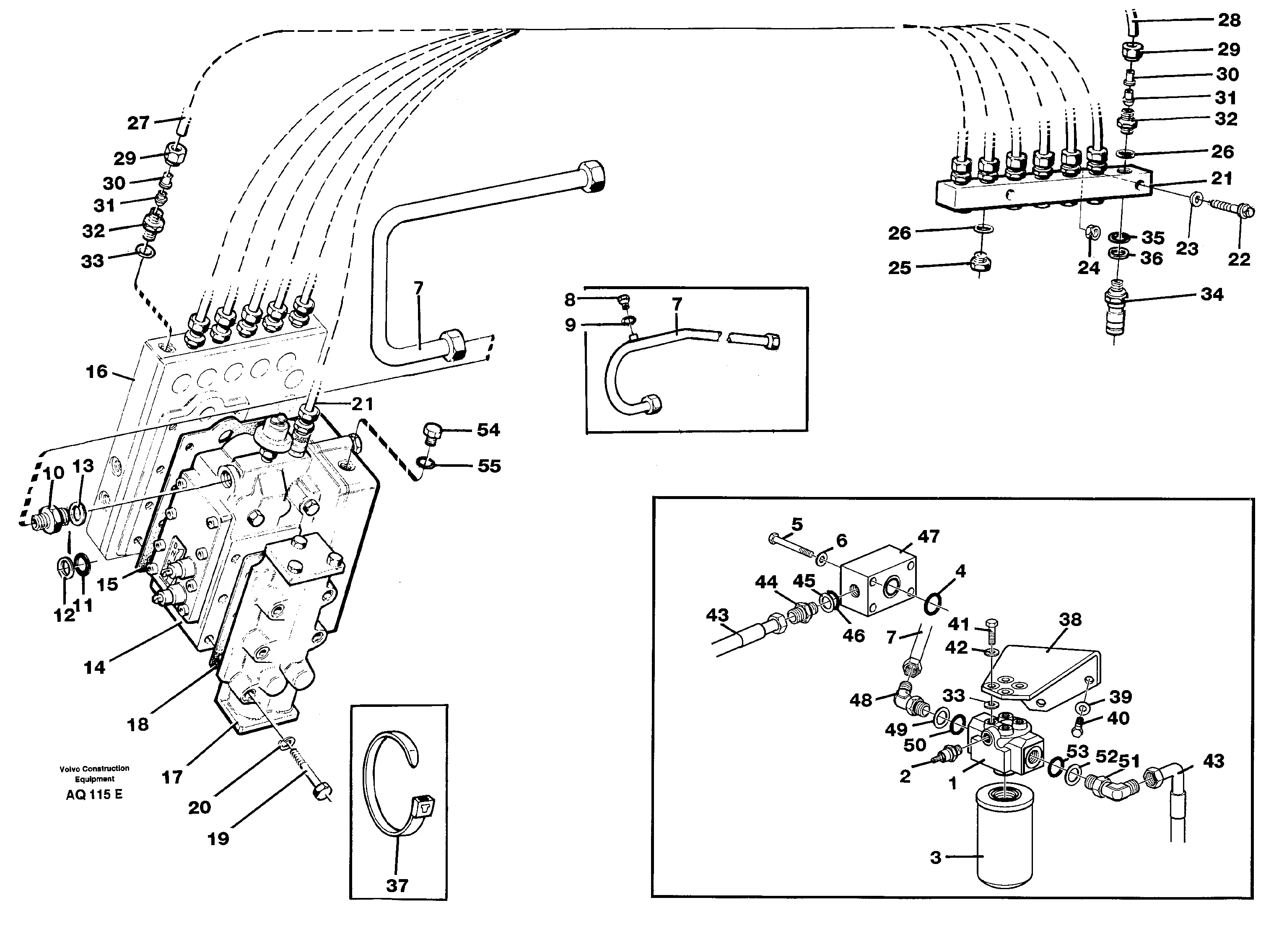

Oil filter and testing block

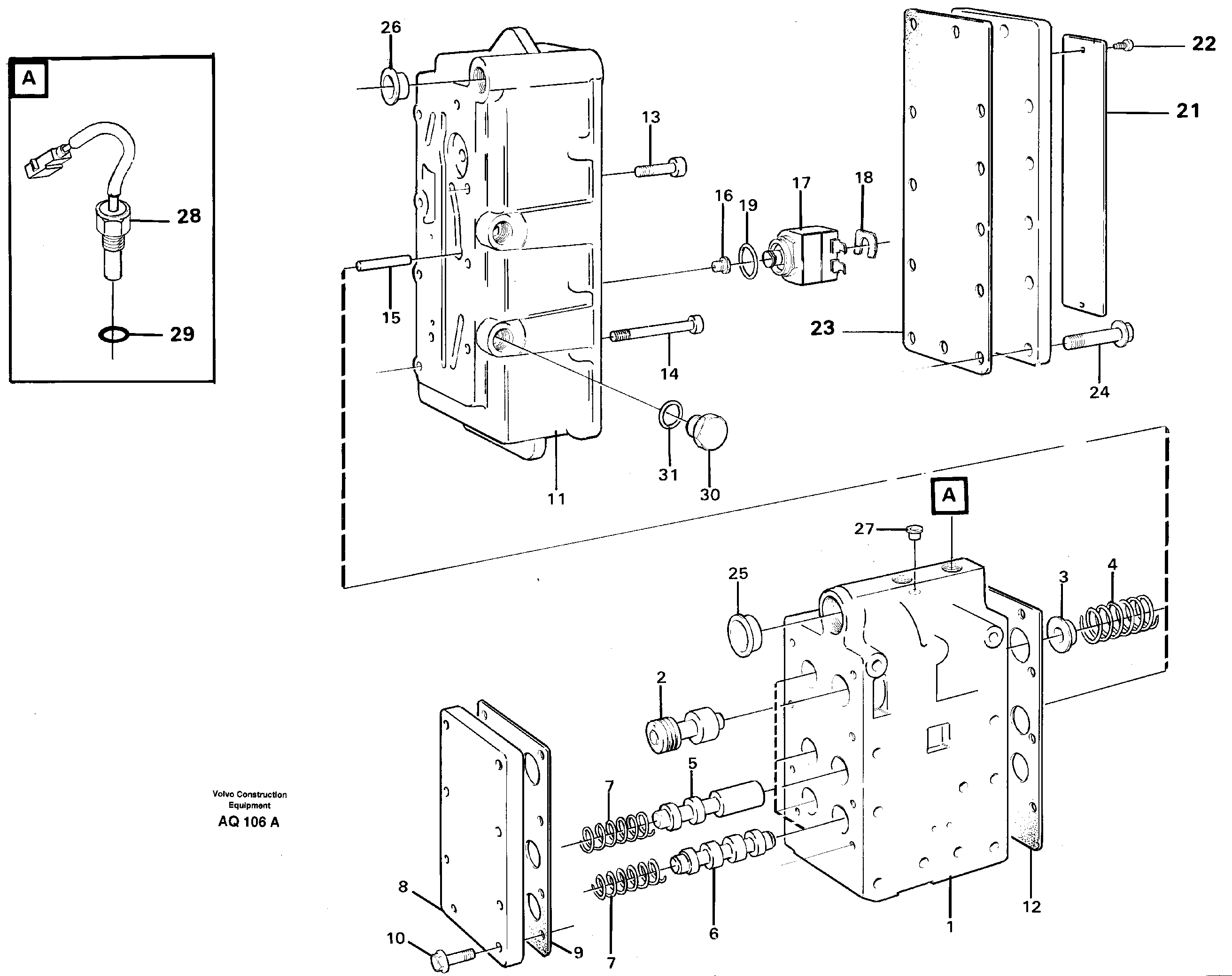

Range selector valve
Gearbox, manual

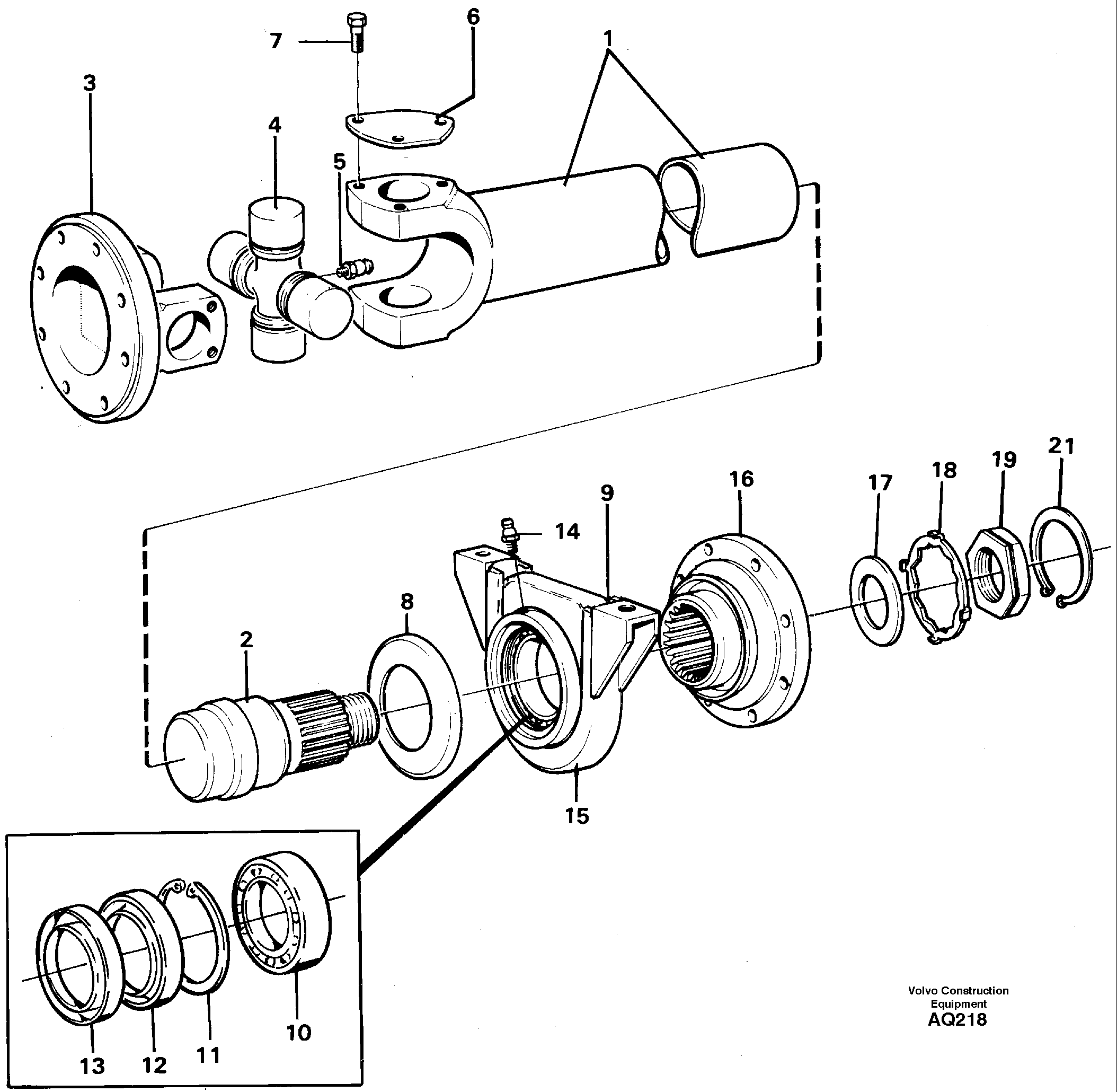

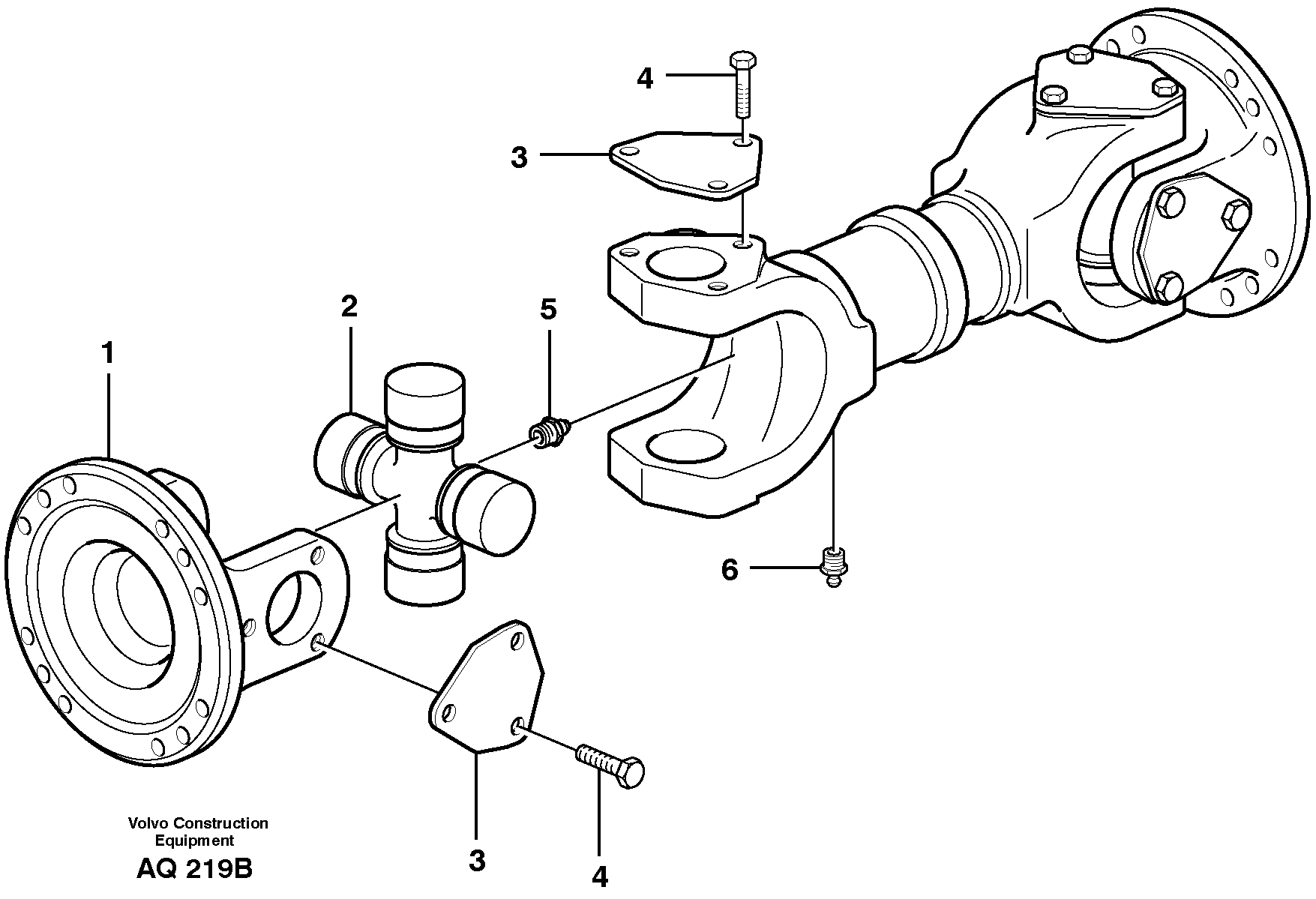

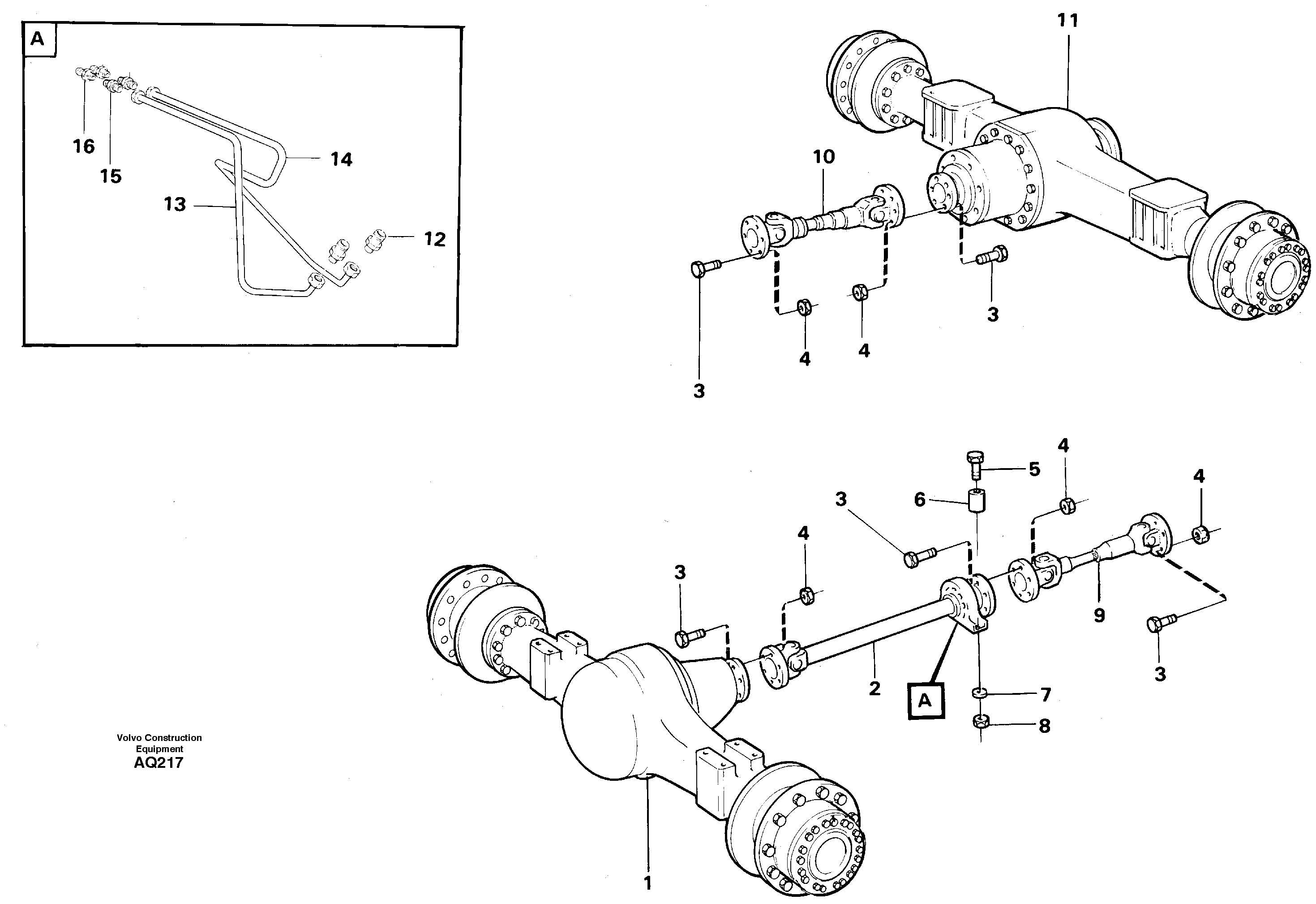

Propeller shaft

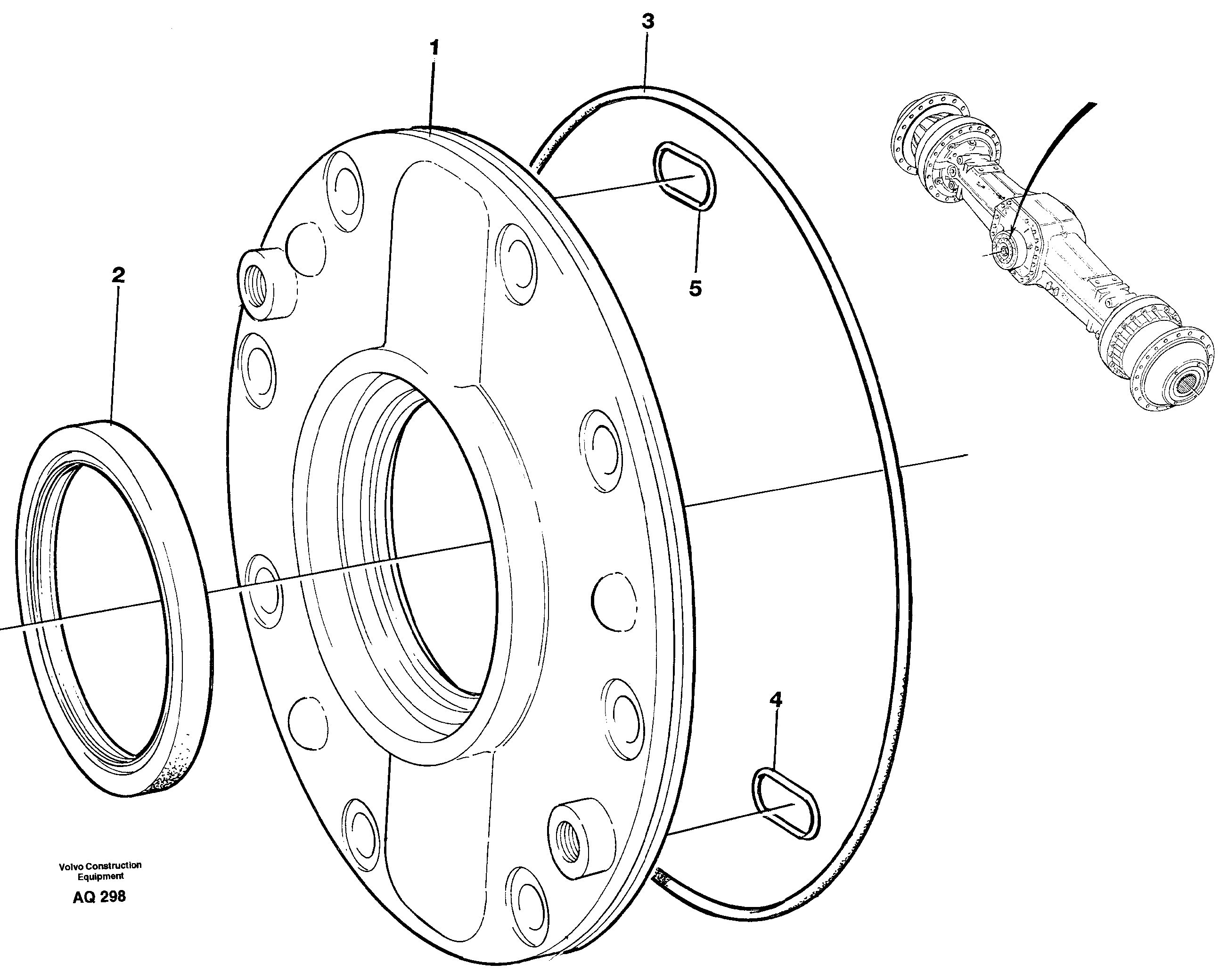

Front axle, rear axle

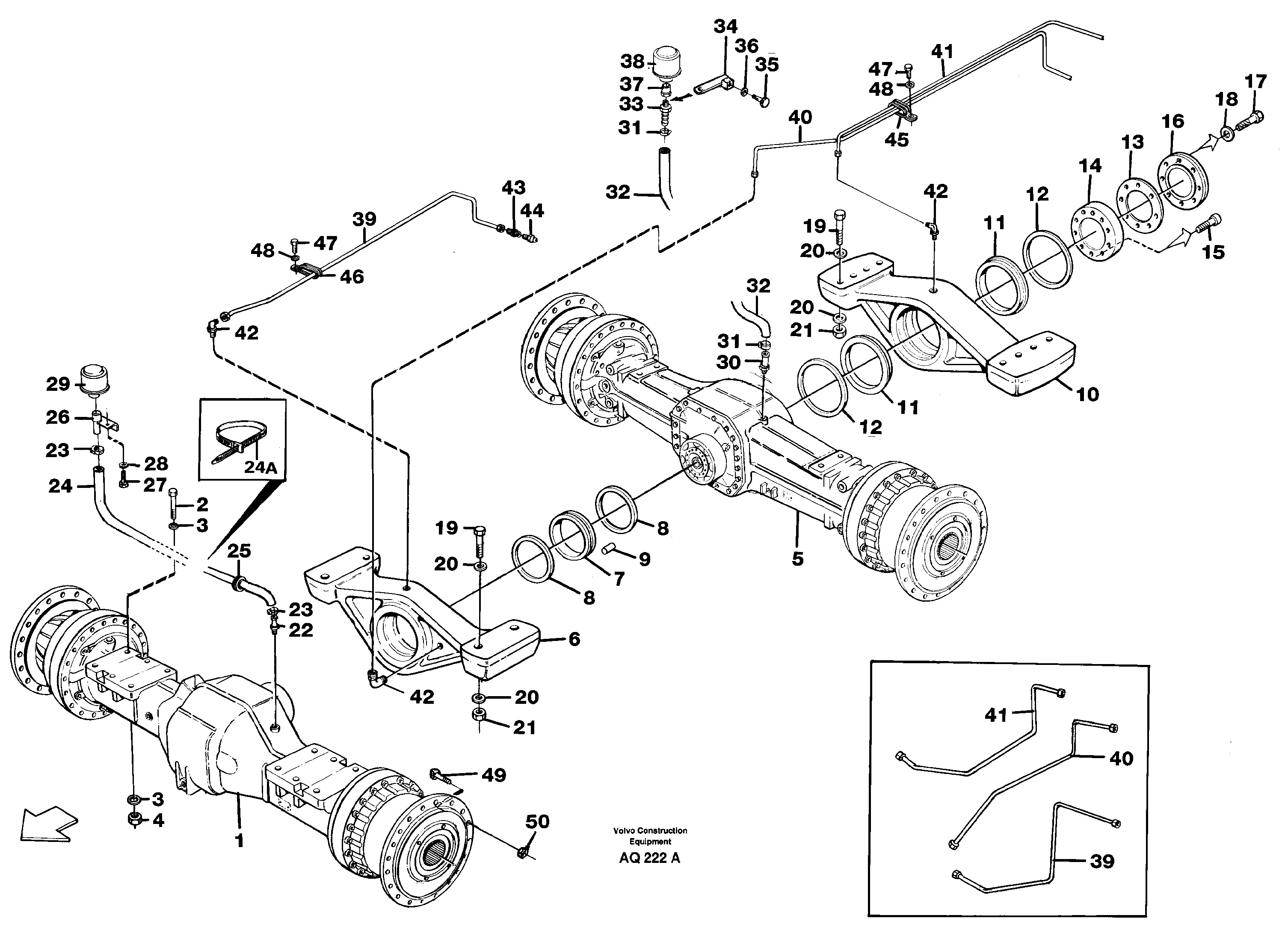

Planet axles with fitting parts

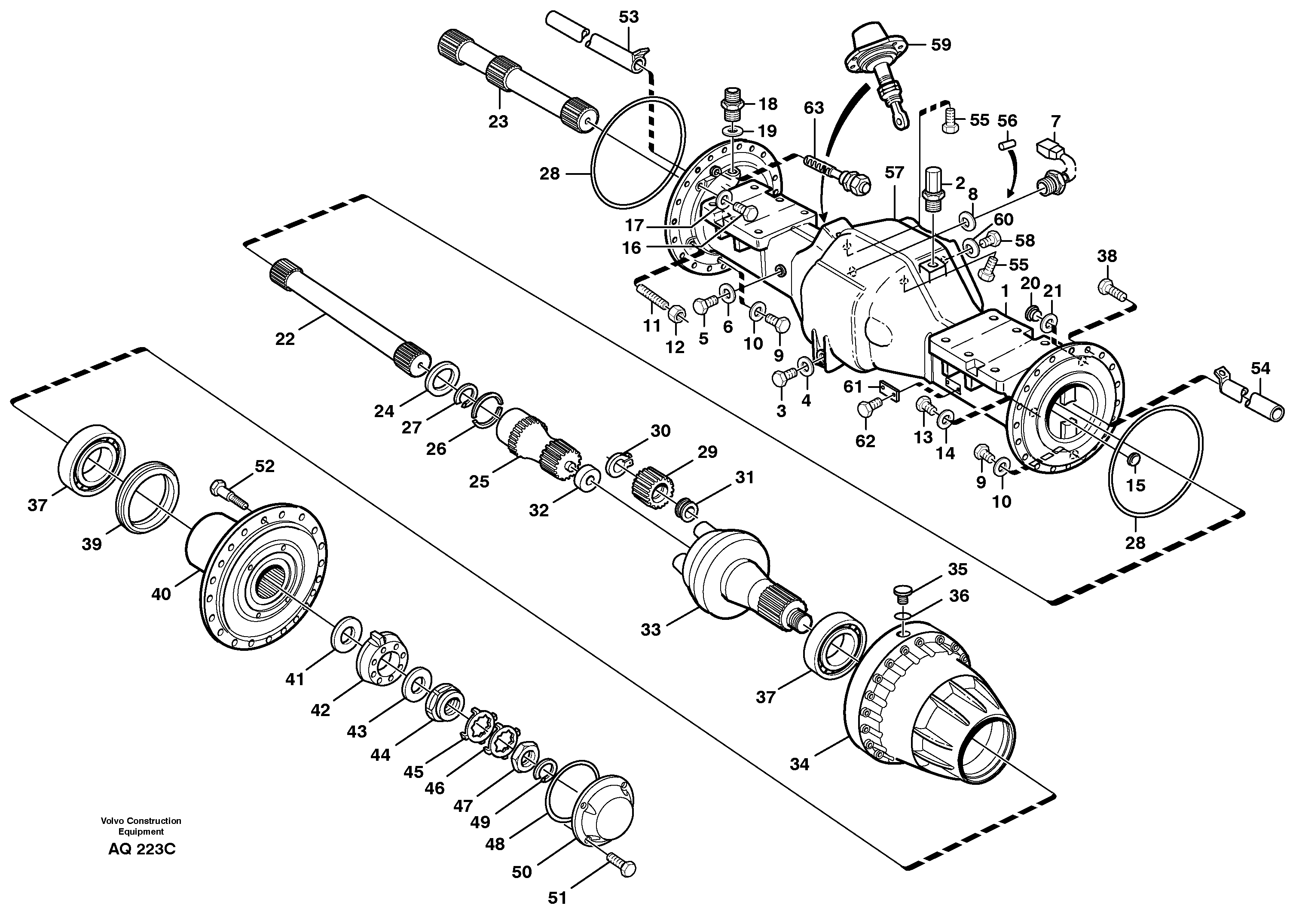

Planetary axle, front AWB 31

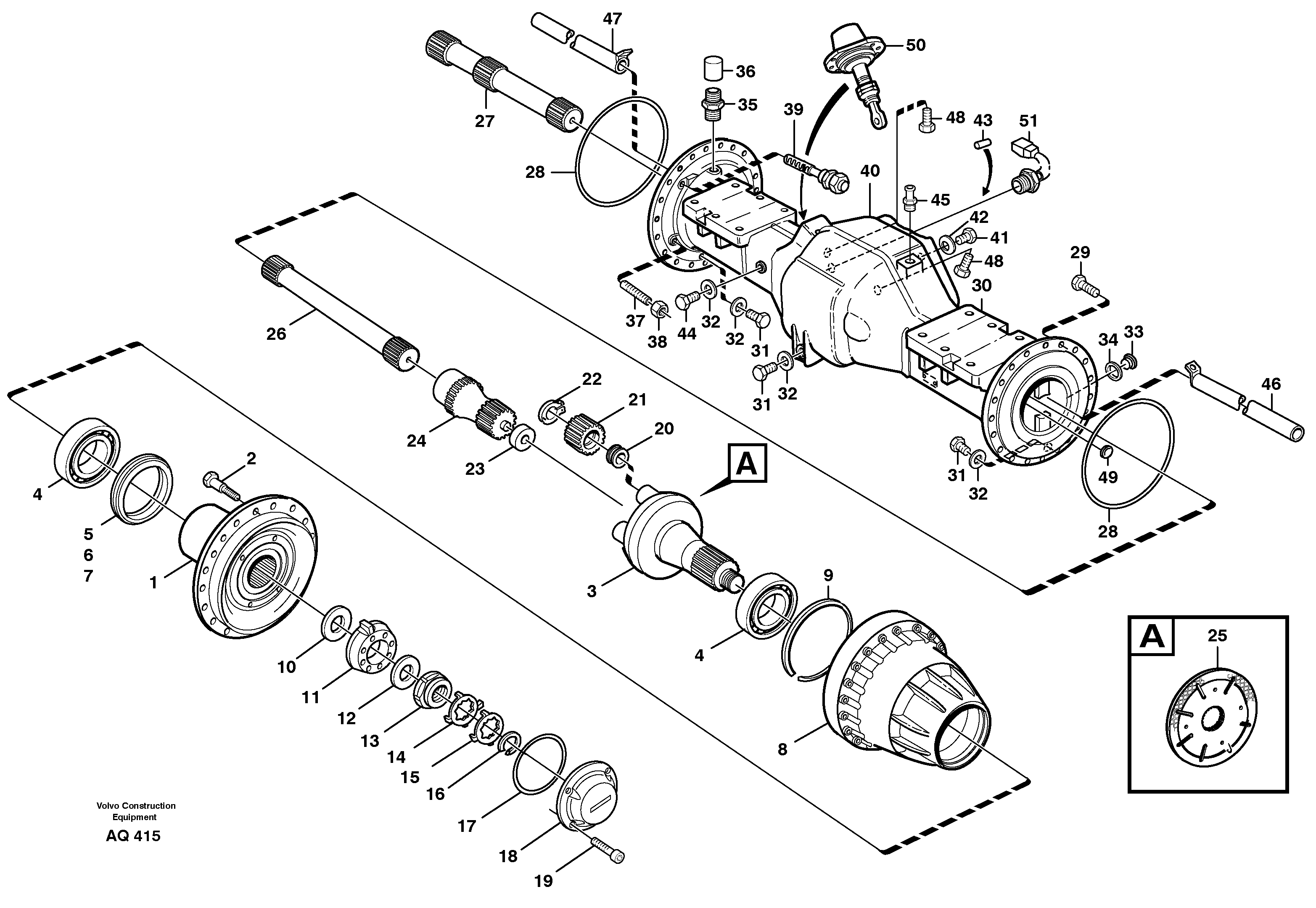

Planet shaft, front AWB 31

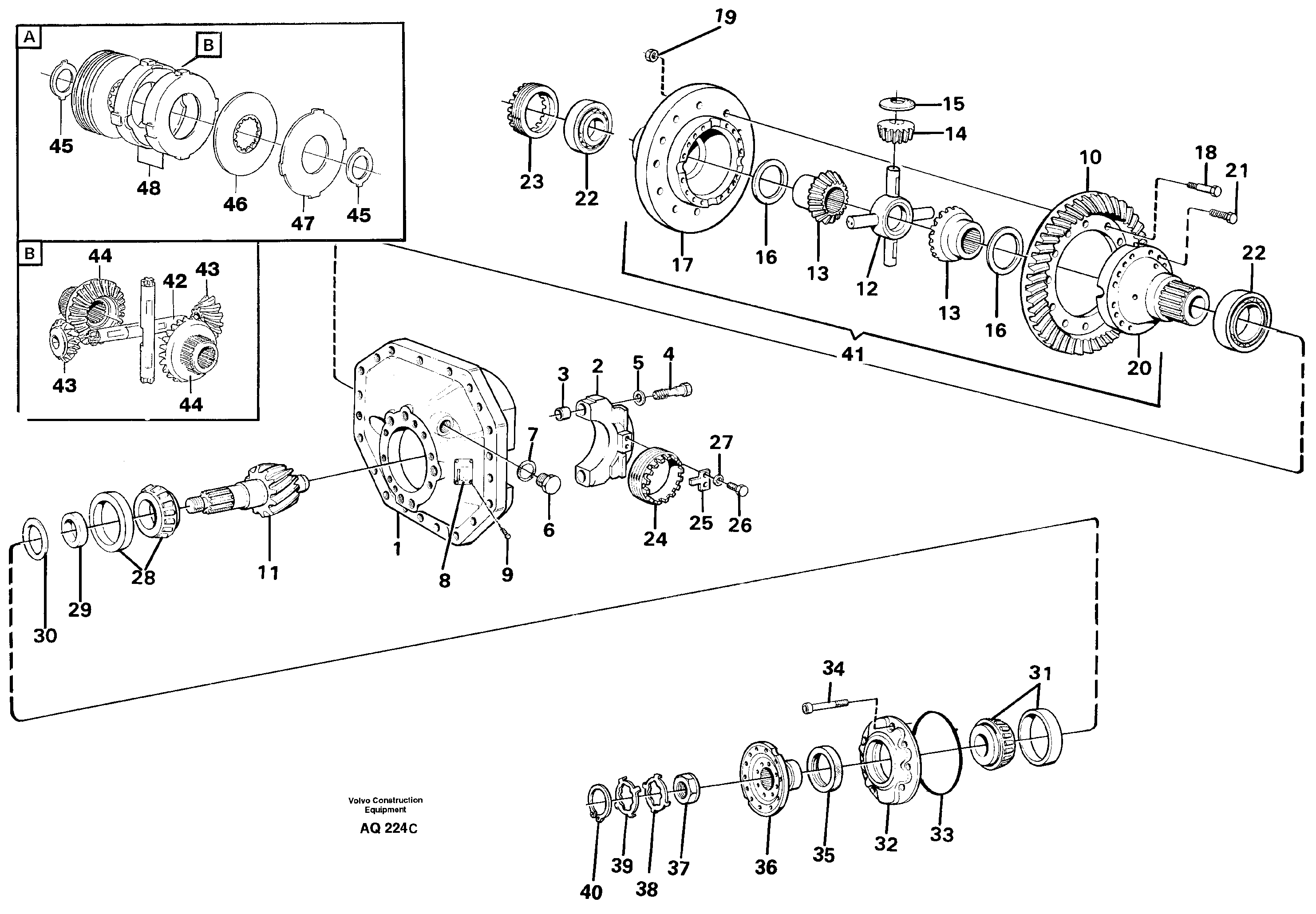

Final drive, front

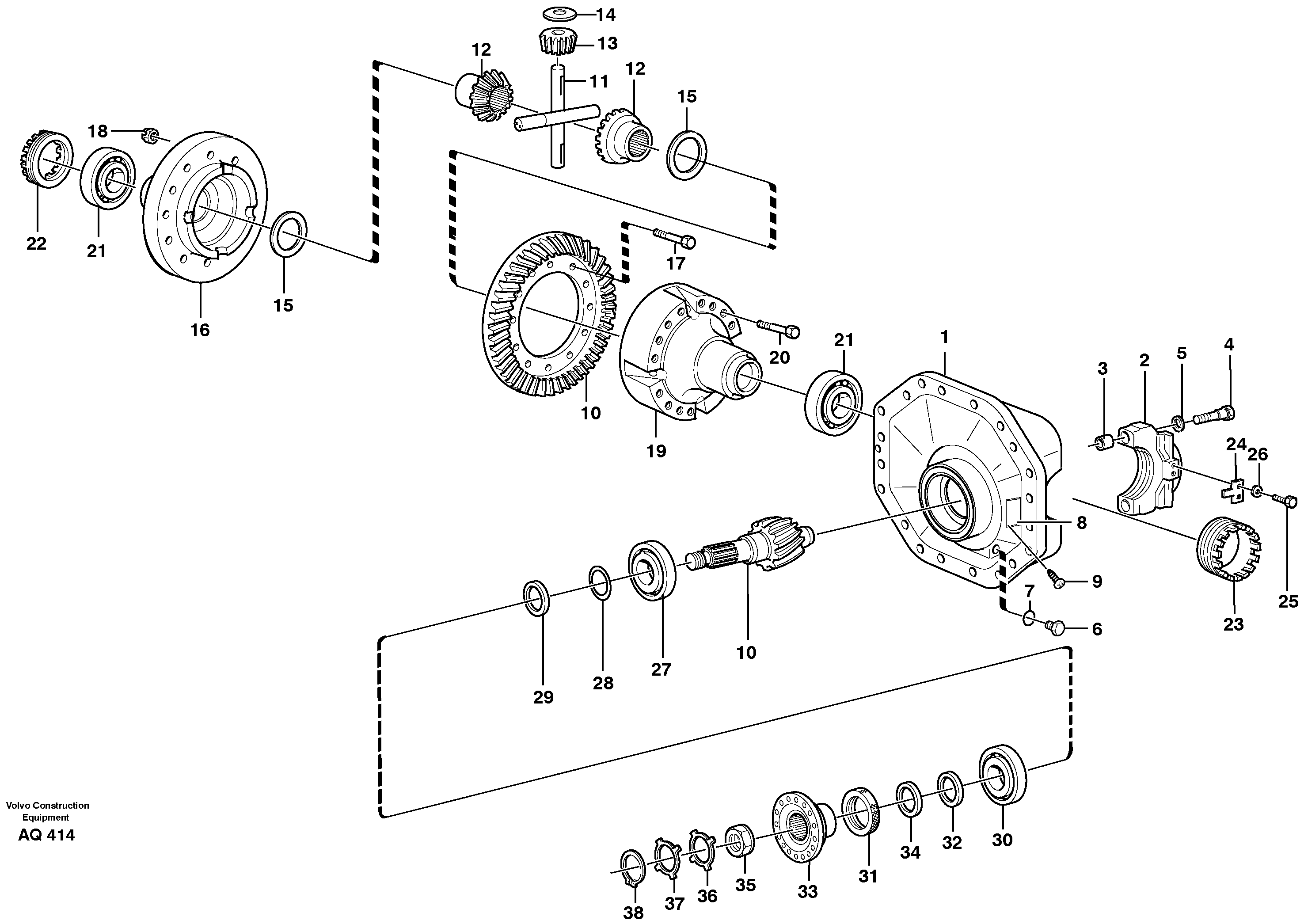

Final drive, front AWB 31

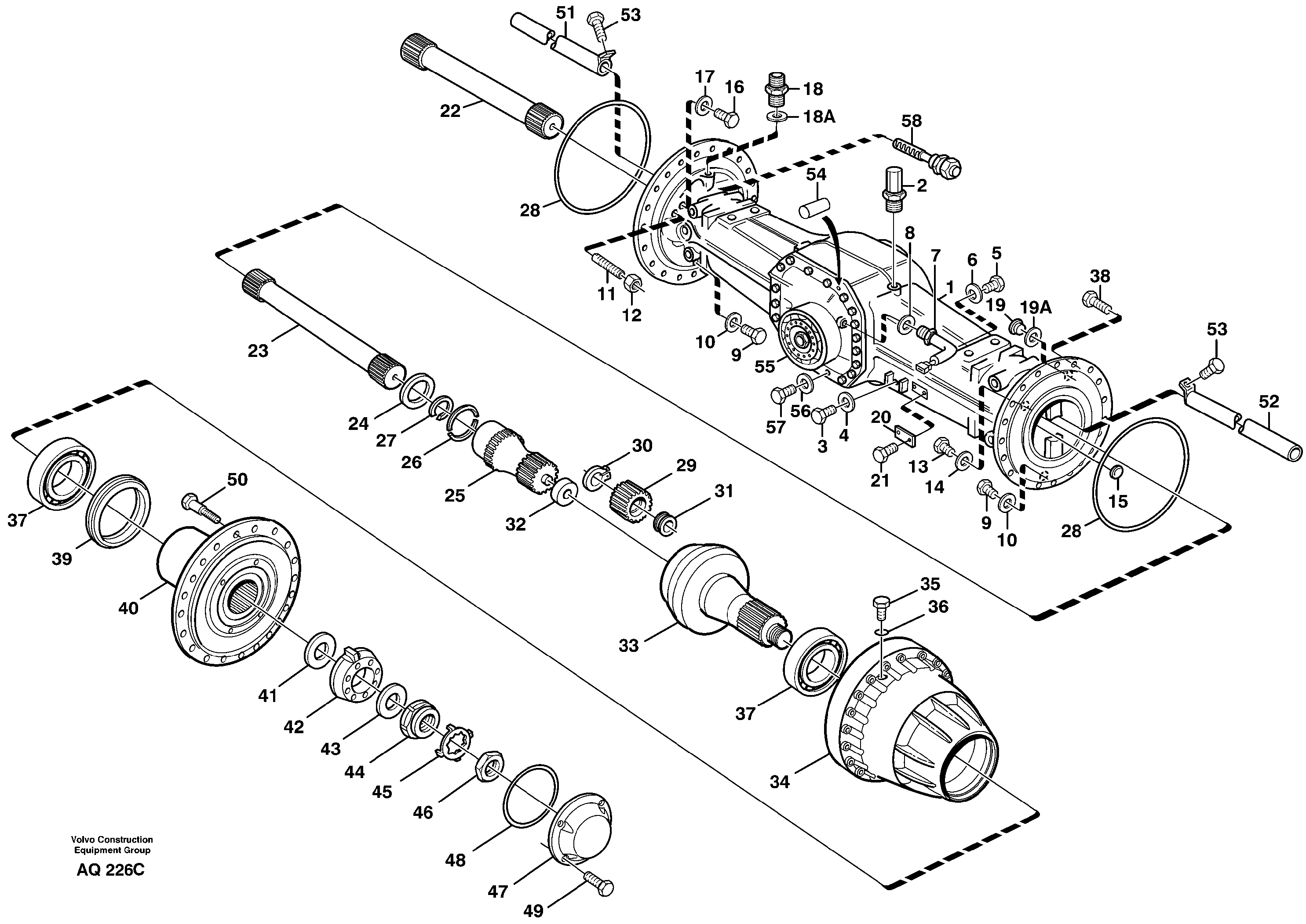

Planetary axle, rear AWB 30

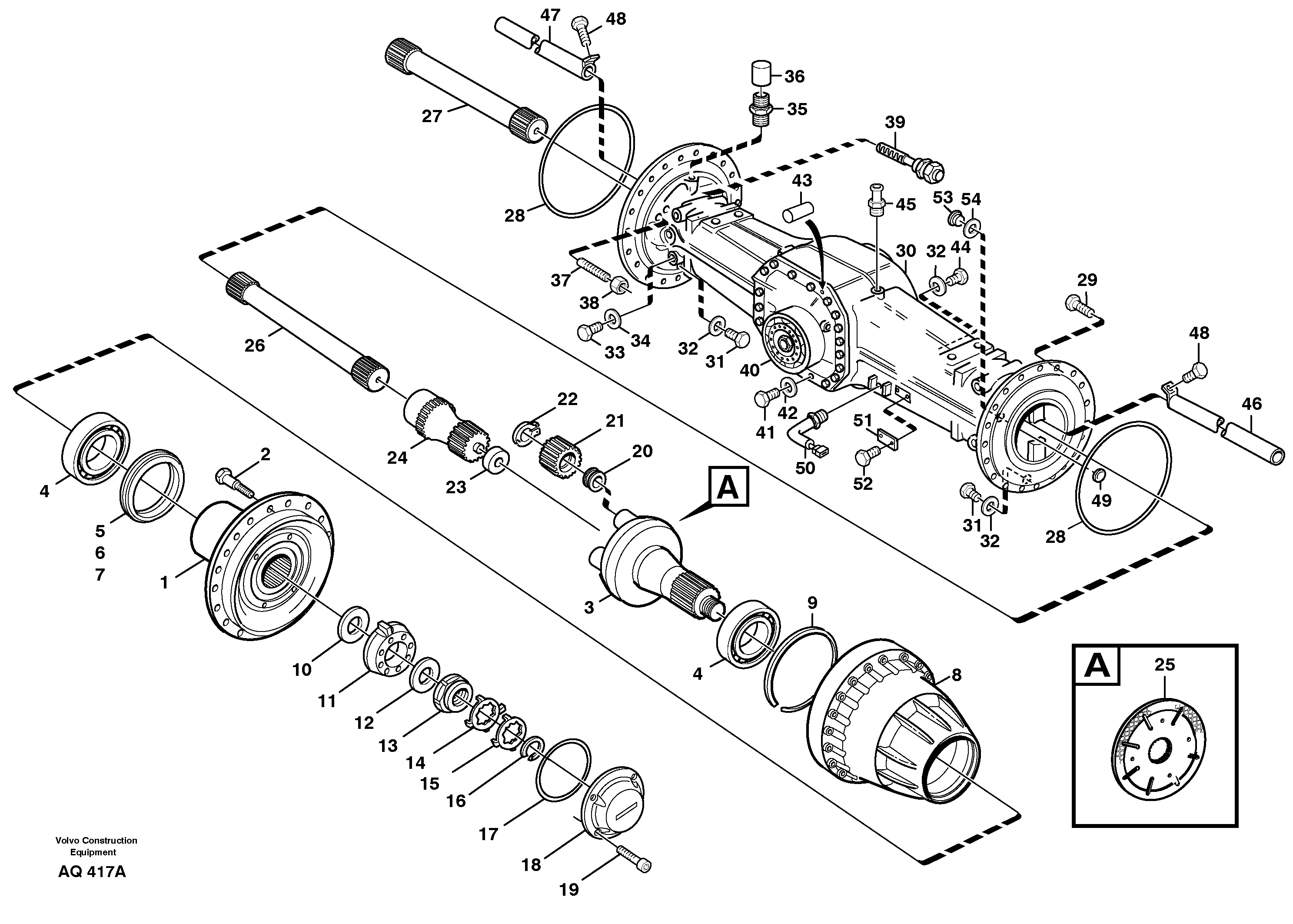

Planet shaft, rear AWB 30,

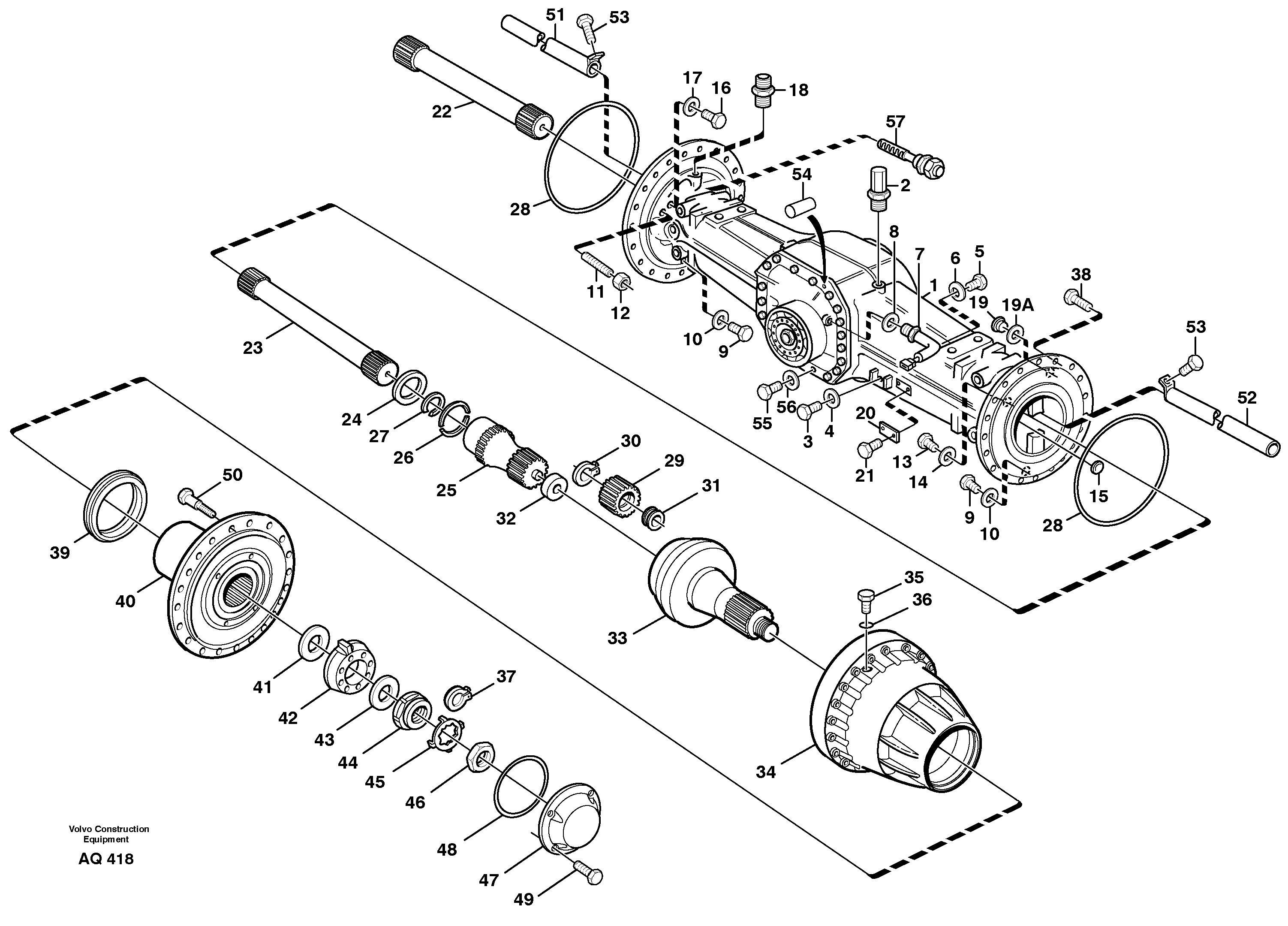

Planetary axle, rear 94689

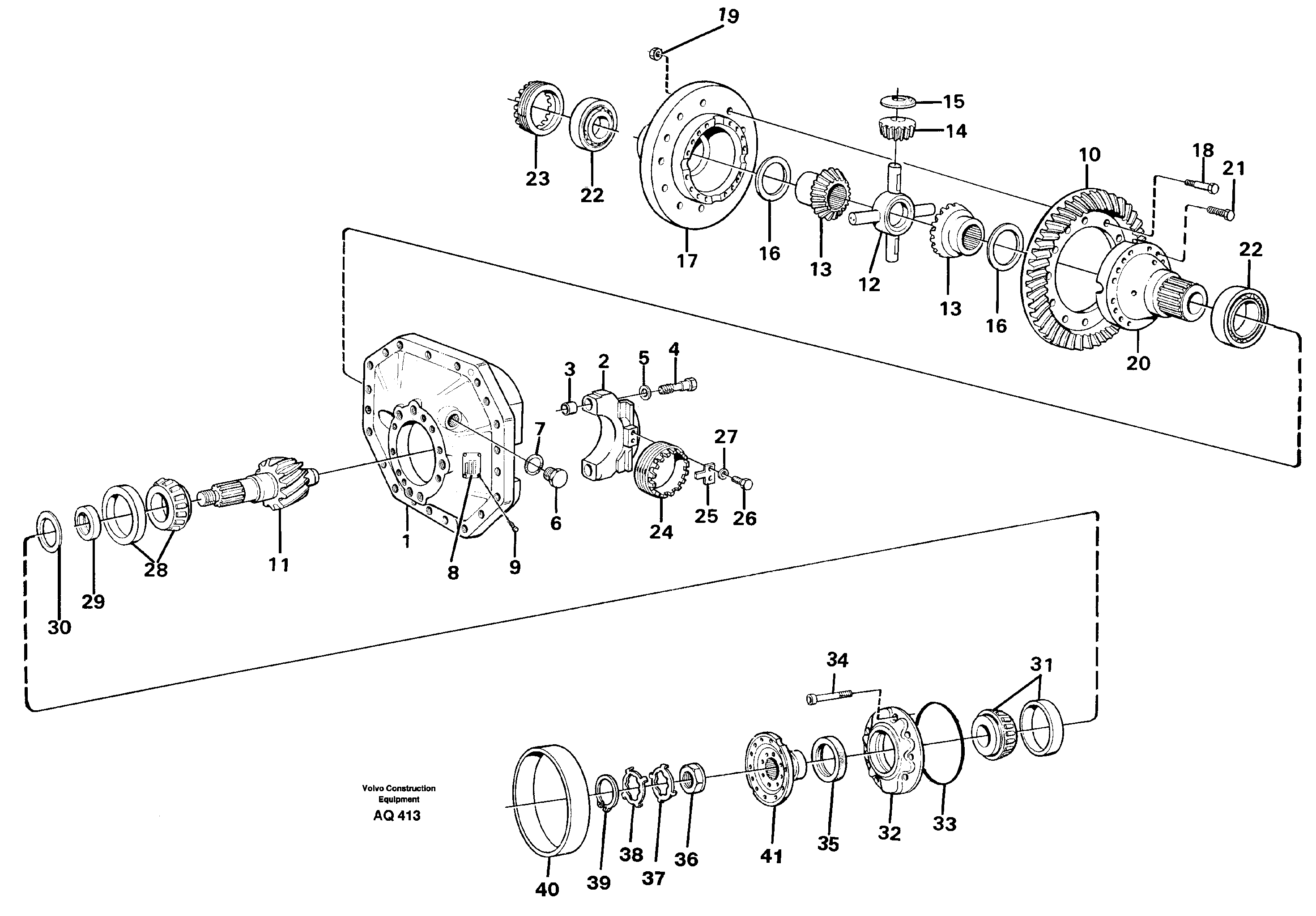

Final drive, rear SER NO - 13630, - 702689 BRAZIL

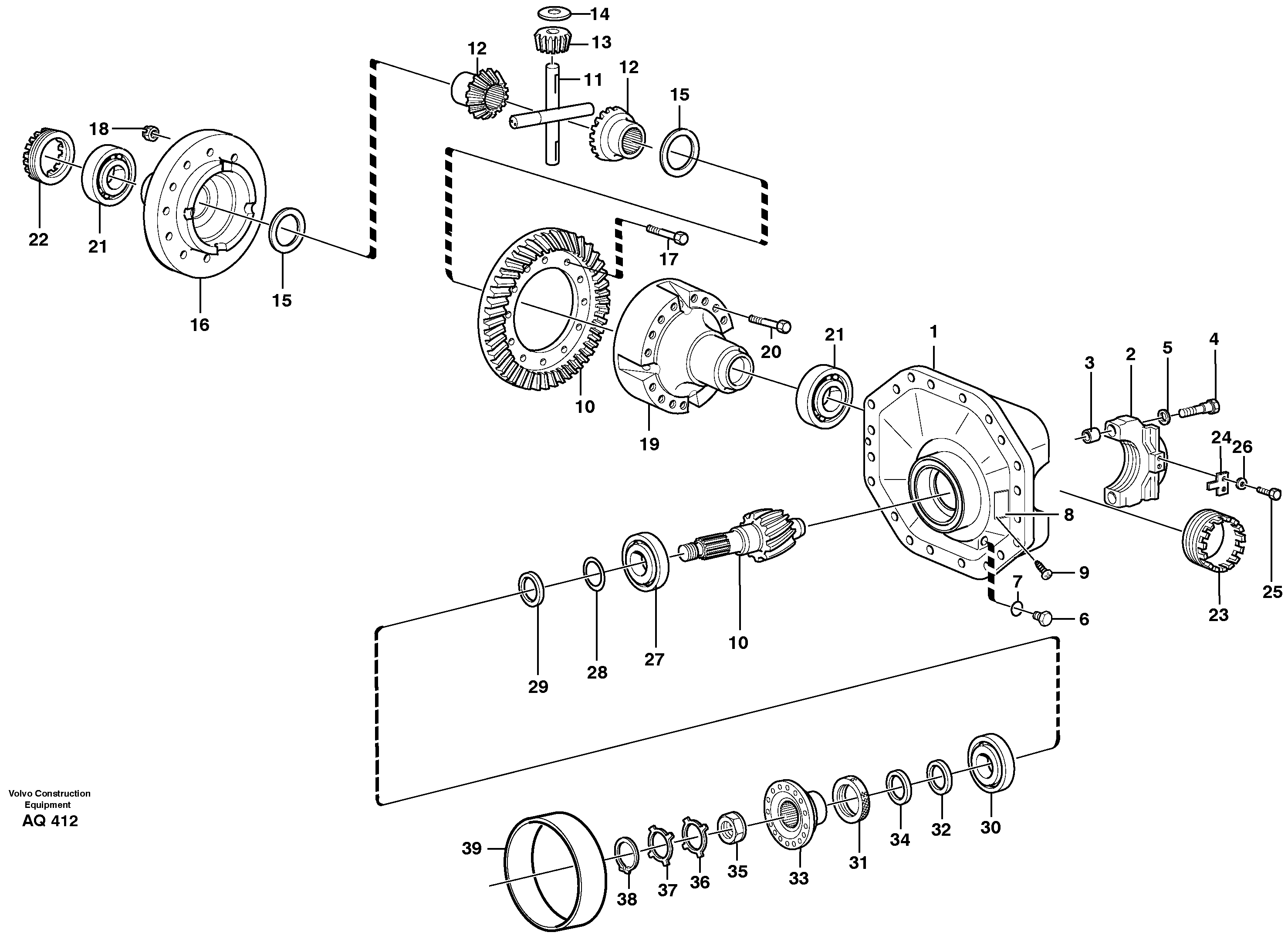

Final drive, rear AWB 30

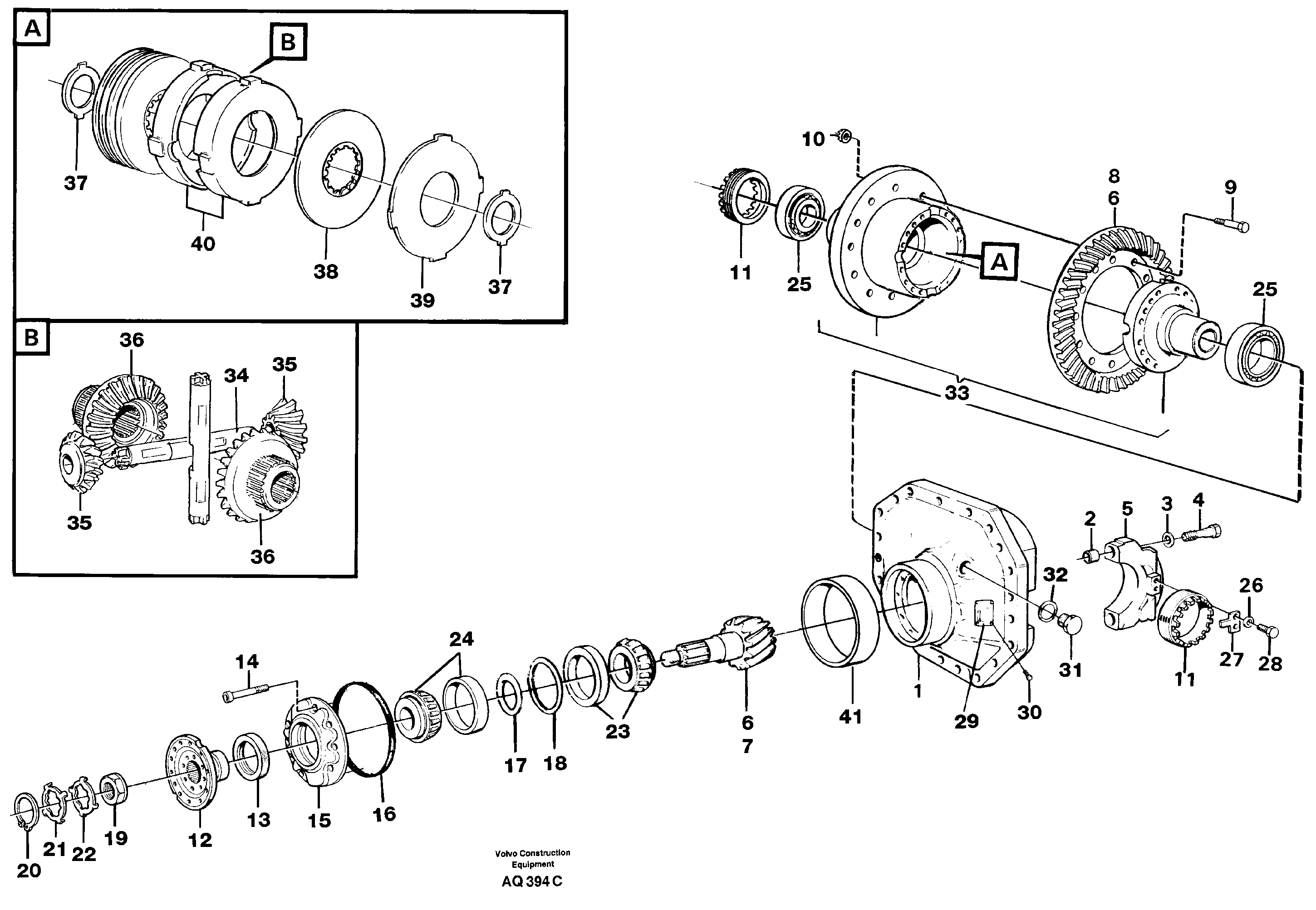

Differential Carrier, rear 94689

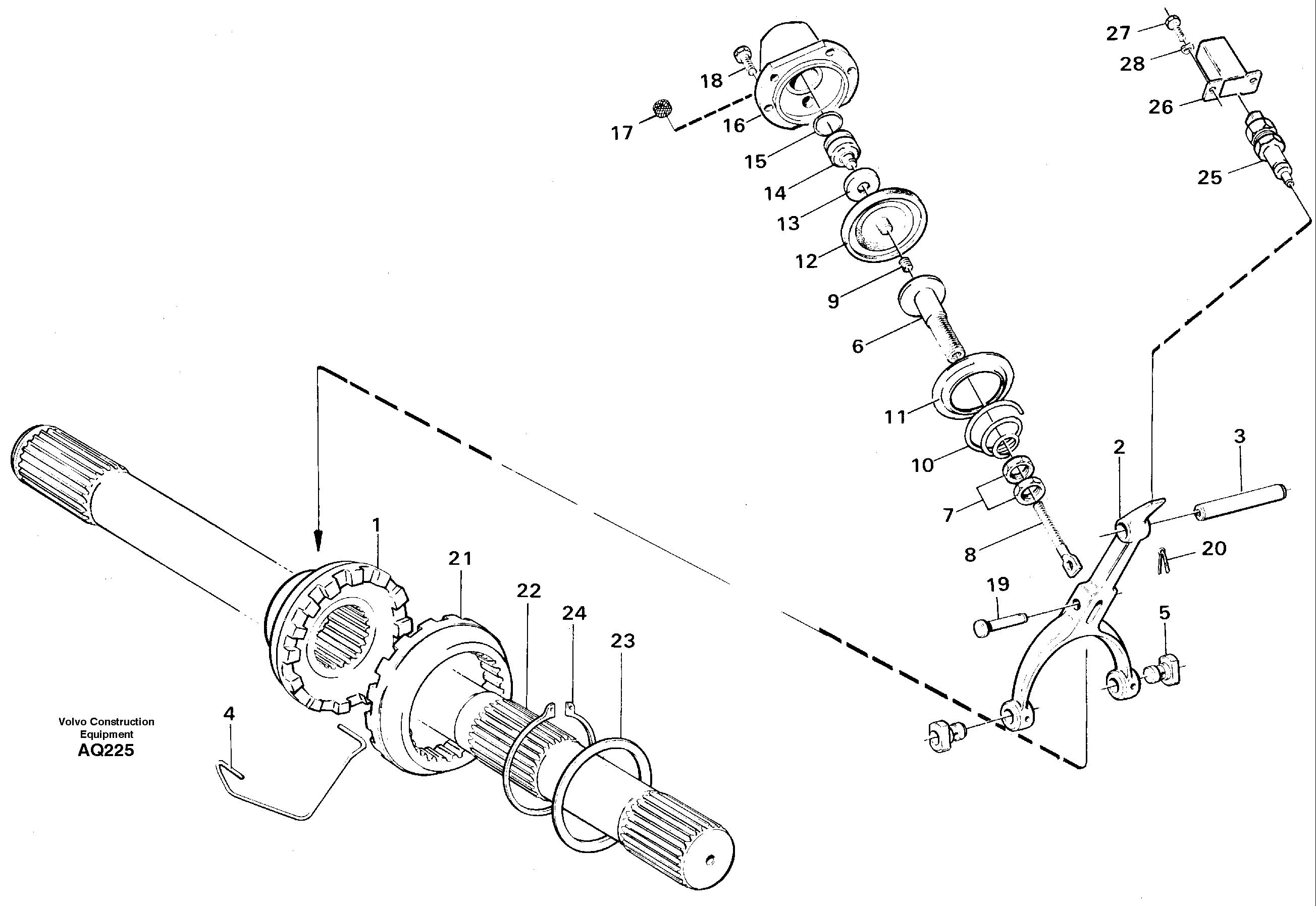

Differential lock

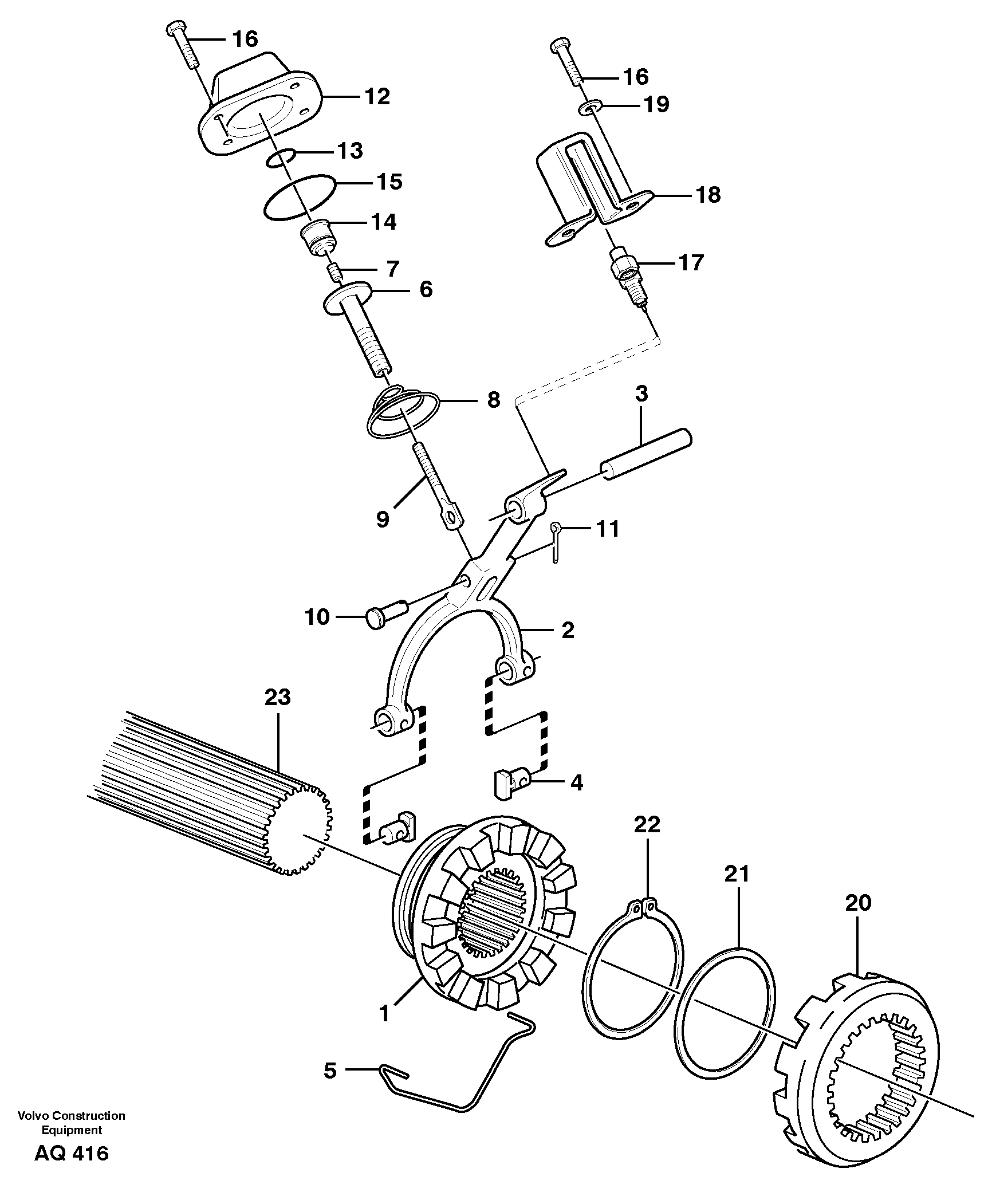

Differential lock AWB 31

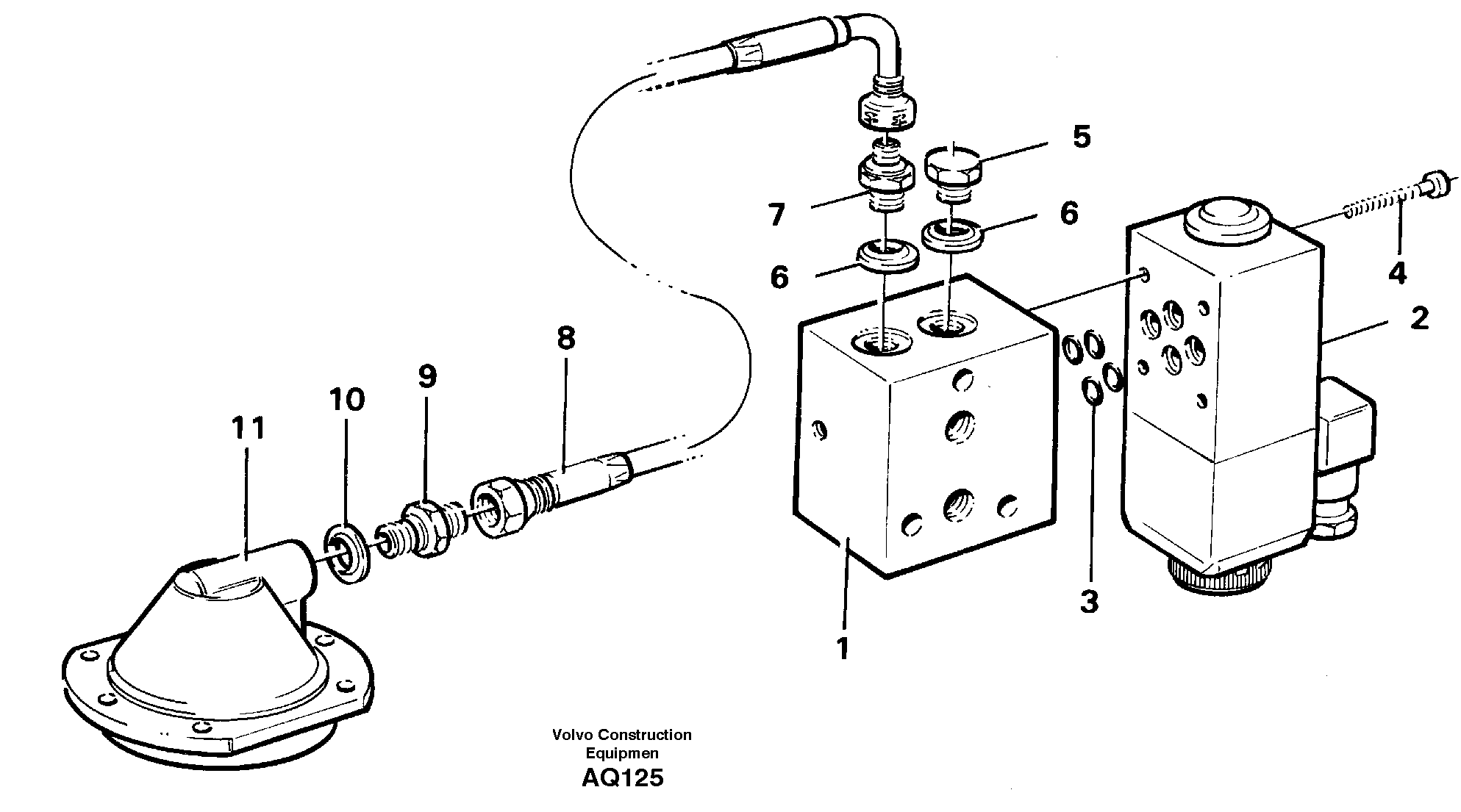

Differential lock hydraulic line
Miscellaneous

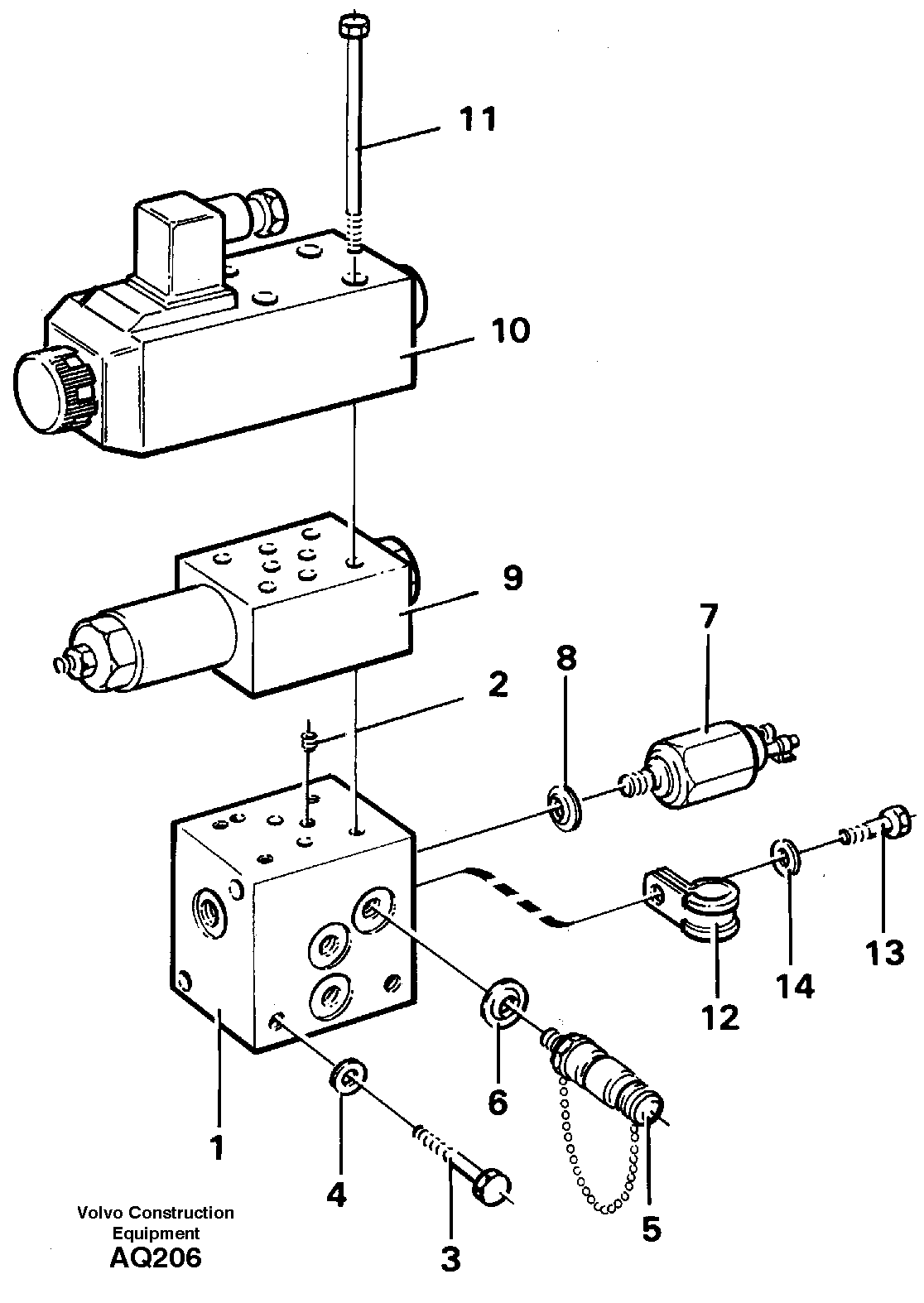

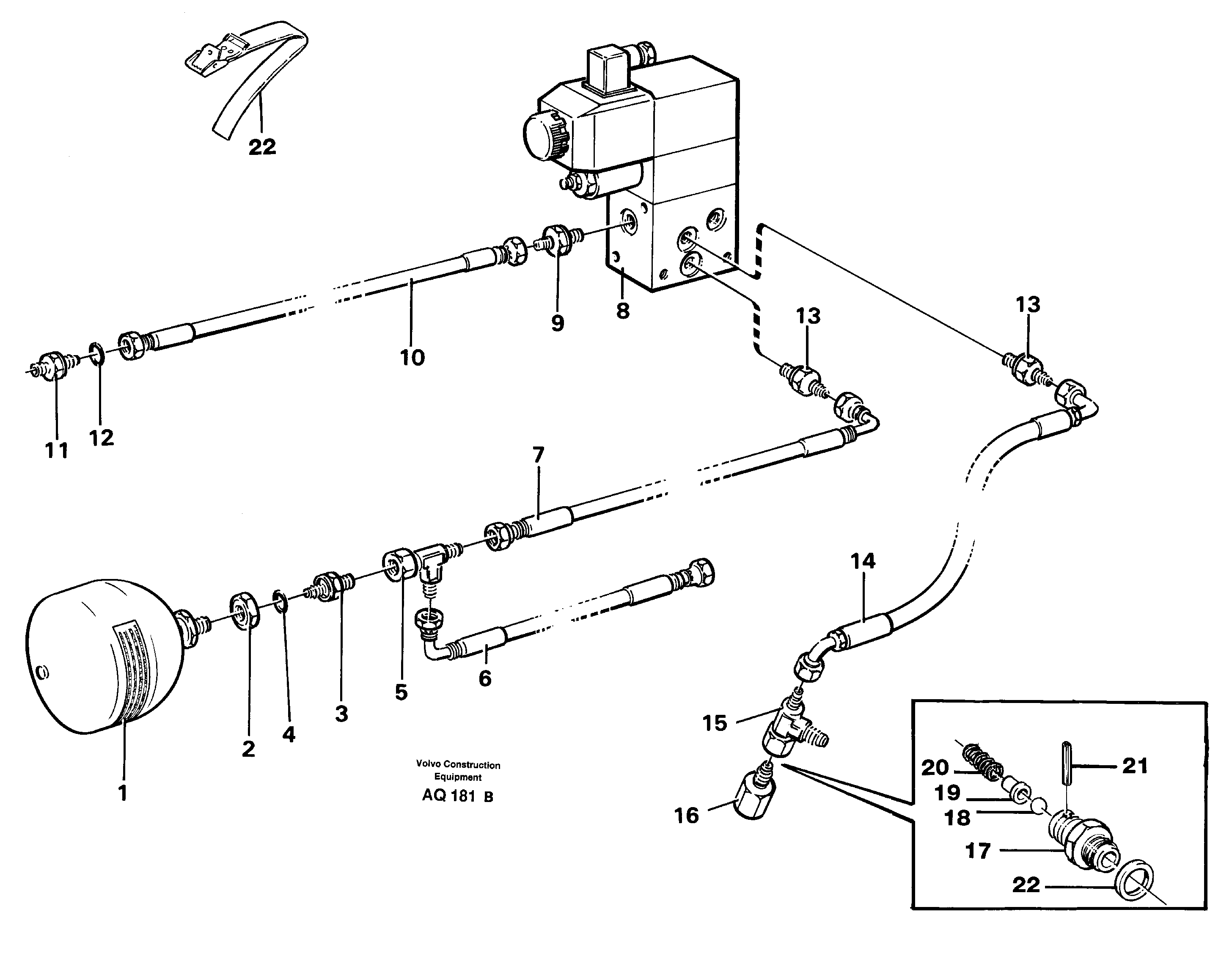

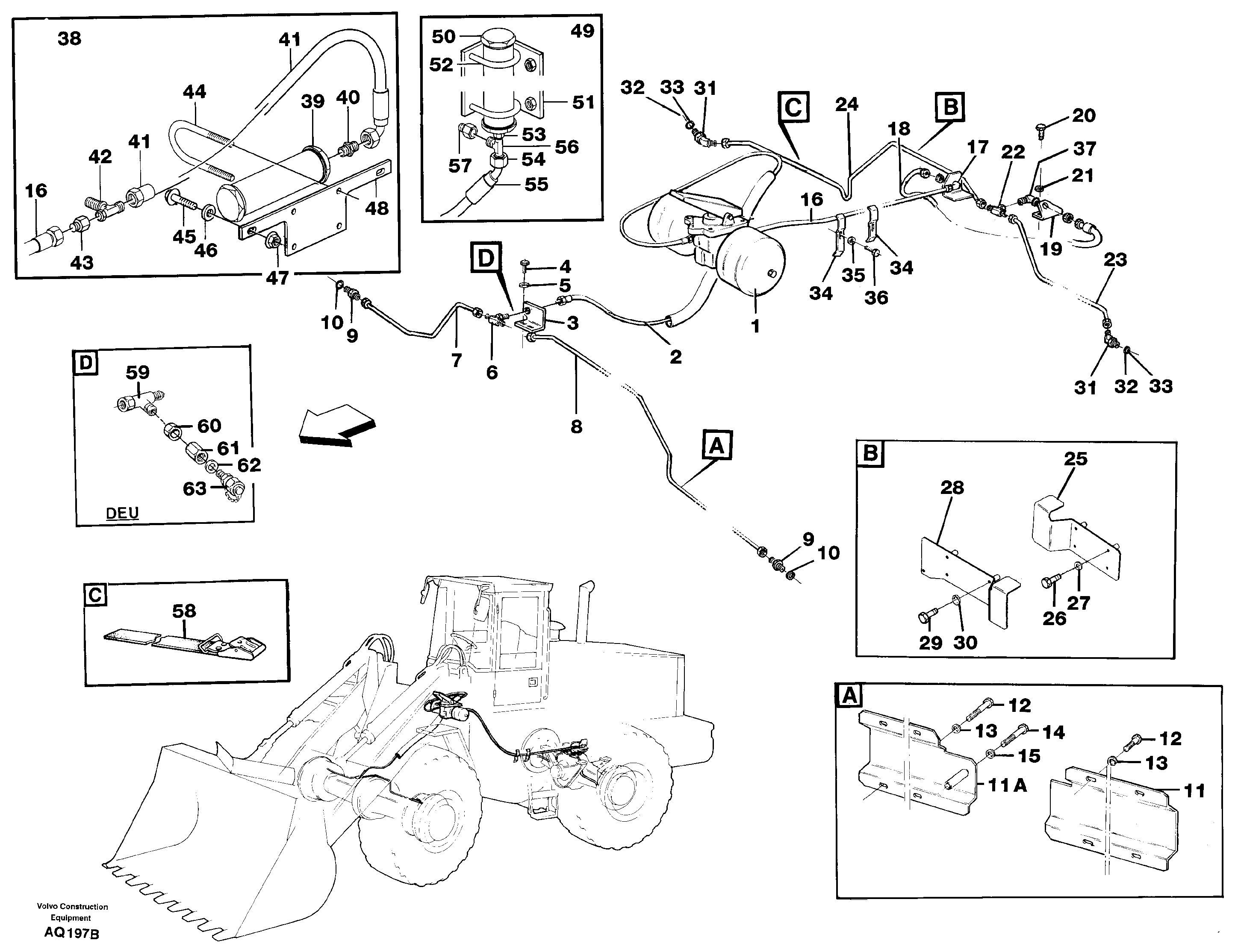

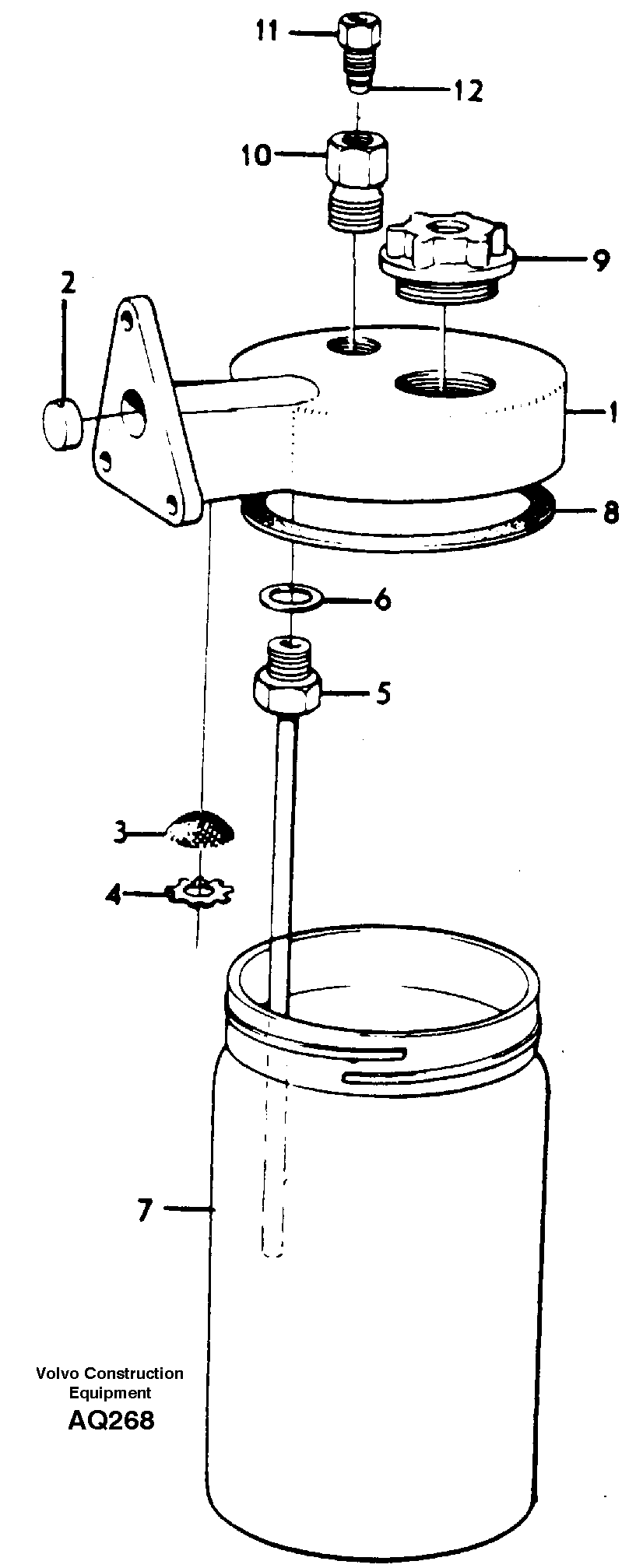

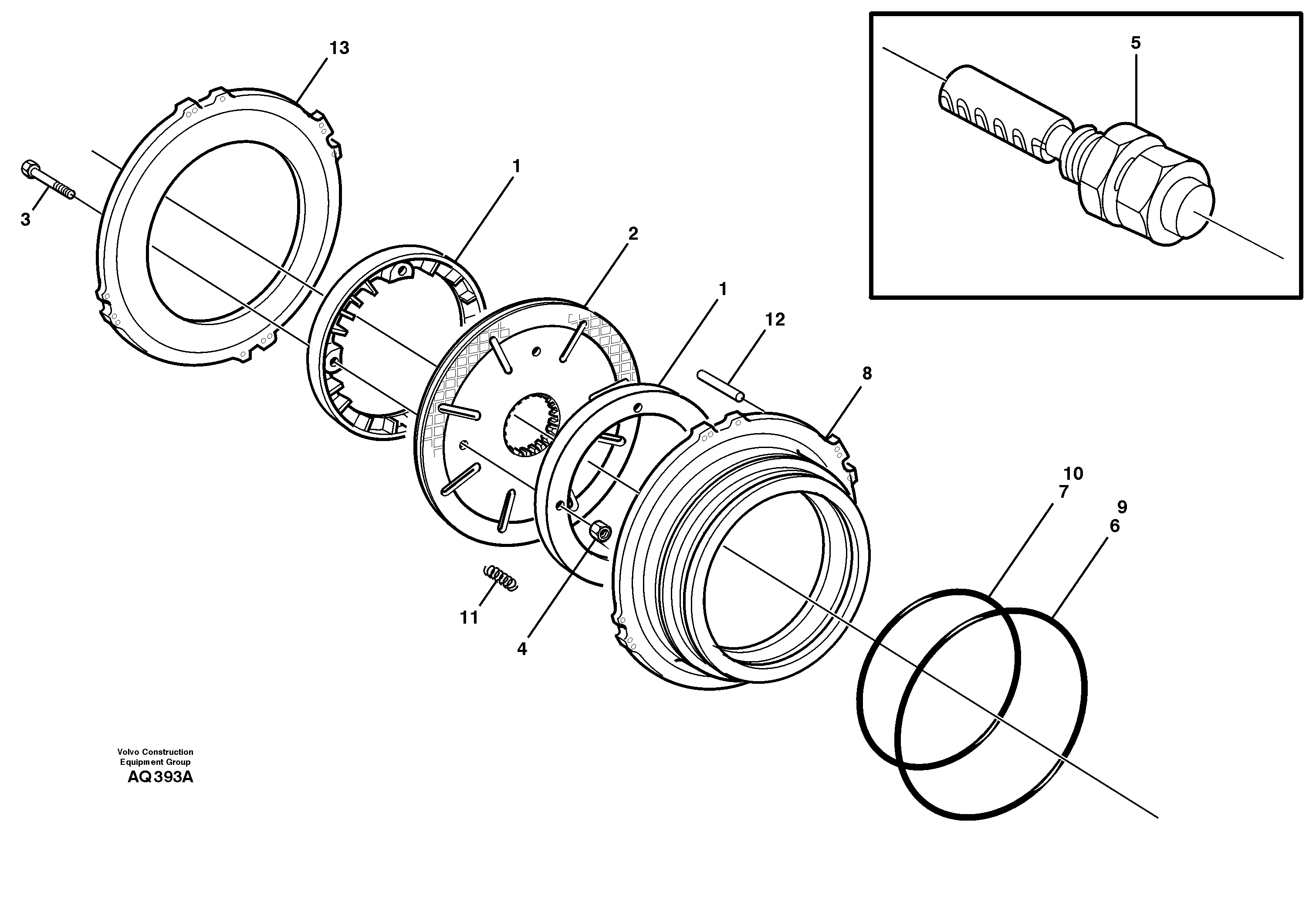

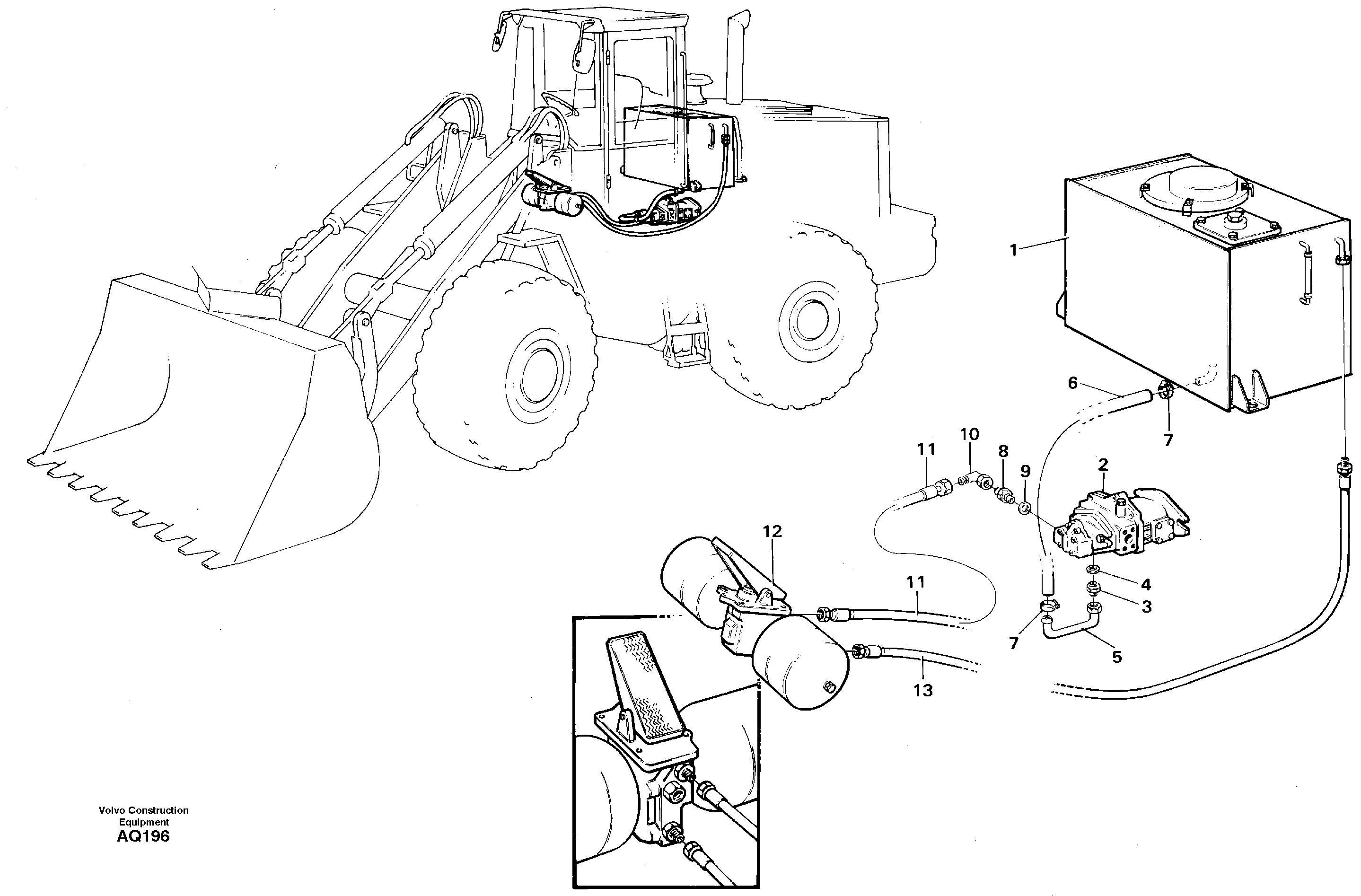

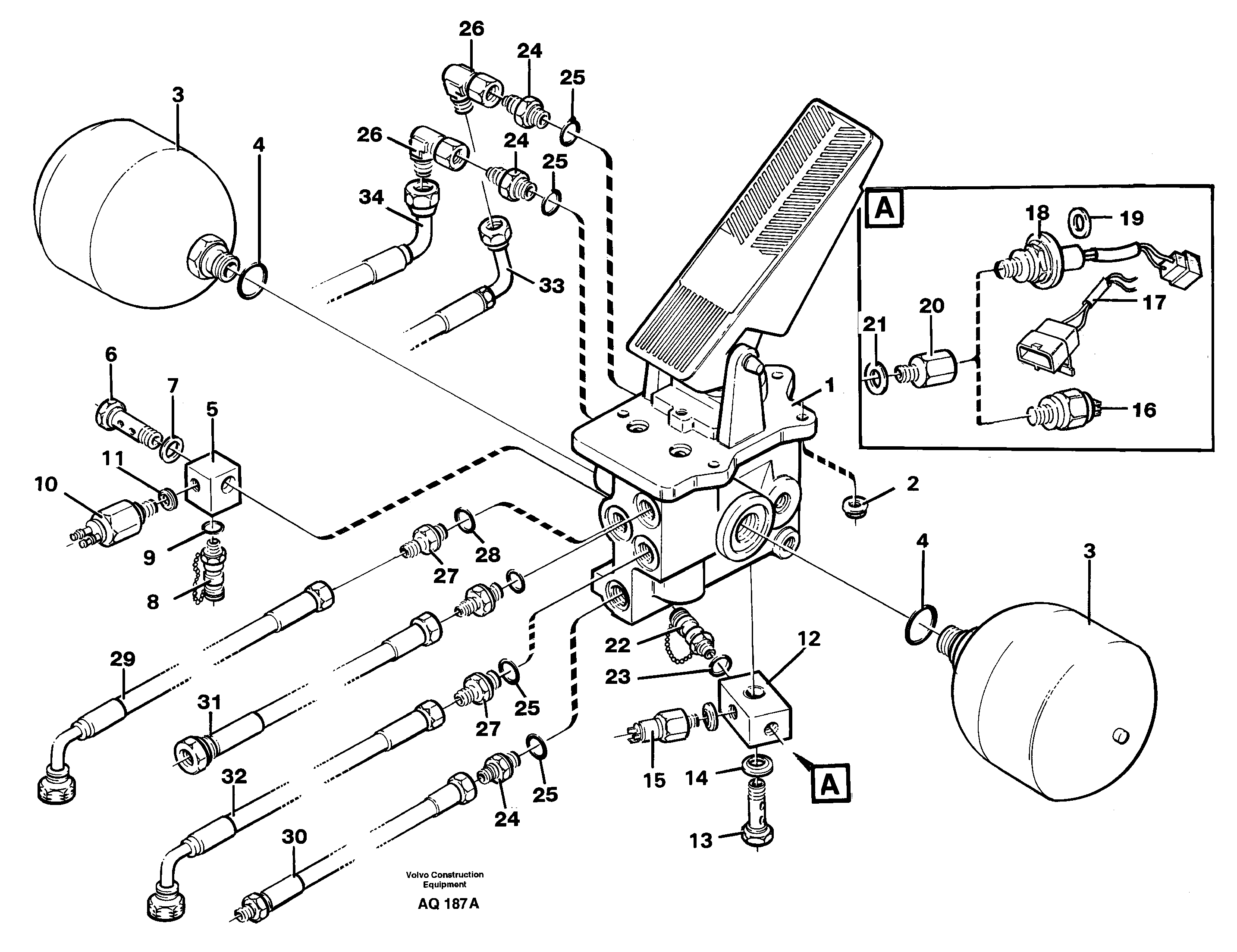

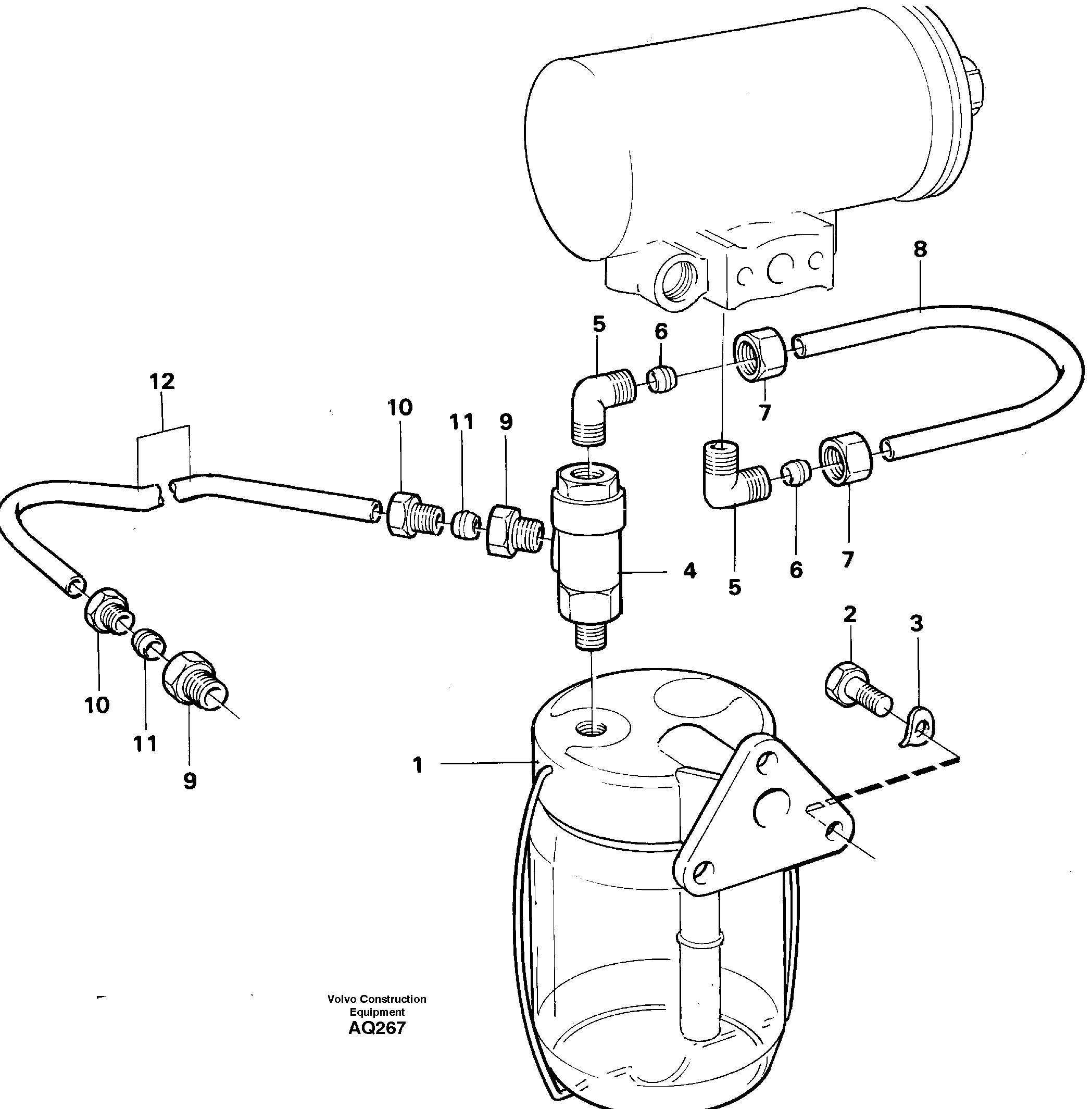

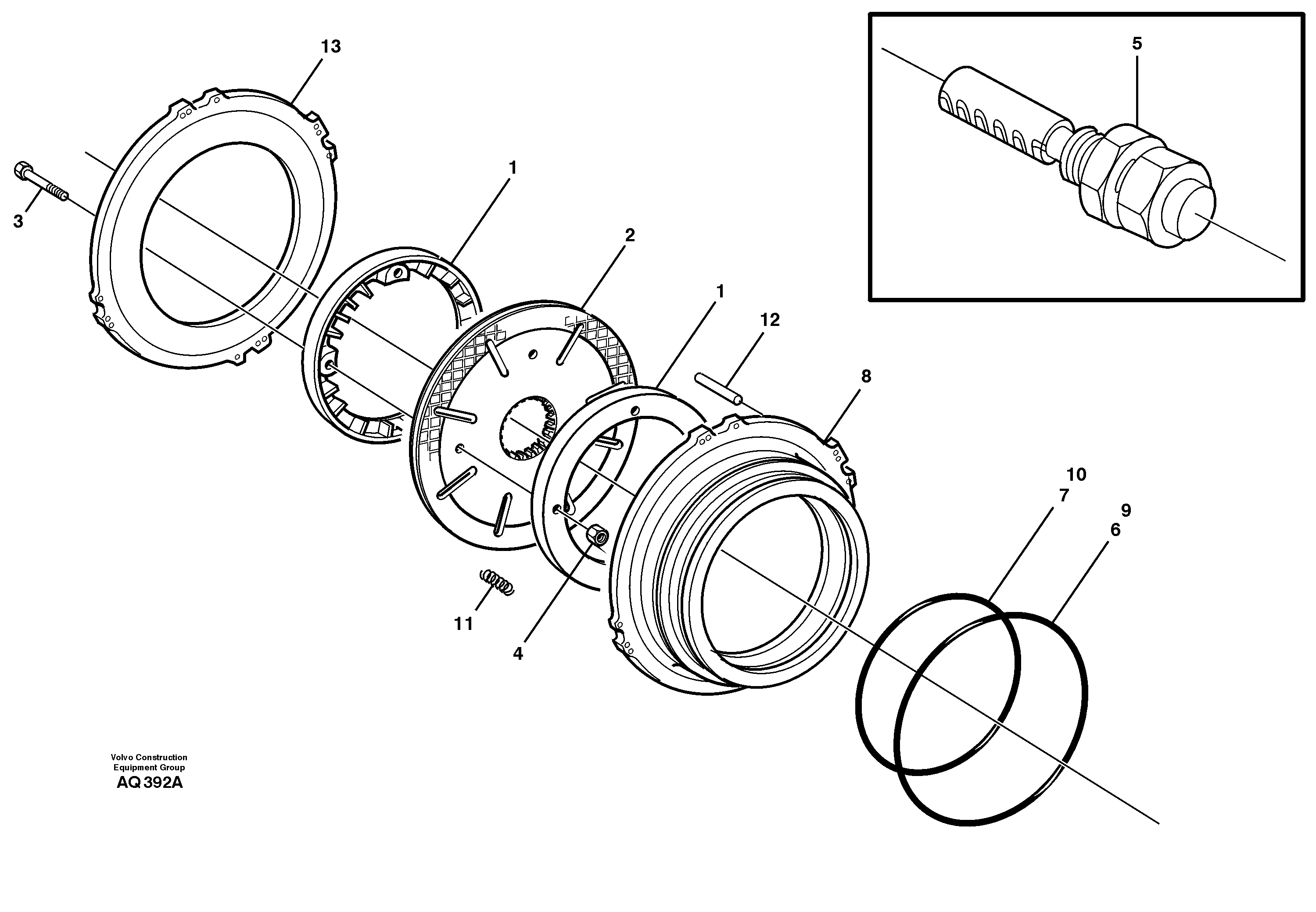

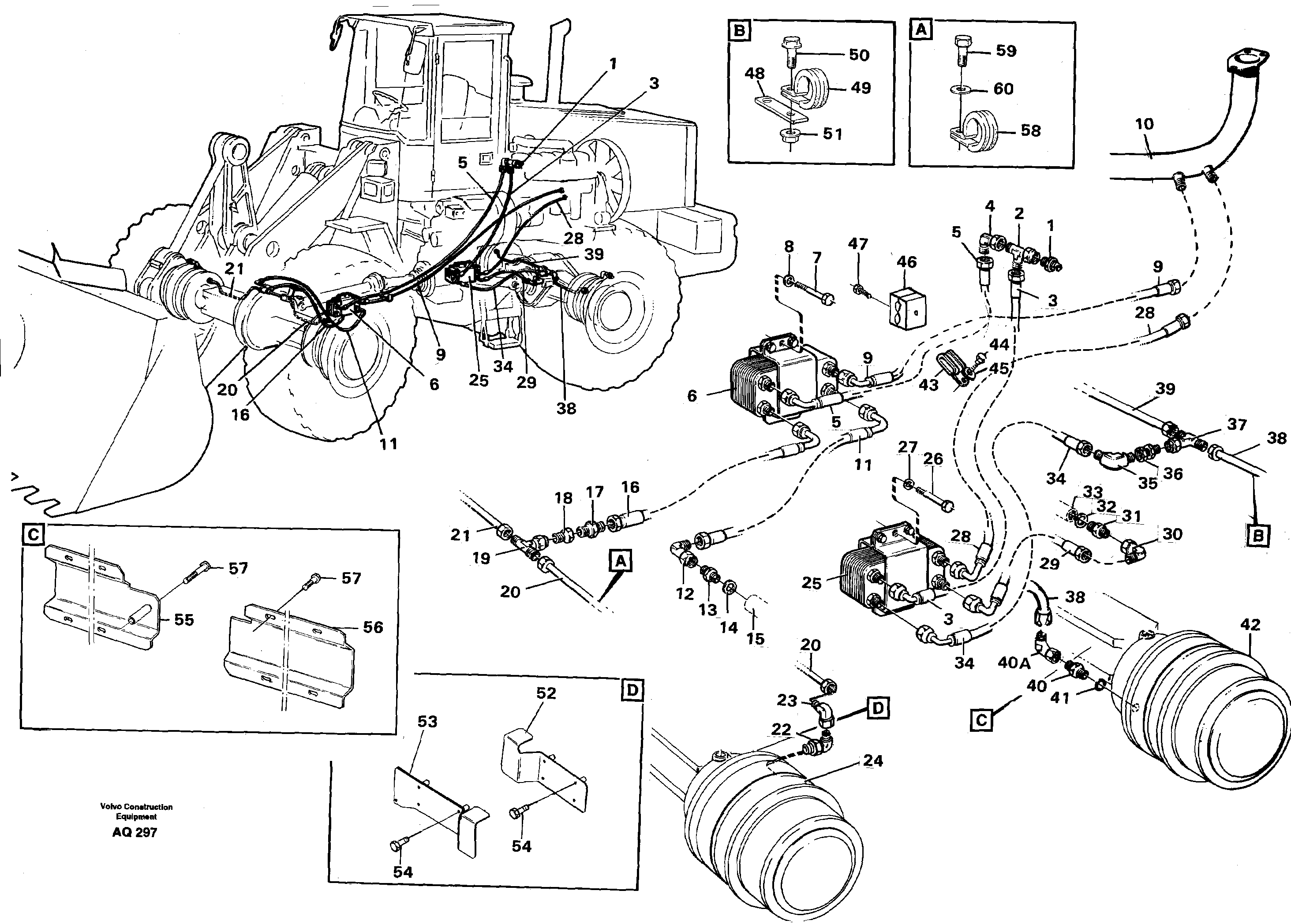

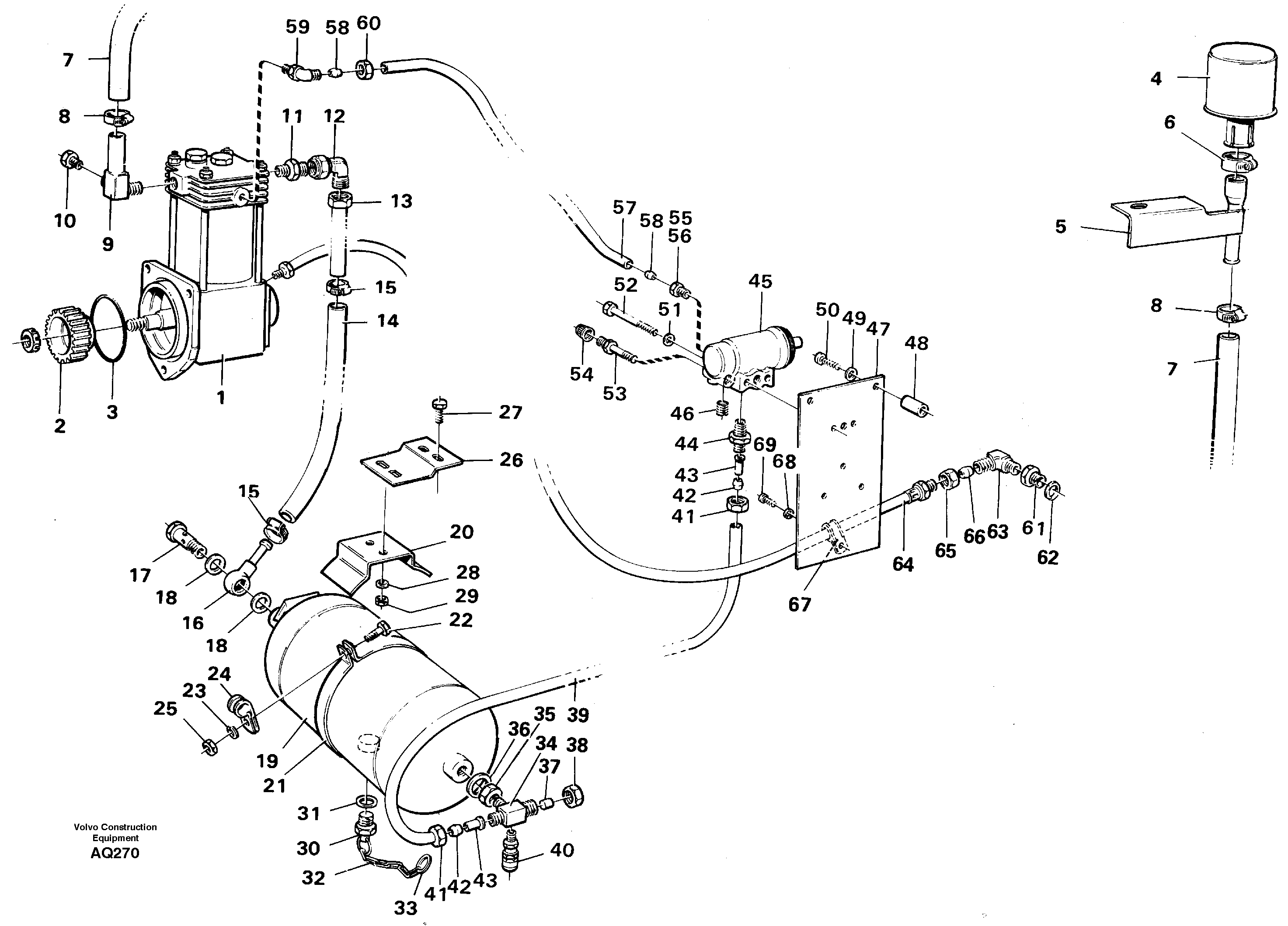

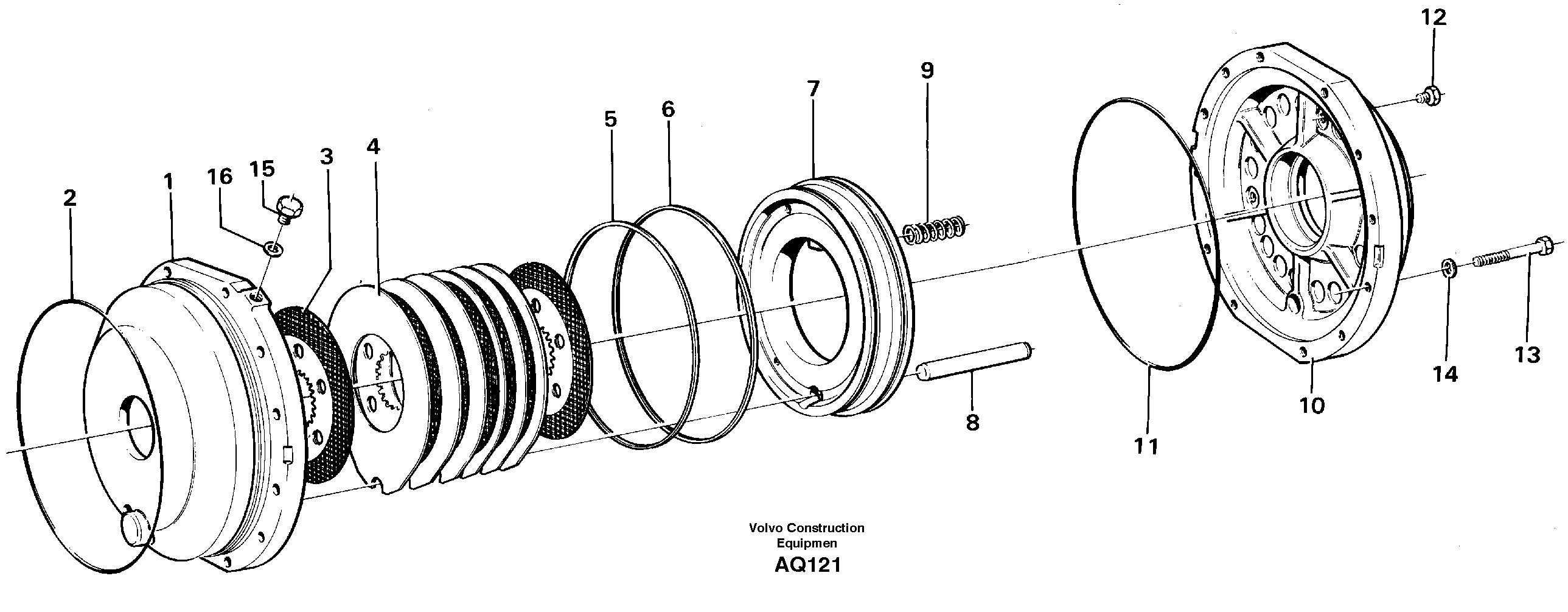

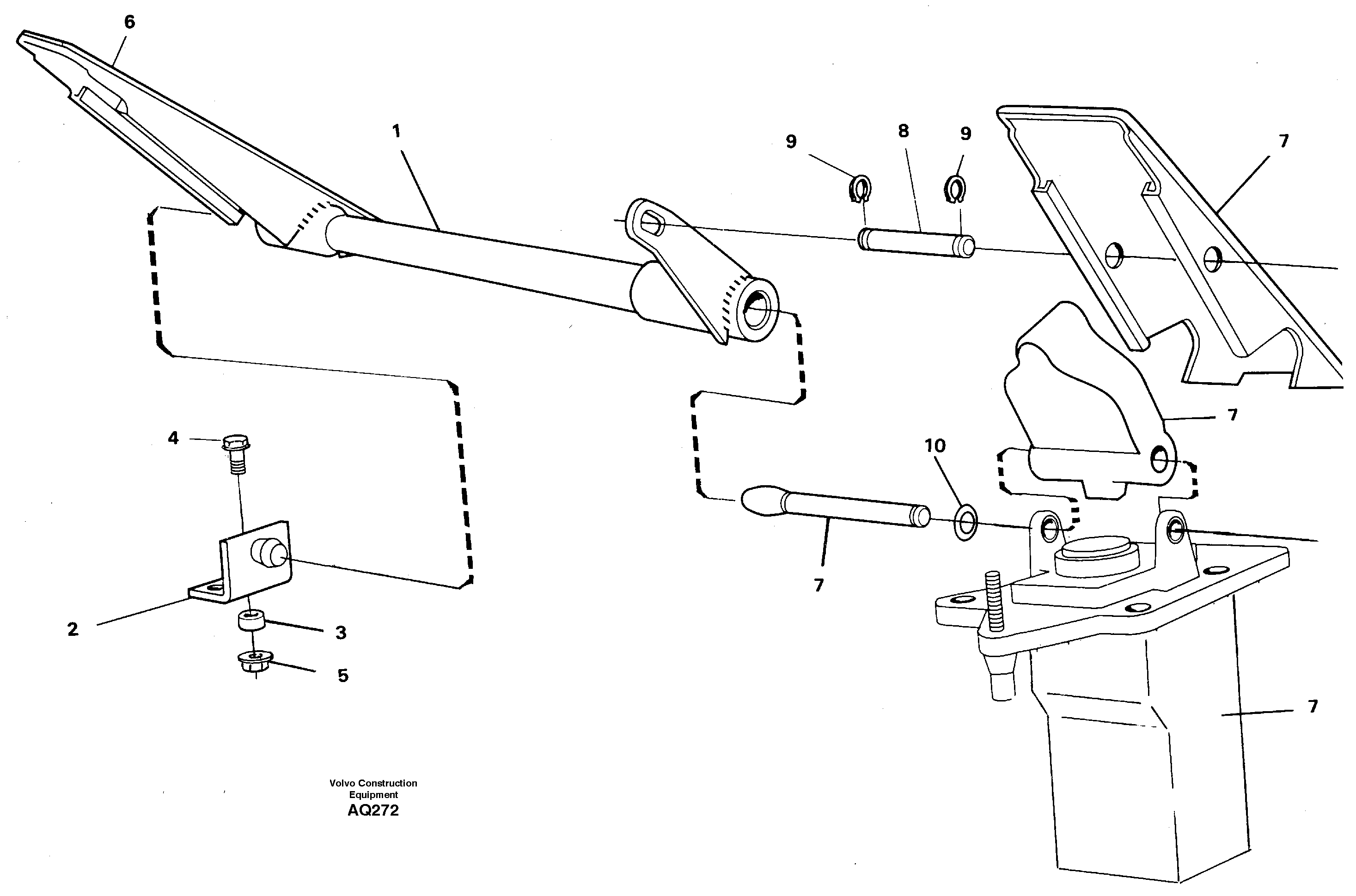

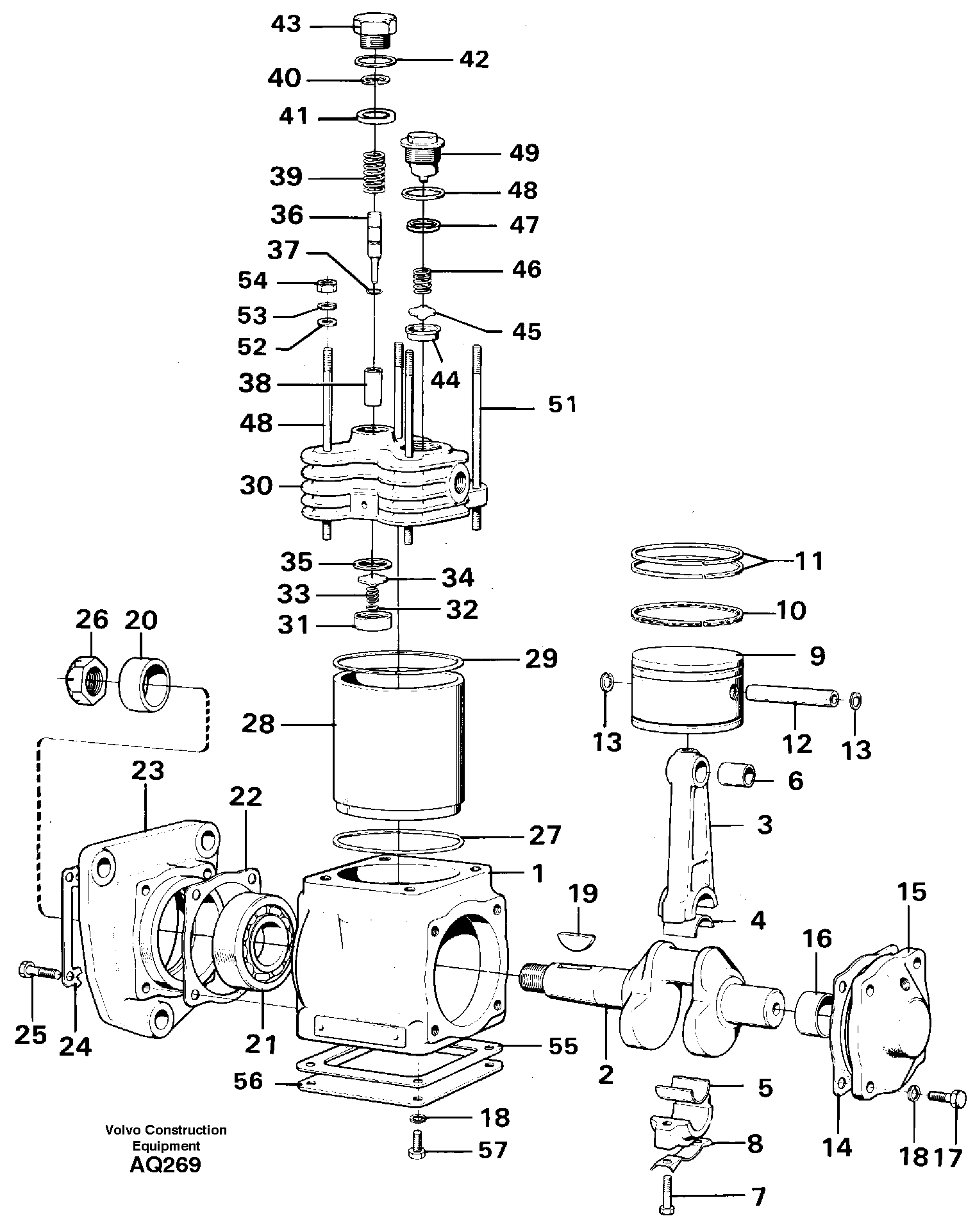

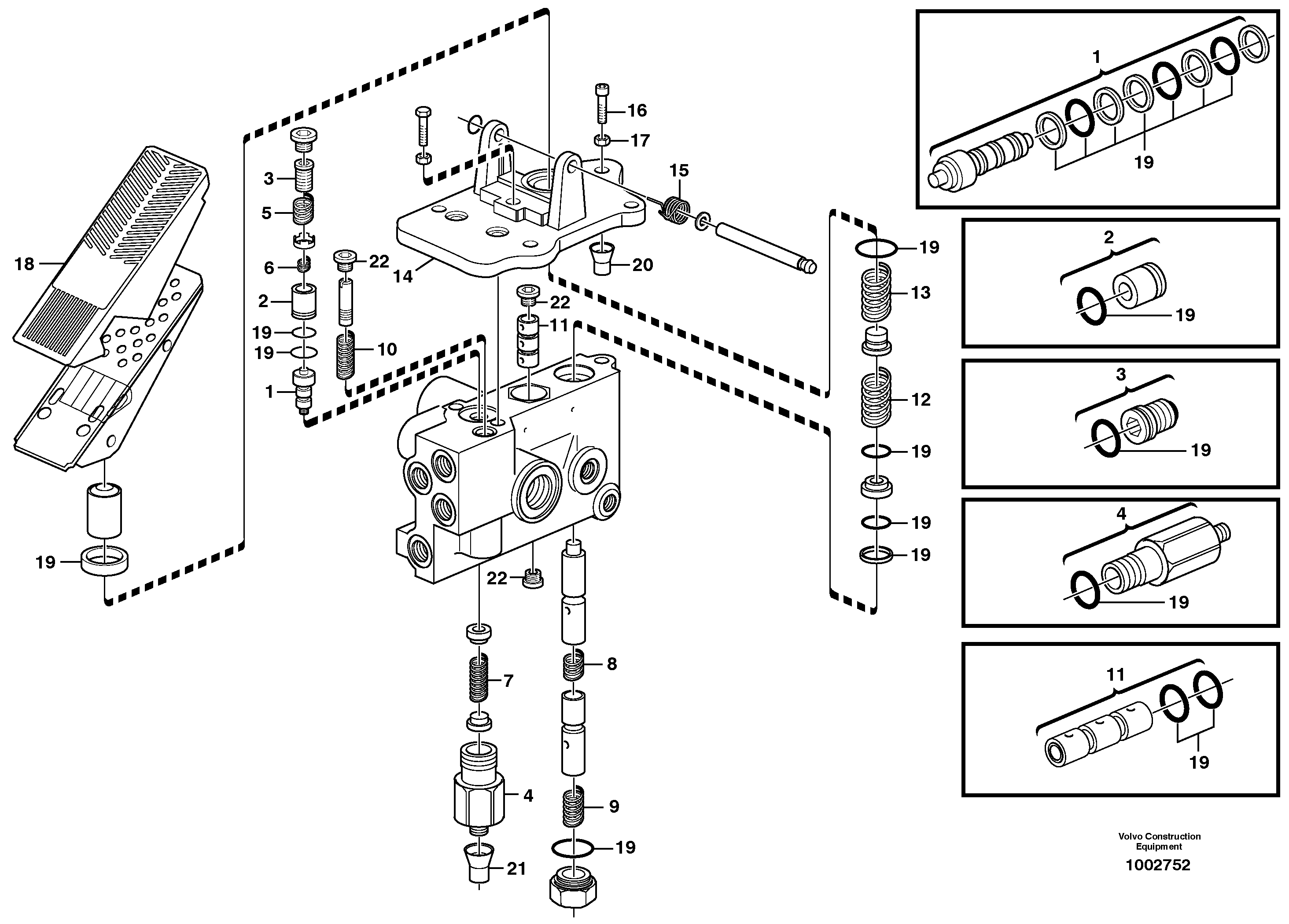

Brake
Steering
Steering

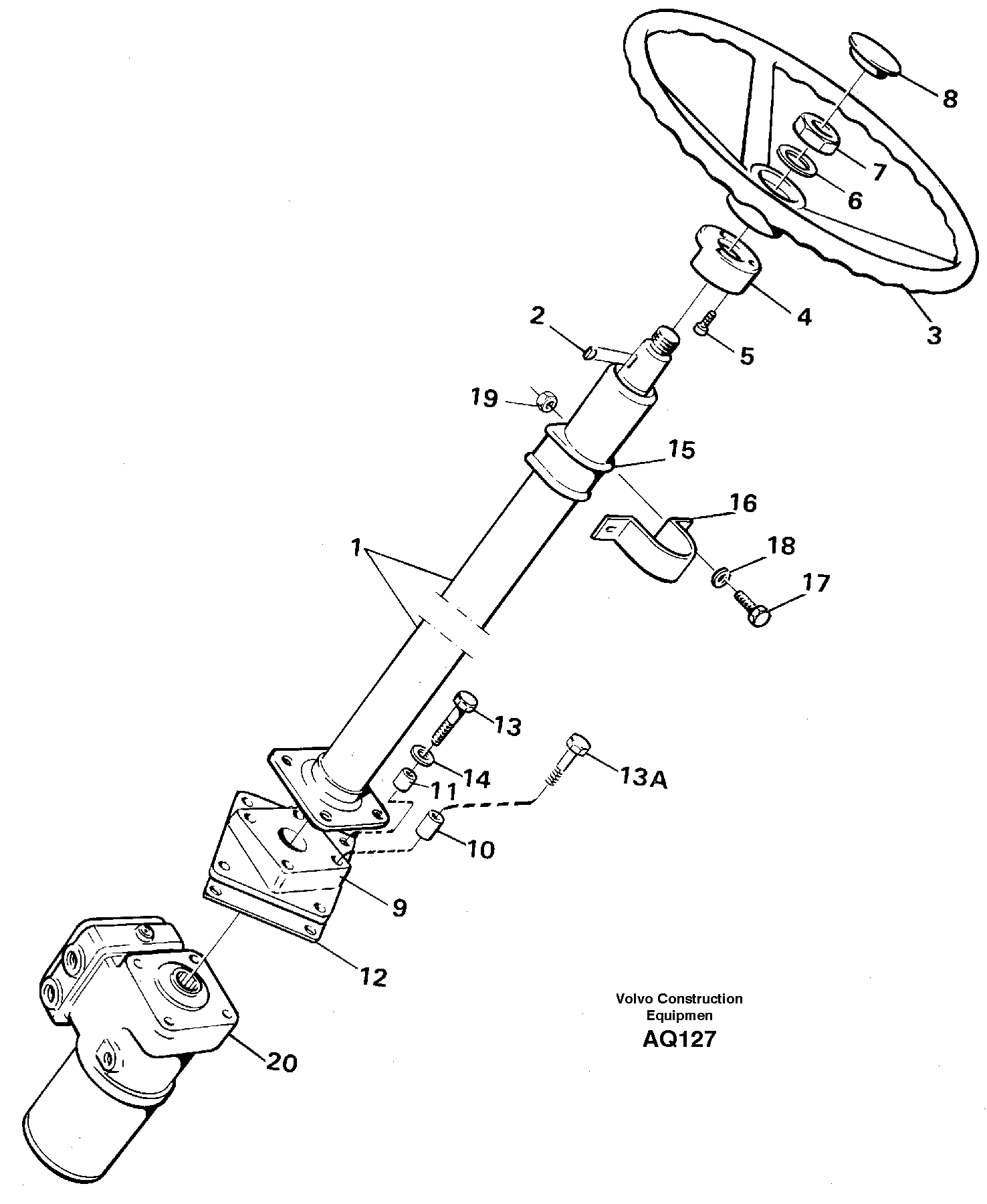

Steering column assembly

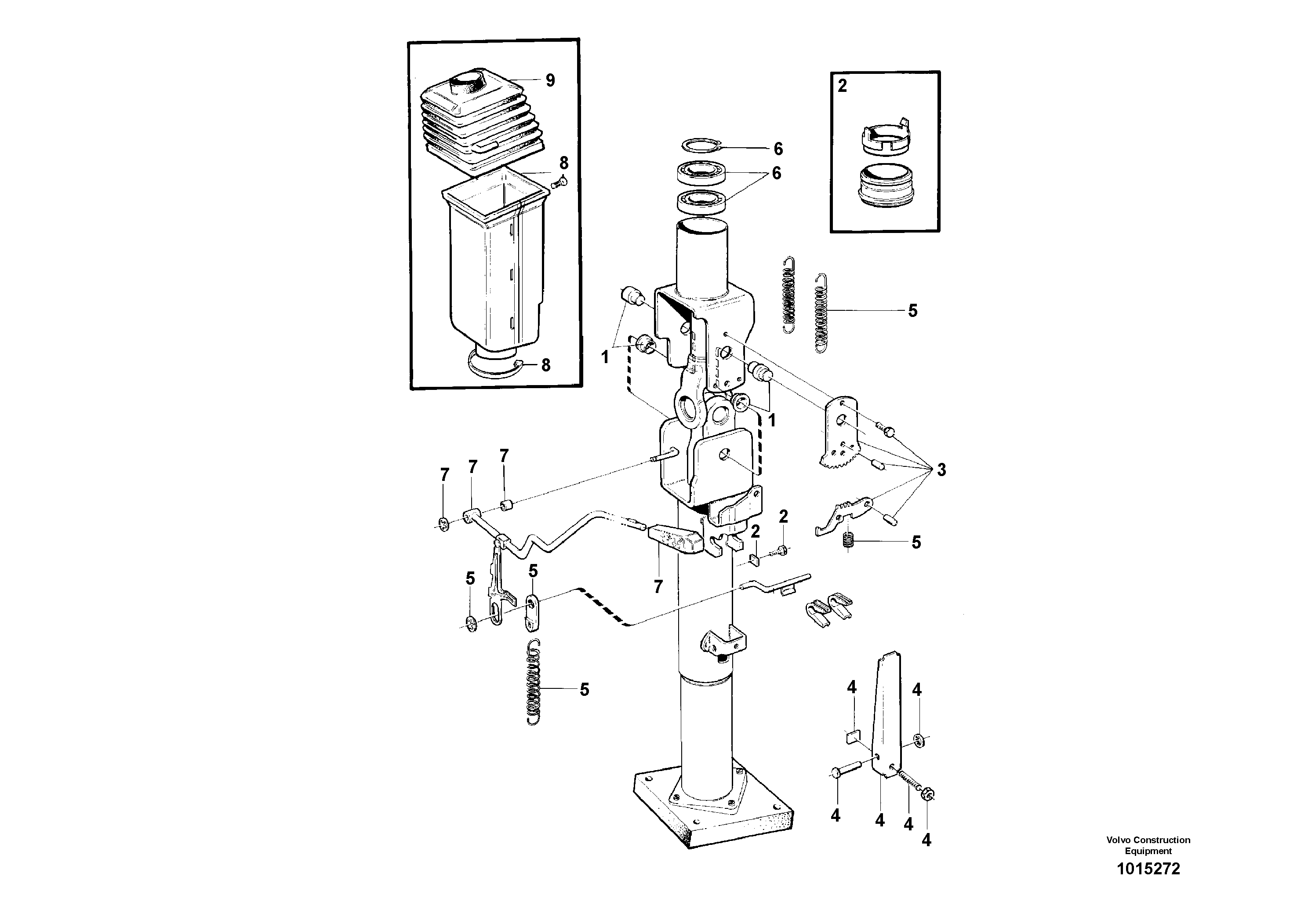

Adjustable steering wheel 92029

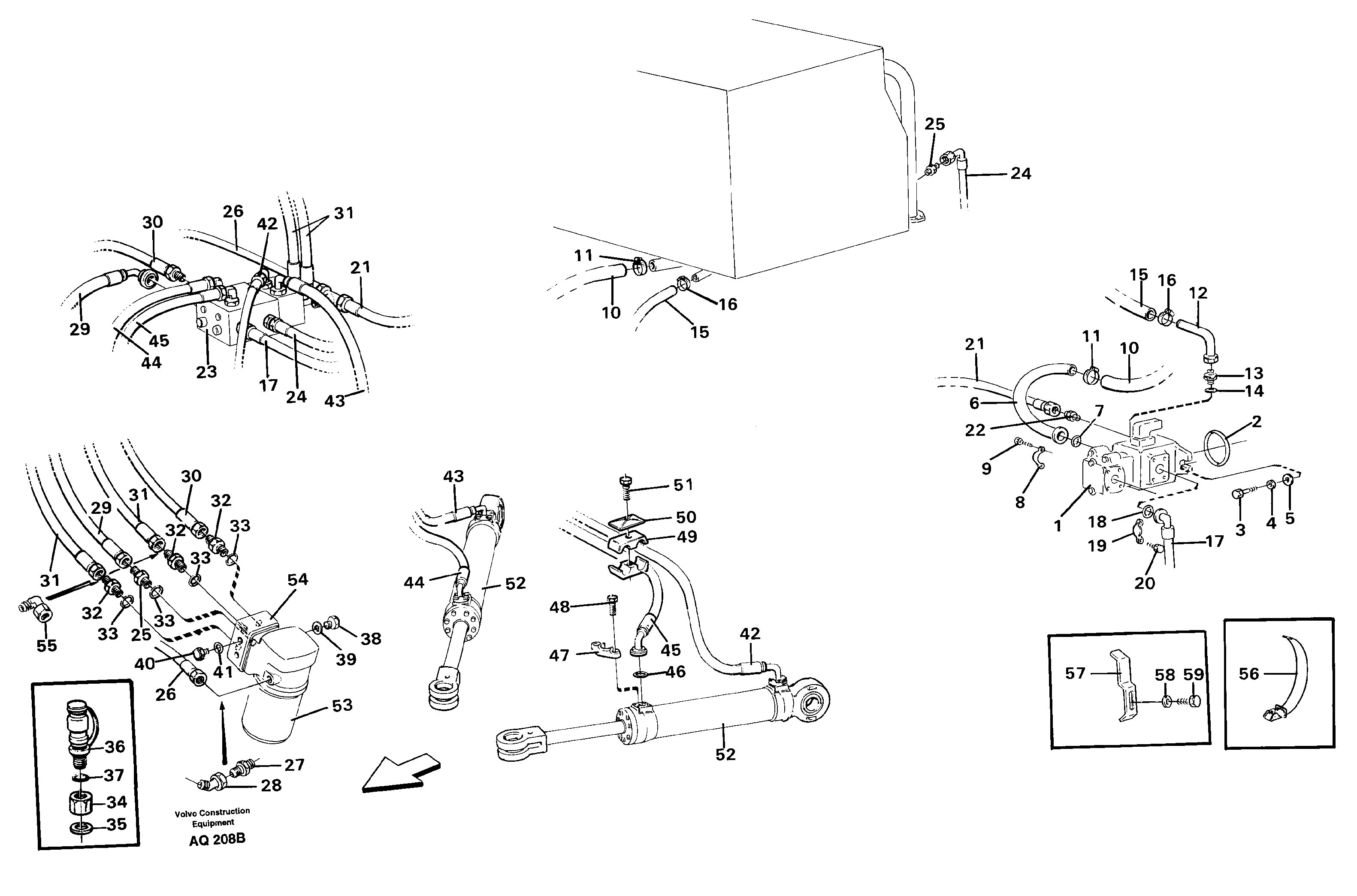

Steering system

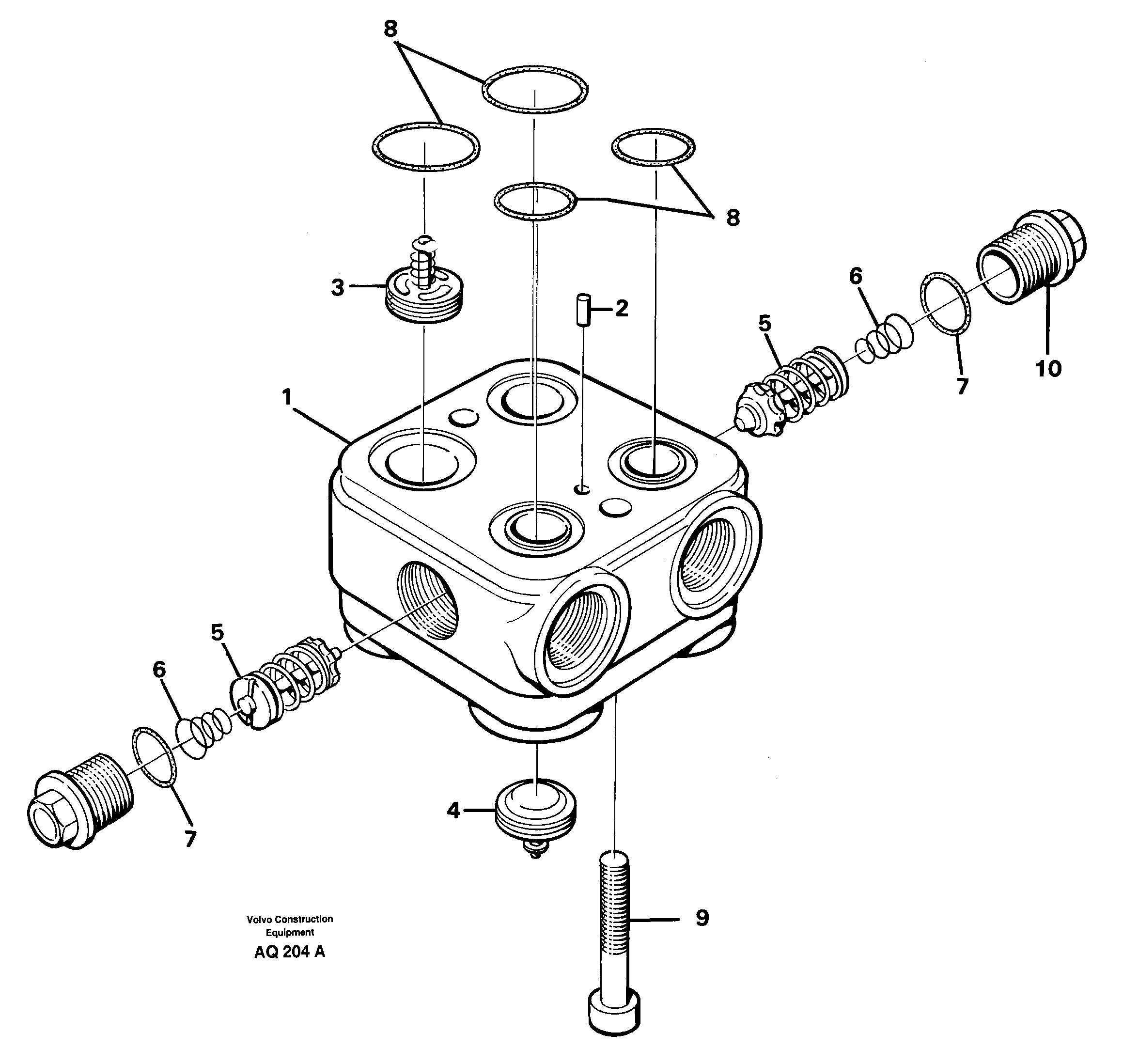

Valve housing

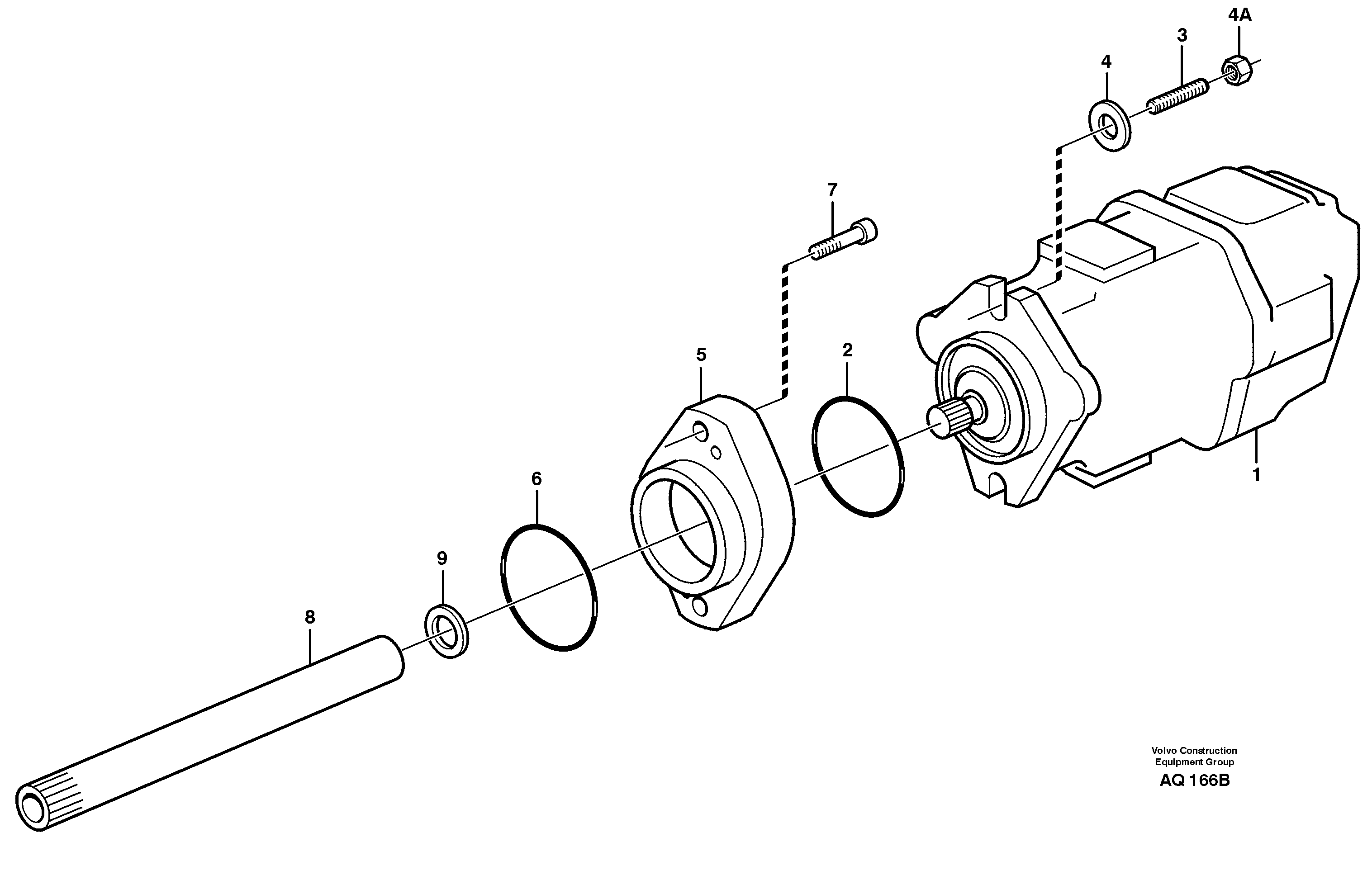

Hydraulic pump assembly

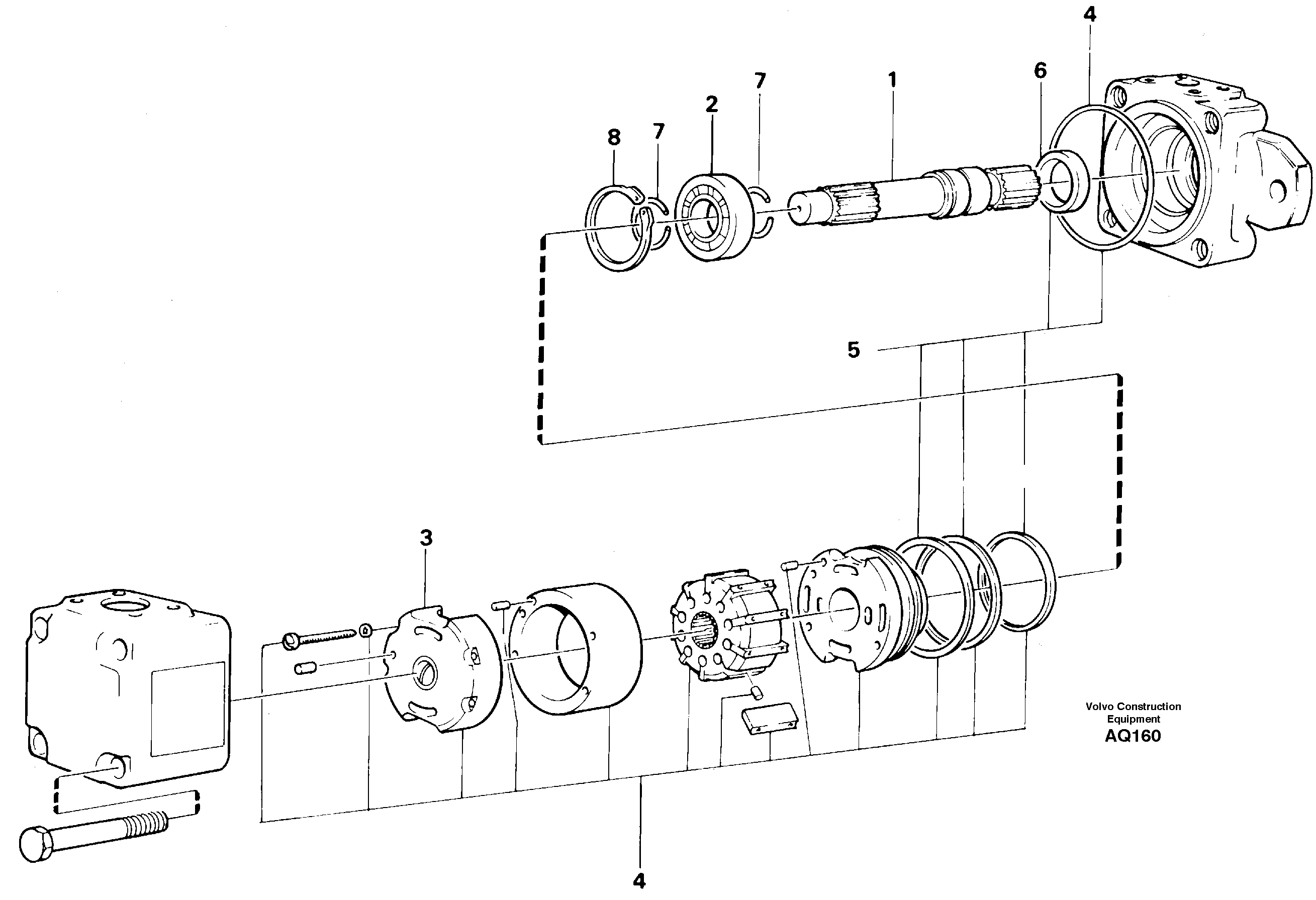

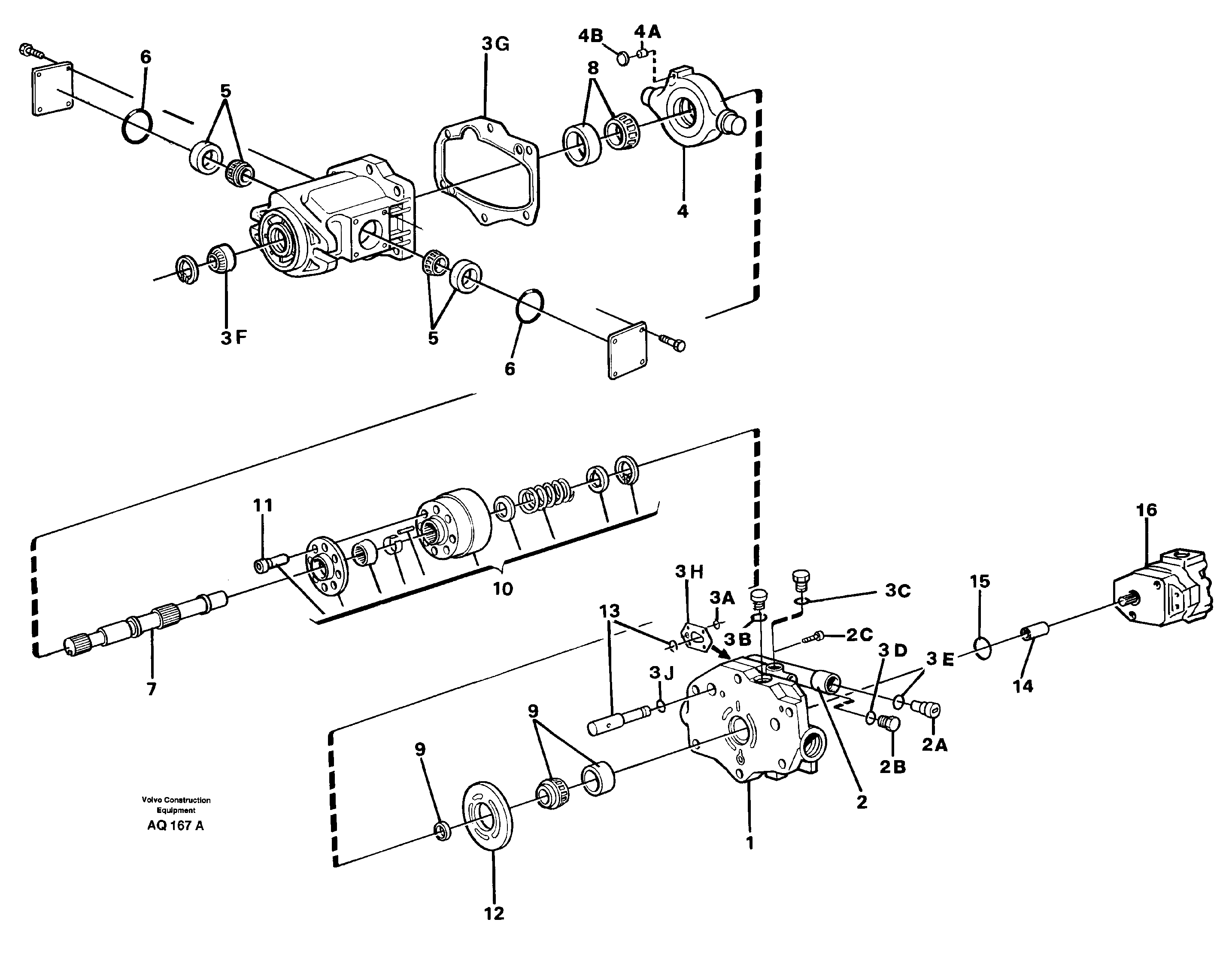

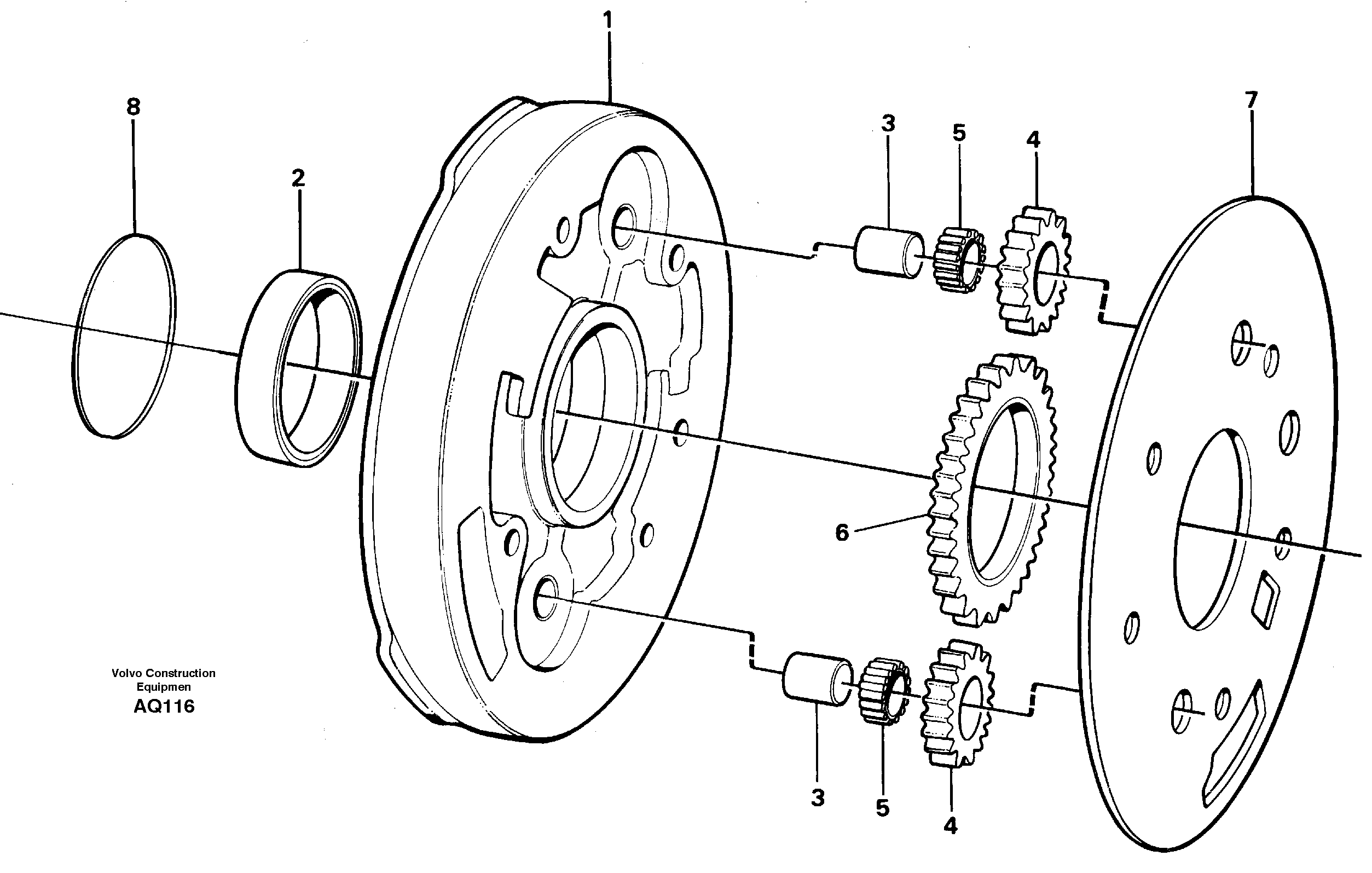

Hydraulic pump

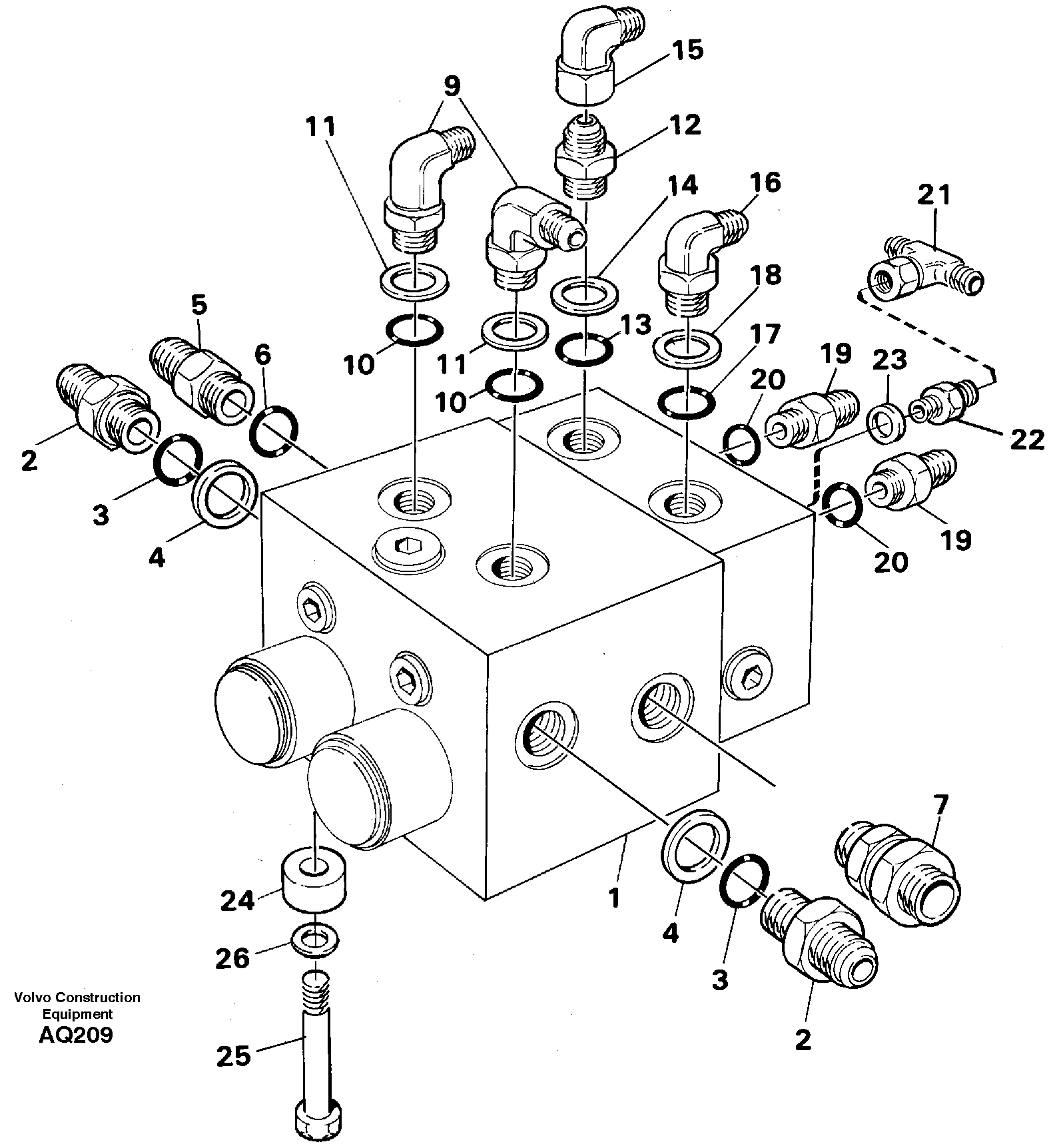

Shift valve, assembly

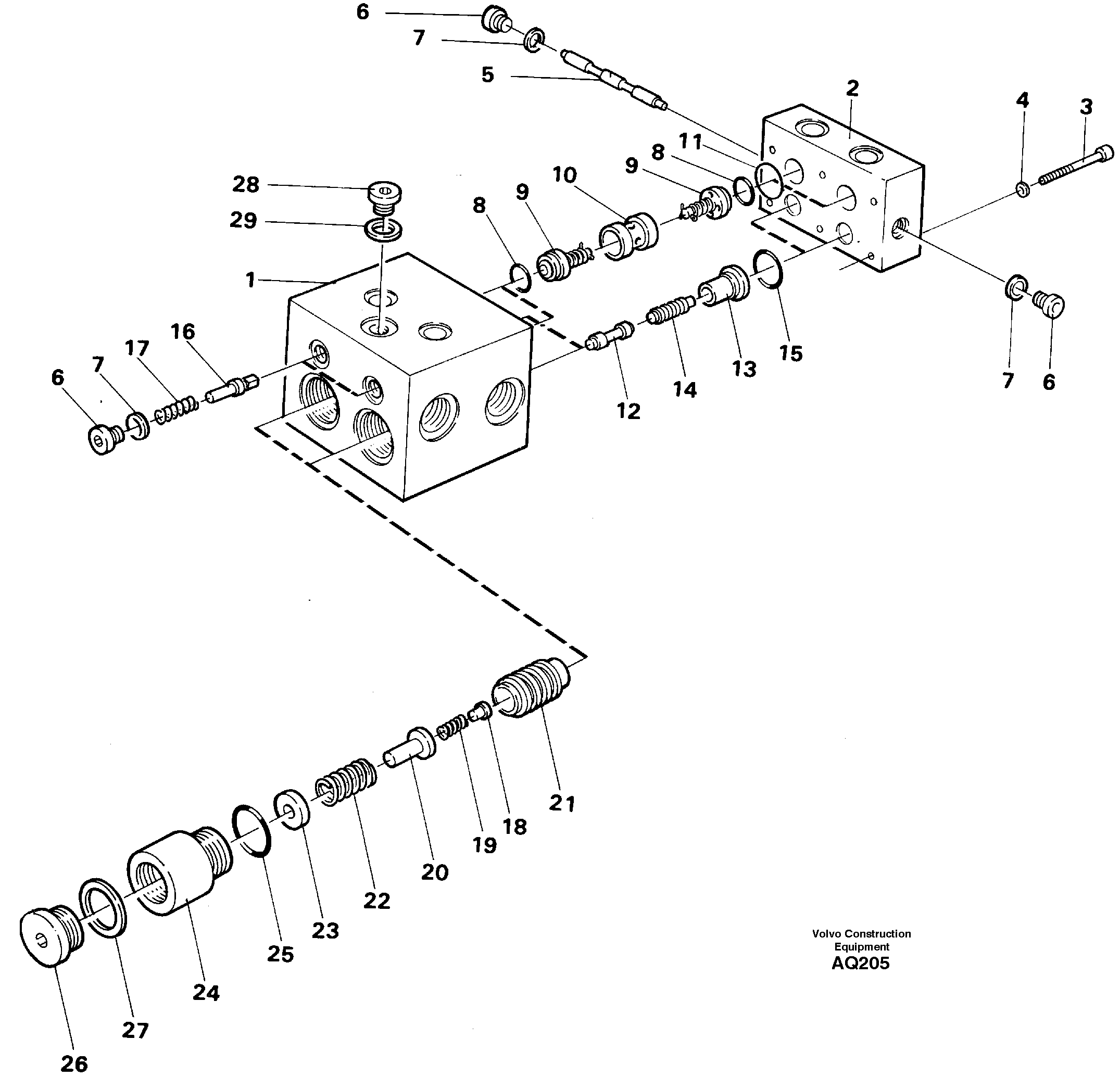

Shift valve

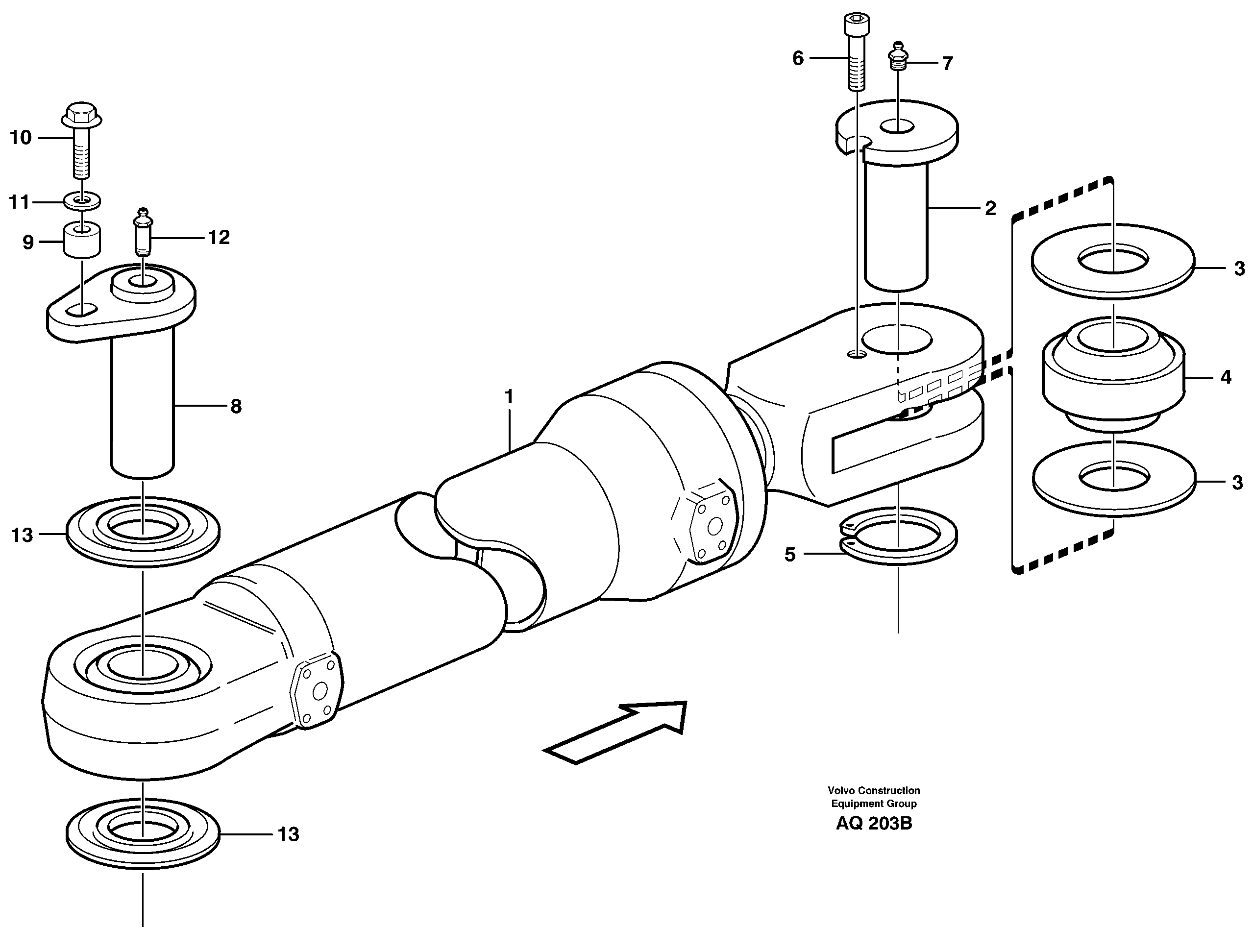

Hydraulic cylinder Assembly

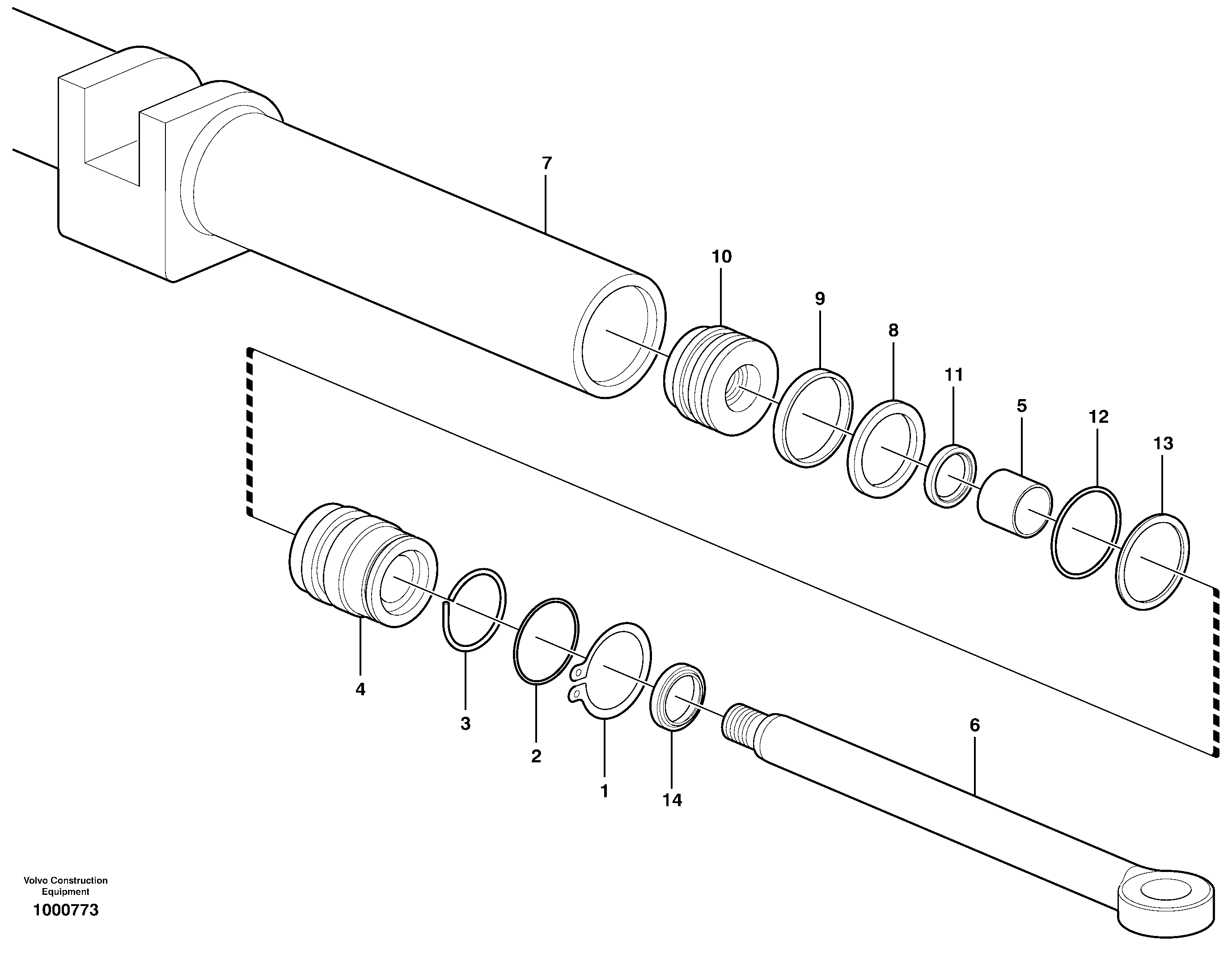

Hydraulic cylinder

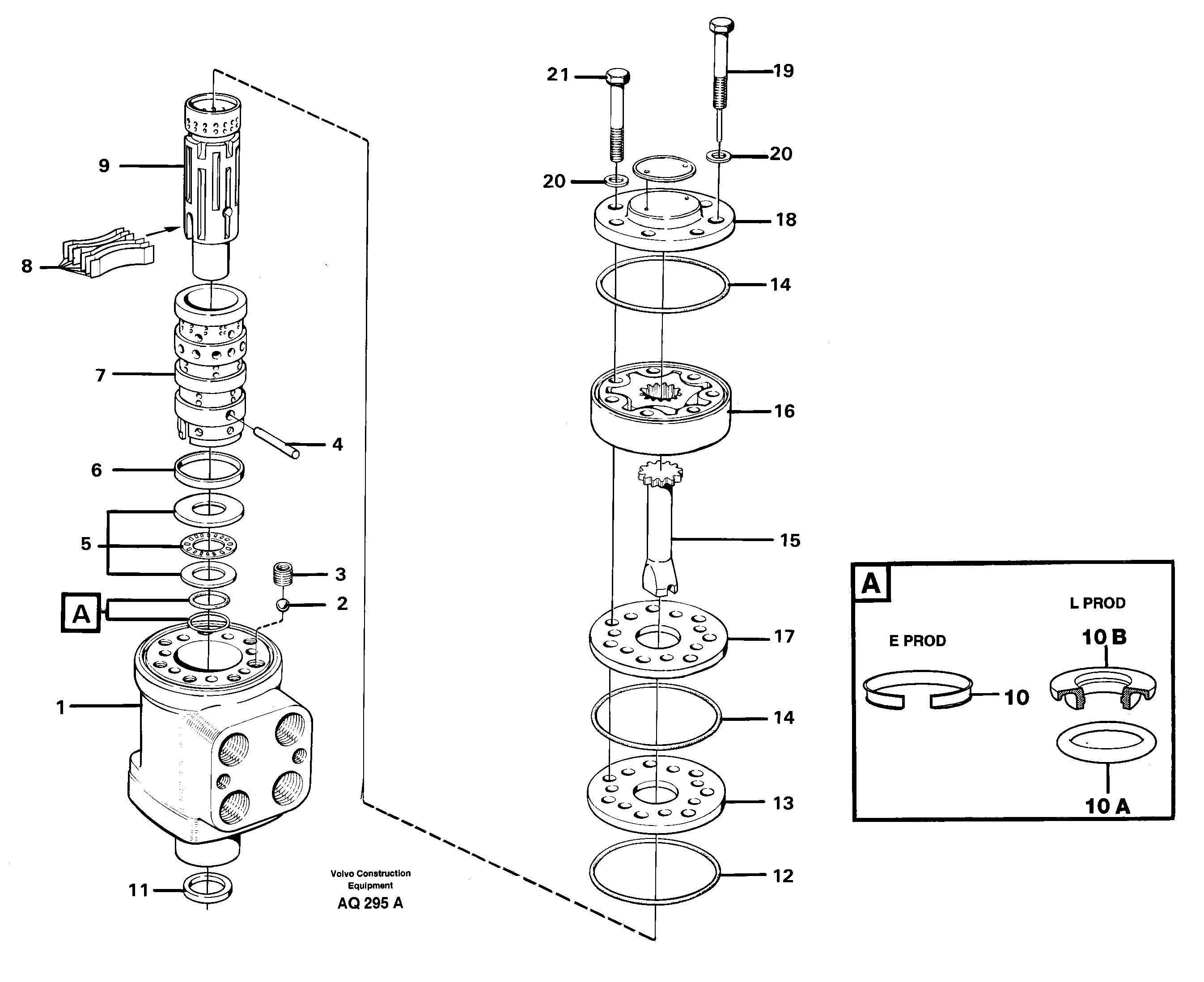

Steering unit

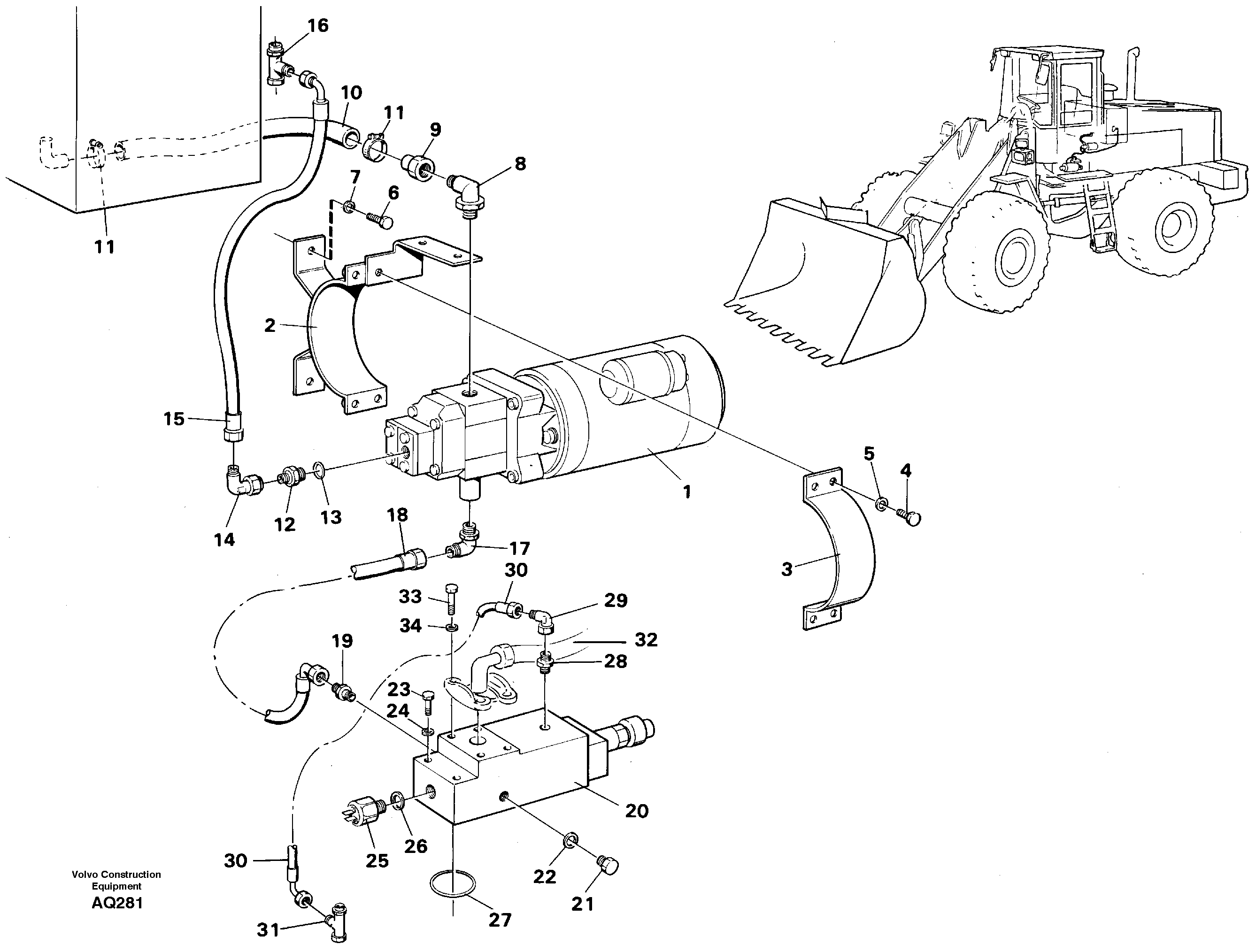

Auxiliary steering system 91919 SER NO - 11624

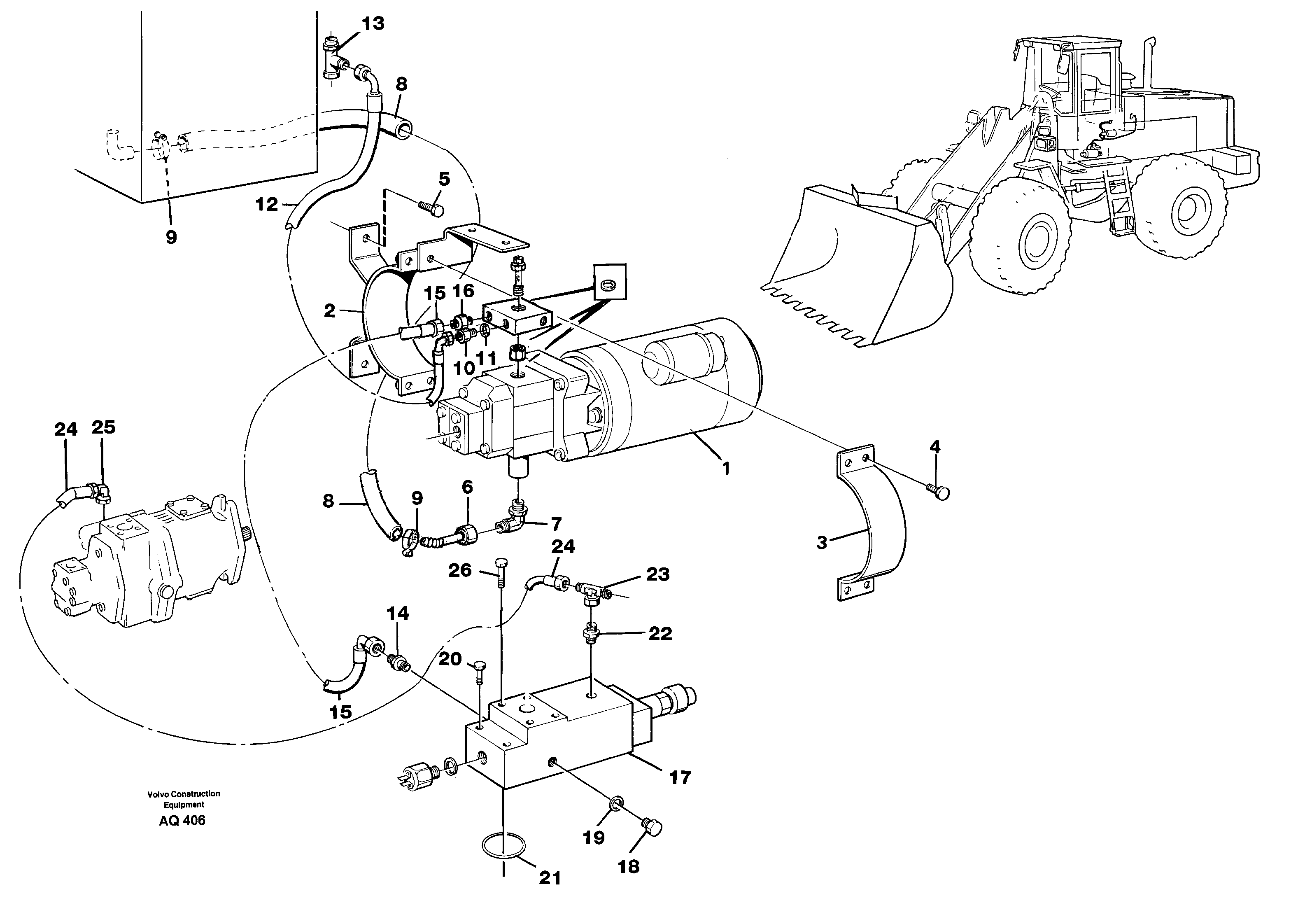

Auxiliary steering system 93633 SER NO 11625 -

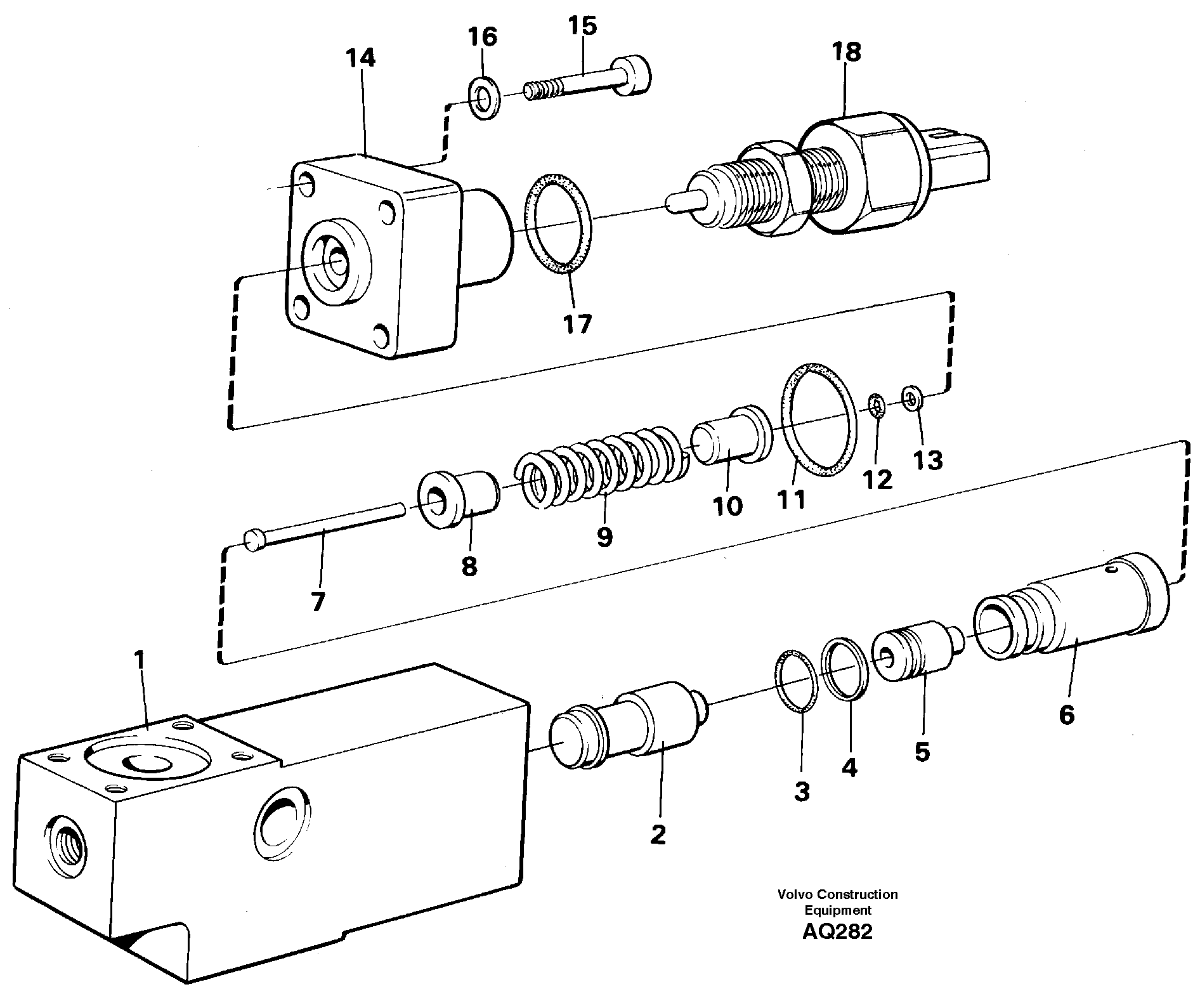

Sensor 91919 SER NO - 11624, 93633 SER NO 11625 -
Lever steering

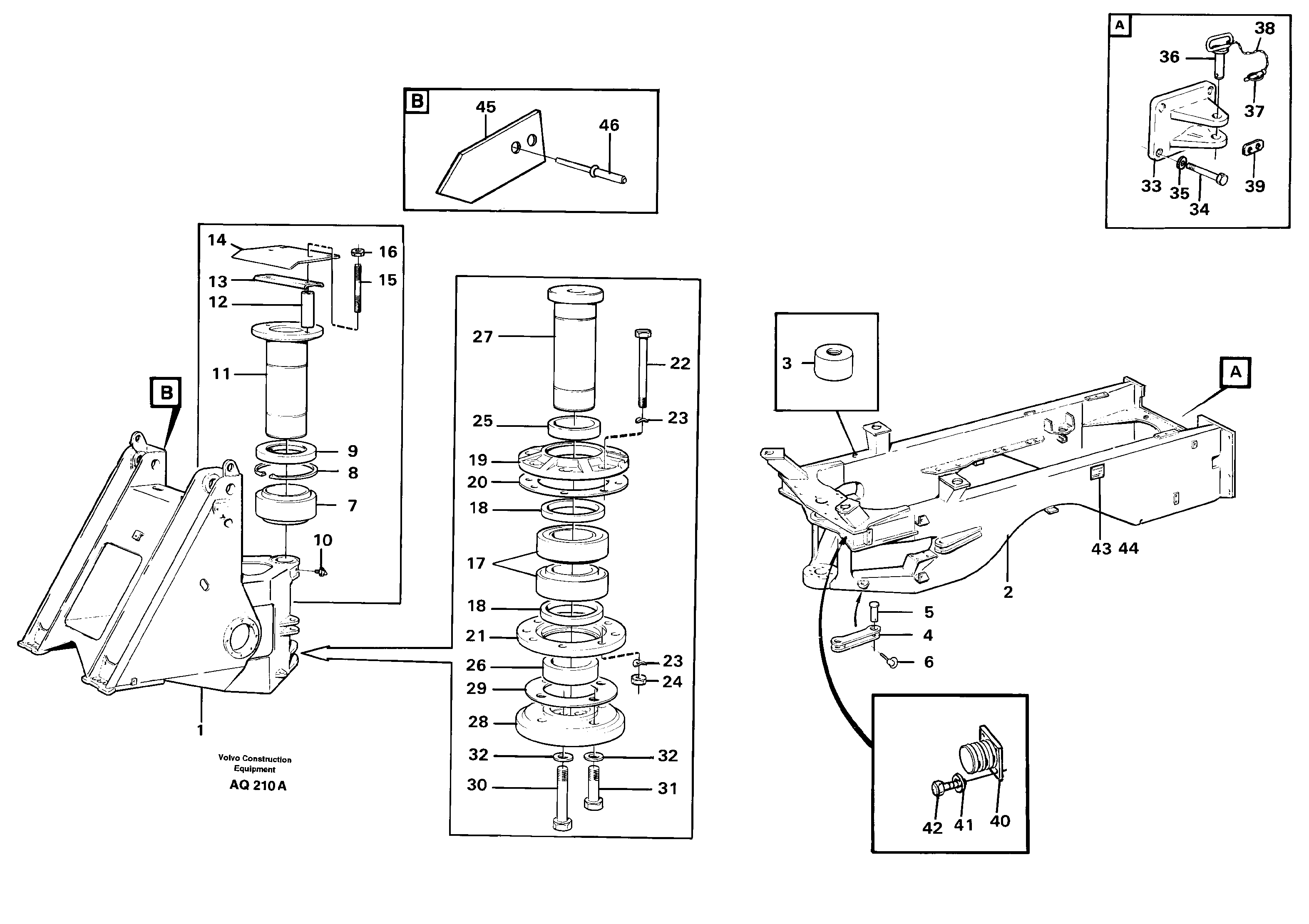

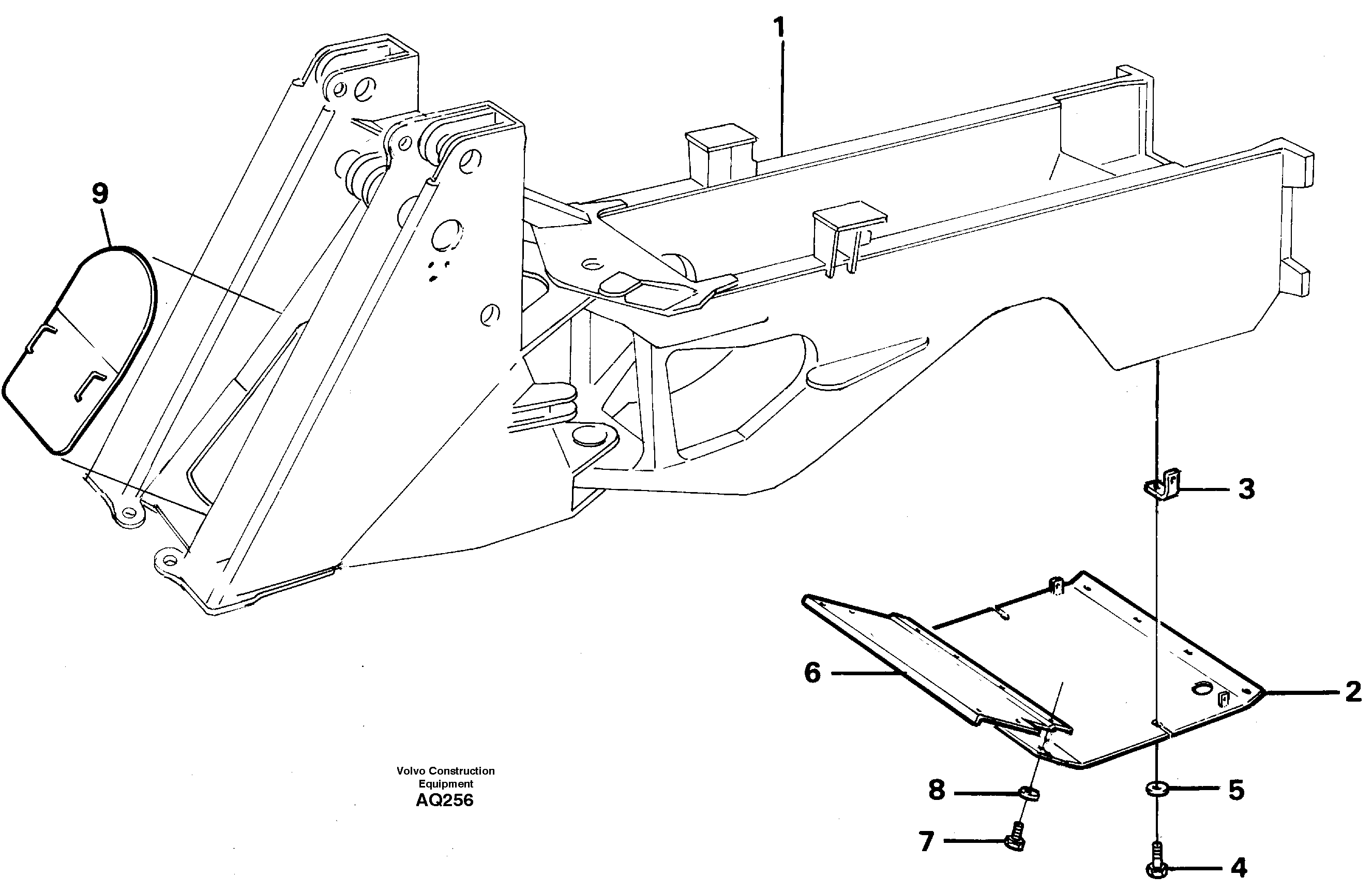

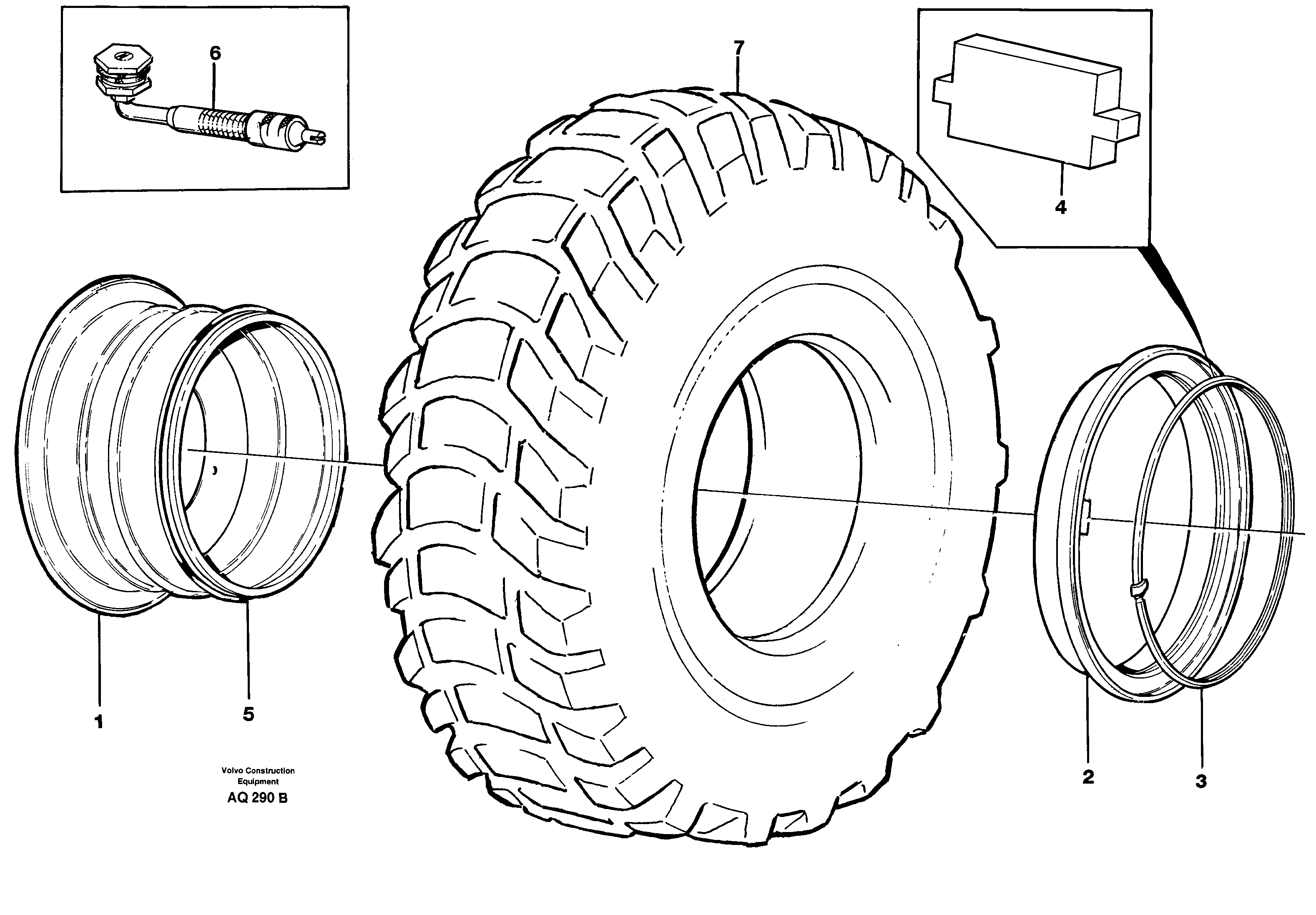

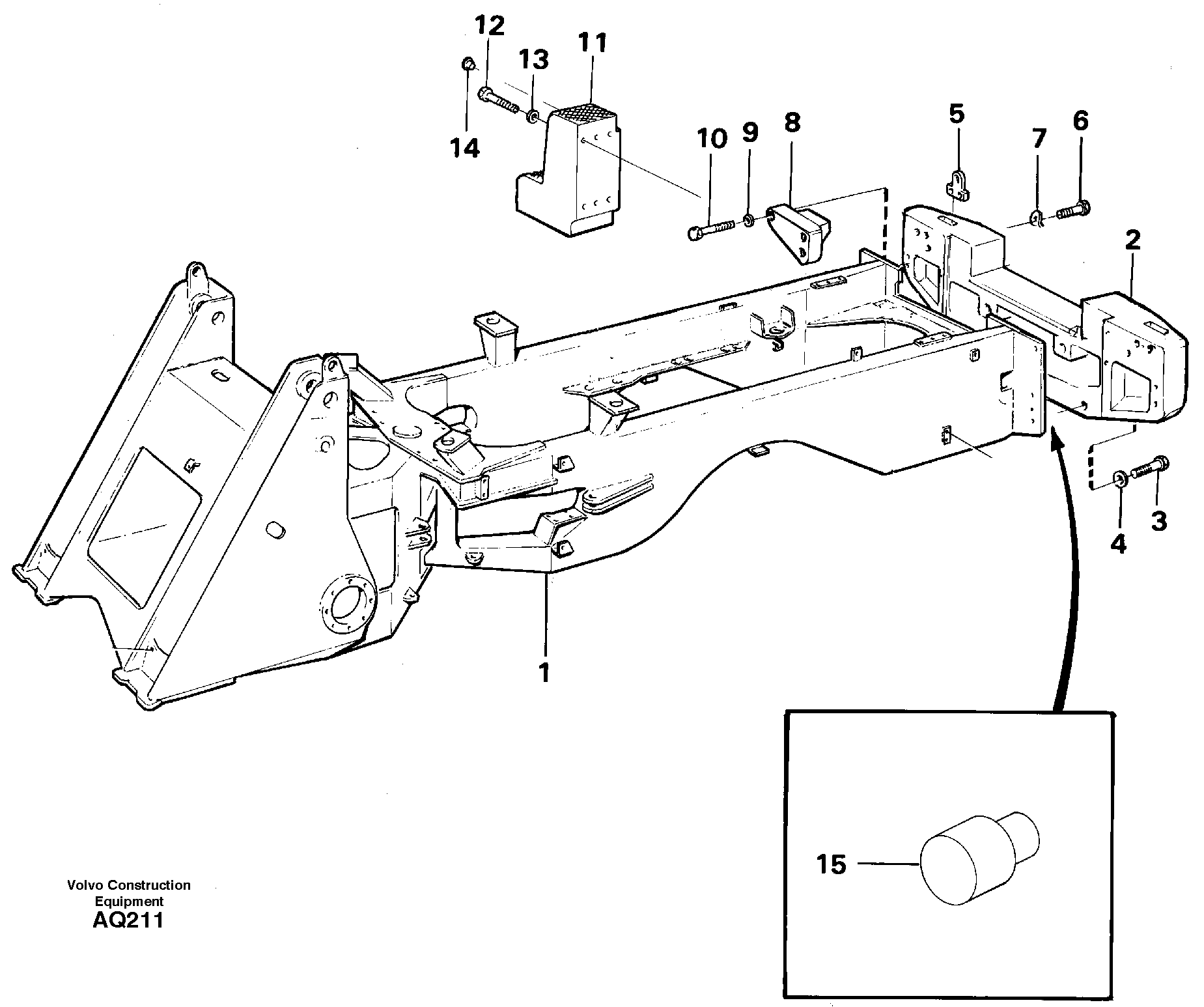

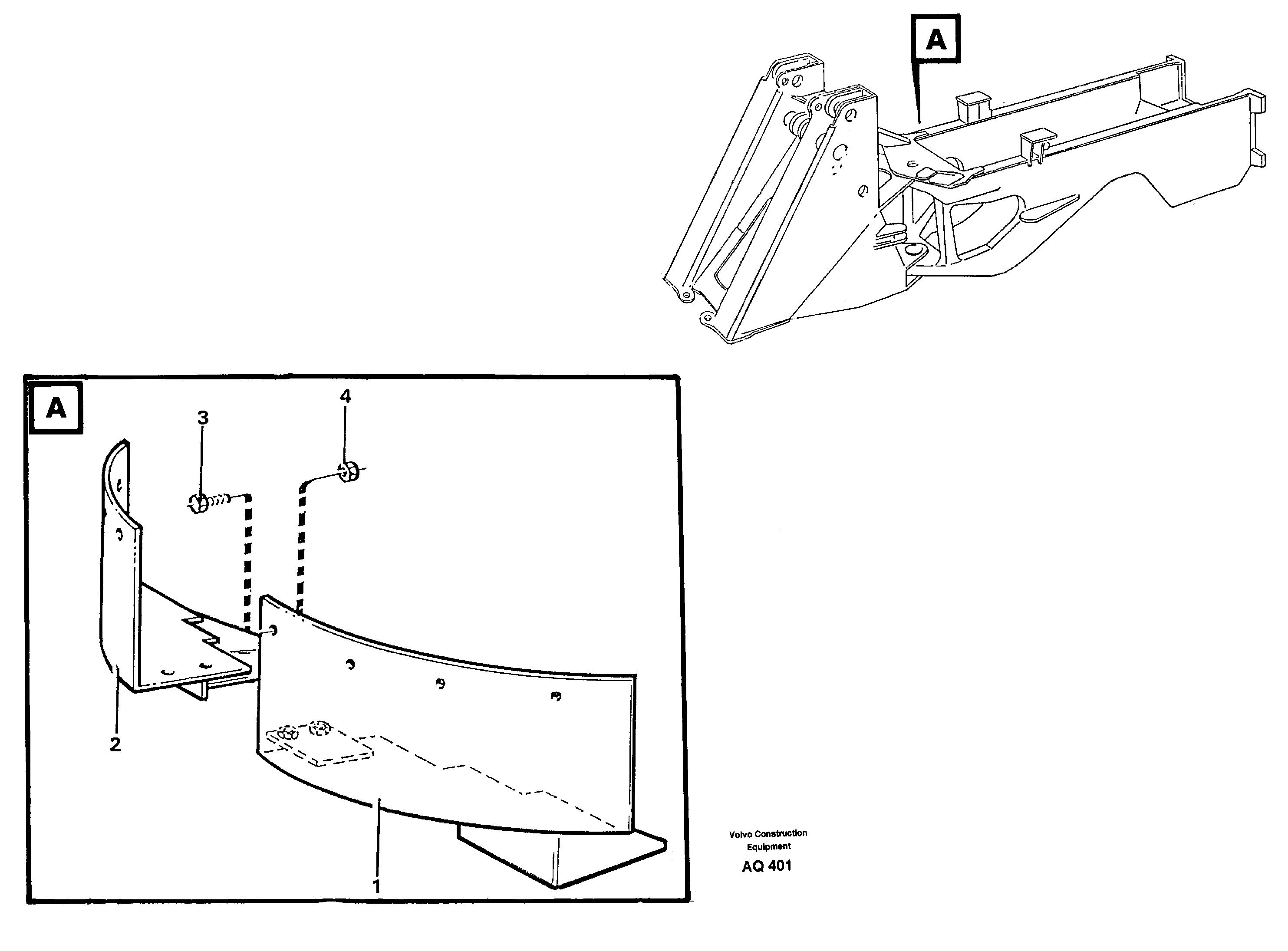

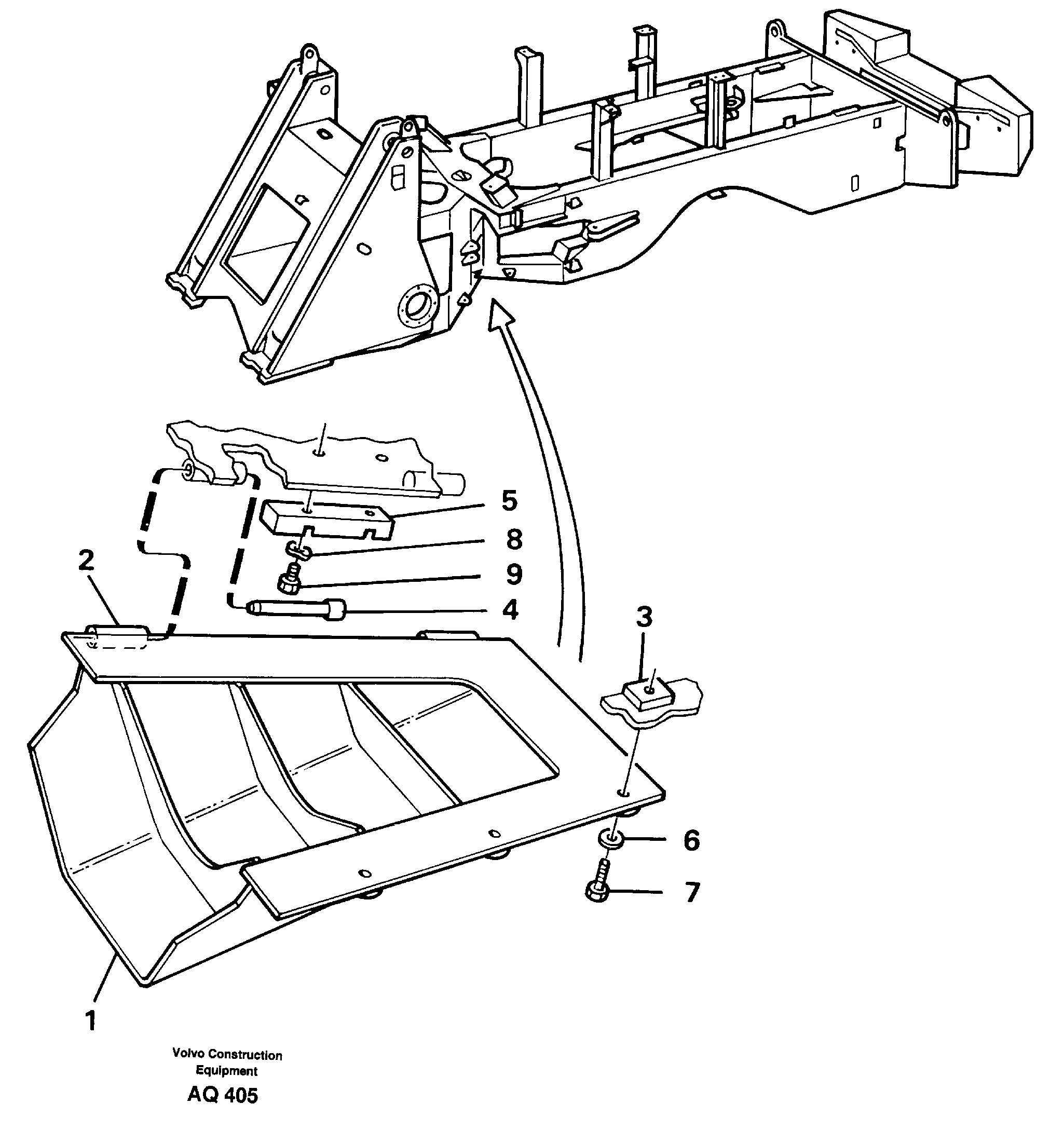

Frame, springs, damping, axle suspension, wheels/track unit

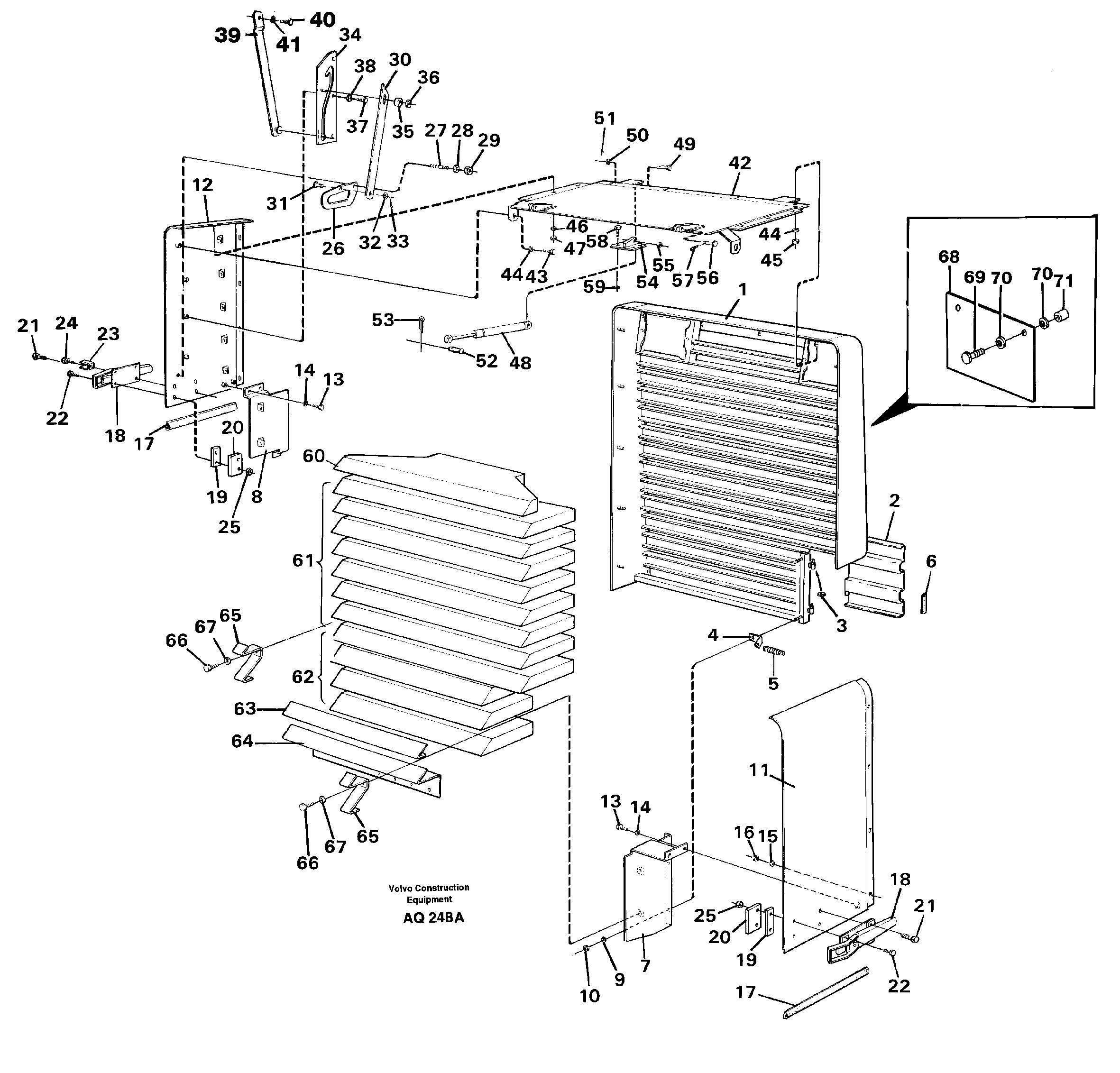

Machinery house, cab, exterior trim parts anywhere

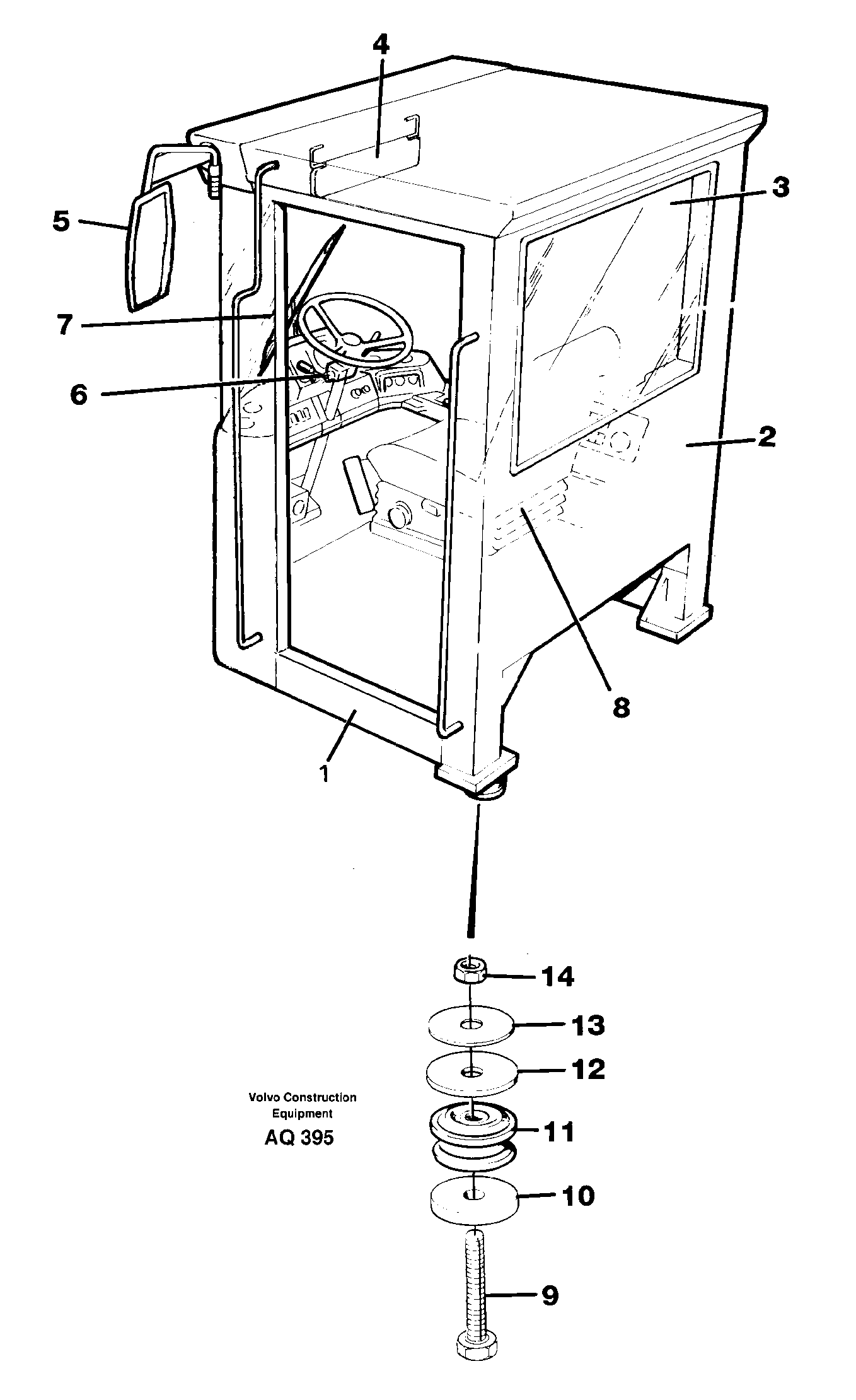

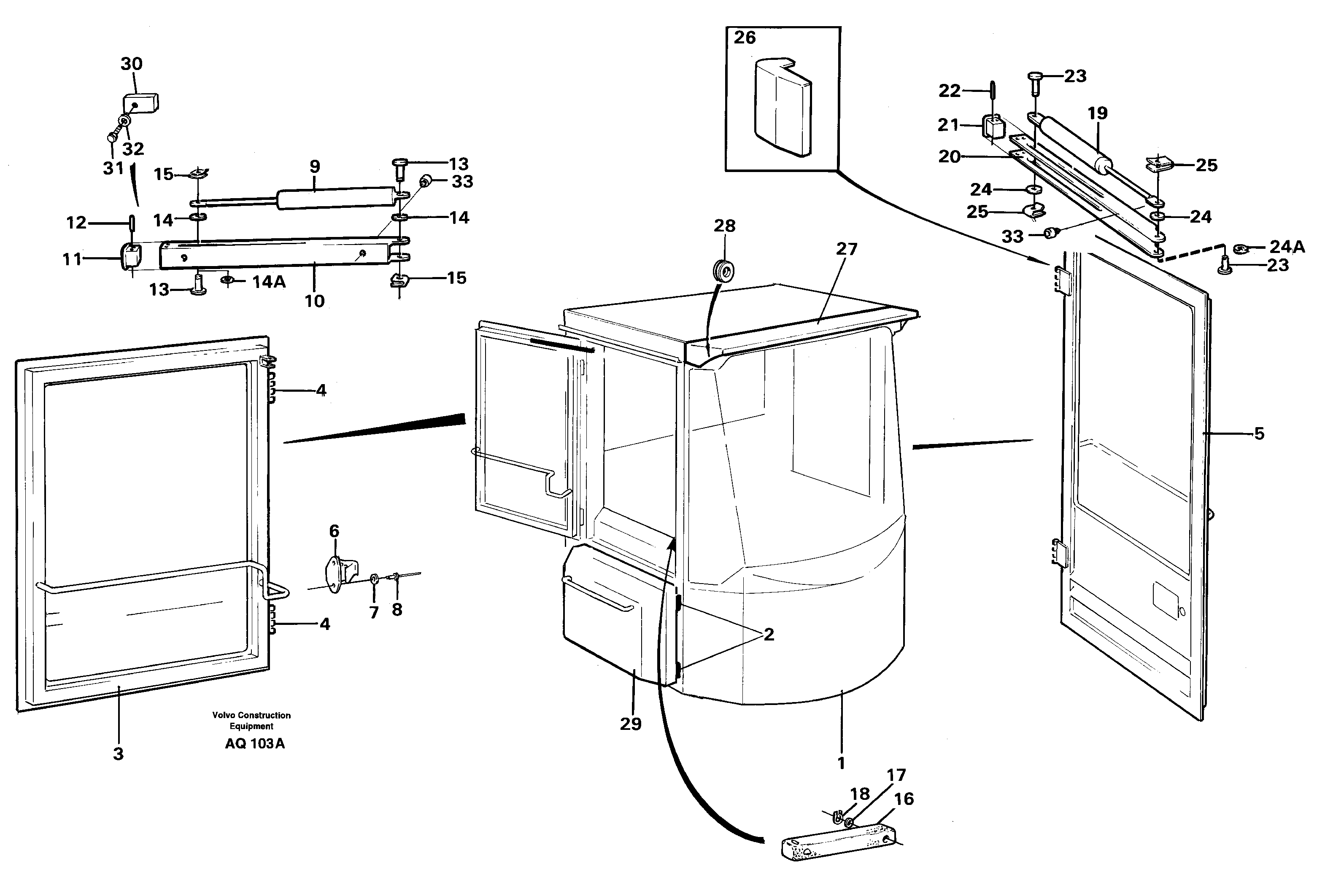

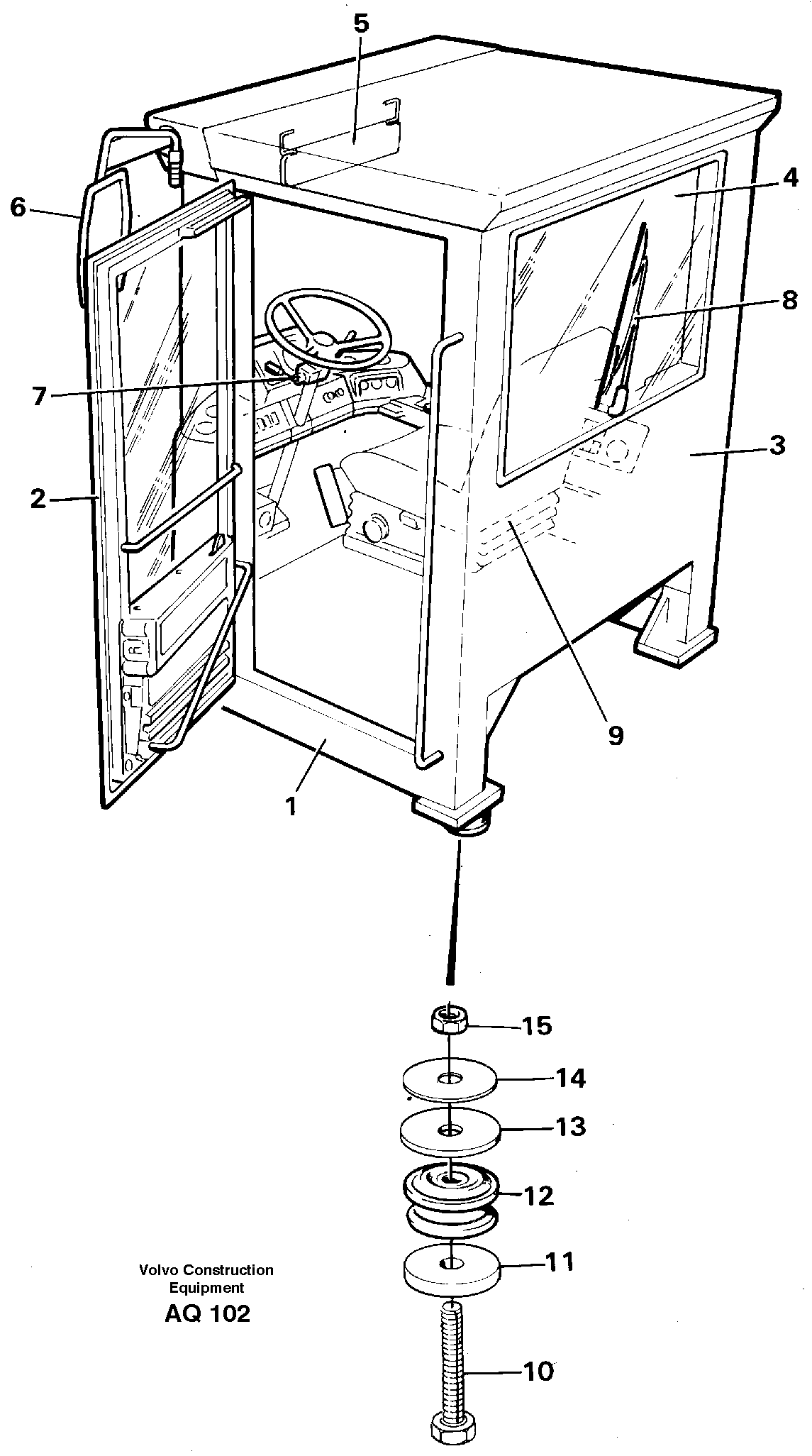

Cab, naked, canopy

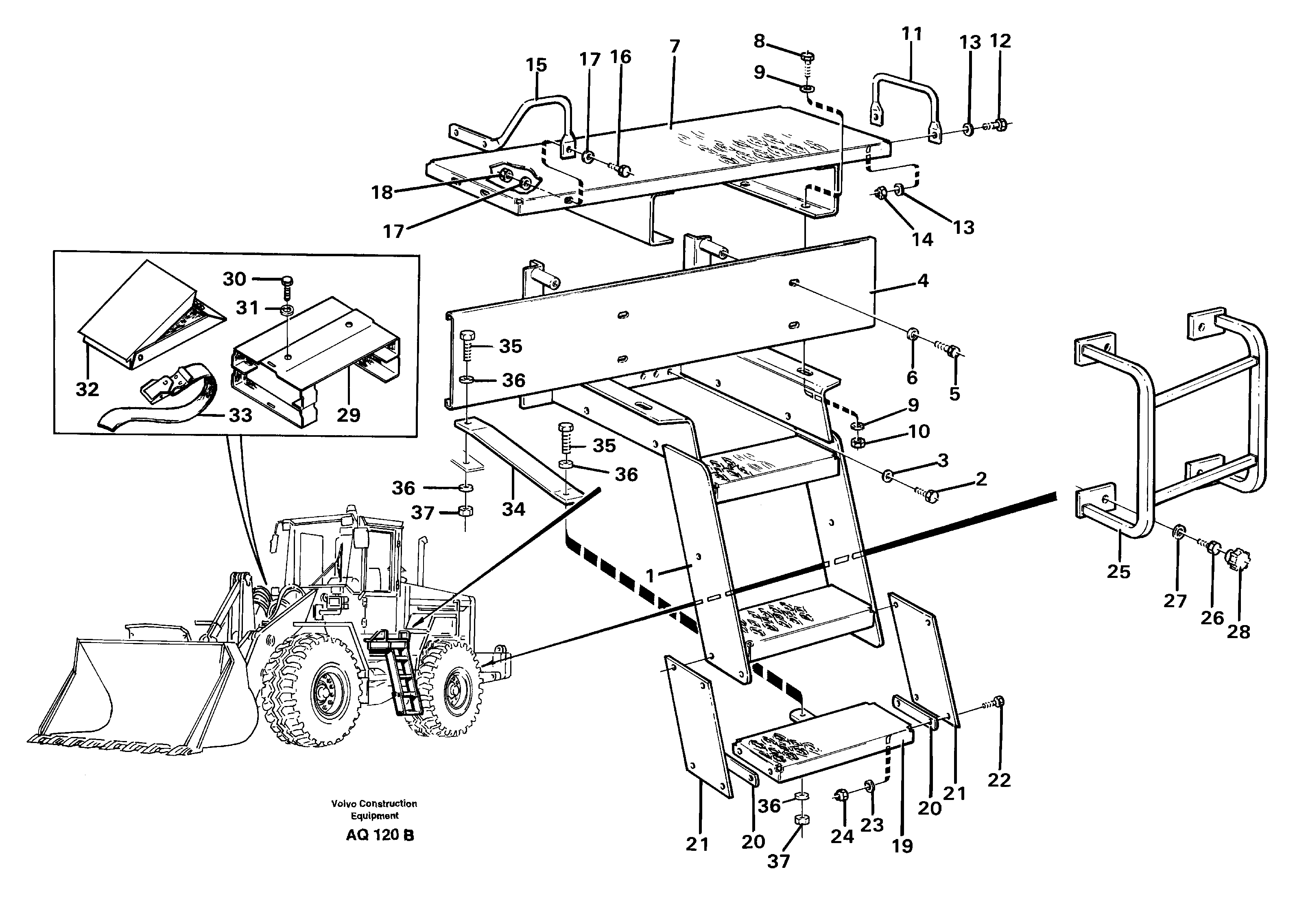

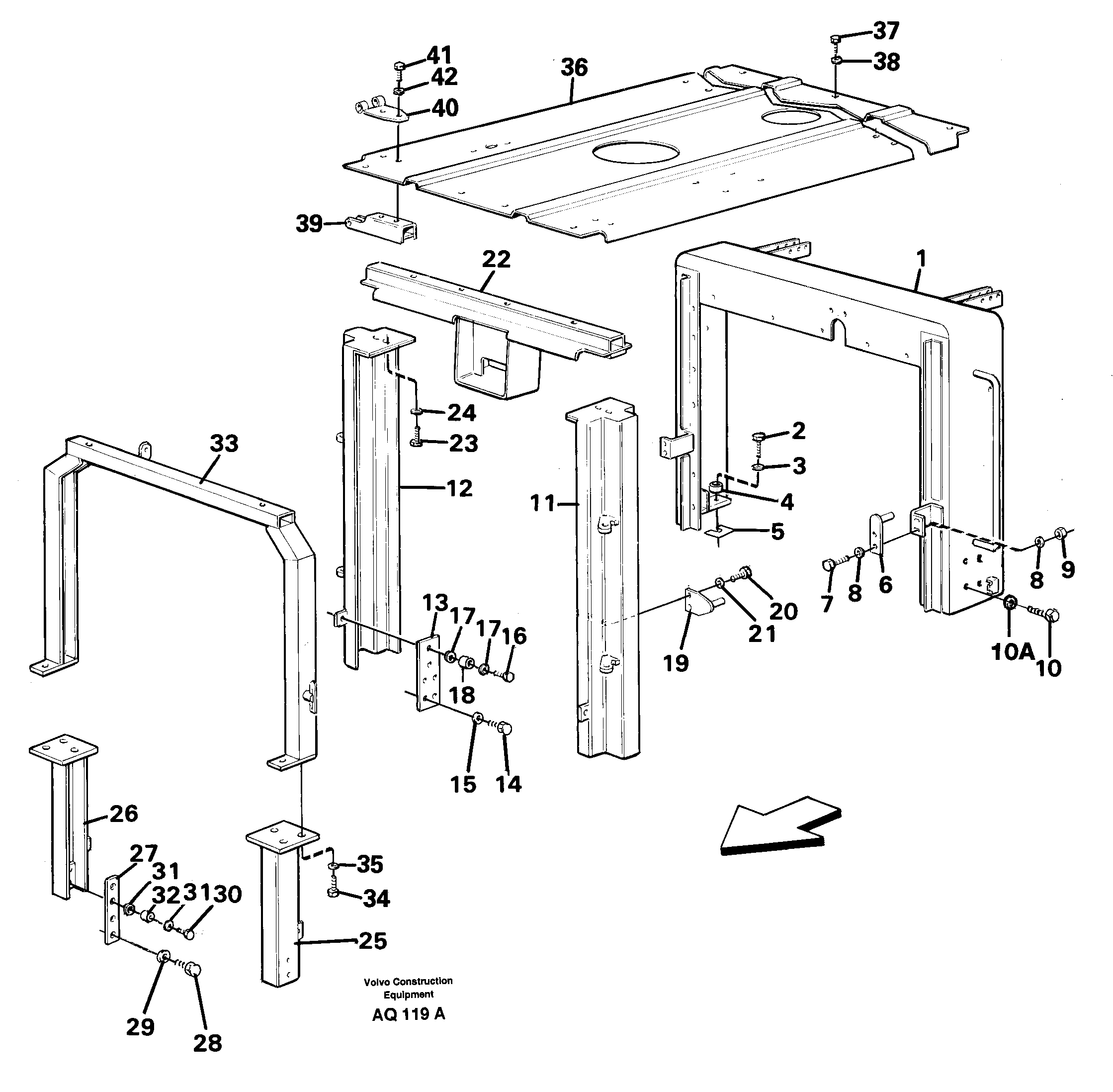

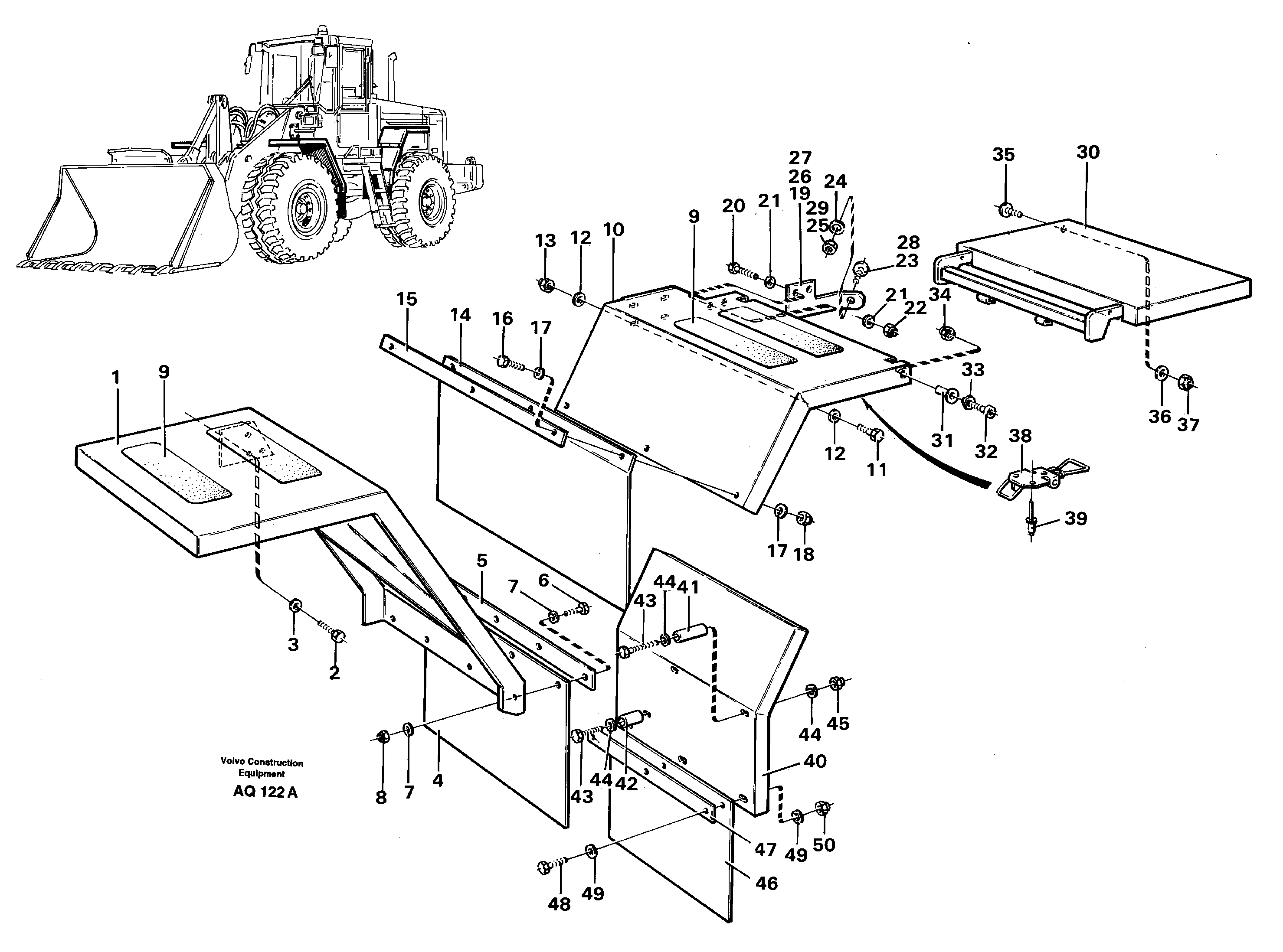

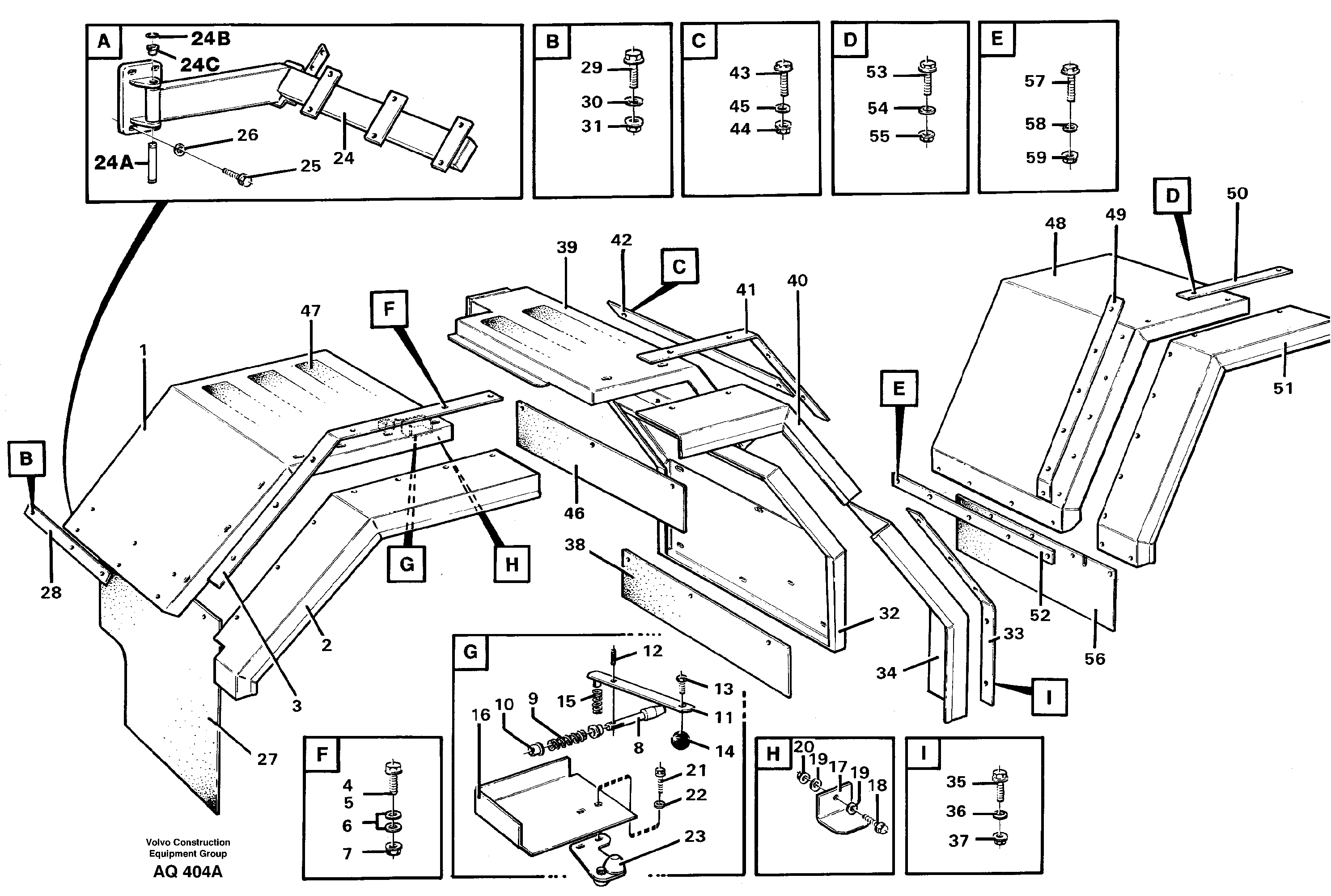

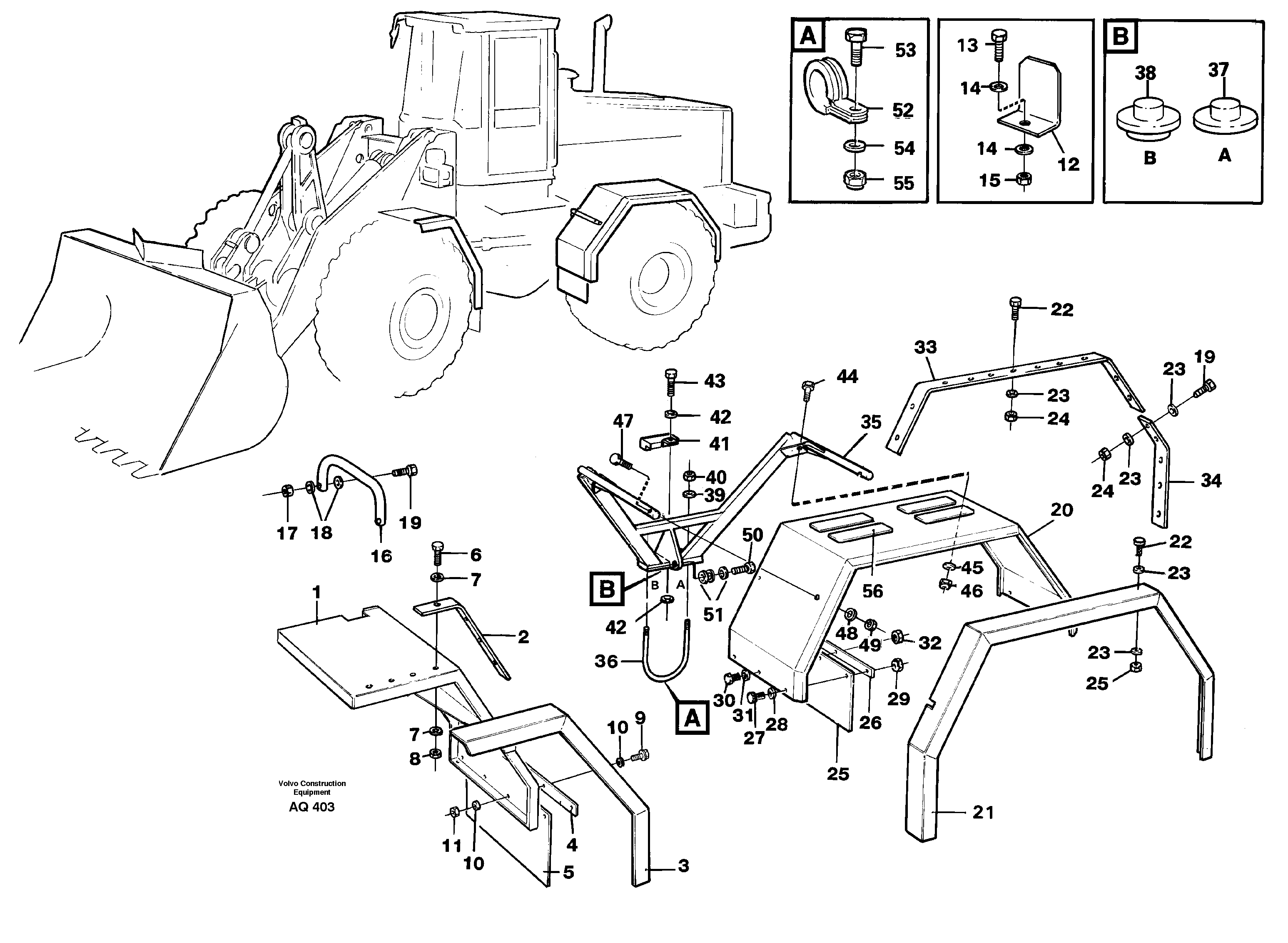

Engine hood, mudguard, foot step

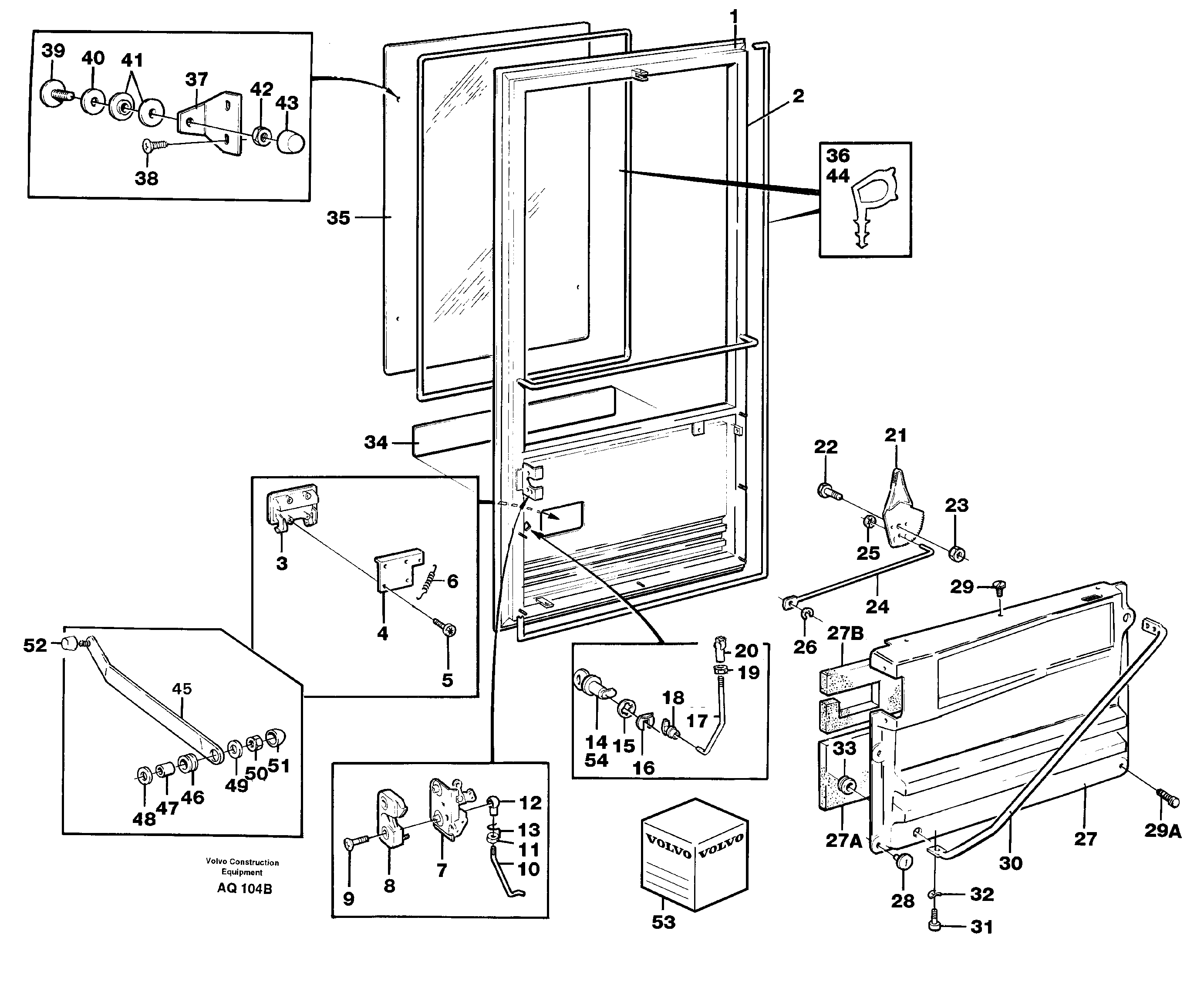

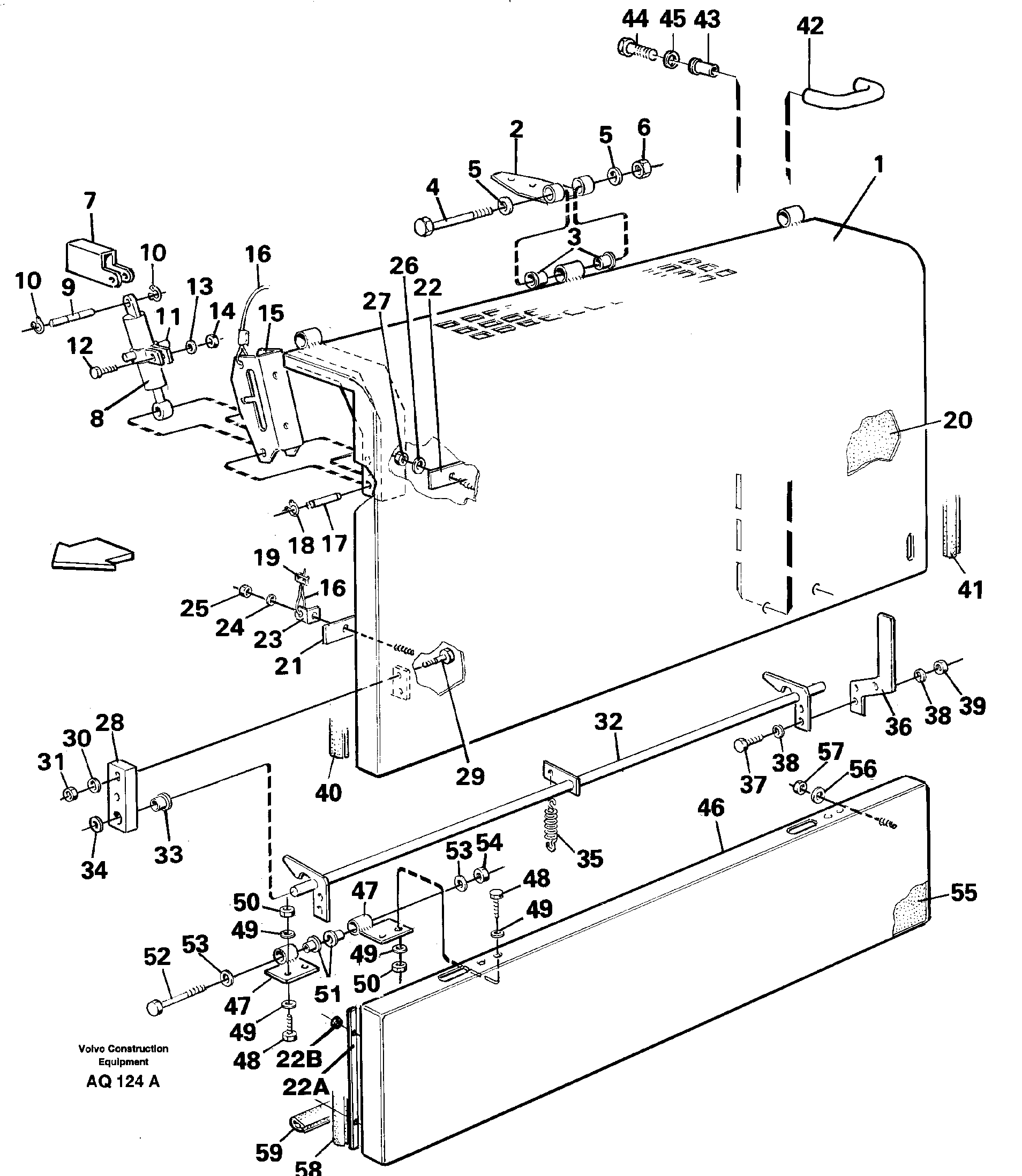

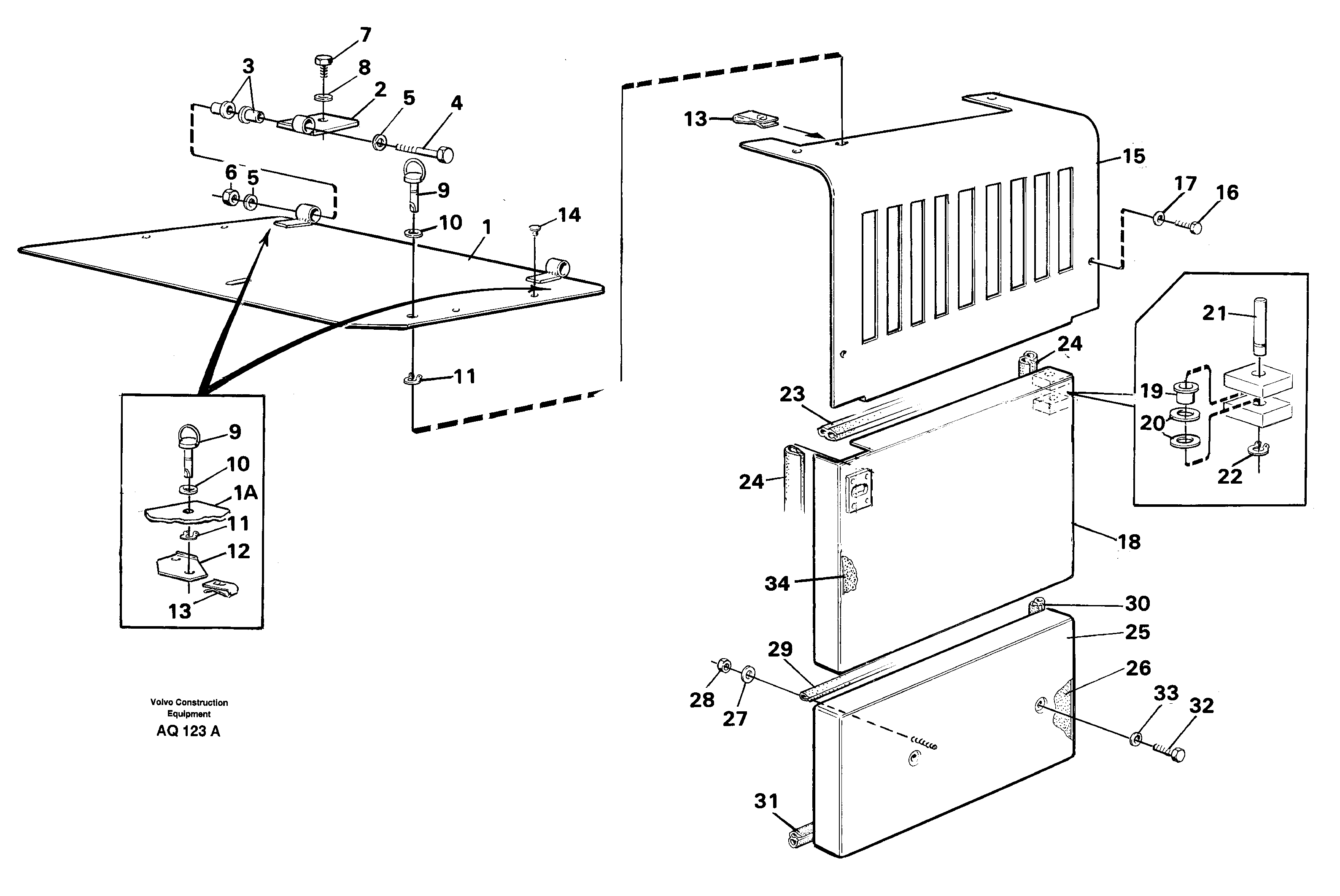

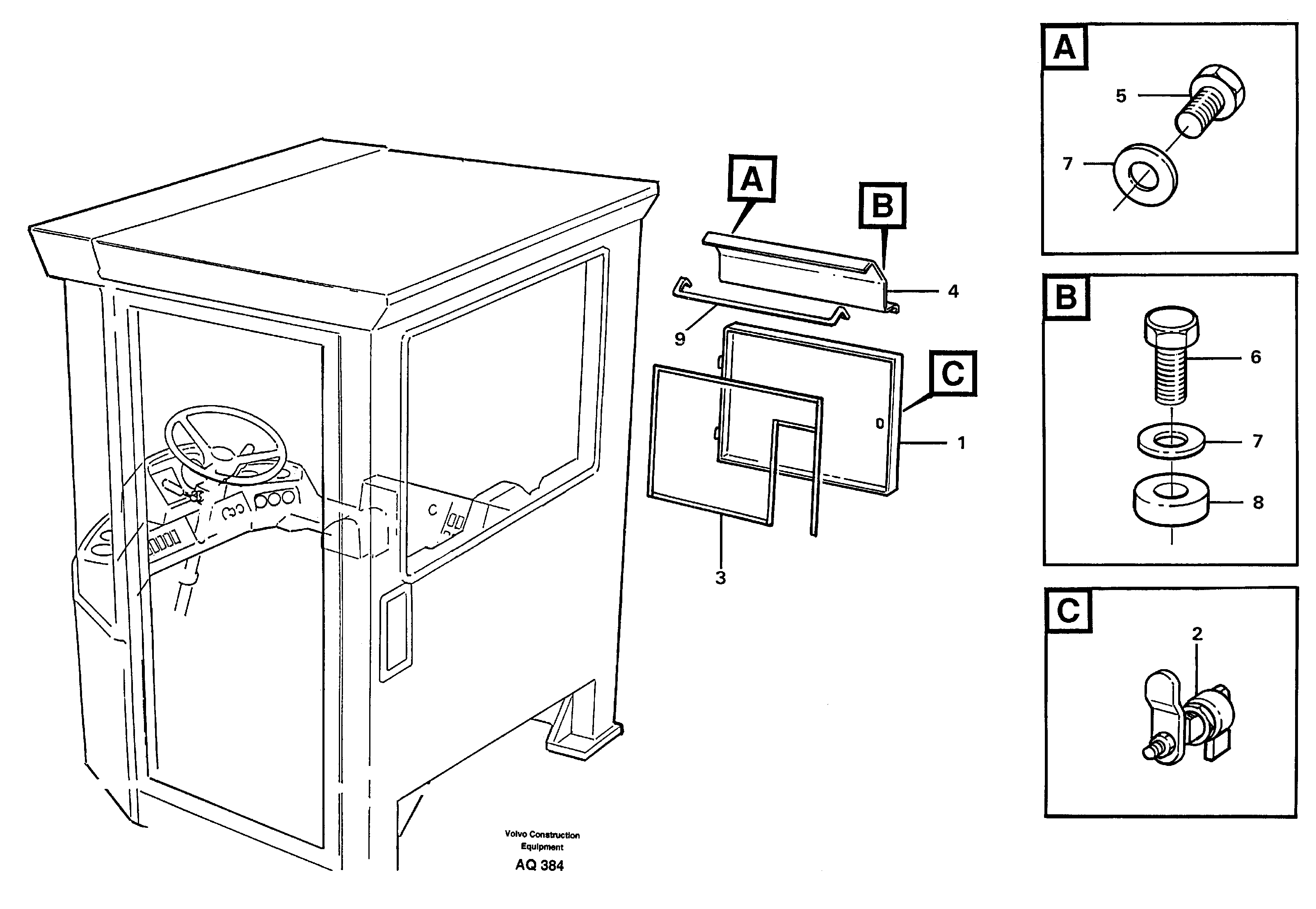

Doors, hatch, cover plate

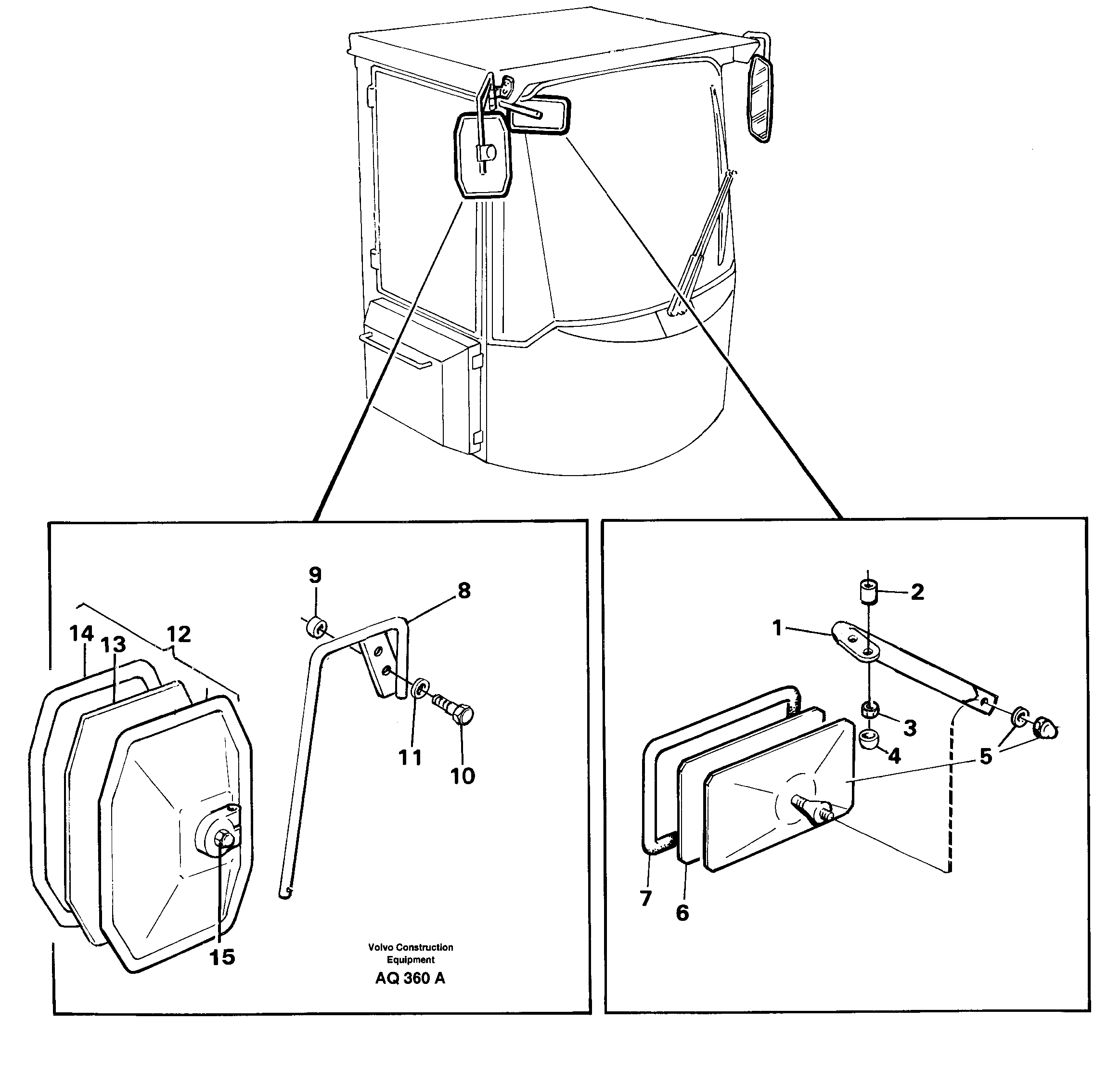

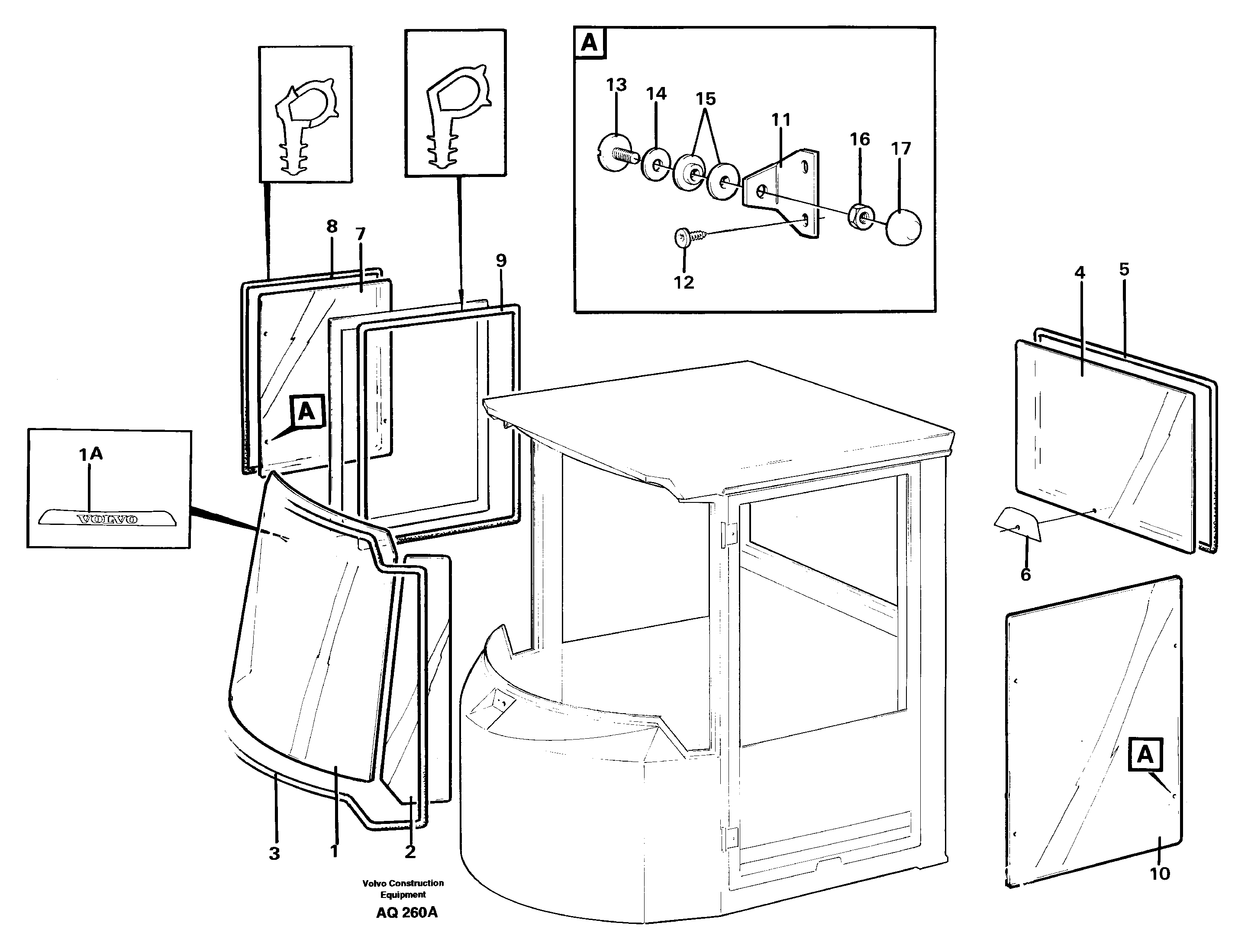

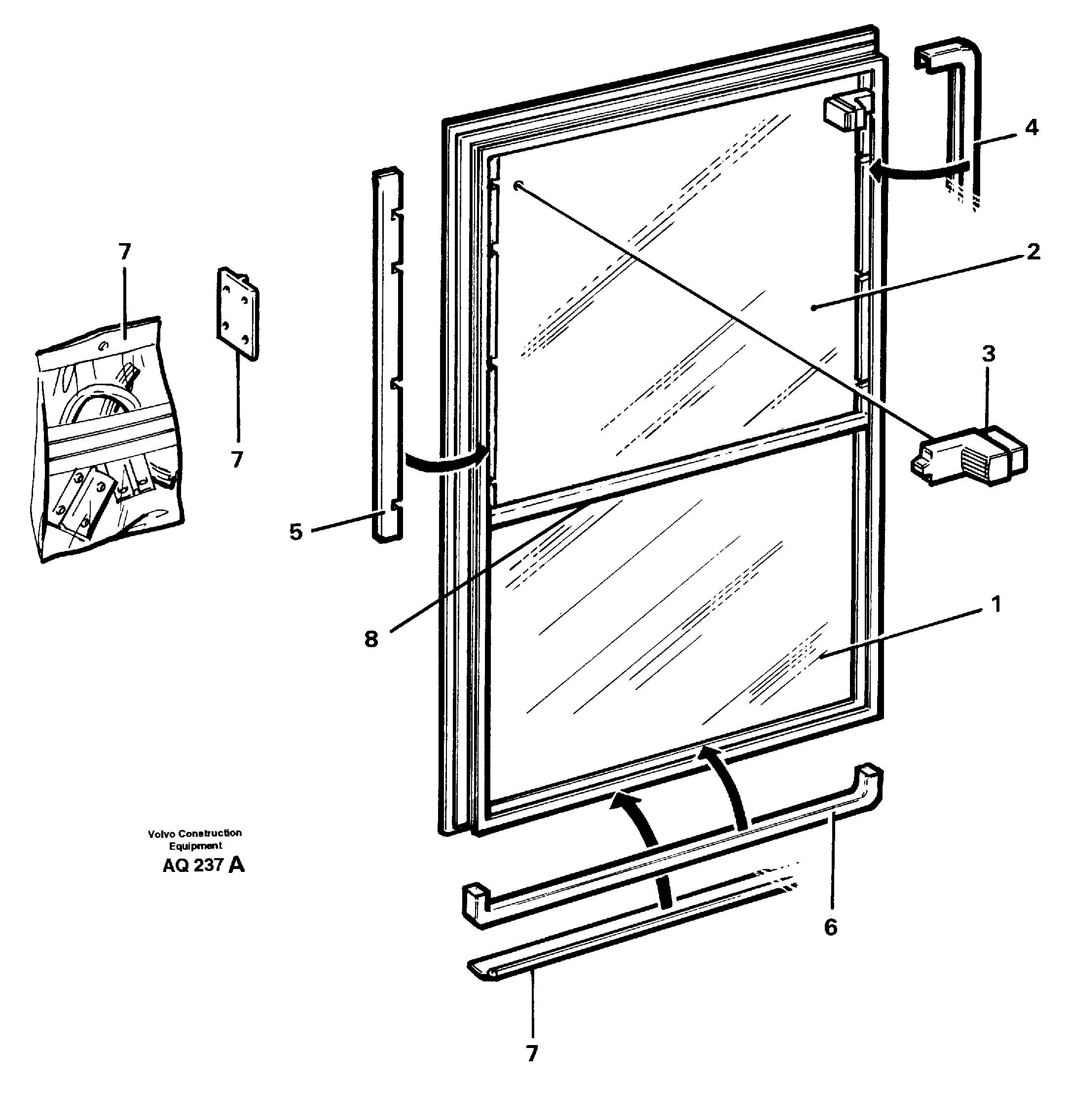

Trim part, outside, Glass, Sealing moulding
Cab interior/upholstery

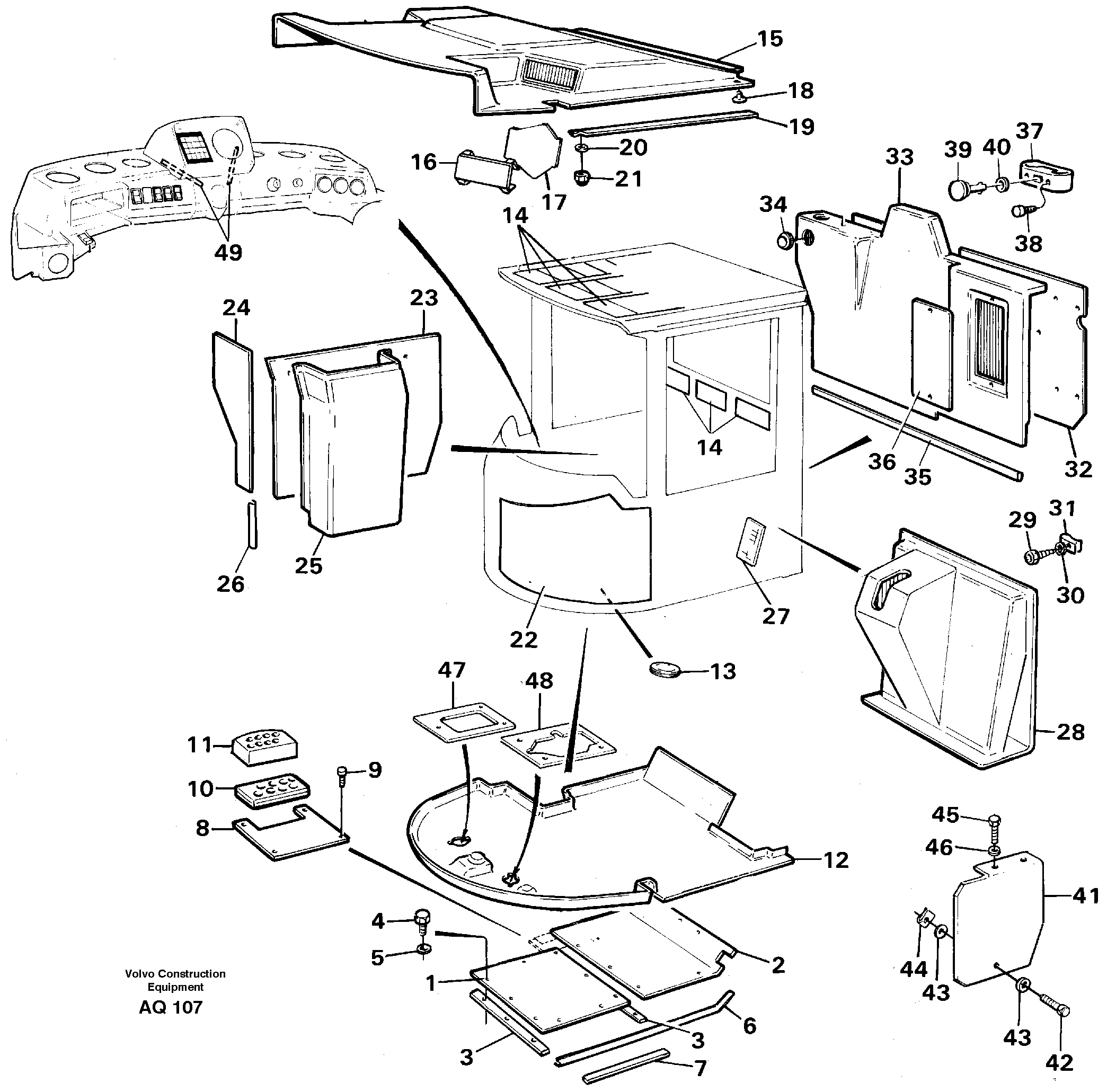

Insulating matting

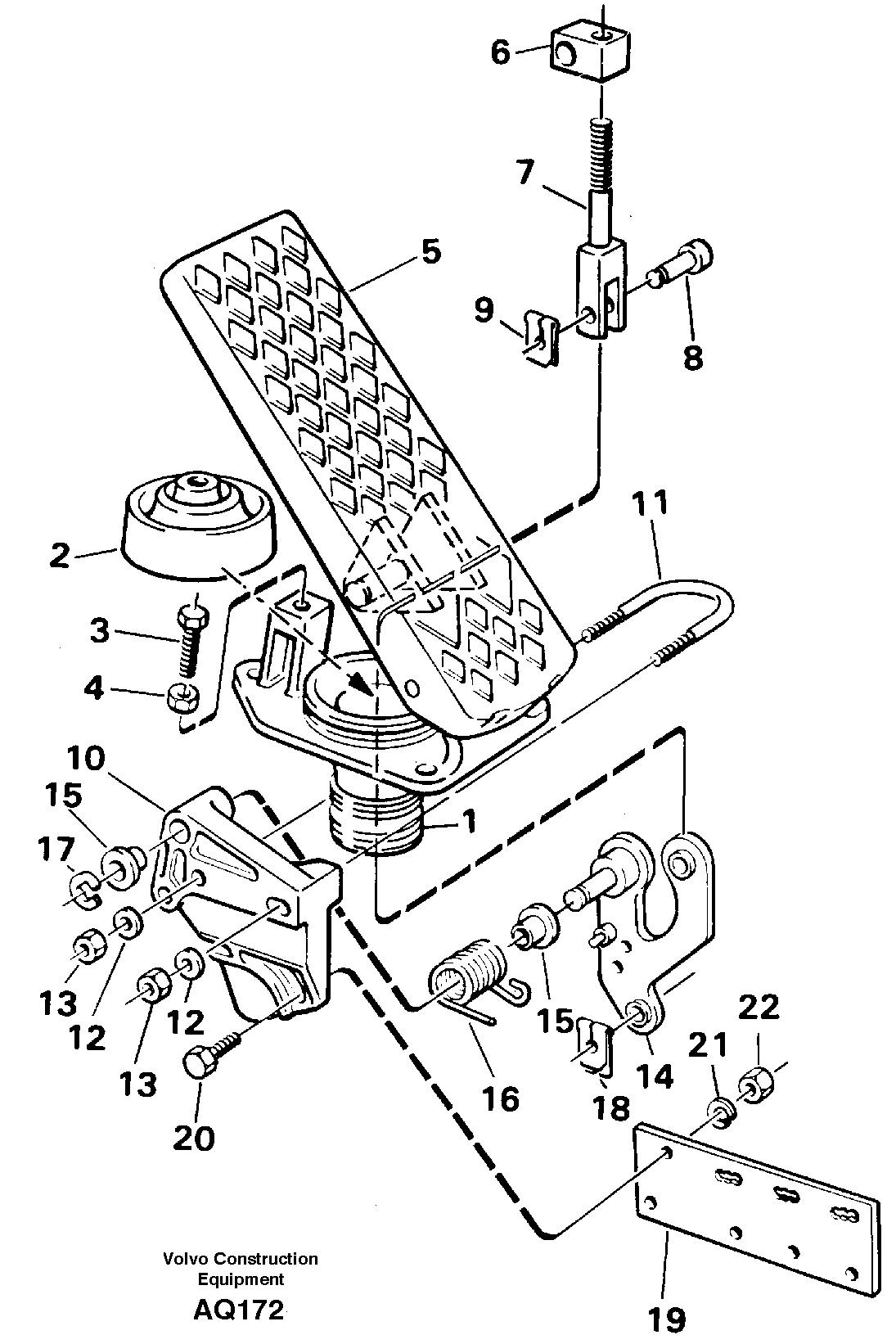

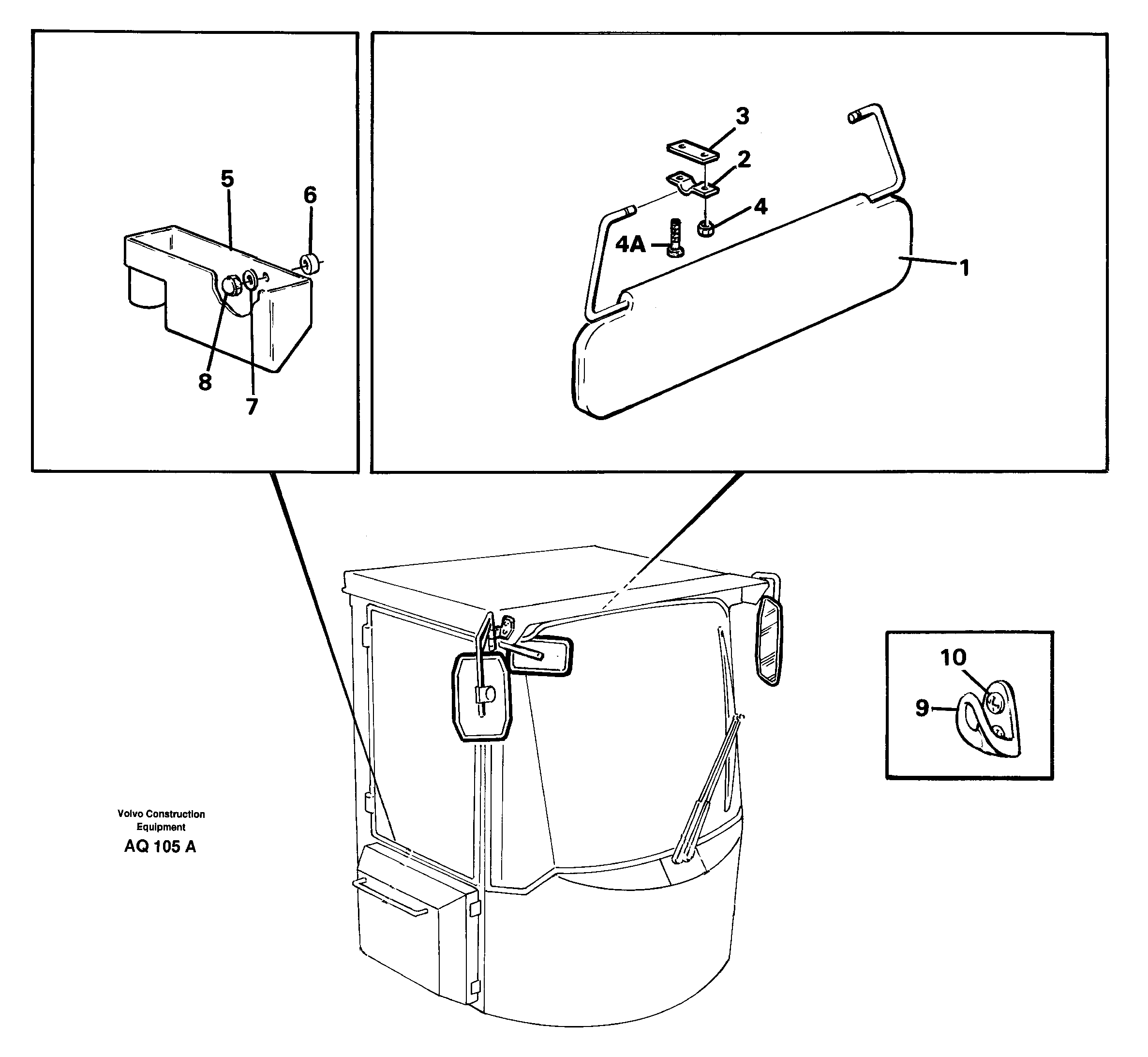

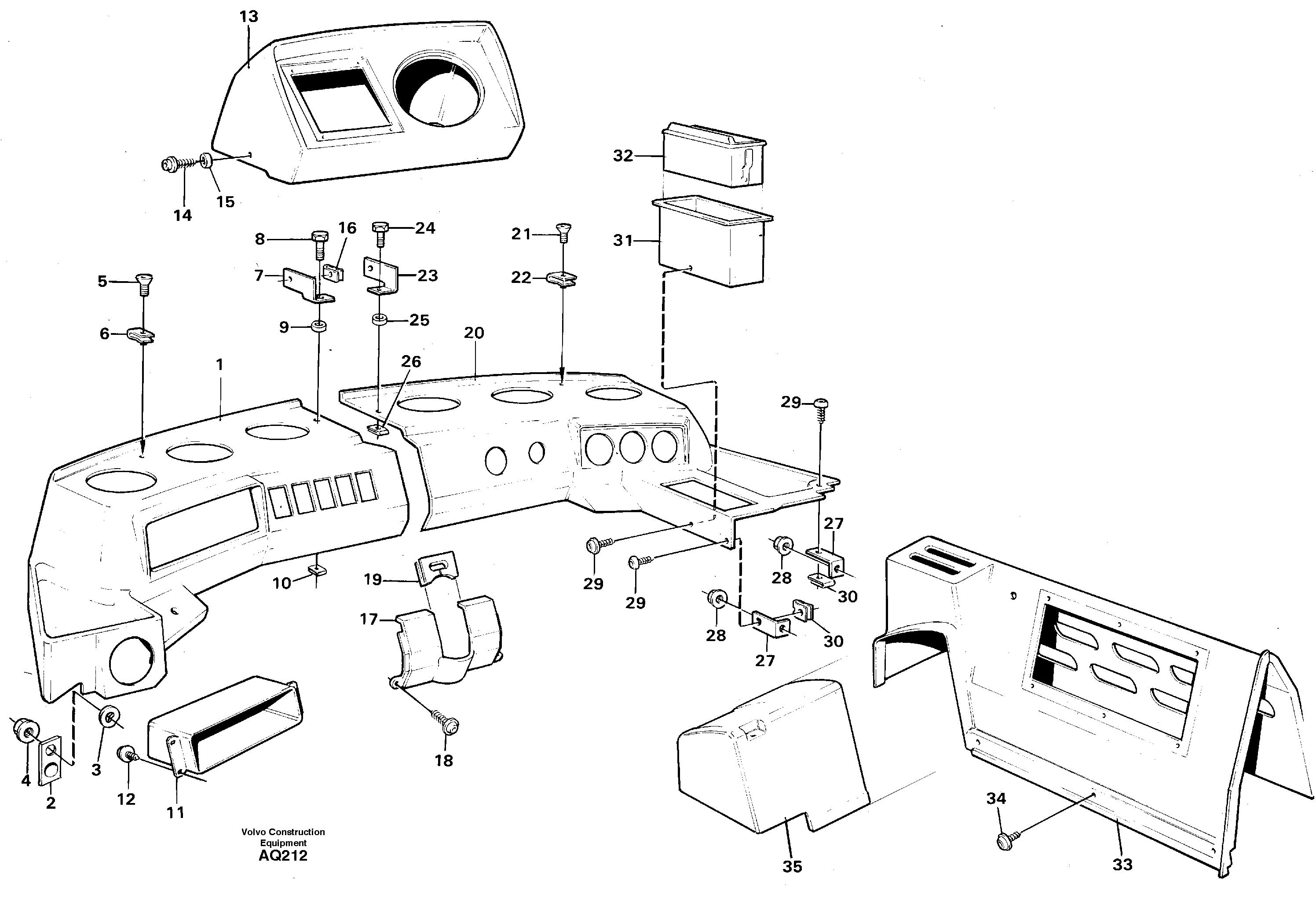

Interior components

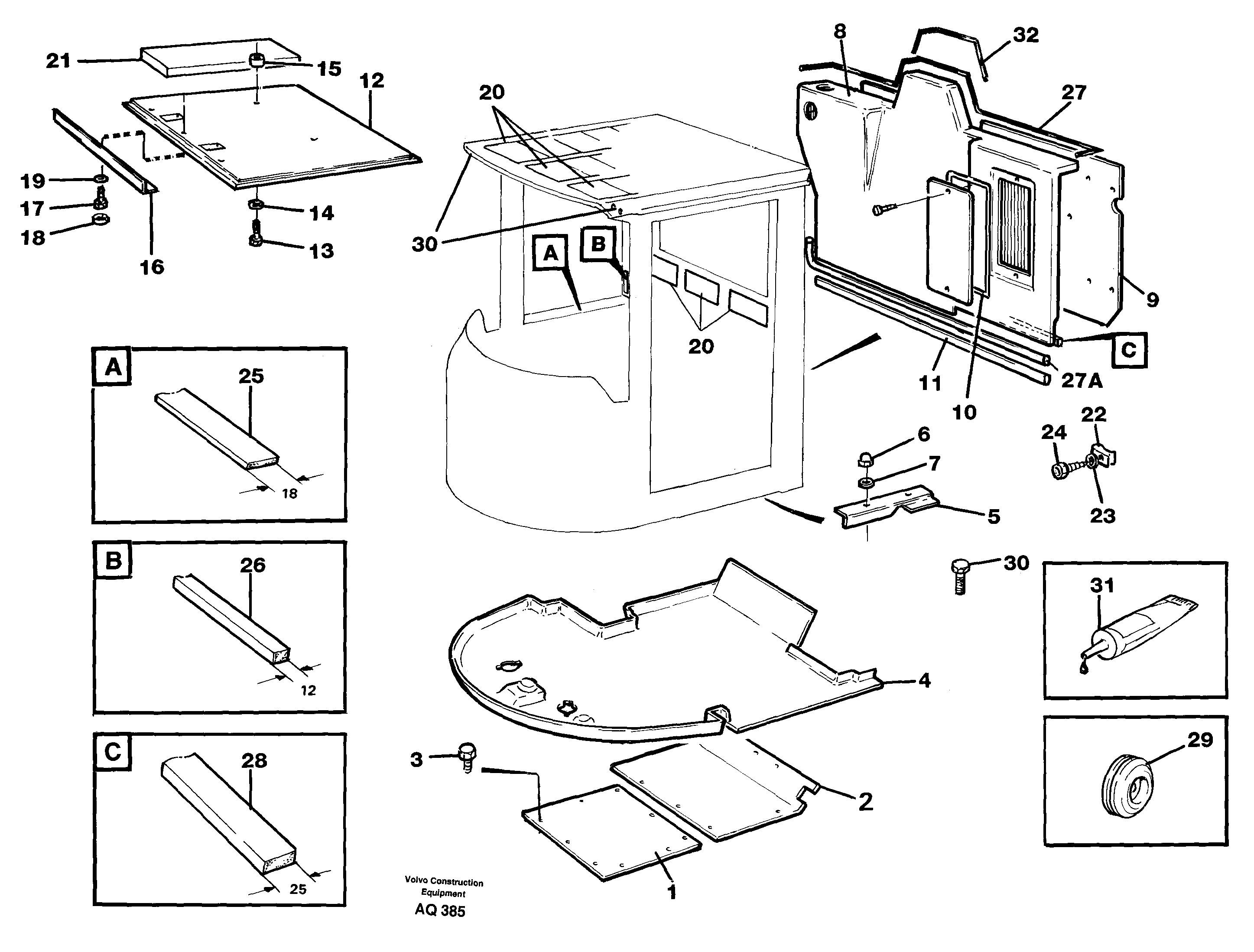

Insulating matting 93505

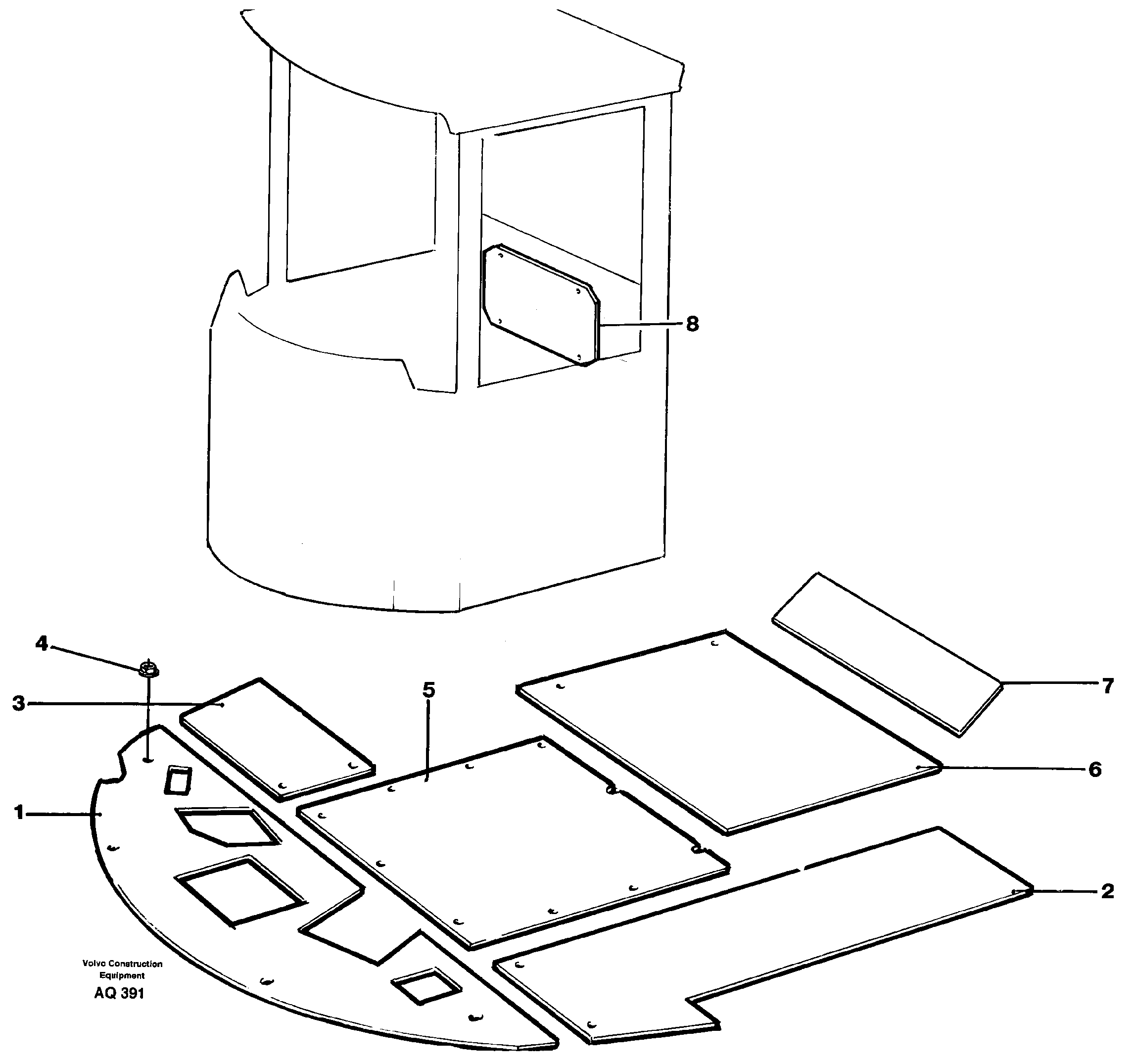

Insulating matting. 92708

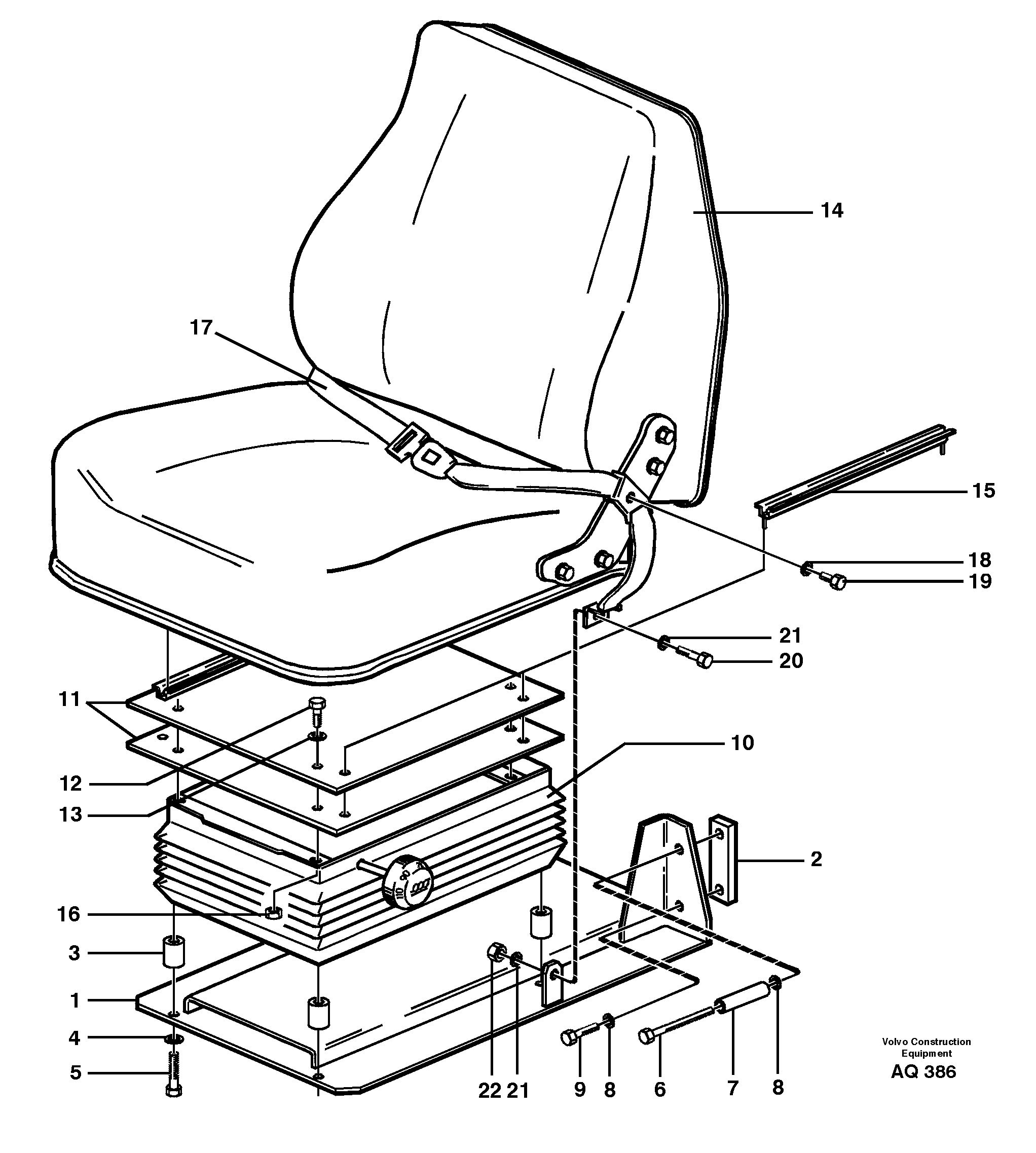

Operator seat with fitting parts 93505

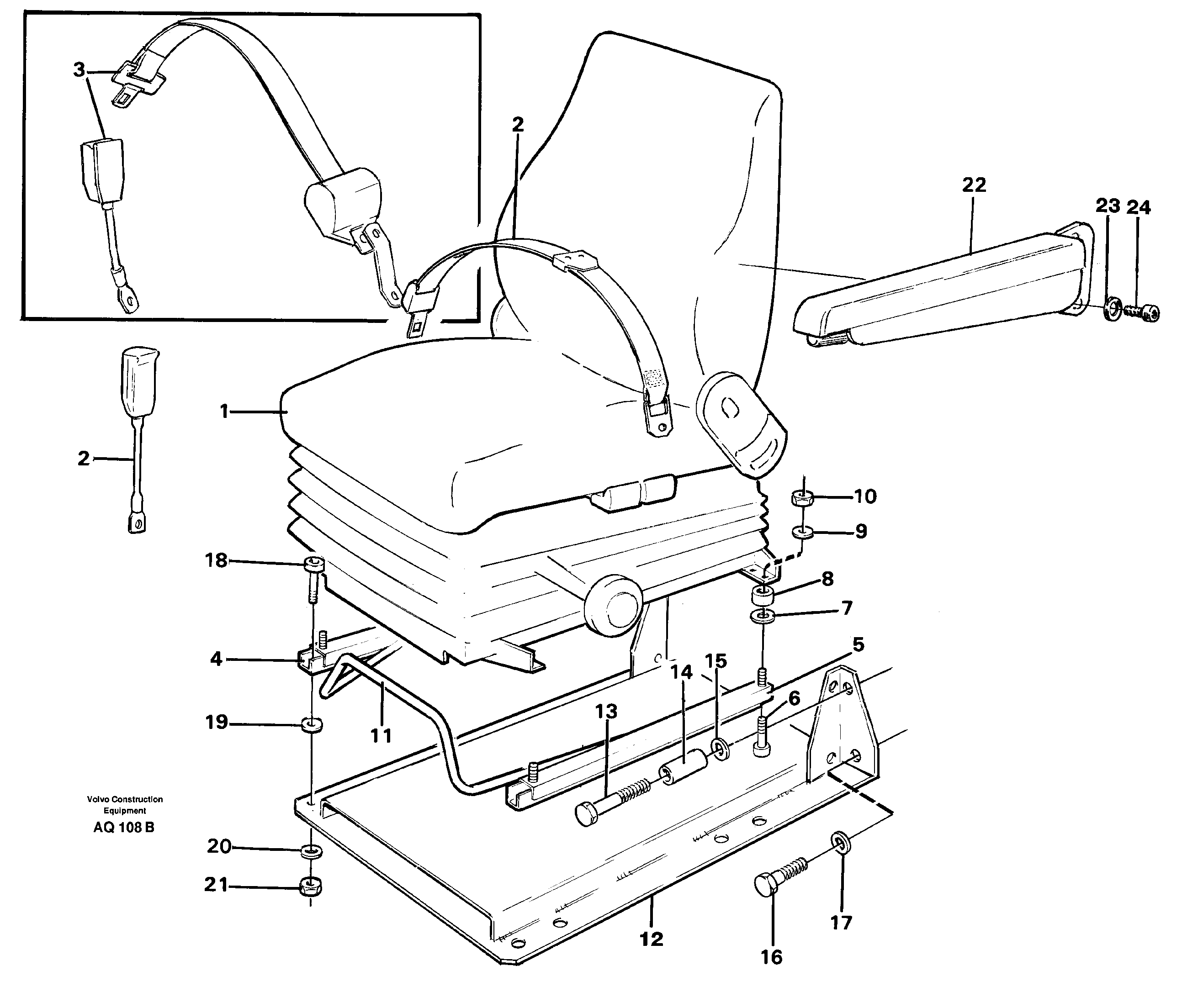

Operator seat with fitting parts

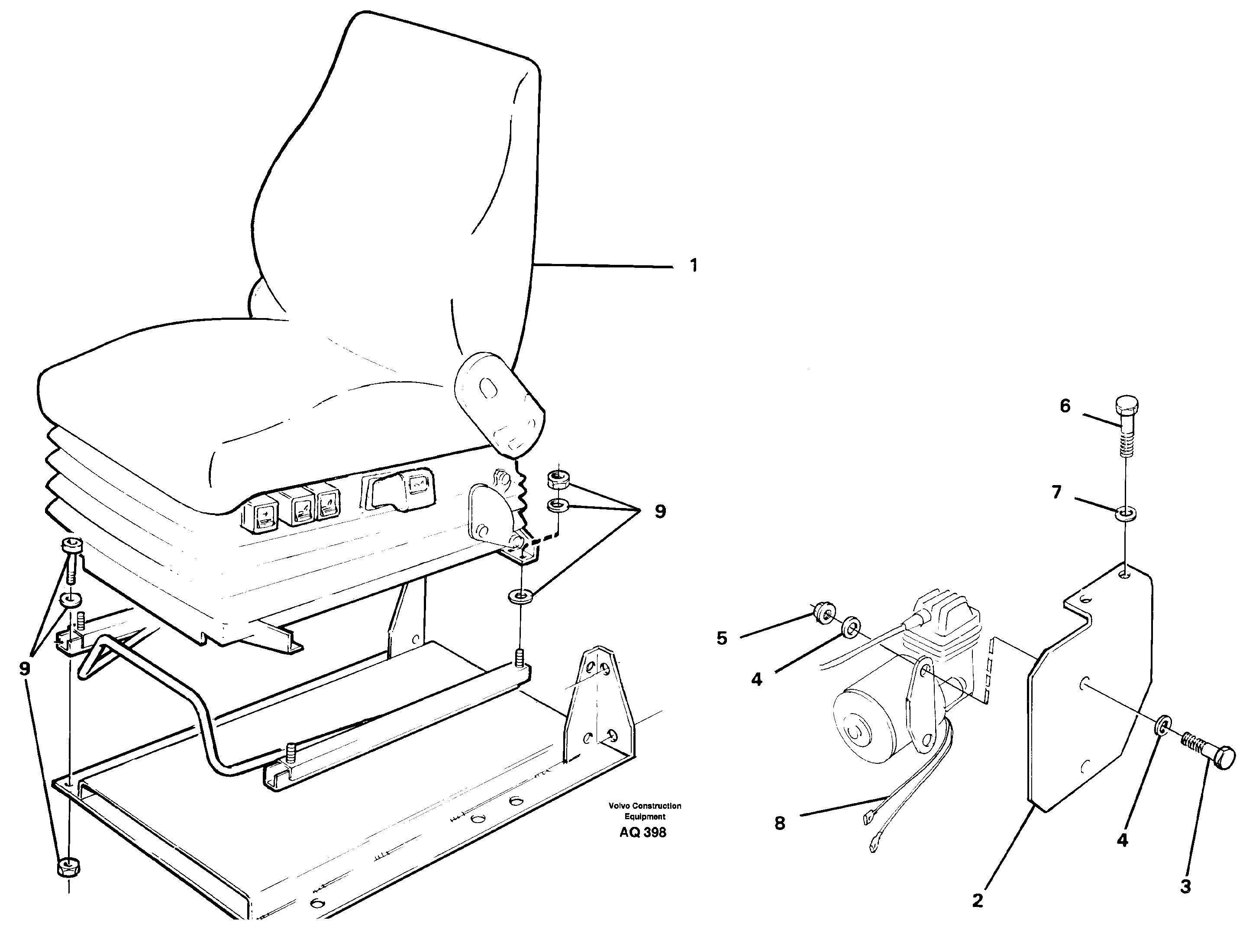

Driver's seat, air suspensioned Isri 94907

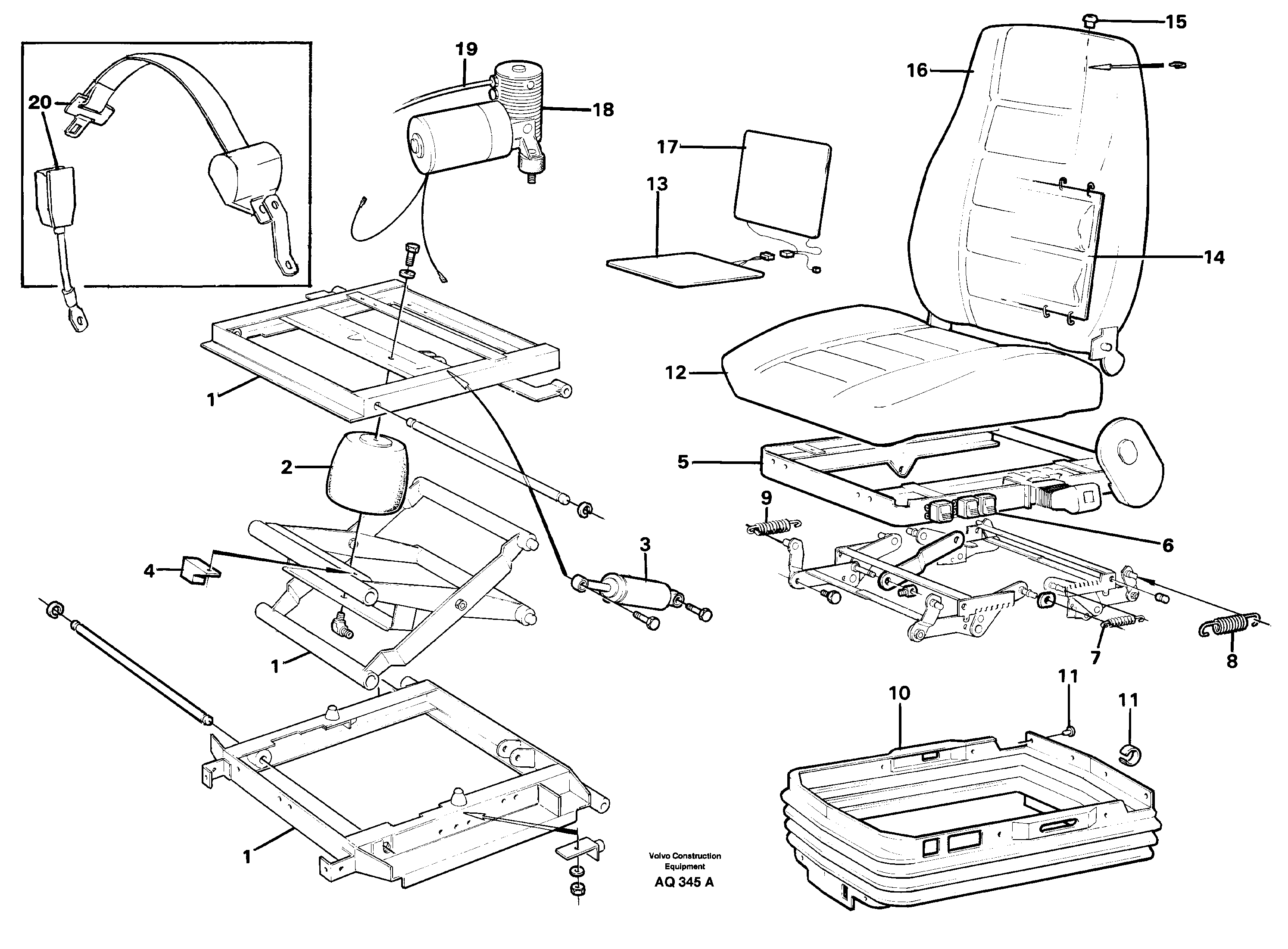

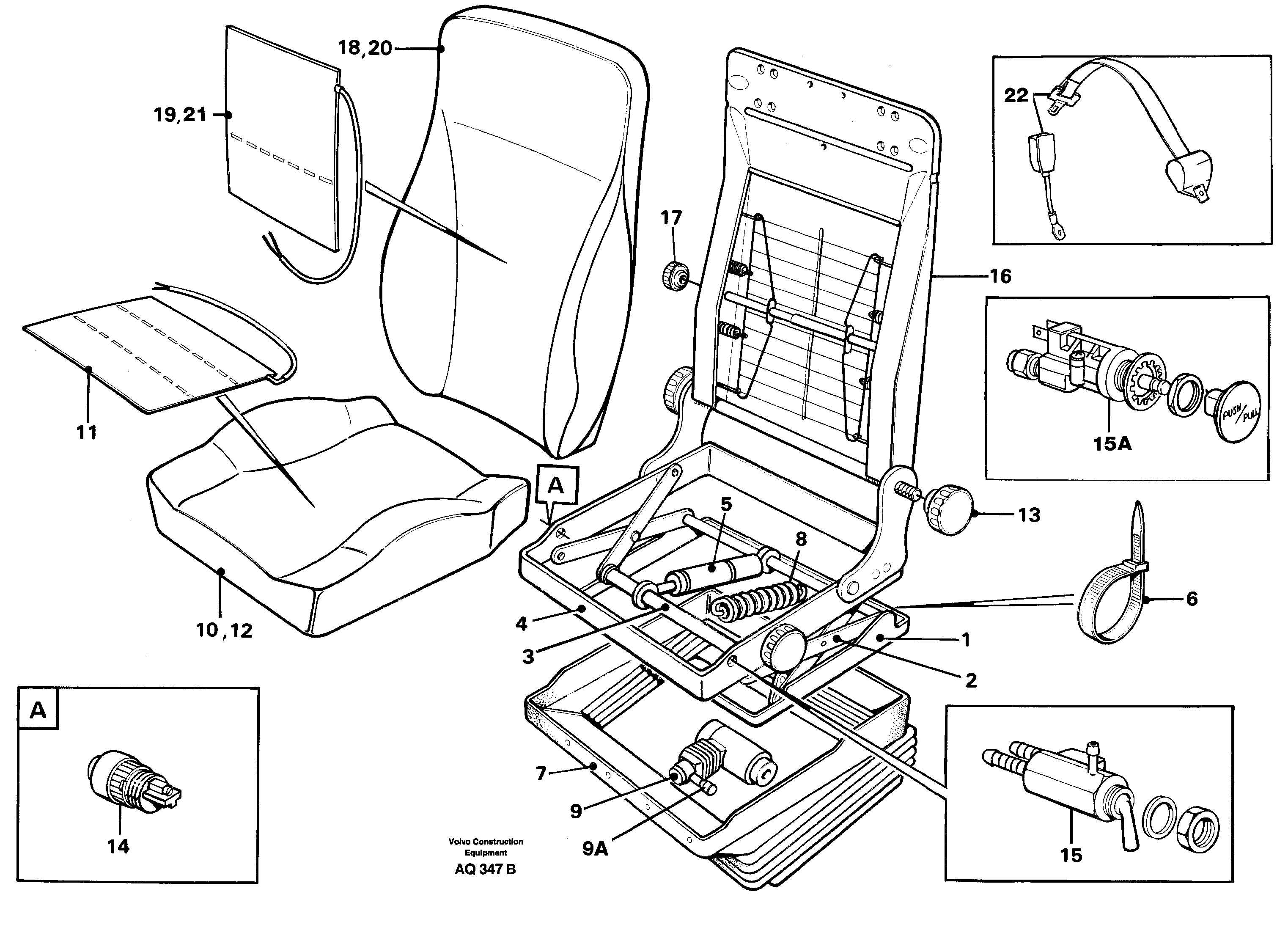

Driver's seat. 92379,94909, 92380, 94911

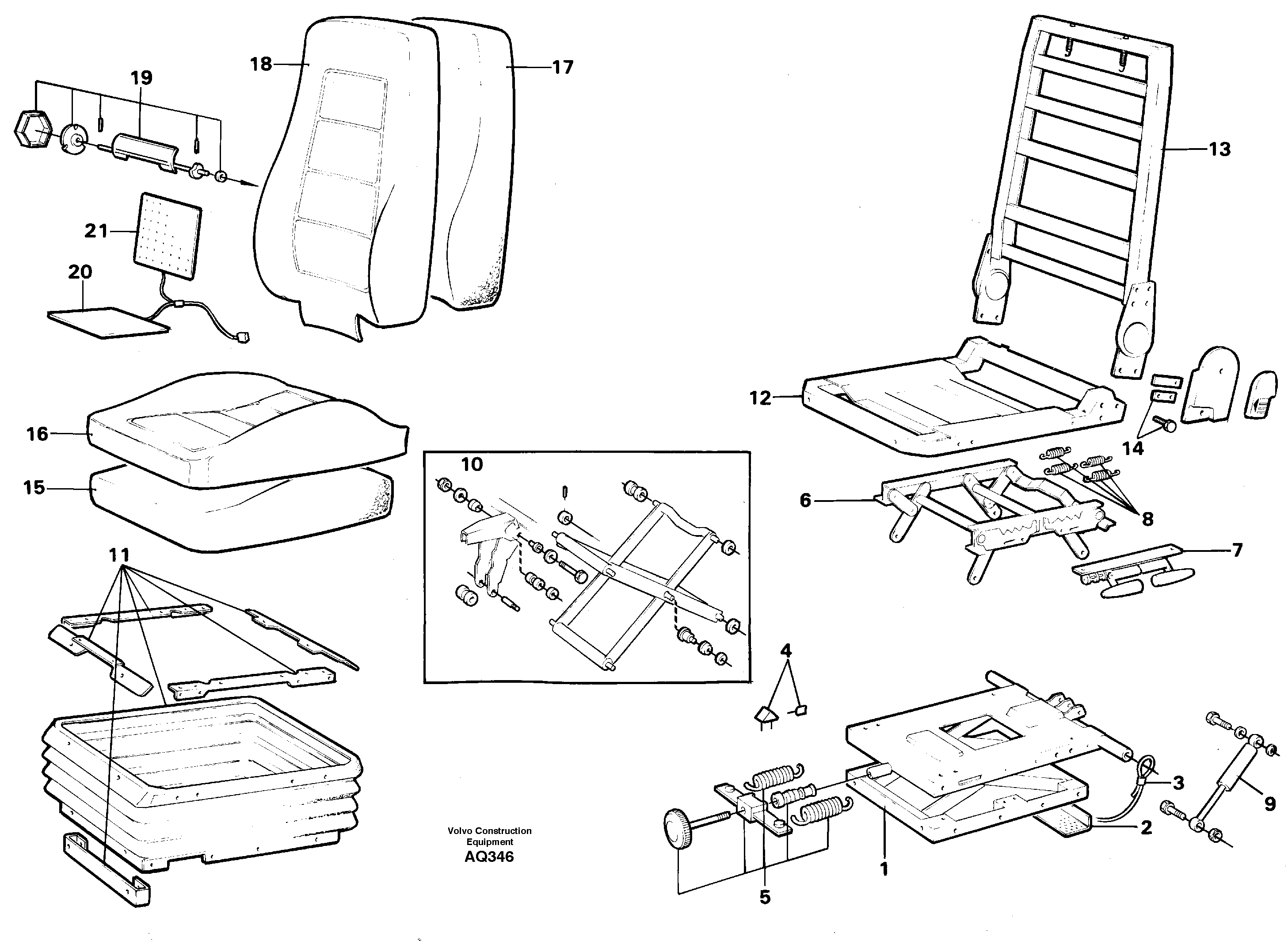

Driver's seat. 92381

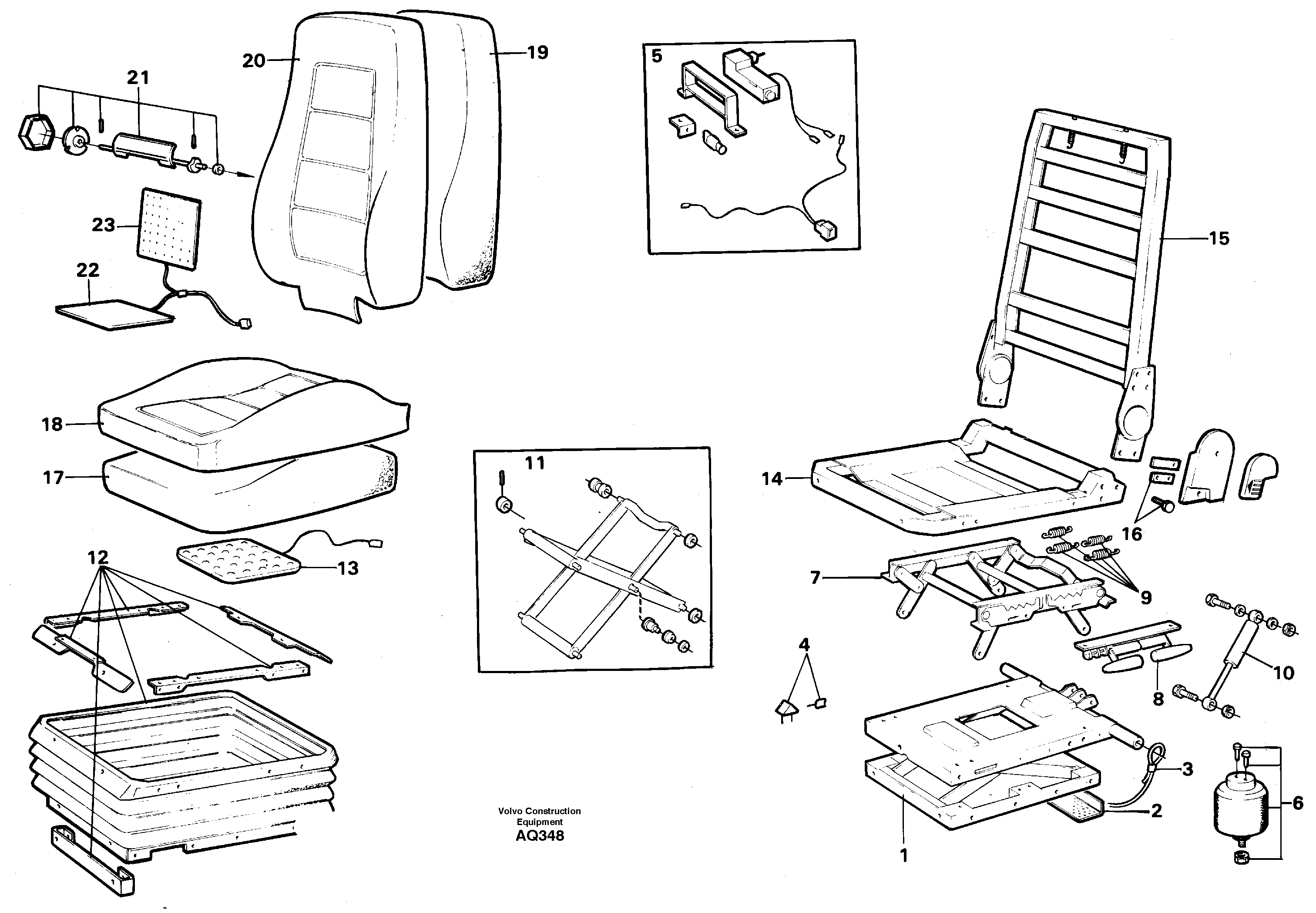

Driver's seat. 92382

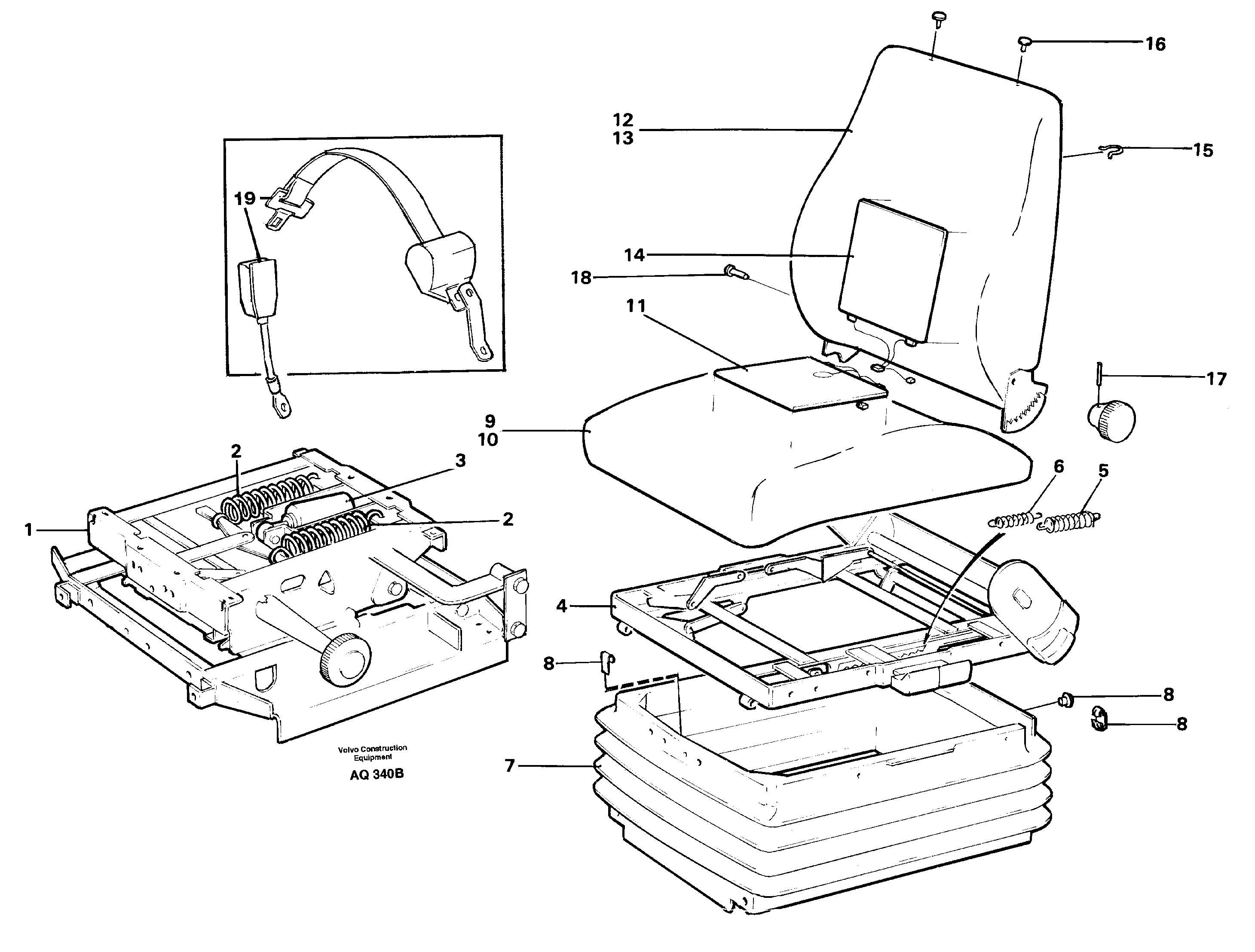

Driver's seat. 92403 91950 94901 94903 94905

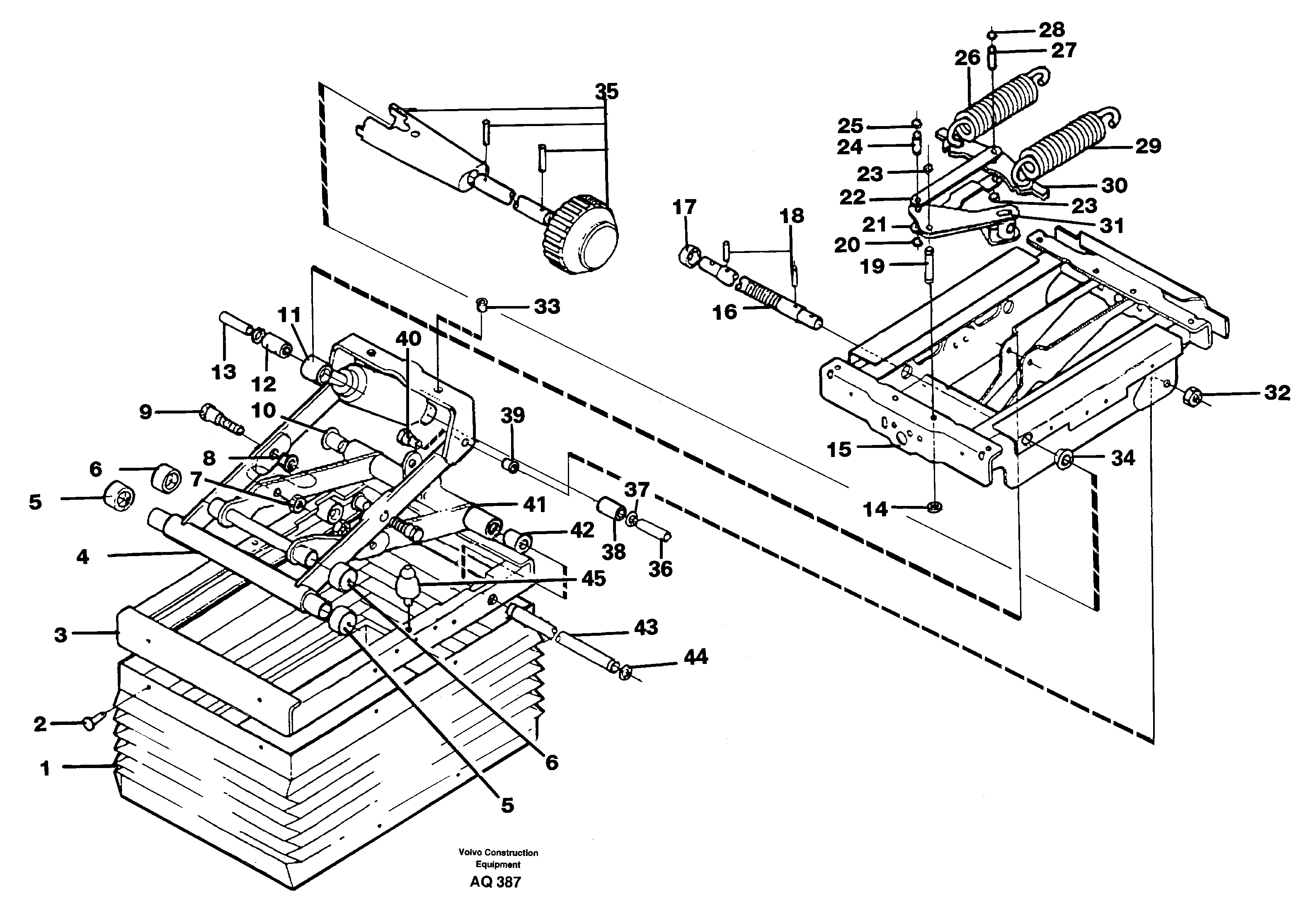

Operator seat Isri 93505
Driver's seat. 92404 94907

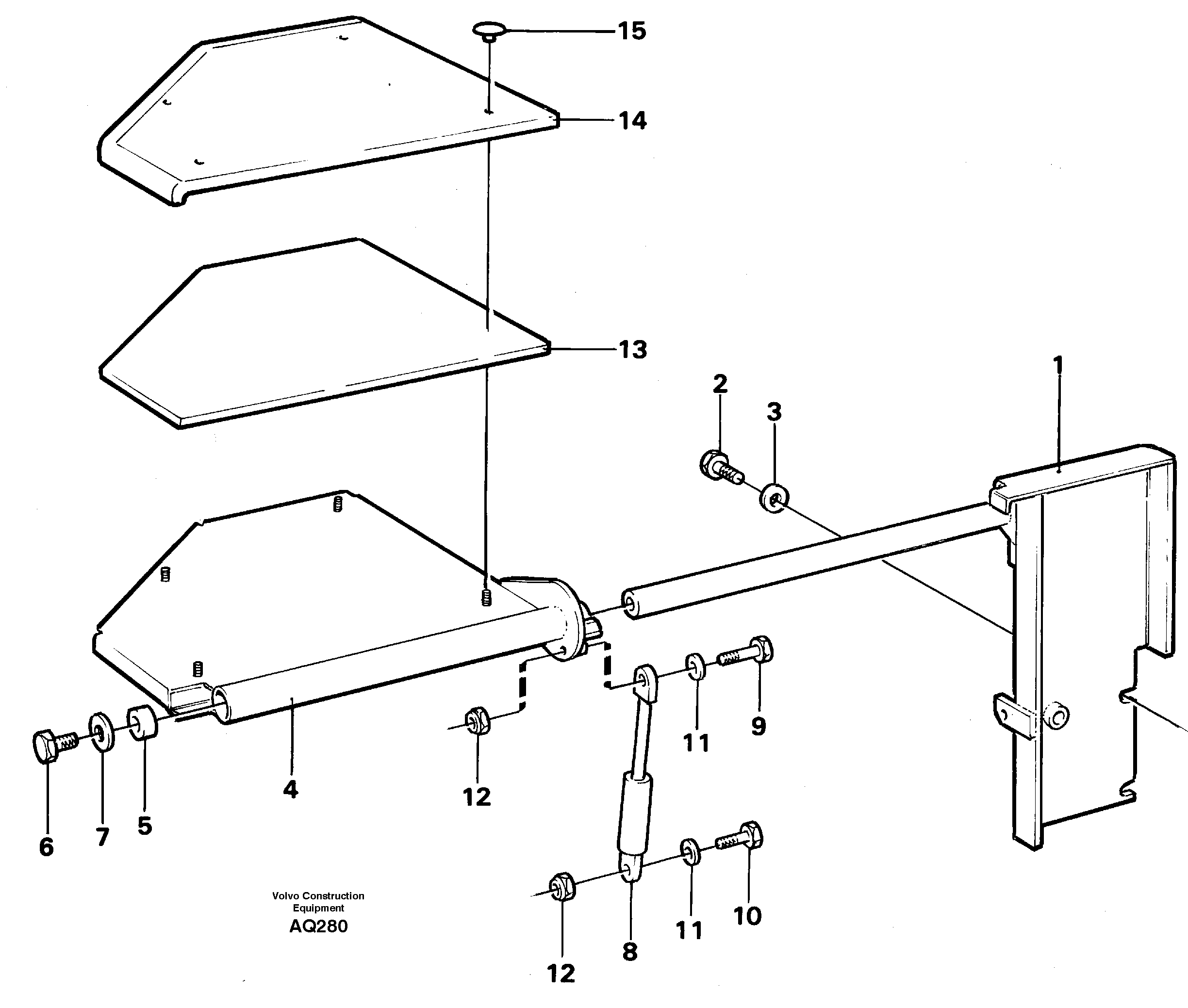

Instructor's seat 91988

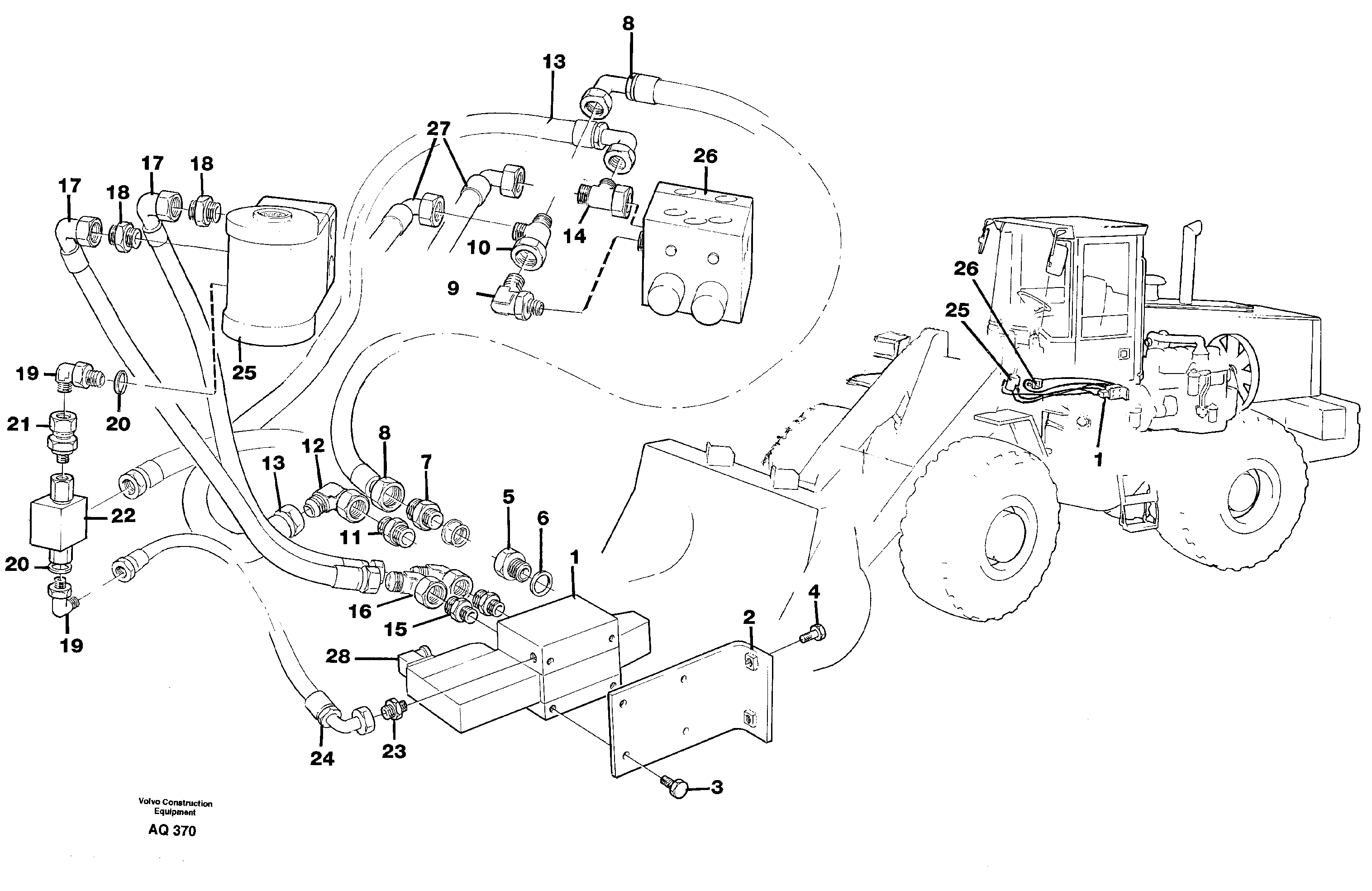

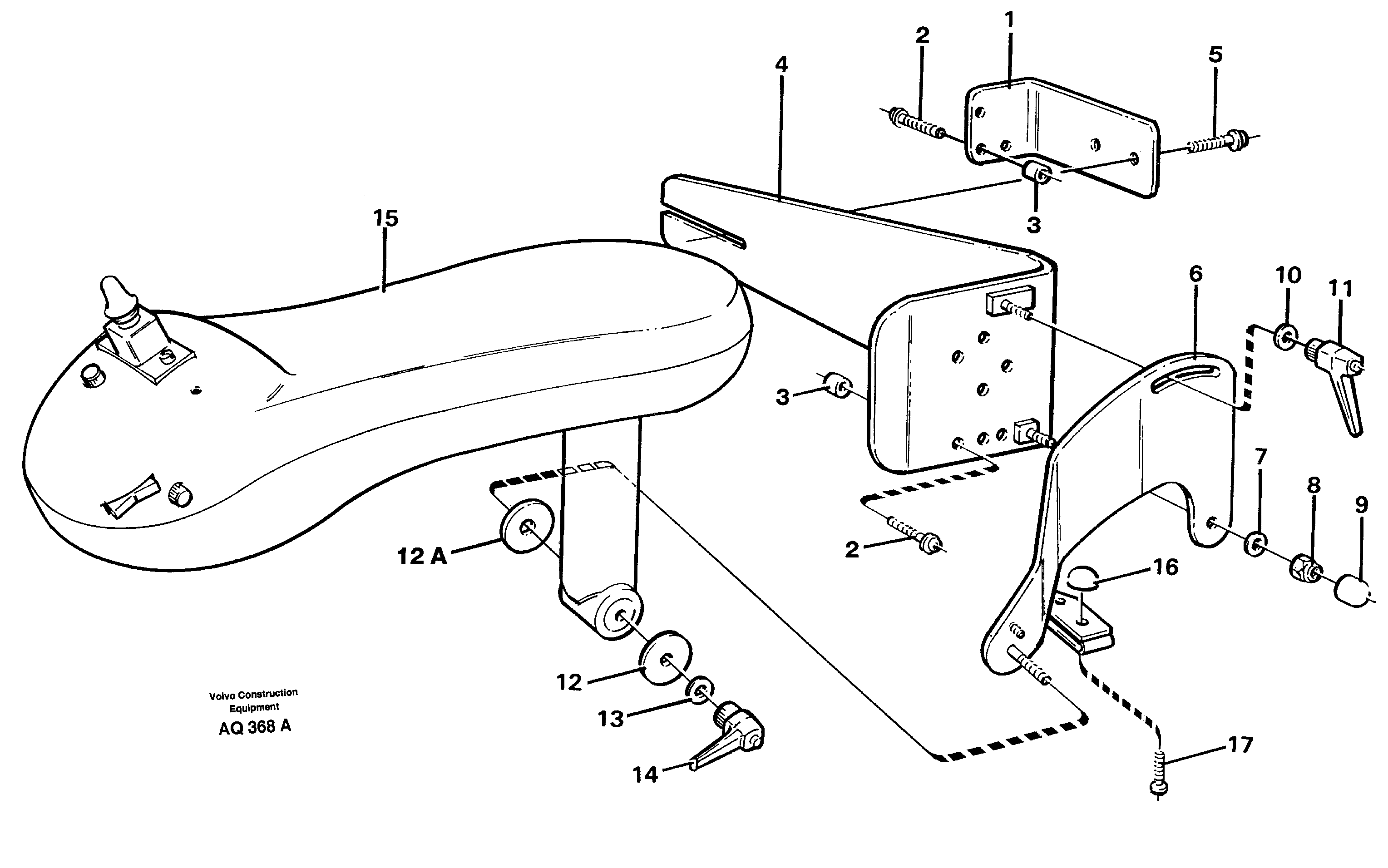

Cdc-steering, armrest, mounting 94603

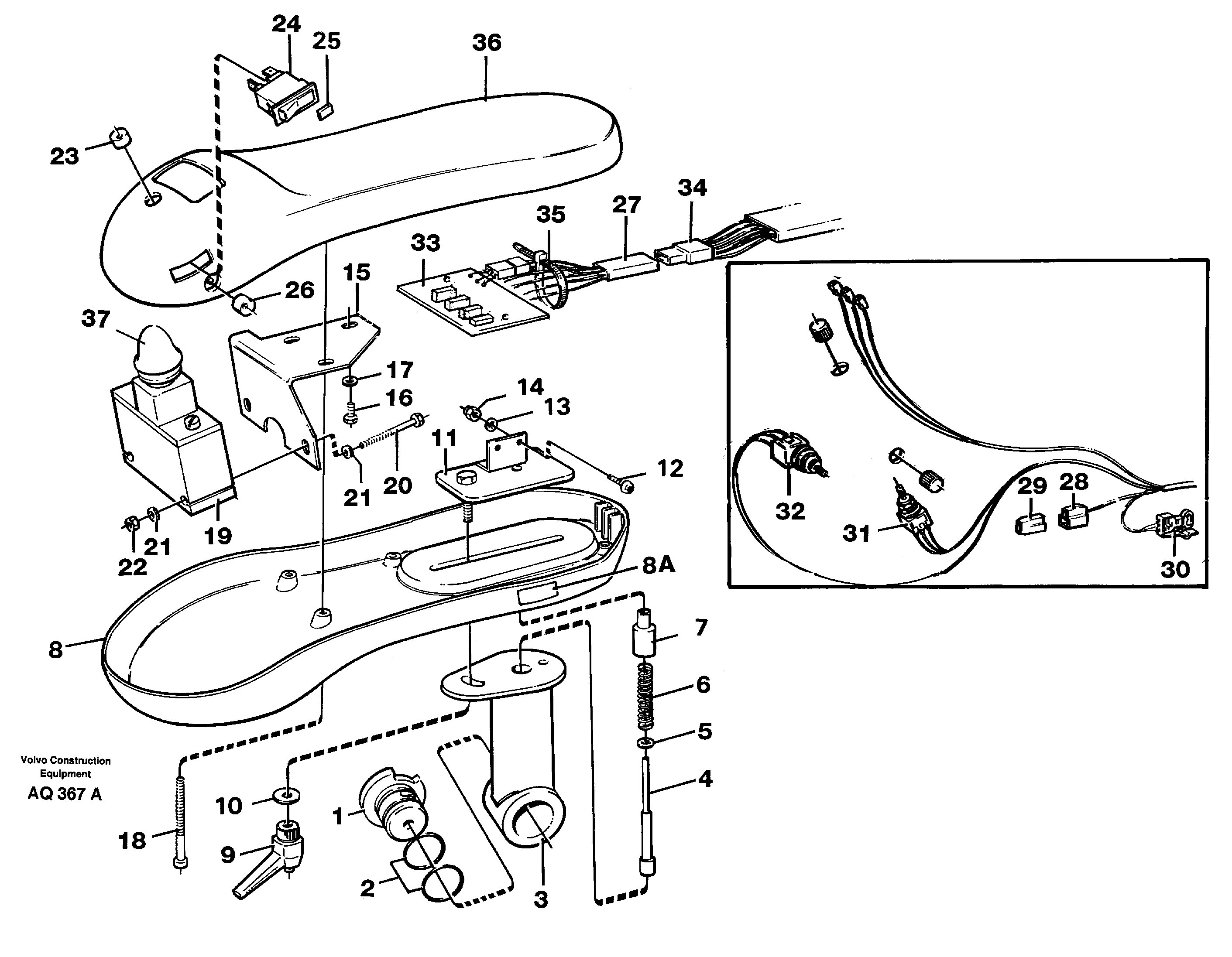

Armrest 94603

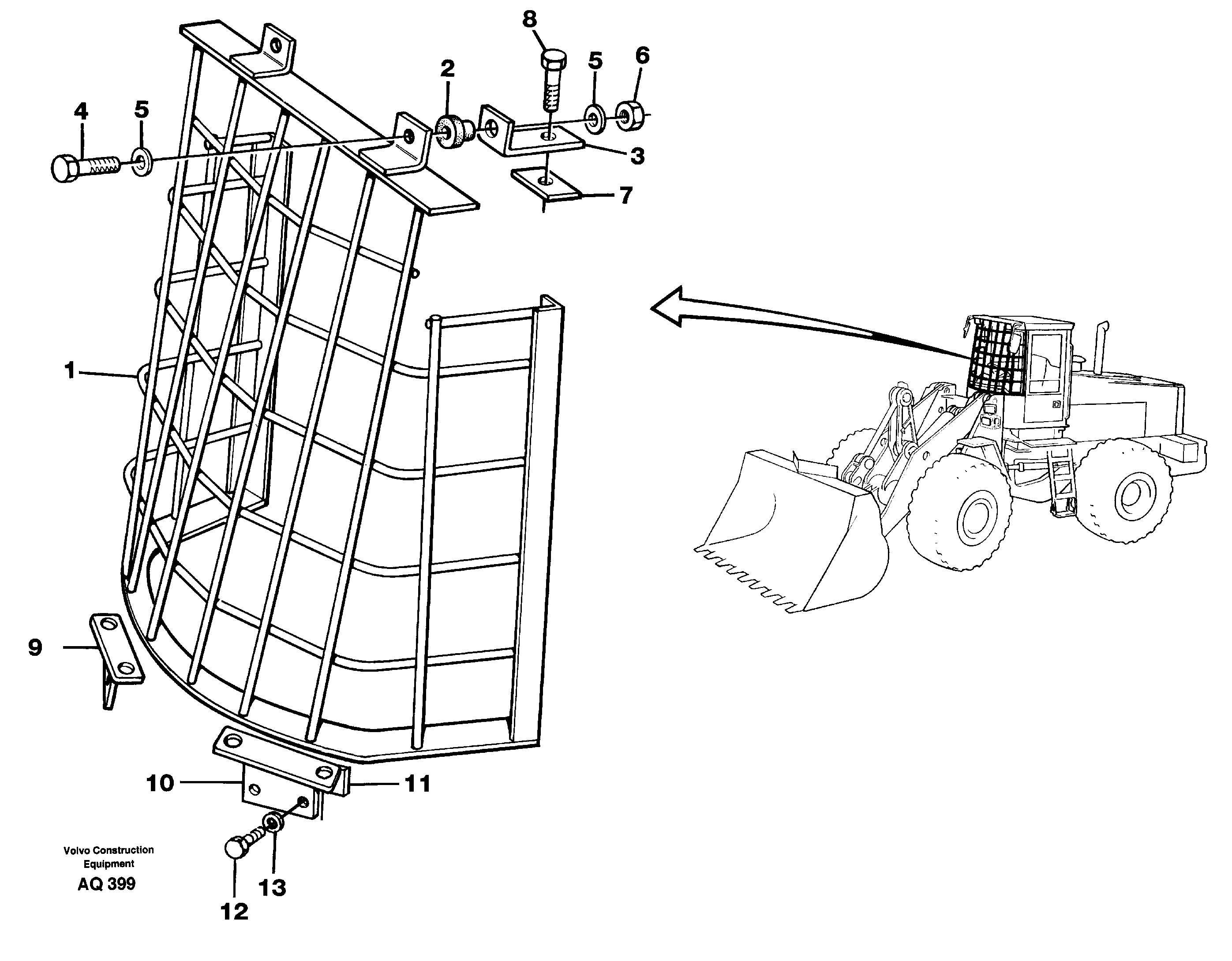

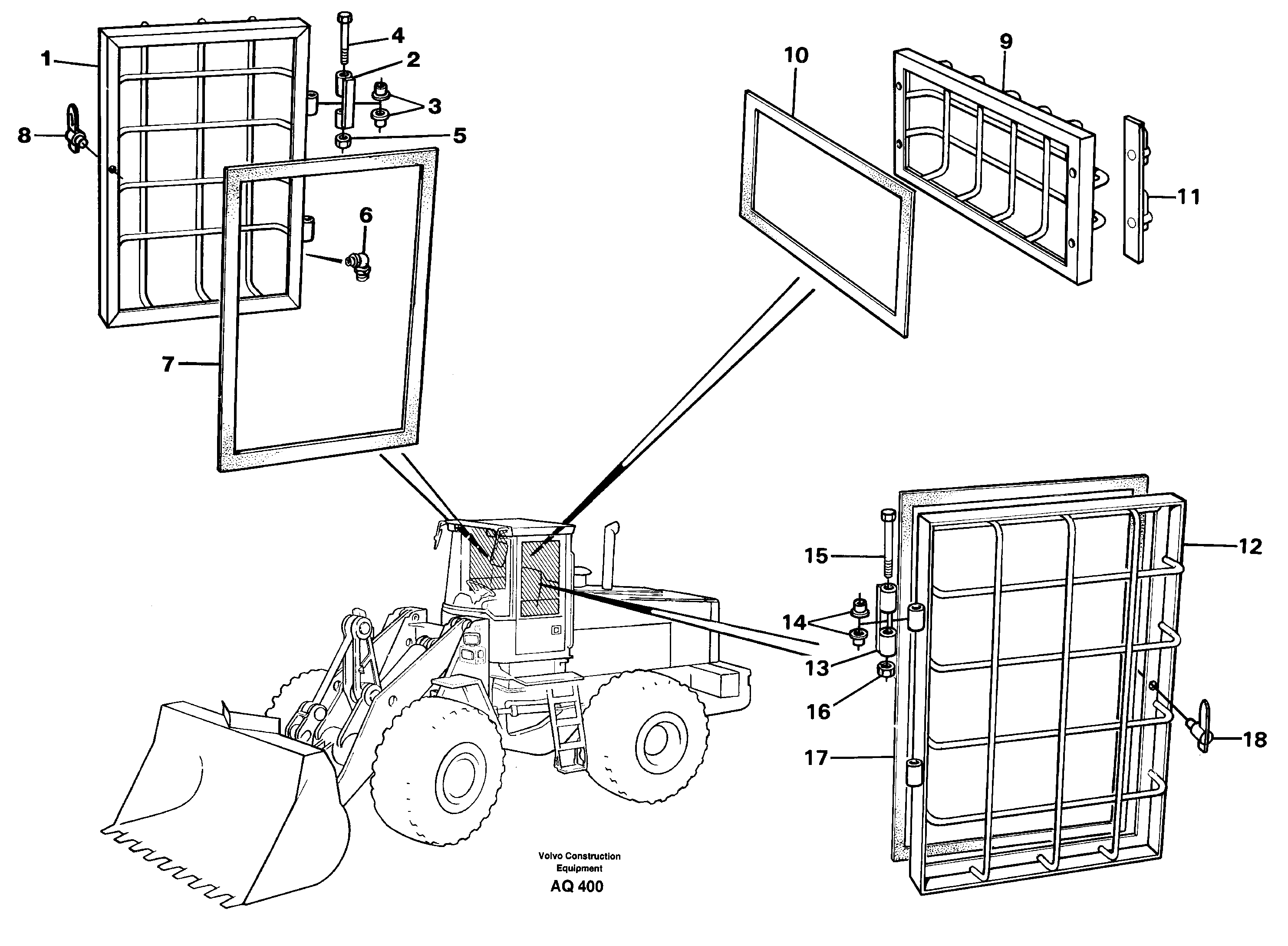

Protective equipment

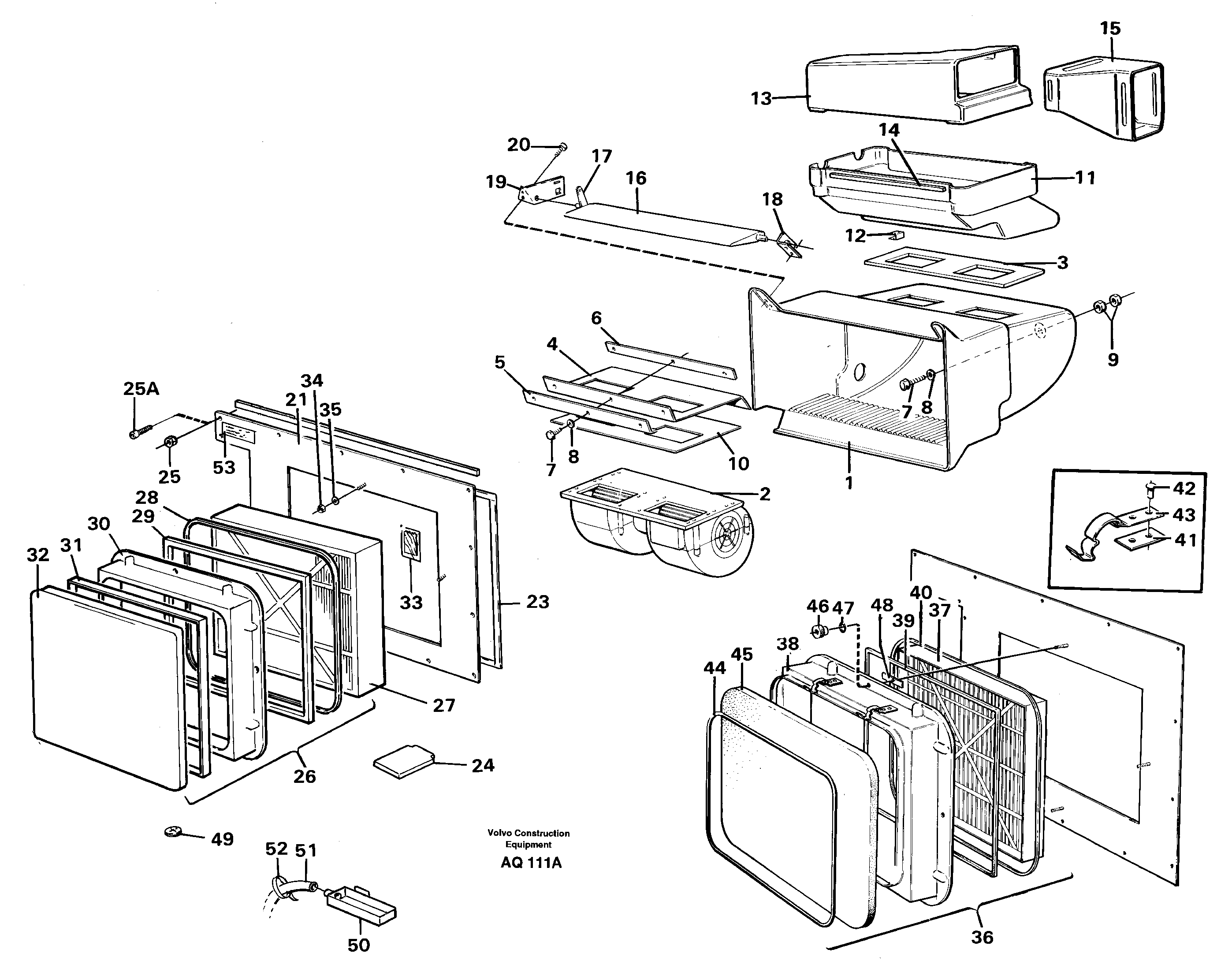

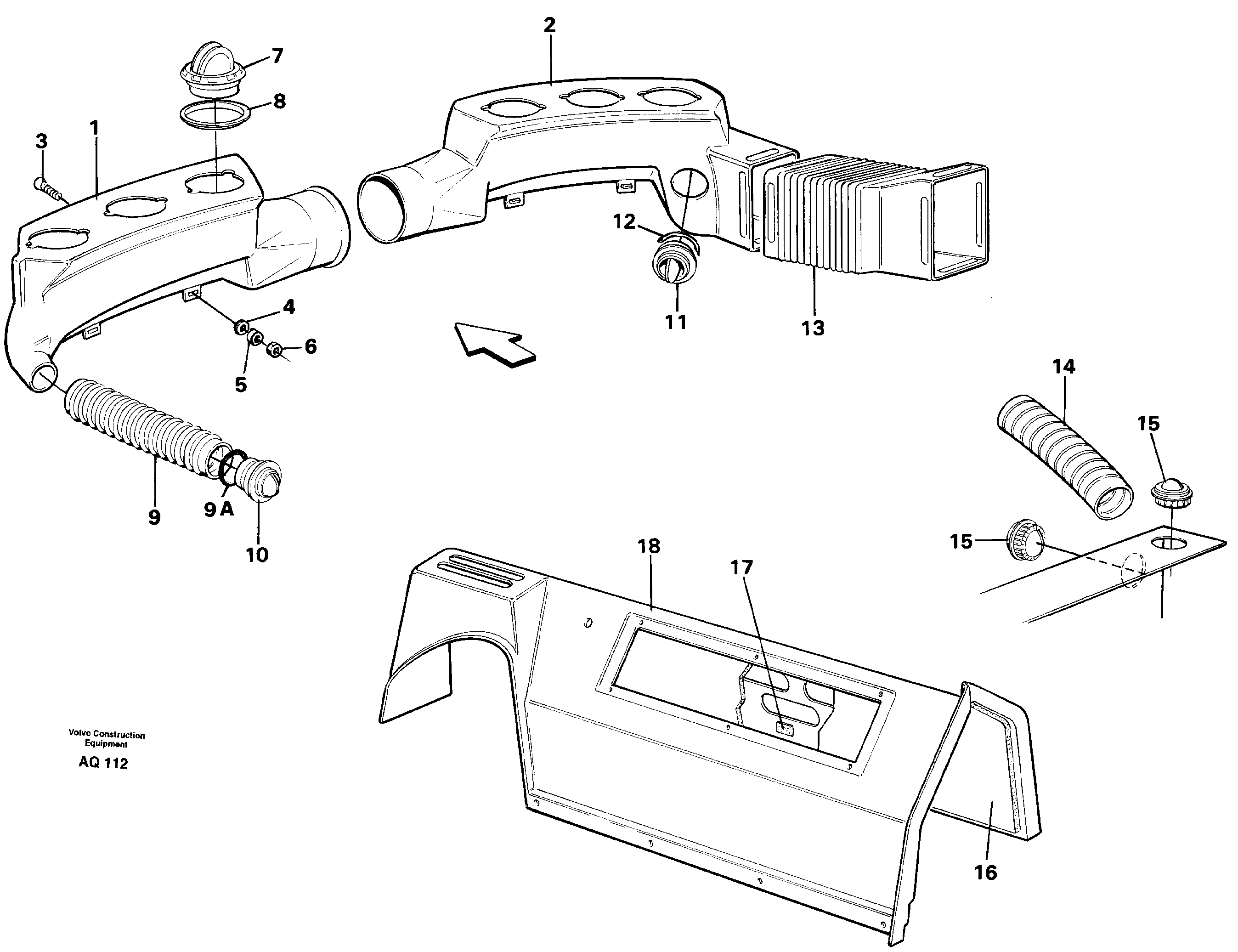

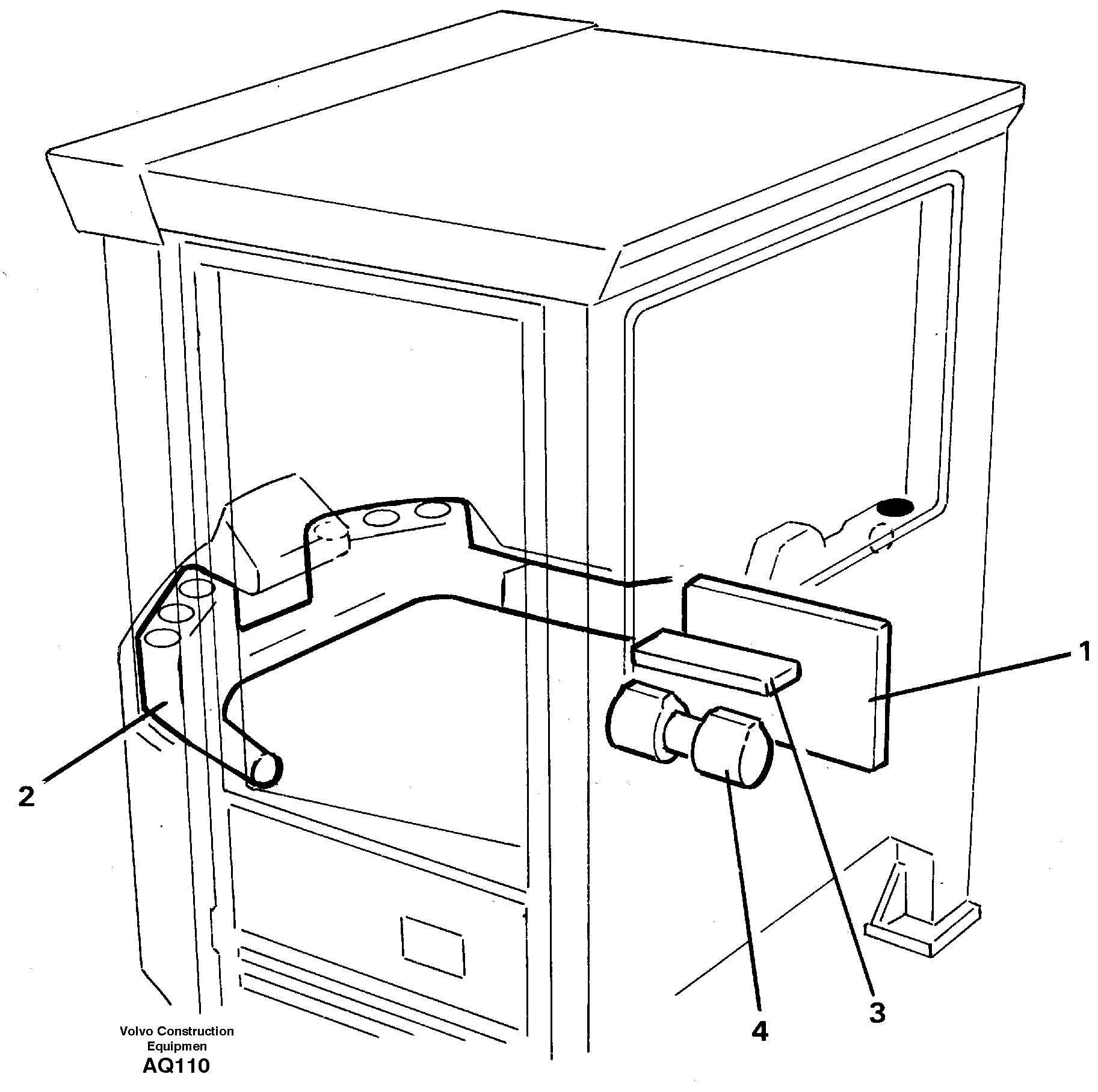

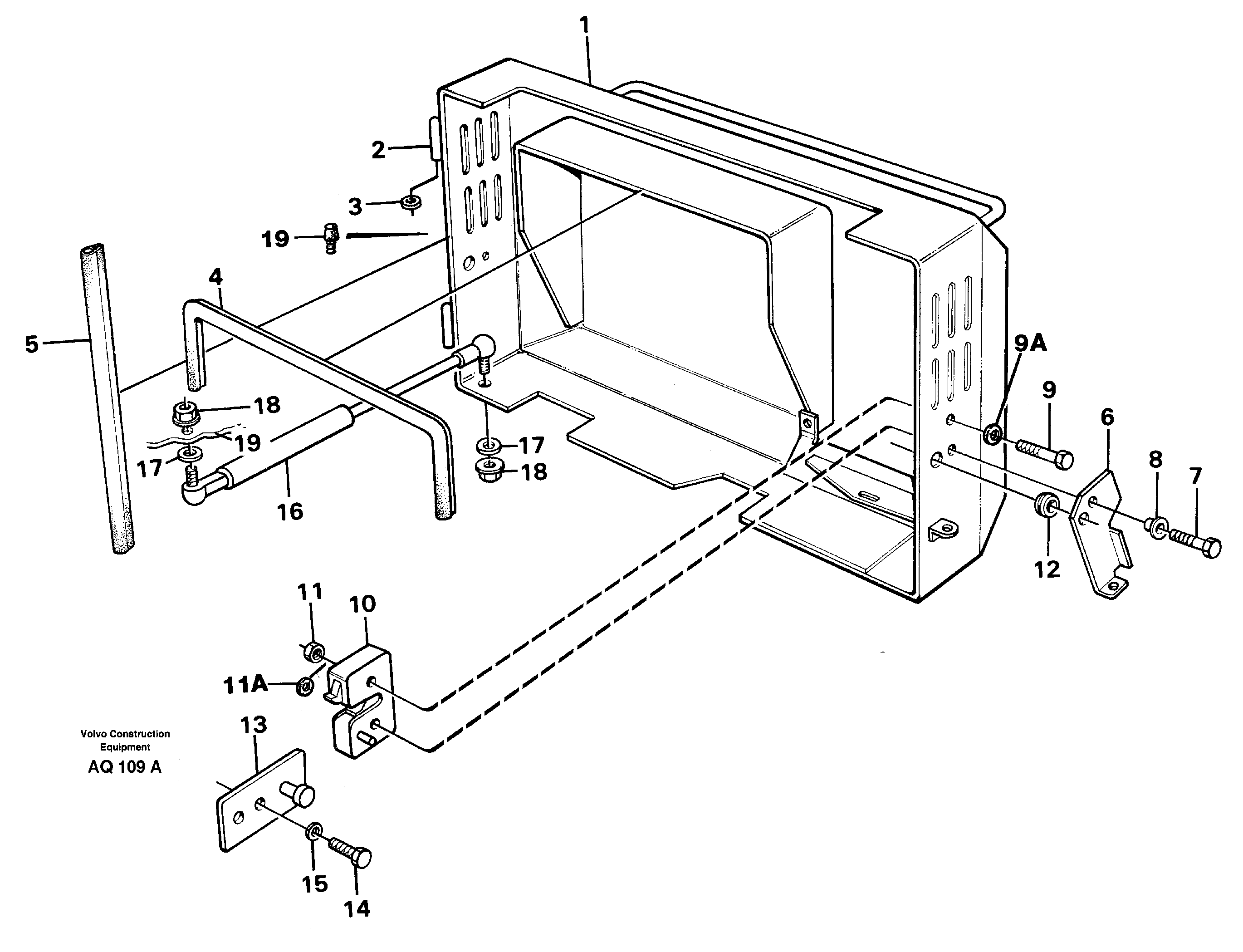

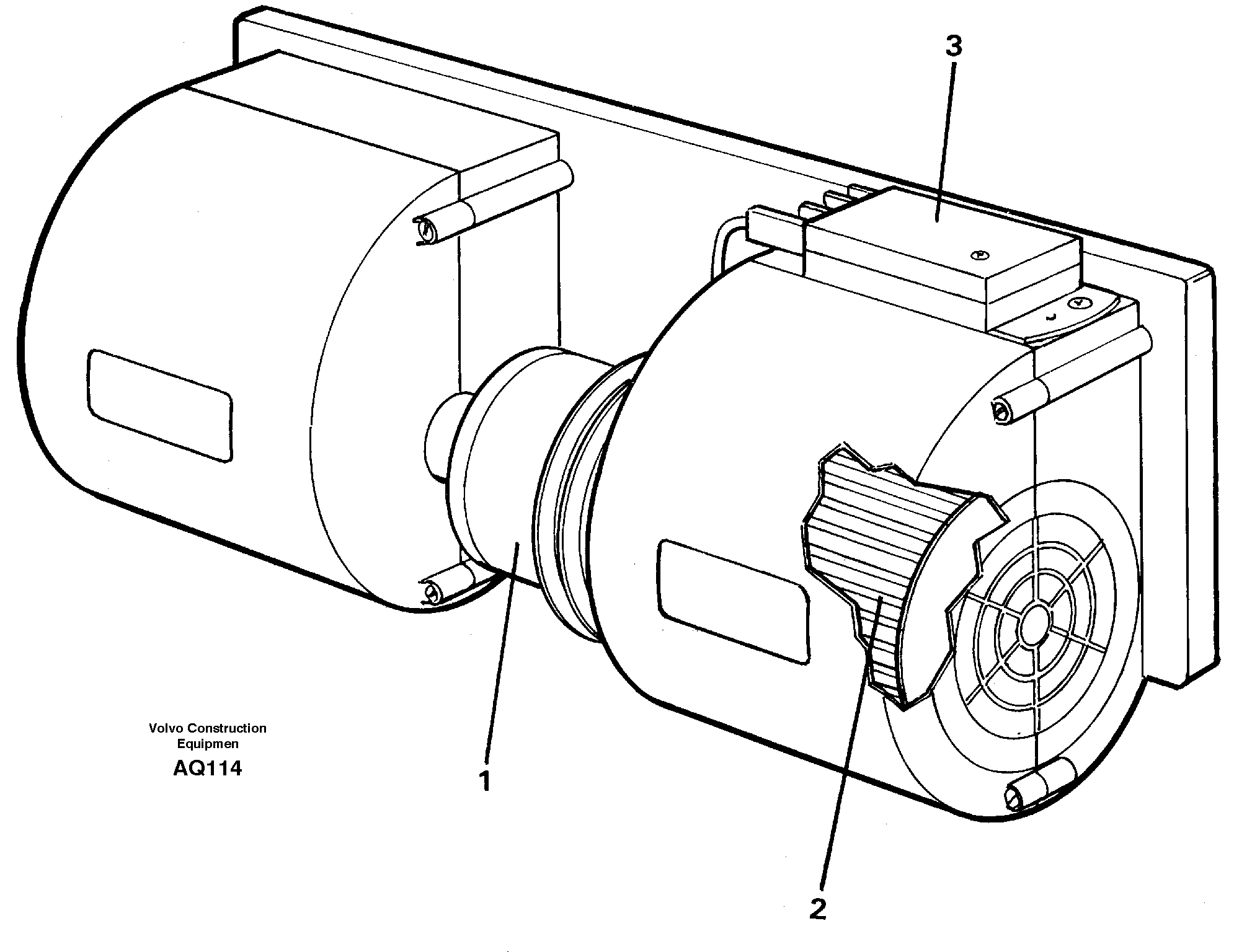

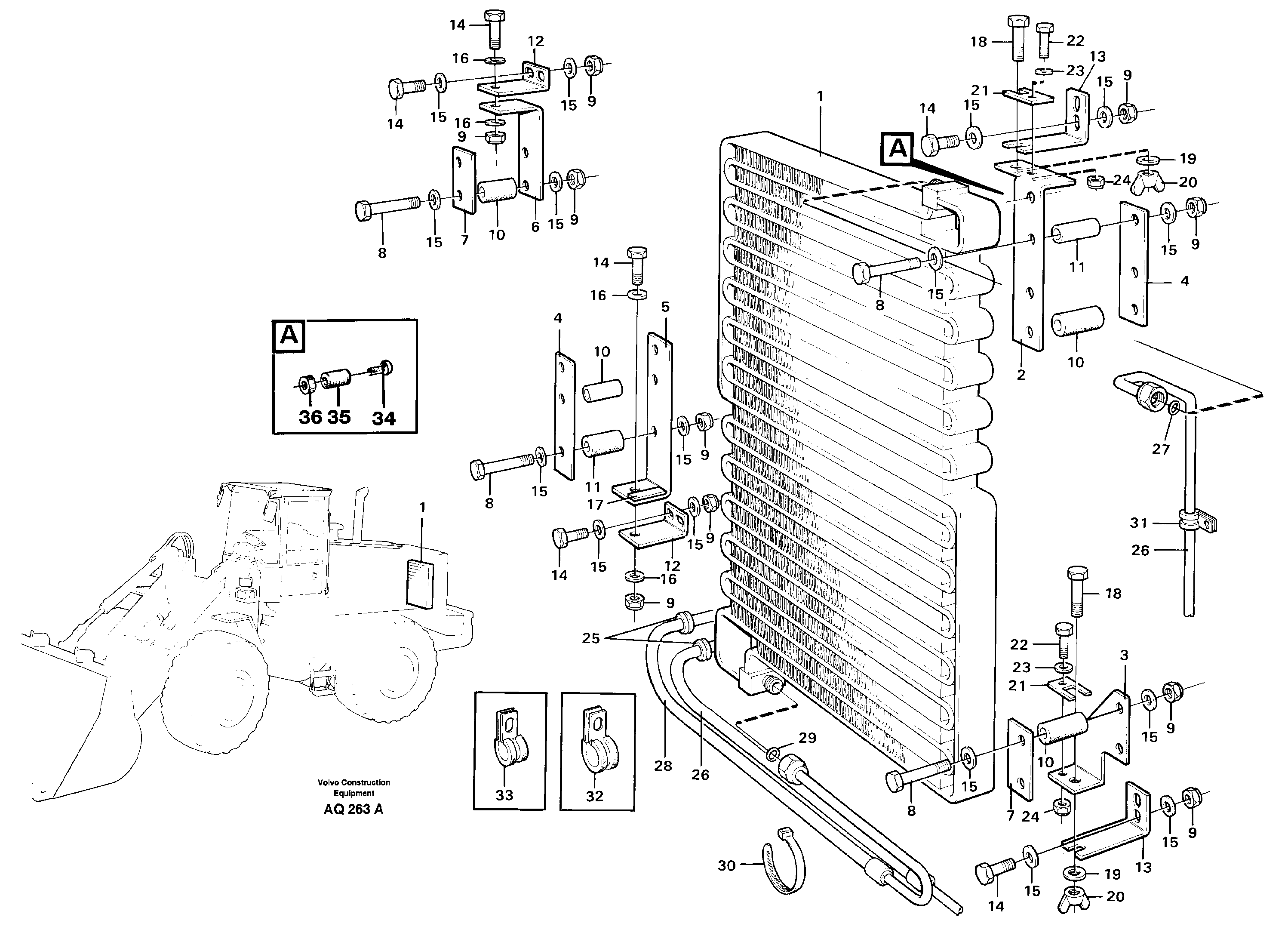

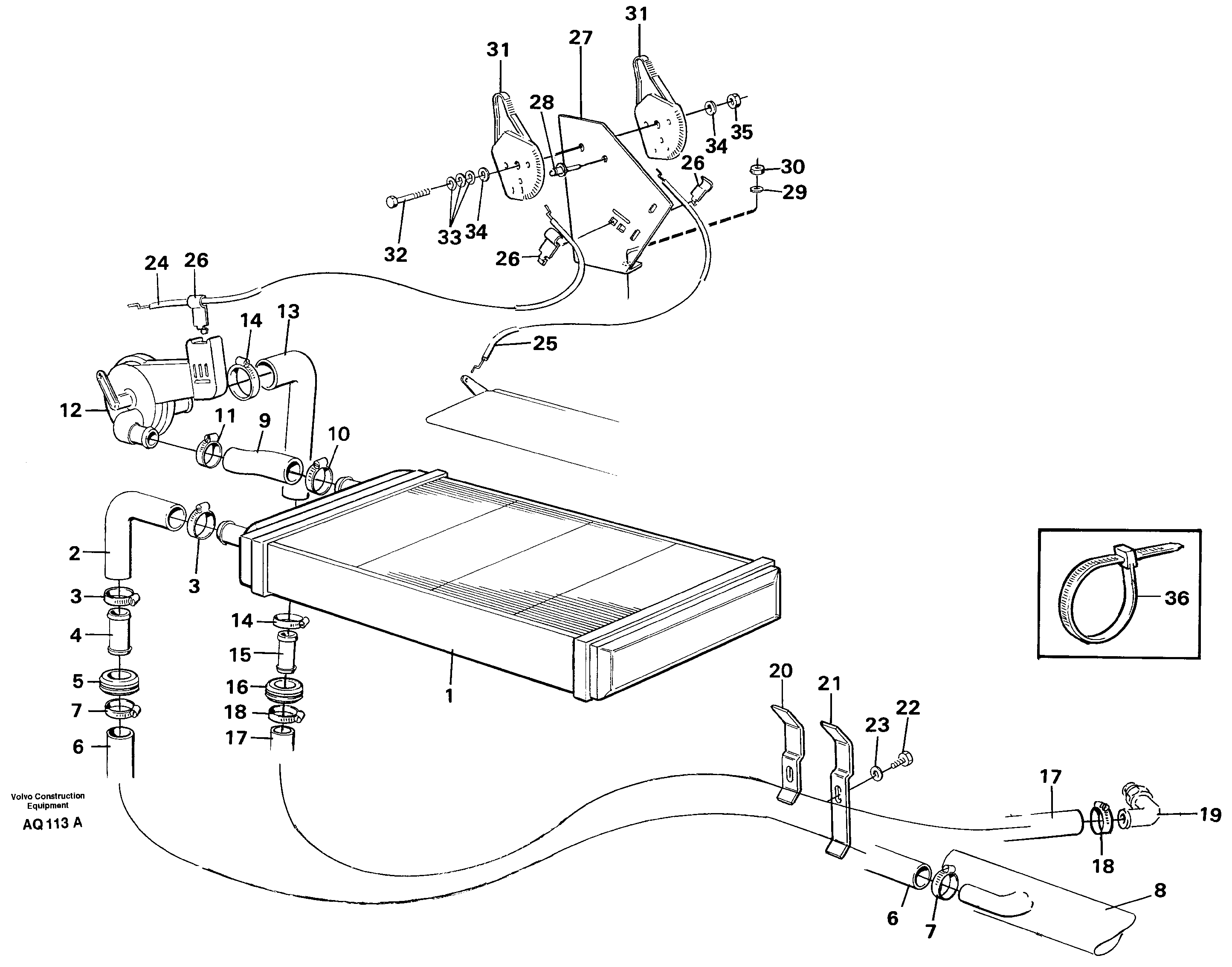

Air Conditioning unit

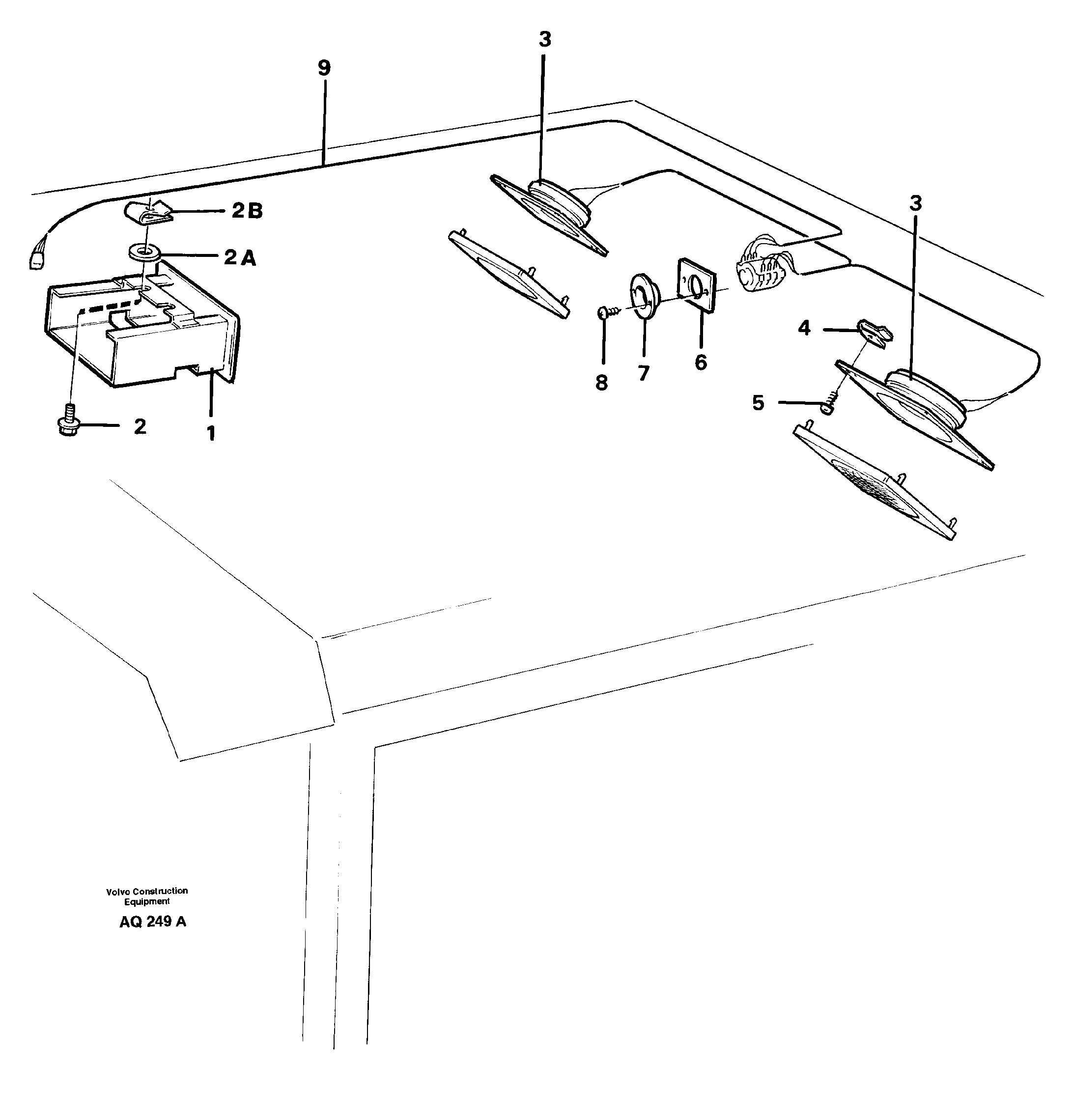

Interior Equipment

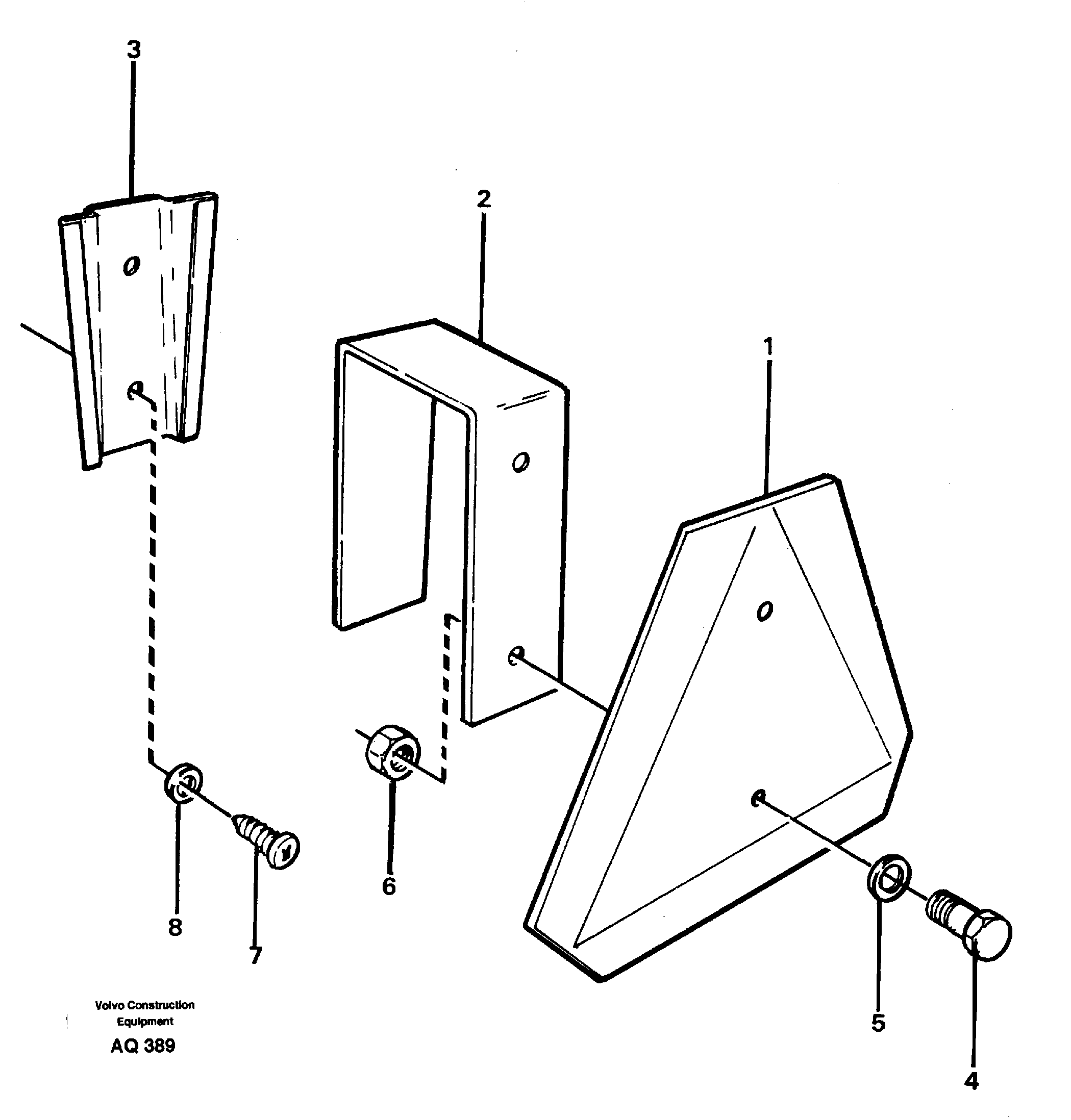

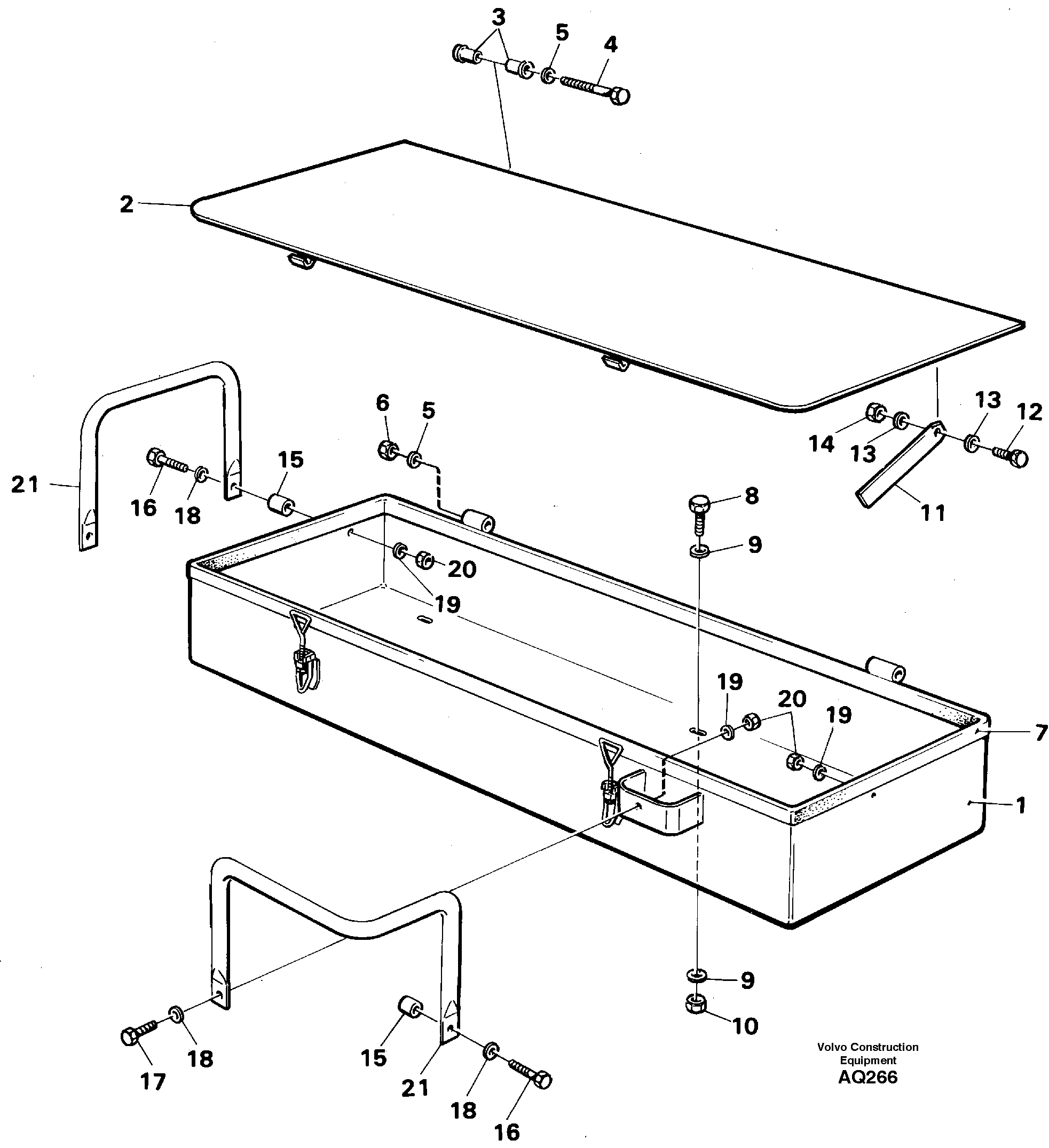

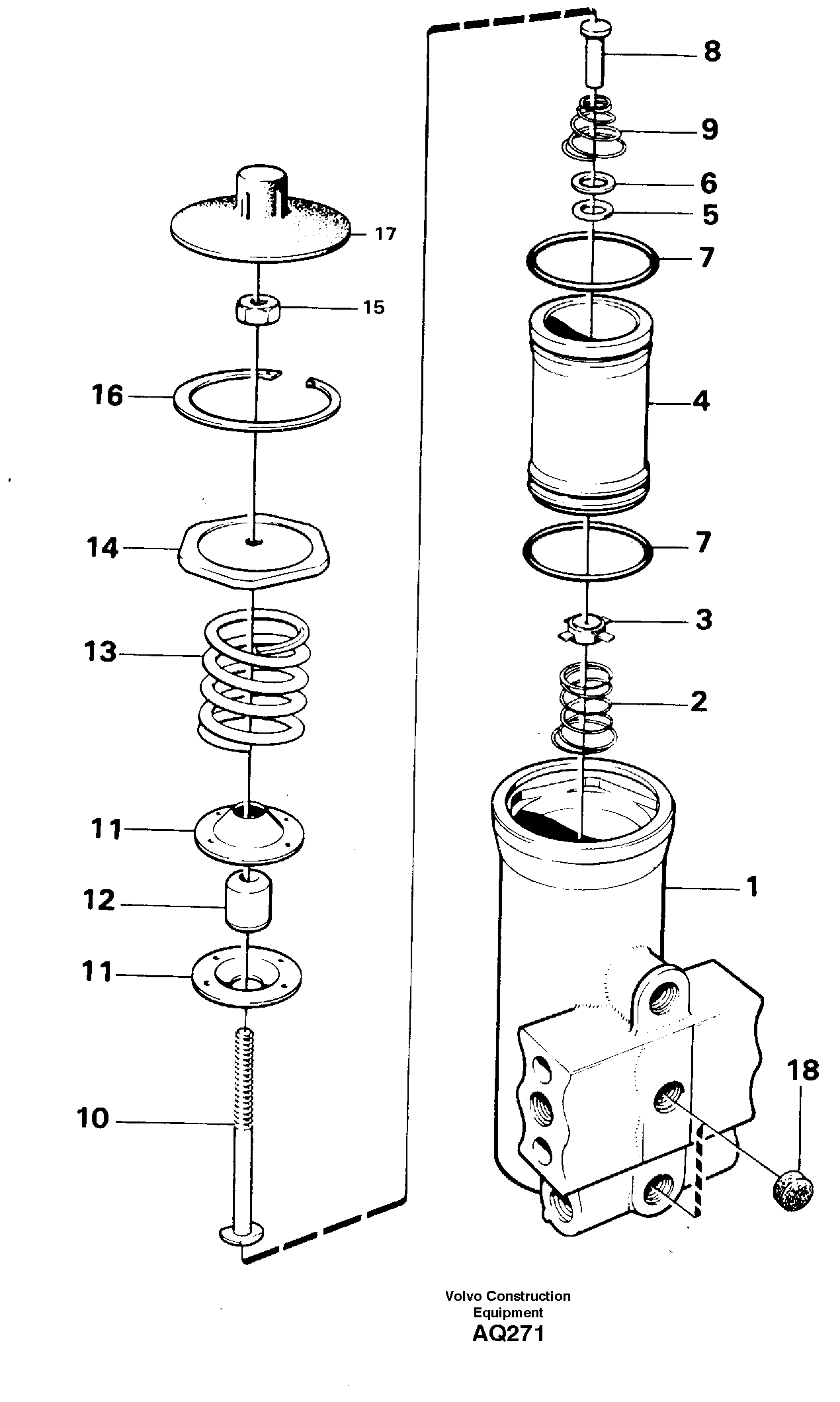

Miscellaneous
Hydraulic system, digging/handling/grading equipm., misc. Equip.
Working hydraulics, Servo hydraulics

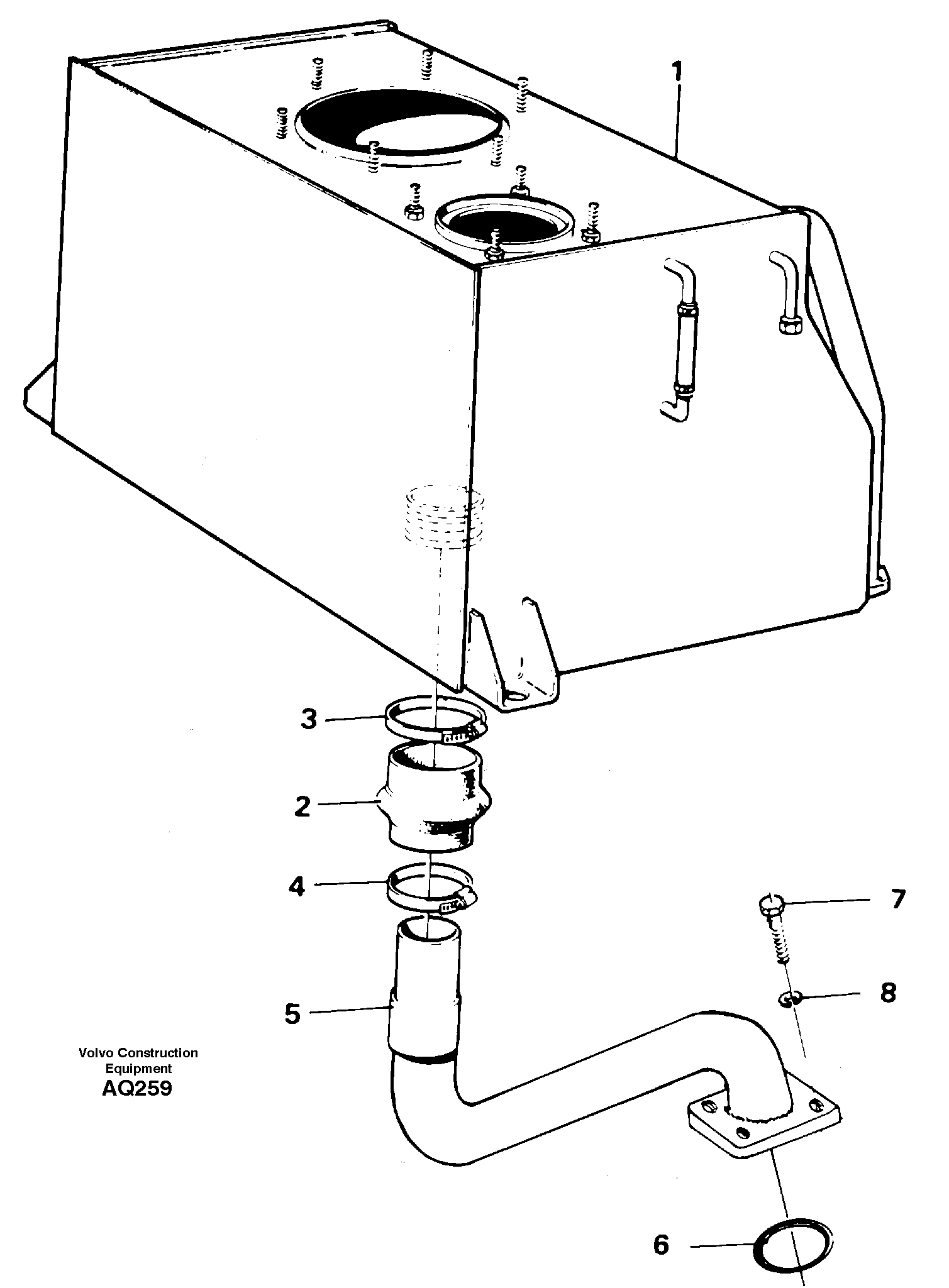

Hydraulic system Suction line

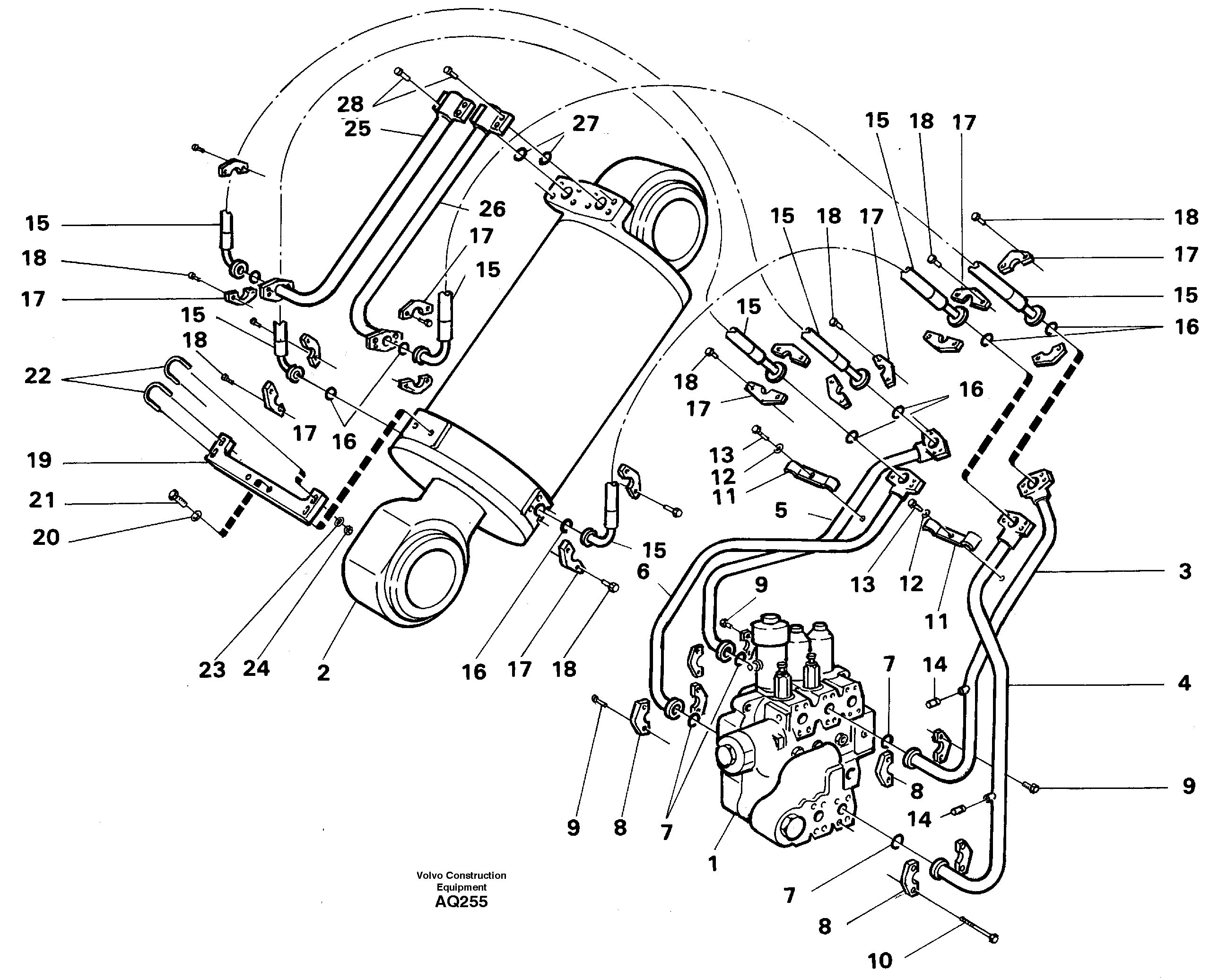

Hydraulic system Tilt function S/N - 12882, S/N - 62330 USA, S/N - 70246 BRAZIL

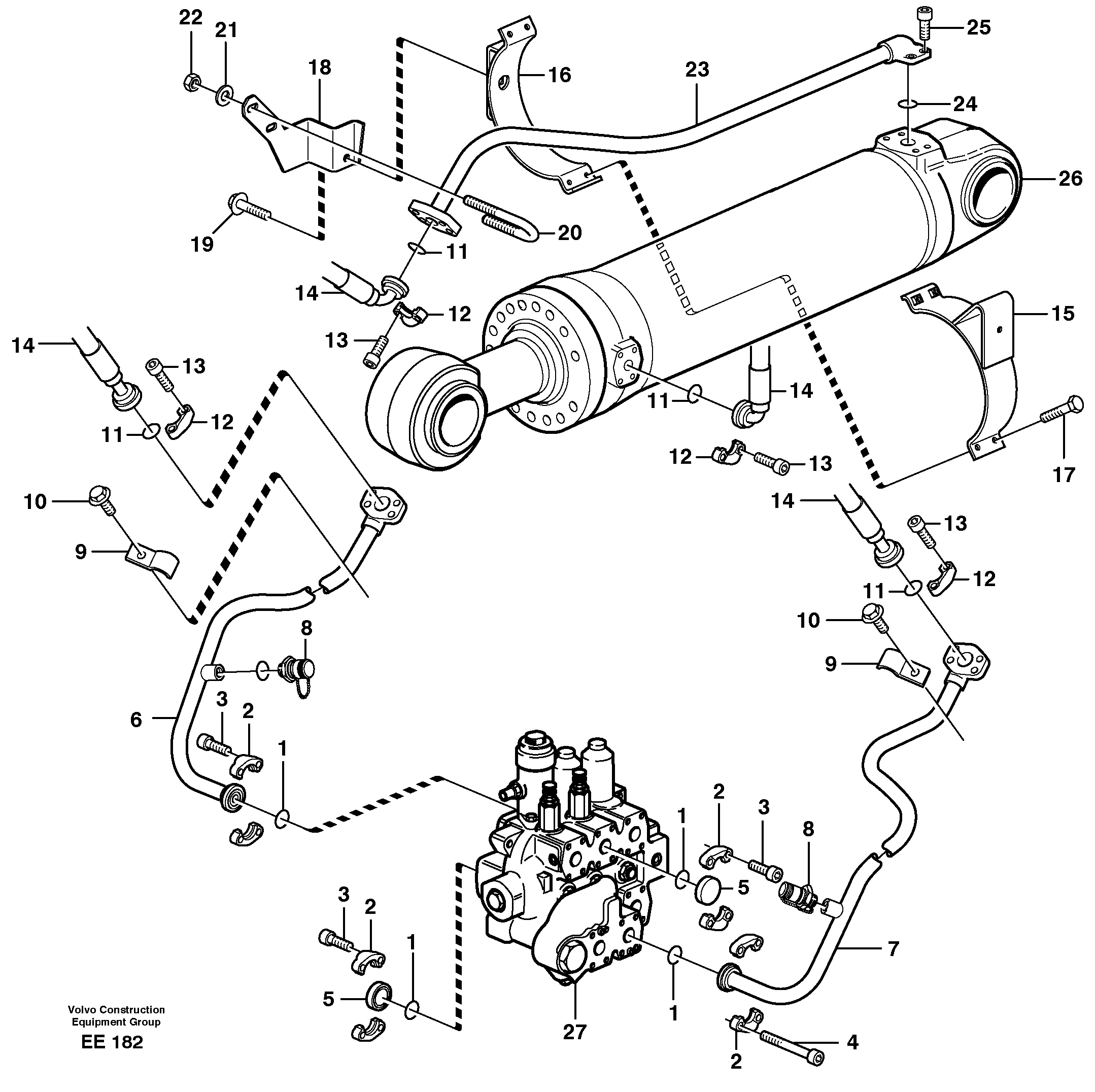

Hydraulic system, tilt function S/N 12883 -, S/N 62331 - USA, S/N 70247 - BRAZIL

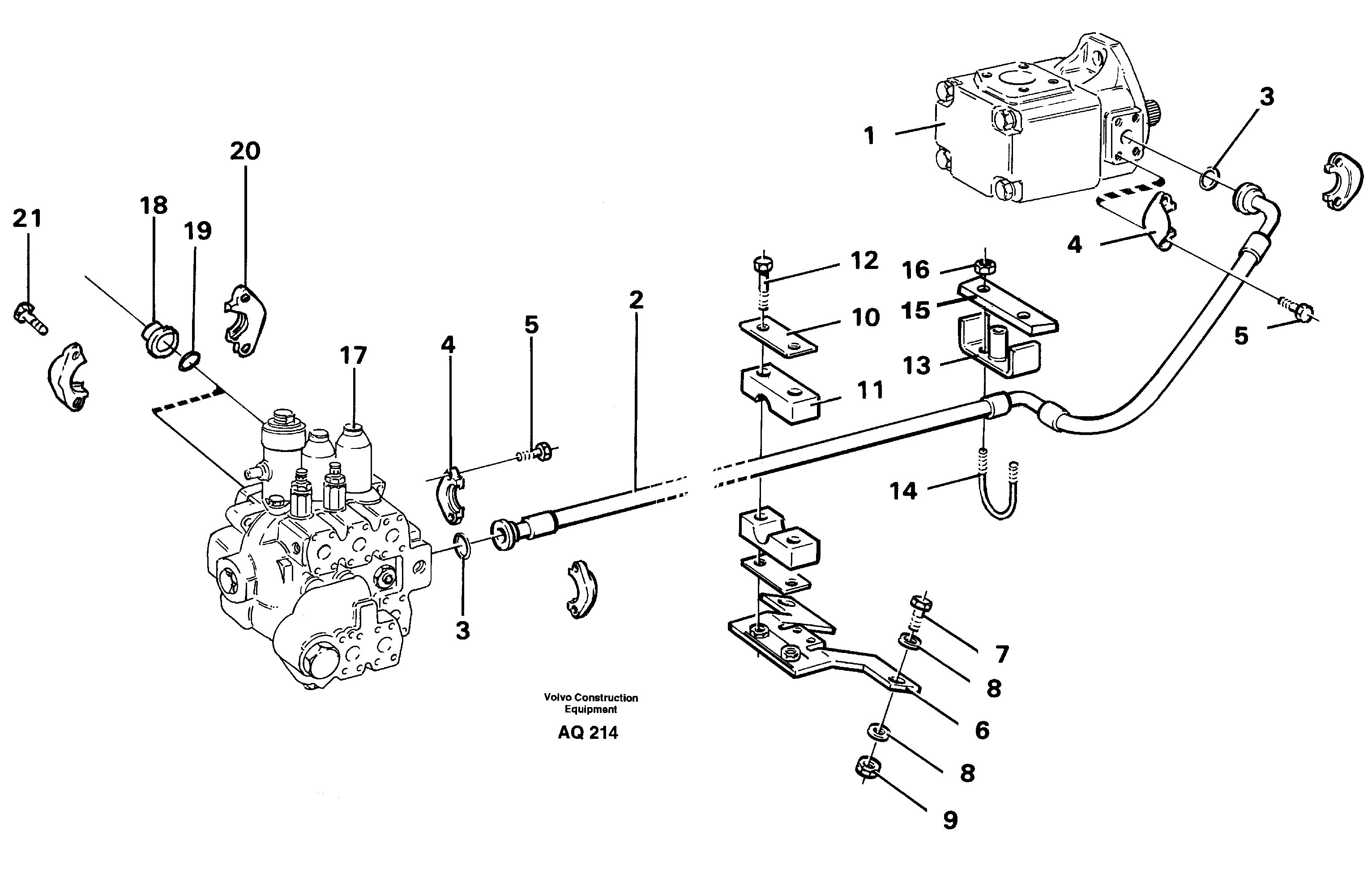

Hydraulic system Feed line

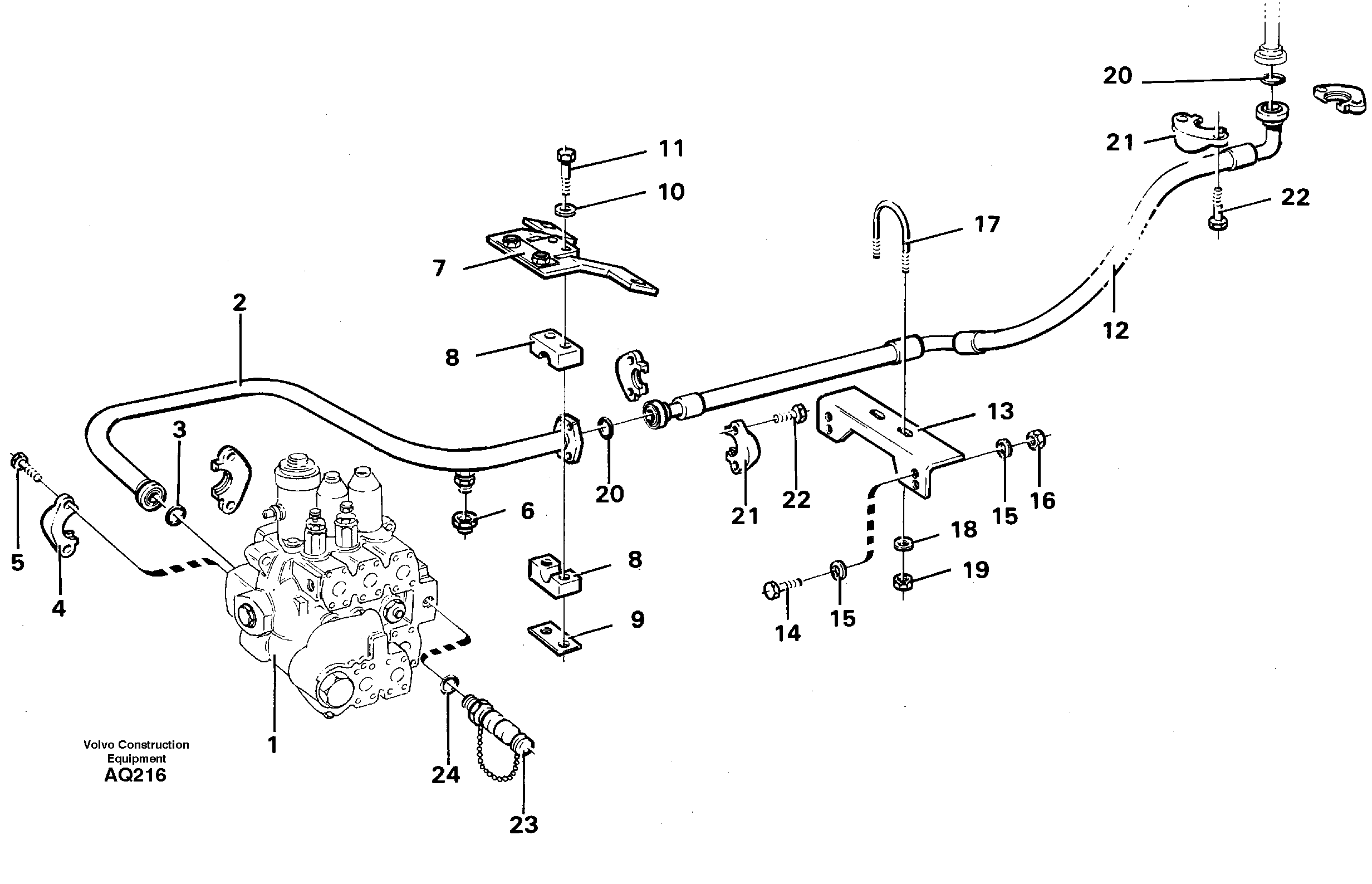

Hydraulic system Return line

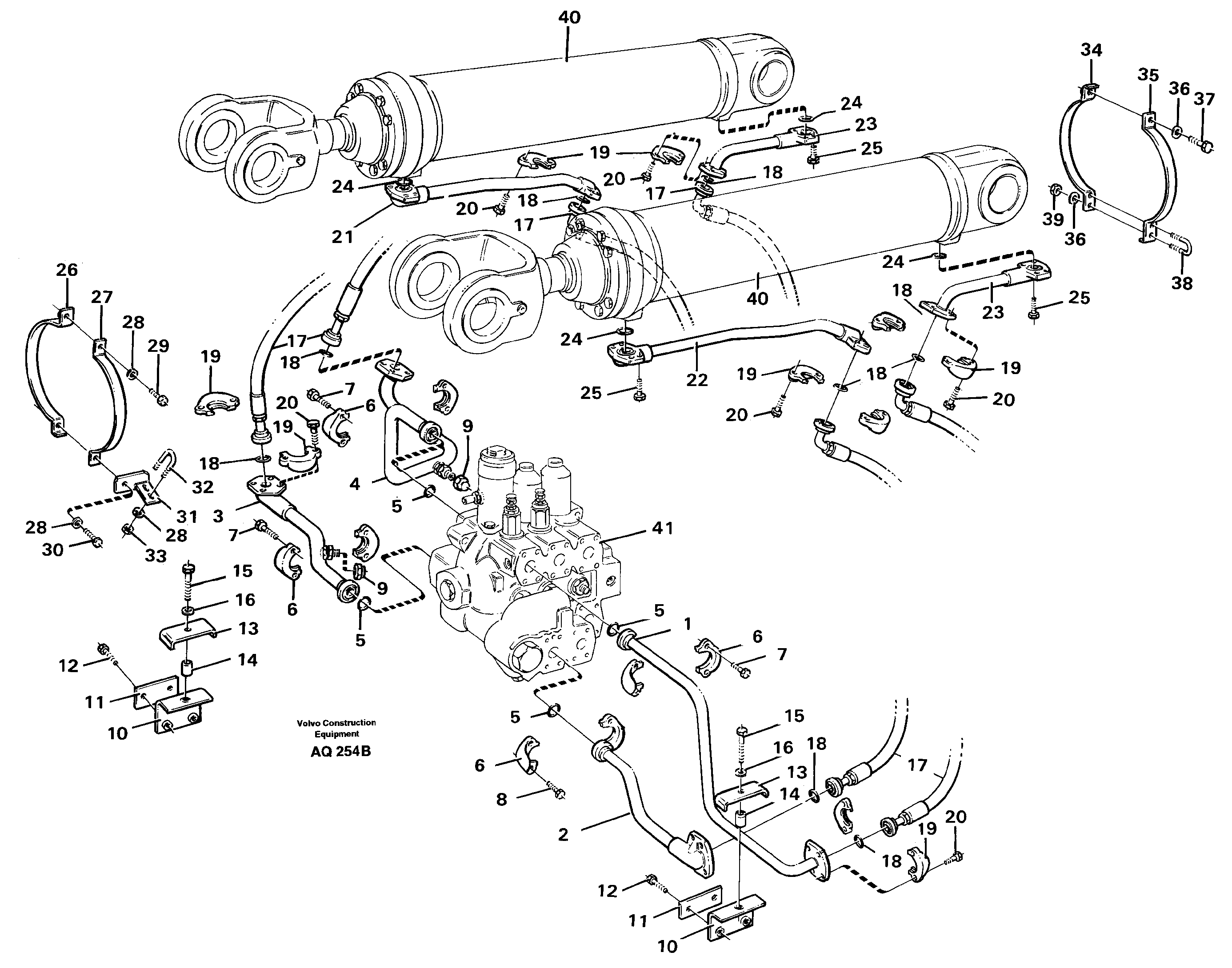

Hydraulic system Lift function

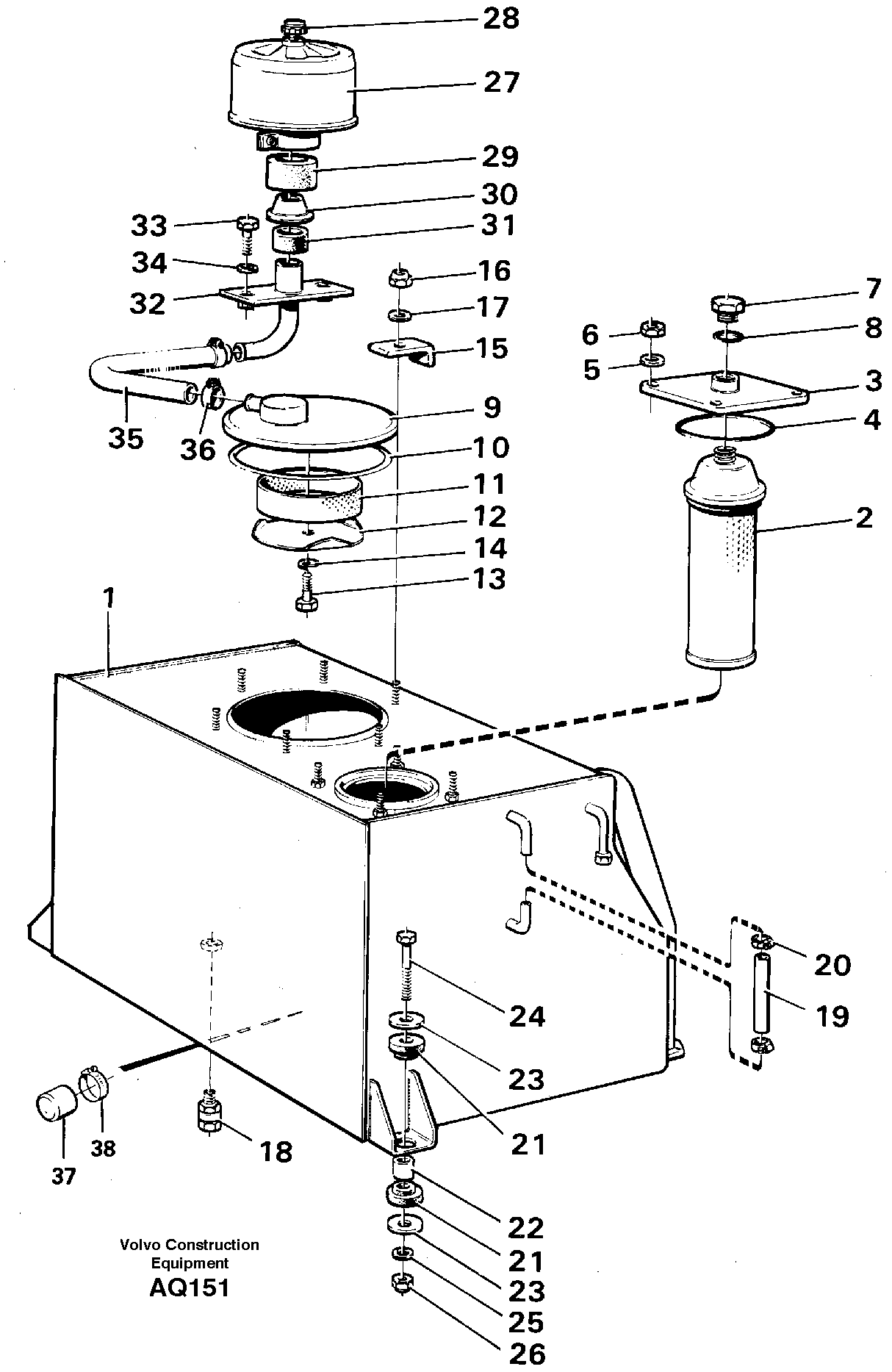

Hydraulic tank

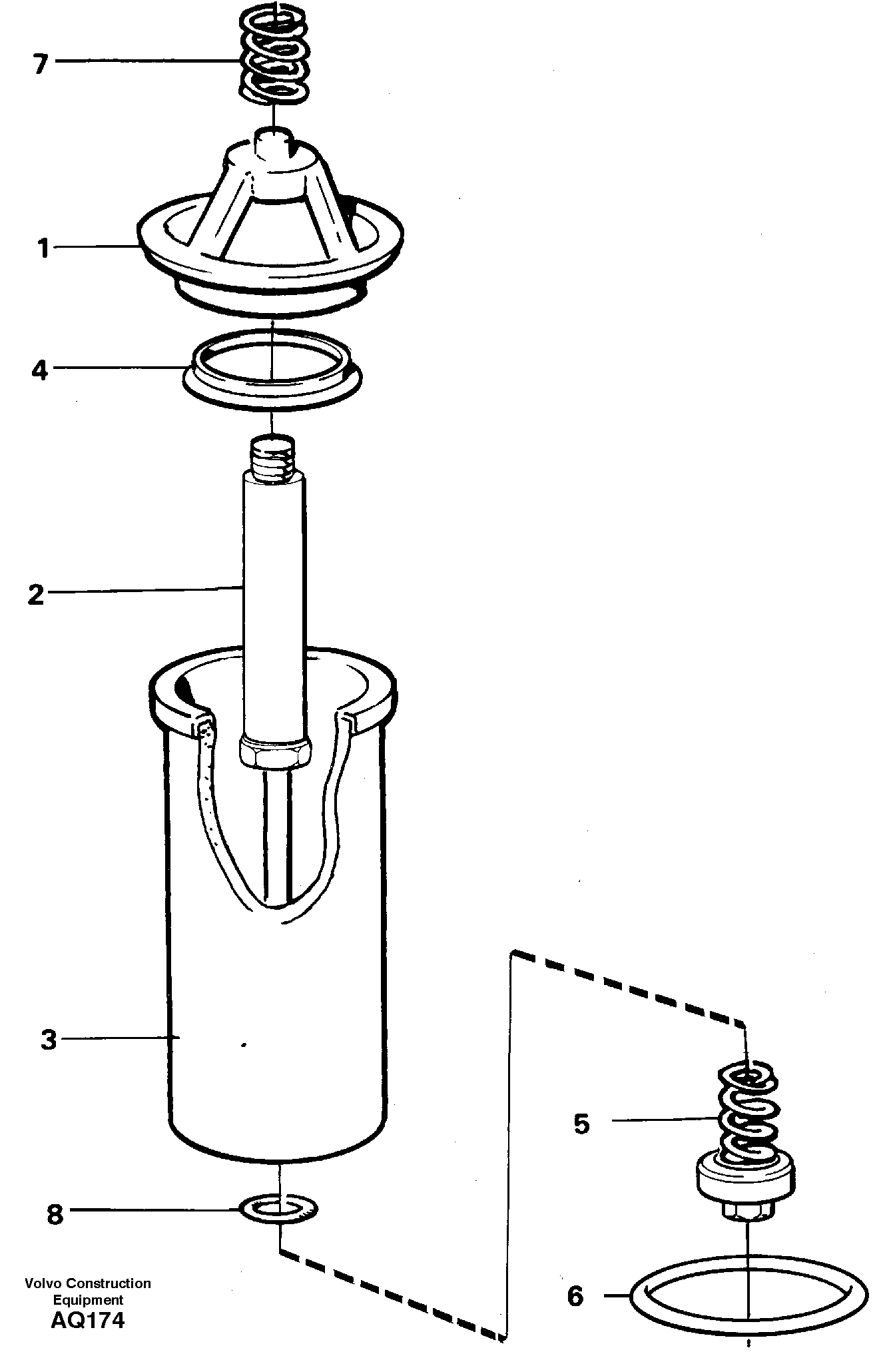

Oil filter

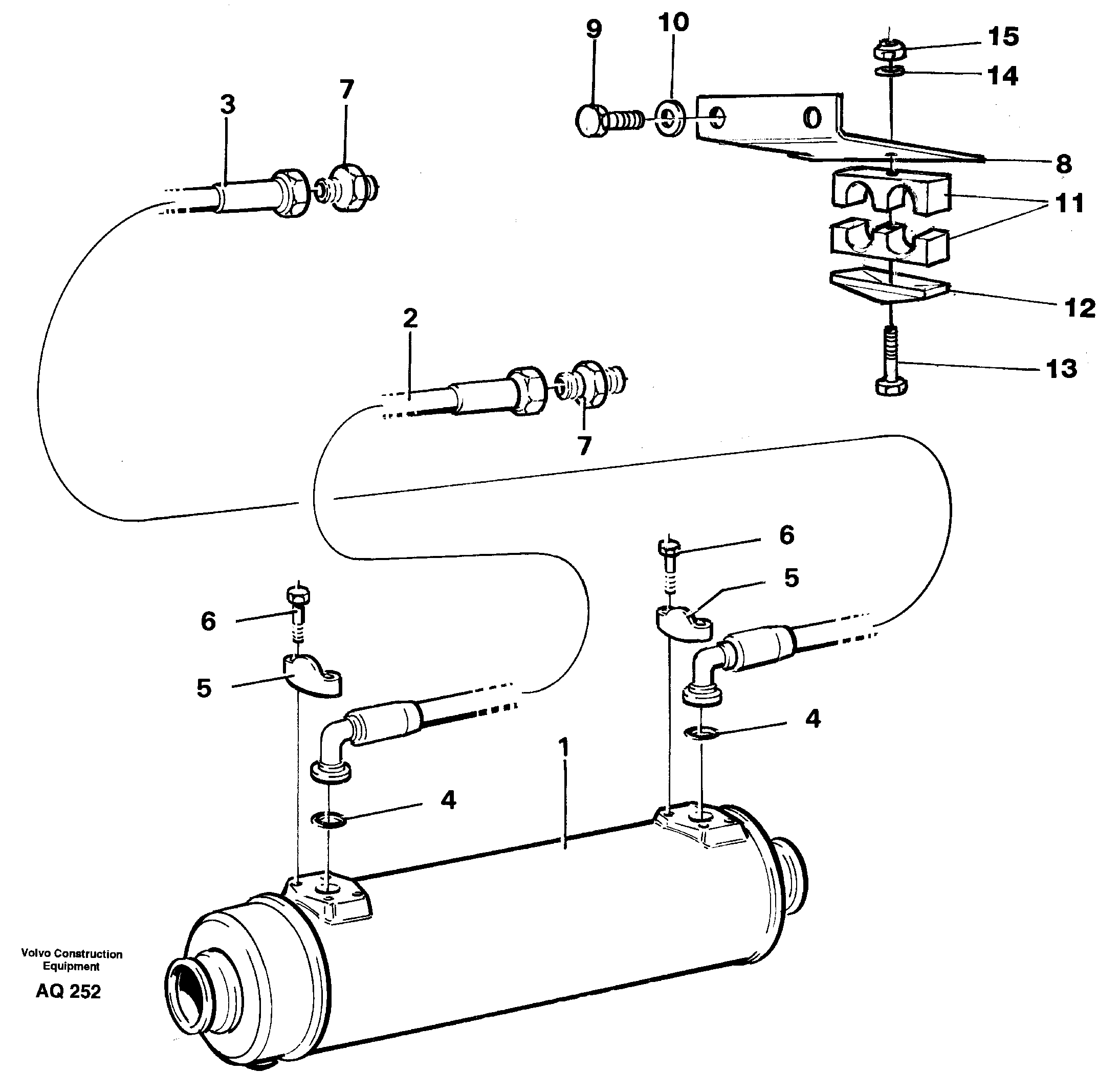

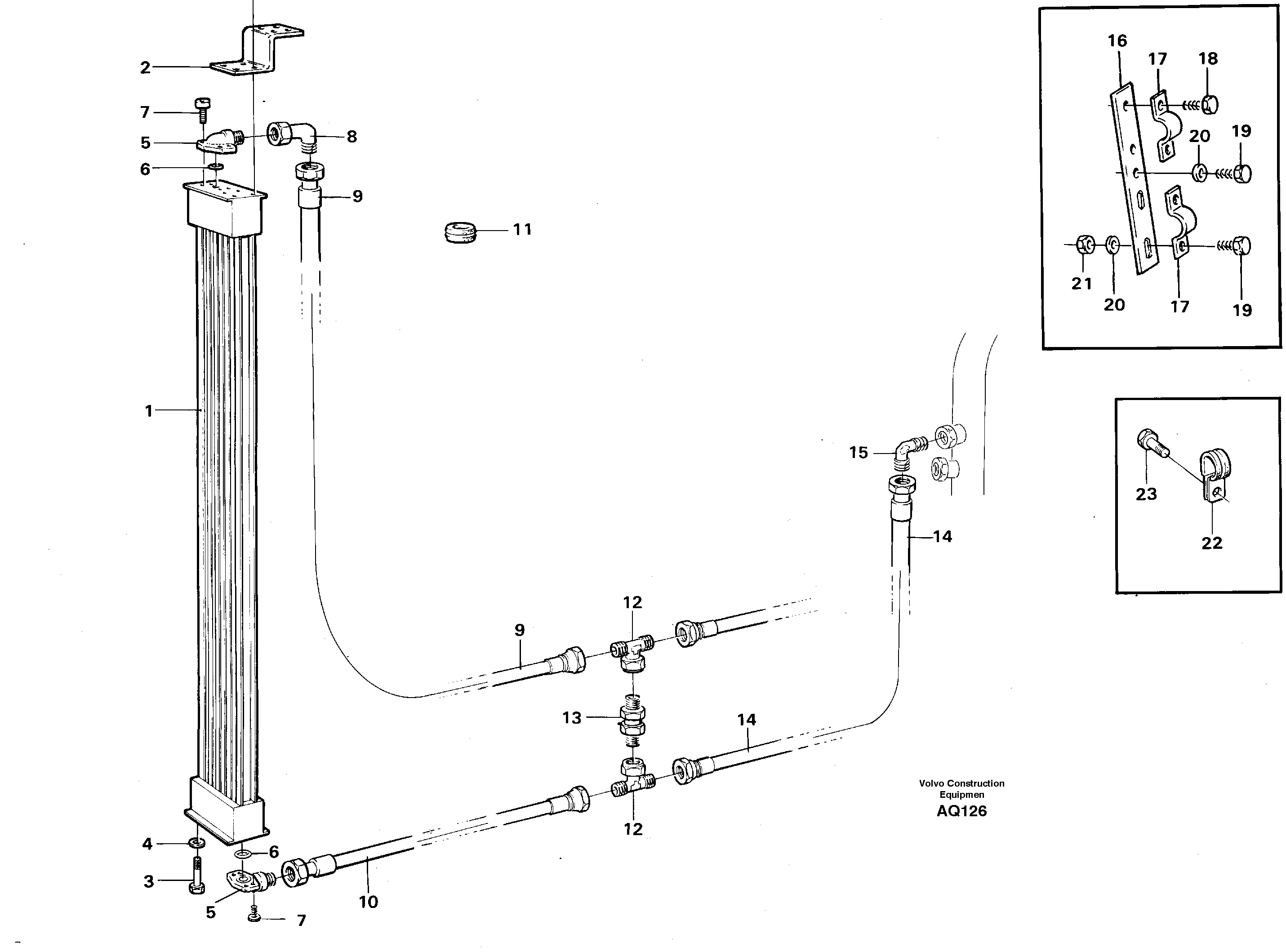

Hydraulic oil cooler

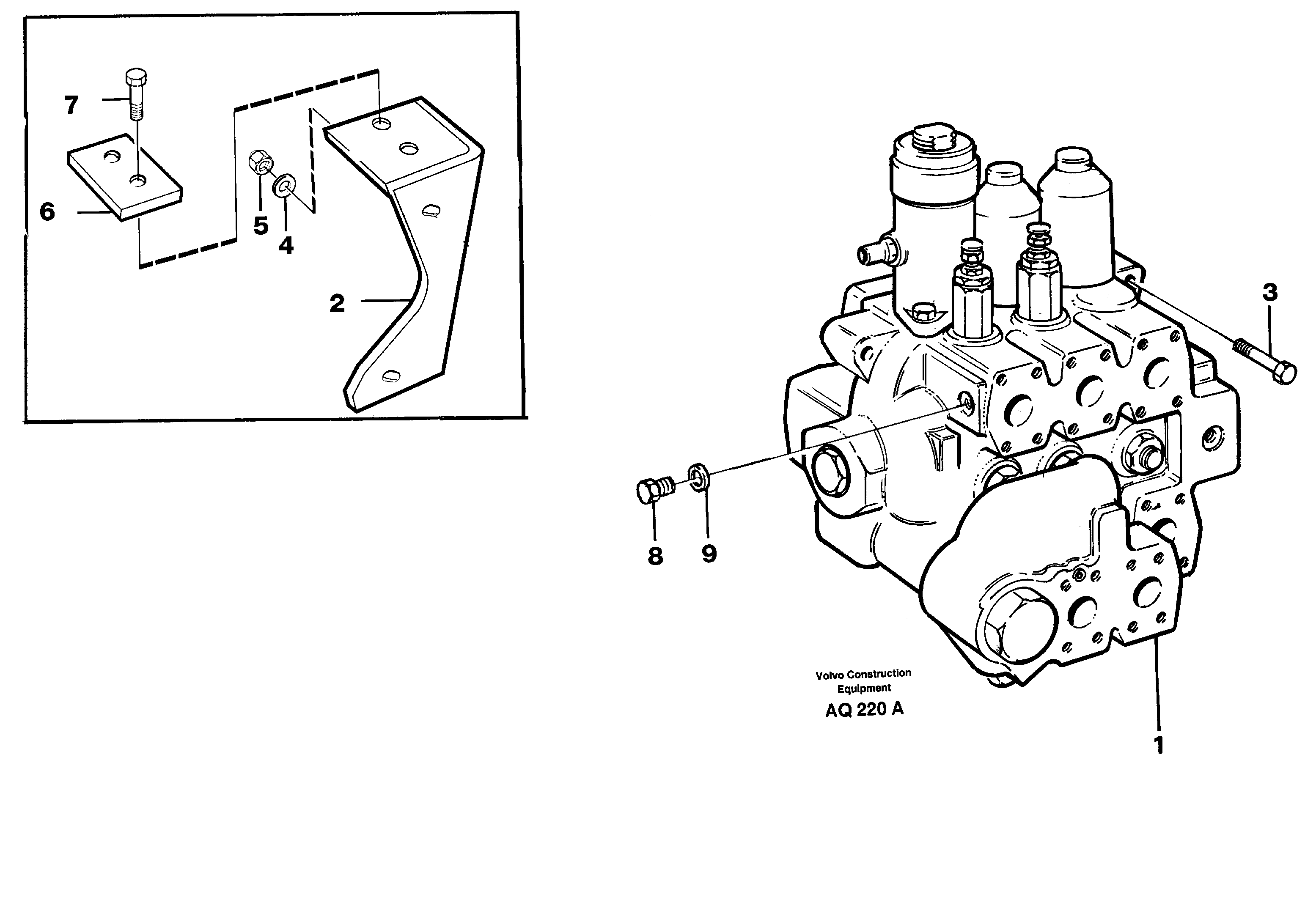

Control valve, Assembly

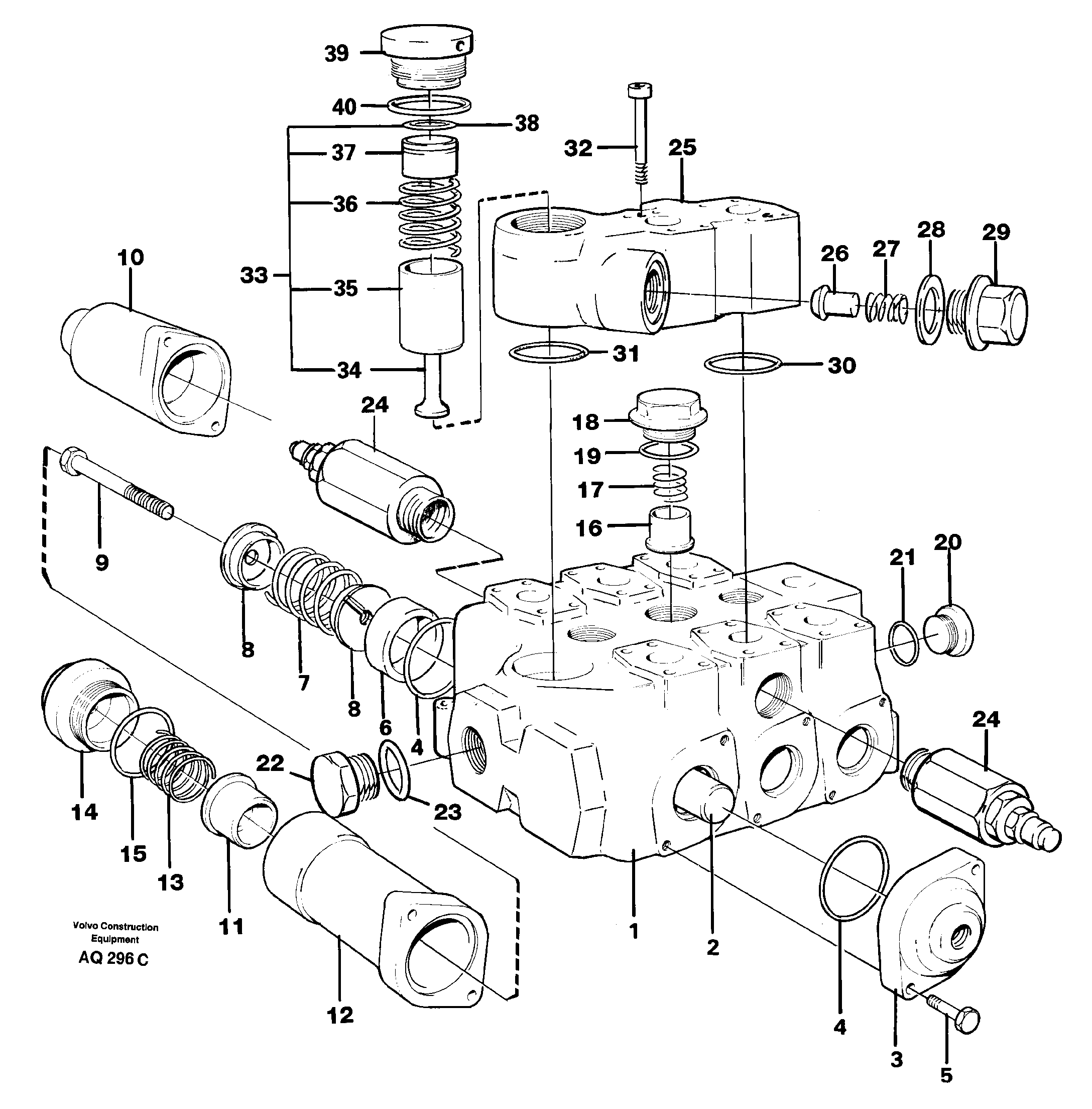

Control valve STD, 93432, 80158

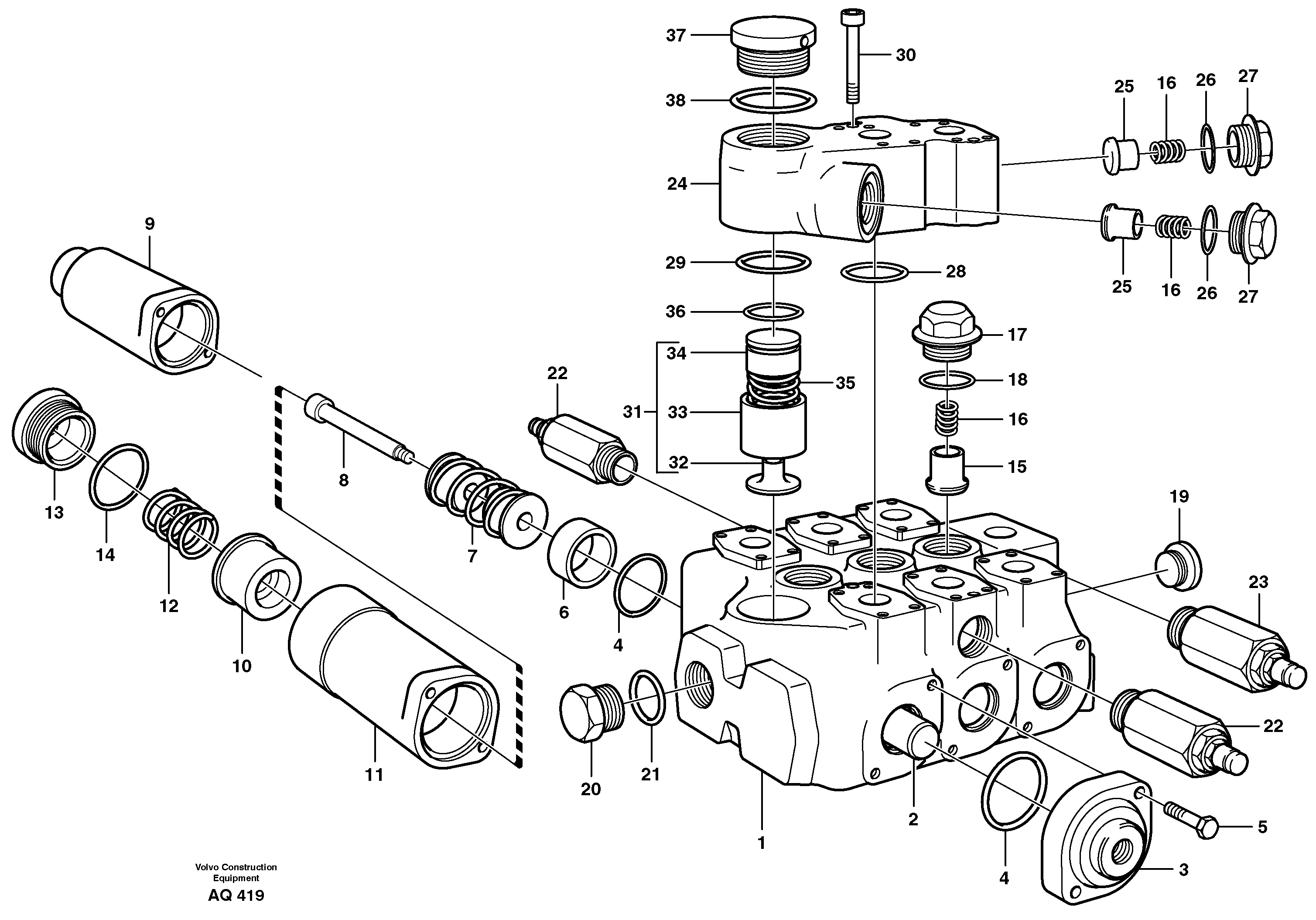

Control valve 80158 replaces 93432

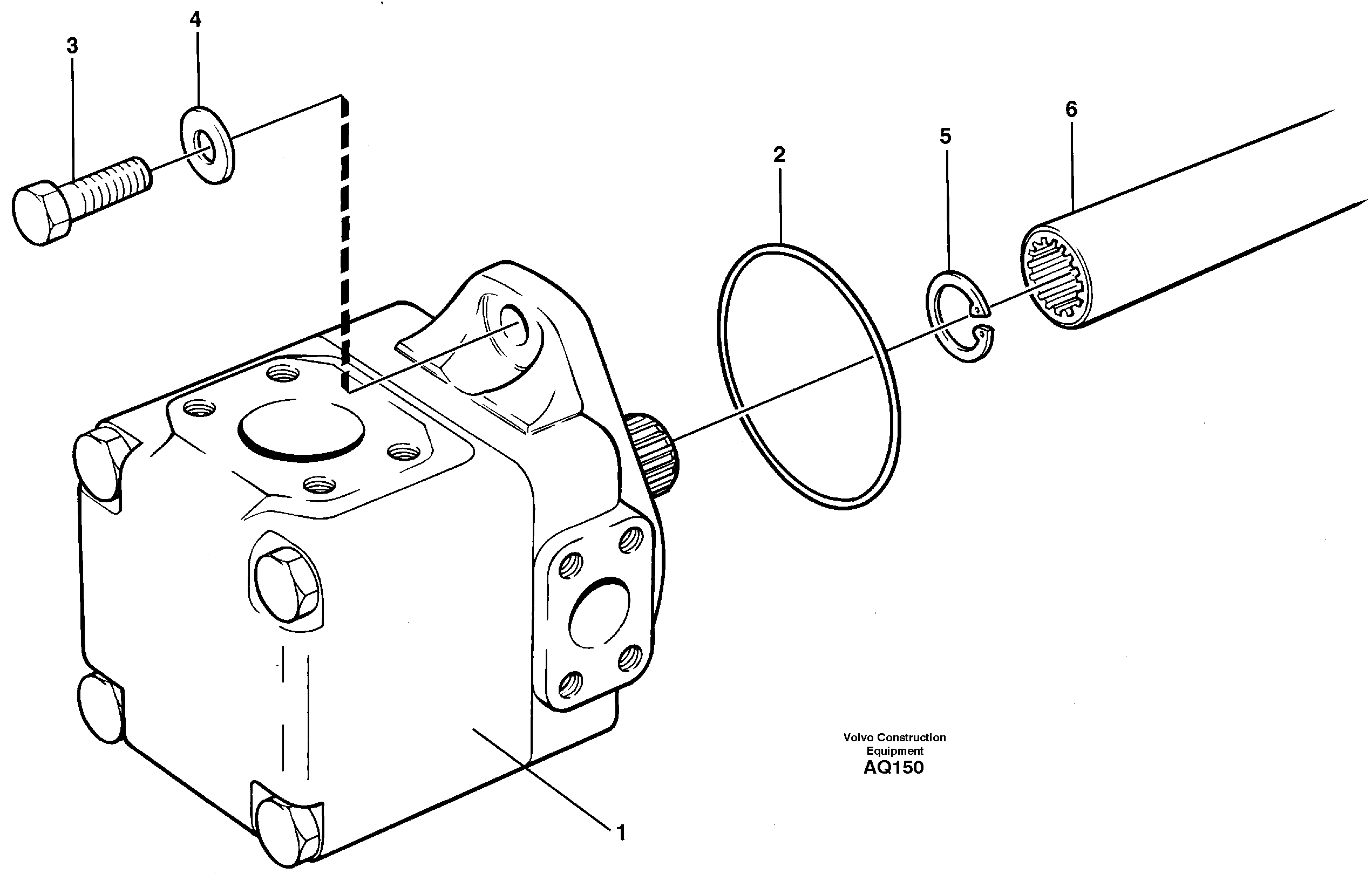

Hydraulic - oil pump Assembly
Hydraulic pump

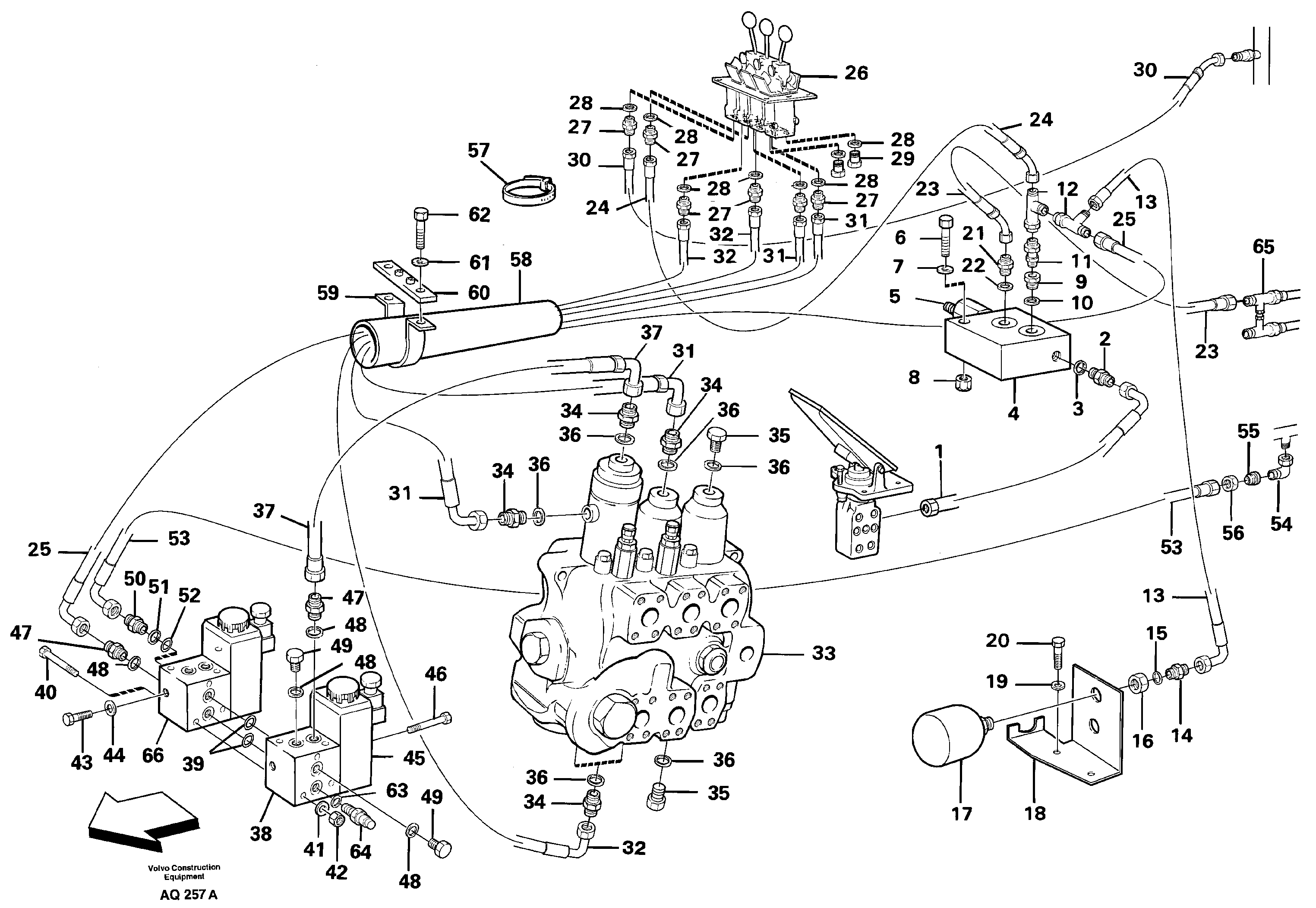

Servo - hydraulic

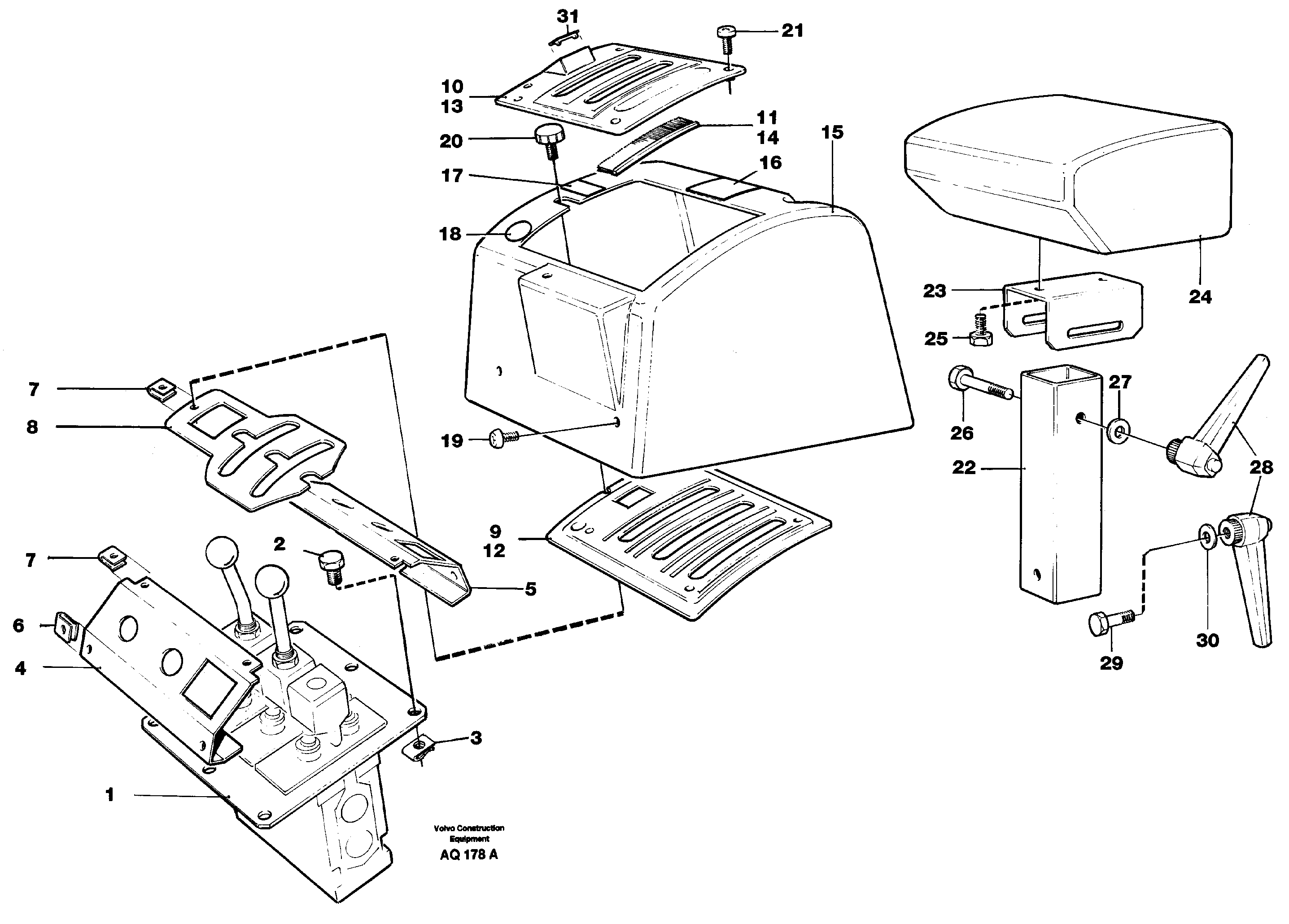

Servo valve with fitting parts

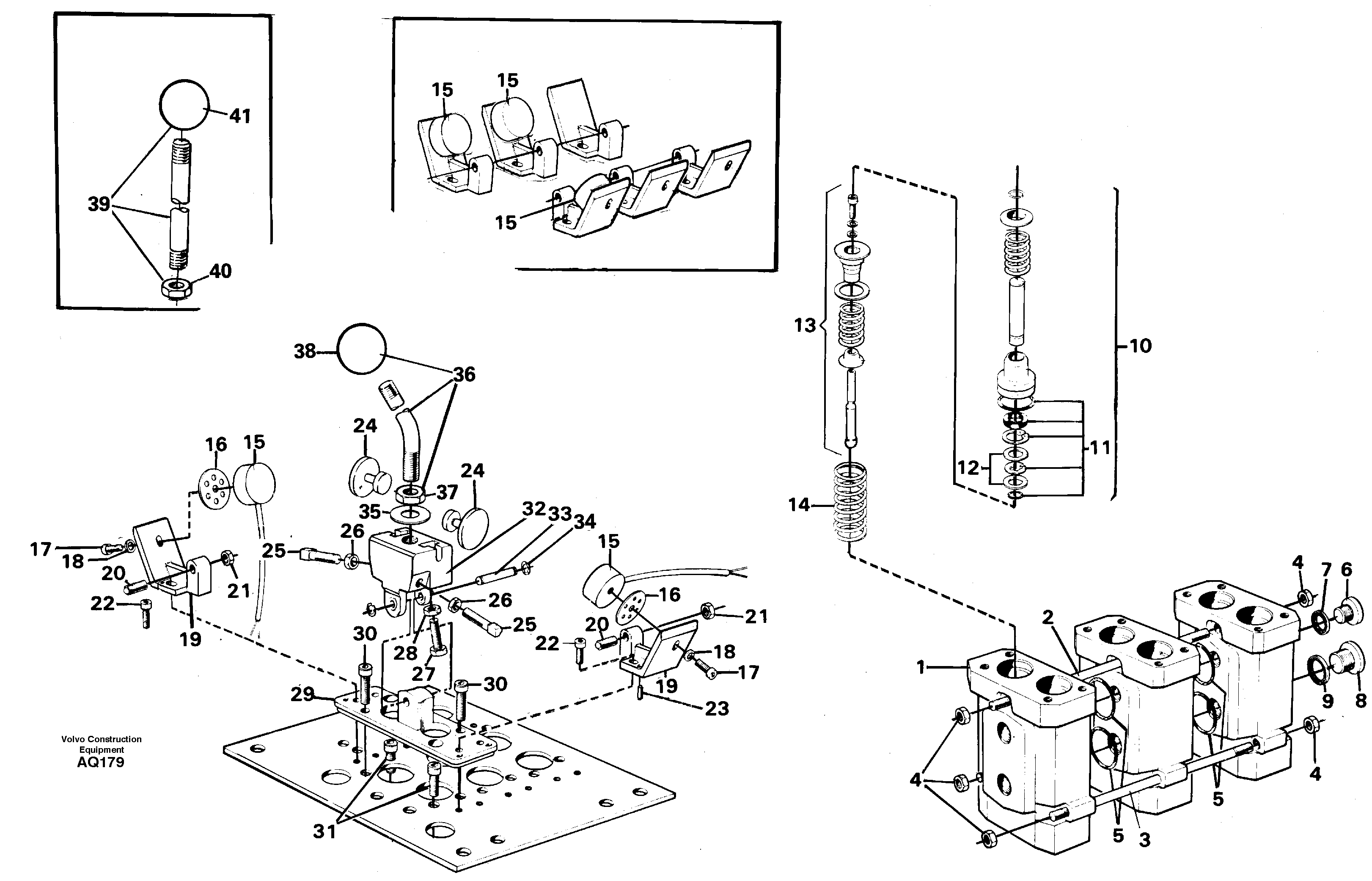

Servo valve

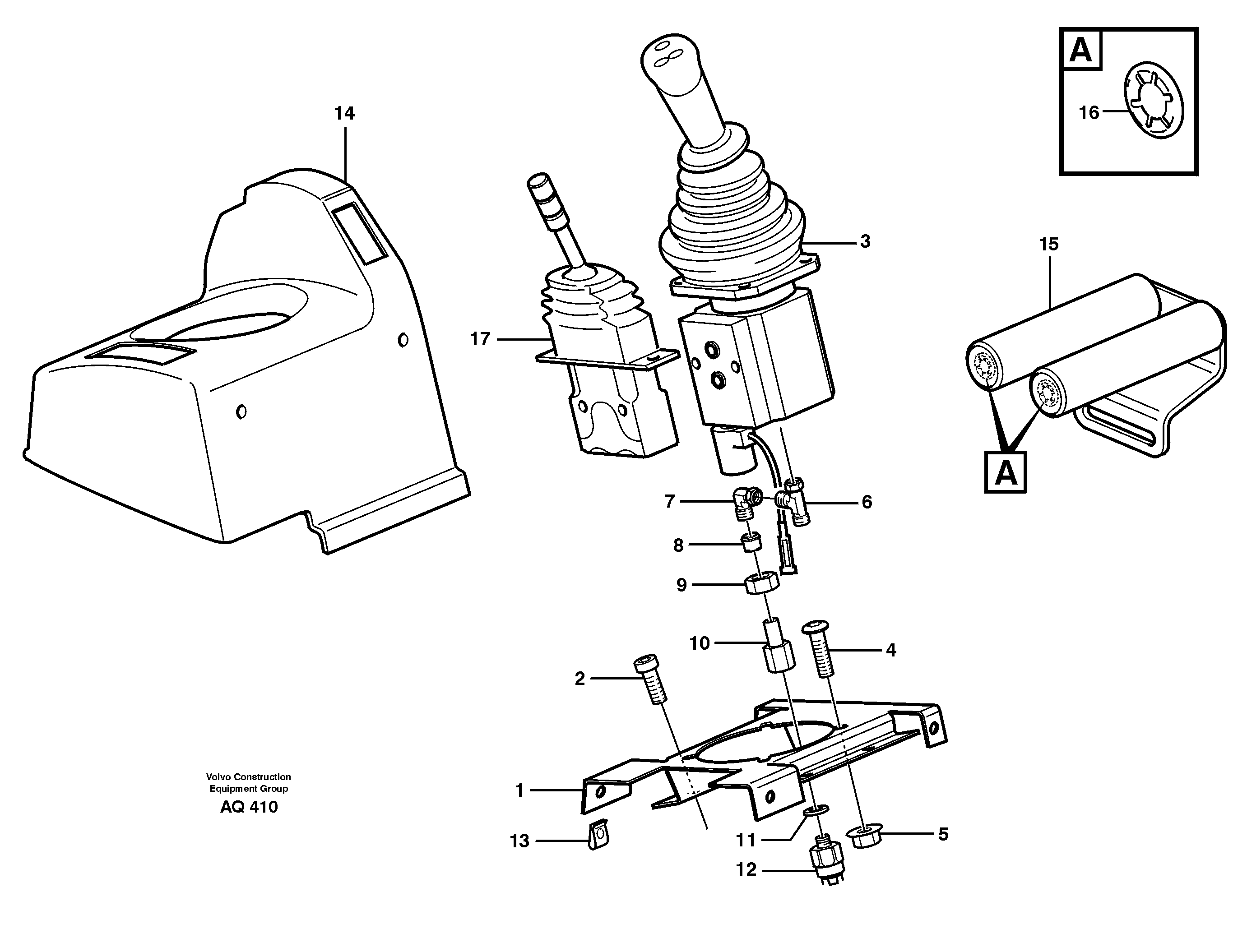

Servo valve with fitting parts. 80074, 80126

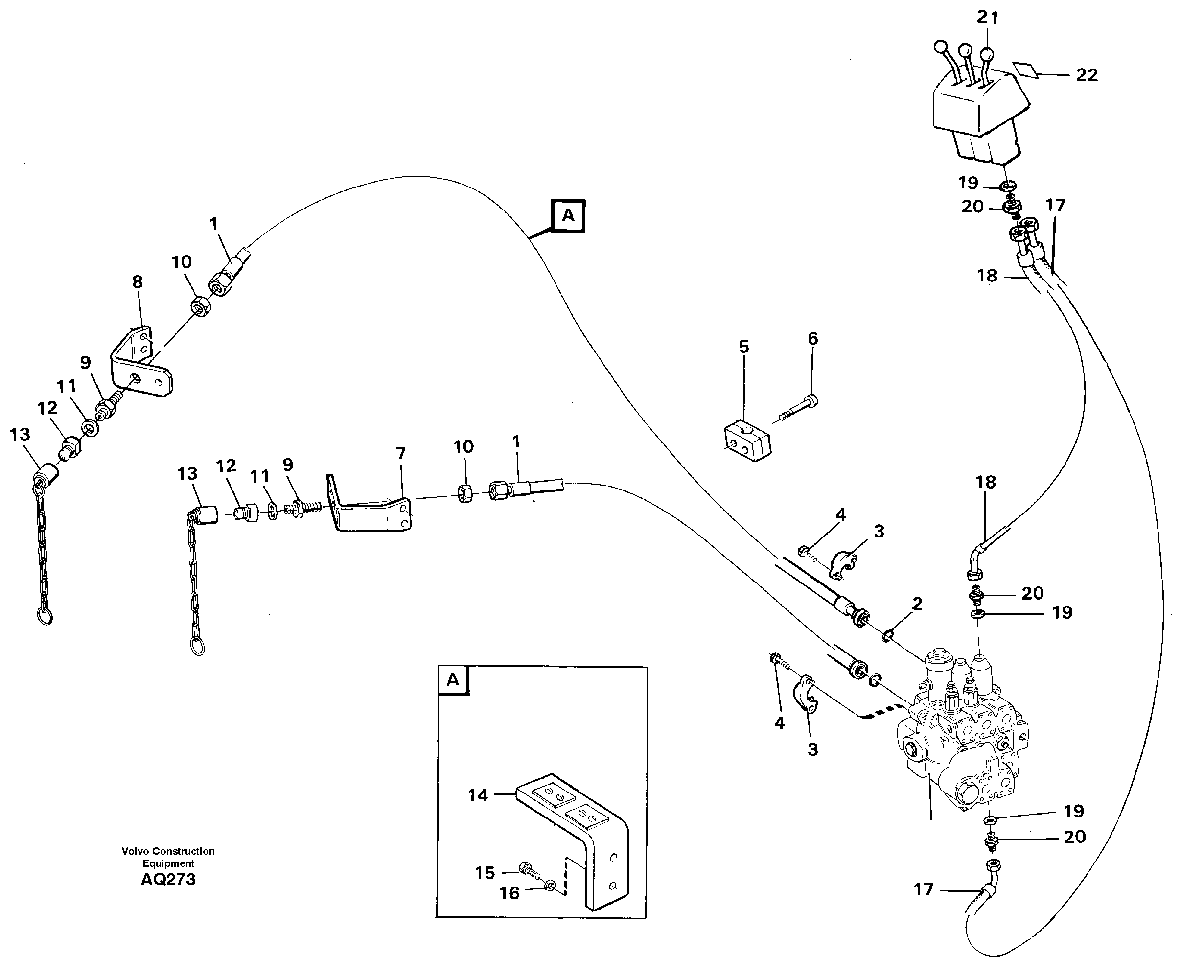

Extra hydraulic equipment3rd hydraulic control 92971 Rrplaced by 93543, 92421 93462

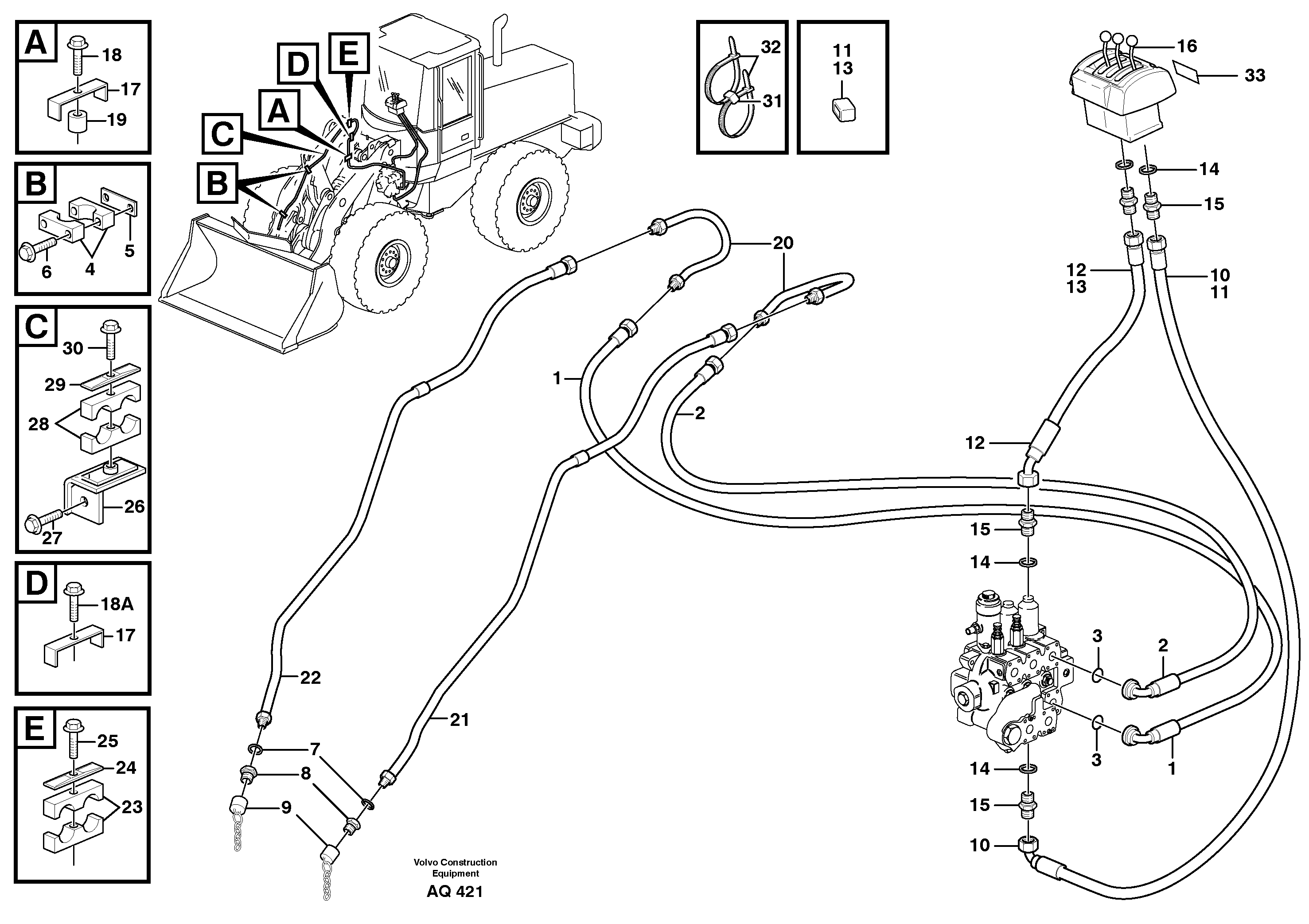

Extra hydraulic equipment3rd hydraulic control. 93543 Replaces 92971, 93545 Replaces 93462 Long boom

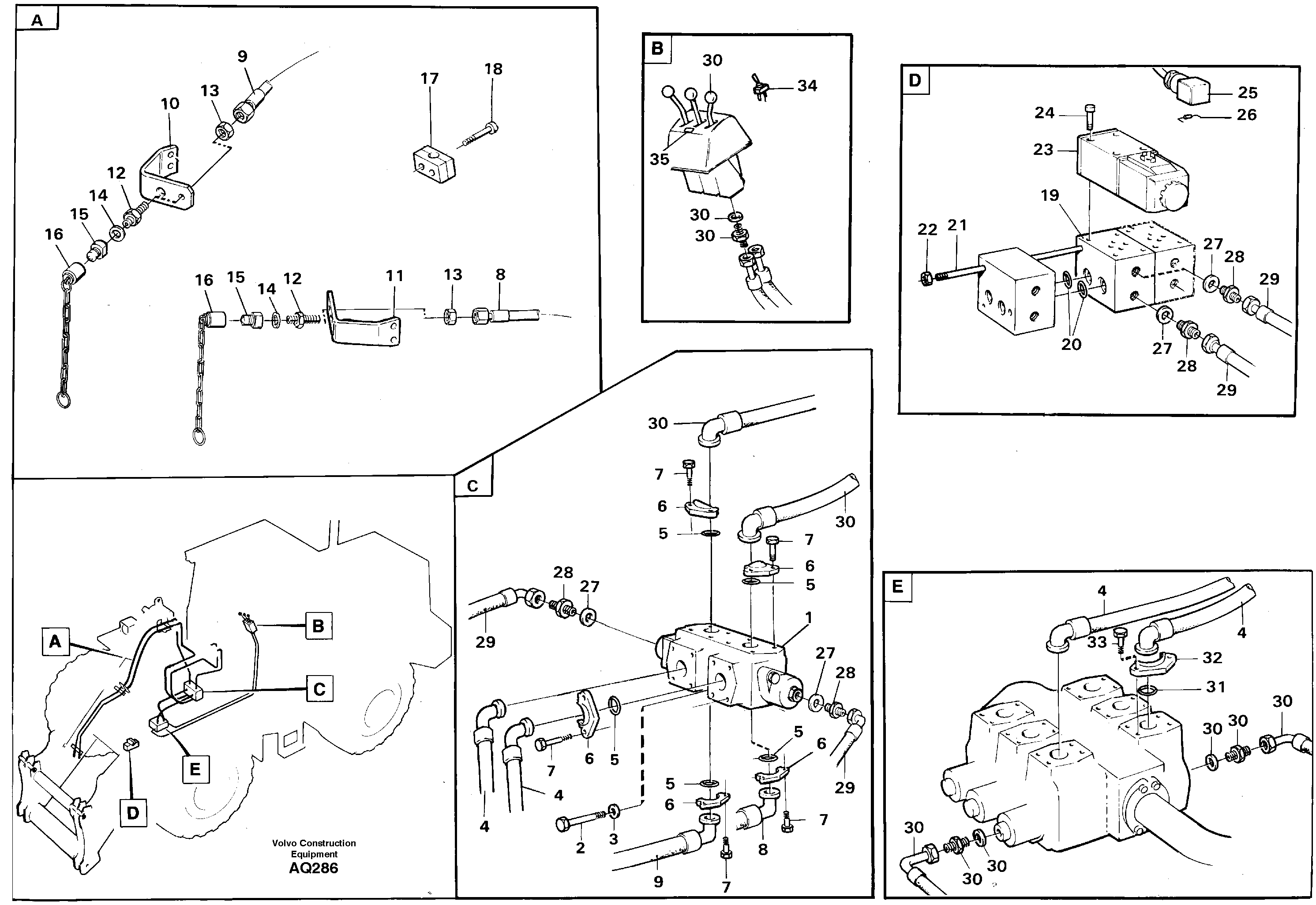

Extra hydraulic equipment4th function 94590 Replaced by 93544

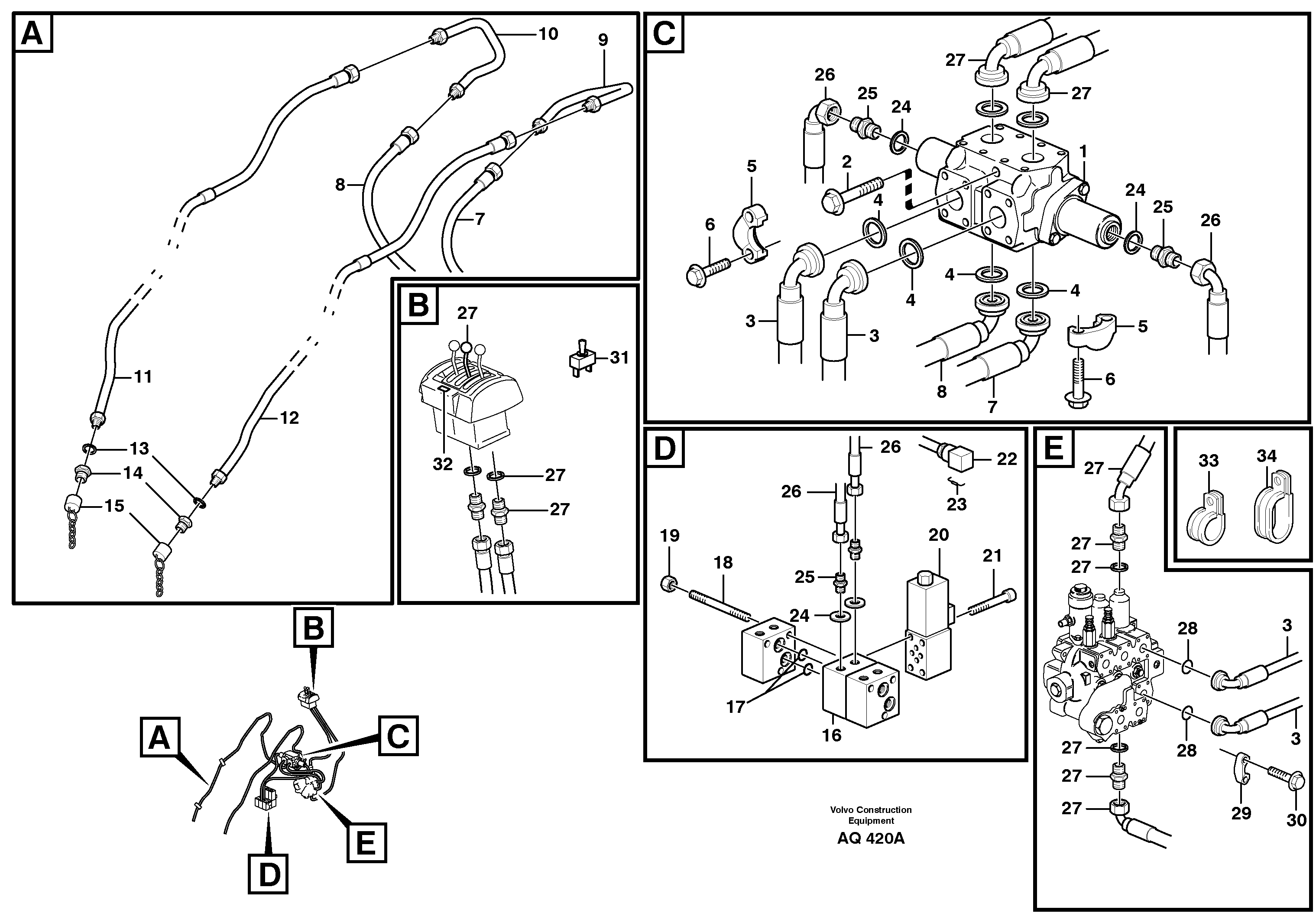

Extra hydraulic equipment4th function 93544 Replaces 94590, 93546

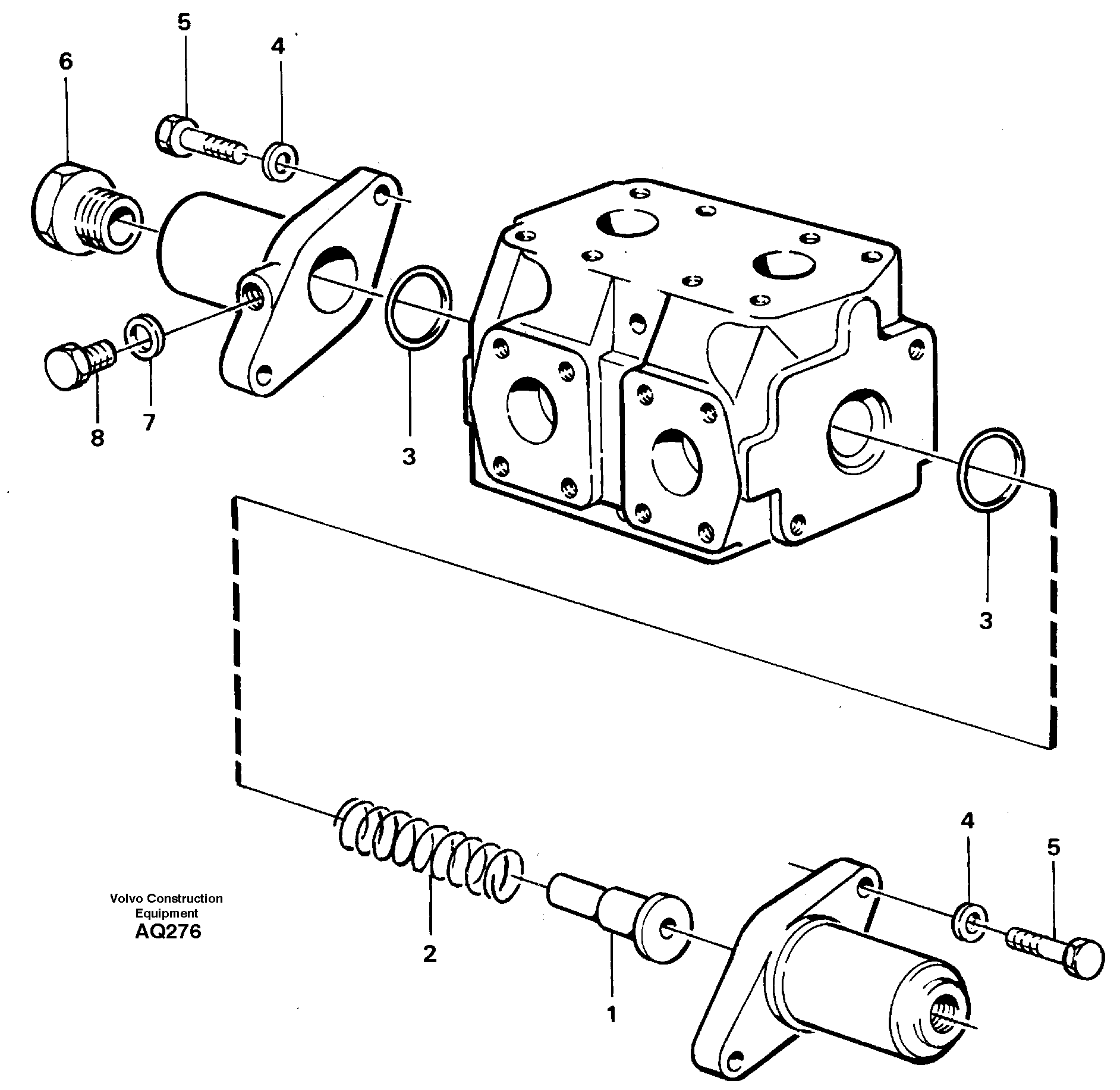

Reversing valve 94590 E PROD 93544 L PROD, 93546

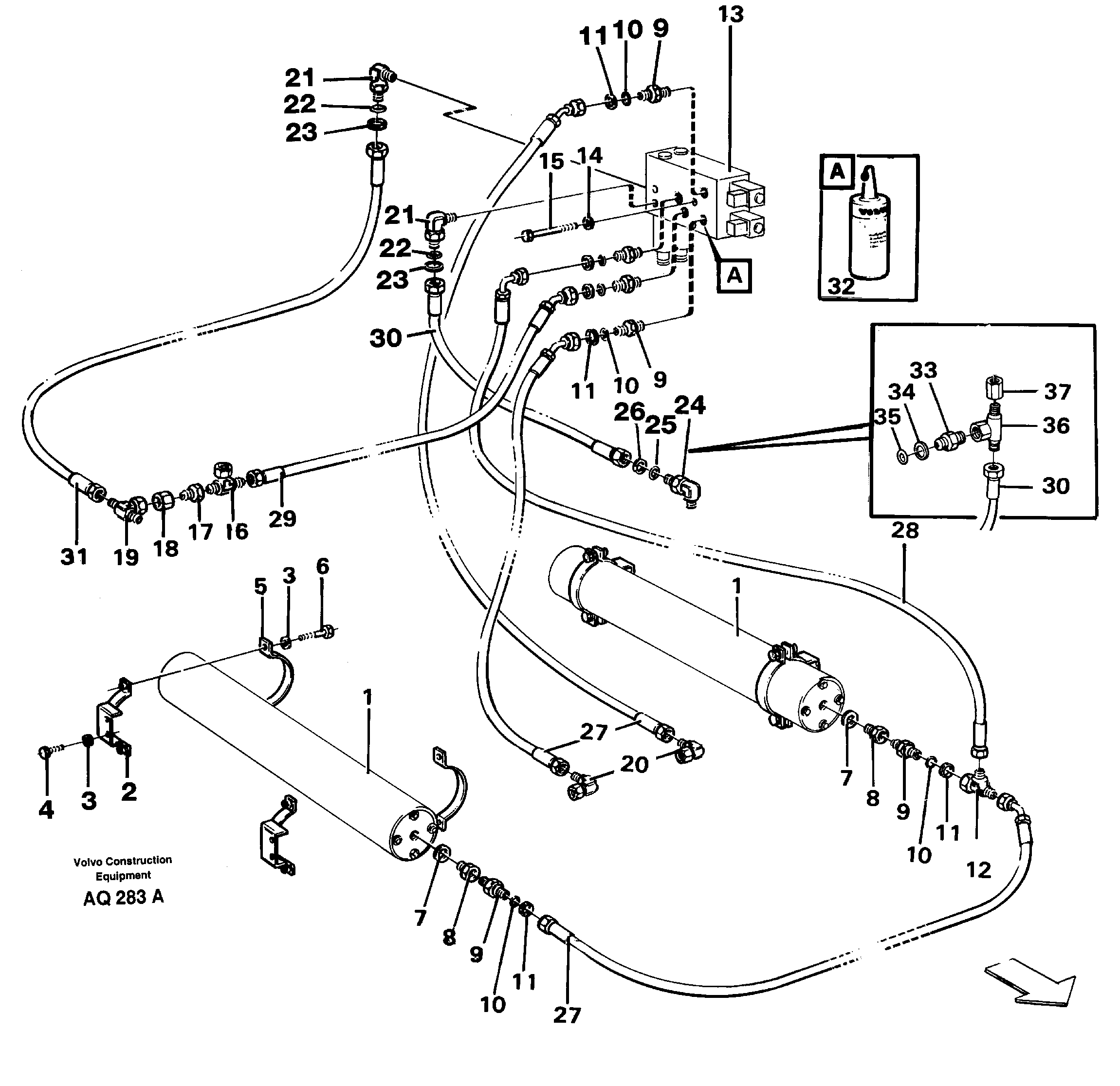

Boom suspension system 94550

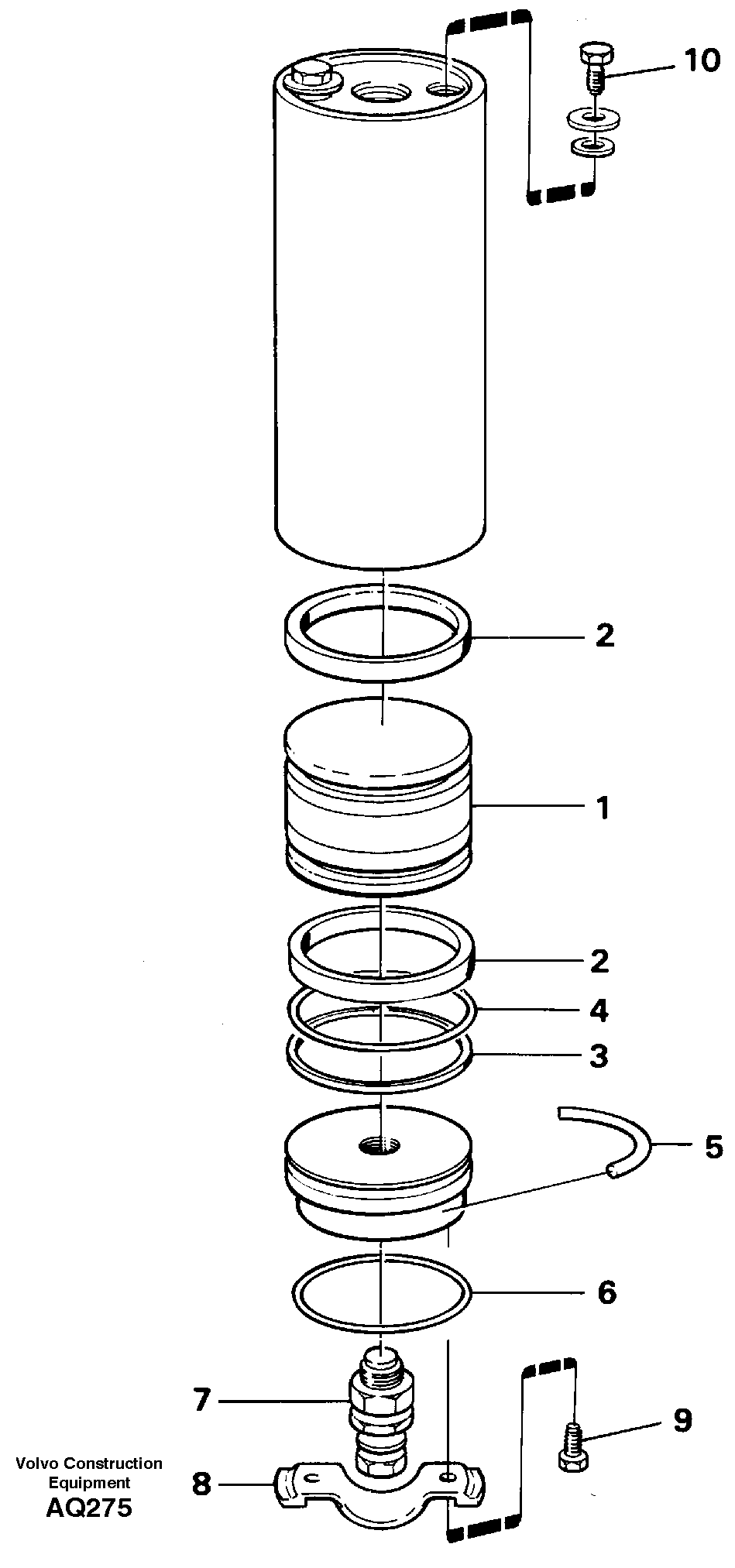

Accumulator 94550

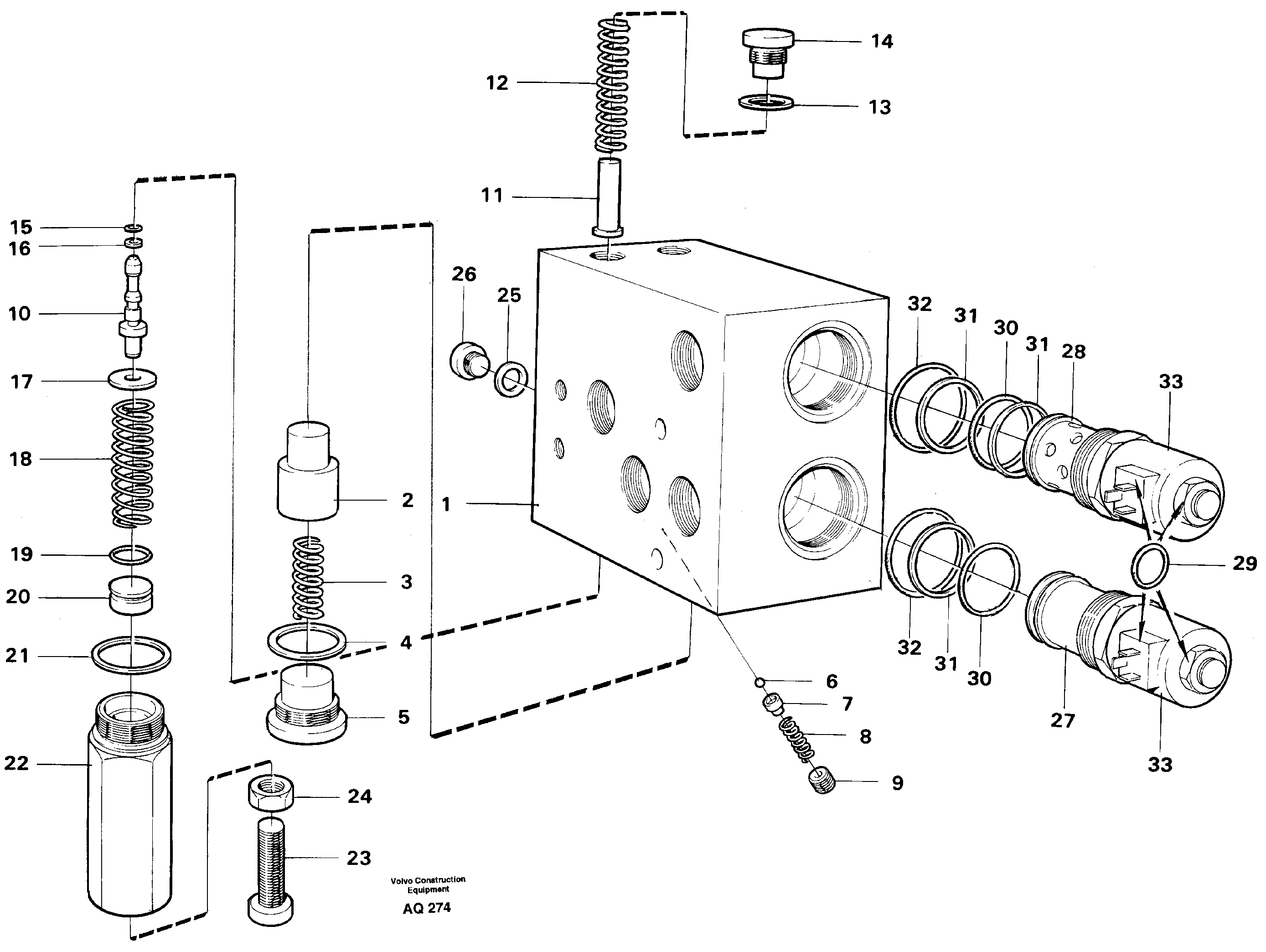

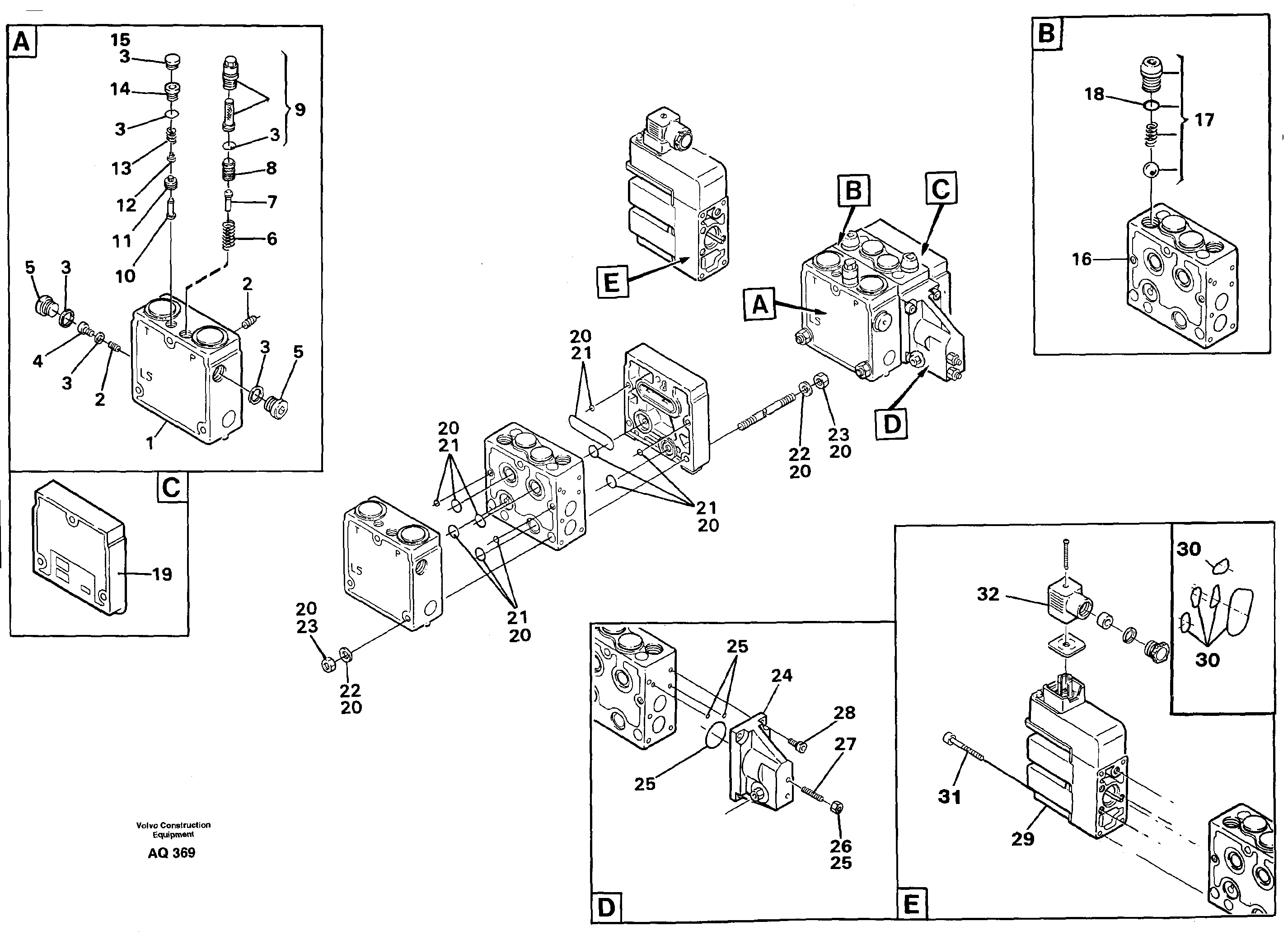

Valve, circuit body and return valve 94550
Mechanical equipment
Unit, load handling

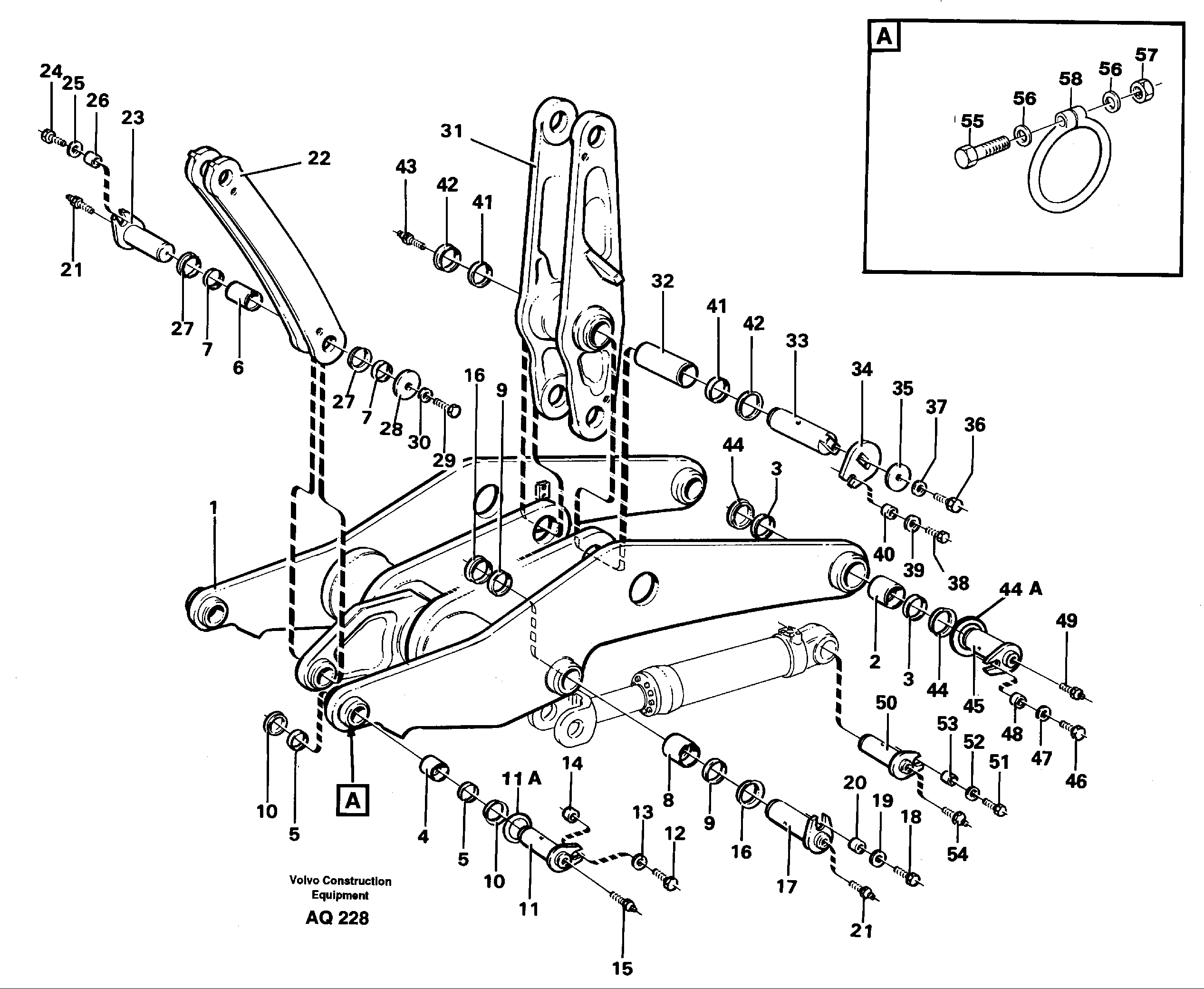

Lifting unit. 33337, 93432, 80158, 33348, 33352, 33354,

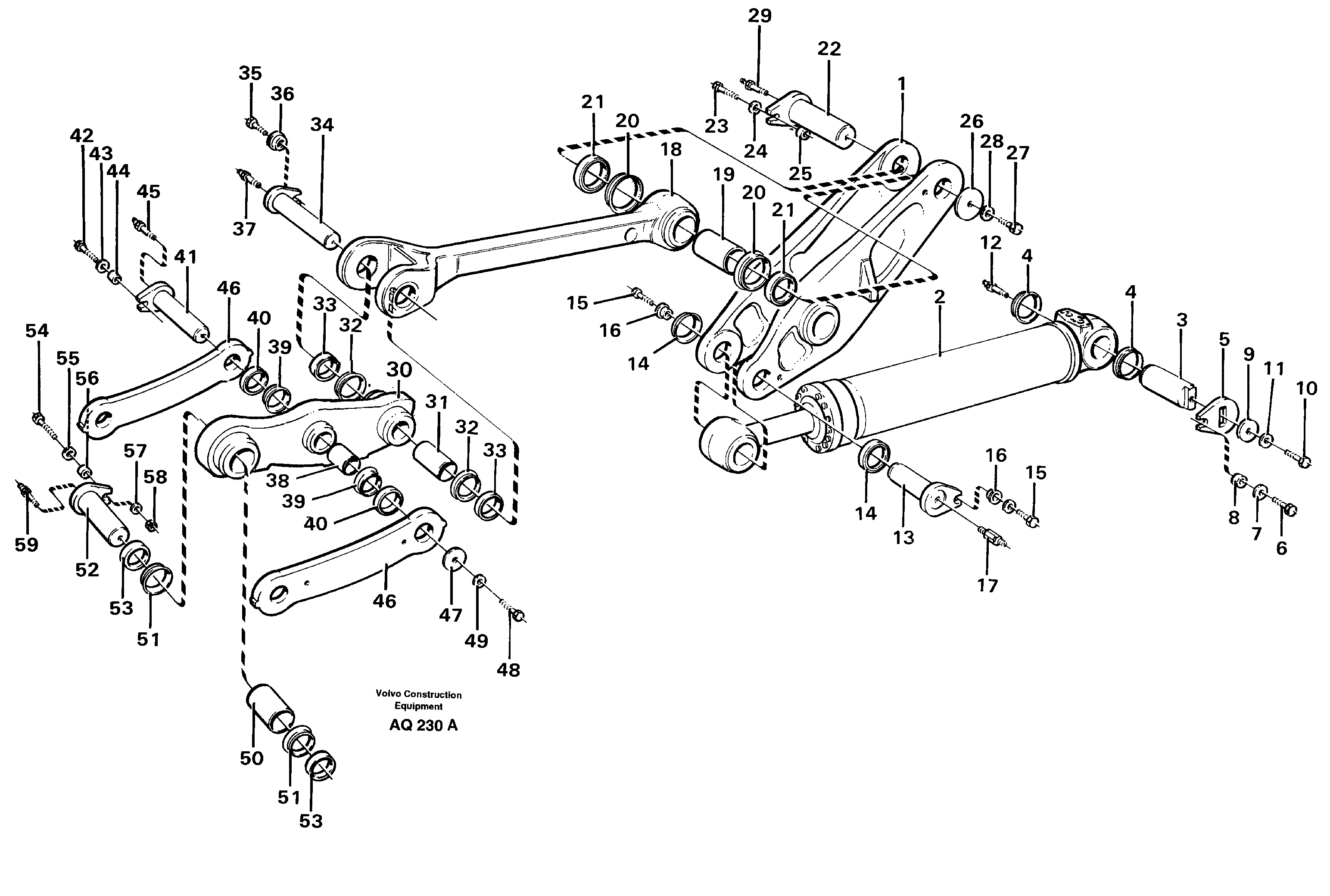

Links with fitting parts 33337 ,93432, 33348, 33352, 33354, 80158

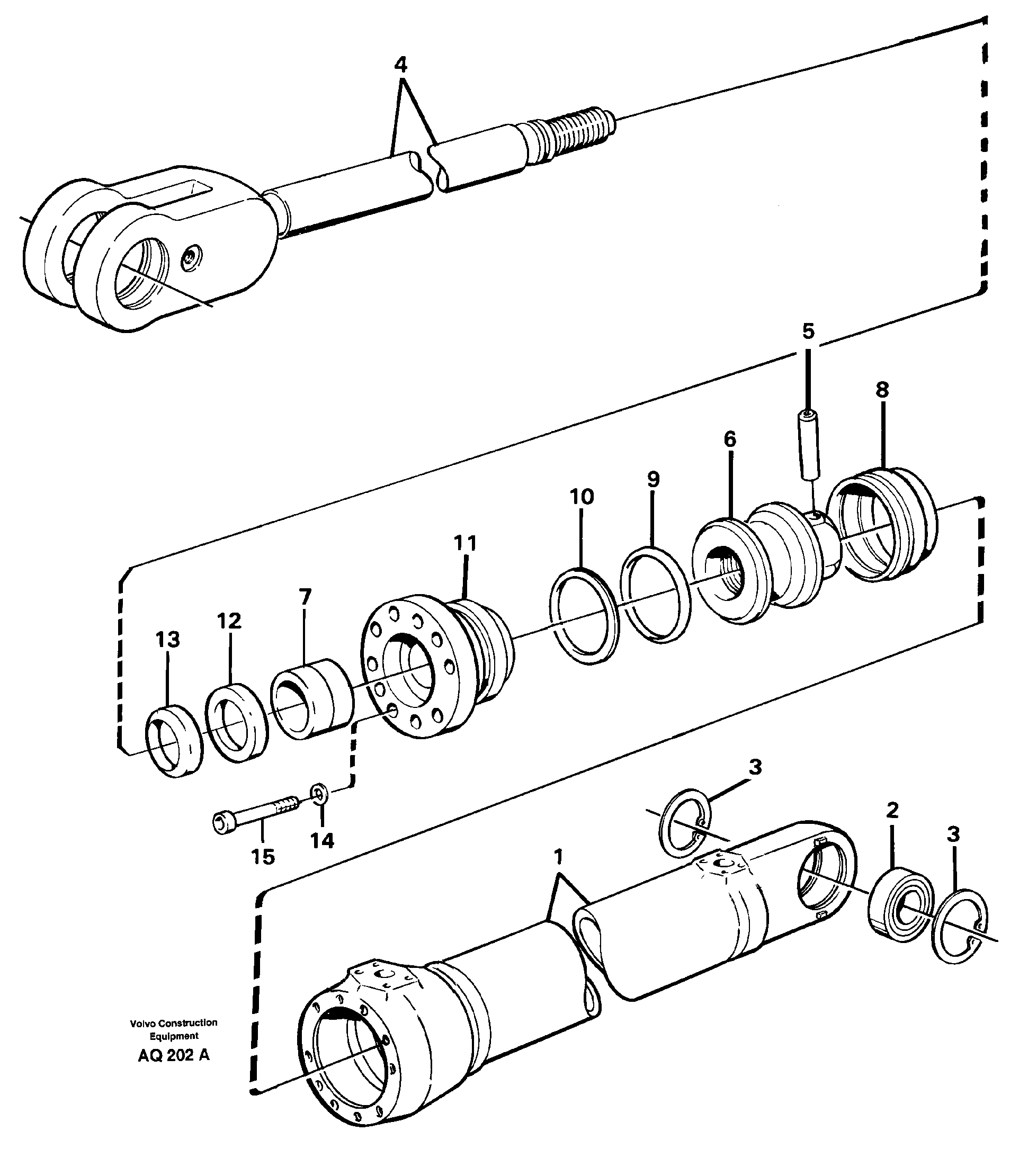

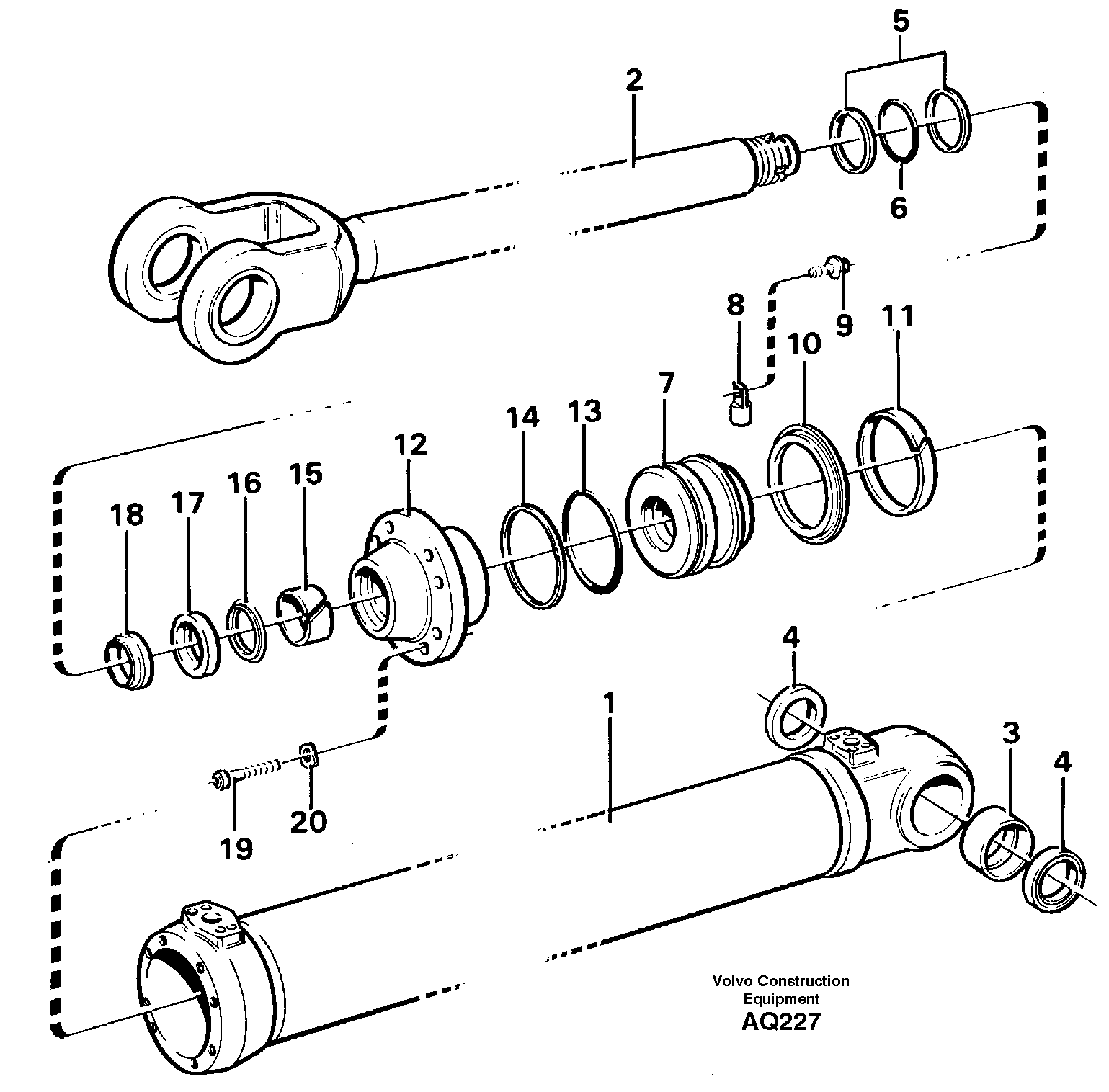

Hydraulic cylinder Lifting STD, 93432, 80158

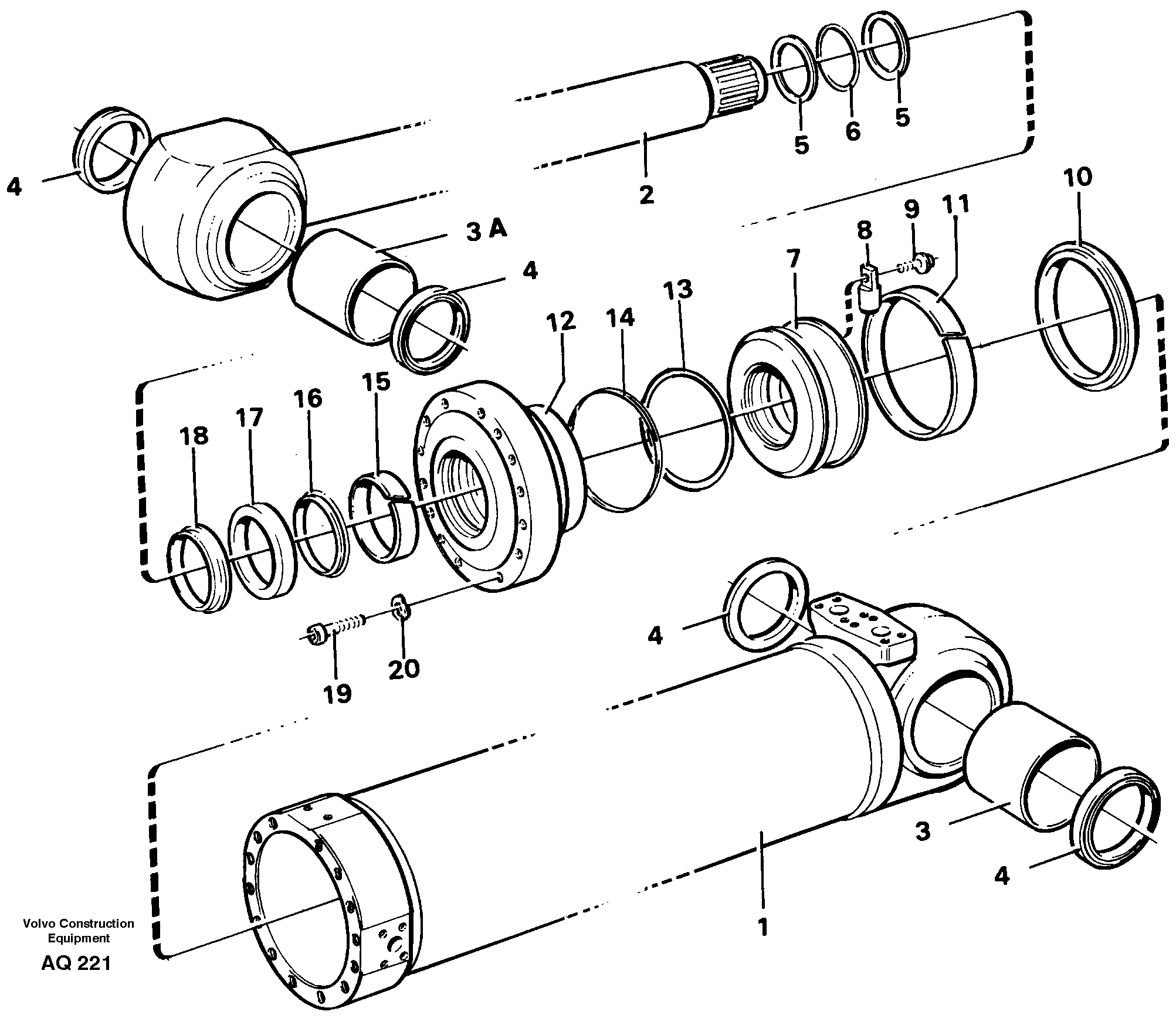

Hydraulic cylinder Tilting STD ,93432

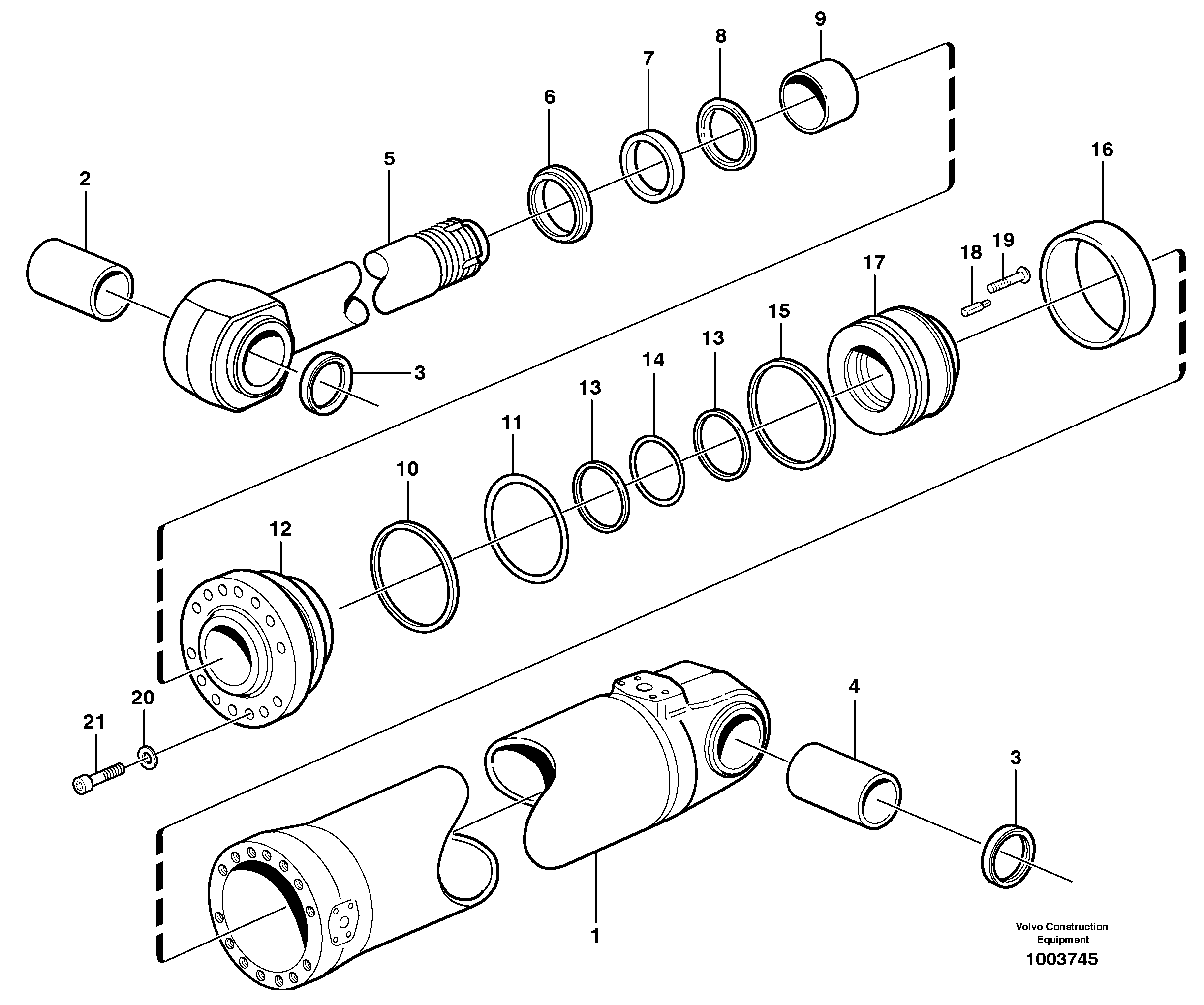

Hydraulic cylinder, tilt

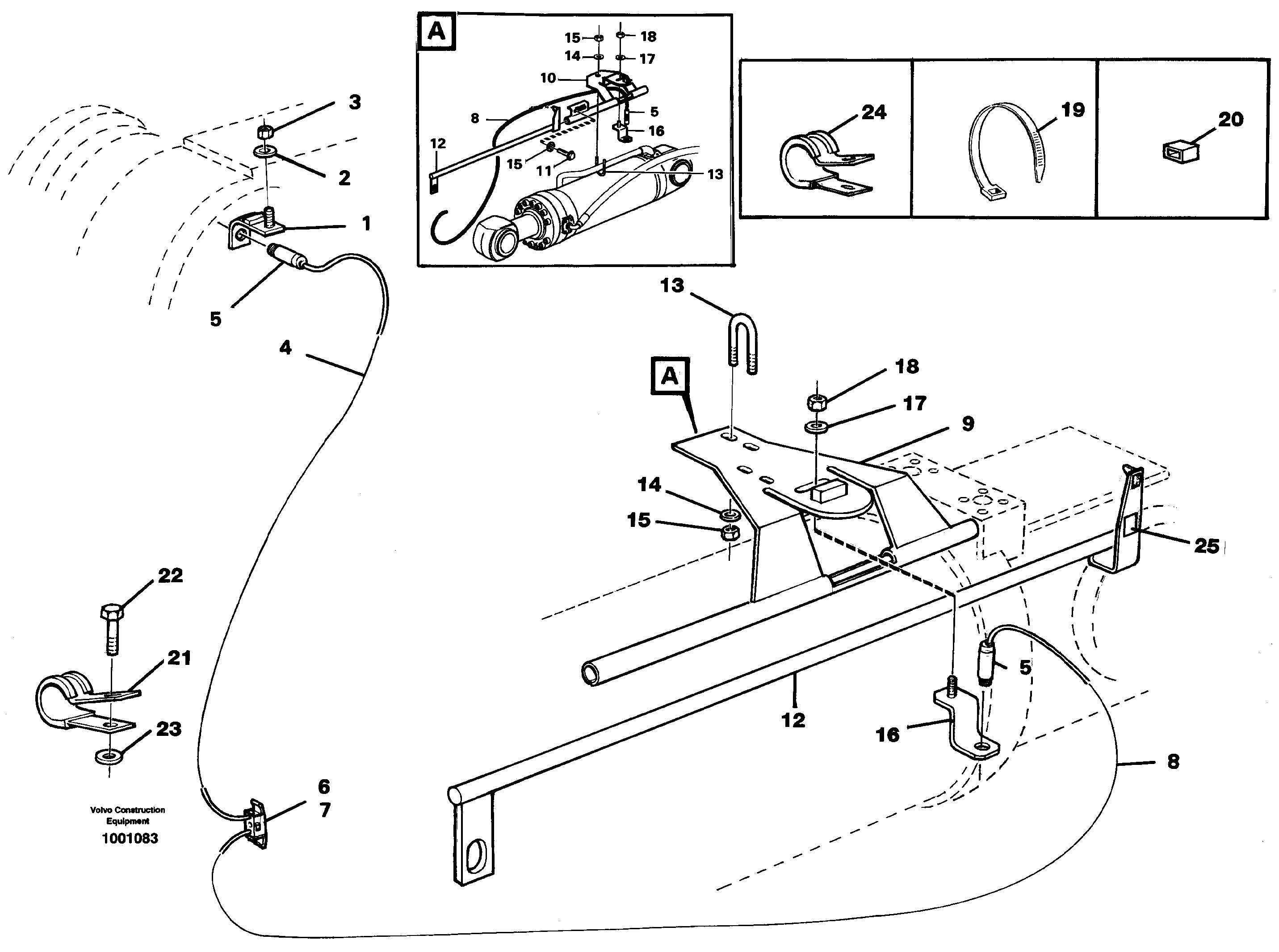

Boom kickout and bucket positioner.

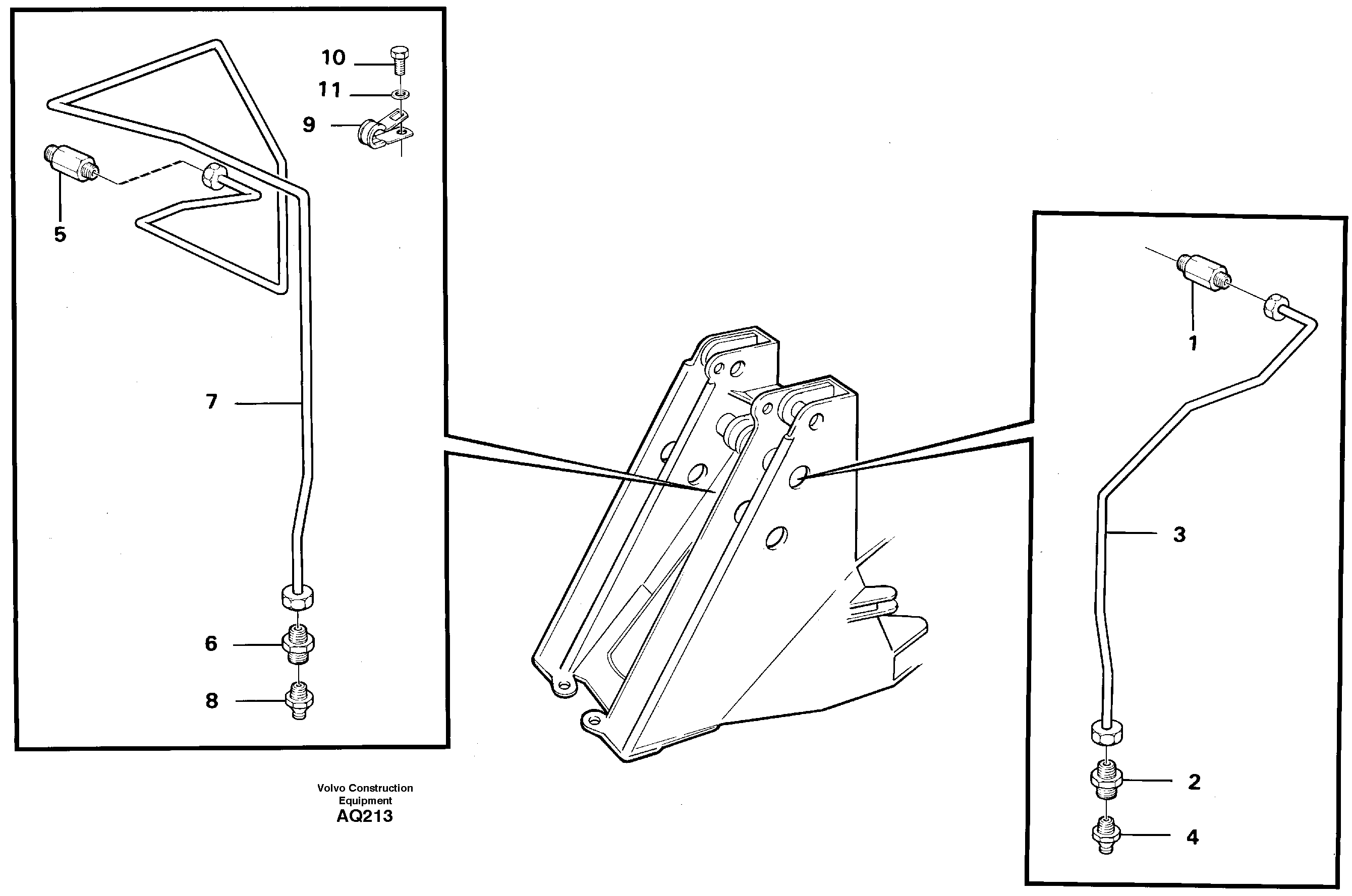

Extended lubepoints for loader linkage.

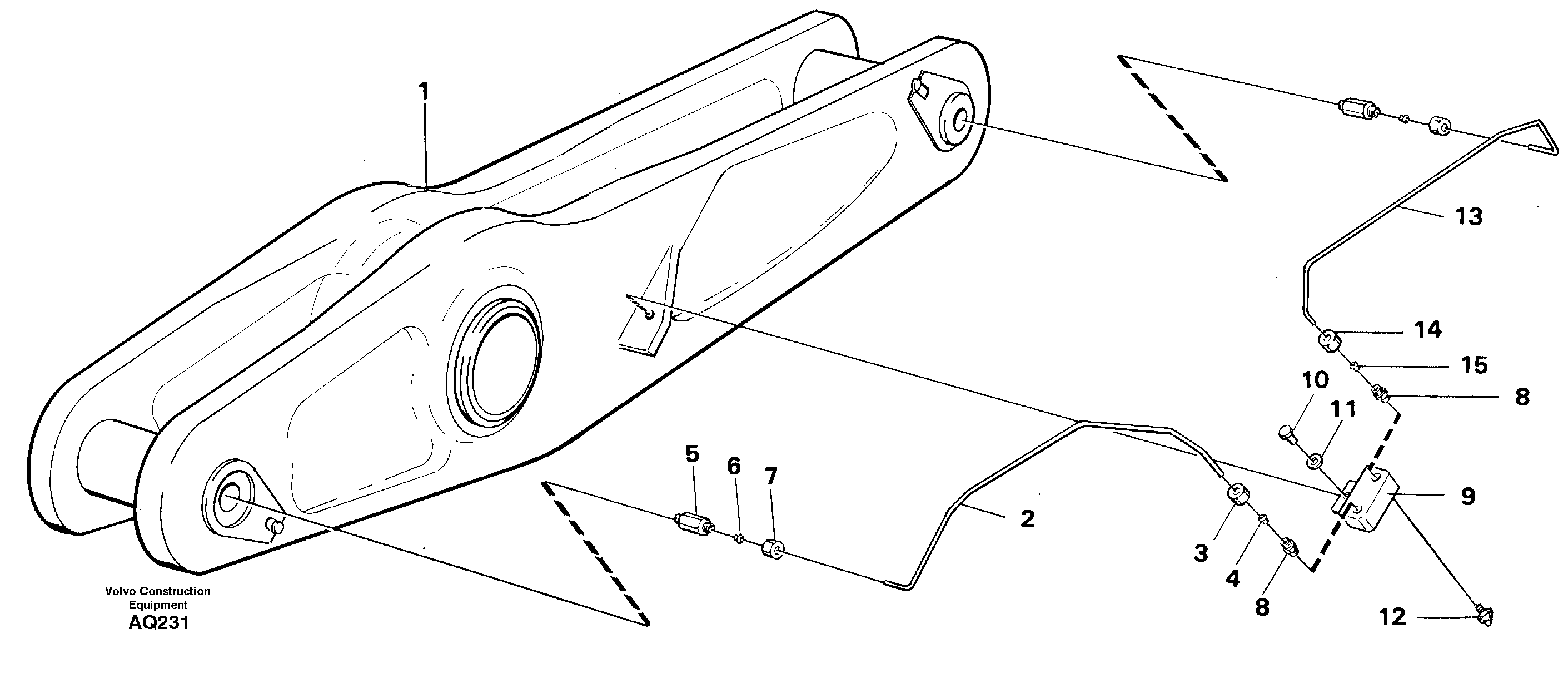

Extended lubepoints for lift arm system
